^{1}The School of Physics and Astronomy, University of Leeds, Leeds, United Kingdom^{2}The Department of Physics, Sultan Qaboos University, Al Khod, Oman^{3}Centre for Quantum Optical Technologies, Centre of New Technologies, University of Warsaw, Warsaw, Poland

Recent experimental tests of Bell inequalities confirm that *entangled* quantum systems cannot be described by local classical theories but still do not answer the question whether or not quantum systems could, in principle, be modeled by linear hidden variable theories. In this paper, we study the quantum trajectories of a single qubit that experiences a sequence of repeated generalized measurements. It is shown that this system, which constitutes a hidden quantum Markov model, is more likely to produce complex time correlations than any classical hidden Markov model with two output symbols. From this, we conclude that quantum physics cannot be replaced by linear hidden variable theories. Indeed, it has already been recognized that not only entanglement but also non-classical time correlations of quantum systems with quantum feedback are a valuable resource for quantum technology applications.

## 1 Introduction

Entanglement, as defined by Erwin Schrödinger [1], is considered by many the “essence of quantum physics” [2] and the origin of “spooky action at a distance” [3] and therefore receives a lot of attention, especially in recent research into quantum information processing. Many quantum technology applications, from quantum cryptography to quantum metrology and quantum computing, require entanglement as a resource. It is, therefore, not surprising that entanglement is also often at the center of a debate which tries to draw a clear line between quantum and classical physics. For example, already in 1935, Einstein, Podolsky, and Rosen asked the question whether or not the dynamics of quantum systems could be described by classical hidden variable theories [4]. They were hoping that quantum physics was simply a way of dealing with a lack of knowledge rather than indicating the need for an alternative, non-deterministic approach to physics.

In 1964, Bell constructed an inequality that could be violated by entangled quantum systems but not by performing measurements on two individual classical particles with local hidden properties [5]. Suddenly, the question of physics being either quantum or classical was no longer just a matter of interpretation. It was now possible to verify and quantitatively measure the strangeness of quantum systems. Over the years, several tests of Bell inequalities [6] have been performed [7–10], and a strong case has been made for the reality of quantum physics and the existence of entanglement. Eventually, in 2015, additional loopholes of previous Bell tests were closed [11–13], and quantum physics became widely accepted not only as a highly efficient but also as a necessary approach. Although it is still possible to describe quantum systems by linear hidden variable theories, it was concluded that such classical theories would have to be at least non-local [14].

However, entanglement is not the only strange property of quantum systems. Another characteristic that they do not share with classical systems is that a measurement results in a so-called collapse of their internal state [15]. A quantum jump occurs, and the quantum state immediately after a measurement is, in general, not the same as it was before [16]. For example, weak light arriving at a detector either causes a click or no click since photons can only be detected in integer numbers [17]. In case of a click, the presence of a photon becomes reality, even when the photon number expectation value of the incoming light was well below one before the detection. Energy is preserved but only when averaged over many trajectories. Without quantum jumps, repeating a measurement might not yield the same outcome as a previous measurement, which would mean that its outcome was meaningless. This is in contrast to classical physics where a measurement reveals information but does not cause a physical system to change.

In 1975, Dehmelt pointed out that driving a single three-level atom with appropriate laser fields can lead to macroscopic quantum jumps [18]. These are a random sequence of long periods of constant fluorescence interrupted by long periods of no fluorescence. The light and dark periods of a blinking atom occur on macroscopic time scales and are a manifestation of very persistent time correlations. Subsequently, the existence of macroscopic quantum jumps has been experimentally verified by several groups [19–21], and theoretical models were developed to accurately predict the statistical properties of their trajectories [22–25]. Since there are a large variety of classical stochastic processes, it is hard to argue that the time correlations in these quantum experiments were non-classical. Hence, quantum jump experiments were mainly used to illustrate the stochastic nature of quantum physics [26].

Only much later, attempts were made to capture the non-classicality of time correlations, for example, through the introduction of temporal Bell inequalities [27–33], which could only be violated by quantum but not by classical stochastic processes. For example, [29] coined the term “entanglement in time.” To verify the non-classicality of their measurement correlations, authors looked for examples of causality violations since classical systems are always causal [34, 35]. For example, quantum switches with applications in quantum communication require a single quantum system to simultaneously experience *two or more quantum channels* such that the order of cause and effect becomes obscured [36]. Indeed, it has already been shown that quantum switches and other systems which can violate causality provide interesting additional resources for quantum technology applications, like quantum computing and quantum communication [37–41].

The purpose of this paper is to emphasize that temporal quantum correlations can occur even when a quantum system as simple as a single qubit experiences only *a single quantum channel*. As we shall see below, sequential generalized measurements can generate non-classical time correlations, even in the absence of causality violations and entanglement. From this, we conclude that stochastic quantum processes cannot be captured by classical linear hidden variable theories, thereby imposing a much tighter boundary on what behavior can be considered *quantum*. In good agreement with [42–49], we find that quantum physics can reduce the complexity and memory needed, for example, when simulating certain stochastic processes.

As in [49], we consider, in the following, a single qubit which experiences the same generalized measurement many times. Its measurement outcomes “*A*” and “*B*” are recorded, and we then study the stochastic properties of the generated random sequence. As we shall see below, such a system can be classified as a hidden quantum Markov model (HQMM) with one memory qubit. HQMMs [50–54] are quantum versions of stochastic generators which became known as Markov models (MMs) [55] and as hidden Markov models (HMMs) [56–60]. A clear advantage here is the ability of quantum systems to maintain correlations over longer periods of time than classical systems, thus enabling them to exhibit more exotic behavior. Because of this, HQMMs already found applications in quantum machine learning [61, 62] and in simulating open quantum systems [63, 64]. For example, HQMMs based on single-mode coherent states can lead to a violation of the standard quantum limit and a quantum advantage in quantum metrology applications even in the absence of entanglement [65–67]. Moreover, generalized measurements have interesting applications in quantum communication [68, 69].

In the following, we study the stochastic properties of the output sequences of a relatively large class of HQMMs with a single memory qubit and compare them with the stochastic properties of the output sequences of MMs and HMMs with two output symbols “*A*” and “*B*”. Despite looking only at a subset of all possible HQMMs, we find that HQMMs can generate stochastic processes with stronger time correlations than all possible MMs and HMMs with two output symbols, even when we allow for HMMs with hidden memories of any size. More concretely, we find that increasing the memory of an HMM does not increase its complexity. In MMs and HMMs, the presence of temporal correlations in consecutive outputs cannot be sustained very long, and previous output symbols in general seem to be much more quickly forgotten than in the case of HQMMs.

This paper contains five sections. In Section 2, we define MMs, HMMs, and HQMMs and introduce the notation which is used throughout the paper. Afterward, in Section 3, we parametrize all three machines and derive analytical expressions for output probabilities of certain stochastic sequences. Due to the ergodicity of the considered stochastic generators, we assume that they possess a stationary state and only consider word probabilities for the case when the machine transitioned into its stationary state. After introducing all the necessary theoretical characterization of the three models, we present a numerical comparison of their complexity in Section 4. Finally, we summarize our findings in Section 5.

## 2 Hidden quantum Markov models and their classical counterparts

Markov models, which are also known as Markov chains, are memoryless generators of stochastic processes. One way of simulating more complex stochastic processes is to replace these machines by HMMs. Alternatively, more complex stochastic sequences can be generated using HQMMs which take advantage of quantum physics. In this subsection, we have a closer look at the definitions of all three machines. For simplicity, we restrict ourselves to machines with only two possible outputs, *A* and *B*.

### 2.1 Markov models

Discrete-time MMs evolve on a coarse-grained time-scale, and each time step Δ*t* of their dynamics is dominated by a random transition from a state *i* to another state *j*. At the end of each time step, a measurement is performed, and an output symbol is generated that indicates the current state of the machine [55]. The dynamics of discrete-time MMs and their measurement outputs depend solely on the previous state *i* but not on the history of the machine, which is known as its *Markov property*. Discrete MMs are, therefore, fully characterized by 3-tuples ** p**(0) contains all the probabilities to find the machine in a certain initial state. Here, we only consider stochastic machines with two possible internal states 1 and 2. As illustrated in Figure 1A, preparing the machine in 1 or in 2 generates the output

*A*or

*B*, respectively. Suppose

*S*(

*n*) =

*i*is the state of an individual machine after

*n*time steps. Then,

with the transition probability *t*_{j|i}. The current state *S* (*n* + 1) does not contain any information about the previous or the initial state of the machine.

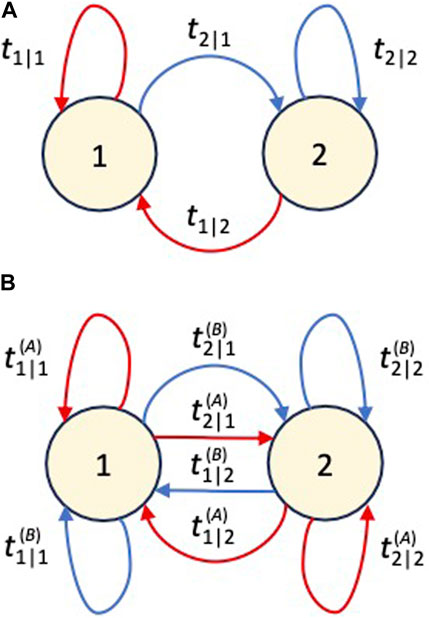

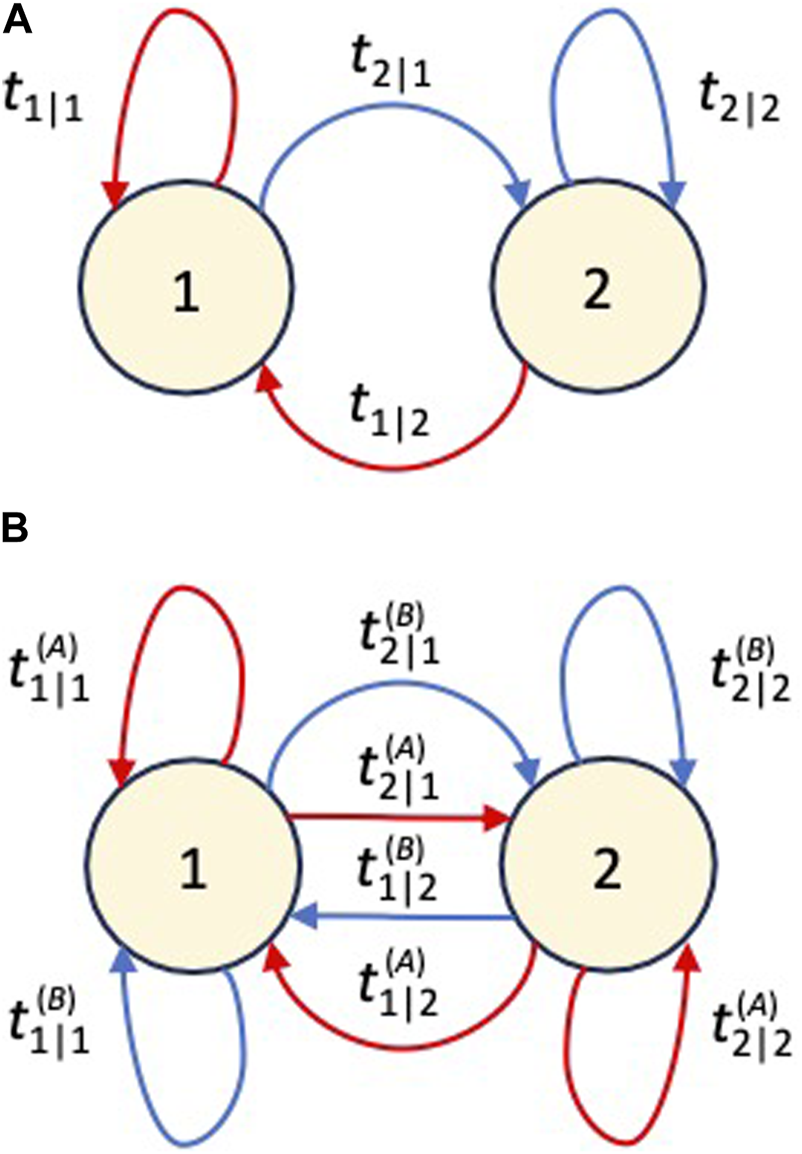

**FIGURE 1**. **(A)** Schematic view of a Markov model with two states 1 and 2. Here, *t*_{j|i} denotes the probability of the machine to undergo transition from state *i* to state *j*. During each transition, an output symbol is created. All red arrows are accompanied by the generation of “*A*”, while the blue arrows correspond to transitions which generate “*B*”. In this way, the obtained output symbol is a clear indication of the state of the machine. The state of the machine is, therefore, not hidden. **(B)** Schematic view of a Markov model with two states 1 and 2. Here, *t*_{j|i} denotes the probability of the machine to undergo transition from state *i* to state *j*. During each transition, an output symbol is created. All red arrows are accompanied by the generation of “*A*”, while the blue arrow correspond to transitions which generate “*B*”. In this way, the obtained output symbol is a clear indication of the state of the machine. The state of the machine is, therefore, not hidden.

If measurement outcomes are ignored or if ensemble averages for a large number of MMs are considered, the states *S*(*n*) of individual MMs remain unknown. In this case, we describe the state of the machine by a two-dimensional vector ** p**(

*n*) of the form

Here, *p*_{i}(*n*) is the probability of finding the machine after *n* time steps in state *i* and *p*_{1}(*n*) + *p*_{2}(*n*) = 1. Ignoring output symbols, the dynamics of the state vector ** p**(

*n*) can be described by a single transition matrix

The operator *T* contains all the probabilities *t*_{j|i} that govern the dynamics of the MM. For example, for the two-state Markov chain in Figure 1A, we have

As is seen in Section 4, the relative simplicity of MMs has the drawback of resulting in only relatively weak correlations in their output sequences.

### 2.2 Hidden Markov models

Different from MMs, HMMs are stochastic generators whose output symbols do *not* reveal their state. The internal state remains *hidden*. Nevertheless, HMMs obey the Markov property as well, and output symbols and transitions depend only on their previous state. Hence, HMMs are characterized by 4-tuples ** p** (0) contains the initial state probabilities. However,

*i*into a certain state

*j*while creating a certain output symbol. Moreover,

Here, we are especially interested in machines with only two possible outputs, namely, *A* and *B*. In the case of HMMs, this does not restrict the number of internal states. In the following, we denote the hidden states of the HMM by *i*, with *i* varying from 1 and *N*. Suppose *i* to transition to *j* while generating output *m*. In this case, *S*(*n*) = *i* and *S* (*n* + 1) = *j*, as shown in Eq. 1. The probability *t*_{j|i} which now equals the sum of the probabilities of generating an *A* and a *B* in this case,

Since an external observer has access to the outputs of the machine but not to its hidden states, we now have two transition matrices *T*_{m} with *m* = *A*, *B* such that

Using this notation, the state vector ** p** (

*n*+ 1) with coordinates

*p*

_{i}(

*n*+ 1) which represent the probability of the machine being in state

*i*after

*n*+ 1 steps equals

if the state of the machine equaled ** p**(

*n*) after

*n*steps, and output

*m*was obtained in step

*n*+ 1. Here, Pr

_{n}(

*m*) denotes the probability of obtaining the output

*m*in step

*n*. Different from MMs, the state vectors

**(**

*p**n*) are now real vectors of dimension

*N*.

For example, we can now calculate the probability of an HMM being in a certain state *i* after *n* steps when all measurement outputs are ignored. As in the previous subsection, in this case, the dynamics of the state vectors of the HMM can be described by a transition matrix *T*,

which is the sum of the two sub-transition matrices *T*_{A} and *T*_{B}. Using this notation,

in analogy to Eq. 1. The matrix element of the total transition matrix *T* is *t*_{j|i} in Eq. 3. If *η* = (1,1, … ,1)^{T} is a row vector with all *N* coordinates equal to 1, then the probability Pr_{n+1}(*m*) of getting output *m* after *n* + 1 steps equals

We now have all the information needed to simulate all possible individual trajectories of a given HMM with *N* internal states.

### 2.3 Hidden quantum Markov models

To obtain quantum versions of HMMs, all we need to do is to replace their hidden states *i* by quantum states |*i*⟩. However, being quantum, the allowed internal states of an HQMM are *not* discrete but continuous. In general, the hidden quantum memory is in a linear superposition of a finite number of discrete quantum states. More concretely, the state |*ψ*(*n*)⟩ of an HQMM after *n* steps can always be written as follows:

where *c*_{i}(*n*) denotes complex coefficients with

As before, the output symbol and the transition of an HQMM depend only on its current internal state, and transitions between subsequent states |*ψ*(*n*)⟩ are again specified by linear stochastic process transition matrices [51]. More concretely, given that the output symbol *m* is measured, the state of the HQMM changes such that

The probability to obtain this outcome for the given initial state |*ψ*(*n*)⟩ now equals

which is different from the probability Pr_{n+1}(*m*) in Eq. 5. The operator *K*_{m} in the above equations is a so-called Kraus operator, which obeys certain constraints [15]. For example, here, we are especially interested in HQMMs with two output symbols, *A* and *B*. In this case, probabilities for the two possible measurement outcomes must add up to one. This applies when

where *I* denotes the identity operator. In this case, the HQMM uses only a single qubit as its internal memory. This means the hidden state of the machine belongs to a two-dimensional state space (*N* = 2).

Again, if the measurement outputs of the machine are ignored, we cannot know the states |*ψ*(*n*)⟩ of individual HQMMs even when their initial state |*ψ*(0)⟩ is known. In this case, the probability vectors ** p**(

*n*) of HMMs need to be replaced by density matrices

*ρ*(

*n*). These describe the quantum state of the memory averaged over a large ensemble of individual machines and allow us to predict the dynamics of expectation values, like the probability of finding the HQMM at a certain time step in a certain internal state. Instead of Eq. 6, the dynamics of the HQMM is now given by the following equation:

with the superoperator

In other words, the Kraus operators *K*_{A} and *K*_{B} replace the transition matrices *T*_{A} and *T*_{B} of HMMs, which we introduced in the previous subsection. For example, the probability Pr_{n+1}(*m*) of generating an output *m* in step *n* + 1 now equals

where the trace, Tr, denotes the sum of all the diagonal matrix elements.

## 3 Parametrization, stationary states, and different observable properties

In this section, we parametrize the machines that we introduced in the previous section and highlight the constraints that must be satisfied by each model. In addition, we determine stationary state distributions whenever possible and calculate the probabilities for certain output sequences. For simplicity, we assume, in the following, that all three machines are ergodic due to their finite size and therefore possess a stationary state. The calculated “word probabilities” (probability of a specific output sequence), therefore, apply to the outputs of large ensembles of machines, which all have already reached their stationary states. They also apply to all the words generated by a single machine when averaged over an infinitely long trajectory of output symbols, like the ones illustrated in Figure 2.

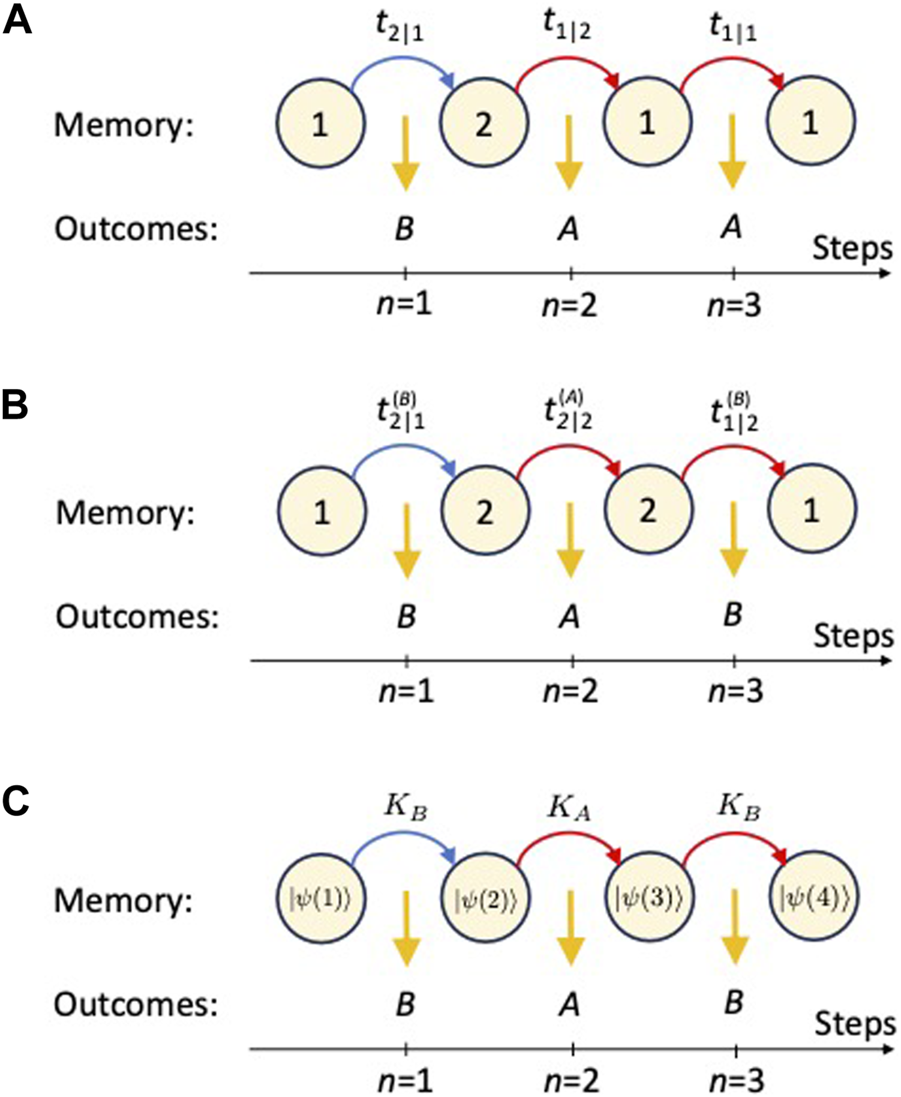

**FIGURE 2**. Comparison of the mechanisms which lead to the generation of output symbols in the cases of MCs, HMMs, and HQMMs. **(A)** A Markov chain has two states *A* and *B*, and the transition between states over time is governed by the transition probability matrix. The gray arrows show all possible routes of evolving the Markov chain with time, while the red arrow shows a single trajectory. **(B)** Hidden Markov model evolution over time. Here, the Markov chain has two states *A* and *B*, and the transition between states over time is governed by the transition probability matrix. The diagram shows one possible route of evolving the Markov chain with time. **(C)** Hidden quantum Markov model evolution over time. Here, the hidden quantum Markov model has two states *A* and *B*, and the transition between states over time is governed by the transition probability matrix. The diagram shows all possible routes of evolving the hidden quantum Markov model with time.

### 3.1 Markov Models

From probability theory, we know that the matrix elements of the transition matrix *T* in Eq. 2 are all between zero and one. In addition, they must obey the condition

for *i* = 1, 2 to ensure that the machine always transitions into one of its two available states 1 and 2. Since *T* has four matrix elements and there are two constraints, we can parametrize one-bit MMs using only two independent parameters *p* and *q*. More concretely, we write *T* in the following as

with parameters *p*, *q* ∈ [0, 1]. Here, *t*_{1|1} = *p*, *t*_{2|2} = *q*, *t*_{2|1} = 1 − *p*, and *t*_{1|2} = 1 − *q*. In the next section, we will choose *p* and *q* randomly to sample a large set of all possible random machines and study the properties of their output sequences.

The possible output sequences of each machine depend somewhat on their respective initial state ** p** (0). However, if the machine is ergodic and its outputs are ignored for a certain initial minimum amount of time, it soon assumes a stationary state

Using Eq. 10 and taking into account that *p*_{1} and *p*_{2} must add up to one, one can show that

These probabilities tell us how likely it is to find a certain machine which is characterized by *p* and *q* either in 1 or in 2. Hence, they also equal the probabilities to obtain the outputs *A* and *B* at any time *n*, if the previous outputs of the machine are unknown and cannot be taken into account.

Suppose the machine has initially been prepared in its stationary state *p*_{ss}. Then, the probability *P* (*i*_{1}*i*_{2} … *i*_{m}) of obtaining the output sequence *i*_{1}*i*_{2} … *i*_{m} of length *m* simply equals

with *m* + 2 which starts and ends with the output symbol *A* and otherwise only contains *B*’s equals

Alternatively, we could ask, for example, the following question: what is the probability of a word of length *m* + 2 to start and end with the output symbol *A*? This probability equals

Probabilities like the above ones are a measure for the complexity of the machine. For example, the probability *P*_{m} (*A**…**A*) can tell us how long correlations persist in the output sequences of a machine. For large *m*, the probability *P*_{m} (*A**…**A*) tends to *p*_{1} and any knowledge about having been prepared in 1 exactly *m* + 1 steps earlier is lost.

### 3.2 Hidden Markov models

As we have seen in Section 2.3, the description of HMMs with two outputs and *N* internal states requires two transition matrices *T*_{m} with *N*^{2} matrix elements *t*_{j|i}’s in Eq. 3 are all between zero and one. To, moreover, preserve normality of the probability distribution, we require that

with the matrix element *t*_{j|i} defined in Eq. 3. Hence, the transition matrix *T* in Eq. 4 is an *N* × *N* matrix. Given the *N* constraints in Eq. 16, we, therefore, have *N*^{2} − *N* = *N*(*N* − 1) free parameters for the matrix *T*. Once *T* is fixed, the sub-transition matrix *T*_{A} can assume *N*^{2}-positive free parameters, but these are bounded from above by the matrix elements of *T*. Once we know *T*_{A}, we also know *T*_{B}. Hence, in total, the characterization of a Mealy HMM requires *N*(*N* − 1) + *N*^{2} = (2*N* − 1)*N* independent parameters.

HMMs are non-deterministic (non-unifilar) since the same transition path can result in different stochastic outputs that increase their complexity [53]. For example, the stationary state is again the distribution vector *p*_{ss} which is an eigenvector of the transition matrix *T* such that *T**p*_{ss} = *p*_{ss}, as stated in Eq. 11. For HMMs, *N*-dimensional column vector. In case of ergodicity, the state vector *p*_{ss} can be found, for example, numerically by applying *T* repeatedly to an initial state until the state of the machine remains the same. However, there is no guarantee that an HMM with *N* internal states has only a single stationary state. For example, an HMM could consist of two independent HMMs with *N*_{1} and *N*_{2} = *N* − *N*_{1} internal states. In our analysis of HMMs in Section 4, we only consider the stationary state *p*_{ss}, which is calculated in a numerical simulation of the machine.

Since the transitions of an HMM are governed by two sub-transitions matrices, namely, *T*_{A} and *T*_{B}, the probability *P* (*i*_{1}*i*_{2} … *i*_{m}) for generating the output sequence *i*_{1}*i*_{2} … *i*_{m} now reads

More concretely, the probability *P*_{m} (*AB* … *BA*) in Eq. 14 becomes

If we ignore the *m* output symbols between the first and the last *A*, this probability changes into

All three probabilities differ significantly from the probabilities given in Eqs 13–15. As is seen in the next section, HMMs are more likely to produce correlated output sequences than MMs because of their hidden memory.

### 3.3 Hidden quantum Markov models

Next, let us have a closer observation at how to parametrize HQMMs. Their generalized measurements can be realized by allowing the qubit, which encodes the hidden state of the machine, to interact with an auxiliary quantum system, i.e., an environment, followed by projective measurements on a coarse-grained time scale Δ*t*. In every time step, some hidden information can leak into the environment. Markovianity requires that the ancilla, i.e., the environment, is reset to the same initial state after each measurement. Otherwise, the dynamics of the HQMM would not depend only on the current state of its memory qubit. Figure 2C illustrates the stochastic dynamics of the qubit and the random measurement outcomes that might be produced in a single run of such a machine.

#### 3.3.1 Parametrization of Kraus operators

As in [51, 52], we model HQMMs in the following using the language of open quantum systems and introduce Kraus operators *K*_{A} and *K*_{B}, which we associate with the output symbols *A* and *B* of the machine. To parametrize these Kraus operators, we write them in the following as

The eight complex matrix elements of *K*_{A} and *K*_{B} can be represented by 16 real parameters. However, as pointed out in Eq. 7, *K*_{A} and *K*_{B} must obey a matrix equation which implies that

These three equations impose four (real) constraints on the abovementioned 16 real parameters, thereby reducing the total number of free (real) parameters needed to fully characterize HQMMs with one memory qubit to 12. This means a one-qubit HQMM has more free parameters than an HMM with one or two internal states but less free parameters than an HMM with more than two internal states. Nevertheless, as is seen in the following section, it is a more powerful stochastic generator.

#### 3.3.2 Stationary states

If a track record of all measurement outcomes is kept, an HQMM that has initially been prepared in a pure state |*ψ*(0)⟩ can always be described by a pure state |*ψ*(*n*)⟩. However, as mentioned already in the previous section, if this is not the case and measurement outcomes are ignored, the HQMM must be described by a density matrix *ρ*(*n*) instead. How this density matrix evolves from one time step to the next is shown in Eq. 8. Its stationary state is, therefore, the density matrix *ρ*_{ss} with

with the superoperator *ρ*_{ss} can be written as follows:

with two real matrix elements, *ρ*_{00} and *ρ*_{11}, and two complex matrix elements, *ρ*_{01} and *ρ*_{10}, and with

In principle, using Eqs 20–24, the stationary state density matrix *ρ*_{ss} of HQMMs could be calculated analytically, but the resulting equations do not provide much insight since they still contain 12 free parameters. In the following section, we, therefore, solve the above equations only numerically.

#### 3.3.3 Word probabilities

As before, we now have a closer look at word probabilities. For example, the probability *P* (*i*_{1}*i*_{2} … *i*_{m}) in Eqs 13–17 now equals

with the Kraus operators *K*_{m} given in Eq. 20. Moreover, the probabilities *P*_{m} (*AB* … *BA*) and *P*_{m} (*A**…**A*) are now given by the following equations:

which have many similarities with Eqs 18, 19.

## 4 A comparison of the complexity of MMs, HMMs, and HQMMs

In this final section, we use the parametrization of MMs, HMMs, and HQMMs with two output symbols, which we introduced in the previous section, to study and compare the word probabilities and the time correlations that these machines can produce. As we shall see below, there is not much difference between the complexity of MMs and HMMs. Moreover, we find that increasing the number of internal states of HMMs does not significantly change the correlation range of their output symbols. The possible correlations between output symbols seem to disappear relatively quickly, after only a few time steps. For simplicity, we only consider a subset of all possible HQMMs with only 3 instead of 12 free parameters. Nevertheless, we find that the HQMMs are the most complex of all three machines.

### 4.1 Simulating HMMs with more than two internal states

First, let us have a closer look at the effect of increasing the number of internal states *N* of HMMs on their measurement correlations while keeping the number of outcomes equal to two. More concretely, we study the output sequences of HMMs with 2, 3, and 4 internal states. The simulation was carried out as follows: first, we determine a random transition matrix *T* and random sub-transition matrices *T*_{A} and *T*_{B} so that the elements of each matrix fulfill the constraints imposed by the model. Then, we determine the corresponding stationary state and evaluate the probabilities *P*(*B*) and *P*(*BAAAB*). These probabilities are calculated for 10^{5} randomly generated machines and used as the coordinates for the blue dots shown in Figure 3.

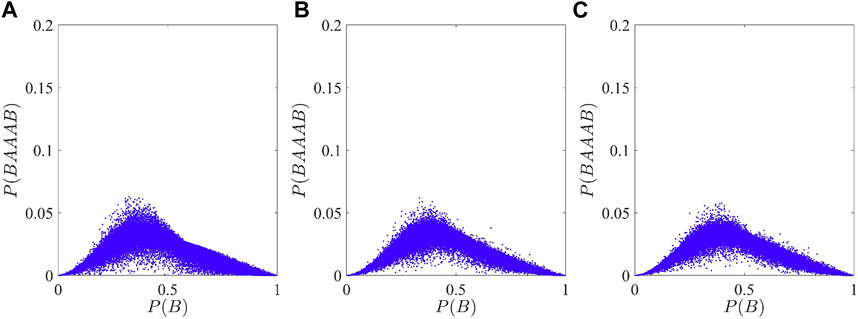

**FIGURE 3**. Blue dots show the probability *P*(*BAAAB*) as a function of *P*(*B*) for 10^{5} randomly generated stochastic generators which satisfy the parametrization and conditions imposed on HMMs. The three figures show HMMs with **(A)** two, **(B)** three, and **(C)** four internal states. For each randomly generated machine, we only calculated the probability *P*(*BAAAB*) as a function of *P*(*B*) of observing the sequence “*BAAAB*” and “*B*” once the respective machine reached a stationary state.

As shown in Figure 3, the differences between the three plots are almost negligible. The reason for this might be that we consider machines with only two output symbols. Having only two internal states seems to be sufficient to generate all the correlations that the corresponding HMMs can produce. Expanding the HMMs to include more than two internal states does not improve the performance of the model. If anything, the space that the blue dots occupy in Figures 3B, C seems to be slightly less than the space they occupy in Figure 3A, due to the increasingly large space needed to sample. Increasing the number of internal states seems to make the generation of an “optimal” machine less likely while concentrating the points to a central region. Such sampling problems, while interesting in themselves, do not pose any further interest in the study we consider here. Instead, we satisfy ourselves knowing that the internal state space is not important within the hidden machines (at least with a single output bit). We, therefore, know that increasing hidden resources is not an alternative to generating quantum dynamics, and as such, any increase in complexity is given solely by this new quantum behavior.

### 4.2 An interesting subset of HQMMs

As is seen in Section 3.3, a complete parametrization of 1-qubit HQMMs requires 12 real parameters. However, to conclude that HQMMs are more complex than HMMs, we only need to identify one stochastic process that can be modeled using an HQMM but cannot be modeled classically. Keeping this in mind, we consider, in the following, HQMMs with Kraus operators *K*_{A} and *K*_{B}, which can be written as follows:

Here *a*, *φ*, and *ϑ* are real parameters with

It is relatively straightforward to check that the above operators are indeed valid Kraus operators. Instead of 12, we now only have to deal with three free parameters. The stationary states of the above HQMMs can be calculated using Eqs 20 and 21 by proceeding as described in the previous sections.

To show that the above-described generalized measurement is of physical relevance, let us have a closer look at how it could be realized experimentally. As an example, we assume that the memory qubit is a single atom with ground state |1⟩ and an excited state |2⟩. Suppose the initial state of the atom equals

and *Γ* is the spontaneous decay rate of its excited state. Under the condition of no photon emission, the unnormalized state of the atom equals [17]

after some time Δ*t* since not seeing a photon reveals information about the state of the atom and decreases the probability that the atom is in its excited state. Suppose, we rotate the state of the atom at time Δ*t* by applying the unitary operator

This can be done, for example, using a short strong laser pulse. It is relatively straightforward to check that the overall effect is the implementation of the Kraus operator *K*_{A} if the parameter *a* in Eq. 25 equals exp (−Γ Δ*t*/2). This applies since

in this case. In other words, not seeing a photon in a time interval (0, Δ*t*) followed by the application of *U*_{A} is a way of realizing *K*_{A}.

However, if the atom emits a photon within the time interval (0, Δ*t*), its unnormalized state equals [17]

at Δ*t*. This state is normalized such that ‖|*ψ*(Δ*t*)⟩‖^{2} equals the probability of seeing a photon in (0, Δ*t*). Now suppose, the photon emission is followed by the application of the unitary operator

Then, seeing a photon changes the state of the atom, up to a normalization factor into *K*_{B} |*ψ*(0)⟩, since

This means seeing a photon now constitutes a *B* measurement. One can easily check that the output states and probabilities for measuring the outcomes *A* and *B*, respectively, are as one would expect for a generalized measurement with Kraus operators *K*_{A} and *K*_{B}. In the next subsection, we have a closer look at the output sequences that can be obtained by applying the above-described generalized measurement repeatedly to a memory qubit.

### 4.3 A comparison of the performance of the machines

This final subsection outlines a comparative analysis of the stochastic properties of the output sequences of the above-introduced MMs, HMMs, and HQMMs with output symbols *A* and *B*. In each case, we generate a large number of random machines and determine their stationary-state word probabilities *P*(*BAAAB*) and *P*(*B*) as previously described, for example, in Section 4.1. For each machine, we then place a single dot in the corresponding figure. The selected sequence for the simulation is “*BAAAB*” with *P*(*BAAAB*) representing the probability of observing the event *B* subsequent to three consecutive occurrences of *AAA*, given that the initial outcome is *B*. In other words, this sequence provides insights into the correlation between two *B* outcomes separated by multiple observations of *A*. Figure 4 illustrates that the HQMMs are much more likely to generate word sequences “*BAAAB*” for a given probability *P*(*B*). This means they exhibit a superior performance due to their ability to occupy a larger state space than their classical counterparts, thereby maintaining some information about the history of the machines despite having the Markov property. In summary, despite utilizing only a single qubit as a memory, HQMMs have the capacity to exhibit temporal correlations which cannot be reproduced by linear hidden variable models.

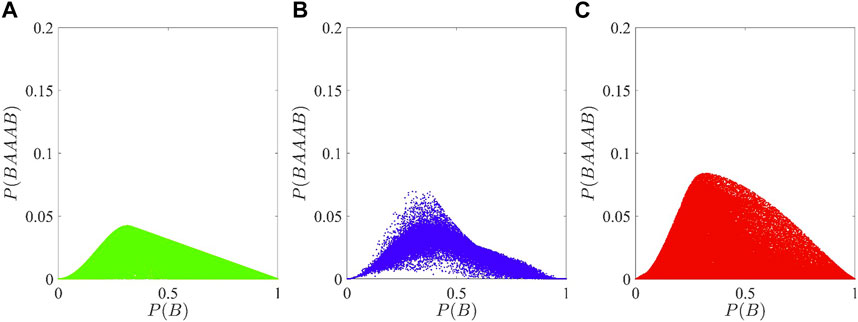

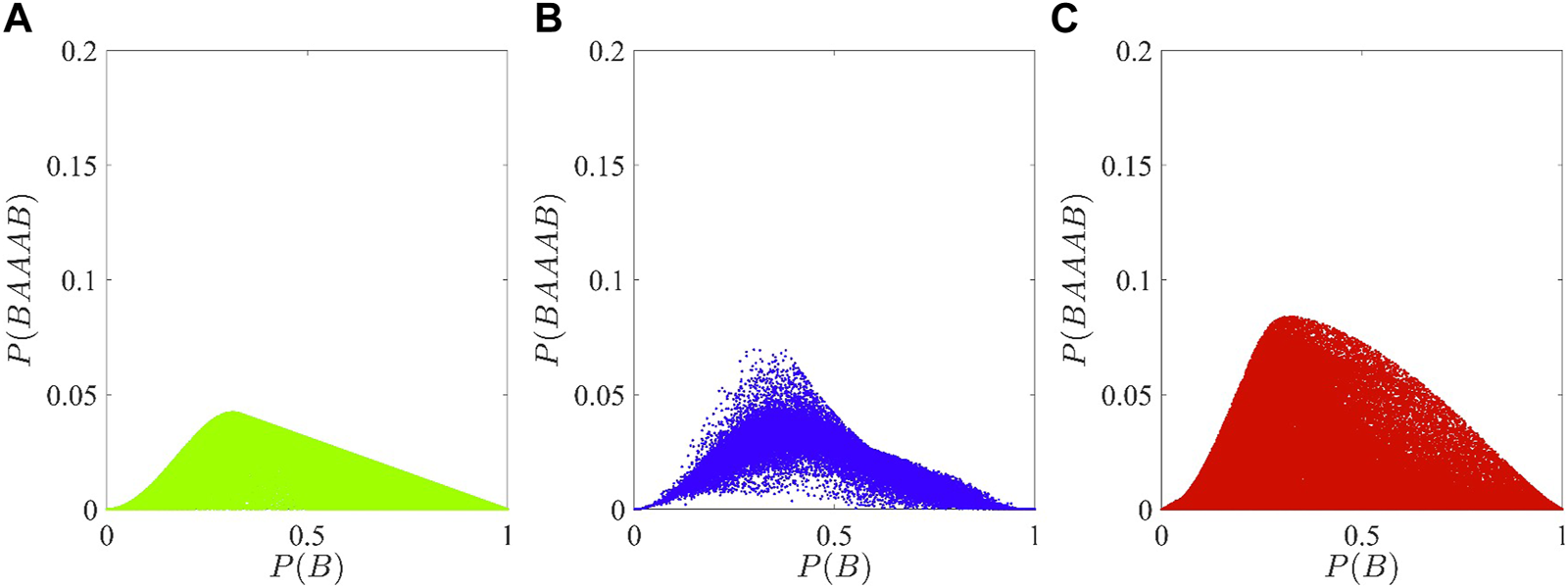

**FIGURE 4**. Probability *P*(*BAAAB*) of observing the sequence “*BAAAB*” as a function of *P*(*B*) for **(A)** a Markov chain (green), **(B)** a hidden Markov model with two internal states (blue), and **(C)** a hidden quantum Markov model (red). Each point corresponds to a randomly generated machine. As one might expect, the comparison of the figures shows in general higher correlations between the measurement outcomes for HQMM than for their classical counterparts, HMMs and MMs, since the red dots cover a much bigger area. For each figure, 10^{5} randomly generated machines were taken into account.

To show that the above behavior is not an outlier but a general feature of HQMMs, we now also have a look at a different word and a different statistical measure. Figure 5 shows a comparison of the performance of MMs, HMMs, and HQMMs with two output symbols with respect to generating the word “*BABBAB*.” The coordinates of the dots are now given by *P*(*B*) and *P*(*BABBAB*)/(*P*(*A*)^{2}*P*(*B*)^{3}). For completely uncorrelated output sequences, this quantity is unity everywhere. Differences from unity, therefore, indicate correlated data. In Figure 5, we clearly see that the difference between the MMs and HMMs is relatively small, although HMMs are more likely to exceed unity than MMs. However, the distribution of the red dots shows that HQMMs are capable of producing relatively strong time correlations that the classical machines are incapable of. This further demonstrates the enhanced complexity of HQMMs and clearly shows that their stochastic dynamics cannot be captured by classical linear hidden variable theories.

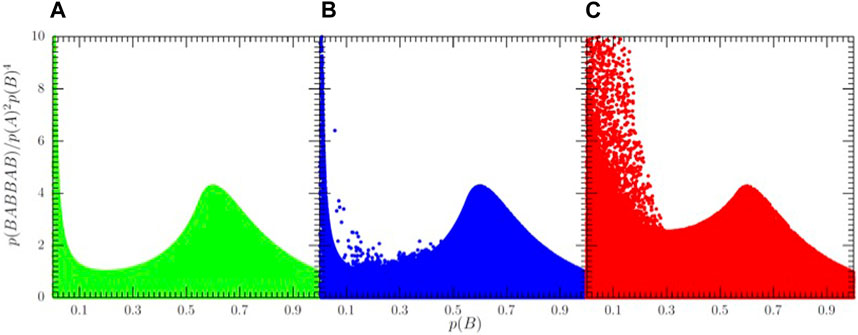

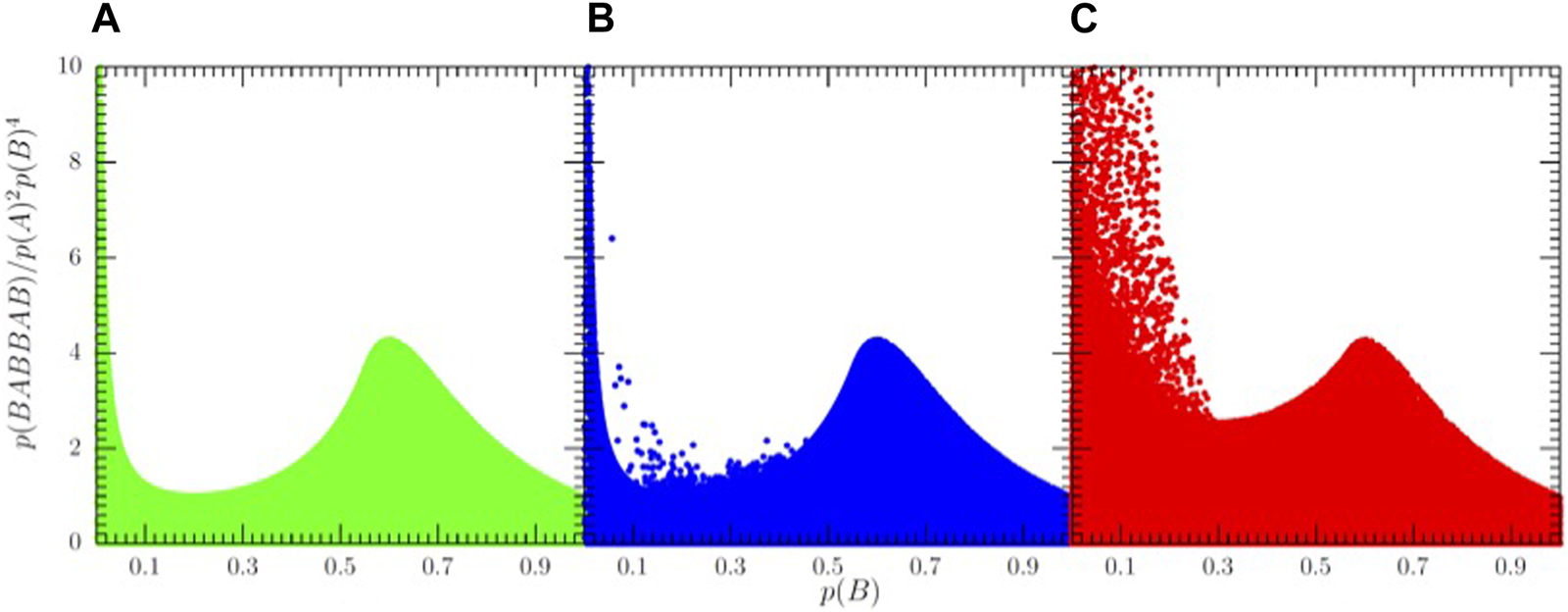

**FIGURE 5**. Probability *P*(*BABBAB*) of observing the sequence “*BABBAB*” divided by the product of the stationary state probability of each letter of the word, i.e., by *P*(*A*)^{2}*P*(*B*)^{3}, as a function of *P*(*B*) for **(A)** a Markov chain (green), **(B)** a hidden Markov model with two internal states (blue), and **(C)** a hidden quantum Markov model (red). Again, a large number of output trajectories have been created. Similar to Figure 4, we again see an increase in complexity when considering a quantum machine, as demonstrated by the larger area covered in dots. The data here have been generated using the same methodology as Figure 4.

## 5 Conclusion

This paper compares classical Markov chain-based models, specifically MMs and HMMs with their quantum counterpart, so-called HQMMs. We reviewed the definitions of the three models with a specific emphasis on their parametrization. When increasing the internal states of HMMs with two outputs *A* and *B*, we observed that this does not improve the achievable temporal correlations among output sequences. Our simulations show that HMMs with two output symbols do not benefit from having more than two internal states. We then examined the probability of observing two specific output sequences, “*BAAAB*” and “*BABBAB*,” for a large number of randomly generated machines. Our simulations of the corresponding word probabilities clearly show that HQMMs can exhibit superior performance. For example, the probabilities *P*(*BAAAB*) of certain HQMMs are larger than the maximum probability *P*(*BAAAB*) that can be realized with linear classical models. This means quantum physics cannot be captured by classical linear hidden variable theories even in the absence of entanglement. Our work emphasizes the quantumness of temporal correlations in the output sequences produced by generalized measurements and recommends them as an additional resource (which is different from entanglement and usually much easier to produce) for quantum technology applications.
