Ground-state β-feeding determination using total-absorption spectrometers

The determination of the $\beta$ intensity probability between the ground states of parent and daughter nuclei has traditionally been a difficult task with standard $\gamma$-spectroscopy approaches due to the lack of the associated $\gamma$ emission. In the last years, the total absorption $\gamma$-ray spectroscopy technique has successfully proven its ability to deal with this problem by means of different procedures. This article discusses the potential of these methods, and a new approach for segmented total-absorption $\gamma$-ray spectrometers is also introduced. An overview of applications is presented based on past, present, and future $\beta$-decay experiments.

1 Introduction

The study of $\beta$-decay properties provides valuable information for our understanding of the nuclear structure. Among these properties, the determination of the $\beta$-decay probabilities to populate each level in the daughter nucleus is typically accomplished with $\gamma$-spectroscopy techniques. The traditional approach relies on HPGe detectors for the measurement of the individual $\gamma$-rays de-exciting the levels fed in the daughter nucleus. One difficulty arises when dealing with the probability to populate the ground state (g.s.), $I_{\beta }^{g.s.}$, because of the absence of the $\gamma$-ray emission. For this reason, $I_{\beta }^{g.s.}$ is typically obtained indirectly as the difference between the total number of decays and the number of decays feeding excited states in the daughter nucleus. The latter are evaluated from $\gamma$-ray intensity imbalances using absolute $\gamma$ intensities per $\beta$ decay. A drawback of this method is the limited efficiency of HPGe detectors, especially for high-energy $\gamma$-rays, which translates into an underestimation of the probability to feed levels at high excitation energies in the daughter nucleus. This effect, known as pandemonium [1], generally becomes more severe with larger $\beta$-decay energy windows and when the number of levels potentially fed in the daughter nucleus is large.

The total-absorption $\gamma$-ray spectroscopy (TAGS) technique allows us to avoid the pandemonium effect by means of high-efficiency $\gamma$ calorimeters made of scintillation crystals. Such a detector, called total-absorption spectrometer (TAS), detects the full $\gamma$ cascade de-exciting each level populated in the daughter nucleus. A TAS is usually employed in coincidence with an ancillary detector for $\beta$-particles (typically plastic or Si $\mathrm{\Delta }$E detectors at ISOL facilities and Si implantation detectors at fragmentation facilities) in order to reject the environmental background. Examples of active TAS setups are Lucrecia [2], SuN [3], Rocinante [4], MTAS [5], DTAS [6], and HECTOR [7]. The feasibility of using TAS detectors for the determination of $I_{\beta }^{g.s.}$ is discussed in Section 2, highlighting some exciting applications in Section 3 and discussing the future perspective of this kind of measurements in Section 4.

2 Methods for the determination of $I_{\beta }^{g.s.}$ using a TAS

2.1 Deconvolution

The traditional method employed in the TAGS analysis to determine the $\beta$-intensities from experimental spectra is based on applying a deconvolution method for the solution of the inverse problem in Equation 1 [8]:

$d_i={\displaystyle \sum _j^{\mathit{levels}}}{R}_{ij}\left(B\right)f_j+C_i,(1)$

where $f_j$ represents the number of decay events feeding level $j$ in the daughter nucleus, $d_i$ is the number of counts in channel $i$ of the experimental TAGS spectrum, $C_i$ accounts for all contaminants in the experimental channel $i$ (electronic pileup, activity of descendants, etc.), and $R_{ij}$ is the response function of the TAS detector to the $\beta$-decay under analysis. This response function, in turn, depends on the branching ratios $(B)$ de-exciting the states populated in the daughter nucleus [9, 10]. The response function is calculated with Monte Carlo (MC) simulations, carefully validated with standard radioactive sources by comparing experimental and simulated spectra [9]. As part of $R_{ij}$, the response to the g.s.-to-g.s. transition is also calculated, and it gets involved in the deconvolution process. The associated $\beta$ particles emitted penetrate the scintillation material of the TAS detector if no absorbers are placed on purpose to stop them. In the case of ${\beta }^{-}$ decays, it produces a clear fingerprint with a tailing spectrum peaking at low energies, as shown in Figure 2. For ${\beta }^{+}$ decays, the g.s.-to-g.s. response includes the positron annihilation fingerprint with the detection of two 511-keV $\gamma$-rays, which enhances the efficiency for the g.s. branch. Note that in this case, as in the general case of the response associated with feeding to an excited state, the $\beta$ penetration effect introduces a high-energy tail in the spectrum when summed to the corresponding $\gamma$-ray detection.

2.2 4$\pi \gamma -\beta$ counting method

The $4\pi \gamma -\beta$ method is complementary but independent to the deconvolution of TAGS spectra presented in the previous section. It was proposed by Greenwood et al. 30 years ago [11] and applied to the study of the $\beta$-decays of several fission fragments. Recently, it was revisited, corrected, and extended for the case of $\beta$-delayed neutron emitters [12].

This method relies on the determination of the experimental ratio $R=N_{\beta \gamma }/N_{\beta }$, where $N_{\beta }$ is the number of counts detected in the ancillary $\beta$ detector and $N_{\beta \gamma }$ is the number of counts registered in coincidence in both the TAS and the $\beta$ detector. For the decay of interest, both numbers of counts must be corrected by subtracting all possible contaminants: electronic pileup, activity of descendants, etc. The same contaminants with the same normalization factors are taken into account in the TAGS deconvolution, as discussed in the previous section.

In addition, this method requires the computation of three correction factors, $a$, $b$, and $c$, that are ratios of $\beta$ efficiencies computed by means of MC simulations. The detailed definition of these terms is given in [12]. The response function $R_{ij}$ used for the TAGS deconvolution can be used for the evaluation of these correction factors.

With all these ingredients, the $\beta$ intensity probability to populate the g.s. in the daughter nucleus can be calculated as in Equation 2 [12].

$I_{\beta }^{g.s.}=\frac{1-aR}{1+bR-c}.(2)$

The main advantage of this method with respect to the TAGS deconvolution is that it does not depend on the features of the TAS spectrum, but only on the integral number of counts. This minimizes the impact of the branching ratio matrix $(B)$, which plays a crucial role in the reproduction of the structures of peaks found in the TAS spectrum when using the TAGS deconvolution method. Additionally, this reduces the associated uncertainty of this method, as discussed by [12].

2.3 Asymmetry in segmented spectrometers

This novel method, introduced here for the first time, relies on the fact that for g.s.-to-g.s. ${\beta }^{-}$ transitions, the coincidence between an ancillary $\beta$ detector and a segmented TAS detector is not symmetric with respect to the beam direction and the placement of the $\beta$ detector. At ISOL facilities, the beam is typically implanted on a movable tape for the accumulation of the radioactive sample of interest and subsequent removal of the activity of the descendants. The ancillary detector for $\beta$ tagging is placed in front of the implantation tape, normally covering less than half of the total solid angle subtended at its center. Before depositing energy in the modules of the segmented TAS (referred before as $\beta$ penetration), $\beta$ electrons emitted from the tape leave some energy in the $\beta$ detector. For this reason, TAS modules placed behind the $\beta$ detector (in forward direction with respect to the beam) will register more coincidences for g.s.-to-g.s. transitions than those modules placed in front of the $\beta$ detector (in backward direction with respect to the beam). A schematic view is shown in the inset of Figure 1 for the 12-fold segmented Rocinante detector [4].

Figure 1

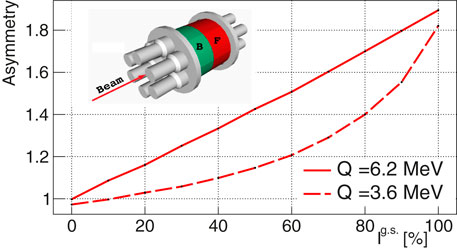

Figure 1. Simulated asymmetry coefficient as a function of the $I_{\beta }^{g.s.}$ for two $\beta$ decays with different $Q_{\beta }$. In the simulation, the Rocinante detector [4] was used in coincidence with a 0.5-mm-thick Si detector. A schematic view of the detector is shown in the inset with forward (F) and backward (B) modules highlighted in red and green, respectively.

For each event, the module multiplicity $M_m$ in a segmented TAS represents the number of modules that register a signal above the threshold. The probability of $\beta$ penetration in more than one module depends on the dimensions of the crystals, the material, and the energy of the $\beta$ electron, but in normal conditions, events associated with g.s. feeding can be assumed to have mostly $M_m$=1.

For the coincidence spectrum between a segmented TAS and the corresponding ancillary $\beta$ detector with the $M_m$=1 condition, the following asymmetry coefficient A in Equation 3 can be defined:

$A=\frac{F}{0.5\left(F+B\right)},(3)$

where $F$ is the number of counts in the forward TAS modules and $B$ is the number of counts in the backward TAS modules after subtraction of all contaminants (one again electronic pileup, activity of descendants etc.). The coefficient thus defined is ideally 1 when $\gamma$-rays are emitted isotropically together with $\beta$ electrons, and it is larger than 1 for g.s.-to-g.s. transitions. For a certain decay with the $\beta$-energy window $Q_{\beta }$, the asymmetry coefficient can be computed as a function of the $I_{\beta }^{g.s.}$ value by means of MC simulations. The experimentally obtained asymmetry coefficient can be then employed for the determination of $I_{\beta }^{g.s.}$ by linear interpolation. Figure 1 shows the asymmetry coefficient evaluated for two different $\beta$ decays simulated by means of the Geant4 package [13]. The DECAYGEN event generator [10] served as input with different $I_{\beta }^{g.s.}$ values and realistic feeding distributions and branching ratio matrices for the remaining parts of the decay schemes. Increasing sensitivity of the asymmetry coefficient is observed with increasing $Q_{\beta }$.

As in the case of the 4$\pi \gamma -\beta$ counting method, the use of the asymmetry coefficient is complementary but independent of the deconvolution of TAGS spectra. It relies on carefully validated MC simulations and needs normalized contributions for all contaminants, but this method is also expected to be less influenced by the branching ratio matrix $(B)$.

3 Applications

Proper knowledge of the $\beta$ feeding probabilities, which carry information about the overlap between parent and daughter nuclear wave functions, is essential for the understanding of the underlying nuclear structure through comparisons between experimental values and theoretical calculations. As discussed in Section 1, in practical terms, the $I_{\beta }^{g.s.}$ value acts as a normalization for the rest of $\beta$ intensity probabilities, and it may play a crucial role in many $\beta$ decays, with a great variety of applications: environmental dose evaluation, reactor calculations, isospin symmetry studies, double $\beta$-decay systems, electro-weak tests, nuclear astrophysics, etc. In this section, three stimulating applications will be featured.

3.1 Reactor physics: decay heat and reactor antineutrinos

In nuclear reactors, due to the radioactivity of fission fragments, an average of six $\beta$ decays occur per fission. The energy released by this $\beta$-decay radioactivity, commonly known as decay heat, mainly involves the emission of electrons, antineutrinos, and $\gamma$-rays de-exciting levels populated in the daughter nucleus. The decay heat is thus associated with the $\beta$-intensity probabilities of each of such decays, and its evolution depends on the activity of each fission fragment, shaped by the corresponding half-life, and fission yield (FY). For a recent review, see Ref. [14]. The same applies for the understanding of reactor antineutrino spectra in the field of neutrino oscillation experiments as shown by [15] and references therein. Due to the commonly large $Q_{\beta }$ of these cases, the TAGS technique is especially suitable in order to avoid the Pandemonium effect [16]. Following priority lists established by the International Atomic Energy Agency (IAEA) [17], the TAGS measurements of the most relevant $\beta$ decays to the reactor decay heat and the reactor antineutrino spectrum have been carried out in the last 20 years [14, 15].

A significant part of the $\beta$ decays that contribute the most both to the reactor decay heat and the reactor antineutrino spectrum, because of their significant FY, exhibit large $I_{\beta }^{g.s.}$ values. Some examples are ⁹²Rb [95.2(7)%, 4.82(7)%], ⁹³Rb [35(3)%, 3.55(4)%], ⁹⁴Y [41(4)%, 6.45(6)%], ⁹⁵Sr [55.7(25)%, 5.27(7)%], ^96gsY [95.5(5)%, 6.0(10)%], ¹⁴⁰Cs [35.9(17)%, 5.72(8)%], and ¹⁴²Cs [56(5)%, 2.72(8)%], where $I_{\beta }^{g.s.}$ values and cumulative FY for ²³⁵U, both from ENDF [18], are, respectively, quoted in brackets. Note that all these g.s.-to-g.s. branches are forbidden $\beta$ transitions.

In the past years, the shape of forbidden $\beta$ transitions has attracted a lot of attention since it carries information about fundamental properties of the weak interaction, such as the ratio between the vector and the axial–vector coupling constants [19], and they may serve as proofs of non-standard model components [20]. In addition, the shape of forbidden $\beta$ transitions plays a crucial role in the understanding of the discrepancies found between calculated and measured reactor antineutrino spectra [21–25]. In this context, an important effort is being taken to study the $\beta$ spectral shapes of the most relevant $\beta$ decays for the reactor antineutrino spectrum, both from a theoretical point of view [26–29] and with novel experimental approaches [30].

In the near future, it will be of great interest to study the impact of theoretical and experimental shape factors for forbidden transitions in the application of the TAGS technique, in particular with the deconvolution method. In some particular cases, the shape of the emitted $\beta$ spectrum may affect the response function of the TAS detector for the g.s.-to-g.s. branch. This is something already shown by the MTAS collaboration for the first forbidden unique transition ⁸⁸Rb$\left(2^{-}\right)$ $\to$ ⁸⁸Sr$\left(0^{+}\right)$ [31]. Analogously, Figure 2 shows Geant4 MC simulations of the response of DTAS to the $\beta$ electrons of the $2^{-}\to 0^{+}$ g.s.-to-g.s. first forbidden unique transition from the decay of ⁹⁴Y into ⁹⁴Zr ($Q_{\beta }$ of 49,18(6) keV [32]). As input for these simulations, we have used 1) a $\beta$ spectrum assuming an allowed shape calculated with the subroutines from the logFT program of NNDC based on Ref. [33]; 2) the allowed $\beta$ spectrum from 1) multiplied by the reference shape factor from shell model calculations by Hayen et al. [26, 27]; 3) the allowed $\beta$ spectrum from 1) multiplied by the reference shape factor from projected shell model calculations by [28]; and 4) a $\beta$ spectrum calculated using the BetaShape code [34] considering all available corrections. The different β-shape factors clearly affect the response to the g.s.-to-g.s. branch, as shown in Figure 2. The impact on the experimental determination of $I_{\beta }^{g.s.}$ is still under evaluation, pointing to the importance of verifying the influence and systematic uncertainty introduced by different sets of corrections in those cases, where these calculated shape corrections are large and the g.s.-to-g.s. branch is expected to be strong.

Figure 2

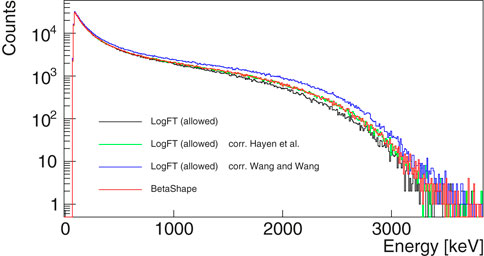

Figure 2. MC simulated response of the DTAS detector in coincidence with a 3-mm thick $\beta$ plastic detector for the g.s.-to-g.s. first forbidden unique transition ⁹⁴Y$(2^{-}){\to }^{94}$Zr$0^{+}$. Different theoretical $\beta$ spectra are used as input for the simulation of emitted electrons (see text for details).

3.2 Astrophysics: the Urca cooling mechanism

The Urca cycle is a neutrino cooling process considered in different astrophysical scenarios (neutron stars, presupernova stars, white dwarfs, and type-Ia supernovae), where a pair of nuclei cool down the environment by means of sequential electron capture (EC) and ${\beta }^{-}$ decays [35]. This process becomes possible for some nuclear pairs when the chemical potential of the electron gas in the astrophysical environment is larger than $Q_{EC}$, in order to allow the EC from the $(Z,A)$ nucleus to the $(Z-1,A)$ partner, but does not exceed it by more than $\sim$100 keV for typical temperatures, in order not to block the phase space for electron emission back to the $(Z,A)$ nucleus via ${\beta }^{-}$ decay. In practical terms, this implies that g.s.-to-g.s. transitions are the most important ones contributing to this process, although it was recently shown that considering also transitions to low-lying excited states has a non-negligible influence in the neutrino luminosities of Urca pairs for neutron stars [36]. The cooling rate associated with the Urca process depends on the $ft$ values of the transitions involved, where $f$ is the statistical rate function and $t$ is the partial half-life, determined from the total half-life, $T_{1/2}$ and the $\beta$ intensity probability of this transition. The $I_{\beta }^{g.s.}$ value is thus essential to evaluate the impact of each Urca pair. The first TAGS experiment in this line has been performed by the SuN collaboration at the National Superconducting Cyclotron Laboratory (NSCL), measuring the ${\beta }^{-}$ decay of ⁶¹V [37], the Urca partner of ⁶¹Cr. It would be very interesting for the understanding of the Urca cooling mechanism in different astrophysical environments to perform new TAGS measurements of the most relevant Urca pairs, as the ones identified for neutron stars by [38, 39]. In particular, Urca pairs in the crust of neutron stars have larger $Q_{EC}$ windows than ocean Urca pairs [39], and they are expected to be affected by larger uncertainties due to the Pandemonium effect.

3.3 Weak-interaction studies: superallowed transitions

In order to improve our understanding of the electro-weak interaction, pure Fermi superallowed $0^{+}\to 0^{+}\beta$ transitions have been employed for more than 50 years to test the conservation of the vector weak current (CVC) and provide us with a precise value of the $V_{ud}$ element of the Cabibbo–Kobayashi–Maskawa (CKM) quark mixing matrix [40]. An independent determination of $V_{ud}$ has been recently proposed based on superallowed mirror $\beta$ transitions between analog $T=1/2$ states in mirror nuclei (mixture of Fermi and Gamow–Teller) [41]. The $ft$ values for these superallowed transitions, and, thus, the corresponding g.s.-to-g.s. $\beta$-intensity probabilities, are key ingredients for precision tests. In many cases, $I_{\beta }^{g.s.}$ is not known experimentally or does not have enough precision to be considered for weak-interaction tests. In addition, for those that are currently included in such tests, 15 pure Fermi transitions [40] and 8 mirror transitions [42], the limitations in determining $I_{\beta }^{g.s.}$ with traditional approaches may bias the adopted values. In particular, the possible Pandemonium effect in the determination of these superallowed branching ratios was raised by Hardy and Towner [43], and it is expected to be particularly important in medium–heavy nuclei, where there may be a competition between the superallowed branch and numerous weak allowed branches populating excited states at higher excitation energies. A recent letter of intent at ISOLDE proposes the use of the Lucrecia TAS to determine superallowed branching ratios of medium nuclei free from the Pandemonium effect [44]. TAGS studies for these cases will also allow the validation of the procedures employed to precisely estimate the missing $\beta$ intensity in experiments with HPGe detectors, based on the $\gamma$ intensity going through low-lying collector states combined with theoretical calculations [45–47].

As we approach the drip line for $N=Z$ nuclei, the number of superallowed decays accessible at ISOL facilities is limited, and in-flight production techniques are needed. The role of the most advanced fragmentation facilities, FRIB, GANIL/Spiral-2, FAIR/GSI, and RIKEN, will be crucial for the extension of the number of studied superallowed decays. Some cases without known superallowed branching ratios have already been produced in these laboratories, such as ⁹⁸In and ⁹⁴Ag at RIKEN [48] and ⁸²Nb, ⁸⁶Tc, and ⁹⁰Rh at GSI [49]. The presence of isomers and the energetically possible $\beta$-delayed proton(s) emission will complicate the determination of the g.s. feeding probability in these cases.

4 Discussion

Inthis work, the ability of TAS detectors to obtain the $\beta$-feeding probability to the g.s. was discussed on the basis of three independent methods. The deconvolution method is linked to the standard application of the TAGS technique and has been proven to successfully determine $I_{\beta }^{g.s.}$ in many ${\beta }^{-}$ cases [4, 27, 31, 37, 50–62] and in a few ${\beta }^{+}/EC$ decays such as ⁵⁸Cu [63] and recently in ⁶⁴Ga [64]. The revisited $4\pi \gamma -\beta$ method has only been applied experimentally with the DTAS detector for ${\beta }^{-}$ decays [12, 60] and successfully tested with MC simulations for Lucrecia in the superallowed ${\beta }^{+}/EC$ decay of ⁶²Ga [44]. It will be crucial to verify its potential to improve the precision with respect to the deconvolution method by using other TAS detectors and studying more $\beta$-decaying cases. The novel method based on the asymmetry coefficient proposed here for segmented spectrometers calls for an experimental validation with an uncertainty survey. Due to their complementarity, a deep comparison of the three methods and their associated uncertainties would be of great interest. Given that all these methods rely on MC simulations, it would also be desirable to test the systematic uncertainties and limitations introduced by the electron/positron models implemented in commonly used simulation codes such as Geant4. The MC validation of experimental measurements of pure $\beta$ emitters, such as ⁹⁰${\mathrm{S}\mathrm{r}-}^{90}$Y or ³²P, would be helpful. In connection with this, the aforementioned impact of the $\beta$ shape corrections also needs a careful investigation. These technical advances would boost the robustness of future high-impact results such as those outlined in Section 3. In the coming years, the well-consolidated reactor physics application will benefit from ongoing $\beta$ spectral studies [65] and from the measurement of the remaining $\beta$ decays with strong g.s. branches in nuclear reactors. The recently proposed application for Urca cycle studies [37] evinces a direct impact of g.s. branches in nuclear astrophysics, suggesting an exciting opportunity for future measurements. Finally, future work linking $I_{\beta }^{g.s.}$ with fundamental properties of the weak interaction represents a novel approach for these studies and for the TAGS technique. The feasibility of such a proposition for the extraction of precise enough results for weak-interaction validations needs to be verified in the coming years.

Data availability statement

The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.

Author contributions

VG: conceptualization, data curation, funding acquisition, investigation, methodology, visualization, writing–original draft, and writing–review and editing.

Funding

The author(s) declare that financial support was received for the research, authorship, and/or publication of this article. This work has been funded by the National Science Center, Poland, under Grant Nos 2019/35/D/ST2/02081 and 2020/39/B/ST2/02346.

Conflict of interest

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
