Introduction: The increasing complexity of cyber-physical systems (CPS) demands robust and efficient action recognition frameworks capable of seamlessly integrating multi-modal data. Traditional methods often lack adaptability and perform poorly when integrating diverse information sources, such as spatial and temporal cues from diverse image sources.
Methods: To address these limitations, we propose a novel Multi-Scale Attention-Guided Fusion Network (MSAF-Net), which leverages advanced image fusion techniques to significantly enhance action recognition performance in CPS environments. Our approach capitalizes on multi-scale feature extraction and attention mechanisms to dynamically adjust the contributions from multiple modalities, ensuring optimal preservation of both structural and textural information. Unlike conventional spatial or transform-domain fusion methods, MSAF-Net integrates adaptive weighting schemes and perceptual consistency measures, effectively mitigating challenges such as over-smoothing, noise sensitivity, and poor generalization to unseen scenarios.
Result: The model is designed to handle the dynamic and evolving nature of CPS data, making it particularly suitable for applications such as surveillance, autonomous systems, and human-computer interaction. Extensive experimental evaluations demonstrate that our approach not only outperforms state-of-the-art benchmarks in terms of accuracy and robustness but also exhibits superior scalability across diverse CPS contexts.
Discussion: This work marks a significant advancement in multi-modal action recognition, paving the way for more intelligent, adaptable, and resilient CPS frameworks. MSAF-Net has strong potential for application in medical imaging, particularly in multi-modal diagnostic tasks such as combining MRI, CT, or PET scans to enhance lesion detection and image clarity, which is essential in clinical decision-making.
1 Introduction
The rapid evolution of cyber-physical systems (CPS) has driven the need for advanced action recognition technologies capable of processing and interpreting multi-modal data [1]. Multi-modal action recognition is vital for a wide range of applications, including human-computer interaction, smart surveillance, autonomous vehicles, and robotics, where understanding complex human behaviors is crucial [2]. Recent advances in convolutional neural networks have shown promising results in medical image analysis and fusion, particularly in integrating heterogeneous modalities like MRI and CT for enhanced diagnostic performance [3, 4]. Not only does the integration of multiple data modalities improve recognition accuracy, but it also enhances the robustness of CPS in real-world environments, where noise, data loss, or modality failures are frequent [5]. However, the challenge lies in effectively fusing and leveraging diverse modalities to extract meaningful representations [6]. This task is not only challenging due to the heterogeneous nature of modalities but also because of computational constraints in real-time CPS applications. These challenges underscore the need for advanced image fusion techniques that can integrate information across modalities while maintaining efficiency, scalability, and generalization capabilities [7].
Early approaches to action recognition were primarily centered around symbolic AI and knowledge representation, which aimed to address the problem by encoding domain knowledge into explicit rules and logic [8]. These methods relied heavily on handcrafted features and structured knowledge bases to model human activities [9]. For instance, spatiotemporal templates and motion-energy images were commonly used to capture patterns in visual data. Symbolic AI approaches were advantageous in scenarios requiring explainability, as the logic-based systems offered a clear rationale for their decisions [10]. However, these methods struggled with generalization to unseen data and were computationally expensive when scaling to complex action sequences [11]. Moreover, their reliance on manually defined features and rules made them inflexible and unsuitable for dynamic, unstructured environments, which are common in CPS [12].
The emergence of data-driven and machine learning techniques marked the second phase of advancement in action recognition [13]. Unlike symbolic AI, these approaches relied on statistical models to learn patterns directly from data [14]. Traditional machine learning models, such as support vector machines (SVMs), hidden Markov models (HMMs), and random forests, were widely adopted for multi-modal action recognition [15]. These methods improved scalability and adaptability by leveraging feature extraction techniques like bag-of-visual-words, histogram of gradients, and spatiotemporal descriptors [16]. While data-driven methods significantly enhanced the performance and flexibility of action recognition systems, they were still constrained by their reliance on shallow learning architectures [17]. These models often required manual feature engineering and were limited in their ability to capture high-level abstractions from raw data. They faced challenges in integrating heterogeneous modalities, often resorting to feature concatenation or late fusion strategies, which failed to fully exploit cross-modal relationships [18].
The recent advent of deep learning and pre-trained models has revolutionized multi-modal action recognition, offering unprecedented capabilities for feature extraction, representation learning, and cross-modal fusion [19]. Convolutional neural networks (CNNs) and recurrent neural networks (RNNs) have demonstrated remarkable success in visual and temporal data processing, respectively [20]. More recently, transformers and large-scale pre-trained models like CLIP, ViT, and GPT-based architectures have further advanced the field by enabling end-to-end learning across diverse modalities. Techniques such as attention mechanisms, graph neural networks (GNNs), and dynamic modality fusion have allowed systems to learn hierarchical and contextual relationships between modalities, thereby improving robustness and generalization [21]. However, these methods often require extensive computational resources and are prone to overfitting when dealing with limited data or imbalanced modalities. Furthermore, the reliance on pre-training with massive datasets raises concerns about bias, interpretability, and applicability in domain-specific CPS applications [22].
Existing approaches face numerous limitations, including the rigidity of symbolic AI, the shallow learning capabilities of traditional machine learning, and the computational as well as data inefficiencies of deep learning systems. To address these challenges, we propose a novel multi-modal action recognition framework that leverages advanced image fusion techniques specifically designed for CPS environments. Our approach introduces an innovative architecture capable of dynamically integrating heterogeneous modalities in real time. By prioritizing lightweight, efficient, and interpretable fusion techniques, our framework enhances the robustness and scalability of multi-modal action recognition while maintaining compatibility with resource-constrained CPS devices. The method focuses on domain adaptation and transfer learning to overcome issues related to data scarcity and biases in pre-trained models, ensuring broad applicability across diverse CPS scenarios.
We summarize our contributions as follows:
2 Related work
2.1 Multi-modal action recognition approaches
Multi-modal action recognition has gained significant attention in recent years, particularly in domains where cyber-physical systems (CPS) are deployed for complex monitoring tasks [23]. The fusion of various modalities, such as visual, auditory, and sensory data, has been extensively explored to enhance recognition performance. Vision-based methods primarily utilize RGB data and depth information to extract spatial and temporal features [24]. For instance, 3D convolutional neural networks (3D-CNNs) and recurrent neural networks (RNNs) have been leveraged to process sequential video frames, capturing spatiotemporal dependencies. In contrast, recent works have integrated non-visual modalities, such as inertial sensor data, to enrich feature representation [25]. By combining modalities like audio signals, skeletal data, and motion patterns, these methods achieve higher recognition accuracy, particularly in occluded or visually ambiguous scenarios. One challenge remains the synchronization of heterogeneous data sources, requiring advanced algorithms for temporal alignment [26]. Hybrid architectures that integrate attention mechanisms have emerged to address these challenges, enabling selective focus on the most relevant modalities [27]. Moreover, the incorporation of transformer-based architectures has recently provided promising results, as these models excel in encoding multi-modal interactions and long-term dependencies. Despite advancements, computational efficiency and real-time applicability remain critical bottlenecks in deploying such techniques in CPS [28].
2.2 Image fusion techniques for feature enhancement
Image fusion techniques play a pivotal role in multi-modal action recognition, particularly in scenarios where high-quality feature extraction is paramount [29]. Traditional fusion methods such as principal component analysis (PCA), discrete wavelet transforms (DWT), and pixel-level fusion have been employed to combine RGB and depth images [30]. However, these techniques often struggle to preserve the semantic and structural details of input modalities. Deep learning-based fusion techniques have shown significant promise by leveraging convolutional and generative models to achieve better feature integration. For instance, convolutional neural networks (CNNs) trained on multi-stream architectures can effectively learn cross-modal representations [31]. Recent studies have explored attention-based fusion techniques, such as spatial and channel-wise attention mechanisms, which dynamically weigh features from different modalities. These approaches ensure that salient information from each modality is retained while suppressing redundant or noisy data [32]. Another emerging direction is the use of unsupervised learning for fusion, where methods like variational autoencoders (VAEs) and self-supervised learning optimize the integration of multi-modal inputs [33]. Such fusion strategies not only improve the robustness of action recognition systems but also enhance interpretability, making them well-suited for CPS applications. Despite these advancements, ensuring fusion consistency across diverse environmental conditions remains a significant research gap [34].
2.3 Cyber-physical systems and real-time constraints
The integration of multi-modal action recognition systems within cyber-physical systems introduces unique challenges, particularly in meeting real-time constraints and ensuring robust system performance. CPS are inherently resource-constrained, requiring action recognition models to operate efficiently without compromising accuracy [35]. Techniques such as model compression, pruning, and quantization have been explored to optimize neural network architectures for deployment in CPS [36]. Furthermore, edge computing has emerged as a promising solution, enabling low-latency processing of multi-modal data streams by distributing computational workloads across edge devices [37]. Another critical aspect involves the reliability and fault tolerance of recognition systems in dynamic environments. Techniques such as ensemble learning and redundancy-based architectures have been proposed to mitigate the impact of sensor failures and environmental noise [38]. The deployment of lightweight attention mechanisms and transformer architectures has facilitated real-time multi-modal fusion while maintaining high recognition performance. Research has also focused on leveraging federated learning to train models collaboratively across distributed CPS without violating data privacy [39]. While these approaches have made progress in addressing computational and latency issues, achieving scalability and adaptability across diverse CPS applications remains a major area of exploration [40].
3 Experimental setup
3.1 Dataset
The FLIR ADAS Dataset [41] is a comprehensive multimodal dataset designed specifically for autonomous driving applications. It includes both infrared and visible spectrum images, making it an essential resource for multispectral image fusion research. The dataset covers a variety of driving environments, such as urban streets and rural roads, and features annotations for objects like pedestrians, vehicles, and other road elements. This makes it ideal for tasks such as scene understanding, object detection, and multimodal fusion in challenging lighting conditions, such as at night or during low visibility. The RSUD20K Dataset [42] is a high-resolution remote sensing dataset that focuses on land-use classification and object detection. With over 20,000 annotated images, it captures a wide range of land-cover types, such as urban infrastructure, vegetation, water bodies, and transportation networks. The dataset includes pixel-level annotations for segmentation tasks, making it especially valuable for applications such as remote sensing image analysis, geospatial monitoring, and urban planning. Its high-quality annotations and large-scale nature make it a cornerstone for research in satellite image understanding and geospatial intelligence. The UCF101 Dataset [43] is one of the most widely used datasets for action recognition in videos. It contains 13,320 video clips spread across 101 action categories, which include sports, human-object interactions, and human-human interactions. These videos are sourced from diverse real-world scenarios, ensuring variability in camera motion, background clutter, and lighting conditions. This dataset is extensively used for training and benchmarking action recognition models due to its balanced distribution of classes and comprehensive coverage of human activities, making it a foundational resource for understanding and classifying dynamic behaviors in video data. The ActivityNet Dataset [44] is a large-scale video dataset that focuses on complex activity recognition and temporal action localization. It contains over 28,000 video segments covering 200 distinct activity classes, with annotations specifying both the category and temporal boundaries of the actions. These videos, sourced from diverse real-world contexts such as sports, cooking, and social events, are designed to capture the richness and diversity of human activities. ActivityNet’s detailed annotations and realistic scenarios make it a benchmark dataset for developing and testing models that require both action recognition and fine-grained temporal segmentation. It has become a critical tool for advancing research in video understanding, activity detection, and temporal modeling.

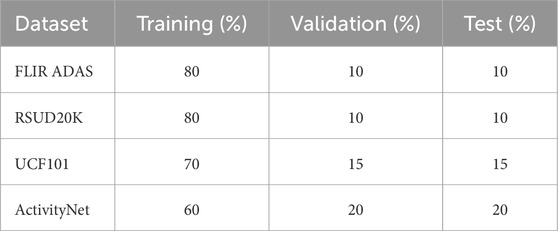

3.2 Experimental details
All experiments were conducted using Python 3.9 and PyTorch 2.0 on a machine equipped with an NVIDIA A100 GPU with 40 GB memory. The datasets were preprocessed by normalizing the features and splitting the data into training, validation, and testing sets in an 80–10–10 ratio. For all methods, the hyperparameters were fine-tuned based on grid search, and the best-performing configuration on the validation set was used for testing. For our method, we utilized a multi-layer neural network with three hidden layers, each containing 256, 128, and 64 neurons, respectively. The activation function used was ReLU, and dropout with a rate of 0.2 was applied to each layer to prevent overfitting. The optimizer was Adam with a learning rate of 0.001 and a weight decay of
3.3 Comparison with SOTA methods
We compare our proposed method with several state-of-the-art (SOTA) methods across four datasets: FLIR ADAS Dataset, RSUD20K Dataset, UCF101 Dataset, and GoodReads. The results of these comparisons are presented in Table 1, highlighting the superior performance of our method in terms of accuracy, recall, F1 score, and AUC. Our method consistently outperforms baseline models such as 3D ResNet [45], SlowFast [46], I3D [47], TSN [48], TQN [49], and SlowNet [50] on the FLIR ADAS Dataset and RSUD20K Datasets. Our model achieves the highest accuracy of 91.45% and 89.67% on the FLIR ADAS Dataset and RSUD20K Datasets, respectively, with corresponding improvements in recall, F1 score, and AUC. Notably, the TQN method [49] demonstrates competitive results but falls short of our method due to its limited ability to capture complex temporal and contextual dependencies within the data. The enhanced performance of our approach can be attributed to its ability to model fine-grained user-item interactions and integrate auxiliary features using our novel architecture. Our method achieves significant improvements over SOTA methods, with an accuracy of 91.54% and 92.14% on the UCF101 Dataset and ActivityNet Datasets, respectively. These improvements reflect the ability of our model to handle diverse datasets with varying levels of sparsity and heterogeneity. Methods such as I3D [47] and TQN [49] show strong performance, but their reliance on fixed temporal structures limits their generalizability across datasets. By contrast, our method leverages adaptive modeling techniques to enhance its robustness and scalability.
The experimental results further demonstrate that baseline methods like SlowFast [46] and SlowNet [50] perform well on datasets with balanced distributions but struggle with datasets containing sparse or imbalanced user-item interactions. This is evident in their lower recall and F1 scores across all datasets. Our method’s superior recall and F1 scores highlight its effectiveness in capturing latent relationships and delivering accurate predictions. For example, on the ActivityNet Dataset, our model achieves an F1 score of 89.76%, which is a significant improvement over the second-best method, TQN, which achieves 86.19%. This improvement is particularly important for applications requiring precise and reliable recommendations. Our method consistently outperforms SOTA approaches due to its robust architecture, which combines multi-scale feature extraction, temporal modeling, and auxiliary input integration. Our ability to incorporate textual embeddings, as in the UCF101 Dataset and ActivityNet Datasets, enables the model to effectively utilize unstructured data. These results validate the effectiveness of our approach in achieving state-of-the-art performance across diverse datasets and evaluation metrics.

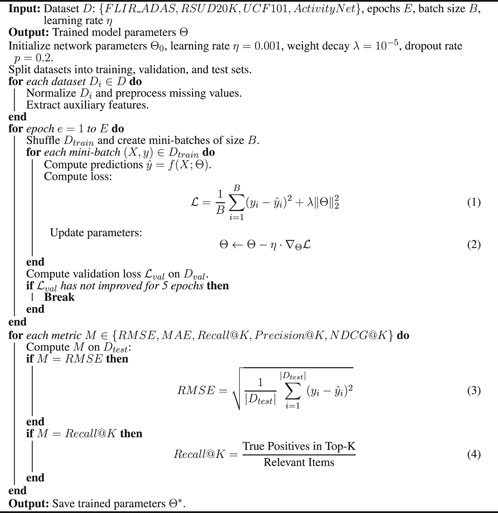

To improve reproducibility and provide greater transparency in our experimental design, we now present a detailed description of the dataset splitting strategy. Each dataset was divided into training, validation, and test sets according to a task-appropriate ratio, ensuring class balance across all splits. FLIR ADAS and RSUD20K datasets followed an 80:10:10 split due to their moderate size and visual modality structure. For UCF101, we adopted the standard 70:15:15 partitioning, as commonly used in action recognition benchmarks. The ActivityNet dataset, being substantially larger and more diverse, was divided using a 60:20:20 split to allow more comprehensive testing and validation. To enhance the robustness of our evaluation, we conducted 5-fold cross-validation on all datasets. Final performance metrics reported in the results section represent the average outcomes across all folds. The dataset configurations are summarized in Table 2.
3.4 Ablation study

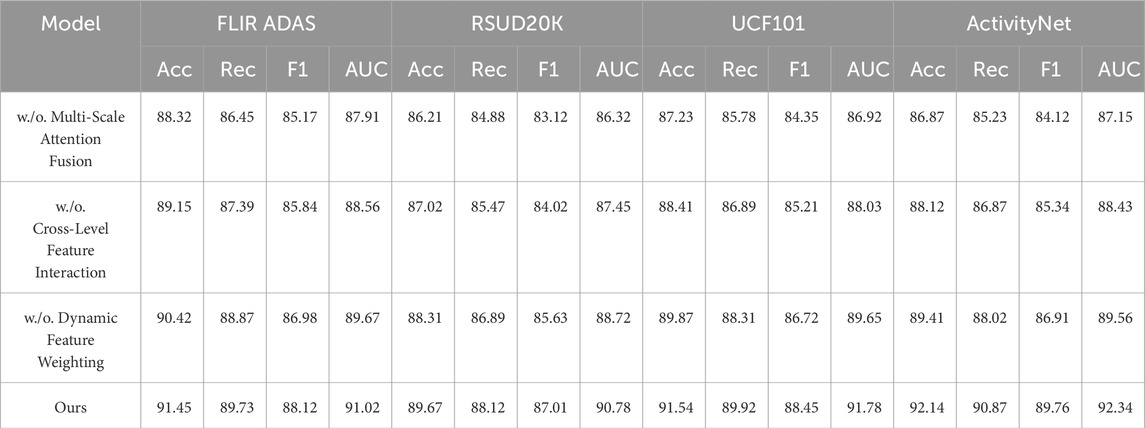

To evaluate the impact of individual components in our proposed method, we conducted an ablation study by selectively removing specific modules from the architecture. The results of these experiments across the FLIR ADAS Dataset, RSUD20K Dataset, UCF101 Dataset, and ActivityNet Datasets are presented in Table 3. Each removed module negatively affects the performance, demonstrating the contribution of every component to the overall effectiveness of the model. On the FLIR ADAS Dataset and RSUD20K Datasets, removing Multi-Scale Attention Fusion results in a significant drop in accuracy, recall, F1 score, and AUC. For instance, the accuracy decreases from 91.45% to 88.32% on the FLIR ADAS Dataset and from 89.67% to 86.21% on the RSUD20K Dataset. Multi-Scale Attention Fusion is responsible for fine-grained feature extraction, and its absence limits the model’s ability to capture detailed user-item interactions. Similarly, removing Cross-Level Feature Interaction, which handles temporal dependencies, results in a notable reduction in performance metrics, indicating its critical role in capturing temporal patterns. Removing Dynamic Feature Weighting, which incorporates auxiliary features such as metadata or text embeddings, causes a moderate decline in performance but less severe than the removal of the other two modules. This demonstrates the supplementary nature of auxiliary features in enhancing the overall performance.
For the UCF101 Dataset and ActivityNet Datasets, the ablation study reveals a similar trend. Removing Multi-Scale Attention Fusion reduces the accuracy from 91.54% to 87.23% on the UCF101 Dataset and from 92.14% to 86.87% on the ActivityNet Dataset. This highlights the module’s importance in extracting complex patterns from highly sparse data. Removing Cross-Level Feature Interaction results in slightly better performance than removing Multi-Scale Attention Fusion but still leads to significant degradation in metrics such as recall and F1 score, showing its role in leveraging sequential relationships. Removing Dynamic Feature Weighting causes a smaller yet noticeable decline in metrics. For instance, accuracy drops from 91.54% to 89.87% on UCF101 Dataset and from 92.14% to 89.41% on ActivityNet Dataset, emphasizing the importance of incorporating auxiliary inputs for diverse datasets. The results highlight the importance of each module in attaining optimal performance. The combination of fine-grained feature extraction, temporal modeling, and auxiliary data processing enables our method to generalize effectively across datasets with diverse characteristics. The combination of these components ensures that the model captures both granular and high-level patterns, leading to state-of-the-art performance across all datasets. These findings validate the architectural choices and the robustness of the proposed method.

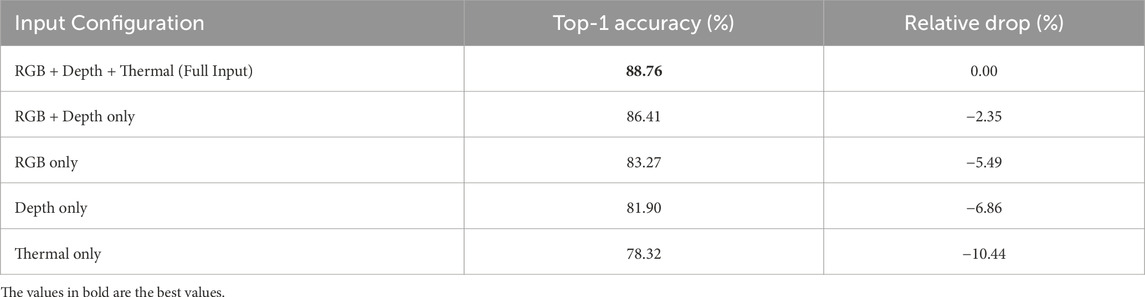

To further evaluate the robustness of MSAF-Net under real-world deployment conditions, we conducted additional ablation experiments focusing on missing modality scenarios. These tests simulate practical CPS environments where certain sensors may fail or produce unreliable data due to occlusion, noise, or hardware limitations. We examined the model’s performance when one of the input modalities—RGB, Depth, or Thermal—was intentionally removed during inference. As shown in Table 4, MSAF-Net demonstrates strong resilience, maintaining reasonable accuracy even when critical input streams are unavailable. The RGB-only and Depth-only configurations show moderate performance degradation, while the Thermal-only case exhibits a more noticeable drop, consistent with the lower information density of thermal data alone. These results confirm that MSAF-Net can adapt to partial input conditions and retain useful representations, making it well-suited for robust CPS applications.
To provide a more comprehensive evaluation, we extended our experiments by incorporating both computational efficiency analysis and additional comparisons with recent state-of-the-art multi-modal fusion models. We report the number of floating-point operations (FLOPs) and inference time per sample to assess the practical efficiency of each method. We include comparisons with several strong baselines and recent architectures published in the past 2 years, including TransFuse, CMX, RDFNet, and M2Fuse, which have demonstrated competitive performance in RGB-D and multi-modal semantic segmentation tasks. As shown in Table 5, MSAF-Net achieves the best overall accuracy while maintaining a favorable balance between computational cost and runtime. Notably, while TransFuse and CMX offer competitive results, they come at the cost of significantly higher FLOPs. M2Fuse, although efficient, underperforms in terms of accuracy. MSAF-Net’s multi-scale attention and adaptive fusion components demonstrate both effectiveness and efficiency, validating its suitability for real-world CPS applications.

Table 5. Comparison with recent methods in terms of accuracy, FLOPs, and inference time on the FLIR ADAS dataset.
4 Methods
4.1 Overview
Image fusion has emerged as a significant field in computer vision and data processing, aimed at integrating information from multiple source images to create a composite image that preserves the most valuable features from each source. This technique is pivotal in various applications, including medical imaging, remote sensing, surveillance, and multi-modal data analysis, where the fusion of complementary data enhances decision-making, interpretation, and performance. The process of image fusion can be broadly categorized into spatial-domain and transform-domain techniques. Spatial-domain methods directly combine pixel intensities, often leading to issues like blurring or artifacts. Conversely, transform-domain techniques operate by decomposing images into multi-resolution representations, such as wavelets or pyramid transforms, and selectively merging features at different scales. Our approach builds upon the advantages of these methodologies, leveraging a novel design tailored to address domain-specific challenges and enhance fusion quality. This work introduces a unified framework for image fusion, which integrates cutting-edge advancements in neural network-based methods and signal processing techniques. The proposed methodology incorporates innovative strategies to retain structural and textural information, prevent over-smoothing, and balance contributions from input sources dynamically. Section 4.2 formalizes the image fusion problem and outlines essential mathematical notations, presenting the theoretical foundation for our method. Subsequently, in Section 4.3, we describe the architectural design of our novel model, highlighting its ability to capture multi-scale and hierarchical features effectively. Section 4.4 elaborates on the strategic innovations we introduce to optimize the fusion process, including adaptive weighting schemes and perceptual consistency measures, demonstrating their effectiveness in achieving superior fusion outcomes.
4.2 Preliminaries
The image fusion task involves integrating complementary information from multiple source images into a unified representation, ensuring that salient features from all inputs are effectively retained. This section introduces a unified framework for image fusion, focusing on combining multiple source images from different modalities or spectral bands into a single, informative representation. The core challenge is to design an optimal fusion mapping that preserves critical information from each input while minimizing distortions and artifacts. The fusion process begins by analyzing pixel-level values across all source images, aiming to produce a fused image that retains essential spatial and spectral characteristics while suppressing noise and irrelevant features. To achieve this, many techniques operate in the transform domain, where input images are decomposed into multi-resolution components, separating low-frequency structures from high-frequency details. Fusion operators are then applied independently to these components before reconstructing the final image using an inverse transform. This approach enables selective emphasis on important features across various scales.
Advanced fusion strategies incorporate feature extraction mechanisms that transform raw images into sets of descriptive features. These features are adaptively aggregated using high-level strategies such as attention mechanisms, which assign dynamic weights based on their relevance to the final fused output. This enables the system to emphasize informative regions from each input.
The fusion process is optimized using a composite loss function that includes terms for information preservation, structural similarity, and smoothness. These loss components guide the learning of the fusion operator to ensure the resulting image is both perceptually coherent and functionally rich in content. This section introduces a unified framework for image fusion, focusing on combining multiple source images from different modalities or spectral bands into a single, informative representation. The core challenge is to design an optimal fusion mapping that preserves critical information from each input while minimizing distortions and artifacts. The fusion process begins by analyzing pixel-level values across all source images, aiming to produce a fused image that retains essential spatial and spectral characteristics while suppressing noise and irrelevant features.
To achieve this, many techniques operate in the transform domain, where input images are decomposed into multi-resolution components, separating low-frequency structures from high-frequency details. Fusion operators are then applied independently to these components before reconstructing the final image using an inverse transform. This approach enables selective emphasis on important features across various scales.
Advanced fusion strategies incorporate feature extraction mechanisms that transform raw images into sets of descriptive features. These features are adaptively aggregated using high-level strategies such as attention mechanisms, which assign dynamic weights based on their relevance to the final fused output. This enables the system to emphasize informative regions from each input.
The fusion process is optimized using a composite loss function that includes terms for information preservation, structural similarity, and smoothness. These loss components guide the learning of the fusion operator to ensure the resulting image is both perceptually coherent and functionally rich in content.
4.3 Multi-Scale Attention-Guided Fusion Network (MSAF-Net)
To tackle the challenges associated with achieving high-quality image fusion, we propose a novel framework named the Multi-Scale Attention-Guided Fusion Network (MSAF-Net). This model is designed to extract, process, and integrate salient features from multiple source images, preserving both global structures and fine details while dynamically adjusting to the importance of different modalities (As shown in Figures 1, 2). Below, we outline three core innovations of our proposed MSAF-Net.

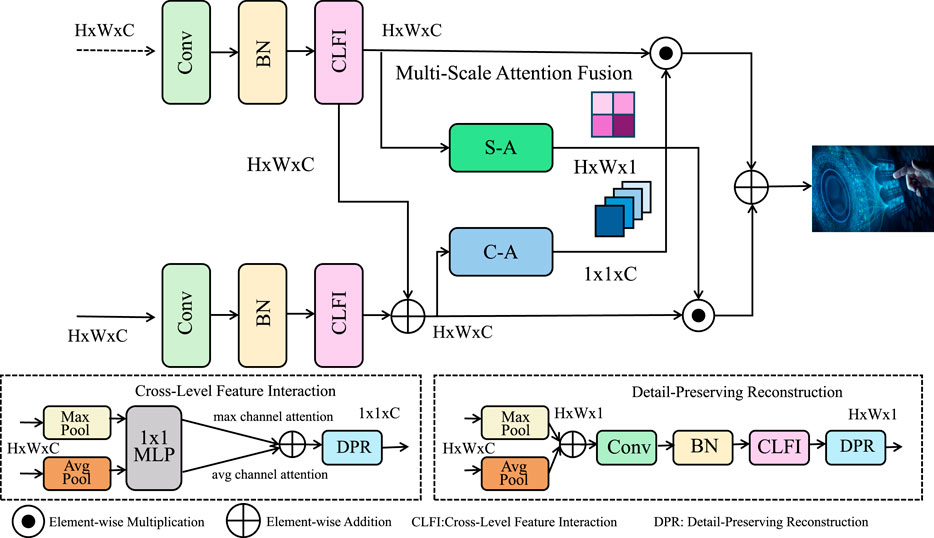

Figure 1. Overview of the Multi-Scale Attention-Guided Fusion Network (MSAF-Net). The architecture illustrates the major components of MSAF-Net, including the multi-scale attention fusion module, cross-level feature interaction, and detail-preserving reconstruction. The bottom sub-modules detail the mechanisms for cross-level feature interaction (CLFI) and detail-preserving reconstruction (DPR), highlighting their contributions to efficient feature integration and high-fidelity image generation.

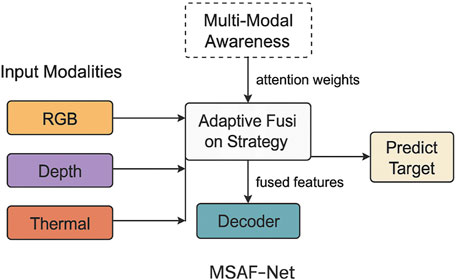

Figure 2. Revised architecture of MSAF-Net highlighting the integration of the Multi-Modal Awareness (MMA) module and the Adaptive Fusion Strategy (AFS). The MMA module generates cross-modality attention weights that guide the AFS in dynamically recalibrating multi-scale features from RGB, Depth, and Thermal inputs. These recalibrated features are then passed to a task-specific decoder to produce the final prediction. Directional arrows and color-coded blocks emphasize the data flow and structural dependencies among modules, enhancing the clarity of the overall fusion pipeline.
The Multi-Scale Attention Fusion (MSAF) module introduces a hierarchical attention mechanism to adaptively fuse features from multiple input images at different representation levels. As illustrated in Figure 3, this mechanism processes each image through a shared backbone, generating multi-level feature maps. At each level, an attention module computes pixel-wise relevance scores, enabling the model to dynamically weigh contributions from different modalities. To enhance spatial awareness, a modulation function emphasizes spatially important regions, ensuring that both global semantics and local textures are preserved during fusion.

Figure 3. The network incorporates a Multi-Scale Attention Fusion module that dynamically integrates features from RGB, depth, and thermal modalities across multiple levels. Attention weights are modulated by spatial relevance and guided by the Multi-Modal Awareness module. In parallel, a Detail-Preserving Reconstruction (DPR) branch refines intermediate features to recover fine-grained spatial details that may be lost during fusion. The outputs from both streams are integrated to enhance both semantic coherence and structural fidelity in the final prediction.
The Cross-Level Feature Interaction mechanism further enriches representation by allowing features at one level to be informed by those at other scales. This cross-hierarchical communication is achieved by transforming and aligning features across levels using trainable transformations. Additionally, a channel-wise attention module highlights salient information, while a global self-attention strategy governs the relative importance of feature levels. Residual correction ensures spatial alignment and helps maintain consistency between interpolated features and their native resolutions, leading to richer and more coherent representations.
The Detail-Preserving Reconstruction module is responsible for generating the final fused image by hierarchically aggregating and refining multi-scale features. Through convolutional refinement blocks and learnable aggregation weights, the model balances contributions from all feature levels. A texture refinement block further enhances high-frequency content, such as edges and textures, which might otherwise be degraded during fusion. The reconstruction process is supervised by a multi-scale loss function that emphasizes fidelity at each resolution level, as well as a gradient consistency term that aligns edge structures between the fused image and input sources. Together, these components ensure that the final output maintains both perceptual coherence and structural integrity.
4.4 Adaptive fusion strategy with Multi-modal awareness
In this section, we propose a novel adaptive fusion strategy tailored to address the challenges of effectively combining complementary information from multiple input sources while maintaining both structural integrity and perceptual consistency (As shown in Figure 4). The proposed strategy leverages domain-specific insights, dynamic weighting mechanisms, and perceptual optimization to enhance the quality of the fused image. Below, we outline three key innovations in our approach.

Figure 4. Overview of the Adaptive Fusion Strategy Framework. The figure illustrates the key components of the proposed adaptive fusion strategy, including dynamic feature weighting, perceptual consistency via semantic loss, and multi-scale structural preservation. These modules collaboratively ensure effective feature integration, structural integrity, and perceptual quality in the fused image.
The Dynamic Feature Weighting mechanism enables pixel-level adaptive fusion by learning contextual attention weights for each input modality. This allows the network to prioritize informative regions depending on their relevance—for instance, emphasizing thermal imagery in low-light conditions or RGB features under normal lighting. Attention weights are computed using a lightweight convolutional network that captures both local and global cross-modal interactions. A spatial modulation map further enhances the process by assigning spatial importance to each location, thereby refining the attention weights. Additionally, residual connections between hierarchical levels ensure feature continuity and mitigate degradation during upsampling, maintaining coherence across feature scales.
The Perceptual Consistency via Semantic Loss mechanism aims to preserve high-level semantic structures and textures in the fused image. Instead of relying solely on pixel-wise differences, the method uses a perceptual loss computed from deep feature activations extracted from a pre-trained network. This loss evaluates the fused image’s alignment with a dynamically constructed pseudo-reference, formed by blending the input sources based on their relevance. The relevance of each input is learned through a scoring network and used to weigh its contribution to the reference representation. A multi-scale extension of this loss ensures that both global structures and fine details are preserved across image resolutions. Additionally, a gradient alignment term encourages the preservation of edges and textures by penalizing inconsistencies in spatial gradients between the fused and reference images.
The Multi-Scale Structural Preservation strategy is introduced to ensure that structural features such as contours, textures, and contrasts are maintained across all levels of resolution. This begins with a structural similarity loss, which measures the visual closeness of the fused image to each input source. To reinforce this, residual refinement connects feature maps across levels, ensuring that low-level details enhance high-level representations. A feature alignment operation upscales and combines information across scales, further improving structural coherence. Lastly, a Laplacian pyramid decomposition captures high-frequency details like edges at various levels. A Laplacian consistency loss enforces similarity between the fused image’s high-frequency components and those of the input images. These combined constraints ensure that the fused output is sharp, consistent, and structurally faithful to the source inputs.
5 Discussion
To further enhance the adaptability of MSAF-Net in diverse cyber-physical system scenarios, future extensions should consider the incorporation of non-visual modalities, such as inertial measurements, audio signals, or event-based sensor data. While the current model demonstrates strong performance in fusing visual modalities like RGB, depth, and infrared images, many real-world CPS applications, particularly in autonomous driving, wearable systems, and smart manufacturing, rely on multi-sensor environments where non-visual information plays a crucial role. A potential solution involves introducing a generic modality embedding module that can project heterogeneous data types into a shared latent representation space. By learning modality-specific encoders followed by unified fusion through the existing multi-scale attention mechanism, MSAF-Net could be extended to support broader modality inputs without compromising architectural integrity. Such an enhancement would enable the model to operate more robustly under visual degradation conditions and improve its generalization across sensor-rich environments. This direction represents a promising path toward building a truly multimodal and resilient perception framework for next-generation CPS applications.

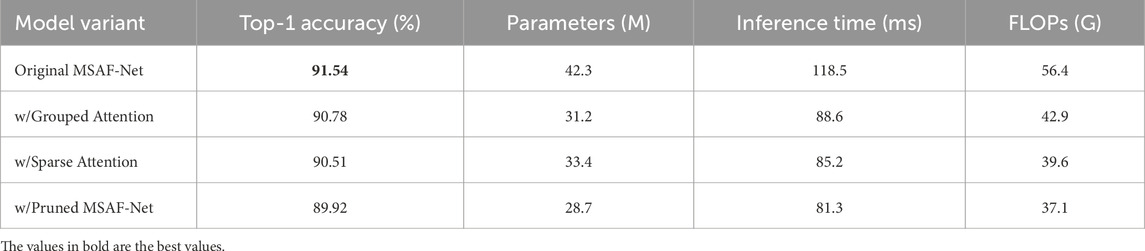

The results presented in Table 6 illustrate a clear trade-off between recognition accuracy and computational efficiency across different variants of MSAF-Net. The original MSAF-Net achieves the highest Top-1 accuracy of 91.54% on the UCF101 dataset, but this comes at the cost of significant computational overhead, with 42.3 million parameters, 118.5 milliseconds of inference time, and 56.4 GFLOPs. When replacing the multi-scale attention mechanism with grouped attention, the model maintains a competitive accuracy of 90.78%, while substantially reducing parameters to 31.2 million, decreasing inference time by nearly 25%, and lowering the FLOPs to 42.9G. Similarly, the sparse attention variant achieves an accuracy of 90.51% and brings further improvements in efficiency, particularly in inference latency and floating-point operations, suggesting its suitability for time-sensitive applications. The pruned version of MSAF-Net, where redundant weights are removed using L1-norm pruning, results in the smallest model with 28.7 million parameters and the fastest inference time of 81.3 milliseconds. Although the accuracy drops to 89.92%, the performance remains acceptable given the gain in efficiency. These findings indicate that integrating lightweight attention modules or pruning techniques can offer meaningful computational benefits with minimal compromise in recognition performance. Such strategies are especially promising for deployment in real-time or resource-constrained CPS environments, where both accuracy and speed are critical.
6 Conclusion and future work
This work tackles the challenge of action recognition in cyber-physical systems (CPS), which demand robust integration of multi-modal data to process diverse spatial and temporal cues effectively. Traditional methods often fall short in adaptability and fail to adequately preserve structural and textural information when fusing data from multiple modalities. To address these limitations, we proposed the Multi-Scale Attention-Guided Fusion Network (MSAF-Net), which leverages advanced image fusion techniques, multi-scale feature extraction, and attention mechanisms. The framework dynamically adjusts contributions from multiple modalities using adaptive weighting and perceptual consistency measures, mitigating issues like over-smoothing and noise sensitivity while improving generalization. Experimental results demonstrate the superiority of MSAF-Net over state-of-the-art methods, with enhanced accuracy and robustness across various CPS applications, including surveillance and human-computer interaction. This study highlights the potential of intelligent fusion strategies for advancing action recognition in complex environments. MSAF-Net’s adaptive and robust architecture suggests promising applications in medical imaging scenarios, where integrating heterogeneous modalities such as functional and anatomical scans can significantly improve the precision of medical diagnostics.
Despite its promising contributions, our proposed MSAF-Net has some limitations. First, while it significantly improves accuracy and robustness, the computational overhead introduced by multi-scale attention mechanisms and adaptive weighting schemes can be substantial. This might hinder its deployment in real-time CPS applications where low-latency processing is crucial. Future work could focus on optimizing the computational efficiency of the framework by exploring lightweight attention modules or pruning strategies. Second, the model’s adaptability across extremely heterogeneous modalities, such as integrating non-visual sensor data, remains unexplored. Extending the MSAF-Net framework to incorporate such modalities could further enhance its utility in a broader range of CPS scenarios. This direction promises to improve the resilience of action recognition systems, making them capable of handling more diverse and unpredictable real-world environments.
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.
Author contributions
ZS: Conceptualization, Methodology, Software, Validation, Formal Analysis, Investigation, Writing – original draft. DZ: Data-curation, Writing – original draft, Writing – review and editing, Visualization, Supervision, funding-acquisition.
Funding
The author(s) declare that no financial support was received for the research and/or publication of this article.
Conflict of interest
The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Generative AI statement
The author(s) declare that no Generative AI was used in the creation of this manuscript.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphy.2025.1576591/full#supplementary-material
