Probing Substituents in the 1- and 3-Position: Tetrahydropyrazino-Annelated Water-Soluble Xanthine Derivatives as Multi-Target Drugs With Potent Adenosine Receptor Antagonistic Activity

Pierre Koch1†, Andreas Brunschweiger1, Vigneshwaran Namasivayam1, Stefan Ullrich1, Annalisa Maruca2, Beatrice Lazzaretto1, Petra Küppers1, Sonja Hinz1, Jörg Hockemeyer1, Michael Wiese3, Jag Heer4, Stefano Alcaro2, Katarzyna Kiec-Kononowicz5 and Christa E. Müller1*
  • 1PharmaCenter Bonn, Pharmaceutical Institute, Pharmaceutical Chemistry I, University of Bonn, Bonn, Germany
  • 2Dipartimento di Scienze della Salute, Università degli Studi “Magna Græcia” di Catanzaro, Catanzaro, Italy
  • 3Pharmaceutical Institute, Pharmaceutical Chemistry II, University of Bonn, Bonn, Germany
  • 4UCB Celltech, UCB Pharma S.A., Slough, United Kingdom
  • 5Department of Technology and Biotechnology of Drugs, Faculty of Pharmacy, Jagiellonian University Medical College, Kraków, Poland

Tetrahydropyrazino-annelated theophylline (1,3-dimethylxanthine) derivatives have previously been shown to display increased water-solubility as compared to the parent xanthines due to their basic character. In the present study, we modified this promising scaffold by replacing the 1,3-dimethyl residues by a variety of alkyl groups including combinations of different substituents in both positions. Substituted benzyl or phenethyl residues were attached to the N8 of the resulting 1,3-dialkyl-tetrahydropyrazino[2,1-f ]purinediones with the aim to obtain multi-target drugs that block human A1 and A2A adenosine receptors (ARs) and monoaminoxidase B (MAO-B). 1,3-Diethyl-substituted derivatives showed high affinity for A1 ARs, e.g., 15d (PSB-18339, 8-m-bromobenzyl-substituted) displayed a Ki value of 13.6 nM combined with high selectivity. 1-Ethyl-3-propargyl-substituted derivatives exhibited increased A2A AR affinity. The 8-phenethyl derivative 20h was selective for the A2A AR (Ki 149 nM), while the corresponding 8-benzyl-substituted compound 20e (PSB-1869) blocked A1 and A2A ARs with equal potency (Ki A1, 180 nM; A2A, 282 nM). The 1-ethyl-3-methyl-substituted derivative 16a (PSB-18405) bearing a m,p-dichlorobenzyl residue at N8 blocked all three targets, A1 ARs (Ki 396 nM), A2A ARs (Ki 1,620 nM), and MAO-B (IC50 106 nM) with high selectivity vs. the other subtypes (A2B and A3 ARs, MAO-A), and can thus be considered as a multi-target drug. Our findings were rationalized by molecular docking studies based on previously published X-ray structures of the protein targets. The new drugs have potential for the treatment of neurodegenerative diseases, in particular Parkinson's disease.

Introduction

Adenosine receptors (ARs), specifically those of the A2A subtype, have emerged as new targets for neurodegenerative diseases, in particular for Parkinson's (PD) and Alzheimer's disease (AD). Several A2A-selective AR antagonists have been evaluated in preclinical and clinical trials. The 8-stryrylxanthine derivative istradefylline (Nouriast®, 1, Figure 1) was approved in Japan as adjunctive treatment of PD in combination with levodopa (Dungo and Deeks, 2013). The consumption of caffeine (2), which is a weakly potent and non-selective AR antagonist (Figure 1), was found to protect from PD and AD as demonstrated in a number of animal models as well as in large epidemiological studies in humans (Chen and Chern, 2011; Flaten et al., 2014).

FIGURE 1
www.frontiersin.org

Figure 1. Structures and Ki/IC50 values of the first marketed A2A-selective AR antagonist istradefylline (1) and the non-selective AR antagonist caffeine (2) (h = human; data taken from Petzer et al., 2009; Müller and Jacobson, 2011; Brunschweiger et al., 2014).

The concept of multi-target drugs interacting simultaneously with two or more pharmacological targets was proposed as a strategy for the treatment of complex diseases such as cancer, psychiatric disorders and neurodegenerative diseases (Geldenhuys and Van Der Schyf, 2013). Multi-target drugs may exhibit high efficacy due to synergistic effects, show a reduced risk of side effects, and result in improved compliance, especially in elderly patients, as compared to combination therapies of two or more different drugs.

In 2009, Petzer et al. suggested that simultaneous targeting of the dopamine-metabolizing, H2O2-producing enzyme monoamine oxidase B (MAO-B) by inhibitors, and of A2A ARs by antagonists, may be advantageous for the treatment of PD due to their dopamine-enhancing effects. While MAO-B inhibition directly inhibits the degradation of dopamine, A2A AR blockade enhances dopamine-induced D2 receptor signaling in the A2A-D2 heteromeric receptor (Navarro et al., 2018). In addition, A2A AR antagonists reduce cAMP production by blocking A2A AR-induced activation of adenylate cyclase (AC); thus they exert the same intracellular effect as dopamine receptor agonists activating Gi protein-coupled receptors, thereby also inhibiting AC. Moreover, both, MAO-B inhibition and A2A AR blockade, are expected to show additional neuroprotective activities, MAO-B inhibitors by reducing hydrogen peroxide production, and A2A AR antagonists by various mechanisms (Fišar, 2016; Xu et al., 2016). Therefore, such a dual target-directed approach may result in synergistic or at least additive effects thereby possibly halting or reducing the devastating progression of neurodegenerative diseases.

Several studies focused on the design of caffeine derivatives that display A2A AR antagonistic as well as MAO-B inhibitory activity have been published (Petzer and Petzer, 2015). 8-m-Chlorostyrylcaffeine (CSC, 3) was the first reported example of an A2A AR antagonist that also showed high MAO-B inhibitory activity (Figure 2; Chen et al., 2002). Petzer and coworkers reported on a series of (E,E)-8-(4-phenylbutadien-1-yl)xanthines, among which caffeine derivative 4 showed potent A2A AR/MAO-B inhibitory activity (Ki rat A2A AR: 59.1 nM; IC50 human MAO-B: 37.9 nM) (Pretorius et al., 2008). Recently, Wang et al. published another series of xanthine-based dual A2A AR antagonists/MAO-B inhibitors. The most potent example of this series was PX-D-P6 (5) (Ki human A2A AR: 330 nM; IC50 human MAO-B: 260 nM), which showed anti-cataleptic effects in a haloperidol model in rat (Wang et al., 2017). The first non-xanthine-derived dual A2A AR antagonists/MAO-B inhibitors were reported by our group: N-(4-oxo-4H-3,1-benzothiazin-2-yl)-4-phenylbutanamide (6, Figure 2) was the most potent compound in that series of benzothiazines displaying a Ki value of 39.5 nM at the human A2A AR, and an IC50 value of 34.9 nM at human MAO-B combined with excellent selectivity vs. other AR subtypes as well as vs. MAO-A (Stössel et al., 2013).

FIGURE 2
www.frontiersin.org

Figure 2. Structures and Ki/IC50 values of dual A2A AR antagonists/MAO-B inhibitors and dual A1/A2A AR antagonists (r, rat; h, human).

As a further dual-target drug approach for the treatment of PD, the combination of A2A and A1 AR blockade was suggested. The dual A1/A2A AR antagonist ASP-5854 (7) (Ki human A1 9.03 nM; Ki human A2A 1.76 nM) was extensively characterized in several animal models of PD, as well as for its effects on cognition. Compound 7 reversed haloperidol-induced catalepsy in monkeys. Moreover, it produced positive results in rats in the passive avoidance test, a model of cognition, in which the A2A-selective antagonist istradefylline (1) had been inactive (Mihara et al., 2007). The aminopyrimidine-based dual A1/A2A AR antagonist 8, which displays high affinity for both AR subtypes (Ki rat A1 6.34 nM; Ki rat A2A 9.54 nM), showed in vivo efficacy in a rat model of haloperidol-induced catalepsy (Robinson et al., 2015). These results support the hypothesis that a dual A1/A2A AR antagonist may provide additional benefit to PD patients as compared to antagonists that selectively block A2A ARs, due to their positive effects on cognitive impairment often associated with the disease.

We previously reported on the development of tetrahydropyrimido[2,1-f ]purinediones (e.g., compounds 9a, 9b) as AR antagonists and MAO-B inhibitors (Figure 3; Drabczynska et al., 2007; Koch et al., 2013). This class of compounds can be envisaged as tricyclic caffeine derivatives. They represent analogs of 8-styrylxanthines, that are sterically constrained by anellation of a tetrahydropyrimidine ring to the 7,8-position of xanthine mimicking the (E)-configurated styryl sub-structure of CSC (6). Compound 9a is a potent dual A1/A2A AR antagonist (Ki, human receptors, A1: 249 nM, A2A: 253 nM), while compound 9b is a moderately potent triple-target A1/A2A AR antagonist/MAO-B inhibitor with Ki-/IC50-values of 605, 417, and 1,800 nM, respectively. However, a major drawback of this class of compounds is their low water-solubility, similar to that of many xanthines such as 3. In continuation of our efforts to develop improved, more water-soluble A2A AR antagonists, structures 10 had been designed (Figure 3; Brunschweiger et al., 2014, 2016). In 10, the nitrogen atom in position 9 of the tricyclic structures 9 was (formally) shifted to position 8. Consequently, the nitrogen atom is much more basic, and compounds 10 display improved water-solubility at physiological pH values. Several compounds of this series showed triple-target inhibition, one of the best derivatives being 8-(2,4-dichloro-5-fluorobenzyl)-1,3-dimethyl-6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-dione (10a, human receptors: Ki A1: 217 nM, Ki A2A: 268 nM, IC50 human MAO-B: 508 nM). 8-(3,4-Dichlorobenzyl)-1,3-dimethyl-6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-dione (10b) was the best triple-target drug in rat (Ki rat receptors A1: 351 nM, A2A: 322 nM, IC50 rat MAO-B: 260 nM) and should therefore be a suitable tool for animal studies. 1,3-Dimethyl-6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-dione (10c, Ki, human receptors, A1: 116 nM, A2A: 94 nM) was identified as a potent dual A1/A2AR antagonist.

FIGURE 3
www.frontiersin.org

Figure 3. Structures and Ki/IC50 values of tetrahydropyrimido[2,1-f ]purinediones (9a,b) and tetrahydropyrazino[2,1-f ]purinediones (10a,b,c) as dual- and multi-target drugs (r, rat; h, human).

In the present study, we report on the synthesis of a series of 64 novel tetrahydropyrazino[2,1-f ]purinedione derivatives 1120. The final products 1320 were evaluated as antagonists at all four AR subtypes (A1, A2A, A2B, A3) and as inhibitors of both MAO isoenzymes (MAO-A and MAO-B). Substituents on positions N1, N3 and N8 were varied in order to modulate the biological activities of the compounds (Figure 4). Differently substituted benzyl and phenethyl residues were introduced at position 8 keeping the nitrogen atom N8 basic to allow for protonation. In order to study the effects of substituents at nitrogen atoms N1 and N3 on the biological activity of the compounds, methyl groups found in caffeine derivatives and in the majority of published tetrahydropyrazino[2,1-f ]purinediones were replaced by ethyl, propyl, cyclopropyl, or propargyl (prop-2-yn-1-yl) moieties, or remained unsubstituted. Within the series of 1-ethyl-3-propargyl-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-diones 20 phenyl residues bearing different substituents were additionally introduced in position 8 for comparison with benzyl- and phenethyl-substituted derivatives.

FIGURE 4
www.frontiersin.org

Figure 4. Structural modifications introduced into new tetrahydropyrazino[2,1-f ]purinedione derivatives.

Materials and Methods

General Information

All commercially available reagents and solvents were used without further purification. The reactions were monitored by thin layer chromatography (TLC) using aluminum sheets coated with silica gel 60 F254 (Merck). Melting points were determined on a Büchi 530 melting point apparatus and are uncorrected. Column chromatography was carried out on silica gel 0.040–0.063 mm using a Sepacore flash chromatography system (Büchi). 1H NMR and 13C NMR data were recorded on a Bruker Avance spectrometer at 500 MHz for proton and 125 MHz for carbon at ambient temperature (for 13C NMR data, see Supplementary Materials). Shifts are given in ppm relative to the remaining protons of the deuterated solvents. The purity of the tested compounds was determined by HPLC-UV obtained on an LC-MS instrument (Applied Biosystems API 2000 LC-MS/MS, HPLC Agilent 1100) using the procedure as follows: dissolving of the compounds at a concentration of 1.0 mg/mL in methanol and if necessary sonication to complete dissolution. Then, 10 μL of the substance solution was injected into a Phenomenex Luna C18 HPLC column (50 × 2.00 mm, particle size 3 μm) and elution was performed for 30 min at a flow rate of 250 μL/min with a gradient of water: methanol either containing 2 mM ammonium acetate from 90:10 up to 0:100, starting the gradient after 10 min (system A) or containing 2 mM ammonium acetate and 0.1% formic acid from 90:10 up to 0:100, starting the gradient after 10 min (system B). UV absorption was detected from 220 to 400 nm using a diode array detector. Mass spectra were recorded on an API 2000 mass spectrometer (electron spray ion source, Applied Biosystems, Darmstadt, Germany) coupled with an Agilent 1100 HPLC system.

Synthesis of Final Compounds

General Procedure for the Preparation of 8-substituted 6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-diones 13–15 (General Procedure A)

7-(2-Bromoethyl)-8-hydroxymethylpurine-2,4-dione 23c, 23d or 23e (400 mg) was dissolved in dry CH2Cl2 (50 mL). The solution was cooled to 0°C and PBr3 (0.4 mL) was added dropwise. The reaction mixture was allowed to warm to rt and stirred for 1 h. Then it was cooled to 0°C again. To hydrolyze the excess of PBr3, saturated aq. NaHCO3-solution (5 mL) was added and the pH was set to 7–8 by addition of NaHCO3. Then, the lower layer was separated in a separating funnel and the aqueous layer was extracted with CH2Cl2 (2 × 50 mL). The organic extracts were combined, dried over Na2SO4 and the solvent was removed by rotary evaporation. The residue was dissolved in a mixture of dimethoxyethane (10 mL) and DIPEA (0.5 mL). To effect ring closing reaction, an appropriate amine was added and the solution was stirred overnight at rt. The volatiles were removed by rotary evaporation and the product precipitated upon addition of H2O (20 mL). For purification, the compound was either filtered off and washed with H2O (3 × 5 mL) and diethylether (3 × 10 mL) or subjected to flash-chromatography (silica gel, CH2Cl2:MeOH 1:0 to 40:1).

8-(2-Bromobenzyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13a)

General procedure A. Yield: 83%; mp: 289°C; 1H-NMR (CDCl3) δ 7.55 (dd, 3J = 8.20 Hz, 4J = 1.25 Hz, 1H, H-3, phenyl), 7.44 (d, 3J = 7.25 Hz, 1H, H-6, phenyl), 7.28 (ddd, 3J = 7.60 Hz, 3J = 8.55 Hz, 4J = 1.60 Hz, 1H, H-4, phenyl), 7.14 (dd, 3J = 7.55 Hz, 3J = 7.55 Hz, 1H, H-5, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.86 (s, 2H, N8-CH2), 3.83 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 3.02 (t, 3J = 5.40 Hz, 2H, 2 × H-7). ESI-MS: positive mode 390.3 and 392.3 [M+H]+. HPLC: 99.9% (A) and 99.6% (B).

1-Methyl-8-(3-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13b)

General procedure A. Yield: 65%; mp: 215°C; 1H-NMR (CDCl3) δ 9.41 (s, 1H, N3-H), 7.59 (br s, 1H, H-2, phenyl), 7.53–7.51 (m, 2H, H-5 and H-6, phenyl), 7.45–7.42 (m, 1H, H-4, phenyl), 4.32 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.77 (s, 2H, N8-CH2), 3.73 (s, 2H, 2 × H-9), 3.45 (s, 3H, N1-CH3), 2.94 (t, 3J = 5.35 Hz, 2H, 2 × H-7). ESI-MS: positive mode 380.4 [M+H]+. HPLC: 99.4% (A) and 99.9% (B).

8-(3-Chlorophenethyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13c)

General procedure A. Yield: 62%; mp: 228°C; 1H-NMR (CDCl3) δ 8.11 (s, 1H, N3-H), 7.21–7.18 (m, 3H, H-2, H-4 and H-5, phenyl), 7.09–7.07 (m, 2H, H-6, phenyl), 4.30 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.81 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 2.96 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.83 (s, 4H, N8-CH2-CH2). ESI-MS: negative mode 358.0 [M-H], positive mode 360.3 [M+H]+. HPLC: 98.8% (A) and 98.9% (B).

8-(3-Bromophenethyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13d)

General procedure A. Yield: 71%; mp: 240°C; 1H-NMR (CDCl3) δ 8.09 (s, 1H, N3-H), 7.35–7.33 (m, 2H, H-2 and H-5, phenyl), 7.17–7.11 (m, 2H, H-4 and H-6, phenyl), 4.30 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.81 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 2.97 (br s, 2H, 2 × H-7), 2.84 (br s, 4H, N8-CH2-CH2). ESI-MS: negative mode 404.0 [M-H], positive mode 406.4 [M+H]+. HPLC: 97.5% (A) and 97.5% (B).

1-Methyl-8-(3-(trifluoromethyl)phenethyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13e)

General procedure A. Yield: 63%; mp: 252°C; 1H-NMR (CDCl3) δ 8.10 (s, 1H, N3-H), 7.46 (d, 4J = 1.60 Hz, 1H, H-2, phenyl), 7.46–7.44 (m, 1H, H-5, phenyl), 7.38–7.35 (m, 2H, H-4 and H-6, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.83 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 2.98 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.92–2.84 (m, 4H, N8-CH2-CH2). ESI-MS: negative mode 392.0 [M-H], positive mode 394.4 [M+H]+. HPLC: 97.7% (A) and 97.6% (B).

8-(2,4-Dichlorophenethyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13f)

General procedure A. Yield: 55%; mp: 260°C; 1H-NMR (CDCl3) δ 7.35 (s, 1H, H-3, phenyl), 7.17 (d, 3J = 7.90 Hz, 2H, H-5 and H-6, phenyl), 4.34 (br s, 2H, 2 × H-6), 3.87 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 3.02 (br s, 2H, 2 × H-7), 2.97 (t, 3J = 6.90 Hz, 2H, N8-CH2), 2.84 (t, 3J = 7.25 Hz, 2H, N8-CH2-CH2). ESI-MS: negative mode 392.0 [M-H], positive mode 394.4 [M+H]+. HPLC: 95.0% (A) and 95.2% (B).

8-(3,4-Dichlorophenethyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13g)

General procedure A. Yield: 69%; mp: 241°C; 1H-NMR (CDCl3) δ 7.33 (d, 3J = 8.15 Hz, 1H, H-5, phenyl), 7.29 (d, 4J = 1.90 Hz, 1H, H-2, phenyl), 7.02 (dd, 3J = 8.15 Hz, 4J = 2.25 Hz, 1H, H-6, phenyl), 4.34 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 3.81 (s, 2H, 2 × H-9), 3.54 (s, 3H, N1-CH3), 2.97 (t, 3J = 5.05 Hz, 2H, 2 × H-7), 2.82 (br s, 4H, N8-CH2-CH2). ESI-MS: negative mode 392.0 [M-H], positive mode 394.3 [M+H]+. HPLC: 99.9% (A) and 99.1% (B).

8-(3,4-Dichlorophenethyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13h)

General procedure A. Yield: 56%; mp: 276°C; 1H-NMR (DMSO-d6) δ 11.01 (s, 1H, N1-H), 7.63 (d, 4J = 1.9 Hz, 1H, H-2, phenyl), 7.61 (d, 4J = 8.2 Hz, 1H, H-4, phenyl), 7.37 (dd, 3J = 8.2 Hz, 4J = 1.9Hz, 1H, H-5, phenyl), 4.18 (t, J = 5.4 Hz, 2H, 2 × H-6), 3.75 (s, 2H, N8-CH2), 3.73 (s, 2H, 2 × H-9), 3.31 (s, 3H, N1-CH3), 2.92 (t, 2H, 2 × H-7). ESI-MS: negative mode 378.3 [M-H], positive mode 380.1 [M+H]+. HPLC: 99.2% (C).

8-(2-Chloro-5-(trifluoromethyl)benzyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (13i)

General procedure A. Yield: 71%; mp: 253°C; 1H-NMR (CDCl3) δ 7.74 (s, 1H, H-6, phenyl), 7.49 (2 × d, 3J = 8.50 Hz, 2H, H-3 and H-4, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.89 (s, 2H, N8-CH2), 3.82 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 3.02 (t, 3J = 5.35 Hz, 2H, 2 × H-7). ESI-MS: positive mode 414.3 [M+H]+. HPLC: 97.1% (A) and 97.4% (B).

8-(2-Bromobenzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14a)

General Procedure A. Yield: 75%; mp: 224°C; 1H-NMR (CDCl3) δ 7.55 (dd, 3J = 8.20 Hz, 4J = 1.25 Hz, 1H, H-3, phenyl), 7.44 (d, 3J = 7.65 Hz, 4J = 1.65 Hz, 1H, H-6, phenyl), 7.30–7.27 (m, 1H, H-4, phenyl), 7.16–7.13 (m, 1H, H-5, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.86 (s, 2H, N8-CH2), 3.83 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 3.02 (t, 3J = 5.40 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 418.3 and 420.3 [M+H]+. HPLC: 98.4% (A) and 99.0% (B).

8-(3-Bromobenzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14b)

General Procedure A. Yield: 81%; mp: 194°C; 1H-NMR (CDCl3) δ 7.50 (s, 1H, H-2, phenyl), 7.42–7.40 (m, 1H, H-4, phenyl), 7.26–7.23 (m, 1H, H-6, phenyl), 7.21–7.18 (m, 1H, H-5, phenyl), 4.55 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.93 (br s, 4H, N8-CH2, 2 × H-9), 3.52 (s, 3H, N1-CH3), 3.18 (t, 3J = 5.05 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 418.3 and 420.3 [M+H]+. HPLC: 99.7% (A) and 99.9% (B).

8-(4-Bromobenzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14c)

General Procedure A. Yield: 42%; mp: 156°C; 1H-NMR (CDCl3) δ 7.45 (d, 3J = 8.20 Hz, 2H, H-3 and H-5, phenyl), 7.44 (d, 3J = 8.20 Hz, 2H, H-2 and H-6, phenyl), 4.32 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.72 (s, 2H, N8-CH2), 3.67 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 2.92 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 418.3 and 420.3 [M+H]+. HPLC: 98.7% (A) and 99.5% (B).

3-Ethyl-1-methyl-8-(2-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14d)

General Procedure A. Yield: 60%; mp: 182°C; 1H-NMR (CDCl3) δ 7.72 (d, 3J = 7.75 Hz, 1H, H-6, phenyl), 7.66 (d, 3J = 7.80 Hz, 1H, H-3, phenyl), 7.53 (dd, 3J = 7.60 Hz, 3J = 7.20 Hz, 1H, H-5, phenyl), 7.39 (dd, 3J = 7.60 Hz, 3J = 7.65 Hz, 1H, H-4, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.90 (s, 2H, N8-CH2), 3.78 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 2.97 (t, 3J = 5.85 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 408.1 [M+H]+. HPLC: 99.9% (A) and 99.0% (B).

3-Ethyl-1-methyl-8-(3-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14e)

General Procedure A. Yield: 65%; mp: 198°C; 1H-NMR (CDCl3) δ 7.60 (s, 1H, H-2, phenyl), 7.58–7.52 (m, 1H, H-5 and H-6, phenyl), 7.47–7.44 (m, 1H, H-4, phenyl), 4.47 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 4.03 (s, 2H, N8-CH2), 3.84 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 3.08 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 408.4 [M+H]+. HPLC: 98.4% (A) and 99.6% (B).

3-Ethyl-1-methyl-8-(4-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14f)

General Procedure A. Yield: 44%; mp: 162°C; 1H-NMR (CDCl3) δ 8.00 (d, 3J = 8.50 Hz, 2H, H-3 and H-5, phenyl), 7.64 (d, 3J = 8.50 Hz, 2H, H-2 and H-6, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.96 (s, 2H, N8-CH2), 3.87 (s, 2H, 2 × H-9), 3.48 (s, 3H, N1-CH3), 3.05 (t, 3J = 5.40 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 408.3 [M+H]+. HPLC: 99.9% (A) and 99.0% (B).

3-Ethyl-8-(3-fluorobenzyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14g)

General Procedure A. Yield: 54%; mp: 154°C; 1H-NMR (CDCl3) δ 7.31–7.27 (m, 1H, H-5, phenyl), 7.10 (d, 3J = 7.60 Hz, 1H, H-2, phenyl), 7.08–7.05 (m, 1H, H-6, phenyl), 7.00–6.96 (m, 1H, H-4, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.71 (br s, 4H, N8-CH2 and 2 × H-9), 3.51 (s, 3H, N1-CH3), 2.93 (t, 3J = 5.70 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 358.3 [M+H]+. HPLC: 98.2% (A) and 99.5% (B).

3-Ethyl-8-(4-fluorobenzyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14h)

General Procedure A. Yield: 33%; mp: 158°C; 1H-NMR (CDCl3) δ 7.30–7.28 (m, 2H, H-2 and H-6, phenyl), 7.03–7.00 (m, 2H, H-3 and H-5, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.72 (s, 2H, N8-CH2), 3.71 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 2.94 (t, 3J = 5.45 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 358.3 [M+H]+. HPLC: 99.2% (A) and 98.4% (B).

8-(3-Chlorobenzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14i)

General Procedure A. Yield: 74%; mp: 202°C; 1H-NMR (CDCl3) δ 7.34 (d, 4J = 1.25 Hz, 1H, H-2, phenyl), 7.27–7.26 (m, 2H, H-4 and H-6, phenyl), 7.21–7.19 (m, 1H, H-5, phenyl), 4.81 (t, 3J = 5.00 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.83 (br s, 4H, N8-CH2, 2 × H-9), 3.53 (s, 3H, N1-CH3), 3.38 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 374.3 [M+H]+. HPLC: 99.9% (A) and 99.9% (B).

8-(2,5-Dichlorobenzyl)-3-ethyl-1-dimethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14j)

General Procedure A. Yield: 80%; mp: 165°C; 1H-NMR (CDCl3) δ 7.44 (d, 4J = 2.50 Hz, 1H, H-6, phenyl), 7.30 (d, 3J = 8.50 Hz, 1H, H-3, phenyl), 7.20 (dd, 3J = 8.50 Hz, 4J = 2.50 Hz, 1H, H-4, phenyl), 4.36 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.86 (s, 2H, N8-CH2), 3.84 (s, 2H, 2 × H-9), 3.52 (s, 3H, N1-CH3), 3.04 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 409.3 [M+H]+. HPLC: 98.6% (A) and 99.1% (B).

8-(2,6-Dichlorobenzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14k)

General Procedure A. Yield: 64%; mp: 210°C; 1H-NMR (CDCl3) δ 7.33 (d, 3J = 8.40 Hz, 2H, H-3 and H-5, phenyl), 7.18 (dd, 3J = 8.40 Hz, 1H, H-4, phenyl), 4.38 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.91 (s, 2H, N8-CH2), 3.83 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 3.02 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 394.1 [M+H]+. HPLC: 99.0% (A) and 99.0% (B).

3-Ethyl-8-(2-fluoro-3-(trifluoromethyl)benzyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14l)

General Procedure A. Yield: 42%; mp: 178°C; 1H-NMR (CDCl3) δ 7.63–7.60 (m, 1H, H-4, phenyl), 7.57–7.54 (m, 1H, H-5, phenyl), 7.25–7.22 (m, 1H, H-6, phenyl), 4.45 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.97 (s, 2H, N8-CH2), 3.88 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 3.11 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 426.3 [M+H]+. HPLC: 98.4% (A) and 98.4% (B).

8-(2-Chloro-5-(trifluoromethyl)benzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14m)

General Procedure A. Yield: 64%; mp: 172°C; 1H-NMR (CDCl3) δ 7.74 (s, 1H, H-6, phenyl), 7.50–7.49 (m, 2H, H-3 and H-4, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.05 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.89 (s, 2H, N8-CH2), 3.82 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 3.02 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 442.3 [M+H]+. HPLC: 99.6% (A) and 98.9% (B).

8-(3-Chloro-5-fluorobenzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14n)

General Procedure A. Yield: 81%; mp: 171°C; 1H-NMR (CDCl3) δ 7.15 (s, 1H, H-2, phenyl), 7.02 (d, 3JH, F = 8.20 Hz, 1H, H-4, phenyl), 7.00 (d, 3JH, F = 9.45 Hz, 1H, H-6, phenyl), 4.37 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.05 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.76 (s, 2H, N8-CH2), 3.72 (s, 2H, 2 × H-9), 3.52 (s, 3H, N1-CH3), 2.98 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 392.2 [M+H]+. HPLC: 99.7% (A) and 99.1% (B).

8-(5-Bromo-2-fluorobenzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14o)

General Procedure A. Yield: 71%; mp: 208°C; 1H-NMR (CDCl3) δ 7.52–7.50 (m, 1H, H-4, phenyl), 7.39–7.35 (m, 1H, H-6, phenyl), 6.96–6.92 (m, 1H, H-3, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.05 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.76 (s, 4H, N8-CH2 and 2 × H-9), 3.52 (s, 3H, N1-CH3), 2.98 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 436.0 and 438.0 [M+H]+. HPLC: 96.4% (A) and 98.5% (B).

3-Ethyl-8-(3-fluoro-5-(trifluoromethyl)benzyl)-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14p)

General Procedure A. Yield: 66%; mp: 166°C; 1H-NMR (CDCl3) δ 7.41 (br s, 1H, H-6, phenyl), 7.29–7.25 (m, 2H, H-2 and H-4, phenyl), 4.37 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 4.05 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.78 (s, 2H, N8-CH2), 3.74 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 2.97 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 426.3 [M+H]+. HPLC: 98.4% (A) and 99.6% (B).

8-(3,5-Bis(trifluoromethyl)benzyl)-3-ethyl-1-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (14q)

General Procedure A. Yield: 51%; mp: 236°C; 1H-NMR (CDCl3) δ 7.81 (s, 2H, H-2 and H-6, phenyl), 7.80 (s, 1H, H-4, phenyl), 4.37 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 4.05 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.85 (s, 2H, N8-CH2), 3.76 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 2.99 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 476.1 [M+H]+. HPLC: 99.9% (A) and 99.1% (B).

1,3-Diethyl-8-(2-fluorobenzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15a)

General procedure A. Yield: 55%; mp: 143°C; 1H-NMR (CDCl3) δ 7.35 (dd, 3J = 7.55 Hz, 3J = 5.95 Hz, 4J = 1.90 Hz, 4JH, F = 5.95 Hz, 1H, H-4, phenyl), 7.27 (ddd, 3J = 5.95 Hz, 4J = 1.85 Hz, 3JH, F = 9.45 Hz, 1H, H-3, phenyl), 7.07 (dd, 3J = 6.25 Hz, 4J = 1.30 Hz, 1H, H-6, phenyl), 7.02 (pseudo-t, 3J = 8.55 Hz, 3J = 5.95 Hz, 2H, H-5, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.81 (s, 2H, N8-CH2), 3.77 (s, 2H, 2 × H-9), 2.97 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 372.2 [M+H]+. HPLC: 98.1% (A) and 98.5% (B).

1,3-Diethyl-8-(3-fluorobenzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15b)

General procedure A. Yield: 62%; mp: 145°C; 1H-NMR (CDCl3) δ 7.30 (dd, 3J = 7.90 Hz, 4J = 1.90 Hz, 1H, H-5, phenyl), 7.08 (pseudo-t, 3J = 7.90 Hz, 3J = 8.20 Hz, 1H, H-4, phenyl), 7.06 (d, 3J = 8.20 Hz, 1H, H-6, phenyl), 6.98 (m, 1H, 3J = 7.55 Hz, 4J = 2.20 Hz, 3JH, F = 9.80 Hz, H-2, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.76 (s, 2H, N8-CH2), 3.71 (s, 2H, 2 × H-9), 2.93 (t, 3J = 5.70 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 372.1 [M+H]+. HPLC: 99.8% (A) and 99.9% (B).

8-(3-Chlorobenzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15c)

General procedure A. Yield: 68%; mp: 153°C; 1H-NMR (CDCl3) δ 7.35–7.34 (m, 1H, H-2, phenyl), 7.27–7.26 (m, 2H, H-5 and H-6, phenyl), 7.22–7.20 (m, 1H, H-4, phenyl), 4.35 (t, 3J = 5.00 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.83 (br s, 4H, N-8-CH2, 2 × H-9), 3.38 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 388.3 [M+H]+. HPLC: 99.7% (A) and 99.0% (B).

8-(3-Bromobenzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15d)

General procedure A. Yield: 81%; mp: 135°C; 1H-NMR (CDCl3) δ 7.50 (s, 1H, H-2, phenyl), 7.51 (dd, 3J = 8.20 Hz, 4J = 1.20 Hz, 1H, H-4, phenyl), 7.42 (d, 3J = 6.90 Hz, 1H, H-6, phenyl), 7.24 (pseudo-t, 3J = 7.90 Hz, 3J = 7.55 Hz, 1H, H-5, phenyl), 7.19 (dd, 3J = 7.55 Hz, 3J = 7.55 Hz, 1H, H-5, phenyl), 4.55 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.72 (s, 2H, N8-CH2), 3.69 (s, 2H, 2 × H-9), 2.94 (t, 3J = 5.05 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 432.0 and 434.0 [M+H]+. HPLC: 99.7% (A) and 99.9% (B).

8-(4-Bromobenzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15e)

General procedure A. Yield: 48%; mp: 140°C; 1H-NMR (CDCl3) δ 7.45 (d, 3J = 8.20 Hz, 2H, H-3 and H-5, phenyl), 7.21 (d, 3J = 8.20 Hz, 2H, H-2 and H-6, phenyl), 4.32 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.72 (s, 2H, N8-CH2), 3.67 (s, 2H, 2 × H-9), 2.92 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 432.0 and 434.0 [M+H]+. HPLC: 99.9% (A) and 99.7% (B).

1,3-Diethyl-8-(2-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15f)

General procedure A. Yield: 63%; mp: 142°C; 1H-NMR (CDCl3) δ 7.72 (d, 3J = 7.80 Hz, 1H, H-6, phenyl), 7.65 (d, 3J = 7.80 Hz, 1H, H-2, phenyl), 7.73 (dd, 3J = 7.50 Hz, 3J = 7.50 Hz, 1H, H-5, phenyl), 7.65 (dd, 3J = 7.60 Hz, 3J = 7.70 Hz, 1H, H-4, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 7.25 Hz, 2H, N3-CH2), 3.90 (s, 2H, N8-CH2), 3.78 (s, 2H, 2 × H-9), 2.97 (t, 3J = 5.85 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 422.0 [M+H]+. HPLC: 99.9% (A) and 99.3% (B).

1,3-Diethyl-8-(3-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15g)

General Procedure A. Yield: 60%; mp: 124°C; 1H-NMR (CDCl3) δ 7.60 (br s, 2H, H-2, phenyl), 7.55–7.52 (m, 2H, H-5 and H-6, phenyl), 7.47–7.44 (m, 1H, H-4, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 7.25 Hz, 2H, N3-CH2), 3.78 (s, 2H, N8-CH2), 3.73 (s, 2H, 2 × H-9), 2.95 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (3H, t, 3J = 7.25 Hz, N3-CH2-CH3). ESI-MS: positive mode 422.0 [M+H]+. HPLC: 99.8% (A) and 99.4% (B).

1,3-Diethyl-8-(2-fluoro-3-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15h)

General Procedure A. Yield: 35%; mp: 162°C; 1H-NMR (CDCl3) δ 7.63–7.60 (m, 1H, H-4, phenyl), 7.58–7.55 (m, 1H, H-5, phenyl), 7.26–7.23 (m, 1H, H-6, phenyl), 4.45 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.97 (s, 2H, N8-CH2), 3.88 (s, 2H, 2 × H-9), 3.11 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 440.4 [M+H]+. HPLC: 99.5% (A) and 99.9% (B).

1,3-Diethyl-8-(4-fluoro-3-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15i)

General Procedure A. Yield: 66%; mp: 171°C; 1H-NMR (CDCl3) δ 7.60–7.58 (m, 1H, H-6, phenyl), 7.54–7.51 (m, 1H, H-2, phenyl), 7.19–7.16 (m, 1H, H-5, phenyl), 4.34 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 4.10 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.74 (s, 2H, N8-CH2), 3.72 (s, 2H, 2 × H-9), 2.95 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 440.3 [M+H]+. HPLC: 99.5% (A) and 99.0% (B).

1,3-Diethyl-8-(2-fluoro-5-(trifluoromethyl)benzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15j)

General Procedure A. Yield: 73%; mp: 154°C; 1H-NMR (CDCl3) δ 7.70–7.69 (m, 1H, H-6, phenyl), 7.58–7.55 (m, 1H, H-4, phenyl), 7.20–7.16 (m, 1H, H-3, phenyl), 4.36 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.10 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.87 (s, 2H, N8-CH2), 3.81 (s, 2H, 2 × H-9), 3.52 (s, 3H, N1-CH3), 3.37 (s, 3H, N3-CH3), 3.02 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 440.3 [M+H]+. HPLC: 99.9% (A) and 99.9% (B).

8-(3-Bromo-4-fluorobenzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15k)

General Procedure A. Yield: 44%; mp: 156°C; 1H-NMR (CDCl3) δ 7.56–7.54 (m, 1H, H-2, phenyl), 7.26–7.23 (m, 1H, H-6, phenyl), 7.10–7.06 (m, 1H, H-5, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.75 (s, 2H, N8-CH2), 3.72 (s, 2H, 2 × H-9), 3.37 (s, 3H, N3-CH3), 2.98 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 450.3 and 452.3 [M+H]+. HPLC: 99.5% (A) and 99.5% (B).

8-(5-Bromo-2-fluorobenzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15l)

General Procedure A. Yield: 70%; mp: 190°C; 1H-NMR (CDCl3) δ 7.53–7.51 (m, 1H, H-4, phenyl), 7.40–7.37 (m, 1H, H-6, phenyl), 6.97–6.93 (m, 1H, H-3, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.10 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.77 (s, 4H, 2 × H-9 and N8-CH2), 2.98 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 436.0 and 438.0 [M+H]+. HPLC: 99.5% (A) and 99.4% (B).

8-(3,5-Dichlorobenzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15m)

General Procedure A. Yield: 70%; mp: 182°C; 1H-NMR (CDCl3) δ 7.28 (d, 4J = 1.90 Hz, 1H, H-4, phenyl), 7.24 (d, 4J = 1.90 Hz, 2H, H-2 and H-6, phenyl), 4.36 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.73 (s, 2H, N8-CH2), 3.68 (s, 2H, 2 × H-9), 2.95 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 423.3 [M+H]+. HPLC: 98.0% (A) and 99.6% (B).

8-(2-Chloro-5-(trifluoromethyl)benzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15n)

General Procedure A. Yield: 60%; mp: 152°C; 1H-NMR (CDCl3) δ 7.74 (s, 1H, H-6, phenyl), 7.50–7.49 (m, 2H, H-3 and H-4, phenyl), 4.38 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.10 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.05 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.89 (s, 2H, N8-CH2), 3.83 (s, 2H, 2 × H-9), 3.01 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 442.3 [M+H]+. HPLC: 99.5% (A) and 99.4% (B).

8-(4-Chloro-2-(trifluoromethyl)benzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15o)

General Procedure A. Yield: 27%; mp: 188°C; 1H-NMR (CDCl3) δ 7.69 (d, 3J = 8.55 Hz, 1H, H-6, phenyl), 7.64 (dd, 3J = 8.55 Hz, 4J = 1.90 Hz, 1H, H-5, phenyl), 7.49 (dd, 3J = 8.55 Hz, 4J = 2.20 Hz, 1H, H-3, phenyl), 4.34 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.10 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.86 (s, 2H, N8-CH2), 3.77 (s, 2H, 2 × H-9), 2.95 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 428.0 [M+H]+. HPLC: 98.9% (A) and 99.4% (B).

8-(4-Chloro-3-(trifluoromethyl)benzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15p)

General Procedure A. Yield: 38%; mp: 165°C; 1H-NMR (CDCl3) δ 7.67 (s, 1H, H-2, phenyl), 7.48 (d, 3J = 8.20 Hz, 1H, H-6, phenyl), 7.45 (d, 3J = 8.20 Hz, 1H, H-5, phenyl), 4.35 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 4.10 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.76 (s, 2H, N8-CH2), 3.73 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 3.37 (s, 3H, N3-CH3), 2.96 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 456.3 [M+H]+. HPLC: 99.7% (A) and 99.7% (B).

8-(3,5-Bis(trifluoromethyl)benzyl)-1,3-diethyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15q)

General Procedure A. Yield: 51%; mp: 141°C; 1H-NMR (CDCl3) δ 7.81 (br s, 3H, H-2, H-4 and H-6, phenyl), 4.37 (t, 3J = 5.05 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.85 (s, 2H, N8-CH2), 3.76 (s, 2H, 2 × H-9), 2.99 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.21 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 490.4 [M+H]+. HPLC: 99.7% (A) and 99.7% (B).

1,3-Diethyl-8-(3,4,5-trifluorobenzyl)-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (15r)

General Procedure A. Yield: 43%; mp: 166°C; 1H-NMR (CDCl3) δ 7.00–6.97 (m, 2H, H-2 and H-6, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.10 (q, 3J = 7.25 Hz, 2H, N1-CH2), 4.04 (q, 3J = 6.90 Hz, 2H, N3-CH2), 3.73 (s, 2H, N8-CH2), 3.66 (s, 2H, 2 × H-9), 2.96 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3), 1.22 (t, 3J = 7.25 Hz, 3H, N3-CH2-CH3). ESI-MS: positive mode 408.3 [M+H]+. HPLC: 97.8% (A) and 96.5% (B).

Preparation of 8-Substituted 6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-diones 16–17 via Alkylation of the 3-Position (General Procedure B)

The 3-unsubstituted tetrahydropyrazino[2,1-f ]purinediones 11a, 11b or 12 (0.25 mmol), potassium tert-butoxide (56 mg, 0.5 mmol) and an alkylating agent (1.5 mmol, 6 eq.) were dissolved in 4 mL of dry THF and stirred for 4 h at rt under argon. The progress of the reaction was checked by TLC after 3 h and, if necessary, a further 4 eq. of the alkylating agent was added to drive the reaction to completion. The volatiles were removed by rotary evaporation and the product was purified by silica gel column chromatography using a gradient of CH2Cl2 to CH2Cl2/MeOH 40:1 as eluent.

8-(3,4-Dichlorobenzyl)-1-ethyl-3-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (16a)

General procedure B starting from 11a. Yield: 31%; mp: 164°C; 1H-NMR (CDCl3) δ 7.44 (d, 4J = 1.90 Hz, 1H, H-2, phenyl), 7.39 (d, 3J = 8.20 Hz, 1H, H-5, phenyl), 7.17 (dd, 3J = 8.20 Hz and 4J = 2.40 Hz, 1H, H-6, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.08 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.72 (s, 2H, N8-CH2), 3.68 (s, 2H, 2 × H-9), 3.36 (s, 3H, N3-CH3), 2.93 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.28 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 408.3 [M+H]+. HPLC: 99.7% (A) and 99.7% (B).

8-(3,5-Dichlorobenzyl)-1-ethyl-3-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (16b)

General procedure B starting from 11b. Yield: 32%; mp: 183°C; 1H-NMR (CDCl3) δ 7.29 (d, 4J = 1.90 Hz, 1H, H-4, phenyl), 7.24 (s, 2H, H-2 and H-6, phenyl), 4.35 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.09 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.73 (s, 2H, N8-CH2), 3.68 (s, 2H, 2 × H-9), 3.35 (s, 3H, N3-CH3), 2.95 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 1.29 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 408.3 [M+H]+. HPLC: 99.7% (A) and 99.7% (B).

8-(3,4-Dichlorobenzyl)-1-cyclopropyl-3-methyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (17)

General procedure B starting from 12. Yield: 35%; mp: 200°C; 1H-NMR (CDCl3) δ 7.44 (d, 4J = 1.85 Hz, 1H, H-2, phenyl), 7.40 (d, 3J = 8.20 Hz, 1H, H-5, phenyl), 7.16 (dd, 3J = 8.20 Hz, 4J = 1.90 Hz, 1H, H-6, phenyl), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.74 (s, 2H, N8-CH2), 3.68 (s, 2H, 2 × H-9), 3.34 (s, 3H, N3-CH3), 2.94–2.92 (m, 3H, 2 × H-7 and H-1, cyclopropyl), 1.19–1.12 (m, 2H, H-2 and H-3, cyclopropyl), 1.00–0.96 (m, 2H, H-2 and H-3, cyclopropyl). ESI-MS: positive mode 420.1 [M+H]+. HPLC: 98.2% (A) and 97.5% (B).

Preparation of 8-Substituted 6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-diones 18–19 via Alkylation of the 3-Position (General Procedure C)

The 3-unsubstituted tetrahydropyrazino[2,1-f ]purinediones 13h or 13i (0.25 mmol), sodium hydride (60% in mineral oil) and the appropriate alkylating agent were dissolved in dry DMF and stirred for 4 h at rt under argon. The volatiles were removed by rotary evaporation and the product was purified by flash-chromatography (silica gel, CH2Cl2: CH2Cl2/MeOH 1:0 to 40:1).

8-(3,4-Dichlorobenzyl)-1-methyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (18)

General procedure C starting from 13h. Yield: 43%; mp: 159°C; 1H-NMR (CDCl3) δ 7.44 (d, 4J = 2.00 Hz, 1H, H-2, phenyl), 7.40 (d, 3J = 8.20 Hz, 1H, H-5, phenyl), 7.17 (dd, 3J = 8.20 Hz, 4J = 2.00 Hz, 1H, H-6, phenyl), 4.34 (t, 3J = 5.45 Hz, 2H, 2 × H-6), 3.95–3.92 (m, 2H, N3-CH2), 3.72 (s, 2H, N8-CH2), 3.68 (s, 2H, 2 × H-9), 3.51 (s, 3H, N1-CH3), 2.95–2.92 (m, 2H, 2 × H-7), 1.69–1.62 (m, 3H, N3-CH2-CH2), 0.93 (t, 3J = 7.45 Hz, 3H, N3-CH2-CH2-CH3). ESI-MS: positive mode 422.2 [M+H]+. HPLC: 96.9% (C).

8-(3,4-Dichlorobenzyl)-1-methyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (19a)

General procedure C starting from 13h. Yield: 58%; mp: 228°C; 1H-NMR (CDCl3) δ 7.44 (d, 4J = 2.00 Hz, 1H, H-2, phenyl), 7.41 (d, 3J = 8.20 Hz, 1H, H-5, phenyl), 7.17 (dd, 3J = 8.20 Hz, 4J = 2.00 Hz, 1H, H-6, phenyl), 4.76 (d, 4J = 2.45 Hz, 2H, N3-CH2), 4.35 (t, 3J = 5.45 Hz, 2H, 2 × H-6), 3.73 (s, 2H, N8-CH2), 3.68 (s, 2H, 2 × H-9), 3.53 (s, 3H, N1-CH3), 2.95–2.93 (m, 2H, 2 × H-7), 2.15 (t, 4J = 2.45 Hz, 1H, N3-CH2-CH). ESI-MS: positive mode 418.2 [M+H]+. HPLC: 98.6% (C).

8-(2-Chloro-5-(trifluoromethyl)benzyl)-1-methyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (19b)

General procedure C starting from 13i. Yield: 28%; mp: 211°C; 1H-NMR (CDCl3) δ 7.73 (s, 1H, H-6, phenyl), 7.50 (2 br s, 2H, H-3 and H-4, phenyl), 4.76 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.38 (s, 2H, N3-CH2), 3.89 (s, 2H, N8-CH2), 3.83 (s, 2H, 2 × H-9), 3.54 (s, 3H, N1-CH3), 3.02 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.15 (s, 1H, N3-CH2-CH). ESI-MS: positive mode 442.3 [M+H]+. HPLC: 98.6% (A) and 98.7% (B).

Synthesis of 8-Substituted 1-Ethyl-3-Propargyl-8-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-diones (20) (General Procedure D)

7-(2-Bromoethyl)-8-N-boc-aminomethyl-3-methyl-1-propargylxanthine (28) (150 mg, 0.33 mmol) was stirred in a solution of 4N-HCl in dry dioxane (4 mL) for 30 min at rt. The deprotected xanthine 29 precipitated upon addition of diethylether (30 mL). It was filtered off, washed with diethylether (3 × 10 mL) and used directly in the next step. The xanthine 29 was dissolved in a mixture of 1,2-dimethoxyethane (10 mL) and DIPEA (0.5 mL) and stirred for 6 h at rt. Then, the appropriate halide (0.5 mmol) was added and the solution was stirred overnight at rt. The volatiles were removed in vacuo and the final product 20 was purified by column chromatography.

1-Ethyl-8-(2-fluorophenyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20a)

General procedure D. Yield: 28%; mp: 151°C; 1H-NMR (CDCl3) δ 7.03–7.00 (m, 2H, H-3 and H-4, phenyl), 6.95–6.92 (m, 2H, H-5 and H-6, phenyl), 4.77 (d, 4J = 2.20 Hz, 2H, N3-CH2), 4.50 (s, 2H, 2 × H-9), 4.45 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.16 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.71 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.15 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.35 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 368.0 [M+H]+. HPLC: 95.2% (A) and 95.5% (B).

1-Ethyl-8-(4-fluorophenyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20b)

General procedure D. Yield: 31%; mp: 157°C; 1H-NMR (CDCl3) δ 6.83–6.70 (m, 4H, 3J = 8.20 Hz, and 4J = 2.20 Hz, H-2, H-3, H-5 and H-6, phenyl), 4.77 (d, 4J = 2.20 Hz, 2H, N3-CH2), 4.44 (s, 2H, 2 × H-9), 4.18 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.81 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.62 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.15 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.35 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 368.0 [M+H]+. HPLC: 94.1% (A) and 94.3% (B).

1-Ethyl-8-(3-methoxyphenyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20c)

General procedure D. Yield: 23%; mp: 169°C; 1H-NMR (CDCl3) δ 7.26 (pseudo-t, 3J = 8.20 Hz, 1H, H-5, phenyl), 6.57 (dd, 3J = 8.15 Hz, and 4J = 2.55 Hz, 1H, H-6, phenyl), 6.51 (dd, 3J = 7.90 Hz, and 4J = 1.85 Hz, 1H, H-4, phenyl), 6.50 (s, 1H, H-2, phenyl), 4.77 (d, 4J = 2.20 Hz, 2H, N3-CH2), 4.50 (s, 2H, 2 × H-9), 4.45 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.16 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.79 (s, 3H, OCH3), 3.71 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.15 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.35 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 380.4 [M+H]+. HPLC: 96.3% (A) and 95.1% (B).

8-(3,4-Dimethoxyphenyl)-1-ethyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20d)

General procedure D. Yield: 28%; mp: 125°C; 1H-NMR (CDCl3) δ 6.81 (d, 3J = 8.80 Hz, 1H, H-6, phenyl), 6.59 (d, 4J = 2.55 Hz, 1H, H-2, phenyl), 6.48 (dd, 3J = 8.50 Hz, 4J = 2.80 Hz, 1H, H-6, phenyl), 4.77 (d, 4J = 2.20 Hz, 2H, N3-CH2), 4.45 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.41 (s, 2H, 2 × H-9), 4.16 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.87 (s, 3H, OCH3), 3.84 (s, 3H, OCH3), 3.60 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.15 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.35 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 410.4 [M+H]+. HPLC: 97.0% (A) and 95.7% (B).

8-Benzyl-1-ethyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20e)

General procedure D. Yield: 19%; mp: 148°C; 1H-NMR (CDCl3) δ 7.64–7.62 (m, 2H, H-3 and H-5, phenyl), 7.43–7.39 (m, 3H, H-2, H-4 and H-6, phenyl), 4.86 (s, 2H, N8-CH2), 4.64 (d, 4J = 2.20 Hz, 2H, N3-CH2), 4.58 (s, 2H, 2 × H-9), 4.45 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 3.98 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.83 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.16 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.21 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode: 364.1 [M+H]+. HPLC: 97.0% (A) and 96.7% (B).

1-Ethyl-8-(2-methoxybenzyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20f)

General procedure D. Yield: 26%; mp: 180°C; 1H-NMR (CDCl3) δ 7.31–7.29 (m, 1H, H-4, phenyl), 7.28–7.25 (m, 1H, H-6, phenyl), 6.95–6.91 (m, 1H, H-5, phenyl), 6.88 (d, 3J = 8.20 Hz, 1H, H-3, phenyl), 4.75 (d, 4J = 2.50 Hz, 2H, N3-CH2), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.12 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.82 (s, 3H, OCH3), 3.78 (s, 4H, 2 × H-9 and N8-CH2), 2.97 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.13 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 394.3 [M+H]+. HPLC: 97.3% (A) and 98.1% (B).

1-Ethyl-8-(3-methoxybenzyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20g)

General procedure D. Yield: 19%; mp: 157°C; 1H-NMR (CDCl3) δ 7.22 (dd, 3J = 6.95 Hz, 3J = 7.60 Hz, 1H, H-5, phenyl), 6.90 (s, 1H, H-2, phenyl), 6.88 (d, 3J = 6.80 Hz, 1H, H-4, phenyl), 6.82 (dd, 3J = 7.25 Hz, 4J = 1.55 Hz, 1H, H-6, phenyl), 4.75 (d, 4J = 2.55 Hz, 2H, N3-CH2), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.12 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.79 (s, 3H, OCH3), 3.74 (s, 2H, N8-CH2), 3.70 (s, 2H, 2 × H-9), 2.93 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.14 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.30 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 394.3 [M+H]+. HPLC: 98.1% (A) and 98.8% (B).

1-Ethyl-8-phenethyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1h,3h)-dione (20h)

General procedure D. Yield: 20%; mp: 144°C; 1H-NMR (CDCl3) δ 7.33–7.20 (m, 5H, H-2-H-6, phenyl), 4.74 (d, 4J = 2.55 Hz, 2H, N3-CH2), 4.56 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.26 (s, 2H, 2 × H-9), 4.11 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.43 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 3.22 (t, 3J = 7.55 Hz, 2H, N8-CH2), 3.02 (t, 3J = 7.55 Hz, 2H, N8-CH2-CH2), 2.15 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.35 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode: 378.4 [M+H]+. HPLC: 98.2% (A) and 98.8% (B).

1-Ethyl-8-(2-methoxyphenethyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20i)

General procedure D. Yield: 24%; mp: 167°C; 1H-NMR (CDCl3) δ 7.21–7.18 (m, 1H, H-6, phenyl), 7.12–7.10 (m, 1H, H-4, phenyl), 6.89–6.82 (m, 2H, H-3 and H-5, phenyl), 4.76 (d, 4J = 2.20 Hz, 2H, N3-CH2), 4.34 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.33 (s, 2H, 2 × H-9), 4.14 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.85 (s, 3H, OCH3), 3.80 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 3.32 (t, 3J = 7.55 Hz, 2H, N8-CH2), 2.97 (t, 3J = 7.55 Hz, 2H, N8-CH2-CH2), 2.15 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.33 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 408.3 [M+H]+. HPLC: 95.6% (A) and 96.3% (B).

1-Ethyl-8-(3-methoxyphenethyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20j)

General procedure D. Yield: 21%; mp: 212°C; 1H-NMR (CDCl3) δ 7.21–7.18 (m, 1H, H-5, phenyl), 6.80–6.78 (m, H-6, phenyl), 6.76–6.74 (m, 2H, H-2 and H-4, phenyl), 4.75 (d, 4J = 2.50 Hz, 2H, N3-CH2), 4.33 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.13 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.82 (s, 2H, 2 × H-9), 3.77 (s, 3H, OCH3), 2.96 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 2.83 (br s, 4H, N8-CH2-CH2), 2.14 (t, 4J = 2.55 Hz, 1H, N3-CH2-CH), 1.35 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 408.3 [M+H]+. HPLC: 97.0% (A) and 98.5% (B).

1-Ethyl-8-(4-methoxyphenethyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20k)

General procedure D. Yield: 19%; mp: 164°C; 1H-NMR (CDCl3) δ 7.11 (dd, 3J = 8.50 Hz, 4J = 2.20 Hz, 2H, H-2 and H-6, phenyl), 6.84 (dd, 3J = 8.50 Hz, 4J = 2.20 Hz, 2H, H-3 and H-5, phenyl), 4.75 (d, 4J = 2.50 Hz, 2H, N3-CH2), 4.45 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.22 (s, 2H, 2 × H-9), 4.12 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.77 (s, 3H, OCH3), 3.39 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 3.16 (t, 3J = 7.55 Hz, 2H, N8-CH2), 2.96 (t, 3J = 7.55 Hz, 2H, N8-CH2-CH2), 2.15 (t, 4J = 2.50 Hz, 1H, N3-CH2-CH), 1.31 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 408.3 [M+H]+. HPLC: 95.0% (A) and 94.1% (B).

1-Ethyl-8-(2,3-dimethoxyphenethyl)-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f]purine-2,4(1H,3H)-dione (20l)

General procedure D. Yield: 25%; mp: 141°C; 1H-NMR (CDCl3) δ 6.80–6.71 (m, 3H, H-2, H-5 and H-6, phenyl), 4.77 (d, 4J = 2.50 Hz, 2H, N3-CH2), 4.45 (t, 3J = 5.35 Hz, 2H, 2 × H-6), 4.39 (s, 2H, 2 × H-9), 4.11 (q, 3J = 7.25 Hz, 2H, N1-CH2), 3.84 (s, 3H, OCH3), 3.85 (s, 3H, OCH3), 3.57 (t, 3J = 5.35 Hz, 2H, 2 × H-7), 3.32 (t, 3J = 7.55 Hz, 2H, N8-CH2), 3.02 (t, 3J = 7.55 Hz, 2H, N8-CH2-CH2), 2.16 (t, 4J = 2.20 Hz, 1H, N3-CH2-CH), 1.31 (t, 3J = 7.25 Hz, 3H, N1-CH2-CH3). ESI-MS: positive mode 438.4 [M+H]+. HPLC: 97.7% (A) and 97.2% (B).

Biological Evaluation

Radioligand Binding Assays at Adenosine Receptors

The following highly (>100-fold) selective radioligands were employed: A1ARs, [3H]2-chloro-N6cyclopentyladenosine ([3H]CCPA, Klotz et al., 1989, 1 nM, KD human A1: 0.61 nM, KD: rat A1: 0.2 nM); A2AARs, [3H]3-(3-hydroxypropyl)-7-methyl-8-(m-methoxystyryl)-1-propargylxanthine ([3H]MSX-2, Müller et al., 2000, 1 nM, KD human A2A: 7.3 nM, KD: rat A2A: 8 nM); A2BARs, [3H]8-(4-[4-(4-chlorophenyl)piperazine-1-sulfonyl]phenyl)-1-propyl-2,3,6,7-tetrahydro-1H-purine-2,6-Dione ([3H]PSB-603, Borrmann et al., 2009, 0.3 nM, KD human A2B: 0.41 nM); A3ARs, [3H](R)-8-ethyl-4-methyl-2-(phenyl)1,4,7,8-tetrahydro-5H-imidazo[2,1-i]purin-5-one ([3H]PSB-11, Müller et al., 2002, 1 nM, KD human A3: 4.9 nM). The radioligands were obtained from Quotient Bioresearch (now Pharmaron): [3H]CCPA (58 Ci/mmol), [3H]MSX-2 (84 Ci/mmol), [3H]PSB-603 (73 Ci/mmol) and [3H]PSB-11 (53 Ci/mmol). The non-radioactive precursors of [3H]MSX-2, [3H]PSB-603 and [3H]PSB-11 were synthesized in our laboratory, the precursor for [3H]CCPA was synthesized in the laboratory of Gloria Cristalli, University of Camerino, Italy. Membrane preparations and radioligand binding assays at rat A1 (rat brain cortex) and rat A2A ARs (rat brain striatum) were performed as previously described (Ozola et al., 2003; Alnouri et al., 2015). For assays at human A1, A2A, A2B, and A3 ARs, CHO cell membranes expressing one of the human AR subtypes were used as previously reported (Klotz et al., 1998; Alnouri et al., 2015; De Filippo et al., 2016).

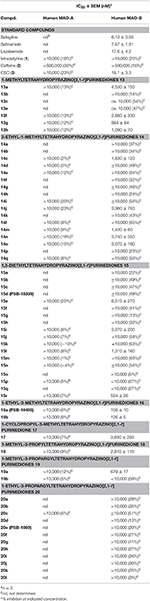

Monoamine Oxidase Assay

The determination of MAO-A and MAO-B inhibition was performed using commercially available recombinant human MAO-A and MAO-B enzymes expressed in baculovirus-infected insects sells (Sigma-Aldrich, M7316 and M7441) applying the commercially available Amplex® Red monoamine oxidase assay kit (Invitrogen A12214). The assays were performed as previously described. The determination of rat MAO-B inhibition was performed using mitochondrial-enriched fractions from male Sprague Dawley rat livers. The assays were conducted as previously described (Stössel et al., 2013).

Molecular Modeling

Molecular Docking Studies at Adenosine Receptors

The recent co-crystal structures of the human A1AR (5N2S.pdb, Cheng et al., 2017) and the A2AAR (5N2R.pdb, Cheng et al., 2017) with the antagonist PSB-36 was obtained from the RCSB (Research Collaboratory for Structural Bioinformatics) Protein Data Bank (PDB) (Berman et al., 2000). The downloaded crystal structures were prepared by means of the Molecular Operation Enviroment (MOE 2016.08), chemical computing group. Montreal, Quebec, Canada, 2014) protein structure preparation tool. The hydrogen atoms were assigned according to Protonate-3D implemented in MOE 2016.08. The crystal structures of the human A1AR and A2AAR were applied for flexible ligand docking using AutoDock 4.2 (Morris et al., 2009). During the docking simulations, the ligands were fully flexible while the residues of the receptor were treated as rigid. Selected compounds were docked into the active site of the receptors to predict the binding modes of the compounds. The atomic partial charges were added using AutoDockTools (Sanner, 1999; Morris et al., 2009). Three-dimensional energy scoring grids for a box of 60 × 60 × 60 points with a spacing of 0.375 Å were computed. The grids were centered based on the co-crystallized ligand, PSB-36. Fifty independent docking calculations using the varCPSO-ls algorithm from PSO@Autodock implemented in AutoDock4.2 were performed and terminated after 500,000 evaluation steps (Namasivayam and Günther, 2007). Parameters of varCPSO-ls algorithm, the cognitive and social coefficients c1 and c2 were set at 6.05 with 60 individual particles as swarm size. All the other parameters of the algorithm were set at their default values. Possible binding modes of the compounds were explored by visual inspection of the resulting docking poses.

Molecular Docking Studies at Monoamine Oxidase B

The following programs were used: LigPrep; Maestro; Schrödinger Suites; Schrödinger, LLC: New York, NY, USA, 2017. The X-ray structure of the complex of human MAO-B/safinamide with the accession code 2V5Z was downloaded from the PDB. For the X-ray model, the Protein Preparation Wizard (Schrödinger Inc.) was used in order to add hydrogen atoms, to assign partial charges, and to build missing atoms, side chains and loops. The resulting structures were submitted to energy optimization by using a specific workflow already reported in a previous study (Gidaro et al., 2015). The co-crystallized ligand, safinamide, was used to generate the docking grid box and to check the prediction of the binding affinity. Finally, re-docking simulations were carried out in order to get a protocol validation observing a good capability of the docking software to reproduce the experimental pose of the co-crystallized inhibitor. In standard virtual docking studies, ligands are docked into the binding site of a receptor held as rigid, and the ligand is free to move. However, the assumption of a rigid receptor can give misleading results, since in reality many proteins undergo side-chain or back-bone movements, or both, upon ligand binding. These changes allow the receptor to adapt its binding site to the presence of a certain ligand, a process that is often referred to as the induced fit docking (IFD). This is one of the main complicating factors in structure-based drug design. For that reason, docking studies were carried out by using a specific, previously described IFD workflow (Varela et al., 2012). An initial Glide SP docking of each ligand was performed by using a softened potential, a van der Waals radius scaling factor of 0.50 for receptor/ligand atoms, and a number of 20 poses per ligand to be energy minimized with the OPLS-2005 force field. The poses were saved for each ligand and submitted to the subsequent Prime side chain orientation prediction of residues with a distance cutoff of 5 Å around each ligand. After the Prime energy minimization of the residues and the ligand for each pose, a Glide SP re-docking of each protein/ligand complex structure within 30 kcal/mol above the global minimum was performed. Finally, each output pose was estimated by the binding energy (G-score) and visually examined.

Results and Discussion

Chemistry

The synthetic pathway toward tetrahydropyrazino[2,1-f ]purinediones 1115 starting from 5,6-diaminouracil derivatives 21 is depicted in Scheme 1. Compounds 21 were heated together with glycolic acid to 100°C, then brought to pH 12–13 by addition of aqueous NaOH solution, and subsequently heated for 4 h at 100°C to accomplish ring closure reaction yielding 22. 8-Hydroxymethylxanthines 22 were then alkylated in position 7 by reaction with 1,2-dibromoethane in the presence of diisopropylethylamine (DIPEA). Finally, the hydroxy function of compounds 23 was reacted with PBr3, and the resulting 7-(2-bromoethyl)-8-bromomethylpurine-2,4-diones 24 were subsequently treated with different amines under basic conditions yielding the desired tetrahydropyrazino[2,1-f ]purinediones 1115.

SCHEME 1
www.frontiersin.org

Scheme 1. Synthesis of 8-substituted 6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-diones 1115. Reagents and conditions: (a) i. glycolic acid (1.2 eq.), 1 h, 100°C, neat, ii. H2O, NaOH, pH 12–13, 100°C, 4 h; (b) 1,2-dibromoethane (6 eq.), dimethylformamide (DMF), DIPEA, 70°C, 16 h; (c) PBr3 (4 eq.), CH2Cl2, 0°C to rt, 1 h; (d) amine (2 eq.), dimethoxyethane, DIPEA, rt, 16 h.

Tetrahydropyrazino[2,1-f ]purinediones 1619 were synthesized from the corresponding tetrahydropyrazino[2,1-f ]purinediones 11a, 11b, 12, 13h or 13i by alkylation of the N3-position with the appropriate alkyl halide using sodium tert-butoxide or sodium hydride as a base (Scheme 2).

SCHEME 2
www.frontiersin.org

Scheme 2. Synthesis of 3-substituted 8-(dichlorobenzyl)-6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-diones 1618, 19a and 8-(2-chloro-5-(trifluoromethyl)benzyl)-1-methyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-dione 19b. Reagents and conditions: (a) MeI (6 eq.), KOtBu (2 eq.), THF, rt, 4 h; (b) alkyl halide (1.1 eq.), NaH (60% in mineral oil) (1.5 eq.), DMF, 8 h, 60°C.

Due to the instability of the propargyl group under bromination conditions, 1-ethyl-3-propargyl-substituted tetrahydropyrazino[2,1-f ]purinediones 20 had to be synthesized in a different manner starting from 1-ethyl-3-propargyl-5,6-diaminouracil (25) (Scheme 3). Compound 25 was first reacted with N-boc-glycine in the presence of 1-ethyl-3-(3-dimethylaminopropyl)carbodiimide (EDC) to form the amide bond, then 1-N NaOH/dioxane solution was added, and the mixture was heated for 10 min at 100°C to accomplish ring closure yielding 27. The N-boc-protected 8-aminomethylxanthine 27 was subsequently alkylated in position 7 by treatment with 1,2-dibromoethane/DIPEA. Finally, the protecting (boc) group was cleaved off under acidic conditions, and subsequent ring closure under basic conditions yielded 1-ethyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-dione (29). Alkylation of the N8-position with different halides resulted in the desired tetrahydropyrazino[2,1-f ]purinediones 20.

SCHEME 3
www.frontiersin.org

Scheme 3. Synthesis of 8-substituted 1-ethyl-3-propargyl-6,7,8,9-tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-diones 20. Reagents and conditions: (a) i. N-boc-glycine (1.3 eq.), EDC (1.3 eq.), MeOH, rt, 1 h; (b) aq. 1N-NaOH/dioxane, 100°C, 10 min; (c) 1,2-dibromoethane (6 eq.), DMF, DIPEA, 70°C, 16 h; (d) 4N-HCl in dry dioxane, rt, 0.5 h; (e) 4 eq. DIPEA, dimethoxyethane, rt, 4 h, then R-X (2 eq.), rt, 16 h.

The structures of all products were confirmed by nuclear magnetic resonance (1H NMR, and in many cases additional 13C NMR) and mass spectral analyses. Melting points were determined for all new compounds. The purity of the tested compounds was confirmed by high-performance liquid chromatography (HPLC) coupled to electrospray ionization mass spectrometry (ESI-MS) using two different methods (for details, see Experimental Section) and demonstrated to be generally greater than 95%, except for compounds 20b and 20k (purity > 94%).

Biological Evaluation

The synthesized tetrahydropyrazino[2,1-f ]purinediones 1320 were evaluated in radioligand binding assays for their affinity to A1 ARs of rat brain cortical membrane and to A2A ARs of rat brain striatal membrane preparations. Selected compounds were further investigated for their affinity to human A1 and A2A ARs recombinantly expressed in Chinese hamster ovary (CHO) cells. All compounds were additionally investigated for their affinity to human A2B and A3 ARs recombinantly expressed in CHO cells to determine their AR subtype selectivity. The following radioligands were employed for radioligand binding studies: [3H]2-Chloro-N6-cyclopentyladenosine ([3H]CCPA, A1) (Klotz et al., 1989), [3H]3-(3-hydroxypropyl)-8-(m-methoxystyryl)-7-methyl-1-propargylxanthine ([3H]MSX-2, A2A) (Müller et al., 2000), [3H]8-(4-(4-(4-chlorophenyl)piperazine-1-sulfonyl)phenyl)-1-propylxanthine ([3H]PSB-603, A2B) (Borrmann et al., 2009), and [3H]2-phenyl-8-ethyl-4-methyl-(8R)-4,5,7,8-tetrahydro-1H-imidazo[2,1-i]purine-5-one ([3H]PSB-11, A3) (Müller et al., 2002). It is well known that all xanthine derivatives lacking a ribose moiety, including tricyclic compounds, can only block ARs, but never act as AR agonists; therefore, additional functional studies were not required. All compounds were initially tested for inhibition of human MAO-B at a concentration of 10 μM. For compounds that showed an inhibition of greater than 70% full concentration-inhibition curves were recorded and IC50 values were determined. Potent MAO-B inhibitors were additionally investigated for inhibition of human MAO-A to assess their selectivity. Results are presented in Tables 16, and data of standard ligands are included for comparison.

TABLE 1
www.frontiersin.org

Table 1. Adenosine receptor affinities of 3-ethyl-1-methyltetrahydropyrazino[2,1-f ]purinediones 14 and standard antagonists.

Structure-Activity Relationships at Adenosine Receptors

It should be noted that the N1 of xanthines corresponds to the N3 of pyrazino[2,1-f ]purinediones and vice versa (see Table 1). Within the series of the N8-benzyl-substituted 3-ethyl-1-methyltetrahydropyrazino[2,1-f ]purinediones 14 several potent A1 AR antagonists and dual A1/A2A AR antagonists showing Ki values down to the double-digit nanomolar range were identified (Table 1). As a general trend within this series, all compounds showed a preference for the A1 vs. the A2A AR at both the human and the rat ARs. None of the compounds out of this series showed any significant binding to the human A2B AR. Two derivatives displayed low affinity for the A3 ARs (14c, Ki = 9,390 nM and 14d Ki = 8,760 nM).

The N8-(2-bromobenzyl)-substituted compound 14a was found to be a potent dual A1/A2A AR antagonist displaying >10-fold selectivity for the human A1 vs. the human A2A AR (Ki, A1 AR = 41.7 nM; Ki, A2A AR = 497 nM). Species differences between the human and rat A1 AR were most prominent in case of the para-substituted benzyl derivatives. Compounds 14c and 14h were significantly more potent at the rat A1 AR as compared to the human A1 AR. Further derivatives, 14j-14q, bearing a disubstituted benzyl moiety at position N8 were designed, which are lacking a substituent in the para-position. A 2,3-, 3,4- or 3,5-disubstitution pattern on the benzene ring was well tolerated by the A1 AR and also improved in most cases the affinity for the A2A AR. However, compound 14q bearing two larger CF3-groups in positions 3 and 5 was nearly inactive.

Compound 14m having a 2-Cl-5-CF3-benzyl moiety at position N8 of the tetrahydropyrazino[2,1-f ]purinedione core was found to be a potent A1 AR antagonist at both rat and human ARs (Ki human A1 = 55.9 nM; Ki rat A1 = 76.2 nM) and displayed a 16-fold selectivity for the (human) A1 vs. the A2A AR.

None of the designed compounds lacking a substituent at the N3-position of the tricyclic purinedione core (series 13)—which corresponds to the xanthine N1 position—displayed any significant affinity for ARs (Table 2). The presence of a substituent at that position appeared to be essential for blocking A1 and A2A ARs, e.g., compare 1-methyltetrahydropyrazino[2,1-f ]-purinedione derivative 13h with its 1,3-dimethyltetrahydropyrazino[2,1-f ]-purinedione derivative 10b, or compare 13a and 13b with 14a and 14e, respectively.

TABLE 2
www.frontiersin.org

Table 2. Adenosine receptor affinities of 1-methyltetrahydropyrazino[2,1-f ]purinediones 13.

Similar to series 14, all compounds of the N1,N3-diethyl-substituted tetrahydropyrazino[2,1-f ]purinedione series 15 displayed higher affinity for the A1 than for the A2A AR subtype (Table 3). Comparison of 15b with 14g as well as 15c with 14i reveals that elongation of the substituent in the N1-position from methyl (series 14) to ethyl (series 15) resulted in an increase in affinity for the A3 AR. The m-bromobenzyl derivative 15d was found to be a very potent and selective antagonist of the human and rat A1 AR (Ki, human A1 AR = 13.6 nM; Ki, rat A1 AR = 21.5 nM). Introduction of a second substituent (fluorine atom) at the benzyl moiety of 15d (compounds 15k and 15l) resulted in a decrease in both A1 AR affinity and selectivity vs. the A2A AR. Within the examples having a disubstituted 8-benzyl moiety, compounds having a trifluoromethyl substituent in meta-position and second substituent in para- or meta-position (15i, 15p, 15q) show affinity for the rat A2A AR. However, the A1 AR tolerates a m-trifluoromethyl,p-chloro substitution pattern at the 8-benzyl moiety (15p).

TABLE 3
www.frontiersin.org

Table 3. Adenosine receptor affinity of 1,3-diethyltetrahydropyrazino[2,1-f ]purinediones 15.

Within the 1-ethyl-3-propargyltetrahydropyrazino[2,1-f ]purinedione series 20, benzyl derivative 20e was found to be a balanced dual A1/A2A AR antagonist with good potency in both species, rat and human (Table 4). Introduction of a methoxy group in the ortho-position in 20e led to a similarly potent dual A1/A2A antagonist in humans (20f, Ki A1 = 210 nM; Ki A2A = 311 nM) but showed larger species differences in rat. N8-Phenethyl-substituted tetrahydropyrazinopurinedione 20h was most potent and selective A2A AR of this series in humans (Ki hA2A = 149 nM). In case of the rat receptor, the opposite results were observed. Compound 20h displayed a lower Ki value for the A1 AR than for A2A AR (Ki A2A = 1,700 nM; Ki A1 = 117 nM). A methoxy group in the para-position of the phenethyl ring (20k, 20l) led to reduced affinities at both rat adenosine receptor subtypes.

TABLE 4
www.frontiersin.org

Table 4. Adenosine receptor affinity of 1-ethyl-3-propargyltetrahydropyrazino[2,1-f ]purinediones 20.

In the last series of compounds (1619), the influence of ethyl and cyclopropyl at the N1-position as well as ethyl and propargyl at the N3-position was probed (Table 5). These were combined with a 3,4-dichlorobenzyl substituent at N8 as in lead structure 10b (1,3-dimethyl-substituted analog, see Figure 3). Compound 16a was found to be a potent dual A1/A2A AR antagonists with ancillary MAO-B inhibitory activity, similarly to 10b. Switching from a 3,4-dichloro substitution pattern (16a) of the benzyl moiety to 3,5-dichloro substitution (in 16b) resulted in an improvement in affinity for both human and rat A1 AR. Compared to 16a, a cyclopropyl moiety at the N1-position (compound 17) was less tolerated. A propargyl substituent at N3 combined with a 3,4-dichlorobenzyl at position N8 (19a) somewhat improved the affinity for the human A3 AR. Changing the substitution pattern on the benzyl ring from 3,4-dichloro to 2-chloro-5-trifluoromethyl (in 19b) eliminated the affinity for the A3 AR and increased the affinity for the A1/A2A ARs.

TABLE 5
www.frontiersin.org

Table 5. Adenosine receptor affinities of 1-ethyl-3-methyltetrahydropyrazino[2,1-f ]purinediones 16, 1-cyclopropyl-3-methyltetrahydropyrazino[2,1-f ]purinedione 17, 1-methyl-3-propyltetrahydropyra-zino[2,1-f ]purinedione 18 and 1-methyl-3-propargyltetrahydropyrazino[2,1-f ]purinediones 19.

Docking Studies at A1 and A2A Adenosine Receptors

As shown in Figures 5A,B, the purinedione core structure of the dual A1/A2A AR antagonist 16a forms one of the key π-π stacking interactions with Phe171 and utilizes the hydrophobic surface provided by Leu250 in the human A1 AR. The carbonyl group at position C4 which corresponds to the C6-carbonyl of xanthine forms another key hydrogen bond interaction with Asn254. The methyl substituent at N1 (corresponding to N3 of xanthine) of purinedione derivative 16a binds within the hydrophobic sub-pocket formed by the residues Leu88, Met180 and Leu250. Similarly, the ethyl substituent at N3 binds in another sub-pocket formed by Ala66, Ile69, Val87, Ile274, and His278. The 3,4-dichlorobenzyl substitution at N8 was found to occupy the pocket formed by the residues Tyr12, Ile69, Asn70, Glu170, Glu172, Ser267, and Tyr271. The tetrahydropyrazine ring which is annelated to the xanthine core, and the methylene group in the benzyl moiety direct the aromatic substituent into a specific binding pocket. A possible electrostatic interaction between the chloro substituent at the 3-position of the benzyl moiety and Glu170 may be beneficial for interaction with the human A1AR. This was supported by the observed high affinity of compound 16b with 3,5-dichloro substitution, a modification which possibly increases the chance to form interactions with Glu170. In comparison to classical 8-substituted xanthine derivatives such as PSB-36 found in recently published X-ray structures (Cheng et al., 2017), compound 16a and related compounds featuring a tricyclic core structure are somewhat less potent possibly due to the loss of the free N7-H in xanthines, which forms interactions with Asn254 or water-mediated interactions with Glu172.

FIGURE 5
www.frontiersin.org

Figure 5. Putative binding pose of 16a. (A) Docked pose of 16a (yellow) in the binding pocket of the human A1 AR; (B) shows important amino acids in the binding pocket that are believed to interact with 16a. (C) Docked pose of 16a (yellow) in the binding pocket of the human A2A AR; (D) shows important amino acids in the binding pocket that likely interact with 16a. The human A1 AR (pale green) and the human A2A AR (gray) are displayed in the cartoon representation, the important amino acids as stick model. Oxygen atoms are colored in red, nitrogen atoms in blue, and sulfur in yellow. The interactions are indicated by red dotted lines, and amino acids found to be responsible for the key interactions are encircled in black.

As shown in Figures 5C,D, compound 16a follows a similar interaction pattern in the human A2A AR for the purinedione core forming key hydrophobic and hydrogen bond interactions with Phe168 and Asn253, respectively, as observed for the human A1AR. The orthosteric binding pocket where the tricyclic purinedione binds is largely identical among all subtypes of human ARs. The 3,4-dichlorobenzyl substitution at N8 also occupies a similar binding pocket in the human A2A AR as found in docking studies of the human A1 AR. However, the lack of electrostatic interactions with the chloro substituents at the benzyl moiety may reduce the binding affinity at the human A2A AR in comparison to the human A1 AR, since the glutamic acid (Glu170 in the human A1 AR) is replaced with a non-polar leucine (Leu167) in the human A2A AR. The selectivity of compound 16a vs. the two other human AR subtypes, A2B and A3, may be explained by different residues, lysine and glutamate, respectively, which are present in the binding pocket in comparison to Ser267 (human A1 AR) or Leu267 (human A2A AR). The different amino acid residues would require different substitution patterns on the tricyclic ring system in order to result in binding affinity for the human A2B and A3 ARs.

We additionally docked the A1-selective compound 15d (Figure 6A), which contains a m-bromobenzyl residue. Its selectivity for the A1 vs. the A2A AR can be explained by strong electrostatic interactions between bromine and Glu170. This may be the reason for the increased affinity of the bromo-substituted benzyl derivative in comparison to the fluoro- (15b) or the chloro- (15c) substituted analogs. The A2A-selectivity of compound 20h (Figure 6B), a phenethyl derivative, is likely due to strong hydrophobic interaction with Met270, which controls the positioning of the compound toward the binding pocket. The obtained orientation of 20h may be further stabilized by hydrophobic interactions with the residues Leu167 and Leu267. The proposed hypothesis that the hydrophobic residue Met270 likely plays a role is supported by the results at the rat A1 AR, in which that methionine is replaced by isoleucine (Ile270) showing better affinity in comparison to threonine (Thr270) present in the human A1 AR (see Sequence Alignment in Figure S1, Supplementary Material).

FIGURE 6
www.frontiersin.org

Figure 6. Putative binding pose of 15d (A1-selective) and 20h (A2A-selective). (A) Docked pose of 15d (marine blue) with the important amino acids in the binding pocket of the human A1 AR. (B) Docked pose of 20h (orange) with the important amino acids in the binding pocket of the human A2A AR. The interactions are indicated by red dotted lines and the important amino acids responsible for selectivity are encircled in black.

Species Differences at Adenosine Receptors

The majority of compounds was investigated at both, rat as well as human A1 and A2A ARs. This was done because previous studies had revealed major species differences for some classes of AR antagonists between human and rodent receptors (Maemoto et al., 1997; Burbiel et al., 2016; Szymanska et al., 2016). Rats or mice are typically used for preclinical studies. Therefore, it is important to determine the affinity of tool compounds and preclinical drug candidates in rodent species. The correlation of pKi values obtained at rat vs. human A1 and A2A ARs is depicted in Figure 7. Many of the compounds were somewhat more potent at rat than at human receptors, although for some compounds the opposite was true. The correlation was in general quite good (less than 3–5-fold difference in Ki values), although some outliers were observed (see Figure 7) confirming subtle differences in the binding sites.

FIGURE 7
www.frontiersin.org

Figure 7. Correlation of affinities at human vs. rat A1 and A2A ARs.

Structure-Activity Relationships at Monoamine Oxidases

The inhibitory activities of the tetrahydropyrazino[2,1-f ]purinediones 1320 at human MAO-A and MAO-B are listed in Table 6. All compounds, tested at a concentration of 10 μM, were found to be inactive at MAO-A. In case of MAO-B, compound 13g bearing a 3,4-dichlorophenethyl moiety at the N8-position was the only example within the series of 1-methyltetrahydropyrazino[2,1-f ]purinediones 13 displaying an IC50 value in the submicromolar range. Alteration of the substitution pattern on the phenyl ring from 3,4-dichloro to 2,4-dichloro resulted in a 3-fold reduction in MAO-B inhibitory potency. The length of the linker between N8 and the di-chlorophenyl ring was not that important for the inhibitory activity. Shortening of the linker by one methylene group resulted only in a negligible decrease of inhibitory activity (compare 13h vs. 13g).

TABLE 6
www.frontiersin.org

Table 6. MAO-A and MAO-B inhibition of tetrahydropyrazino[2,1-f ]purinediones 13–20 and standard inhibitors.

Moderately to weakly active MAO-B inhibitors could also be identified in the series of 3-ethyl-1-methyltetrahydropyrazino[2,1-f ]purinediones 14. In the group of compounds having a mono-substituted (halogen or trifluoromethyl) benzyl ring at the N8-position (14a-i), 4-bromo-derivative 14c displayed the highest MAO-B inhibitory potency (IC50 = 1,630 nM). Compounds 14e and 14i having a CF3 or Cl at position 3 of the aromatic ring, respectively, also showed an inhibition of greater than 50% at a test concentration of 10 μM. In case of the compounds bearing two substituents on the phenyl ring, a 2,5-disubstitution pattern was shown to be favorable for MAO-B inhibition (compounds 14j, 14m, 14o).

Within the series of 1,3-diethyl-substituted tetrahydropyrazino[2,1-f ]purinediones 15, compounds having a di-substituted phenyl ring (15i-q) showed a higher MAO-B inhibitory potency as compared to the mono-substituted derivatives of this series (15a-h). In general, a 3,5- and a 3,4-disubstitution pattern of the phenyl ring was beneficial for MAO-B inhibition. The most potent MAO-B inhibitor of this series was derivative 15r (IC50 = 524 nM) bearing an 3,4,5-trifluorobenzyl moiety at the N8-position. This is in good agreement with results observed within the reported 1,3-dimethyltetrahydropyrazino[2,1-f ]purine-2,4-dione series (Brunschweiger et al., 2014).

Comparison of all tetrahydropyrazino[2,1-f ]purinediones bearing a 3,4-dichlorobenzyl moiety at the N8-position (compounds 13h, 16a, 17, 18, and 19a) revealed that the N1-ethyl and N3-methyl substitution pattern was the best for MAO-B inhibition. Dual A1/A2A AR antagonist 16a was the most potent MAO-B inhibitor of the present series showing an IC50 value in the nanomolar range (IC50 = 106 nM). Dual A1/A2A AR antagonist 16b having a 3,5-dichloro substitution pattern on the benzene ring inhibited MAO-B (IC50 = 136 nM) with almost equal potency as its 3,4-dichloro isomer 16a.

The only compound of the 3-ethyl-1-methyltetrahydropyrazino[2,1-f ]purinediones series 20 displaying inhibition of more than 50% at a high test concentration of 10 μM was 20c bearing a 3-methoxyphenyl moiety at the N8-position, whereas all other derivatives of this series were inactive.

Docking Studies at Monoamine Oxidase B

In Figure 8, the main interactions between MAO-B and inhibitors 16a (A) and 16b (B), the two active compounds, are depicted. Stacking interactions appear to stabilize the tricyclic inhibitors 16a and 16b within the MAO-B binding site. In case of 20l, which was randomly selected from the group of inactive compounds, this kind of contacts are not detected, which may be the reason for its different biological profile. It is worth noting that Tyr326 in the active site plays an essential role in binding: it is likely involved in interactions with the two active inhibitors 16a and 16b, as with the standard inhibitor safinamide (Binda et al., 2007). Moreover, as we recently observed in case of linear ligands (Carradori et al., 2016; Meleddu et al., 2017), opposite head-tail orientations can easily occur according to docking results due to comparable energy levels. The presence of Cl at position 5 on the benzyl moiety of 16b induces a modest steric hindrance with Tyr188, sufficient to force its inverted orientation in the best pose with respect to 16a.

FIGURE 8
www.frontiersin.org

Figure 8. Molecular interactions (A) between inhibitor 16a and MAO-B, and (B) between 16b and MAO-B. The protein is shown as gray cartoon while the ligands are shown as green carbon sticks; H-bonds and π-π interactions are depicted as dashed black and cyan lines respectively. Amino acid residues involved in the interactions are shown as gray sticks. The covalently bound cofactor flavine adenine dinucleotide (FAD) is depicted on the left hand side as green sticks. Nitrogen atoms are in blue, oxygen atoms in red, hydrogen atoms in white, phosphorus atoms in purple.

A comparative analysis performed by the induced-fit docking G-score estimation revealed that compound 16b can establish a better molecular recognition within the MAO-B isoform with respect to MAO-A. The G-score gap is in the order of about 6.7 kcal/mol and likely due to the different binding pocket volumes between those isoforms (Alcaro et al., 2010). The π-π interaction of 16b with Tyr326 in MAO-B (Figure 8B) cannot be established in the isoform A, where this residue is replaced with and Ile residue.

Water Solubility

1,3,8-Substituted tetrahydropyrazino[2,1-f ]purine-2,4(1H,3H)-diones have previously been shown to possess excellent water-solubility at pH 1 due to protonation of the nitrogen atom N8 (Brunschweiger et al., 2014). This is expected to facilitate dissolution in the stomach. Depending on the substitution pattern they may also be well soluble at higher pH values (Brunschweiger et al., 2014). In the present study we measured thermodynamic solubility of only very few compounds exemplarily (14a-e, 14g, 15f,g) and confirmed their high solubility at pH 1 (see Table S1 in Supplementary Material). Most of these compounds were still soluble at pH 7.4. The best soluble derivative was the 3-ethyl-1-methyl-8-m-fluorobenzyl derivative 14g with solubilities of >1.5 g/L (4.2 mM) at pH 1, 50 mg/L (0.14 mM) at pH 4, and 40 mg/L (0.084 mM) at pH 7.4.

Conclusions

A large library of novel 1,3,8-substituted tetrahydropyrazino[2,1-f ]purinediones was synthesized. For the first time we systematically and extensively studied the exchange of methyl groups in the 1- and 3-position of the theophylline-/caffeine-derived tricyclic scaffold for a variety of alkyl residues including cyclic and unsaturated ones. Series of compounds with different 1- and 3-substituent were also obtained. The compounds were tested for antagonistic potency at all four ARs as well as for inhibitory potency at both MAO enzymes with the goal to improve potency at A1 and A2A ARs and MAO-B, which are (potential) targets for the treatment of neurodegenerative diseases, in particular for PD. The A1 AR affinity was dramatically improved by 3-ethyl-1-methyl (e.g., 14a), 1,3-diethyl (15d) and 1-ethyl-3-propargyl (20e) substitution. Good A2A affinity was obtained for 3-ethyl-1-propargyl derivatives 20, e.g., 20h and 20e. Compounds with a balanced A1/A2A inhibitory potency were also obtained in this group (e.g., 20e). Significantly increased MAO-B inhibitory activity while keeping selectivity vs. the isoenzyme MAO-A, which is important to avoid side-effects, was obtained by 1-ethyl-3-methyl substitution of the pyrazinopurinedione structure (16a, 16b). Molecular docking studies based on recently published X-ray structures of A1 and A2A ARs, and of MAO-B supported the results obtained by SAR analysis. Besides modulating affinities, replacement of the methyl groups in the 1- and 3-position of pyrazinopurinediones may also be useful for fine-tuning metabolic stability of the compounds since the methyl groups of caffeine and theophylline are known to be subject to oxidative demethylation (Fredholm et al., 1999). The present study provides new insights into the SARs of tricyclic xanthine derivatives, which are suitable scaffolds for multi-target drug development. As a next important step, such multi-target drugs will have to be tested in in vivo models in comparison to drugs selective for a single target to prove their potential superiority.

Author Contributions

CM and AB designed the study inspired by KK-K, and CM supervised the experiments; AB, SU, and JHo performed the syntheses; BL, SH and PKü performed the biological evaluation of the compounds; PKo and CM analyzed the data and wrote the manuscript. VN, AM, SA, MW, and CM supervised and/or performed the molecular modeling studies. All authors read and contributed to the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We thank Sabine Terhart-Krabbe and Annette Reiner for determining NMR spectra, Marion Schneider for LCMS analyses, and Nicole Florin, Stephanie Biebersdorf and Christin Vielmuth for skillful technical assistance in compound testing. Parts of this study were supported by the Federal Ministry of Education and Research (BMBF) within the BioPharma Neuroallianz consortium (T1 project), and by UCB Pharma GmbH, Monheim, Germany. Support by the European Commission (COST MuTaLig Consortium) is gratefully acknowledged.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2018.00206/full#supplementary-material

References

Alcaro, S., Gaspar, A., Ortuso, F., Milhazes, N., Orallo, F., Uriarte, E., et al. (2010). Chromone-2- and−3-carboxylic acids inhibit differently monoamine oxidases A and B. Bioorg. Med. Chem. Lett. 20, 2709–2712 doi: 10.1016/j.bmcl.2010.03.081

PubMed Abstract | CrossRef Full Text | Google Scholar

Alnouri, M. W., Jepards, S., Casari, A., Schiedel, A. C., Hinz, S., and Müller, C. E. (2015). Selectivity is species-dependent: characterization of standard agonists and antagonists at human, rat, and mouse adenosine receptors. Purinergic Signal. 11, 389–407. doi: 10.1007/s11302-015-9460-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Berman, H. M., Westbrook, J., Feng, Z., Gilliland, G., Bhat, T. N., Weissig, H., et al. (2000). The protein data bank. Nucleic Acids Res. 28, 235–242. doi: 10.1093/nar/28.1.235

PubMed Abstract | CrossRef Full Text | Google Scholar

Binda, C., Wang, J., Pisani, L., Caccia, C., Carotti, A., Salvati, P., et al. (2007). Structures of human monoamine oxidase B complexes with selective noncovalent inhibitors: safinamide and coumarin analogs. J. Med. Chem. 50, 5848–5852. doi: 10.1021/jm070677y

PubMed Abstract | CrossRef Full Text | Google Scholar

Borrmann, T., Hinz, S., Lertarelli, D. C. G., Li, W. J., Florin, N. C., Scheiff, A. B., et al. (2009). 1-Alkyl-8-(piperazine-1-sulfonyl)phenylxanthines: development and characterization of adenosine A2B receptor antagonists and a new radioligand with subnanomolar affinity and subtype specificity. J. Med. Chem. 52, 3994–4006. doi: 10.1021/jm900413e

PubMed Abstract | CrossRef Full Text | Google Scholar

Brunschweiger, A., Koch, P., Schlenk, M., Pineda, F., Küppers, P., Hinz, S., et al. (2014). 8-benzyltetrahydropyrazino[2,1-f ]purinediones: water-soluble tricyclic xanthine derivatives as multitarget drugs for Nneurodegenerative diseases. ChemMedChem 9, 1704–1724. doi: 10.1002/cmdc.201402082

PubMed Abstract | CrossRef Full Text | Google Scholar

Brunschweiger, A., Koch, P., Schlenk, M., Rafehi, M., Radjainia, H., Küppers, P., et al. (2016). 8-Substituted 1,3-dimethyltetrahydropyrazino[2,1-f]purinediones: water-soluble adenosine receptor antagonists and monoamine oxidase B inhibitors. Bioorg. Med. Chem. 24, 5462–5480. doi: 10.1016/j.bmc.2016.09.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Burbiel, J. C., Ghattas, W., Küppers, P., Köse, M., Lacher, S., Herzner, A. M., et al. (2016). 2-Amino[1,2,4]triazolo[1,5-c]quinazolines and derived novel neterocycles: syntheses and structure-activity relationships of potent adenosine receptor antagonists. ChemMedChem 11, 2272–2286. doi: 10.1002/cmdc.201600255

PubMed Abstract | CrossRef Full Text | Google Scholar

Carradori, S., Gidaro, M. C., Petzer, A., Costa, G., Guglielmi, P., Chimenti, P., et al. (2016). Inhibition of human monoamine oxidase: biological and molecular modeling studies on selected natural flavonoids. J. Agric. Food Chem. 64, 9004–9011. doi: 10.1021/acs.jafc.6b03529

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, J. F., and Chern, Y. (2011). Impacts of methylxanthines and adenosine receptors on neurodegeneration: human and experimental studies. Handb. Exp. Pharmacol. 200, 267–310. doi: 10.1007/978-3-642-13443-2_10

CrossRef Full Text | Google Scholar

Chen, J. F., Steyn, S., Staal, R., Petzer, J. P., Xu, K., Van Der Schyf, C. J., et al. (2002). 8-(3-Chlorostyryl)caffeine may attenuate MPTP neurotoxicity through dual actions of monoamine oxidase inhibition and A2A receptor antagonism. J. Biol. Chem. 277, 36040–36044. doi: 10.1074/jbc.M206830200

PubMed Abstract | CrossRef Full Text | Google Scholar

Cheng, R. K. Y., Segala, E., Robertson, N., Deflorian, F., Dore, A. S., Errey, J. C., et al. (2017). Structures of Human A1 and A2A adenosine receptors with xanthines reveal determinants of selectivity. Structure 25, 1275–1285. doi: 10.1016/j.str.2017.06.012

PubMed Abstract | CrossRef Full Text | Google Scholar

De Filippo, E., Namasivayam, V., Zappe, L., El-Tayeb, A., Schiedel, A. C., and Müller, C. E. (2016). Role of extracellular cysteine residues in the adenosine A2A receptor. Purinergic Signal. 12, 313–329. doi: 10.1007/s11302-016-9506-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Drabczynska, A., Müller, C. E., Karolak-Wojciechowska, J., Schumacher, B., Schiedel, A., Yuzlenko, O., et al. (2007). N9-benzyl-substituted 1,3-dimethyl- and 1,3-dipropyl-pyrimido[2,1-f] purinediones: synthesis and structure-activity relationships at adenosine A1, and A2 receptors. Bioorg. Med. Chem. 15, 5003–5017. doi: 10.1016/j.bmc.2007.04.018

PubMed Abstract | CrossRef Full Text | Google Scholar

Dungo, R., and Deeks, E. D. (2013). Istradefylline: first global approval. Drugs 73, 875–882. doi: 10.1007/s40265-013-0066-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Fišar, Z. (2016). Drugs related to monoamine oxidase activity. Prog. Neuropsychopharmacol. Biol. Psychiatry 69, 112–124. doi: 10.1016/j.pnpbp.2016.02.012

PubMed Abstract | CrossRef Full Text | Google Scholar

Flaten, V., Laurent, C., Coelho, J. E., Sandau, U., Batalha, V. L., Burnouf, S., et al. (2014). From epidemiology to pathophysiology: what about caffeine in Alzheimer's disease? Biochem. Soc. Trans. 42, 587–592. doi: 10.1042/BST20130229

PubMed Abstract | CrossRef Full Text | Google Scholar

Fredholm, B. B., Bättig, K., Holmén, J., Nehlig, A., and Zvartau, E. E. (1999). Actions of caffeine in the brain with special reference to factors that contribute to its widespread use. Pharmacol. Rev. 51, 83–133.

PubMed Abstract | Google Scholar

Geldenhuys, W. J., and Van Der Schyf, C. J. (2013). Designing drugs with multi-target activity: the next step in the treatment of neurodegenerative disorders. Expert Opin. Drug Discov. 8, 115–129. doi: 10.1517/17460441.2013.744746

PubMed Abstract | CrossRef Full Text | Google Scholar

Gidaro, M. C., Alcaro, F., Carradori, S., Costa, G., Vullo, D., Supuran, C. T., et al. (2015). Eriocitrin and apigenin as new carbonic anhydrase VA inhibitors from a virtual screening of Calabrian natural products. Planta Med. 81, 533–540. doi: 10.1055/s-0034-1396139

PubMed Abstract | CrossRef Full Text | Google Scholar

Klotz, K. N., Hessling, J., Hegler, J., Owman, C., Kull, B., Fredholm, B. B., et al. (1998). Comparative pharmacology of human adenosine receptor subtypes - characterization of stably transfected receptors in CHO cells. Naunyn-Schmiedebergs Arch. Pharmacol. 357, 1–9.

PubMed Abstract | Google Scholar

Klotz, K. N., Lohse, M. J., Schwabe, U., Cristalli, G., Vittori, S., and Grifantini, M. (1989). 2-Chloro-N6-[3H]cyclopentyladenosine ([3H]CCPA)–a high affinity agonist radioligand for A1 adenosine receptors. Naunyn Schmiedebergs Arch. Pharmacol. 340, 679–683.

PubMed Abstract | Google Scholar

Koch, P., Akkari, R., Brunschweiger, A., Borrmann, T., Schlenk, M., Küppers, P., et al. (2013). 1,3-Dialkyl-substituted tetrahydropyrimido[1,2-f ]purine-2,4-diones as multiple target drugs for the potential treatment of neurodegenerative diseases. Bioorg. Med. Chem. 21, 7435–7452. doi: 10.1016/j.bmc.2013.09.044

PubMed Abstract | CrossRef Full Text | Google Scholar

Maemoto, T., Finlayson, K., Olverman, H. J., Akahane, A., Horton, R. W., and Butcher, S. P. (1997). Species differences in brain adenosine A1 receptor pharmacology revealed by use of xanthine and pyrazolopyridine based antagonists. Br. J. Pharmacol. 122, 1202–1208. doi: 10.1038/sj.bjp.0701465

PubMed Abstract | CrossRef Full Text | Google Scholar

Meleddu, R., Distinto, S., Cirilli, R., Alcaro, S., Yanez, M., Sanna, M. L., et al. (2017). Through scaffold modification to 3,5-diaryl-4,5-dihydroisoxazoles: new potent and selective inhibitors of monoamine oxidase B. J. Enzyme Inhib. Med. Chem. 32, 264–270. doi: 10.1080/14756366.2016.1247061

PubMed Abstract | CrossRef Full Text | Google Scholar

Mihara, T., Mihara, K., Yarimizu, J., Mitani, Y., Matsuda, R., Yamamoto, H., et al. (2007). Pharmacological characterization of a novel, potent adenosine A1 and A2A receptor dual antagonist, 5-[5-amino-3-(4-fluorophenyl) pyrazin-2-yl]-1-isopropylpyridine-2(1H)-one (ASP5854), in models of Parkinson's disease and cognition. J. Pharmacol. Exp. Ther. 323, 708–719. doi: 10.1124/jpet.107.121962

PubMed Abstract | CrossRef Full Text | Google Scholar

Morris, G. M., Huey, R., Lindstrom, W., Sanner, M. F., Belew, R. K., Goodsell, D. S., et al. (2009). AutoDock4 and AutoDockTools4: automated docking with selective receptor flexibility. J. Comput. Chem. 30, 2785–2791. doi: 10.1002/jcc.21256

PubMed Abstract | CrossRef Full Text | Google Scholar

Müller, C. E., Diekmann, M., Thorand, M., and Ozola, V. (2002). [3H]8-Ethyl-4-methyl-2-phenyl-(8R)-4,5,7,8-tetrahydro-1H-imidazo[2,1-i]-purin-5-one ([3H]PSB-11), a novel high-affinity antagonist radioligand for human A3 adenosine receptors. Bioorg. Med. Chem. Lett. 12, 501–503. doi: 10.1016/S0960-894X(01)00785-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Müller, C. E., and Jacobson, K. A. (2011). Xanthines as adenosine receptor antagonists. Handb. Exp. Pharmacol. 151–199. doi: 10.1007/978-3-642-13443-2_6

CrossRef Full Text | Google Scholar

Müller, C. E., Maurinsh, J., and Sauer, R. (2000). Binding of [3H]MSX-2 (3-(3-hydroxypropyl)-7-methyl-8-(m-methoxystyryl)-1-propargylxanthine) to rat striatal membranes - a new, selective antagonist radioligand for A2A adenosine receptors. Eur. J. Pharm. Sci. 10, 259–265. doi: 10.1016/S0928-0987(00)00064-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Namasivayam, V., and Günther, R. (2007). PSO@AUTODOCK: a fast flexible molecular docking program based on swarm intelligence. Chem. Biol. Drug Des. 70, 475–484. doi: 10.1111/j.1747-0285.2007.00588.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Navarro, G., Cordomí, A., Casadó-Anguera, V., Moreno, E., Cai, N. S., Cortés, A., et al. (2018). Evidence for functional pre-coupled complexes of receptor heteromers and adenylyl cyclase. Nat Commun. 9, 1242. doi: 10.1038/s41467-018-03522-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Ozola, V., Thorand, M., Diekmann, M., Qurishi, R., Schumacher, B., Jacobson, K. A., et al. (2003). 2-Phenylimidazo[2,1-i]purin-5-ones: structure-activity relationships and characterization of potent and selective inverse agonists at human A3 adenosine receptors. Bioorg. Med. Chem. 11, 347–356. doi: 10.1016/S0968-0896(02)00456-X

PubMed Abstract | CrossRef Full Text | Google Scholar

Petzer, J. P., Castagnoli, N., Schwarzschild, M. A., Chen, J. F., and Van Der Schyf, C. J. (2009). Dual-target-directed drugs that block monoamine oxidase B and adenosine A2A receptors for Parkinson's disease. Neurotherapeutics 6, 141–151. doi: 10.1016/j.nurt.2008.10.035

PubMed Abstract | CrossRef Full Text | Google Scholar

Petzer, J. P., and Petzer, A. (2015). Caffeine as a lead compound for the design of therapeutic Aagents for the treatment of Parkinson's disease. Curr. Med. Chem. 22, 975–988. doi: 10.2174/0929867322666141215160015

PubMed Abstract | CrossRef Full Text | Google Scholar

Pretorius, J., Malan, S. F., Castagnoli, N., Bergh, J. J., and Petzer, J. P. (2008). Dual inhibition of monoamine oxidase B and antagonism of the adenosine A2A receptor by (E,E)-8-(4-phenylbutadien-1-yl)caffeine analogues. Bioorg. Med. Chem. 16, 8676–8684. doi: 10.1016/j.bmc.2008.07.088

PubMed Abstract | CrossRef Full Text | Google Scholar

Robinson, S. J., Petzer, J. P., Terre'blanche, G., Petzer, A., Van Der Walt, M. M., Bergh, J. J., et al. (2015). 2-Aminopyrimidines as dual adenosine A1/A2A antagonists. Eur. J. Med. Chem. 104, 177–188. doi: 10.1016/j.ejmech.2015.09.035

PubMed Abstract | CrossRef Full Text | Google Scholar

Sanner, M. F. (1999). Python: a programming language for software integration and development. J. Mol. Graphics Model. 17, 57–61.

PubMed Abstract | Google Scholar

Stössel, A., Schlenk, M., Hinz, S., Küppers, P., Heer, J., Gütschow, M., et al. (2013). Dual targeting of adenosine A2A receptors and monoamine oxidase B by 4H-3,1-benzothiazin-4-ones. J. Med. Chem. 56, 4580–4596. doi: 10.1021/jm400336x

PubMed Abstract | CrossRef Full Text | Google Scholar

Szymanska, E., Drabczynska, A., Karcz, T., Müller, C. E., Köse, M., Karolak-Wojciechowska, J., et al. (2016). Similarities and differences in affinity and binding modes of tricyclic pyrimido- and pyrazinoxanthines at human and rat adenosine receptors. Bioorg. Med. Chem. 24, 4347–4362. doi: 10.1016/j.bmc.2016.07.028

PubMed Abstract | CrossRef Full Text | Google Scholar

Varela, C., Tavares da Silva, E. J., Amaral, C., Correia da Silva, G., Baptista, T., Alcaro, S., et al. (2012). New structure-activity relationships of A- and D-ring modified steroidal aromatase anhibitors: design, synthesis, and biochemical evaluation. J. Med. Chem. 55, 3992–4002. doi: 10.1021/jm300262w

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, X. B., Han, C., Xu, Y., Wu, K. Q., Chen, S. Y., Hu, M. S., et al. (2017). Synthesis and evaluation of phenylxanthine derivatives as potential dual A2AR antagonists/MAO-B inhibitors for Parkinson's disease. Molecules 22:1010. doi: 10.3390/molecules22061010

PubMed Abstract | CrossRef Full Text | Google Scholar

Xu, K., Di Luca, D. G., Orrú, M., Xu, Y., Chen, J. F., and Schwarzschild, M. A. (2016). Neuroprotection by caffeine in the MPTP model of parkinson's disease and its dependence on adenosine A2A receptors. Neuroscience 322, 129–137. doi: 10.1016/j.neuroscience.2016.02.035

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: caffeine derivatives, anellated xanthines, tetrahydropyrazino[2, 1-f]purinediones, adenosine A2A receptor antagonists, adenosine A1 receptor antagonists, monoamine oxidase (MAO) B inhibitors, Alzheimer's disease, Parkinson's disease

Citation: Koch P, Brunschweiger A, Namasivayam V, Ullrich S, Maruca A, Lazzaretto B, Küppers P, Hinz S, Hockemeyer J, Wiese M, Heer J, Alcaro S, Kiec-Kononowicz K and Müller CE (2018) Probing Substituents in the 1- and 3-Position: Tetrahydropyrazino-Annelated Water-Soluble Xanthine Derivatives as Multi-Target Drugs With Potent Adenosine Receptor Antagonistic Activity. Front. Chem. 6:206. doi: 10.3389/fchem.2018.00206

Received: 28 February 2018; Accepted: 22 May 2018;
Published: 26 June 2018.

Edited by:

Simone Brogi, University of Siena, Italy

Reviewed by:

Rona R. Ramsay, University of St Andrews, United Kingdom
Judit Zsuga, University of Debrecen, Hungary

Copyright © 2018 Koch, Brunschweiger, Namasivayam, Ullrich, Maruca, Lazzaretto, Küppers, Hinz, Hockemeyer, Wiese, Heer, Alcaro, Kiec-Kononowicz and Müller. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Christa E. Müller, christa.mueller@uni-bonn.de

Present Address: Pierre Koch, Department of Pharmaceutical and Medicinal Chemistry, Institute of Pharmaceutical Sciences, Eberhard Karls Universität Tübingen, Tübingen, Germany
