Original Research ARTICLE

Front. Chem., 16 May 2019 | https://doi.org/10.3389/fchem.2019.00321

Enantiospecific Synthesis, Chiral Separation, and Biological Activity of Four Indazole-3-Carboxamide-Type Synthetic Cannabinoid Receptor Agonists and Their Detection in Seized Drug Samples

Lysbeth H. Antonides1,2, Annelies Cannaert3,4, Caitlyn Norman2, Loelia Vives2,5, Aidan Harrison6, Andrew Costello7,8, Niamh Nic Daeid1,2, Christophe P. Stove3*, Oliver B. Sutcliffe7,9* and Craig McKenzie2*
  • 1Leverhulme Research Centre for Forensic Science, University of Dundee, Dundee, United Kingdom
  • 2Forensic Drug Research Group, Centre for Anatomy and Human Identification, University of Dundee, Dundee, United Kingdom
  • 3Laboratory of Toxicology, Faculty of Pharmaceutical Sciences, Ghent University, Ghent, Belgium
  • 4Laboratory of Toxicology, National Institute of Criminalistics and Criminology, Brussels, Belgium
  • 5IUT “A” Paul Sabatier, Département de Chimie, Castres, France
  • 6Phenomenex, Macclesfield, United Kingdom
  • 7Manchester Drug Analysis and Knowledge Exchange, Manchester Metropolitan University, Manchester, United Kingdom
  • 8Greater Manchester Police, Manchester, United Kingdom
  • 9Division of Chemistry and Environmental Science, Manchester Metropolitan University, Manchester, United Kingdom

Synthetic cannabinoid receptor agonists (SCRAs) have been the largest group of illicit psychoactive substances reported to international monitoring and early warning systems for many years. Carboxamide-type SCRAs are amongst the most prevalent and potent. Enantiospecific synthesis and characterization of four indazole-3-carboxamides, AMB-FUBINACA, AB-FUBINACA, 5F-MDMB-PINACA (5F-ADB), and AB-CHMINACA is reported. The interactions of the compounds with CB1 and CB2 receptors were investigated using a G-protein coupled receptor (GPCR) activation assay based on functional complementation of a split NanoLuc luciferase and EC50 (a measure of potency) and Emax (a measure of efficacy) values determined. All compounds demonstrated higher potency at the CB2 receptor than at the CB1 receptor and (S)-enantiomers had an enhanced potency to both receptors over the (R)-enantiomers. The relative potency of the enantiomers to the CB2 receptor is affected by structural features. The difference was more pronounced for compounds with an amine moiety (AB-FUBINACA and AB-CHMINACA) than those with an ester moiety (AMB-FUBINACA and 5F-MDMB-PINACA). An HPLC method was developed to determine the prevalence of (R)-enantiomers in seized samples. Lux® Amylose-1 [Amylose tris(3,5-dimethylphenylcarbamate)] has the greatest selectivity for the SCRAs with a terminal methyl ester moiety and a Lux® i-Cellulose-5 column for SCRAs with a terminal amide moiety. Optimized isocratic separation methods yielded enantiomer resolution values (Rs) ≥ 1.99. Achiral GC-MS analysis of seized herbal materials (n = 16), found 5F-MDMB-PINACA (<1.0–91.5 mg/g herbal material) and AMB-FUBINACA (15.5–58.5 mg/g herbal material), respectively. EMB-FUBINACA, AMB-CHMICA, 5F-ADB-PINACA isomer 2, and ADB-CHMINACA were also tentatively identified. Analysis using chiral chromatography coupled to photodiode array and quadrupole time of flight mass spectrometry (chiral HPLC-PDA-QToF-MS/MS) confirmed that the (S)-enantiomer predominated in all samples (93.6–99.3% (S)-enantiomer). Small but significant differences in synthesis precursor enantiopurity may provide significant differences between synthesis batches or suppliers and warrants further study. A method to compare potency between samples containing different SCRAs at varying concentrations was developed and applied in this small preliminary study. A 10-fold difference in the “intrinsic” potency of samples in the study was noted. With the known heterogeneity of SCRA infused materials, the approach provides a simplified method for assessing and communicating the risk of their use.

Introduction

Synthetic cannabinoids (SCs) are the most chemically diverse group of new psychoactive substances (NPS) reported to national and international drug early warning systems (EMCDDA, 2018a; UNODC, 2018a). Synthetic cannabinoid receptor agonists (SCRAs) are cannabimimetics, exerting their pharmacological effects through human cannabinoid type 1 and type 2 (CB1 and CB2) G-Protein Coupled Receptors (GPCRs). Due to their structural diversity they exhibit a wide range of receptor binding and activation properties and therefore have a wide range of potency and efficacy. CB1 receptors, present primarily in the central nervous system and to a lesser extent in the peripheral tissues, mediate the psychoactive effects associated with SCRAs whilst CB2 receptors are expressed primarily in the immune system (Pertwee, 1997, 2008; Pertwee et al., 2010). CB1 and CB2 receptor agonists are recognized for their potential as therapeutic agents (Han et al., 2013). As a result, many SCRA classes and hundreds of analogs have been synthesized and studied as pharmacological targets by research groups across academia and industry. These compounds have often been found to bind to and activate both receptors and, as a result of their psychoactive effects, few have reached clinical trials and have been developed as medicinal products (e.g., Huffman and Padgett, 2005; Huffman et al., 2005; Huffman, 2009; Han et al., 2013). Synthetic routes have been patented and published and SCRA receptor binding and activation data reported as a result of structure activity relationship (SAR) studies (e.g., Huffman et al., 2005; Buchler et al., 2009). With the crystal structure of the CB1 and CB2 receptors having recently been described (Hua et al., 2016; Kumar et al., 2019; Li et al., 2019; Lorenzen and Sakmar, 2019), the study of the influence of the absolute structural conformation of SCRAs on cannabinoid receptor binding and activation via agonist-initiated GPCR ligand-receptor complex induced conformational changes continues (Ibsen et al., 2017; Schoeder et al., 2018; Kumar et al., 2019). Due to variations in their molecular structure, different SCRAs may cause different conformational changes in the receptor-ligand complex conformation and as a result give rise to different cellular responses with a bias to a particular signaling pathway (e.g., G-protein coupling vs. β-arrestin recruitment). In opioid receptors, such biased signaling has been utilized to create agonists which are biased toward pathways which give rise to desired therapeutic effects rather than those which give rise to unwanted side effects (Ho et al., 2018).

In parallel to an increasing understanding of the interaction of SCRAs with cannabinoid receptors, the illicit drugs market continues to search for, produce, and supply potent CB1-selective or mixed selectivity SCRAs for their psychoactive effects. SCRAs have been involved in an increasing number of fatal and non-fatal intoxications globally (e.g., Shevyrin et al., 2015; Adamowicz, 2016; Gieron and Adamowicz, 2016; Adams et al., 2017; Angerer et al., 2017; EMCDDA, 2018b; Kronstrand et al., 2018). Reported adverse health effects include agitation, psychosis, anxiety, tachycardia, seizures, and hypothermia (Sherpa et al., 2015; Adams et al., 2017) and in rodent studies many of these effects have been shown to be CB1-receptor mediated (e.g., Banister et al., 2013, 2015b, 2016; Funada and Takebayashi-ohsawa, 2018; Wilson et al., 2019), however the influence of different signaling pathways on these effects has not yet been established.

The pharmacology of these substances has been studied in a responsive and at times, pre-emptive manner (Banister et al., 2015a, 2016, 2019b; Cannaert et al., 2016; Longworth et al., 2017; Schoeder et al., 2018; Noble et al., 2019). The origins and evolution of SCRAs from medical research tools and drug candidates to often highly potent illicit drugs have recently been extensively and elegantly reviewed (Banister and Connor, 2018a,b).

On the illicit market, SCRAs are commonly bought as crystalline solids or viscous liquids and dissolved in solvents such as acetone and alcohols for spraying or mixing with plant materials. In this way the final product mimics the visual characteristics of herbal cannabis, and such materials are then sold as herbal smoking mixtures, known collectively and colloquially as “spice” (Pützl et al., 2015; EMCDDA, 2017a). This often gives rise to heterogeneous final products, making consistent dosing difficult for users and therefore producing unpredictable effects (Moosmann et al., 2015; Frinculescu et al., 2017). There has been a considerable diversification of the products in which such compounds have been detected, including powders, e-liquids for vaping (Peace et al., 2017; Angerer et al., 2019), impregnated papers and letters (Ford and Berg, 2018), clothing and other materials. These latter forms are commonly associated with the smuggling of SCRAs into prisons where they are particularly prevalent (EMCDDA, 2017a, 2018c; National Offender Management Service, 2017; Ralphs et al., 2017; Metternich et al., 2019).

The types of SCRAs detected have evolved in response to market demand, research studies on analog potency and national and international legislative controls. Arguably the most important controls are those controlling production and supply in China, with clear evidence that this is the main point of origin for such substances. In 2015, the production and export of 116 NPS were controlled by China including 39 SCRAs (UNODC, 2015) and soon after many of these, if not all, disappeared from the market. These compounds were rapidly replaced by new analogs, and in many but not all cases, these new substances have generally been more potent (Banister and Connor, 2018b; Banister et al., 2019a,b; Noble et al., 2019). It is therefore important to develop robust and adaptable methodologies to carry out detailed analytical and pharmacological profiling of new substances as they appear on the illicit drug market and to determine the relative theoretical potency of materials containing SCRAs at all levels of the supply chain for harm reduction purposes.

In recent years, SCRAs with acylindole and acylindazole scaffolds have become amongst the most prevalent and potent available on illicit markets. Relevant chemical structures discussed in this study are provided in Figure 1 and numbers in bold parentheses, e.g., (1), refer to these structures throughout the text. The most common of these compounds in recent years have been some of the many analogs developed by Pfizer Global Research & Development and patented in 2009 as potential analgesics (Buchler et al., 2009; Banister et al., 2015a; Banister and Connor, 2018a). The valine- and tert-leucine derived indazole-3-carboxamide analogs are chiral molecules and can therefore theoretically be present in two enantiomeric forms. Their relative prevalence will depend upon the source of the precursor chemicals used and their enantiopurity. Amongst a wide array of other compounds, the original Pfizer patent (Buchler et al., 2009) utilized L-tert-leucine methyl ester, L-valinamide and L-leucinamide to give (S)-enantiomer products [e.g., (S)-AB-FUBINACA (1) (N-(2S)-(1-amino-3-methyl-1-oxobutan-2-yl)-1-(4-fluorobenzyl)-1H-indazole-3-carboxamide], (S)-AMB-FUBINACA (2) methyl (2S)-2-(1-(4-fluorobenzyl)-1H-indazole-3-carboxamido)-3-methylbutanoate, (S)-AB-CHMINACA (4) (N-(2S)-(1-amino-3-methyl-1-oxobutan-2-yl)-1-(cyclohexylmethyl)-1H-indazole-3-carboxamide) and (S)-ADB-FUBINACA (5) (N-(2S)-(1-amino-3,3-dimethyl-1-oxobutan-2-yl)-1-(4-fluorobenzyl)-1H-indazole-3-carboxamide)). No assessment of enantiopurity of precursors or products was reported and no synthesis methods or pharmacological data for the possible (R)-enantiomers were published (Buchler et al., 2009). This group of compounds also lead to the arrival of some of the most potent SCRAs to be seen on the illicit market, including 5F-MDMB-PINACA ((3), more commonly referred to as 5F-ADB) and MDMB-FUBINACA (20).

FIGURE 1
www.frontiersin.org

Figure 1. Structures of the indazole-3-carboxamide synthetic cannabinoids utilized in this study and in previous studies. (1) AB-FUBINACA; (2) AMB-FUBINACA; (3) 5F-MDMB-PINACA (5F-ADB); (4) AB-CHMINACA; (5) (S)-ADB-FUBINACA; (6) (S)-AB-PINACA; (7) (S)-5F-AB-PINACA; (8) AB-FUBINACA 2-fluorobenzyl isomer; (9) APP-CHMINACA; (10) EMB-FUBINACA; (11) 5F-EMB-PINACA (12) MDMB-CHMICA; (13) MDMB-CHMCZCA (14) MDMB-FUBICA; (15) 5F-AMB; (16) AMB-CHMICA (MMB-CHMICA); (17) ADB-CHMINACA (MAB-CHMICA); (18) (1S,2S)-5F-ADB-PINACA isomer 2. (19) JWH-018; (20) MDMB-FUBINACA. *Indicates the position of the chiral centre.

There is a growing interest in the chromatographic separation of the increasing diversity of chiral NPS (as well as more traditional drugs of abuse such as amphetamine and methamphetamine), to gain additional information on the synthetic routes used in their manufacture and to indicate their inherent potency and efficacy (Taschwer et al., 2017; Kadkhodaei et al., 2018; Silva et al., 2018). There are opportunities to add chiral profiling to existing drug profiling methodologies if there is reproducible variation in the chiral profiles of precursor materials, even if the absolute differences are small. Chiral profiling can also aid in the assessment of a seized material's potency and therefore in risk assessment and harm reduction strategies. Using a Diacel Chiralpak® AZ-3R column, Doi et al. (2016, 2018) reported the reverse phase HPLC separation of a number of carboxamide-type SCRA enantiomers (5F-AB-PINACA (7) (N-(1-amino-3-methyl-1-oxo-2-butanyl)-1-(5-fluoropentyl)-1H-indazole-3-carboxamide), AB-FUBINACA 2-fluorobenzyl isomer (8) (N-(1-amino-3-methyl-1-oxobutan-2-yl)-1-(2-fluorobenzyl)-1H-indazole-3-carboxamide), APP-CHMINACA (9) (N-(1-amino-1-oxo-3-phenylpropan-2-yl)-1-(cyclohexylmethyl)-1H-indazole-3-carboxamide), EMB-FUBINACA (10) (ethyl 2-(1-(4-fluorobenzyl)-1H-indazole-3-carboxamido-3-methylbutanoate), 5F-EMB-PINACA (11) (ethyl 2(-1-(5-fluoropentyl)-1H-indazole-3-carboxamido)-3-methylbutanoate), MDMB-FUBICA (14) (methyl 2-(1-(4-fluorobenzyl)-1H-indole-3-carboxamido)-3,3-dimethylbutanoate) and 5F-AMB (15) (methyl 2-(1-(5-fluoropentyl)-1H-indazole-3-carbamido)-3-methylbutanoate). The separation of MDMB-CHMICA (12) (methyl-2-(1-(cyclohexylmethyl)-1H-indole-3-carboxamido-3,3-dimethyl-butanoate) and MDMB-CHMCZCA (13) (methyl 2-(9-(cyclohexylmethyl)-9H-carbazole-3carboxamido)-3-methylbutanoate) enantiomers using a Chiralpak® IA-3 column in normal phase mode has also been reported (Andernach et al., 2016; Weber et al., 2016).

This study describes the enantiospecific synthesis and chemical and pharmacological characterization of four indazole-3-carboxamide SCRA enantiomer pairs (AB-FUBINACA (1), AMB-FUBINACA (2) 5F-MDMB-PINACA (3) and AB-CHMINACA (4)). All four SCRAs have been detected in seized samples and two, AMB-FUBINACA and 5F-MDMB-PINACA, have been amongst the most prevalent compounds detected in Europe, particularly in the UK, and the United States for several years (EMCDDA, 2017b, 2018a,b; Centre for Forensic Science Education, 2018; DEA, 2018a,b). In September 2018, a ban on the production and export of seven of the most potent SCRAs, including AMB-FUBINACA (2) and 5F-MDMB-PINACA (3) was announced by the Chinese Government1 (UNODC, 2018b). This could lead, as previously observed with the earlier 39 SCRAs controlled in a similar way in 2015, to their rapid disappearance from the illicit market. In the same way they are likely to be replaced either by completely new analogs or by similar chiral compounds with small structural alterations, e.g., their azaindole analogs, or modifications to the N-alkyl/benzyl chain where the length and/or position of the substituent (normally fluorine) is varied. Such compounds include the recently reported chiral SCRAs, 4F-MDMB-BINACA (methyl 2-((1-(4-fluorobutyl)indazole-3-carbonyl)amino)-3,3- dimethyl-butanoate), 5F-MDMB-PICA (Centre for Forensic Science Education, 2019), 5F-AB-P7AICA (N-(1-amino-3-methyl-1-oxobutan-2-yl)-1-(5-fluoropentyl)-1H-pyrrolo[2,3-b]pyridine-3-carboxamide) (Adebar Project, 2018) and APP-BINACA (N-(1-amino-1-oxo-3-phenylpropan-2-yl)-1-butyl-1H-indazole-3-carboxamide) (EMCDDA, 2019). The rapid and efficient synthesis of enantiopure reference standards and the development of robust separation methods for their ongoing monitoring and evaluation is therefore required to facilitate full analytical and pharmacological assessment. Although there has to date been relatively little variation in the SCRA chiral profiles reported in the literature, the number of samples that have been tested is small and there is not yet an understanding of the variability and reproducibility of the small but potentially discriminatory differences between batches and/or precursor suppliers. An underlying understanding of the chiral separation mechanisms provides the ability to adapt methods rapidly to the inevitable arrival of new chiral SCRAs or the resurgence of others not yet under such control.

This study also reports the relative potency and efficacy of the SCRAs described using previously reported stable cell-based assays that monitor CB1 and CB2 receptor activation and are based on the recruitment of the cytosolic protein, β-arrestin 2 (βarr2) to the activated receptor. The methodology has previously been applied to both pure compounds and toxicological samples and has recently been fully validated (Cannaert et al., 2016, 2017, 2018, 2019a,b; Noble et al., 2019) and will be used to gain further insights into SCRA pharmacology in the light of recent studies (e.g., Kumar et al., 2019). A comparative approach for the assessment of street and prison seized SCRA samples, combining the determination of SCRA concentrations and where possible including the elucidation of chiral profiles considers the concept of “estimated intrinsic potency” of a sample is introduced. Such an approach could provide a more logical way to assess the potential for harm and to communicate risk effectively in a context where individual SCRA compounds vary widely in structure and potency and vary geographically and temporally.

Materials and Methods

Chemicals

Reagents for the synthesis of the enantiopure reference standards (see Figure 2) were obtained from Sigma-Aldrich, Gillingham, UK; Alfa Aesar, Heysham, Lancashire, UK; and Fluorochem Limited, Hadfield, UK, and were used without further purification. Custom synthesized D-tert-leucine was supplied by Carbosynth, UK. Solvents used in the synthesis (including deuterated solvents) were acquired from Sigma-Aldrich or Thermo Fisher Scientific, Loughborough, UK. All solvents used for HPLC and GC-MS analysis were HPLC grade and supplied by Fisher, UK. Ultra-high purity water (18 MΩcm−1) was obtained using a Milli-Q water purification system (Merck, UK).

FIGURE 2
www.frontiersin.org

Figure 2. Enantiospecific synthesis of eight indazole-3-carboxamide synthetic cannabinoids. Compound numbering relates to that provided in Figure 1.

Enantiospecific Synthesis

The N-substituted indazole-3-carboxylic acids were synthesized following procedures previously reported in the literature (Banister et al., 2015a, 2016) or adaptations of them (Figure 2). The synthesis of AB-CHMINACA was based on the synthesis of AMB-CHMINACA with valinamide being substituted for the valine methyl ester (see Figure 2) and the synthesis optimized by the addition of another equivalent of potassium tert-butoxide and bromomethyl cyclohexane and the reaction being heated to a reflux for 18 h instead of being stirred at room temperature for 48 h as described in the original method.

Reference Standard Characterization

Nuclear magnetic resonance (NMR) spectroscopy

NMR spectroscopy for the 5F-MDMB-PINACA, AB-FUBINACA and AMB-FUBINACA enantiomers was performed using a JEOL ECS-400 NMR spectrometer (JEOL, Tokyo, Japan) operating at 400 MHz. 1H-NMR (10 mg/mL in CDCl3), 13C-NMR (20 mg/mL in CDCL3). NMR spectroscopy for the AB-CHMINACA enantiomers was performed using a Bruker AVANCE III HD 500 MHz spectrometer (Bruker, Billerica, MA, USA) running under TopSpin v.3.2.5 and equipped with a QCI-F cryo-probe at a sample compartment temperature of 25°C. Samples were prepared in CDCl3 (~10 mg/mL).

Gas chromatography-mass spectrometry (GC-MS)

GC-MS analysis of reference standards (100–1,000 μg/mL) and seized sample extracts was carried out using a 7820A gas chromatograph coupled to a 5977E mass spectrometer (Agilent Technologies, Santa Clara, CA, USA). Injection mode: 1 μL sample injection and 20:1 split (and a 5:1 split for trace component screening), injection port temperature: 200°C, carrier gas: He, flow: 1 mL/min. Column: DB-1MS, 0.33 μm, 0.2 mm × 25 m (Agilent Technologies) (EMCDDA, 2017d). GC oven: 80°C held for 3 min; 40°C/min to 300°C held for 3.5 min; transfer line: 295°C. The mass spectrometer operated in electron ionization (EI) mode. Ionization conditions: 70 eV in full scan mode (50–550 amu), ion source: 230°C, quadrupole: 150°C.

High performance liquid chromatography with photodiode array detection (HPLC-PDA)

Initial chiral column screening was carried out using an Agilent Infinity II HPLC system with photodiode array detection (PDA). The selectivity of Lux® Amylose-1, Lux® Cellulose-1-4 columns (all 5 μm, 4.6 × 100 mm) and a Lux® i-Cellulose-5 column (5 μm, 4.6 × 150 mm column) from Phenomenex, UK, were assessed by triplicate 5μL injections of a 0.2mg/mL SCRA racemic mixture standards using 50:50 MilliQ H2O (A) : ACN (B) with a flow rate of 1.0 mL/min. The two most selective chiral stationary phases (CSPs) were identified and optimized column formats selected (Lux® Amylose-1, 3 μm, 2.1 × 150 mm and Lux® i-Cellulose-5, 3 μm, 2.1 × 150 mm). To assess their chromatographic performance in more detail, triplicate 1 μL injections of a 200 μg/mL reference standard solution in both acetonitrile and methanol were made in isocratic mode at 45:55, 50:50, and 55:45 (A:B) with a flow rate of 0.2 mL/min. After optimization and after assessing the SCRAs known to be present in the seized samples to be analyzed, the Lux® Amylose-1 column was used for the analysis of seized samples.

High performance liquid chromatography-photodiode array-quadrupole time of flight mass spectrometry (HPLC-PDA-QToF-MS/MS)

High resolution mass spectrometry (HRMS) analysis of the synthesized reference standards and seized samples was performed using an Acquity UPLC® instrument consisting of a binary pump, autosampler (held at 4°C), vacuum degasser and column oven (held at 30°C), coupled to a Xevo-QToF-MS/MS (Waters Corporation, Milford, MA, USA). Mobile phases were (A) LC-MS grade water with 0.1% formic acid and (B) acetonitrile with 0.1% formic acid. Flow rate was 0.2 mL/min and 1 μL of sample was injected onto a Lux Amylose-1, 3 μm, 2.1 × 150 mm, column. The QToF was operated in positive ionization mode with a source temperature of 120°C, a desolvation temperature at 500°C and a capillary voltage at 2.25 kV. ToF-MS analysis for the high-resolution determination of molecular mass and calculation of mass error (ppm) was carried out with a collision energy at 6 V. MSe aquisition was carried out using collision energies ranging from 6 to 28 V. Once QTOF-MS, and MSe data were processed, MS/MS data acquisition was utilized for selected parent ion accurate mass data to provide accurate product ion data. UV spectra (200–400 nm) were collected using an Acquity® PDA detector.

Cannabinoid Receptor Assay

To assess the biological activity of the synthesized reference compounds, live cell-based reporter assays that monitor protein-protein interactions via NanoLuc Binary Technology were used as described previously (Cannaert et al., 2018). The receptor activation is evaluated via the interaction between βarr2, a cytosolic protein, and the GPCRs CB1 and CB2. Both βarr2 and CB1/CB2 are fused to an inactive part of nanoluciferase. When CB1 or CB2 are activated by a ligand, βarr2 is recruited to the receptor, allowing interaction of the complementary nanoluciferase subunits, yielding a functional enzyme that generates a bioluminescent signal in the presence of the substrate furimazine. Curve fitting and statistical analyses were performed using GraphPad Prism software (San Diego, CA, USA). The results are represented as mean area under the curve (AUC) ± standard error of mean (SEM) with at least seven replicates for each data point (obtained in three independent experiments). Curve fitting of concentration-effect curves via non-linear regression (four parameter logistic fit) was employed to determine EC50 (measure of potency) and Emax values (measure of efficacy). The Emax values are normalized to the Emax value of JWH-018 (100%).

Seized Samples

Suspected SCRA samples, all in clear plastic “Snap bags” containing herbal material purported to be “spice” were seized by Greater Manchester Police (GMP) in Piccadilly Gardens, Manchester, UK between 21 March 2017 and 15 January 2018. They are provided to this study via the MANchester DRug Analysis and Knowledge Exchange (MANDRAKE) partnership between GMP and Manchester Metropolitan University. All bulk samples had previously undergone preliminary qualitative analysis prior to inclusion in this study.

Seized Sample Analysis

Qualitative and Quantitative Achiral GC-MS Analysis

For each SCRA sample, three replicate aliquots of approximately 10 mg herbal material were accurately weighed out. Each 10 mg aliquot was extracted sequentially using 3 × 1 mL of 75:25 dichloromethane:methanol with 10 min ultrasonication, after which the three extracts were combined. A 200 μL aliquot of this extract was diluted to 1 mL using an internal standard (tridecane) solution in 75:25 dichloromethane:methanol to give a final internal standard concentration of 35.5 μg/mL. For trace component screening, 50 mg of sample was extracted by sonication for 10 min with 1 mL methanol. The four indazole-3-carboxamide SCRAs for which in house reference standards were synthesized were identified by comparison of retention times and mass spectra between the seized samples and the reference standards. Confirmation of analyte identity was made by reference to the Cayman spectral library (version 12212018) and SWGDRUG spectral library (version 3.3) with a minimum reverse match score of 800 required for identification. SCRA concentrations are provided as an average concentration (mg/g) and range, reflecting the heterogeneous nature of the herbal materials (the samples were purposefully not homogenized to retain this information). Other SCRAs detected, for which reference standards were not available in house, were tentatively identified by reference to the mass spectral libraries with corroboration provided by HPLC-QToF-MS/MS spectra and reference to previously published HRMS spectra. A series of calibration standards were prepared and used to generate non-linear calibration curves (R2 > 0.99) for the quantitation of 5F-MDMB-PINACA and AMB-FUBINACA in seized herbal samples (10 to 200 μg/mL, each with 35 μg/mL tridecane as internal standard). The precision of the instrument and accuracy of the calibration curve was verified by the replicate (n = 12) analysis of an independent calibration check standard (30 μg/mL), yielding a coefficient of variance (CV) of 3.6 and 3.0% and bias of +3.2 and −4.6% for 5F-MDMB-PINACA and AMB-FUBINACA, respectively. The estimated concentrations of the SCRAs present in seized samples for which in house reference standards were not available were calculated using the detector response for AMB-FUBINACA and these are clearly noted in the text and figures as semi-quantitative results.

Qualitative Chiral UPLC®-PDA-QToF-MS/MS Analysis

Approximately 50 mg of seized sample was accurately weighed out and sequentially extracted using 3 × 1 mL of methanol. The extracts were combined and filtered using a 0.45 μm syringe filter prior to transferring a 1 mL aliquot to a 2 mL sample vial. Further dilutions (10x, 100x, and 1,000x) were prepared to establish the linearity of the PDA and MS/MS detector response. Enantiomeric ratios were determined by integration of the UV chromatogram at 210 nm.

Results and Discussion

In a drug misuse and harm reduction setting, understanding the relative potency (and therefore potential effects and harms) of different drug batches or drug presentations is of critical importance. In legal terms, for a seized bulk drug or drug product, the identification of the substance(s) present will be of paramount importance to determine legality. In addition, any information that may facilitate batch linkage and source identification is also worthy of study. The relative potency of a particular SCRA containing product will be related to (i) the type(s) of SCRAs present within the sample and (ii) the concentrations of those SCRAs.

Synthesis

(S)- and (R)-enantiomers of four indazole-3-carboxamide SCRAs (AB-FUBINACA (1), AMB-FUBINACA (2), 5F-MDMB-PINACA (3) and AB-CHMINACA (4)) were successfully synthesized. With the exception of 5F-MDMB-PINACA, (R)-enantiomers of these SCRAs are not currently commercially available. All enantiopure standards were calculated to have an enantiopurity of >99.8% by GC-MS and HPLC-PDA, NMR and HRMS data. Full characterization data (NMR, GC-MS, HPLC-QToF-MS/MS, UV) for all enantiopure reference standards were similar between enantiomer pairs and in agreement with their expected structures and are provided in the Supplementary Information.

Activity-Based Receptor Bioassay Results

We compared the potencies of all synthesized reference standards at CB1 and CB2 receptors (Table 1, Figure 3). All eight compounds (four enantiomer pairs) activated CB1 and CB2 receptors as would be expected from previous studies on the (S)-enantiomers of these compounds. (S)-AB-FUBINACA had previously been analyzed using the same bioassay (Noble et al., 2019) and results between the two analyses were consistent as were the data for the positive control compound (JWH-018). All (S)-enantiomers had higher potency (EC50) and efficacy (Emax) values at CB1 than the control JWH-018 (2.5–3.4 times Emax), which is commonly described as a full agonist, as did the (R)-enantiomers of 5F-MDMB-PINACA and AMB-FUBINACA (1.5 and 1.8 times JWH-018 Emax), suggesting that these compounds strongly and/or stably recruit βarr2 to CB1 in comparison to JWH-018. The high CB1 efficacy values of the (S)-enantiomers compared to JWH-018 obtained from this assay, might suggest that the assay ceiling has not yet been met. This could be tested in future studies by determining the relative efficacy of the high efficacy SCRAs before and after depleting the receptor reserve with an irreversible CB1 antagonist, such as AM6544 (Sachdev et al., 2018). For each enantiomer pair, the (S)-enantiomer was considerably more potent than the corresponding (R)-enantiomer, in agreement with the only other previous study for related indazole-3-carboxamides (Doi et al., 2018). The difference in potency between enantiomer pairs was less pronounced for CB2 than CB1 as has previously been observed previously. For CB1 the differences ranged from 6.11- to 114-fold depending on the enantiomer pair, and for CB2 1.55- to 63.5-fold. The relative potency of the enantiomers to the CB2 receptor is affected by structural features, the difference being more pronounced for compounds with an amine moiety (AB-FUBINACA and AB-CHMINACA) than those with an ester moiety (AMB-FUBINACA and 5F-MDMB-PINACA).

TABLE 1
www.frontiersin.org

Table 1. Half-maximal effective concentration (EC50) and maximal response (Emax) compared to JWH-018 (control), the tested indazole-3-carboxamide synthetic cannabinoids in this study compared to previously reported data.

FIGURE 3
www.frontiersin.org

Figure 3. EC50 curves of indazole-3-carboxamide synthetic cannabinoids for (A) CB1 and (B) CB2 receptors. Each data point represents the mean value and error bars represent the standard error of the mean (SEM) for at least seven replicates (obtained in 3 independent experiments). Compound numbering relates to that provided in Figure 1.

With an EC50 of 1.78 nM (Table 1), (S)-5F-MDMB-PINACA (3) has the highest potency at CB1 of all the compounds tested in this study, followed by the (S)-enantiomers of AMB-FUBINACA >AB-CHMINACA >AB-FUBINACA. The potency of (S)-5F-MDMB-PINACA is second only to (S)-ADB-FUBINACA previously tested using the same bioassay under the same conditions (Noble et al., 2019). (S)-5F-MDMB-PINACA was four times more potent at CB1 than (S)-AMB-FUBINACA (4), consistent with previously reported data using the FLIPR assay which measures changes in membrane potential (Banister et al., 2015b).

(R)-AMB-FUBINACA tested in this study was more potent than any other (R)-enantiomer in this study and was more potent than both the indazole-3-carboxamides, (S)-JWH-018 (control, this study) and (S)-AB-PINACA (6) and the indole-3-carboxamides 5F-AMB-PICA and 5F-PY-PICA analyzed previously using the same assay under the same conditions (Noble et al., 2019). The latter compound has been found to have little or no CB1 activity, a finding confirmed by Banister et al. (2019a).

AB-FUBINACA (1), with a terminal amide moiety (valinamide), and AMB-FUBINACA (2), with a terminal methyl ester (valinate) moiety, are otherwise structurally identical, both having a para-fluorobenzyl moiety linked to the indazole core. The (S)-enantiomers have a similar potency at CB1 but exhibited a marked difference in the EC50 ratio between (S) and (R) enantiomers between the compounds. For AMB-FUBINACA (2) the (S)-enantiomer was 6.1 times as potent as the (R)-enantiomer whilst for AB-FUBINACA (3) the (S)-enantiomer was >100 times more potent than the (R)-enantiomer. This difference may be explained by differential interactions between the enantiomer pairs and the CB1 receptor, at the valinamide and valinate moieties.

Using the structurally similar and highly potent SCRA, MDMB-FUBINACA (20), Kumar et al. (2019) demonstrated that the indazole group and p-fluorobenzyl moiety is most likely involved in hydrophobic interactions with receptor elements, the latter within a conserved docking region (described as a narrow side pocket). It is suggested that this narrow pocket is an important region influencing ligand affinity rather than activation whilst the indazole region influences receptor activation and therefore more clearly affects potency. Both observations are supported by Schoeder et al. (2018) and previous studies who noted that indazoles are more potent than indoles but that replacing the p-fluorobenzyl moiety with a pentyl chain gives compounds with similar receptor affinity and similar potency. It is suggested that the ester moiety of MDMB-FUBINACA (20), which is also present in AMB-FUBINACA (2), then forms polar interactions with the H1782.65 region of the receptor (Kumar et al., 2019). AB-FUBINACA (1) has an amide moiety in this position rather than an ester, which could also create polar interactions and has a similar potency to AMB-FUBINACA (2) in this study. This suggests that as with the fluorobenzyl/fluoro-alkyl chain in the “narrow side pocket” region, the methyl ester/amide moiety may influence ligand affinity rather than receptor activation. The “bulky” tert-butyl moiety of MDMB-FUBINACA (2) produces a more potent compound than the closely related AMB-FUBINACA (3) suggesting that it is this region, when all other structural features are in place to ensure ligand affinity, which is involved in receptor activation and therefore influences potency. AB-FUBINACA (1) and AMB-FUBINACA (2) both have a dimethyl group in this region and both have an indazole core and so have similar potency. Chirality will affect the relative positions of the functional groups within this region and most likely, as a result, will affect their interaction with receptor binding and activation sites. Potency is more conserved for the (R)-AMB-FUBINACA than for (R)-AB-FUBINACA and so the amide moiety may be affecting both ligand affinity and receptor activation in this spatial arrangement to a greater degree than the ester moiety. In this study 5F-MDMB-PINACA (3) is the only compound with, like MDMB-FUBINACA (20), a tert-butyl and ester moiety. The (S)-enantiomer is the most potent compound studied here and the (R)-enantiomer is 70 times less potent. It appears that retention of potency in the (R)- enantiomer is greater if there is a valinate methyl ester configuration rather than a valinamide, leucinamide or tert-leucine methyl ester configuration.

Chiral HPLC Separation Method Development

The underlying mechanisms of the chiral selectivity of a chiral stationary phase (CSP) have been reviewed by Berthod (2010). Selectivity is believed to occur as a result of a differential three-point interaction between the enantiomers and the CSP. Chiral separation is based on the formation of intermediate diastereoisomeric complexes between the CSP and the enantiomers in the racemic mixture. One enantiomer will have a three-point interaction with the CSP and the other a two-point interaction based on the spatial arrangement of the molecule around the chiral center. As the interactions are still relatively poorly understood, the prediction of the best CSP for a given racemate normally relies on past experience of similar tested compounds or trial and error. As the SCRAs are neutral molecules, the variation of the pH at which the separation occurs has little influence on chromatographic selectivity. The results of the initial column screening tests are shown in Table 2. The Lux® Amylose-1 (Amylose tris(3,5-dimethylphenylcarbamate)) and Lux® i-Cellulose-5 (Cellulose tris(3,5-dichloro-phenylcarbamate)) columns provided the greatest selectivity for the SCRAs tested (AB-CHMINACA (4) enantiomer standards were not available for the initial CSP screening experiments). The dimensions of these columns were optimized and 3 μm, 2.1 × 150 mm columns containing each phase were selected for further evaluation and optimization in reverse phase mode. The same CSP in a different column format, CHIRALPAK® IA-3 (3 μm, 4.6 × 250 mm; Amylose tris(3,5-dimethylphenylcarbamate) immobilized on 3 μm silica gel), has previously been used to separate MDMB-CHMICA (12) and MDMB-CHMCZCA (13) enantiomers in normal phase mode (Andernach et al., 2016; Weber et al., 2016). Doi et al. (2016, 2018) also reported on the use of an amylose-based chiral selector CHIRALPAK® AZ-3R (3.0 μm, 2.1 × 150 mm; amylose tris(3-chloro-4-methylcarbamate) column) in reverse phase mode to separate carboxamide-type SCRAs.

TABLE 2
www.frontiersin.org

Table 2. Preliminary Screening of Phenomenex Lux® Chiral HPLC columns for indazole-3-carboxamide synthetic cannabinoid enantiomer separation.

For the columns selected for further study, there was no difference in chromatographic performance as a result of using either methanol or acetonitrile as an injection solvent. The addition of 0.1% formic acid to the mobile phase solvents had negligible effect on selectivity and chromatographic performance, meaning that the method could be transferred to an HPLC-PDA-QToF-MS/MS system without further adaptation. Preliminary investigations suggest that both columns lose their selectivity when methanol is used instead of acetonitrile as a mobile phase component.

The separation of all four enantiomer pairs on the Amylose-1 column and the i-Cellulose-5 column using either an 45:55 or 55:45 (H2O:ACN) isocratic method is shown in Figures 4A,B. Table S1 details the chromatographic parameters [described succinctly by (Chromacademy, 2018)] for both columns using mobile phase compositions of 45:55, 50:50, and 55:45 (H2O:ACN) operating in isocratic mode. Although less efficient than the Lux® i-Cellulose-5, the Lux® Amylose-1 column demonstrated greater selectivity and chromatographic performance for SCRA racemates containing terminal methyl esters (AMB-FUBINACA (2) and 5F-MDMB-PINACA (3)) and with the (R)-enantiomer eluting before the (S)-enantiomer for all compounds. This is consistent with previously reported chiral separations of similar terminal methyl ester-containing SCRA racemates on amylose-based CSPs (Andernach et al., 2016; Doi et al., 2016, 2018; Weber et al., 2016). In contrast, the Lux® i-Cellulose-5 column demonstrated greater selectivity for SCRA racemates containing a terminal amide moiety (AB-FUBINACA (1) and AB-CHMINACA (4)). For three of the four compounds the order of elution was reversed on this column, with (S)-enantiomers eluting first, except for 5F-MDMB-PINACA (3) enantiomers, which retained the same elution order ((R) then (S)) observed on the Lux® Amylose-1 column. This is the first time a cellulose-based CSP has been reported for the fully resolved separation of SCRA racemates. During the initial screening process (Table 2), the cellulose-based CSPs that contained a chlorinated CSP (e.g., Lux® Cellulose-2 and−4 and Lux® i-Cellulose-5) all showed good selectivity for the AB-FUBINACA (1) enantiomers but the non-chlorinated cellulose-based CSP, Lux® Cellulose 1 and 3, were not selective. Doi et al. (2016) previously investigated a CHIRALPAK® OD3 cellulose-based CSP column (cellulose tris(3,5-dimethylphenylcarbamate)) for two methyl ester-containing SCRAs, resulting in poor resolution; however, no SCRAs with terminal amide moieties were tested and the CSP selected for testing did not include a chloride moiety. This indicates the importance of the chloride-SCRA terminal amide interaction with this CSP and its role in selectivity. Such knowledge of the separation mechanisms of SCRA enantiomers will aid the choice of CSPs for future studies as new chiral SCRAs emerge onto the illicit drug market.

FIGURE 4
www.frontiersin.org

Figure 4. HPLC-PDA chromatograms showing the resolution of indazole-3-carboxamide synthetic cannabinoid receptor agonists on (A) a Lux® Amylose-1 column and (B) a Lux® i-Cellulose-5 column. Mobile phase components: A-H2O, B-Acetonitrile. Compound numbering relates to that provided in Figure 1.

Achiral Analysis of Seized Samples

The seized samples described in this study had undergone preliminary qualitative analysis by GC-MS (unpublished data). No samples obtained by MANDRAKE between 2017 and January 2018 were found to contain AB-FUBINACA (1), first detected in Japan in 2012 (Uchiyama et al., 2013) or AB-CHMINACA (4), first detected in 2014 (EMCDDA, 2017c). The production and export of these compounds were controlled in China in January 2015 (UNODC, 2015) and internationally controlled in November 2018 (UNODC, 2018c). AMB-FUBINACA (2) and 5F-MDMB-PINACA (3) were controlled by China in September 20182 (UNODC, 2018b). Samples were pre-selected to contain either 5F-MDMB-PINACA or AMB-FUBINACA in order to carry out a preliminary study on (R)-enantiomer prevalence in seized samples.

The results of the qualitative and quantitative analysis of the selected seized samples are described in Table 3 and in Figure 5. In order to estimate herbal material heterogeneity, samples were not homogenized prior to extraction. There was variability in the concentrations detected in the replicate samples, reflecting the inherent heterogeneity of such herbal materials, with 2 to 3-fold differences in concentration being detected in single samples. This is likely to add to variability in the effects on the consumer if the materials are subsampled for use by consumers at different times and so therefore, from a harm reduction and risk assessment context it is helpful to analyse and report such samples in this way.

TABLE 3
www.frontiersin.org

Table 3. Synthetic cannabinoid receptor agonists (SCRAs) in seized samples from Manchester, UK.

FIGURE 5
www.frontiersin.org

Figure 5. Concentrations of synthetic cannabinoid receptor agonists (SCRAs) seized in Manchester, UK. Shaded areas denote samples where a semi-quantitative result has been calculated for a compound based on the detector response for AMB-FUBINACA.

5F-MDMB-PINACA (3) was detected by GC-MS as the only SCRA present in six samples and as part of a mixture in two samples. The concentrations of 5F-MDMB-PINACA in the samples ranged from < 1.0 to 91.5 mg/g herbal material (< 0.1 to 9.15% w/w herbal material). It was a minor SCRA component in one sample, where it was detected with AMB-CHMICA (16) (methyl 2-(1-(cyclohexylmethyl)-1H-indole-3-carboxamido)-3-methylbut-anoate), also known as MMB-CHMICA. AMB-CHMICA has previously been determined to be six times less potent than 5F-MDMB-PINACA (Banister et al., 2016). 5F-MDMB-PINACA (3) was also present as a trace component (< 1 mg/g, < 0.1% w/w herbal material) of a mixture with ADB-CHMINACA (17) (N-(1-amino-3,3-dimethyl-1-oxobutan-2-yl)-1-(cyclohexylmethyl) indazole-3-carboxamide), also known as MAB-CHMICA, and traces of tentatively identified 5F-ADB-PINACA isomer 2 (18) (N-(1-amino-3,3-dimethyl-1-oxo-2-butan-2-yl)-1-(5-fluoro-pentyl)-1H-indazole-3-carboxamide). Interestingly, ADB-CHMINACA (17) has been demonstrated to be equipotent with 5F-MDMB-PINACA (3) (Banister et al., 2015a).

AMB-FUBINACA (2) was detected in six samples, in five as the only SCRA present and in one sample mixed with the closely structurally-related SCRA, EMB-FUBINACA (10) (ethyl 2-(1-(4-fluorobenzyl)-1H-indazole-3-carboxamido)-3-methylbutanoate). The concentrations of AMB-FUBINACA (2) ranged from 15.5 to 58.5 mg/g herbal material (1.55–5.85% w/w herbal material). AMB-FUBINACA (2) was previously detected in a product known as “AK-47 24 Karat Gold,” which was implicated in an acute toxicity event in New York in 2016 (Adams et al., 2017). Replicate analysis of a single packet of the material in this case gave a result of 16.0 +/– 3.9 mg/g (1.6% w/w herbal material). Five of the seized samples reported in this study were seized on the same day in the same area as each other and all contain relatively similar concentrations of AMB-FUBINACA (range 22.8–58.5 mg/g herbal material). Semi-quantitative estimates have been provided for the concentrations of AMB-CHMICA (16), ADB-CHMINACA (17) and EMB-FUBINACA (10) in the samples. As such, the data should be treated as indicative only.

As well as the GC-MS data, the molecular mass and fragmentation patterns of these compounds were confirmed by HRMS analysis (see Table 3), with reference being made to previously published comparative data on the same compounds (Carlier et al., 2017a,b; Liu et al., 2017; Mardal et al., 2018). All mass assignments agreed within 4.1 ppm with calculated theoretical monoisotopic masses (Table 3).

Chiral Analysis of Seized Samples

Enantiomer ratios were determined using the relative peak areas of the chromatographically resolved enantiomers rather than a calibration curve due to the very large difference in concentrations of each enantiomer detected in the samples (Table 3). Due to its wide linear range, the PDA detector response at 210 nm was used for this purpose. It was found that the calculation of the enantiomer ratio using the HRMS response led to an over-estimation of the contribution of the minor (R)-enantiomer. This was confirmed by analysis of 10-, 100-, and 1,000-fold dilutions of the original extract. The HRMS detector was used for confirmatory purposes and ToF-MS, MSe and MS/MS data provided confirmation of enantiomer identification in addition to retention time matching to a racemic reference standard (see Figure 6 for examples of AMB-FUBINACA (2) and 5F-MDMB-PINACA (3) enantiomer identification). The ratio calculated using the PDA detector remained constant over the dilution range and the ratio calculated using the HRMS detector decreased with increasing sample dilution. The chiral profiles of AMB-FUBINACA (2) and 5F-MDMA-PINACA (3) and in 16 seized herbal materials are shown in Table 3. The limited chiral profiling studies carried out to date on seized SCRAs have reported the expected and overwhelming prevalence of the (S)-enantiomers in recovered samples (Andernach et al., 2016; Doi et al., 2016; Weber et al., 2016). Some variation in the enantiopurity of precursors may occur as a result of variation in the supply chain and could therefore be utilized in SCRA batch profiling if such variation were reproducible within a production batch or supplier. L-tert-leucine, the precursor of 5F-MDMB-PINACA (and other leucine-derived SCRAs as well as licit pharmaceuticals such as antiretroviral protease inhibitors e.g., Atazanavir, Boceprevir, and Telaprevir) is widely available and is produced efficiently on an industrial scale with a high degree of enantiopurity (>99%) (Xue et al., 2018).

FIGURE 6
www.frontiersin.org

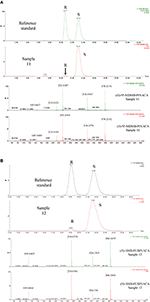

Figure 6. Examples of the identification of SCRA enantiomers in seized samples by Chiral UPLC®-QToF-MS/MS (A) sample 11 containing 5F-MDMB-PINACA and (B) sample 12 containing AMB-FUBINACA. The most important accurate mass data has been enlarged in the spectra provided for ease of viewing.

In this study, as expected from previous studies and as a result of the lower cost and the relative availability of the relevant precursors, the more potent (S)-enantiomer of 5F-MDMB-PINACA (3) was the major enantiomer, present at >93% in all samples analyzed and in the majority at >99%. (S)-AMB-FUBINACA (2) was present at 96.8–98.2 % in the small sample set examined. An (almost) identical ratio was obtained for the 5 samples seized on the same day, with this ratio being distinct from the other sample, indicating that chiral profiling may be a useful additional tool in distinguishing batches of valine methyl ester-derived SCRAs at a synthetic source level even though the absolute size of the variation in chiral profiles is small.

Estimated Intrinsic Potency of Seized Samples

We propose that the intrinsic potency of one SCRA containing sample relative to another can be estimated using the CB1 potency of each compound detected, relative to the control sample used in the bioassay (in this case JWH-018) and the concentration of each SCRA, with a correction factor applied for enantiopurity where such information is available. The calculation of such an estimated intrinsic potency provides a simple methodology for comparing the relative potential for harm of different sample batches containing a number of SCRA compounds at different concentrations for risk evaluation, harm reduction and/or intelligence purposes. This approach is a method of comparing samples before they are consumed and does not directly indicate the physiological/toxicological effects that would be experienced by a user following exposure. The estimated intrinsic potency calculation does not currently take into account the potential effect of differences in CB1 efficacy between the SCRAs. Within this study, the range of Emax values calculated for the different (S)-enantiomers was relatively small (267–331%), therefore the inclusion of the Emax values in the estimated intrinsic potency calculation would have a limited effect on the differentiation of seized samples. It should be noted, though, that comparing Emax values (as a measure of efficacy) from different studies can result in different outcomes. Sachdev et al. (2018) have developed an interesting approach to compare the efficacy of SCRAs (also taking into account the potential “assay ceiling” issue), which could also be used in this method to assess the potency of seized samples. User response will be affected by a number of additional factors, including user tolerance, the presence of other co-consumed substances and the influence of the mode of use of the drug e.g., smoking vs. vaping vs. ingestion. During smoking, active and inactive pyrolysis products may be produced which would then be inhaled (Kevin et al., 2019). The physiological response of a user to a sample could also be affected by the rate of metabolism of the parent SCRA(s) following exposure, the formation of pharmacologically active metabolites (Cannaert et al., 2016; Gamage et al., 2019) and the relative ability of both parent and metabolites to pass the blood-brain barrier to exert their CB1 mediated psychoactive effects.

Keeping in mind the above-mentioned limitations, the estimated intrinsic potency of the SCRA-containing sample can be calculated as described in Equations (1) and (2).

When the relative proportions of the enantiomers have not been determined:

Estimated Intrinsic Potency= [(CB1 EC50,  JWH-018CB1 EC50,  SCRA)ConcSCRA]100    (1)

When the relative proportions of the enantiomers have been determined they can be used to adjust the estimated intrinsic potency value:

Estimated Intrinsic Potency=[(CB1 EC50,  JWH-018CB1 EC50,  SCRA)P(S)]+[(CB1 EC50,  JWH-018CB1 EC50,  SCRA)P(R) ]*ConcSCRA100    (2)

Where,

EC50 values are expressed in nM, ConcSCRA is the concentration (mg/g) of a particular SCRA detected in the sample, P(S) is the proportion of the (S)-enantiomer present in the sample e.g., 93.6% = 0.936, P(R) is the proportion of the (R)-enantiomer present in the sample e.g., 6.4% = 0.064.

When multiple SCRAs are present in a single sample the term on the top line is simply repeated for each SCRA detected and added together. A combination of the two equations can be used when chiral data is available for some SCRAs but not for others.

The estimated intrinsic potency values have been calculated for the samples seized in this study which contained either 5F-MDMB-PINACA or AMB-FUBINACA (Figure 7) and the underlying data and calculations are provided in Tables S2, S3a,b. To illustrate how such an approach could be used when multiple SCRAs are present in samples, an estimated intrinsic potency value has been calculated for compounds which have been quantified on a semi-quantitative basis and whose potency (EC50) has not been determined directly in this study. For example, 5F-MDMB-PINACA and AMB-CHMICA were both detected in sample 1. As no EC50 data is available for AMB-CHMICA from this study, the EC50 for 5F-MDMB-PINACA was used and a correction factor applied. This correction factor was derived from data reported by Banister et al. (2016) who have previously determined the EC50 values for both compounds: correction factor = (EC50, 5F−MDMB−PINACA / EC50, AMB−CHMICA) = (0.59/3.59) = 0.164. ADB-CHMINACA was detected in sample 6 and the EC50 value relative to JWH-018 was calculated using the data reported previously by Cannaert et al. (2017). As no relative potency data is available for EMB-FUBINACA, either to another compound in this study or to a JWH-018 control sample run using the same assay, no intrinsic potency values were calculated for sample 10 which contained both AMB-FUBINACA and EMB-FUBINACA. The estimated intrinsic potency varies even within this small sample with its limited variability of SCRA compounds (Figure 7 and in Table S2). The samples with the lowest estimated intrinsic potency in this study are up to 10 times less potent than the most potent samples. Coupled with the heterogeneous nature of the herbal samples this will inevitably lead to unpredictable effects experienced by the user(s). The visual characteristics of SCRA infused materials give no indication of the SCRAs present, their concentration or their relative potency.

FIGURE 7
www.frontiersin.org

Figure 7. Estimated intrinsic potency values, calculated using equation 1 and/or equation 2, from replicate analyses (n = 3) of alleged “spice” samples seized in Manchester, UK. Shaded areas identify samples for which estimated intrinsic potency values have been calculated. Intrinsic potency values for sample 2 (see Table 3) have not been calculated due to insufficient sample for quantitative analysis. Sample 10 (see Table 3), in which both AMB-FUBINACA and EMB-FUBINACA were detected has also been omitted as no comparative data for potency (EC50) is currently available for EMB-FUBINACA.

We propose that bioassay data on pure compounds (and where available, data on the prevalence of both the (R)- and (S)-enantiomers), is compiled for existing and emerging SCRAs to allow the calculation of estimated intrinsic potency values as a standard practice for evaluating and comparing the potential harms of SCRA containing materials. If present, signaling bias caused by different SCRAs may affect the accuracy of estimated intrinsic potency and so this also warrants further study. Alternatively, the bioassay could be used as a standalone assessment technique to determine a samples EC50 without the necessity for identification of the SCRA components or their concentrations. Either way, the calculation of an intrinsic potency value allows independent samples, containing different SCRAs with inherently different potencies (as expressed by the EC50) at different concentrations to be compared directly with each other. This may be a useful tool in expressing differences in the relative potential harms of seized samples.

Conclusions

In this study, we have described the investigation of the effect of chirality on the potency and, for the first time, efficacy, of four indazole-3-carboxamide SCRAs. All (S)-enantiomers were more potent than their respective (R)-enantiomers at both CB1 and CB2 although the scale of the difference varied greatly between compounds. (S)-enantiomers had up to three times greater efficacy at CB1 but had similar or lower efficacy at CB2 than their respective (R)-counterparts. To assess the prevalence and variability of (R)-enantiomers of SCRAs in seized samples, an analytical method was developed for the separation of SCRA enantiomers. With an increased knowledge of chiral column retention mechanisms and selectivity, we have recommended two column types, depending on the structural features of the SCRAs studied. With such knowledge, methods can be selected and adapted as new chiral SCRAs enter the market. We have successfully applied the method to a small number (n = 16) of seized samples in a preliminary study where all SCRAs present have been identified and quantified where possible. It is recommended that amylose-based CSPs are used for the analysis of SCRAs with terminal methyl esters (e.g., 5F-MDMB-PINACA and AMB-FUBINACA in this study) and that cellulose-based chlorinated CSPs are used for those compounds with terminal amides (e.g., AB-FUBINACA and AB-CHMINACA in this study). A considerably larger set of samples will be analyzed in future to determine within and between batch variation of chiral profiles and their potential discriminatory power in case samples.

We have proposed a methodology for calculating the estimated intrinsic potency of a drug sample as presented to a user, prior to use. Due to the utilization of different signaling pathways in different in vitro bioassays for the evaluation of potency and efficacy of SCRAs at CB1 and CB2 receptors, we recommend further investigation of the possible impact of SCRA signaling bias on the estimated intrinsic potency approach introduced in this study. A direct comparison of the in vitro response of the bioassay to both G-protein and β-arrestin mediated pathways in the same assay or between independent assay systems (e.g., the assay used in this study vs. FLIPR membrane potential assay vs. GTPγS binding assay vs. cAMP accumulation assays) is recommended. At present the estimated intrinsic potency calculated for a sample does not take into account the efficacy of the SCRAs present and this warrants further investigation.

Further experiments could investigate the effect of chirality on SCRA potency and efficacy using the following compounds and their enantiomers: (S)- and (R)-MDMB-FUBINACA vs. (S) and (R)-AMB-FUBINACA and (S)- and (R)-5F-MDMB-PINACA vs. (S)- and (R)-5F-AMB-PINACA. Such a study would further enhance our understanding of the mechanism of SCRA-CB1 receptor interactions.

Data Availability

Datasets generated for this study are included in the manuscript and the Supplementary Files. Any additional raw data supporting the conclusions of this work will be made available by the authors, without undue reservation, to any qualified researcher.

Author Contributions

CM, OS, and CS participated in research study design. LA, CN, ACa, ACo, AH, LV, and CM carried out laboratory analysis. LA, ACa, CN and CM performed data analysis. LA, ACa, NN, OS, CS, and CM wrote or contributed to the writing of the manuscript.

Funding

LA is funded by the Leverhulme Trust. Loelia Vives acknowledges the support of the ERASMUS student exchange programme for her internship with the Forensic Drug Research Group at the University of Dundee. ACa is funded by the BRAIN project grant (NPSSAY) from The Belgian Science Policy Office and the Ghent University–Special Research Fund (BOF; PDO026-18). CS also acknowledges the support from Ghent University–Special Research Fund (BOF; project grants no. 01N00814 and 01J15517).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2019.00321/full#supplementary-material
