Modified Particle Swarm Optimization Algorithms for the Generation of Stable Structures of Carbon Clusters, Cn (n = 3–6, 10)
- 1Department of Chemistry and Centre for Theoretical Studies, Indian Institute of Technology, Kharagpur, India
- 2Department of Electronics and Electrical Communication Engineering, Indian Institute of Technology, Kharagpur, India
- 3Fachbereich Chemie, Philipps-Universität Marburg, Marburg, Germany
- 4Department of Computer Science and Engineering, Indian Institute of Technology, Kharagpur, India
- 5Department of Chemistry, Indian Institute of Technology Bombay, Mumbai, India
Particle Swarm Optimization (PSO), a population based technique for stochastic search in a multidimensional space, has so far been employed successfully for solving a variety of optimization problems including many multifaceted problems, where other popular methods like steepest descent, gradient descent, conjugate gradient, Newton method, etc. do not give satisfactory results. Herein, we propose a modified PSO algorithm for unbiased global minima search by integrating with density functional theory which turns out to be superior to the other evolutionary methods such as simulated annealing, basin hopping and genetic algorithm. The present PSO code combines evolutionary algorithm with a variational optimization technique through interfacing of PSO with the Gaussian software, where the latter is used for single point energy calculation in each iteration step of PSO. Pure carbon and carbon containing systems have been of great interest for several decades due to their important role in the evolution of life as well as wide applications in various research fields. Our study shows how arbitrary and randomly generated small Cn clusters (n = 3–6, 10) can be transformed into the corresponding global minimum structure. The detailed results signify that the proposed technique is quite promising in finding the best global solution for small population size clusters.
Over the past decades, studies on nature-inspired swarm intelligence based meta-heuristic algorithms have become a topic of paramount interest in the allied research fields. To date, various optimization problems have been addressed using these algorithms and these have turned out to be an important tool in analyzing physical systems, in solving the complex problems and in searching for the best solution from a set of all possible feasible solutions. Particularly, global optimization (GO) has become very challenging in the development of computational fields. Search for the globally optimal solution is more crucial than that for a local optima as the former corresponds to the correct and desirable solution. Fundamentally, GO methods can be divided into two broad classes, namely (i) deterministic algorithms and (ii) stochastic algorithms. Although deterministic methods are capable of providing a guaranteed global optimum solution, the necessary properties of objective function and some constraints are required as well. On the other hand, stochastic methods can provide successful results in finding the global best solution without consideration of any assumption of differentiability and continuity of objective function. Until now, several stochastic methods such as genetic algorithms (GA) (Holland, 1992; Grüninger and Wallace, 1996; Ursem, 2000; Deb et al., 2002; Poli and Langdon, 2002; Dilettoso and Salerno, 2006; Krug et al., 2010), simulated annealing (SA) (Woodley et al., 1999; Abraham and Probert, 2006; Glass et al., 2006; Oganov and Glass, 2006; Trimarchi and Zunger, 2007), differential evolution (DE) (Storn, 1996; Storn and Price, 1997; Price et al., 2006; Rocca et al., 2011), harmony search (HS) (Geem, 2000, 2001, 2006; Geem et al., 2001, 2005; Diao and Shen, 2012; Gholizadeh and Barzegar, 2013; Hadwan et al., 2013; Manjarres et al., 2013; Nekooei et al., 2013; Wang and Li, 2013; Hoang et al., 2014; Fattahi et al., 2015; Weyland, 2015; Assad and Deep, 2016), ant colony optimization (ACO) (Colorni et al., 1992; Dorigo, 1992; Dorigo and Di Caro, 1999; Zlochin et al., 2004; Dorigo and Birattari, 2010; Korošec et al., 2012), cuckoo search (CS) (Payne and Sorensen, 2005; Yang and Deb, 2009; Inderscience, 2010), bat algorithm (BA) (Altringham et al., 1996; Richardson, 2008; Yang, 2010a,b), artificial bee colony optimization (ABC) (Karaboga and Basturk, 2007, 2008; Omkar et al., 2011; Fister and Žumer, 2012; Li G. et al., 2012), honey bee mating optimization (HBMO); (Pham et al., 2005; Haddad et al., 2006; Afshar et al., 2007; Jahanshahi and Haddad, 2008; Marinakis and Marinaki, 2009; Pham and Castellani, 2009, 2014, 2015; Bitam et al., 2010; Gavrilas et al., 2010; Marinaki et al., 2010; Chakaravarthy and Kalyani, 2015; Nasrinpour et al., 2017; Rajasekhar et al., 2017), and multi-colony bacteria foraging optimization (MC-BFA) (Chen et al., 2010) have been developed and used in various research fields including global optimization purpose. Moreover, some advanced and more promising methods are continuously being proposed including random sampling method (Pickard and Needs, 2006, 2007, 2008), minima hopping (Kirkpatrick et al., 1983; Pannetier et al., 1990), basin hopping (Nayeem et al., 1991; Wales and Doye, 1997), meta-dynamics (Martonák et al., 2003, 2005; Guangneng et al., 2005), data mining (Mujica and Needs, 1997) and Particle Swarm Optimization (PSO) (Kennedy and Eberhart, 1995, 1999; Kennedy, 1997; Shi and Eberhart, 1998; Eberhart and Shi, 2001; Li, 2007; Özcan and Yilmaz, 2007; Poli, 2007, 2008; Barrera and Coello, 2009; Li M. et al., 2012; Qu et al., 2012; Bonyadi and Michalewicz, 2017), modified PSO (Zheng et al., 2007), adaptive particle swarm optimization (APSO) (Zhan et al., 2009), multi-dimensional PSO for dynamic environments (Zhi-Jie et al., 2009; Kiranyaz et al., 2011; Bhushan and Pillai, 2013), which indeed show different numerical performances.
Out of these numerous techniques, PSO is a very renowned iterative process which works intelligently by utilizing the concept of exploring and exploiting together in the multidimensional search space for finding optimal or near-optimal solutions. The learning strategies of this technique for the searching of structural information are very much suitable and reliable in an active area of GO research. This evolutionary computational method was first invented by Kennedy and Eberhart (1995) and Kennedy (1997) in the mid 1990s on graceful collaborative motion of biological populations rooted on the concept of “information sharing and collective intelligence.” This adaptive metahurestic technique emphasizes on overcoming the energy barriers, particularly by the upgradation of positions and velocities following the individual or personal best which again follows the global best one. After several developments (Reeves, 1983; Reynolds, 1987; Heppner and Grenander, 1990; Millonas, 1993; Clerc, 1999; Eberhart and Shi, 2000; Banks et al., 2007; Bui et al., 2007; Khan and Sadeequllah, 2010), adaptation (Wang et al., 2011), modifications (like niching with PSO Brits et al., 2002; Engelbrecht and Van Loggerenberg, 2007; Sun et al., 2007; Nickabadi et al., 2008; Wang J. et al., 2009; Wang Y. et al., 2009) single solution PSO (Liu and Wang, 2006; AlRashidi and El-Hawary, 2007; Li and Li, 2007; Liu B. et al., 2007; Liu D. et al., 2007; Petalas et al., 2007; Schutze et al., 2007; Zhang et al., 2007; Zhang and Wang, 2008; Benameur et al., 2009) and multi-objective optimization (Cai et al., 2004, 2009; Call et al., 2007; Chandrasekaran et al., 2007; Abido, 2009; Alatas and Akin, 2009; Dehuri and Cho, 2009; De Carvalho et al., 2010; Goh et al., 2010; Briza and Naval, 2011; Chen et al., 2011), constraint optimization with PSO (Cao et al., 2004; AlRashidi and El-Hawary, 2006; Sun and Gao, 2008; Ma et al., 2009; Sivasubramani and Swarup, 2009), discrete PSO (Yin, 2004; Yeh, 2009; Yeh et al., 2009; Unler and Murat, 2010), dynamic environment of PSO (Shao et al., 2004, 2008; Zhang et al., 2006; Chen et al., 2007; Liu X. et al., 2007; Yang et al., 2007; Du and Li, 2008; Wang and Xing, 2008; Zhao et al., 2008; Cheng et al., 2009; Wang Y. et al., 2009; Bae et al., 2010) and parameterization (Eberhart and Shi, 2001; Shi, 2001; Trelea, 2003; Li-Ping et al., 2005; Talbi, 2009; Pedersen, 2010; Bansal et al., 2011) on the original PSO, more recently global optimization of small boron clusters (B5 and B6) using a more advanced PSO approach has been reported with great success (Mitikiri et al., 2018).
On the other hand, the investigation on pure carbon molecules existing in various structural forms (chains/cyclic rings) has been a matter of great interest in the research area of organic, inorganic and physical chemistry (Weltner and Van Zee, 1989) as the study and production of carbon-riched molecules in the laboratory are notoriously difficult due to their high reactivity and transient like behavior. They are also very important in astrophysics, particularly in connection with the chemistry of carbon stars (Bernath et al., 1989), comets (Douglas, 1951), and interstellar molecular clouds (Bettens and Herbst, 1997). Long carbon chains are also believed to act as carriers of diffuse interstellar bands (Fulara et al., 1993). Moreover, carbon clusters are also important constituents in hydrocarbon flames and other soot-forming systems (Kroto and McKay, 1988) and they play an important role in gas-phase carbon chemistry where they serve as intermediates for the production of fullerenes, carbon tubes, thin diamond and silicon carbide films (Koinuma et al., 1996; Van Orden and Saykally, 1998). Therefore, the study about the structures and stabilities of carbon clusters is very important to thoroughly understand the complex chemical environment of such systems and also to shed light into the remarkable bonding capability of carbon which is able to form single, double and triple bonds. They together make the study on the structural information of carbon clusters in the field of theoretical research a subject of immense interest and it started before the development of fullerene chemistry (Pitzer and Clementi, 1959; Weltner and Van Zee, 1989; Martin et al., 1993; Hutter et al., 1994).
Due to the reduction in angle strain, carbon clusters larger than C10 are likely to exist as monocyclic rings, while smaller ones possess low-energy linear structures. Moreover, it was reported that for small clusters with even number of carbon atoms such as C4, C6, and C8, the cyclic form is either the lowest energy isomer or almost isoenergetic to their linear counterparts (Raghavachari and Binkley, 1987; Watts et al., 1992; Hutter and Lüthi, 1994; Pless et al., 1994; Martin and Taylor, 1996). In this study, we have checked the efficiency of our newly developed multi-threaded PSO code, written in python, and augmented by Gaussian 09 program package (Frisch et al., 2013) to locate global minimum energy structures for Cn clusters (n = 3–6). Particularly, we want to test our code for the system where two minima are located at two deep well points on the PES as in the case of C6 cluster. We kept the cluster size small in order to compare the performance of our code to other popular evolutionary simulation techniques such as SA, GA, and BH.
Currently Proposed and Implemented PSO Technique
Initially, random structures are generated within certain range (−3, 3) in a multidimensional search space followed by upgradation of velocity and position vectors through swarm intelligence. After completion of every iteration, energy of each particle is calculated and a convergence criterion is verified with the help of the Gaussian 09 package interfaced with the present PSO algorithm. Individual best and global best positions are updated. If the energy values of successive 30 iterations remain same, the program automatically terminates. Finally a new set of initial structures are generated from the related output structures and the process is continued till the self-consistency is achieved.
In order to check the efficiency of our proposed PSO method over some most familiar GO methods like advanced BH, SA, and GA methods, the results for C5 cluster have been analyzed, as a reference system.
A Comparative Account of the Current PSO Method with Other Existing Approaches
We have made the computer experiment to compare our proposed PSO with the other popular evolutionary simulation techniques such as SA, GA and advanced BH.
Comparison of Performances of PSO and GA
(a) The most important distinction between our proposed DFT-PSO with GA is the sharing of information. In GA, chromosomes share information with each other, whereas in PSO the best particle informs the others and the information of variables is stored in small memory. Again, PSO search for the global best solution is unidirectional, while GA follows the parallel searching process.
(b) In contrast to GA, PSO does not use any genetic kind of operator, i.e., crossover and mutation, and the internal velocity leads the particle to the next better place.
(c) PSO implementation is more simple and easier than GA as it deals with few parameters (like position and velocity only).
(d) GA provides satisfactory results in case of combinatorial problems, PSO being less suitable there.
(e) PSO takes much less time to execute and the convergence rate is also faster than that of GA.
A previous study by Hassan et al. (2005) has been further recommended for more clarity and reliability of the efficiency of PSO over GA.
Comparison of Performances of PSO and SA
In SA technique, a small perturbation is given to cluster entity at each successive step, and energy estimation is carried out consecutively. Acceptance of perturbation depends on the obtained energy value. If the obtained energy is better than the previous one, the perturbation as well as the move with low cost is accepted. Otherwise, the process excludes it and the Boltzmann probability distribution is applied at a given temperature. The particle (individual cluster) in SA takes much time to generate different lower energy structures. The temperature decreases during the whole course of the process very slowly and at the end of the run it attains the least value. In contrast, such kind of perturbation or temperature variable is not present in PSO. Both exploitation and exploration techniques drive the particle in PSO, while only exploitation is used in SA. So, there are more chances to trap the particles in local minima in case of SA being a single-based technique than PSO. On the other hand, PSO, being the population based technique, is able to swarm wherever (different places of mountain or lower point of valleys) be the particle in the search space.
Comparison With Basin Hopping
Wales and Doye jointly described basin hopping algorithm (Berg and Neuhaus, 1991; Wales and Doye, 1997; Doye et al., 1998) which has become a popular stochastic search process to find out the desired global best solution of an object function. This method is basically a Monte Carlo technique, which works in a perturbative and iterative manner. At first, a random coordinate of a particle is considered. Then, random perturbation is applied to the configuration considering the fact that the particle remains in a local basin which is then followed by the minimization of energy functional to get a better solution. Energy estimation is again carried out and the process is repeated until the best configuration or the lowest energy structure is achieved. The most important thing is that the applied perturbation should be large enough to get out of a local basin.
Algorithm and Computational Details
At the beginning, a set of random coordinates of Cn clusters (particles) with random positions and velocities are considered. The newer sets of coordinates are updated through PSO run to find out global best position or configuration. The local best configuration (pbest) or that having the lowest energy value obtained locally so far is stored in a small memory variable which is then followed by the searching of global best (gbest) configuration (among the set of pbest) through an exploration technique. Ultimately, the best optimal solution is achieved.
The new velocities () and positions () of particles in ith generation obey the following equations where and are the current position and velocity.
ε1 and ε2 are chosen randomly in between (0,1). The tendency of a particle to remain in its current position is called inertia coefficient denoted by w. d1 and d2 (which can be modified as per requirement) which are referred to as individual coefficient of acceleration and global coefficient of acceleration, respectively. These two coefficients guide the particles to meet convergence so that all the candidate solutions in the problem space efficiently achieve the global minimum (see Table 1).
After the completion of each PSO run, optimization of global best structural units of Cn clusters (n = 3–6) are performed at the B3LYP (Lee et al., 1988; Becke, 1993)/6-311+G* level in the Gaussian 09 program.

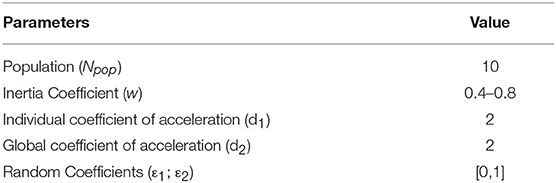

Each randomly generated cluster unit is considered as a particle. In Figure 1 (x0, x1, x2,…x3n−1), particle comprises n atoms. Here, the coordinates of ith atom are (x3i, x3i+1, x3i+2).
One of the major advantages of using PSO as proposed in this paper over some of the classical optimization techniques is its parallelizability. The same implementation of the algorithm can be executed on machines having single core (serial implementation) or ones with multiple cores (laboratory grade clusters) or high performance computing (HPC) systems. Changing a couple of header parameters in the program is sufficient to make it portable across a wide range of platforms. We have tested both a serial as well as a parallel implementation of our programs. Results on parallel implementation are reported. It may be noted that our PSO algorithm implemented in Python invokes the Gaussian software as a system call. Each such parallel call, one for each particle of the PSO algorithm, causes a new instance of Gaussian to be executed. The number of cores on which each Gaussian instance runs is dependent on the available number of processor cores. However, at the end of every iteration, PSO has to recompute the best and global best positions of individual particle before updating the velocity values from which the new positions of the particles are determined. These are done by reading the output log files generated by Gaussian for each particle. This implies that the results of all the parallel invocations of Gaussian need to be completed before the iteration-end processing can be done. We have implemented appropriate synchronization mechanisms to enable such parallel implementation and hence, the code base is portable across multiple platforms.
All our computations were carried out on a single server having two Intel 2.70 GHz Xeon E5-2697 v2 processors and 256 GB of RAM. Each processor has 12 cores. Leaving aside a few cores for operating system and other housekeeping processes, we made use of 30 threads for executing our PSO algorithm. A PSO population size of 15 particles implies that 2 threads could be used for each instance of Gaussian. Also, 8 GB of RAM was dedicated to each such instance. As mentioned before, the number of PSO particles, RAM assignment and the number of threads for each Gaussian call are set as input hyper parameters. The completely parameterized implementation of PSO has been done in Python invoking Gaussian for energy calculation in a multi-threaded environment. This is one of the unique features of our work, which has not yet been reported in the literature for stable structure prediction of Cn, to the best of our knowledge.
Results and Discussion
In our study, each Cn cluster unit (each individual unit) is considered to be a swarm particle in a multidimensional potential energy surface (PES) where the stationary points (maxima, minima, and higher order saddle points) are connected. The randomly generated individual particle is governed by a position vector and a velocity vector. Again, each position vector representing a candidate solution in the hyperspace starts searching for the optima of a given function of several variables by updating generations in iterative process without much of any assumption leading to a minimum energy structure. After iteration the particle driven by a velocity vector changes its search direction. The position and velocity vectors together store the information regarding its own best position or the local best position (called pbest) seen so far and a global best position (called gbest) which is obtained by communicating with its nearest neighbors. Further, the advancement of particles toward the global best position is attained via particle swarm optimizer ideology and they gravitate toward the global best solution with the help of the best variable memory values. Our proposed PSO implementation explores rapidly without being entrapped in local optima and executes extensively, followed by immediate convergence to the desired objective value, the global optima.
The results of global optimization of Cn clusters (n = 3–6, 10) considering a maximum of 1,000 runs starting from the random choices of input configuration are shown in Table 2. The global stable structure (best solution) can be obtained by fulfilling the termination criteria along the convex function of the information matrix when one of the particles reaches the target. Initially, 10 different random configurations have been chosen by setting random initial positions and velocities of all particles followed by the Gaussian interfaced PSO driven operation to get the global optimum structure (see Table 2).

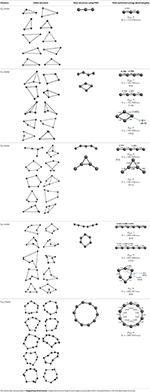

Table 2. The randomly chosen 10 different molecular frameworks of Cn (n = 3–6, 10) with singlet and triplet spin multiplicity converge to the global minimum energy structures (Bond lengths are given in Å unit and the relative energies, ΔE w.r.t the global minimum energy structures in brackets are given in kcal/mol).
It is a very fascinating aspect that Gaussian optimization technique works in such a way that the guess structure can be stuck at local minima which may or may not be the global minimum. But, it is obvious that our proposed modified PSO implementation converges to the most stable structure where all the particles exist in a given range in the multidimensional hyperspace. However, sometimes atoms of the randomly generated particles (each individual cluster unit) are not in the limit of bonding perception and they might overlap on each other. In order to understand whether the atoms remain in the same molecular framework or not, we have connected the randomly deployed particles with solid lines in the following figures and they do not necessarily imply true bonds (see Table 2). In case of C3 cluster, the structure obtained after the end of the PSO run (linear, D∞h point group) exactly matches with the structure obtained after the final G09 optimization in terms of bond length and energy. C5 cluster also shows linear geometry with D∞h point group and singlet electronic state after final optimization step. A significantly higher energy cyclic isomer is also found in this case. On the other hand, C4 and C6 clusters (containing even number of C atoms) give both linear (D∞h) and ring structures (D2h for C4 and D3h for C6). Corresponding energies and bond lengths are provided in Table 2. The computed geometrical parameters and minimum energy structures match excellently with the previously reported experimental results (Raghavachari and Binkley, 1987; Watts et al., 1992; Hutter and Lüthi, 1994; Pless et al., 1994; Martin and Taylor, 1996; Van Orden and Saykally, 1998). For both C4 and C6 clusters, the lowest energy isomer has linear form in triplet state, whereas the linear singlet state is 17.8 (C4) and 13.3 (C6) kcal/mol higher in energy than the corresponding triplet forms. In addition to the small cluster systems, we have also checked the efficiency and the robustness of our implemented PSO code to find the global minimum for a relatively larger sized cluster, C10. The results show that the present code can successfully locate the desired D10h symmetric ring structure which is the most stable isomer in this case.
In the present context, we have also carried out DFT-SA and DFT-BH methods considering same object energy function as in our proposed PSO method to compare the obtained results (see Table 3). The tabulated values clearly reflect that the present PSO method is superior to other methods based on the time to locate the GM, energy values after completion of all runs of the studied methods and the number of iteration steps needed to get the final structure.
Table 3. Comparison of PSO results with other more popular evolutionary GO techniques as applied to the C5 cluster starting from the corresponding local minima structures.
A representative plot of C5 cluster (as reference) is given below to ensure the fulfillment of convergence criteria up to 600 iteration steps (see Figure 2).
Figure 2. Single point energy evolution landscape of C5 cluster during each generation of convergence at the B3LYP/6-311+G* level.
This systematic study for the searching of the most stable carbon based small clusters describes the effectiveness of the application of our proposed PSO technique. Currently employed less expensive and relatively less complicated computational method generates a vast potential search space depending only on the position and velocity variables. Our proposed method opens a new vista to find out global minimum energy structures effectively and accurately within a given multidimensional configuration search space. PSO implementation without much of any assumption like constraints of symmetry and externally imposed factors like temperature, pressure, etc. performs suitably and converges to a single configuration that presumably is a global minimum energy structure or may exactly fit it after Gaussian optimization. PSO can be used as a fast post-processing technique to get a global minimum or close to global minimum structure. In fact, in this study we have introduced a new easy implementation and computationally less expensive approach for the reduction of iteration steps to obtain global best configurations of small carbon clusters with exact energy values.
All datasets generated for this study are included in the manuscript and/or the Supplementary Files.
GJ: interfacing with the Gaussian software, writing first version of the full manuscript, generation of the TOC, and analysis of the results. AM: implementation of the PSO algorithm in python including coding and parallelization. SP: revision of the draft manuscript and interpretation of data. SS: revision of the draft manuscript and checking of implemented code. PC: formulation of the problem, critical revision of the manuscript, and data interpretation.
This work was supported by the Faculty Development Fund (FDF) (SS) and Department of Science and Technology, Ministry of Science and Technology [Award Number: JBF (PC) Grant number-SR/S2/JCB-09/2009].
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
PC thanks Professors Jorge M. C. Marques, Emilio Martinez-Nunez, and William Hase for kindly inviting him to contribute to this Special Issue of Frontiers in Chemistry, on Application of Optimization Algorithms in Chemistry. He would also like to thank DST, New Delhi for the J. C. Bose National Fellowship. SS and AM thank CSE for the computational facilities. GJ thanks IIT, Kharagpur for his fellowship.
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2019.00485/full#supplementary-material
Abraham, N. L., and Probert, M. I. (2006). A periodic genetic algorithm with real-space representation for crystal structure and polymorph prediction. Phys. Rev. B 73:224104. doi: 10.1103/PhysRevB.73.224104
Afshar, A., Haddad, O. B., Mariño, M. A., and Adams, B. J. (2007). Honey-bee mating optimization (HBMO) algorithm for optimal reservoir operation. J. Franklin Inst. 344, 452–462. doi: 10.1016/j.jfranklin.2006.06.001
AlRashidi, M., and El-Hawary, M. (2007). Hybrid particle swarm optimization approach for solving the discrete OPF problem considering the valve loading effects. IEEE Trans. Power Syst. 22, 2030–2038. doi: 10.1109/TPWRS.2007.907375
AlRashidi, M. R., and El-Hawary, M. E. (2006). “Emission-economic dispatch using a novel constraint handling particle swarm optimization strategy,” in Electrical and Computer Engineering, CCECE'06. Canadian Conference on IEEE (Ottawa, ON: IEEE), 664–669.
Assad, A., and Deep, K. (2016). “Applications of harmony search algorithm in data mining: a survey,” in Proceedings of Fifth International Conference on Soft Computing for Problem Solving (Singapore: Springer), 863–874.
Bansal, J. C., Singh, P., Saraswat, M., Verma, A., Jadon, S. S., and Abraham, A. (2011). “Inertia weight strategies in particle swarm optimization,” in Nature and Biologically Inspired Computing (NaBIC), Third World Congress on IEEE (Salamanca: IEEE), 633–640.
Barrera, J., and Coello, C. C. A. (2009). “A particle swarm optimization method for multimodal optimization based on electrostatic interaction,” in 8th Mexican International Conference on Artificial Intelligence, MICAI 2009: Advances in Artificial Intelligence, MICAI 2009, Lecture Notes in Computer Science, Vol. 5845, eds A. H. Aguirre, R. M. Borja, and C. A. R. Garci? (Berlin; Heidelberg: Springer), 622–632. doi: 10.1007/978-3-642-05258-3_55
Benameur, L., Alami, J., and El Imrani, A. (2009). “A new hybrid particle swarm optimization algorithm for handling multiobjective problem using fuzzy clustering technique,” in 2009 International Conference on Computational Intelligence, Modelling and Simulation (Brno: IEEE), 48–53. doi: 10.1109/CSSim.2009.42
Bitam, S., Batouche, M., and Talbi, E.-G. (2010). “A survey on bee colony algorithms,” in IEEE International Symposium on Parallel & Distributed Processing, Workshops and Phd Forum (IPDPSW) (Atlanta, GA: IEEE), 1–8.
Brits, R., Engelbrecht, A. P., and Van den Bergh, F. (2002). “A niching particle swarm optimizer,” in Proceedings of the 4th Asia-Pacific Conference on Simulated Evolution and Learning (Singapore: Orchid Country Club), 692–696.
Briza, A. C., and Naval, P. C. Jr. (2011). Stock trading system based on the multi-objective particle swarm optimization of technical indicators on end-of-day market data. Appl. Soft Comput. 11, 1191–1201. doi: 10.1016/j.asoc.2010.02.017
Bui, L. T., Soliman, O., and Abbass, H. (2007). “A modified strategy for the constriction factor in particle swarm optimization,” in Progress in Artificial Life. ACAL 2007. Lecture Notes in Computer Science, Vol. 4828, eds M. Randall, H. A. Abbass, and J. Wiles (Berlin; Heidelberg: Springer), 333–344. doi: 10.1007/978-3-540-76931-6_29
Cai, J., Ma, X., Li, Q., Li, L., and Peng, H. (2009). A multi-objective chaotic particle swarm optimization for environmental/economic dispatch. Energy Convers. Manag. 50, 1318–1325. doi: 10.1016/j.enconman.2009.01.013
Cai, W., Shao, N., Shao, X., and Pan, Z. (2004). Structural analysis of carbon clusters by using a global optimization algorithm with Brenner potential. J. Mol. Struct. Theochem 678, 113–122. doi: 10.1016/j.theochem.2004.03.017
Cao, C.-H., Li, W.-H., Zhang, Y.-J., and Yi, R.-Q. (2004). “The geometric constraint solving based on memory particle swarm algorithm,” in Machine Learning and Cybernetics, 2004. Proceedings of International Conference on: IEEE (Shanghai: IEEE), 2134–2139.
Chandrasekaran, S., Ponnambalam, S., Suresh, R., and Vijayakumar, N. (2007). “Multi-objective particle swarm optimization algorithm for scheduling in flowshops to minimize makespan, total flowtime and completion time variance,” in Evolutionary Computation, 2007. CEC 2007 (Singapore: IEEE Congress), 4012–4018.
Chen, H., Zhu, Y., and Hu, K. (2010). Multi-colony bacteria foraging optimization with cell-to-cell communication for RFID network planning. Appl. Soft Comput. 10, 539–547. doi: 10.1016/j.asoc.2009.08.023
Chen, Y.-P., Peng, W.-C., and Jian, M.-C. (2007). Particle swarm optimization with recombination and dynamic linkage discovery. IEEE Trans. Syst. Man Cybern. B 37, 1460–1470. doi: 10.1109/TSMCB.2007.904019
Cheng, C.-T., Liao, S.-L., Tang, Z.-T., and Zhao, M.-Y. (2009). Comparison of particle swarm optimization and dynamic programming for large scale hydro unit load dispatch. Energy Convers. Manag. 50, 3007–3014. doi: 10.1016/j.enconman.2009.07.020
Clerc, M. (1999). “The swarm and the queen: towards a deterministic and adaptive particle swarm optimization,” in Evolutionary Computation, 1999. CEC 99. Proceedings of the 1999 Congress on: IEEE (Washington, DC: IEEE), 1951–1957.
De Carvalho, A. B., Pozo, A., and Vergilio, S. R. (2010). A symbolic fault-prediction model based on multiobjective particle swarm optimization. J. Syst. Softw. 83, 868–882. doi: 10.1016/j.jss.2009.12.023
Dehuri, S., and Cho, S.-B. (2009). Multi-criterion Pareto based particle swarm optimized polynomial neural network for classification: a review and state-of-the-art. Comput. Sci. Rev. 3, 19–40. doi: 10.1016/j.cosrev.2008.11.002
Eberhart, R. C., and Shi, Y. (2000). “Comparing inertia weights and constriction factors in particle swarm optimization,” in Evolutionary Computation, 2000. Proceedings of the 2000 Congress on: IEEE (La Jolla, CA: IEEE), 84–88.
Fattahi, H., Gholami, A., Amiribakhtiar, M. S., and Moradi, S. (2015). Estimation of asphaltene precipitation from titration data: a hybrid support vector regression with harmony search. Neural. Comput. Appl. 26, 789–798. doi: 10.1007/s00521-014-1766-y
Fulara, J., Lessen, D., Freivogel, P., and Maier, J. (1993). Laboratory evidence for highly unsaturated hydrocarbons as carriers of some of the diffuse interstellar bands. Nature 366:439. doi: 10.1038/366439a0
Gavrilas, M., Gavrilas, G., and Sfintes, C. V. (2010). “Application of honey bee mating optimization algorithm to load profile clustering,” in 2010 IEEE International Conference on Computational Intelligence for Measurement Systems and Applications (Taranto: IEEE), 113–118.
Goh, C. K., Tan, K. C., Liu, D., and Chiam, S. C. (2010). A competitive and cooperative co-evolutionary approach to multi-objective particle swarm optimization algorithm design. Eur. J. Operat. Res. 202, 42–54. doi: 10.1016/j.ejor.2009.05.005
Guangneng, F., Lixia, H., and Xueguang, H. (2005). Synthesis of single-crystal BaTiO3 nanoparticles via a one-step sol-precipitation route. J. Cryst. Growth 279, 489–493. doi: 10.1016/j.jcrysgro.2005.02.054
Haddad, O. B., Afshar, A., and Mariño, M. A. (2006). Honey-bees mating optimization (HBMO) algorithm: a new heuristic approach for water resources optimization. Water Res. Manag. 20, 661–680. doi: 10.1007/s11269-005-9001-3
Hassan, R., Cohanim, B., de Weck, O., and Venter, G. (2005). “A comparison of particle swarm optimization and the genetic algorithm,” in Proceedings of the 46thAIAA/ASME/ASCE/AHS/ASC Structures, Structural Dy-namics and Materials Conference (Austin, TX).
Hoang, D. C., Yadav, P., Kumar, R., and Panda, S. K. (2014). Real-time implementation of a harmony search algorithm-based clustering protocol for energy-efficient wireless sensor networks. IEEE Trans. Industr. Inform. 10, 774–783. doi: 10.1109/TII.2013.2273739
Hutter, J., Luethi, H. P., and Diederich, F. (1994). Structures and vibrational frequencies of the carbon molecules C2-C18 calculated by density functional theory. J. Am. Chem. Soc. 116, 750–756. doi: 10.1021/ja00081a041
Jahanshahi, G., and Haddad, O. B. (2008). “Honey-bee mating optimization (HBMO) algorithm for optimal design of water distribution systems,” in World Environmental and Water Resources Congress 2008: Ahupua'A, (Honolulu, HI). 1–16.
Karaboga, D., and Basturk, B. (2007). A powerful and efficient algorithm for numerical function optimization: artificial bee colony (ABC) algorithm. J. Glob. Optim. 39, 459–471. doi: 10.1007/s10898-007-9149-x
Khan, A., and Sadeequllah, M. (2010). “Rank based particle swarm optimization,” in International Conference on Swarm Intelligence (Berlin; Heidelberg: Springer), 275–286. doi: 10.1007/978-3-642-15461-4_24
Kiranyaz, S., Pulkkinen, J., and Gabbouj, M. (2011). “Multi-dimensional PSO for dynamic environments,” in International Conference on Innovations in Information Technology (Tampere), 2212–2223. doi: 10.1016/j.eswa.2010.08.009
Koinuma, H., Horiuchi, T., Inomata, K., Ha, H.-K., Nakajima, K., and Chaudhary, K. (1996). Synthesis of carbon clusters and thin films by low temperature plasma chemical vapor deposition under atmospheric pressure. Pure Appl. Chem. 68, 1151–1154. doi: 10.1351/pac199668051151
Krug, M., Nguang, S. K., Wu, J., and Shen, J. (2010). GA-based model predictive control of boiler-turbine systems. Int. J. Innov. Comput. Inf. Control 6, 5237–5248. Available online at: http://www.ijicic.org/09-0646-1.pdf
Li, G., Niu, P., and Xiao, X. (2012). Development and investigation of efficient artificial bee colony algorithm for numerical function optimization. Appl. Soft Comput. 12, 320–332. doi: 10.1016/j.asoc.2011.08.040
Li, H.-Q., and Li, L. (2007). “A novel hybrid particle swarm optimization algorithm combined with harmony search for high dimensional optimization problems,” in Intelligent Pervasive Computing, IPC. The International Conference on: IEEE (Jeju City: IEEE), 94–97.
Li, M., Lin, D., and Kou, J. (2012). A hybrid niching PSO enhanced with recombination-replacement crowding strategy for multimodal function optimization. Appl. Soft Comput. 12, 975–987. doi: 10.1016/j.asoc.2011.11.032
Li, X. (2007). “A multimodal particle swarm optimizer based on fitness Euclidean-distance ratio,” in Proceedings of the 9th Annual Conference on Genetic and Evolutionary Computation: ACM (New York, NY), 78–85. doi: 10.1145/1276958.1276970
Liu, D., Tan, K. C., Goh, C. K., and Ho, W. K. (2007). A multiobjective memetic algorithm based on particle swarm optimization. IEEE Trans. Syst. Man Cybern. B 37, 42–50. doi: 10.1109/TSMCB.2006.883270
Liu, X., Liu, H., and Duan, H. (2007). Particle swarm optimization based on dynamic niche technology with applications to conceptual design. Adv. Eng. Softw. 38, 668–676. doi: 10.1016/j.advengsoft.2006.10.009
Liu, Z., and Wang, S. (2006). “Hybrid particle swarm optimization for permutation flow shop scheduling,” in Intelligent Control and Automation, WCICA 2006. The Sixth World Congress on: IEEE (Dalian: IEEE), 3245–3249.
Ma, Q., Lei, X., and Zhang, Q. (2009). “Mobile robot path planning with complex constraints based on the second-order oscillating particle swarm optimization algorithm,” in Computer Science and Information Engineering, WRI World Congress on: IEEE (Los Angeles, CA: IEEE), 244–248.
Manjarres, D., Landa-Torres, I., Gil-Lopez, S., Del Ser, J., Bilbao, M. N., Salcedo-Sanz, S., et al. (2013). A survey on applications of the harmony search algorithm. Eng. Appl. Artif. Intell. 26, 1818–1831. doi: 10.1016/j.engappai.2013.05.008
Marinakis, Y., and Marinaki, M. (2009). “A hybrid honey bees mating optimization algorithm for the probabilistic traveling salesman problem,” in 2009 IEEE Congress on Evolutionary Computation: IEEE (Trondheim: IEEE), 1762–1769.
Martin, J., François, J.-P., and Gijbels, R. (1993). The impact of quantum chemical methods on the interpretation of molecular spectra of carbon clusters. J. Mol. Struct. 294, 21–24. doi: 10.1016/0022-2860(93)80305-F
Martonák, R., Laio, A., Bernasconi, M., Ceriani, C., Raiteri, P., Zipoli, F., et al. (2005). Simulation of structural phase transitions by metadynamics. Z. Kristallogr. Cryst. Mater. 220, 489–498. doi: 10.1524/zkri.220.5.489.65078
Millonas, M. M. (1993). Swarms, Phase Transitions, and Collective Intelligence (Paper 1); and a Nonequilibrium Statistical Field Theory of Swarms and Other Spatially Extended Complex Systems (Paper 2) (No. 93-06-039).
Mitikiri, P., Jana, G., Sural, S., and Chattaraj, P. K. (2018). A machine learning technique toward generating minimum energy structures of small boron clusters. Int. J. Quantum Chem. 118:e25672. doi: 10.1002/qua.25672
Nayeem, A., Vila, J., and Scheraga, H. A. (1991). A comparative study of the simulated-annealing and Monte Carlo-with-minimization approaches to the minimum-energy structures of polypeptides:[Met]-enkephalin. J. Comput. Chem.12, 594–605. doi: 10.1002/jcc.540120509
Nekooei, K., Farsangi, M. M., Nezamabadi-Pour, H., and Lee, K. Y. (2013). An improved multi-objective harmony search for optimal placement of DGs in distribution systems. IEEE Trans. Smart Grid 4, 557–567. doi: 10.1109/TSG.2012.2237420
Nickabadi, A., Ebadzadeh, M. M., and Safabakhsh, R. (2008). “DNPSO: A dynamic niching particle swarm optimizer for multi-modal optimization,” in Evolutionary Computation, 2008. CEC 2008 (Hong Kong: IEEE), 26–32.
Omkar, S., Senthilnath, J., Khandelwal, R., Naik, G. N., and Gopalakrishnan, S. (2011). Artificial Bee Colony (ABC) for multi-objective design optimization of composite structures. Appl. Soft Comput. 11, 489–499. doi: 10.1016/j.asoc.2009.12.008
Pannetier, J., Bassas-Alsina, J., Rodriguez-Carvajal, J., and Caignaert, V. (1990). Prediction of crystal structures from crystal chemistry rules by simulated annealing. Nature 346, 343–345. doi: 10.1038/346343a0
Petalas, Y. G., Parsopoulos, K. E., Papageorgiou, E. I., Groumpos, P. P., and Vrahatis, M. N. (2007). “Enhanced learning in fuzzy simulation models using memetic particle swarm optimization,” in Swarm Intelligence Symposium, SIS, IEEE (Honolulu, HI: IEEE), 16–22.
Pham, D. T., and Castellani, M. (2009). The bees algorithm: modelling foraging behaviour to solve continuous optimization problems. Proc. Inst. Mech. Eng. C 223, 2919–2938. doi: 10.1243/09544062JMES1494
Schutze, O., Talbi, E.-G., Pulido, G. T., Coello, C. C., and Santana-Quintero, L. V. (2007). “A memetic PSO algorithm for scalar optimization problems,” in Swarm Intelligence Symposium, SIS 2007 (Washington, DC: IEEE Computer Society), 128–134.
Shao, X., Yang, X., and Cai, W. (2008). A dynamic lattice searching method with interior operation for unbiased optimization of large Lennard-Jones clusters. J. Comput. Chem. 29, 1772–1779. doi: 10.1002/jcc.20938
Shi, Y., and Eberhart, R. (1998). “A modified particle swarm optimizer,” in Evolutionary Computation Proceedings. IEEE World Congress on Computational Intelligence. IEEE International Conference (Anchorage, AK: IEEE), 69–73.
Sivasubramani, S., and Swarup, K. S. (2009). “Multiagent based particle swarm optimization approach to economic dispatch with security constraints,” in Power Systems, ICPS'09. International Conference on: IEEE (Kharagpur: IEEE), 1–6.
Sun, C., Liang, H., Li, L., and Liu, D. (2007). “Clustering with a weighted sum validity function using a niching PSO algorithm,” in Networking, Sensing and Control, 2007 IEEE International Conference on: IEEE (London: IEEE), 368–373.
Sun, L.-Q., and Gao, X.-Y. (2008). “Improved chaos-particle swarm optimization algorithm for geometric constraint solving,” in Computer Science and Software Engineering, International Conference on: IEEE (Hubei: IEEE), 992–995.
Unler, A., and Murat, A. (2010). A discrete particle swarm optimization method for feature selection in binary classification problems. Eur. J. Oper. Res. 206, 528–539. doi: 10.1016/j.ejor.2010.02.032
Wales, D. J., and Doye, J. P. (1997). Global optimization by basin-hopping and the lowest energy structures of Lennard-Jones clusters containing up to 110 atoms. J. Phys. Chem. A 101, 5111–5116. doi: 10.1021/jp970984n
Wang, L., and Li, L.-P. (2013). An effective differential harmony search algorithm for the solving non-convex economic load dispatch problems. Int. J. Elec. Power 44, 832–843. doi: 10.1016/j.ijepes.2012.08.021
Wang, Y., Chen, P., and Jin, Y. (2009). “Trajectory planning for an unmanned ground vehicle group using augmented particle swarm optimization in a dynamic environment,” in Systems, Man and Cybernetics, SMC. IEEE International Conference on: IEEE (San Antonio, TX: IEEE), 4341–4346.
Wang, Z., and Xing, H. (2008). “Dynamic-probabilistic particle swarm synergetic model: A new framework for a more in-depth understanding of particle swarm algorithms,” in Evolutionary Computation, CEC 2008. (IEEE World Congress on Computational Intelligence). IEEE Congress on: IEEE (Hong Kong: IEEE, 312–321.
Watts, J. D., Gauss, J., Stanton, J. F., and Bartlett, R. J. (1992). Linear and cyclic isomers of C4. A theoretical study with coupled-cluster methods and large basis sets. J. Chem. Phys. 97, 8372–8381. doi: 10.1063/1.463407
Woodley, S., Battle, P., Gale, J., and Catlow, C. A. (1999). The prediction of inorganic crystal structures using a genetic algorithm and energy minimisation. Phys. Chem. Chem. Phys. 1, 2535–2542. doi: 10.1039/a901227c
Yeh, W.-C. (2009). A two-stage discrete particle swarm optimization for the problem of multiple multi-level redundancy allocation in series systems. Expert Sys. Appl. 36, 9192–9200. doi: 10.1016/j.eswa.2008.12.024
Yeh, W.-C., Chang, W.-W., and Chung, Y. Y. (2009). A new hybrid approach for mining breast cancer pattern using discrete particle swarm optimization and statistical method. Expert Sys. Appl. 36, 8204–8211. doi: 10.1016/j.eswa.2008.10.004
Zhang, J., Huang, D.-S., and Liu, K.-H. (2007). “Multi-sub-swarm particle swarm optimization algorithm for multimodal function optimization,” in Evolutionary Computation, CEC, IEEE Congress on: IEEE (Singapore: IEEE), 3215–3220.
Zhao, S.-Z., Liang, J. J., Suganthan, P. N., and Tasgetiren, M. F. (2008). “Dynamic multi-swarm particle swarm optimizer with local search for large scale global optimization,” in Evolutionary Computation, CEC. (IEEE World Congress on Computational Intelligence). IEEE Congress on: IEEE (Hong Kong: IEEE), 3845–3852.
Zheng, S.-F., Hu, S.-L., Su, S.-X., Lin, C.-F., and Lai, X.-W. (2007). “A modified particle swarm optimization algorithm and application,” in International Conference on Machine Learning and Cybernetics (Guangzhou: IEEE), 945–951.
Zhi-Jie, L., Xiang-Dong, L., Xiao-Dong, D., and Cun-Rui, W. (2009). “An improved particle swarm algorithm for search optimization,” in WRI Global Congress on Intelligent Systems (Xiamen: IEEE), 154–158.
