Porphyrin-Based Organoplatinum(II) Metallacycles With Enhanced Photooxidization Reactivity
Lintao Wu
Chun Han1
Feng Su
Qingyang Zhang- 1Department of Chemistry, Changzhi University, Changzhi, China
- 2State Key Laboratory of Bioactive Substances and Function of Natural Medicine, Institute of Materia Medica, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing, China
- 3School of Chemistry and Chemical Engineering, Yangzhou University, Yangzhou, China
In recent years, metal coordination macrocycles have obtained great interests due to the fact that they combined the rich host-guest properties of macro-cyclic hosts and the unique optical properties of the organic ligands. In this work, we constructed two porphyrin-based organoplatinum(II) metallacycles (MC1 and MC2) through coordination-driven self-assembly. 1H NMR, 31P NMR, and HRMS technologies were used to characterize the structures of MC1 and MC2. Interestingly, MC1 and MC2 can be used as catalysts for photooxidization under light irradiation with higher efficiency compared with the porphyrin ligand only. We hope that the coordination-driven self-assembly strategy can provide an efficient method to construct photo-active materials.
Introduction
Macrocyclic host compounds, mainly including crown ethers (Zhu et al., 2012; Liu et al., 2017), cyclodextrins (Lai et al., 2017; Li et al., 2019), calixarenes (Kim et al., 2012; Nimse and Kim, 2013), cucurbiturils (Kim et al., 2007; Barrow et al., 2015), and pillararenes (Xue et al., 2012; Ogoshi et al., 2016; Yao et al., 2017; Chen J. et al., 2019), are the foundation of the development of supramolecular chemistry (Dong et al., 2014; Sun et al., 2018; Gao L. et al., 2019; Xiao et al., 2019). During the past two decades, the syntheses, host–guest properties, and applications of macrocycles have been widely investigated (Chen Y. et al., 2019; Wu and Yang, 2019). Among various macrocycles, discrete organoplatinum(II) metallacycles, which was fabricated by a new valuable strategy called “coordination-driven self-assembly,” attracted great interests from both chemists and materials scientists (Gao S. et al., 2019; Zhang et al., 2019). A remarkable advantage of the “coordination-driven self-assembly” is that two-dimensional metallacycles or three-dimensional metallacages can be easily obtained by the formation of metal–ligand bonds between metal acceptors and organic donors when combining simple building blocks (Wang et al., 2019a; Yan et al., 2019). Up to now, discrete organoplatinum(II) metallacycles have been investigated a lot and widely applied in many areas, such as fluorescent detection, homogeneous catalysis, functional materials, bioengineering, photodynamic therapy, and so on (Cai et al., 2020; Qin et al., 2019).
Porphyrin derivatives, which contain a large π-conjugated aromatic structure, are a class of famous photo-activities (Liang et al., 2011; Ou et al., 2019; Wang et al., 2019b). Porphyrins usually have very intense absorption bands in the UV–visible region. However, due to the strong π-π stacking between the aromatic systems, porphyrins are easily aggregated in solvents, especially in aqueous solution (Zou et al., 2017). Commonly, porphyrins aggregate more seriously as the concentration increased. This aggregation phenomenon greatly decreases the efficiency of porphyrins to generate 1O2 and therefore restrained their potentially wide applications (Zhou et al., 2019). To address the aggregation of porphyrins in water, chemistry and materials scientists usually introduce a large substituent onto the platform of the porphyrin core (Slater et al., 2015). However, these chemical synthesis and purification processes have some other disadvantages, such as being time-consuming, tedious, and with higher costs of preparation.
Herein we designed and synthesized two new metallacycles (MC1 and MC2) with p-bipyridine-modified porphyrin (Scheme S1, Scheme 1) as organic donor and organoplatinum(II) (2 or 3) as the metal acceptor (Scheme 1). The weak metal–ligand bonds will prevent the π-π stacking of the conjugated aromatic porphyrin units, thus improving the efficiency of generating 1O2 under irradiation. Interestingly, compared with ligand 1 (Figure S1), the resultant metallacycle MC1 or MC2 can be used as catalyst for photo-oxidizing phenols much more efficiently.

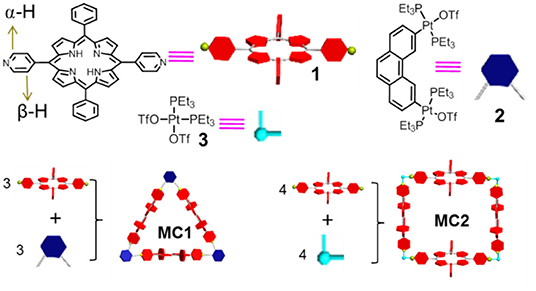

Scheme 1. Chemical structures and schematic diagram of p-bipyridine-modified porphyrin 1, organoplatinum(II) 2 and 3, and metallacycles MC1 and MC2.
Materials and Methods
Synthesis of Metallacycles MC1 and MC2
Ligand 1 and organoplatinum(II) 2 (Figure 1A) and 3 (Figure 1C) were prepared according to a previous report (Grishagin et al., 2014). In a 1:1 molar ratio, bipyridylporphyrin 1 (1.85 mg, 3.00 μmol) and 60°Pt (II) acceptor 2 (4.01 mg, 3. 00 μmol) were placed in a 2-ml vial, followed by addition of acetone (1 ml). After stirring overnight at 50°C, the mixture was filtered to remove insoluble materials (Scheme S2). Then, the solvent was removed by N2 flow to about 0.2 ml, and MC1 was obtained by the addition of diethyl ether (5.22 mg, 89%). MC2 was prepared by the same method (Scheme S3).

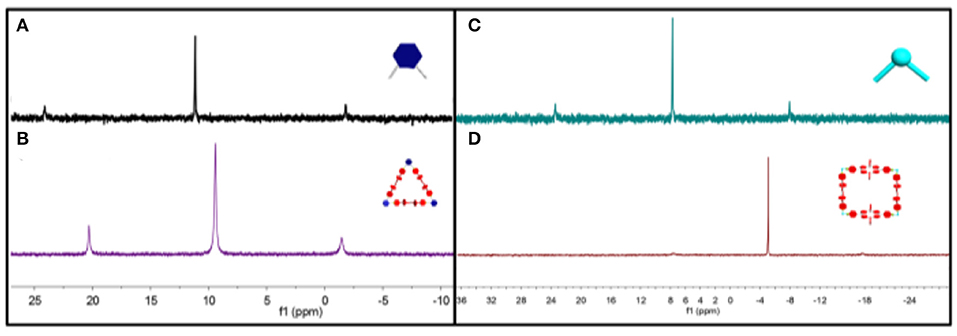

Figure 1. 31P{1H} NMR spectra (room temperature, 121.4 MHz) of (A) 60° acceptor 2, (B) metallacycle MC1, (C) 90°acceptor 3, and (D) metallacycle MC2 in acetone.
MC1
Purple solid, 89%. 1H NMR (400 MHz, CD3COCD3) δ (ppm): 10.17 (d, 4H), 9.21 (s, 2H), 8.92–8.90 (m, 10H), 8.27–8.25 (m, 8H), 7.89–7.85 (m, 12H), 2.47–2.43 (m, 24H), 1.70–1.62 (m, 36H). 31P {1H} NMR (acetone, room temperature, 121.4 MHz) δ = 9.53 (195Pt satellites, 1JPt−P = 2,662 Hz). HR-ESI-MS: calculated for C203H288F9N18O9P12Pt6S3 ([M – 3 OTf]3+): 1,646.78, found: 1,646.77.
MC2
Purple solid, 87%. 1H NMR (400 MHz, CD3COCD3) δ (ppm): 9.73 (s, 1H), 9.61 (s, 1H), 9.06 (s, 2H), 8.90 (s, 4H), 8.67–8.65 (m, 2H), 8.29–8.19 (m, 4H), 7.86–7.74 (m, 12H), 1.83–1.81 (m, 24H), 1.49–1.41 (m, 36H). 31P {1H} NMR (acetone, room temperature, 121.4 MHz) δ = −5.04 ppm (195Pt satellites, 1JPt−P = 3,156 Hz). HR-ESI-MS: calculated for C244H280F12N24O20P8Pt4S4 ([M + 8 CH3COCH3 – 4 OTf]4+): 1,316.97, found: 1,316.92.
Materials
All reagents and solvents were commercially available in analytical grade and used as received. Further purification and drying by standard methods were employed and these were distilled prior to use when necessary. Deuterated solvents were purchased from Cambridge Isotope Laboratory (Andover, MA, USA). All evaporations of organic solvents were carried out with a rotary evaporator in conjunction with a water aspirator. Melting point measurements were taken on a hot-plate microscope apparatus and are uncorrected. 1H and 13C NMR spectra were recorded with an Aviance III 400 MHz or 600 MHz liquid-state NMR spectrometer. 31P{1H} NMR chemical shifts are referenced to an external unlocked sample of 85% H3PO4 (δ 0.0). Mass spectra were recorded on a Micromass Quattro II triple–quadrupole mass spectrometer using electrospray ionization with a MassLynx operating system. UV–vis spectra were recorded on a Hitachi F-7000 fluorescence spectrophotometer.
Results and Discussion
NMR Studies
The formation of discrete organoplatinum(II) metallacycles MC1 and MC2 were characterized by multinuclear NMR (31P and 1H) analysis. The 31P {1H} NMR spectra of MC1 and MC2 showed a sharp singlet with concomitant 195Pt satellites at 9.53 ppm for MC1 and at −5.04 ppm for MC2 (Figures 1B,D) corresponding to a single phosphorous environment, indicating the formation of discrete and symmetric metallacycles (Wei et al., 2014).
At the same time, downshifts were observed for β-pyridyl hydrogen in 1H NMR spectra. As shown in Figure 2, β-pyridyl hydrogen changed from 9.04 to 9.51 and 9.72 ppm in MC1 and from 9.04 to10.21 ppm in MC2. β-pyridyl hydrogen also showed a downfield chemical shift. These chemical shift changes in 1H NMR spectra are similar with the previous analogous organoplatinum(II) system, indicating the formation of discrete metallacycles (Yao et al., 2018).

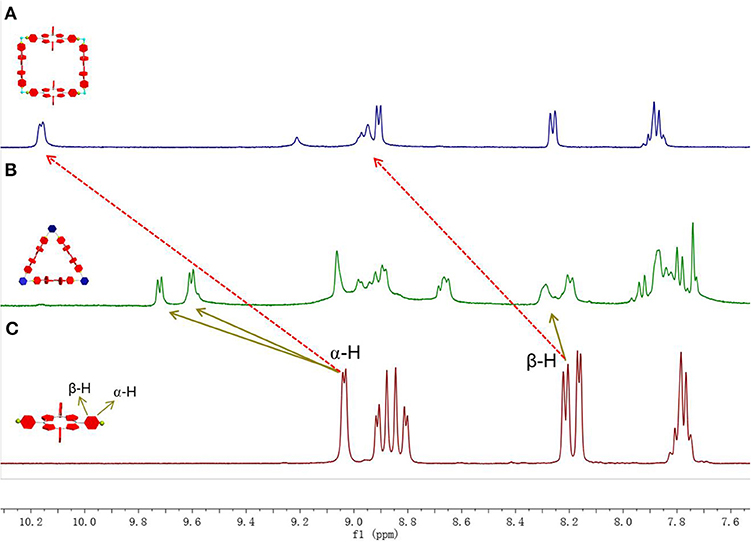

Figure 2. 1H NMR spectra (CD3COCD3, room temperature) of (A) bipyridylporphyrin 1, (B) metallacycle MC1, and (C) metallacycle MC2.
Electrospray Ionization Time of Flight Mass Spectrometry Studies
Electrospray ionization time of flight mass spectrometry (ESI-TOF-MS) provided further evidence for the stoichiometry formation of discrete metallacycles MC1 and MC2. In the mass spectrum of MC1, the peak at m/z = 1,646.77 is consistent with an intact [M – 3OTf]3+ charge state, which supported a [3 + 3] metallacycle (Figure 3A). Similarly, for metallacycle MC2, the peak at m/z = 1,316.92 is consistent with an intact [M + 8 CH3COCH3 − 4OTf]4+ charge state, which is expected only for a [4 + 4] metallacycle (Figure 3B). All the evidence from 1H NMR, 31P NMR, and ESI-TOF-MS confirmed the formation of a discrete structure as the sole assembly product.

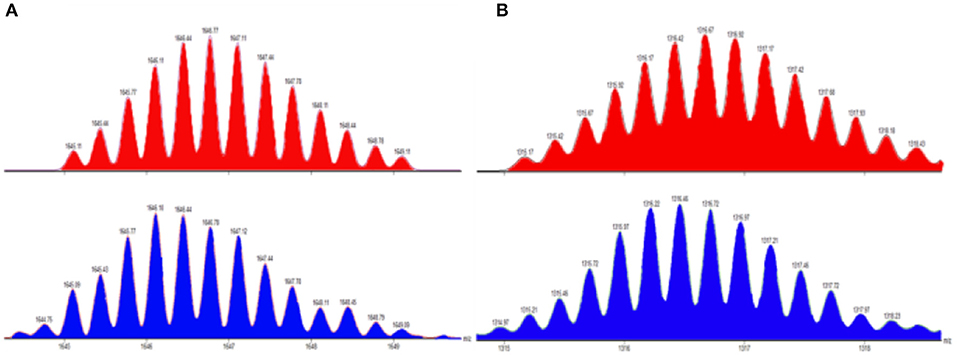

Figure 3. Experimental (blue) and calculated (red) ESI-TOF-MS spectra of (A) [M – 3OTf]3+ and (B) [M + 8 CH3COCH3 Â 4OTf]4+.
Photooxidization Studies
As we all know, porphyrins have the ability to generate 1O2 due to the fact that they could be excited into 3O2 state under irradiation and the energy transfer process is accompanied with molecular O2. However, due to the strong π-π interactions, most porphyrins applied as photosensitizers are easily aggregated in aqueous solution (Figures S4, S5). This aggregation will greatly restrain the ability of the porphyrins to generate reactive oxygen species. For our obtained metallacycles MC1 and MC2, the coordination bonds will decrease the self-quenching of the excited states and improve the photooxidization efficiency. Therefore, metallacycles MC1 and MC2 can be used as an expected catalyst for the photoreaction mediated by 1O2. Herein quinol was selected as a model substrate for detecting the reactivity, and UV–vis spectroscopy was used to monitor the process. As shown in Figure 4, after 20 ml of aqueous solution of quinol (10−2 mmol L−1) was irradiated by a LED lamp (500 nm) under air with MC1 (5 mg) as catalyst, the absorption band of the phenyl moiety in quinol in 289 nm gradually decreased, and 65% of quinol was consumed after irradiation for 60 min (Figure 4). As expected, MC2 has a similar catalytic efficiency with MC1 (Figure S2). However, in the control experiments using the ligand 1 as catalyst instead of MC1, only 8% of quinol was reacted after irradiation at 500 for 60 min under the same conditions (Figure S2). Importantly, the investigation for the recyclability of MC1 showed that they could be recovered by simple filtration and reused without significant loss of catalytic activity (yield loss within 5% for six cycles, Figure S3).

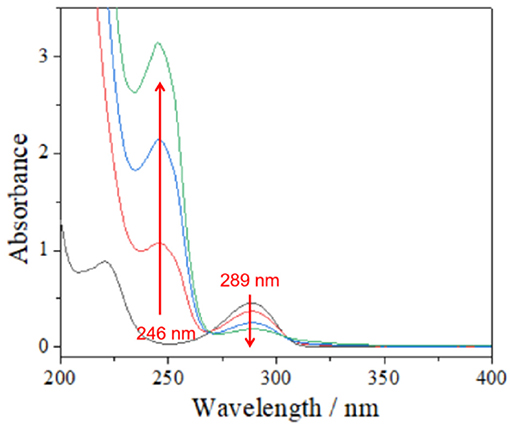

Figure 4. UV–vis spectra of quinol solution with MC1 upon light irradiation at 500 nm with a xenon lamp.
Conclusions
In this paper, we synthesized two metallacycles, MC1 and MC2, with p-bipyridines modified porphyrin as the ligands through coordination-driven self-assembly. Then, the obtained metallacycles were characterized by 31P NMR, 1H NMR, and ESI-TOF-MS methods. Furthermore, the metallacycles MC1 and MC2 can be used as an expected catalyst for the photoreaction mediated by 1O2 due to the coordination bonds that will decrease the self-quenching of the excited states of porphyrin units and improve the photooxidization efficiency. Our next study will focus on the application of our metallacycles in photodynamic therapy.
Data Availability Statement
All datasets generated for this study are included in the article/Supplementary Material.
Author Contributions
LW, CH, and ZW prepared the ligands. LW, XW, and FS constructed the metallacycles. ML and QZ did the photooxidization. LW and XJ analyzed the data. LW, QZ, and XJ wrote the paper.
Funding
This work was supported by the National Natural Science Foundation of China (Award Nos. 21907010 and 21402012), the Natural Science Foundation of Shanxi Province (Award No. 201801D221082), the Scientific and Technological Innovation Programs of Higher Education Institutions in Shanxi (Award No. 2019L0913), and the Shanxi 1331 Project Key Innovative Research Team and the Undergraduate Innovation and Entrepreneurship Project of Shanxi Province (Award No. 2019603).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The reviewer ML declared a shared affiliation, with no collaboration, with one of the authors QZ to the handling editor at time of review.
Supplementary Material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2020.00262/full#supplementary-material
