Memristive TiO2: Synthesis, Technologies, and Applications
- 1Laboratory of Solution Chemistry of Advanced Materials and Technologies, ITMO University, St. Petersburg, Russia
- 2Department of Material Science and Engineering, NTNU Norwegian University of Science and Technology, Trondheim, Norway
Titanium dioxide (TiO2) is one of the most widely used materials in resistive switching applications, including random-access memory, neuromorphic computing, biohybrid interfaces, and sensors. Most of these applications are still at an early stage of development and have technological challenges and a lack of fundamental comprehension. Furthermore, the functional memristive properties of TiO2 thin films are heavily dependent on their processing methods, including the synthesis, fabrication, and post-fabrication treatment. Here, we outline and summarize the key milestone achievements, recent advances, and challenges related to the synthesis, technology, and applications of memristive TiO2. Following a brief introduction, we provide an overview of the major areas of application of TiO2-based memristive devices and discuss their synthesis, fabrication, and post-fabrication processing, as well as their functional properties.
Titanium dioxide (TiO2) is a multifunctional semiconductor that exists in three crystalline forms: anatase, rutile, and brookite. Owing to an appropriate combination of physical and chemical properties, environmental compatibility, and low production cost, polycrystalline TiO2 has found a large variety of applications and is considered to be a promising material for future technologies. One of the most distinctive physical properties of this material is its high photocatalytic activity (Nam et al., 2019); however, more recently it has attracted growing interest because of its resistive switching abilities (Yang et al., 2008).
The realization of neuromorphic resistive memory in TiO2 thin films (Strukov et al., 2008) marked an important milestone in the search for bio-inspired technologies (Chua and Kang, 1976). Many research proposals urged a focus on memristivity as the common feature of two electrical models: (i) electromigration of point defects in titanium oxide systems (Baiatu et al., 1990; Jameson et al., 2007) and (ii) voltage-gated ionic channels in the membranes of biological neurons (Hodgkin and Huxley, 1952). In this regard, memristors functionally mimic the synaptic plasticity of biological neurons, and thus can be implemented in artificial and hybrid neural networks. This includes a new paradigm of future computing systems (Zidan, 2018) and biocompatible electronics such as biointerfaces and biohybrid systems (Chiolerio et al., 2017).
Currently, the development of TiO2 memristors is associated with their use in modern highly technological applications, such as resistive random-access memory (RRAM), biohybrid systems, and sensors, as schematically shown in Figure 1A. In this mini-review, we briefly outline and summarize the key milestone achievements, as well as recent advances in the synthesis, fabrication, and application of TiO2-based memristors. A special focus is placed on the relationships between the synthesis and deposition methods, the effects of post-synthesis treatment, and the resistive switching properties.
Figure 1. (A) Technologies and applications of memristive TiO2 thin films. (B–D) Formation of the conductive filament: (B) electromigration of oxygen vacancies inducing the n-type conductivity region; (C) detachment and migration of electrode metal atoms due to strong metal support interaction (SMSI); (D) formation of a conductive Magnéli phase.
Oxygen Deficiency and Resistive Switching Mechanisms
The basic scenario of resistive switching in TiO2 (Jameson et al., 2007) assumes the formation and electromigration of oxygen vacancies between the electrodes (Baiatu et al., 1990), so that the distribution of concomitant n-type conductivity (Janotti et al., 2010) across the volume can eventually be controlled by an external electric bias, as schematically shown in Figure 1B. Direct observations with transmission electron microscopy (TEM) revealed more complex electroforming processes in TiO2 thin films. In one of the studies, a continuous Pt filament between the electrodes was observed in a planar Pt/TiO2/Pt memristor (Jang et al., 2016). As illustrated in Figure 1C, the corresponding switching mechanism was suggested as the formation of a conductive nanofilament with a high concentration of ionized oxygen vacancies and correspondingly reduced Ti3+ ions. These ions induce detachment and migration of Pt atoms from the electrode via strong metal–support interactions (Tauster, 1987). Another TEM investigation of a conductive TiO2 nanofilament revealed it to be a Magnéli phase TinO2n−1 (Kwon et al., 2010). Supposedly, its formation results from an increase in the concentrations of oxygen vacancies within a local nanoregion above their thermodynamically stable limit. This scenario is schematically shown in Figure 1D. Other hypothesized point defect mechanisms involve a contribution of cation and anion interstitials, although their behavior has been studied more in tantalum oxide (Wedig et al., 2015; Kumar et al., 2016). The plausible origins and mechanisms of memristive switching have been comprehensively reviewed in topical publications devoted to metal oxide memristors (Yang et al., 2008; Waser et al., 2009; Ielmini, 2016) as well as TiO2 (Jeong et al., 2011; Szot et al., 2011; Acharyya et al., 2014). The resistive switching mechanisms in memristive materials are regularly revisited and updated in the themed review publications (Sun et al., 2019; Wang et al., 2020).
RRAM and the New Computing Paradigm
As they mimic the synapses in biological neurons, memristors became the key component for designing novel types of computing and information systems based on artificial neural networks, the so-called neuromorphic electronics (Zidan, 2018; Wang and Zhuge, 2019; Zhang et al., 2019b). Electronic artificial neurons with synaptic memristors are capable of emulating the associative memory, an important function of the brain (Pershin and Di Ventra, 2010). In addition, the technological simplicity of thin-film memristors based on transition metal oxides such as TiO2 allows their integration into electronic circuits with extremely high packing density. Memristor crossbars are technologically compatible with traditional integrated circuits, whose integration can be implemented within the complementary metal–oxide–semiconductor platform using nanoimprint lithography (Xia et al., 2009). Nowadays, the size of a Pt-TiOx-HfO2-Pt memristor crossbar can be as small as 2 nm (Pi et al., 2019). Thus, the inherent properties of memristors such as non-volatile resistive memory and synaptic plasticity, along with feasibly high integration density, are at the forefront of the new-type hardware performance of cognitive tasks, such as image recognition (Yao et al., 2017). The current state of the art, prospects, and challenges in the new brain-inspired computing concepts with memristive implementation have been comprehensively reviewed in topical papers (Jeong et al., 2016; Xia and Yang, 2019; Zhang et al., 2020). These reviews postulate that the newly emerging computing paradigm is still in its infancy, while the rapid development and current challenges in this field are related to the technological and materials aspects. The major concerns are the lack of understanding of the microscopic picture and the mechanisms of switching, as well as the unproven reliability of memristor materials. The choice of memristive materials as well as the methods of synthesis and fabrication affect the properties of memristive devices, including the amplitude of resistive switching, endurance, stochasticity, and data retention time.
Biointerfaces, Biomimicking, and Biohybrid Systems
The neuromorphic nature of the resistive switching in TiO2 memristors has triggered a series of studies addressing their functional coupling with living biological systems. The common features of the electroconductive behavior of memristive and biological neural networks have been revised in terms of physical, mathematical, and stochastic models (Chua, 2013; Feali and Ahmadi, 2016). The memristive electronics was shown to support important synaptic functions such as spike timing-dependent plasticity (Jo et al., 2010; Pickett et al., 2013). Recently, a memristive simulation of important biological synaptic functions such as non-linear transmission characteristics, short-/long-term plasticity, and paired-pulse facilitation has been reported for hybrid organic–inorganic memristors using Ti-based maleic acid/TiO2 ultrathin films (Liu et al., 2020). In relation to this, functionalized TiO2 memristive systems may be in competition with the new generation of two-dimensional memristive materials such as WSe2 (Zhu et al., 2018), MoS2 (Li et al., 2018), MoS2/graphene (Kalita et al., 2019), and other systems (Zhang et al., 2019a) with ionic coupling, ionic modulation effects, or other synapse-mimicking functionalities. Furthermore, the biomimetic fabrication of TiO2 (Seisenbaeva et al., 2010; Vijayan and Puglia, 2019; Kumar et al., 2020) opens up new horizons for its versatile microstructural patterning and functionalizations.
The first study addressing the experimental convergence between in vitro spiking neurons and spiking memristors was attempted in 2013 (Gater et al., 2013). A few years later, Gupta et al. (2016) used TiO2 memristors to compress information on biological neural spikes recorded in real time. In these in vitro studies electrical communication with biological cells, as well as their incubation, was investigated using multielectrode arrays (MEAs). Alternatively, TiO2 thin films may serve as an interface material in various biohybrid devices. The bio- and neurocompatibility of a TiO2 film has been demonstrated in terms of its excellent adsorption of polylysine and primary neuronal cultures, high vitality, and electrophysiological activity (Roncador et al., 2017). Thus, TiO2 can be implemented as a nanobiointerface coating and integrated with memristive electronics either as a planar configuration of memristors and electrodes (Illarionov et al., 2019) or as a functionalization of MEAs to provide good cell adhesion and signal transmission. The known examples are electrolyte/TiO2/Si(p-type) capacitors (Schoen and Fromherz, 2008) or capacitive TiO2/Al electrodes (Serb et al., 2020). As a demonstration of the state of the art, an attempt at memristive interlinking between the brain and brain-inspired devices has been recently reported (Serb et al., 2020). The long-term potentiation and depression of TiO2-based memristive synapses have been demonstrated in relation to the neuronal firing rates of biologically active cells. Further advancement in this area is expected to result in scalable on-node processors for brain–chip interfaces (Gupta et al., 2016). As of 2017, the state of the art of, and perspectives on, coupling between the resistive switching devices and biological neurons have been reviewed (Chiolerio et al., 2017).
Apart from proximately neuromorphic technologies, TiO2-based memristors have also found application in various sensors. The principle of memristive sensorics is based on the dependency of the resistive switching on various external stimuli. This includes recording of mechanical energy (Vilmi et al., 2016), hydrogen detection (Hossein-Babaei and Rahbarpour, 2011; Strungaru et al., 2015; Haidry et al., 2017; Vidiš et al., 2019), γ-ray sensing (Abunahla et al., 2016), and various fluidic-based sensors, such as sensors for pH (Hadis et al., 2015a) and glucose concentration (Hadis et al., 2015b). In addition, TiO2 thin films may generate photoinduced electron–hole pairs, which give rise to UV radiation sensors (Hossein-Babaei et al., 2012). Recently, the biosensing properties of TiO2-based memristors have been demonstrated in the detection of the bovine serum albumin protein molecule (Sahu and Jammalamadaka, 2019). Furthermore, this work has also demonstrated that the introduction of an additional graphene oxide layer may effectively prevent the growth of multidimensional and random conductive paths, resulting in a lower switching voltage, better endurance, and a higher resistance switching ratio. This opens up a new horizon for further functional convergence of metal oxides and two-dimensional memristive materials and interfaces (Zhang et al., 2019a).
Synthesis and Fabrication
The functionality of TiO2 memristors is largely related to the phase purity, phase structure, crystallinity, and defect structure. In turn, all these parameters depend on the synthesis method, fabrication processing, and post-fabrication treatment (Diebold, 2003; Chen and Mao, 2007; Goren et al., 2014). Most TiO2 memristors consist of anatase or rutile because of the stability of these polymorphs. The formation of oxygen vacancies and concomitant n-type conductivity can be controlled at temperatures above 300°C (Hou et al., 2018).
The fabrication of a TiO2 memristive device typically consists of (i) the synthesis of a nanostructured material, (ii) deposition of the functional layer, (iii) arrangement of the electrodes, and (iv) post-processing annealing at an elevated temperature under a suitable atmosphere. The first stage is required for traditional chemical synthesis routes, while the first two stages take place at the same time for physical deposition methods.
The choice of fabrication route is thus a trade-off in complexity, cost, scalability, desirable topology (film thickness and topological feature size of the electrode areas), threshold electroforming voltage (VT), retention time, switching time, and the resistive switching ratio (ROFF/RON). The main technological, topological, and exploitative characteristics of typical memristive devices are summarized in Table 1 and will be reviewed in the following sections.

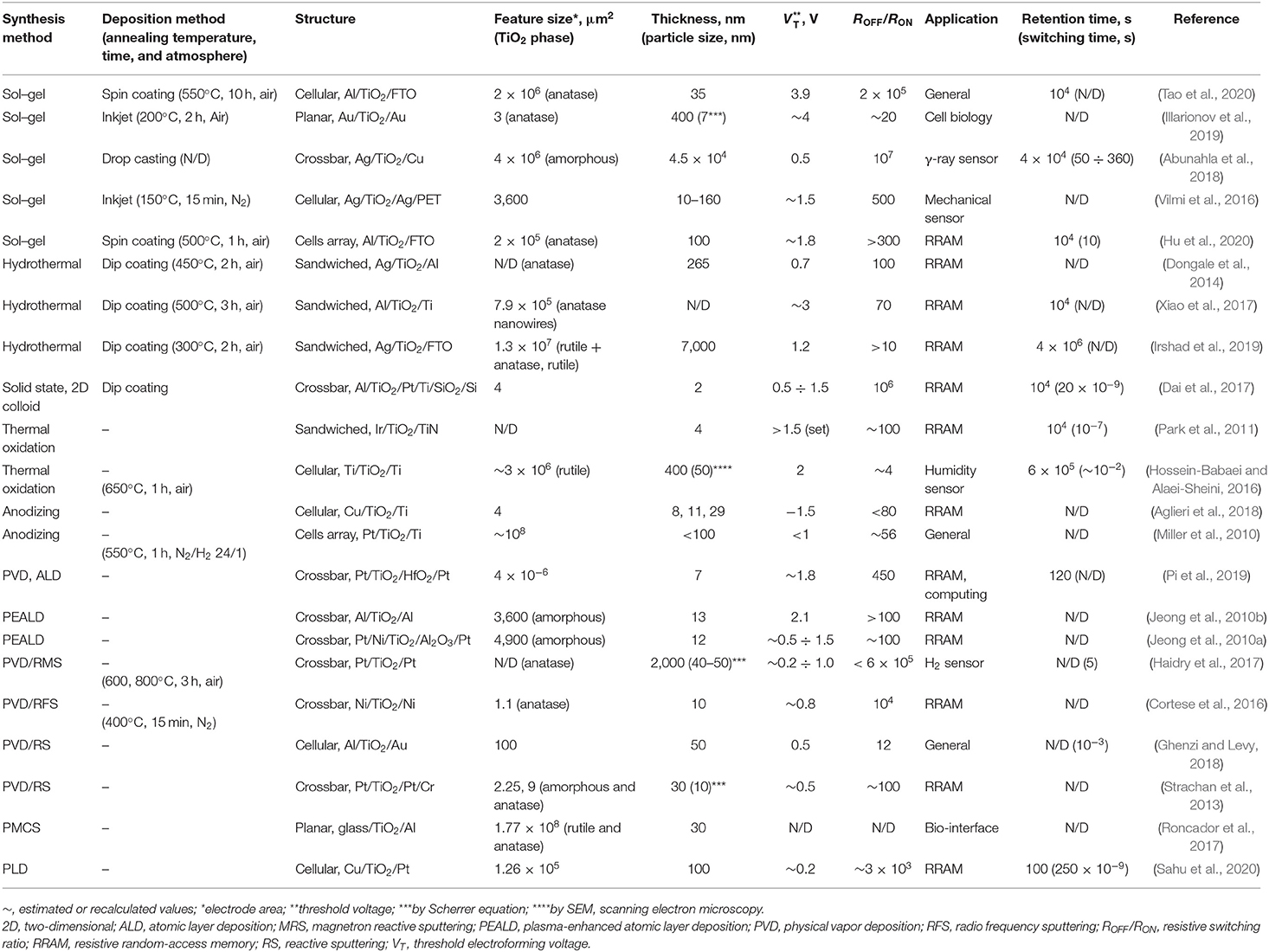

Table 1. Overview of the structure and electrical properties of TiO2-based memristors obtained by various synthesis methods.
In this process, a liquid solution is converted into a viscoelastic gel phase. In the classical concept of sol–gel, the phase purity, size, and shape of synthesized TiO2 nanoparticles are considered in relation to the hydrolysis and condensation reactions, the reactivity and concentration of the precursor (titanium alkoxide or TiCl4), the solvent type, and the temperature (Cargnello et al., 2014). In addition, the early-stage processes such as nucleation, crystal growth, and aggregation (Teychené et al., 2020) may play a crucial role in the sol–gel synthesis of TiO2 nanoparticles (Cheng et al., 2017). The memristive devices fabricated using the sol–gel method have various areas of application and operate at a threshold voltage ranging from ~0.5 V (Abunahla et al., 2018) to 1.5 V (Vilmi et al., 2016; Hu et al., 2020) or higher (Illarionov et al., 2019) with a resistive switching ratio ROFF/RON of 101-105 (Table 1). Thus, the functional parameters of these devices may be variable with respect to the morphology and purity of the sol–gel product, deposition method (see section Fabrication), and annealing conditions (see section Annealing and Electric Properties).
Polycrystalline TiO2 typically in the form of rutile can be obtained by thermal oxidation of a titanium layer at temperatures in the range 500–800°C (Cao et al., 2009). This method allows fabrication of TiO2 films with thicknesses down to 4 nm (Park et al., 2011). Furthermore, thermal oxidation is a cost-efficient method that is compatible with standard RRAM manufacturing technology (Acharyya et al., 2014). However, processing temperatures above 500°C might cause the formation of crystallographic line defects or microcracks.
This is defined as heterogeneous reactions in aqueous media under high pressure and temperature sufficient to dissolve and recrystallize materials that are insoluble in water under normal conditions (Byrappa and Yoshimura, 2001). Various metal alkoxides (Ti(OR)4, R = C2H5, i-C3H7, C4H9) or TiCl4 have been used as precursors (Oh et al., 2009; Zhang et al., 2011; Senthilkumar et al., 2013; Dongale et al., 2014; Irshad et al., 2019). In this process, temperatures up to 230°C and high pressures (around 200 bar) facilitate the formation of a crystalline product at relatively low temperatures (Dalod et al., 2017). The TiO2-based materials obtained by this method show reasonable ROFF/RON switching ratios of up to 100 (Dongale et al., 2014; Xiao et al., 2017), although higher values (>104) have also been reported (Senthilkumar et al., 2013). Additional control over the size and shape of TiO2 particles can be achieved by means of a solvothermal approach (Dinh et al., 2009). Recently, this method has been successfully applied to obtain sub-10 nm TiO2 nanoparticles that are capable of forming self-assembled monolayers and that possess resistive switching properties (Schmidt et al., 2017).
Using an electrochemical method or anodizing, the oxidation of a titanium foil in an electrochemical cell provides nanostructures of TiO2 (Yoo et al., 2013). With this method, the composition, thickness, and structure can be controlled by choosing an appropriate substrate, electrolyte, and electrochemical conditions. Only a few studies have addressed this method of fabricating TiO2-based memristors (Miller et al., 2010; Yoo et al., 2013; Aglieri et al., 2018; Zaffora et al., 2018). Recently, promising advances in anodizing to form a compact topology of memristors (8–29 nm thickness and 4 μm2 feature area) have been demonstrated (Aglieri et al., 2018). The method is relatively cheap and is typically performed at ambient temperature. However, precise control of film thickness and sensitivity to the type and surface of the substrate are major challenges.
Atomic layer deposition (ALD)
Chemical vapor-based deposition techniques are widely used in the fabrication of thin films. Ultrathin TiO2 layers in memristive devices are usually fabricated by ALD or plasma-enhanced ALD (PEALD). In these methods, Ti-based precursors (TiCl4, titanium alkoxides) are decomposed in the presence of an oxidizer (H2O, O3, or O2) (Seo et al., 2011; Marichy et al., 2012). The PEALD process can be performed at relatively low substrate temperatures (Kwon et al., 2010). The methods allow very thin TiO2 layers in the range of 7–13 nm to be formed (Jeong et al., 2010a,b) and are compatible with other fabrication techniques. Using a combination of ALD and other nanofabrication processes, a very small topological feature size of 4 nm2 has been achieved for memristor crossbar arrays (Pi et al., 2019). The ALD methods are relatively costly, but provide high precision and thus scalability and reproducibility.
Physical vapor deposition (PVD)
These methods require the transfer and deposition of materials under vacuum. The post-processing annealing at 200–600°C may support adhesion and crystallization (Cortese et al., 2016; Haidry et al., 2017). The sputtered TiO2 layers meet the criteria of the nanometer-range electronics industry (Strachan et al., 2013; Ghenzi and Levy, 2018) and therefore find application at an industrial level, especially in reproducible, long-lasting, and portable RRAM devices (Nickel et al., 2013). The methods are sensitive to contamination inside the chamber and require high power (Acharyya et al., 2014).
Pulsed microplasma cluster source (PMCS)
This technique forms supersonic pulsed beams of the metal oxide clusters and deposits them on a substrate. Deposition occurs at high energy and results in nanostructured thin films. The method was suggested for fabrication of TiO2 memristors, as the nanocrystalline structure and porosity can be controlled by varying deposition parameters, while the growth can be performed at room temperature (Baldi et al., 2015). In addition to purely memristive applications, the method was also suggested for fabrication of biohybrid TiO2 interfaces (Roncador et al., 2017) that demonstrated good properties for the growth and vitality of neuronal cell cultures and their electrical activity.
Thin-film fabrication implies depositing TiO2 nanomaterials onto a substrate along with arrangement of the electrodes. In this section we briefly outline the most widely used techniques for fabrication of TiO2 memristive devices.
This is the simplest technology. Functional layers are formed by depositing drops of colloidal dispersions of TiO2 onto a substrate using a syringe or pipette. The thickness of the TiO2 layers obtained by this method typically ranges between 40 and 200 μm (Gale et al., 2014; Abunahla et al., 2018; De Carvalho et al., 2019). This thickness range does not match the usual topological features of RRAM memristors, although the method has recently been justified for various memristive sensors (Abunahla et al., 2016, 2018; Sahu and Jammalamadaka, 2019).
This method is based on spinning of the substrate, which exploits an inertial force acting on the fixed substrate and an unfixed drop of slurry cast on top of it. Varying the viscosity of the slurry or solution and the rotation speed, the method may be adjusted to obtain TiO2 thin films with thicknesses down to 35 nm (Tao et al., 2020). Thus, the method has been proposed for fabrication of RRAM (Hu et al., 2020).
Dip coating is considered to be a high-quality and cost-efficient deposition method, if physical adsorption between the substrate and the adsorbate dispersed in a colloidal solution is adopted as a controllable process. In this way, memristive thin films comprising two-dimensional TiO2 flakes with a thickness of ~2 nm were obtained by dip coating. These films demonstrated distinctive properties such as a high resistive switching ratio, fast switching speed, and extremely low erase energy consumption (Dai et al., 2017).
Inkjet printing is a cost-efficient fabrication method, especially for micro- and nanopatterning and laboratory-scale prototyping (Menard et al., 2007). The method has been applied for stretchable and flexible electronics (Nayak et al., 2019), including various TiO2 memristive devices (Samardzić et al., 2015). Inkjet printers are used for automated drop casting and typically operate with a picoliter droplet volume and provide droplet deposition with 10–20 μm spatial resolution. The thickness of the film may be variable and usually exceeds 100 nm (Duraisamy et al., 2012), although a lower value of 80 nm has been reported recently (Salonikidou et al., 2019).
Annealing and Electric Properties
Annealing in reducing atmospheres affects the concentration of charged point defects and thus the resistive switching. Despite many experimental studies, including the post-fabrication thermal annealing stage (typically at 400–600°C) under vacuum (Schmidt et al., 2015), nitrogen (Seo et al., 2011; Cortese et al., 2016; Regoutz et al., 2016), argon (Nelo et al., 2013), or N2 + H2 (4–5%) gas mixtures (Yang et al., 2008; Miller et al., 2010), only a few studies have systematically addressed the effects of thermal treatment under various annealing atmospheres on the resistive switching behavior of TiO2 memristive devices (Lai et al., 2013a,b; Nelo et al., 2013).
Summary and Outlook
The current renaissance of the resistive switching phenomenon over the last 12 years has been intimately associated with studies on TiO2 thin films that have often been addressed as prototype oxide memristors for many research applications. Numerous recent achievements highlighted in this mini-review demonstrate the rapid development of TiO2-based memristors in various application fields, while the growing interest in these devices is seemingly far from saturation.
The major challenges of TiO2 memristors have been outlined in several previous reviews and remain essentially unsolved. Technologically, the emerging properties of memristive systems concern the operational stochasticity, number of distinguishable states, switching energy, switching speed, endurance, retention, and feature size. Their relationship in various types of modern memristive systems has been comprehensively addressed in a recent topical review (Zhang et al., 2020). Besides the permanent technological issues of increasing the integration density and reducing the production costs, there are fundamental challenges in understanding the mechanisms of resistive switching in solids, which, in practice, limit the scalability and reproducibility of the memristive devices (Acharyya et al., 2014; Jeong et al., 2016; Zidan, 2018; Xia and Yang, 2019; Zhang et al., 2020). Despite the apparent simplicity of the metal–insulator–metal configuration, the mechanisms involved in the memristive electric performance are manifold and complex. Two types of electroforming processes, electronic (Shao et al., 2015) and ionic (Waser et al., 2009), play essential roles in the non-linearity and hysteresis of the voltage–current relationship. Thus, understanding the electron band structure of TiO2 polymorphs (Scanlon et al., 2013), the defect structure (Bak et al., 2006), and the equilibrium relations with Magnéli phases (Padilha et al., 2016) are of key importance and should help to address the challenges at a theoretical level. In addition, many experimental studies have recently addressed tuning of the electric properties of TiO2 memristors by choosing appropriate electrodes and an appropriate operating voltage regime or by affecting the phase ratio, defect structure, and microstructure of the synthesized materials using post-processing annealing under ambient or inert atmospheres (Goren et al., 2014; Schmidt et al., 2015; Cortese et al., 2016; Regoutz et al., 2016; Haidry et al., 2017; Tao et al., 2020). Thus, they have contributed to our understanding of the complex resistive switching phenomena in TiO2. Meanwhile, only a few studies have systematically addressed the effect of thermal annealing at reduced oxygen partial pressures on the resistive and resistive switching properties of TiO2 thin films (Lai et al., 2013a,b; Nelo et al., 2013). Seemingly, this issue also remains underexplored.
In view of the current trends and challenges of TiO2-based memristors, we can expect an increasingly large role of chemical approaches to device fabrication, lowering of the production costs, rapid development of neuromorphic computing systems, and further convergence of artificial electronic neurons with biological cells based on TiO2 thin films.
All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.
The work was fulfilled with financial support from the Russian Science Foundation (Project no. 19-19-00433).
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Abunahla, H., Jaoude, M. A., O'Kelly, C. J., and Mohammad, B. (2016). Sol-gel/drop-coated micro-thick TiO2 memristors for γ-ray sensing. Mater. Chem. Phys. 184, 72–81. doi: 10.1016/j.matchemphys.2016.09.027
Abunahla, H., Mohammad, B., Mahmoud, L., Darweesh, M., Alhawari, M., Jaoude, M. A., et al. (2018). Memsens: memristor-based radiation sensor. IEEE Sens. J. 18, 3198–3205. doi: 10.1109/JSEN.2018.2808285
Acharyya, D., Hazra, A., and Bhattacharyya, P. (2014). A journey towards reliability improvement of TiO2 based resistive random access memory: a review. Microelectron. Reliab. 54, 541–560. doi: 10.1016/j.microrel.2013.11.013
Aglieri, V., Zaffora, A., Lullo, G., Santamaria, M., Di Franco, F., Cicero, U. L., et al. (2018). Resistive switching in microscale anodic titanium dioxide-based memristors. Superlattice. Microst. 113, 135–142. doi: 10.1016/j.spmi.2017.10.031
Baiatu, T., Waser, R., and Härdtl, K. H. (1990). DC electrical degradation of perovskite-type titanates: III, a model of the mechanism. J. Am. Ceram. Soc. 73, 1663–1673. doi: 10.1111/j.1151-2916.1990.tb09811.x
Baldi, G., Bosi, M., Giusti, G., Attolini, G., Berzina, T., Collini, C., et al. (2015). Optimization of synthesis protocols to control the nanostructure and the morphology of metal oxide thin films for memristive applications. AIP Conf. Proc. 1648:280002. doi: 10.1063/1.4912531
Cao, X., Li, X., Yu, W., Zhang, Y., Yang, R., Liu, X., et al. (2009). Structural characteristics and resistive switching properties of thermally prepared TiO2 thin films. J. Alloy. Compounds 486, 458–461. doi: 10.1016/j.jallcom.2009.06.175
Chiolerio, A., Chiappalone, M., Ariano, P., and Bocchini, S. (2017). Coupling resistive switching devices with neurons: state of the art and perspectives. Front. Neurosci. 11:70. doi: 10.3389/fnins.2017.00070
Cortese, S., Khiat, A., Carta, D., Light, M. E., and Prodromakis, T. (2016). An amorphous titanium dioxide metal insulator metal selector device for resistive random access memory crossbar arrays with tunable voltage margin. Appl. Phys. Lett. 108:033505. doi: 10.1063/1.4940361
Dai, Y., Bao, W., Hu, L., Liu, C., Yan, X., Chen, L., et al. (2017). Forming free and ultralow-power erase operation in atomically crystal TiO2 resistive switching. 2D Materials 4:025012. doi: 10.1088/2053-1583/aa598f
Dalod, A. R. M., Grendal, O. G., Skjærvø, S. L., Inzani, K., Selbach, S. M., Henriksen, L., et al. (2017). Controlling oriented attachment and in situ functionalization of TiO2 nanoparticles during hydrothermal synthesis with APTES. J. Phys. Chem. C 121, 11897–11906. doi: 10.1021/acs.jpcc.7b02604
De Carvalho, R. C., Betts, A. J., and Cassidy, J. F. (2019). A simple nanoparticle-based TiO2 memristor device and the role of defect chemistry in its operation. J. Solid State Electrochem. 23, 1939–1943. doi: 10.1007/s10008-019-04239-z
Dongale, T. D., Shinde, S. S., Kamat, R. K., and Rajpure, K. Y. (2014). Nanostructured TiO2 thin film memristor using hydrothermal process. J. Alloy. Compounds 593, 267–270. doi: 10.1016/j.jallcom.2014.01.093
Duraisamy, N., Muhammad, N. M., Kim, H. C., Jo, J. D., and Choi, K. H. (2012). Fabrication of TiO2 thin film memristor device using electrohydrodynamic inkjet printing. Thin Solid Films. 520, 5070–5074. doi: 10.1016/j.tsf.2012.03.003
Gater, D., Iqbal, A., Davey, J., and Gale, E. (2013). “Connecting spiking neurons to a spiking memristor network changes the memristor dynamics,” in IEEE 20th International Conference on Electronics, Circuits, and Systems (ICECS) (Abu Dhabi), 534–537. doi: 10.1109/ICECS.2013.6815469
Goren, E., Ungureanu, M., Zaspe, R., Rozenberg, M., Hueso, L. E., Stoliar, P., et al. (2014). Resistive switching phenomena in TiOx nanoparticle layers for memory applications. Appl. Phys. Lett. 105:143506. doi: 10.1063/1.4897142
Gupta, I., Serb, A., Khiat, A., Zeitler, R., Vassanelli, S., and Prodromakis, T. (2016). Real-time encoding and compression of neuronal spikes by metal-oxide memristors. Nat. Commun. 7, 1–16. doi: 10.1038/ncomms12805
Hadis, N. S. M., Manaf, A. A., and Herman, S. H. (2015a). “Characterization of ROFF/RON ratio of fluidic based memristor sensor for pH detection,” in IEEE Regional Symposium on Micro and Nanoelectronics (RSM) (Kuala Terengganu), 1–4. doi: 10.1109/RSM.2015.7354956
Hadis, N. S. M., Manaf, A. A., and Herman, S. H. (2015b). “Comparison on TiO2 thin film deposition method for fluidic based glucose memristor sensor,” in IEEE International Circuits and Systems Symposium (ICSyS) (Langkawi), 36–39. doi: 10.1109/CircuitsAndSystems.2015.7394060
Haidry, A. A., Ebach-Stahl, A., and Saruhan, B. (2017). Effect of Pt/TiO2 interface on room temperature hydrogen sensing performance of memristor type Pt/TiO2/Pt structure. Sensor. Actuat. B Chem. 253, 1043–1054. doi: 10.1016/j.snb.2017.06.159
Hodgkin, A. L., and Huxley, A. F. (1952). A quantitative description of membrane current and its application to conduction and excitation in nerve. J. Physiol. 117, 500–544. doi: 10.1113/jphysiol.1952.sp004764
Hossein-Babaei, F., Lajvardi, M. M., and Boroumand, F. (2012). Large area Ag–TiO2 UV radiation sensor fabricated on a thermally oxidized titanium chip. Sensor. Actuat. A Phys. 173, 116–121. doi: 10.1016/j.sna.2011.10.028
Hossein-Babaei, F., and Rahbarpour, S. (2011). Titanium and silver contacts on thermally oxidized titanium chip: Electrical and gas sensing properties. Sol. State Electron. 56, 185–190. doi: 10.1016/j.sse.2010.12.007
Hou, L., Zhang, M., Guan, Z., Li, Q., and Yang, J. (2018). Effect of annealing ambience on the formation of surface/bulk oxygen vacancies in TiO2 for photocatalytic hydrogen evolution. Appl. Surf. Sci. 428, 640–647. doi: 10.1016/j.apsusc.2017.09.144
Hu, L., Han, W., and Wang, H. (2020). Resistive switching and synaptic learning performance of a TiO2 thin film based device prepared by sol-gel and spin coating techniques. Nanotechnology 31:155202. doi: 10.1088/1361-6528/ab6472
Illarionov, G. A., Kolchanov, D. S., Mukhin, I. S., Kuchur, O. A., Zhukov, M. V., Sergeeva, E., et al. (2019). Inkjet assisted fabrication of planar biocompatible memristors. RSC Adv. 9, 35998–36004. doi: 10.1039/C9RA08114C
Irshad, M. S., Abbas, A., Qazi, H. H., Aziz, M. H., Shah, M., Ahmed, A., et al. (2019). Role of point defects in hybrid phase TiO2 for resistive random-access memory (RRAM). Mater. Res. Exp. 6:076311. doi: 10.1088/2053-1591/ab17b5
Jameson, J. R., Fukuzumi, Y., Wang, Z., Griffin, P., Tsunoda, K., Meijer, G. I., et al. (2007). Field-programmable rectification in rutile TiO2 crystals. Appl. Phys. Lett. 91:112101. doi: 10.1063/1.2769961
Jang, M. H., Agarwal, R., Nukala, P., Choi, D., Johnson, A. T. C., Chen, I. W., et al. (2016). Observing oxygen vacancy driven electroforming in Pt-TiO2-Pt device via strong metal support interaction. Nano Lett. 16, 2139–2144. doi: 10.1021/acs.nanolett.5b02951
Janotti, A., Varley, J. B., Rinke, P., Umezawa, N., Kresse, G., and Van de Walle, C. G. (2010). Hybrid functional studies of the oxygen vacancy in TiO2. Phys. Rev. B 81:085212. doi: 10.1103/PhysRevB.81.085212
Jeong, H. Y., Lee, J. Y., Ryu, M. K., and Choi, S. Y. (2010b). Bipolar resistive switching in amorphous titanium oxide thin film. Phys. Status Solidi Rapid Res. Lett. 4, 28–30. doi: 10.1002/pssr.200903383
Kalita, H., Krishnaprasad, A., Choudhary, N., Das, S., Dev, D., Ding, Y., et al. (2019). Artificial neuron using vertical MoS2/graphene threshold switching memristors. Sci. Rep. 9:53. doi: 10.1038/s41598-018-35828-z
Kumar, S., Graves, C. E., Strachan, J. P., Grafals, E. M., Kilcoyne, A. L. D., Tyliszczak, T., et al. (2016). Direct observation of localized radial oxygen migration in functioning tantalum oxide memristors. Adv. Mater. 28, 2772–2776. doi: 10.1002/adma.201505435
Kumar, S. N., Suvarna, P. R., Babu Naidu, C. K., Banerjee, P., Ratnamala, A., and Manjunatha, H. (2020). A review on biological and biomimetic materials and their applications. Appl. Phys. A 126:445. doi: 10.1007/s00339-020-03633-z
Kwon, D. H., Kim, K. M., Jang, J. H., Jeon, J. M., Lee, M. H., Kim, G. H., et al. (2010). Atomic structure of conducting nanofilaments in TiO2 resistive switching memory. Nat. Nanotechnol. 5, 148–153. doi: 10.1038/nnano.2009.456
Lai, C. H., Chen, C. H., and Tseng, T. Y. (2013a). Resistive switching behaviour of sol-gel deposited TiO2 thin films under different heating ambience. Surf. Coat. Technol. 231, 399–402. doi: 10.1016/j.surfcoat.2012.05.045
Lai, C. H., Liu, C. Y., Hsu, C. H., Lee, Y. M., Lin, J. S., and Yang, H. (2013b). Effect of firing atmosphere and bottom electrode on resistive switching mode in TiO2 thin films. Thin Solid Films. 529, 430–434. doi: 10.1016/j.tsf.2012.09.025
Li, D., Wu, B., Zhu, X., Wang, J., Ryu, B., Lu, W. D., et al. (2018). MoS2 memristors exhibiting variable switching characteristics towards bio-realistic synaptic emulation. ACS Nano. 12, 9240–9252. doi: 10.1021/acsnano.8b03977
Liu, C., Cao, Y. Q., Wu, D., and Li, A. D. (2020). Simulation of biologic synapse through organic-inorganic hybrid memristors using novel Ti-based maleic acid/TiO2 ultrathin films. IEEE Electron Dev. Lett. 41, 155–158. doi: 10.1109/LED.2019.2956282
Menard, E., Meitl, M. A., Sun, Y., Park, J. U., Shir, D. J. L., Nam, Y. S., et al. (2007). Micro- and nanopatterning techniques for organic electronic and optoelectronic systems. Chem. Rev. 107, 1117–1160. doi: 10.1021/cr050139y
Nelo, M., Sloma, M., Kelloniemi, J., Puustinen, J., Saikkonen, T., Juuti, J., et al. (2013). Inkjet-printed memristor: printing process development. Jpn. J. Appl. Phys. 52:05DB21. doi: 10.7567/JJAP.52.05DB21
Nickel, J. H., Strachan, J. P., Pickett, M. D., Schamp, C. T., Yang, J. J., Graham, J. A., et al. (2013). Memristor structures for high scalability: non-linear and symmetric devices utilizing fabrication friendly materials and processes. Microelectron. Eng. 103, 66–69. doi: 10.1016/j.mee.2012.09.007
Oh, J. K., Lee, J. K., Kim, S. J., and Park, K. W. (2009). Synthesis of phase-and shape-controlled TiO2 nanoparticles via hydrothermal process. J. Ind. Eng. Chem. 15, 270–274. doi: 10.1016/j.jiec.2008.10.001
Pi, S., Li, C., Jiang, H., Xia, W., Xin, H., Yang, J. J., et al. (2019). Memristor crossbar arrays with 6-nm half-pitch and 2-nm critical dimension. Nat. Nanotechnol. 14, 35–39. doi: 10.1038/s41565-018-0302-0
Regoutz, A., Gupta, I., Serb, A., Khiat, A., Borgatti, F., Lee, T. L., et al. (2016). Role and optimization of the active oxide layer in TiO2-based RRAM. Adv. Funct. Mater. 26, 507–513. doi: 10.1002/adfm.201503522
Roncador, A., Jimenez-Garduño, A. M., Pasquardini, L., Giusti, G., Cornella, N., Lunelli, L., et al. (2017). Primary cortical neurons on PMCS TiO2 films towards bio-hybrid memristive device: A morpho-functional study. Biophys. Chem. 229, 115–122. doi: 10.1016/j.bpc.2017.04.010
Sahu, D. P., and Jammalamadaka, S. N. (2019). Detection of bovine serum albumin using hybrid TiO2 + graphene oxide based Bio–resistive random access memory device. Sci. Rep. 9:1614. doi: 10.1038/s41598-019-52522-w
Sahu, V. K., Das, A. K., Ajimsha, R. S., and Misra, P. (2020). Low power high speed 3-bit multilevel resistive switching in TiO2 thin film using oxidisable electrode. J. Phys. D Appl. Phys. 53:225303. doi: 10.1088/1361-6463/ab7acb
Salonikidou, B., Yasunori, T., Le Borgne, B., England, J., Shizuo, T., and Sporea, R. A. (2019). Toward fully printed memristive elements: a-TiO2 electronic synapse from functionalized nanoparticle ink. ACS Appl. Electron. Mater. 1, 2692–2700. doi: 10.1021/acsaelm.9b00701
Samardzić, N., Mionić, M., Dakić, B., Hofmann, H., Dautović, S., and Stojanović, G. (2015). Analysis of quantized electrical characteristics of microscale TiO2 ink-jet printed memristor. IEEE Trans. Electron Dev. 62, 1898–1904. doi: 10.1109/TED.2015.2421283
Scanlon, D. O., Dunnill, C. W., Buckeridge, J., Shevlin, S. A., Logsdail, A. J., Woodley, S. M., et al. (2013). Band alignment of rutile and anatase TiO2. Nat. Mater. 12, 798–801. doi: 10.1038/nmat3697
Schmidt, D. O., Hoffmann-Eifert, S., Zhang, H., La Torre, C., Besmehn, A., Noyong, M., et al. (2015). Resistive switching of individual, chemically synthesized TiO2 nanoparticles. Small 11, 6444–6456. doi: 10.1002/smll.201502100
Schmidt, D. O., Raab, N., Noyong, M., Santhanam, V., Dittmann, R., and Simon, U. (2017). Resistive switching of sub-10 nm TiO2 nanoparticle self-assembled monolayers. Nanomaterials 7:370. doi: 10.3390/nano7110370
Schoen, I., and Fromherz, P. (2008). Extracellular stimulation of mammalian neurons through repetitive activation of Na+ channels by weak capacitive currents on a silicon chip. J. Neurophysiol. 100, 346–357. doi: 10.1152/jn.90287.2008
Seisenbaeva, G. A., Moloney, M. P., Tekoriute, R., Hardy-Dessources, A., Nedelec, J. M., Gun'ko, Y. K., et al. (2010). Biomimetic synthesis of hierarchically porous nanostructured metal oxide microparticles - potential scaffolds for drug delivery and catalysis. Langmuir 26, 9809−9817. doi: 10.1021/la1000683
Senthilkumar, V., Kathalingam, A., Kannan, V., Senthil, K., and Rhee, J. K. (2013). Reproducible resistive switching in hydrothermal processed TiO2 nanorod film for nonvolatile memory applications. Sensor. Actuat. A 194, 135–130. doi: 10.1016/j.sna.2013.02.009
Seo, K., Kim, I., Jung, S., Jo, M., Park, S., Park, J., et al. (2011). Analog memory and spike-timing-dependent plasticity characteristics of a nanoscale titanium oxide bilayer resistive switching device. Nanotechnology 22:254023. doi: 10.1088/0957-4484/22/25/254023
Shao, X. L., Zhou, L. W., Yoon, K. J., Jiang, H., Zhao, J. S., Zhang, K. L., et al. (2015). Electronic resistance switching in the Al/TiO(x)/Al structure for forming-free and area-scalable memory. Nanoscale 7:11063–11074. doi: 10.1039/C4NR06417H
Strachan, J. P., Yang, J. J., Montoro, L. A., Ospina, C. A., Ramirez, A. J., Kilcoyne, A. L. D., et al. (2013). Characterization of electroforming-free titanium dioxide memristors. Beilstein J. Nanotechnol. 4, 467–473. doi: 10.3762/bjnano.4.55
Strungaru, M., Cerchez, M., Herbertz, S., Heinzel, T., El Achhab, M., Schierbaum, et al. (2015). Interdependence of electroforming and hydrogen incorporation in nanoporous titanium dioxide. Appl. Phys. Lett. 106:143109. doi: 10.1063/1.4917034
Sun, W., Gao, B., Chi, M., Xia, Q., Yang, J. J., Qian, H., et al. (2019). Understanding memristive switching via in situ characterization and device modeling. Nat. Commun. 10:3453. doi: 10.1038/s41467-019-11411-6
Tao, D. W., Chen, J. B., Jiang, Z. J., Qi, B. J., Zhang, K., and Wang, C. W. (2020). Making reversible transformation from electronic to ionic resistive switching possible by applied electric field in an asymmetrical Al/TiO2/FTO nanostructure. Appl. Surf. Sci. 502:144124. doi: 10.1016/j.apsusc.2019.144124
Teychené, S., Rodriguez-Ruiz, I., and Ramamoorthy, R. K. (2020). Reactive crystallization: from mixing to control of kinetics by additives. Curr. Opin. Colloid Interface Sci. 46, 1–19. doi: 10.1016/j.cocis.2020.01.003
Vidiš, M., Plecenik, T., Moško, M., Tomašec, S., Roch, S., Satrapinskyy, L., et al. (2019). Gasistor: a memristor based gas-triggered switch and gas sensor with memory. Appl. Phys. Lett. 115:093504. doi: 10.1063/1.5099685
Vilmi, P., Nelo, M., Voutilainen, J. V., Palosaari, J., Pörhönen, J., Tuukkanen, S., et al. (2016). Fully printed memristors for a self-sustainable recorder of mechanical energy. Flex. Print. Electron. 1:025002. doi: 10.1088/2058-8585/1/2/025002
Waser, R., Dittmann, R., Staikov, G., and Szot, K. (2009). Redox-based resistive switching memories – nanoionic mechanisms, prospects, and challenges. Adv. Mater. 21, 2632–2663. doi: 10.1002/adma.200900375
Wedig, A., Luebben, M., Cho, D. Y., Moors, M., Skaja, K., Rana, V., et al. (2015). Nanoscale cation motion in TaO x, HfO x and TiO x memristive systems. Nat. Nanotechnol. 11, 67–74. doi: 10.1038/nnano.2015.221
Xia, Q., Robinett, W., Cumbie, M. W., Banerjee, N., Cardinali, T. J., Yang, J. J., et al. (2009). Memristor-CMOS hybrid integrated circuits for reconfigurable logic. Nano Lett. 9, 3640–3645. doi: 10.1021/nl901874j
Xiao, M., Musselman, K. P., Duley, W. W., and Zhou, N. Y. (2017). Resistive switching memory of TiO2 nanowire networks grown on Ti foil by a single hydrothermal method. Nano-Micro Lett. 9:15. doi: 10.1007/s40820-016-0116-2
Yang, J. Y., Pickett, M. D., Li, X., Ohlberg, D. A. A., Stewart, D. R., and Williams, S. (2008). Memristive switching mechanism for metal/oxide/metal nanodevices. Nat. Nanotech. 3, 429–433. doi: 10.1038/nnano.2008.160
Zaffora, A., Macaluso, R., Habazaki, H., Valov, I., and Santamaria, M. (2018). Electrochemically prepared oxides for resistive switching devices. Electrochim. Acta 274, 103–111. doi: 10.1016/j.electacta.2018.04.087
Zhang, F., Gan, X., Li, X., Wu, L., Gao, X., Zheng, R., et al. (2011). Realization of rectifying and resistive switching behaviors of TiO2 nanorod arrays for nonvolatile memory. Electrochem. Solid State Lett. 14:H422. doi: 10.1149/1.3617442
Zhang, Y., Wang, Z., Zhu, J., Yang, Y., Rao, M., Song, W., et al. (2020). Brain-inspired computing with memristors: challenges in devices, circuits, and systems. Appl. Phys. Rev. 7:011308. doi: 10.1063/1.5124027
Zhu, J., Yang, Y., Jia, R., Liang, Z., Zhu, W., Rehman, Z. U., et al. (2018). Ion gated synaptic transistors based on 2D van der waals crystals with tunable diffusive dynamics. Adv. Mater. 30:1800195. doi: 10.1002/adma.201800195
