Physical Origin of Dual-Emission of Au–Ag Bimetallic Nanoclusters

Introduction

Quantum-sized metal nanoclusters, which bridge the gap between organometallics and nanocrystals, exhibit dramatically unique electronic and optical properties, such as molecule-like energy gaps (Schaaff et al., 1997; Lee et al., 2004; Negishi et al., 2005; Walter et al., 2008; Zhu et al., 2008; Russier-Antoine et al., 2014; Bertorelle et al., 2017; Chakraborty and Pradeep, 2017), intense photoluminescence (Zheng et al., 2004; Zheng et al., 2007; Xie et al., 2009; Luo et al., 2012; Musnier et al., 2019) and catalytic properties (Tsunoyama et al., 2009; Zhu et al., 2010; Li et al., 2016a; Cai et al., 2019; Lv et al., 2019; Lv et al., 2020a; Yang et al., 2020a; Lv et al., 2020b; Cai et al., 2020; Li et al., 2021). Luminescent thiolated-protected Au and Ag NCs in particular have attracted tremendous interest due to their wide applications in bio-imaging, bio-medicine, sensing, and catalysis (Jin, 2010; Díez and Ras, 2011; Bonacic-Koutecky et al., 2012; Zheng et al., 2012; Luo et al., 2014; Sun and Jin, 2014; Jin et al., 2016; Lei et al., 2018; Yan et al., 2018; Ungor et al., 2021). Various strategies, such as heteroatom doping (Wang et al., 2014), aggregation-induced-emission (AIE) (Luo et al., 2012), and assembly induced emission enhancement (Wu et al., 2019a), have been developed to prepare highly luminescent Au and Ag NCs. Since the crystal structure of ligand-protected Au NCs, which are usually comprised of metallic core and peripheral gold(I)-thiolate staple motifs, have been revealed at atomic resolution (Jadzinsky et al., 2007), heteroatom substitution of specific native sites could give an in-depth way to understand the structure/composition-correlated properties and provide an efficient way to diversify and tailor the physicochemical properties of metal NCs (Hirai et al., 2020; Kang et al., 2020). Several strategies have been developed to the synthesis of bimetallic Ag-Au NCs, such as one-pot co-reduction method (Negishi et al., 2010; Kumara and Dass, 2011; Kumara and Dass, 2012) (spontaneous reduction of as-mixed Ag and Au precursors through balancing the redox potentials of metal pairs by thiol ligand (Dou et al., 2014a; Yu et al., 2016)), classical galvanic replacement reaction approach (Udayabhaskararao et al., 2012) (involves the spontaneous reduction of a noble-metal cationic by a less noble metal in solution driven by the difference in redox potentials), abnormal anti-galvanic replacement reaction approach (Choi et al., 2010; Wu, 2012) (inverse process for galvanic replacement reaction recently observed for the synthesis of thiolate-protected Ag-Au NCs), and addition reaction (Gan et al., 2018; Takano et al., 2018; Hirai et al., 2019) (a hydride-mediated controlled growth process). And intriguingly, as-formed heteroatom doped metal NCs generally exhibited dramatic enhancement of luminescent and catalytic performance (Dou et al., 2014b; Wang et al., 2014; Yao et al., 2015; Li et al., 2016b; Liu et al., 2017; Jana et al., 2019; Ye and An, 2019; Zhou et al., 2019), which are expected to have synergistic effects in their physicochemical properties compared with their mono-metallic analogues (Yuan et al., 2019). Nevertheless, the origin of PL or the nature of emitters of heteroatom-doped metal NCs remain unclear and even controversial, which limits the rational design of metal nanoclusters with improved and tailored optical and catalytic properties.

Luminescent metal NCs with dual-wavelength emission have been exploited as ratiometric nanoprobes for sensing and imaging (Xiao et al., 2018); rather than absolute intensity-dependent signal readout of single-emissive metal NCs, ratiometric measurements provide built-in self-calibration for signal correction, enabling more sensitive and reliable detection, which means the metal NCs possess two target-responsive reversible signal changes or that one of the signals is target-insensitive as reference (Liu et al., 2016; Huang et al., 2018; Wang et al., 2021a; Wang et al., 2021b). However, in most cases, well-resolved dual-wavelength emission of metal NCs was rarely observed simultaneously. Herein, we demonstrated that, using 1-dodecanethiol (DT) as a protected ligand, Au-Ag bimetallic NCs can be readily synthesized by a facile one-pot approach, exhibiting an interesting silver cation-mediated dual-emission behavior at 440 nm and 630 nm. Very interestingly, the dual-emissive Au-Ag bimetallic NCs display a unique reversible environment-pH-responsive emission behavior, which makes them ideal as potential pH ratiometric sensors: under acid conditions, the long-wavelength emission at 630 nm is dominated, while under basic conditions, the short-wavelength emission at 440 nm is prevailed. The combined characterizations of absorption, excitation, and emission spectrum evidenced that the dual-emissions come from the same luminous center, i.e., structural water molecules (SWs) dynamically confined on the metal NCs core, but with varied binding strength with surface Au(I)- and Ag(I)-thiolate motif, corresponding to the emission at 630 nm and 440 nm, respectively. The assignment of SWs as emitters is consistent with our previously reported results (Yang et al., 2020b; Hu et al., 2020), which also answers that the efficiency of dual-emissions is very sensitive to the delicate change of the surrounding microenvironment of metal NCs, including the dosing of Ag⁺, pH, and packing mode of surface ligands since the surface states formed by space overlapping of p orbitals of O atoms in the SWs {H₂O∙OH⁻} as dynamic feature with π bonding nature.

Method

Synthesis

All reagents used were purchased from Sinopharm Chemical Reagent Co., Ltd. except glutathione in the reduced form (GSH), which was purchased from Aladdin (Shanghai, China). All chemicals were used as received without any further purification. Deionized water was used in all experiments.

Synthesis of Ag_xAu@DT NCs with different ratio of Ag to Au. The synthesis of luminescent Ag-Au NCs refers to modified literature reports (Ye and An, 2019). Typically, freshly prepared alcoholic solutions of DT (3.6 ml, 50 mM) and AgNO₃ (x ml, 25.4 mM) were mixed well under vigorous stirring for 10 min, and then the solution was opacified due to the formation of Ag(I)-thiolate. Freshly prepared alcoholic solutions of HAuCl4 (0.2 ml, 25.4 mM) were then added into the mixture solution, the mixture was stirred for another 12 h, and then incubated overnight at room temperature. The feeding ratio of Ag to Au varied from 0 to 4, in which the volume of HAuCl₄ precursor was constant but the volume of AgNO₃ solution increased from 0 to 0.8 ml. The samples are denoted as Ag_xAu@DT NCs, in which the x represented the feeding ratio of Ag to Au. The as-synthesized Ag_xAu@DT NCs were used without purification.

Ultraviolet visible (UV-vis) spectroscopy was conducted with a UV2700 UV-vis spectrophotometer. Fluorescence was measured by using a FluorMax-4 fluorimeter (Horiba, Japan). HR-TEM images of NCs were collected with a JEOL JEM 2010 microscope operating at 200 kV. Fluorescence lifetime was measured with a homebuilt time-correlated single photon counting (TCSPC) system with a time resolution of sub-100 ps Phosphorescence lifetime was excited with a μF2 lamp and measured with FLS 980 spectrofluorimeter (Edinburgh Instruments). Thermogravimetric analysis (TGA) was conducted on a NETZSCH STA449F3 analyzer under air atmosphere (flow rate of 50 ml·min⁻¹). Inductively coupled plasma (ICP) atomic emission spectroscopy was performed on a Thermo IRIS Intrepid II XSP atomic emission spectrometer. X-ray photoelectron spectra (XPS) were measured on an AXIS SUPRA instrument with X-Ray monochromatisation.

pH Sensing

The stock solution of as-synthesized Ag₁Au@DT NCs was acidic due to the reduction of Au (III) precursors and the formation of thiolate as the following two chemical equations:

$\mathrm{HAuC}{\mathrm{l}}_{\mathrm{4}}\mathrm{+3 RS-H}\mathit{\to }\mathrm{4 HCl+A}{\mathrm{u}}^{\mathrm{+}}\mathrm{ S}{\mathrm{R}}^{\mathrm{-}}\mathrm{+RS-SR}(1)$

$\mathrm{AgN}{\mathrm{O}}_{\mathrm{3}}\mathrm{+RS-H}\mathit{\to }\mathrm{HN}{\mathrm{O}}_{\mathrm{3}}\mathrm{+Ag+S}{\mathrm{R}}^{\mathrm{-}}\mathrm{+RS-SR}(2)$

The mole amount of H⁺ of the stock solution (4 ml) of as-synthesized Ag₁Au@DT can be estimated to be about 0.025 mmol according to the equations. To evaluate the sensitivity of pH for as-synthesized Ag₁Au@DT, 0.3 ml stock solution, which contained 1.875 nmol of H⁺, was diluted by adding 1.5 ml ethanol. Different volumes of 50 mM NaOH aqueous solution were used (0, 10, 15, 20, 25, 30, 35, 40, and 45 ul corresponding to 0, 0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2.0, and 2.25 nmol of OH⁻, respectively). The photoluminescence emission spectra of OH⁻ adjusted Ag₁Au@DT NCs solution after standing overnight were record. The cyclic switching of the pH regulated PL intensity were performed by adding 50 ul 50 mM NaOH and 50 ul 50 mM HCl aqueous solution circularly. The solution of each cycle was ultrasonically treated 5 min before recording the photoluminescence emission spectra.

Results and Discussion

The synthesis protocol of Au-Ag@DT NCs using DT as protected-cum-reduced ligand was modified from the previously reported method (Ye and An, 2019). Ag(I)-complexes were firstly formed by mixing DT alcoholic solution and AgNO₃ under vigorous stirring for 10 min. HAuCl₄ solution was then added into the mixed solution and the mixtures were further stirred for 12 h and incubated overnight at room temperature; the obtained samples were denoted as Ag_xAu@DT NCs, in which the x represented the feeding ratio of Ag to Au. The incorporation of silver and gold to form Ag_xAu@DT NCs was evidenced through the thermogravimetric analysis (TGA) and inductively coupled plasma (ICP) atomic emission spectroscopy (Supplementary Figure S1 and Supplementary Table S1), when increasing the feeding ratio of Ag-Au from 0.25, 0.5, 1, 2, and 4, the actual ratio of Ag to Au in the obtained NCs analyzed through ICP was determined as 0.11, 0.23, 0.47, 1.02, and 1.25, respectively, and the ligand weight loss (Supplementary Figure S1) was also gradually increased from 47.57 to 61.80%. Stoichiometric formula of obtained Ag_XAu@DT NCs can be estimated as Ag₀Au₁DT_0.9, Ag_0.1Au₁DT_1.2, Ag_0.2Au₁DT_1.4, Ag_0.5Au₁DT_1.5, Ag₁Au₁DT_2.2, and Ag_1.3Au₁DT_2.7 respectively (Supplementary Table S1), As shown in Figures 1A,B, when increasing the feeding ratio of Ag to Au, a new narrow blue emission band centered at 440 nm of Ag_xAu@DT NCs was generated and then boosted, and the inherent red emission band centered at 630 nm of Au NCs was concomitantly declined, showing a relation of “as one falls, another rises” (Figure 1B). In a range of Ag/Au molar ratio from 0.25 to 2.0, because of the color mixing of dual-emissions, the as-synthesized Au–Ag bimetallic NCs exhibited the bright purple photoluminescence under UV irradiation of both 260 and 365 nm (Figure 1A). However, if further Ag⁺ doping with Ag/Au molar ratio of 4.0 was performed, the single emission at 630 nm of monometallic Au NCs almost completely disappeared, and only a sharp and strong emission band center at 440 nm was observed for Ag₄Au@DT NCs (Figure 1B). Time-resolved PL spectroscopy showed that the radiation decay of blue and red emission channels had distinguished lifetimes of 5.4 nanoseconds (ns) and 2.0 microseconds (μs), respectively (Figure 1D). It is important to noe that, if according to conventional quantum size confinement mechanics of metal NCs, the inherent long-wavelength emission at 630 nm from Au core could not disappear since the Au NCs core remains intact with the increase of Ag⁺ loading (Supplementary Figure S2), suggesting the irrationality of Au NCs as emitters.

FIGURE 1

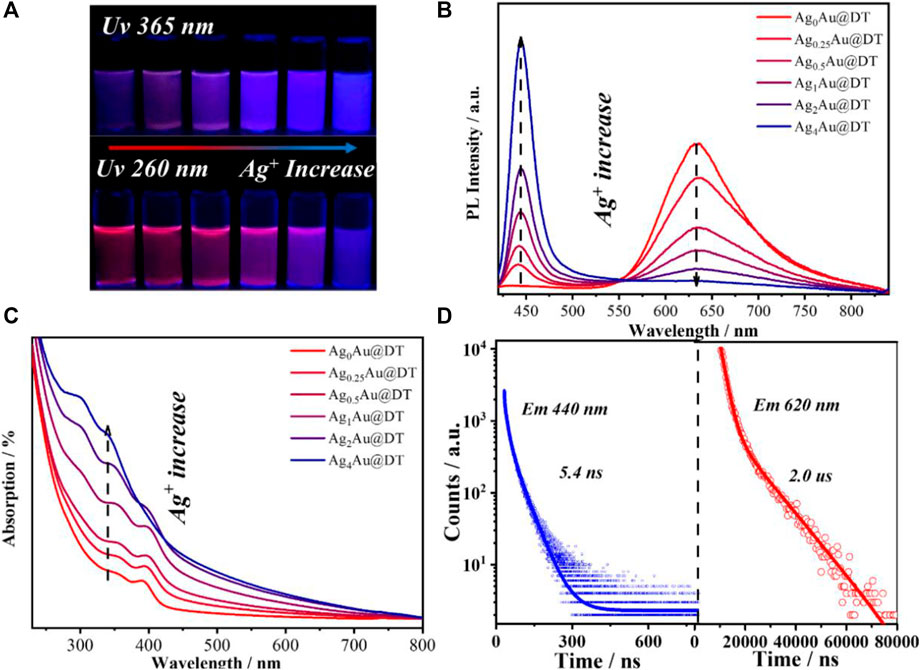

FIGURE 1. (A) Luminescent photographs of Ag_xAu@DT NCs under UV 365 nm (top) and 260 nm (bottom) irradiations. Photoluminescence emission spectra (B) and absorption spectra (C) of Ag_xAu@DT NCs. (D) Time-resolved luminescence decay profiles of Ag₁Au@DT NCs measured at 440 nm (left panel) and 630 nm (right panel), respectively.

The UV-visible absorption spectrum of Au_xAg@DT was collected in Figure 1C. Without the doping of silver, the Au NCs showed three remarkable absorption peaks located at 285 nm, 350 nm, and 390 nm, respectively, which has been previously assigned to Au 6sp intraband and interband transitions of Au NCs with 10–12 atoms (Negishi et al., 2005). The absence of localized surface plasmon resonance bands ranged at 400–520 nm, characteristic of plasmonic gold and silver nanocrystals or their alloy in the absorption spectrum, which implies that the particle size of Au–Ag bimetals is in the range of metal nanoclusters (Zhang et al., 2008), consistent with the results of TEM (Figure 2B and Supplementary Figure S2). Interestingly, although different chemical elements of silver were introduced into the system, with the increasing feeding ratio of Ag to Au, the peak positions of absorption bands at 285 nm, 350, and 390 nm were not shifted, while their intensity was gradually intensified, especially for the adsorption at 285 nm with significant improvement. Thus, we assigned the absorptions at 285 nm to be attributed to the surface ligand (including thiolate and hydrous hydroxyl groups, the latter comes from the adsorption of residual water in solution or air during the preparation of metal NCs) to metal (Au⁺ or Ag⁺) charge transfer (LMCT), consistent with an ascending trend of molar ratio of DT/Ag in Au-Ag bimetal NCs (Supplementary Figure S1 and Supplementary Table S2). The assignment of bands at 350 and 390 nm will be discussed later. Thus, we supposed that the Au-Ag bimetal NCs had a core–shell structure with Au NCs core coated by Au- and/or Ag-thiolate motifs (Figure 2A).

FIGURE 2

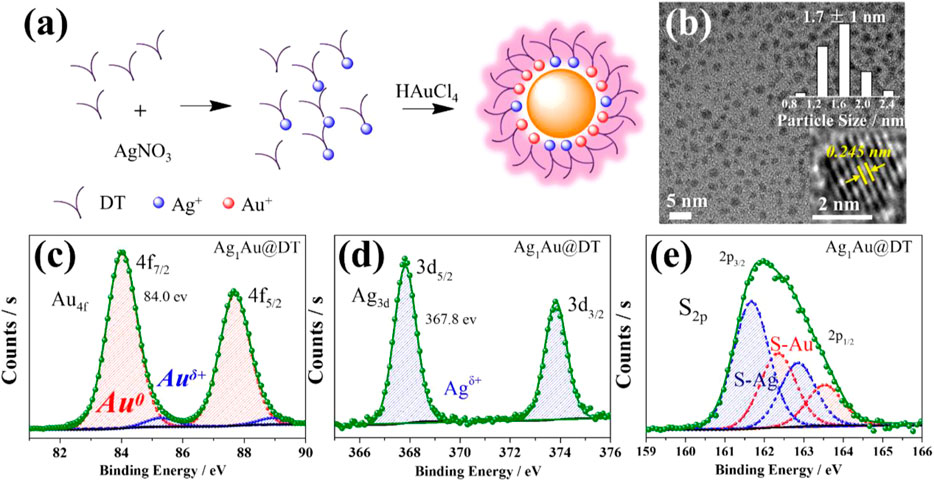

FIGURE 2. Scheme for the synthesis process of Ag₁Au@DT NCs (A), TEM (B), inset, particle size distribution was determined by measuring the diameters of at least 100 metal NCs.) and XPS spectrum of Au 4f (C), Ag 3 days (D) and S 2p (e) for Ag₁Au@DT NCs.

High-resolution transmission electron microscopy (HRTEM) and X-ray photoelectron spectra (XPS) characterizations supported this hypothesis. HRTEM images (Figure 2B) corroborated the size of as-formed Ag₁Au@DT NCs of ca. 1.7 nm and no variation with the doping of silver (Supplementary Figure S2). The measured inter-planar distance from fringes in HRTEM images is 0.245 nm (Figure 2B insert), corresponding to the (111) plane of the cubic phase structure of Au (JCPDS ID 04–0,784). The XPS was used to analyze the valence charge state of metal and composition of Au-Ag bimetal NCs (Figures 2C–E). As shown in the Ag 3 days spectra (Figure 2D), the oxidation state of silver was all Ag(I) components with binding energy of 367.8 eV, suggesting the single Ag(I)-thiolate species in the Ag₁Au@DT NCs (Dou et al., 2014b), and the Au 4f spectra (Figure 2C) were deconvoluted into Au(I) and Au (0) components with binding energies of 84.0 and 85.2 eV, respectively, and the content of Au(I) determined as such only accounts for a small fraction (∼5%) of all Au atoms in the Ag₁Au@DT NCs. As reference to conventional Au-thiolate NCs (Zhou et al., 2010; Luo et al., 2012), this value is so small probably due to the substitution of Au(I)-thiolate staple motifs by incoming Ag(I)-thiolate and/or subsequent occurrence of reduction.

More prominent results were demonstrated by the deconvolution of S 2p spectra (Figure 2E), two distinct components with binding energies of 161.7 and 162.3 eV were assigned to the Au(I)-thiolate and Ag(I)-thiolate according to soft-hard acid-base theory, respectively (Lu and Chen, 2012). The content of the latter one was increased with the increasing feed ratio of Ag to Au (Supplementary Figure S3 and Supplementary Table S2), which is consistent with the ICP and TGA results. The detailed fitting result is summarized in Supplementary Table S2. Therefore, a scheme was illustrated for the formation process of core-shell structured Ag₁Au@DT NCs. Initially, Ag(I)-thiolate complexes were formed after the mix of DT and AgNO₃; due to the lower redox potential of Ag⁺/Ag (0.8 eV) than AuCl₄⁻/Au (1.0 eV) and the fast etching kinetics of Ag(I)-thiolate (Yuan et al., 2013), Ag(I)-thiolate was not reduced in this synthetic protocols, and the subsequently added HAuCl₄ was reduced and protected by DT to form the metallic Au (0) core which stapled Ag(I)-thiolate and Au(I)-thiolate motifs together. Obviously, according to the well-accepted quantum size confinement effect of metal NCs, the short-wavelength emission at 440 nm cannot be answered by the surface nonmetal thiolate-Ag⁺ motif, and also we cannot understand why the emission at 630 nm was quenched with the increase of Ag⁺ and OH⁻ loading (Figures 1B, 3). Overall, our results of dual-emission of Au–Ag bimetal NCs mediated by Ag⁺ doping cannot support the quantum size confinement mechanics for the elucidation of origin of PL of metal NCs.

Not only the dosing of Ag⁺, but also the environmental pH of Ag₁Au@DT NCs shows a prominent impact on the photoluminescence emission. Based on the theoretical calculation of H⁺ concentration production by the reduction of HAuCl₄ precursor itself and exchange reaction of Au(I)/Ag(I) with thiol groups (-SH) during the synthesis of metal NCs, the amount of H⁺ in the stock solution can be precisely calculated to be 1.875 nmol (Eqs 1, 2, SI), so the solution of as made Au-Ag bimetallic NCs is acidic. Very interestingly, when varied amounts of NaOH solution (0, 0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2.0, and 2.25 nmol) were added, the dual-emissive Au-Ag NCs exhibited unique ratiometric pH-dependent emissions (Figure 3). As shown in Figure 3A, if the added amount of OH⁻ (0–1.75 nmol) is less than the calculated value (1.875 nmol), the red emission at 630 nm is almost unchanged, whereas the blue one (440 nm) was slightly but linearly increased with the increasing amount of OH⁻. Once more NaOH solution was added (>1.875 nmol), i.e., the solution is basic, the dual emissions of Au-Ag NCs exhibited the opposite trend: the red emission dramatically reduced and almost quenched, while the blue emission precisely increased two times, suggesting that the original red-emissive Au emitters due to the strong coordination interaction of OH⁻ with Au (Figure 5B) induce the formation of the blue emitters (Figure 5C) because of Au/Ag molar ratio of 1:1 (Figure 3A and inset). In addition, we observed that the blue and red emission can be reversibly recovered and quenched by a cycling titration of acid and base solution (Figure 3B), indicating the meta-stability of luminous centers (Figures 5B,C), and concomitantly suggesting that the dual-emission of Au-Ag metal NCs is not dependent on the nature of metal NCs (i.e., the PL of metal NCs is not dominated by quantum size confinement mechanics).

FIGURE 3

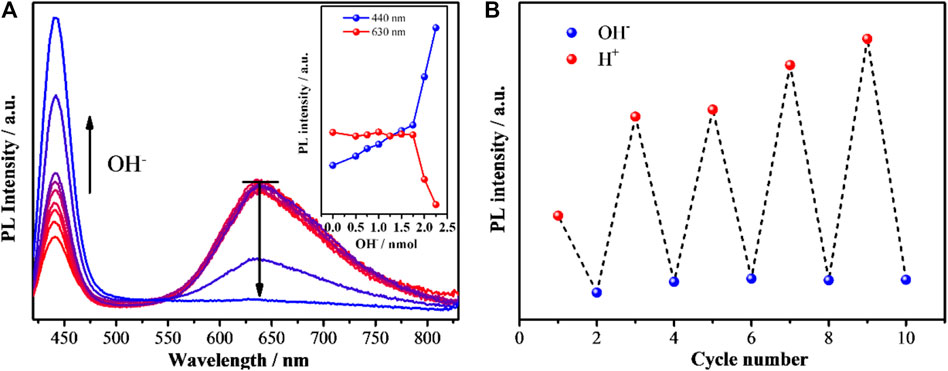

FIGURE 3. (A) Photoluminescence spectra of as-synthesized Ag₁Au@DT NCs after adding increasing amounts of 50 mm NaOH aqueous solution. Fluorescence spectra were measured at λ_ex = 320 nm. The inset displays the relationship between photoluminescence (440 nm and 630 nm) intensity and the added mole amount of NaOH. (B) PL intensity of Ag₁Au@DT NCs upon cyclic switching of the pH by adding 50 ul 50 mM NaOH and 50 ul 50 mm HCl aqueous solution.

Nevertheless, the origin of dual-emission band for Ag₁Au@DT NCs and its pH-dependent PL emission remains elusive. In most cases, the pH-dependent fluorescence properties were generally observed for ligand-protected metal NCs with AIE characteristics (Wu et al., 2019b; Chang et al., 2017; Su and Liu, 2017), in which the pH value was deemed to alter the charge state of the protected ligand and inhibited the aggregation of the Au(I)-thiolate staple due to the electrostatic repulsion. In our case, the pH variation cannot be a trigger of AIE for Ag₁Au@DT NCs because of the nonionic nature of alkylthiol (DT) protective ligands on the metal core surface. In the previous discussion, we precluded the possibility of PL emission due to the quantum size confinement effect of metal NCs, since the Ag⁺ doping and pH variation did not change the structure and size of Au NCs core based on the characterizations of TEM and XPS (Supplementary Figures S2, S3). Excitation spectrum of Au-Ag bimetal NCs gives more information on the nature of excited states of dual emissions (Figure 4A). Unexpectedly, the long-wavelength red emission at 630 nm shows a broad excitation band centered at ca. 320 nm, and with an increase of Ag⁺ dosing, its excitation intensity is gradually decreased and finally completely disappears, consistent with the evolution of PL emission (Figure 1B); the short-wavelength blue emission at 440 nm exhibits a long-wavelength excitation centered at 390 nm. Similar excited state energy levels with just a 0.70 eV energy gap accounts for the strong energy transfer between two emission centers of Au-Ag bimetal NCs (Figure 1A), which also precludes the LMCT and/or LMMCT model of ligand to metal (or metal NCs) charge transfer for the origin of PL emission with much higher theoretical energy levels (Yang et al., 2019a), since pH did not significantly affect the coordination states of thiolate ligands with metals.

FIGURE 4

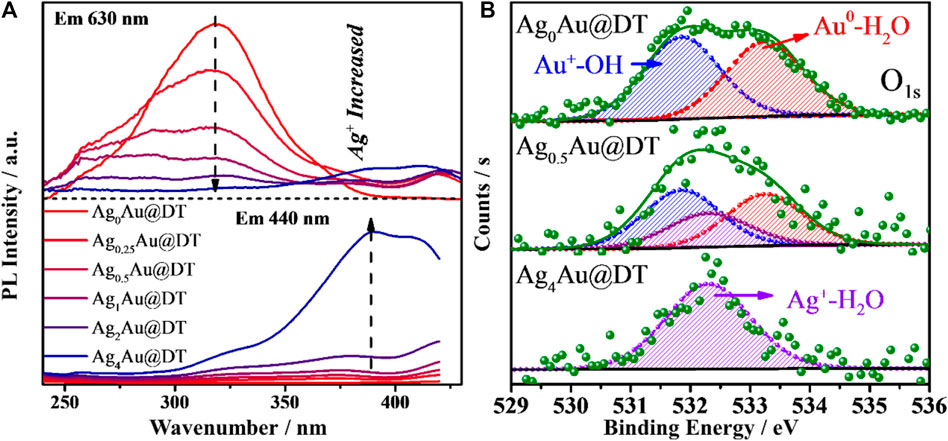

FIGURE 4. Excitation spectra (A) of Ag_xAu@DT NCs and XPS spectrum (B) of O 1s for Ag₀Au@DT and Ag_0.5Au@DT and Ag₄Au@DT NCs.

Very recently, after long-term and systematic investigation, using a combined experimental and computational approach, in particular with the help of steady and ultra-fast absorption and emission spectra, we unambiguously confirmed the existence of new interface states due to the spatial overlapping of p orbitals of oxygen atoms of structural water molecules (SWs) at the confined nanointerface of soft and hard nanocavity (Hu et al., 2020; Yang et al., 2020b; Yang et al., 2019a; Chen et al., 2014; Yang et al., 2017; Yang et al., 2019b; Yang et al., 2019c; Hu et al., 2021; Shan et al., 2021; Tao et al., 2021).It is called the p band intermediate state (PBIS) with π bonding features, and not only provides an ensemble of intermediate states for bright photoluminescence (PL) emission, but also acts as an alternative reaction channel for static electron transfer (Hu et al., 2021; Shan et al., 2021; Tao et al., 2021). Considering the ubiquitous properties of structural water molecules (SWs) at heterogeneous interface and the universality of our PBIS model, we performed the XPS measurement of O_1S to test the presence of species of SWs for three typical metal NCs of Ag₀Au@DT and Ag_0.5Au@DT and Ag₄Au@DT NCs (Figure 4B). As expected, mono-metal Ag₀Au@DT NCs show two distinct binding energies at 531.8 and 533.2 eV with molar ratios close to 1:1 (Figure 4B, top and Supplementary Table S3), which was assigned to hydroxide and water molecules chemically adsorbed on the Au(I) ion and Au atoms, respectively, indicating the presence of SWs {OH⁻∙H₂O} at the metal core surface (Figure 5B). With the increase of Ag⁺ dosing in the synthesis, the content of SWs interacting with Au atoms was significantly decreased, while a new chemically adsorbed species containing O atoms of Ag_0.5Au@DT was produced at 532.3 eV, which was assigned to water coordinated with Ag⁺ (Figure 4B, middle). If the Au core was completely covered by a thiolate-Ag⁺ motif shell, only Ag⁺-H₂O complexes were observed at 532.3 eV (Yang et al., 2021) (Figure 4B, bottom and Figure 5C).

FIGURE 5

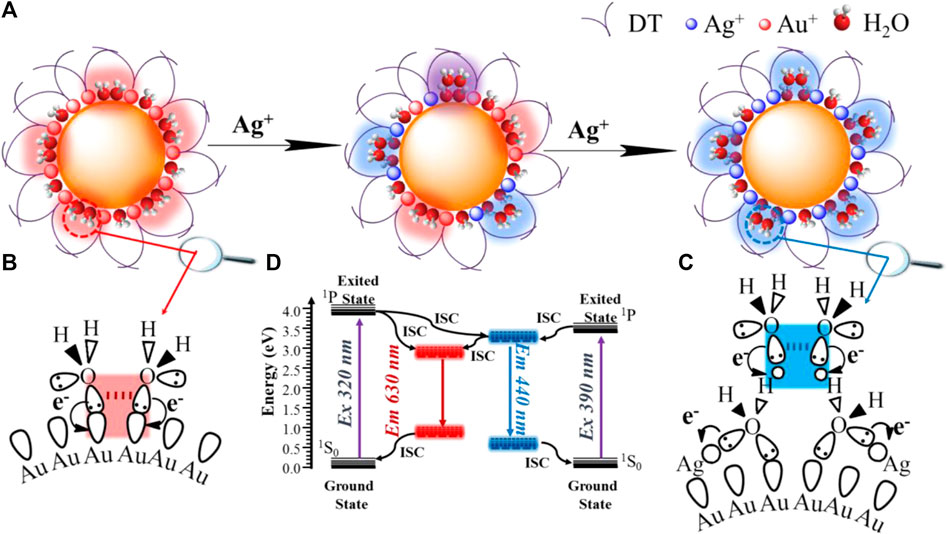

FIGURE 5. Schematic illustration of structural water molecules (SWs) confined at nanoscale interface of Au–Ag bimetal NCs packed by protective ligands emit bright dual-photoluminescence (A), the red emissive SWs strongly binding on the single metal Au NCs (B), the blue emissive SWs weakly binding on the fully core-shell structured Au-Ag bimetal Au NCs though water bridge which strongly coordinated with Ag⁺(C), and energy diagram of dual emissions of Au-Ag bimetal NCs (D).

It is important to note that, in our previous report, after the vacuum evacuation, due to the removal of SWs with weak interactions, the blue emission at 440 nm of Ag NCs was quenched, and if trace amounts of water was re-added, the blue emission could be recovered (Yang et al., 2021). This probably accounts for why Ag₄Au@DT NCs only captured one signal of chemically adsorbed water molecules with Ag⁺ at 532.3 eV owing to high vacuum treatment during the XPS measurement, indicating the blue emissive SWs are weakly bonded on the fully core-shell structured Au-Ag bimetal Au NCs though water bridge, which strongly coordinated with Ag⁺ (Figure 5C). Thus, PL properties strongly depend on the binding mode of SWs. Only the SWs with medium binding strength to metal emit the long-wavelength emission, while the SWs strongly coordinated with metals do not emit the color due to the limitation of spatial configuration of p oribtals of O atoms in the SWs, i.e., {Ag⁺ H₂O} dimers, but weakly bound SWs by hydrogen-Bonding on the {Ag⁺ H₂O} dimers could emit the short-wavelength blue emission (Figure 5C). This also answers the origin of unique ratiometric pH-dependent dual-emissions (Figure 3). Under acid conditions, the hydroxide adsorbed on the Au–Ag bimetal NCs was neutralized, and only red-emission was observed. Under basic conditions, the first layer of SWs weakly interacted with Au(I) and Au (0) were replaced by hydroxide groups with stronger coordination ability to metals, which can be used as new immobilized sites for hosting SWs with weak interaction by H-bonding interaction (the blue emissive SWs with less stability), consequently the blue emission was intensified (Figure 3A). Obviously, the overlapping degree of two O atoms in the varied SWs, i.e., the stability of two type of SWs as emitters, determines the abnormal relation of long-wavelength emission with short-wavelength excitation (Figures 4A, 5) and their varied lifetimes of dual-emissions (Figure 1D), and this also answers the physical origins of two adsorption bands at 350 and 390 nm with corresponding excitation bands at 390 and 320 nm with π→π* transition characteristic due to the space interactions of p orbitals of two neighboring O atoms. The presence of SWs with the varied stability and multiple intermediate states at nanoscale interface probably answers the promoting role of alkali metal ion and hydroxyl group on the electro-catalytic reaction of water splitting (HER and OER), the selective reduction of CO₂ and α, β-unsaturated aldehydes, and the water-gas shift reaction (WGSR) by providing the alternative channels for concerted proton and electron transfer (Hu et al., 2021; Shan et al., 2021; Tao et al., 2021). In addition, due to the strong overlapping of p orbitals between two oxygen atoms in the SWs at confined nanoscale interface, the polarity of O-H bonds in individual water molecules is significantly decreased, even close to zero, which accounts for the anomalously low dielectric constant of water confined under extreme confinement (Fumagalli et al., 2018; Coudert, 2020; Coudert et al., 2021; Geim, 2021).

The diagnostic experiments through dosing with S^2- anions (Supplementary Figure S4) demonstrated that the blue emission of Ag₁Au@DT NCs was gradually quenched with the increased dosing amount S^2- due to its strong capacity to precipitate Ag⁺. Obviously, the removal of surface Ag⁺ induces the loss of SWs confined on the thiolate-Ag⁺ motifs, resulting in the quenching of blue emissions. Even though the red-emission was also reduced, its emission could be easily distinguished due to relatively strong affinity of SWs with Au(I) and Au (0) (Supplementary Figure S4 and inset). The weakening of red-emission is probably attributed to the covering of emitters due to the deposition of AgS precipitates. Indeed, the surface thiol ligand plays a role in creating the nano-microenvironment with hydrophobicity for hosting the SWs. This was verified by changing the DT concentration during synthesis to influence the dual-emissions (Supplementary Figure S5). At low concentrations of DT ligands (less than 2.0 equivalent to metal), the dual-emissions were hardly distinguished (Supplementary Figure S6, inset). Only above this critical value were the dual-emissions of Ag–Ag bimetal NCs boosted with more feeding of DT molecules, since the dense packing of DT on the metal core creates a more hydrophobic environment, which strengthens the stability of SWs (or stronger overlapping of p orbitals of O atoms by space interactions). Thus, we clearly addressed that the emitter of dual-emissive Au–Ag bimetal NCs are coming from the SWs with varied stability (Figures 5B,C), instead of metal NCs or AIE of surface protective ligands (Dou et al., 2014b; Wu et al., 2020).

If we consider SWs confined at the nanoscale interface as emitters, the reported abnormal PL properties of metal NCs could be easily elucidated, including solvent effect, pH-dependent behavior, surface ligand effect, multiple emitter centers, and large-Stoke’s shift, (De Cremer et al., 2009; Wu and Jin, 2010; Díez et al., 2012; Luo et al., 2012; AbdulHalim et al., 2014; Jia et al., 2014; Lin et al., 2014; Coutiño-Gonzalez et al., 2015; Wu et al., 2015; Fenwick et al., 2016; Yang et al., 2017; Aghakhani et al., 2018; Grandjean et al., 2018; Yang et al., 2019b; Hu et al., 2020). Herein, using our theory, taking an example of abnormal anti-galvanic replacement reaction approach for the synthesis of thiolate-protected Ag–Au NCs could be easily explained (Choi et al., 2010; Wu, 2012). Classical galvanic replacement reaction involves the spontaneous reduction of a noble-metal cationic by a less noble metal in solution driven by the difference in redox potentials (Ag + Au⁺→Ag⁺ + Au) (Udayabhaskararao et al., 2012; Gan et al., 2018), while the anti-galvanic replacement reaction means an inverse process (Ag⁺ + Au→Ag + Au⁺), which really subverted our traditional cognitive method. According to our model, in fact, this reaction did not happen through anti-galvanic replacement reaction. But, the intermediate states formed by SWs with the overlapping of p orbitals of O atoms provide the alternative channels for the reverse electron transfer between Au and Ag⁺, where the lost electron form Au (0) promotes the reduction of H⁺ (or adsorbed CO₂ from air), while the oxidation of OH⁻ transfer the electron to Ag⁺, yielding the Ag (0) (Shan et al., 2021). The net reaction is water splitting with undistinguished production of H₂ and O₂ at nanoscale interface in the open system, which also answers the origin of bimetal NPs catalyzed water splitting. But, the experimental phenomenon of anti-galvanic replacement is completely right (Jeon et al., 2013; Jiao et al., 2019; Cammarata et al., 2021). Indeed, our proposed model of SWs as emitters with transient states benefiting electron transfer provides a reliable explanation of why the Ag NCs or NPs are very easy to be oxidized under air atmosphere. The discovery of these dynamic interface states also provides a completely new insight to understand the nature of heterogeneous catalysis and/or interface state (bonding), beyond the conventional metal-centered d band theory. (Hu et al., 2021; Shan et al., 2021; Tao et al., 2021; Medford et al., 2015; Liu et al., 2018)^]

Conclusion

In summary, bimetallic Ag-Au@DT NCs with well-resolved dual-emissions (440 nm and 630 nm) were successfully achieved through a facial one-pot approach. The newly boosted blue emission is the consequence of the doping of silver atom as Ag(I)-thiolate into the staple motif site of Au NCs, which is confirmed by the XPS and TEM characterization. Very interestingly, Ag₁Au@DT NCs can sense a reversible dual-emission signal change in the environmental pH, which enabled it as a potential ratiometric nanoprobe for pH sensing. The combined characterizations of absorption, excitation, and emission spectrum confirm that the true emitters of dual-emission of Ag₁Au@DT NCs are structural water molecules (SWs) confined on the surface of metal NCs core with varied stability. This accounts for why the PL properties of metal NCs are extremely susceptible to the surrounding microenvironments of SWs, such as the dosing of Ag⁺, pH, and packing mode of surface ligands. Since the adsorption of SWs at the nanoscale interface is a ubiquitous phenomenon in nature, the concept of “SWs as emitters” could be used as a base model to elucidate the origin of PL of other low-dimensioned quantum dots, such as carbon, semiconductor, and perovskites type materials. In addition, the concept of “surface electronic states” formed by space overlapping of p orbitals of O atoms in SWS could act as an alternative channel for concerted electron and proton transfer, which provide new insights for an in-depth understanding of heterogeneous catalysis and/or the nature of interface states (or interfacial bonding) (Hu et al., 2020; Hu et al., 2021; Shan et al., 2021; Tao et al., 2021).

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author Contributions

BP performed the main experiment. KZ conceived and directed the project. KZ, BP, and BQS analyzed all the data and drew the figures. KZ and BP wrote the manuscript with the help of BQS. LXZ, PYW, JFZ, MD, and HDS performed other characterizations of SEM and TEM. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the NSFC (22172051, 21872053 and 21573074), the Science and Technology Commission of Shanghai Municipality (19520711400), the Open Project Program of Academician and Expert Workstation, Shanghai Curui Low-Carbon Energy Technology Co., Ltd. and the JORISS program.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

KZ thanks ENS de Lyon for a temporary position as an invited professor in France.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2021.756993/full#supplementary-material

References

AbdulHalim, L. G., Kothalawala, N., Sinatra, L., Dass, A., and Bakr, O. M. (2014). Neat and Complete: Thiolate-Ligand Exchange on a Silver Molecular Nanoparticle. J. Am. Chem. Soc. 136, 15865–15868. doi:10.1021/ja508860b

CrossRef Full Text | Google Scholar

Aghakhani, S., Grandjean, D., Baekelant, W., Coutiño-Gonzalez, E., Fron, E., Kvashnina, K., et al. (2018). Atomic Scale Reversible Opto-Structural Switching of Few Atom Luminescent Silver Clusters Confined in LTA Zeolites. Nanoscale 10, 11467–11476. doi:10.1039/c8nr03222j

PubMed Abstract | CrossRef Full Text | Google Scholar

Bertorelle, F., Russier-Antoine, I., Calin, N., Comby-Zerbino, C., Bensalah-Ledoux, A., Guy, S., et al. (2017). Au10(SG)10: A Chiral Gold Catenane Nanocluster with Zero Confined Electrons. Optical Properties and First-Principles Theoretical Analysis. J. Phys. Chem. Lett. 8, 1979–1985. doi:10.1021/acs.jpclett.7b00611

PubMed Abstract | CrossRef Full Text | Google Scholar

Bonacic-Koutecky, V., Kulesza, A., Gell, L., Mitric, R., Antoine, R., Bertorelle, F., et al. (2012). Silver Cluster-Biomolecule Hybrids: from Basics towards Sensors. Phys. Chem. Chem. Phys. 14, 9282–9290.

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, X., Hu, W., Xu, S., Yang, D., Chen, M., Shu, M., et al. (2020). Structural Relaxation Enabled by Internal Vacancy Available in a 24-Atom Gold Cluster Reinforces Catalytic Reactivity. J. Am. Chem. Soc. 142, 4141–4153. doi:10.1021/jacs.9b07761

PubMed Abstract | CrossRef Full Text | Google Scholar

Cai, X., Saranya, G., Shen, K., Chen, M., Si, R., Ding, W., et al. (2019). Reversible Switching of Catalytic Activity by Shuttling an Atom into and Out of Gold Nanoclusters. Angew. Chem. Int. Ed. 58, 9964–9968. doi:10.1002/anie.201903853

PubMed Abstract | CrossRef Full Text | Google Scholar

Cammarata, M., Zerdane, S., Balducci, L., Azzolina, G., Mazerat, S., Exertier, C., et al. (2021). Charge Transfer Driven by Ultrafast Spin Transition in a CoFe Prussian Blue Analogue. Nat. Chem. 13, 10–14. doi:10.1038/s41557-020-00597-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Chakraborty, I., and Pradeep, T. (2017). Atomically Precise Clusters of Noble Metals: Emerging Link between Atoms and Nanoparticles. Chem. Rev. 117, 8208–8271. doi:10.1021/acs.chemrev.6b00769

PubMed Abstract | CrossRef Full Text | Google Scholar

Chang, H.-Y., Tseng, Y.-T., Yuan, Z., Chou, H.-L., Chen, C.-H., Hwang, B.-J., et al. (2017). The Effect of Ligand-Ligand Interactions on the Formation of Photoluminescent Gold Nanoclusters Embedded in Au(i)-Thiolate Supramolecules. Phys. Chem. Chem. Phys. 19, 12085–12093. doi:10.1039/c7cp01915g

PubMed Abstract | CrossRef Full Text | Google Scholar

Chen, Y., Yang, T., Pan, H., Yuan, Y., Chen, L., Liu, M., et al. (2014). Photoemission Mechanism of Water-Soluble Silver Nanoclusters: Ligand-To-Metal-Metal Charge Transfer vs strong Coupling between Surface Plasmon and Emitters. J. Am. Chem. Soc. 136, 1686–1689. doi:10.1021/ja407911b

CrossRef Full Text | Google Scholar

Choi, J.-P., Stiles, R. L., Balasubramanian, R., Douglas, A. D., Crowe, M. C., et al. (2010). Reactivity of [Au25(SCH2CH2Ph)18]1− Nanoparticles with Metal Ions. J. Phys. Chem. C 114, 15890–15896. doi:10.1021/jp9101114

CrossRef Full Text | Google Scholar

Coudert, F.-X., Boutin, A., and Fuchs, A. H. (2021). Open Questions on Water Confined in Nanoporous Materials. Commun. Chem. 4. doi:10.1038/s42004-021-00544-9

CrossRef Full Text | Google Scholar

Coudert, F.-X. (2020). Water Adsorption in Soft and Heterogeneous Nanopores. Acc. Chem. Res. 53, 1342–1350. doi:10.1021/acs.accounts.0c00215

PubMed Abstract | CrossRef Full Text | Google Scholar

Coutiño-Gonzalez, E., Baekelant, W., Grandjean, D., Roeffaers, M. B. J., Fron, E., Aghakhani, M. S., et al. (2015). Thermally Activated LTA(Li)-Ag Zeolites with Water-Responsive Photoluminescence Properties. J. Mater. Chem. C 3, 11857–11867. doi:10.1039/c5tc02723c

CrossRef Full Text | Google Scholar

De Cremer, G., Coutiño-Gonzalez, E., Roeffaers, M. B. J., Moens, B., Ollevier, J., Van der Auweraer, M., et al. (2009). Characterization of Fluorescence in Heat-Treated Silver-Exchanged Zeolites. J. Am. Chem. Soc. 131, 3049–3056. doi:10.1021/ja810071s

CrossRef Full Text | Google Scholar

Díez, I., Kanyuk, M. I., Demchenko, A. P., Walther, A., Jiang, H., Ikkala, O., et al. (2012). Blue, green and Red Emissive Silver Nanoclusters Formed in Organic Solvents. Nanoscale 4, 4434–4437. doi:10.1039/c2nr30642e

PubMed Abstract | CrossRef Full Text | Google Scholar

Díez, I., and Ras, R. H. A. (2011). Fluorescent Silver Nanoclusters. Nanoscale 3, 1963–1970. doi:10.1039/c1nr00006c

PubMed Abstract | CrossRef Full Text | Google Scholar

Dou, X., Yuan, X., Yao, Q., Luo, Z., Zheng, K., and Xie, J. (2014). Facile Synthesis of Water-Soluble Au25-xAgx Nanoclusters Protected by Mono- and Bi-thiolate Ligands. Chem. Commun. 50, 7459–7462. doi:10.1039/c4cc02261k

PubMed Abstract | CrossRef Full Text | Google Scholar

Dou, X., Yuan, X., Yu, Y., Luo, Z., Yao, Q., Leong, D. T., et al. (2014). Lighting up Thiolated Au@Ag Nanoclusters via Aggregation-Induced Emission. Nanoscale 6, 157–161. doi:10.1039/c3nr04490d

PubMed Abstract | CrossRef Full Text | Google Scholar

Fenwick, O., Coutiño-Gonzalez, E., Grandjean, D., Baekelant, W., Richard, F., Bonacchi, S., et al. (2016). Tuning the Energetics and Tailoring the Optical Properties of Silver Clusters Confined in Zeolites. Nat. Mater 15, 1017–1022. doi:10.1038/nmat4652

PubMed Abstract | CrossRef Full Text | Google Scholar

Fumagalli, L., Esfandiar, A., Fabregas, R., Hu, S., Ares, P., Janardanan, A., et al. (2018). Anomalously Low Dielectric Constant of Confined Water. Science 360, 1339–1342. doi:10.1126/science.aat4191

PubMed Abstract | CrossRef Full Text | Google Scholar

Gan, Z., Xia, N., and Wu, Z. (2018). Discovery, Mechanism, and Application of Antigalvanic Reaction. Acc. Chem. Res. 51, 2774–2783. doi:10.1021/acs.accounts.8b00374

PubMed Abstract | CrossRef Full Text | Google Scholar

Geim, A. K. (2021). Exploring Two-Dimensional Empty Space. Nano Lett. 21, 6356–6358. doi:10.1021/acs.nanolett.1c02591

PubMed Abstract | CrossRef Full Text | Google Scholar

Grandjean, D., Coutiño-Gonzalez, E., Cuong, N. T., Fron, E., Baekelant, W., Aghakhani, S., et al. (2018). Origin of the Bright Photoluminescence of Few-Atom Silver Clusters Confined in LTA Zeolites. Science 361, 686–690. doi:10.1126/science.aaq1308

PubMed Abstract | CrossRef Full Text | Google Scholar

Hirai, H., Ito, S., Takano, S., Koyasu, K., and Tsukuda, T. (2020). Ligand-protected Gold/silver Superatoms: Current Status and Emerging Trends. Chem. Sci. 11, 12233–12248. doi:10.1039/d0sc04100a

PubMed Abstract | CrossRef Full Text | Google Scholar

Hirai, H., Takano, S., and Tsukuda, T. (2019). Synthesis of Trimetallic (HPd@M2Au8)3+ Superatoms (M = Ag, Cu) via Hydride-Mediated Regioselective Doping to (Pd@Au8)2+. ACS omega 4, 7070–7075. doi:10.1021/acsomega.9b00575

PubMed Abstract | CrossRef Full Text | Google Scholar

Hu, X.-D., Shan, B.-Q., Tao, R., Yang, T.-Q., and Zhang, K. (2021). Interfacial Hydroxyl Promotes the Reduction of 4-Nitrophenol by Ag-Based Catalysts Confined in Dendritic Mesoporous Silica Nanospheres. J. Phys. Chem. C 125, 2446–2453. doi:10.1021/acs.jpcc.0c10441

CrossRef Full Text | Google Scholar

Hu, X.-D., Yang, T., Shan, B., Peng, B., and Zhang, K. (2020). Topological Excitation of Singly Hydrated Hydroxide Complex in Confined Sub-nanospace for Bright Color Emission and Heterogeneous Catalysis. ChemRxiv. doi:10.26434/chemrxiv.13107548.v1

CrossRef Full Text | Google Scholar

Huang, X., Song, J., Yung, B. C., Huang, X., Xiong, Y., and Chen, X. (2018). Ratiometric Optical Nanoprobes Enable Accurate Molecular Detection and Imaging. Chem. Soc. Rev. 47, 2873–2920. doi:10.1039/c7cs00612h

PubMed Abstract | CrossRef Full Text | Google Scholar

Jadzinsky, P. D., Calero, G., Ackerson, C. J., Bushnell, D. A., and Kornberg, R. D. (2007). Structure of a Thiol Monolayer-Protected Gold Nanoparticle at 1.1 A Resolution. Science 318, 430–433. doi:10.1126/science.1148624

PubMed Abstract | CrossRef Full Text | Google Scholar

Jana, J., Aditya, T., and Pal, T. (2019). Achievement of Silver-Directed Enhanced Photophysical Properties of Gold Nanoclusters. New J. Chem. 43, 7074–7082. doi:10.1039/c9nj00977a

CrossRef Full Text | Google Scholar

Jeon, I.-R., Calancea, S., Panja, A., Piñero Cruz, D. M., Koumousi, E. S., Dechambenoit, P., et al. (2013). Spin Crossover or Intra-molecular Electron Transfer in a Cyanido-Bridged Fe/Co Dinuclear Dumbbell: a Matter of State. Chem. Sci. 4, 2463. doi:10.1039/c3sc22069a

CrossRef Full Text | Google Scholar

Jia, X., Li, J., and Wang, E. (2014). Supramolecular Self-Assembly of Morphology-dependent Luminescent Ag Nanoclusters. Chem. Commun. 50, 9565–9568. doi:10.1039/c4cc03913k

PubMed Abstract | CrossRef Full Text | Google Scholar

Jiao, C. Q., Meng, Y. S., Yu, Y., Jiang, W. J., Wen, W., Oshio, H., et al. (2019). Effect of Intermolecular Interactions on Metal‐to‐Metal Charge Transfer: A Combined Experimental and Theoretical Investigation. Angew. Chem. Int. Ed. 58, 17009–17015. doi:10.1002/anie.201909495

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, R. (2010). Quantum Sized, Thiolate-Protected Gold Nanoclusters. Nanoscale 2, 343–362. doi:10.1039/b9nr00160c

PubMed Abstract | CrossRef Full Text | Google Scholar

Jin, R., Zeng, C., Zhou, M., and Chen, Y. (2016). Atomically Precise Colloidal Metal Nanoclusters and Nanoparticles: Fundamentals and Opportunities. Chem. Rev. 116, 10346–10413. doi:10.1021/acs.chemrev.5b00703

PubMed Abstract | CrossRef Full Text | Google Scholar

Kang, X., Li, Y., Zhu, M., and Jin, R. (2020). Atomically Precise alloy Nanoclusters: Syntheses, Structures, and Properties. Chem. Soc. Rev. 49, 6443–6514. doi:10.1039/c9cs00633h

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumara, C., and Dass, A. (2012). AuAg alloy Nanomolecules with 38 Metal Atoms. Nanoscale 4, 4084–4086. doi:10.1039/c2nr11781a

PubMed Abstract | CrossRef Full Text | Google Scholar

Kumara, C., and Dass, A. (2011). (AuAg)144(SR)60 alloy Nanomolecules. Nanoscale 3, 3064–3067. doi:10.1039/c1nr10429b

PubMed Abstract | CrossRef Full Text | Google Scholar

Lee, D., Donkers, R. L., Wang, G., Harper, A. S., and Murray, R. W. (2004). Electrochemistry and Optical Absorbance and Luminescence of Molecule-like Au38Nanoparticles. J. Am. Chem. Soc. 126, 6193–6199. doi:10.1021/ja049605b

CrossRef Full Text | Google Scholar

Lei, Z., Wan, X.-K., Yuan, S.-F., Guan, Z.-J., and Wang, Q.-M. (2018). Alkynyl Approach toward the Protection of Metal Nanoclusters. Acc. Chem. Res. 51, 2465–2474. doi:10.1021/acs.accounts.8b00359

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, G., Sui, X., Cai, X., Hu, W., Liu, X., Chen, M., et al. (2021). Precisely Constructed Silver Active Sites in Gold Nanoclusters for Chemical Fixation of CO 2. Angew. Chem. Int. Ed. 60, 10573–10576. doi:10.1002/anie.202100071

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, J., Nasaruddin, R. R., Feng, Y., Yang, J., Yan, N., and Xie, J. (2016). Tuning the Accessibility and Activity of Au25 (SR)18 Nanocluster Catalysts through Ligand Engineering. Chem. Eur. J. 22, 14816–14820. doi:10.1002/chem.201603247

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, W., Liu, C., Abroshan, H., Ge, Q., Yang, X., Xu, H., et al. (2016). Catalytic CO Oxidation Using Bimetallic MxAu25-X Clusters: A Combined Experimental and Computational Study on Doping Effects. J. Phys. Chem. C 120, 10261–10267. doi:10.1021/acs.jpcc.6b00793

CrossRef Full Text | Google Scholar

Lin, H., Imakita, K., and Fujii, M. (2014). Reversible Emission Evolution from Ag Activated Zeolite Na-A upon Dehydration/hydration. Appl. Phys. Lett. 105, 211903. doi:10.1063/1.4902530

CrossRef Full Text | Google Scholar

Liu, F., Bing, T., Shangguan, D., Zhao, M., and Shao, N. (2016). Ratiometric Fluorescent Biosensing of Hydrogen Peroxide and Hydroxyl Radical in Living Cells with Lysozyme-Silver Nanoclusters: Lysozyme as Stabilizing Ligand and Fluorescence Signal Unit. Anal. Chem. 88, 10631–10638. doi:10.1021/acs.analchem.6b02995

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, T., Guo, M., Orthaber, A., Lomoth, R., Lundberg, M., Ott, S., et al. (2018). Accelerating Proton-Coupled Electron Transfer of Metal Hydrides in Catalyst Model Reactions. Nat. Chem. 10, 881–887.

PubMed Abstract | CrossRef Full Text | Google Scholar

Liu, X., Yuan, J., Yao, C., Chen, J., Li, L., Bao, X., et al. (2017). Crystal and Solution Photoluminescence of MAg24(SR)18 (M = Ag/Pd/Pt/Au) Nanoclusters and Some Implications for the Photoluminescence Mechanisms. J. Phys. Chem. C 121, 13848–13853. doi:10.1021/acs.jpcc.7b01730

CrossRef Full Text | Google Scholar

Lu, Y., and Chen, W. (2012). Sub-nanometre Sized Metal Clusters: from Synthetic Challenges to the Unique Property Discoveries. Chem. Soc. Rev. 41 (9), 3594. doi:10.1039/c2cs15325d

PubMed Abstract | CrossRef Full Text | Google Scholar

Luo, Z., Yuan, X., Yu, Y., Zhang, Q., Leong, D. T., Lee, J. Y., et al. (2012). From Aggregation-Induced Emission of Au(I)-thiolate Complexes to Ultrabright Au(0)@Au(I)-thiolate Core-Shell Nanoclusters. J. Am. Chem. Soc. 134, 16662–16670. doi:10.1021/ja306199p

CrossRef Full Text | Google Scholar

Luo, Z., Zheng, K., and Xie, J. (2014). Engineering Ultrasmall Water-Soluble Gold and Silver Nanoclusters for Biomedical Applications. Chem. Commun. 50, 5143–5155. doi:10.1039/c3cc47512c

PubMed Abstract | CrossRef Full Text | Google Scholar

Lv, H., Sun, L., Feng, J., Na, J., Xu, D., Yamauchi, Y., et al. (2020). Plasmonic Mesoporous AuAg Nanospheres with Controllable Nanostructures. Chem. Commun. 56, 9679–9682. doi:10.1039/d0cc02524k

PubMed Abstract | CrossRef Full Text | Google Scholar

Lv, H., Xu, D., Henzie, J., Feng, J., Lopes, A., Yamauchi, Y., et al. (2019). Mesoporous Gold Nanospheres via Thiolate-Au(i) Intermediates. Chem. Sci. 10, 6423–6430. doi:10.1039/c9sc01728c

PubMed Abstract | CrossRef Full Text | Google Scholar

Lv, H., Xu, D., Sun, L., and Liu, B. (2020). Surfactant Design Strategy for One-Pot Seedless Synthesis of Hollow Mesoporous AuAg Alloy Nanospheres. J. Phys. Chem. Lett. 11, 5777–5784. doi:10.1021/acs.jpclett.0c01577

PubMed Abstract | CrossRef Full Text | Google Scholar

Medford, A. J., Vojvodic, A., Hummelshøj, J. S., Voss, J., Abild-Pedersen, F., Studt, F., et al. (2015). From the Sabatier Principle to a Predictive Theory of Transition-Metal Heterogeneous Catalysis. J. Catal. 328, 36–42. doi:10.1016/j.jcat.2014.12.033

CrossRef Full Text | Google Scholar

Musnier, B., Wegner, K. D., Comby-Zerbino, C., Trouillet, V., Jourdan, M., Häusler, I., et al. (2019). High Photoluminescence of Shortwave Infrared-Emitting Anisotropic Surface Charged Gold Nanoclusters. Nanoscale 11, 12092–12096. doi:10.1039/c9nr04120f

PubMed Abstract | CrossRef Full Text | Google Scholar

Negishi, Y., Iwai, T., and Ide, M. (2010). Continuous Modulation of Electronic Structure of Stable Thiolate-Protected Au25 Cluster by Ag Doping. Chem. Commun. 46, 4713–4715. doi:10.1039/c0cc01021a

PubMed Abstract | CrossRef Full Text | Google Scholar

Negishi, Y., Nobusada, K., and Tsukuda, T. (2005). Glutathione-Protected Gold Clusters Revisited: Bridging the Gap between Gold(I)−Thiolate Complexes and Thiolate-Protected Gold Nanocrystals. J. Am. Chem. Soc. 127, 5261–5270. doi:10.1021/ja042218h

CrossRef Full Text | Google Scholar

Russier-Antoine, I., Bertorelle, F., Vojkovic, M., Rayane, D., Salmon, E., Jonin, C., et al. (2014). Non-linear Optical Properties of Gold Quantum Clusters. The Smaller the Better. Nanoscale 6, 13572–13578. doi:10.1039/c4nr03782k

PubMed Abstract | CrossRef Full Text | Google Scholar

Schaaff, T. G., Shafigullin, M. N., Khoury, J. T., Vezmar, I., Whetten, R. L., Cullen, W. G., et al. (1997). Isolation of Smaller Nanocrystal Au Molecules: Robust Quantum Effects in Optical Spectra. J. Phys. Chem. B 101, 7885–7891. doi:10.1021/jp971438x

CrossRef Full Text | Google Scholar

Shan, B.-Q., Zhou, J.-F., Ding, M., Hu, X.-D., and Zhang, K. (2021). Surface Electronic States Mediate Concerted Electron and Proton Transfer at Metal Nanoscale Interfaces for Catalytic Hydride Reduction of -NO2 to -NH2. Phys. Chem. Chem. Phys. 23, 12950–12957. doi:10.1039/d1cp01792f

PubMed Abstract | CrossRef Full Text | Google Scholar

Su, X., and Liu, J. (2017). pH-Guided Self-Assembly of Copper Nanoclusters with Aggregation-Induced Emission. ACS Appl. Mater. Inter. 9, 3902–3910. doi:10.1021/acsami.6b13914

PubMed Abstract | CrossRef Full Text | Google Scholar

Sun, J., and Jin, Y. (2014). Fluorescent Au Nanoclusters: Recent Progress and Sensing Applications. J. Mater. Chem. C 2, 8000–8011. doi:10.1039/c4tc01489h

CrossRef Full Text | Google Scholar

Takano, S., Hirai, H., Muramatsu, S., and Tsukuda, T. (2018). Hydride-Mediated Controlled Growth of a Bimetallic (Pd@Au8)2+ Superatom to a Hydride-Doped (HPd@Au10)3+ Superatom. J. Am. Chem. Soc. 140, 12314–12317. doi:10.1021/jacs.8b06783

PubMed Abstract | CrossRef Full Text | Google Scholar

Tao, R., Shan, B.-Q., Sun, H.-D., Ding, M., Xue, Q.-S., Jiang, J.-G., et al. (2021). Surface Molecule Manipulated Pt/TiO2 Catalysts for Selective Hydrogenation of Cinnamaldehyde. J. Phys. Chem. C 125, 13304–13312. doi:10.1021/acs.jpcc.1c03026

CrossRef Full Text | Google Scholar

Tsunoyama, H., Ichikuni, N., Sakurai, H., and Tsukuda, T. (2009). Effect of Electronic Structures of Au Clusters Stabilized by Poly(N-Vinyl-2-Pyrrolidone) on Aerobic Oxidation Catalysis. J. Am. Chem. Soc. 131, 7086–7093. doi:10.1021/ja810045y

CrossRef Full Text | Google Scholar

Udayabhaskararao, T., Sun, Y., Goswami, N., Pal, S. K., Balasubramanian, K., and Pradeep, T. (2012). Ag7Au6: a 13-atom alloy Quantum Cluster. Angew. Chem. Int. Ed. 51, 2155–2159. doi:10.1002/anie.201107696

PubMed Abstract | CrossRef Full Text | Google Scholar

Ungor, D., Szilágyi, I., and Csapó, E. (2021). Yellow-emitting Au/Ag Bimetallic Nanoclusters with High Photostability for Detection of Folic Acid. J. Mol. Liquids 338, 116695. doi:10.1016/j.molliq.2021.116695

CrossRef Full Text | Google Scholar

Walter, M., Akola, J., Lopez-Acevedo, O., Jadzinsky, P. D., Calero, G., Ackerson, C. J., et al. (2008). A Unified View of Ligand-Protected Gold Clusters as Superatom Complexes. Proc. Natl. Acad. Sci. 105, 9157–9162. doi:10.1073/pnas.0801001105

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, S., Meng, X., Das, A., Li, T., Song, Y., Cao, T., et al. (2014). A 200-fold Quantum Yield Boost in the Photoluminescence of Silver-Doped AgxAu25−xNanoclusters: The 13 Th Silver Atom Matters. Angew. Chem. Int. Ed. 53, 2376–2380. doi:10.1002/anie.201307480

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y., Lei, L., Liu, E., Cheng, Y., and Xu, S. (2021). Constructing Highly Sensitive Ratiometric Nanothermometers Based on Indirectly Thermally Coupled Levels. Chem. Commun. 57, 9092–9095. doi:10.1039/d1cc03407c

PubMed Abstract | CrossRef Full Text | Google Scholar

Wang, Y., Lei, L., Ye, R., Jia, G., Hua, Y., Deng, D., et al. (2021). Integrating Positive and Negative Thermal Quenching Effect for Ultrasensitive Ratiometric Temperature Sensing and Anti-counterfeiting. ACS Appl. Mater. Inter. 13, 23951–23959. doi:10.1021/acsami.1c05611

CrossRef Full Text | Google Scholar

Wu, M., Zhao, J., Chevrier, D. M., Zhang, P., and Liu, L. (2019). Luminescent Au(I)-Thiolate Complexes through Aggregation-Induced Emission: The Effect of pH during and Post Synthesis. J. Phys. Chem. C 123, 6010–6017. doi:10.1021/acs.jpcc.8b11716

CrossRef Full Text | Google Scholar

Wu, Z. (2012). Anti-galvanic Reduction of Thiolate-Protected Gold and Silver Nanoparticles. Angew. Chem. Int. Ed. 51, 2934–2938. doi:10.1002/anie.201107822

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, Z., Du, Y., Liu, J., Yao, Q., Chen, T., Cao, Y., et al. (2019). Aurophilic Interactions in the Self‐Assembly of Gold Nanoclusters into Nanoribbons with Enhanced Luminescence. Angew. Chem. Int. Ed. 58, 8139–8144. doi:10.1002/anie.201903584

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, Z., and Jin, R. (2010). On the Ligand's Role in the Fluorescence of Gold Nanoclusters. Nano Lett. 10, 2568–2573. doi:10.1021/nl101225f

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, Z., Liu, J., Gao, Y., Liu, H., Li, T., Zou, H., et al. (2015). Assembly-Induced Enhancement of Cu Nanoclusters Luminescence with Mechanochromic Property. J. Am. Chem. Soc. 137, 12906–12913. doi:10.1021/jacs.5b06550

PubMed Abstract | CrossRef Full Text | Google Scholar

Wu, Z., Yao, Q., Chai, O. J. H., Ding, N., Xu, W., Zang, S., et al. (2020). Unraveling the Impact of Gold(I)-Thiolate Motifs on the Aggregation‐Induced Emission of Gold Nanoclusters. Angew. Chem. Int. Ed. 59, 9934–9939. doi:10.1002/anie.201916675

PubMed Abstract | CrossRef Full Text | Google Scholar

Xiao, Y., Zhou, J., Chen, M., Wen, W., Zhang, X., and Wang, S. (2018). Modulation of the Optical Color of Au Nanoclusters and its Application in Ratiometric Photoluminescence Detection. Chem. Commun. 54, 10467–10470. doi:10.1039/c8cc06318d

PubMed Abstract | CrossRef Full Text | Google Scholar

Xie, J., Zheng, Y., and Ying, J. Y. (2009). Protein-Directed Synthesis of Highly Fluorescent Gold Nanoclusters. J. Am. Chem. Soc. 131, 888–889. doi:10.1021/ja806804u

CrossRef Full Text | Google Scholar

Yan, J., Teo, B. K., and Zheng, N. (2018). Surface Chemistry of Atomically Precise Coinage-Metal Nanoclusters: From Structural Control to Surface Reactivity and Catalysis. Acc. Chem. Res. 51, 3084–3093. doi:10.1021/acs.accounts.8b00371

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, D., Pei, W., Zhou, S., Zhao, J., Ding, W., and Zhu, Y. (2020). Controllable Conversion of CO2on Non‐Metallic Gold Clusters. Angew. Chem. Int. Ed. 59, 1919–1924. doi:10.1002/anie.201913635

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, T.-Q., Hu, X.-D., Shan, B.-Q., Peng, B., Zhou, J.-F., and Zhang, K. (2021). Caged Structural Water Molecules Emit Tunable Brighter Colors by Topological Excitation. Nanoscale 13, 15058–15066. doi:10.1039/D1NR02389F

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, T.-Q., Ning, T.-Y., Peng, B., Shan, B.-Q., Zong, Y.-X., Hao, P., et al. (2019). Interfacial Electron Transfer Promotes Photo-Catalytic Reduction of 4-nitrophenol by Au/Ag2O Nanoparticles Confined in Dendritic Mesoporous Silica Nanospheres. Catal. Sci. Technol. 9, 5786–5792. doi:10.1039/c9cy00967a

CrossRef Full Text | Google Scholar

Yang, T., Dai, S., Tan, H., Zong, Y., Liu, Y., Chen, J., et al. (2019). Mechanism of Photoluminescence in Ag Nanoclusters: Metal-Centered Emission versus Synergistic Effect in Ligand-Centered Emission. J. Phys. Chem. C 123, 18638–18645. doi:10.1021/acs.jpcc.9b04034

CrossRef Full Text | Google Scholar

Yang, T., Dai, S., Yang, S., Chen, L., Liu, P., Dong, K., et al. (2017). Interfacial Clustering-Triggered Fluorescence-Phosphorescence Dual Solvoluminescence of Metal Nanoclusters. J. Phys. Chem. Lett. 8, 3980–3985. doi:10.1021/acs.jpclett.7b01736

PubMed Abstract | CrossRef Full Text | Google Scholar

Yang, T., Peng, B., Zhou, J., Shan, B., and Zhang, K. (2020). Hydrogen-Bonded Water Clusters Confined in Nanocavity as Bright Color Emitters. ChemRxiv. doi:10.26434/chemrxiv.12927452.v1

CrossRef Full Text | Google Scholar

Yang, T., Shan, B., Huang, F., Yang, S., Peng, B., Yuan, E., et al. (2019). P Band Intermediate State (PBIS) Tailors Photoluminescence Emission at Confined Nanoscale Interface. Commun. Chem. 2, 132. doi:10.1038/s42004-019-0233-1

CrossRef Full Text | Google Scholar

Yao, C., Chen, J., Li, M.-B., Liu, L., Yang, J., and Wu, Z. (2015). Adding Two Active Silver Atoms on Au25 Nanoparticle. Nano Lett. 15, 1281–1287. doi:10.1021/nl504477t

PubMed Abstract | CrossRef Full Text | Google Scholar

Ye, T., and An, X. (2019). Synthesis and Properties of Au-Ag Bimetallic Nanoclusters with Dual-Wavelength Emission. New J. Chem. 43, 569–572. doi:10.1039/c8nj03947j

CrossRef Full Text | Google Scholar

Yu, Y., Yao, Q., Chen, T., Lim, G. X., and Xie, J. (2016). The Innermost Three Gold Atoms Are Indispensable to Maintain the Structure of the Au18(SR)14 Cluster. J. Phys. Chem. C 120, 22096–22102. doi:10.1021/acs.jpcc.6b07795

CrossRef Full Text | Google Scholar

Yuan, Q., Kang, X., Hu, D., Qin, C., Wang, S., and Zhu, M. (2019). Metal Synergistic Effect on Cluster Optical Properties: Based on Ag25 Series Nanoclusters. Dalton Trans. 48, 13190–13196. doi:10.1039/c9dt02493j

PubMed Abstract | CrossRef Full Text | Google Scholar

Yuan, X., Setyawati, M. I., Tan, A. S., Ong, C. N., Leong, D. T., and Xie, J. (2013). Highly Luminescent Silver Nanoclusters with Tunable Emissions: Cyclic Reduction-Decomposition Synthesis and Antimicrobial Properties. NPG Asia Mater. 5, e39. doi:10.1038/am.2013.3

CrossRef Full Text | Google Scholar

Zhang, Q., Tan, Y. N., Xie, J., and Lee, J. Y. (2008). Colloidal Synthesis of Plasmonic Metallic Nanoparticles. Plasmonics 4 (1), 9–22. doi:10.1007/s11468-008-9067-x

CrossRef Full Text | Google Scholar

Zheng, J., Zhang, C., and Dickson, R. M. (2004). Highly Fluorescent, Water-Soluble, Size-Tunable Gold Quantum Dots. Phys. Rev. Lett. 93, 077402. doi:10.1103/PhysRevLett.93.077402

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, J., Nicovich, P. R., and Dickson, R. M. (2007). Highly Fluorescent noble-metal Quantum Dots. Annu. Rev. Phys. Chem. 58, 409–431. doi:10.1146/annurev.physchem.58.032806.104546

PubMed Abstract | CrossRef Full Text | Google Scholar

Zheng, J., Zhou, C., Yu, M., and Liu, J. (2012). Different Sized Luminescent Gold Nanoparticles. Nanoscale 4, 4073–4083. doi:10.1039/c2nr31192e

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhou, C., Sun, C., Yu, M., Qin, Y., Wang, J., Kim, M., et al. (2010). Luminescent Gold Nanoparticles with Mixed Valence States Generated from Dissociation of Polymeric Au(I) Thiolates. J. Phys. Chem. C 114, 7727–7732. doi:10.1021/jp9122584

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhou, W., Fang, Y., Ren, J., and Dong, S. (2019). DNA-templated Silver and Silver-Based Bimetallic Clusters with Remarkable and Sequence-Related Catalytic Activity toward 4-nitrophenol Reduction. Chem. Commun. 55, 373–376. doi:10.1039/c8cc08810a

PubMed Abstract | CrossRef Full Text | Google Scholar

Zhu, M., Aikens, C. M., Hollander, F. J., Schatz, G. C., and Jin, R. (2008). Correlating the Crystal Structure of A Thiol-Protected Au25Cluster and Optical Properties. J. Am. Chem. Soc. 130, 5883–5885. doi:10.1021/ja801173r

CrossRef Full Text | Google Scholar

Zhu, Y., Qian, H., Zhu, M., and Jin, R. (2010). Thiolate-Protected Aun Nanoclusters as Catalysts for Selective Oxidation and Hydrogenation Processes. Adv. Mater. 22, 1915–1920. doi:10.1002/adma.200903934

PubMed Abstract | CrossRef Full Text | Google Scholar
