Novel β-Cyclodextrin-Based Heptavalent Glycyrrhetinic Acid Conjugates: Synthesis, Characterization, and Anti-Influenza Activity

www.frontiersin.orgShuobin Liang1 www.frontiersin.orgXinyuan Ma1 www.frontiersin.orgMan Li1 www.frontiersin.orgYanliang Yi1 www.frontiersin.orgQianqian Gao1 www.frontiersin.orgYongmin Zhang2 www.frontiersin.orgLihe Zhang1 www.frontiersin.orgDemin Zhou1,3,4 www.frontiersin.orgSulong Xiao1*
  • 1State Key Laboratory of Natural and Biomimetic Drugs, School of Pharmaceutical Sciences, Peking University, Beijing, China
  • 2Sorbonne Université, Institut Parisien de Chimie Moléculaire, CNRS UMR 8232, Paris, France
  • 3Institute of Chemical Biology, Shenzhen Bay Laboratory, Shenzhen, China
  • 4Ningbo Institute of Marine Medicine, Peking University, Ningbo, China

In our continuing efforts toward the design of novel pentacyclic triterpene derivatives as potential anti-influenza virus entry inhibitors, a series of homogeneous heptavalent glycyrrhetinic acid derivatives based on β-cyclodextrin scaffold were designed and synthesized by click chemistry. The structure was unambiguously characterized by NMR, IR, and MALDI-TOF-MS measurements. Seven conjugates showed sufficient inhibitory activity against influenza virus infection based on the cytopathic effect reduction assay with IC50 values in the micromolar range. The interactions of conjugate 37, the most potent compound (IC50 = 2.86 μM, CC50 > 100 μM), with the influenza virus were investigated using the hemagglutination inhibition assay. Moreover, the surface plasmon resonance assay further confirmed that compound 37 bound to the influenza HA protein specifically with a dissociation constant of 5.15 × 10−7 M. Our results suggest the promising role of β-cyclodextrin as a scaffold for preparing a variety of multivalent compounds as influenza entry inhibitors.

1 Introduction

Influenza A virus is a highly contagious respiratory pathogen that can cause seasonal epidemics and irregular pandemics because of its rapid transmission and frequent genetic alteration (Neumann et al., 2009; Lagacé-Wiens et al., 2010). The structure of the virus consists of a lipid envelope that is generated from the host cell to which two dominant membrane proteins, hemagglutinin (HA) (80%, ∼300 copies of trimer) and neuraminidase (NA) (17%, ∼50 copies of tetramer), are anchored (Leser and Lamb, 2005). Based on the antigenicity of HA and NA, they can be classified into different subtypes. To date, 18 major antigenic variants of HA and 11 antigenic variants of NA have been recognized, which are found in numerous combinations. In addition, newly mutated forms of the influenza virus appear every year. The currently available options to combat influenza A viral infections include prophylactic, yearly reformulated vaccines and two classes of anti-influenza drugs (the M2 ion-channel inhibitors and the NA inhibitors) (Das, 2012). Since the currently available vaccines offer a very limited breadth of protection (van Dongen et al., 2019), the antiviral drugs are still the first-line protection to treat acute influenza infection. Unfortunately, all circulating influenza A viral strains appear to be resistant to M2 ion-channel inhibitors. Recently, the continually emerging resistant virus against NA inhibitors has also been reported (Hurt et al., 2006; van der Vries et al., 2010; Hurt, 2014). For these reasons, novel anti-influenza viral agents with new targets and mechanisms of action are urgently required to overcome the rapid emergence of drug resistance (Heo, 2018; van Dongen et al., 2019).

In the first step of infection, the virion adheres to the host cell surface through the binding of HA to sialic acid-terminated carbohydrates present on the cell membranes (Mammen et al., 1998; Skehel and Wiley, 2000). Therefore, HA plays a pivotal role in virus entry, making it a potential target for antiviral intervention. HA is a homotrimeric integral membrane glycoprotein, which has ca. 300–400 copies on the viral surface (Mammen et al., 1998). The monovalent interaction between HA and sialic acid is mediated essentially by hydrogen bonds, and their dissociation constant shows a relative weak binding (KD ∼ 2 mM) (Sauter et al., 1989). Therefore, a multitude of HA is involved in order to increase the overall strength of the interaction between the virus and the host cell. The binding between multiple pairs of HA trimer and sialic acid ligand increases substantially as characterized by a multivalent affinity constant of estimated 1013 M−1 (Mammen et al., 1998). This process provides important clues for the design of efficient multivalent ligands to mimic the binding of HA to sialic acid to block the viral protein–host receptor interactions (Lu and Pieters, 2019). Over the past few years, many efforts have been made for the design and synthesis of carbohydrate-based multivalent HA binders, including polymers, dendrimers, nanoparticles, and so on, serving as potent influenza A virus inhibitors (Chaudhary et al., 2019; Lu and Pieters, 2019).

β-Cyclodextrin (β-CD) is a torus-shaped cyclic oligosaccharide consisting of seven (α-1,4)-linked D-glucopyranose units, and it is well-known for its ability to form inclusion complexes with various organic and inorganic compounds (Crini, 2014). It is widely used in pharmaceutical formulations to enhance the solubility of poorly soluble drugs, increase drug permeability through biological membranes, and improve the bioavailability of drugs (Jansook et al., 2018). The unique steric accessibility and acidity of the three types of hydroxyls in β-CD have been taken into account to conceive efficient position-selective and face-selective chemical functionalization methodologies (Khan et al., 1998). It has been shown to serve as a multivalent scaffold in the design of glycoconjugates (Martinez et al., 2013), glycoclusters (Gomez-Garcia et al., 2005; Gomez-Garcia et al., 2012), glycodendrimers (Ortega-Caballero et al., 2001; Vargas-Berenguel et al., 2002), and star polymers (Zhang et al., 2012; Gonzalez-Gaitano et al., 2017). In addition, target-specific multivalent drug delivery systems have shown significant improvement of anti-tumor drug delivery and hence antitumor efficacy and prevention of clinical multi-drug resistance (Kim et al., 2017; Zhou et al., 2019). In spite of the progress, the design of multivalent ligands with optimized biological properties still remains a challenge considering the complexity of the multivalent ligand–receptor interactions (Lepage et al., 2015). Glycyrrhizic acid (also known as glycyrrhizin, 1) (Figure 1), an oleanane-type pentacyclic triterpene saponin, is the primary bioactive constituent of the roots and rhizomes of Glycyrrhiza glabra (licorice) which is employed as an herbal medicine in both Western and Eastern countries (Fiore et al., 2005; Asl and Hosseinzadeh, 2008). Compound 1 and its aglycone, glycyrrhetinic acid (GA, 2), have been reported to possess antitumor, anti-inflammatory, and other pharmacological activities (Yang et al., 2015; Hussain et al., 2018). In a notable example, Lallemand et al. have reported that compound 3, with a 2-(3-(3,5-bis(trifluoromethyl)phenyl)ureido)ethyl group at C-30 of 2, shows strong antitumor activity with IC50 in signal-digit micromolarity in a panel of eight cancer cell lines (Lallemand et al., 2011). Recently, attention to GAs has greatly increased because of their broad spectrum of antiviral activities, such as the anti-hepatitis B virus (HBV) (Wang et al., 2012), anti-Epstein–Barr virus (EBV) (Lin et al., 2008), anti-rotavirus (Hardy et al., 2012), anti-influenza virus (Stanetty et al., 2012), and anti-herpes simplex virus (HSV) (Zigolo et al., 2018). 3-Thioglucuronide derivative 4 and several C-30 ester derivatives, such as 4-(trifluoromethyl) benzyl ester (5), 4-iodobenzyl ester (6), and 4-nitrobenzyl ester (7), show promising antiviral activity (Stanetty et al., 2012; Wang et al., 2012). In our previous study, a series of monovalent β-CD-GA conjugates have been synthesized and several conjugates showed weak antiviral activity at high concentration (∼50 μM) (Liang et al., 2019). As a natural step in our efforts toward the design of new pentacyclic triterpene conjugates with antiviral activity (Yu et al., 2014; Xiao et al., 2016; Si et al., 2018), we described herein the design and synthesis of a series of heptavalent GA functionalized β-CD conjugates and evaluated their in vitro anti-influenza activity.

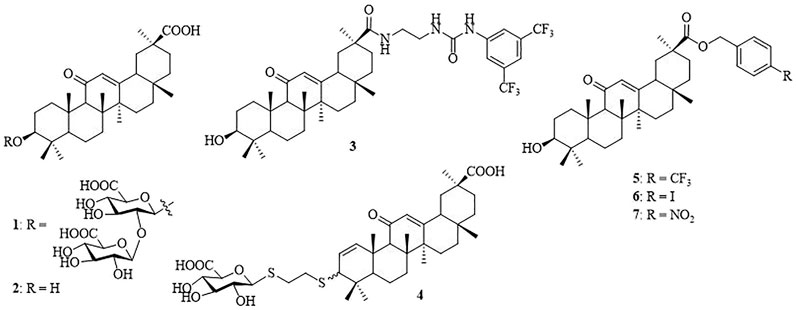

FIGURE 1. Chemical structures of glycyrrhizic acid (1), GA (2), and its derivatives (37).

2 Materials and Methods

2.1 Materials

GA was kindly supplied by Nanjing Zelang Medical Technology Co., Ltd. (China). β-CD, O-(benzotriazol-1-yl)-N,N,N',N'-tetramethyluroniumtetrafluoroborate (TBTU), N,N-Diisopropylethylamine (DIPEA), iodine, triphenylphosphine, sodium azide, 4-dimethylaminopyridine (DMAP), and cupric sulfate were purchased from Shanghai Aladdin Bio-Chem Co., Ltd. (China). Sodium ascorbate, sodium methoxide, 5-hexyn-1-amine, and 4-ethynylaniline were supplied by Shanghai Energy Chemicals (China). Silica gel 60 (200–300 mesh) was provided by Qingdao Haiyang Chemical Co., Ltd. (China). Sodium carbonate, N,N-dimethylformamide, tetrahydrofuran, methanol, pyridine, acetic anhydride, and all other chemicals and reagents used were of analytical grade and purchased from Sinopharm Chemical Reagent Co., Ltd. (China) and used throughout this research without further purification.

Thin-layer chromatography (TLC) was conducted on a pre-coated silica gel 60 F254 plate (E. Merck, Darmstadt, Germany) and eluted with a mixture of methanol/dichloromethane (15:1–10:1) for per-O-acetyl-β-CD-GA conjugates or methanol for the deacetylated β-CD-GA conjugates. For spot detection, the plates were immersed in a yellow solution of Ce(NH4)2(NO3)6 (0.5 g)/(NH4)6Mo7O24.4H2O (24.0 g)/6% H2SO4 (500 ml). The plate was heated by using a hot gun to visualize the spots. FT-IR spectra were obtained using a Nicolet Nexus 470 FTIR spectrometer (Thermo Electron Scientific Instruments LLC, United States). MALDI-TOF mass spectra were obtained on an AB Sciex TOF/TOF™ 72115 spectrometer using methanol or chloroform as solvents and α-cyano-4-hydroxy-cinnamic acid (HCCA) as matrix. NMR spectra were recorded on a Bruker DRX 400 or DRX 600 spectrometer at ambient temperature.

Madin Darby canine kidney (MDCK) cells were donated by Crown Bioscience Inc. (United States). Dulbecco’s Modified Eagle Medium (DMEM) was purchased from Gibco BRL, Inc. (United States). The CellTiter-Glo® reagent was purchased from Promega Corp., Inc. (United States). Recombinant influenza HA was purchased from Sino Biological Inc. (China). Deionized double-distilled water was used throughout the biological study. The surface plasmon resonance (SPR) assay was analyzed using the Biacore 8k system (GE Healthcare, Uppsala, Sweden).

2.2 Synthesis of Heptavalent β-CD-GA Conjugates

Heptakis (2,3-di-O-acetyl-6-deoxy-6-azide-)-β-CD 11 was prepared in a three-step procedure as previously reported (Gadelle and Defaye, 1991). The GA intermediate 12 was synthesized based on the method of Schwarz et al. with minor modifications (Schwarz et al., 2014). The terminal alkynyl substituted amines 13–16 were prepared as previously described (Murelli et al., 2009; Zhang et al., 2010; Tran et al., 2013; Sanhueza et al., 2017). Alkynyl-functionalized GA intermediates 1720 and 30–32 were synthesized as previously described (Liang et al., 2019). Heptavalent GA functionalized β-CD conjugates were synthesized through a two-step process involving the copper-catalyzed alkyne–azide cycloaddition reaction (CuAAC) under microwaves (step 1) and de-O-acetylation reaction under Zemblén conditions (step 2).

2.2.1 General Procedure A for the Click Reaction (Step 1)

To a solution of heptakis (2,3-di-O-acetyl-6-deoxy-6-azide-)-β-CD 11 (189.8 mg, 0.10 mmol) and alkynyl-functionalized GA derivatives (0.84 mmol) in 50% of THF and H2O (5 ml) was added CuSO4 (15.7 mg, 0.10 mmol) and sodium ascorbate (30.7 mg, 0.15 mmol). The resulting solution was heated in a microwave reactor at 100°C until the azide was completely consumed (typically about 1 h) as determined by TLC. Then, the reaction mixture was extracted with CH2Cl2 (10 ml × 3). The CH2Cl2 fraction was dried over Na2SO4, filtered, evaporated, and purified by silica gel column chromatography using CH2Cl2/CH3OH (15:1–10:1 v/v) as the eluent to give the acetylated intermediates as white foam.

2.2.2 General Procedure B for the Deacetylation Reaction (Step 2)

The multivalent GA functionalized per-O-acetylated β-CD conjugates were dissolved in dry methanol (5 ml per 100 mg of compound), and a solution of sodium methoxide (30% in methanol, 0.1 eq per mol of acetate) was added. The solution was stirred (180 rpm) at room temperature for 4–6 h in a N2 atmosphere. After completion (TLC), the reaction mixture was neutralized with Amberlite IR-120 (H+) ion exchange resin, then filtered and concentrated. The crude product was purified by RP column chromatography using CH3OH as the eluent to give the final products in 73–95% yields.

The 1H and 13C NMR and ESI-HRMS or MALDI-TOF MS data of the synthesized new compounds 21–28 and 33–38 are available in Supplementary Data S6–S13.

2.3 Fourier Transform Infrared Spectroscopy Analysis

FT-IR spectra of the heptavalent β-CD-GA conjugates and their parent compounds 11 and 17 were obtained using a Nicolet Nexus 470 FTIR spectrometer (Thermo Electron Scientific Instruments LLC, United States) over a scanning range of 500–4,000 cm−1. In addition, 1.0 mg of different samples was mixed with KBr pellets.

2.4 Nuclear Magnetic Resonance Spectroscopy Study

1H and 13C NMR spectra of GA derivatives 1720 and 2932 were acquired on a Bruker DRX 400 MHz spectrometer. 1H NMR, 13C NMR, 1H–1H COSY NMR, and 1H-13C HSQC NMR spectra of β-CD-GA conjugates 2128 and 3338 were acquired on a Bruker DRX 600 MHz spectrometer. Sample solutions were prepared with CDCl3 or CDCl3/CD3OD (2:1) as solvent. CDCl3 or CD3OD were also used as reference: proton (δ 7.26 ppm) and carbon (δ 77.00 ppm) for CDCl3, proton (δ 3.31 ppm) and carbon (δ 49.00 ppm) for CD3OD. The detection temperature was set at 25°C.

2.5 Cell Culture and Viruses

The MDCK cells were donated by Crown Bioscience Inc. (United States) and grown in DMEM supplemented with 10% (v/v) fetal bovine serum (FBS) (PAA Laboratories, Linz Austria) at 37°C under 5% CO2. The A/WSN/33 (H1N1) influenza virus used in this study was artificially generated from the 12-plasmid influenza virus rescue system.

2.6 Cytotoxicity Assay

Cell viability assays were performed using the CellTiter-Glo® reagent following the manufacturer’s instructions. Briefly, the cells (1×104 per well) were seeded into 96-well tissue culture plates and incubated for 16 h at 37°C with 5% CO2 to allow the cells to adhere to the surface of the wells. The culture medium was then replaced with a fresh medium containing compound or paclitaxel (PTX) at 10 and 25 μM in triplicate, and the negative control wells contained the equivalent volume of the medium with 1% DMSO, after which they were incubated for 48 h at 37°C with 5% CO2. The CellTiter-Glo® reagent was added, and the plates were read using a Tecan Infinite M2000 PRO™ plate reader.

2.7 Cytopathic Effect Reduction Assay

The MDCK cells (1 × 104 per well) were seeded into 96-well plates, incubated at 37°C with 5% CO2 for 24 h, and infected with the influenza virus (MOI = 0.1). The cells were suspended in DMEM supplemented with 1% FBS, containing different concentrations of the test compound or Oseltamivir (OSV) and 2 μg/ml TPCK-treated trypsin, and a final DMSO concentration of 1% was added to each well. After 48 h of incubation at 37°C with 5% CO2, the CellTiter-Glo reagent (Promega Corp., Madison, WI, United States) was added, and the cells were assessed with the CellTiter-Glo® assay according to the manufacturer’s instructions.

2.8 Hemagglutination Inhibition Assay

HI assay was performed as described previously (Yu et al., 2014). Briefly, compound from a 2-fold serial dilution in saline was mixed with an equal volume of the influenza virus (2 HA units) in the V-bottomed 96-well microplates. Subsequently, 50 μL of freshly prepared chicken red blood cells (cRBCs) (1% v/v in saline) was added to each well. The mixture was incubated at room temperature for 30 min before observing cRBC aggregation on the plate.

2.9 Surface Plasmon Resonance Assay

Interactions between influenza HA and the compounds were analyzed using the Biacore 8k system (GE Healthcare, Uppsala, Sweden) at 25°C. Recombinant influenza HA (Sino Biological Inc., Beijing, China) was immobilized on a sensor chip (CM5) using EDC and NHS for activation. The final HA immobilized levels were typically ∼9,000 RU. Subsequently, compounds were injected as analytes at various concentrations, and PBS-T (10 mM phosphate buffer with 5% DMSO, 0.05% Tween, pH 7.4) was used as the running buffer. For binding studies, the analytes were applied at corresponding concentrations in the running buffer at a flow rate of 30 μL/min with a contact time of 60 s and a dissociation time of 180 s. Chip platforms were washed with the running buffer and 50% DMSO. Data were analyzed with the Biacore insight evaluation software (version 1.05) by curve fitting using a binding model of 1:1.

3 Results and Discussion

3.1 Synthesis of Heptavalent β-CD-GA Conjugates

As shown in Scheme 1, the synthetic strategy was based on coupling of alkynyl-functionalized gas with heptaazide-substituted β-CD via click chemistry. At first, oligo (ethylene glycols) (OEGs) were chosen as the linkers to enhance and optimize the properties of the conjugates. Various heterobifunctional OEGs with amine and alkynyl terminals 13–16 were synthesized as described previously (Murelli et al., 2009; Zhang et al., 2010; Tran et al., 2013; Sanhueza et al., 2017). The coupling of OEGs 13–16 with compound 12, which was obtained from commercially available GA 2 by the activation of the carboxylic acid at C-30, was performed to provide the alkynyl-functionalized GAs 1720. Then 1720 underwent a “click chemistry” reaction with heptakis (2,3-di-O-acetyl-6-deoxy-6-azide)-β-CD 11, which was prepared from β-CD 8 in three steps using the conventional method as previously described (Gadelle and Defaye, 1991; Ashton et al., 1996; Karginov et al., 2006) in the presence of copper sulfate and sodium ascorbate as the reducing agent to give 21–24 with yields ranging from 54% to 88%. At last, the acetyl groups of multivalent conjugates 2124 were removed under Zemblén conditions, followed by neutralization with H+ resin to afford 25–28 in 73–86% yields.


SCHEME 1. Synthesis of heptavalent GA-functionalized β-CD conjugates (2128). Reagents and conditions: (a) I2, Ph3P, DMF, 80oC, 44%; (b) NaN3, DMF, 60oC, 90%; (c) Py, Ac2O, DMAP, 92%; (d) TBTU, DIPEA, THF, 90%; (e) Na2CO3, DMF, 60oC, 46–82%; (f) Sodium ascorbate, CuSO4, THF-H2O (1:1, v/v), 54–88%; (g) MeOH, MeONa, 73–86%.

To highlight the effect of the linkers on the anti-influenza virus activity, a parallel experiment was carried out to conjugate GA with β-CD moiety through an alkyl chain or a more rigidness chain, such as a benzene ring or piperazine ring, rather than an OEG linker (Scheme 2). In a similar pathway, the coupling of compounds 29, 30, and 32 with heptaazide β-CD intermediate 11 was performed via click reaction, followed by de-O-acetylation under Zemplén conditions to give the corresponding conjugates 34, 36, and 38, respectively, as the final products.


SCHEME 2. Synthesis of heptavalent GA-functionalized β-CD conjugates (3338). Reagents and conditions: (a) 5-hexyn-1-amine, Na2CO3, DMF, 60oC, 90%; (b) 4-ethynylaniline, Na2CO3, DMF, 60oC, 30%; (c) 2-(piperazin-1-yl)ethan-1-amine, Na2CO3, DMF, 60oC, 45%; (d) propargyl bromide, Na2CO3, DMF, 60oC, 76%; (e) 11, sodium ascorbate, CuSO4, THF-H2O (1:1, v/v), 42–59%; (f) MeOH, MeONa, 90–95%.

3.2 Structure Characterization of Heptavalent β-CD-GA Conjugates

The structures and symmetrical substitution of the heptavalent β-CD-GA conjugates 21–28 and their precursors 33–38 were characterized by IR, NMR, and MALDI-TOFMS spectroscopy.

3.2.1 Fourier Transform Infrared Spectroscopy Analysis

The FTIR spectra of the all synthesized heptavalent β-CD-GA conjugates were recorded over the range of 400–4,000 cm−1 in a Nicolet Nexus 470 FT-IR thermo-scientific spectro-photometer. The spectrum of β-CD intermediate 11 contained the characteristic absorption band for the spectrum with OH stretching at 3,386 cm−1, CH stretching around 2,924 cm−1, and CO stretching around 1,030 cm−1 (Supplementary Figure S1). For GA (2), several vibration characteristics of the triterpenic moiety were present. The characteristic band attributed to the stretching vibration of the OH group at C3 was found at 3,443 cm−1. The bands at 2,930 and 2,870 cm−1 were assigned to the stretching vibration of the aliphatic CH (Supplementary Figure S2). The spectra of these heptavalent β-CD-GA conjugates were very similar. In a typical example, Figure 2 shows the IR spectra of the two intermediates 11 and 17 and their conjugate 21. It was noteworthy that the strong absorption band located at 2,107 cm−1 shown in Figure 2A and the weak absorption band located at 2,120 cm−1 shown in Figure 2B, which should be assigned to the stretching vibration of azide and terminal alkyne, respectively, were diminished in the spectrum of 21 (Figure 2C). In addition, a few representative absorption bands ascribable to 1,2,3-triazole units were shown around 1,529, 1,455, and 1,047 cm−1 (Rao and Venkataraghavan, 1964).


FIGURE 2. FTIR spectra of compounds 11 [(A), black], 17 [(B), red], and their conjugate 21 [(C), blue]. Spectra were acquired between 500 and 4,000 cm−1.

3.2.2 NMR and MALDI-TOF MS Analysis

Except for those signals of the linkers, the heptavalent conjugates were similar in their NMR spectra, and Figure 3 represents the HSQC spectrum of conjugate 23 as an example. The low-field regions of the conjugate were relatively well-resolved and fully assigned. In the aromatic region, the signal at δ 7.76 ppm was assigned to triazole-CH according to the 1H-13C correlation spectra, indicating that it was indeed connected by the triazole linker. The assignment of NH proton at δ 6.31 ppm was confirmed as there was no correlation for NH by an HSQC spectral analysis. The low-field peak at δ 5.64 ppm, referring to 1H, was assigned to H12, and one carbon appearing at δ 128.35 ppm should be assigned to C12 of GA. With a C7-symmetry in the molecule, compound 23 showed only one set of CD-H1 signal appearing at 5.49 ppm and one CD-C1 signal appearing at 96.29 ppm. A similar observation was also made for other proton and carbon signals of the β-CD unit, and the chemical shift data are summarized in Table 1. As Cb was connected with nitrogen rather than oxygen to which other carbons were bonded in the tetraethylene glycol linker, the chemical shift of Cb in 13C NMR was at the highest field (NHCH2 vs OCH2). In addition, as Ca was connected with triazole, the chemical shift of Ha in 1H NMR was at the lowest field among the eight -OCH2- groups. The MALDI-TOF MS of compound 23 showed a sodium adduct ion [M + Na]+ at m/z 6709.6 (Calcd. For C357H546N28NaO91, 6709.4), which also confirmed that it was a heptavalent conjugate.


FIGURE 3. The 600 MHz HSQC spectrum of 23 recorded in CDCl3 at 298 K, with the 1D 1H and 13C NMR spectra along the top and the side, respectively.

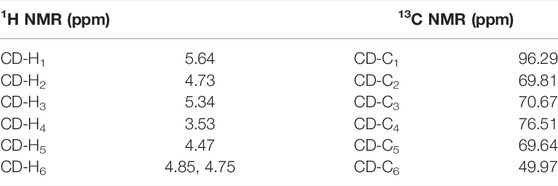

TABLE 1. Chemical shifts of 1H and 13C NMR of β-CD unit in conjugate 23.

3.3 In Vitro Cytotoxicity of Heptavalent β-CD-GA Conjugates

It has been reported that GA 2 and some of its derivatives are cytotoxic in cancer cells (Satomi et al., 2005; Lallemand et al., 2011). In this study, the cytotoxicity of heptavalent β-CD-GA conjugates 21–28 and 33–38 was first determined in MDCK cells using the CellTiter-Glo® luminescent cell viability assay. A decrease in the viability of the MDCK cells was observed in a dose-dependent manner upon treatment of PTX (Supplementary Figure S3). Treatment of cells with 2 for 48 h resulted in decreased viability to 82.8% for the 25 μM concentration and no viability for the 10 μM concentration, indicating that 2 had weak cytotoxicity to cells and agreed with previously reported results that 2 shows weak cytotoxicity to eight cancer cell lines with IC50 values between 70.48 and 136.40 μM (Gao et al., 2014). For all the tested conjugates, except that 25 and 28 showed weak cytotoxicity to uninfected MDCK cells with the reduced viability to 85.6% and 87.9%, respectively, at a high concentration of 25 μM, no significant cytotoxicity for the other conjugates was observed at concentrations of 10 and 25 μM.

3.4 Structure-Activity Relationships of Heptavalent β-CD-GA Conjugates

Concerning the fact that the use of multivalent sialopeptides as potential inhibitors of influenza infections has been proved to be a useful approach (Mammen et al., 1998; Marra et al., 2008), our interest was aimed at evaluating the inhibitory effect of the heptavalent GA conjugates 21–28 and 33–38 by microscopic examination of the viral CPE at two days post infection (Noah et al., 2007). Oseltamivir (OSV) and DMSO were used as positive and negative controls, respectively.

The primarily screening results are shown in Figure 4. A careful analysis and comparison of the data allowed us to reveal some interesting SAR trends. Regarding the OEG linkers between the triazole ring-substituted GA and β-CD scaffold, we found that the anti-influenza activity of conjugates 21–24 was decreased in the order as follows: 21 > 22>>23 > 24. Similar results were also observed for conjugates 25–28, indicating that a length of four atoms was found to be optimal for the inhibitory activity (21 and 25). Especially for conjugate 28, the insertion of two more ethylene glycol spacers in 26 resulted in the loss of activity under 25 μM, suggesting the importance of the length of the linker between GA and β-CD for their anti-influenza activity. Concerning the nature of the linker’s heteroatom, the replacement of the oxygen of ethylene glycol in conjugates 21 and 25 by methylene (33 and 34) showed a slightly weaker or similar antiviral activity. Interestingly, the increase of the rigidity of the linker by further replacement of the four methylene with aromatic benzene at positions at 1,4 (35 and 36) still retained reasonable anti-influenza activity. Surprisingly, the inserting of a piperazine space in the alkyl liner caused a substantial increase in the activity of conjugates 37 and 38 (relative to 33 and 34, respectively), which were proved to be the most two potent multivalent conjugates.


FIGURE 4. CPE-based primarily screening of GA (2), β-CD (8), and their heptavalent β-CD-GA conjugates 21–28 and 33–38. MDCK cells were utilized as the host cells to test A/WSN/33 virus infection; OSV and DMSO acted as positive and negative controls, respectively. Error bars indicate standard deviations of triplicate experiments.

After the preliminary screening at two concentrations of 10 and 25 μM, 11 conjugates (21–22, 25–27 and 33–38) with the inhibition rate of more than 50% at a concentration of 25 μM were selected to perform in dose response assays, and the concentrations required to inhibit viral replication by 50% (IC50) are summarized in Table 2. In addition, no significant toxicity was observed for the 10 conjugates at concentrations up to 100 μM. Based on these data, we investigated in detail the potential of a representative heptavalent conjugate 37.


TABLE 2. In vitro anti-influenza A virus activity of GA (2), β-CD (8) and their heptavalent conjugates 21–22, 25–27 and 33–38a.

The CPE produced by the influenza A/WSN/33 virus in MDCK cells and its abrogation by treatment with 37 were further confirmed by direct observation under a microscope. No cytotoxicity was observed for 37 when incubated with the MDCK cells for 48 h (Supplementary Figures S4A vs S4B), while 37 significantly reduced the CPE induced by influenza A/WSN/33 virus infection (Supplementary Figures S4C vs S4D).

3.5 Hemagglutination Inhibition Assay

With the confirmation of the antiviral activity of the heptavalent conjugates, we were interested in identifying their molecular target. It is well known that the viral envelop glycoprotein HA plays a critical role in the initial step of influenza virus entry into host cells. Therefore, the HI assay was designed to detect whether the heptavalent conjugates could interfere with the interaction between HA and its sialic acid receptors. Twofold dilutions of the heptavalent conjugate 37 (from 10 μM) or anti-HA antibody (from 0.50 ng/ml)-treated virus were incubated with cRBC, and agglutination was observed (Figure 5). In addition, 37 completely inhibited influenza A/WSN/33 (H1N1) virus-induced agglutination of cRBC in a dose-dependent manner at concentrations of 1.3 μM or more. Similar results were observed for the anti-HA antibody at concentrations of 0.063 ng/ml or more. These results suggested that the heptavalent conjugates 37 shared the same target of the anti-HA antibody, thus interfering with virus–receptor interaction.


FIGURE 5. Effect of the heptavalent compound 37 (A) and anti-HA antibody (B) on HA by HI assay. The chicken red blood cells (cRBCs) (1% v/v in saline) were incubated with influenza A/WSN/33 at 2 × HA with various concentrations of 37 (two-fold serial dilution from 10 μM) or anti-HA antibody (two-fold serial dilution from 0.50 ng/ml).

3.6 Determination of the KD for the Interaction Between the Heptavalent Conjugate 37 With HA Protein

To determine the binding affinity of conjugate 37 for the HA protein, SPR experiments were performed on a Biacore 8K instrument. The SPR response was reported in the resonance unites (RU). Sensor grams were analyzed with a 1:1 (Langmuir) binding mode. As shown in Figure 6, the binding of recombinant influenza HA to GA (2) exhibited typical weak affinity binding with a calculated equilibrium dissociation constant (KD) value of 2.45 × 10−4 M, while β-CD (8) did not bind to the HA protein at the same concentration. However, the multivalent conjugate 37 showed a strong binding affinity to the HA protein within the concentration range 0.16–5.00 μM. The calculated KD value for conjugate 37 was 5.15 × 10−7 M, which seemed to be too large by about 470-fold of magnitude to that of 2 (Figures 6A vs 6C). In addition, kinetic analysis revealed that changes in the multivalent conjugate and HA protein not only affected the association rate constant (Ka), but also affected the dissociation rate constant (Kd) (Supplementary Table S1).


FIGURE 6. SPR inhibition assay sensor grams showing response to influenza HA protein in the presence of varying concentrations of GA (2) (A), β-CD (8) (B), and their heptavalent conjugates 37 (C). The binding kinetics was analyzed by the BIA evaluation 1.0.5 software with 1:1 (Langmuir) binding mode.

Compared with our previous study in which multiple pentacyclic triterpenes attached directly onto the CD scaffold via 1,2,3-triazolyl group (Xiao et al., 2016), the insertion of a suitable linker between them will be helpful for the binding of multiple pentacyclic triterpenes with their target. To test the feasibility of the strategy, various types of linkers including flexible linear alkyl/ether chain combinations between 4 and 19 atoms, a rigid aromatic space chain and semi-rigid charged piperzine chain have been successfully introduced in monovalent β-CD-GA conjugates in our recent study (Liang et al., 2019), which allowed us to further design and synthesis of the second-generation multivalent pentacyclic triterpene-β-CD conjugates. This well-established method will provide an alternative approach to the construction of novel multivalent derivatives bearing different linkers based on natural or chemically modified CD scaffolds. Combined with our previous studies, we found that the pentacyclic triterpene pharmacophore, the CD scaffold, and the linkers between the two parts were all affected by their anti-influenza activity.

4 Conclusion

In this work, a series of multiple GA-functionalized β-CD conjugates with different linkers were synthesized and characterized. Except those two conjugates (25 and 28) which showed weak cytotoxicity to MDCK cells at a concentration of 25 μM, all other conjugates showed no significant cytotoxicity based on an alamarBlue assay. When presented multivalently, seven β-CD-GA conjugates (21, 22, 25, 26, 34, 37, and 38) showed strong anti-influenza properties with IC50 values at a micromolar level (IC50: 2.86–9.03 μM). By using HI and SPR assays, conjugate 37 showed specific binding to the HA protein with the KD value at 515 nM, which was about 470-fold potent to its parent compound GA (2). Taken together, the results reported here for multivalent β-CD-GA conjugates demonstrated that multivalent displays of the anti-influenza entry agent afford macromolecules with a remarkable activity and a strong binding to the HA protein relative to their parent compound alone, and multivalency based on β-CD scaffold is a promising alternative to the currently available treatments for the management of viral infection by blocking virus entry into host cells.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding author.

Author Contributions

SL and XM: design, synthesis, and characterization of the multivalent conjugates; ML and YY: contribution in antiinfluenza viral assay, HI assay, FT-IR analysis, cytotoxicity assay; QG: SPR assay; YZ: discussion of all the experiments and assist in writing the manuscript; and LZ, DZ, and SX: designed the synthesis and biochemical experiments, supervised the project, and wrote the manuscript.


This work was supported by the International Cooperation and Exchange Program (NSFC-RFBR, No. 82161148006), the National Natural Science Foundation of China (Nos. 21877007 and 81821004), and the Shenzhen Bay Laboratory Start-up Foundation (21230071).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


The authors would like to thank Dr. Lijun Zhong from the Centre of Medical and Health Analysis (PUHSC) for MALDI-TOF experiments. The authors would also like to thank Dr. Fen Liu and Dr Jing Wang from the State Key Laboratory of Natural and Biomimetic Drugs (PUHSC) for their help in conducting the NMR and SPR experiments, respectively.
