Mechanochemical Synthesis of Fluorine-Containing Co-Doped Zeolitic Imidazolate Frameworks for Producing Electrocatalysts

Max Rautenberg,Max Rautenberg1,2Marius GernhardMarius Gernhard3Jrg RadnikJörg Radnik1Julia WittJulia Witt1Christina RothChristina Roth3Franziska Emmerling,
Franziska Emmerling1,2*
  • 1BAM Federal Institute of Materials Research and Testing, Berlin, Germany
  • 2Department of Chemistry, Humboldt-Universität zu Berlin, Berlin, Germany
  • 3Fakultät für Ingenieurwissenschaften, Lehrstuhl für Werkstoffverfahrenstechnik, Universität Bayreuth, Bayreuth, Germany

Catalysts derived from pyrolysis of metal organic frameworks (MOFs) are promising candidates to replace expensive and scarce platinum-based electrocatalysts commonly used in polymer electrolyte membrane fuel cells. MOFs contain ordered connections between metal centers and organic ligands. They can be pyrolyzed into metal- and nitrogen-doped carbons, which show electrocatalytic activity toward the oxygen reduction reaction (ORR). Furthermore, metal-free heteroatom-doped carbons, such as N-F-Cs, are known for being active as well. Thus, a carbon material with Co-N-F doping could possibly be even more promising as ORR electrocatalyst. Herein, we report the mechanochemical synthesis of two polymorphs of a zeolitic imidazole framework, Co-doped zinc 2-trifluoromethyl-1H-imidazolate (Zn0.9Co0.1(CF3-Im)2). Time-resolved in situ X-ray diffraction studies of the mechanochemical formation revealed a direct conversion of starting materials to the products. Both polymorphs of Zn0.9Co0.1(CF3-Im)2 were pyrolyzed, yielding Co-N-F containing carbons, which are active toward electrochemical ORR.

Introduction

Polymer membrane fuel cells (PMFCs) are of significant interest as a device for clean energy conversion. Their broad commercial application is currently limited by the inefficient oxygen reduction reaction (ORR). The slow kinetics of the ORR makes catalysis essential. State-of-the-art catalyst are currently based on platinum group metals (Gasteiger et al., 2005; Wu and Yang, 2013; Evers et al., 2019; Jiang et al., 2021; Zhang et al., 2021), but with their high price and scarcity, they limit a large-scale application. Therefore, low-cost and readily available alternatives are sought for. Reportedly, metal and nitrogen doped carbons (M-N-Cs) show high ORR activity, following the order M = Fe > Co > Mn > Cu >> Ni (Masa et al., 2014; Peng et al., 2014). The origin of the catalytic activity is speculated as M-N4 centers (M = Fe, Co) in a graphene matrix. However, Fe-based catalysts tend to produce Fe2+/3+ that can react with the ORR possible byproduct H2O2 generating hydroxyl and hydroperoxyl radical species. This mixture, known as Fenton’s reagent (Kang and Chang, 1997; Walling, 2002), can decompose organic matter, such as the proton conducting membrane of PMFCs. Alternatively, Co-based catalysts, showing similar performance as Fe-based catalysts without the risk of Fenton’s reaction, can be used.

Zeolitic imidazole frameworks (ZIFs) (Park et al., 2006), a class of metal organic frameworks (MOFs), consisting of metal nodes, linked by imidazole-based linkers can serve as templates, which can be converted in to M-N-C ORR catalysts by pyrolysis. ZIF materials are commonly used for gas storage (Eddaoudi et al., 2002) and separation (Keskin et al., 2010), oil spill cleaning (Mondal et al., 2017), catalysis (Farrusseng et al., 2009; Hu et al., 2020), sensing (Chapartegui-Arias et al., 2019; Zhang et al., 2020), and drug delivery (Hao et al., 2021; Ibrahim et al., 2017; Nirosha Yalamandala et al., 2021), as precursors for electrocatalysis (Li et al., 2016; Wang et al., 2014; Zhao et al., 2014) and as stimuli-responsive materials (Iacomi and Maurin, 2021). The crystal structures of these porous coordination polymers are based on the topology nets of zeolites. Furthermore, the metal-imidazolate–metal bond angles in ZIFs resemble the Si-O-Si bond angles in zeolites, as well as the tetrahedral coordination of metal centers by imidazolate ligands (Figures 1A,B). ZIFs have a broad variety of possible structures, depending on how the metal–imidazolate–tetrahedrons are interconnected (Schröder et al., 2013). In the well-studied compound ZIF-8, where zinc is tetrahedrally coordinated by 2-methylimidazolate linkers, the tetrahedral units form sodalite cages (SOD) (Figure 1C), resulting in a porous material (Park et al., 2006). Other ZIFs can form dense topologies, which resemble α-quartz (qtz).

FIGURE 1
www.frontiersin.org

FIGURE 1. (A) The bond angle in zeolitic imidazolate frameworks (ZIFs) is similar to the Si-O-Si bond angle in zeolites. (B) In ZIF-8, each Zn2+ ion is tetrahedrally coordinated by four 2-methylimidazolate linkers. (C) View along the b axis of the crystal structure of ZIF-8. The top left unit is shown completely, the rest as a reduced net of Zn2+-ions, revealing the porous nature of the component.

Ma et al. showed that Co-based ZIFs can be easily pyrolyzed into Co-N-C catalysts for ORR by pyrolysis. (Ma et al., 2011). The resulting catalysts show high activity in alkaline media (Chao et al., 2015; Chen et al., 2015; Wang et al., 2016) but lower activity under acid conditions (Wang et al., 2014; You et al., 2015). Direct pyrolysis of cobalt 2-methylimidazolate (ZIF-67) leads to a porous carbon material with aggregated cobalt nanoparticles, resulting in a loss of active Co-N4 species and therefore ORR activity (Ma et al., 2011; Xia et al., 2014; Wang et al., 2016). Using zinc-based ZIFs with low amounts of cobalt results in a porous carbon material with uniformly distributed Co-N4 sites and no metallic cobalt particles, showing excellent ORR activity (Wang et al., 2016). Furthermore, doping of carbons with heteroatoms can yield ORR active materials. In case of N-, F-doping, a cooperative N and F polarization of carbon is speculated as the mechanism (Lv et al., 2017).

Different synthesis routes were established for ZIFs, including microwave-assisted (Bux et al., 2009), sonochemical (Son et al., 2008; Yang et al., 2012), electrochemical (Martinez Joaristi et al., 2012) and solvothermal methods (Palaniselvam et al., 2013), or crystal growth from solution (Venna et al., 2010). Most of these methods involve solvents such as N,N-dimethylformamide, N-N-diethylformamide, or methanol (Huang et al., 2006; Park et al., 2006; Cravillon et al., 2009; Kukkar et al., 2021). Mechanochemistry, as an alternative green and solvent-free method, has been established for several MOF synthesis including ZIF-8 (Pichon et al., 2006; Klimakow et al., 2010; Batzdorf et al., 2015; Chen et al., 2019; Szczęśniak et al., 2020).

Here, we present the mechanochemical synthesis of fluorine-substituted ZIF-8 frameworks including Co-doping. We figured a Co-doped Zn(CF3-Im)2 could be a promising precursor for a highly active ORR catalysts, combining positive effects of both CoN4-clusters and N-F-doping.

The samples were thoroughly characterized by X-ray diffraction (XRD), nitrogen sorption, transmission electron microscopy (TEM), and energy-dispersive X-ray spectroscopy (EDX). Furthermore, the formation process in the ball mill was followed by time-resolved in situ synchrotron XRD, gaining insights in the formation process of the compounds. The two polymorphs of Zn0.9Co0.1(CF3-Im)2 were pyrolyzed, and the carbonous materials’ chemical composition was analyzed by X-ray photoelectron spectroscopy (XPS). Furthermore, both pyrolyzed qtz- and SOD-Zn0.9Co0.1(CF3-Im)2 were shown to be active toward ORR.

Experimental Section

Materials

The following chemicals were used: zinc oxide (ZnO, ACS reagent; Acros Organics, USA), 2-methylimidazole C4H6N2 (≥98%; Sigma–Aldrich, Germany), cobalt (II) acetate tetrahydrate (Co(CH3COO)2 · 4 H2O; Baker analyzed, J. T. Baker, USA), zinc acetate (Zn(CH3COO)2 · 2 H2O; >98% ACS Reagent, Fluka; Honeywell International Inc.), basic zinc carbonate Zn5(CO3)2(OH)6 (>97%, Thermo Fisher Scientific, USA), 2-trifluoromethyl-1H-imidazole C4H3N2F3 (>95%; Fluorochem, United Kingdom), potassium hydroxide KOH (Sigma–Aldrich), perchloric acid HClO4 (Bernd Kraft, Germany) and isopropanol (Sigma–Aldrich). Nafion was purchased from Sigma–Aldrich. All chemicals were used without further purification.

Synthesis of ZIF-8 and Zn0.9Co0.1(2Me-Im)2

Zinc oxide (0.337 mmol, 27.4 mg), zinc acetate dihydrate (10 mol% of total metal content, 0.037 mmol, 8.2 mg), 2-methylimidazole (0.748 mmol, 61.4 mg), and NH4NO3 (0.748 mmol, 3.0 mg) were placed into a custom-made milling jar (PMMA, 5 mL) (Lampronti et al., 2021). After adding one stainless-steel milling ball (7-mm diameter) and methanol (15 µL), the jar was closed and mounted into a vertical ball mill (Pulverisette 23; Fritsch GmbH, Idar-Oberstein, Germany). The mixture was ground for 15 min at a frequency of 50 Hz. The product was obtained as a white voluminous powder.

For Co-doping, the zinc acetate dihydrate was replaced by cobalt acetate tetrahydrate (10 mol% of total metal content, 0.037 mmol, 9.2 mg), which was added to the milling jar (PMMA, 5 mL), along with ZnO (0.333 mmol, 27.1 mg), 2-methylimidazole (0.740 mmol, 60.7 mg), NH4NO3 (0.037 mmol, 3.0 mg), methanol (15 µL), and a stainless-steel grinding ball (7-mm diameter). The mixture is ground for 15 min at a frequency of 50 Hz, and a purple voluminous powder is obtained.

Synthesis of qtz-Zn(CF3-Im)2 and qtz-Zn0.9Co0.1(CF3-Im)2

In a typical experiment, hydrozincite (Zn5(CO3)2(OH)6, 0.052 mmol, 28.8 mg) and 2-trifluoromethyl-1H-imidazole (0.524 mmol, 71.3 mg) are weighed out and alongside a stainless-steel milling ball (7-mm diameter) are placed into a custom-made milling jar (PMMA, 5 mL). After adding methanol (15 µL), the jar was closed and mounted into a vertical ball mill (Pulverisette 23; Fritsch GmbH. The mixture was ground at a frequency of 50 Hz for 15 min. The product was obtained as a yellow–brown powder.

For Co-doping, the desired molar percentage of metal is replaced by cobalt acetate tetrahydrate. In a typical experiment with 10 mol% Co-doping, hydrozincite (Zn5(CO3)2(OH)6, 0.046 mmol, 25.0 mg), cobalt acetate tetrahydrate (10 mol% relative to total metal amount, 0.025 mmol, 6.2 mg), and 2-trifluoromethyl-1H-imidazole (0.505 mmol, 68.7 mg) are weighed out and placed into a custom-made milling jar (PMMA, 5 mL). After adding one stainless steel milling ball (7-mm diameter), the jar is closed and mounted into a (Pulverisette 23; Fritsch GmbH) vertical ball mill. The mixture was ground for 15 min at a frequency of 50 Hz. The product was obtained as a purple–brown powder.

Synthesis of SOD-Zn(CF3-Im)2 and SOD-Zn0.9Co0.1(CF3-Im)2

To obtain SOD-Zn(CF3-Im)2 the reactant masses are kept constant (Zn5(CO3)2(OH)6: 0.052 mmol, 28.8 mg; 2-trifluoromethyl-1H-imidazole: 0.524 mmol, 71.3 mg), one stainless-steel milling ball (5-mm diameter) and DMF (20 µL) were used. The mixture was ground for 7 min at 50 Hz, and a damp brown powder was obtained. After completely drying the powder, it is washed three times with methanol (20 mL) and air dried.

Zn0.9Co0.1(CF3-Im)2 can be obtained when Zn5(CO3)2(OH)6 (0.046 mmol, 25.0 mg), cobalt acetate tetrahydrate (0.025 mmol, 6.3 mg), and 2-trifluoromethyl-1H-imidazol (0.505 mmol, 68.8 mg) are placed alongside a single grinding ball (5-mm diameter, stainless steel) into a custom-made milling jar (PMMA, 5 mL). The mixture is ground at 50 Hz for 8 min, yielding a damp purple–brown solid. After drying at air, the solid is finely ground in a mortar and washed with methanol (20 mL) three times and then dried at air.

Preparation of Electrocatalysts

To prepare the electrocatalysts, the carbonous residue after carbonization was loaded on glassy carbon (GC) rotating disk electrode (RDE) according to the procedure described by Kocha et al. (2017). The method involved initial preparation of a stock solution with 10 mL isopropanol (Sigma–Aldrich), 0.2 mL of 5 wt% Nafion ionomer solution (Sigma–Aldrich) and 39.8 mL of deionized water (0.055 μS/cm, Evoqua, , United States). To prepare catalytic inks from the powder samples, 1.3 mg of the compound was mixed with 1 mL of the stock solution. The inks were homogenized for 45 min in an ultrasonic bath at 80 Hz. Afterward, the dispersion (10 µL) was deposited on a clean GC electrode and spun at 900 revolutions/min (rpm) until the liquid was evaporated.

Electrochemical characterizations of the heterogeneous catalyst powders were conducted using a three-electrode setup with a Gamry Reference 600 + potentiostat (Gamry Instruments, United States). Before each measurement, the electrolyte was degassed for 30 min with nitrogen and oxygen, respectively. All measurements were performed in 0.1 M KOH or in 0.1 M HClO4 by using a Pt counter electrode and an Ag/AgCl (3 M NaCl) reference electrode. Linear sweep voltammetry experiments were performed in a potential range of +1.1 V to −0.3 V in acidic media and +0.5 V to −0.8 V in alkaline media at a scan rate of 20 mV s−1, whereas the RDE was operated at rotation speeds of 600, 900, and 1,600 rpm. All potentials were reported with respect to the standard hydrogen electrode (SHE). The surface area of the GC electrode was 0.126 cm2. Prior to use, the GC electrode was polished with 0.3 and 0.05 mm alumina powder followed by sonicating and rinsing with deionized water after each polishing step for 5 min to remove the alumina and abraded particles.

Powder XRD

Powder XRD data were collected using a Bruker D8 Advance diffractometer (Bruker AXS, Germany) in Bragg-Brentano-Geometry with a Lynxeye-detector using Cu-Kα radiation (λ = 1.542 Å) over a range of 2θ = 5°–60° with a step size of 0.02°. The time per step was 0.6 s. The finely ground dried sample was packed onto a standard PVC sample holder, which was mounted into the diffractometer.

Synchrotron XRD

The in situ XRD experiments were performed at the μSpot beamline (BESSY II, Helmholtz Centre Berlin for Materials and Energy). The used beam diameter was 100 μm at a photon energy of 16.576 keV using a double crystal monochromator (Si 111). To minimize double reflections, the beam was positioned inside of the milling jar, by scanning the wall of the jar and then moving approximately 50 µm inside. The sample detector distance was 229.70 mm. Scattered intensities were collected with a two-dimensional X-ray detector (Eiger 9M, HPC 3,110 × 3,269 pixels, pixel size 75 × 75 µm) and a time-resolution of 30 s. The obtained scattering images were processed using an algorithm of the computer program DPDAK (Benecke et al., 2014). The resulting patterns (q/nm−1 vs. intensity/a.u.) were analyzed, processed, and plotted using Origin (Version 2020; OriginLabs Corporation, Northampton, MA, United States). For comparison, the theoretical XRD patterns of the starting materials and final products were retrieved from crystallographic databases ICSD or CCDC and simulated using Mercury (version 4.3.0, CCDC) (Macrae et al., 2020). All XRD plots are background corrected by a custom-made python script.

Differential Scanning Calorimetry–TGA

Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) was performed simultaneously on dry powders (∼10 mg) using a heat flux TGA-DSC 3+ (Mettler-Toledo). All measurements were carried out under a continuous nitrogen flow of 10 mL/min. As a reference, an empty α-Al2O3 corundum crucible was used. The samples were heated with a heating rate of 10 K/min from room temperature to 900°C and held for 1 h. Subsequently, the samples were allowed to cool down under continuous nitrogen gas flow.

X-Ray Photoelectron Spectroscopy

All measurements were performed with an AXIS Ultra DLD photoelectron spectrometer manufactured by Kratos Analytical (Manchester, United Kingdom). XPS spectra were recorded using monochromatized aluminum Kα radiation for excitation, at a pressure of approximately 5 × 10−9 mbar. The electron emission angle was 0°, and the source-to-analyzer angle was 60°. The binding energy scale of the instrument was calibrated following a Kratos Analytical procedure, which uses ISO 15472 binding energy data. Spectra were taken by setting the instrument to the hybrid lens mode and the slot mode providing approximately a 300 × 700-μm2 analysis area. Furthermore, the charge neutralizer was used. Survey spectra were recorded with a step size of 1 eV and a pass energy of 80 eV; high-resolution spectra were recorded with a step size of 0.1 eV and a pass energy of 20 eV. Quantification was performed with Unifit 2021 using Scofield factor, the inelastic mean free pathway, and the transmission function for the normalization of the peak area. For peak fitting, a sum Gaussian–Lorentzian function was used. As background, a modified Tougaard background was used. Measurement uncertainties are ±0.2 eV with a confidence interval of 95% for binding energies at high-resolution spectra. Elemental quantification has a relative uncertainty of ±20% with a confidence interval of 95%.

Transmission electron microscopy and Energy dispersive X-Ray Spectroscopy

TEM images were obtained in a Talos F200S Microscope (Thermo Fisher Scientific) by using a 200-kV microscopy technique in which a beam of electrons is transmitted through a specimen to form an image. The specimens were prepared by dropping sample solutions (1 mg/mL in water/solvent) onto a 3-mm copper grid (lacey, 400 mesh) and leaving them to air-dry at room temperature. To determine the elemental composition of the ZIF-8 and Zn0.9Co0.1 (2Me-Im)2 specimen, EDX with two silicon drift detectors (SDD) was used. Counting time for X-ray spectra was 60 s.

Gas Sorption

Nitrogen gas sorption at 77 K was performed on an ASAP 2020 (Micrometrics) and was used to calculate the specific surface area from a multipoint adsorption isotherm with the BET (Brunauer–Emmit–Teller) calculation model (relative pressure range, 0.0012–0.0298) according to DIN ISO 9277:2014 (Brunauer et al., 1938).

Results and Discussion

Co-Doping of ZIF-8 by Acetate Ionic and Liquid-Assisted Grinding Route

Scheme 1 details the synthesis strategy to obtain ZIF-8 and SOD-Zn0.9Co0.1 (2Me-Im)2. We used a modified synthesis combining ionic and liquid-assisted grinding (ILAG) conditions (Friščić et al., 2010) and an acetate route described by Imawaka et al. (2019), Tanaka et al. (2017). Both ZIF-8 and SOD-Zn0.9Co0.1 (2Me-Im)2 were obtained phase pure and identified by XRD (Figure 2). All synthesis procedures were analyzed via time-resolved in situ XRD to analyze the reaction mechanism and potential phase transformations. These reactions were performed in a custom-built PMMA milling jar (Lampronti et al., 2021).

SCHEME 1
www.frontiersin.org

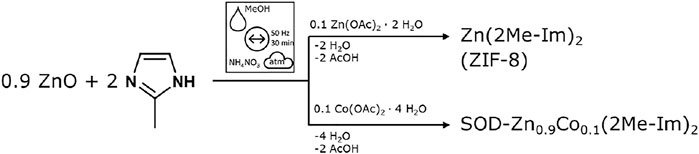

Scheme 1. Scheme of the acetate ILAG route to obtain Zn (2Me-Im)2 (ZIF-8) and SOD-Zn0.9Co0.1 (2Me-Im)2, depending on the added metal acetate salt. The reaction conditions are summarized above the reaction arrow after ref. (Michalchuk et al., 2021).

FIGURE 2
www.frontiersin.org

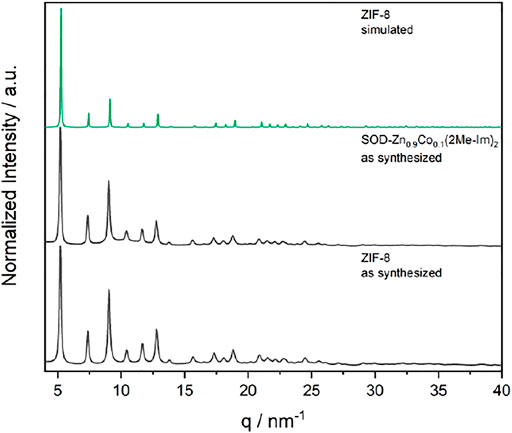

FIGURE 2. XRD patterns of as-synthesized ZIF-8 and SOD-Zn0.9Co0.1 (2Me-Im)2 by the acetate ILAG route (both black), both matching the simulated pattern of ZIF-8 (green).

The SOD-Zn0.9Co0.1 (2Me-Im)2 powder was examined by TEM (Supplementary Figure S1) and EDX to assess its elemental composition. The Co content of 7.85% is close to the expected value of 10% of total metal content. Together with the XRD results, these data indicate the successful introduction of cobalt into the parental ZIF-8 structure (Supplementary Figure S2). Furthermore, the surface area of ZIF-8 and SOD-Zn0.9Co0.1 (2Me-Im)2 powders synthesized by the acetate ILAG route was studied after an activation protocol by nitrogen sorption at 77 K using the Brunauer–Emmett–Teller theory (Supplementary Figure S3). The samples exhibited type I isotherms with BET-surface areas of 1,695 m2/g (ZIF-8) and 1,554 m2/g (SOD-Zn0.9Co0.1 (2Me-Im)2), which are comparable to literature reports (Park et al., 2006; Kaur et al., 2016).

The synthesis of the ZIF structures was investigated by time-resolved in situ XRD. In agreement with previous in situ studies, the parent structure ZIF-8 formation proceeds rapidly indicated by the appearance of first ZIF-8 reflections after 30 s (Batzdorf et al., 2015). The ZnO reflections gradually decrease until disappearing completely after 7 min, leaving ZIF-8 as the single product phase. Continued milling does not change the composition and crystallite size (Supplementary Figure S4). For SOD-Zn0.9Co0.1 (2Me-Im)2, the time-resolved in situ XRD data (Figure 3) follow a comparable mechanism, with slightly different detection phases of the reactant (cobalt acetate tetrahydrate visible until 30 s and zinc oxide until approximately 6 min). The data suggest that the formation of SOD-Zn0.9Co0.1 (2Me-Im)2 starts within the first 20 s and continues until it reaches completion after approximately 3 min.

FIGURE 3
www.frontiersin.org

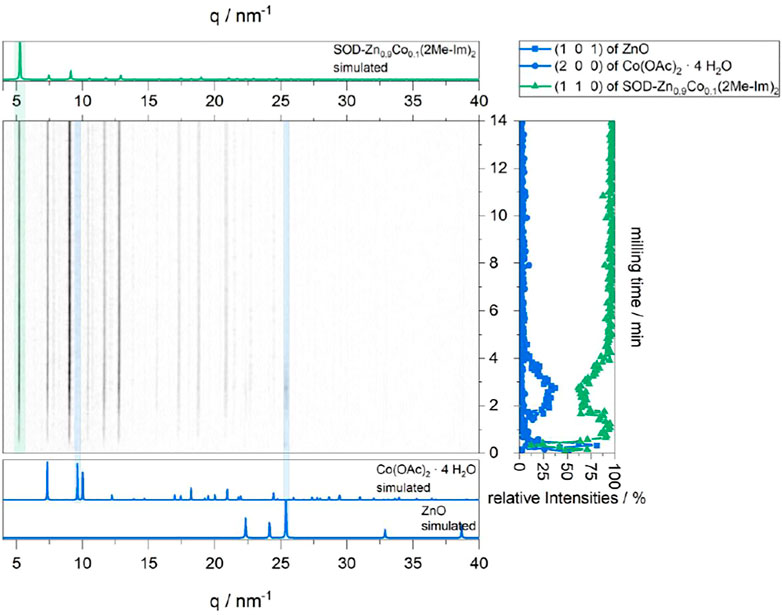

FIGURE 3. In situ XRD plot of the formation of SOD-Zn0.9Co0.1 (2Me-Im)2 (center). For comparison, the simulated XRD patterns of starting materials (bottom) and the product (top) are shown, as well as the intensities of selected reflections of each present phase.

Zn(CF3-Im)2 by Ball Mill Grinding; Polymorphic Control by Choice of Grinding Liquid.

Fluorinated MOFs are of great interest because of their improved properties compared with their nonfluorinated counterparts. The increased hydrophobicity raises the performance in gas separation (Mondal et al., 2017; Cheplakova et al., 2018), gas storage (Zhang et al., 2013), or in the cleanup of oil spillages (Yang et al., 2011). Metal-free carbon materials with heteroatom-doping (F, N) show electrocatalytic ORR activity (Lv et al., 2017). Furthermore, with higher hydrophobicity in an ORR catalyst prepared from a fluorinated ZIF, we would expect a more efficient transport of water away from the active oxygen reduction site, resulting in improved kinetics for the ORR. Therefore, Zn(CF3-Im)2 was chosen as fluorinated analog to ZIF-8 and as a host material for Co-doping. As Zn(CF3-Im)2 can crystallize in two polymorphic crystal structures (Arhangelskis et al., 2019), the goal was to prepare both the quartz (qtz) and sodalite (SOD) topologies of the material, as well as achieving Co-doping in both of them (Schröder et al., 2013).

The synthesis of the dense qtz-Zn(CF3-Im)2 polymorph was easily achieved by ILAG of zinc oxide and H-CF3-Im, using NH4NO3 and methanol (Scheme 2), which is in good agreement with the literature (Arhangelskis et al., 2019). The preparation of SOD-Zn(CF3-Im)2 by ILAG from zinc oxide as a starting material seems not straightforward, as SOD-Zn(CF3-Im)2 is an intermediate in the formation of qtz-Zn(CF3-Im)2. As opposed to the literature, the ethanol assisted grinding of Zn5(CO3)2(OH)6 with H-CF3-Im did not yield phase pure SOD-Zn(CF3-Im)2, but a mixture of the qtz and SOD polymorphs. The mechanochemical Zn(CF3-Im)2 formation by MeOH-assisted grinding of Zn5(CO3)2(OH)6 with H-CF3-Im was studied by time-resolved in situ XRD. After a short induction period (0–1 min), an interval with no detectable diffraction signals (1–5 min) is observed. From 5 min on the (100) and (101), reflections of qtz-Zn(CF3-Im)2 are detectable. The intensity of these reflections increases, and further reflections of qtz-Zn(CF3-Im)2 appear. Against our preliminary results and literature records (Arhangelskis et al., 2019), no intermediate phase of SOD-Zn(CF3-Im)2 was found. Instead, a direct conversion of starting materials into qtz-Zn(CF3-Im)2 can be observed (Supplementary Figure S5).

SCHEME 2
www.frontiersin.org

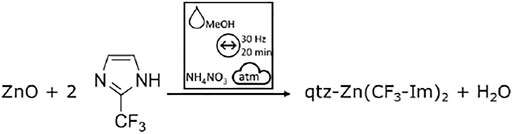

Scheme 2. ILAG of ZnO with H-CF3-Im, leading to the dense qtz polymorph of Zn(CF3-Im)2.

The in situ data show that under the chosen milling conditions, the reaction mechanism does not include the formation of the SOD polymorph. In a parameter study, varying milling frequency (15, 30, 50 Hz), milling ball size (3, 5, 7 mm), and added grinding liquid (MeOH, EtOH, DMF), we identified the milling conditions for the porous SOD polymorph. DMF-assisted grinding with a single 5-mm steel ball at 50 Hz yielded the SOD-Zn(CF3-Im)2, whereas MeOH ILAG leads to qtz-Zn(CF3-Im)2 (Figure 4). The milling conditions leading to both polymorphs are summarized in Scheme 3.

FIGURE 4
www.frontiersin.org

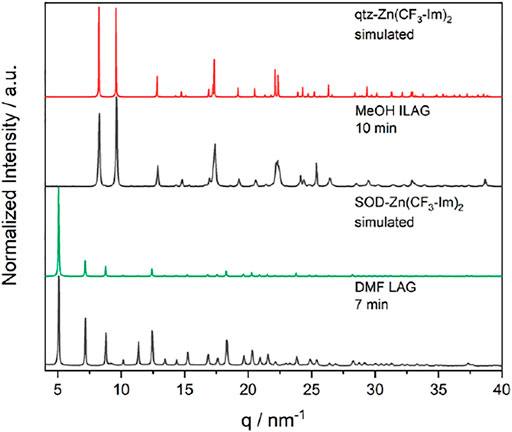

FIGURE 4. XRD of as-synthesized powders by DMF LAG and MeOH ILAG (both black) and simulated diffractograms of SOD-Zn(CF3-Im)2 (green) and qtz-Zn(CF3-Im)2 (red), indicating full conversion by ball milling.

SCHEME 3
www.frontiersin.org

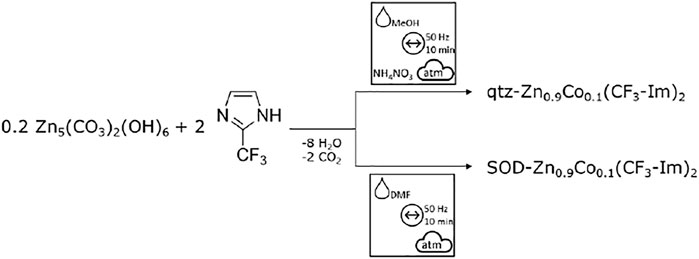

Scheme 3. Synthesis scheme of both polymorphs of Zn(CF3-Im)2. Depending on the grinding conditions the product can be obtained as dense qtz- or porous SOD polymorph.

The mechanochemical synthesis of SOD-Zn(CF3-Im)2 was monitored by in situ XRD to gain insights in the formation process. The in situ plot shows the one-step formation of SOD-Zn(CF3-Im)2 under LAG with DMF (Supplementary Figure S6). The intensity of starting materials reflections ((200) of Zn5(CO3)2(OH)6 and (021) of H-CF3-Im) decreases over time, with increasing intensity of the (110) reflection of the SOD polymorph of Zn(CF3-Im)2. After approximately 6 min, the intensities of the present phases reach a plateau with little variance, correlating to the sample amount in the beam. Moreover, no conversion of the SOD polymorph into the qtz polymorph can be observed within the observed time frame.

Co-Doping of Zn(CF3-Im)2 by Acetate ILAG/LAG Route

To achieve Co-doping into the Zn(CF3-Im)2, we modified the synthesis, replacing 10 mol% of the total metal amount with cobalt acetate tetrahydrate, while keeping the milling conditions of the undoped -Zn(CF3-Im)2 (Scheme 4). Both polymorphs of Zn(CF3-Im)2 were successfully prepared by the herein presented route, in 100-mg as well as 1-g scale (Figure 5).

SCHEME 4
www.frontiersin.org

Scheme 4. Modified synthesis route for Co-doping of both polymorphs of Zn0.9Co0.1(CF3-Im)2 by ball mill grinding.

FIGURE 5
www.frontiersin.org

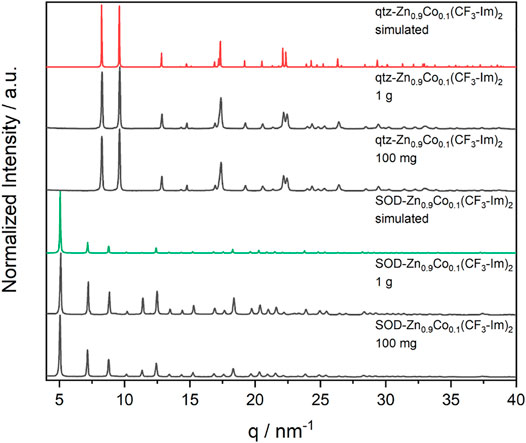

FIGURE 5. XRD data of as-synthesized powders of Zn0.9Co0.1(CF3-Im)2, in 100-mg and 1-g scale (all black) prepared by Scheme 5, with the respective goal structures SOD-Zn0.9Co0.1(CF3-Im)2 (green) and qtz-Zn0.9Co0.1(CF3-Im)2 (red).

XRD was also performed for the MeOH-ILAG route to qtz-Zn0.9Co0.1(CF3-Im)2. The data in Figure 6 can be divided into several phases. In the first phase until 1 min, the intensity of starting material rises, due to more powder being in the beam. Furthermore, the (110) reflection of SOD-Zn0.9Co0.1(CF3-Im)2 appears but stays weak. Afterward, the intensity of starting materials and SOD-Zn0.9Co0.1(CF3-Im)2 decreases, until three minutes of milling time, where no crystalline phase is present any longer. From 5 min on the crystallization of qtz-Zn0.9Co0.1(CF3-Im)2 begins, visible by the rising of its (100) reflection. The single product’s maximum intensity is reached at 6.5 min, and no further changes in sample composition can be detected; thus, full conversion is reached.

FIGURE 6
www.frontiersin.org

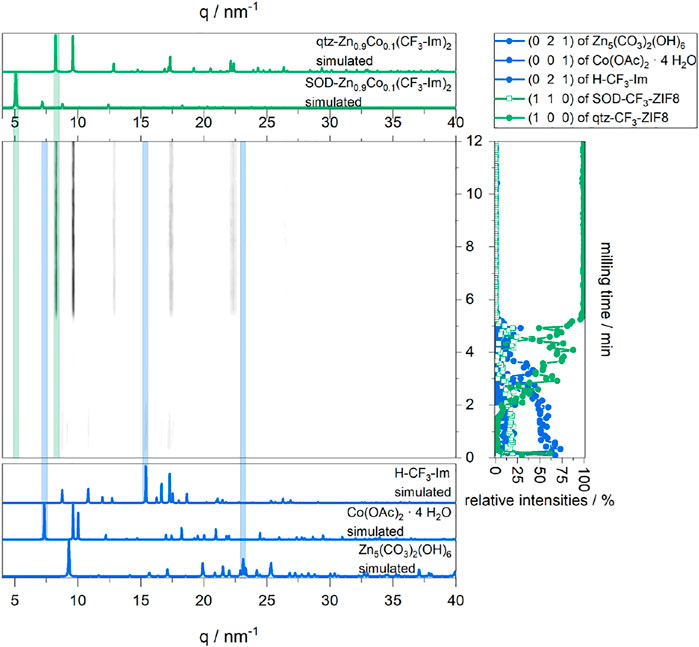

FIGURE 6. In situ XRD plot of the formation of qtz-Zn0.9Co0.1(CF3-Im)2 (center). For comparison, the simulated XRD patterns of starting materials (blue, bottom) and the products (green, top) are shown. The intensities of chosen reflections of the present phases are plotted on the right.

As the DMF LAG conditions produce the pure SOD-polymorph of Zn0.9Co0.1(CF3-Im)2 we also investigated the formation process by in-situ XRD. In a first phase until 30 s milling time, only the starting materials can be observed. In the second phase, their reflection intensities rise, as the milling process provides more powder into the beam. Furthermore, the (110) reflection of SOD- Zn0.9Co0.1(CF3-Im)2 appears, and its intensity rises until 1 min milling time, where it reaches a first plateau. The following phase is characterized by the gradual decrease of starting materials reflections and increase of the reflections of SOD-Zn0.9Co0.1(CF3-Im)2. After 6 min milling time, all starting materials reflections are disappeared, and after 7 min the (100) reflection of SOD- Zn0.9Co0.1(CF3-Im)2 plateaus a second time. This indicates the completion of the reaction, as no further changes, the conversion into the qtz-polymorph, can be observed (Figure 7).

FIGURE 7
www.frontiersin.org

FIGURE 7. In situ XRD of Zn5(CO3)2(OH)6, Co(OAc)2 · 4 H2O, and H-CF3-Im under DMF LAG conditions, yielding (center). For comparison, the simulated XRD patterns of starting materials (blue, bottom) and the product (green, top) are shown. The intensities of chosen reflections of the present phases are plotted on the right. XPS studies on pristine and carbonized MOFs.

Carbonization of ZIFs is known as a method to produce nitrogen, and metal-doped carbon material (NMC) that can be applied is ORR electrocatalysis. The herein presented MOFs were therefore carbonized in a thermoscale with literature-known parameters. The samples are heated under a nitrogen atmosphere from room temperature to 900°C, where they are kept for 1 h, followed by a natural cool-down. Ex situ XPS was performed at the pristine MOFs and the pyrolysis products to obtain the elemental composition. As a surface-sensitive technique, XPS provides information about the outermost 10 nm of the samples. As a clear trend, it could be found that the amounts of nitrogen, fluorine, and zinc decrease, most likely due to these elements leaving by decomposition processes of the materials. As a direct consequence, the relative amount of carbon and oxygen rises. All Co-containing samples retain it in the same order of magnitude (Figure 8, 9).

FIGURE 8
www.frontiersin.org

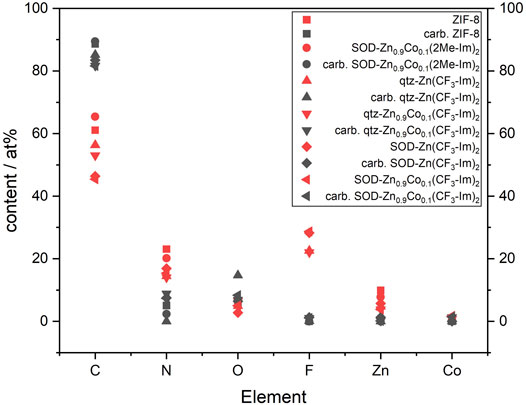

FIGURE 8. Relative elemental composition of pristine ZIFs (red) and after pyrolysis (grey). Due to decomposition the amount of N, F and Zn decrease, while C and O rise. All Co-containing samples retain Co in the same order of magnitude.

FIGURE 9
www.frontiersin.org

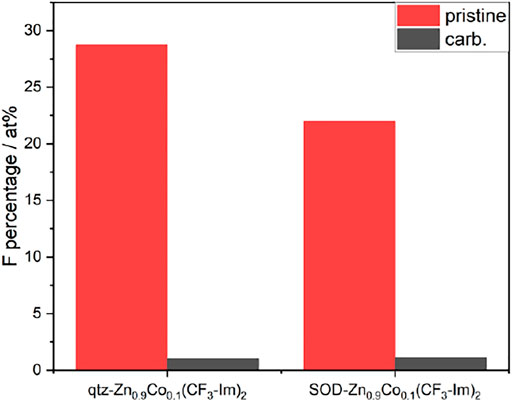

FIGURE 9. Fluorine content of pristine (red) and carbonized (grey) Zn0.9Co0.1(CF3-Im)2 in qtz- (left) and SOD- (right) topologies.

The data of the fluorinated samples show for the carbonized materials the presence of two types of fluorine, metal-bound inorganic fluorine, and carbon-bound organic fluorine. In the carbonized Zn0.9Co0.1(CF3-Im)2, the organic fluorine outweighs the inorganic with a ratio of 9:1.

The high-resolution spectra of Co2p photoelectron show a Co 2p3/2 peak at 780.5 eV and the satellite structure typical for Co2+ (Biesinger et al., 2011). For Zn, the Zn 2p3/2 peak at 1,022 eV was observed, which can be explained with bivalent Zn (Biesinger et al., 2010). For the pyrolyzed samples, some graphitization was observed indicated by the appearance of the typical shake up peak related to the π → π * transition at 292 eV (see Supplementary Figures S9–S11).

Electrochemical Investigations, Oxygen Reduction Reaction Catalysis

The performance of the ORR of pyrolyzed qtz-Zn0.9Co0.1(CF3-Im)2 and SOD-Zn0.9Co0.1(CF3-Im)2 was evaluated using the RDE. Figure 10 presents the ORR polarization curves measured in O2-saturated 0.1 M KOH and 0.1 M HClO4 electrolytes. In HClO4, both pyrolyzed Co-doped ZIFs exhibit a similar ORR activity with an onset potential of 0.67 V versus SHE for pyrolyzed qtz-Zn0.9Co0.1(CF3-Im)2 and a higher onset potential of 0.70 versus SHE for pyrolyzed SOD-Zn0.9Co0.1(CF3-Im)2 (Figure 10A). The half-wave potential gap between them was 22 mV, revealing a slightly higher activity of pyrolyzed SOD-Zn0.9Co0.1(CF3-Im)2. In 0.1 M KOH, the pyrolyzed SOD-Zn0.9Co0.1(CF3-Im)2 shows again a better activity toward the ORR in comparison to pyrolyzed qtz-Zn0.9Co0.1(CF3-Im)2. The onset potential of pyrolyzed SOD-Zn0.9Co0.1(CF3-Im)2 was found to be 0.12 V versus SHE with a half-wave potential of 0.0 V, whereas pyrolyzed SOD-Zn0.9Co0.1(CF3-Im)2 exhibits a lower onset potential of 0.06 V versus SHE with a half-wave potential of −0.11 V. The half-wave potential gap between both systems was 0.10 mV. Furthermore, ORR polarization curves were measured under different rotation speeds and are presented in Supplementary Figure S8. The electrocatalytic activity in O2-saturated electrolytes was decreasing with the decrease in rotation rate, whereas almost no activity was observed in N2-saturated electrolytes. Our results indicate that both materials show electrocatalytic activity for ORR; however, no significant performance improvement was evident, depending on the polymorph of Zn0.9Co0.1(CF3-Im)2 precursor.

FIGURE 10
www.frontiersin.org

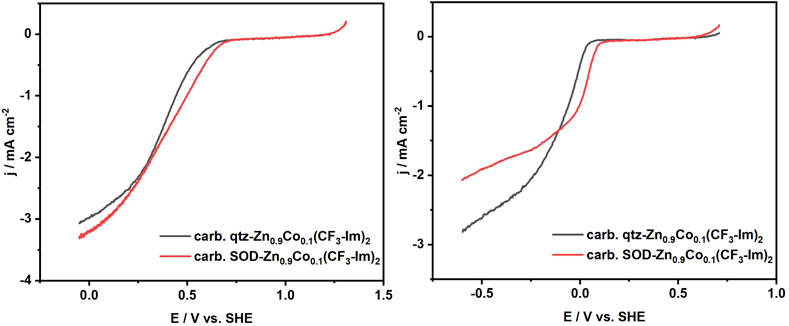

FIGURE 10. Electrochemical characterization of qtz-Zn0.9Co0.1(CF3-Im)2 and SOD-Zn0.9Co0.1(CF3-Im)2 immobilized on a RDE (1,600 rpm) by linear sweep voltammetry in O2-saturated (A) 0.1 M HClO4 and (B) 0.1 M KOH.

Summary

In this work, we present the synthesis of the first Zn0.9Co0.1(CF3-Im)2 frameworks by ball milling. Optimizing the grinding parameters allowed us to selectively produce polymorphs of Zn0.9Co0.1(CF3-Im)2. Moreover, the formation was monitored in situ by synchrotron XRD measurements along with the formation of ZIF-8, Zn0.9Co0.1 (2Me-Im)2, and Zn(CF3-Im)2 frameworks. In Figure 11, a summary of milling times and conversion rates for the synthesis of ZIF-8, Zn0.9Co0.1 (2Me-Im)2, and Zn(CF3-Im)2 and Zn0.9Co0.1(CF3-Im)2 (both in qtz- and SOD-topologies, respectively) is given. The data showed for all the reactions one-step transformations from starting materials into products.

FIGURE 11
www.frontiersin.org

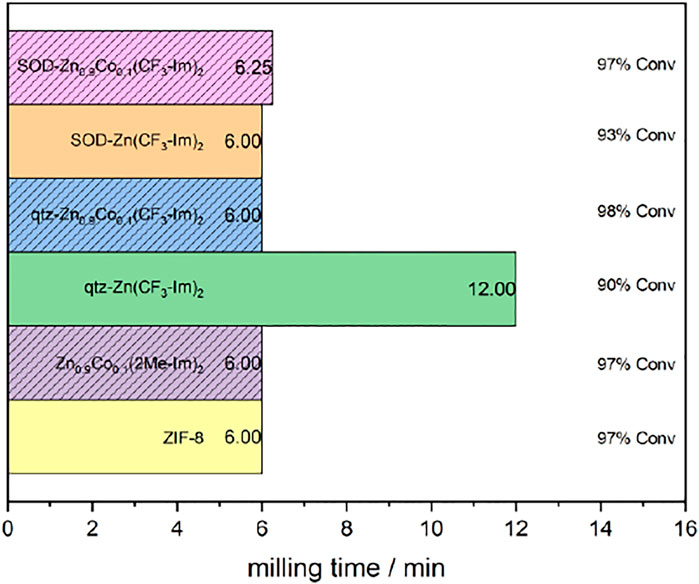

FIGURE 11. Milling times and conversion rates for the synthesis of ZIF-8, Zn0.9Co0.1 (2Me-Im)2 (both in SOD-topology), as well as Zn(CF3-Im)2 and Zn0.9Co0.1(CF3-Im)2 (qtz and SOD).

Furthermore, we investigated the chemical composition after carbonization of the prepared ZIFs, finding residue fluorine, mostly of organic nature. The pyrolyzed Zn0.9Co0.1(CF3-Im)2, both in qtz and SOD topology, was successfully used as ORR electrocatalysts in acidic and alkaline media. However, no significant differences in ORR activity for both polymorphs of pyrolyzed Zn0.9Co0.1(CF3-Im)2 could be observed.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding author.

Author Contributions

This study was designed and supported by CR and FE. MR performed the synthesis and XRD analyses. MG and JW contributed electrochemical measurements. JR performed XPS measurements. MR and FE wrote the original draft, viewed, and edited the manuscript. All authors reviewed and edited the manuscript. All authors have contributed to the work and approved the final version of the manuscript.

Funding

Gefördert durch die Deutsche Forschungsgemeinschaft (DFG)—Projektnummer 387284271—SFB 1349. Funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation)—Project-ID 387284271—SFB 1349.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The handling Editor declared a past co-authorship with one of the authors FE.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Acknowledgments

We thank BESSY II for beamtime allocation and the Deutsche Forschungsgemeinschaft for funding. Further thanks go to S. Reinsch for DTA-TG analysis, to C. Prinz for measuring TEM and EDS, and A. Zimathies for measuring N2-soprtion and calculation BET-surface areas of our samples.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2022.840758/full#supplementary-material
