Changes in Protonation Sites of 3-Styryl Derivatives of 7-(dialkylamino)-aza-coumarin Dyes Induced by Cucurbit[7]uril

  • 1Facultad de Química y de Farmacia, Pontificia Universidad Católica de Chile, Santiago, Chile
  • 2Departamento de Química y Biología, Facultad de Ciencias Exactas, Grupo de Investigaciones en Química y Biología, Universidad Del Norte, Barranquilla, Colombia
  • 3Departamento de Química Física, Centro de Investigación en Química Biológica y Materiales Moleculares (CIQUS), Universidad de Santiago, Santiago, Spain

The incorporation of a guest, with different basic sites, into an organized system (host), such as macrocycles, could stabilize, detect, or promote the formation of a certain protomer. In this context, this work aimed to study the influence of cucurbit[7]uril (CB7) on dyes such as 7-(dimethylamino)-aza-coumarins, which have more than one basic site along their molecular structure. For this, three 3-styryl derivatives of 7-(dialkylamino)-aza-coumarin dyes (SAC1-3) were synthesized and characterized by NMR, ESI-HRMS and IR. The spectral behaviour of the SACs in the absence and presence of CB7 was studied. The results showed large shifts in the UV-vis spectrum in acid medium: a hypsochromic shift of ≈5400 cm−1 (SAC1-2) and ≈3500 cm−1 (SAC3) in the absence of CB7 and a bathochromic shift of ≈4500 cm−1 (SAC1-3) in the presence of CB7. The new absorptions at long and short wavelengths were assigned to the corresponding protomers by computational calculations at the density functional theory (DFT) level. Additionally, the binding mode was corroborated by molecular dynamics simulations. Findings revealed that in the presence of CB7 the heterocyclic nitrogen was preferably protonated instead of the dialkylamino group. Namely, CB7 induces a change in the protonation preference at the basic sites of the SACs, as consequence of the molecular recognition by the macrocycle.


The structure of a molecule in solution depends on the intrinsic properties of the molecule itself as well as its interactions with the surrounding solvent. The properties of a charged molecule, including its structure and reactivity, are influenced by the location of the charge, such as the protonation site(s) (Cox et al., 1996; Graton et al., 2002; Tu, 2006; Wu and McMahon, 2007; Bull et al., 2017). The existence of so-called protomers (Demireva and Armentrout, 2021), molecular isomers that only differ in the site of protonation, is therefore of great importance for both fundamental research and applications.

The site of protonation in solution of a compound depends not only on their relative intrinsic strengths but also on the different stabilizations by the solvent of the different protonated forms (Demireva and Armentrout, 2021). As an example, protonation of p-aminobenzoic acid derivatives (Bagno and Scorrano, 2000; Demireva and Armentrout, 2021) which has been widely studied in solution and gas-phase. Although the amine nitrogen is the most basic site in aqueous environments, the carbonyl oxygen becomes energetically favorable for protonation when the relative permittivity decreases.

The solvation shell of a solute dissolved in a solvent mixture is generally selectively enriched in one cosolvent. When this happens, the solute is said to be preferentially solvated, and this has an obvious bearing on all its solvation-related properties, since its immediate surroundings may be substantially different from the bulk solution. Preferential solvation may be achieved by formation of host:guest complexes. Guest incorporation into an organized system (supramolecular receptor) originates a nonhomogeneous solvation shell in such a way that different parts of the substrate are sensing different microenvironments (Pereira-Vilar et al., 2016).

In particular, synthetic organic dyes are widely used as pigments in many commercial products (Ziarani et al., 2018). These dyes have been widely studied in supramolecular chemistry, either by analyzing fundamental chemical interactions, tautomeric equilibrium related to guest solvation or as components of assemblies in different applications (Dsouza et al., 2011; Ziarani et al., 2018).

Among organic dyes, those containing 7-dialkylamino-2H-chromen-2-one scaffolds with 3-substituted electron acceptor moieties have had numerous applications, due to their optical and fluorescent properties: large Stokes shifts, emissions in the visible light range, and high quantum yields (Cao et al., 2019). However, they usually have short wavelength (UV) excitation, making them less than ideal for cell assays or imaging (Fu and Finney, 2018). This problem seems to be solved by replacing the CH group in position 4 of the scaffold with a nitrogen atom, allowing it to absorb longer wavelengths (Trebaul et al., 1987). This new family of structures is known as 7-(dialkylamino)-4-azacoumarin, also called aminobenzoxazinone.

The styryl derivatives of 7-(dimethylamino)-aza-coumarin in different solvents, were photophysically studied by Fery-Forgue (Fery-Forgues et al., 1992), demonstrating the importance of the main chromophore, 7-(dialkylamino)-aza-coumarin moiety, and the p-substituted styryl moiety. The authors reported that some of these derivatives could potentially be used to probe hydrophobic regions in biological media.

Accordingly, the 7-(dialkylamino)-aza-coumarins, in general, have been shown to possess similar, or more suitable photophysical properties than their analogue coumarin (Le Bris, 1985; Trebaul et al., 1987; Fery-Forgues et al., 1992). These derivatives have been used in the detection of analytes in biological systems such as bisulfite/sulfite (Agarwalla et al., 2016; Li et al., 2017; Chen et al., 2020; Lu et al., 2020), biothiols (Liu et al., 2013; Agarwalla et al., 2018), arginine (Yu et al., 2017), cysteine (Hu et al., 2011), cyanide and hypochlorite ion (Agarwalla et al., 2015; Fan et al., 2015), among others (Depierreux et al., 1990; Monsigny et al., 1990; Fan et al., 2012), and some have been reported with excellent cell imaging. For this purpose, 7-(dialkylamino)-aza-coumarins are designed with receptors at carbon 3, inspired by their coumarin analogues (Kwon et al., 2011; Anila et al., 2015; Han et al., 2020). Recently, the importance of designing new molecular systems that facilitate the participation of heterocyclic nitrogen as ionophores for heavy metal ion recognition has been discussed (Nagarajan et al., 2021). These designs can be associated with changes in the scaffold of the N-heterocyclic molecule which, using supramolecular host-guest systems, could act as a differential metal ion sensing (Xu et al., 2010; Selvan et al., 2018), or in a synergetic binding mode (Xu et al., 2010).

Among the hosts capable of harboring molecules of an aromatic nature, cucurbit[7]uril (CB7) stands out (Barrow et al., 2015). This macrocycle has been used in different studies due to its structural dimensions and its high affinity for electron-poor sites (Assaf and Nau, 2015; Macartney, 2018). In this context, dialkylamino substituted coumarins or other dialkylamino substituted chromophores have played a leading role in several studies in the presence of CB7, forming stable inclusion complexes on the side of the dialkylamino group in its protonated or deprotonated form (Barooah et al., 2012, 2014; Manna and Chakravorti, 2015; Aliaga et al., 2017; Basílio et al., 2017; Jana et al., 2019; Paudics et al., 2020; Alcázar et al., 2021). On the other hand, the pyridinium group has also shown a remarkable affinity for CB7 (Manna and Chakravorti, 2015; Jana et al., 2019; Paudics et al., 2020). The interaction of CB7 with these two groups can substantially increase their pKa values by stabilizing the conjugated acid (Basarić et al., 2015; Basílio et al., 2017; Behera and Krishnamoorthy, 2017).

Therefore, of special interest is the influence of CB7 on organic synthetic dyes with more than one basic site, as occurs in the derivatives of 7-(dialkylamino)-aza-coumarins where the 7-dialkylamino group and the heterocyclic nitrogen could be competing for the acceptance of a proton in an acid medium. In this context, this work combined experimental and theoretical study of the spectrophotometric and fluorometric characterization of the protomeric forms of the 3-styryl derivatives of 7-(dialkylamino)-aza-coumarins (SAC1-3) in the absence and presence of CB7 (Figure 1).

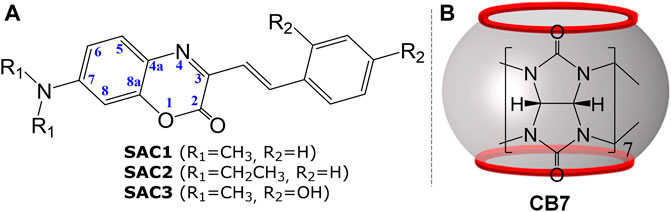

FIGURE 1. Representation of: (A) Series of 3-styryl derivatives of 7-(dialkylamino)-aza-coumarins (SAC1-3) and (B) cucurbit[7]uril (CB7).

Results and Discussion

Synthesis of 3-Styryl Derivatives of 7-(dialkylamino)aza-coumarins (SAC)

In order to carry out the synthesis of SACs, the original methodology described by Bris et al. was modified (as shown in Scheme 1). Among the most relevant modifications was the substitution of acetic anhydride as solvent by 1,4-dioxane, to obtain the hydroxylated SAC (SAC3) from 7-(dimethylamino)-3-methyl-aza-coumarin and 2,4-dihydroxybenzaldehyde, thus avoiding the acetylation reaction. Since the reaction occurs at temperatures above the boiling point of dioxane, a reaction tube was used. This new methodology was also tested for the synthesis of the substrates SAC1 and SAC2 (not hydroxylated), but the yields were lower than those reported by Bris et al., (Le Bris, 1985).

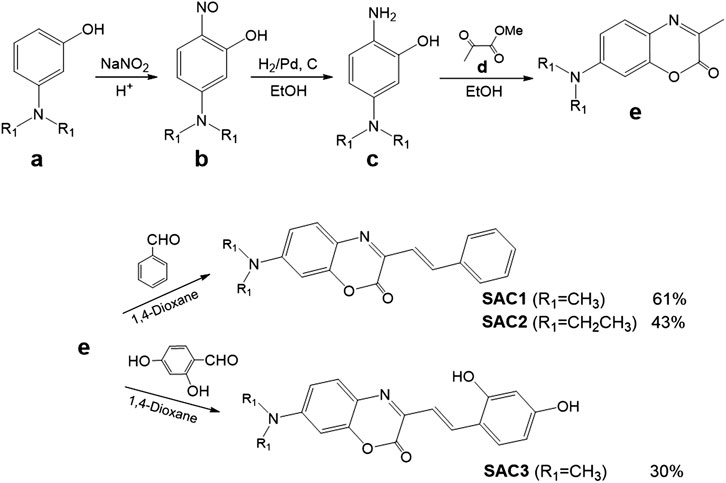

SCHEME 1. Synthetic routes to obtain the SAC series (SAC1-3).

The SAC homologous series were synthesized according to Scheme 1, see synthesis details and characterization by NMR (Supplementary Figures S1–S6), IR and ESI-HRMS in experimental section.

pKa Values for SAC1-3 From Titration Data: An Experimental and Density Functional Theory Study

pKa values for SAC1-3 were determined by UV-vis spectroscopy using the acid-base titration method in a methanolic solution (3:7 v/v) followed by a fit of the titration data to equation Eq. 1 (see experimental section).

As shown in Figure 2, the SAC1-3 compounds exhibited a similar λmax (around 488 nm) at pH close to 4, while at pH close to 0.5 λmax appeared at 380 nm for the compounds SAC1 and SAC2. Interestingly, SAC3 presented two λmax (431 and 625 nm) at pH close to 0.7, suggesting two possible protonation sites.

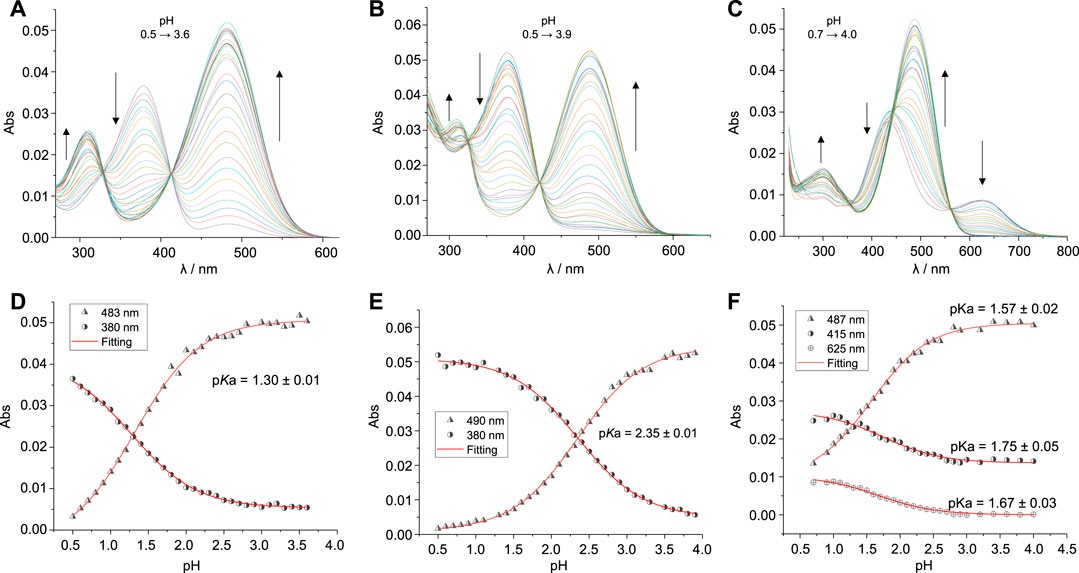

FIGURE 2. Top: Modifications of the absorption spectra by acid-base titrations at different pH values (0.5–3.9) for SAC1-3 (1.5 μM; T = 25.0°C) in methanol/water, 3/7 (v/v): (A) SAC1, (B) SAC2 and (C) SAC3. Bottom: Acid base titration curves at different absorption wavelengths (represented by different symbols) and the fitting of Eq. 1 to experimental data (represented by red continuous lines): (D) SAC1, (E) SAC2 and (F) SAC3.

The pKa determined for the protonated form of SAC2 is 2.35 (Table 1). This pKa value is similar to that reported for the diethylaminio group for series of 7-diethylamino-substituted coumarins (Kirpichënok et al., 1991; Patalakha et al., 1991). This suggests the pKa obtained for SAC2 is associated with the diethylamino group. Consequently, it can be deduced that the pKa found for SAC1 (pKa = 1.30) is linked to the dimethylamino group. This difference in pKa between both groups (dimethyl- and diethylamino) was also observed in derivatives of dialkylamino substituted chalcones (Basílio et al., 2017).

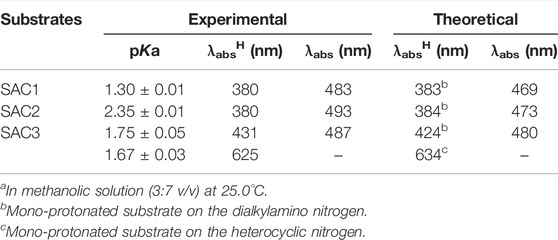

TABLE 1. Experimental and theoretical pKa values and maximum absorption lengths of the neutral (λabs) and protonated (λabsH) SACs.a

In this context, DFT calculations confirmed that this protonation equilibrium corresponds to the dialkylamino group. In fact, a λmax just above 380 nm corresponds to SAC1 and SAC2 when protonated on the dialkylamino nitrogen (Table 1). Hence, it can be reasonably deduced that the obtained pKa for SAC1 and SAC2 correspond to the respective dialkylammonium group, where the highest value of pKa for SAC2 is a consequence of greater stabilization by hyperconjugation of the substituent N,N-diethyl compared to the substituent N,N-dimethyl of SAC1.

On the other hand, the band corresponding to the protonation of the dimethylamino group for the SAC3 compound is centered at 431 nm (not at 380 nm, as in SAC1-2). This would be due to the presence of the hydroxyl groups in the phenyl group. Furthermore, the same bathochromic shift was obtained through DFT calculations, as shown in Table 1. Moreover, the band centered at 625 nm for the SAC3 compound was reproduced by DFT calculations (with a difference of 9 nm) when SAC3 was protonated only in the heterocyclic nitrogen. Lastly, UV-vis theoretical calculations for di-protonated SAC3 did not produce a λmax beyond 467 nm, ruling out the di-protonated form (Supplementary Table S1). Therefore, it can be deduced that, with a pH close to 0.7, SAC3 presents two non-consecutive protonations: one on the nitrogen of the dimethylamino group (pKa = 1.75) and the other on the heterocyclic nitrogen (pKa = 1.67).

Feasibility for the Formation of Complexes Containing SAC Dyes and the cucurbit[7]uril (CB7): A Molecular Dynamic Study

Based on the equilibrium between the protonated form and non-protonated form of SAC dyes, we studied the feasibility of including this organic dyes into the hydrophobic macrocycle of CB7, by use of molecular dynamic simulations. Due to complexation-induced pKa shifts, it is reasonable to consider the protonation of N,N-dialkylamino moiety of the dyes inside of CB7. However, illustrative data of molecular dynamic simulations for non-protonated form of SAC within CB7, were also carried out.

Figure 3 shows the results obtained from molecular dynamic simulations for the plausible conformations of representative complexes between CB7 and SAC3 (non-protonated and protonated and forms). The non-protonated form of SAC3 in CB7 (Figure 3A) shows stabilization by a hydrogen bond network involving a permanent exposure of the aza-coumarin moiety at the solvent during the molecular dynamic simulation. On the other hand, the protonated form of SAC3 (Figure 3B) localizes the aza-coumarin fragment immersed into the non-polar segment of the macrocycle while the alkylammonium segment, which during the simulation remains close to the CB7 portal, is stabilized by water molecules. In addition, a Coulombic interaction generated by the protonated nitrogen in N,N-diethyl ammonium group and the negative electronic density from the carbonyl groups from the macrocycle during 100 ns (Supplementary Figure S7) was observed. Thus, our results show that, whilst SAC3@CB7 is stabilized by a hydrogen bond network, the charge on the ammonium group in SAC3+H@CB7 contributes significantly to the final binding free energy (Figure 3, bottom).

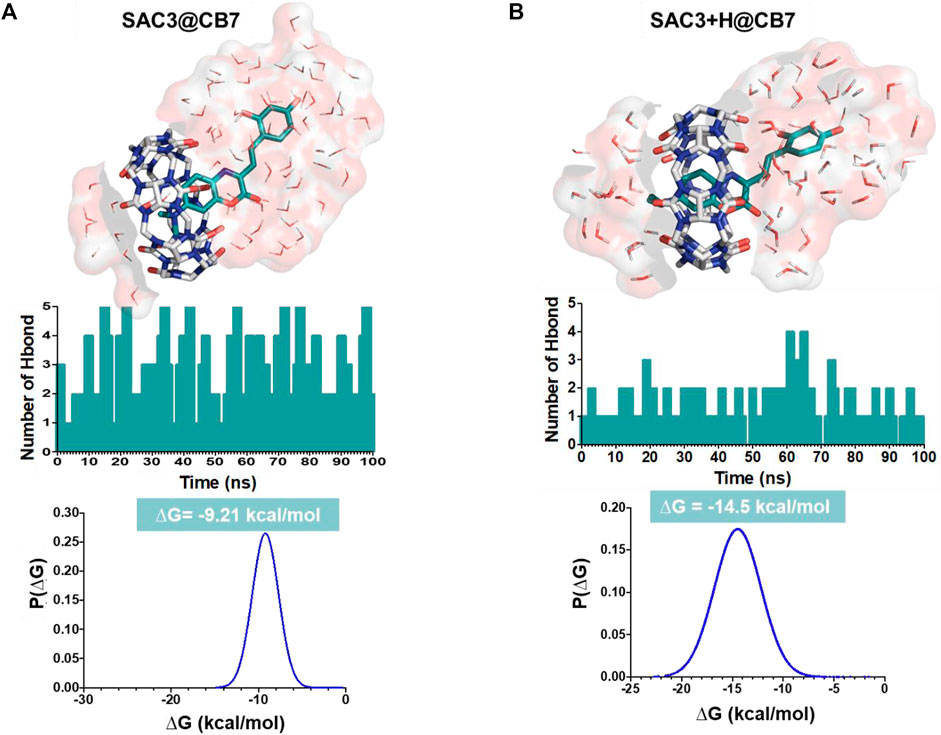

FIGURE 3. Final conformations from molecular dynamic simulations of the CB7 containing complexes with the non-protonated form of SAC3 (A) and the protonated form (on the dialkylamino nitrogen) of SAC3 (B). In the middle panel, histograms of the number of hydrogen bonds during the simulation are displayed. On the bottom panel, a free energy distribution from MM/PBSA calculations is shown.

Interestingly, all results obtained provide evidence of the formation and stabilization of these inclusion complexes via a favorable free energy distribution (−14.5 kcal mol−1 and −9.2 kcalmol−1 for protonated and non-protonated forms, respectively).

Inclusion Effects of SAC1-3 dyes Into CB7 Host

To study the effect on the physicochemical properties of the inclusion of SAC1-3 in CB7, combined experimental (UV-vis spectroscopy and HRMS) and theoretical studies (DFT) were carried out. As shown in Supplementary Figure S8, the SAC1 dye presented a new band at longer wavelengths (λmax = 611 nm) in presence of CB7, indicating the formation of an inclusion complex. In fact, the mass spectrum suggests the formation of 1:1 stoichiometry complexes (Figure 4 and Supplementary Figure S9).

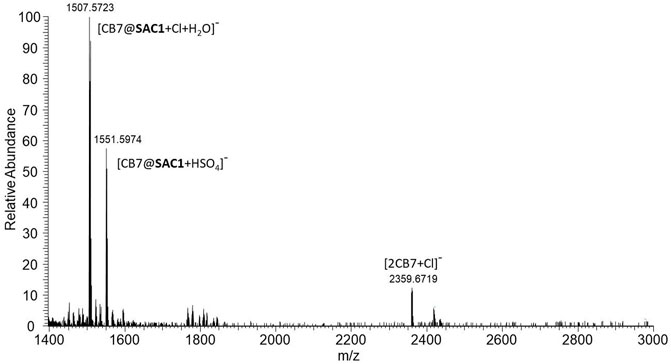

FIGURE 4. ESI-HRMS (Ionization voltage: 3.5 kV and negative polarity) for 1.5 µM of SAC1 in the presence of 1mM of CB7, dissolved in a methanolic solution at 30% (v/v) and pH 2.5. Scan parameters: Resolution: 140000, AGC target: 1 × 106, Max. inject time: 200. HESI source: Sheath gas flow: 25, Aux gas flow rate: 3, Sweep gas flow rate: 0, Capillary temp.: 250°C, S-lens RF level: 100, Heater temp: 100°C.

As shown in Supplementary Figure S8B, the intensity of the band at 611 nm increases as the pH decreases. From this relation it is inferred that the formed complex would be favored by the protonation of the substrate. Figure 5 depicts the titration curves with CB7 for SAC1-3, showing similar spectroscopic behavior for all compounds at wavelengths close to 620 nm and confirming the formation of complexes with the macrocycle.

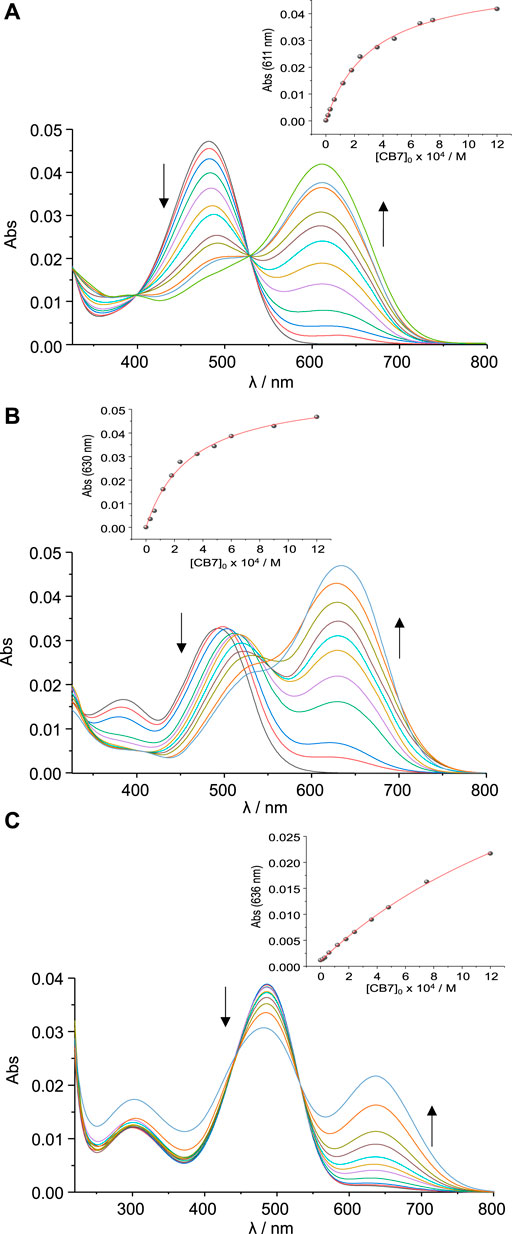

FIGURE 5. Modification of the UV-vis spectra by titrations with CB7 for the SAC compounds (1.5 μM at pH 2.5 in 30% methanol and T = 25.0°C): (A) SAC1, (B) SAC2 and (C) SAC3.

The band at 611 nm (Figure 5A) could be associated with the protonation, induced by CB7, of the heterocyclic nitrogen of SAC1, from the neutral species. In this way, the shift would be 4447 cm−1 (483 nm → 611 nm), in line with the literature for proton transfer reactions (Mohanty et al., 2006; Wu and Isaacs, 2009; Barooah et al., 2012, 2014) or iminium ion formation reactions (Zhang et al., 2020). For the free compound SAC3, the protonation established for the heterocyclic nitrogen was previously discussed and assigned to the band at 625 nm (Figure 2C), which is a λmax close to that observed for the SAC1 in the presence of CB7 (Figure 5A).

Binding constants were estimated by non-linear regression approach from absorption titrations fitting the experimental data to a simple 1:1 stoichiometry model (see experimental section). The results indicate that substrates SAC1 and SAC2 present similar binding constants (≈3000 M−1; Supplementary Table S2). The SAC2 compound exhibited an additional gradual shift, in relation to UV-vis spectral of SAC1, from the band located at 493 nm towards ≈540 nm.

The mass spectrum for SAC2 in the presence of an excess of CB7 suggests only the formation of a 1:1 stoichiometry complex (Supplementary Figure S9), so it is unlikely that such shift is associated with a second 2:1 stoichiometry complex. Unfortunately, due to the high insolubility of the substrates (SAC1-3) in the experimental conditions (30% MeOH, T = 25.0°C), the analysis by NMR of the structure of the formed inclusion complexes could not be carried out.

It is important to mention that the fitting of binding constants was satisfactorily obtained from 1:1 stoichiometry model. In the presence of CB7, SAC3 presented a constant (412 M−1) which is 7.2 times lower than the estimated for SAC1 and SAC2. Considering all above mentioned the binding mechanism illustrated in Scheme 2 is proposed.

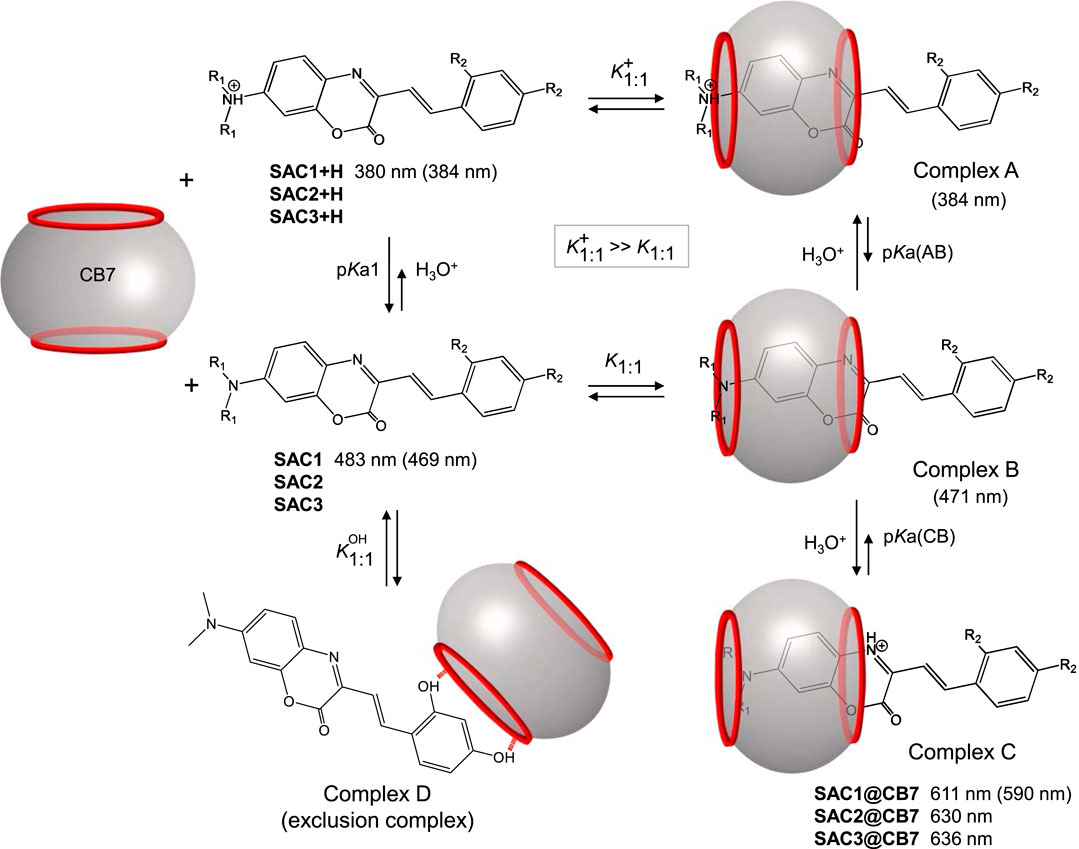

SCHEME 2. Representation of the proposed mechanism for the formation of the inclusion complex between CB7 and SAC1-3 at pH 2.5. The values in nm are the maximum absorption wavelengths. The values in parentheses are the theoretical wavelengths calculated by DFT theory for SAC1 and its host-guest complexes.

In the proposed mechanism (Scheme 2), complexes A and C would be favored over complex B, due to ion-dipole interactions and the formation of hydrogen bonds, which allow protonated species to form complexes ≈1000 times more stable than the complexes formed by neutral substrates (Moghaddam et al., 2011). Complex C would be formed due to the protonation of heterocyclic nitrogen from complex B and would be responsible for the absorption band observed in the region from 610 to 640 nm. This protonation would be unfavored at pH 5.3 and 10, as shown in Supplementary Figure S8B. In addition, complexes A and B would maintain the same optical properties of the free substrate. The DFT calculations (theoretical values in parentheses) support this deduction, reproducing the λmax observed experimentally (see Scheme 2).

On the other hand, the gradual shift from 493 nm towards ≈540 nm (Figure 5B), would be related to the neutral complex formed (complex B), since at lower pH values (specifically at pH 0.5) such shift was not observed (Supplementary Figure S10). In fact, this shift corresponds to 1902 cm−1, similar to that observed in non-protonated diethylamino substituted chalcones (2235 cm−1) (Basílio et al., 2017).

The explanation as to why this shift is only observed with the SAC2 substrate and not with the SAC1 substrate (Figure 5) could lie in a difference of pKa values for the equilibrium between complex A and B (pKa(AB), Scheme 2). For SAC1, this equilibrium should be more displaced towards complex A compared to when the guest is SAC2. In this sense, the concentration of complex B (when the guest is SAC1) should not be sufficient to produce a UV-vis signal like that observed in the case of SAC2 (Figure 5B). This is supported by that reported by Basílio et al., where the observed pKa for the complex formed between chalcones and CB7 is much higher when the substituent present in the substrate is dimethylamino (pKa = 6.22) in comparison with the substituent diethylamino (pKa = 4.71) (Basílio et al., 2017).

Lastly, the lower K1:1 binding constant value observed for the SAC3 substrate compared to that observed for SAC1 and SAC2 (in the presence of CB7), may be due to the formation of an additional complex (complex D) as a result of an exclusion process between SAC3 and CB7 (on the phenyl group side). Unfortunately, fitting the data obtained to the mechanism proposed in Scheme 2 is not possible without knowing at least all the pKas involved. Therefore, the estimated binding constant K1:1, in the presence of CB7, is obtained from a simple 1:1 stoichiometry model, where the proposed mechanism is not considered. However, the analysis of the data obtained lead to propose an association mechanism such as Scheme 2.

It is interesting to note that in the proposed mechanism, there is a change of the preferred protonation site in SAC1-3 in the presence of CB7, which was demonstrated through the optical response associated with the protonation of heterocyclic nitrogen, which until now was unknown. Both observations are summarized for SAC1 in Scheme 3.

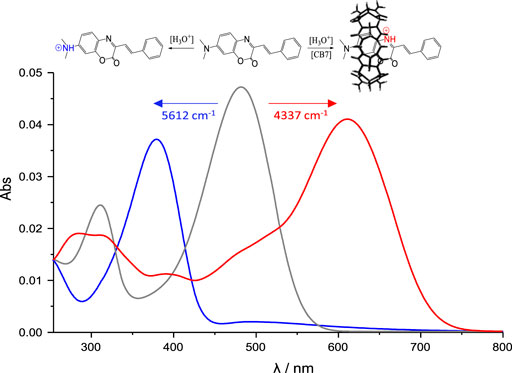

SCHEME 3. UV-vis spectra of SAC1 (1.5 µM) at: pH = 2.5 (grey line), pH = 2.5 in presence of 1.2 mM CB7 (red line) and pH = 0 (blue line). All in 30% methanol at 25.0°C.

Thus, the protonation would be induced by the CB7 portals and would be responsible for the larger bathochromic effect (≈4500 cm−1). Furthermore, the theoretical analysis of the boundary orbitals for SAC1, SAC2 and SAC3 (Supplementary Table S1) showed that the atom contributing the most to the LUMO orbital is precisely the heterocyclic nitrogen; the LUMO being the unoccupied orbital that contributes the most in the main electronic transition from the HOMO orbital with 71%. This supports the larger optical response observed, associated with the protonation of heterocyclic nitrogen.


We demonstrated that the synthesis of 7-dialkylamino-aza-coumarin dyes (SAC1-3) can be obtained from modifications of the classical methodologies reported.

Protonation in the dialkylamino group in SAC1 (pKa = 1.30) and SAC2 (pKa = 2.35) was favored compared to the other basic sites present in the molecule. Interestingly, for the SAC3 substrate, the protonation took place both in the dialkylamino group (pKa = 1.75) and in the heterocyclic nitrogen (pKa = 1.67) independently and not consecutively. The different protomers of the SACs studied were strongly supported by the theoretical analysis of the corresponding maximum absorption wavelengths.

In the presence of CB7, the large bathochromic effect observed in the studied aza-coumarins, is due to the protonation of heterocyclic nitrogen when interacting with the CB7 portals, forming an inclusion complex with 1:1 stoichiometry.

Considering the optical response of heterocyclic nitrogen of the studied aza-coumarins, greater attention is required towards this point, especially in designing new systems that promote the participation of heterocyclic nitrogen as part of the binding unit, directed towards the development of probes containing this relevant moiety.

Experimental Section

All solvents and Reagents were purchased from Sigma-Aldrich and used as received.

Synthesis and Characterization Data

Synthesis of the Intermediates
5-(Dimethylamino)-2-Nitrosophenol (b, R1 = CH3) and 5-(Diethylamino)-2-Nitrosophenol (b, R1 = CH2CH3)

These were obtained following the methodology of Hu et al., (Hu et al., 2011). The yields obtained in this case were 86 and 83% for 5-(dimethylamino)-2-nitrosophenol and for 5-(diethylamino)-2-nitrosophenol, respectively.

Synthesis of 7-(Dimethylamino)-3-Methyl-2H-benzo[b][1,4]oxazin-2-one (e, R1 = CH3)

To carry this out, modifications were made to the original methodology proposed in the literature (Le Bris, 1985; Hu et al., 2011). For this study, 1.2 g of the previously synthesized compound (b, R1 = CH3) and 0.1 eq of Pd-C were added to 100 ml of ethanol. Subsequently, the solution was treated with H2, under vacuum, overnight, and at room temperature. The excess of H2 was then extracted from the reaction mixture and replaced with N2. Then, the mixture was left to reactin situ with methyl pyruvate (1.6 eq) under reflux for 3 h. The residue was filtered, and the ethanol was removed under reduced pressure. Then, the solid was purified by flash column chromatography using silica as the stationary phase and petroleum ether/ethyl acetate (3:1) as the eluent. (0.96 g, yield: 65%; yellow solid). 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.46 (d, J = 9.0 Hz, 1H), 6.63 (dd, J = 9.1, 2.8 Hz, 1H), 6.38 (d, J = 2.8 Hz, 1H), 3.05 (s, 6H), 2.46 (s, 3H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 154.4; 151.7; 148.6; 147.4; 128.9; 122.7; 109.5; 97.3; 40.3; 20.7.

Synthesis of 7-(Diethylamino)-3-Methyl-2H-benzo[b][1,4]oxazin-2-one (e, R1 = CH2CH3

This was synthesized from b (R1 = CH2CH3), in an analogous way to the previously described methodology. (Yield: 66%; yellow solid). 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.45 (d, J = 9.0 Hz, 1H), 6.61 (dd, J = 9.0; 2.5 Hz, 1H), 6.38 (d, J = 2.5 Hz, 1H), 3.40 (q, J = 7.1 Hz, 4H), 2.45 (s, 3H), 1.20 (t, J = 7.1 Hz, 6H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 154.5, 149.5, 149.1, 146.7, 129.2, 122.3, 109.2, 96.7, 44.9, 20.7, 12.5.

Synthesis of (E)-7-(Dimethylamino)-3-Styryl-2H-benzo[b][1,4]oxazin-2-one (SAC1)

To carry this out, modifications were made to the original methodology proposed by Bris et al., (Le Bris, 1985). 200 mg of e (R1 = CH3), 0.2 ml of benzaldehyde (2 eq) and 4 ml of 1,4-dioxane were added in a reaction tube. The mixture was brought to 160°C for 39 h, monitored by TLC. Subsequently, 1,4-dioxane was removed under reduced pressure and the residue purified by chromatography with silica column, the first run using dichloromethane and a second one with petroleum ether/ethyl acetate (5:1). (174 mg, yield: 61%; red solid). 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.94 (d, J = 16.3 Hz, 1H), 7.62 (d, J = 7.3 Hz, 2H), 7.55 (d, J = 9.0 Hz, 1H), 7.42 (d, J = 16.3 Hz, 1H), 7.40–7.35 (m, 2H), 7.34–7.29 (m, 1H), 6.68 (dd, J = 9.0, 2.7 Hz, 1H), 6.42 (d, J = 2.7 Hz, 1H), 3.08 (s, 6H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 154.1, 151.9, 148.4, 142.5, 136.6, 136.4, 129.7, 128.9, 128.8, 127.6, 123.8, 122.3, 110.1, 97.2, 40.3. IR υmax: 2904 (NC-H), 1715 (C=O), 1618 (HC = CH, trans) cm−1. ESI-HRMS: m/z calculated for C18H16N2O2.-, [M].- = 292.1217; found 292.1219.

Synthesis of (E)-7-(Diethylamino)-3-Styryl-2H-benzo[b][1,4]oxazin-2-one (SAC2)

100 mg of e (R1 = CH2CH3), 0.1 ml of benzaldehyde (2 eq) and 4 ml of 1,4-dioxane were added in a reaction tube. The mixture was brought to 140°C and after 39 h TLC indicated the end of the reaction. Subsequently, the 1,4-dioxane was removed under reduced pressure and the residue purified in the same way as described above for SAC1. (59 mg, yield: 43%; solid red). 1H-NMR (400 MHz, CDCl3): δ (ppm) 7.94 (d, J = 16.3 Hz, 1H), 7.62 (d, J = 7.3 Hz, 2H), 7.53 (d, J = 9.1 Hz, 1H), 7.42 (d, J = 16.2 Hz, 1H), 7.40–7.35 (m, 2H), 7.35–7.27 (m, 1H), 6.66 (dd, J = 9.1, 2.7 Hz, 1H), 6.42 (d, J = 2.7 Hz, 1H), 3.44 (q, J = 7.1 Hz, 4H), 1.23 (t, J = 7.1 Hz, 6H). 13C-NMR (101 MHz, CDCl3): δ (ppm) 154.2, 149.9, 148.8, 141.9, 136.7, 136.1, 129.9, 128.8, 128.8, 127.5, 123.5, 122.5, 109.9, 96.7, 45.0, 12.5. IR υmax: 2963 (NC-H), 1718 (C=O), 1620 (HC = CH, trans) cm−1. ESI-HRMS: m/z calculated for C20H20N2O2.-, [M].- = 320,1530; found 320,1531.

Synthesis of (E)-3-(2,4-Dihydroxystyryl)-7-(Dimethylamino)-2H-benzo[b][1,4]oxazin-2-one (SAC3)

200 mg of e (R1 = CH3), 271 mg of 2,4-dihydroxybenzaldehyde (2 eq) and 4 ml of 1,4-dioxane were added in a reaction tube. The mixture was brought to 150°C for 80 h (monitored by TLC). Then, 1,4-dioxane was removed under reduced pressure and the residue purified by chromatography with silica column, the first one using acetone/hexane (1: 1) and a second chromatography with dichloromethane/ethyl acetate (2: 1). (96 mg, yield: 30%; wine-red solid). 1H-NMR (400 MHz, DMSO-d6): δ (ppm) 9.97 (s, 1H), 9.72 (s, 1H), 7.99 (d, J = 16.3 Hz, 1H), 7.48 (d, J = 9.0 Hz, 1H), 7.42 (d, J = 8.6 Hz, 1H), 7.23 (d, J = 16.3 Hz, 1H), 6.73 (dd, J = 9.1, 2.7 Hz, 1H), 6.51 (d, J = 2.7 Hz, 1H), 6.40 (d, J = 2.3 Hz, 1H), 6.31 (dd, J = 8.5, 2.4 Hz, 1H), 3.01 (s, 6H). 13C-NMR (101 MHz, DMSO-d6): δ (ppm) 160.3, 158.3, 154.2, 151.7, 148.1, 143.4, 131.9, 129.4, 129.2, 123.6, 117.9, 115.4, 110.5, 108.3, 103.1, 97.5, 40.4. IR υmax: 3060-3302 (OH, bonded), 2903 (NC-H), 1700 (C=O), 1599 (HC = CH, trans) cm−1. ESI-HRMS: m/z calculated for C18H15N2O4, [M-H]- = 323,1037; found 323,1037.

Determination of pKa Values for the SAC1-3

1 L of a 30.6% (v/v) methanolic solution was prepared. The solution was divided into two 500 ml solutions. 16.6 ml were extracted from both solutions with the help of a propipette. For the first solution (Solution A) the extracted volume was replaced by Milli-Q water while the second solution (Solution B) was replaced with an HCl solution (11.96 M). Thus, two methanolic solutions were obtained at 29.6% (v/v), one in the absence of HCl and the other at 0.40 M of HCl. Various 2.5 ml solutions of different pH values were prepared by diluting Solution A and Solution B in photometric cells. These small solutions were prepared considering 10 µL of the substrate (375 µM) previously prepared in methanol. The solutions at pH 2.5 to 3.0 were confirmed by an Adwa AD1030 pH-meter. This implied that the HCl concentration of the stock solution was correct, validating the dissolution method used.

The pKa values were determined by the non-linear regression method to fit the UV-vis absorptions and the pH involved in the prepared solutions. The equation used in the adjustment of the experimental data was:

Abs=(εS+H+εS)2{([S]0+10pH+10pKa)([S]0+10pH+10pKa)24[S]010pH }+εS[S]0(1)

where [S]0 is the initial substrate concentration, and ϵS and εS+H+ are the molar absorptivities of the non-protonated and protonated substrate, respectively.

Determination of Binding Constants of SAC1-3 in Presence of CB7

An estimated 1250 µM concentration of commercial CB7 (Sigma-Aldrich) was prepared in methanolic solution (3:7 v/v). The exact concentration of the previously prepared solution was determined by titration with cobaltocene hexafluorophosphate, as detailed in the work carried out by Kaifer et al. (Yi and Kaifer, 2011). The preparation of the solutions (including the CB7 solution) at different pHs was carried out as described in the previous item. Thus, for a specific pH, different methanolic solutions (3:7 v/v) were prepared at different concentrations of CB7 with 1.5 µM of substrate. Spectrophotometric measurements were performed and the data obtained were adjusted to the binding model of 1:1 stoichiometry (Scheme 4), making use of Eq. 2 (Thordarson, 2011).


where [H]0  and [G]0 are the initial molar concentrations of the host and guest, and  εG and εHG the absorptivities of the guest and complex at the measurement wavelength, respectively.


SCHEME 4. Host-guest binding mechanism for a 1:1 stoichiometric ratio.

Computational Methodology

DFT Calculations

The electronic structure calculations for the excited and ground state of the SAC1-3 and complexes (Scheme 1) were carried out using density functional theory (DFT). Two different levels of theory were used: B3LYP-D3/6-31G(d,p) for non- and mono-protonated (on the heterocyclic nitrogen) SACs and ωB97X-D/PBE0/6-31G(d,p) for di- and mono-protonated (on the dialkylamino nitrogen) SACs. The environment (methanol/water) was simulated by use of the solvation model based on density (SMD) (Marenich et al., 2009). All calculations were carried out using the Gaussian 09 package (Frisch et al., 2009). The default parameters for convergence in the optimization routine were used: convergence on the density matrix was 10−9 atomic units, the threshold value for maximum displacement was 0.0018 Å, and the maximum force was 0.00045 Hartree/Bohr.

Molecular Dynamic Simulations

CB7 and SAC3 were prepared using B3LYP-D3/6-31G(d,p) basis set in Gaussian 09 package (Frisch et al., 2009). Macrocycle/SACs Complexes were obtained as described in the literature (Aliaga et al., 2017; Fierro et al., 2021). Subsequently, MD simulations were carried out using the Amber16 suite of programs (Case et al., 2016) and the AMBER ff14SB (Hornak et al., 2006) as force field. Parameters of macrocycles and ligands were obtained using antechamber in the LEAP module of AmberTools.

Each system was solvated in a periodic box using TIP3P explicit water molecules (Mark and Nilsson, 2001). All systems were neutralized by adding counter ions (Na+ or Cl) and the molecular dynamic simulations were carried out during 100 ns as described in Momin et al., (Momin et al., 2018). The MM/PBSA approach (Kollman et al., 2000) was used to estimate the binding affinity for each complex.

Data Availability Statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author Contributions

JJA performed synthesis and spectroscopic experiments. JJA and EM performed DFT studies. AF and AR-M carried out dynamic molecular experiments. JJA, MEA, LG-R, and JGS wrote the manuscript with input from all the authors. MEA and JGS conceived the project.


This work was supported by FONDECYT grants N° 1210751.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.


JJA is grateful for the CONICYT Doctoral Fellowship 21170793. The authors wish to thank Alessandra Misad for proofreading the manuscript.
