Research Progress on the Photo-Driven Catalytic Production of Biodiesel

Introduction

With the rapid development of global industrialization, the total global fossil energy consumption is expected to increase by 28% between 2015 and 2040, resulting in a gradual reduction of fossil energy stocks (Manique et al., 2016; Wang A et al., 2018; Li et al., 2019a; Ghani et al., 2021). In the meantime, people’s awareness of environmental protection and the growing energy demand are stimulating the development enthusiasm of countries around the world to seek renewable energy (Zhang et al., 2019a; Zhao et al., 2019; Guo et al., 2021; Umar et al., 2022). Biodiesel, as a clean and renewable energy with low sulfur content, stands out in many renewable energy sources and is gradually widely used. It has long been regarded not only as a sustainable green fuel, but also as a raw material or intermediate for the synthesis of fine chemicals (e.g., industrial solvents, surfactants, and lubricants) (Zhang et al., 2019a; Zhang et al., 2019b). The carbon dioxide produced in the combustion process can be recycled through photosynthesis to slow down the greenhouse effect, which has good environmental protection performance (Karimi Estahbanati et al., 2020). Biodiesel has the advantages of good combustion performance, good low temperature starting performance, excellent lubrication performance, and high safety performance, which can effectively reduce the wear rate of engine parts and prolong the service life of the engine (Zhao et al., 2019; Guo et al., 2021). Biodiesel production has been continuously increasing over the past years and is anticipated to increase further in the future (Ahmed et al., 2016). In 2008, approximately 36.8 million liters of biodiesel were produced worldwide, and its total production is estimated to reach approximately 44 million liters in 2027 (Zhang et al., 2019b; Karimi Estahbanati et al., 2020). Overall, biodiesel is one of the most promising candidates for replacing fossil fuels to power the world.

As a rich, clean, and renewable energy source, solar energy is widely used in various fields, including wastewater treatment, solar evaporation, photoelectric treatment, and photothermal catalysis (Li et al., 2020; Nishiyama et al., 2021; Meng et al., 2022; Song et al., 2022). In recent years, the utilization of solar energy to enable heterogeneous catalytic reactions of fuels and chemicals has received extensive attention as a promising alternative to conventional thermal-driven heterogeneous catalytic processes (Liu et al., 2015; Meng and Li, 2021; Guo et al., 2022; Song et al., 2022). Among them, solar-driven (trans)esterification of vegetable oils (e.g., Jatropha, saffron, semen, and rapeseed oils), animal oils (e.g., tallow and lard), and edible waste oils or microalgae oils with a short-chain alcohol (e.g., methanol an ethanol) to prepare biodiesel has attracted widespread attention (Corro et al., 2017; de Medeiros et al., 2020; Ghani et al., 2021; Guo et al., 2021), considering its high efficiency, environmental protection, energy-saving feature, and simple operation. However, most photocatalytic materials can achieve higher catalytic efficiency only under ultraviolet light irradiation, and the absorption of sunlight in the visible and infrared regions is very weak, which limits the full utilization of solar energy (Li et al., 2019b; Guo et al., 2022; Song et al., 2022). In addition, photocatalyst has the problem of low separation efficiency of photogenerated carriers (electrons and holes) (Meng et al., 2022). Therefore, it is urgent to develop photocatalysts with a strong visible light response and high charge carrier separation efficiency (Corro et al., 2017; Aghilinategh et al., 2019; Song et al., 2022). At present, morphology control, crystal surface control, energy band control, metal and non-metal doping, preparation of carbon-containing composites, and the formation of heterojunction are mainly used to enhance the photocatalytic performance of photocatalysts (Li et al., 2015a; Wang L et al., 2018).

In the past few years, many excellent reviews have discussed biodiesel production from different aspects of using various thermal catalysts (Ma and Hanna, 1999; Hoekman et al., 2012; Wang et al., 2020; Zhang et al., 2020; Tan et al., 2021; Wang et al., 2021). However, there is a lack of discussion on the photocatalytic production of biodiesel. In this mini-review, the research progress on the production of biodiesel from plant/animal oils and free fatty acids (FFAs) over photocatalysts under light irradiation is summarized, and the mechanism of photocatalytic (trans)esterification and three typical enhanced photocatalytic activity strategies are discussed in detail, e.g., enhancing light absorption, improving the separation and transmission of photogenerated carriers, and promoting the interface reaction.

Mechanism of Photocatalytic (Trans)esterification

Under light irradiation, the photogenerated electrons (e⁻) migrate from the valence band (VB) to the conduction band; at the same time generating the same number of photogenerated holes (h⁺) on the VB. Photocatalytic (trans)esterification to produce biodiesel follows the Langmuir–Hinshelwood reaction path and can be divided into four steps (Corro et al., 2017; de Medeiros et al., 2020; Ghani et al., 2021; Guo et al., 2021) (Figure 1). The production of biodiesel from FFAs and methanol was taken as an example. In the first step, methanol (CH₃OH) was adsorbed on the surface of the photocatalyst and combined with photogenerated holes to form methanol free radicals (CH₃O⋅), and then FFAs (R-COOH) and photogenerated electrons generate R-COO⋅. In the second step, the methanol radical (CH₃O⋅) attacks the carbonyl carbon on R-COOH⋅ to form intermediates. In the third step, fatty acid methyl ester, namely biodiesel, was obtained by intermediate rearrangement dehydration. In the fourth step, the product was desorbed from the photocatalyst and separated into the liquid phase. It is worth noting that both methanol radical (CH₃O·) and R-COOH· are generated, which is attributed to the simultaneous generation of photogenerated electrons and holes under light irradiation. In addition, vigorous stirring in the process of reactant adsorption and product desorption is conducive to the reaction, which is attributed to the fact that stirring can accelerate the transfer rate of reactants and products at the interface and liquid phase.

FIGURE 1

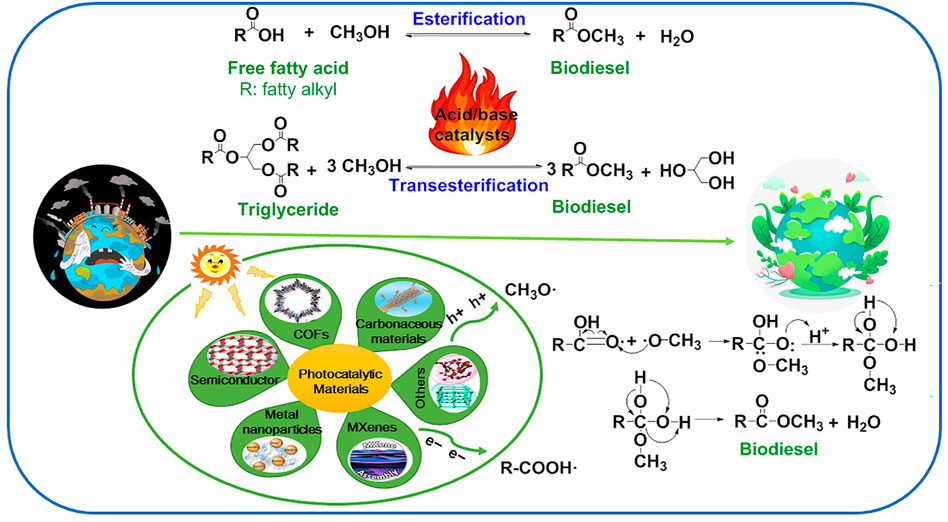

FIGURE 1. Schematic illustration of thermal- and photo-driven biodiesel production from FFA using acid/base catalysts and photocatalytic materials. Adapted with permissions from Corro et al., 2017; de Medeiros et al., 2020; Ghani et al., 2021; Guo et al., 2021.

Metal Nanoparticles

Photocatalytic materials have developed rapidly in recent years. Different photocatalytic materials have different catalytic effects on different reactions. It is of great significance to design reasonable photocatalytic materials according to the catalytic reaction. Therefore, this section introduces the different types of photocatalytic materials and their research in the catalytic production of biodiesel.

Metal nanoparticles can effectively absorb solar energy and drive various chemical reactions. Its significant advantage is that their light absorption is not limited to specific wavelengths, which can effectively improve the utilization of solar energy (Li et al., 2017a; Han et al., 2018; Song et al., 2022). Metal nanoparticles generate surface plasmon resonance (SPR) effect after absorbing radiation of specific wavelengths, which causes strong absorption of light and it determines the performance of metal nanoparticle photocatalysts. It was found that copper (Cu), iron (Fe), nickel (Ni), gold (Au), silver (Ag), and other metal nanoparticles can produce the SPR effect and have strong absorption of visible light. The morphology, size, composition, and interaction between nanoparticles will affect the absorption of light, thereby affecting its photocatalytic performance (Li et al., 2017b; Han et al., 2018; Song et al., 2022). This means that the above factors can be adjusted to design and prepare metal nanoparticles photocatalyst with high solar energy utilization. Compared with conventional thermal-driven (trans)esterification for biodiesel production, photo-driven metal nanoparticle catalysts are more energy-saving, environmentally friendly, and efficient due to the absence of heating in both reactors and solvents. Although metal nanomaterials have excellent photocatalytic properties, they are prone to agglomeration, poisoning, and high cost, resulting in low carrier separation efficiency and atom economy.

To solve the above problems, Corro et al. reported that Cr was loaded on SiO₂ to prevent the aggregation of Cr, which can improve its photocatalytic performance. The catalytic activity of 1% Cr/SiO₂ catalyst for the production of biodiesel from frying waste oil was excellent and remained unchanged after being repeated use 10 times (yield: 20%) (Corro et al., 2017). Nagaraju et al. also adopted the same method to prepare Ag/ZnO photocatalysis by loading Ag on ZnO for the transesterification of Simarouba oil to produce biodiesel with the yield of up to 84.5% (Nagaraju et al., 2017). Although these photocatalysts have good catalytic performance on oils or ester, they are noble metals or heavy metals. Therefore, Haq et al. prepared SiO₂-Cu@Fe₂O₃ photocatalyst with hexadecyl trimethyl ammonium bromide as a surfactant, which could efficiently catalyze the conversion of edible waste oil into biodiesel (yield: 98%) (Ul Haq et al., 2021). Compared with the reported catalysts, SiO₂-Cu@Fe₂O₃ had superior photocatalytic performance, low preparation cost, and safety, but the preparation method is complex. As such, the photocatalysis of metal nanoparticles for the industrial production of biodiesel still faces challenges.

Semiconductors

Semiconductor photocatalysts, containing metal oxides (e.g., ZnO and TiO₂), nitrides or sulfides (e.g., CdS and MoS₂), and metal-free semiconductors, are widely used in various photocatalytic reactions due to their advantages of simple preparation, low cost, low toxicity, and adjustable band gap (Li et al., 2013; Weng et al., 2019; Dou et al., 2021; Hassani et al., 2021). The application of semiconductor photocatalyst in the catalytic production of biodiesel has been widely studied and high yield has been obtained (Aghilinategh et al., 2019; Ghani et al., 2021; Guo et al., 2021; Nadeem et al., 2021; Guo et al., 2022). Manique et al. used TiO₂ as a photocatalyst to catalyze the esterification of oleic acid to prepare biodiesel with a high yield of 86% (Manique et al., 2016). However, TiO₂ has a wide band gap (3.28 eV), and only UV light can be absorbed to effectively generate photogenerated carriers. There is no obvious absorption of infrared and visible light in sunlight, of which ultraviolet (UV) light (>780 nm) accounts for 4% of sunlight and infrared (>780 nm) and visible light (400–780 nm) account for 96% of sunlight, resulting in the low utilization rate of sunlight. Singh et al. reported that the introduction of ZnO with a similar band structure (E_g = 3.2 eV) into TiO₂ inhibited the growth of TiO₂ particles, improved the optical absorption, and promoted the separation of photogenerated carriers by forming doping levels, which could increase the photocatalytic activity of TiO₂ (Singh et al., 2020). Corro et al. prepared ZnO/SiO₂ photocatalyst to catalyze the production of biodiesel from Jatropha curcas oil, and the yield reached 96%. After 10 times of recycling, the catalytic activity remained basically unchanged (Corro et al., 2013). In addition, Cao et al. prepared N-doped TiO₂ photocatalyst by doping non-metallic method had narrow band gap and significantly enhanced absorption of sunlight compared with ordinary TiO₂, (Cao et al., 2021). Guo et al. reported that doping rare-earth ions La³⁺ in TiO₂ could promote the separation of photogenerated carriers due to the formation of oxygen vacancies (Guo et al., 2021). In addition to the above methods for modifying the photocatalytic performance, the photocatalytic performance of TiO₂ can be improved by changing its morphology and forming a local electric field. In short, there is a lack of reports on semiconductor photocatalyst for biodiesel production.

Covalent Organic Frameworks (COFs)

Covalent organic frameworks (COFs) are polymers with clear two-dimensional and three-dimensional structures. It is applied in various fields (e.g., gas storage, heterogeneous catalysis, energy storage, organic electronic devices, and degradation of pollutants), which is attributed to its advantages of low density, high specific surface area and pore size, and stable porosity (Li H et al., 2021; You et al., 2021; Guo et al., 2022). COF-based photocatalysts with unique photocatalytic properties can be designed in advance by adjusting their topological structure. In recent years, COF materials have been developed rapidly as photocatalysts for various chemical reactions, including photocatalytic water decomposition to produce hydrogen and oxygen, photocatalytic degradation of pollutants, and carbon dioxide reduction engineering (Li H et al., 2021; Li X et al., 2021; You et al., 2021). At present, the amount of COF-based photocatalyst synthesized in the laboratory is relatively small, which is generally prepared at the milligram level, attributed to the harsh synthesis conditions (e.g., high preparation temperature, high energy consumption, and time-consuming) and poor crystallinity of the product. So, it seems not suitable for large-scale production. Based on the above problems, there are limited studies on COF-based catalysts for the catalytic production of biodiesel. In 2021, Zhou et al. synthesized the core-shell magnetic Fe₃O₄@COF-OMe catalyst at room temperature (Zhou et al., 2021). Due to its high specific surface area, porosity, and good chemical stability, the thermal-driven catalytic synthesis of biodiesel from Jatropha oil was successfully realized, and the yield was about 70%. However, there is no report on COF-based photocatalytic production of biodiesel. Therefore, it is of great significance to develop COF-based photocatalysts with high photocatalytic activity for the catalytic production of biodiesel.

Carbonaceous Materials

Carbonaceous materials are promising catalytic materials with various forms, including graphene, carbon nanotubes, nanosheets, and biomass-derived amorphous carbon (Li et al., 2016; de Medeiros et al., 2020; Ghani et al., 2021). Graphene has excellent electron-transport properties and low electrical conductivity, which reduces the recombination of photogenerated carriers. It has strong absorption in both ultraviolet and visible light regions, resulting in improved utilization of sunlight. Yao et al. reported the esterification catalyzed by commercial graphene oxide, and the catalytic effect was not obvious (the ester yield: 33%), which may be due to the weak electron-hole oxidation ability (Yao et al., 2022). Hussain et al. prepared ZnO/Ni-SBA-16@GO composite photocatalyst for conversion of waste edible oil into biodiesel with good activity under 500 W Xe lamp irradiation, and the conversion rate was as high as 98% (Athar Hussain et al., 2022). Similar to graphene-semiconductor materials, as doped with graphene on the semiconductor, VB above would produce donor level (introduction of C 2p orbital), leading to the semiconductor VB upshift and narrow band gap. The semiconductors are sensitized to improve their optical absorption ability due to the narrow bandgap of graphene. Graphitic carbon nitride (g-C₃N₄, E_g = 2.7 eV), as a low-cost, and non-toxic photocatalyst, has shortcomings like small specific surface area, poor long-wavelength light absorption, low charge transfer efficiency, and high photogenerated electron-hole pair recombination rate, which limits its performance. Ghani et al. used graphene carbon nitride composite (SrTiO₃/g-C₃N₄) to catalyze frying waste oil and methanol for preparing biodiesel, and the obtained yield was up to 96% (Ghani et al., 2021). Therefore, graphite-phase carbon nitride is usually applied to photoreaction in the form of composite materials. The above composite photocatalysis shows good photocatalytic performance in the process of catalytic production of biodiesel, and the quality of biodiesel meets the American Society for Testing and Materials (ASTM) standards. Although carbonaceous photocatalytic materials have been extensively studied, they still face three major challenges. 1) The photocatalytic performance of carbon-based materials is closely related to the preparation process, defect degree, and functional materials. 2) The interface charge transfer mechanism is not thorough enough. 3) Carbon-based materials have relatively high emissivity (about 0.85) due to its high surface reflection.

In addition to the above types of photocatalytic materials, other materials (e.g., MOFs, MXenes, polypyrroles, and polyanilines) exhibit the great potential to be used as photocatalysts for the production of biodiesel with high performance (He et al., 2020; Liu et al., 2021; Qian et al., 2021; Song et al., 2022), while much more efforts should be made to simplify the catalyst preparation procedures, facilitate large-scale production processes, and so on.

Strategies for Improving Photocatalyst Performance

In this section, several typical modification strategies to improve the photocatalytic performance of photocatalysts are discussed. The catalytic performance and solar energy conversion efficiency of photocatalysts can be improved from three aspects: light absorption, photogenerated carrier separation, and interfacial reaction. Visible and infrared light accounts for 96%, ultraviolet light accounts for only 4% in sunlight, so it is necessary to enhance the light absorption of photocatalytic materials. The light absorption properties of photocatalysts can be modified by band adjustment, morphology control, and sensitization. A narrow band gap is beneficial to light absorption. Metal and non-metal doping is an effective strategy to change the band gap width and band edge position of the materials (Li et al., 2013; Li et al., 2019a). In addition, the photocatalytic materials can be prepared with different morphologies, such as multilayer nanosheets, multilayer hollow, and nano-helical column structures, which can promote the multiple reflection absorption of sunlight (de Medeiros et al., 2020; Ghani et al., 2021). The most direct way is to directly add dyes, quantum dots, and other sensitizers to photocatalytic materials, which can also enhance light absorption (Karimi Estahbanati et al., 2020).

The generated photogenerated carriers need to be transmitted to the interface to participate in the reaction. During this process, photogenerated carriers are easy to contact organic compounds. The construction of the local electric field, morphology control, and interface modification strategies can be used to promote the separation and transmission of photogenerated carriers (Wang L et al., 2018; Hassani et al., 2021; Nishiyama et al., 2021). The heterojunction is the interface region formed by the contact of two different semiconductors, which produces electron and hole concentration differences at the interface, thus forming a heterojunction electric field that can promote the separation of carriers. The morphology of photocatalytic materials affects their photocatalytic performance, and the exposure of different crystal faces may affect the interface reaction process (Karimi Estahbanati et al., 2020). By adjusting the morphology of catalysts, including nanotubes, wires and rods, the excellent charge transferability is attributed to their high crystallization and oriented structure. The interface modification strategy can also reduce the interface recombination of photogenerated carriers, thereby improving the charge separation efficiency.

In the photocatalytic production of biodiesel, if the photogenerated carriers cannot be captured by oil and alcohol, the recombination and accumulation of carriers will be caused. Firstly, the reactants should be adsorbed on the active site of the photocatalyst, so the reactants can be strongly adsorbed by oxygen vacancies on the catalyst (Li et al., 2015b). The added cocatalyst can reduce the accumulation and recombination of carriers, and further introduce other modification layers between the modification layer and the semiconductor layer, which may be beneficial to the separation and transmission of carriers (Hassani et al., 2021; Nishiyama et al., 2021). Moreover, stirring can promote the adsorption of reactants and the desorption of products, which is conducive to the capture of photogenerated carriers by reactants, thereby speeding up the reaction (Guo et al., 2021).

Conclusion and Outlook

Biodiesel presents a promising alternative to fossil fuels to provide energy to the world. The photocatalytic production of biodiesel under mild conditions holds significant potential in enabling such a transition. Compared to conventional thermal-driven catalysis, photo-driven catalysis has the advantages of green, environmental protection, and energy-saving. Recent developments in the photo-driven catalytic production of biodiesel were summarized from three aspects (trans)esterification mechanism, photocatalytic type, and modification strategy. Photocatalysts appeared to enhance light absorption by adjusting the band gap, morphology control, and adding sensitizers. Local electric field, morphology control, and interface modification strategies were constructed to promote the separation and transmission of photogenerated carriers. To promote the interfacial reaction, the introduction of oxygen on the photocatalyst to enhance the adsorption of reactants, and co-catalysts and stirring were added to promote the reaction, thereby reducing the accumulation and recombination of photogenerated carriers.

There are still some problems to be solved in the production of biodiesel by photo-driven catalysis. First of all, mechanisms of photo-catalytic (trans)esterification have not been systematically studied due to few studies on this topic. The photocatalytic production of biodiesel shows excellent performance in the laboratory, but most of the photocatalysts with excellent catalytic performance generally contain expensive noble metals, so the design and preparation of efficient non-noble metal or non-metallic materials are of great significance for photo-driven catalysis. In addition, the industrial application of photocatalytic production of biodiesel is still a breakthrough new field. At present, photocatalytic equipment has not been standardized and there is no complete set of equipment. Therefore, the real goal, in the next few years, is to transfer these catalytic processes from laboratory to industrial scale. Overall, photo-driven catalytic biodiesel production is still in its infancy, yet it opens a new door for the green production of biofuels. The industrialization of photo-driven catalytic biodiesel production needs the continuous efforts of researchers in this field.

Author Contributions

JH and YJ wrote the first draft of the manuscript. PZ, OA, and HL contributed to the supervision, reviewing, and editing of the manuscript. All authors read and approved the submitted version.

Funding

This work was funded by the National Natural Science Foundation of China (21908033), the Guizhou Provincial S & T Project (ZK [2022]011), and the Fok Ying-Tong Education Foundation (161030). PZ acknowledges funding from the Chinese Scholarship Council (201809505002) and the Department of Chemistry, Technical University of Denmark. The Article Processing Charges (APCs) were partially funded by Lund University’s APC Fund.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s Note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

References

Aghilinategh, M., Barati, M., and Hamadanian, M. (2019). Supercritical Methanol for One Put Biodiesel Production from Chlorella Vulgaris Microalgae in the Presence of CaO/TiO2 Nano-Photocatalyst and Subcritical Water. Biomass and Bioenergy 123, 34–40. doi:10.1016/j.biombioe.2019.02.011

CrossRef Full Text | Google Scholar

Ahmed, T. S., Abdelaziz, O. Y., and Roberts, G. W. (2016). Preparation of Al2O3/AlF3-Supported Ruthenium Catalysts for the Hydrogenolysis of Biodiesel-Derived Crude Glycerol. Ind. Eng. Chem. Res. 55, 5536–5544. doi:10.1021/acs.iecr.6b00500

CrossRef Full Text | Google Scholar

Athar Hussain, A., Nazir, S., Ullah Khan, A., Tahir, K., Albalawi, K., Ibrahim, M. M., et al. (2022). Preparation of Zinc Oxide Graphted Nickel Incorporated Mesoporous SBA-16 Doped Graphene Oxide: An Efficient Catalyst for Transesterification of Waste Edible Oil to Biodiesel and Photocatalytic Degradation of Organic Dyes. Inorg. Chem. Commun. 139, 109379. doi:10.1016/j.inoche.2022.109379

CrossRef Full Text | Google Scholar

Cao, Y., Chen, D., Meng, Y., Saravanamurugan, S., and Li, H. (2021). Visible-light-driven Prompt and Quantitative Production of Lactic Acid from Biomass Sugars over a N-TiO2 Photothermal Catalyst. Green. Chem. 23, 10039–10049. doi:10.1039/d1gc03057d

CrossRef Full Text | Google Scholar

Corro, G., Pal, U., and Tellez, N. (2013). Biodiesel Production from Jatropha Curcas Crude Oil Using ZnO/SiO2 Photocatalyst for Free Fatty Acids Esterification. Appl. Catal. B: Environ. 129, 39–47. doi:10.1016/j.apcatb.2012.09.004

CrossRef Full Text | Google Scholar

Corro, G., Sánchez, N., Pal, U., Cebada, S., and Fierro, J. L. G. (2017). Solar-irradiation Driven Biodiesel Production Using Cr/SiO2 Photocatalyst Exploiting Cooperative Interaction between Cr6+ and Cr3+ Moieties. Appl. Catal. B: Environ. 203, 43–52. doi:10.1016/j.apcatb.2016.10.005

CrossRef Full Text | Google Scholar

de Medeiros, T. V., Macina, A., and Naccache, R. (2020). Graphitic Carbon Nitrides: Efficient Heterogeneous Catalysts for Biodiesel Production. Nano Energy 78, 105306. doi:10.1016/j.nanoen.2020.105306

CrossRef Full Text | Google Scholar

Dou, Z., Zhang, Z., Zhou, H., and Wang, M. (2021). Photocatalytic Upgrading of Lignin Oil to Diesel Precursors and Hydrogen. Angew. Chem. Int. Ed. 60, 16399–16403. doi:10.1002/anie.202105692

CrossRef Full Text | Google Scholar

Ghani, N., Iqbal, J., Sadaf, S., Bhatti, H. N., and Asgher, M. (2021). A Facile Approach for the Synthesis of SrTiO 3/g‐C 3 N 4 Photo‐catalyst and its Efficacy in Biodiesel Production. ChemistrySelect 6, 12082–12093. doi:10.1002/slct.202101787

CrossRef Full Text | Google Scholar

Guo, M., Jiang, W., Chen, C., Qu, S., Lu, J., Yi, W., et al. (2021). Process Optimization of Biodiesel Production from Waste Cooking Oil by Esterification of Free Fatty Acids Using La3+/ZnO-TiO2 Photocatalyst. Energ. Convers. Manage. 229, 113745. doi:10.1016/j.enconman.2020.113745

CrossRef Full Text | Google Scholar

Guo, M., Jiang, W., Ding, J., and Lu, J. (2022). Highly Active and Recyclable CuO/ZnO as Photocatalyst for Transesterification of Waste Cooking Oil to Biodiesel and the Kinetics. Fuel 315, 123254. doi:10.1016/j.fuel.2022.123254

CrossRef Full Text | Google Scholar

Han, P., Martens, W., Waclawik, E. R., Sarina, S., and Zhu, H. (2018). Metal Nanoparticle Photocatalysts: Synthesis, Characterization, and Application. Part. Part. Syst. Charact. 35, 1700489. doi:10.1002/ppsc.201700489

CrossRef Full Text | Google Scholar

Hassani, A., Krishnan, S., Scaria, J., Eghbali, P., and Nidheesh, P. V. (2021). Z-scheme Photocatalysts for Visible-Light-Driven Pollutants Degradation: A Review on Recent Advancements. Curr. Opin. Solid State. Mater. Sci. 25, 100941. doi:10.1016/j.cossms.2021.100941

CrossRef Full Text | Google Scholar

He, J., Zhang, Z., Xiao, C., Liu, F., Sun, H., Zhu, Z., et al. (2020). High-performance Salt-Rejecting and Cost-Effective Superhydrophilic Porous Monolithic Polymer Foam for Solar Steam Generation. ACS Appl. Mater. Inter. 12, 16308–16318. doi:10.1021/acsami.9b22832

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoekman, S. K., Broch, A., Robbins, C., Ceniceros, E., and Natarajan, M. (2012). Review of Biodiesel Composition, Properties, and Specifications. Renew. Sust. Energ. Rev. 16, 143–169. doi:10.1016/j.rser.2011.07.143

CrossRef Full Text | Google Scholar

Karimi Estahbanati, M. R., Feilizadeh, M., Attar, F., and Iliuta, M. C. (2020). Current Developments and Future Trends in Photocatalytic Glycerol Valorization: Photocatalyst Development. Ind. Eng. Chem. Res. 59, 22330–22352. doi:10.1021/acs.iecr.0c04765

CrossRef Full Text | Google Scholar

Li, H., Fang, Z., and Yang, S. (2016). Direct Catalytic Transformation of Biomass Derivatives into Biofuel Component γ-Valerolactone with Magnetic Nickel-Zirconium Nanoparticles. ChemPlusChem 81, 135–142. doi:10.1002/cplu.201500492

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, H., Guo, H., Fang, Z., Aida, T. M., and Smith, R. L. (2020). Cycloamination Strategies for Renewable N-Heterocycles. Green. Chem. 22, 582–611. doi:10.1039/c9gc03655e

CrossRef Full Text | Google Scholar

Li, H., Guo, H., Su, Y., Hiraga, Y., Fang, Z., Hensen, E. J. M., et al. (2019a). N-formyl-stabilizing Quasi-Catalytic Species Afford Rapid and Selective Solvent-free Amination of Biomass-Derived Feedstocks. Nat. Commun. 10, 699. doi:10.1038/s41467-019-08577-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, H., He, X., Zhang, Q., Chang, F., Xue, W., Zhang, Y., et al. (2013). Polymeric Ionic Hybrid as Solid Acid Catalyst for the Selective Conversion of Fructose and Glucose to 5-hydroxymethylfurfural. Energ. Tech. 1, 151–156. doi:10.1002/ente.201200041

CrossRef Full Text | Google Scholar

Li, H., Li, Y., Fang, Z., and Smith, R. L. (2019b). Efficient Catalytic Transfer Hydrogenation of Biomass-Based Furfural to Furfuryl Alcohol with Recycable Hf-Phenylphosphonate Nanohybrids. Catal. Today 319, 84–92. doi:10.1016/j.cattod.2018.04.056

CrossRef Full Text | Google Scholar

Li, H., Saravanamurugan, S., Yang, S., and Riisager, A. (2015a). Catalytic Alkylation of 2-methylfuran with Formalin Using Supported Acidic Ionic Liquids. ACS Sust. Chem. Eng. 3, 3274–3280. doi:10.1021/acssuschemeng.5b00850

CrossRef Full Text | Google Scholar

Li, H., Shang, J., Ai, Z., and Zhang, L. (2015b). Efficient Visible Light Nitrogen Fixation with BiOBr Nanosheets of Oxygen Vacancies on the Exposed {001} Facets. J. Am. Chem. Soc. 137, 6393–6399. doi:10.1021/jacs.5b03105

PubMed Abstract | CrossRef Full Text | Google Scholar

Li, H., Wang, L., and Yu, G. (2021). Covalent Organic Frameworks: Design, Synthesis, and Performance for Photocatalytic Applications. Nano Today 40, 101247. doi:10.1016/j.nantod.2021.101247

CrossRef Full Text | Google Scholar

Li, H., Zhao, W., and Fang, Z. (2017a). Hydrophobic Pd Nanocatalysts for One-Pot and High-Yield Production of Liquid Furanic Biofuels at Low Temperatures. Appl. Catal. B: Environ. 215, 18–27. doi:10.1016/j.apcatb.2017.05.039

CrossRef Full Text | Google Scholar

Li, H., Zhao, W., Riisager, A., Saravanamurugan, S., Wang, Z., Fang, Z., et al. (2017b). A Pd-Catalyzed In Situ Domino Process for Mild and Quantitative Production of 2,5-dimethylfuran Directly from Carbohydrates. Green. Chem. 19, 2101–2106. doi:10.1039/c7gc00580f

CrossRef Full Text | Google Scholar

Li, X., Kawai, K., Fujitsuka, M., and Osakada, Y. (2021). COF-based Photocatalyst for Energy and Environment Applications. Surf. Inter. 25, 101249. doi:10.1016/j.surfin.2021.101249

CrossRef Full Text | Google Scholar

Liu, J., Li, H., Liu, Y.-C., Lu, Y.-M., He, J., Liu, X.-F., et al. (2015). Catalytic Conversion of Glucose to 5-hydroxymethylfurfural over Nano-Sized Mesoporous Al2O3-B2o3 Solid Acids. Catal. Commun. 62, 19–23. doi:10.1016/j.catcom.2015.01.008

CrossRef Full Text | Google Scholar

Liu, M., Xing, Z., Li, Z., and Zhou, W. (2021). Recent Advances in Core-Shell Metal Organic Frame-Based Photocatalysts for Solar Energy Conversion. Coord. Chem. Rev. 446, 214123. doi:10.1016/j.ccr.2021.214123

CrossRef Full Text | Google Scholar

Ma, F., and Hanna, M. A. (1999). Biodiesel Production: A Review. Bioresour. Tech. 70, 1–15. doi:10.1016/S0960-8524(99)00025-5

CrossRef Full Text | Google Scholar

Manique, M. C., Silva, A. P., Alves, A. K., and Bergmann, C. P. (2016). Application of Hydrothermally Produced TiO2 Nanotubes in Photocatalytic Esterification of Oleic Acid. Mater. Sci. Eng. B 206, 17–21. doi:10.1016/j.mseb.2016.01.001

CrossRef Full Text | Google Scholar

Meng, Y., and Li, H. (2021). Electrocatalytic Oxidation of Biomass-Derived 5-Hydroxymethylfurfural to 2,5-Furandicarboxylic Acid Coupled with H2 Evolution. Coc 25, 2810–2814. doi:10.2174/1385272825666210927101643

CrossRef Full Text | Google Scholar

Meng, Y., Yang, S., and Li, H. (2022). Electro‐ and Photocatalytic Oxidative Upgrading of Bio‐based 5‐Hydroxymethylfurfural. ChemSusChem 15, e202102581. doi:10.1002/cssc.202102581

CrossRef Full Text | Google Scholar

Nadeem, F., Bhatti, I. A., Ashar, A., Yousaf, M., Iqbal, M., Mohsin, M., et al. (2021). Eco-benign Biodiesel Production from Waste Cooking Oil Using Eggshell Derived MM-CaO Catalyst and Condition Optimization Using RSM Approach. Arabian J. Chem. 14, 103263. doi:10.1016/j.arabjc.2021.103263

CrossRef Full Text | Google Scholar

Nagaraju, G., Udayabhanu, S., Shivaraj, S. A., Prashanth, S. A., Shastri, M., Yathish, K. V., et al. (2017). Electrochemical Heavy Metal Detection, Photocatalytic, Photoluminescence, Biodiesel Production and Antibacterial Activities of Ag-ZnO Nanomaterial. Mater. Res. Bull. 94, 54–63. doi:10.1016/j.materresbull.2017.05.043

CrossRef Full Text | Google Scholar

Nishiyama, H., Yamada, T., Nakabayashi, M., Maehara, Y., Yamaguchi, M., Kuromiya, Y., et al. (2021). Photocatalytic Solar Hydrogen Production from Water on a 100-m(2) Scale. Nature 598, 304–307. doi:10.1038/s41586-021-03907-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Qian, Y., Zhang, F., and Pang, H. (2021). A Review of MOFs and Their Composites‐Based Photocatalysts: Synthesis and Applications. Adv. Funct. Mater. 31, 2104231. doi:10.1002/adfm.202104231

CrossRef Full Text | Google Scholar

Singh, J., Kumar, S., RishikeshManna, A. K., Manna, A. K., and Soni, R. K. (2020). Fabrication of ZnO-TiO2 Nanohybrids for Rapid Sunlight Driven Photodegradation of Textile Dyes and Antibiotic Residue Molecules. Opt. Mater. 107, 110138. doi:10.1016/j.optmat.2020.110138

CrossRef Full Text | Google Scholar

Song, C., Wang, Z., Yin, Z., Xiao, D., and Ma, D. (2022). Principles and Applications of Photothermal Catalysis. Chem. Catal. 2, 52–83. doi:10.1016/j.checat.2021.10.005

CrossRef Full Text | Google Scholar

Tan, X., Sudarsanam, P., Tan, J., Wang, A., Zhang, H., Li, H., et al. (2021). Sulfonic Acid-Functionalized Heterogeneous Catalytic Materials for Efficient Biodiesel Production: A Review. J. Environ. Chem. Eng. 9, 104719. doi:10.1016/j.jece.2020.104719

CrossRef Full Text | Google Scholar

Ul Haq, Z., Tahir, K., Aazam, E. S., Almarhoon, Z. M., Al-Kahtani, A. A., Hussain, A. A., et al. (2021). Surfactants Assisted SiO₂-Cu@Fe₂O₃ Nanofibers: Ultra Efficient Photocatalyst for Photodegradation of Organic Compounds and Transesterification of Waste Edible Oil to Biodiesel. Environ. Tech. Innovation 23, 101694. doi:10.1016/j.eti.2021.101694

CrossRef Full Text | Google Scholar

Umar, Y., Velasco, O., Abdelaziz, O. Y., Aboelazayem, O., Gadalla, M. A., Hulteberg, C. P., et al. (2022). A Renewable Lignin-Derived Bio-Oil for Boosting the Oxidation Stability of Biodiesel. Renew. Energ. 182, 867–878. doi:10.1016/j.renene.2021.10.061

CrossRef Full Text | Google Scholar

Wang, A., Li, H., Pan, H., Zhang, H., Xu, F., Yu, Z., et al. (2018). Efficient and green Production of Biodiesel Catalyzed by Recyclable Biomass-Derived Magnetic Acids. Fuel Process. Tech. 181, 259–267. doi:10.1016/j.fuproc.2018.10.003

CrossRef Full Text | Google Scholar

Wang, A., Quan, W., Zhang, H., Li, H., and Yang, S. (2021). Heterogeneous ZnO-Containing Catalysts for Efficient Biodiesel Production. RSC Adv. 11, 20465–20478. doi:10.1039/d1ra03158a

CrossRef Full Text | Google Scholar

Wang, A., Sudarsanam, P., Xu, Y., Zhang, H., Li, H., and Yang, S. (2020). Functionalized Magnetic Nanosized Materials for Efficient Biodiesel Synthesis via Acid-Base/enzyme Catalysis. Green. Chem. 22, 2977–3012. doi:10.1039/d0gc00924e

CrossRef Full Text | Google Scholar

Wang, L., Zhao, J., Liu, H., and Huang, J. (2018). Design, Modification and Application of Semiconductor Photocatalysts. J. Taiwan Inst. Chem. Eng. 93, 590–602. doi:10.1016/j.jtice.2018.09.004

CrossRef Full Text | Google Scholar

Weng, B., Qi, M.-Y., Han, C., Tang, Z.-R., and Xu, Y.-J. (2019). Photocorrosion Inhibition of Semiconductor-Based Photocatalysts: Basic Principle, Current Development, and Future Perspective. ACS Catal. 9, 4642–4687. doi:10.1021/acscatal.9b00313

CrossRef Full Text | Google Scholar

Yao, P., Gong, H., Wu, Z. Y., Fu, H., Li, B., Zhu, B., et al. (2022). Greener and Higher Conversion of Esterification via Interfacial Photothermal Catalysis. Nat. Sustain. 5, 1–9. doi:10.1038/s41893-021-00841-0

CrossRef Full Text | Google Scholar

You, J., Zhao, Y., Wang, L., and Bao, W. (2021). Recent Developments in the Photocatalytic Applications of Covalent Organic Frameworks: A Review. J. Clean. Prod. 291, 125822. doi:10.1016/j.jclepro.2021.125822

CrossRef Full Text | Google Scholar

Zhang, H., Li, H., Hu, Y., Venkateswara Rao, K. T., Xu, C., and Yang, S. (2019b). Advances in Production of Bio-Based Ester Fuels with Heterogeneous Bifunctional Catalysts. Renew. Sust. Energ. Rev. 114, 109296. doi:10.1016/j.rser.2019.109296

CrossRef Full Text | Google Scholar

Zhang, H., Li, H., Xu, C. C., and Yang, S. (2019a). Heterogeneously Chemo/enzyme-Functionalized Porous Polymeric Catalysts of High-Performance for Efficient Biodiesel Production. ACS Catal. 9 (12), 10990–11029. doi:10.1021/acscatal.9b02748

CrossRef Full Text | Google Scholar

Zhang, Q., Zhang, Y., Cheng, J., Li, H., and Ma, P. (2020). An Overview of Metal-Organic Frameworks-Based Acid/base Catalysts for Biofuel Synthesis. Coc 24, 1876–1891. doi:10.2174/1385272824999200726230556

CrossRef Full Text | Google Scholar

Zhao, W., Chi, X., Li, H., He, J., Long, J., Xu, Y., et al. (2019). Eco-friendly Acetylcholine-Carboxylate Bio-Ionic Liquids for Controllable N-Methylation and N-Formylation Using Ambient CO2 at Low Temperatures. Green. Chem. 21, 567–577. doi:10.1039/c8gc03549k

CrossRef Full Text | Google Scholar

Zhou, Z.-W., Cai, C.-X., Xing, X., Li, J., Hu, Z.-E., Xie, Z.-B., et al. (2021). Magnetic COFs as Satisfactory Support for Lipase Immobilization and Recovery to Effectively Achieve the Production of Biodiesel by Maintenance of Enzyme Activity. Biotechnol. Biofuels 14, 156. doi:10.1186/s13068-021-02001-0

PubMed Abstract | CrossRef Full Text | Google Scholar
