Perovskite LaNiO3/Ag3PO4 heterojunction photocatalyst for the degradation of dyes

Introduction

The increase in the usage of inorganic and organic substances and the surge in industrialization and overpopulation have adverse effects on the soil and the quality of freshwater resources in recent years. In our daily lives, dyes are frequently used, as well as their contact with the environment is detrimental because of their risk inherent to plants, humans and wildlife (Chowdhary et al., 2020).

Water is a vital resource for human growth and life on Earth. Textile manufacturing is one of the anthropogenic processes that pollute water sources. Synthetic dyes are utilized in considerable amounts in various industries. Pharmaceutical, paint manufacturing, cosmetics, leather and clothing industries discharge tons of various kinds of dyes into the environment (Waseem et al., 2014). During the coloring of fabric, roughly 10–15% of azo dyes do not bind and are discharged into water bodies. That’s why azo dyes show more health concerns than non-azo dyes. Azo dyes are toxic for microbial communities as well as plant growth and germination. Most of these dyes are potentially non-biodegradable and extremely stable, resulting in serious environmental impacts on marine life and humans (Markandeya et al., 2017; Lellis et al., 2019).

Non-biodegradable MO is one of the common azo dyes is carcinogenic and harmful compound, if ingested, it might cause irritation of the respiratory tract, eyes and skin (Aziztyana et al., 2019; Lellis et al., 2019). In an alkaline medium, MO appears yellow, but in an acidic one, it appears red. Rhodamine B dye is commonly used in industries and is a non-biodegradable dye, causes numerous environmental contamination issues by releasing carcinogenic and harmful compounds into the water. If RhB is ingested, it might cause irritation of the abdominal disorders, blindness, respiratory distress and skin sensitization. (Markandeya et al., 2017; Areeb et al., 2021). In an alkaline medium, RhB appears colorless, but in an acidic one, it appears pink. Methyl orange is a type of azo dye that is commonly used in textiles.

Due to their high-water solubility, dyes and organic chemicals such as dyes are difficult to remove using traditional methods. To decompose dyes and other organic substances in water, different treatment techniques have been used. Toxins are extracted from wastewater in different ways by each approach. Major methods include 1) Chemical methods such as chlorination and ozonation, 2) Physical methods such as ultra-filtration, adsorption, reverse osmosis and ion exchange, 3) Biological methods such as aerobic as well as anaerobic treatments (Maheshwari et al., 2021). The majority of the traditional approaches just change the phase of chemicals without transforming them into eco-friendly products. As a result, their application is not compatible since they produce harmful side products that require additional treatment, bringing excessive expense to the degradation process (Katheresan et al., 2018).

Photoreactions of semiconductors due to their greater potential to mineralize organic pollutants in the environment have become highly significant among the various Advanced Oxidation Processes (AOPs) in recent years (Szczepanik, 2017). Among the numerous novel technologies accessible today, the use of materials for heterogeneous photocatalysis/electrocatalysis has been regarded as one of the most efficient methods for tackling both energy as well as environmental challenges and has thus gained a lot of attention in recent years (Gao et al., 2021; Wu et al., 2021). Due to their good magnetic, physical and optical properties, a number of nanostructured semiconductors such as ZnS, ZnO, CdS, TiO₂ and WO₃ are used as photocatalysts (Sudha and Sivakumar, 2015; Luo et al., 2019; Saravanan et al., 2020). Under visible light, silver orthophosphate (Ag₃PO₄) has a very strong photocatalytic activity. According to charge neutrality analysis, Ag₃PO₄ may act as a weakly p-type semiconductor for O-rich conditions and as a weakly n-type semiconductor for O-poor conditions (Reunchan and Umezawa, 2013), and has a band gap of 2.36 eV semiconductor with good visible light degradation of organic pollutants and induced oxygen evolution (Li et al., 2019). However, due few disadvantages of silver phosphate such as: photogenerated electrons can easily reduce Ag⁺ in Ag₃PO₄ to elemental silver (Ag⁰), and electron-hole pair recombination. (Zhang et al., 2014; Chen et al., 2022). The composite formation is an effective method for expanding absorption from ultraviolet to visible region that either adds a new band into the initial band or alters the valence band (VB) or conduction band (CB), improving photocatalytic activity (Zhang et al., 2017; Lv et al., 2019). Composite formation of Ag₃PO₄ with other materials such as carbon nanotubes (Xu et al., 2014), graphene oxide (Chen G. et al., 2013) have also been reported in recent years. Similarly, combining other semiconductors with Ag₃PO₄ to form a heterojunction is also a promising strategy. For example, Bi₄Ti₃O₁₂/Ag₃PO₄ (Zheng et al., 2017), TiO₂/Ag₃PO₄ (Liu et al., 2019), ZnWO₄/Ag₃PO₄ (Zhang et al., 2017), BiVO₄/Ag₃PO₄ (Qi et al., 2016) etc. The advantages of coupled semiconductors include extending the light responsive range and boosting the transferring abilities of the photo-generated charge carrier.

In this study, the stability and photocatalytic activity of Ag₃PO₄ is enhanced by composite formation with LaNiO_3, ABO₃ type perovskite. Perovskites are another appealing semiconductor photocatalyst with changeable components, simple structure, and good stability (Grabowska, 2016; Zhang et al., 2016). The theoretical bandgap energy (2.40 eV) of LaNiO₃ allows it to absorb visible light energy, but in actual practice, the photocatalytic activity of pure LaNiO₃ is not as good as expected due to poor response to visible light and electron and hole pair recombination (Gao et al., 2019). Combining LaNiO₃ with Ag₃PO₄ shows a facile way to improve photocatalytic activity and stability for water treatment.

Experimental

Materials

Sodium hydroxide (NaOH), Lanthanum nitrate hexahydrate (La(NO₃)₃ ·6H₂O) and Nickel nitrate hexahydrate (Ni(NO₃)₂ ·6H₂O) were purchased from Sigma Aldrich. ethanol (CH₃CH₂OH) was obtained from Merk (Germany). Silver nitrate (AgNO₃) and Sodium phosphate (Na₃PO₄) were provided by Sigma-Aldrich. All the chemicals were of analytical grade, and all the solutions were prepared in distilled water.

Synthesis of perovskite LaNiO₃

Perovskite LaNiO₃ was prepared by the facile hydrothermal method. In a typical synthesis, stoichiometry amounts of lanthanum nitrate hexahydrate and nickel nitrate hexahydrate were mixed in distilled water under stirring conditions. Sodium hydroxide was added to maintain the pH 11. The resulting mixture was transferred into an autoclave for hydrothermal treatment at 180°C for 12 h. The product was washed with distilled water and ethanol and dried overnight. Then the product was calcined at 650°C for 4 hours in order to obtain the lanthanum nickelate powder.

Synthesis of perovskite LaNiO₃/Ag₃PO₄ composites

Composites of lanthanum nickelate and silver phosphate were prepared by the hydrothermal method (Guan and Guo, 2014). In a typical procedure, an appropriate amount of lanthanum nickelate was dispersed in distilled water by sonication, stoichiometry amounts of silver nitrate and sodium phosphate were added in the mixture. The yellow precipitates of silver phosphate were observed. Immediately the mixture was transferred into Teflon lined autoclave for 24 h at 100°C. The obtained composite was washed with water and ethanol. Three composites were obtained by varying the amounts of lanthanum nickelate and labeled as 2% LaNiO₃/Ag₃PO₄, 5% LaNiO₃/Ag₃PO₄ and 10% LaNiO₃/Ag₃PO₄. Pure silver phosphate was prepared by same procedure without adding lanthanum nickelate.

Procedure for the measurement of catalytic performance

The efficiency of as prepared photocatalysts was examined by the photodegradation of RhB and MO under visible light (using 100 watts LED light with an output of 40 k Lux, measured with Extech LT300 light meter). In a typical procedure, 0.025 g of LaNiO₃/Ag₃PO₄ photocatalyst is added to the solution of RhB and MO (25 ppm) under stirring conditions using a magnetic stirrer at room temperature. Suspensions were collected at given time intervals, and the photocatalyst was removed with the help of a centrifuge (4,000 rpm, 5 min). UV–Vis spectrophotometer (Model UV-1700 SHIMADZU) was used to determine the concentration of residual RhB and MO in supernatant solution depending on the highest absorption of RhB and MO at wavelengths of 554 and 464 nm, respectively. Degradation efficiency was calculated using the following relationship.

$\mathbf{D}\mathbf{e}\mathbf{g}\mathbf{r}\mathbf{a}\mathbf{d}\mathbf{a}\mathbf{t}\mathbf{i}\mathbf{o}\mathbf{n}\mathbf{E}\mathbf{f}\mathbf{f}\mathbf{i}\mathbf{c}\mathbf{i}\mathbf{e}\mathbf{n}\mathbf{c}\mathbf{y}\left(\%\right)=\frac{\left(\mathbf{C}₀-\mathbf{C}\mathbf{t}\right)}{\mathbf{C}₀}\times \mathbf{100},(1)$

Where C_t is concentration after time t and C_o is the initial concentration.

Results and discussion

Powder X-ray diffraction analysis

The diffraction pattern of LaNiO₃ shows 2theta values of 32.8°, 47.3°, 53.5°, 54.1°, and are well matched with the rhombohedral phase of LaNiO₃ (JCPDS No.00-034-1077; space group, R), while those of Ag₃PO₄ corresponded to 2theta values of 20.9°, 29.7°, 33.2°, 36.5°, 47.7°, 52.7°, 57.1° shows the cubic structure of Ag₃PO₄ (JCPDS No.00-006-0505; space group, P4̅ 3n). The XRD pattern of LaNiO₃/Ag₃PO₄ composites showed a combination of LaNiO₃ and Ag₃PO₄ and ruled out the possibility of other impurity phases, indicating successful synthesis of composite. Furthermore, it is observed that the diffraction peaks of LaNiO₃ gradually strengthened with increasing the LaNiO₃ content, while the peak intensities of Ag₃PO₄ weakened. The hydrothermal treatment gave well-crystallized Ag₃PO₄ particles with sharp diffraction peaks. Compared to Ag₃PO₄, peaks of LaNiO₃ were broader and less sharp, which may be resulting from smaller crystallite size (Figure 1). The crystallite size of 14.7 nm, 86.5 nm, 58.1 nm were calculated for LaNiO₃, Ag₃PO₄ and 5% LaNiO₃/Ag₃PO₄ composite respectively using Scherrer equation.

FIGURE 1

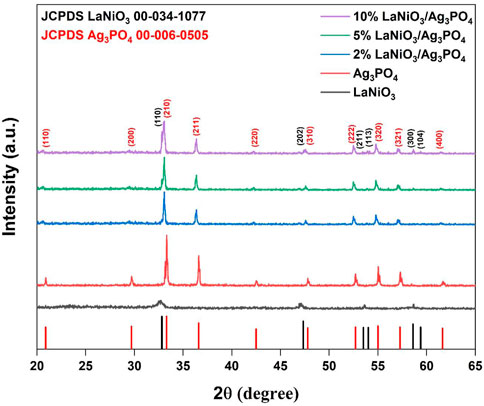

FIGURE 1. Powder XRD pattern of LaNiO₃, Ag₃PO₄, 2% LaNiO₃/Ag₃PO₄, 5% LaNiO₃/Ag₃PO₄ and 10% LaNiO₃/Ag₃PO₄ composite.

FT-IR spectroscopy

Figure 2 shows the FT-IR spectra of Ag₃PO₄ and 5% LaNiO₃/Ag₃PO₄. In the spectrum of silver phosphate, two strong peaks were observed at 550 cm⁻¹ and 946 cm⁻¹ and were assignable to bending and stretching vibrations of the P-O bond, respectively. Two small peaks at 565 cm⁻¹ and 965 cm⁻¹ is observed for bending vibrations of Ni-O bond.

FIGURE 2

FIGURE 2. FT-IR spectra of Ag₃PO₄ and 5% LaNiO₃/Ag₃PO₄.

Scanning electron microscopy

SEM was used to investigate the morphology and particle size of as-prepared samples. SEM images of 5% LaNiO₃/Ag₃PO₄ showed that particles of LaNiO₃ were uniformly and tightly attached on the surface of Ag₃PO₄, which indicated an intimate contact between LaNiO₃ and Ag₃PO₄. Pure Ag₃PO₄ possessed a polyhedral morphology and has interstitial spaces, as shown in Figures 3A,B, whereas, these spaces were filled with LaNiO₃ accumulation in 5% LaNiO₃/Ag₃PO₄ composite. Figures 3E,F shows the very tiny particles of LaNiO₃. Figures 3C,D showed that LaNiO₃ particles are uniformly distributed on the surface of Ag₃PO₄.

FIGURE 3

FIGURE 3. SEM images of Ag₃PO₄ (A,B), and LaNiO₃/Ag₃PO₄ composite (C,D), LaNiO₃ (E,F) at different resolutions.

Energy-dispersive X-ray spectroscopy

EDX was used to find the elemental composition of Ag₃PO₄ and LaNiO₃/Ag₃PO₄ composite. Figure 4 depicted the elemental composition of Ag₃PO₄ and 5%LaNiO₃/Ag₃PO₄ composite. The EDX Ag₃PO₄ shows (wt%) Ag = 77, p = 7.3, O = 15.7, whereas 5%LaNiO₃/Ag₃PO₄ shows (wt%) Ag = 73.1, p = 6.9, La = 2.9, Ni = 1.2, O = 15.8. The energy-dispersive X-ray spectrum of composite shows that La, Ni, Ag, P, and O are present in the composite and confirmed the successful synthesis of the composite.

FIGURE 4

FIGURE 4. EDX spectrum of (upper) Ag₃PO₄ (lower) 5%LaNiO₃.

Band gap estimation and optical study

When light falls on the surface of semiconductor photocatalyst electrons move from VB to CB by absorbing energy. The relationship between the band gap energy and absorption spectra can be represented by Tauc equation which is written as:

$\left(\mathbf{\alpha }\mathbf{h}\mathbf{\upsilon }\right)=\mathbf{k}{\left(\mathbf{h}\mathbf{\upsilon }-{\mathbf{E}}_{\mathbf{g}}\right)}^{\mathbf{n}}$

where hυ is the energy of photon, n is a type of transition, and n is either 1/2 for a direct transition or 2 for an indirect transition, k is the band tailing parameter, that does not dependent on energy, and E_g is the energy of band gap (Masnadi-Shirazi et al., 2014). The Beer-Lambert law can be used to calculate coefficient of absorption (α). Band gap value (E_g) between the wavelength ranges from 200 to 800 nm can be quantified by extrapolating linear region of plot energy (hυ) vs (αhυ)². Different parameters such as doping, grain size, annealing treatment and type of transition (direct or indirect), create differences in Eg values (Hameeda et al., 2021). The band gap energies of Ag₃PO₄ and LaNiO₃ were found to be 2.36 and 2.40 eV respectively, which are similar to previous findings (Li et al., 2019; Chen et al., 2022). These photocatalysts have comparable band gap energies. The band gap energy of 5% LaNiO₃/Ag₃PO₄ composite is 2.38 eV. Tauc plots of Ag₃PO₄, LaNiO₃ and 5% LaNiO₃/Ag₃PO₄ are depicted in the Figures 5A–C respectively.

FIGURE 5

FIGURE 5. Tauc plots of (A) Ag₃PO₄ (B) LaNiO₃ (C) 5% LaNiO₃/Ag₃PO₄.

Optimization studies for rhodamine B photodegradation

The purpose of this work is to investigate new avenues in the study of photodegradation efficiency of highly effective and freshly synthesized photocatalysts for rhodamine B (RhB) degradation using various parameters such as pH, catalyst dose, time and concentration of dye. The effect of dye adsorption in dark was also studied and it was observed that no significant adsorption was observed in the absence of light.

The photocatalytic activity of as-prepared catalysts for rhodamine B degradation was investigated with UV-Visible spectrophotometry, by taking 25 mg of the each photocatalyst and 30 ml of RhB solution (25 mg/L). The resultant solutions were exposed to light lasting 20 min while being continuously magnetically stirred. The most appropriate catalyst was selected based on their performance for dye degradation. The absorption spectrum of RhB from photocatalytic studies was observed between the wavelength ranges from 200 to 600 nm. After a specified period of time, the strength of the RhB distinctive peak began to decrease (Figure 6A). The optimum catalyst was selected depending on the efficiency of dye degradation. The photocatalytic activity increases by increasing the content of LaNiO₃ in the LaNiO₃/Ag₃PO₄ composite up to 5% but it decreases by further increasing the LaNiO₃ content due to the possible formation of agglomeration. The results demonstrate that the 2%LaNiO₃/Ag₃PO₄ and 10%LaNiO₃/Ag₃PO₄ composite showed higher activity than pure LaNiO₃ and Ag₃PO₄ but lower than 5% LaNiO₃/Ag₃PO₄ composite. Therefore, 5%LaNiO₃/Ag₃PO₄ composite was found to be good photocatalyst for the degradation of rhodamine B providing good stability and synergy for photocatalysis.

FIGURE 6

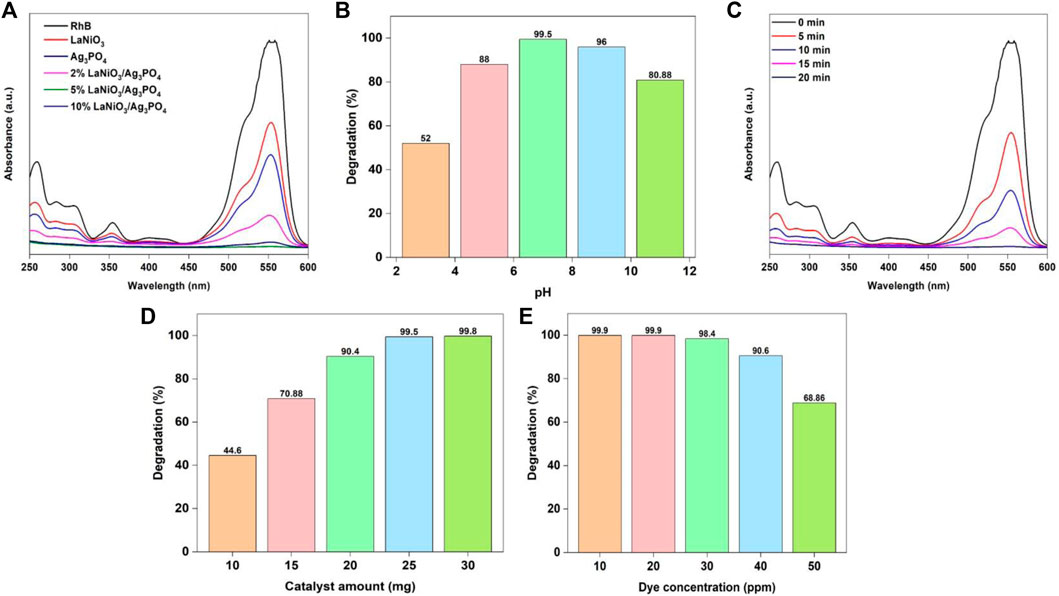

FIGURE 6. Change of RhB degradation efficiency of photocatalysts with (A) type of catalyst, (B) pH (C) time, (D) catalyst amount (E) dye concentration. Reaction conditions: Light Source: 100 watts LED, Intensity: 40 k Lux, temperature: 25°C, Pressure: 1 atm.

pH of the solution is an important parameter in studying the degradation reaction. The surface charges of the photocatalyst are directly affected by pH. The RhB solution’s pH was regulated using 1 M sodium hydroxide and 1 M hydrochloric acid solution. The pH of the solution is adjusted at the commencement of the reaction. The photodegradation investigation was conducted under the conditions: (Irradiation time: 20 min, amount of catalyst: 25 mg, solution’s pH: 2–10, concentration of RhB: 25 mg/L). According to Figure 6B the degradation efficiency of RhB using 5%LaNiO₃/Ag₃PO₄ photocatalyst is maximum at pH 7. The pH of solution is a major factor in photocatalytic process that occurs on the surface of a photocatalyst because it determines the surface charge properties of the photocatalyst as well as the size of aggregate particles that form. As a result, pH plays a significant influence in the reaction pathways that can lead to the degradation of dye. Photocatalytic activities are likely to emerge in the existence of catalyst through electron-hole pairs generated on the photocatalysts surface by visible light irradiation. The effect of pH on the dye degradation varies greatly depending on the photocatalyst available in the water. According to prior research, the surface of Ag₃PO₄ catalyst is neutral at pH 5.4. In acidic conditions, the surface of photocatalyst is positively charged, whereas in alkaline media, it is negatively charged. The highest degradation efficiency of RhB was achieved in neutral solutions (pH 7), but it was less efficient in alkaline medium. Despite being a cationic dye, rhodamine B has a low degradation in basic solutions (above pH 7), and the surface of catalyst is negatively charged at the pH above 5.4. This strange behavior can be attributed to the fact that silver ions in silver phosphate reduced to elemental silver which reduces the active site of the catalyst and degradation efficiency decreases.

Degradation of RhB with 5%LaNiO₃/Ag₃PO₄ photocatalyst was examined for time optimization under visible light irradiation. Photodegradation experiment was conducted out under the conditions: (Irradiation time: 0–20 min, amount of catalyst: 25 mg, solution’s pH: 7, concentration of RhB: 25 mg/L). As seen in Figure 6C a typical absorption peak of RhB rapidly diminishes as the exposure period increases, associated with rapid change in color of dye solution. Increased exposure time to the light improves rate of electron flow from valence to the conduction band, resulting in increased degradation efficiency. After 20 min, RhB was found to have entirely degraded.

It is critical to obtain information on the optimum quantity of catalyst to be used in the reaction, not only to determine its cost, but also to ensure that it is recovered after the reaction is completed. With this in mind, the effect of catalyst quantity on RhB degradation was investigated. The photodegradation experiment was conducted out under the conditions: (Irradiation time: 20 min, amount of catalyst: 10–30 mg, solution’s pH: 7, concentration of RhB: 25 mg/L). Figure 6D depicts the influence of catalyst quantity on RhB degradation efficiency. It was found that by adding 5%LaNiO₃/Ag₃PO₄ photocatalyst to reaction mixture had a significant impact on the process efficiency. The percentage of degradation rose as the catalyst dose increased, maximum at 25 mg of catalyst. The rise in the efficiency of degradation is due to the catalyst’s active sites increasing, resulting in the generation of more reactive radicals (superoxide anion and hydroxyl) that drive the degradation process.

RhB photodegradation efficiency was further studied by varying the concentrations of RhB under visible light irradiation. Photodegradation experiment was conducted out under the conditions: (Irradiation time: 20 min, amount of catalyst: 25 mg, solution’s pH: 7, concentration of RhB: 10–50 mg/L). The photodegradation reaction was shown to slow down as concentrations of RhB increased. This can happen when O₂ adsorption is decreased due to higher dye molecules adsorption on the surface of the catalyst, resulting in a reduction of photocatalyst active sites, and thus the production of extremely oxidative ^•O₂⁻ is inhibited. Furthermore, high concentrations of dye cause light to self-absorb, preventing it from reaching the surface of catalyst. As a result, insufficient energy from photons reaches the catalyst’s active sites, leading to lower efficiency. In addition to that, because of the high concentration of RhB, intermediate compounds may form during the photodegradation reaction and absorb certain active radicals that may interact with the molecules of dye. Therefore, the overall degradation efficiency decreases. The degradation efficiency is still good up to 90.5% using 50 mg/L of RhB (Figure 6E).

Optimization studies for methyl orange photodegradation

To investigate the photodegradation efficiency of highly effective and freshly synthesized photocatalysts for methyl orange (MO) degradation, various parameters such as catalyst type, pH, catalyst dose, time and dye concentration were carried out. The effect of dye adsorption in dark was also studied and it was observed that no significant adsorption was observed in the absence of light.

The photocatalytic activity of as-prepared samples for MO degradation was investigated with UV-Vis spectrophotometry, by using 25 mg of the each photocatalyst and 30 ml of MO solution (30 ppm). The resultant solutions were exposed to light for 25 min with continuous stirring. The most appropriate catalyst was selected based on their performance for dye degradation. The absorption spectrum of MO from photocatalytic studies was observed between the wavelength ranges from 200 to 600 nm. After some time, the strength of the MO distinctive peak began to decrease. The activity was increased by increasing the content of LaNiO₃ in the LaNiO₃/Ag₃PO₄ composite up to 5% but it decreased by further increasing the LaNiO₃ content possibly due to agglomeration (Figure 7A). The results demonstrate that the 2% LaNiO₃/Ag₃PO₄ and 10% LaNiO₃/Ag₃PO₄ composite showed higher activity than pure LaNiO₃ and Ag₃PO₄ but lower than 5% LaNiO₃/Ag₃PO₄ composite. Therefore, 5% LaNiO₃/Ag₃PO₄ composite was found to be suitable photocatalyst for the degradation of MO.

FIGURE 7

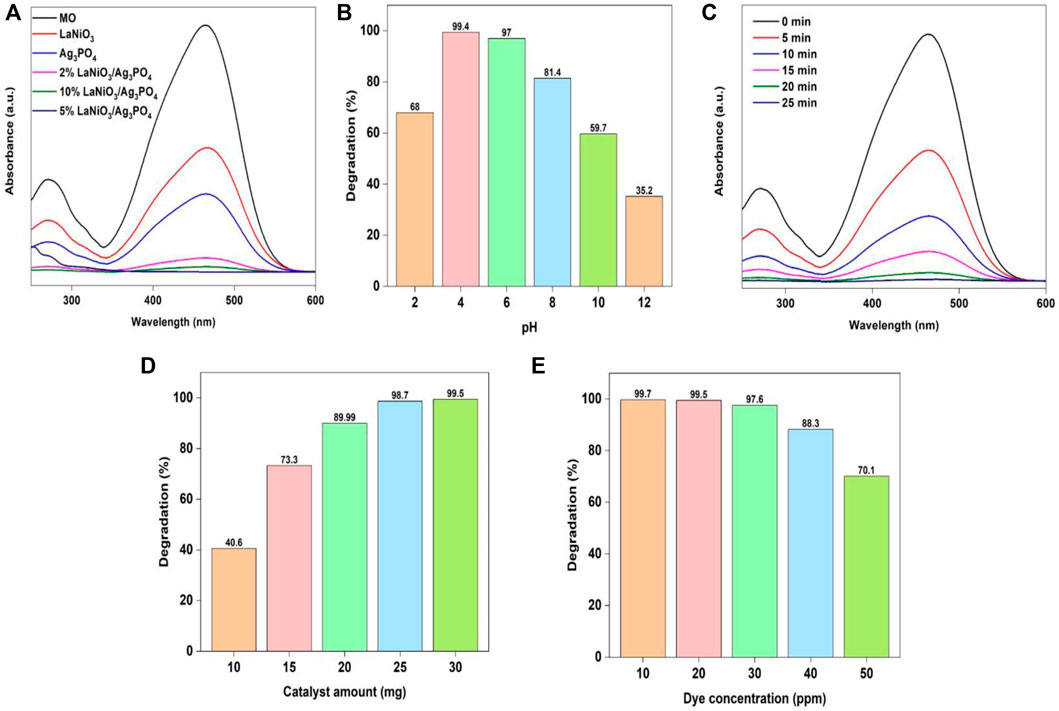

FIGURE 7. Change of MO degradation efficiency with variable (A) type of catalyst, (B) pH (C) time, (D) catalyst amount (E) dye concentration. Reaction conditions: Light Source: 100 watts LED, Intensity: 40 k Lux, temperature: 25°C, Pressure: 1 atm.

Further investigations were carried out to check the influence of pH on MO photodegradation. The photodegradation experiment was conducted out under the conditions: (Irradiation time: 25 min, amount of catalyst: 25 mg, solution’s pH: 2–12, concentration of MO 30 mg/L).

Figure 7B shows that the percentage efficiency for the removal of MO dye with 5%LaNiO₃/Ag₃PO₄ is highest at pH 4. Because pH affects multiple variables, including ionization state of the photocatalyst and dye, ease of producing hydroxyl radicals, and catalyst agglomeration, it is referred to as a complicated parameter (Akpan and Hameed, 2009). Because photocatalytic reaction takes place predominantly on the surface of photocatalyst, the surface parameters have a significant effect on the performance of catalyst. Surface of the photocatalyst is positively charged in acidic conditions, and azo structure of methyl orange is also transformed into quinoid structure in acidic conditions. The quinoid structure of Methyl Orange is easy to degrade than azo structure as reported in literature (Basahel et al., 2015). Acidic condition promoted the degradation reaction catalyzed by 5%LaNiO₃/Ag₃PO₄. Electrostatic interactions among the dye molecules and the surface of catalyst are also important in the degradation process. The increased efficiency in acidic conditions is explained by the anionic character of MO and absorption of H⁺ ions on the surface of catalyst. Under acidic conditions, the MO is easily absorbed on the surface of photocatalyst which is positively charged. In acidic media, removal of MO is more effective than in alkaline media (Mansouri et al., 2019).

The influence of reaction time on MO photodegradation was further investigated with the following conditions: (Irradiation time: 0–20 min, amount of catalyst: 25 mg, solution’s pH: 4, concentration of MO: 30 mg/L). Figure 7C shows that by extending the irradiation time, the efficiency of MO removal increases. Irradiation time of 20 min was selected for further study due to highest degradation efficiency for MO using the specified reaction conditions. To assess the amount of catalyst for the photocatalytic degradation of MO, the effect of catalyst dose was further investigated under the conditions: (Irradiation time: 20 min, amount of catalyst: 10–30 mg, solution’s pH: 4, concentration of MO 30 mg/L). The results showed that increasing the catalyst amount significantly increased capability of dye adsorption as well as rate of photodegradation. As shown in Figure 7D that increasing the catalyst dosage from 10 to 30 mg significantly enhances dye degradation efficiency. It is clearly seen that raising the photocatalyst amount increases the availability of active sites as well as illuminated area available for the degradation of extra dye molecules and adsorption. As a result, as the catalyst dosage was increased, the rate of photodegradation rose.

To investigate the influence of dye concentrations on photodegradation reaction, the photodegradation experiment was conducted under following conditions: (Irradiation time: 20 min, amount of catalyst: 25 mg, solution’s pH: 4, concentration of MO: 20–60 mg/L). A photodegradation process was shown to decrease as dye concentration increased, as illustrated in Figure 7E. This decrease in the rate of degradation with increasing dye concentration may be ascribed to the higher dye concentration reducing the active catalyst due to saturation effect. Furthermore, increasing the concentration of dye would enhance dye molecules adsorption on the photocatalyst surface and avoid the adsorption of oxygen and hydroxyl ions on the surface of photocatalyst for photodegradation.

Degradation kinetics

To find the order and rate constant of degradation reaction, we have studied the degradation kinetics. The degradation reaction of rhodamine B by 5%LaNiO₃/Ag₃PO₄ composite follows pseudo 1st order kinetic having rate constant 0.213 min⁻¹. Whereas, the methyl orange degradation reaction by 5%LaNiO₃/Ag₃PO₄ composite also shows pseudo 1st order kinetics with a rate constant of 0.180 min⁻¹ as shown in Figures 8A,B).

FIGURE 8

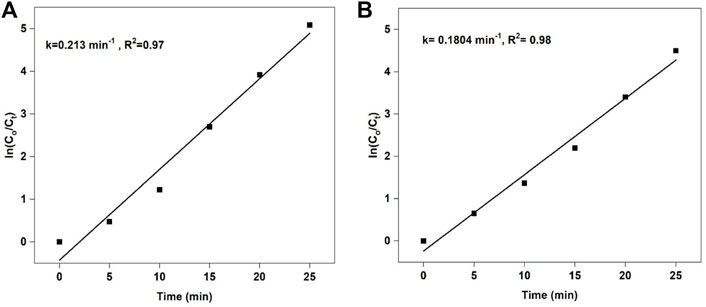

FIGURE 8. Pseudo first order kinetics of RhB (A) k = 0.2130 $\pm$ 0.0126, MO (B) k = 0.1804 $\pm$ 0.0113 Reaction conditions: Light Source: 100 watts LED, Intensity: 40 k Lux, temperature: 25°C, Pressure: 1 atm. Catalyst amount: 25 mg, Dye concentration: 30 mg, pH: Neutral.

Possible mechanism for the photocatalytic dyes degradation

In order to understand the mechanism for the degradation of RhB and MO, the effect of different scavengers on RhB and MO degradation was carried out. Figure 9 shows that photocatalytic activity is completely inhibited by using hole scavenger sodium sulfite, but it remains almost unchanged by using electron scavenger (AgNO₃). It means that holes play a crucial role in the degradation of RhB and MO. In the photodegradation system, the superoxide anion radical (O₂^·−) radicals are effective reactive oxygen species, which are produced by the reduction of O₂ molecules adsorbed on the catalyst surface by the photogenerated electrons (Luo et al., 2019). Photocatalytic activity slightly changed by adding superoxide anion radical scavenger ascorbic acid while it remains unchanged by adding hydroxyl radical scavenger tert-butanol (TBA). So, superoxide anion radicals also play a role in the dye degradation of RhB and MO.

FIGURE 9

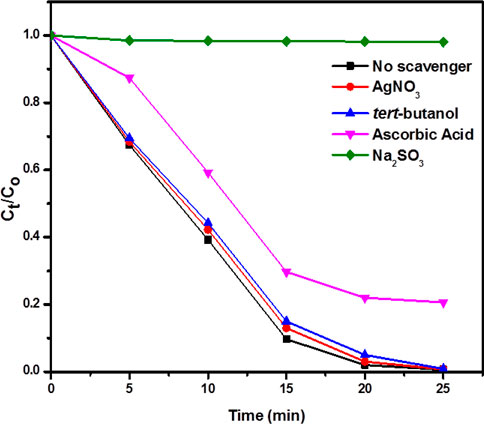

FIGURE 9. The effect of different scavengers on dye degradation of RhB. Reaction conditions: Light Source: 100 watts LED, Intensity: 40 k Lux, temperature: 25°C, Pressure: 1 atm. Catalyst amount: 25 mg, Dye concentration: 30 mg.

Energy band positions of LaNiO₃ and Ag₃PO₄ are shown in the Figure 10. The valence band positions of LaNiO₃ and Ag₃PO₄ are 2.10 eV and 2.81 eV while conduction band positions are −0.3 eV and 0.45 eV respectively. Here, Z-Scheme heterostructure is formed between LaNiO₃ and Ag₃PO₄. When the light falls on the surface of the photocatalyst, electrons from valence band of Ag₃PO₄ move towards conduction band of LaNiO₃. Therefore, holes and electrons are formed (Ge et al., 2012; Khalid et al., 2020).

$\mathit{h}\mathit{v}+\mathit{P}\mathit{h}\mathit{o}\mathit{t}\mathit{o}\mathit{c}\mathit{a}\mathit{t}\mathit{a}\mathit{l}\mathit{y}\mathit{s}\mathit{t}\to {\mathit{h}}^{+}+{\mathit{e}}^{-}$

whereas holes react with the hydroxyl ions to form hydroxyl radicals.

${\mathit{O}\mathit{H}}^{-}+{\mathit{h}}^{+}\to \cdot \mathit{O}\mathit{H}$

FIGURE 10

FIGURE 10. The possible mechanism for dye degradation.

Superoxide anion radicals are produced by the reduction of O₂ molecules adsorbed on the catalyst surface by the photogenerated electrons.

${\mathit{O}}_{\mathbf{2}}+{\mathit{e}}^{-}\to \cdot {\mathit{O}}_{\mathbf{2}}^{-}$

These generated radicals participated in the photocatalytic reduction and oxidation reactions to degrade dyes.

Scavenger results showed that mainly holes are responsible for the degradation of dyes. Therefore, the dyes adsorbed at the surface of catalyst degradation achieved by direct hole oxidation by catalyst suspension (Ge et al., 2012).

$\mathit{P}\mathit{o}\mathit{l}\mathit{l}\mathit{u}\mathit{t}\mathit{a}\mathit{n}\mathit{t}+{\mathit{h}}^{+}\to \mathit{D}\mathit{e}\mathit{g}\mathit{r}\mathit{a}\mathit{d}\mathit{a}\mathit{t}\mathit{i}\mathit{o}\mathit{n}\mathit{P}\mathit{r}\mathit{o}\mathit{d}\mathit{u}\mathit{c}\mathit{t}\mathit{s}$

Stability of the photocatalyst

The stability of the catalyst is also important for its practical applications. In order to investigate the stability of the photocatalyst, recycle experiments were carried out for pure Ag₃PO₄ and 5%LaNiO₃/Ag₃PO₄. After each cycle the catalyst is washed with water/ethanol to remove any adsorbed dyes on the surface. Figure 11 shows that pure Ag₃PO₄ is not stable and shows catalyst degradation even up to 2^nd cycle, whereas 5%LaNiO₃/Ag₃PO₄ is highly stable up to five cycles with degradation efficiency greater than 85%. XRD spectra of 5% LaNiO₃/Ag₃PO₄ composite after five cycles were also recorded to check the stability of photocatalysts. Figure 12 shows that pure Ag₃PO₄ is decomposed to metallic Ag. While no signal from metallic Ag was observed with the 5% LaNiO₃/Ag₃PO₄ composite, which confirming a higher stability of 5% LaNiO₃/Ag₃PO₄ composite as compared to pure Ag₃PO₄.

FIGURE 11

FIGURE 11. The stability of the photocatalyst with the number of cycles.

FIGURE 12

FIGURE 12. Powder XRD pattern of Ag₃PO₄, 5% LaNiO₃/Ag₃PO₄ composite after photocatalysis.

Comparison of dyes degradation from previously reported studies

Photodegradation is proved to be a very efficient method for the removal of RhB from water. In the past, a lot of work has been done in this regard. Different Ag₃PO₄ based composites, including Ag₃PO₄@GO, Ag₃PO₄/WO₃, Ag₃PO₄/Ag, Ag₃PO₄/ZnO, Ag₃PO₄/N-TiO₂, Ag₃PO₄/BiVO₄, AgBr/Ag₃PO₄, Ag₂MoO₄/Ag₃PO₄, have been prepared and applied for visible light photocatalytic degradation of rhodamine B. These composites showed lower photocatalytic efficiency than recent study. Perovskite LaNiO₃/Ag₃PO₄ photocatalyst showed the highest catalytic activity for the degradation of 50 ppm RhB solution in just 20 min, with rate constant of 0.213 min⁻¹ using small amount of catalyst 25 mg as shown in Table 1.

TABLE 1

TABLE 1. Comparison of RhB photodegradation by various catalysts from the literature.

Similarly various photocatalysts have been used for MO photodegradation in the literature. Different Ag₃PO₄ based composites including AgBr/Ag₃PO₄, Ag₃PO₄/TiO₂, Ag₃PO₄/g-C₃N₄, Ag₃PO₄/BiPO₄, Ag₃PO₄/GO, Ag₃PO₄/Nb₂O₅, Ag₃PO₄/AgI, Ag/Ag₃PO₄, Ag₃PO₄/BiOI, Ag₃PO₄/MoS₂ have been synthesized and used for visible light photocatalytic degradation of MO. The present studies shows the superior catalytic efficiency in terms of catalyst amount i.e., 25 mg, MO degradation concentrations (50 mg/L), irradiation time (20 min) degradation efficiency of 99.5%, with rate constant of 0.1804 min⁻¹ as shown in Table 2.

TABLE 2

TABLE 2. Comparison of MO photodegradation by various catalysts from the literature.

Conclusion

Highly efficient perovskite LaNiO₃/Ag₃PO₄ photocatalyst was successfully prepared by the facile hydrothermal method. Firstly, LaNiO₃ was prepared and then composite formed with Ag₃PO₄ by hydrothermal synthesis. All the synthesized photocatalysts have shown excellent results for the degradation of rhodamine B and methyl orange in a short interval of time, and almost complete degradation efficiency was achieved. Among all synthesized photocatalysts, 5% LaNiO₃/Ag₃PO₄ composite has been proved to be an excellent photocatalyst for the photodegradation of RhB and MO.

The average crystallite size of silver phosphate was successfully reduced from 86.52 nm to 58.19 nm by incorporating pure phase lanthanum nickelate into silver phosphate. The photooxidation activity and stability of Ag₃PO₄ were also enhanced by the introduction of LaNiO₃ in Ag₃PO₄ heterojunction. Complete photodegradation of 50 mg/L solutions of both dyes using 25 mg of 5% LaNiO₃/Ag₃PO₄ photocatalyst were observed in just 20 min. Photodegradation of both dyes RhB and MO follows pseudo-first-order kinetics with rate constants of 0.213 and 0.1804 min⁻¹, respectively. It was observed that photocatalytic activity was completely inhibited by using a hole scavenger, which means that holes are mainly responsible for the degradation of both dyes. Photocatalyst showed the highest stability up to five cycles with degradation efficiency greater than 85%.

Data availability statement

The original contributions presented in the study are included in the article/Supplementary Material, further inquiries can be directed to the corresponding authors.

Author contributions

The role of all authors in present study is as follows: AW designed, conceived, and supervised the complete study. AA: analyzed the data and helped in compiling the results. SA, performed the experimental part and statistical analysis, and wrote the first draft. MM: wrote sections of the manuscript, MA: made a substantial contribution to the interpretation. All authors read and approved the final manuscript.

Acknowledgments

The researchers would like to thank the Deanship of Scientific Research, Qassim University for funding the publication of this project.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
