The synthesis of novel lanthanum hydroxyborate at extreme conditions

www.frontiersin.orgOlga Ibragimova1* www.frontiersin.orgLia Vaquero1 www.frontiersin.orgZain Hussein2 www.frontiersin.orgVadym Drozd3 www.frontiersin.orgStella Chariton4 www.frontiersin.orgVitali Prakapenka4 www.frontiersin.orgIrina Chuvashova1,2*
  • 1Department of Chemistry and Biochemistry, Florida International University, Miami, FL, United States
  • 2Physics Department, Florida International University, Miami, FL, United States
  • 3Department of Mechanical and Materials Engineering, Florida International University, Miami, FL, United States
  • 4Center for Advanced Radiation Sources, The University of Chicago, Chicago, IL, United States

The novel structure of lanthanum hydroxyborate La2B2O5(OH)2 was synthesized by the reaction of partially hydrolyzed lanthanum and boron oxide in a diamond anvil cell under high-pressure/high-temperature (HPHT) conditions of 30 GPa and ∼2,400 K. The single-crystal X-ray structure determination of the lanthanum hydroxyborate revealed: P3¯c1, a = 6.555(2) Å, c = 17.485(8) Å, Z = 6, R1 = 0.056. The three-dimensional structure consists of discrete planar BO3 groups and three crystallographically different La ions: one is surrounded by 9, one by 10, and one by 12 oxygen anions. The band gap was estimated using ab initio calculations to be 4.64 eV at ambient pressure and 5.26 eV at 30 GPa. The current work describes the novel HPHT lanthanum hydroxyborate with potential application as a deep-ultraviolet birefringent material.

1 Introduction

In recent decades, borates have garnered significant interest as versatile materials due to their varied crystal structures, impressive linear and nonlinear optical (NLO) properties, and favorable machining characteristics (Chen et al., 1995; Wu et al., 1996; Chénais et al., 2002; Jia et al., 2017; Zou and Ok, 2020; Guo et al., 2022). Notably, considerable research efforts have been devoted to the development of novel borate-based birefringent materials for potential application in the deep-ultraviolet (DUV) region (longer wavelength portion of UV-C; 190 nm ≤ λ0 ≤ 280 nm; 4.43 eV ≤ E0 ≤ 6.53 eV) (Zhang et al., 2020).

Despite the different principles in crystal symmetries of NLO and birefringent materials, sufficiently large optical anisotropy plays a crucial role in the applications for both types (Guo et al., 2022). It is widely recognized that the small double refraction of NLO crystals limits their ability to achieve the shortest phase-matching wavelength, thereby negatively affecting potential applications in the DUV region (Jiang et al., 2015). Birefringent materials play an important role in modulating light polarization in the optical communication and laser industries (Li and Ma, 2012). Several commercially available crystals like calcite (Ghosh, 1999), YVO4 (DeShazer, 2002), α-BaB2O4 (Guoqing et al., 1998; Solntsev et al., 2002), and MgF2 (Dodge, 1984) have found utility in the optical spectrum spanning from the infrared (IR) to the UV range with wavelengths below 400 nm. However, these four compounds are not suitable for application in the DUV region because:

• The low transmittance in the DUV range of α-BaB2O4, calcite, and YVO4 restricts their application in shorter-wavelength regions;

• An extremely small birefringence (Δn = 0.0128 at 235.7 nm) limits the application of MgF2 in the DUV region (Scott, 1962; Dodge, 1984).

Consequently, an ideal crystal must possess high transmittance in the DUV range, large birefringence (Δn > 0.08) (Gong et al., 2020), and a short UV cutoff edge (the smaller the better) (Guo et al., 2022). Today, the scarcity of such materials meeting these criteria underscores the importance of exploring novel DUV crystals with substantial birefringence.

In terms of borates, there are three basic groups that form unique structures: linear BO2, trigonal-planar BO3 and tetrahedral BO4, which occur as discrete oxyanions or polymerize to form finite clusters, chains, sheets, and frameworks. Anionic group theory gives the understanding of structure-property relationships. The key factor that affects optical properties is if the anionic unit is capable to produce a wide band gap, high polarizability anisotropy, and hyperpolarizability (Huang et al., 2021; Mutailipu et al., 2021). The triangle π-conjugated BO3 group has the largest hyperpolarizability (βmax = 10.80) among BO2max = 0) and BO4max = 3.61), and a good relation between the other two parameters: band gap (Eg = 8.48 eV) and polarizability anisotropy (δ = 7.01) (Mutailipu et al., 2021). The birefringence originates from the dependence of dipole oscillators and refractive index, and it can be considered as a result of the functional unit`s arrangement (Wang F. et al., 2021). Therefore, the solution for the large optical anisotropy lies in metal cations and the type of functional anion (Jin et al., 2021). The metal cations can form MOn polyhedra with large deformability and thereby increase the optical anisotropy (Wu et al., 2019). But with the positive influence on birefringence, there is a negative effect on DUV transmittance: the crystals with big metal cations have a smaller band gap and as a consequence may hardly transmit in the DUV spectral region. The birefringence is not sensitive to the exact orientation of the BO3 groups because it is almost optically isotropic within the BO3 plane (Chen et al., 2012). It was shown that all borates crystal structures with only triangle borate groups could be divided into three structural types according to the arrangement of these groups: 1) the BO3 planes arranged in a nearly coplanar pattern, 2) in a coaxial pattern, 3) and in the other inclined patterns (Jiang et al., 2015). The crystals with coplanar arrangement generally have the largest birefringence, while those with disordered patterns have the smallest (Jiang et al., 2014; Lin et al., 2014).

Along with alkali and transition metals borates, rare-earth (RE) borates (and lanthanum borates in particular) have raised significant interest due to their stable physical and chemical properties, wide bandwidth, and good light transmittance. The system La-B-O is represented by several compositionally different borates: λ-LaBO3 (Sari et al., 2017), high-temperature modification H-LaBO3, LaB3O6 (ambient pressure), and its two high-pressure modifications γ-LaB3O6 (Emme et al., 2004) and δ-LaB3O6 (Heymann et al., 2006), La4B14O27 (Nikelski et al., 2008), La26O27(BO3)8 (Lin et al., 1996), La4B10O21 (isotypic to Pr4B10O21) (Hinteregger et al., 2012) and La2B8O15 (isotypic to Ce2B8O15) (Glätzle et al., 2016). Except for the high-pressure modifications (γ-LaB3O6, δ-LaB3O6, and La4B10O21), all known lanthanum borates are synthesized by heating stoichiometric mixtures of La2O3 and B2O3 under ambient pressure conditions. However, this simple synthesis fails to produce pure crystalline phases (Shmyt’ko et al., 2013). Hence, HPHT synthesis serves as a viable alternative. There is a common trend in high-pressure borates where the boron atoms tend to prefer four-fold coordination as pressure increases. Typically, trigonal-planar BO3 groups transform into tetrahedral BO4 groups beyond 10 GPa pressure (Hinteregger et al., 2012). However, a few compounds are known to contain trigonal-planar BO3 groups beyond this pressure threshold, for example, in Ho31O27(BO3)3(BO4)6 (Hering et al., 2010).

In the present study, we have applied methods of single-crystal X-ray diffraction in laser-heated diamond anvil cell (DAC) to synthesize lanthanum hydroxyborate La2B2O5(OH)2 for the first time and characterize its crystal structure. We performed ab initio calculations of the band gap and compared both: the band gap and its structural properties with literature. The structural organization of La2B2O5(OH)2 allows us to propose that the lanthanum borates with isolated BO3 groups can be used as a potential DUV birefringent material.

2 Materials and methods

2.1 Sample preparation

For the synthesis, we used a non-stoichiometric mixture of partially hydrolyzed La (a piece of lanthanum 99.9% purity from Fisher Scientific left on humid air for 3 days) and B2O3 (99.999% purity, purchased from Fisher Scientific), finely grounded and pre-pressed into pellets between two diamonds. The pre-pressed pellet of size 10*15*5 μm3 was loaded in the symmetric DAC (Symm100 by Almax EasyLab) equipped with Boehler–Almax diamonds with a 200 μm culet size. Rhenium gasket was pre-indented to the thickness of 26 μm, and a hole with the diameter of about 110 μm was drilled with a laser-drilling system at GeoSoilEnviroCARS (GSECARS), Advanced Photon Source (APS), Argonne National Laboratory (ANL). A 4 μm piece of gold and a 15 μm ruby ball (DACtools, LLC) were used as pressure calibrants (Ye et al., 2018). Neon was loaded using the COMPRES/GSECARS gas loading system available at APS (Rivers et al., 2008) and served as a pressure-transmitting medium.

2.2 Laser-heating experiments

Double-sided laser-heating experiments coupled with X-ray diffraction (XRD) measurements were conducted at the 13ID-D beamline at GSECARS of the APS, ANL. The laser heating system at the beamline is equipped with two 1,064 nm wavelength infrared lasers that produce a flat-top spot size of around 10 µm in diameter (full width at half-maximum) (Goncharov et al., 2010). We used double-sided laser heating in the burst mode with a heating duration of 1 or 3 s, collecting XRD of the sample during and after heating. The surface temperatures of both sides were measured by the standard spectroradiometry method (Heinz and Jeanloz, 1987) using an IsoPlane SCT 320 spectrometer with a PI-MAX3 1024i ICCD camera from Princeton Instruments.

The DAC was compressed stepwise to a maximum pressure of 30(1) GPa and laser-heated at 3.3(5) and 13.3(5) GPa to a maximum temperature of 2,285(325) and 2,430(130) K, respectively. After each heating cycle, a detailed X-ray diffraction map was collected around the heated spot in order to determine the occurrence of the reaction and the phase composition. At each pressure point, single crystal X-ray diffraction images were collected in a few spots with decent quality for phase composition determination.

2.3 X-ray data analysis

The crystal structures of the sample in the DAC were investigated through in situ XRD measurements using synchrotron radiation performed at the 13ID-D beamline of the APS, ANL. A monochromatic X-ray beam of 42 keV (λ = 0.2952 Å) was used to collect powder and single crystal data on a Pilatus 1M CdTe large area detector.

2.3.1 Powder diffraction

Powder collection was performed as a single image in the omega scanning range of ±20° with an exposure time of 40 s. Detector parameters were calibrated using LaB6.

The data for powder analysis was prepared and converted into the required file extension using Dioptas software (Prescher and Prakapenka, 2015). Powder XRD data analysis consisted of structure refinement by the Le Bail method using the GSAS II software (Toby and Von Dreele, 2013).

2.3.2 Single crystal diffraction

Single crystal collection included 120 frames in the omega scanning range of ±34° with a step of 0.5° and an exposure time of 1 s per step. Sample-to-detector distance, coordinates of the beam center, tilt angle, and tilt plane rotation angle of the detector images were calibrated using an orthoenstatite crystal.

Single-crystal XRD data (unit cell determination, integration of the reflection intensities, absorption corrections) were processed using CrysAlisPro software (Rigaku Oxford Diffraction, 2019). For the search of the domains during data reduction, the DAFi software was used (Aslandukov et al., 2022). The structure was determined by SHELXT (Sheldrick, 2015), a structure solution package that uses the method of intrinsic phasing. The crystal structure was refined against F2 on all data by full-matrix least-squares using SHELXL software (Sheldrick, 2015). SHELXT and SHELXL were implemented in the Jana2006 software package (Petříček et al., 2014). Crystal structure visualization was made using VESTA (Momma and Izumi, 2011) and Diamond software (Putz and Brandenburg, 1999).

Because more than 50% of the diffraction reflections were blocked by the body of the diamond anvil cell, the data sets of the reflections were incomplete. To improve the data/parameter ratio, only the atomic thermal parameters of lanthanum and oxygen were refined using anisotropic approximation, leading to an R1 value of 5.6%. Due to the presence of high-Z lanthanum atoms, the residual electron density peaks were on the order of 2–6 e/Å3, which is comparable with the number of electrons in boron and oxygen atoms. Assignment of the residual density peaks to boron or oxygen atoms did not improve the final R-values, and therefore, the high residuals likely originate from the incompleteness of the XRD data sets. The typical data/parameter ratios were on the order of 10–15. The detailed summary of the crystal structure refinement, along with unit cell parameters, atomic coordinates, and atomic displacement parameters, is shown in Table 1 and Supplementary Tables S1, S2.

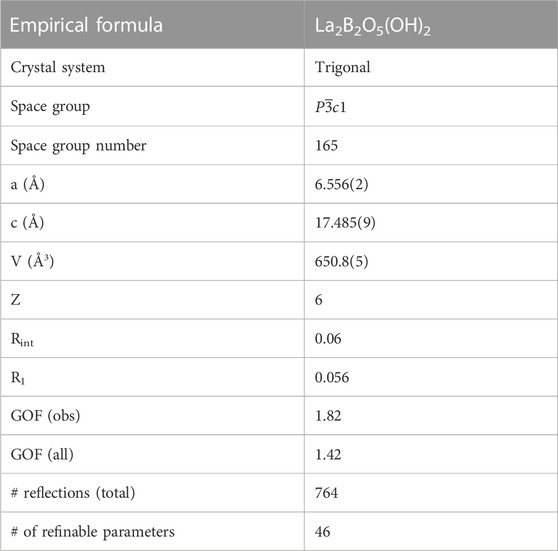

TABLE 1. Crystal data and structure refinement parameters for La2B2O5(OH)2.

2.4 Scanning electron microscopy

The composition of the sample mixture prior to loading in the DAC was analyzed by means of scanning electron microscopy using the JOEL JSM-IT500HR scanning electron microscope (JEOL USA, Inc., Peabody, MA, United States). The chemical composition was checked at 15 kV using energy-dispersive X-ray spectroscopy (EDS) of QUANTAX EDS System with XFlash 6160 detector (Bruker Nano GmbH, Berlin, Germany). No impurities or traces of any other elements were found. The detailed summary is shown in Supplementary Figure S1.

2.5 Band gap calculations

Density functional theory (DFT) calculations were performed using Vienna ab initio simulation package (VASP 6.3) (Kresse and Furthmüller, 1996a; Kresse and Furthmüller, 1996b). Local Density Approximation (LDA) and Generalized Gradient Approximation (GGA) were used to describe exchange and correlation effects. Electron wave functions were expanded by plane wave with a cutoff energy of 520 eV. Monkhorst-Pack (Monkhorst and Pack, 1976) k-point grids were set as 12 × 12 × 4 for the structure relaxation and 24 × 24 × 8 for the electronic structure calculations. Atomic relaxation was performed until the change in the electronic and ionic steps were less than 10−6 and 10−5 eV, respectively. VASPKIT package (Wang V. et al., 2021) was used to extract and analyze the VASP raw output files. Calculations were performed at ambient pressure and external pressure of 30.0 GPa.

3 Results

The synthesis of new lanthanum hydroxyborate was performed from the mixture of partially hydrolyzed lanthanum powder and boron oxide. The initial mixture has irregular composition (insert in Supplementary Figure S1). As lanthanum can oxidize on air to either oxide, hydroxide, carbonate, or hydroxycarbonate depending on the conditions and humidity, we performed EDS analysis to confirm the composition of starting mixture. The brief inspection of the EDS spectrum of the initial mixture shows that the sample is composed of the elements La, B, and O. We used carbon tape as a sample mount which may account for the carbon present in the spectra.

To confirm the composition of the initial mixture, we performed powder XRD analysis at the pressure of 3.3(5) GPa. The powder pattern can be found in Figure 1. There are characteristic peaks of La(OH)3, B2O3, and Re. The unit cell parameters for La(OH)3 (P63/m) are: a = 6.506(4) Å, c = 3.8673(7) Å, V = 141.75(12) Å3; for B2O3 (P31) are: a = 4.3789(11) Å, c = 8.2888(16) Å, V = 137.64(5) Å3; and for Re (P63/mmc) are: a = 2.716(7) Å, c = 4.396(30) Å, V = 28.09(20) Å3. The R-factor is equal to 0.6%. Thus, the source of lanthanum in the system was lanthanum hydroxide. Our sample is very close to the gasket; therefore, the presence of rhenium is not surprising. No characteristic peaks of other compounds exist, such as lanthanum carbonate, lanthanum hydroxycarbonate, or lanthanum oxycarbonate. We did not observe the characteristic peaks of various lanthanum borate phases either. As a result, we can rule out the possibility of a reaction occurring during compression at 3.3(5) GPa without heating.


FIGURE 1. Powder XRD pattern of the mixture prior to heating at 3.3(5) GPa: blue crosses are experimental data from this study, the green line corresponds to the calculated curve, the red one represents the background, and the black one shows the difference between observed and calculated curves. The ticks represent the different phases: red is B2O3 (ICSD 16021), blue is La(OH)3 (ICSD 239411), and teal one is Re (ICSD 291898).

Laser heating up to 2,285(325) K at 3.3(5) GPa led to a pressure jump to 6.6(5) GPa, however, the reaction did not occur. Data collection at 13.3(5) GPa before and after heating to 2,430(130) K did not produce good-quality crystalline samples either. Fortunately, the diffraction pattern after increasing pressure up to 30(1) GPa confirmed the chemical reaction by forming a new, previously unknown structure.

By employing single crystal diffraction analysis, the new compound crystallizes in the centrosymmetric trigonal space group P3¯c1 (no. 165) with lattice parameters a = 6.555(2) Å, c = 17.485(8) Å (Table 1). It consists of a dense, three-dimensional network (Figure 2) composed of planar triangles of BO3 connected with three crystallographically independent lanthanum ions. The lanthanum atoms possess different coordination spheres (Supplementary Figure S2): La01 is coordinated by 10 oxygen atoms, La02 is coordinated by 12 oxygen atoms, and La03 is coordinated by 9 oxygen atoms. The distances La-O are in the range of 2.27(2)–2.614(12) Å. The B-O bond lengths are in the range of 1.26(2)–1.321(15) Å (for all bond lengths in the structure, see Supplementary Table S3). These bond distances are slightly smaller than those published for alkali- and rare-earth borates which can be explained by the higher pressure reached during this experiment.


FIGURE 2. Crystal structure of La2B2O5(OH)2 (hydrogen atoms are not shown): (A) along a axis, (B) along c axis. Lanthanum atoms are shown in grey, oxygens are pink, and boron atoms are in the center of each planar triangle and are shown in dark purple.

As the amount of water absorbed by the lanthanum is unknown, for the structure solution, we used only three elements: La, B, and O. According to the structure refinement, our formula ended up as La2B2O7. To achieve charge balance, instead of two oxygen atoms, there should be two hydroxyl groups. This agrees well with our XRD data of the starting compositions. Therefore, the new borate has a composition of La2B2O5(OH)2.

The band gap calculated by DFT method is 3.40 eV (GGA)/4.64 eV (LDA) at ambient pressure and 5.31 eV (GGA)/5.26 eV (LDA) at 30 GPa pressure (Figure 3 for LDA and Supplementary Figure S4 for GGA). These values correspond to the short cutoff edge in the range from 365 to 233 nm. Commonly, the GGA and LDA method-based calculations tend to slightly underestimate the band gap, therefore the real value might be slightly higher and, consequently, the cutoff edge smaller (Bagayoko, 2014; Baiheti et al., 2021).


FIGURE 3. The electronic band structure calculated by using LDA method: (A) for ambient pressure, and (B) for 30 GPa.

4 Discussion

The starting mixture for the reaction consisted of La(OH)3 and B2O3. During laser heating up to 2,430(130) K, the hydroxide partially decomposed to La2O3 and H2O without subsequent melting of La2O3 [Tm (amb) = 2588 K (Grundy et al., 2000)], while boron oxide melted [Tm (8 GPa) ∼ 1,800 K (Solozhenko et al., 2015)]. The behavior of B2O3 melt is similar to SiO2, and it readily dissolves metallic oxides with the formation of borates (Huppertz, 2011), so the lanthanum borate was synthesized by dissolving La2O3 and La(OH)3 in B2O3 with subsequent reaction.

The structure of La2B2O5(OH)2 is based on La-O layers identical to those in the A-type La2O3 structure (P3¯m) and La(OH)3 (P63/m) (Figure 4). During HP synthesis, the lanthanum-oxygen layers of La(OH)3 were integrated between similar layers of La2O3. The oxide layers are rotated by 180° relative to each other along the c axis. The coordination numbers for La in La(OH)3 frame increase from 9 to 10 and 12 [La01 and La02 in La2B2O5(OH)2]; while for La in La2O3 pattern—from 7 to 9 [La03 in La2B2O5(OH)2]. Boron atoms have three-fold coordination and are located in the cavities between La01/02-O and La03-O layers. The positional disorder of the BO3 groups is unusual for known RE borates and has never been described before. In terms of a three-fold coordinated boron atom, in RE borates BO3 group can form either linked chains [for example, in α-Sm(BO3)2 (Fuchs et al., 2020a) or in LaB2O4F (Hinteregger et al., 2013b)], or isolated triangles [for instance, in NdBO3 (Müller-Bunz et al., 2003) or in Dy5(BO3)2F9 (Hinteregger et al., 2013a)]. The arrangement of boron groups in most cases is coplanar (parallel to one plane) or slightly distorted. In La2B2O5(OH)2 boron groups have a coaxial arrangement: each BO3 triangle occupies one of three possible positions along C3 axis and lies in the glade n plane (Supplementary Figure S5). BO3 group exhibits C2 symmetry as it represents an isosceles triangle.


FIGURE 4. The comparison of La-O frame (hydrogen and boron atoms are not shown) for: (A) La2B2O5(OH)2 (present work), (B) La2O3 (ICSD 56771), and (C) La(OH)3 (ICSD 239411). For convenience, the lanthanum atoms with different pattern are shown in different shades of grey: for La2O3 pattern in violetish grey, for La(OH)3 pattern in greenish grey.

There are known structures of RE hydroxyborates, for example, high-pressure La3B6O13(OH) (Fuchs et al., 2020b), and LaB2O4(OH) (Bashir et al., 2017). However, both are composed of edge-sharing BO4 tetrahedra which distinguishes them from the newly synthesized La2B2O5(OH)2. We found only two lanthanum borates with similar structure: H-LaBO3 (Böhlhoff et al., 1971) and La26(BO3)8O27 (Lin et al., 1996). Both these structures consist of repeated La-O and BO3 patterns: the orientation of planar BO3 groups in H-LaBO3 is coplanar, while in La26(BO3)8O27 the BO3 groups have a slightly distorted arrangement (Figure 5). The bond distances in La2B2O5(OH)2 correspond well to typical bond lengths in lanthanum borates (Figure 6). For example, in comparison with La26(BO3)8O27 at ambient pressure where the bond distances for La-O are in the range 2.272(10)–3.047(9) Å, and for B-O are in the range 1.34(2)–1.42(2) Å (Lin et al., 1996), the newly synthesized La2B2O5(OH)2 at 30(1) GPa have the bond lengths 2.27(2)–2.612(14) Å and 1.26(2)–1.319(15) Å for La-O and B-O, respectively.


FIGURE 5. The comparison of BO3 polyhedra arrangement for: (A) La2B2O5(OH)2 (present work), (B) H-LaBO3 (ICSD 15383), and (C) La26(BO3)8O27 (ICSD 82308). For convenience, only BO3 polyhedra are shown.


FIGURE 6. The comparison of the bond distances for La-O and B-O (in trigonal planar orientation) from publications (Böhlhoff et al., 1971; Lin et al., 1996; Emme et al., 2004; Hinteregger et al., 2012) and for La2B2O5(OH)2 (present work). The ranges from the literature are shown in grey bars, the red squares are corresponding to the smallest value of the bond length of the La2B2O5(OH)2, while the black dots are representing the biggest value.

While the borates with parallel arrangement of planar BO3 groups have the largest birefringence (Jiang et al., 2015), the situation with coaxial BO3 arrangement is slightly different. The value for optical anisotropy depends not only on BO3 pattern, but also on the detailed orientation and spatial density of the planar BO3 groups (Jiang et al., 2015). Additionally, the presence of hydroxyl anions linked with isolated triangular boron groups may enlarge the birefringence by delocalization of π electrons (Jin et al., 2021). Our calculated band gap values for ambient [3.40 eV (GGA)/4.64 eV (LDA)] and high pressure [5.31 eV (GGA)/5.26 eV (LDA)] are typical for lanthanum borates with three-fold coordinated boron. For example, the calculated (GGA) and experimental band gap at ambient conditions for LaBO3 with two-dimensional BO3 layers are 4.81 and 5.23 eV (Sha et al., 2021) respectively. As mentioned earlier, the presence of rare-earth elements may positively affect the birefringence but at the same time decreases the band gap. As we are looking at the combination of factors, there is a good probability that synthesized La2B2O5(OH)2 has high birefringence with the cutoff edge short enough to transmit in the longer wavelength portion of UV-C.

5 Conclusion

During the HPHT synthesis at 30(1) GPa and 2,430(130) K, we were able to obtain a new structure of lanthanum hydroxyborate [La2B2O5(OH)2] with planar BO3 groups. In contrast with the most known RE borates (including high-pressure structures), La2B2O5(OH)2 does not form a B-O framework and does not have BO4 tetrahedra: trigonal-planar BO3 groups occupy the cavities between La-O layers and create the coaxial pattern. The estimated band gap for lanthanum hydroxyborate is 4.64 eV (for ambient pressure) and 5.26 eV (for 30 GPa), which fits well into the acceptable range for DUV transparency. The structural organization of La2B2O5(OH)2 and its electronic properties allows us to propose that this class of lanthanum borates can be used as a potential DUV birefringent material.

Data availability statement

The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found below: the joint CCDC/FIZ Karlsruhe online deposition service:; the deposition number CSD-2280897.

Author contributions

OI: Investigation, Conceptualization, Data curation, Software, Visualization, Writing–original draft. LV: Investigation, Writing–review and editing. ZH: Investigation, Writing–review and editing. VD: Writing–review and editing, Resources, Software. SC: Methodology, Supervision, Writing–review and editing. VP: Methodology, Supervision, Writing–review and editing. IC: Methodology, Supervision, Writing–review and editing, Funding acquisition, Investigation, Project administration, Data curation, Validation.


The authors declare financial support was received for the research, authorship, and/or publication of this article. Funding was provided by Florida International University.


This research used resources of the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under Contract No. DE-AC02-06CH11357. We acknowledge the support of GeoSoilEnviroCARS (Sector 13), which is supported by the National Science Foundation—Earth Sciences (EAR-1634415). This work used Bridges-2 at Pittsburgh Supercomputing Center through allocation Discover MAT230033 from the Advanced Cyberinfrastructure Coordination Ecosystem: Services and Support (ACCESS) program, which is supported by National Science Foundation grants #2138259, #2138286, #2138307, #2137603, and #2138296. The Bridges-2 system is supported by NSF award number ACI-1928147, at the Pittsburgh Supercomputing Center (PSC) (Towns et al., 2014). The authors are grateful to Florida International University for financial support.

Conflict of interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Publisher’s note

All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.

Supplementary material

The Supplementary Material for this article can be found online at:
