Analysis of Environmental Applicability of HDPE Geomembrane by Simulated Applicability Testing for Waste Containment Construction

Introduction

Many waste landfills in Korea are constructed between valleys and have very steeply sloping sides (more than 30°). Therefore, large quantities of sand or backfill soils are required to increase the stability of the side slopes and, as a result, the total volume available for waste disposal is decreased by the amount shown by the oblique lines in Figure 1 (Gourc and Villard 2000; McBean et al., 1995). The resulting reduction in the waste storage volume is one of the main reasons why the construction of waste landfills is often considered to be uneconomic (Koerner, 2005). The use of geosynthetic separation box in the waste landfill sites, which are made from recycled waste polymeric materials, reduces the total cost of constructing waste landfills, because they are cheaper to produce. The inner sides of these geosynthetic boxes are open, and they can be filled with sand, soil, rubble, or other materials, in order to fix them to the slopes of the waste landfills. The use of such filler materials in the geosynthetic boxes allows good drainage performance, as well as increased stability of the side slopes of the waste landfills, because of their reinforcement effects.

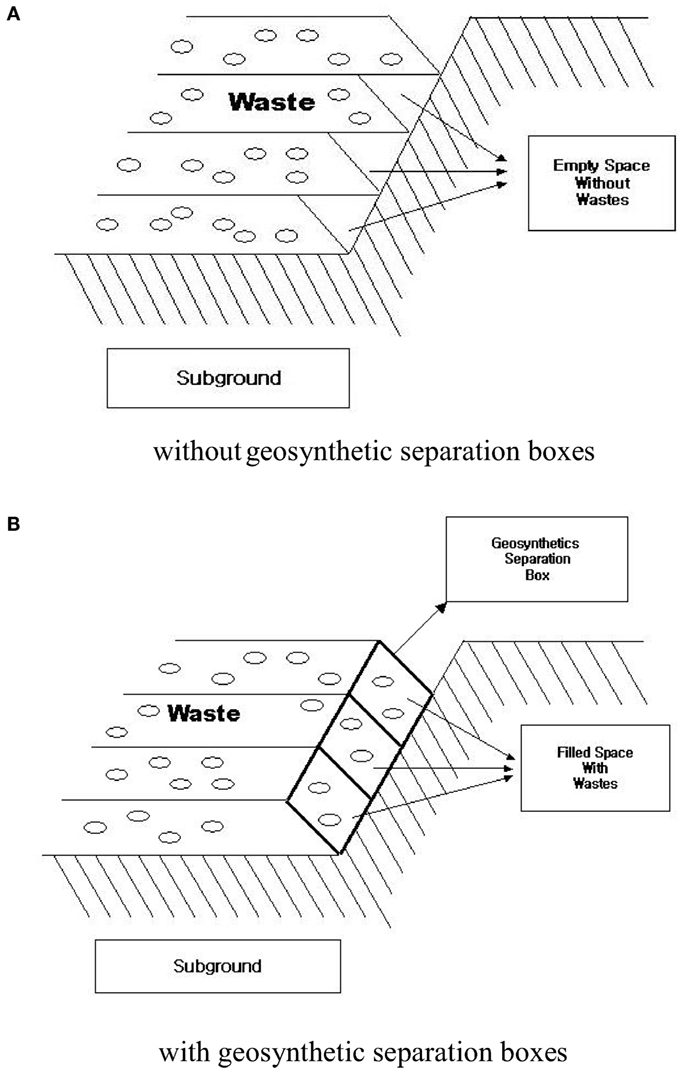

FIGURE 1

Figure 1. Schematic diagram of waste landfills with and without geosynthetic separation boxes. (A) Without geosynthetic separation boxes. (B) With geosynthetic separation boxes.

In this study, geosynthetic separation boxes, which have the same performance as geomembrane in waste landfill sites that were composed of regenerated high density polyethylene (HDPE), were used to increase the waste landfill amount and develop the hydraulic performance in steep slope sides in the waste landfills. The tensile strength retention of the geosynthetic separation box plates when exposed to UV and leachate solutions were examined and their properties assessed by comparing them to the theoretical values appropriate for waste landfills. The drainage performance of the geosynthetic separation boxes was examined and compared with that of the geonet composites.

Experimental

Manufacture of Geosynthetic Separation Boxes

A plate size of geosynthetic separation box, HDPE(2), of recycled HDPE is 1 m × 1 m, and two plates of geosynthetic separation boxes were connected to each other continuously, as represented in Figure 2. Sand, gravel, and rubble were used as the filler materials between the upper and bottom plates of the boxes. Geonet composite, a non-woven/geonet/non-woven structure that is generally applied to the slopes of waste landfills in Korea, was used as a basis of comparison with the HDPE(2) plates of the geosynthetic separation boxes.

FIGURE 2

Figure 2. Photograph of geosynthetic separation box.

Performance Assessment of Geosynthetic Separation Boxes

To evaluate the advantages of the geosynthetic separation boxes, index tests of the plates were conducted to compare the two cases in which the geonet composites and geosynthetic separation boxes were used in the side slopes of the waste landfills, as shown in Figure 3, where GCL means geosynthetic clay liner. The tensile properties and chemical and UV resistance of the recycled HDPE plates were examined in accordance with ASTM D6693/D6693M-04(2015)e1 (2015), ASTM D4355/D4355M-14 (2014), and ASTM D5322-98(2009) (2009), respectively. The hydraulic flows were measured by evaluating the amounts of water loss in accordance with ASTM D4716/D4716M-14 (2013) and ASTM D5493-06(2011) (2011) between geonet/non-woven geotextile composite and a plate of geosynthetic separation boxes.

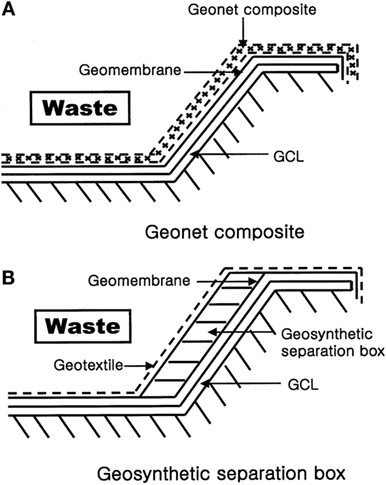

FIGURE 3

Figure 3. Schematic diagram showing the application of the (A) geonet composite and (B) geosynthetic separation boxes to the sloping sides of a waste landfill.

Results and Discussion

Properties of Geosynthetic Separation Boxes

Tensile Strength Retentions

Table 1 shows the tensile properties of the recycled and normal HDPE(1) plates used in the separation boxes. It is seen that HDPE(2) plate has a higher tensile strength than HDPE(1) plate, but tensile elongation of HDPE(2) plate is lower than HDPE(1) plate. This result is due to the low stress resistance of HDPE(2) plate. Degrees of chemical resistances of these two HDPE plates were determined to evaluate the tensile strength retention ratio after 120 days of experimental duration under immersing in leachate solution with pH 3 and 12, and temperatures 25 and 50°C, respectively. Degrees of UV resistances were also estimated from the tensile strength retention ratio using the xenon arc method. Table 2 shows the tensile strength retention ratios of the recycled HDPE(2) plates and geonet/non-woven geotextile composite. As shown in Table 2, chemical and UV resistances of the recycled HDPE(2) plates by comparing tensile strength ratio before/after experimental duration were better than those of the geonet/non-woven geotextile composite when recycled geosynthetic separation box of HDPE(2) used to waste landfill site.

TABLE 1

Table 1. Tensile properties of HDPE plates in the machine direction.

TABLE 2

Table 2. Tensile strength retentions of separation box plate and geonet composite.

Properties of Separation Boxes When Applied to Waste Landfills

The properties of the geosynthetic separation boxes made of HDPE(2) when applied to the slopes of waste landfills were estimated by comparing them with the theoretical requirements for the tensile strength and coefficient of permeability in waste landfill conditions.

Tensile Strength of Separation Boxes

For an external load W and a waste landfill with slope angle β, the breaking force of the separation box plate consists of the driving force and the resistance against the driving force, which are defined as W sinβ and F, respectively, as shown in Figure 4. Here, the factor of safety (FS) means the ratio of W sinβ to F in Eq. 1.

$\text{FS}=\frac{\text{resisting}\times \text{force}}{\text{driving}\times \text{force}}=\frac{F}{W\text{sin}\mathrm{\beta }}$ (1)

FIGURE 4

Figure 4. Schematic diagram of acting loads in waste landfills.

If we consider the following installation conditions, the driving and resistance forces are described by Eq. 1.

• slope angle (β): 15°, 30°, 45°, and 50°;

• height of waste landfill: 3, 5, 10, 20, 50, and 100 m;

• density of waste: 1.4 ton/m³;

• weight of final covering: vegetation layer + drainage layer = 1 m × 1.7 (ton/m³), compaction layer = 0.6 m × 2 (ton/m³);

• safety factor: 1.5;

– driving forces: 1400 kg/m³ × height of waste landfill + (weights of vegetation and drainage layers) × sinβ;

– resistance forces = 1.5 × driving forces.

Table 3 lists the required tensile strengths of the HDPE(2) plates of the geosynthetic separation boxes for waste landfills with the given slope angles and heights. For example, the minimum tensile strength of the HDPE(2) plates of a geosynthetic separation box must be 1.05 kg/cm², if the slope angle is 45°and the height of the waste landfill is 5 m.

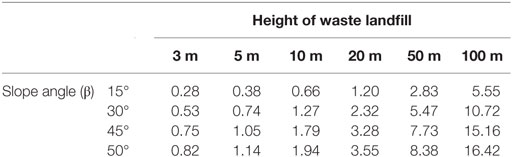

TABLE 3

Table 3. Tensile strength (kg/cm²) of separation box plate as a function of the slope angle (β) and height of the waste landfill.

Drainage Performances

The hydraulic performance of two HDPE(1) and (2) were determined by comparing the water flow amount for the case of with and without using the filling materials, such as sand, soil, and fly ash, which increase the cohesive force between wastes and filling materials. Permittivity as a tool of hydraulic performance of HDPE(2) plate with holes was better than that of the geonet/non-woven geotextile composite.

Numbers of Holes in Separation Box Plates

For the geosynthetic separation box to have excellent permeability, it is necessary to maintain the optimum hole size in the plates. The minimum area of the holes was calculated with regard to the standard permittivity of waste landfills in Korea, which is required to be greater than 1 × 10⁻² cm/s. In this study, the minimum areas of the holes per unit area (1 m × 1 m) of the HDPE(2) plate were calculated by considering the following permittivity ranges:

– for sand: 1 × 10⁰–1 × 10⁻³ cm/s;

– for gravel: 1 × 10²–1 × 10⁻¹ cm/s; and

– for filler materials: 1 × 10⁻¹ cm/s.

In Figure 5, the thickness, hole diameter, and distance between the separation boxes are designated as A, B, and C, respectively. From Darcy’s law, the flux of this model can be written as follows.

$v=k·i$ (2)

$Q=v·A$ (3)

$Q=k·i·A$ (4)

where v is discharge velocity (centimeter per second), k is permittivity (centimeter per second), i is hydraulic gradient, Q is flux (cubic centimeter per second), and A is unit area (square centimeter).

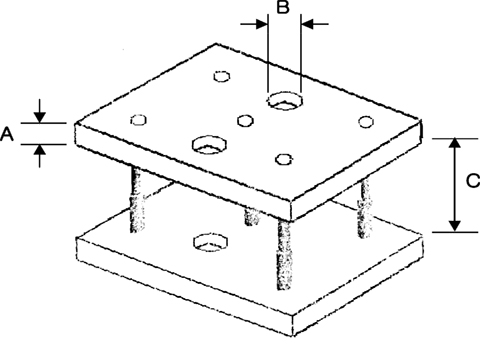

FIGURE 5

Figure 5. Configuration of separation box with drainage holes (A) thickness; 5 mm, (B) diameter; 10 mm, (C) height; 30 mm.

For hydraulic gradients of two or five with the above conditions, v is constant even if k decreases, and this is because of the increase in i. The minimum numbers and areas of holes are shown in Table 4, as a function of the hole diameter and hydraulic gradient per unit plate in the separation box. The required hole number of a plate in geosynthetics separation box are shown in Table 5, as a function of the permittivity and fraction of holes. For FS value, 2.0 was based on considering the clogging phenomena of a plate by filling materials. From Table 5, it is known that reasonable fraction range of holes per plate in geosynthetics separation box could 10–20% for using sand as a filling material which has permittivity (cm/s) is 5.0–1.0 × 10^–1.

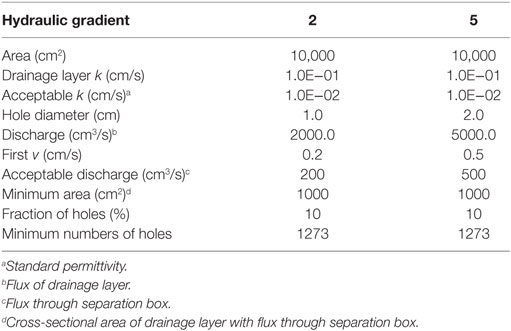

TABLE 4

Table 4. Minimum number and area of holes in the unit plate in the separation box as a function of the diameter of the holes and hydraulic gradient.

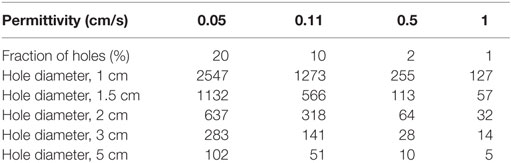

TABLE 5

Table 5. Minimum numbers of holes per unit plate in the separation box as a function of the permittivity and fraction of holes.

Required Strength of Separation Box under Load by Filling Materials

Figure 6 shows a schematic diagram of a waste landfill slope with a geosynthetic separation box. Figure 7 shows the slope angles of the HDPE(2) plates of the separation boxes, where the slope angle of the separation box is β. The following assumptions were used to calculate the loads resulting from the filler materials:

• filler material: sand;

• density of sand: 1.6 ton/m³ (dry weight);

– general range of dry-weight density of sand:1.47–1.63 ton/m³;

• no water in the drainage layer before landfill;

• slope angle of separation box (β): 30°.

FIGURE 6

Figure 6. Schematic diagram of waste landfill slope with geosynthetic separation box.

FIGURE 7

Figure 7. Slope angle, β, for HDPE(2) plate of geosynthetic separation box: (A) 90° and (B) 45°.

The minimum required strengths of the unit plates of a separation box were determined for the following lengths of slope and slope angles.

• length of slope: 10, 30, and 50 m;

• slope angle: 15°, 30°, 45°, and 50°;

• unit weight of filler materials: sand (1.6 ton/m³) and gravel (2.0 ton/m³).

Table 6 shows the minimum required strengths in the case of sand and gravel as a function of the length of the slope and slope angle. For example, in Table 6 (a), the minimum required strength of the unit plate of the separation box should be 6.13 kg/cm² for a slope length of 50 m and a slope angle of 50°. In Table 6 (b), the minimum required strength of the unit plate of the separation box should be 7.66 kg/cm² for a slope length of 50 m and a slope angle of 50°. From the above analysis, it can be seen that the geosynthetic separation box made of recycled HDPE plates has excellent performance when applied to waste landfill slopes.

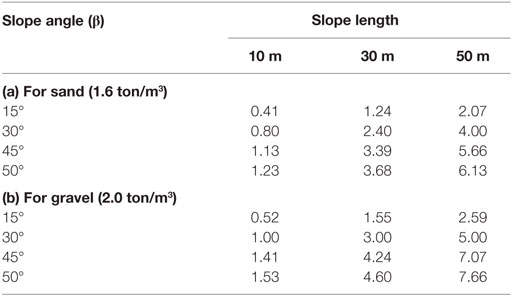

TABLE 6

Table 6. Minimum required strength (kg/cm²) as a function of length and angle of the slope for sand and gravel.

Conclusion

HDPE(2) plate in the geosynthetic separation box has the reasonable tensile strength and elongation values to compare HDPE(1) plate to consider the case of waste landfill slope application. For degree of chemical and UV resistance, HDPE(2) plate showed the same result as tensile properties before mentioned. Permittivity as a hydraulic performance of HDPE(2) plate showed an excellent result than HDPE(1). From this result, it is seen that HDPE(2) plate for the geosynthetic separation boxes takes a better and reasonable material to stabilize and reinforce the slope side of waste landfills. Also, HDPE(2) plate for the geosynthetic separation boxes can be instead of geonet/non-woven geotextile composite in the steep slope side of waste landfills. However, further performance study of the HDPE(2) plate in the geosynthetic separation boxes must be conducted to confirm these results to satisfy the long-term performance during service period of waste landfills.
