ORIGINAL RESEARCH article

Front. Mater., 18 April 2019 | https://doi.org/10.3389/fmats.2019.00066

Studies About the Hydration of Hybrid “Alkaline-Belite” Cement

M. J. Sánchez-Herrero, Ana Fernández-Jiménez* and A. Palomo
  • Department of Materials, Eduardo Torroja Institute (CSIC), Madrid, Spain

The mechanical performance of a hybrid cement containing 48% fly ash, 48% mineralized belite clinker, 1. 5% gypsum and 2.5% Na2SO4 was analyzed and the hydration products were identified. The findings showed that the newly designed cement met European standard EN 197-1 compositional, mechanical and setting time requirements (cement type IVB). The hydration products forming in this blended “alkaline-belite” cement (as it was determined through XRD, 29Si and 27Al MAS NMR and electron microscopy) consisted in a mix of cementitious gels: C-(A)-S-H and N-(C)-A-S-H, which interacted and over time evolved toward the latter with no detriment to the mechanical strength developed by the cement.

Introduction

The CO2 emissions due to Portland cement production are environmentally problematic mainly due to the very high volume of demand for cement in view of concrete needs in the world. Actually, Portland cement production is continuously increasing at global level and there exists a general agreement to consider Portland cement responsible of 7–8% of the total emissions of carbon dioxide in the world (Scrivener et al., 2018a). The use of alternative fuel, the addition of minerals to Portland cement, the inclusion of mineralizers and fluxes in the raw mix, along with the development of alternative binders, are some of the sustainable solutions envisaged today by the cement industry and the scientific community (Lothenbach et al., 2011; Zhang et al., 2012). Belite (Chatterjee, 1996; García-Díaz et al., 2011; Staněk and Sulovský, 2015), alkaline and hybrid alkaline cements (Deschner et al., 2012; García Lodeiro et al., 2013, 2016) are among the binders studied as alternatives to the traditional Portland cement.

The use of supplementary cementitious materials (SCMs, pozzolans, fly ash, blast furnace slag, limestone, etc.) as a partial substitute of Portland cement clinker in the so-called “blended cements” (Lothenbach et al., 2011; Zhang et al., 2012; Wa et al., 2018) represents not only a feasible solution but, for sure, the most investigated one. However, due to the low hydraulic activity of the SCMs, blended cements usually show delayed setting times and low early mechanical strength development, which is actually limiting the replacement of clinker by SCMs in the cement (Lothenbach et al., 2011). Obviously, many investigations are being focused on how to improve the reactivity of these SCMs. The main choices are: (i) Mechanical activation (Knop and Peled, 2016; Liu et al., 2018) (controlling the particle size distribution); (ii) Thermal activation (Vizcaíno-Andrés et al., 2015; Scrivener et al., 2018b) (especially for calcined clays—LC3 technology—); (iii) Chemical activation (Ruiz-Santaquiteria et al., 2013; Allahverdia and Malekia Mahinroosta, 2018) (“alkaline activated cement”). It is quite probable that future will lead to us to a combination of those options above mentioned like the most effective choice.

In this context the main goal of this work is to describe and discuss part of a research project (leaded by authors of this paper) linked with the development of some different types of “Hybrid Alkaline Cements” (HYC). HYC are binders containing a small fraction of Portland clinker (or even blast furnace slag) as a source of calcium, a large fraction of aluminosilicate materials (from natural origin or byproducts from some industries, such as fly ashes (Deschner et al., 2012; García Lodeiro et al., 2013, 2016) as a source of Si and Al, and obviously some alkaline additive. Due to a wide compositional range and to a high technological, economical and environmental potential, HYC are the object of considerable research (Qu et al., 2016; Al-Kutti et al., 2018).

Inasmuch as the presence of alkalis in the medium affects, aluminosilicate and Portland clinker reactivity, this study undertook an in-depth analysis of calcium silicate and calcium aluminate behavior after hydration by a number of alkaline solutions of different concentrations. The findings revealed that the compressive strength of C3A, C3S and β-C2S pastes rose in the presence of alkaline additives (Sánchez-Herrero et al., 2012, 2016). Most significantly, given the low initial reactivity of β-C2S under normal hydration conditions, the presence of such alkaline additives hastened its hydration, affecting setting and hardening times substantially.

A mineralized belite clinker (with a belite content of over 50%) was first synthesized in the laboratory. In light of its good performance and given that the clinkerization temperature could be lowered considerably in the presence of the fluxing pair formed by “CaSO4 and CaF2,” the clinker was subsequently manufactured on an industrial scale with satisfactory results. The industrial belite clinker was then blended with fly ash, gypsum (the setting regulator) and Na2SO4 as an alkaline additive to produce the “alkaline-belite” cement (some type of HYC).

This paper consequently describes and discusses the main singular characteristics (mechanical behavior and microstructural development) of this “alkaline-belite” cement initially formulated in the laboratory and successfully produced on an industrial scale. This advance in the design of an alkaline-belitic binder (reasonably sustainable one) was achieved due to a close collaboration between the scientific and industrial communities who simultaneously deployed some different technologies (different fields of knowledge within the “cement science”) in order to produce and study the new “alkaline-belite” hybrid cement which was the object of the project. The different fields of knowledge simultaneously applied in this project were: the use of mineralizers and fluxes to produce low energy clinkers (Blanco-Varela et al., 1997; García-Díaz et al., 2011), the use of industrial by-products to generate blended cements with a low clinker factor (Deschner et al., 2012; García Lodeiro et al., 2013); and the use of affordable and innocuous natural mineral salts (alkaline additives with a minimal environmental impact) to stimulate the alkaline activation processes (García Lodeiro et al., 2016).

Experimental

Materials

A mineralized belite clinker produced in an industrial rotary kiln, a fly ash, gypsum (all supplied by the manufacturer) and 99.9% pure sodium sulfate (MERCK laboratory reagent) were used to prepare the hybrid cement. The respective chemical compositions are given in Table 1. The mineralogical phases present in the hybrid cement were identified with X-ray diffraction and quantified via Rietveld refinement of the XRD patterns (Rietveld, 1969). The software used: GSAS (General Structure Analysis System).

TABLE 1
www.frontiersin.org

Table 1. Chemical (wt% of oxides) and mineralogical composition of the materials.

The fly ash used in this research was supplied by a thermal power plant located at Compostilla (Spain) and owned by Endesa (Spanish Electricity Company). This fly ash is a type F one (ASTM C 618) and is considered like a “good” fly ash. Some Spanish cement producers and concrete producers located at northern Spain are usual consumers of such a fly ash to produce their materials.

Methodology

The alkaline-belite cement or hybrid cement contained 48% fly ash, 48% mineralized belite clinker, 1.5% gypsum and 2.5% Na2SO4. The belite-alkaline cement was observed to have 95% of the particles are smaller than 32 μm, with a d50 of 6 μm. The smaller particle size of hybrid “belitic-alkaline” was associated by operators of the mill (at least partially) with the presence of high contents of fly ash in its composition.

The hydration reactions were explored and the hydration products analyzed on cubic (3 × 3 × 3 cm3) paste specimens prepared with a water/cement ratio of 0.29, based on consistency (EN 196-3) testing. The setting time of the pastes was determined according to the standard EN 196-3:2017 Methods of testing cement—Part 3: Determination of setting times and soundness for a water/cement ratio of 0.29.

Mechanical strength was determined on 4 × 4 × 16 cm3 prismatic mortar specimens with a sand/cement ratio of 3:1 (EN 196-1) and a water/cement ratio of 0.45. The considerable rise in cement paste fluidity in the presence of fly ash generally translates into smaller mixing water content. Although European standard (EN 196-1 and EN 197-1) stipulates a water/cement ratio of 0.5 for mortars, here the value used was the result of slump testing, in line with the practice recommended in the ASTM standard (ASTM C230: Flow Table for Use in Tests of Hydraulic Cement).

The specimens were removed from the molds after 24 h of initial chamber curing at 21°C and 95% relative humidity and then stored in a climatic chamber until the test age (2 d, 7 d, 28 d, 90 d, or 180 d). Mortar specimens were tested for compressive and flexural strength (three for bending and six for compressive strength at each test age) on an Ibertest Autotest-200/10-SW frame (Madrid, Spain).

After the paste specimens were tested for strength they were crushed to a powder and mixed with acetone and ethanol to detain hydration and prepare the materials for mineralogical and microstructural characterization via XRD and NMR.

The XRD patterns were recorded on a Bruker D8 Avance diffractometer (Karlsruhe, Germany). The instrumental conditions were: Cu K´α1, 2 radiation (1.540 Å, 1.544 Å); no monochromator; goniometer radius, 217.5 mm. The settings for the hydrated pastes were: variable 6-mm divergence slit (hydrated pastes); 2θ angle, 5° to 60°; step time, 0.5 s; step size, 0.02°. The anhydrous samples were scanned under different conditions for Rietveld quantification: divergence slit, 0.5°; 2θ scanning range, 5° to 70°; step time, 2 s; step size, 0.02°.

The 29Si and 27Al nuclei were scanned on a Bruker MSL 400 NMR spectrometer. The conditions for 29Si were: resonance frequency, 79.5 MHz; spinning rate 10 kHz; pulse sequence, single pulse (5 μs); recycle delay, 10 s; number of transients, 4912; internal standard for measuring chemical shift (in ppm), tetramethylsilane (TMS). For 27Al they were: resonance frequency, 104.3 MHz; spinning rate, 10 kHz; recycle delay, 5 s; pulse sequence, single pulse (2 μs); number of transients, 400; internal standard for chemical shift measurements (in ppm), Al(H2O)63+.

The 29Si NMR spectra were deconvoluted in order to determine the number and position of the signals analyzed. The second derivative criterion was used (Kucherov and Kochubei, 1983; Pérez et al., 2014). This procedure is highly useful when analyzing spectra with wide, poorly defined signals, inasmuch as it resolves closely juxtaposed resonant frequencies and determines the exact position of each. In this particular case two software applications (OriginPro 9 and MestReNova) were used with the objective of avoiding practical mistakes. The 29Si MAS NMR signals exhibited a Lorentzian/Gaussian (L/G) ratio of 0.5 (independent on the software). First derivative analysis reveals the presence of peaks that appear as shoulders or weak signals on the original spectrum, whilst the second derivative furnishes more precise information in the form of minima, the value of which concurs with the peak on the main signal. The number of points taken into account during the analysis (in the zone of the spectrum between −60 and −130 ppm) was 450 approximately. Figure 1 is an example of 29Si MAS NMR spectra of our fly ash. This spectrum at Figure 1 is an example of analysis by following the already explained procedure.

FIGURE 1
www.frontiersin.org

Figure 1. (A) 29Si MAS NMR spectrum for fly ash and second derivative of the spectrum; (B) second derivatives of the original 29Si MAS NMR spectrum for fly ash and of the envelope generated by deconvolution.

Finally some samples were vacuum dried and carbon-coated for examination under a HITACHI S-4800 (Tokyo, Japan) scanning electron microscope fitted with a Bruker energy dispersive spectroscope to confirm the working hypotheses. For BSEM analysis, the samples were embedded in epoxy resin, cut and polished with ethanol prior to vacuum drying and carbon coating.

Results and Discussion

Material Properties

Material compressive strength and setting time data are given in Table 2. The mechanical strength development of mortars (4 × 4 × 16 cm3 prismatic) was 10.8 MPa at 2 days 40.0 MPa at 28 days, and 51.9 MPa at 180 days. The initial setting time was ti = 83 m. and the final tF = 193 m; the belitic hybrid cement met European standard requirements for 32.5 type cement (EN 197-1 Cement—Part 1: Composition, specifications and conformity criteria for common cement).

TABLE 2
www.frontiersin.org

Table 2. Mortar strength (4 × 4 × 16 cm3 specimens) and setting times for “alkaline-belite” hybrid cement.

As noted, this cement contained 48% mineralized belite clinker, which is characterized by low early age reactivity (Taylor, 1997). According to these findings, the constituents of the alkaline-belite cement generated synergies during hydration that contributed favorably to strength development. The heat of hydration released by the belite clinker fraction, in conjunction with the presence of the Na2SO4, sufficed to alkali-activate the fly ash, affording the system good initial mechanical behavior. Furthermore, as noted in prior studies (Sánchez-Herrero et al., 2017), the data appeared to indicate that the presence of the alkaline additive stimulated greater strength development in the calcium silicates and aluminates present in the clinker than observed during normal water-based hydration.

In previous papers (Donatello et al., 2013) authors have already demonstrated that hybrid cements behave quite well when located in aggressive environmental conditions (sulfates, marine, acidic, etc.). Additionally, they do not undergo the ASR since alkalies are consumed in the reaction of activation of fly ashes (Malvar and Lenke, 2006).

Reaction Products

The XRD patterns for the anhydrous hybrid cement and the 2 d, 7 d, 28 d, and 180 d hydrated pastes are reproduced in Figure 2.

FIGURE 2
www.frontiersin.org

Figure 2. Anhydrous and 2 d, 7 d, 28 d, and 180 d hydrated paste diffractograms Legend: b, C2S(86-0398); a, C3S(70-8632); q, quartz [SiO2](46-1045); g, gypsum [Ca2SO4.2H2O] (33-0311); l, mullite[Al6Si2O13] (73-1389); n, Na2SO4 (74-2036); e, ettringite [Ca6Al2(SO4)3(OH)12.26H2O] (41-1451); c, calcite[CaCO3] (86-0174); *, C12A7 (70-2144); v, vaterite [CaCO3](74-1867); (in brackets, PDF codes).

All the diffractograms exhibited a hump associated with the vitreous fraction of the fly ash and the existence of a cementitious gel precipitating during hydration. The intensity of the diffraction lines for belite was observed to decline steadily with hydration time.

All the pastes generated diffraction lines attributed to quartz and calcite. Ettringite was identified in the 2 d and 7 d patterns, whereas the 28 d and 180 d materials contained vaterite. No signals associated with portlandite were identified at any of the ages studied.

Figure 3 contains the 29Si MAS NMR and 27Al MAS NMR spectra for the anhydrous cement and the 28 d and 180 d pastes. Some of the signals on the hydrated paste spectra were absent on the scan for the anhydrous cement. These wide, poorly defined signals may be indicative of the presence of a mix of several components.

FIGURE 3
www.frontiersin.org

Figure 3. (A) 29Si MAS NMR and (B) 27Al MAS NMR spectra for anhydrous hybrid alkaline-belite cement and 28 d and 180 d hydrated pastes.

The 29Si MAS NMR deconvoluted spectra for the hybrid cement and its hydrated pastes are reproduced in Figure 4, whilst Table 3 give the chemical shifts and area for each signal identified on the spectra analyzed.

FIGURE 4
www.frontiersin.org

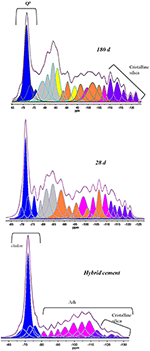

Figure 4. 29Si MAS NMR spectra for anhydrous and 28 d and 180 d hydrate hybrid belitic cement. Legend for hydration products: gray (Q1, Q2(0Al)(1Al)); orange (Q4(0Al)(1Al)(2Al)(3Al)(4Al)); yellow (Q3(1Al)(3Al)).

TABLE 3
www.frontiersin.org

Table 3. Chemical shifts (ppm) recorded after deconvolution of 29Si MAS NMR spectra for hybrid cement and 28 d and 180 d cement pastes.

The 29Si MAS NMR spectrum for the anhydrous cement exhibited a narrow signal in the clinker fraction at around −71 ppm attributed to belite, and a series of wider signals associated with the C2S and C3S Q0 units in alite (Sánchez-Herrero et al., 2016, 2017). The area of the spectrum between −81 ppm and −120/−130 ppm was associated with the fly ash fraction in the cement. Deconvolution of this area of the spectrum revealed the presence of several components. The signals between −85 ppm and −108 ppm in the anhydrous cement, concurrent with the presence of the ash, were attributed to Q4(mAl) units (Figure 4 and Table 3) for, as these signals tended to disappear in the 28 d and 180 d spectra, they were associated with the vitreous phase in the fly ash (Engelhardth and Michael, 1987; Palomo et al., 2004). The signals at (absolute) values higher than −109 ppm, however, remained practically unchanged during cement hydration and were therefore associated with Q4(0Al) units in the various crystalline forms of silica (Engelhardth and Michael, 1987). Mullite, in turn, a crystalline phase detected in this material through XRD, generated resonance frequencies at −86 ppm, −91 ppm, and −95 ppm (Merwin et al., 1991). The Q0 and Q4(mAl) units, respectively associated with the unreacted clinker and fly ash fractions, declined in intensity in the 28 d and 180 d pastes (García Lodeiro et al., 2013, 2016).

Attribution of the new signals appearing in the 28 d and 180 d pastes was not straightforward, for different units in the cementitious gel may overlap. In such complex systems, a single signal may be assigned to different units of the gel or gels precipitating during the reaction. The signal at −85 ppm for instance, may be attributed to a Q2 unit in a C-S-H gel (Skibsted and Andersen, 2013), a Q3(3Al) unit in a C-A-S-H gel (Puertas et al., 2011; Myers et al., 2015) or a Q4(4Al) unit in an N-A-S-H gel (García-Lodeiro et al., 2010, 2011). In this study, attribution was based on the literature as well as the findings of other techniques discussed below (27Al MAS NMR and BSEM/EDX).

Further to those criteria, the signals at −78.8/−79.0 ppm were associated with Q1 units in C-S-H gel. Similarly, the signals at −81.6/−81.3 ppm and −84.6/−83.8 ppm were attributed to Q2(1Al) and Q2(0Al) units in C-(A)-S-H-like gels. C-S-H gel is the main reaction product that precipitates during ordinary Portland cement hydration. The uptake of aluminum in bridging tetrahedral positions in the C-S-H gel structure gives rise to Q2(1Al) units, favoring the formation of C-(A)-S-H gels. Both gels precipitated during hydration of the mineralized belite clinker fraction of the cement.

The gels that form in cementitious systems with a very low calcium content (such as in the alkaline activation of fly ash) are alkaline aluminosilicate hydrates (N-A-S-H gels) (Fernández-Jiménez et al., 2006). Such gels, which have a three-dimensional structure consisting in Q4(mAl) units, constitute the main hydration product of fly ash alkaline activation. Further to that criterion, the signals located at around −88.5 ppm, −92.2 ppm, −95.7 ppm, −101.0 ppm, and −106.4 ppm on the 28 d and 180 d hybrid spectra would be respectively associated with the Q4(4Al), Q4(3Al), Q4(2Al), Q4(1Al), and Q4(04Al) units in a N-A-S-H gel (Engelhardth and Michael, 1987; Fernández-Jiménez et al., 2006).

In these complex systems, however, the presence of calcium in the medium around the N-A-S-H gels may induce partial substitution of calcium for sodium, prompting the formation of N-(C)-A-S-H-like gels (García-Lodeiro et al., 2010, 2011) and with it slight shifts in resonance frequencies. That would explain the fluctuations observed in the positions of the signals on the 28 d and 180 d spectra, in addition to the evolution toward the precipitation of an N-(C)-A-S-H-like gel.

Two new signals were detected in the 28 d spectra at around −93.8 and −95.8 ppm, associated with Q3(mAl) units. The presence of those signals can be explained on the grounds of the existence of phases precipitating in accordance with the following two mechanisms.

- Aluminum uptake into C-(A)-S-H gel. The presence of aluminum in a bridging tetrahedral position in the gel is known to favor sporadic connections between linear chains (Skibsted and Andersen, 2013). That induces the formation of flat (two-dimensional) laminated silicates that give rise to Q3(1Al) units and signals at around −92/−94 ppm, indicative of a C-A-S-H-like gel. Silicon replacement by aluminum generates a charge imbalance in the gel structure, however, favoring the uptake of Na+ ions to restore the balance and driving the precipitation of N-(C)-A-S-H-like gels (Puertas et al., 2011; Myers et al., 2015).

- De-polymerization of N-A-S-H gel. The presence of calcium in the medium tends to destabilize N-A-S-H gel, for the Si-O-Al bonds break due to the polarizing action of the Ca2+ ions, with the formation of Si-O-Ca bonds (García-Lodeiro et al., 2010, 2011). The outcome is a decline in the percentage of Q4(4Al) and Q4(3Al) units and a rise in the presence of Q3(4Al) units. Whilst the aluminum exiting the three-dimensional structure of the N-A-S-H gel could be taken up in the C-S-H gel, it also tends to react with calcium to form secondary hydration products (García Lodeiro et al., 2016) such as AFm and AFt. The 27Al MAS NMR spectra reproduced below in Figure 3B, support that theory, as they contain signals for scantly crystalline AFt and AFm, phases that would not be detected with XRD.

An analysis of the tetrahedral aluminum based on the 27Al MAS NMR spectra for the alkaline-belite hybrid cement and its pastes (Figure 3B) revealed that the intensity of the signal at +80 ppm, associated with calcium aluminates in the clinker (Baptiste d'Espinose de Lacaillerie et al., 2008; Sánchez-Herrero et al., 2012; Skibsted and Andersen, 2013), was barely perceptible in the 28 d materials and disappeared almost entirely after 180 d.

In the cement pastes, the intensity of the signal associated with the tetrahedral component of the fly ash (+52/54 ppm) declined and shifted, with the appearance of a number of signals at around +60 ppm. The inference would be that part of the aluminum was taken up into a gel or mix of gels and surrounded by two, three or four silicon atoms, providing further evidence of complex structures comprising a mix of cementitious gels of very different characteristics. According to the literature (García-Lodeiro et al., 2010, 2011; Puertas et al., 2011; Myers et al., 2015) the AlT for N-A-S-H gel appears close to +57/+60 ppm while AlT in C-A-S-H gel appears at +65/+68 ppm. By comparing 27Al NMR spectra at 28 and 180 days, the area of the signal at around +65/+68 ppm attributed to a C-A-S-H gel rose substantially after 180 days of hydration.

The 27Al NMR spectra for the 28 and 180 days pastes (see Figure 3B) exhibited signals at around +12 ppm, +9.4 ppm, and +4 ppm, indicative of octahedral aluminum and respectively associated with ettringite (C63H32), calcium monosulfoaluminate (C4AŜH12) or calcium monocarboaluminate (C4AĈH11) and the third aluminate hydrate (TAH) (Shimada and Francis Young, 2004; Baptiste d'Espinose de Lacaillerie et al., 2008; Sánchez-Herrero et al., 2012; Skibsted and Andersen, 2013) none of these hydration products were detected with XRD. In contrast, with its high sensitivity to 27Al nuclei, MAS NMR identifies compounds difficult to detect with other techniques due to the small amounts present or their low crystallinity.

Figure 5 shows the areas attributed to the Q1, Q2, Q3, and Q4 units obtained after deconvoluting the 29Si MAS NMR spectra. The sum of the areas for the Q1 + Q2 units (associated with a C-(A)-S-H gel) rose in the 180 d materials, whilst the sum of the Q4 units, corresponding to a N-A-S-H gel, declined at that age. The appearance of Q3 units in the 180 d pastes denoted a rise in the total area of the Q1 + Q2 + Q3 units associated with C-A-S-H gel precipitation, further supporting the evolution over time of the cementitious gels that precipitate during alkaline-belite hybrid cement hydration. These chemical and nanostructural changes in the cementitious gels did not compromise mechanical strength development in either the pastes (Figure 5) or the mortars (Table 2).

FIGURE 5
www.frontiersin.org

Figure 5. Total areas of Q1, Q2, Q3, and Q4 units on the 28 d and 180 d 29Si MAS NMR spectra and compressive strength of 3x3x3 cm paste specimens.

These findings corroborated the analysis of the 29Si MAS NMR spectra, namely that the cementitious gel precipitating during hybrid “alkaline'-belite” cement hydration was actually a mix of interacting gels that evolved over time toward a gel with characteristics reminiscent of N-(C)-A-S-H gel. The evolution of cementitious gels toward a single product implies that part of the tetrahedral aluminum released into the medium was taken up into the secondary hydration products in the form of octahedral aluminum.

Further to the above analysis of the 29Si and 27Al MAS NMR findings, three types of cementitious gels precipitated during hybrid “alkaline-belite” cement hydration: C-(A)-S-H, C-(N)-A-S-H and N-(C)-A-S-H. That was possible due to system characteristics, determined by its 48% clinker, 48% fly ash, 1.5% gypsum, and 2.5% Na2SO4 contents. These cementitious gels interacted and their characteristics evolved over time toward those of a gel similar to C-(N)-A-S-H.

The EDX microanalyses of BSEM micrographs showed that the majority elements in paste chemical composition were calcium, silicon and aluminum, although different amounts of sulfur were also identified in most (Figure 6). The microanalysis conducted at point 1 on the micrograph detected the presence of a C-S-H-like gel with small amounts of aluminum (C-(A)-S-H-like gel), whereas the microanalysis at point 2 was indicative of the presence of a C-A-S-H-like gel (Figure 6).

FIGURE 6
www.frontiersin.org

Figure 6. (A) 28 d and (B) 180 d BSEM micrographs of hybrid cement pastes.

The CaO/SiO2 and Al2O3/SiO2 molar ratios for the two pastes shown in Figure 7 were calculated from the microanalyses of the BSEM micrographs. The 28 d cementitious gels were observed to precipitate primarily in two areas with very different compositional ranges. In one, low calcium N-A-S-H-like gels precipitated where some cenosphere or fly ash particle was previously located, whilst C-(A)-S-H-like gels were found in the other zones (where some particle of C3S or C2S was existing). The 180 d findings showed that the chemical composition of both types of gels evolved toward a single C-A-S-H-like gel.

FIGURE 7
www.frontiersin.org

Figure 7. CaO/SiO2 and Al2O3/SiO2 ratios calculated from the microanalysis of 28 d and 180 d hybrid cement pastes.

In short, the BSEM/EDX findings for the 28 d and 180 d pastes confirmed the precipitation of different types of cementitious gels and hence the existence of a mix of gels. Due to the interaction between these gels as hydration progressed, this cementitious mix evolved toward the precipitation of a hydration product with characteristics reminiscent of C-(N)-A-S-H gel. The excellent technological behavior of the belitic-alkaline hybrid cement can only be explained by this nanostructural circumstance: two different cementitious gels being formed simultaneously. The extent to which formation of caco3 might contribute to the mechanical strength development has not been analyzed in this paper but authors consider it will be quite interesting point to analyze in the future since xrd seems to indicate that caco3 is increasing with time of curing.

Conclusions

The most prominent conclusions to be drawn from the present study are as follows.

- Hybrid belite-alkaline cement containing 48% fly ash can be prepared to the mechanical strength and setting time requirements laid down in European standard EN 197-1 for IVB type cement.

- Hydration of this hybrid alkaline-belite cement favored the simultaneous precipitation of a mix of cementitious gels that varied in nature: C-(A)-S-H and N-(C)-A-S-H. These gels interacted and over time evolved toward a C-(N)-A-S-H gel, with no detriment to the mechanical strength developed by the cement.

- Technologically speaking, this cement is comparable to most Portland cements on the market today, while from the environmental perspective, its manufacture is significantly more sustainable than traditional Portland cements.

Author Contributions

MJS-H conducted the experiments, data analyses and characterizations. MJS-H and AF-J drafted the manuscript. AP helped with manuscript preparation and supervised the overall research. AF-J finalized the manuscript.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This research was funded by the Spanish Ministry of the Economy and Competitiveness and FEDER under research projects BIA2016-76466-R and RTC2016-4872-S.
