REVIEW article

Front. Mater., 18 August 2020 | https://doi.org/10.3389/fmats.2020.00280

Recent Advances in the Synthesis of Electron Donor Conjugated Terpolymers for Solar Cell Applications

  • 1School of Biological and Chemical Sciences, The University of the South Pacific, Suva, Fiji
  • 2Flinders Institute for Nanoscale Science and Technology, Flinders University, Bedford Park, Adelaide, SA, Australia

The synthesis of donor (D)-acceptor (A) polymers using structurally elaborated monomers is an active research field. Some of the challenges with the use of alternating D-A polymers for photovoltaic applications are the relatively narrow absorption widths, the presence an absorption valleys in the visible region, unoptimized molecular energy levels and even lack of compatibility of the polymers with the common acceptors. The synthesis and characterization of polymers consisting of multiple chromophores (random and regular terpolymers) with complementing properties is currently gaining momentum in order to delicately optimize properties of polymers. A random terpolymer can either be of a system composed of one donor and two acceptors [(D-A1)-ran-(D-A2)] or a one acceptor and two donor segments [(D1-A)-ran-(D2-A)] incorporated in the polymer backbone. By varying the composition of the monomers in the feed of the polymerization reaction, the properties of the resulting terpolymers can be carefully optimized. Using this strategy, many materials with desired properties have been developed and power conversion efficiency (PCE) surpassing 14% in a single layer bulk heterojunction (BHJ) solar cell device have been reported. This review summarizes the most recent advances made in the development of electron donor terpolymers for organic photovoltaics (OPVs). The properties of the terpolymers are compared with their respective reference polymer.

Introduction

Conjugated polymers and small molecules have been the focus of research in the past few decades because of the clear advantage they potentially offer in the production of cheap products in various fields such as organic field-effect transistors (OFETs), organic photovoltaics (OPVs) and light-emitting diodes (LEDs). In OPVs, the photoactive material commonly consist of a blend of electron rich polymer (donor) and electron deficient (acceptor) materials intermixed on a nanometer scale. Among the various donor polymer architectures, polymers consisting of single molecular repeating units (homopolymers) were of interest in OPV research community. Repeating units such as thiophenes and benzodithiophenes have been utilized for the synthesis of the corresponding homopolymers with necessary modifications introduced to the core aromatic molecular units to impart desired properties such as good solubility, desired level of crystallinity, high optical coverage and desired molecular energy levels on the resulting polymers (Elsenbaumer et al., 1986; Almeida et al., 2009; Lee et al., 2012; Cai et al., 2017). Even though there have been tremendous progresses in the synthetic methodology for the structural modifications of the monomers, there are still inherent shortcomings of homopolymers such as narrow absorption band and mostly raised HOMO energy levels and hence yielding a relatively lower photovoltaic performances. In order to circumvent the narrow absorption profile and modulate the molecular energy levels, a “the Donor-Acceptor (D-A) design motif” where an electron rich (donor) and electron deficient (acceptor) aromatic fragments are linked together by a covalent bond was developed (Havinga et al., 1992; Gedefaw et al., 2017a; Gedefaw and Andersson, 2019; Atlı et al., 2020).

The D-A strategy have enabled synthetic chemists to better control the optoelectronic properties of conjugated polymers and small molecules to produce materials (Kitamura et al., 1996; Cheng et al., 2009).

Along with the synthesis of novel conjugated materials with desired properties, significant advances have been achieved in device structures and optimization techniques (Glenis et al., 1984; Tang, 1986; Halls et al., 1995; Yu et al., 1995; Granström et al., 1998; Yohannes et al., 2004). With the continued enhanced understanding of the nature of film microstructure (Bolognesi et al., 2016) and meticulous device optimization efforts (Li et al., 2014), PCE in the range of 14–18% with a binary blend and tandem OPVs have been reported (Li S. et al., 2018; Meng et al., 2018; Zhang et al., 2018; Chen, 2019; Cui et al., 2019; Fan et al., 2019; Xu et al., 2019b; Liu Q. et al., 2020; Luo et al., 2020; Salim et al., 2020). One of the promising feature of organic solar cells is the solution processability of the photoactive materials, which have opened the possibility of fabrication of photovoltaic devices using printing technologies at a relatively lower cost (Hoth et al., 2007; Aernouts et al., 2008; Sumaiya et al., 2017).

The synthesis of well-defined polymers with pre-determined composition and structure is vital in order to have a control in the properties of conjugated polymers. Many of the monomeric units developed in the past have highly elaborated molecular features. Besides the challenges encountered in the synthesis of these monomers, the final polymers end up to have a narrow absorption profile, unoptimized energy levels and poor compatibility with the acceptor counterparts, resulting in a material that will likely perform less efficiently in organic solar cells. One way to tune the optical and electrochemical properties of polymers is by incorporating multiple chromophores such as three monomeric units in the polymer chains. According to IUPAC definition, polymers consisting more than one species of monomers (real, implicit or hypothetical) are called co-polymers (Jenkins et al., 1996). The polymers discussed in this paper consists of two species of monomers and not three different species of monomers as in terpolymers. Interestingly, this type of polymers are normally referred to as terpolymers in the literature and therefore we also call them terpolymers in the article (Jenkins et al., 1996). Recently, the synthesis and use of terpolymers for photovoltaics have gained tremendous attention (Colella et al., 2011; Khlyabich et al., 2011; Paulsen et al., 2014; Scott et al., 2019; Gao et al., 2020). Terpolymers can either be random or regular. In random terpolymers, two acceptors and one donor monomers (D, A1, and A2) or two donors and one acceptor (A, D1, and D2) in a predetermined feed ratio of the monomers are introduced for the polymerization reaction, where the monomeric units will be assembled in the backbone of the polymer randomly to yield a polymer structure of the type (D-A1)-ran-(D-A2) or (A-D1)-ran-(A-D2), respectively. In regular terpolymers on the other hand, a properly functionalized D1-A-D2 or A1-D-A2 based monomeric segments are reacted with a functionalized acceptor (A) or donor (D), respectively, to form an alternating polymer. The diversity of monomers developed in the past allows the synthesis of countless multi-component materials with tailored properties (Heintges et al., 2020). The regular terpolymers have definite composition and hence provides the possibility of better control of the electronic properties (Heintges et al., 2020). It is expected that regular terpolymers to display a better inter polymer chain interaction due to the defined monomeric composition in the chain and hence are expected to have higher crystallinity. For instance, Heo et al. have demonstrated that a regioregular polymer prepared based on dithieno[3,2-b:2′,3′-d]silole (DTS, D1), benzo[1,2-b:4,5-b]dithiophene (BDT, D2), and thieno[3,4-b]thiophene (TT, A) monomeric units to have a higher crystallinity and displayed a stronger absorption coefficient. Due to these advantages possessed, the regioregular polymer performed well in photovoltaic devices (Heo et al., 2016; Heintges et al., 2020). On the other hand, random terpolymers have less defined composition of the monomeric segments in the final polymer structure. Though the composition of the monomers in the feed is precisely known, the composition of the monomeric segments in the resulting polymer could either be same as the feed or it could be different depending on the polymerization kinetics of the monomers. In the same work as above, the random terpolymer prepared from DTS, BDT and TT showed a broadening toward higher wavelengths in the optical study ascribed to -TT-DTS-TT-DTS enriched segments. This is an interesting example that demonstrates how the polymerization kinetics affect the optical property and also how tricky predicting properties of random terpolymers will be unless the reactivity of the monomers are known (Heo et al., 2016).

Though random terpolymers have undefined composition, several of them have shown promising performances, which heralds the great potential of the strategy to produce tailored and efficient polymer donors and non-fullerene acceptors (Pan et al., 2017; Song et al., 2018; Wang et al., 2019, 2020; Yang et al., 2019; Zhang et al., 2020). Random terpolymers are also hailed from the point of view of reducing material cost by using a cheaper third component without compromising the efficiency (Jiang et al., 2016). These promising classes of terpolymers have been reviewed in the past. Some of the reported articles have attempted to classify the polymers based on the material properties such as complimentary absorption, crystallinity, morphology and so on (Luo et al., 2018; Gao et al., 2020). Herein, terpolymers (regular and random) developed recently are discussed in the following approach. The materials were first classified in two broad groups: polymers having two donors and two acceptors. Then, the polymers further grouped based on the type of acceptor used to construct the terpolymers. The properties of terpolymers are then thoroughly discussed in terms of the optical properties, morphology, and crystallinity and so on. The properties of the terpolymers were compared with reference alternating polymers.

Terpolymers Consisting Two Donors and One Acceptor Units

Here, terpolymers prepared from two electron rich and an electron deficient monomers are discussed. The optical, electrochemical and photovoltaic properties of the terpolymers are compared with the reference polymers. The terpolymers are classified based on the acceptor type.

Diketopyrrolopyrrole (DPP) and Other Lactam Ring Based Polymers

Among the various electron deficient molecular units developed to date, the DPP lactam ring is widely known in OPV research and has been incorporated in many D-A polymers (Hendriks et al., 2013; Choi et al., 2015; Zheng et al., 2016). In order to exploit the peculiar properties of random terpolymers in tuning physico-chemical properties, Ko et al. (2015) reported regular (P1 Reg-PBDPPT) and random (P2 Ran-PBDPPT) terpolymers based on (E)-1,2-di(thiophen-2-yl)ethene, 2,2′-bithiophene and DPP monomers (Figure 1). The two terpolymers (P1 and P2) showed comparable optical and electrochemical properties (Table 1). The properties of the reference alternating polymers synthesized (P3 PDPPBT and P4 PDPPTVT) are also tabulated in Table 1. A blend of P1 or P2 with PC71BM, processed from a chloroform: o-dichlorobenzene (ODCB) (4:1 v/v) solvent, was embedded between PEDOT:PSS and Li/Al electrodes to investigate the photovoltaic properties. The regular terpolymer (P1) based optimized photovoltaic device gave a PCE of 5.45% while the random terpolymer (P2) based device gave a 5. 24% PCE with 2% diiodooctane (DIO) solvent additive. The slightly higher PCE of the devices based on the regular terpolymer (P1) is mainly due to the higher fill factor (FF) achieved due to well-formed nanophase crystalline domains as observed with atomic force microscopy (AFM) and transmission electron microscopy (TEM) images. P1 based devices gave a FF = 71% compared to a FF = 65% from P2 based devices. The photovoltaic performance of P3 and P4 (reference polymers) were also studied with and without the DIO solvent additive. A 1:2 wt/wt blend of each of the polymers (P3) and (P4) with PC71BM as a photoactive material processed from chloroform and ODCB (4:1 v/v) with DIO additive achieved a maximum PCE of 4.66 and 3.84%, respectively. In contrast to the devices prepared from the terpolymers, the reference D-A polymers (P3 and P4) based devices showed a much coarser surface textures and microphase segregation in the internal structure as studied by AFM and scanning electron microscopy (SEM), which is the cause for the lower short circuit current (JSC) and lower PCE of the devices (Table 1).

FIGURE 1
www.frontiersin.org

Figure 1. Donor polymers with DPP as an acceptor (P1P11).

TABLE 1
www.frontiersin.org

Table 1. Summary of optical, electrochemical, and photovoltaic properties of polymers (P1P17).

The effect of aromatic π-linkers in the properties of many D-A type polymers were studied in the past. For instance, thieno[3,2-b]thiophene as a π-linker of quinoxaline and BDT based monomer have resulted in an alternating polymer with a rigid, planar and linear backbone structure compared to the use of thiophene as π-linker (Gedefaw et al., 2014). A systematic study on the effect of aromatic π-linkers in random terpolymers were studied in DPP based polymers. The DPP base monomer was copolymerized with quaterthiophene (QT) donor unit with the random introduction of various aromatic monomers as a third component. Consequently, random terpolymers denoted as P5 P4TFDPP, P6 P4TPDPP, P7 P5TDPP, and P8 P4TVDPP consisting of fluorene, phenyl, thiophene and vinyl units as third components, respectively, were reported. P7 and P8 were synthesized by Stille metal catalyzed cross coupling reaction while P5 and P6 were prepare by Suzuki cross coupling reactions, using the properly functionalized monomeric units and reaction conditions in both systems (Figure 1; SambathKumar et al., 2016). The structure-property relationships of the polymers was investigated with DFT on optimized geometry consisting of two repeating units. Hence, the dihedral angles measured between thiophene and the linker unit (fluorene, phenyl, thiophene, and vinyl) vary between 19° and 25° for P5 and P6 dimers compared to a lower dihedral angle in the range of 1° and 10° for P7 and P8 dimers. The large dihedral angle for P5 and P6 is presumed to be due the bulky nature of fluorene and benzene aromatic linkers resulting in a twisted backbone. As expected, P8 and P7 with thiophene and vinyl linkers, respectively, gave a red shifted absorption with an onset of optical absorption in thin film reaching above 1000 nm. The vinyl linker is particularly known at promoting intermolecular ππ stacking, extending conjugation length and shifting of absorption to a longer wavelength (Chen et al., 2012). However, a blue shifted optical absorption of the polymers with benzene and fluorene π-linkers (P5 and P6) were found likely due to the twisted nature of the polymer backbones. The HOMO and LUMO energy levels of the polymers were estimated using cyclic voltammetry (CV). Consistent with the optically determined band gap, P8 showed a narrow band gap (1.22 eV) from the CV measurement due to the raised HOMO and lowered LUMO energy levels. The fluorene linked polymer (P5) showed the deepest HOMO (−5.46 eV) energy level compared to the other three polymers, which is vital to generate a higher open circuit voltage (VOC) in photovoltaic devices.

BHJ photovoltaic were fabricated from the terpolymers [ITO/MoOx (10 nm)/polymer: PC71BM (1:2 wt%)/Al (100 nm)], where the donor-acceptor blends were processed from a chloroform: ODCB solvent mixture. The fluorene bridged polymer (P5) based device gave the highest PCE 4.9% with corresponding VOC = 0.88 V, JSC = 9.4 mA/cm2 and FF = 59% while P8 based devices were reported to have given the lowest PCE of 2.9% with corresponding VOC = 0.69 V, JSC = 9.43 mA/cm2 and FF = 44%. While the JSC generated from the devices prepared from the two polymers were comparable, the VOC of P5 based devices was found to be significantly higher than that of the devices prepared from P8. The higher VOC of P5 based devices is in accordance with the deeper HOMO energy level (CV measurement). A high VOC is a typical characteristics of photovoltaic devices based on fluorene based polymers (Yohannes et al., 2004; Zhang et al., 2006; Gedefaw et al., 2009). Optimized devices fabricated based on P6 and P7 gave a PCE of 3.8 and 4.1%, respectively.

The terpolymers were generally found to be less ordered (X-Ray diffraction (XRD) measurement) with a weak diffraction peak and a wider d-spacing. However, the vinyl bridged terpolymer (P8) showed a stronger diffraction pattern, a higher aggregation tendency and excessive phase separation in the blend films with PC71BM. However, the hole mobility was found to decrease in the order of P5 > P7 > P6 > P8. P5 showed better miscibility with fullerene (AFM image) which supports the reason why the device showed higher PCE in photovoltaics, in contrary to P8 based devices (rough surface morphology) and lower photovoltaic performances.

Pyrene and benzodithiophene (BDT) have been extensively studied as electron rich core units in alternating polymers (Beimling and Koßmehl, 1986; Hou et al., 2008; Bolognesi et al., 2013; Gedefaw et al., 2017a; Alkan et al., 2020). Pyrene and bithiophene based monomers were used as a third component together with BDT and DPP based monomers to form two regular terpolymers, denoted as P9 PDPPPYBDT and P10 PDPPBTBDT. Alternating polymers based on DPP and BDT (P11 PDPPBDT) was also reported (Kim et al., 2018; Figure 1). Regular terpolymers have an advantage of having defined chemical compositions compared to random terpolymers (Hendriks et al., 2013). The onset and the peak optical absorption wavelengths of P11 fell between those of pyrene (P9) and bithiophene (P10) based terpolymers. In both liquid and solid state, the absorption peak of the pyrene (P9) containing terpolymer displayed a blue shift compared to the bithiophene (P10) terpolymer. This is expected as the bithiophene molecular unit has a strong electron donating characteristic that shifts absorption to a longer wavelength. The HOMO and LUMO energy levels of P11 was slightly up shifted (−5.35/-3.86) compared to the values of P9 (−5.40/−3.82) and P10 (−5.33/−3.86). The HOMO of P10 is slightly raised due to the stronger electron donating effect of bithiophene compared to P9. A conventional BHJ solar cells were fabricated (ITO/PEDOT:PSS/polymer: PC71BM/LiF/Al). Hence, a PCE of 4.46, 3.02, and 2.36% were reported from P9, P10, and P11-based devices, respectively, using a mixture of chloroform and ODCB (2:1 v/v) with the addition of 3% DIO solvent and further annealing at 180oC. P9 based devices gave improved JSC (12.1 mA/cm2) due to the uniform morphology and well-defined nanophase segregation and higher PCE. Moreover, P9-based device gave relatively higher VOC.

D-A polymers with multicyclic lactam aromatic systems show extended conjugation length, reduced band gap, enhanced π-electron delocalization, strong π-π stacking, and high hole mobility (Cao et al., 2013, 2015; Kroon et al., 2015). Random terpolymers containing a fused penta cyclic lactam ring, thiophene and bithiophene were reported to modulate molecular packing and nanophase blending in devices (Chen et al., 2017). The terpolymers prepared are denoted as P12 PTPTI-T100, P13 PTPTI-T70, P14 PTPTI-T50, and P15 PTPTI-T30 consisting of 100, 70, 50, and 30% of the thiophene-lactam block, respectively (Figure 2).

FIGURE 2
www.frontiersin.org

Figure 2. Donor polymers containing lactam ring (P12P17) and ITIC.

m-ITIC (Yang et al., 2016; Figure 2) was blended with the donor polymers for fabricating solar cells. The UV-visible absorption spectrum of the polymers blended with ITIC were found to be comparable except for the stronger absorption bands observed for the P13:m-ITIC blend, which could contribute toward a higher JSC of the devices. The HOMO energy levels of the polymers were determined using ultraviolet photoelectron spectroscopy (UPS). The HOMO of the polymers shifts upward as the amount of thiophene is decreasing. Hence, the deepest HOMO was observed for P12 (−5.43 eV) while P15 (−5.22 eV) showed a raised HOMO energy level. The HOMO and LUMO values of m-ITIC are −5.50 and −3.92 eV, respectively.

To evaluate the photovoltaic properties, a device structure of ITO/PEDOT:PSS/active layer/PDINO (Zhang et al., 2014)/Al was used and film was processed from chlorobenzene: chloroform: DIO (1:2:0.5 vol%). P12:m-ITIC based device showed a PCE of 9.10% with corresponding JSC = 13.9 mA/cm2, VOC = 0.96 V, and FF = 68.34%. P13:m-ITIC-based device on the other hand exhibited an impressive PCE of 11.02%, JSC = 17.12 mA/cm2, FF = 69.26%, and a VOC = 0.93 V. The higher JSC achieved from the P13:m-ITIC-based device could be attributed to: (i) the stronger absorption bands of the blend, (ii) Finely distributed microstructure with a small domain size and an increased fraction of face-on oriented crystallites, (iii) a relatively balanced hole and electron mobility. Further increase in the content of the bithiophene monomer (P14 and P15) resulted in a decrease in the PCE (8.95% for P14 and 8.13% for P15).

Pyridopyridinedithiophene is another penta cyclic lactam ring derivative copolymerized with thiophene monomer to yield a medium band gap polymer (PTNT) (Kroon et al., 2014). A blend of PTNT:fullerene based solar cell gave a VOC of 0.9 V, a FF of 60% and a PCE of 5% for >200 nm thick active layer. The introduction of fluorine atom in the backbone of a polymer increases planarity and improves hole mobility (Li et al., 2011; Bronstein et al., 2013). Hence, a fluorine atom modified 2,2-bithiophene based monomer was copolymerized with pyridopyridinedithiophene based unit to yield an alternating polymer (P16) (Figure 2). However, P16 had poor solubility in solvents, resulting in a premature precipitation during the polymerization. The devices prepared from a blend of P16 and PC71BM gave only 1.4% PCE with low JSC and FF though the VOC was respectable (∼0.9 V). The film was rough (AFM investigation) due to the severe phase segregation of the polymer chains and PC71BM. A random terpolymer (P17) consisting difluoro-2,2′-(bithiophene) (25%), thiophene (25%) and pyridopyridinedithiophene (50%) molar amounts in the feed of the polymerization was synthesized to improve processability, miscibility, optical and electrochemical properties (Gedefaw et al., 2017b). As presumed, P17 showed an excellent solubility giving rise to a decent molecular weight (number average17.2 KDa). The absorption onset of P16 and P17 at solid state was found to be 610 and 585 nm, respectively: both are red shifted compared to the reference polymer (PTNT) (λonset = 560 nm), which could be due to the rigid bithiophene unit. P17 showed good film making property and hence a smooth surface with smaller root-mean-square roughness (rms) film was obtained when blended with PC71BM (1:2.5 w/w). As the result, P17-based photovoltaic devices gave more than 2 times higher PCE than the P16 based devices (Table 1).

Difluorobenzothiadiazole Ring Based Polymers

In 2011, Li et al. (2011) incorporated difluorobenzothiadiazole as an acceptor together with BDT based donor monomer to make a D-A polymer that gave a 3.4% PCE in photovoltaics. Thereafter, several efficient polymers containing difluorobenzothiadiazole were developed and characterized (Stuart et al., 2013; Wang et al., 2013; Duan et al., 2015).

Deng et al. (2015) reported a regular terpolymer (P20 PBDT-DTffBT-F-DTffBT) based on BDT, fluorene and difluoro benzothiadiazole based monomers. By incorporating a weak electron donating fluorene based monomer as a third component, the molecular energy level and optical absorption were tuned. Reference polymers (P18 PBDT-DTffBT and P19 PF-DTffBT) (Deng et al., 2015; Figure 3) were also reported.

FIGURE 3
www.frontiersin.org

Figure 3. Donor polymers with benzothiadiazole acceptor molecular units (P18P25).

The solid state onset of absorption was estimated to be 725, 602, and 696 nm for P18, P19, and P20, respectively. The HOMO and LUMO energy levels were calculated to be −5.46/−3.75, −5.53/−3.47, and −5.47/−3.69 eV for P18, P19, and P20, respectively (CV measurement). Clearly, the optical behavior and molecular energy levels of the terpolymer are intermediate between the properties displayed with P18 and P19. For instance, the HOMO of P20 was deeper, which is beneficial for achieving higher VOC in solar cell devices than P19. The LUMO of the terpolymer is slightly raised than P18. A moderate 2.6% PCE was generated [glass/ITO/PEDOT:PSS/polymer:PC71BM (1:1.5 wt/wt)/LiF/Al] from a blend of P20 and PC71BM, processed using chlorobenzene and 3% DIO. P18 and P19 based solar cells gave a PCE of 3.0 and 0.5%. Though the VOC and JSC of P20 based solar cells was improved, the FF (39.8%) were lower compared to the P18 based devices (FF = 55.8%). The lower FF of P20 based devices could have arisen from a poor film morphology and lower hole mobility compared to the films prepared P18.

In another work, terpolymers based on difluorobenzothiadiazole, bithiophene and 5,6-difluoro-2,1,3-benzothiadiazole (FBT) (P21 FBT-Th4, P22 PDT2fBT-BT10, P23 PDT2fBT-BT20, and P24 PDT2fBT-BT30) with 0, 10, 20, and 30%, respectively of bithiophene-FBT segment have been reported (Figure 3; Shin et al., 2018). The FBT unit was used as a third component to reduce the aggregation tendency of the highly crystalline reference polymer (P21). The polymers have comparable peak absorption and onset of absorption wavelengths. However, P22 showed a stronger absorption intensity at longer wavelength, which could be due to the better solubility in chlorobenzene and acetonitrile (AcCN) co-solvents. A downward shift in the HOMO energy level (CV) was observed with the increase in FBT content: P21 (−5.35 eV) >P22 (−5.42 eV) > P23 (−5.43 eV) > P24 (−5.44 eV). Consequently, a 0.2 cm2 solar cell device fabricated based P22 gave a PCE of 10.31%, JSC of 18.92 mA/cm2, FF of 73.45%, and VOC of 0.742 V (ITO/PEI ethoxylated/polymer:PC71BM/MoO3/Ag). Further increase of the device area to 1.0 cm2 resulted a PCE of 9.03%. The high PCE of P22 based devices is due to the improved processability, crystallinity and morphology. Conversely, optimized solar cell devices fabricated based on P21, P23, and P24 yielded a PCE of 8.62, 9.28, and 8.02%, respectively.

A random terpolymer (P25 PFBT4F-BDT10) (Figure 3; Qing et al., 2020) using 2D-BDT, bithiophene and 5,6-difluorobenzothiadiazole (FBT) based monomers was reported. The bithiophene and BDT monomers were mixed in 0.9–0.1 molar ratio, respectively, in the feed of the polymerization reaction. P25 showed an absorption peak at 633 nm and a moderate shoulder at 687 nm. The HOMO energy level was found to be −5.47 eV (CV) while the LUMO (−3.83 eV) was estimated from the optical band gap and the HOMO. A blend of P25:PC71BM delivered a PCE of 2.40%, with a VOC of 0.76 V, a JSC of 5.87 mA/cm2, and a FF of 53.8% (ITO/ZnO/polymer interlayer/active layer/MoO3/Al). The lower performance was probably because of the poor BHJ morphology and the poor compatibility of P25 and PC71BM. In order to modulate the morphology, a ternary blend of P25, IDIC and PC71BM was used. A 0.6:1 (wt/wt) of IDIC and PC71BM blend together with P25 gave over 10% PCE with a VOC = 0.75 V, JSC = 21.12 mA/cm2 and FF = 63.9%. The ternary blend gave broader absorption, favorable phase separation, and stronger crystallinity induced by the synergistic effect of the acceptors. Further increase in the content of IDIC, the FF of the devices showed improvement. For instance, a 1:0.6 mixture of IDIC: PC71BM based device showed a FF = 68.2%. However, the JSC dropped to 17.80 mA/cm2 and hence the PCE decreased to 9.27%. Table 2 summarizes the properties of P18–P25.

TABLE 2
www.frontiersin.org

Table 2. Summary of optical, electrochemical, and photovoltaic properties of polymers (P18P25).

Benzodithiophenedione (BDD) and Thienopyrroledione (TPD) Rings Based Polymers

The BDD molecular acceptor have a large planar structure, strong electron-withdrawing ability and high aggregation tendency and polymers based on BDD show high PCE in solar cells (Qian et al., 2012; Huo et al., 2015; Zhang et al., 2017). Aromatic π-bridges such as thiophene can be attached to the BDD unit easily to extend conjugation and control the backbone twisting (Ie et al., 2012; Qian et al., 2012). Here, the most recent BDD based terpolymers developed are summarized.

A series of polymers with two electron rich 2D-BDT and BDD based monomers are reported. The BDT based monomers have a thiol alkyl chains differing in the length of the alkyl groups (butyl octyl versus ethyl hexyl). The polymers are represented as P26 PB01, P27 PB37, P28 PB55, P29 PB73, and P30 PB10 with 0, 30, 50, 70, and 100% of the BDTBO-BDD (BDTBO: butyl octyl side chain on the BDT) segment, respectively (Figure 4; Huo et al., 2018).

FIGURE 4
www.frontiersin.org

Figure 4. Donor polymers based on BDD or TPD or derivative acceptors (P26–P39) and ITCPTC non-fullerene molecular acceptor.

Bands at 300–400 and 500–700 nm corresponding to a π-π transition and intramolecular charge transfer (ICT), respectively, are displayed in the UV-visible spectrum. The polymers showed similar optical band gaps (in the range of 1.83 and 1.85 eV) in solid state, apart from slight variations in the absorption intensity caused by the difference in their aggregation tendency. The HOMO/LUMO energy levels (CV) of P26, P27, P28, P29, and P30 were calculated to be −5.40/−3.54, −5.42/−3.56, −5.44/−3.57, −5.44/−3.59, and −5.46/−3.60 eV, respectively. A down ward shift in the energy levels was observed as the content of the BDT monomer with the BO alkyl group increases which could be due to the improved solubility, reduced chain aggregation and hence minimizing the aggregation initiated upward shift of the molecular energy levels (Heuvel et al., 2018). Finally, solar cell devices were prepared (ITO/PEDOT:PSS/active layer/ZrAcac/Al) by blending the polymers with either PC71BM or ITCPTC. A blend of P28 and ITCPTC acceptor (Figure 4) gave an impressive PCE of 12.1% with a corresponding JSC = 17.0 mA/cm2, VOC = 0.93 V, and FF = 74.8%. The devices prepared based on P26, P27, P29, and P30 yielded a PCE of 10.3, 11.0, 11.0, and 10.1%, respectively, when blended with ITCPTC. The use of PC71BM yielded a slightly lower PCE as indicated in Table 3. In both acceptor types, P28 outperformed due to its enhanced optical absorption and fine-tuned electrochemical and morphological properties.

TABLE 3
www.frontiersin.org

Table 3. Summary of optical, electrochemical, and photovoltaic properties of polymers (P26P39).

Another versatile aromatic structure molecular with two imide functional groups, easy synthesis and provides structural flexibility is TPD (Zou et al., 2010; Bang et al., 2017; Heo et al., 2018). Terpolymers based on TPD molecular unit have been reported.

Bang et al. (2017) reported a terpolymer based on TPD, BDT and terthiophene molecular structures in a 50, 25, and 25% mixing molar ratio of the monomers, respectively (P31) (Figure 4). It showed broad optical absorption (300–700 nm) and a band gap of 1.84 eV. The HOMO energy level of the polymer was estimated to be −5.56 eV (CV). P31 was tested in photovoltaics (ITO/PEDOT:PSS/P31 LGCD013:PC71BM/Ca/Al), where P31 and PC71BM (1:2 wt/wt) is processed with ODCB. As prepared device gave a 6.09% PCE, VOC = 0.88 V, JSC = 9.48 mA/cm2 and FF = 72.55%. The PCE was improved to 7.22% with the addition of 3% DIO as an additive.

Thienyl-substituted BDT, dithieno[3,2-b:2′,3′-d]silole (DTS) and TPD based monomers were used to prepare random terpolymers (P32 PTPD-BDT75-DTS25, P33 PTPD-BDT50-DTS50, and P34 PTPD-BDT25-DTS75) with 25, 50, and 75% of the TPD-DTS segment (Figure 4; Heo et al., 2018). Note that the DTS based monomers are widely known for its relatively simple and symmetrical structure and strong electron-donating ability. D-A polymers based on DTS and TPD were reported in the past and used in solar cell devices (Chu et al., 2011). The polymers showed a red shift in the onset of the optical absorption with the increase of the DTS content. Hence, the onset of absorption P34 is 720 nm while P32 and P33 shown 689 and 701 nm, respectively. The absorption intensity of P32 (25% of TPD-DTS) was stronger at longer wavelength which indicates its better light harvesting capability while P34 showed a relatively broader absorption attributed to an enriched – TPD-DTS-TPD-DTS- segment. The HOMO and LUMO energy levels shifted upwards with the increase in DTS content. Therefore, the HOMO energy levels of P32, P33, and P34 were estimated to be −5.58, −5.50, −5.42 eV, respectively. Similarly, the LUMO energy levels shifted up wards with the increase in DTS content. Finally, solar cells were fabricated in an inverted configuration (ITO/ZnO/polymer:PC71BM/MoO3/Ag). The highest PCE achieved were 5.78, 3.52, and 4.74% from P32, P33, and P34, respectively, based devices. The higher PCE P32 based device was due to the better JSC, VOC, and FF compared to P33 and P34 based devices. The higher VOC of P32 based device is expected as it has a deeper HOMO. Despite the narrower absorption, P32 based devices gave a better JSC probably due to: (i) the higher hole and electron mobility, (ii) stronger absorption coefficient, and (iii) bicontinuous, uniform and smooth morphology (Kawashima et al., 2015).

4,8-di(thien-2-yl)-6-octyl-2-octyl-5H-pyrrolo[3,4-f]benzotria zole-5,7(6H)-dione (TzBI) monomer possesses a TPD-triazole functional group and have a moderate electron-withdrawing ability (Fan et al., 2017). The TZBI acceptor was also combined with variable amount of two BDT based donor monomers (an alkyl thiophene (Th) and an alkyl phenyl (Ph) side groups). The polymers prepared are represented as P35 Ph00, P36 Ph25, P37 Ph50, P38 Ph75, and P39 Ph100, where P35 and P39 are reference polymer prepared from the BDT-Th and the BDT-Ph based monomers, respectively. In the contrary, P36, P37, and P38 have 25, 50, 75% the BDT-Ph-TZBI backbone (Figure 4; Li K. et al., 2018). The peak and onset of absorption blue shifts with the increase in BDT-Ph based monomer content. Hence, the optical band gaps are 1.84, 1.87, 1.89, 1.90, and 1.90 eV for P35, P36, P37, P38, and P39, respectively. The HOMO energy levels are between −5.26 and −5.33 eV with the deepest given by P39 while the LUMO are in the range of −3.11 to −3.15 eV. ITIC (Figure 2) was used as an acceptor for the solar cells (ITO/PEDOT:PSS/active layer/(PFN-Br)/Ag). The photoactive layers were spin cast from chlorobenzene with 0.5 vol% dibenzyl ether (DBE) solvent additive and subsequently thermally annealed (120 °C for 10 min). The best PCE recorded were 7.42, 8.23, 8.55, 7.71, and 7.62% for P35, P36, P37, P38, and P39 based devices, respectively. Clearly, the performance showed improvement with the introduction of some amount of phenyl substituted BDT monomer: the highest performance being achieved from P37 based devices: VOC = 0.87 V and FF = 61.97% and JSC = 15.29 mA/cm2. However, when the content of the BDT-Ph based monomer further increased (P38 and P39), the PCE dropped. It is interesting to note that the terpolymers (P36, P37, and P38) performed better than the binary polymers (P35 and P39) presumably due to the balanced hole and electron mobility and suppressed bimolecular recombination.

Thieno[3,4-b]Thiophene (TT) Ring Based Polymers

The TT molecular unit stabilizes the quinoidal structure and hence its presence in polymer backbones helps to lower band gap. The TT core unit has been widely utilized as an acceptor in D-A polymers (Liang et al., 2009a, BR74). Recently, the TT based acceptor was used for the synthesis of terpolymers and the properties are summarized in Table 4. The TT based monomer was copolymerized with DTS and BDT based monomers to give random (P40 ran-PDTSTTBDT) and regular (P41 reg-PDTSTTBDT) terpolymers. TT, DTS and BDT based monomeric units were introduced in 50, 25, and 25% molar ratios, respectively, as a feed of the polymerization reaction to form P40. P41 on the other hand was prepared from a copolymerization of BDT-TT-BDT and DTS based monomers (Figure 5; Heo et al., 2016). P40 showed a 24 nm blue shift in the absorption peak compared to that of P41. However, P40 revealed a broader optical absorption covering in the high and low energy regions (Kang et al., 2013; Hendriks et al., 2014). The lower energy broadening is attributed to a TT-DTS-TT-DTS enriched segment while the high energy broadening to TT-BDT-TT-BDT- rich segments in the chain. P41 exhibited low lying HOMO energy level (−5.19 eV) compared to the P40 (−5.08 eV) (CV measurement). The higher HOMO of the random terpolymer is attributed to the higher content of TT-DTS-TT-DTS rich segments, which would have an impact on the VOC of the solar cell device. The LUMO energy level of both polymers is −3.62 eV. Inverted BHJ PSCs were fabricated (ITO/ZnO/polymer:PC71BM/MoO3/Ag) to evaluate the photovoltaic properties of the polymers. The device based on the P40 showed a VOC = 0.50 V, a JSC = 5.61 mA/cm2, a FF = 39.19%, and a PCE of 1.11%. However, P41 based device exhibited remarkably improved PCE with a VOC = 0.64 V, a JSC = 14.35 mA/cm2, a FF = 61.81%, and a PCE of 5.64% with chlorobenzene processing solvent. The PCE of P41 based devices further increased to 5.75% with the use o-xylene and 5% DIO processing solvent. A mixture of 2% p-anisaldehyde (AA) and 3% DIO solvent additive has further increased the PCE to 6.14%. The higher PCE of P41 based devices is attributed to better crystallinity, higher charge carrier mobility, excellent solubility in solvents, low lying HOMO, bicontinuous interpenetrating network and smoother surface.

TABLE 4
www.frontiersin.org

Table 4. Summary of optical, electrochemical, and photovoltaic properties of polymers (P40P47).

FIGURE 5
www.frontiersin.org

Figure 5. Donor polymers with TT molecular acceptor unit (P40P47).

Kim et al. (2019) reported terpolymers based on two BDT donor units (thio-2-ethylhexyl substituted BDT and a 2-ethylhexyl-substituted BDT and fluorinated TT denoted as P43 Ra-(D1-A-D2-A) and P44 RR-(D1-A-D2-A). A reference polymer (P42 D1-A) prepared from 2-ethylhexyl-thio-substituted BDT and fluorinated TT based monomers was also reported (Figure 5). Regioregular polymer (P44) showed a strong absorption coefficient at longer wavelength attributed to the stronger polymer inter-chain interactions, believed to improve light harvesting. On the basis of the electrochemical study, both P43 and P44 showed a slight up-shifted HOMO energy levels compared to P42 which arises from the difference in the composition of the alkyl substituents. An all-PSC was fabricated by blending each of the polymers with P45 P(NDI2HD-DTAN) (ITO/ZnO/active layer/MoO3/Ag). A device fabricated from a blend of P44 and P45 gave a maximum PCE of 6.13%, VOC = 0.73 V, JSC = 13.59 mA/cm2 and FF = 60%. Devices fabricated based on P42 or P43 yielded a PCE of 4.81 and 4.93%, respectively. The high PCE of the device based on P44 is attributed to the improved charge transport and enhanced light absorption coefficient. P45 was chosen as an acceptor due to its miscibility with BDT based monomers (Cho et al., 2018).

Random terpolymers (P46 PL1 and P47 PL2) possessing fluorinated TT, BDT and thiophene-substituted with porphyrin center were reported (Figure 5) Liu Z. et al., 2020). The feed of the porphyrin, BDT and TT containing monomers were in 0.01:1:0.99 molar ratio in the polymer synthesis. The absorption edges of P46 and P47 are 816 and 761 nm, respectively. The HOMO of P46 and P47 was estimated to be −5.38 and −5.44 eV, respectively. Solar cells were fabricated (ITO/PEDOT:PSS/donor:PC71BM/PFN/Al) that gave 5.73 and 7.14% PCE for the devices based on P46 and P47, respectively, after processing the film with chlorobenzene and 1.5% DIO (v/v).

Terpolymers Consisting Two Acceptors and One Donor Units

Random and regular terpolymers built from two electron-accepting and one electron-rich monomers have been investigated with the objective of optimizing absorption spectra and molecular energy levels. Herein, materials developed recently are discussed.

Quinoxaline Ring Based Polymers

Andersson’s research group developed the synthesis of quinoxaline based molecular structures and subsequently incorporated in a wide assortment of D-A polymers for polymer solar cells (Gedefaw et al., 2009; Lindgren et al., 2009; Zhou et al., 2010; Gedefaw et al., 2017a). The quinoxaline molecular system is among the structures used to develop terpolymers and some of the efforts are summarized in this section and the properties are shown in Table 5. Suzuki coupling reaction of benzothiadiazole (25%), quinoxaline (25%), and fluorene (50%) based monomers yielded a random terpolymer (P49) (Figure 6). A reference polymer based on quinoxaline and fluorene monomers was also reported (P48) (Gedefaw et al., 2016a). P49 has revealed an extended and broad optical absorption spectrum, showing the role of the third component (benzothiadiazole) in fine tuning the optical absorption. The HOMO and LUMO energy levels of both polymers were estimated to be −5.7 and −3.3 eV (CV). The photovoltaic properties of the polymers were studied (glass/ITO/PEDOT:PSS/Polymer:PC71BM (1:4 wt/wt) /LiF/Al). P49 based device gave a PCE of 2.14% while P48 based devices gave a higher PCE (3.18%) when the films are processed with ODCB. The lower performance of P49 based devices is due to the lower JSC and FF, attributed to the higher content of the third component (25%) which results in polymer chain twisting and likely causing excessive miscibility of the polymer with the acceptor.

TABLE 5
www.frontiersin.org

Table 5. Summary of optical, electrochemical, and photovoltaic properties of polymers (P48P55).

FIGURE 6
www.frontiersin.org

Figure 6. Donor polymers based on quinoxaline acceptor as one component (P48P55).

In another work, a regular terpolymer (P50 PBDTQx-ii) based on fluorinated quinoxaline, isoindigo and BDT monomers was reported (Figure 6; Seri et al., 2017). P50 showed a 760 nm onset of absorption at solid state. A D-A polymer prepared from the quinoxaline and BDT based monomers was reported to have an absorption onset of 714 nm (Tessarolo et al., 2014). The HOMO and LUMO energy levels of P50 was estimated to be −5.87 and −3.97 eV, respectively (CV). The photovoltaic property of the polymer was probed in a glass/ITO/ZnO/active layer/MoO3/Ag structure. A 1:2 wt/wt blend of P50 and PC61BM processed with o-xylene and 3% DIO with the films prepared by blade coating technique gave a 4.5% PCE, JSC = 8.9 mA/cm2, VOC = 0.79 V and FF = 64%. For comparison, a PCE of 4.0% was achieved when the film is processed with ODCB.

A series of terpolymers (P51P55) (Figure 6) were synthesized by mixing different feed amounts of monomers based on benzothiadiazolequinoxaline (BTQx), DPP and BDT based molecular units (Keshtov et al., 2019). P51 and P55 are reference polymers with no BTQx and DPP, respectively. P52, P53, and P54 are random terpolymers composed of the BDT-DPP and BDT-BTQx segments in 3:1, 1:1, and 1:3 ratios, respectively. The polymers were blended with PC71BM to fabricate solar cells (ITO/PEDOT:PSS/active layer/PFN/Al). P53 showed excellent light collecting ability, high charge-carrier mobility, and a low-lying HOMO energy level and hence P53 based device exhibited a VOC = 0.86 V, JSC = 15.74 mA/cm2, and FF = 68%, leading to a PCE = 9.20%: higher than the PCE achieved from P51 (7.37%) and P55 (8.11%). P52 and P54 based devices gave a PCE of 7.87 and 8.58%.

Difluorobenzothiadiazole Ring Based Polymers

Table 6 summarizes the properties of terpolymers based on difluorobenzothiadiazole acceptor. Duan et al. (2016) synthesized random terpolymers using 5,6-difluoro-4,7-dithieno[2,1,3]thiadiazole (DTffBT), 5,6-difluorobenzo [2,1,3]thiadiazole (ffBT), and thienyl-substituted benzo[1,2-b:4,5-b′]dithiophene (BDT): P56 Th00, P57 Th25, P58 Th35, and P59 Th100 (the BDT monomer has a n-decyl alkyl side chain in P59). P56 and P59 are reference polymers based on ffBT-BDT and DTffBT-BDT segments, respectively. P57 and P58 are random polymers consisting of 25 and 35% of the DTffBT-BDT segment, respectively (Figure 7; Duan et al., 2016). The onset of absorption is the same for all polymers while the absorption maxima of P57 and P58 lie between P56 and P59. Similarly, the polymers showed ideal molecular energy levels and within the same range. Promising PCE of 8.0 and 7.9% were achieved from the P57 and P58 based solar cell devices, respectively, higher than the devices fabricated based on P56 (PCE = 4.9%) and P59 (PCE = 6.9%).

TABLE 6
www.frontiersin.org

Table 6. Summary of optical, electrochemical, and photovoltaic properties of polymers (P56P79).

FIGURE 7
www.frontiersin.org

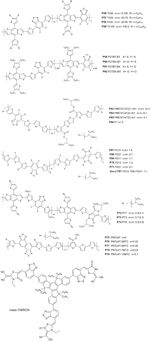

Figure 7. Donor polymers based on benzothiadiazole acceptor as one component (P56P79) and meta-TrBRCN.

To further understand the effect of electronegative atoms, random terpolymers were reported: P58 P2TBT-BT, P60 P2TBX-BT, P61 P2TBT-BX, and P62 P2TBX-BX (Liu et al., 2019). P58 P2TBT-BT is the same as Th35 reported earlier (Duan et al., 2016). Contrary, P62 is a difluorobenzoxadiazole (BX) analog of P58 (sulfur is replaced with oxygen). P60 and P61 have both BT and BX units in their backbones (Figure 7). The polymers showed an absorption maxima between 658 nm and 662 nm while the absorption onsets are between 730 nm and 734 nm (Wang et al., 2017). However, differences in the molecular energy levels (CV study) have been noticed: the LUMO energy level shifted downward going from P58 to P62 which could be due to the stronger electron negativity of BX compared to BT (oxygen is more electronegative than sulfur). A similar trend was observed with the HOMO energy level, however, the change was small compared to the LUMO. In the photovoltaic properties study (ITO/PEDOT:PSS/polymers:PC71BM/PFN-Br/Ag), the PCEs generated were 8.8, 7.9, 7.0, and 6.7% from P58, P60, P61, and P62 based devices, respectively. With the introduction of BX, the PCE decreased due to the decrease in JSC even though the VOC slightly increases. The morphology of the films (GIWAXS and TEM) was similar. PL quenching efficiencies of films are 94, 88, 88, and 82% when P58, P60, P61, and P62 are blended with PC71BM, respectively, indicating the decrease in the charge transfer efficiencies with the introduction of BX in the polymer backbone, which could be due to the closeness of the LUMO of the polymers to the LUMO of P71BM. This explains the decrease in the JSC of the devices with the introduction of BX. On the other hand, P58 has the most favorable energy level alignment with PC71BM and therefore resulting in a high PCE (8.8%).

4,7-bis(5-bromo-4-(2-octyldodecyl)thiophen-2-yl)-5,6-difluo robenzo[c][1,2,5]thiadiazole, dimethyl2,2′-(thieno[3,2-b]thioph ene-2,5-diyl)bis(thiophene-3-carboxylate) (4T2C) and bithio phene were reacted together to yield three random terpolymers: P63 PffBT4T-4T2C-19/1, P64 PffBT4T-4T2C-9/1, and P65 PffBT4T-4T2C-4/1 (Xie et al., 2019). An alternating polymer was prepared by the polymerization of 4,7-bis(5-bromo-4-(2-octyldodecyl)thiophen-2-yl)-5,6-difluorobenzo[c][1,2,5]thiadiaz ole and 5,5′-bis(trimethylstannyl)-2,2′-bithiophene to yield P66 PffBT4T-2OD (Ma et al., 2015; Figure 7). The content of the 4T2C monomer increases going from P63 to P64 to P65. The optical absorption of the terpolymers were tuned by varying the composition of the monomers introduced in the chain. Hence, a higher content of the 4T2C monomer resulted in the weakening of the absorption peak intensity at ˜680 nm indicating the reduction of the intermolecular polymer chain interactions. However, generally a strong polymer aggregation was observed even in solution and at room temperature. The HOMO of the polymers shits downward with the increase in the 4T2C content (CV). The polymers were used in solar cells (ITO/PEDOT:PSS/ (polymer:PC61BM)/bis-C60/Ag or an inverted structure of ITO/ZnO/polymer:PC61BM:MoO3/Ag. P63 based devices gave a PCE of 9.29%, JSC = 16 mA/cm2, VOC = 0.772 V and FF = 75.2% in a conventional device processed without DIO. With the increase in the 4T2C unit (P64), the PCE increased to 9.61%, JSC = 15.5 mA/cm2, VOC = 0.784 V and FF = 79.1%. Further increase in the 4T2C unit, the PCE lowered to 7.47%. With the addition of 3% DIO and the use inverted structure, a PCE of 10.39, 10.42, and 8.94% for P63, P64, and P65, based devices, respectively, were achieved. The highest PCE of the devices based on P64 was due to the relatively high and balanced hole- electron mobility (hole mobility = 2.006 × 10–3 and electron mobility = 1.799 × 10–3 cm2V–1s–1 for P64). Moreover, P64 based films showed a proper size of phase separation in the nano-network structure: beneficial for charge transport for improved FF and JSC. The reference polymer (P66) based device together with PC71BM gave a comparable PCE of 10.3% with the random terpolymers (Ma et al., 2015).

Tang et al. (2019) reported random terpolymers denoted as P68 FD21, P69 FD11, and P70 FD12 based on monomers having 3,3′-difluoro-2,2′-bithiophene (FTT), fluorinated benzothiadiazole (FBT) and DPP core structures with a 2:1, 1:1, and 1:2 amounts of the FTT -FBT and FTT -DPP segments, respectively. P67 FD10 and P71 FD01 (reference polymers) consisting of FBT-FTT and DPP-FTT segments, respectively, were also studied (Figure 7). Moreover, the properties of a 1:1 physical blend of P67 and P71 were examined. The onset of absorption of the polymers in solid state were found to be 742, 882, 912, 946, and 923 for P67, P68, P69, P70, and P71, respectively. As presumed, the onset of absorption shifted to longer wavelength with the increase in the DPP content (Zheng et al., 2016). The HOMO energy levels were found to be −5.39, −5.37, −5.35, −5.35, and −5.34 eV, for P67, P68, P69, P70, and P71, respectively (CV). The HOMO generally lie on the FBT unit and hence an upward shift in the values is observed with the decrease in the content of the FBT moiety. The LUMO of P67, P68, P69, P70, and P71 were calculated to be −3.67, −3.59, −3.66, −3.68, and −3.78 eV, respectively.

PSCs were fabricated using an inverted configuration (ITO/ZnO/polymer: PC71BM/MoO3/Al), with the active layer prepared by spin coating from chlorobenzene and DIO. Solar cell devices based on P67 and P71 showed a PCE of 6.12 and 3.80%, respectively. The higher performance of the P67 based device is mainly attributed to the improved VOC and JSC. However, the devices prepared from a 1:2 blend of P68 and PC71BM gave a PCE as high as 6.41% with the addition of 2.5% DIO. The high performance was attributed to a balanced hole and electron mobility (2.36 × 10-4 and 2.23 × 10–4 cm2 V–1 s–1). The devices prepared from P69 and P70 gave a maximum PCE of 4.82 and 3.57%, respectively. Interestingly, the PCE of a ternary blend of P67, P68, and PC71BM in a 0.5:0.5:1.5 (wt/wt ratio respectively) was 7.04% with a corresponding JSC = 13.79 mA/cm2, VOC = 0.77 V and FF = 66%. The respectable JSC of the ternary blend is attributed to a broader and complimentary optical absorption.

The FBT and DPP based acceptors were also reacted with a BDT based monomer to yield terpolymers namely P72 PT1, P73 PT3, and P74 PT5 with 10, 30, and 50% of a BDT-DPP segment in the backbone, respectively (Xu et al., 2019a; Figure 7). Upon increase in the BDT-DPP segment content, a broad and red shifted absorption spectrum was observed. Moreover, the frontier orbital energy levels, charge transport and morphological compatibility were optimized by changing the feed ratio of the monomeric units in the terpolymer (Xie et al., 2018). Absorption study revealed the main absorption bands appear in the range of 550–850 nm, while the absorption bands shifting to longer wavelength with the increase in the DPP unit. This is consistent with the result observed with terpolymers prepared from FTT, FBT and DPP based monomers (Tang et al., 2019). Hence, P74 with an equal content of the BDT-DPP and BDT-BT segment in the backbone of the polymer (assuming that the feed ratio is same as to the ratio of monomer fraction installed in the polymer backbone), have the most red shifted absorption peak compared to that of P72 and P73. Two acceptors [meta-TrBRCN (Figure 7) and ITCPTC (Figure 4)] have been used to evaluate the photovoltaic properties of the materials. The main absorption peak of meta-TrBRCN and ITCPTC are close to 500 nm and 750 nm, respectively, which compliments the absorption spectrum of the polymers. The HOMO/LUMO levels were −4.90/−3.33 eV, −4.88/−3.35 eV, and −4.86/−3.35 eV for the P72, P73, and P74, with a slight shift in the values. Using meta-TrBRCN blended with each of the polymers, the best PCE was 9.61% obtained from P74 while P72 and P73 gave 8.75 and 9.47%, respectively. Looking at the device parameters, the VOC and JSC of the devices fabricated using the three polymers are close to each other while a difference was observed in the FF of the devices. While P73 and P74 based devices showed a FF of 74 and 76%, respectively, P72 based device showed a 71% FF. In addition, P73 and P74 based devices showed a smoother morphology compared to P72 based films (AFM and TEM study) and thus explaining the relatively better performance of both P73 and P74 based devices. Moreover, a ternary blend that consist of P73, meta-TrBRCN (0.3) and ITCPTC (0.7) were used to fabricate photovoltaic device which gave a JSC = 20.16 mA/cm2, FF = 76.3%, and PCE = 13.63%.

The use of random terpolymers to control crystallinity and aggregation of naphtho[1,2-c:5,6-c′]bis[1,2,5]thiadiazole based polymers have been explored. Rasool et al. (2019) reported P75 PNTz4T, P76 PNTz4T-3MTC, P77 PNTz4T-5MTC, P78 PNTz4T-7MTC, and P79 PNTz4T-10MTC terpolymers prepared from (2-decyltetradecyl)thiophen-2-yl)naphtho[1,2-c:5,6-c′]bis[1,2,5]thiadiazole, 5,5′-bis-(2,2′-bithiophen-2-yl) and methyl thiophene-3-carboxylate (MTC). P75 is a reference polymer having (2-decyltetradecyl)thiophen-2-yl)naphtho[1,2-c:5,6-c′]bis[1,2,5]thiadiazole and 5,5′-bis-(2,2′-bithiophen-2-yl) (Figure 7). The absorption bands of the polymers are at 400–500 nm and 650–750 nm. Among these polymers, P77 gave a PCE of 9.66% with 0.12 cm2 cell area, when fabricated at room temperature in a halogen-free solvent (Rasool et al., 2019).

Benzotriazole Ring Based Polymers

Benzotriazole based monomers have been widely used for the synthesis of medium band gap D-A polymers (Price et al., 2011; Gedefaw et al., 2016b).

In a recent study, random terpolymers based on fluorinated benzotriazole, cyano benzotriazole and BDT monomers were reported and properties were compared with a ternary blend of two alternating polymers and PC71BM (Figure 8; Kelly et al., 2018). The random terpolymers are prepared from CNTAZ and FTAZ in 9:1 P81, 7:3 P82, 1:1 P83, 3:7 P84, and 1:9 P85 feed ratios, respectively. P80 MonoCnTAZ and P86 FTAZ are the reference polymers. The terpolymers and ternary blends showed similar optical absorption behavior. The photovoltaic properties of the polymers were investigated (ITO/CuSCN/BHJ/Ca/Al). The highest efficiency achieved was 8.25% from P81 based device. A ternary blend consisting P80, P86 (9:1 ratio) and the acceptor gave a PCE up to 7.92%. The details of the properties are tabulated in Table 7.

FIGURE 8
www.frontiersin.org

Figure 8. Donor polymers based on benzotriazole (P80P94) and N2200.

TABLE 7
www.frontiersin.org

Table 7. Summary of optical, electrochemical, and photovoltaic properties of polymers (P80P94).

Guo et al. (2018) used thiazolothiazole (TTz), fluorinated benzotriazole and a 2D-BDT based monomers to yield random terpolymers with 20% (P88 PSBTZ-80), 40% (P89 PSBTZ-60), and 60% (P90 PSBTZ-40) of the BDT-TTz segment.

A thioalkyl substituted thiophene was attached to the BDT core unit to exploit the advantage of a 2D molecular units (Guo et al., 2018). The reference polymers containing BDT-Tz (P87 PSBZ) and BDT-TTz (P91 PSTZ) were also studied (Figure 8). The polymers showed similar optical properties, with an absorption peak and shoulder peak appearing at 545 and 594 nm, respectively. A gradual down ward shift of the HOMO and LUMO energy levels was observed with the increase in the TTz content. The HOMO/LUMO values P87 and P91 are −5.37/−3.44 and −5.44/−3.48 eV, respectively while the energy levels of the random terpolymers are between those of the binary polymers.

To probe the photovoltaic properties, a device structure of ITO/ZnO/PFN/polymers: ITIC/MoO3/Al was used. A device based on a 1:1 blend of P89 and ITIC processed from toluene gave a PCE of 9.1% due to the relatively higher JSC (16.5 mA/cm2) and increased to 10.3% with 1% DPE additive. Devices fabricated based on P87, P88, P90, and P91 yielded a PCE of 8.1, 9.3, 9.3, and 8.5%, respectively. The better performance of P89 based devices was presumably due to: (i) an improved JSC, (ii) a smoother blend film (P89:ITIC) with an smaller rms (1.17 nm) compared to P87:ITIC (2.23 nm), P88:ITIC (1.80 nm), P90:ITIC (1.77 nm), and P91:ITIC (1.73 nm), (iii) >95% PL quenching of P89:ITIC, and (iv) relatively balanced hole/electron mobilities (μh/μe) (6.27/3.65 × 10–4) (space charge limited current method).

Cao’s group investigated the role of alkyl side chain length in terpolymers based on alkylthienyl substituted BDT, difluorinatedbenzotriazole (TAZ) and thienopyrroledione (TPD) monomores (Pang et al., 2019). The terpolymers are denoted as P92 PTAZ-TPD10-C10, P93 PTAZ-TPD10-C8, and P94 PTAZ-TPD10-C6 with n-C10H21, n-C8H17 and n-C6H13 alkyl side chains, respectively, attached to the 2D-BDT based monomer (Figure 8). The polymers showed similar optical band gap (1.91 eV). A 30 nm red shift in the solid state absorption was observed due to the high aggregation tendency compared to the solution state. The HOMO and LUMO energy levels of the polymers were calculated to be similar (∼-5.27 and −3.23 eV), respectively. The photovoltaic properties of the polymers were tested by blending each of the polymers with PC71BM, N2200 (Figure 8), ITIC (Figure 2) [(ITO/PEDOT:PSS)/active layer/PFN-Br/Al]. Interestingly, the PCE, JSC and FF decreased with shorter alkyl side chains blended with the non-fullerene acceptors (N2200 and ITIC). However, the VOC was not affected by the alkyl chain length. The highest PCE recorded were 6.8 and 8.8% when P92 was blended with N2200 and ITIC, respectively. The PCE of the devices based on P94 blended with N2200 and ITIC were 2.3 and 5.5%, respectively. Surprisingly, the opposite trend was observed when PC71BM was used. In this case, the PCE of the devices were 2.9, 5.4, and 6.3% for P92, P93, and P94, respectively. The difference in photovoltaic properties of the polymers with the acceptors is explained by taking morphology into account. For instance, P94 (shorter alkyl chain) showed a better miscibility, contracted domains, and favorable vertical phase distribution that encourages charge transport and suppressed recombination.

Benzodithiophenedione (BDD) Ring Based Polymers

The BDD core unit is another acceptor used for the development of terpolymers (Figure 9) (P95-P107). It is to be noted that D-A alternating polymer based on NTDO and dithienosilole is known to give a moderate performance solar cell (Cui et al., 2011). A D-A polymer consisting of thio alkyl side chain modified NTDO and chlorine-substituted BDT (PBN-Cl) based monomers was reported by Li’s group (Wu Y. et al., 2019). The same group have recently investigated the effect of the addition of a BDD monomeric unit as third component to the NTDO and BDT based monomers to yield a series of random terpolymers denoted as P95 PBN-Cl, P96 PBN-Cl-B20, P97 PBN-Cl-B40, P98 PBN-Cl-B60, P99 PBN-Cl-B80 and P100 PBDB-T-2Cl, with 0, 20, 40, 80, and 100% of the BDD-BDT-Cl segment, respectively (Figure 9; Yang et al., 2019). For comparison, reference alternating polymers were also studied. A blue shift was noticed with the increase in the content of the BDD-BDT segment in UV-visible spectrum. Hence, the polymer with the lowest band gap in the series (1.8 eV) is P95 (contain no BDD component). While there is no significant change in the HOMO energy levels, the LUMO, however, showed a successive upward shift as the BDD-BDT segment content increases.

FIGURE 9
www.frontiersin.org

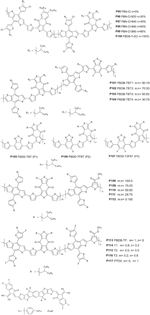

Figure 9. Donor polymers based on benzodithiophene-dione (BDD) used as one of the acceptors (P95P107) and IT-4F.

IT-4F (Figure 9) was used as an acceptor to investigate the photovoltaic properties of the polymers [(ITO)/PDEOT:PSS/polymer:IT-4F/ZnO/Al]. The device based on P95 yielded a 11.21% PCE, VOC = 0.868 V, JSC = 21.01 mA/cm2, and FF = 61.5%. With the introduction of the BDD monomer, the FF showed an improvement reaching to 72.1% for the device prepared based on P99. Hence, P99 based device demonstrated the highest PCE = 14.05%, JSC = 21.85 mA/cm2 and VOC = 0.891 V. Device based on P100 however showed an outstanding PCE of 14.08% with VOC = 0.885 V, a JSC = 21.41 mA/cm2, and a FF = 74.3%. Even though the overall performances of P99 and P100 devices are comparable, both JSC and VOC of the devices based on the terpolymer (P99) were higher indicating terpolymerization as a feasible strategy to fine-tune the photovoltaic properties. Charge transport study showed a balanced hole and electron mobility of the film prepared from a P99:IT-4F. Moreover, P99:IT-4F film showed a well-developed and more uniform phase separation (TEM), benefitting FF and Jsc of the devices.

Wu M. et al. (2019) combined BDD, difluorobenzothiadizole (BT) and BDT based monomers to construct a series of PBDB-TBTn random terpolymers. The amount of the BDT-BT based segment were 10, 30, 50, and 70% in P101 PBDB-TBT1, P102 PBDB-TBT2, P103 PBDB-TBT3, and P104 PBDB-TBT4, respectively (Figure 9). The random terpolymers revealed similar absorption tendency in both solution and solid-state, with the peaks appearing from 300 nm to 700 nm. The absorption onset of the polymers are in the range of 693 nm to 708 nm. The HOMO and LUMO energy levels (CV measurement) are estimated to be −5.30/−3.42, −5.33/−3.45, −5.35/−3.47, and −5.36/−3.45 eV for P101, P102, P103, and P104, respectively. Obviously, the HOMO levels showed a gradual down-shift with the increase in the BT based monomer content due its electron-deficiency. The same trend was observed for the LUMO energy levels except the mismatch for P104. The photovoltaic performances investigation (ITO/ZnO/polymer:ITIC/MoO3/Ag) showed a drop with the increase of the BDT-BT content. The highest PCE recorded was 9.09% with a VOC = 0.86 V, a JSC = 16.84 mA/cm2 and FF = 62.85% from P101 based device. The devices based on P102, P103 and P104 displayed a PCE of 7.95, 5.93 and 2.09%, respectively. The better performance of P101 based devices is explained by the high and balanced hole and electron mobility (4.12 × 10–4 cm2V–1s–1 and 4.74 × 10–4 cm2V–1s–1), well-distributed microstructural morphologies and smaller domain sizes (10–20 nm).

Kini et al. (2018), reported regular terpolymers consisting of BT, BDD and thiophene (Figure 9). The terpolymers showed broad absorption coverage in the range of 300 and 750 nm. The blue shift in the onset of absorption with the increasing content of the fluorine atom is ascribed to the weakening of conjugation due to the strong electron withdrawing effect of the fluorine atom/s. The HOMO/LUMO of the P105 PBDD-TBT, P106 PBDD-TFBT, and P107 PBDD-T2FBT was estimated to be −5.57/−3.89, −5.62/−3.92, and −5.67/−3.94, respectively (CV). The downward shift in the HOMO values with the presence of fluorine atoms is known to have a positive effect for the VOC of the devices. In an inverted device structure (ITO/ZnO/active layer/MoO3/Ag), a 1:0.8 ratio P107 and PC71BM based device gave a PCE of 5.97%, VOC = 0.99 V, JSC = 8.96 mA/cm2 and FF = 67.6%. The maximum PCEs obtained from P105 and P106 based devices were 1.33 and 1.55%, respectively. The better performance of P107 based devices is ascribed to the strong interchain interaction, face on polymer orientation and higher crystallinity of the film, which have contributed to a higher hole mobility of the devices (hole mobility of P107 based devices = 4.92 × 10–3 cm2V–1s–1 compared to the hole mobility of P105 and P106 based devices (3.67 × 10–3 cm2V–1s–1 and 1.86 × 10–3 cm2V–1s–1, respectively).

To tune the polymer properties, the BDD, methyl-3-thiophenecarboxylate (3MT) and BDT based monomers were reacted in different mixing ratio to give P109, P110, and P111 (random terpolymers) with 25, 50, and 75% of the BDT-BDD segment in the backbone. P108 and P112 are alternating polymers with the backbones made of the BDT-3MT and BDT-BDD segments, respectively (Figure 9; Hoang et al., 2019). It is to be noted that a BDT-BDD containing polymer combined with ITIC was known to provide a high efficiency in solar cells (Zhao et al., 2016). The absorption peaks of the terpolymers were located between P108 (539 nm) and P112 (625 nm), where the peaks shifted to longer wavelength with BDT-BDD segment content increase. Hence, the solid state absorption peak was found to be at 569, 574, and 616 nm, respectively, for P109, P110, and P111. Similarly, onset of absorption shifted to longer wavelength with the increase in the content of the BDT-BDD segment. The solid state optical band gaps were estimated to be 1.98, 1.87, 1.83, 1.82, and 1.80 eV for P108, P109, P110, P111, and P112, respectively. The HOMO and LUMO energy levels of the polymers gradually moved to higher-lying and lower-lying positions, respectively, as the content of the BDD unit increases. Hence, P112 have a HOMO and LUMO of −5.34 and −3.54 compared to −5.42 and −3.44 eV for P108. The HOMO and LUMO values of the rest of the polymers were found to lie between that of P108 and P112.

To evaluate the photovoltaic properties of the polymers, a non-fullerene BHJ PSCs were fabricated (ITO/ZnO/polymer:ITIC/MoO3/Ag). Each of the polymers were blended with ITIC in a 1:1 wt%. Interestingly, the PSCs fabricated from the terpolymers showed an impressive VOC of more than 0.9 V and JSC of more than 15 mA/cm2. In detail, the highest VOC was 0.97 V achieved from P108 devices while the lowest VOC was 0.88 V extracted from P112 based devices. P110 (50% of BDT-BDD segment) and P111 (75% of BDT-BDD segment) based devices gave the highest JSC reaching more than 17.18 mA/cm2. Consistently, P110 gave the highest FF reaching to about 63.52%. The combination of the parameters have offered a 10.26% PCE based on P110 based devices. The best device efficiency based on P111 was found to be 9.56% PCE, slightly lower than that of the P110 based device. The devices prepared based P108, P109, and P112 offered a 8.22, 8.95, and 8.82% PCE, respectively. In order to understand the differences in the performance of the polymers in solar cells, the hole and electron mobility of the films were studied. The study showed that a blend of P110 and ITIC gave a balanced hole and electron mobility with a ratio of 3.37, which have likely contributed toward the higher FF values of the devices. Moreover, a TEM image on P110:ITIC blend film showed a more homogeneous and fine domains, that maximizes the charge separation and collection.

The effect of fluorine atom substitution on a BDT donor unit combined with 3MT and BDD based monomers were also studied. In this work, alternating polymers containing either BDD-BDT (P113 PBDB-TF) or 3MT-BDT (P117 PTO2) were reported. Additionally, three random terpolymers represented as P114 T1, P115 T2, and P116 T3 with 20, 50, and 80% of 3MT-BDT segments, respectively, are also reported (Figure 9; Cui et al., 2019). With the increase in the content of 3MT-BDT in the backbone, it was possible to finely tune the properties of the resulting polymers. For instance, a blue shift in the optical absorption with higher content of 3MT-BDT was observed. Hence, P117 (consist of 3MT-BDT) revealed the most blue shifted onset of absorption (623.0 nm) while P113 (has 0% 3MT-BDT) showed the most red shifted onset of absorption (681.2 nm). The three random terpolymers have an onset of absorption intermediate between the two alternating polymers (P117 and P113). The terpolymers have wider absorptions at the full width at half maximum (FWHM), which is due to the contributions of different segments in the chains. In the electrochemical study, a gradual downward-shift in the HOMO levels were observed with the increase of the thiophene ester (3MT) content. The opposite trend was observed with the LUMO energy levels. Photovoltaic devices with an inverted structure were fabricated (ITO/ZnO/photoactive layer/MoO3/Al). An increase in the VOC was observed with the increase of ester group-substituted thiophene content. Moreover, the JSC of all the terpolymer:IT-4F devices are higher (wide FWHM) than that P113:IT-4F-based devices. However, a decrease in the PCE going from P114 to P116 was mainly due to the decrease in the FF. Among the devices, the highest PCE recorded was 15.1% from a blend of P114 and IT-4F with corresponding JSC = 21.5 mA/cm2, VOC = 0.899 V, and FF = 78% processed from CB with DIO solvent additive. The devices prepared from P113, P115, P116, and P117 gave a PCE of 13.8, 14.5, 13.9, and 14.5%, respectively (Table 8). The relatively higher performance of the P114 based device could arise from the smooth surfaces with small rms values (below 2 nm) which favors charge transport.

TABLE 8
www.frontiersin.org

Table 8. Summary of optical, electrochemical, and photovoltaic properties of polymers (P95P117).

Summary and Outlook

The synthesis of conjugated polymers is an ongoing research for various applications in organic electronics. Recently, the development of terpolymers have gained a wider attention and is being intensively studied. With the synthesis of terpolymers, key properties such as light absorption, energy levels, morphology and charge carrier mobility can be optimized, which have enabled to achieve over 14% PCE in single layer solar cells. Further development of optimized monomers, synthesis of multi chromophore polymers and understanding of structure- property relationships is anticipated to further enhance the PCE of solar cells. One of the key challenges with the synthesis of random terpolymers is the little understanding of the composition along the backbone of the polymer, as the latter will depend on the reaction kinetics of the monomers. For most of the random terpolymers reported to date, the contribution of the different monomers in the polymer backbone is not known for certainty in spite of the known composition of the monomers in the feed of the polymerization reaction.

Author Contributions

DG drafted the manuscript. XP and MA edited the manuscript. All authors have contributed to the modification and correction of the manuscript.

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

We would like to thank the Australian Research Council’s Discovery Projects funding scheme (Project DP170102467) for supporting this research. DG thanks the Faculty of Science and Technology (FSTE), The University of the South Pacific (USP) for the financial support.
