Effect of ZrSiO4 Concentration on the Microstructure and Corrosion Resistance of MAO Coatings Formed on AZ91 Magnesium Alloy

www.frontiersin.orgTianlu Li1 www.frontiersin.orgGuorui Chen1 www.frontiersin.orgMingzhe Xiang1 www.frontiersin.orgYun Zhao1,2,3* www.frontiersin.orgMinfang Chen1,2,3*
  • 1School of Materials Science and Engineering, Tianjin University of Technology, Tianjin, China
  • 2Key Laboratory of Display Materials and Photoelectric Device (Ministry of Education), Tianjin University of Technology, Tianjin, China
  • 3National Demonstration Center for Experimental Function Materials Education, Tianjin University of Technology, Tianjin, China

As a metallic material with lightweight and high specific strength, magnesium alloy has excellent application prospects. However, the rapid corrosion rate and localized corrosion behavior of magnesium alloys limit the practical application in the automobile industry. In this study, to improve the corrosion resistance of AZ91 alloy, the film of different concentrations containing zirconium (AZR0, AZR5, AZR10, AZR15) was prepared on the surface of AZ91 alloy by micro-arc oxidation technology in the Na2SiO3-Na3PO4 system. Furthermore, the influence of electrolyte composition on the corrosion resistance of the MAO film was systematically investigated. The experimental results revealed that the ZrSiO4 particles added in the electrolyte could enter into the MAO film and ZrSiO4 particles were also decomposed into ZrO2 and Mg2Zr5O11 in the process of micro-arc oxidation. More importantly, the formation of micro-cracks and other defects in the film could be reduced after this process. The addition of 15 g l−1 ZrSiO4 in the electrolyte was contributed to the best comprehensive properties of MAO-processed AZ91 specimens, including improved Vickers hardness of 167.16 Hv, Young’s modulus of 652 MPa, and enhanced corrosion resistance (RP = 9.82 × 105 Ω cm2). This approach could provide the approach for developing Mg-based materials with high anticorrosion in industrial fields.

Introduction

Magnesium-based (Mg-based) material has been recognized as a promising alternative to conventional Al-based load-bearing materials due to its high strength-to-weight ratio and low density (Zhang et al., 2019). The considerable drawback of magnesium and its alloys is that they are impressionable to corrosion in a high-humidity atmosphere, which seriously restricts their industrial applications (Li et al., 2020a).

Defense of Mg in anti-corrosion can usually be acquired by three strategies: alloying, composite formation, and protective coatings. Generally, surface modification can observably improve the corrosion resistance of substrate without influencing its initial properties (Li et al., 2020b). Surface treatment techniques, including anodic oxidation (Zarei et al., 2021), plasma spraying (Cao et al., 2021), vapor deposition (Li et al., 2021), sol–gel film (Zhang et al., 2021), and micro-arc oxidation (Zhang et al., 2020a), were widely used for this purpose. Among the techniques as mentioned above, micro-arc oxidation (MAO) technology can contribute to a protective oxide layer on the surface of metallic materials in instantaneous high temperature and high pressure by generating spark discharges. Because of the feature of MAO, the oxide layer is formed on the substrate, resulting in strong interfacial bonding between the metallic substrate and MAO coating (Lu et al., 2016). Thus, the MAO process is extensively used to improve the corrosion resistance of Mg-based materials. Several previous studies have revealed that the electrolyte composition is essential and crucial to improving the comprehensive performance of MAO coating, like corrosion resistance and adhesion strength, and control the corrosion behavior of Mg-relevant materials (Fattah-alhosseini et al., 2020).

Researchers have added miscellaneous micro/nano irresolvable particles into the electrolytes, which can participate in the MAO process and form into parts of the coatings. Generally, this in-situ technology for preparing composite coating deposits ceramic particles, such as SiC (Wang et al., 2015) and CeO2 (Lim et al., 2012). For example, MAO coating incorporated with CeO2 was obtained on AZ91D Mg alloy. The EIS and potentiodynamic tests in 3.5 wt% NaCl solution indicated that the anticorrosion behavior of MAO-processed AZ31 Mg alloy was markedly improved (Lim et al., 2012).

Zirconium is a potential biomaterial for dental and orthopedic implants owing to its high mechanical strength, high corrosion resistance, and excellent biocompatibility. ZrO2 has the strengths of high mechanical strength, strong toughness, and good corrosion resistance. In addition, ZrO2 influences stress-induced transformation toughening (Zhou et al., 2021).

Therefore, in some studies, K2ZrF6- and ZrO2-doped composite MAO coatings were prepared. For example, Arrable et al. (Arrabal et al., 2008) showed the allocation of ZrO2 nanoparticles across the surface and cross section of the coating. Li et al. (Li et al., 2015) reported enrichment in the anticorrosion of the ZrO2-containing MAO coatings on TC4 alloy. Zhang et al. (Zhang et al., 2010) used K2ZrF6-based electrolyte and acquired MAO coatings consisting of the ZrO2 phase. Koo et al. (Rehman et al., 2017) studied the MAO coatings manufactured on AZ31B Mg alloy in K2ZrF6-Na2SiO3-based electrolyte. It was observed that the hardness and anticorrosion properties of the coatings were highly improved after MAO processing.

Zircon (ZrSiO4), as a common and cheap particle for industrial use, has excellent physical and chemical capabilities, such as good mechanical properties, reducing friction coefficient, and enhancing corrosion resistance (Yang et al., 2021). However, the participant investigation in the literature has been rarely recorded, showing that ZrO2 ceramic coating can be provided with MAO technology. Therefore, in this work, MAO of AZ91 Mg alloy was conducted in ZrSiO4-containing Na2SiO3-Na3PO4-based electrolyte, and electrochemical corrosion properties of ZrSiO4 particle-containing MAO coatings on AZ91 Mg alloy were evaluated by the potentiodynamic test.

Materials and Methods

Materials

The substrate used in this work was a commercial material, AZ91 Mg alloy (wt%:0.35 Zn, 0.15 Mn, 8.3 Al, Mg Bal.). For the MAO process, the extruded bar samples of AZ91 Mg alloy were cut into a shape Φ 8 mm × 3 mm. The samples were then ground by SiC sandpaper up to 2000#, washed with ethanol in ultrasound for 10 min, and dried in air.

Preparation of MAO Coating

The MAO coatings were accomplished utilizing an installation consisting of an MAO-50D power supply. Mg alloy AZ91 was regarded as the anode, and stainless steel was used as the cathode. The mode of MAO was constant pressure. The termination voltage, frequency, duty cycle, and oxidation time were fixed at 400 V, 600 Hz, 30%, and 10 min, respectively. The electrolytes used in the MAO process are shown in Table 1. The average size of ZrSiO4 powder particles in the electrolyte was approximately 737.5 nm, and sodium dodecylbenzene sulfonate was added as an anionic surfactant to ensure the particles evenly dispersed in the solution.

TABLE 1
www.frontiersin.org

TABLE 1. Composition of electrolyte.

Characterization

The phase constituents of obtained samples were analyzed using an X-ray diffractometer (XRD, D/max-2500). The surface and cross-section morphology were investigated using a field emission scanning electron microscope (SEM, Quanta FEG-250). Moreover, elemental compositions of surface and cross section were observed using a SEM-attached energy dispersive X-ray spectrometry (EDS) device. Sample wettability was characterized via a static contact angle goniometer (DSA1000, Kruss, Germany) using deionized water droplets (volume of one drop = 3 μl). Three different positions were chosen to be measured for each sample. The porosity ratio in the coating surface was analyzed using ImageJ software.

The corrosion behavior was gauged using a Zennium electrochemical workstation after the open circuit potential (OCP) for 30 min to be stabilized in a 3.5% NaCl solution. A representative three-electrode mechanism was composed of graphite electrode as an auxiliary electrode, saturated calomel electrode (SCE) as a reference electrode, and specimen (1 cm2 exposed area) as a working electrode. The corrosion resistance was employed to study the Tafel curve to give the corrosion potential (Ecorr), the corrosion current density (Icorr), the slope of cathodic polarization (βc), and the slope of the anodic polarization branch (βa). In addition, the polarization resistance, Rp, and inverse ratio to corrosion rate can be computed using the simplified Stern–Geary Equation 1 (Li et al., 2020c). Eq. 2 was converted to the protection efficiency (Rahman et al., 2020).

Rp=βa×βc2.303×Icorr(βa+βc)(1)
Eprotection=1I(corr)cI(corr)uc(2)

I(corr)uc is the corrosion current density of substrate AZ91 Mg alloy, and I(corr)c is the corrosion current density after the MAO process on AZ91 Mg alloy.

A binding force tester (WS-2005) was utilized for testing the adhesion strength of samples. The adhesion strength of the film was calculated using the formula shown by Equation 3. The dynamic load was 40 N, the loading time was 1 min, and the scratch length was 3 mm.

P=FπR2(3)

P represents the strength of adhesion strength, and F is the load value. R is the radius of the diamond indenter.

A dimensional hardness tester (HMV-2T) was used to analyze the hardness of the sample. The loading load was 10 N, and the loading time was 20 s. An atomic force microscope (AFM Dimension Icon), analyzed by NanoScope Analysis software, can be utilized to analyze Young’s modulus of the MAO coatings.

Results and Discussions

Microstructure and Phase Analysis

Figure 1 shows the XRD pattern of the MAO coatings on AZ91 Mg alloy prepared at different concentrations of ZrSiO4. Besides the Mg phase from the substrate, the diffraction peaks of ZrO2, Mg2Zr5O11, Mg3(PO4)2, MgSiO3, and MgO could be observed, indicating the active involvement of electrolytes in the solution for the MAO process. Specifically, the existence of ZrO2 and Mg2Zr5O11 in the coatings also showed the participation of ZrSiO4 decomposed into ZrO2 and SiO2 in the MAO process (Ur Rehman and Choi, 2019). The SiO2 reacted with MgO to form MgSiO3. Additionally, with the increase in ZrSiO4 concentration, the peak strength of ZrO2 was also raised gradually (Kovaleva et al., 2021).

FIGURE 1
www.frontiersin.org

FIGURE 1. The XRD patterns of the samples.

Figure 2 represents the surface morphologies of the MAO coatings prepared under preset conditions. All the coatings performed a porous configuration with many crateriform micro-pores unevenly distributed due to the mutual effect of fusional oxides and the gas bubbles in the processes (Xia et al., 2013). As the ZrSiO4 concentrations varied, the surface of samples exhibited a distinct difference. The surfaces of AZR10 and ZAR15 seemed relatively smoother in comparison to AZR0 and ZAR5. The results of the porosity ratio in Figure 3E also illustrated that an increasing ZrSiO4 concentration was simultaneously beneficial to reducing the micro-pores on the surface. These were possibly contributed to the decrease in crateriform pore size and the formation of many blocked pores, combined with more significant amounts of ZrO2 and SiO2 from ZrSiO4 decomposition (Zhang et al., 2020b).

FIGURE 2
www.frontiersin.org

FIGURE 2. SEM morphologies of the different samples (A) AZR0, (B) AZR5, (C) AZR10, and (D) AZR15.

FIGURE 3
www.frontiersin.org

FIGURE 3. Porosity ratio of the different samples (A) AZR0, (B) AZR5, (C) AZR10, and (D) AZR15.

Table 2 shows the contents of each element on the MAO coating surface corresponding to those in Figure 2. It was found that the elements of O, Si, P, Mg, and Zr were primary in the final MAO coatings. In addition, the contents of Zr and Si in AZR15 were higher than those of others, indicating that the content of ZrSiO4 added could directly influence the Zr and Si contents in the coating, thereby possibly affecting the property of MAO coating.

TABLE 2
www.frontiersin.org

TABLE 2. Elemental compositions of different samples analyzed by EDS.

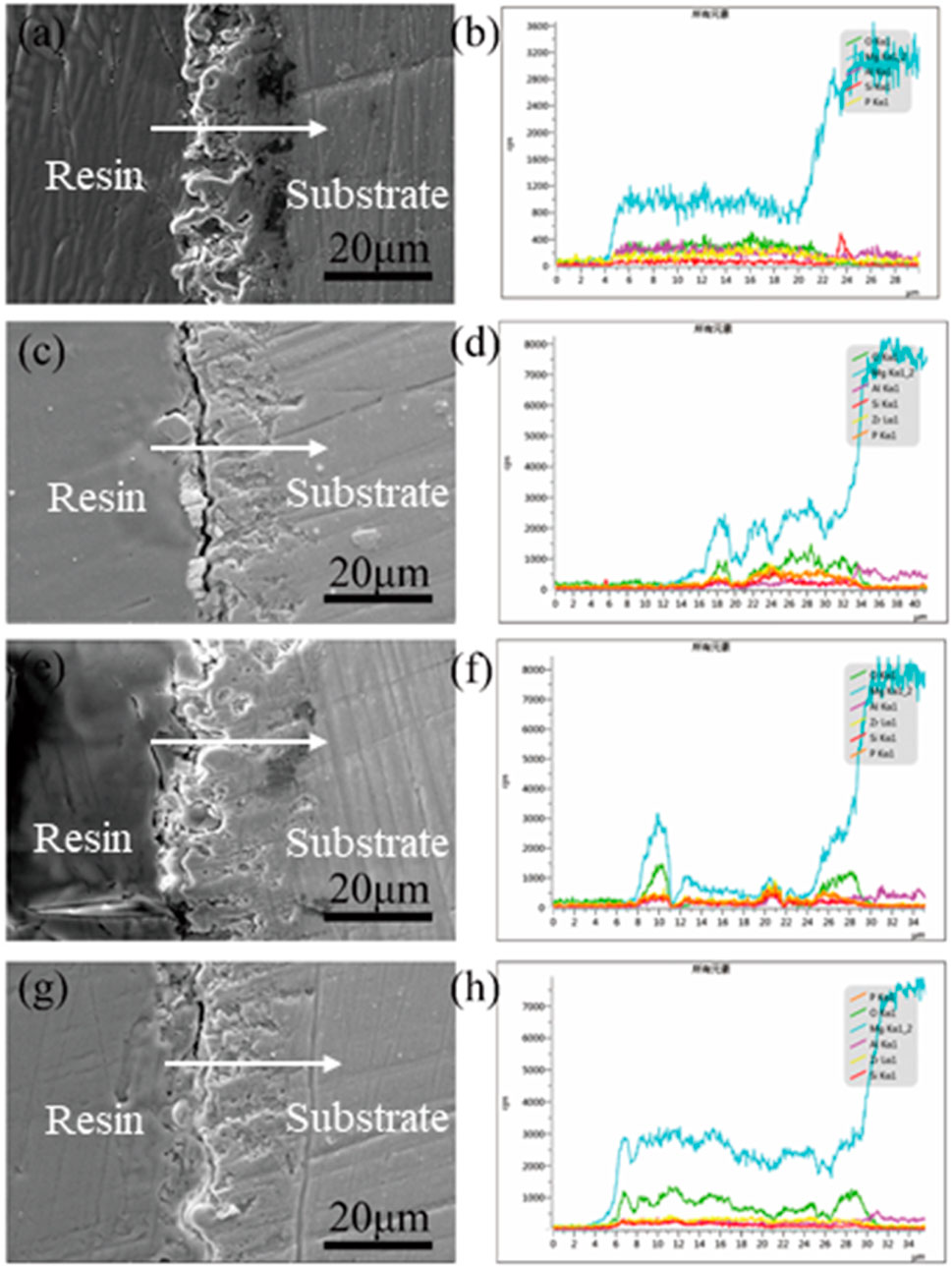

Figure 4 displays the cross-sectional morphologies and the elemental distribution of different MAO coatings. It shows that all coatings adhered to the Mg alloy substrate tightly, and there was a relatively dense structure without micropores and large cracks appearing (Gao et al., 2018). Their thickness was also increased clearly with increasing ZrSiO4 content in the electrolyte. In Figures 4B,D,F,H, it could be seen that the elements distributed in the cross section were identical to those on the coating surface. Zr of the cross-sectional distribution indicated that ZrSiO4 particles were involved in the MAO process.

FIGURE 4
www.frontiersin.org

FIGURE 4. SEM morphologies and EDS results of the cross-sectional views of the different samples (A) AZR0, (B) AZR5, (C) AZR10, and (D) AZR15.

The variation of film thickness and defects present in coating had a significant impact on the corrosion resistance of the coating to the substrate. Thus, the analysis of corrosion resistance for the coatings was conducted.

Corrosion Resistance

Figure 5 presents the potentiodynamic polarization curves for the MAO coatings in 3.5 wt% NaCl solution. Tafel fitting was also carried out, and the results are listed in Table 3. βc represents cathodic hydrogen evolution, and βa represents the dissolution of Mg. Ecorr and Icorr were the self-etching potential and current density, respectively (Xiong et al., 2018). Rp represents polarization resistance. Generally, higher Ecorr, lower Icorr, and higher Rp values implied better anti-corrosion of materials (Wang et al., 2018). It is revealed that adding ZrSiO4 was favorable to increase the Ecorr and Rp of the coating, and the higher the ZrSiO4 content was, the more significant the improvement of coating anti-corrosion.

FIGURE 5
www.frontiersin.org

FIGURE 5. Potentiometric polarization curves of the different samples.

TABLE 3
www.frontiersin.org

TABLE 3. The parameters obtained from potentiodynamic polarization tests in 3.5wt% NaCl.

Furthermore, the AZR15 specimen, whose Icorr decreased from 2.51 × 10–5 for the substrate to 1.49 × 10–8 A cm−2, had the best corrosion resistance performance among all samples.

Wettability

The wettability of the surface also had a significant effect on the corrosion resistance of the coating.

Because of the porous structure of the surface, the MAO coating was susceptible to be hydrophilic (Bordbar-Khiabani et al., 2019). After adding ZrSiO4 to the electrolyte, the contact angle of the coated samples was remarkably and gradually increased. The AZR15 had the highest value of 66.1 ± 0.5° in Figure 6. It is revealed that the increase in the ZrSiO4 concentration could significantly enhance the hydrophobicity of the coating surface, thereby preventing the direct contact between corrosive medium and specimen and improving the corrosion resistance of MAO coating. This was consistent with the results of electrochemical tests.

FIGURE 6
www.frontiersin.org

FIGURE 6. Contact angles of the different samples.

The circulation reaction of corrosive ions (Cl) into the film with the substrate was the pre-condition for the corrosion of the Mg alloy substrate. The inner layer of MAO coating mainly improved the corrosion resistance of the film. According to the above results, there were two main aspects of the improvement of corrosion resistance. Firstly, with the increase in the ZrSiO4 concentration, the hydrophobic surface restrained the entrance of corrosive ions (Cl) from the surface (Kirkland et al., 2012). Moreover, as seen in Figure 3, the coatings with ZrSiO4 had a low pore density. This behavior could also limit the breakthrough of Cl to the coating/substrate boundary. Moreover, the thickness rise of the coating further enhanced the paths for the corrosive ions through the coating, thus increasing the anticorrosion of MAO coating.

Mechanical Properties

Figure 7 exhibits the change of the hardness 1) and Young’s modulus 2) at the different samples. Owing to the increasing concentration of ZrSiO4 in the coatings, the samples’ hardness was also increased. AZR15 had the highest value of 167.16 Hv (Zuo et al., 2019). Meanwhile, Young’s modulus of the samples was lower than that of pure AZ91 alloy (1136 MPa), and this value of AZR15 was decreased to 652 MPa. Its mechanical strength depended on porosity, which depended on its manufacturing process (Es-saddik et al., 2021). During the MAO process, ZrSiO4 particles could separate into ZrO2, thereby reducing the micro-cracks and other defects in the film and affecting the mechanical properties of the samples.

FIGURE 7
www.frontiersin.org

FIGURE 7. Hardness. (A) Young’s modulus and (B) of MAO coating of the different samples.

Adhesion Strength

Figure 8 shows the binding strength of the coatings for the specimens. It can be seen that the binding strength of AZR0 and AZR15 films were 33.82 and 88.73 MPa, respectively, indicating the significant effect of ZrSiO4 on enhancing the binding strength between coating and substrate. The ZrSiO4 dispersed in the electrolyte could enter the discharge channel of forming coating during the MAO process. Its decomposition ZrO2 could be as particles present in the cooling and solidifying coating process, which may be improved compactness and restrain the crack propagation of formed MAO coating, resulting in higher binding force and lower Young’s modulus (Yao et al., 2019).

FIGURE 8
www.frontiersin.org

FIGURE 8. The binding force of the different samples.

Formation Mechanism of the Coating

Figure 9 shows formation mechanism of MAO film. The forming process of the composite coating was presented as follows: during the MAO process, the high voltage generated an electric domain between the cathode and anode attended by the constitution of micro discharge exiting on the Mg alloy substrate. The micro discharges burning under the loose coating layer caused the oxidation of the Mg alloy substrate, but the oxides were not carried to the surface of the loosened coating. During this stage, two micro discharges (blunt little micro-discharges and transparently burning ones) occurred on the coating surface. Then in the next stage, there was a higher possibility of blocking the pores above the dense coating layer or these pores moving from the substrate to the interface of inner/outer layers. This is the result in regional sealing of the pores when inner micro discharges were ignited. Micro discharges with weak stress could be observed (high-energy micro discharges blank) on the surfaces. At this stage, sealing of the pores in the coating of AZ91 was dominated (Rakoch et al., 2020).

FIGURE 9
www.frontiersin.org

FIGURE 9. Formation mechanism of the MAO film.

The phase composition was formed by the different reactions during the MAO process (Baghdadabad et al., 2020; Kovaleva et al., 2021).

Mg=Mg2++2e-(4)
Mg2++O2-=MgO(5)
3Mg2++2PO43-=Mg3(PO4)2(6)
ZrSiO4=ZrO2+SiO2(7)
2Mg2++SiO32-+2OH-=Mg2SiO4+H2O(8)
Mg2SiO4+SiO2=MgSiO3(Heat)(9)
Mg2++SiO32-=MgSiO3(10)
MgO+SiO2=MgSiO3(11)
2MgO+5ZrO2=Mg2Zr5O11(12)

Conclusion

In this work, MAO coatings were successfully prepared on the AZ91 Mg alloy in Na2SiO3-Na3PO4 based solution with various ZrSiO4 concentrations. The results of the present investigation were as the following:

1. ZrO2 and SiO2 are produced by ZrSiO4 particles and participate in the process into the MAO layer. With ZrSiO4 particles concentration increasing, the MAO coatings became denser, and the holes in the coating significantly decreased. The micro-cracks and defects were also reduced on the surface of the coating.

2. The corrosion resistance and mechanical properties were significantly improved when ZrSiO4 was added to the electrolyte. Meanwhile, the best performance in aspects of self-corrosion potential (−1.289 V), self-corrosion current (1.49 × 10–8 A cm2), polarization resistance (9.82 × 105 Ω·cm2), and protection efficiency (99.94%) were found in the ZrSiO4 concentration of 15 g/l. In addition, the ZrSiO4 concentration also enhanced the hardness and decreased Young’s modulus of the coatings.
