Modulation of optical absorption and electrical properties in Mn-Co-Ni-O-based high-entropy thin films

1 Introduction

High-entropy alloys (HEAs) have captured substantial scientific interest over the last two decades due to their exceptional mechanical properties, corrosion resistance, and thermal stability (George et al., 2019; Hu et al., 2022). Defined as alloys comprising five or more elements in nearly equal proportions and possessing a single crystal structure, HEAs have found diverse applications in nuclear fusion reactors, jet aircraft engines, and fundamental chemistry (Ren et al., 2022). Over the last decade, the concept of HEAs has expanded into various domains, including high-entropy ceramics, high-entropy thin films, high-entropy steels, and more (Sanchez et al., 2019; Wang et al., 2022). Since the introduction of rock salt-structured high-entropy ceramics in 2015, significant research interest has been directed towards medium-to high-entropy ceramic materials (Rost et al., 2015). Among them, Mn-Co-Ni-O-based high-entropy oxides have garnered significant research interest due to their distinctive magnetic, electrical, optical, and catalytic properties (Sarkar et al., 2022).

Mn-Co-Ni-O spinel oxides possess remarkable characteristics such as negative temperature coefficient (NTC) behaviors and thermal stability, rendering them highly desirable for a wide range of applications including temperature sensors, controllers, compensators, and voltage regulators (Huang et al., 2015; Ma et al., 2016). These spinel oxides, derived from Mn₃O₄, conform to a general formula of AB₂O₄ and typically fall within the cubic space group Fd-3m. The crystal structure of Mn-Co-Ni-O spinel oxides is characterized by a face-centered cubic lattice, wherein oxygen ions (O^2-) are densely packed in a cubic close-packed arrangement, creating both tetrahedral and octahedral sites. Within this lattice, the three elements, namely, manganese (Mn), cobalt (Co), and nickel (Ni), occupy the densely stacked oxygen ion vacancies in distinct ionic valence states to maintain overall charge neutrality (Wu et al., 2010a). An outstanding feature of such materials is their sensitivity to variations in the composition of elements, resulting in changes in electrical, magnetic, optical, and thermal-sensitive properties (Zhang et al., 2014). Mn-Co-Ni-O-based high-entropy oxides, offering a wide range of elemental composition options with highly adjustable proportions, provide a significant avenue for tailoring material properties (Oses et al., 2020; Sarkar et al., 2022). For instance, Ren et al. conducted an investigation into medium-entropy oxide films of Mn-Co-Ni-O and Mn-Zn-Ni-O, revealing the profound influence of cation species and distribution on the surface morphologies and infrared (IR) optical properties (Ren et al., 2023a). Additionally, Sarkar et al. explored (Co_0.2Cr_0.2Fe_0.2Mn_0.2Ni_0.2)₃O₄, employing a cross-referenced experimental approach. This investigation provided valuable insights into cation occupancy preferences, crystallographic, magnetic, and spin-electronic structures of spinel high-entropy oxides (Sarkar et al., 2022).

In response to the increasing demands of modern technology, devices employing Mn-Co-Ni-O-based materials, such as thermal elements, surge protection devices, and IR detectors, have seen significant performance requirements. Consequently, researchers have diligently sought to enhance the electrical and optical characteristics of these materials. In the context of Mn-Co-Ni-O-based materials, the concept of high entropy involves the introduction of two or more additional ions alongside the existing Mn, Co, and Ni ions. This process leads to the creation of a single-phase spinel solid solution, inevitably leading to modifications in the material’s microstructure and solid solution mechanism, which profoundly impact its optical and electrical properties (Teichmann and Töpfer, 2022). Furthermore, the high entropy effect suggests that the combination of multiple elements can yield specific synergistic outcomes, occasionally resulting in unexpected effects (Wei et al., 2022). Therefore, comprehending these underlying control mechanisms can effectively optimize the performance of such high-entropy ceramic materials and expand their range of applications.

This paper investigates high-entropy thin films with the formulation Mn_0.6Co_0.6Ni_0.6X_0.6Y_0.6O₄ (X, Y = Mg, Cu, Zn) as the focal point of the study. The objective is to understand the influence of these elements on the microstructure, IR light absorption, and electron transport properties within the materials.

2 Experimental details

Thin films were fabricated with identical stoichiometric ratios of Mn_0.6Co_0.6Ni_0.6Mg_0.6Cu_0.6O₄, Mn_0.6Co_0.6Ni_0.6Mg_0.6Zn_0.6O₄, and Mn_0.6Co_0.6Ni_0.6Cu_0.6Zn_0.6O₄ through the chemical solution deposition process onto silicon substrates. These resulting samples were respectively designated as MCNMC, MCNMZ, and MCNCZ. The process involved mixing metal hydrate acetates, used as the raw materials, which were then dissolved in glacial acetic acid. The resulting solution was adjusted to a concentration of 0.2 mol/L. Subsequently, the solution underwent filtration and was spin-coated at 3,000 rpm for 30 s to generate a wet film. This film was then heated at 350°C for 5 min to eliminate residual organics and solvents. This spin-coating and heating process was repeated eight times. Finally, the film was annealed at 750°C for 1 h to promote crystallization and the formation of the desired high entropy oxide samples. Figure 1 illustrates the process of preparing high-entropy thin films.

FIGURE 1

FIGURE 1. Schematic diagram of the process of preparing high-entropy thin films.

The crystal structures of the films were determined using X-ray diffraction (XRD) analysis, conducted with a Bruker D8 Advance instrument. Scanning electron microscopy (SEM) and energy dispersive spectroscopy (EDS) were utilized, employing a Zeiss Sigma 300 instrument, to investigate the morphologies and compositions of the thin films. Elemental analyses were conducted through X-ray photoelectron spectroscopy (XPS) with Thermo Scientific K-Alpha equipment, utilizing Al Kα radiation (hν = 1,486.8 eV). To assess the IR light absorption properties of the thin films, Fourier-transform infrared (FTIR) spectra were acquired using a Bruker TENSOR 27 instrument in attenuated total reflection (ATR) mode, with an incidence angle of 45°. Following the growth of thin films on thermally oxidized silicon substrates and the deposition of silver electrodes, electrical properties were measured using a digital multimeter (UNI-T UT805A) on a heating stage.

3 Results and discussion

3.1 Microstructure and morphology

Figure 2 shows the XRD patterns of the acquired thin film samples. These patterns exhibit distinct peaks denoted as (220), (311), (222), (400), (422), and (511), conclusively confirming that all samples possess a face-centered cubic (FCC) structure within the Fd-3m space group (ICDD PDF No. 00-023-1237) (Deepak et al., 2015). The lattice constants, calculated using the Bragg formula, are 8.210 Å for MCNMC, 8.230 Å for MCNMZ, and 8.229 Å for MCNCZ, respectively. Notably, the ionic radii of Mg²⁺, Cu²⁺, and Zn²⁺ being closely similar, the introduction of these ions into the spinel lattice does not significantly alter the lattice constant. The distribution of the Mn-Co-Ni-O oxide material can be depicted as (Co²⁺Mn²⁺)_T(Ni²⁺Co³⁺Mn³⁺Mn⁴⁺)_OO^2-, where the subscript T represents a tetrahedral site, and O signifies an octahedral site (Ma, 2023). Determining the precise cation distribution poses a challenge in conventional spinel oxides, further complicated in high-entropy oxides due to the presence of multiple primary cations with varying oxidation and spin states. Moreover, the low enthalpy barrier for cation anti-site mixing in spinels can lead to extreme cases of complete disorder or order (Sarkar et al., 2022). Previous studies indicate that Cu²⁺ typically occupies octahedral site, whereas Mg²⁺ and Zn²⁺ tend to occupy tetrahedral site in Mn-Co-Ni-O-based high-entropy oxides (Teichmann and Töpfer, 2022; Ren et al., 2023b). However, accurate ion occupancy necessitates a combination of element-specific characterization techniques such as hard and soft X-ray near-edge absorption spectroscopy, neutron powder diffraction, and others (Sarkar et al., 2022). Regardless, the introduction of excess ions causes a shift in the concentration distribution of the original ions within the Mn-Co-Ni-O material, significantly impacting its properties, particularly its electrical characteristics (Kong et al., 2014).

FIGURE 2

FIGURE 2. XRD patterns of the thin film samples.

In MCNCZ, the presence of a CuO impurity peak indicates a deviation from thermodynamic equilibrium within the crystal structure. The formation of CuO can be attributed to the thermodynamic instability caused by the competition between Cu ions and other cations. Specifically, in octahedral coordination, Cu ions induce the Jahn-Teller effect, leading to tetragonal distortions. Meanwhile, ions that do not induce this effect tend to maintain an octahedral environment. Consequently, there is a thermodynamic driving force for excess Cu ions to be liberated and form oxides, thus maintaining the octahedral structure (Berardan et al., 2017). In contrast, the absence of the CuO peak in MCNMC signifies the thermodynamic stability of the crystal structure. This stability can be attributed to the presence of Mg, which inhibits grain boundary migration and retards crystal growth in Mn-Co-Ni-O-based materials (Peng et al., 2012). The thermodynamic interactions between Mg ions and other cations promote the formation of cubic spinel-structured solid solutions at elevated temperatures. These conditions facilitate the integration of Cu ions into the spinel lattice, thereby inhibiting the segregation of secondary phases.

The surface morphologies of the three samples, as depicted in Figure 3, showcase pronounced variations, despite sharing identical preparation and synthesis conditions, as well as closely matched elemental compositions. While MCNMC and MCNCZ thin films exhibit similar porous surface structures, the former displays smaller particle sizes. Notably, the edges of the pores reveal a grain formation with a columnar structure, consistent with previous findings (Schwartz et al., 2004; Ma et al., 2019). During heating, the substrate’s surface hosts spinel nuclei from the supersaturated solution, leading to grain formation that extends to the film’s surface, culminating in a columnar microstructure (Ma, 2023). In the case of the MCNMZ sample, a structure resembling chains of grains emerges. While certain grains aggregate to create denser channels, intertwining with one another, others fill in to establish a porous connected framework. The clusters of grains observed on the surface of the MCNCZ thin film are mainly identified as Cu aggregates through compositional analysis, as shown in Figure 3D, which is consistent with the XRD results. Overall, the distinct metallic elements contribute to noticeable deviations in the material’s morphology, inevitably impacting the performance of Mn-Co-Ni-O-based high-entropy materials.

FIGURE 3

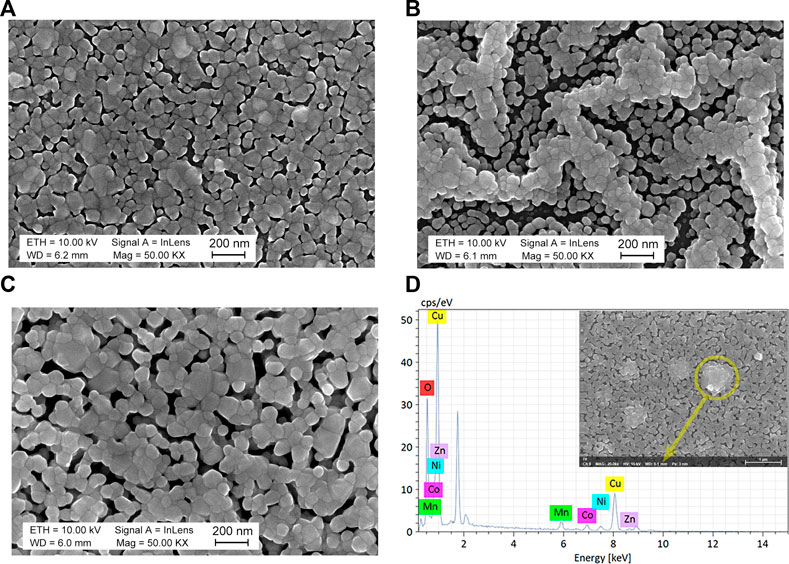

FIGURE 3. SEM images of MCNMC (A), MCNMZ (B), and MCNCZ (C) thin films. EDS point analysis of MCNCZ thin film (D), along with corresponding locations in the SEM image (inset).

3.2 Chemical composition

The XPS survey spectra have revealed a diverse array of elements present within the samples. Notably, in addition to confirming the presence of Mn, Co, and Ni across all thin films, the spectra also underscore the simultaneous occurrence of Mg and Cu in the MCNMC sample, Mg and Zn in the MCNMZ sample, and Cu and Zn in the MCNCZ sample, as illustrated in Figure 4A. These findings validate the successful preparation of the high-entropy thin film samples.

FIGURE 4

FIGURE 4. XPS survey spectra of thin films (A), and XPS spectra of Mg 1 s (B), Zn 2p (C), and Cu 2p (D). All peaks are calibrated with respect to the C 1 s peak at 284.8 eV.

The nearly symmetrical Mg 1 s peaks, located at a binding energy of 1,303.5 eV as shown in Figure 4B, confirm a 2+ oxidation state for Mg in both MCNMC and MCNMZ samples (Aksoy et al., 2012). The Zn 2p_1/2 and 2p_3/2 binding energies of thin films, shown in Figure 4C as peaks approximately at 1044 and 1,021 eV, respectively, can be attributed to the Zn-O bond binding energy (Aksoy et al., 2012). It is worth noting that both Zn 2p_3/2 XPS peaks exhibit sharp characteristics, affirming that Zn primarily exists in the form of Zn²⁺ on the surfaces of the thin film samples (Morozov et al., 2015).

Cu 2p XPS spectra were recorded for both MCNMC and MCNCZ, as illustrated in Figure 4D. The binding energies of Cu 2p_1/2 at 953 eV and Cu 2p_3/2 at 933 eV can be ascribed to Cu²⁺ states (Zhao et al., 2008). Additionally, a distinct minor peak at approximately 931 eV in the MCNMC sample indicates the presence of Cu⁺ (Zhao et al., 2008). This observation signifies a more pronounced conversion from Cu²⁺ to Cu⁺ in MCNMC as compared to MCNCZ, aligning with the earlier XRD and EDS discussions that suggest an excess of Cu²⁺ in MCNCZ, thereby promoting the formation of CuO aggregates.

The resistivity of Mn-Co-Ni-O-based materials can be influenced by the small polaron hopping mechanism, where electrons transition between Mn³⁺ and Mn⁴⁺ ions due to phonon-electron coupling. This macroscopic charge transfer relies on the quantity of Mn³⁺/Mn⁴⁺ pairs, a pivotal factor in determining the material’s resistivity (Zhang et al., 2023). Consequently, comprehending the oxidation state of Mn ions and their distribution in the spinel sublattice becomes a central concern in spinel-type oxides. To address this, XPS data was peak-fitted to quantitatively analyse the diverse valence states of Mn ions near the surface of high-entropy thin films.

In Figure 5, the Mn 2p region reveals two primary peaks at approximately 653.7 eV and 642.2 eV, arising from spin–orbit coupling and identified as Mn 2p_1/2 and Mn 2p_3/2, respectively (Blackmore et al., 2020). Through deconvolution, the Mn 2p_1/2 peak positions for all samples are observed at 655.3, 654.0 and 652.7 eV, and the Mn 2p_3/2 peak positions are noted at 643.8, 642.5, and 641.2 eV, representing the Mn⁴⁺, Mn³⁺, and Mn²⁺ oxidation states, respectively. The relative concentrations of Mn⁴⁺, Mn³⁺, and Mn²⁺ on the surface of samples are calculated by determining the areas of their corresponding fitted peaks, as presented in Table 1. Significant differences in Mn ion concentrations, particularly for Mn⁴⁺ and Mn²⁺, are observed among thin films containing different metal ion compositions. Among these samples, MCNMC exhibits the highest proportion of Mn ions in the higher valence state (Mn⁴⁺), leading to a Mn⁴⁺/Mn³⁺ ratio of 0.84, which is the closest to 1. In the MCNMC thin film, the existence of lower-valence Cu⁺ ions may cause some of the Mn²⁺ initially situated in the tetrahedral positions to transform into Mn⁴⁺ in the octahedral positions to maintain valence equilibrium (Marco et al., 2006). In contrast, both Mg and Zn ions consistently maintain a divalent valence state, exerting only a minor influence on the valence of the Mn ions (Ren et al., 2023b).

FIGURE 5

FIGURE 5. XPS spectra of Mn 2p for MCNMC (A), MCNMZ (B), and MCNCZ (C) thin film samples.

TABLE 1

TABLE 1. Proportions of Mn cations in various valence states.

3.3 Infrared absorption

Improving the sensitivity of IR detectors often involves enhancing the absorption of IR light by the detector material (Hui et al., 2021). While this can be achieved by adding additional absorbing layers, there has been considerable interest in IR detectors made from self-absorbing thin-film materials due to their rapid response (Adiyan et al., 2019). In this investigation, ATR-FTIR spectroscopy is employed to elucidate the IR absorption characteristics of the thin film samples across the 7–16 μm wavelength range, as presented in Figure 6. Stringent control over sample preparation and testing conditions guarantees that the ATR-FTIR results establish a quantitative relationship encompassing the IR absorption intensities concerning the minute surfaces of the thin film samples (Ozhukil Kollath and Karan, 2016).

FIGURE 6

FIGURE 6. FTIR spectra of the high-entropy thin films.

The IR absorption spectra indicate fundamental similarities in the IR spectra among the three samples, primarily owing to their shared spinel lattice structure, leading to consistent IR-active phonon oscillations (Paolone et al., 2000). The substantial polarizability arising from transition metals, namely, manganese, cobalt, and nickel, in combination with oxygens, results in strong coupling to external electromagnetic waves (Hou et al., 2008; Huang et al., 2015). This interaction yields a broad and robust IR spectral response, establishing Mn-Co-Ni-O as a longstanding candidate for IR detection materials. The prevalence of the Jahn-Teller effect in Mn-based spinel oxides is of great importance. This phenomenon in molecular and solid-state physics involves a molecule or polyatomic ion in an electronically degenerate state undergoing a spontaneous distortion in its molecular geometry (Reehuis et al., 2015). This distortion reduces its overall energy and eliminates the degeneracy. In the context of Mn-Co-Ni-O, this effect primarily arises from the generation of an asymmetric electron distribution within the doubly-degenerate e_g orbitals in the high-spin state of Mn³⁺ within the MnO₆ octahedron (Noh et al., 2006). Among the additional elements introduced in the high-entropy thin films, the large energy overlap between the Cu 3d energy level and the O 2p energy level allows Cu²⁺ to also induce the Jahn-Teller distortion (Jeon et al., 2021). This distortion alters the molecular structure and reduces its symmetry, increasing the dipole moment during stretching vibration and resulting in strong IR light absorption (Danielson et al., 2012).

On the other hand, an increase in the difference in electronegativity between two atoms involved in a covalent bond enhances the polarity of the bond, leading to a higher overall dipole moment of the molecule (Pritchard and Skinner, 1955). Electronegativity is often quantified via the Pauling scale. In this scale, Mg, Cu, Zn, and O have electronegativities of 1.31, 1.90, 1.65, and 3.44, respectively (Allen, 1989). The Mg-O bond, which has the greatest difference in electronegativity, will have the strongest polarity, leading to more efficient absorption of IR light during vibronic coupling. Additionally, factors such as molecular vibration frequency, energy band structure, and impurities contribute to the IR absorption of materials to some extent. Nevertheless, these findings on IR light absorption underscore the potential to significantly enhance the sensitivity of Mn-Co-Ni-O-based high-entropy thin films to IR light through a systematic design approach, providing a promising avenue for developing detectors without additional absorbing layers.

3.4 Electrical properties

Figure 7 provides a detailed overview of the electrical properties exhibited by high-entropy thin films. As illustrated in Figure 7A, the resistance of all samples exponentially decreases with increasing temperature, indicating their NTC characteristics. Figure 7B further demonstrates the nearly linear correlation between lnR and 1/T for all samples, a relationship explained by the Arrhenius equation and its derived form (Schulze, 2008):

${R=R}_0\exp \left(E_a/kT\right)$

$\ln R=\ln R_0+E_a/kT$

where R represents resistance, R₀ is the pre-exponential factor (independent of temperature), E_a is the activation energy, k is the Boltzmann constant, and T signifies absolute temperature. As temperature increases, lnR shows a linear decrease with 1/T. The charge transfer mechanism in Mn-Co-Ni-O-based NTC materials has undergone extensive investigation and has been confirmed to follow the small polaron hopping model (Feteira, 2009). Specifically, Mn³⁺ ions undergo Jahn-Teller distortion within the oxygen octahedra, resulting in the creation of polarons. Due to the strong ion binding, electrons become localized into small polarons (localized electrons). The localization state of Mn³⁺ ions is closely associated with electron-phonon coupling. With the assistance of phonons, the e_g electrons of Mn³⁺ ions conduct charge transfer between the Mn³⁺ and Mn⁴⁺ ions, leading to a highly temperature-dependent charge transfer conduction induced by electron-phonon coupling (Dannenberg et al., 1999). The electrical performance parameters for the samples, including resistance values at 25 °C and 50 °C (R₂₅ and R₅₀), thermal constant B_25/50, and the corresponding activation energy E_a, are presented in Table 2. The calculation of B_25/50 and E_a is carried out as follows:

$B_{25/50}=\frac{\ln \left(R_{25}/R_{50}\right)}{1/T_{25}-1/T_{50}}$

$E_a=B\times k$

FIGURE 7

FIGURE 7. Temperature dependence of resistances in the range from 25°C to 185°C (A) and relationships between lnR and the reciprocal of the absolute temperature (B) for thin film samples.

TABLE 2

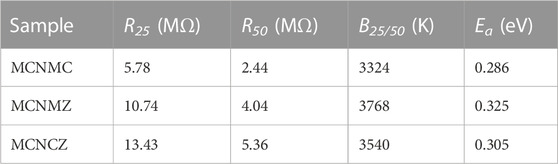

TABLE 2. Resistance (R₂₅ and R₅₀), thermal constant (B_25/50), and activation energy (E_a) of high-entropy thin films.

The significantly lower resistance of the MCNMC sample compared to the other two samples is apparent. This distinction can be observed by analyzing the surface morphology of the MCNMC thin film, which reveals smaller particles and higher densification than the other samples. This structural difference causes a reduction in the carrier transport path and time, thereby enhancing the material’s conductivity (Guan et al., 2021). Secondly, as mentioned previously, Mn-Co-Ni-O-based materials adhere to the small polaron hopping model for their electrical conduction mechanism. The inclusion of Mg, Cu, and Zn ions into the high-entropy thin films leads to changes in the concentrations of Mn³⁺ and Mn⁴⁺ ions, with the amount of Mn³⁺/Mn⁴⁺ ion pairs remaining a crucial factor affecting the electrical properties of these materials (Feteira, 2009). A rise in the number of conductive carriers taking part in the conduction process, along with an increase in hopping frequency, is directly correlated with an increase in Mn³⁺/Mn⁴⁺ ion pairs (Ma et al., 2022). In Mn-based spinel materials, Cu⁺/Cu²⁺ ion pairs have also been discovered to create small polaron hopping sites (Teichmann and Töpfer, 2022). In the case of MCNMC, the presence of Cu⁺ certainly increases the number of available hopping sites, leading to a decrease in resistance. However, the presence of CuO impurity phase in the MCNCZ sample may hinder its electrical conductivity. In the analysis of the conduction mechanism, it is imperative to consider various factors that could influence the conductivity of the material. While small polaron hopping is a plausible explanation, it is crucial to explore other potential contributors such as free carriers and oxygen vacancies. To ensure a comprehensive understanding, future studies will investigate these factors in detail.

Generally, the thermal constants of NTC thermosensitive materials exhibit a consistent relationship with changes in resistance values. This correlation stems from the correspondence between the B-value and the activation energy associated with the hopping conduction of small polarons within the materials (Ma, 2023). Larger B-values, which imply higher activation energies, imply the need to overcome a greater potential barrier during the hopping process. This, in turn, leads to an increase in resistance value (Li et al., 2023). The pores present in the MCNMZ and MCNCZ samples widen the gaps between particles, resulting in an increase in resistance. However, these pores also contribute to a higher thermal constant. The tiny pores among the thin-film particles elongate the carriers’ scattering path, increase the barriers to carrier migration, and elevate the potential barriers to be overcome (Li et al., 2020). The rise in potential barriers increases the activation energy of the material, which, in turn, affects the thermal constant. Additionally, fluctuations in ionic species and their concentration within the material can induce changes in the position, width, and occupancy of energy bands. Collectively, these changes affect the inherent potential barriers in hopping conduction, resulting in shifts in the activation energy of these high-entropy thin films (Wu et al., 2010b). Among the samples, MCNMZ exhibits a significantly high thermal constant value of 3768 K, although it does not possess the maximum resistance value. This phenomenon can be attributed to the unique grain chain structure of MCNMZ. This specific structure serves a dual role: it helps to create pathways that promote the ease of carrier transport, while at the same time introducing migration barriers between these transport channels (Ma et al., 2016).

4 Conclusion

In this study, Mn-Co-Ni-O-based high-entropy thin films with varying compositions of Mg, Cu, and Zn were prepared and characterized. Their microstructure, IR light absorption, and electrical properties were comprehensively investigated. The addition of different elements resulted in substantial changes in the microscopic morphology of the thin film materials, despite their crystal structures remaining unchanged. The concentration of Mn³⁺ ions remained nearly constant across all three samples, while the levels of Mn⁴⁺ and Mn²⁺ ions varied inversely. The augmented IR absorption detected in the MCNMC sample was mainly attributed to the Cu-induced Jahn-Teller distortion and highly polarized Mg-O bonds, both contributing to intensified IR absorption during vibrational coupling. The MCNMC thin film exhibited the lowest resistance owing to its denser microstructure, the proximity of Mn³⁺/Mn⁴⁺ ion concentrations, and supplementary Cu⁺/Cu²⁺ ion pairs, which enhanced small polaron hopping conductivity. In contrast, the distinctive grain chain configuration of MCNMZ attained a balance between facilitating carrier transport and establishing migration barriers, resulting in a high thermal constant. These findings provide valuable insights for tailoring the properties of high-entropy materials, particularly for their applications as sensors and detectors.
