Mini Review ARTICLE

Front. Phys., 08 September 2020 | https://doi.org/10.3389/fphy.2020.00342

Budding and Fission of Membrane Vesicles: A Mini Review

Samo Penič1*, Luka Mesarec1, Miha Fošnarič2, Lucyna Mrówczyńska3, Henry Hägerstrand4, Veronika Kralj-Iglič2,5 and Aleš Iglič1,5,6
  • 1Faculty of Electrical Engineering, University of Ljubljana, Ljubljana, Slovenia
  • 2Faculty of Health Sciences, University of Ljubljana, Ljubljana, Slovenia
  • 3Department of Cell Biology, Institute of Experimental Biology, Adam Mickiewicz University, Poznań, Poland
  • 4Cell Biology, Faculty of Science and Engineering, Åbo Akademi University, Åbo-Turku, Finland
  • 5Institute of Biosciences and Bioresources, National Research Council, Naples, Italy
  • 6Faculty of Medicine, University of Ljubljana, Ljubljana, Slovenia

In this mini-review, a brief historical survey of the mechanisms which determine the shapes of liposomes and cells and the budding and fission of their membrane is presented. Special attention is given to the role of orientational ordering of membrane components in thin membrane necks which connect the membrane buds (daughter vesicles) to the parent membrane. It is indicated that topological anti-defects in membrane necks may induce the rupture of the neck and the fission of the membrane daughter vesicles.

1. Introduction

The main building block of the biological membranes is the lipid bilayer with embedded inclusions like proteins and glycolipids [1, 2]. Protein membrane inclusions may induce the local curvature changes of the membrane [35], resulting also in the global change of the cell shape [613]. The non-homogeneous lateral distribution [69, 1416] and the phase separation of membrane inclusions (nanodomains) are important mechanism that may induce the local changes of membrane curvature and are therefore the driving force for transformations of the cell shape [12, 1720]. The shapes of cells or lipid bilayer vesicles (as model systems) may also be changed by membrane skeleton or cytoskeleton forces [13, 19, 2127]. Among them, the ATP consuming forces are very significant for sustaining different cell functions [12, 16, 2832]. Consequently, new theoretical approaches for modeling the cell shape changes under the influence of the energy consuming active forces have recently been developed [12, 16, 28, 31, 32]. Until recently [2931], it was also believed that the active forces are completely absent in the mechanisms of the determination of the RBC shape, when it was shown that NMIIA motor nanodomains may generate tension in the spectrin-F-actin RBC membrane skeleton and in this way partially control the RBC shape [29, 30] and the membrane vesiculation [31]. In accordance with experimental observations, it was shown [30] that myosin (NMIIA) motor nanodomains should be non-homogeneously distributed over the entire inner membrane surface of discocyte RBC. In addition, the normal component of the NMIIA nanodomain force should be different from zero and directed to the interior of the cell across the whole membrane surface, including the dimple region of the discocytic RBC, in order to keep the stable discocyte RBC shape and prevent a pancake shape transformation [30]. It should be pointed out that if NMIIA motor protein is contracted in the dimple region of the RBC, this may induce small local exvaginations and non-zero component of myosin force directed to the RBC interior. Because NMIIA motor nanodomains and actin molecules are distributed only on the inner membrane surface of RBC, the normal component of the NMIIA motor nanodomain should be directed to the interior of RBC (inward). Experimental measurements of NMIIA densities at the dimple and rim of discocyte RBC shape confirmed the theoretical predictions of [30] that the NMIIA force density must be larger in the dimple than at the RBC rim in order to stabilize the discocyte RBC shape [30].

It was further shown that decreasing the difference between the relaxed areas of the outer layer and the inner lipid layer induces the inward bending of the RBC membrane [27, 3336], while increasing the difference between the relaxed areas of the outer and inner membrane layers favors the outward bending [26, 27, 3337]. In accordance, the exogenously added amphiphiles which predominantly bind in the outer lipid layer induce the transformation of the discoid RBC into the spiculated (echinocytic) RBC, while amphiphiles predominantly bound in the inner lipid layer induce the transformation into invaginated stomatocytic shapes [35, 36, 38]. RBC membranes have in addition to lipid bilayer also the membrane skeleton composed of the spectrin-F-actin network which is attached to the inner surface of the lipid bilayer [24]. It was indicated that besides the local and non-local bending energy [23, 3947] also the shear elastic energy of the membrane skeleton [2528, 33, 46] should be considered in the minimization of the membrane free energy to theoretically explain the observed stability of speculated (echinocytic) RBC shapes [25, 26]. It was also shown recently that in RBCs, the ATP-dependent membrane skeleton forces, exerted on the membrane by the skeleton nodes, may cause membrane softening, which influences the RBC deformability to facilitate the movement of RBCs through narrow capillaries [28].

2. Membrane Budding and Endovesiculation

The membrane skeleton of RBC plays an important role also in the vesiculation of the RBC membrane [35, 37, 4851]. Because of the local disruption of the interactions between the membrane skeleton and the membrane bilayer [48], the RBC microexovesicles are depleted in the membrane skeleton [49]. It was shown that at sublytic concentrations of amphiphiles in the RBC suspension, the anisotropic amphiphiles induce tubular membrane budding and the release of stable tubular microexovesicles [18, 35, 37, 49, 51], while most of the other amphiphile molecules induce small, predominantly spheroidal microexovesicles that are formed from small membrane buds [8, 35, 51, 52]. The experimentally observed tubular budding and vesiculation of the RBC membrane [18, 35, 49, 51] can be theoretically explained by deviatoric membrane properties due to the in-plane orientational ordering of anisotropic membrane inclusions [8, 10, 15, 5361].

Certain amphiphilic molecules can induce stomatocyte shape transformation and the formation of a large number of small spheroidal membrane invaginations (buds/endovesicles) in the region of large stomatocytic invagination [35, 36]. But it is also possible that small exvaginations are formed in the region of large stomatocyte invaginations. For example, it was observed in RBCs that the lipid rafts component ganglioside GM1 distributes and even enriches the membrane of large stomatocytic RBC invaginations [17]. It was proposed that single GM1 molecules have zero intrinsic curvature, while small GM1 aggregates have the positive intrinsic curvature [62]; therefore, it is possible that small GM1 aggregates in the region of large stomatocyte invagination(s) also induce the outward budding and the release of small exovesicles which, however, can hardly be observed in in vitro experiments since they are washed out in the preparation of the samples for microscopy. It was pointed out that the recently suggested role of active forces of NMIIA motors [29] in the RBC membrane shape determination [30] may play an important role also in membrane endovesiculation and the control of the shape and size of membrane endovesicles [31]. By using Monte Carlo (MC) simulations, it was indicated that the formation of a large number of small spheroidal membrane buds/endovesicles may be coupled to non-homogeneous lateral distribution active forces motor nanodomains/inclusions and to a global invaginated closed membrane shape transformation [31].

The main subject of this mini-review is the possible theoretical explanation of the fission of membrane endovesicles [i.e., the rupture of the neck connecting the membrane buds (daughter vesicles) with the parent membrane] following the formation of membrane invagination/buds. Our interest in the subject was motivated by experimental observations of a large number of buds/endovesicles in red blood cells (RBCs) [35, 36] (Figure 1) and by the results of Monte Carlo (MC) simulations (Figure 2).

FIGURE 1
www.frontiersin.org

Figure 1. Transmission electron micrograph (A) and confocal laser scanning microscopy of invaginated stomatocytic RBC incubated with amphiphilic molecules chlorpromazine (B). Chlorpromazine molecules induce the formation of a large number of small membrane buds/endovesicles. Adapted from Hägerstrand et al. [17] and Bobrowska-Hägerstrand et al. [63].

FIGURE 2
www.frontiersin.org

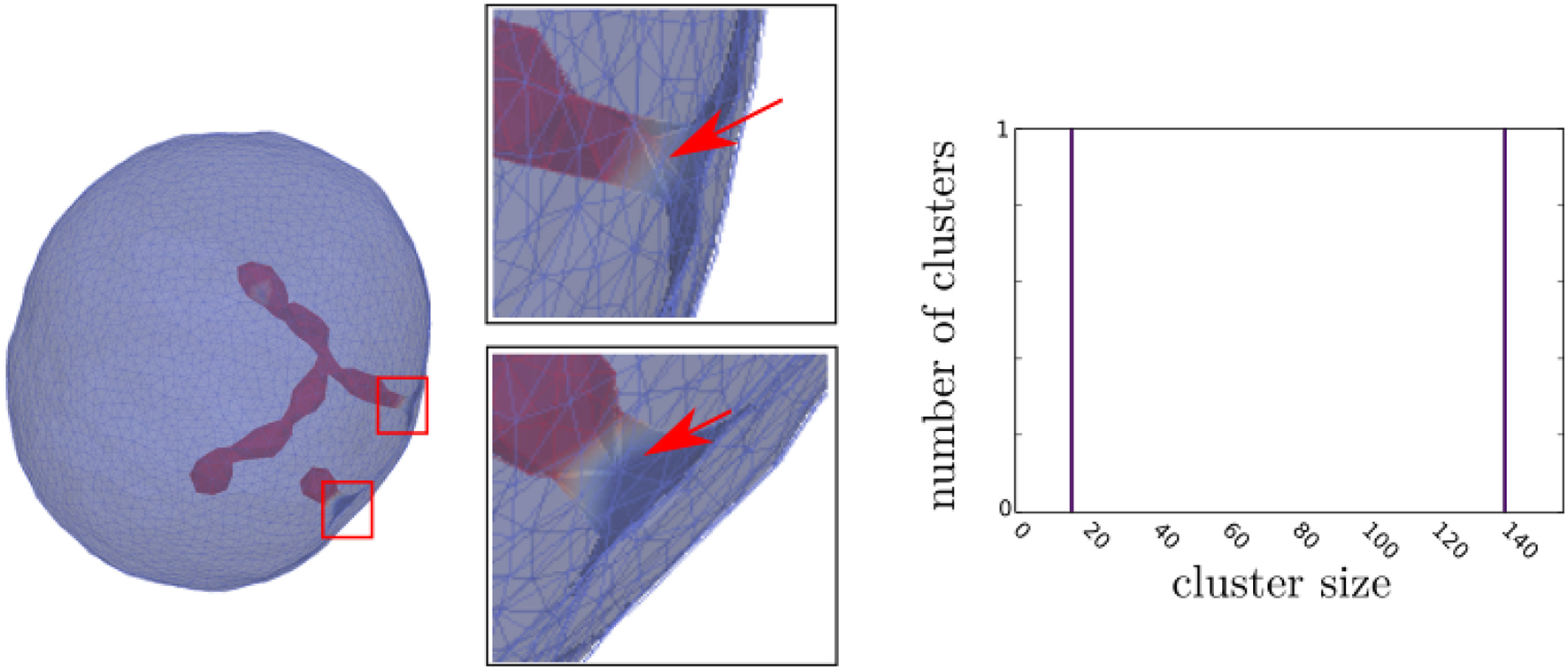

Figure 2. The Monte Carlo simulation of the RBC membrane transformation induced by mobile membrane inclusions with intrinsic curvature c=-1dmin-1. Concentration of membrane inclusions p = 5%. The triangulated membrane surface is drawn semitransparent to uncover its interior shape. Red arrows in enlarged insets point to the neck area, where there is a lack of inclusions. In the corresponding cluster-size distributions, the y-axis is the ensemble averaged number of inclusion clusters of each size and the x-axis is the inclusion cluster size. The values of other model parameters are: local bending stiffness of lipid bilayer κ = 25kT and direct interaction parameter w = 1.25kT. The parameters for simulations are based on values in [31]. The simulations were run on a personal computer with Intel i7-7500U processor and 8 GB of RAM; however, the memory requirements for the Monte Carlo simulations are not the limiting factor for the speed of computations. Each simulation was running on a single thread, where simulations with multiple parameter sets were executed on the same processor. The average time for simulations to complete 1,000 time-steps with 100 · 103 mcs each was ≈ 14.5 days. After finishing the simulations, the graph of free energy term and asphericity was observed to check if thermal equilibrium was reached.

Figure 1 shows transmission electron microscopy (Figure 1A) and confocal laser scanning microscopy images (Figure 1B) of a large number of small inward membrane buds/endovesicles in an invaginated stomatocytic RBC induced by amphiphilic molecules of chlorpromazine hydrochloride. Small spheroidal buds/endovesicles shown in Figure 1 are concentrated in the vicinity of the large primary invagination(s) of stomatocytic RBCs [17, 63].

Figure 2 shows the MC simulations predicted closed membrane shape with the membrane inclusions (nanodomains) with the negative intrinsic curvature which may induce the formation of long undulated thin inward membrane protrusions (buds). The inclusions are accumulated in the region of the protrusions. The theoretically predicted shapes in Figure 2 may partially correspond to situations in RBCs when the protrusion is growing in the region where the local disruption of the interactions between the membrane skeleton and the membrane bilayer appears or the skeleton is detached from the protrusion [48, 49], so that the inward membrane protrusion is not covered by membrane skeleton.

Figure 2 also shows the cluster size distributions that were determined from the averaging over the convergent MC realizations. It can be seen in Figure 2 that the cluster size distribution of nanodomains/inclusions has only two peaks corresponding to two, spheroidal and necklace-like aggregate of inclusions in the form of protrusions (phase separation). We may conclude that the inclusions aggregates into curved membrane protrusions or buds which is the consequence of non-zero (negative) intrinsic curvature of inclusions and high enough interaction (attractive) energy between inclusions.

The MC program and theoretical basis used in calculations presented in Figure 2 were described in details elsewhere [16, 31]. For simulations, we used trisurf_ng, a software we developed ourselves. It performs random thermal fluctuations based on Metropolis-Hastings Monte Carlo algorithm and it is described in literature [5, 16, 64, 65]. The model for the discretization of a closed surface representing a phospholipid vesicle is a triangulated mesh, consisting of vertices, connected with bonds, forming triangles on the surface. The number of vertices used in simulation was N = 3, 127. The initial state of the triangulated surface is a pentagonal dipyramid with all the edges divided into equilateral bonds so that the network is composed of 3(N − 2) bonds forming 2(N − 2) triangles. The phospholipid membrane and vertices representing the membrane have no intrinsic curvature (c0 = 0), except for Nc randomly selected vertices with inclusions that were given non-zero isotropic intrinsic curvature of c0=-1dmin-1, where dmin is the minimal distance between the vertices in triangulated mesh and can be used as a dimensional scaling parameter. The positive curvature means the membrane will locally bend toward the exterior, the negative curvature will force the membrane to locally bend toward the interior of the vesicle [16, 31]. The energy is a sum of two components: W = Wb + Wd, where Wb is the bending energy of the membrane and Wd is the energy of the direct interaction between vertices with intrinsic curvature. For the bending energy Wb of the membrane, the standard Helfrich expression [66] for a tensionless membrane including a term that represents the intrinsic curvature is used. The contribution of the Gaussian curvature to the change of bending energy is omitted from the expression Wb=κ2A(c1+c2-c0)2 dA, where κ is the bending stiffness of the membrane, c1, c2, and c0 are the two principal curvatures and the intrinsic curvature of the vesicle membrane at the point under consideration. The integration is performed over membrane area A. In Figure 2, we adopted the value of κ which is compatible with the membrane of giant lipid vesicles [67, 68]. In the absence of inclusions with attraction forces (direct interactions) between them, our simulations can produce spherical shape, a discocyte biconcave shape and also pure stomatocyte shape transformation (without small membrane invaginations) after proper variation of the model parameters [69]. For modeling attraction force between the vertices with intrinsic curvature, the additional energy term was used [16, 31]: Wd=-wi<jH(r0-rij), where w is a direct interaction constant, defining the affinity for the inclusions to group into rafts. The energy is summed over all inclusion pairs with their in-plane distance rij, where H(r) is a Heaviside step function and r0 is the range of direct interaction. The value for direct interaction distance is limited to neighboring nodes with inclusions (r0 = dmax). In MC simulations [16, 31] presented in Figure 2, we do not consider explicitly the bilayer structure of the membrane lipid bilayer. Also the skeleton elasticity is not explicitly taken into account. Therefore, we took the value of the bending modulus which is compatible with the membrane of giant lipid vesicles [67, 68] and not with the RBC membrane [28, 7073]. Further, for simplicity reasons, in the current MC simulations we consider membranes with only one type of inclusions that can induce local membrane bending due to their negative intrinsic curvature [16, 31].

Due to the simplifications introduced in our MC model, we cannot perform a detailed comparison of the predictions of MC simulations and experimentally observed amphiphile induced large membrane invagination(s) in the RBCs accompanied by the formation of a large number of small membrane invaginations, i.e., buds/endovesicles [17, 63], as shown in Figure 1. As written above, we hope that further improvements of the MC model presented in this work will allow us to better understand the phenomena presented in Figure 1 and other processes connected to exo- and endo-vesiculation in RBCs. Among others also the active forces in the RBC membrane which are generated by NMIIA motor nanodomains (inclusions) bound to F-actin of the RBC membrane skeleton [2931]. Previous theoretical descriptions of the invaginated (stomatocyte) shape, based on the minimization of the membrane bending energy, were able to explain only large stomatocyte invagination(s), but not also the large number of small membrane buds and endovesicles. Accordingly, it was shown recently [31] that the formation of invaginations/buds may be coupled also to a global shape transformation driven by the non-homogeneous lateral distribution of active force. It was indicated that the invaginated stomatocytic shapes can have different forms of invaginations [31], which is an extension of the previously theoretically predicted shape classes of the invaginated stomatocytic shapes which were mostly limited to the simple stomatocytic shape with one or two large smooth invaginations (see for example [27, 44]), as was experimentally observed also in a giant unilamellar lipid vesicle [74]. Active force nanodomains/inclusions may induce the formation of a large number of small membrane invaginations/buds on the large stomatocyte invagination [31].

3. Fission of the Membrane Daughter Endovesicles

Long undulated membrane protrusions as predicted by MC simulations in Figure 2 may be further transformed into small independent spherical buds/endovesicles, due to the frustrations in the orientational ordering of membrane components in the highly curved membrane necks (Figure 3). The same mechanism can also be responsible for the possible detachment of the complete inward membrane protrusion from the parent membrane [75] and the consequent formation of the buds/endovesicles (Figure 1).

FIGURE 3
www.frontiersin.org

Figure 3. Necklace-like buds/endovesicles with topological antidefects in their necks. The sequence demonstrates the transformation from the shape without a prominent neck (A) through the intermediate shape (B) to the shape with three prominent thin necks (C). Finally, the neck rupture results in the formation of two distinct membranes (D). The positions of antidefects are marked by small squares. Orientational ordering profiles with the superimposed nematic director fields in the vicinity of topological antidefects are magnified. R/ξ = 21, where R represents a typical linear dimension of a shape and ξ the nematic order correlation length defined in section 4.

We shall describe below that topological anti-defects may induce the rupture of the highly curved membrane structures possessing the in-plane orientational ordering of membrane components. Biological membranes may exhibit global and local in-plane orientational ordering [51, 7577]. A lipid bilayer is basically a thin liquid crystal film [66, 77]. The orientational order in membranes could occur due to the anisotropic shape of membrane components like anisotropic proteins or lipids [8, 53, 56, 7880]. A typical example of inclusions possessing nematic order [58] are anisotropic banana shaped BAR protein domains [11, 81, 82]. The orientational order often arises in highly curved parts of the membrane due to the alignment of these anisotropic components [8, 51, 76]. Furthermore, chiral membrane constituents [83, 84] or self-organized filament networks [85] may also be a source of the membrane orientational order. The orientational order in membranes has been observed in giant unilamellar vesicles where lipid molecules were in the gel or in some other ordered phase [58, 76, 86]. In-plane ordering in biological membranes may occur also due to the tilt of lipid tails relative to the surface normal [83, 87, 88].

In biological membranes possessing the tangential (in-plane) orientational ordering, topological defects are often present. Furthermore, topological defects are, in most cases, unavoidable due to topological reasons [89, 90]. Below, we shall describe the possible mechanism of the fission of the single membrane invagination/bud and the fission of the necklace-like buds/endovesicles predicted by MC simulations and indicated in in vitro experiments (Figure 1), where we shall take into account the possible role of topological defects in highly curved regions of the RBC membrane necks [60, 75]. Topological defects are a source of relatively large local elastic penalties. At the origin of defects, the ordering field is melted [91, 92], which is why the presence of defects might have a strong impact on systems' properties. Topological defects in biological membranes could for example trigger significant biological processes, such as cell membrane fission or fussion [75, 93]. Below, we will demonstrate how topological defects might trigger the pinching-off of the large and small membrane invaginations/buds from the parent membrane (membrane fission) and the fission of the necklace-like buds/endovesicles in membranes exhibiting in-plane nematic ordering.

4. Modeling of Membrane Ordering in the Neck Region

Biological membranes may exhibit global or local in-plane orientational ordering [51, 7577]. Here, we shall describe the application of a simple 2-D Landau-de Gennes type model to qualitatively demonstrate the assembly of topological antidefects in regions with the high negative Gaussian curvature (membrane necks). Strong orientational order in membranes often arises in highly curved parts [8, 51, 76]. Therefore, for simplicity reasons, we assume in our simulations that nematic ordering is present only in the catenoid-like neck region of the membrane. Surface patches with the positive (negative) Gaussian curvature have a tendency to host topological defects (antidefects) [75, 9496]. If the Gaussian curvature is strong enough, it can even trigger the formation of new defect-antidefect pairs. The presence or the formation of a topological defect (antidefect) in a surface patch with the positive (negative) Gaussian curvature neutralizes that surface patch in terms of “effective topological charge” as described in [94]. Simulations of orientational ordering on catenoid necks, which are geometrically the same as the membrane necks in our paper, show that antidefects assemble in catenoid necks, even though these necks are not connected to the rest of the membrane surface [97]. Therefore, we expect topological antidefects to assemble in the neck regions also if there is no or very weak orientational order and in the other regions of the membrane, as is actually the case in the RBC membrane.

Orientational (nematic) ordering is studied on catenoid-like membrane neck surfaces. Molecules which contribute to orientational ordering are bound to lie on the local tangent plane on a surface. Local surface curvature is described by the principal curvatures c1 and c2. Gaussian curvature, which acts as an attractor for topological defects, is defined as: K = c1c2. In order to describe the orientational nematic ordering on a closed surface, we introduce a surface order tensor Q, which can be expressed in its diagonal form as [90, 98]:

Q=λ(nn-nn).    (1)

Here, ⊗ represents a tensor product and {n, n} are the eigenvectors of Q corresponding to the eigenvalues of {λ, −λ} [94, 99]. In Equation (1), n represents the nematic director field, i.e., the direction of molecules, which exhibits head-to-tail invariance [92]. On two-dimensional surfaces, the topological charge is the same as the winding number, which is calculated as the total rotation of the orientational field n divided by 2π upon encircling the defect core counter-clockwise [91, 92, 100]. The topological charge of topological defects/antidefects is positive/negative. Furthermore, the amplitude λ represents the degree of orientational order, where the upper bound (λ = 1/2) corresponds to the maximal degree of the orientational order, while the lower bound (λ = 0) represents the isotropic state, where the orientational order is lost. Consequently, the points on the surface exhibiting λ = 0 usually signal topological defects, since at the core of topological defects the orientational order is melted [90, 94]. Furthermore, topological defects also display a singularity in n in the center of their core [94].

The total free energy associated with nematic in-plane ordering in the membrane is given as [90, 94, 98]:

Ftot=ζ(-α TrQ2+β2(TrQ2)2+ki2|sQ|2)d2r,    (2)

where ∇s stands for the surface gradient operator, d2r is an infinitesimal surface element and the integration is carried out over the whole membrane neck surface area ζ. The first two terms in Equation (2) represent the condensation term, which enforces the equilibrium nematic ordering amplitude λ0=α/β, where α and β are positive material constants [94]. The third term in Equation (2) is the orientational elastic term and is weighted by the positive intrinsic ki elastic constant [94]. This term represents the direct interactions between neighboring molecules, i.e., the energy associated with this term is minimized if the neighboring molecules are parallel. Furthermore, the nematic order correlation length, i.e., the characteristic material-dependent length of the model, is expressed as ξ=ki/α [90, 94].

Orientational ordering configurations were calculated on the necks of fixed closed membrane surfaces. For demonstration purposes, we chose two types of shapes, i.e., invaginated stomatocyte (cup-shaped) shapes and necklace-like endovesicle shapes (similar to invaginated bud presented in Figure 2). Both types of shapes exhibit a region with the negative Gaussian curvature, which acts as an attractor for topological antidefects [75, 9496]. On neck surfaces of these fixed shapes, equilibrium nematic ordering configurations are determined by minimizing the free energy associated with nematic ordering (Equation 2). The minimization is performed using the Monte Carlo method. In the minimization procedure, the equilibrium profiles of nematic ordering amplitude λ and the nematic director field n in the neck region of the membrane ζ are determined. Further numerical details are described in [94].

5. Distributions of Antidefects in Membrane Neck Regions

In Figures 3, 4, it is shown how topological antidefects can cause fission of a closed membrane into two separate closed membrane surfaces. In our simulations, we calculated the orientational ordering in the neck regions on necklace-like buds/endovesicles (Figure 3) and in the neck regions of invaginated (stomatocyte) membranes (Figure 4) with different neck radii. The color plot in Figures 3, 4 represents the nematic ordering amplitude, while the nematic director field (i.e., the orientation of molecules) is denoted by thin lines. At the core of topological defects/antidefects, the nematic order is lost [90, 94, 99]. Therefore, topological defects (and antidefects) are located at the points on the surface exhibiting λ = 0. The approximate positions of topological antidefects in thin membrane necks are schematically shown in Figures 3, 4—they are marked by small squares. In these figures, orientational ordering profiles in the vicinity of topological antidefects are magnified.

FIGURE 4
www.frontiersin.org

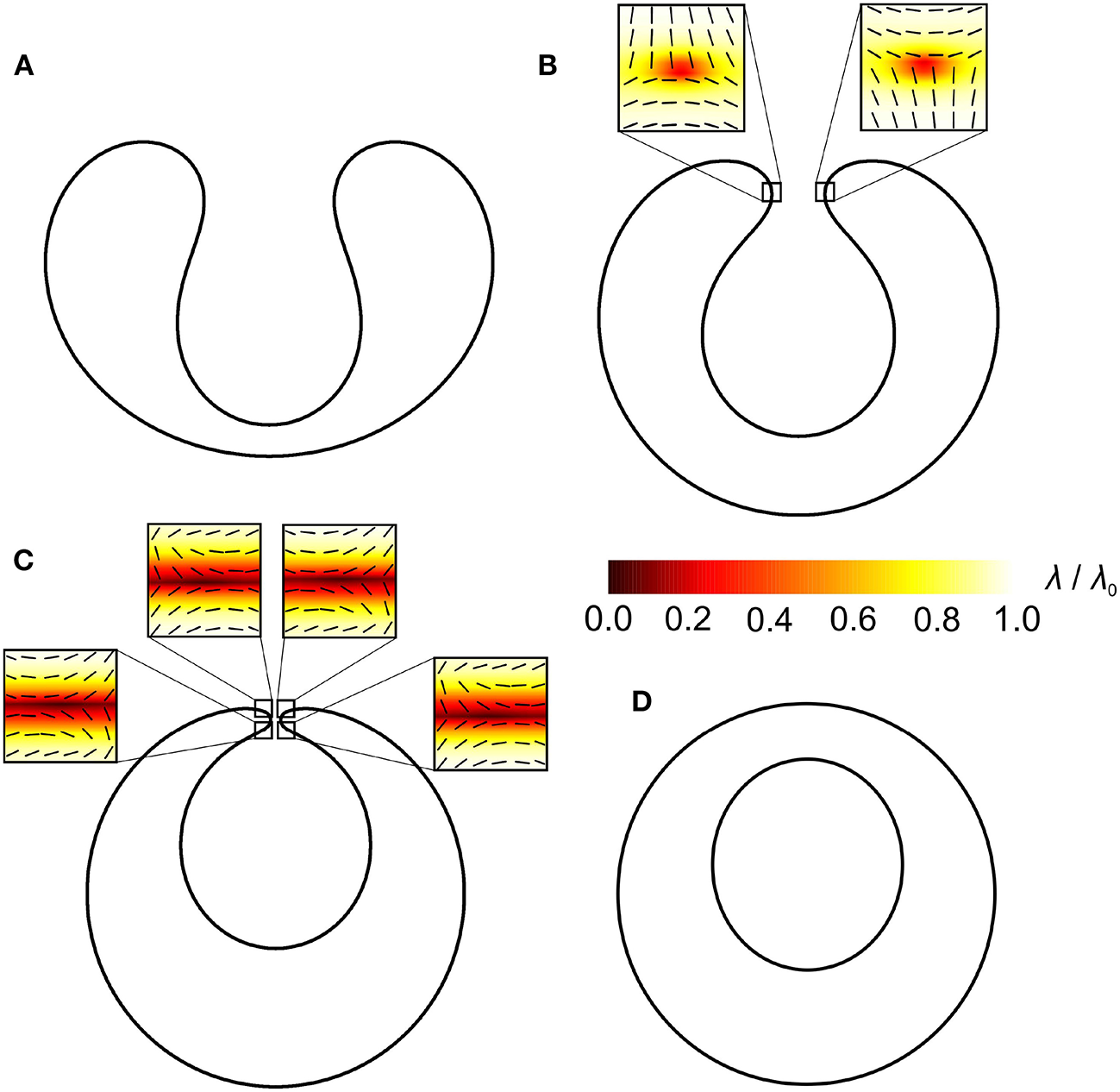

Figure 4. Invaginated stomatocytes with topological antidefects in their neck region. The positions of antidefects are marked by small squares. Orientational ordering profiles with the superimposed nematic director fields in the vicinity of topological antidefects are magnified. R/ξ = 21, where R represents a typical linear dimension of a shape and ξ the nematic order correlation length defined in section 4.

In Figure 3, we analyse how topological antidefects assemble in the neck region when the neck gets thinner. The shape in Figure 3A does not have a prominent neck, therefore, it does not host any antidefects. The shape in Figure 3B hosts two m = −1/2 antidefects, and the shape in Figure 3C hosts six m = −1/2 antidefects. As the necks are getting thinner, more and more m = −1/2 antidefects assemble in the neck regions with the negative Gaussian curvature. The fact that the positive (negative) Gaussian curvature (deviatoric curvature) acts as an attractor for topological defects (antidefects) is well-established [75, 9496].

A similar phenomenon is observed in Figure 4. The shape in Figure 4A hosts no topological antidefects because the negative Gaussian curvature in the neck is not strong enough. The shape in Figure 4B hosts two m = −1/2 antidefects and the shape in Figure 4C hosts four m = −1/2 antidefects. As the neck of the invaginated membrane region becomes thinner, more and more m = −1/2 antidefects assemble in the neck region. The neck region has the negative Gaussian curvature and acts as a strong attractor for antidefects [75, 9496]. Consequently, this triggers the formation of new antidefects in the neck region. Note that four m = −1/2 antidefects in the neck region represent a limit case scenario in which the catenoid-like neck structure is neutral in terms of the “effective topological charge” as described in [94], i.e., the real topological charge of antidefects neutralizes the so-called smeared curvature topological charge of a catenoid surface [94]. Four m = −1/2 antidefects on a highly curved catenoid-like neck surface are therefore topologically favorable [97], while there is no topological reason for more antidefects to occur in the membrane neck.

In both cases (Figures 3, 4), antidefects assemble in the neck regions as the necks get thinner. Topological defects/antidefects are a source of large local elastic penalties. At the core of topological defects and antidefects, the ordering field is melted and the degree of nematic ordering is relatively weak [91, 92]. In Figure 3C, two antidefects are located within each neck, while in Figure 4C, the neck region of invaginated stomatocyte hosts 4 antidefects. In both cases, neck regions represent relatively small surface areas, which host many topological antidefects. Consequently, local interactions between neighboring molecules within the neck regions are weakened, which might result in the neck rupture, leading to the fission process [75]. This process is shown in Figures 3D, 4D, where two distinct closed membranes are formed. In Figure 4D, the neck rupture results in the formation of a closed membrane surface inside another closed membrane surface. In both cases, there is no more need for antidefects after the fission process because there is no more neck with strong negative Gaussian curvature (i.e., large curvature deviator).

6. Why the Gaussian Term in Helfrich Local Bending Energy Cannot Explain Vesicle Fission

As pointed out by [101], in lipid bilayer vesicle, the daughter vesicle remains connected to the mother vesicle by microscopic neck after budding. It was also suggested that in the case of one-component giant unilamellar lipid vesicles (GUVs), the neck connecting the daughter to the mother vesicle may be stabilized by lateral segregation of membrane components, i.e., by the accumulation of impurities in the neck having high deviatoric curvature, which decreases the membrane free energy [102]. It was later shown that the accumulation of anisotropic membrane components can actually decrease the membrane free energy and stabilize a thin microscopic neck between the mother and the daughter vesicle [8, 61].

The neck can be additionally stabilized by the orientational ordering of lipids themselves in the deviatoric curvature region of the neck [76]. It was shown also in cellular systems, experimentally and theoretically, that the neck can also be elongated in the nanotube that connects the daughter to the mother part of the vesicle [61, 103]. In GUVs, such lipid nanotubes are usually invisible because they are too thin to be observed [104, 105]. After the breaking of the neck (i.e., fission) and the formation of a spherical mother and a (inner or outer) daughter vesicle, the decrease of the membrane free energy due to the orientational ordering of anisotropic membrane components is no longer present. Therefore, the orientational deviatoric free energy increases after the fission, i.e., the fission is not favored by the deviatoric (orientational ordering) energy.

Furthermore, it was indicated by [55] that in the case of homogeneous isotropic and thin membrane, there is essentially no obvious physical reason why the mother and the daughter vesicle, connected by a microscopic neck, would have smaller Helfrich bending energy after fission and a decrease in this energy by |4πkG| (where kG is the Gaussian bending constant/modulus) just because of the change of topology after fission and disappearance of a microscopically small neck. Therefore, we suggest that a possible driving force of the fission process might be topological defects in the region (vicinity) of the neck due to high orientational ordering of anisotropic membrane components [8]. When the topological defect disappears, the energy might be reduced to a large extent due to the change of the direct interaction energies between the molecules in the topological defect/antidefect.

Note also that in highly curved membrane parts, the so-called extrinsic (c12-c22)cos(2ω) [60, 97, 106] or deviatoric (c1c2)cos(2ω) [51, 76] curvature term might play an important role. Here, ω describes the orientation of the membrane component (inclusion) in the principal axis system. It was shown in [97] that taking into account the extrinsic term would only affect the local spatial distribution of antidefects within the necks—it would not change the fact that topological antidefects assemble in the neck region. Without the extrinsic term, topological antidefects are assembled at the equatorial ring of the neck, where the Gaussian curvature exhibits the minimal value as demonstrated in this paper. If we take into account the extrinsic term, topological antidefects are expelled from the equatorial ring because of strong extrinsic ordering field [97]. Nevertheless, in this case, topological antidefects assemble near the equatorial ring of a neck. Topological antidefects are therefore robustly present within or very near the equatorial ring of a neck [97].

The incorporation of additional types of membrane inclusion in our model would also connect the mechanisms of formation of the isotropic inclusions enriched protrusion and the anti-defects driven disruption of the neck connecting the bud and the parent membrane. The consideration of additional anisotropic inclusions in the MC model would provide the missing mechanism of the growing/stabilization of the neck between the bud and the parent membrane driven by the accumulation of anisotropic membrane components/inclusions [8, 61, 76, 101, 102]. In the present work, we considered only isotropic inclusions with the negative intrinsic curvature which are depleted from the necks connecting the membrane protrusions/buds to the parent membrane, as can be clearly seen in Figure 2.

7. Conclusions

It is shown in this paper that the topological anti-defects may be created in the membrane necks if the thickness of the neck is small enough. It is further proposed that topological anti-defects in thin membrane necks, which connect the membrane buds (daughter vesicles) to the parent membrane, may induce the rupture of the neck and thus the fission of the membrane daughter vesicles. On the other hand, the formation of the neck is facilitated and energetically favored by orientational ordering and the accumulation of the anisotropic membrane components in the neck. This means that both processes, i.e., the formation and the thinning of the membrane neck, as well as the rupture of the neck are driven by the same mechanisms, i.e., orientational ordering and the accumulation of anisotropic membrane components in the neck.

Author Contributions

AI, VK-I, and HH initiated this study. SP wrote the Monte Carlo program and prepared MC figures. MF amended the numerical procedures in the MC program and produced the MC results. HH and LMr prepared the experimental figures. LMe calculated the nematic profiles in the neck regions. AI, VK-I, SP, HH, LMr, and LMe wrote the manuscript. All authors contributed to the article and approved the submitted version.

Funding

This project has received funding from the European Union's Horizon 2020 research and innovation programme under grant agreement no. 801338 (VES4US project) and from the grant nos. P2-0232, P3-0388, J1-9162, and J2-8166 from the Slovenian Research Agency (ARRS).

Conflict of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
