Spreading Kinetics of Herschel-Bulkley Fluids Over Solid Substrates

Introduction

Many studies have addressed the spreading of Newtonian and power-law fluids over solid surfaces by experiments, simulations, and theories [1–7]. For Newtonian fluids, Tanner law is considered to be the classic theory [3]. For power-law fluids, Starov built a hydrodynamic model for the spreading of a complete wetting case [4]. Wang experimentally investigated both complete wetting and partial wetting cases of spreading, which agreed with the theory proposed by Starov [5-6]. Carré and Eustach proposed a simplified theoretical analysis and experimentally observed the drop shape [7].

Besides power-law fluids, Bingham and Herschel-Bulkley fluids also belong to the common non-Newtonian type, which present yielding behavior. For Bingham fluids, the spreading dynamics both in impact and spin-coating cases have been analyzed in detail. In the impact case, the results indicated that the film shape mainly depends on initial yield stress, power-law index, and the impact force [8–13]. In the spin-coating case, the analysis showed that film thickness is not homogeneous, the yield behavior, power-law index, and the centrifugal force are the key factors on spreading dynamics [14–17].

Because of the complex rheological model of Herschel-Bulkley fluids, a minority of theories of complete wetting have been proposed. In this paper, we will theoretically analyze the spreading of Heschel–Bulkley fluids in a complete wetting case based on some proper assumptions. We begins with the simple spreading schematic of Newtonian fluids and the Navier–Stokes equation. According to the analytical approach of the spreading of power-law fluids, the film thickness equations are derived in both gravitational and capillary regimes and the dynamic contact angle is also discussed.

Assumptions

To simplify the problem, the following assumptions are made [18, 19]. 1) The spreading process belongs to the complete wetting case. 2) The fluids are incompressible, which will ensure the Navier-Stokes equation is workable. 3) The gas viscosity is ignored. 4) The film is much thinner than the horizontal length, so the flow can be converted into 2D. 5) The Reynolds number is small enough to ignore inertial influence. And 6) complete wetting is applied here to ensure a small contact angle.

Theory

The Constitutive Model of Herschel-Bulkley Fluids

The constitutive model of Herschel-Bulkley fluids is similar to Bingham fluids or power-law fluids. The specific constitutive equation is given as follows:

$\{\begin{array}{l}\tau ={\tau }_0+k{\dot{\gamma }}^n,\left|\tau \right|>{\tau }_0\\ \dot{\gamma }=0,\left|\tau \right|\le {\tau }_0\end{array}(1)$

where τ is shear stress, k is viscosity coefficient,$\dot{\gamma }$is the shear rate, n is the power-law index, and τ₀ is the initial yield stress.

Thin Film Equation

The spreading schematic of the advancing system of Newtonian or power-law fluids is shown in Figure 1. The derivation of the Herschel-Bulkley case was also started in Figure 1. In Figure 1, u is the horizontal velocity of the fluid, which is affected by time t and position x, z. U is the framing moving velocity of the contact line, θ(U) is the dynamic contact angle, and h is the height of film thickness of any position x.

FIGURE 1

FIGURE 1. Spreading flow schematic figure of Newtonian fluids and power-law fluids.

With the proposed assumption (3), the pressure along the z-direction will meet the following equation.

$\frac{\partial p}{\partial z}=-\rho g(2)$

Applying the Young-Laplace equation to the free surface (z = h), there is

$p=p_G+\sigma \left(\frac{1}{R_1}+\frac{1}{R_2}\right)\approx p_G-\sigma \frac{{\partial }^{2}h}{\partial x^2}(3)$

where p_G represents the atmospheric pressure and σ is surface tension.

Integrating Eq. (2) with respect to the boundary condition listed in Eq. (3), the pressure can be further calculated as

$p=\rho g(h-z)+p_G-\sigma \frac{{\partial }^{2}h}{\partial x^2}(4)$

When z = 0, the stress on the horizontal substrate can be obtained from Eq. (4) as

${\tau }_s=p{|}_{z=0}=\rho gh+p_G-\sigma \frac{{\partial }^{2}h}{\partial x^2}(5)$

Consequently, when the initial yield stress τ₀ is larger than τ_s, substantial flow will not occur. Thus the approximate condition for substantial flow is

$\left|{\tau }_{\text{0}}\right|<\rho gh+p_G-\sigma \frac{{\partial }^{2}h}{\partial x^2}(6)$

Substantial flow will be discussed below. Owing to the initial yield stress, there must be a yield surface at z = h₀. Thus the spreading zone will be divided into two zones, the significant shear exists only below the yield surface. The shear rate is zero at or above the yield surface. The viewpoint is consistent with the spreading of Bingham fluids proposed by Liu [20]. Therefore, the actual flow schematic of the advancing systems of Herschel-Bulkley fluids is shown in Figure 2. The dashed line separates the zone into sheared and yield zones respectively. The schematic figure is completely different from the Newtonian or power-law case.

FIGURE 2

FIGURE 2. The actual spreading flow schematic figure of Herschel-Bulkley fluids.

For the Navier–Stokes equation, it can be written as

$\frac{\partial p}{\partial x}=\frac{\partial }{\partial z}\left(\mu \frac{\partial u}{\partial z}\right)(7)$

where p is the pressure and x is the distance of one point from the z-axis. According to Eq. (1), when the stress is larger than the yield initial stress, the viscosity can be expressed as

$\mu =\frac{{\tau }_0}{\left|\partial u/\partial z\right|}+k{\left|\frac{\partial u}{\partial z}\right|}^{n-1}(8)$

Substituting Eq. (8) into Eq. (7), there is

$\frac{\partial p}{\partial x}=\frac{\partial }{\partial z}\left[\left(\frac{{\tau }_0}{\left|\partial u/\partial z\right|}+k{\left|\frac{\partial u}{\partial z}\right|}^{n-1}\right)\frac{\partial u}{\partial z}\right](9)$

Based on the boundary condition of no shear at the yield surface (h(x) = h₀, ∂u/∂z = 0), integrating Eq. (9) with respect to z and the following equation can be acquired.

$\frac{\partial u}{\partial z}=sign\left(-\frac{\partial p}{\partial x}\right){\left[\left|-\frac{1}{k}\frac{\partial p}{\partial x}\right|\left(h_0-z\right)\right]}^{\frac{1}{n}}(10)$

With the boundary condition of no-slip at the solid surface (z = 0, u = 0), the expression of u can be obtained by integrating Eq. (10).

$u=\frac{n}{n+1}{\left(\frac{1}{k}\right)}^{\frac{1}{n}}sign\left(-\frac{\partial p}{\partial x}\right)\cdot {\left|-\frac{\partial p}{\partial x}\right|}^{\frac{1}{n}}\left[{h_0}^{\frac{n+1}{n}}-{\left(h_0-z\right)}^{\frac{n+1}{n}}\right](11)$

Equation (11) shows that the maximum velocity u_p occurs at the yield surface z = h₀ that can be obtained as

$u_p=\frac{n}{n+1}sign\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right)\cdot {\left(\frac{1}{k}\right)}^{\frac{1}{n}}{\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right)}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}(12)$

When z > h₀, the velocity is still equal to the maximum velocity u_p. According to mass conservation, there is

$\frac{\partial h}{\partial t}+\frac{\partial q}{\partial x}=0(13)$

where q is the flow of fluids.

For Herschel-Bulkley fluids, q is made up of two parts as

$q={\displaystyle {\int }_0^{h_0}udz}+u_p(h-h_0)(14)$

The first term of the right side represents the shear zone below the yield surface and its detailed expression is

${\displaystyle {\int }_0^{h_0}udz}=\frac{n}{2n+1}\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}{\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right)}^{\frac{1}{n}}{h_0}^{\frac{2n+1}{n}}(15)$

Then the flow q will be acquired as follows:

$\begin{array}{l}q=\frac{n}{2n+1}\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}{\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right)}^{\frac{1}{n}}{h_0}^{\frac{2n+1}{n}}\\ +\frac{n}{n+1}\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}{\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right)}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}\left(h-h_0\right)\end{array}(16)$

In Fig. 2, the velocity along the x-direction is parabolic, which can also be explained by Eqs. (11)–(12). When it refers to the velocity, the case here is similar to classical Poiseuille flow. Both of them are driven by the pressure gradient, and they have the same initial and boundary conditions, thus the relationship between h and h₀ can be obtained based on our previous work [21–22] as

$h_0=h-\frac{{\tau }_0}{\left|\partial p/\partial z\right|}=h-\frac{{\tau }_0}{\rho g}(17)$

Substituting Eq. (17) into Eq. (16), a new formula of flow q is generated as

$\begin{array}{l}q=\frac{n}{2n+1}\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}{\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right)}^{\frac{1}{n}}{h_0}^{\frac{2n+1}{n}}\\ +\frac{n}{n+1}\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}{\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right)}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}\frac{{\tau }_0}{\rho g}\end{array}(18)$

Finally, substituting Eq. (18) into Eq. (13), the following equation is obtained as

$\begin{array}{l}\frac{\partial h}{\partial t}+\frac{n}{2n+1}\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}\frac{\partial }{\partial x}\left[{\left|\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right|}^{\frac{1}{n}}{h_0}^{\frac{2n+1}{n}}\right]\\ +\frac{n}{n+1}\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}\frac{\partial }{\partial x}\left[{\left|\sigma \frac{{\partial }^{3}h}{\partial x^3}-\rho g\frac{\partial h}{\partial x}\right|}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}\frac{{\tau }_0}{\rho g}\right]=0\end{array}(19)$

According to Eq. (16), the pressure mainly depends on the gravity and capillary forces. In the following part, two limiting regimes will be considered further. One is only the gravitational regime taken into consideration by ignoring the capillary force, ρgR²>>σ. The other is only the capillary force regime considered, ignoring the gravity, σ>>ρgR².

Gravitational Spreading Regime

The capillary force is ignored here, so Eq. (19) can be simplified into the following equation.

$\frac{\partial h}{\partial t}+\mathrm{sign}\left(-\rho g\frac{\partial h}{\partial x}\right){\left(\frac{\rho g}{k}\right)}^{\frac{1}{n}}\frac{\partial }{\partial x}\left[{\left|-\frac{\partial h}{\partial x}\right|}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}\left(\frac{n}{2n+1}{h}_0+\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right)\right]=0(20)$

When the contact line moves at velocity U, the above equation can be converted into the following form by introducing a new variable $\xi =x-Ut$.

$-U\frac{d{h}_0}{d\xi }+{\left(\frac{\rho g}{k}\right)}^{\frac{1}{n}}\frac{d}{d\xi }\left[{\left(\frac{d{h}_0}{d\xi }\right)}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}\left(\frac{n}{2n+1}{h}_0+\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right)\right]=0(21)$

Integrating the above equation with respect to ξ, there is

$U^n={\left(\frac{n}{2n+1}\right)}^n\frac{\rho g}{k}\frac{d{h}_0}{d\xi }{h}_0{\left(h_0+\frac{2n+1}{n+1}\frac{{\tau }_0}{\rho g}\right)}^n(22)$

With the boundary condition: ξ = 0, h = 0, Eq. (22) can be solved as

$\frac{1}{n+2}\left[{\left(h+\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right)}^{n+2}-{\left(\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right)}^{n+2}\right]-\frac{2n+1}{{\left(n+1\right)}^2}\cdot \frac{{\tau }_0}{\rho g}\left[{\left(h+\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right)}^{n+1}-{\left(\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right)}^{n+1}\right]={\left(U\frac{2n+1}{n}\right)}^n\frac{k}{\rho g}\xi (23)$

Equation (23) addresses the fact that film thickness in capillary spreading is determined by initial yield stress τ₀ and power index n.

Capillary Spreading Regime

In the condition, the gravitational action is ignored, then Eq. (19) can be simplified as follows

$\frac{\partial h}{\partial t}+\mathrm{sign}\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}\frac{\partial }{\partial x}\left\{{\left(\sigma \frac{{\partial }^{3}h}{\partial x^3}\right)}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}\left[\frac{n}{2n+1}{h}_0+\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right]\right\}=0(24)$

Introducing the above variable ξ and h₀ into Eq. (24),

$-U\frac{d{h}_0}{d\xi }+\mathrm{sign}\left(\sigma \frac{d^3{h}_0}{d{\xi }^3}\right){\left(\frac{1}{k}\right)}^{\frac{1}{n}}\frac{d}{d\xi }\left\{{\left(\sigma \frac{{\partial }^3{h}_0}{\partial {\xi }^3}\right)}^{\frac{1}{n}}{h_0}^{\frac{n+1}{n}}\left[\frac{n}{2n+1}{h}_0+\frac{n}{n+1}\frac{{\tau }_0}{\rho g}\right]\right\}=0(25)$

Integrating the above equation with respect to ξ,

$-U+\frac{n}{2n+1}{\left(\frac{1}{k}\right)}^{\frac{1}{n}}{\left(\sigma \frac{d^3{h}_0}{d{\xi }^3}\right)}^{\frac{1}{n}}{h_0}^{\frac{1}{n}}\left[h_0+\frac{2n+1}{n+1}\frac{{\tau }_0}{\rho g}\right]=0(26)$

Then it is supposed that $\frac{{\tau }_0}{\rho g}=\lambda h_0$, so Eq. (26) can be translated into

$U^n={\left[\frac{n}{2n+1}\cdot \frac{\left(2\lambda +1\right)n+\left(\lambda +1\right)}{n+1}\right]}^n\frac{\sigma }{k}\frac{d^3{h}_0}{d{\xi }^3}{h_0}^{n+1}(27)$

With the boundary condition: ξ = 0, h = 0, Eq. (27) can be solved as

${h_0}^{n+2}=\frac{k}{\sigma }{\left[U\frac{\left(2n+1\right)\left(n+1\right)}{n\left(n\left(2\lambda +1\right)+\left(\lambda +1\right)\right)}\right]}^n\left[\frac{{\left(n+2\right)}^3}{3\left(2n+1\right)\left|n-1\right|}\right]{\xi }^3\left(n\ne 1\right)(28)$

Further, the film thickness equation can be obtained by replacing h_0,

${\left(h-\frac{{\tau }_0}{\rho g}\right)}^{n+2}=\frac{k}{\sigma }{\left[U\frac{\left(2n+1\right)\left(n+1\right)}{n\left(n\left(2\lambda +1\right)+\left(\lambda +1\right)\right)}\right]}^n\left[\frac{{\left(n+2\right)}^3}{3\left(2n+1\right)\left|n-1\right|}\right]{\xi }^3\left(n\ne 1\right)(29)$

Based on Eq. (17), the variable λ can be calculated as

$\lambda =\frac{{\tau }_0/\rho g}{h-{\tau }_0/\rho g}(30)$

In this way, the equation of film thickness h can be obtained, which depends on the power index n and initial yield stress τ₀.

Dynamic Contact Angle

The inclination angle at x = ξ can be calculated by differentiating film thickness h as shown in Eq. (29) for the capillary spreading regime.

$\tan \theta =\frac{dh}{d\xi }=\frac{\frac{k}{\sigma }{U}^n\left[\frac{{\left(n+2\right)}^3}{\left(2n+1\right)\left|n-1\right|}\right]}{\left(h-{\tau }_0/\rho g\right){\left[\frac{n\left(n+1\right)h+n^2{\tau }_0/\rho g}{\left(2n+1\right)\left(n+1\right)}\right]}^{n-1}\left\{\left(n+2\right)\left[\frac{n\left(n+1\right)h+n^2{\tau }_0/\rho g}{\left(2n+1\right)\left(n+1\right)}\right]-\frac{n^2{\tau }_0/\rho g}{n+1}\right\}}{\xi }^2\left(n\ne 1\right)(31)$

In previous studies, many researchers found that the local microscopic contact angle can not be measured directly for boundary conditions. Thus dynamic contact angle θ is taken as the replacement, which is equal to the inclination angle at x = x_m. Furthermore, the dynamic contact angle can be obtained as

$\theta \approx \tan \theta =\frac{\frac{k}{\sigma }{U}^n\left[\frac{{\left(n+2\right)}^3}{\left(2n+1\right)\left|n-1\right|}\right]}{\left(h-{\tau }_0/\rho g\right){\left[\frac{n\left(n+1\right)h+n^2{\tau }_0/\rho g}{\left(2n+1\right)\left(n+1\right)}\right]}^{n-1}\left\{\left(n+2\right)\left[\frac{n\left(n+1\right)h+n^2{\tau }_0/\rho g}{\left(2n+1\right)\left(n+1\right)}\right]-\frac{n^2{\tau }_0/\rho g}{n+1}\right\}}{x_m}^2\left(n\ne 1\right)(32)$

To obtain Eq. (32), it is considered that when the angle θ is small enough, it is approximately equal to sin θ or tan θ.

Example

In a previous study [21, 22], the typical Herschel-Bulkley model was obtained as follows

$\{\begin{array}{l}\tau =3.899+1.103{\dot{\gamma }}^{0.633},{\tau }_0\ge 3.899\\ \dot{\gamma }=0,{\tau }_0<3.899\end{array}(33)$

The rheological figure is shown in Figure 3. The model was taken as an example to explain the spreading results.

FIGURE 3

FIGURE 3. The rheological model of Herschel-Bulkley fluids.

Figure 4 gives the film thickness in the gravitational regime. The area below the dashed line is the sheared zone. In Figure 5, the figure of the contact angle vs. the moving velocity at different film thicknesses is presented. It can be found that a thinner film will lead to a smaller contact angle.

FIGURE 4

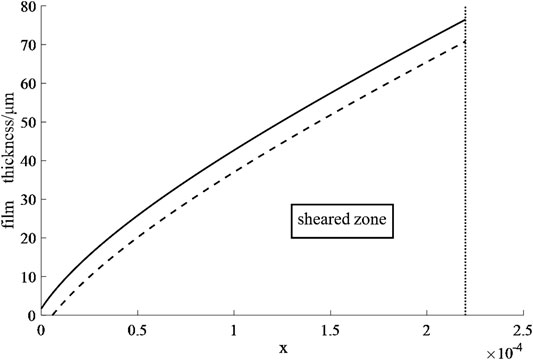

FIGURE 4. The figure of film thickness in gravitational regime (The detailed physical quantities are set as follows: ρ = 1950 kg/m³, n = 0.633, k = 1.103 Pa s^0.633, τ₀ = 3.899 Pa, g = 10 m/s². In Figure 4, U = 2*10⁻⁵ m/s, t = 0.3 s).

FIGURE 5

FIGURE 5. The contact angles at different film thicknesses.

Discussion and Conclusion

The spreading of Herschel-Bulkley fluids over solid substrates for a complete wetting case was theoretically studied here. The film thicknesses in both the gravitational and capillary regimes were derived and the dynamic contact angles were also explored. There was an obvious difference between other kinds of fluids (Newtonian fluids and power-law fluids). The flow was dramatically affected by the yield behavior of Herschel-Bulkley fluids. According to the analysis, only when the stress on the substrate was larger than the initial yield stress τ₀, would the flow be appreciable. Even if appreciable flow occurred, the spreading zone was also divided into two zones: one was the shear zone and the other was the yield zone. The dividing surface was named yield surface at z = h₀, which does not exist in common fluids such as Newtonian fluids or power-law fluids. In “Example” section, the detailed numerical examples are given to explain the results further.

It is noteworthy that when initial yield stress τ₀ = 0, the fluids become power-law fluids. The film thicknesses of the gravitational regime and the capillary regime will be obtained as follows

$h^{n+2}=\left(n+2\right)\frac{k}{\rho g}{\left(U\frac{2n+1}{n}\right)}^n\xi (34)$

$h^{n+2}=\frac{k}{\sigma }{\left[U\frac{2n+1}{n}\right]}^n\left[\frac{{\left(n+2\right)}^3}{3\left(2n+1\right)\left|n-1\right|}\right]{\xi }^3\left(n\ne 1\right)(35)$

Equations (34) and (35) represent the gravitational case and the capillary case, respectively. Also, the dynamic contact angle θ of the capillary regime will be

$\theta \approx \tan \theta =\frac{\frac{k}{\sigma }{U}^n\left[\frac{{\left(n+2\right)}^2}{{\left(2n+1\right)}^{1-2n}\left|n-1\right|}\right]}{\left(n+2\right)n^n{h}^{n+1}}{\xi }^2\left(n\ne 1\right)(36)$

Substituting Eq. (35) into Eq. (36), then the specific equation of the dynamic contact angle can be obtained as

${\theta }^{n+2}=\left(\frac{k}{\sigma }{U}^n\right)\left[\frac{3^{n+1}{\left(n+2\right)}^{1-n}}{{\left(2n+1\right)}^{1-n}\left|n-1\right|n^n}\right]{x_m}^{1-m}\left(n\ne 1\right)(37)$

It can be found that all of them are in agreement with the results obtained by Wang [5]. Another noticeable feature of the analysis is that some of the equations have a collective limitation $n\ne 1$, which means the theoretical results are not applicable for Bingham fluids, although the fluid corresponds to it when n = 1.
