Abstract
Introduction: In recent years, elastography has become a widely accepted methodology to assess the longitudinal shear elastic modulus of skeletal muscle. Ultrasound shear wave elastography is the gold standard used for such a purpose. However, its low sample rate (1–2 Hz) and the impossibility of being used in several muscles simultaneously limit potential biomechanical applications. In this work, we overcome such limitations by using a surface wave elastography method (NU-SWE).
Methods: The NU-SWE comprises a wearable device suitable for measuring several muscles simultaneously. Elasticity can be measured at high-frequency rates (∼15 Hz), by propagating several pulse trains of low-frequency (∼100 Hz) superficial waves separated by a short time interval. These pulses propagate along the medium surface and are recorded by a linear array of vibration sensors placed on the skin of each measured muscle. In this context, this work carried out a proof of concept, showing how NU-SWE enables performing experimental protocols previously impracticable with ultrasound elastography. Thus, we measured the longitudinal shear elasticity of the biceps brachii and brachioradialis muscles simultaneously at 15 Hz during isometric elbow flexions exerted at different torque development rates. Furthermore, for comparison, we measured the electromyographic activity of both muscles.
Results: Our results show that the maximum elasticity reached by the brachioradialis increases with contraction rate, while the biceps brachii behaves inversely.
Discussion: This study provides new insights concerning muscle synergism, evidenced by changes in muscle elasticity during torque production. More generally, it shows that NU-SWE could help widen elastography-driven research in biomechanics.
1 Introduction
Soft biological tissues are typical examples of soft solids. Their shear elastic modulus () is a mechanical parameter that characterizes the stiffness of the media and provides relevant information about the physiological processes related to their intrinsic mechanical state [1]. Particularly, in the skeletal muscle, as their functions are closely related to the change in its mechanical properties, the reliable measurement of its shear elastic modulus is of great interest within biomechanics and related fields. In this regard, in the last few years, elastography has become a helpful tool for measuring muscle stiffness in vivo and non-invasively.
Elastography has been initially employed as a complementary tool for the medical diagnosis of different diseases associated with the change of soft tissue elasticity, such as liver fibrosis and breast tumors [2–5]. The shear wave elastography (SWE) methods, such as transient elastography (TE) and supersonic shear imaging (SSI), have been the gold standard methodology for such a purpose [6, 7]. The SSI is based on the TE technology but replaces the external vibrator with acoustic radiation pressure to excite shear wave propagation. Recently, SWE methods have also begun to be adopted as the reference methodology to assess skeletal muscle elasticity in vivo. This has provided a novel way to measure the change in the mechanical properties of such tissue, thus driving a new approach in the studies on muscle biomechanics. In this sense, previous works have addressed complex biomechanical problems by using SWE, such as the relation of muscle shear elasticity with joint angle, contraction intensity, and electromyography (EMG) activity level [8–16]. Other works have used SWE methods to characterize, both in normal and fatiguing conditions, the load sharing, force production, and the dynamics of muscle contraction of the synergistic muscles by measuring the change in its shear elastic modulus [9, 13, 17–19]. Likewise, SWE has also been applied to assess differences in passive muscle shear elasticity after a force training program of trained vs non-trained subjects, the passive behavior of individual muscles in different stretching positions, and regional differences in muscle elasticity after eccentric exercise [20–23]. On the other hand, the application of SWE in skeletal muscle is also being considered for its clinical use in sports medicine [24]. The main advantages of the SWE methods are that they combine high-frequency ultrasonic waves (within the order of MHz) with low-frequency waves (100–1,000 Hz). As ultrasound imaging utilizes pulsed waves of several MHz of central frequency, their wavelength in tissues (assuming the sound speed is 1,500 m/s) is sub-millimeter-sized. The spatial resolution of the imaging system is limited by diffraction to the order of the wavelength. Therefore, using high frequencies (MHz) allows for high spatial resolution. On the other hand, the elasticity contrast in the image is not necessarily related to the acoustic impedance but to Young’s modulus of the material. Low-frequency waves are sensitive to changes in Young’s modulus since they propagate mainly as shear waves. In this way, SWE methods exhibit high spatial resolution (<1 mm) and good contrast in the characterization of shear elastic modulus [25]. However, the proper application of SWE methods for biomechanical research needs some infrastructure, such as those found in a clinic or laboratory. Furthermore, its relatively high cost is a limiting factor for clinics and laboratories having low resources.
As an alternative to the SWE, other elastography methods based exclusively on low-frequency (∼100 Hz) surface waves propagation have recently emerged [26–31]. By eliminating ultrasound frequencies, the spatial information is lost, so it is not possible to construct an elastic map of the medium. However, the information regarding the elasticity is preserved, so a numerical value about the mean elasticity of the tissue in a region of interest (ROI) can be obtained. In general terms, these methods record the velocity of the surface waves by measuring the surface wave propagation using either laser vibrometry or contact sensors. Some authors assume a Rayleigh wave model for the surface waves [32]. In this case, the measured velocity has a simple relation to the shear elastic modulus of the medium. However, since typical values of shear wave velocity in muscles at rest range between 2–4 m/s, If the excitation frequency is 100 Hz, the shear wavelength is between 2 and 4 cm. This value is of the same order of the muscle depth. Therefore, the muscle cannot be assumed as a semi-infinite but a bounded one, so guided wave propagation takes place. In order to retrieve the correct value for the shear wave velocity, a guided wave propagation model is needed. Besides, the wavefield is usually measured in the near-field of the source. Those combined effects introduce biases in the estimation of the shear elastic modulus [33]. In this regard, Benech et al. [34] developed a non-ultrasonic surface wave elastography (NU-SWE) method by designing new algorithms that correct the incidence of such effects on the elasticity estimates. This method has the advantages of being small, portable, low-cost, and easy to manipulate. Their first application in skeletal muscle was made by Grinspan et al. [25], who assessed the relationship between the change in muscle elasticity, joint torque, and the EMG activity level. This work showed analogous results to those obtained with SWE, thus showing the potential utility of the NU-SWE for biomechanical research.
SWE devices for clinical use have a sampling rate between 1 and 2 Hz. Due to this, experimental protocols must consider slow and controlled long-time tasks (for example, 20–30 s) to obtain enough data and perform a proper analysis. Thus, for example, it is currently not possible to assess the change in muscle elasticity for different contraction rates, as is possible for other related variables such as EMG activity. On the other hand, surface wave methods do not need to retrieve the low-frequency field from speckle tracking algorithms, on which SWE methods are based for calculating the displacements [35, 36]. In addition, they do not measure bulk wave propagation but only the field at the surface of the muscle. Thus, it is possible to increase the sampling rate by sending several short pulses and storing the field for post-processing.
In this context, the present work shows an updated version of the NU-SWE elastography, which overcomes the previous limitations of elastographic methods for the biomechanical study of skeletal muscle. Specifically, this version of the NU-SWE comprises a free-hand device that can measure the shear elasticity without applying pressure on the medium (as with the US probe), in more than one muscle simultaneously and at a higher sample rate. Thus, we applied these new features of the method to characterize the change of the shear elasticity of the biceps brachii (BB) and brachioradialis (BR) muscles during the execution of isometric flexions of the elbow joint at different contraction velocities. We also measured the EMG activity of both muscles during such tasks. This allowed us to account for the temporal dependence regarding the relationship between the elastic and electric behavior of these muscles during their synergistic action, which are emergent properties derived from the new measurement capabilities of the updated NU-SWE method.
2 Materials and methods
2.1 Subjects
Seven healthy male volunteers participated in the study (age 25.70 ± 3.20 years, height 177.90 ± 6.28 cm, weight 85.0 ± 11.72 kg). They were informed about the methods, procedures, and the purpose of the study. All participants provided their written informed consent. The experimental design of the study was conducted according to the last version of the Helsinki statement and was approved by the Ethical Committee of the Faculty of Medicine (UdelaR, Uruguay, File No. 071140–001398–11).
2.2 Instrumentation
2.2.1 Ergometry
A research isokinetic dynamometer (Biodex System 4; Biodex Medical, Shirley, NY) was used to measure the angle and torque production of the elbow joint. During the data collection, the volunteers were positioned with their right shoulder and elbow flexed at 90° and the forearm supinated. The elbow joint was aligned coaxially with the axis of the dynamometer (Figure 1).

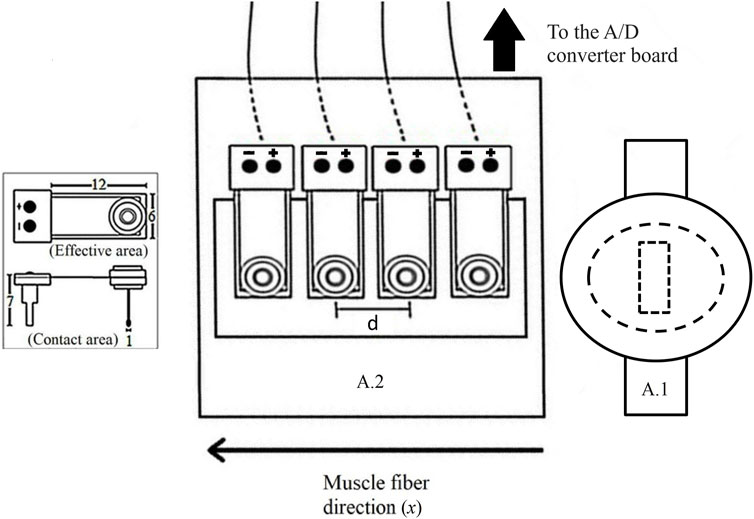

FIGURE 1
2.2.2 Non-ultrasound surface wave elastography
The NU-SWE method consists of estimating the phase velocity of the low-amplitude and low-frequency surface waves (∼100 Hz), by exciting their propagation at the free surface of the muscle and recording it through equally spaced contact vibration sensors (Measurement Specialities, MINISENSE 100NM, Figure 2). Thus, the shear wave velocity is obtained, and the shear elastic modulus can be calculated from it.

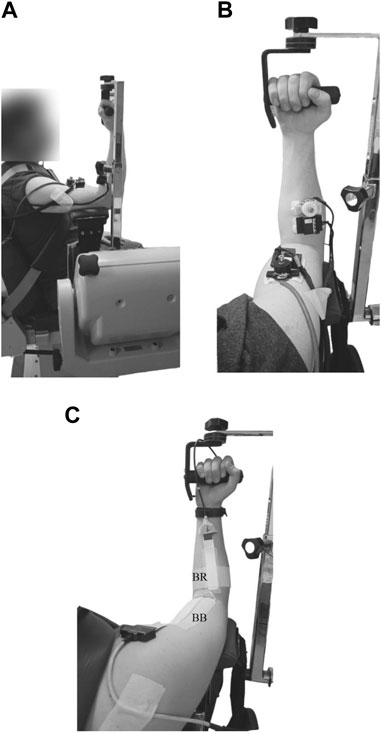

FIGURE 2
A detailed explanation about the basis of the NU-SWE method can be found in Benech et al. [33, 34] and Grinspan et al. [25]. Briefly, the measurement device is composed mainly of an external wave source and a linear array of four contact vibration sensors (Figure 1). Besides, an analog-to-digital (A/D) converter board (NI-USB 6009; National Instruments), an audio amplifier (needed to record the surface waves with a good signal/noise ratio), and a computer complete the experimental setup. The external source vibrates normally to the free surface of the muscle by delivering a pulse train, each consisting of a few cycles of a sinusoid with a central frequency varying between 50–250 Hz (Figure 2B, Figure 3A). In this way, of the three spatial components, the vertical component of the surface wave velocity is mainly excited. Such a component is recorded by the linear array of sensors, each constituted by a piezoelectric PVDF flexible film with a mass and a small extension attached to it. The mass is added to change the frequency response of the sensors so as it is close to the one used in the experiments [33]. The extension is added so as the contact area of the sensors (∼1 mm2) is small enough to consider them as point sensors avoiding diffraction effects at the reception [26, 28]. According to this, the sensors are arranged on a plate that holds them on the medium surface in the correct configuration by adhesive patches, without needing external manipulation during the measurement. In this work, we placed two NU-SWE devices on the right upper extremity of the volunteers to simultaneously measure the elasticity of BB and BR muscles (Figures 2A, B). In the BB, the device was placed at 70% of the arm length distal to the acromion, while for the BR it was placed at 35% of the forearm length from the elbow. As the last step of the data acquisition, the vibration is captured sequentially by the sensors, digitized by the A/D converter board, and then transferred to a computer for processing.

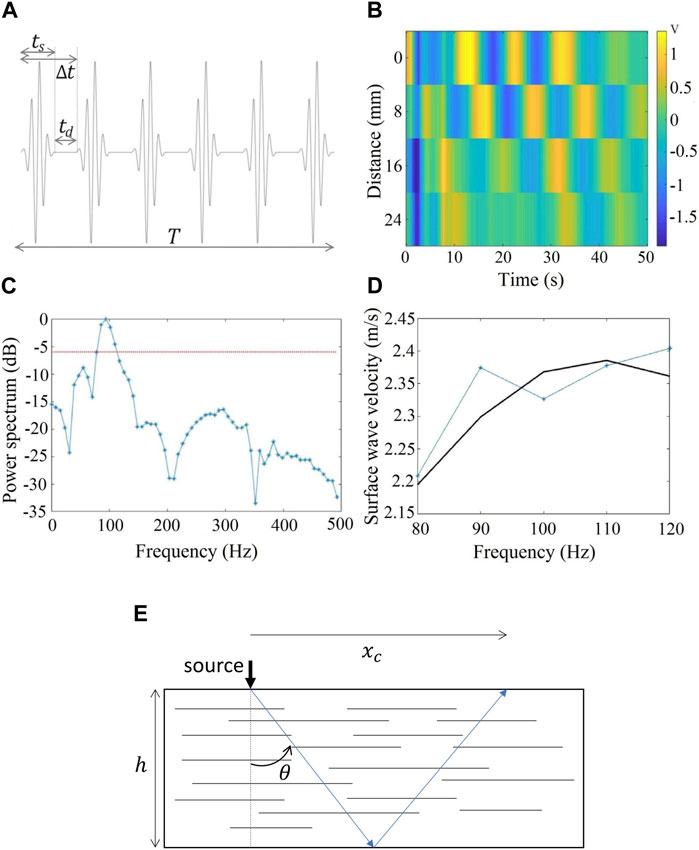

FIGURE 3
The data processing of the NU-SWE involves the use of inversion algorithms designed to correct the incidence of the guided wave propagation and near-field effects [25, 33, 34]. Thus, the method is able to retrieve a reliable shear elasticity estimation of the muscle by computing an unbiased value of the shear wave velocity (). As is usual in elastography, the muscle is considered as a transversely isotropic material [10, 14]. In this way, the longitudinal shear elastic modulus () is related to propagating in the muscle fibers direction with perpendicular polarization () [34]. In addition, in elastographic studies, the muscle is usually assumed as a purely elastic material [6, 8, 10, 14, 37, 40–42, 38, 39]. This hypothesis is supported by several works that justify the neglect of viscous effects in muscle elastography [43–45]. Thus, as with SWE, in the NU-SWE the longitudinal shear elastic modulus is calculated through through Eq. 1:where is the muscle density (1,000 kg/m3).
In order to be able to follow the elasticity changes in muscles during tasks (see Protocol), we used the excitation scheme displayed in Figure 3A. A 4-cycle sinusoidal pulse of 100 Hz central frequency is emitted. The sinusoidal pulse is modulated with a Gaussian function to minimize the transient behavior of the source at the start and the end of the signal [34]. The time duration of this signal is 40 m. Then, a rest time is introduced before sending the next pulse with the same characteristics as the previous one. This procedure is repeated until the total time of the experiment is reached. The rest time is introduced to avoid interference between the direct and reflected waves. Thus, the time between two consecutive measurements is , and therefore, the elasticity sampling frequency is . A trade-off exists between the sampling frequency and the accuracy of the shear wave speed estimation. If is decreased, the sampling frequency increases but the signal contains direct and reflected waves, introducing a bias in the estimation of the phase speed. On the other hand, if is increased, the reflection bias is avoided but the sampling frequency may be too low to follow the changes occurring during the specified task to the volunteer. In this work, we found empirically by trial and error, that a 15 Hz sampling frequency (i.e., ) is a compromise value that allow us to follow the elasticity changes with little bias in the phase speed estimation.
Figure 3B displays an example of the received signals in the four sensors for a single emitted pulse. The distance between sensors is 8.0 mm (Figure 1). A time delay is clearly observed between sensors, indicating a propagating wave. Figure 3C shows the power spectrum of the received signal. The center frequency is around 100 Hz as expected and its -6 dB bandwidth (red dotted line in the figure) spans from 80 to 115 Hz. To estimate the shear wave velocity () we compute the phase velocity of the surface wave for each frequency within the bandwidth. Due to interference between different surface waves, is a function of frequency [33, 34]. For instance, this curve can be modeled as the interference of the Rayleigh wave and the leaky surface wave which arises from the complex roots of the Rayleigh secular equation (46) and (47). This last wave is a near-field wave with exponential decay. Its characteristic propagation distance is of the order of one shear wavelength. Figure 3D displays the fit of the experimental values of with the theoretical model given in [34]. Briefly, the phase velocity is computed aswhere is the phase of the signal and is the horizontal distance. Eq. 2 is used to compute the phase velocity for each frequency within the bandwidth of the signal so a dispersion curve is obtained. For a low-frequency excitation, most of the energy of bulk waves propagates as shear waves. Due to the large difference between the velocities of compressional and shear waves, there is no mode conversion in boundary reflection. Thus, the shear waves reflect back as a shear wave. Besides, for normal excitation, there is a directivity pattern for shear waves at an angle with respect to the normal (Figure 3E) [34, 48]. Therefore, if the thickness of the muscle is , there exists a distance where only surface waves propagate given by Eq. 3:
If the surface wavefiled is measured at a distance , the dispersion curve is due to interference between the Rayleigh and the leaky surface wave. For transversely isotropic solids, the directivity angle is . The mean thickness of each muscle is 3.5 cm for the BB and 2 cm for the BR [19]. Therefore, 12 and 7 cm respectively. Thus, within our simplified model, the vertical component of surface wavefield for of a monochromatic wave is given by:where is the Rayleigh wavenumber, is the amplitude of the Rayleigh wave, is the relative amplitude of the leaky wave with respect to the Rayleigh wave and are the imaginary and real part of the leaky wavenumber respectively. The phase of the field of Eq. 4 is given by Eqs 5, 6:where
Therefore, the phase velocity is given bywhere the prime indicates derivative with respect to . Figure 3D displays the experimental values of and the fit with Eq. 7. The output value in this example is .
2.2.3 Electrode placement, EMG recordings and signal processing
Adhesive arrays of sixteen, silver-bar electrodes (8 mm inter-electrode distance; Spes Medica, Battipaglia, Italy) were used to acquire surface EMGs from the biceps brachii, and adhesive arrays of eight, silver-bar electrodes (0.5 mm inter-electrode distance) for the brachioradialis. Firstly, for the BB, the proximal and distal muscle boundaries were identified using ultrasound equipment (2–10 MHz linear transducer; v.11 Supersonic Image, Aix-en-Provence, France). The eighth electrode of the 16 array was positioned at 50% of the length of the biceps brachii (Figure 2C). For the brachioradialis, the superior and inferior boundaries were identified using the same ultrasound equipment. The fourth electrode of the 8 array was positioned at 50% of the muscle length (Figure 2C).
The electrode-skin contact was ensured with conductive paste (AC cream, Spes Medica, Genova, Italy) and the reference electrode was positioned in the olecranon and radium styloid process. Data was collected in monopolar derivation and sampled at 2048 samples/s using a 12-bit A/D converter, with 5 V dynamic range. Furthermore, EMGs were amplified by a 2,000–10,000 variable factor using a 10–900 Hz bandwidth amplifier (CMRR >100 dB; EMG-USB2, OT Bioelettronica, Turin, Italy).
All monopolar EMGs were filtered with a 4th order, bandpass filter (Butterworth, 15–350 Hz cut-off frequencies). After that, the root mean square (RMS) value, with 250 m window size, was computed separately for each pair of electrodes, resulting in 15 differential channels for BB and 7 for BR.
2.3 Protocol
Initially, the volunteers performed two maximal isometric voluntary elbow flexions (each lasting 5 s and resting 120 s between them) with the shoulder and elbow flexed at 90° to determine the maximal voluntary contraction (MVC) torque. The highest torque value was used to normalize submaximal contractions. Both for the EMG and the NU-SWE measurements, volunteers were asked to perform eight linear torque ramps (120 s rest between tasks) of isometric elbow flexion from 0%–40% of MVC over 5, 10, 15, and 20 s (twice each). In this way, depending on the task, the %MVC increased at a rate of 8, 4, 2.67, and 2 %MVC/s, respectively. Since there was not enough space for the NU-SWE device after placing the EMG electrode arrays on the surface of BB and BR muscles, the NU-SWE and the EMG measurements were performed in separate trials. This also avoided the possible contamination of the EMG signals by the surface vibration artifacts. In order to correctly execute the torque ramps, they had to follow the path indicated on a monitor put in front of them. The of BB and BR muscles was measured simultaneously at 15 Hz during the execution of the tasks in separate trials and in random order. Likewise, the EMG activity of both muscles was also measured in the same way. During measurements, the NU-SWE device and the EMG electrodes remained fixed on the muscle belly and carefully aligned with respect to the orientation of the muscle fibers. They were placed on the muscle belly, at 70% of the arm’s length distally from the acromion for the BB and 35% of the forearm length distally from the elbow for the BR. To guarantee repeatability concerning the locations of the devices between trials, these were marked using a waterproof pen.
2.4 Data analysis
Since the exploratory nature of the present study, we considered exclusively the peak values of the and EMG RMS curves, which occur near the end of the ramps (∼40% MVC) for both variables. If the data exhibited good intra-repeatability between both trials for all subjects (see Statistics), the analysis was performed based on the corresponding mean values and the standard deviations of such variables for each condition (5s, 10s, 15s, and 20s). The EMG RMS values were normalized according to the mean activity of the highest amplitude recorded during tasks, for each muscle. For the BR it was on the second trial of 5 s, and for the BB on the second trial of 20 s.
2.5 Statistics
To assess the intra-repeatability between both trials for each condition, we calculated the intraclass correlation coefficient (ICC) for each muscle from the peak values of and RMS EMG obtained in all volunteers. Besides, a two-sample t-test for difference of means was carried out in order to compare the results of the peak and RMS EMG values vs task duration at the inter-muscle and the intra-muscle levels. The level of significance was set at p < 0.05.
3 Results
As is shown in Table 1, the ICC values obtained for BB and BR muscles denote good reproducibility between the peak measured in both trials for each condition. In this sense, the averaged values of the peak and EMG RMS activities from both trials are representative of each task. Therefore, in what follows, the analysis is performed based on such mean values for both muscles in each condition (, , ).

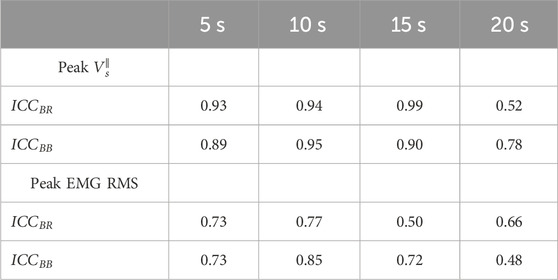

TABLE 1
| 5 s | 10 s | 15 s | 20 s | |
|---|---|---|---|---|
| Peak | ||||
| 0.93 | 0.94 | 0.99 | 0.52 | |
| 0.89 | 0.95 | 0.90 | 0.78 | |
| Peak EMG RMS | ||||
| 0.73 | 0.77 | 0.50 | 0.66 | |
| 0.73 | 0.85 | 0.72 | 0.48 |
ICC coefficients calculated from the peak and EMG RMS values obtained for both trials of each task in the BB and BR muscles of all subjects.

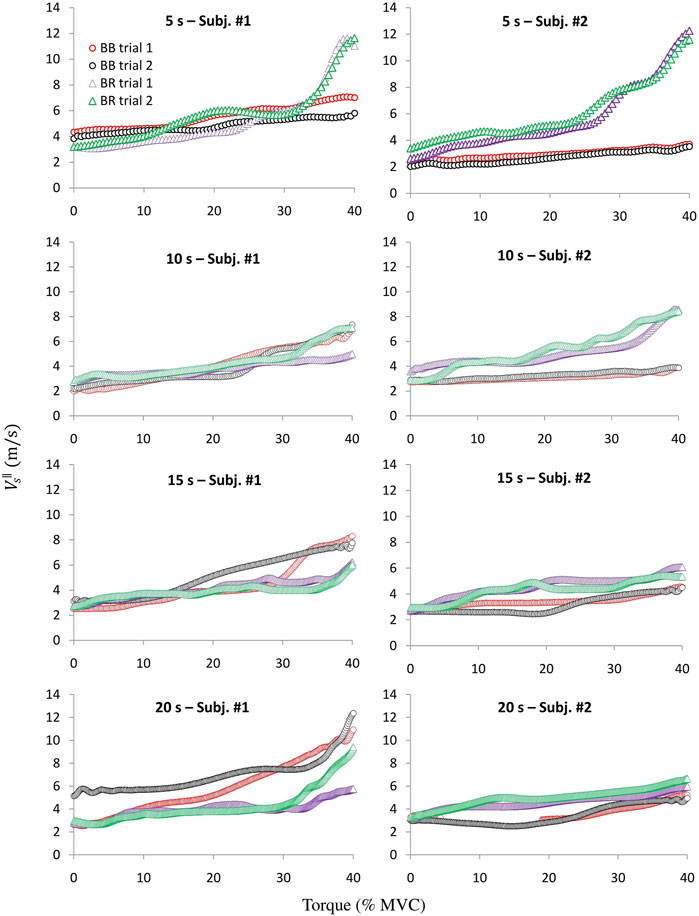

Figure 4 shows individual curves of obtained simultaneously in BB and BR for two volunteers in each condition. In addition to having been obtained simultaneously for each muscle, the values were measured with a sufficiently temporal resolution, thus allowing an adequate characterization of the contractions during the execution of each task. As is observed for both subjects, when the task duration is shorter, the peak of BR reaches higher values than BB. As time increases, the peak of BR decreases while those of BB increase. In this way, for tasks of longer duration, the relative magnitude of the peak values tend to invert with respect to tasks performed in shorter times.
FIGURE 4
Comparing the values at the intra-muscular level, the results for the BB and BR muscles of the entire data set behaved in the same way. Thus, the t-test revealed the existence of significant differences between the and values obtained between the ramps of 5 vs 15 and 20 s (p = 0.04 and 0.03, respectively, for BR; p = 0.02 and 0.01, respectively, for BB), not being significant between 5 vs 10 s, 10 vs 15 s, 10 vs 20 s, 15 vs 20 s (p = 0.12, 0.29, 0.25, 0.44, respectively, for BR; p = 0.05, 0.32, 0.09, 0.16, for BB). On the other hand, inter-muscular comparisons showed the existence of significant differences between the and values for the 5, 10, and 15 s tasks (p = 0.00, 0.00 and 0.04, respectively), being not significantly different for the 20 s task (p = 0.29). All these results are summarized in Table 2 and Figure 5.

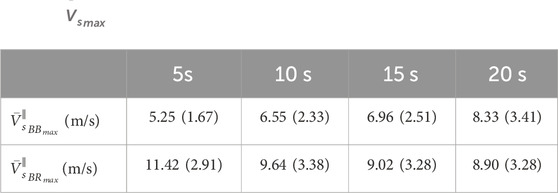

TABLE 2
| 5s | 10 s | 15 s | 20 s | |
|---|---|---|---|---|
| 5.25 (1.67) | 6.55 (2.33) | 6.96 (2.51) | 8.33 (3.41) | |
| 11.42 (2.91) | 9.64 (3.38) | 9.02 (3.28) | 8.90 (3.28) |
values and standard deviation (between parentheses) for BB and BR muscles obtained from both trials of each task in all subjects.

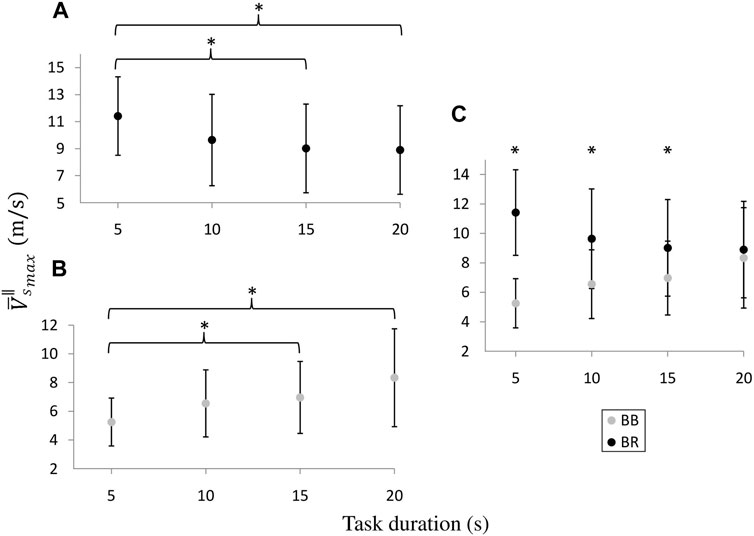

FIGURE 5
The normalized and activities showed the same behavior as the and . As seen in Figure 6, for each condition, such normalized values decreased and increased with task duration, for BR and BB, respectively. Nevertheless, the results of the t-test did not show significant differences at the intra-muscular level concerning the normalized (p = 0.37, 0.20, 0.20, for 5 vs 10, 15, 20 s, respectively; p = 0.32, 0.31, for 10 vs 15 and 10 vs 20 s, respectively; p = 0.48, for 15 vs 20 s). The normalized only showed a significant difference between the values at 5 vs 20 s (p = 0.03), while this was not observed for the other inter-muscle comparisons (p = 0.21 and 0.07 for 5 vs 10 s and 5 vs 15 s, respectively; p = 0.22 and 0.13, for 10 vs 15 and 10 vs 20 s, respectively; p = 0.37, for 15 vs 20 s). At the inter-muscular level, significant differences were found between the normalized and for 5 s (p = 0.03), while no significant differences were found for 10, 15 and 20 s (p = 0.19, 0.36, 0.24, respectively).

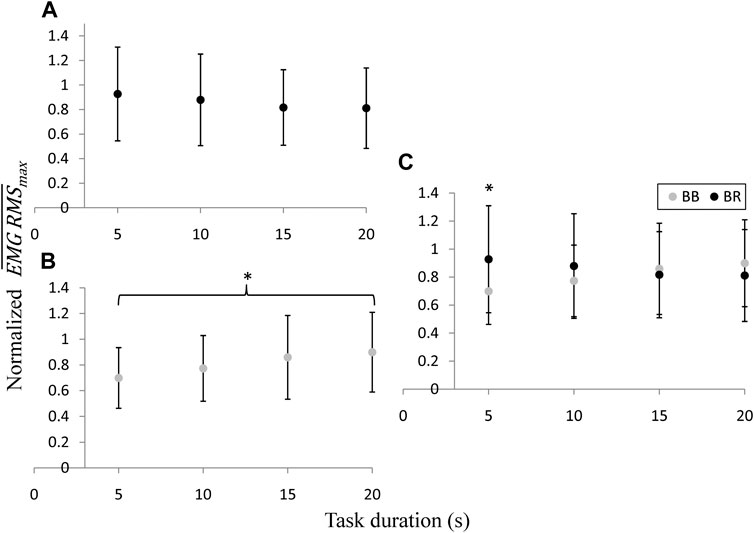

FIGURE 6
4 Discussion
The purpose of this work was to show the performance of the updated version of the NU-SWE method and the novel measuring capabilities that arise from its new features. In this regard, the work showed that this method is able to measure muscle elasticity in experimental conditions that have been impracticable with the current ultrasonic and low-frequency elastographic methods. In this way, interesting mechanical properties of skeletal muscle emerged from using this version of the NU-SWE. Therefore, the results of the present study could be a first step in order to continue delving into the knowledge of muscle biomechanics based on the application of elastography.
The results of the isometric flexion ramps performed up to 40% MVC in 20 s are the most adequate to compare the results of the previous studies regarding the present work. In this task of our protocol, the contraction rate was 2% of MVC/s, being comparable to most of the biomechanical studies performed in skeletal muscle with others elastographic methods. In these conditions, different works have reported values for the BB and BR muscles ranging from ∼10–150 and 5–60 kPa, respectively, between 0%–40% MVC, both using SWE as well as the previous version of NU-SWE [12, 14, 15, 18, 19]. These values agree, both qualitatively and quantitatively, with the range of shear velocities shown in Figures 4, 5.
The tasks performed in 5, 10 and 15 s correspond to rates of contraction of 8, 4% and 2.67% MVC/s, respectively. These rates are higher than those usually induced by the protocols that can be applied with SWE, which must be slow and controlled contractions due to their limited sample frequency (∼1–2 Hz). Particularly, the measurements of the present work were carried out at 15 Hz. No previous work has described muscle elasticity measurements at such a sampling frequency, either with surface wave elastography or shear wave elastography (SWE). In our previous work with NU-SWE, the highest sampling rate reached in the measurements was 1.4 Hz [25]. On the other hand, the sampling rates reported in the literature regarding the application of the SWE methods in skeletal muscle ranges between 1–2 Hz. The SWE method generates a “push" over most of the tissue using extended sonification times of approximately 200 μs each. The dimension of a typical region of interest (ROI) for imaging elasticity in muscles is 2–3 cm wide and 2–3 cm deep. Imaging this area requires several pushes, not less than 8 (4 in lateral dimension and at least 2 in-depth). Therefore, only the pulsation time lasts approximately 1 m. The duration of the ultrafast sequence to track the propagation of the shear wave depends on the depth of observation of the ROI, but the typical PRF is between 3 and 5 kHz, adding times on the order of 300 μs to each frame. If this information were to be stored in memory for offline processing, the theoretical sampling rate is on the order of 102 Hz. However, this theoretical limit cannot be reached in practice, as it would imply sending pushes every ∼0.01 s, which could seriously damage the transducer. Besides, in commercially available devices, the time required for memory transfer and online processing for real-time display eventually reduces the frame rate to values of 1–2 Hz. To our knowledge, there are no commercial SWE devices with elasticity frame rates higher than this, so the updated version of the NU-SWE represents a novel alternative in this regard.
The above allows performing protocols involving faster contractions, thus emerging novel muscular elastic behaviors as those described by our results. In this sense, our measurements showed, both at the individual and average level, a temporal dependence regarding the elastic behavior of the BB and BR muscles during the isometric flexion of the elbow joint. Such temporal dependence was manifested both at the inter-muscular and intra-muscular level, through the differences in the peak and the values. While the maximum shear elasticity reached by the BR decreases with the task duration, the opposite behavior was observed in the BB (Figures 4, 5). Thus, at the intra-muscle level, significant differences were found between the values of the tasks executed in 5 s compared to 15 and 20 s. On the other hand, the inter-muscle comparison showed that the peak values of BB and BR were significantly different between all conditions, except for the 20 s-task, which agrees with the results of the previously referred works. As far as we know, these behaviors have not been previously described with elastography. Since the muscle elasticity reflects the force exerted by the muscle, the above may have important connotations concerning the motor control of the synergistic elbow flexor muscles and the temporal dependence of the load sharing between them [18, 19].
As is depicted in Figure 6, the measurements of the EMG RMS showed the same behavior pattern as the elastography concerning the average peak activity as a function of the task duration, exhibiting a correlation factor of 0.96 and 0.95 for the BB and BR, respectively. While the normalized tends to decrease as the total time of the flexion ramps increases, the normalized exhibits the opposite trend. This is consistent with previous works that have shown the close relationship between the muscle shear elastic modulus and their EMG activity [12, 14–16, 25]. Such studies have suggested the validity of the linear model to describe this relationship, during the isometric flexion of the elbow flexors according to similar contraction intensities to those of the present work. Only the inter-muscular comparison between and for the 5 s-task exhibited significant differences. In addition to their corresponding results of for such tasks (Figure 5), this clearly reflects the biomechanical role of the BR muscle in stabilizing the elbow joint at fast contraction velocities, through the coaptation of radius head to the capitulum of the humerus, offering an adequate support for the subsequent action of the BB. This process tends to be balanced out at smoother contractions as task execution time increases. At the intra-muscular level, only the mean activities of the BB muscle between the 5 and 20 s-tasks were significantly different. This denotes the functional variability of the BB concerning its isometric contraction at different velocities, agreeing with the corresponding results of . In the context of our study, the absence of significant differences in the inter and intra-muscular comparisons between the values of the normalized and , compared to the respective comparisons of , does not necessarily indicate the absence of differences in peak EMG RMS activity in such situations. The above could have been conditioned by the limited size of the sample since specific variations in the measurements can significantly affect their standard deviation. Besides, the EMG signals of the BB and BR muscles in each condition may also have been affected by the crosstalk of other adjacent muscles [49, 50]. This phenomenon does not affect the elastographic measurements since their nature is mechanical and not electrical, which is a possible cause of the discrepancy in the results. In this sense, it has been proposed that elastography can help to reconsider our current understanding of muscle co-contraction [50, 51]. Particularly, the updated version of the NU-SWE provides the opportunity to add the simultaneity and the temporal dimension to this approach, unlike other elastographic methods.
All of the above indicates that mean elasticity measurements using surface waves add advantageous features in biomechanical research. The device used in this work is portable, low cost and easy to handle. It allows measuring on several muscles simultaneously and at a high sample rate. If a proper strategy for locating and positioning the wave source and sensors is followed, no significant errors in the results occur due to the placement of the device. This is supported by the repeatability analysis performed in our previous work with NU-SWE where, although the manipulation of the wave source during measurements could have introduced variation between measurements, it was not reflected in the results [25]. In this sense, the new configuration of the NU-SWE employed in this work overcame such a limitation, adding even more certainty regarding the reproducibility of the measurements. Concerning the relative alignment of the array of sensors and the fibers' orientation, it is important to highlight that, as the BB and BR are parallel and fusiform muscles, knowing their anatomical location on the arm is sufficient to identify the fiber orientation accurately. However, in pennate muscles, identifying the fibers' orientation before measurements by B-mode ultrasound and aligning the sensors accordingly, may be helpful to avoid biases related to wave propagation in more complex media.
Although in the present study, the selected sample rate was 15 Hz as it was considered adequate to characterize the contractions of the different tasks, this can be even higher by adjusting the between signals according to the requirements. Thus, the updated version of the NU-SWE allows obtaining curves with higher temporal resolution, being able to be used both for isometric estimates, as in the present work, and eventually also for measurements in dynamic conditions (e.g., walking, jumps). In this way, the advantageous features of the present version of the NU-SWE are similar to the low-frequency method proposed by Martin et al. [31] and Keuler et al. [52] to measure elasticity in tendons. However, this method cannot measure skeletal muscle elasticity as it is based on the Timoshenko beam model, which does not apply to this tissue [53, 54]. On the other hand, it is important to point out that the NU-SWE has been preliminary validated regarding the SWE methods in phantoms and beef samples [28, 34, 55]. Further validation in skeletal muscle in vivo is being carried out in our laboratory with promising results. Therefore, we think NU-SWE provides a novel and valuable alternative to measure muscle elasticity reliably and in conditions hitherto impracticable with ultrasound elastography. In this sense, the results of the present study could be a first step in order to widen the current applications of elastography in muscle biomechanics.
5 Conclusion
This work shows that surface wave elastography has some features that can potentially widen the spectrum of applications of elastography in skeletal muscle. Themethod used in this work (NU-SWE) can measure the elasticity of several muscles simultaneously and at a higher sample rate than previous surface wave methods and the classic SWE. In the present study we used these characteristics of the method to perform a proof of concept of an experimental protocol previously impracticable with elastography. We measured the elasticity changes of the BB and BR muscles simultaneously during the isometric flexion of the elbow joint at different contraction velocities. As a result, we found that the peak elasticity value for each muscle has a different behavior depending on the time required for the task. For short times, the peak value for BR is significantly higher than for BB. As the time of the task increases, these values approach each other. Such behavior was also observed at the level of the EMG activity of both muscles, indicating that the elastographic results correlate with other methods for characterizing muscle activity. Considering the above, the methodological advances presented in this work widen the applications of elastography in skeletal muscle in vivo to delve into the knowledge of muscle biomechanics.
Statements
Data availability statement
The datasets presented in this study can be found in online repositories. The names of the repository/repositories and accession number(s) can be found in the article/Supplementary Material.
Ethics statement
The studies involving humans were approved by the Ethical Committee of the Faculty of Medicine (UdelaR, Uruguay). The studies were conducted in accordance with the local legislation and institutional requirements. The participants provided their written informed consent to participate in this study. Written informed consent was obtained from the individual(s) for the publication of any potentially identifiable images or data included in this article.
Author contributions
GG: Conceptualization, Formal Analysis, Investigation, Methodology, Resources, Validation, Visualization, Writing–original draft. LO: Investigation, Methodology, Resources, Writing–review and editing. MB: Investigation, Methodology, Resources, Writing–review and editing. NB: Conceptualization, Formal Analysis, Investigation, Methodology, Resources, Software, Validation, Writing–review and editing.
Funding
The author(s) declare financial support was received for the research, authorship, and/or publication of this article. This study was funded by CSIC-UdelaR (file No. 004010-000137-22) and CAP-UdelaR (file No. 004010-002174-19).
Acknowledgments
The authors thank PEDECIBA-Biología, PEDECIBA-Física, CAP-UdelaR, CSIC-UdelaR, as well as the volunteers who participated in the study.
Conflict of interest
The NU-SWE method presented in this article was included in a PCT patent application, presented by Universidad de la República (UdelaR) as patent applicant and assignee (inventors: NB, GG, Sofía Aguiar, Carlos Negreira). The PCT patent application has been granted in Brazil (PCT/BR2018/050395) and the United States (US 11,561,201 B2).
The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fphy.2024.1329296/full#supplementary-material
