Hypothesis and Theory ARTICLE

Front. Psychol., 14 May 2013 | https://doi.org/10.3389/fpsyg.2013.00254

Schizophrenia and visual backward masking: a general deficit of target enhancement

  • 1Laboratory of Psychophysics, Brain Mind Institute, Ecole Polytechnique Fédérale de Lausanne, Lausanne, Switzerland
  • 2Vision Research Laboratory, I.Beritashvili Center of Experimental Biomedecine, Tbilisi, Georgia
  • 3Institute of Cognitive Neurosciences, Agricultural University of Georgia, Tbilisi, Georgia
  • 4Department of Psychiatry, Tbilisi State Medical University, Tbilisi, Georgia
  • 5Klinikum Bremen-Ost, Center for Psychiatry and Psychotherapy, Bremen, Germany

The obvious symptoms of schizophrenia are of cognitive and psychopathological nature. However, schizophrenia affects also visual processing which becomes particularly evident when stimuli are presented for short durations and are followed by a masking stimulus. Visual deficits are of great interest because they might be related to the genetic variations underlying the disease (endophenotype concept). Visual masking deficits are usually attributed to specific dysfunctions of the visual system such as a hypo- or hyper-active magnocellular system. Here, we propose that visual deficits are a manifestation of a general deficit related to the enhancement of weak neural signals as occurring in all other sorts of information processing. We summarize previous findings with the shine-through masking paradigm where a shortly presented vernier target is followed by a masking grating. The mask deteriorates visual processing of schizophrenic patients by almost an order of magnitude compared to healthy controls. We propose that these deficits are caused by dysfunctions of attention and the cholinergic system leading to weak neural activity corresponding to the vernier. High density electrophysiological recordings (EEG) show that indeed neural activity is strongly reduced in schizophrenic patients which we attribute to the lack of vernier enhancement. When only the masking grating is presented, EEG responses are roughly comparable between patients and control. Our hypothesis is supported by findings relating visual masking to genetic deviants of the nicotinic α7 receptor (CHRNA7).

Vision and Schizophrenia: Findings and a Framework

The most obvious symptoms of schizophrenia are related to psychopathology (e.g., delusions, hallucinations, negative symptoms, and disorganization syndrome) and cognitive deficits such as working memory and attention. In addition, schizophrenic show strong perceptual deficits. The causes of schizophrenia may be found on various levels including ones which are not directly linked to phenomenology. Here, we propose that visual deficits in schizophrenic patients are not related to visual deficits per se but are a manifestation of a general dysfunction of enhancing and stabilizing neural activity.

Visual Backward Masking Deficits

To understand visual deficits in schizophrenia, we are using a backward masking procedure, called the shine-through effect (Herzog and Koch, 2001; Herzog and Fahle, 2002). This masking technique comes with a two step procedure. First, a vernier stimulus is presented which comprises two vertical bars slightly offset in the horizontal direction. Vernier offset discrimination is a challenging task. Offsets are often smaller than the diameter of a photoreceptor in the retina and, therefore, offset discrimination needs information integration across nearby neurons. Per trial, the vernier is randomly offset either to the left or right. Observers indicate the offset direction. For long vernier durations, schizophrenic patients show no or only very weak deficits. We presented the vernier with different durations starting off with a duration of 150 ms. For this duration, we found thresholds of 41.1 arc sec in patients and 33.0 arc sec in controls. Block by block, we reduced the vernier duration further until observers could not reliably perceive a vernier offset size of 0.66 arc min. This critical vernier duration was 43.2 ms for patients and 27.4 ms for controls (Chkonia et al., 2010). These results are in line with previous studies in which also significant, but moderate, visual deficits were found with different types of visual stimuli (e.g., Saccuzzo et al., 1974; Braff and Saccuzzo, 1981; Saccuzzo and Schubert, 1981).

To challenge the visual system, we added to the spatially demanding vernier offset discrimination task a temporal challenge by presenting a mask after the vernier. For each observer, we presented the vernier with his/her individual duration as determined in the first step. After the vernier, a blank screen followed, i.e., an inter-stimulus-interval (ISI), and then a mask. In the basic masking conditions, the mask comprised 5 or 25 aligned verniers, i.e., verniers without an offset (Figure 1).

FIGURE 1
www.frontiersin.org

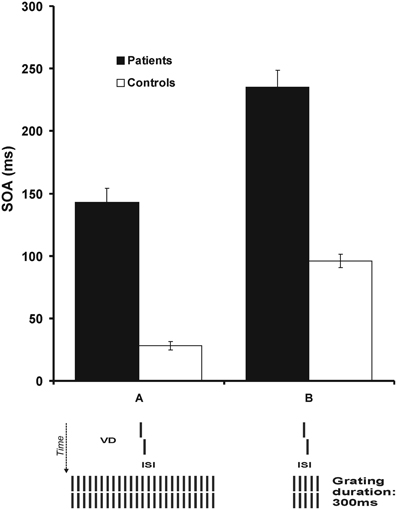

Figure 1. Step 1. We presented a vernier without a mask (not shown). In a block of 80 trials, we presented the vernier with a certain duration and determined adaptively the offset size for which 75% correct responses occurred. In successive blocks, we reduced the vernier duration (VD) from 150 ms to the VD for which the vernier offset size was about 0.66′ (arc min). These critical vernier durations were 43.2 ms for patients and 27.4 ms for controls on average. Step 2. The vernier was presented with the individual vernier duration of each observer, as determined in step 1. Next a blank screen, i.e., an inter-stimulus-interval (ISI), followed and then a masking grating. The vernier offset was fixed and we adaptively varied the ISI between vernier disappearance and the grating onset. We determined the SOA for which 75% correct responses occurred. We plot results as SOA = VD + ISI. Patients need much longer SOAs than controls. The main effect is due to the prolonged ISIs rather than the only slightly longer vernier durations. Reprinted with permission from Herzog et al. (2004).

Whereas we varied the vernier offset in the previous condition, here, we kept the vernier offset constant and varied the ISI between the vernier and the mask. We determined the critical ISI for which observers reached 75% correct responses. We found a tremendous deterioration of performance for the schizophrenia patients. With the 25 element grating mask, schizophrenia patients needed SOAs of about 150 ms whereas controls needed only about 30 ms (Herzog et al., 2004; Chkonia et al., 2010). With the 5 element grating mask, patients needed SOAs of about 240 ms while controls needed only about 80 ms (Herzog et al., 2004). Hence, schizophrenic patients show very strong visual deficits when their visual system is challenged both spatially and temporally. These results are well in agreement with previous studies on masking where patients showed strong masking deficits even when target duration was adjusted for each observer individually (e.g., Braff and Saccuzzo, 1981; Green et al., 1994a; Cadenhead et al., 1997).

Visual Backward Masking Deficits are Target Enhancement Deficits

In the next, third step, we used for each observer his or her individual vernier duration and the individual ISI of the 25 element mask, i.e., we used on average an SOA of 150 ms for the patients and an SOA of 30 ms for the controls. In this condition, we determined the vernier offset size adaptively, i.e., we determined the offset for which 75% correct responses occurred. Because of these normalized, individual values, performance was comparable across all observers for the 25 element grating, i.e., as aimed for.

Next, we removed 2 elements from the 25 element grating creating two gaps, thus, singling out a central grating with 5 elements from two peripheral gratings with 9 elements each (Figure 2). In healthy controls, we showed previously that this gap grating leads to much stronger masking than the homogenous 25 element grating (Herzog and Koch, 2001). We proposed that complex, spatial processing causes the deterioration of performance because nearby elements group together and ungroup from the peripheral elements. Our computer simulations showed how vernier related activity is dynamically suppressed with the gap grating but not with the homogeneous 25 element grating (Herzog et al., 2003).

FIGURE 2
www.frontiersin.org

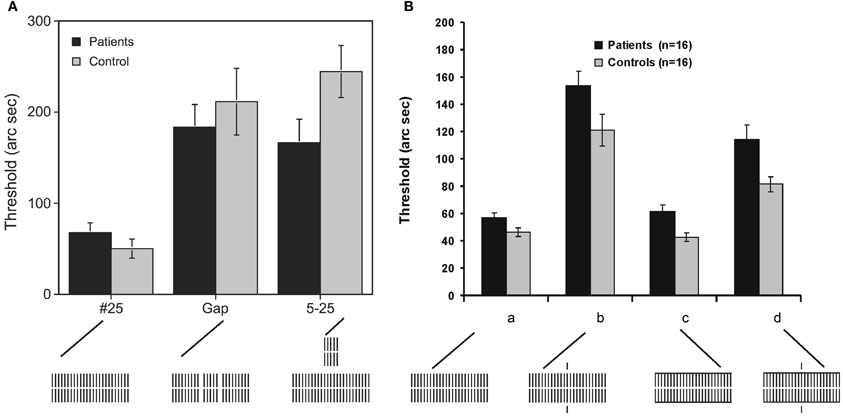

Figure 2. A vernier was followed by a variety of gratings (the vernier is not shown, only the masking gratings). (A) Because we used for each observer his/her individual vernier duration and ISI, performance is roughly the same in patients and controls when the 25 element grating follows the vernier. Performance deteriorates significantly for the patients and healthy controls if either a “gap grating” or a “5–25” element grating follows the vernier. In the 5–25 grating, a 5 element grating is presented for 20 ms followed immediately by a 25 element grating for 280 ms. Because of the short duration, the 5 element grating is invisible. Performance deficits are similar in patients and controls indicating, paradoxically, intact spatial and temporal processing of the schizophrenic patients, i.e., patients seem to process the gaps and the briefly presented 5 element grating “carefully.” Were the gaps fully blurred or the 20 ms 5 element grating smeared out, performance would be on the level of the homogeneous 25 element grating (#25). However, this is not the case. (B) (a) As in (A), performance of patients and controls is roughly identical with the homogenous 25 element grating because we used the individual vernier durations and ISIs. (b) Performance strongly deteriorates by adding single collinear lines. (c) Horizontal contextual lines yield a performance level comparable to the standard condition (a). (c) Combining vertical and horizontal lines from the conditions (b) and (c) improves performance compared to (b). The horizontal contextual lines “counteract” the vertical lines. Again, it seems that patients “carefully” process the task irrelevant vertical lines, reflected in the strong performance deficits. This deterioration and the recovery from it by horizontal lines, is very similar to the one of controls. Reprinted with permission from Herzog et al. (2004) and Roinishvili et al. (2008).

The rationale of step 3 is as follows. If the gaps, for example, are blurred, performance should, paradoxically, be better than if vision is intact and the gaps are clearly processed. Hence, deterioration of performance with the gap grating indicates intact spatial processing. We found that, indeed, patients showed as strong performance deficits as controls (Figure 2). The very same holds true for temporal manipulations. We presented a 5 element grating for only 20 ms before the 25 element grating lasting for 280 ms. Because of the short duration of 20 ms, the 5 element grating is invisible. Still, it exerts strong performance deficits by a factor of about 5 compared to the 25 element grating. Schizophrenic patients show very similar deteriorations. Hence, it seems that spatial and temporal processing of the masking gratings is largely intact in schizophrenic patients.

In a series of further experiments, we supported these results. For example, we first deteriorated performance by adding small lines to the 25 element grating. Then we added additional horizontal lines which undid the deleterious effects of the vertical lines. Again, performance in patients and controls was rather similar (Schütze et al., 2007; Roinishvili et al., 2008). Hence, it seems that spatio-temporal processing is largely intact in the schizophrenic patients—after vernier duration and SOA were adjusted individually. For this reason, we propose that schizophrenic patients are just two steps from normal (in visual processing). There is a moderate deficit for the unmasked vernier, which could partially reflect long term suffering from the disease. Adolescents with schizophrenia do not show such deficits (Rund et al., 1996; Holzer et al., 2009; see also Saccuzzo et al., 1974). Such deficits may also likely occur when people are suffering, for example, from fever and other diseases affecting attention and concentration. To compensate for these deficits, we provided individually adjusted vernier durations in the masking conditions. Here, we found dramatically deteriorated performance which we attribute to a reduced target enhancement.

Multifactorial Target Enhancement

It seems that visual processing of the masks is intact in schizophrenic patients. We propose what is deficient in schizophrenia is the processing of the target as a target, particularly, in demanding situations when, for example, targets are presented briefly, masked, or their contrast is low (e.g., Slaghuis, 2004). The target is the element of a visual scene which is task relevant. In many everyday situations, there is no target, for example, when observers just passively watch a scene or a movie. In the laboratory, many features or elements can be defined as the target for the very same stimulus. For example, we may have varied the vernier offset direction and, in addition, the length of the grating elements being a bit longer or shorter. In this example, we can ask observers to attend to the vernier offset or to the length of the grating elements. The stimuli are the same, just the tasks differ. Likewise, in a soccer game, you may attend to the actions of the players of team A, or B, or the behavior of other fans.

Vernier offset discrimination is a demanding task when the vernier offset is small and its duration short. In this situation, neural responses are weak and it may be necessary to boost the corresponding weak neural signals to reach good performance. One option is to use recurrent processing (Figure 3). This can lead to strong and persistent neural signals even when the vernier is not presented anymore on the screen. It may be that such recurrent processing is deteriorated in schizophrenia. Because there is no mask, patients can reach the same performance level as controls, after longer recurrent processing. Hence, there are no strong performance deficits. When, however, a mask is presented, the mask may override and interrupt the recurrent vernier processing. To counteract, at least partially, the effects of such masks (and other adverse effects), the human brain is equipped with further mechanisms to enhance weak neural signals.

FIGURE 3
www.frontiersin.org

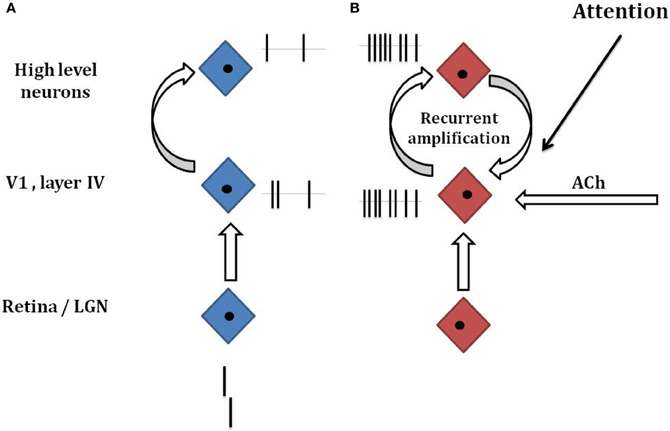

Figure 3. Hypothetical mechanisms of target enhancement. (A) A vernier is presented and processed along the visual hierarchy including the retina, the LGN, the primary visual cortex V1, and higher visual areas. Because of the very short presentations times (20–40 ms), only a weak neural response is elicited (small ticks next to the neurons indicated by the blue diamonds). (B) If there is target enhancement by recurrent processing, attention, ACh neuromodulation, or other factors, the weak response of the vernier is amplified. Even if the vernier has disappeared on the screen, neural responses may be present because of recurrent amplification. If a masking grating follows the vernier (not shown), recurrent amplification is interrupted and other forms of target enhancement are needed to reach good performance. If target enhancement is dysfunctional, a weaker enhancement leads to poorer performance (as in A). These considerations are highly simplified and the underlying mechanisms are largely unknown. Attention is likely to play an important role because without attention to the vernier, performance is strongly deteriorated in healthy observers. Our main proposal is that weak target stimuli need task-dependent enhancements and that these may be dysfunctional in schizophrenic patients.

Neuromodulation and attention

We can only speculate on the mechanisms of target enhancement. Next to recurrent processing, one obvious candidate is attention. Attention deficits are core deficits in schizophrenia (e.g., Cornblatt and Keilp, 1994; Nestor and O'Donnell, 1998; Green, 2006). There are many types of attention. One important type is selective visual attention. Visual attention can improve performance substantially. For example, in a classical Posner cueing paradigm, observers fixate a dot in the center of a computer screen. A square appears randomly either on the left or right of the fixation dot. Reaction times are much faster when the cue is presented just before the square at the same location, i.e., when attention can move to the target location before target presentation (Posner and Petersen, 1990). Reaction times are longer when there is no cue or when the cue appears to the “incorrect” side. EEG recordings show higher amplitudes when the target square is correctly cued compared to when not (Hillyard and Anllo-Vento, 1998). Similarly, monkey studies have shown that neural signals can be strongly enhanced when an element in a visual scene is attended compared to when it is not attended (Treue and Martínez-Trujillo, 1999; Maunsell and Cook, 2002). Importantly, only weak, low contrast stimuli benefit from attention (Treue and Maunsell, 1996; Reynolds and Heeger, 2009). We propose that a similar scenario applies to masking situations where target stimuli are weak because of brief presentation times (Figure 3).

Neuromodulation by the cholinergic system might be another mechanism for target enhancement (Cullum et al., 1993; Parasuraman and Greenwood, 2004; Deco and Thiele, 2009). The cholinergic system projects to layer IV of the primary visual cortex where retinal information first enters the visual cortex (Gil et al., 1997; Disney et al., 2007). It is often proposed that acetylcholine controls the influx of “external information” into the cortex. For example, when concentrating on a difficult mathematical problem in a noisy environment, acetylcholine may “shut down” disturbing visual signals, e.g., from a TV screen. In contrast, acetylcholine boosts weak but important information. In psychophysical experiments, targets are presented over and over again in a stereotyped manner and thus target occurrence is predictable, i.e., acetylcholine release can be initiated before target presentation (Sarter et al., 2009). Hence, a hypofunction of the cholinergic system may explain deteriorated vision in schizophrenia (Figure 3).

This proposal is in line with several studies showing that the nicotinic ACh system has significant impact on the mismatch negativity (MMN) (Knott et al., 2012) and sensory gating in schizophrenic patients (Freedman et al., 1997; Adler et al., 1998). In addition, deficits of schizophrenic patients in P50 gating could be improved by nicotine agonists (Adler et al., 2005; Zhang et al., 2012). Hence, a dysfunction of the cholinergic system may be involved in a large variety of dysfunctions including visual ones.

For simple tasks with large and high contrast stimuli, no target enhancement is needed. Accordingly, in these conditions performance is usually quite good in schizophrenic patients. When the verniers are not the target they are likely to go unnoticed. This makes sense because, in this case, vernier enhancement would just lead to amplification of a “disturbing” signal. Hence, target enhancement is activated only when an element is weak and the task-relevant target. Particularly at this stage, deficits of schizophrenia become evident.

However, at present, these considerations remain speculative. There may be more mechanisms and systems that can up- or down-regulate neural activity. In addition, the cholinergic system is a complex system with combinations of several sub-systems (nicotinic vs. muscarinic) which all (or some of them) may be altered in schizophrenia in various combinations. It is likely that not only one enhancing system is deficient in schizophrenia but certain combinations of them.

In addition, very little is known on the effects of acetycholine and attention on vision and how these systems relate to each other and to other systems and mechanisms, including recurrent and top-down neural activation. In addition, it is unclear to which extent acetylcholine is involved in attention itself. Whatever the neural mechanisms are, we propose that there are systems that can enhance targets and that some of them are dysfunctional in schizophrenia.

Genetics

Schizophrenic patients are usually heavy smokers (Dickerson et al., 2013) and smoking is often considered a type of self-medication which is very much in accordance with deficits in the cholinergic system (Moran et al., 2012). In schizophrenia, the gene for the alpha 7 receptor subunit was found to be related to deficits in sensory gating (Raux et al., 2002; Houy et al., 2004; Martin et al., 2007). In addition, visual acuity was found to be low in CHRNA7 knockout mice (Origlia et al., 2012). We investigated five single nucleotide polymorphism (SNPs) of CHRNA7 and found that one SNP correlated well with the diagnosis of schizophrenia. Moreover, this SNP showed a high correlation with backward masking deficits in the shine-through effect (Bakanidze et al., 2009).

EEG

Our model of target enhancement is corroborated by our EEG recordings (Plomp et al., 2013). We recorded brain activity with 64 electrodes and computed the global field power (GFP). The GFP reflects overall brain activity. We determined performance in four conditions (Figure 4A). First, only the vernier was presented. Second, the vernier was followed immediately by the 25 element grating (mean SOA of controls), or, third by an ISI and then by the grating (mean SOA of patients). Fourth, only the grating was presented (no preceding vernier; observers were not aware that there is no vernier because masking is so strong that the vernier is often invisible also when presented). The GFP of patients was much lower than the GFP of controls in the first three conditions where the vernier was presented (Figure 4B). As a speculation, we like to argue that the reduced GFP reflects a lack of target enhancement of the vernier. The reduced neural activity becomes behaviorally relevant only in the two masked conditions because, as we argue, recurrent processing is disturbed by the mask and, thus, target amplification is reduced. In the vernier only condition, longer recurrent processing may compensate the reduced neural activity (see Neuromodulation and Attention). Reduced EEG traces may also be caused by other factors such as diminished neural excitation. However, interestingly, EEG traces of patients and controls were very similar in the mask only condition arguing against a permanent deficit (Figure 4B).

FIGURE 4
www.frontiersin.org

Figure 4. (A) In the first condition, a vernier was presented for 30 ms. Observers discriminated the offset direction (here, a right offset is shown). In the second and third conditions, the 30 ms vernier was followed by a grating either immediately (short SOA) or after a blank screen of 120 ms (long SOA). Fourth, we presented only the masking grating. (B) The global field power (GFP) for patients and controls in the 4 stimulus conditions showed clear differences in peak amplitude between patients and controls, at around 200 ms [reprinted with permission from Plomp et al. (2013)].

Discussion

We view visual masking deficits in schizophrenia as a manifestation of a general deficit of target enhancement rather than as a specific visual deficit such as a dysfunction of the magnocellular system (see below). In this sense, visual dysfunctions in schizophrenia allow a general view into the basic “mechanisms of madness.” We suggest that mechanisms similar to target enhancement may by deficient also in other visual and cognitive processes of schizophrenic patients.

For example, schizophrenic patients show strong deficits in the detection of low contrast stimuli (Slaghuis, 1998, 2004; Kéri et al., 2004; Calderone et al., 2013). It remains an open question whether these visual deficits are restricted to patients with negative symptoms (e.g., Slaghuis, 1998) and to certain stimuli, such as low spatial frequency gratings (Kéri et al., 2004). Delord et al. (2006) found that contrast detection thresholds of schizophrenic patients were significantly poorer than those of controls for all frequencies, arguing rather for a general visual deficit. Patients show also strongly deteriorated performance for high contrast stimuli when these stimuli are fragmented, i.e., where only parts of the contour of an object are visible. We like to argue that all these tasks require strong attention and some sort of task stabilization because information has to be integrated, for example, across contour elements in a time consuming manner.

In a similar fashion, we think that target enhancement is crucial in cognition. For the basic continuous performance test (CPT), performance is only slightly deteriorated in patients compared to controls (Nuechterlein et al., 1992). However, when stimuli are embedded in noise and, thus, contrast reduces, performance of patients deteriorates much more strongly than performance in controls. Effects are more pronounced when a memory component is added (Nuechterlein et al., 1992; Chkonia et al., 2010). We like to argue that these tasks, as the masking paradigm, require mechanisms to stabilize information across space and time, and that this ability is deteriorated in schizophrenic patients. The cholinergic system makes projections throughout the entire brain and can thus stabilize all sorts of processing including the ones mentioned above (Nelson et al., 2005; Deco and Thiele, 2009; Bentley et al., 2011; Yakel, 2013). The same holds true for attention.

Schizophrenic patients show also deficits in passive tests such as the MMN (Olincy and Freedman, 2012), prepulse inhibition (PPI), and P50 gating (Adler et al., 1991; Olincy et al., 2010). We will argue below that we do not propose that dysfunctional target enhancement is the only deficit in schizophrenic patients. To the contrary, we suggest that there are many deficits necessary to create the full blown symptoms of schizophrenia. Hence, MMN and P50 gating deficits may be of a different nature than masking deficits. In this sense, it is surprising that nicotinic agonists can compensate P50 deficits (Adler et al., 2005; Zhang et al., 2012) and MMN deficits (Knott et al., 2012). In addition, we like to mention that schizophrenic patients show also immune deficits such as a diminished niacin skin response (Puri et al., 2001; Messamore, 2012). Also these deficits can, surprisingly, be linked to the cholinergic system (Gallowitsch-Puerta and Tracey, 2005). Hence, cholinergic deficits may be much more fundamental and not be related to target enhancement only.

Schizophrenic patients show often a strong degree of cognitive disorganization affecting performance in a large variety of everyday tasks. For this reason, cognitive disorganization is, next to positive and negative symptoms a key aspect in the psychopathology of schizophrenia. One century ago, Bleuler proposed that loose associations are even the basic symptoms of schizophrenia and can cause delusions and hallucinations (Bleuler, 1911). We found that persons with high scores of cognitive disorganization of schizotypy have problems focusing on tasks which may be related to stabilizing task related information. Accordingly, we found backward masking deficits in the shine-through paradigm in healthy psychology students with high scores on cognitive disorganization but not with high scores for the positive and negative dimensions (Cappe et al., 2012).

We do not propose that attention and cholinergic dysfunctions are necessary and sufficient for schizophrenia. Likewise, we do not propose that target enhancement is necessary and sufficient for schizophrenia. Quite to the contrary, we believe that dysfunctional target enhancement is only one factor that can contribute to schizophrenia. First, there are patients without target enhancement deficits since not all patients have masking deficits. On the other hand, healthy student observers can have (moderate) masking deficits without an indication of the disease. Second, there can be many causes for dysfunctional neural enhancements. Attention and cholinergic modulation are just two examples. Within the cholinergic system, there may be many deficits leading to a similar phenotype since the cholinergic system itself is a complex system with two subsystems and various receptor types. In addition, there may be many mutations that all can lead to one dysfunction. For this reasons, we suggest that the study of endophenoytpes can be a successful tool to characterize subpopulations of schizophrenia. Visual masking is only one potential endophenotype.

Endophenotype Concept

The shine-through masking paradigm is a potential endophenotype of schizophrenia. We found masking deficits not only in schizophrenic patients but also in their unaffected relatives (Chkonia et al., 2010). In addition, masking deficits were stable for 1 year (Chkonia et al., 2010) and adolescents with psychosis show masking deficits even before the manifestation of the disease (Holzer et al., 2009). Masking deficits are specific for the spectrum of functional psychoses (bipolar, schizoaffective, and schizophrenic patients) and were not found in depressed patients and abstinent alcoholics (Chkonia et al., 2012). We like to mention that visual backward masking can easily be controlled and has a much better signal to noise ratio than most cognitive tests (Chkonia et al., 2012).

The Dysfunction Hypothesis of the Magnocellular System

Almost all current approaches on visual masking deficits in schizophrenia propose a dysfunction of the magno-cellular system based on the dual channel model of Breitmeyer and Ganz (1976). Enhanced masking in schizophrenic patients is attributed to either a hyperactive or hypoactive magno-cellular visual system (e.g., Green et al., 1994a,b; Schechter et al., 2003; Slaghuis, 2004; Butler et al., 2007). A full review is beyond the scope and goal of this article [for critical reviews, see Skottun and Skoyles (2007, 2009)]. We just like to mention that most masking research in schizophrenic patients investigated A-type masking whereas the dual channel model is mainly proposed to explain B-type masking (non-monotonic masking functions with strongest masking for SOAs of around 50 ms). Also the shine-through paradigm reveals A-type masking characteristics and stimuli are biased rather toward the parvo-cellular than the magnocellular system.

Our proposal shares many similarities with early models on visual masking deficits in schizophrenia where a key component is target storage in an iconic memory. The iconic memory protects target related activity to be overwritten by the mask. Masking deficits in schizophrenia patients were proposed to occur by a dysfunctional storage mechanism or slow information transfer to short term memory (Saccuzzo et al., 1974; Braff, 1981; Saccuzzo and Braff, 1981; Schwartz et al., 1983; for a review see Schuck and Lee, 1989).

Summary

We found strong deficits with the shine-through masking paradigm in schizophrenic patients (Herzog et al., 2004), in accordance with many other studies on visual masking (Saccuzzo et al., 1974; Braff, 1981; Saccuzzo and Braff, 1981; Green et al., 1994a,b). Also patients with other functional psychoses than schizophrenia show strong masking deficits; however, there are no deficits in unipolar depressive patients (Chkonia et al., 2012). The shine-through masking paradigm is a potential endophenotype of schizophrenia because, amongst other findings, relatives of schizophrenic patients show masking deficits (Chkonia et al., 2010), masking deficits occur before the onset of schizophrenia in adolescents with psychosis (Holzer et al., 2009), and in healthy students with high schizotypy scores (Cappe et al., 2012). On the neural level, we found reduced EEG traces (Plomp et al., 2013) and, on the genetic level, an abnormal SNPs related to the cholinergic system (Bakanidze et al., 2009).

We propose the following speculative model which closes the loop linking phenomenological findings (masking deficits) to genetic abnormalities which, in turn, cause deviant neural processing as evident in the EEG. First, visual processing per se is largely intact in schizophrenic patients as evidenced in good performance in visual acuity tests and the vernier task with long vernier durations. Even for short vernier durations, only mild deficits occur. We related these deteriorations partly to unspecific effects as they may occur from suffering from a chronic disease including severe medication effects. Second, there are pronounced masking deficits which we relate to specific deteriorations of target enhancement and stabilization. Third, we propose that a deficient cholinergic system is one out of possibly more deficient enhancement mechanisms. Heavy smoking of patients may be an attempt to compensate for the deficient cholinergic system. Fourth, reduced GFP in the EEG may be an indication of deficient target enhancement. Fifth, we view masking deficits as a manifestation of similar enhancement deficits as they may occur in cognition, emotion, and personality. Sixth, we do not propose that deficient target enhancement is necessary and sufficient for schizophrenia. To the contrary, there are schizophrenic patients without masking deficits. On the other hand, enhancement deficits are not sufficient for schizophrenia because there are healthy students with masking deficits. In addition, there are potentially many systems that contribute to information enhancement and likely a combination of these mechanisms has to be deviant to cause schizophrenia.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This work was supported by the NCCR “Synapsy” of the Swiss National Science foundation (SNF). We like to thank Julia Veit for useful discussions and Christine Mohr for comments on the manuscript.
