Quantum structure of negation and conjunction in human thought

  • 1Center Leo Apostel for Interdisciplinary Studies (CLEA), Free University of Brussels (VUB), Brussels, Belgium
  • 2School of Management, Institute for Quantum Social and Cognitive Science, University of Leicester, Leicester, UK
  • 3Department of Mathematics, University of British Columbia, Kelowna, BC, Canada

We analyze in this paper the data collected in a set of experiments investigating how people combine natural concepts. We study the mutual influence of conceptual conjunction and negation by measuring the membership weights of a list of exemplars with respect to two concepts, e.g., Fruits and Vegetables, and their conjunction Fruits And Vegetables, but also their conjunction when one or both concepts are negated, namely, Fruits And Not Vegetables, Not Fruits And Vegetables, and Not Fruits And Not Vegetables. Our findings sharpen and advance existing analysis on conceptual combinations, revealing systematic deviations from classical (fuzzy set) logic and probability theory. And, more important, our results give further considerable evidence to the validity of our quantum-theoretic framework for the combination of two concepts. Indeed, the representation of conceptual negation naturally arises from the general assumptions of our two-sector Fock space model, and this representation faithfully agrees with the collected data. In addition, we find a new significant and a priori unexpected deviation from classicality, which can exactly be explained by assuming that human reasoning is the superposition of an “emergent reasoning” and a “logical reasoning,” and that these two processes are represented in a Fock space algebraic structure.

1. Introduction

Substantial evidence of presence of quantum structures in processes connected with human behavior and cognition has been put forward in the last decade. More specifically, such quantum structures were identified in situations of decision making and in the structure of language (see e.g., Aerts, 2009; Khrennikov, 2010; Busemeyer and Bruza, 2012; Aerts et al., 2013b; Haven and Khrennikov, 2013; Pothos and Busemeyer, 2013; Wang et al., 2014). The success of this quantum modeling is interpreted as due to “descriptive effectiveness of the mathematical apparatus of quantum theory as formal instrument to model cognitive dynamics and structures in situations where classical set-based approaches are problematical.” In particular, the mathematics of quantum theory in Hilbert space has proved very successful in modeling combinations of two concepts (Aerts, 2009; Aerts and Sozzo, 2001, 2014; Aerts and Gabora, 2005a,b; Aerts et al., 2013a,b; Sozzo, 2014, 2015).

The “combination problem,” that is, the question of how the representation of the combination of two or more natural concepts can be connected to the representation of the component concepts, has been studied experimentally and within classical concept theories in great detail in the last 30 years. The main experimental challenges to traditional modeling approaches to concepts combinations are sketched in the following1.

(i) The “Guppy effect” in concept conjunction, also known as the “Pet-Fish problem” (Osherson and Smith, 1981, 1982). If one measures the typicality of specific exemplars with respect to the concepts Pet and Fish and their conjunction Pet-Fish, then one systematically finds exemplars such as Guppy that are very typical examples of Pet-Fish, while neither being typical examples of Pet nor of Fish.

(ii) The deviation from classical (fuzzy) set-theoretic membership weights of exemplars with respect to pairs of concepts and their conjunction or disjunction (Hampton, 1988a,b). If one measures the membership weight of an exemplar with respect to a pair of concepts and their conjunction (disjunction), then one experimentally finds that there is an abundance of cases where the membership weight of the exemplar with respect to the conjunction (disjunction) is greater (less) than the membership weight of the exemplar with respect to at least one of the component concepts.

(iii) The existence of “borderline contradictions” in sentences expressing vague properties (Bonini et al., 1999; Alxatib and Pelletier, 2011). Roughly speaking, a borderline contradiction is a sentence of the form P(x) ∧ ¬P(x), for a vague predicate P and a borderline case x, e.g., the sentence “John is tall and John is not tall.” If one investigates how people estimate the truth value of such a sentence, a significant number of them will find it as true, in particular for borderline cases.

What one typically finds in the above situations is a failure of set-theoretic approaches (classical set, fuzzy set, Kolmogorovian probability) to supply satisfactory theoretic models for the experimentally observed patterns. Indeed, all traditional approaches to concept theory [mainly, “prototype theory” (Rosch, 1973, 1978, 1983), “exemplar theory” (Nosofsky, 1988, 1992), and “theory theory” (Murphy and Medin, 1985; Rumelhart and Norman, 1988)] and concept representation [mainly, “extensional” membership-based (Zadeh, 1982; Rips, 1995) and “intensional” attribute-based (Hampton, 1988b; Minsky, 1975; Hampton, 1997)] have structural difficulties to cope with the experimental data exactly where the “graded,” or “vague” nature of these data abundantly violates (fuzzy) set-theoretic structures (Osherson and Smith, 1982; Zadeh, 1982), indicating that this violation of set-theoretic structures is the core of the problem. This situation is experienced as one of the major problems in the domain of traditional concept theories and an obstacle for progress (Komatsu, 1992; Fodor, 1994; Kamp and Partee, 1995; Rips, 1995; Hampton, 1997; Osherson and Smith, 1997).

Important results in concept research and modeling have been obtained in the last decade within the approach of quantum cognition in which our research group has substantially contributed. We cannot report in detail the results attained in our approach, for obvious reasons of space limits. We limit ourselves to summarize the fundamentals and attach relevant bibliographic sources in the following.

(a) The structural aspects of the approach rest on the results of older research on the foundations of quantum theory (Aerts, 1999), the origins of quantum probability (Aerts, 1986; Pitowsky, 1989) and the identification of typically quantum aspects outside the microscopic domain of quantum physics (Aerts and Aerts, 1995; Aerts et al., 2000). A first major step was taken in considering a concept as an “entity in a specific state changing under the influence of a context,” rather than as a “container of instantiations,” like in most the traditional approaches to concepts. This led to the development of a “State Context Property” (SCoP) formalism for the description of any conceptual entity in terms of its states, contexts and properties. In a cognitive process, such as a typicality estimation, the cognitive context changes the state of the conceptual entity, exactly as in a micro physics process the measurement context changes the state of the quantum particle that is measured. In this perspective, the state pGuppy of the concept Pet (Fish) scores a low typicality in absence of any context, while it scores a high typicality when the concept Pet (Fish) is under the context Fish (Pet). This insight was made concrete by means of an explicit quantum representation of the Guppy effect situation (Aerts and Gabora, 2005a,b).

(b) Continuing in this direction the mathematical formalism of quantum theory was employed to model the overextension and underextension of membership weights measured in Hampton (1988a,b). More specifically, the overextension for conjunctions of concepts measured in Hampton (1988a) was described as an effect of quantum interference and superposition (Aerts, 2009; Aerts et al., 2013b). The existence of superposed quantum states allows for the description of quantum interference, i.e., the deviation from the classically expected pattern, in the two-slit experiment with quantum particles. Analogously, the representation of the conjunction of two concepts by means of a superposed quantum state allows for the modeling of overextension as an expression of quantum interference, i.e., deviation from the classically expected behavior. Quantum interference and superposition also play a primary role in the description of both overextension and underextension for disjunctions of two concepts (Hampton, 1988b). Successively, a two-sector Fock space structure enabled a complete representation of data on conjunctions and disjunctions of two concepts (Aerts, 2009; Aerts et al., 2013b).

(c) This quantum-theoretic framework was successfully applied to describe more complex situations, such as borderline vagueness (Sozzo, 2014) and the effects of negation on conceptual conjunction (Sozzo, 2015). In addition, specific conceptual combinations experimentally revealed the presence of further genuine quantum effects, namely, entanglement (Aerts et al., 2013a,b; Aerts and Sozzo, 2001, 2014) and quantum-type indistinguishability (Aerts et al., 2015c). Finally, other phenomena related to concept combination, such as “Ellsberg and Machina decision making paradoxes” (Ellsberg, 1961; Machina, 2009) were successfully modeled in the same quantum-conceptual framework (Aerts et al., 2012, 2014).

There has been very little research on how people interpret and combine negated concepts. In a seminal study, Hampton (1997) considered in a set of experiments both conjunctions of the form Games Which Are Also Sports and conjunctions of the form Games Which Are Not Sports. His work confirmed overextension in both types of conjunctions, also showing a violation of Boolean classical logical rules for the negation, which has recently been confirmed by ourselves (Sozzo, 2015). In the present paper we extend the collection of data in Sozzo (2015) with the aim of further exploring the use of negation in conceptual combinations and, more generally, the underlying logical structures being at work in human thought in the course of cognitive processes (Aerts et al., 2015a). Let us first put forward a specific comment with respect to the “negation of a concept.” From the perspective of prototype theory, for quite some concepts the negation of a concept can be considered as a “singular concept,” since it does not have a well defined prototype. In fact, while it is plain to determine the non-membership of, e.g., Fruit, this does not seem to lead to the determination involving a similarity with some prototype of Not Fruit. Some authors maintain, for this reason, that single negated concepts have little meaning and that conceptual negations can be evaluated only in conjunctions of the form Fruits Which Are Not Vegetables (Hampton, 1997). We agree that there is an asymmetry between the way people estimate the membership of an exemplar, e.g., Apple, with respect to a positive concept, e.g., Fruits, and the way people estimate the membership of the same exemplar with respect to its negative counterpart, e.g., Not Fruits. Notwithstanding this, we believe it is meaningful to explicitly introduce the concept Not Fruits in our research. First of all, because we do not confine our concept modeling to prototype theory, on the contrary, our approach is more general, the basic structure of prototype theory can be recovered if we limit the concepts to be in their ground states (Aerts and Gabora, 2005a,b). Secondly, we will see that the quantum modeling elaborated in the present paper sheds light exactly on this problem, namely, the “negated concept” only appears as a full concept in “one part of the representation,” while is treated as “non-membership with respect to the positive concept” in the other part. Hence, quantum-conceptual framework copes with this problem in a natural way.

Let us proceed by steps, summarizing the major findings in this paper, as follows.

In Section 2 we illustrate design and procedure of the four cognitive experiments we performed. In the first experiment, we tested the membership weights of four sets of exemplars with respect to four pairs (A, B) of concepts and their conjunction “A and B.” In the second experiment, we tested the membership weights of the same four sets of exemplars with respect to the same four pairs (A, B) of concepts, but negating the second concept, hence actually considering A, B′ and the conjunction “A and B′.” In the third experiment, we tested the membership weights obtained considering A′, B and the conjunction “A′ and B.” Finally, in the fourth experiment, we considered the membership weights obtained by negating both concepts, hence actually considering A′, B′ and the conjunction “A′ and B′.”

We investigate the representability of the collected data, reported in Appendix A3, in a “single classical Kolmogorovian probability space” (Kolmogorov, 1933). Basic notions and results on probability measures and classical modeling are briefly reviewed in Appendix A1. We prove theorems providing necessary and sufficient conditions for the modeling of the conceptual conjunctions “A and B,” “A and B′,” “A′ and B,” and “A′ and B′” in such a single classical Kolmogorovian framework. Then, we observe that the data significantly violate our theorems. More specifically, our analysis of classicality for the presence of conjunction and negation together leads to five classicality conditions that should be simultaneously satisfied by the data to fit into one classical probability framework together. When we analyze the deviations of our data with respect to these five conditions we also find a very strong, stable and systematic pattern of violation, i.e., the deviation has the same numerical values even over different pairs of concepts. That the violation is numerically the same independently of the considered pair of concepts indicates that we have identified a non-classical mechanism in human thought which is linked to the depth of concept formation itself, independent of the specific meaning for a specific pair of concepts and a specific set of considered exemplars. This was for ourselves a first surprising and unexpected finding, and we have recently devoted an article to investigate it in depth (Aerts et al., 2015b).

A second major and equally unexpected finding was that the numerical size of the “deviation of classicality pattern” can exactly be predicted in our quantum-theoretic model in two-sector Fock space. And, more, it can be explained by assuming that human reasoning is the superposition of two simultaneous processes, a “logical reasoning” and a “conceptual,” or “emergent,” “reasoning.” Logical reasoning combines cognitive entities (concepts, combinations of concepts, propositions, etc.) by applying the rules of logic, though generally in a probabilistic way. Emergent reasoning instead enables formation of combined cognitive entities as newly emerging entities (new concepts, new propositions, etc.), carrying new meaning, linked to the meaning of the component cognitive entities, but with a connection not defined by the algebra of logic. Emergent reasoning can be modeled in first sector of Fock space and, at variance with widespread beliefs, is dominant in our approach. Logical reasoning can be modeled in second sector of Fock space, hence one expects that classical logical rules hold in this sector, like we explicitly prove here for conceptual conjunctions and negations (see also Aerts et al., 2015b).

Our quantum-theoretic model in two-sector Fock space for conceptual negations and conjunctions is elaborated in Section 3. It naturally extends the model in Aerts (2009) and follows the general lines traced in Sozzo (2014, 2015). It is however important to notice that the simultaneous modeling of conjunction and negation requires the introduction of two new conceptual steps which were not needed in the modeling of conjunction pairs: (i) the introduction of entangled states in second sector of Fock space, which enables formalizing the situation where probabilities in second sector can be formed by a “product procedure,” even if they are not independent—this is an aspect of the Fock space model we had not understood in our earlier modeling, hence we could consider it a further new surprising finding of the investigation presented in this paper; (ii) the handling of “negation” in second sector by “logical inversion,” similarly like we handled conjunction in second sector by “product,” more concretely, an experiment with “negation” with respect to a concept is treated by “negating logically” an experiment on the concept itself. This is also the way in which our Fock space model naturally copes with the general non-prototypicality of a negated concept, as already mentioned above.

We see in Section 4 that a large amount of data can be faithfully represented in our two-sector Fock space, and construct an explicit representation for some relevant cases that are classically problematical. A complete representation of the data is provided in the Supplementary Material attached to this paper. As we can see the findings presented in this paper provide strong and independent confirmations to our quantum-theoretic framework, and we devote Section 5 to comment on our results and extensively discuss novelties and corroboration of our approach. Technical appendices A4 and A5 complete the paper.

2. Description of Experiments and Classicality Analysis

James Hampton identified in his cognitive tests systematic deviations from classical (fuzzy) set predictions for membership weights of exemplars with respect to conjunctions and disjunctions of two concepts, and named these deviations “overextensions” and “underextensions” (Hampton, 1988a,b). Cases of “double overextension” were also observed. More explicitly, if the membership weight of an exemplar x with respect to the conjunction “A and B” of two concepts A and B is higher than the membership weight of x with respect to one concept (both concepts), we say that the membership weight of x is “overextended” (“double overextended”) with respect to the conjunction (by abuse of language, we say that x is overextended (double overextended) with respect to the conjunction, in this case). If the membership weight of an exemplar x with respect to the disjunction “A or B” of two concepts A and B is less than the membership weight of x with respect to one concept (both concepts), we say that the membership weight of x is “underextended” (“double underextended”) with respect to the disjunction (by abuse of language, we say that x is underextended (double underextended) with respect to the disjunction, in this case).

Similar effects were identified by Hampton in his experiments on conjunction and negation of two concepts (Hampton, 1997). The analysis in Aerts (2009) revealed further deviations from classicality in Hampton's experiments, due to the impossibility to generally represent the collected data in a classical probability framework satisfying the axioms of Kolmogorov. In Sozzo (2015) we moved along this direction and performed an experiment in which we tested both conjunctions of the form “A and B” and conjunctions of the form “A and B′,” for specific pairs (A, B) of natural concepts. We showed that very similar deviations from classicality are observed in our experiment too.

In the present paper we aim to generalize the results in Sozzo (2015), providing an extensive analysis of conceptual conjunction and negation and investigating their reciprocal influences. To this end we complete the experiment in Sozzo (2015) by performing a more general cognitive test, as described in the following sections.

2.1. Participants and Design

The participants to our experimental study—40 persons, chosen among our colleagues and friends—were asked to fill in a questionnaire in which they had to estimate the membership of four different sets of exemplars with respect to four different pairs (A, B) of natural concepts, and their conjunctions “A and B,” “A and B′,” “A′ and B,” and “A′ and B′,” where A′ and B′ denote the negations of the concepts A and B, respectively. We devised a “within-subjects design” for our experiments, hence all participants were exposed to every treatment or condition. The participants were presented with a preliminary text where we made explicit, by means of suitable examples, what one usually means by “membership of an exemplar with respect to a specific conceptual category.” Further, we chose participants with different backgrounds, not only academics, to avoid issues connected with “selection biases.”

We considered four pairs of natural concepts, namely (Home Furnishing, Furniture), (Spices, Herbs), (Pets, Farmyard Animals), and (Fruits, Vegetables). For each pair, we considered 24 exemplars and measured their membership with respect to these pairs of concepts and the conjunctions of these pairs mentioned above.

Conceptual membership was estimated by using a “7-point scale.” The participants were asked to choose a number from the set +3, +2, +1, 0, −1, −2, −3, where the positive numbers +1, +2, and +3 meant that they considered “the exemplar to be a member of the concept”—+3 indicated a strong membership, +1 a relatively weak membership. The negative numbers −1, −2, and −3 meant that the participant considered “the exemplar to not be a member of the concept”—−3 indicated a strong non-membership, −1 a relatively weak non-membership.

Although we explicitly measured the “amount of membership” on a 7-point scale, for the scopes of this paper, we only need the data of a sub-experiment, namely the one tested for “membership” or “non-membership”—our plan is to use the “amount of membership data” for a following study leading to a graphical representation of the data, as we did with Hampton's data for the disjunction in earlier work (Aerts et al., 2013a,b). A second reason for this specific form of the experiments is that we wanted to stay as close as possible to the disjunction experiments by Hampton (1988b), since we plan to investigate later the connections of our conjunction data with Hampton's disjunction data, for example to investigate the way in which the “de Morgan laws” take form in our modeling of the data. This is why we performed the full experiment measuring “amount of membership” and also testing simultaneously for “membership or non-membership,” while it is only the latter sub-experiment that we use in the investigation presented in this article. The data of this sub-experiment give rise to relative frequencies for testing membership or not membership, which means that we can interpret them as probabilities in the limit of large numbers. More concretely, μ(A and B) is the large number limit of the relative frequency for x to be a member of “A and B” in the performed experiment. We get to this by converting the values collected on the 7-point scale by associating a value +1 to each positive value on the 7-point scale, −1 to each negative number, and 0.5 to each 0 on the same 7-point scale.

2.2. Procedure and Materials

This experimental study was carried out in accordance with the recommendations of the “University of Leicester Code of Practice and Research Code of Conduct, Research Ethics Committee of the School of Management” with written informed consent from all subjects. All subjects gave written informed consent in accordance with the Declaration of Helsinki. For each pair (A, B) of natural concepts, the 40 participants were involved in four subsequent experiments, eAB, eAB, eAB, and eAB, corresponding to the conjunctions “A and B,” “A and B′,” “A′ and B,” and “A′ and B′,” respectively. More specifically, the four sequential experiments can be illustrated as follows.

For the conceptual pair (Home Furnishing, Furniture), we firstly asked the 40 participants to estimate the membership of the first set of 24 exemplars with respect to the concepts Home Furnishing, Furniture, and their conjunction Home Furnishing And Furniture. Then, we asked the same 40 participants to estimate the membership of the same set of 24 exemplars with respect to the concept Home Furnishing, the negation Not Furniture of the concept Furniture, and their conjunction Home Furnishing And Not Furniture. Subsequently, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negation Not Home Furnishing of the concept Home Furnishing, the concept Furniture, and their conjunction Not Home Furnishing And Furniture. Finally, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negations Not Home Furnishing, Not Furniture, and their conjunction Not Home Furnishing And Not Furniture. The corresponding membership weights are reported in Table A1.

For the conceptual pair (Spices, Herbs), we firstly asked the 40 participants to estimate the membership of the second set of 24 exemplars with respect to the concepts Spices, Herbs, and their conjunction Spices And Herbs. Then, we asked the same 40 participants to estimate the membership of the same set of 24 exemplars with respect to the concept Spices, the negation Not Herbs of the concept Herbs, and their conjunction Spices And Not Herbs. Subsequently, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negation Not Spices of the concept Spices, the concept Herbs, and their conjunction Not Spices And Herbs. Finally, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negations Not Spices, Not Herbs, and their conjunction Not Spices And Not Herbs. The corresponding membership weights are reported in Table A2.

For the conceptual pair (Pets, Farmyard Animals), we firstly asked the 40 participants to estimate the membership of the third set of 24 exemplars with respect to the concepts Pets, Farmyard Animals, and their conjunction Pets And Farmyard Animals. Then, we asked the same 40 participants to estimate the membership of the same set of 24 exemplars with respect to the concept Pets, the negation Not Farmyard Animals of the concept Farmyard Animals, and their conjunction Pets And Not Farmyard Animals. Subsequently, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negation Not Pets of the concept Pets, the concept Farmyard Animals, and their conjunction Not Pets And Farmyard Animals. Finally, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negations Not Pets, Not Farmyard Animals, and their conjunction Not Pets And Not Farmyard Animals. The corresponding membership weights are reported in Table A3.

For the conceptual pair (Fruits, Vegetables), we firstly asked the 40 participants to estimate the membership of the third set of 24 exemplars with respect to the concepts Fruits, Vegetables, and their conjunction Fruits And Vegetables. Then, we asked the same 40 participants to estimate the membership of the same set of 24 exemplars with respect to the concept Fruits, the negation Not Vegetables of the concept Vegetables, and their conjunction Fruits And Not Vegetables. Subsequently, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negation Not Fruits of the concept Fruits, the concept Vegetables, and their conjunction Not Fruits And Vegetables. Finally, we asked the 40 participants to estimate the membership of the 24 exemplars with respect to the negations Not Fruits, Not Vegetables, and their conjunction Not Fruits And Not Vegetables. The corresponding membership weights are reported in Table A4.

2.3. Methodology

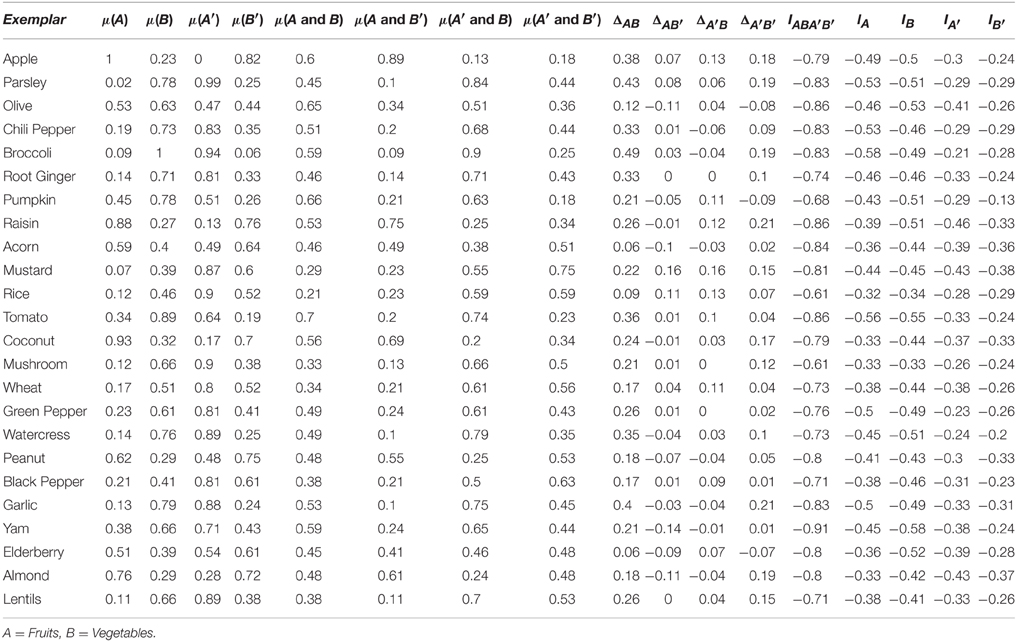

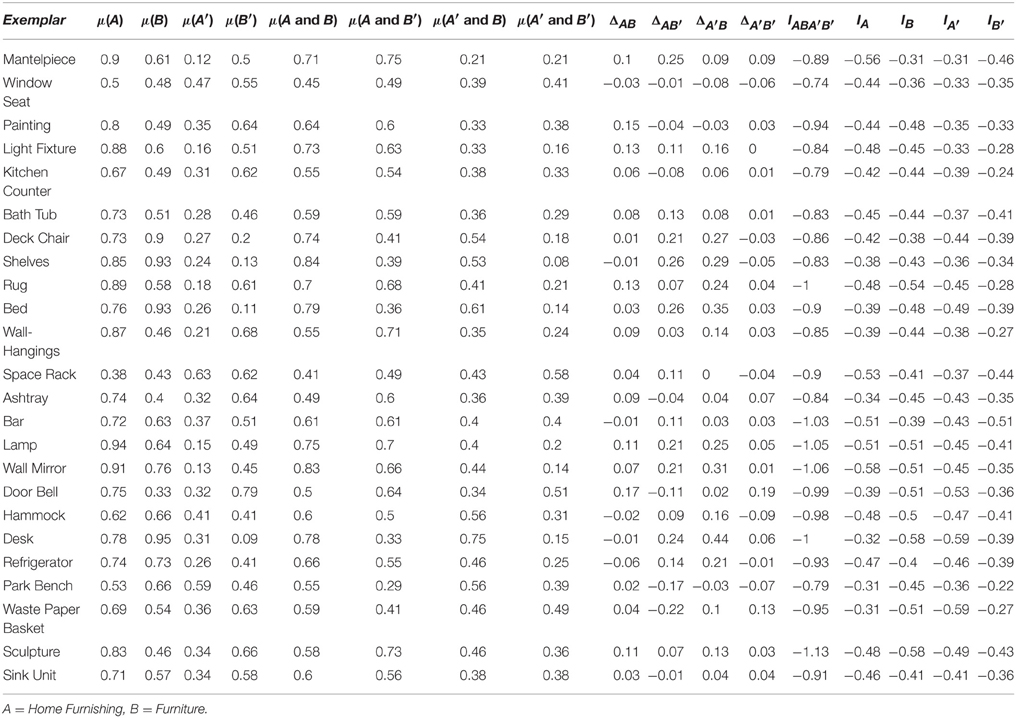

A first inspection of tables Tables A1A4 already reveals that some exemplars present overextension with respect to all conjunctions “A and B,” “A and B′,” “A′ and B,” “A′ and B′.” This is the case, e.g., for the exemplar Lamp with respect to the concepts Home Furnishing and Furniture (Table A1), the exemplar Salt with respect to Spices and Herbs (Table A2), the exemplar Goldfish with respect to Pets and Farmyard Animals (Table A3), and the exemplar Mustard with respect to Fruits and Vegetables (Table A4). Hence, manifest deviations from classicality occurred in our experiments. When we say “deviations from classicality,” we actually mean that the collected data behave in such a way that they cannot generally be modeled by using the usual connectives of classical (fuzzy set) logic for conceptual conjunctions, neither the rules of classical probability for their membership weights. In order to systematically identify such deviations from classicality we need however a characterization of the representability of these data in a classical probability space. To this end we derive in the following step by step conditions that will give us an overall picture of the classicality of conceptual conjunctions and negations. Finally, we arrive to a set of five conditions, formulated in Theorem 3 as a set of necessary and sufficient conditions of classicality for a pair of concepts, its negations and conjunctions to be representable within a classical Kolmogorovian probability model. Symbols and notions are introduced in Appendix A1. Let us mention that to our knowledge the “necessary and sufficient conditions for probabilities μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) to be represented within in classical Kolmogorovian probability model, have not yet been systematically derived, and hence are not known in the literature. However, the “necessary and sufficient conditions for probabilities μ(A), μ(B) and μ(A and B) to be represented within in classical Kolmogorovian probability model have been systematically studied (Pitowsky, 1989), their direct derivation can for example be found in Aerts (2009), theorem 1 of Section 1.3. We will start our investigation of the classicality condition by making use of the conditions that could be derived for μ(A), μ(B), and μ(A and B) and applying them additionally to μ(A′), μ(B′), and μ(A′ and B′), and to add some intermediate conditions connecting μ(A), μ(B), and μ(A and B) and μ(A′), μ(B′), and μ(A′ and B′), to also imply classicality for the mixed situations such as μ(A), μ(B′), and μ(A and B′). We can prove the following theorems (see also Appendix A4).

Theorem 1. The membership weights μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) of an exemplar x with respect to the concepts A, B, the negations “not A,” “not B,” the conjunctions “A and B,” “A and B,” “Aand B,” and “Aand B′” are classical conjunction data i.e., can be represented in a classical Kolmogorovian probability model, if and only if they satisfy the following conditions.

0μ(A and B)μ(A)1    (1)
0μ(A and B)μ(B)1    (2)
0μ(A and B)μ(A)1    (3)
0μ(A and B)μ(B)1    (4)
μ(A)-μ(A and B)=μ(B)-μ(A and B)           (5)
    =μ(A and B)μ(B)-μ(A and B)=μ(A)-μ(A and B)    (6)
    =μ(A and B)1-μ(A)-μ(B)+μ(A and B)=μ(A and B)    (7)
1-μ(A)-μ(B)+μ(A and B)=μ(A and B)    (8)

Theorem 2. The membership weights μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) of an exemplar x with respect to the concepts A, B, A, and Band the conjunctions “A and B,” “A and B,” “Aand B,” and “Aand B′” are classical conjunction data if and only if they satisfy the following conditions.

0μ(A and B)μ(A)1    (9)
0μ(A and B)μ(B)1    (10)
μ(A)μ(A and B)=μ(B)μ(A and B)                                =μ(A and B)    (11)
μ(B)μ(A and B)=μ(A)μ(A and B)                                =μ(A and B)    (12)
01μ(A)μ(B)+μ(A and B)=μ(A and B)    (13)

The classicality requirements in Theorems 1 and 2 are not symmetric with respect to the exchange of A with A′ and B with B′. Thus, we can look for equivalent and more symmetric sets of requirements. These include validity of the “marginal law” of classical probability. We see this in Theorem 3, whose proof preliminarily requires the following lemma.

Lemma 1. The four equalities defined in Equations (5) and (6) are equivalent with the following four equalities expressing the marginal law for all elements to be satisfied.

μ(A)=μ(A and B)+μ(A and B)    (14)
μ(B)=μ(A and B)+μ(A and B)    (15)
μ(A)=μ(A and B)+μ(A and B)    (16)
μ(B)=μ(A and B)+μ(A and B)    (17)

Theorem 3. The membership weights μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) of an exemplar x with respect to the concepts A, B, A, and Band the conjunctions “A and B,” “A and B,” “Aand B,” and “Aand B′” are classical conjunction data if and only if they satisfy the following conditions.

0μ(A and B)μ(A)1    (18)
0μ(A and B)μ(B)1    (19)
μ(A)=μ(A and B)+μ(A and B)    (20)
μ(B)=μ(A and B)+μ(A and B)    (21)
μ(A)=μ(A and B)+μ(A and B)    (22)
μ(B)=μ(A and B)+μ(A and B)    (23)
01μ(A and B)μ(A and B)μ(A and B)              =μ(A andB)(24)

The conditions above can be further simplified by observing that the membership weights we collected in our experiments are large number limits of relative frequencies, thus all measured quantities are already contained in the interval [0, 1]. Therefore, we have

μ(A),μ(B),μ(A),μ(B),μ(A and B),μ(A and B),                         μ(A and B),μ(A and B)[0,1]    (25)

Now, when Equation (25) is satisfied, we have that from Equations (21) and (22) follows that

μ(A and B)μ(A)μ(A and B)μ(B)

This entails that Equations (18) and (19) are satisfied, when Equations (21) and (22) are. Hence, we can amazingly enough formulate Theorem 3 a new, with only five conditions to be satisfied—four conditions expressing the marginal law.

Theorem 3. If the membership weights μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) of an exemplar x with respect to the concepts A, B, A, and Band the conjunctions “A and B,” “A and B,” “Aand B,” and “Aand B′” are all contained in the interval [0, 1], they are classical conjunction data if and only if they satisfy the following conditions.

μ(A)=μ(A and B)+μ(A and B)    (26)
μ(B)=μ(A and B)+μ(A and B)    (27)
μ(A)=μ(A and B)+μ(A and B)    (28)
μ(B)=μ(A and B)+μ(A and B)    (29)
μ(A and B)+μ(A and B)+μ(A and B)                                    +μ(A and B)=1    (30)

Equations (26–30) express classicality conditions in their most symmetric form. A more traditional way to quantify deviations from classical conjunction in real data is resorting to the following parameters.

ΔAB=μ(A and B)-min{μ(A),μ(B)}    (31)
ΔAB=μ(A and B)-min{μ(A),μ(B)}    (32)
ΔAB=μ(A and B)-min{μ(A),μ(B)}    (33)
ΔAB=μ(A and B)-min{μ(A),μ(B)}    (34)

In fact, the quantities ΔAB, ΔAB, ΔAB, and ΔAB typically measure overextension with respect to the conjunctions “A and B,” “A and B′,” “A′ and B,” and “A′ and B′,” respectively (Hampton, 1988a). However, overextension-type deviations are generally not the only way in which membership for conjunction of concepts can deviate from classicality. Let us now introduce the following quantities:

kAB=1-μ(A)-μ(B)+μ(A and B)    (35)
kAB=1-μ(A)-μ(B)+μ(A and B)    (36)
kAB=1-μ(A)-μ(B)+μ(A and B)    (37)
kAB=1-μ(A)-μ(B)+μ(A and B)    (38)

The quantities kAB, kAB, kAB, and kAB have been named “Kolmogorovian conjunction factors” and studied in detail in Aerts (2009). The Kolmogorovian factors measure a deviation that can be understood as of “opposite type” than the deviation measured by the overextension. Namely, the condition for kAB is violated when both μ(A) and μ(B) are “too large” compared with μ(A and B). Finally, we introduce a new type of quantities that measure the deviations of classicality as expressed by Equations (27–30), hence essentially deviations from the marginal law of classical probability:2

IABAB=1μ(A and B)μ(A and B)μ(A and B)              μ(A and B)    (39)
IA=μ(A)μ(A and B)μ(A and B)    (40)
IB=μ(B)-μ(A and B)-μ(A and B)    (41)
IA=μ(A)-μ(A and B)-μ(A and B)    (42)
IB=μ(B)-μ(A and B)-μ(A and B)    (43)

Finally, Theorem 3′ can be reformulated by means of the introduced parameters as follows.

Theorem 3. If the membership weights μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) of an exemplar x with respect to concepts A, B, A, and Band the conjunctions “A and B,” “A and B,” “Aand B,” and “Aand B,” are all contained in the interval [0, 1], they are classical conjunction data if and only if

IABAB=IA=IB=IA=IB=0    (44)

2.4. Results

Let us now come back to our experiments. Theorems 1–3 are manisfestly violated in several cases, and we report in Appendix A3 the relevant conditions that should hold in a classical setting. Since the conditions kAB > 0, kAB>0, kAB>0, and kAB>0 are always satisfied, they are not explicitly inserted in Tables A1A4. On the contrary, ΔXY, IX, IY, X = A, A′, Y = B, B′, and IABAB are systematically violated. This means that deviations from a classical probability model in our experimental data are due to both overextension in the conjunctions and violations of classicality in the negations. We consider some relevant cases in the following.

The exemplar Apple scores μ(A) = 1 with respect to the concept Fruits, μ(B) = 0.23 with respect to the concept Vegetables, and μ(A and B) = 0.6 with respect to the conjunction Fruits And Vegetables, hence it has ΔAB = 0.38 (Table A4). The exemplar Prize Bull scores μ(A) = 0.13 with respect to Pets, μ(B) = 0.76 with respect to the concept Farmyard Animals, and μ(A and B) = 0.43 with respect to the conjunction Pets And Farmyard Animals, hence it has ΔAB = 0.29 (Table A3). The membership weight of Chili Pepper with respect to Spices is 0.98, with respect to Herbs is 0.53, while its membership weight with respect to the conjunction Spices And Herbs is 0.8, hence ΔAB = 0.27, thus giving rise to overextension (Table A2). Even stronger deviations are observed in the combination Fruits And Vegetables. For example, the exemplar Broccoli scores 0.09 with respect to Fruits, 1 with respect to Vegetables, and 0.59 with respect to Fruits And VegetablesAB = 0.49). A similar pattern is observed for Parsley, which scores 0.02 with respect to Fruits, 0.78 with respect to Vegetables and 0.45 with respect to Fruits And VegetablesAB = 0.43, Table A4).

Overextension is present when one concept is negated. More explicitly:

(i) in the conjunction “A and B′.” Indeed, the membership weights of Shelves with respect to Home Furnishing, Not Furniture, and Home Furnishing And Not Furniture is 0.85, 0.13, and 0.39, respectively, for a ΔAB=0.26 (Table A1). Then, Pepper scores 0.99 with respect to Spices, 0.58 with respect to Not Herbs, and 0.9 with respect to Spices and Not Herbs, for a ΔAB=0.32 (Table A2). Finally, Doberman Guard Dog gives 0.88 and 0.27 with respect to Pets and Not Farmyard Animals, respectively, while it scores 0.55 with respect to Pets And Not Farmyard Animals, hence it scores ΔAB=0.28 (Table A3).

(ii) in the conjunction “A′ and B.” Indeed, the membership weights of Desk with respect to Not Home Furnishing, Furniture and Not Home Furnishing And Furniture is 0.31, 0.95, and 0.75, respectively, for a ΔAB=0.44 (Table A1). The exemplar Oregano scores 0.21 with respect to Not Spices, 0.86 with respect to Herbs, and 0.5 with respect to Not Spices and Herbs, for a ΔAB=0.29 (Table A2). Finally, again Doberman Guard Dog gives 0.14 and 0.76 with respect to Not Pets and Farmyard Animals, respectively, while it scores 0.45 with respect to Not Pets And Farmyard Animals, hence it scores ΔAB=0.45 (Table A3).

When two concepts are negated—“A′ and B′”—we have, for example, μ(A′) = 0.12, μ(B′) = 0.81 and μ(A′ and B′) = 0.43 for Goldfish, with respect to Not Pets and Not Farmyard Animals, hence ΔAB=0.31, in this case (Table A3). More, the exemplar Garlic scores μ(A′) = 0.88 with respect to Not Fruits and μ(B′) = 0.24 with respect to Not Vegetables, and μ(A′ and B′) = 0.45 with respect to Not Fruits And Not Vegetables, for a ΔAB=0.21 (Table A4).

Double overextension is also present in various cases. For example, the membership weight of Olive with respect to Fruits And Vegetables is 0.65, which is greater than both 0.53 and 0.63, i.e., the membership weights of Olive with respect to Fruits and Vegetables, respectively (Table A4). Furthermore, Prize Bull scores 0.13 with respect to Pets and 0.26 with respect to Not Farmyard Animals, but its membership weight with respect to Pets And Not Farmayard Animals is 0.28 (Table A3). Also, Door Bell gives 0.32 with respect to Not Home Furnishing and 0.33 with respect to Furniture, while it gives 0.34 with respect to Not Home Furnishing And Furniture.

Significant deviations from classicality are also due to conceptual negation, in the form of violation of the marginal law of classical probability theory. By again referring to Tables A1A4, we have that the exemplar Field Mouse has IABAB in Equation (40) equal to −0.46 (Table A3), while the exemplar Doberman Guard Dog has IABAB=-1.03 (Table A3). Both exemplars thus violate Equation (30). Analogously, Chili Pepper has IA in Equation (40) equal to −0.73 (Table A2), hence it violates Equation (26), while Pumpkin has IB in Equation (43) equal to −0.13 (Table A4), hence it violates Equation (29).

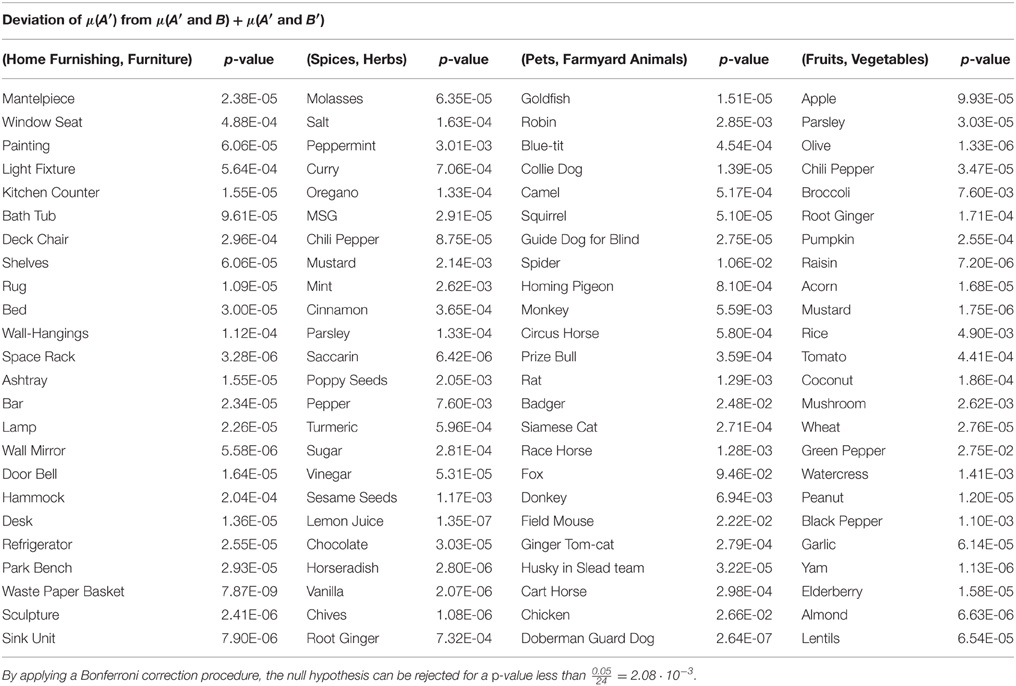

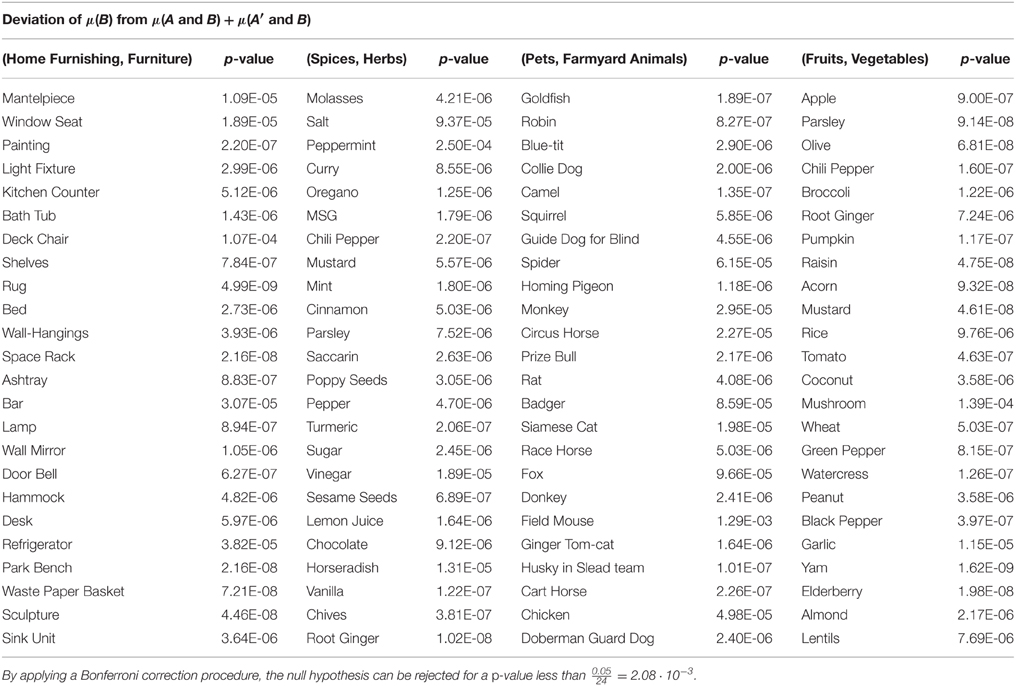

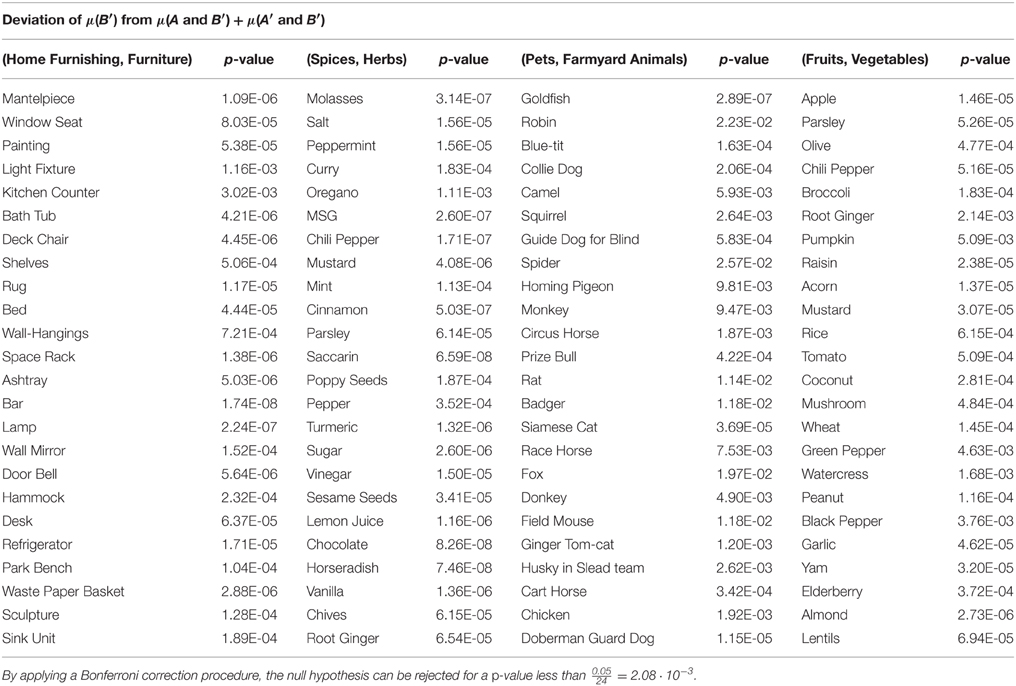

We performed a statistical analysis of the data, estimating the probability that the experimentally identified deviations from classicality would be due to chance. We specifically considered the classicality conditions Equations (26–30) with the aim to prove that the deviations IX, X = A, A′, IY, Y = B, B′ and IABAB in Equations (40–43) were statistically significant. We firstly performed a “two-tail t-test for paired two samples for means” to test deviations from the marginal law of classical probability, that is, we tested violations of Equations (26–29) by comparing μ(X) with respect to Y=B,Bμ(X,Y), X = A, A′, and μ(Y) with respect to X=A,Aμ(X and Y), Y = B, B′. Then, we performed a “two-tail t-test for one sample for means” to test X=A,AY=B,Bμ(Xand Y) with respect to 1. The corresponding p-values for df = 37 are reported in Tables A5AE. Due to the high number of multiple comparisons—24 null hypotheses were tested for each pair (X, Y) of concepts—we applied a “Bonferroni correction procedure” to avoid the so-called “family-wise error rate” (FWER). Hence, we compared the obtained p-values with the reference value 0.05∕24 ≈ 0.002. We found p-values systematically much lower than this reference value, for all exemplars and pairs of concepts, which makes it possible to conclude that the experimentally tested deviations from classicality are not due to chance.

In addition, our data analysis reveals a new, fundamental and a priori unexpected deviation from classicality. The numerical values of IA, IB, IA, IB, and IABAB in Equations (40–43) are reported in Aerts et al. (2015b). They are such that the corresponding pattern of violation exhibits specific features:

(i) it cannot be explained by means of traditional classical probabilistic approaches, since we should have IA=IB=IA=IB=IABAB=0, in that case (see Theorem 3″).

(ii) it is “highly stable,” in the sense that the functions IA, IB, IA, IB, and IABAB are very likely between -1 and 0;

(iii) is is “systematic,” in the sense that the values of IA, IB, IA, IB, and IABAB are approximately the same across all exemplars;

(iv) it is “regular,” in the sense that the functions IA, IB, IA, IB, and IABAB do not depend on the pair of concepts that are considered.

Observations (i–iv) were for us a clue that IA, IB, IA, IB, and IABAB are constant functions across all exemplars and pairs of concepts. This is indeed the case, as we have proved in Aerts et al. (2015b) by means of a “linear regression statistical analysis.” This pattern is so unexpectedly stable, systematic and regular, being independent of exemplars, concepts and conceptual connectives, that it constitutes for us a fundamental new finding. We believe that this deviation from classicality occurs at a deeper level than the known deviations due to overextension and underextension, and that it expresses a fundamental mechanism of concept formation.

These results could already be considered as crucial for claiming that the violation of classicality occurs at a deep structural conceptual level, but this is not the end of the story. We will see in Section 5 that the stability of this violation can exactly be explained in a quantum-theoretic framework in two-sector Fock space elaborated by ourselves. Hence, we devote Sections 3 and 4 to expose this modeling framework (the essentials of the formalism we apply are reviewed in Appendix A2, and we refer to it for symbols and notation).

3. Quantum Modeling Conceptual Conjunctions and Negations

In Aerts (2009) we proved that a big amount of the experimental data collected in Hampton (1988a,b) on conjunctions and disjunctions of two concepts can be modeled by using the mathematical formalism of quantum theory. A two-sector Fock space then provided an optimal algebraic setting for this modeling. In Sozzo (2014) we proved that this quantum-theoretic framework was suitable to model the data collected in Alxatib and Pelletier (2011) on conjunctions of the form “A and A′,” and in Sozzo (2015) we were able to prove that also the experimental data collected on conjunctions of the form “A and B” and “A and B′,” for specific pairs (A, B) of concepts can be represented by using the same quantum mathematics. However, a complete modeling of data on both conjunctions and negations requires performing new experiments, where the conceptual conjunctions “A and B” and “A and B′” are tested together with the conceptual conjunctions “A′ and B” and “A′ and B′.” The complete collection of these experiments has been discussed in Section 2. As anticipated in Section 1, we undertake this modeling task here. It is natural to observe that the modeling in Aerts (2009) needs a suitable generalization, since conceptual negation should be taken into account as well. But, we will see later in this section that such a generalization is completely compatible with the original model, because it rests on the assumption that (probabilistic versions of) logical rules hold only in second sector of Fock space. By introducing this quite natural assumption, we were able to model conceptual conjunctions and disjunctions in Fock space. We show now that conceptual conjunctions and negations can be modeled in Fock space by introducing the same assumption.

To model conceptual negations we also need a new theoretical step which was not necessary in our previous formulations, namely, the introduction of “entangled states” in second sector of Fock space to formalize situations where the membership weights are not independent. This introduction, together with the application of quantum logical rules in second sector of Fock space, are compatible with previous formulations, but they make our generalization in this paper highly non-obvious. We will extensively discuss the novelties of the present modeling in the next sections. Let us first proceed with our mathematical construction.

Let us denote by μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) the membership weights of a given exemplar x with respect to the concepts A, B, the negations A′, B′ and the conjunctions “A and B,” “A and B′,” “A′ and B,” and “A′ and B′,” respectively.

The decision measurement testing whether a specific exemplar x is a member or not a member of a concept A is represented by the spectral decomposition of the identity consisting of the two orthogonal projection operators M (generally depending on x, we omit such dependence, for the sake of brevity) and yesM defined in a complex Hilbert space H. The concepts A and B are represented by orthogonal unit vectors |A〉 and |B〉, respectively, of H. Hence we have

A|A=B|B=1A|B=0    (45)

By using standard rules for quantum probabilities (see Appendix A2), we have the following

μ(A)=A|M|Aμ(B)=B|M|B    (46)

where μ(A) and μ(B) are the measured membership weights of x with respect to the concepts A and B, respectively, in the performed experiment.

The conceptual negations A′ and B′ are represented by another pair of orthogonal unit vectors |A′〉 and |B′〉, respectively, such that the set {|A〉, |B〉, |A′〉, |B′〉}, is an orthonormal set. Hence we have

μ(A)=A|M|Aμ(B)=B|M|B    (47)

where μ(A′) and μ(B′) are the measured membership weights of x with respect to the negations A′ and B′ of the concepts A and B, respectively, in the performed experiment.

3.1. The First Sector Analysis

Let us first analyze the situation where we look for a modeling solution in the Hilbert space H —which for our complete quantum model in Fock space will be the first sector of this Fock space, as we will show in detail later. In the Hilbert space H, the concepts “A and B,” “A and B′,” “A′ and B,” and “A′ and B′” are respectively represented by the superposition vectors3 12(|A+|B), 12(|A+|B), 12(|A+|B), and 12(|A+|B).

Let us analyze in detail the aspects of this situation with the aim of resulting in a view on the possible solutions. Geometric considerations induce to observe that, if we look for a solution in the complex Hilbert space ℂ8, we will find the most general type of solution. Indeed, since we consider four orthonormal vectors |A〉, |A′〉, |B〉, and |B′〉, our Hilbert space will contain a four dimensional subspace generated by these vectors. Further we have two orthogonal projection operators M and 1−M, that work on this four dimensional subspace. The image of a projection operator has dimension not bigger than the definition domain of it, which means that the image of M of the four dimensional subspace is at maximum equal to four, and this is also the case for the image of yesM of the four dimensional subspace. Since M and yesM are orthogonal, this can give rise to a eight dimensional subspace, but not more. It means that we can incorporate all what we need in an eight dimensional complex Hilbert space. This is the reason that we look for our representation starting with ℂ8, knowing that the choice of a Hilbert space with more than eight dimensions would not add degrees of freedom that can give rise to additional solutions to those that can be found in ℂ8. Hence, we explicitly use this Hilbert space in what follows reminding, however, that our results hold in any higher dimensional Hilbert space. Let {|1〉 = (1, …, 0), |2〉 = (0, 1, …, 0), …, |8〉 = (0, 0, …, 1)} denote the canonical base of ℂ8. We construct a representation in ℂ8 where M projects on the subspace ℂ4 generated by the last four vectors of this canonical base, and yesM on the subspace ℂ4 generator by the first four vectors of it. If we set

|A=eiϕA(a1,a2,a3,a4,a5,a6,a7,a8)    (48)
|A=eiϕA(a1,a2,a3,a4,a5,a6,a7,a8)    (49)
|B=eiϕB(b1,b2,b3,b4,b5,b6,b7,b8)    (50)
|B=eiϕB(b1,b2,b3,b4,b5,b6,b7,b8)    (51)

then Equations (46) and (47) become

μ(A)=A|M|A=a52+a62+a72+a82    (52)
yes
μ(A)=A|M|A=a52+a62+a72+a82    (54)
yes
μ(B)=B|M|B=b52+b62+b72+b82    (56)
yes
μ(B)=B|M|B=b52+b62+b72+b82    (58)
yes

and the orthogonality conditions become

0=A|A=a1a1+a2a2+a3a3+a4a4+a5a5                    +a6a6+a7a7+a8a8    (60)
0=B|B=b1b1+b2b2+b3b3+b4b4+b5b5                     +b6b6+b7b7+b8b8    (61)
0=A|B=a1b1+a2b2+a3b3+a4b4+a5b5                   +a6b6+a7b7+a8b8    (62)
0=A|B=a1b1+a2b2+a3b3+a4b4+a5b5                     +a6b6+a7b7+a8b8    (63)
0=A|B=a1b1+a2b2+a3b3+a4b4+a5b5                    +a6b6+a7b7+a8b8    (64)
0=A|B=a1b1+a2b2+a3b3+a4b4+a5b5     +a6b6+a7b7+a8b8    (65)

A solution of Equations (52–65) gives us a configuration of the four orthonormal vectors |A〉, |A′〉, |B〉, and |B′〉 in ℂ8, such that self-adjoint operator formed by the spectral decomposition of the two orthogonal projections M and yesM give rise to the values μ(A), 1−μ(A), μ(A′), 1−μ(A′), μ(B), 1−μ(B), and μ(B′), 1−μ(B′), corresponding to the measured data.

By using standard rules for quantum probabilities we have that the membership weights for the conjunctions corresponding to the measured data should satisfy the following equations:

μ(A and B)=12(A|+B|)M12(|A+|B)                  =12(μ(A)+μ(B))+A|M|B    (66)
μ(A and B)=12(A|+B|)M12(|A+|B)                   =12(μ(A)+μ(B))+A|M|B    (67)
μ(A and B)=12(A|+B|)M12(|A+|B)                   =12(μ(A)+μ(B))+A|M|B    (68)
μ(A and B)=12(A|+B|)M12(|A+|B)                   =12(μ(A)+μ(B))+A|M|B    (69)

Hence, in ℂ8 these equations become

μ(A and B)=12(μ(A)+μ(B))+A|M|B                  =12(μ(A)+μ(B))+(a5b5+a6b6+a7b7+a8b8)                      cos(ϕBϕA)    (70)
μ(A and B)=12(μ(A)+μ(B))+A|M|B                   =12(μ(A)+μ(B))+(a5b5+a6b6+a7b7+a8b8)                       cos(ϕBϕA)    (71)
μ(A and B)=12(μ(A)+μ(B))+A|M|B                   =12(μ(A)+μ(B))+(a5b5+a6b6+a7b7+a8b8)                      cos(ϕBϕA)    (72)
μ(A and B)=12(μ(A)+μ(B))+A|M|B                    =12(μ(A)+μ(B))+(a5b5+a6b6+a7b7+a8b8)                        cos(ϕBϕA)    (73)

The conditions that should be satisfied by experimental data in order to represent them in ℂ8 are reported in Appendix A5. By analogy with what we found in Aerts (2009) and Sozzo (2014, 2015), we however expect that our experimental data in Appendix A3 cannot be generally modeled in the complex Hilbert space ℂ8, or first sector of Fock space, but a second sector ℂ8 ⊗ ℂ8 of Fock space is also needed. Consider for example a simple case that applies for classical logics μ(A) = 1, μ(B) = 0 and μ(A and B) = 0. This case is consistent with the minimum conjunction rule (Zadeh, 1982) but not with our first sector of Fock space (Hilbert space) model. We will see that this type of cases is compatible with second sector of Fock space, and show that a framework that encompasses both “logical” and “emergent” reasoning about membership in these situations requires the general properties of a Fock space. To make our description complete however, we first have to introduce a new, conceptually relevant, ingredient.

3.2. Introducing Entanglement in Conceptual Combinations

In Aerts (2009) and Sozzo (2014, 2015) we successfully modeled conjunctions of the form “A and B” in a Fock space constructed as the direct sum of an individual Hilbert space H, or “first sector of Fock space,” and a tensor product Hilbert space HH, or “second sector of Fock space.” The concepts A and B were respectively represented by the unit vectors |A〉 and |B〉 of H, while the conjunction “A and B” was represented by the unit vector 12(|A+|B) in first sector, and by the tensor product vector |A〉 ⊗ |B〉 in second sector. The decision measurement of a person who estimates whether a given exemplar x is a member of “A and B” was represented by the orthogonal projection operator M in first sector, and by the tensor product projection operator MM in second sector. The conjunction “A and B” was represented by a unit vector of the form ψ(A,B)=meiθ|A|B+neiρ12(|A+|B) in the Fock space H ⊕ (HH), while the decision measurement was represented by the orthogonal projection operator M ⊕ (MM) in the same Fock space. By using quantum probabilistic rules, one could then write the membership weight of x with respect to “A and B” as μ(A and B)=ψ(A,B)|(MM)M|ψ(A,B)=m2μ(A)μ(B)+n2(12(μ(A)+μ(B))+A|M|B). This treatment needs now to be generalized to the decision measurement of the concepts A, B, the negations A′, B′ and the conjunctions “A and B,” “A and B′, “A′ and B,” and “A′ and B′.” The first sector situation has already been analysed in Section 3.1 where we have also constructed an explicit representation in the complex Hilbert space ℂ8. Here we analyse the second sector situation, but we allow for the possibility of representing concepts by entangled states too.

Is it possible to introduce some “type of entanglement” in second sector ℂ8 ⊗ ℂ8? This question is interesting, since it is reasonable to believe that the outcomes of experiments for A are not independent of the outcomes of experiments for B. For example, in case a specific exemplar x is strongly a member of Fruits, this will influence the strength of membership of Vegetables, and viceversa, because the meanings of Fruits and Vegetables are not independent. And this apparently occurs for all human concepts. Suppose we combined, for example, Fruits with Not Fruits, then one would expect to exist, for any exemplar, a substantial amount of anti-correlation between it being a member of Fruits and it being a member of Not Fruits. How can we express the general situation, where anti-correlation, as well as correlation, are possible to be increased or decreased by parameters? In the foregoing modeling (Aerts, 2009; Aerts et al., 2013b) we chose the simplest representation for the situation in second sector, namely the product state |A〉 ⊗ |B〉, which leads to a situation of complete independence between A and B, for whatever exemplar tested. Let us investigate what would be a situation for a general entangled state, and how a two-sector Fock space already incorporates this possibility.

Suppose that the concept “A and B” is not represented by the product state vector |A〉 ⊗ |B〉 in second sector of Fock space ℂ8 ⊗ ℂ8, but by a general entangled state vector |C〉 of ℂ8 ⊗ ℂ8. We remind that ℂ8 is the concrete Hilbert space we have constructed in Section 3.1. In the canonical base {|i〉}i = 1, …, 8 of ℂ8, we have

|C=i,j=18cijeiγij|i|j    (74)

and

1=C|C=i,j=18cij2    (75)

We now express the effect, as described in second sector, of the experiments where participants were asked to decide for membership (or non-membership) of a specific exemplar with respect to the concepts A and B, as follows. Membership with respect to A, as a yes-no measurement, is represented by the orthogonal projection operators Myes, (yesM) ⊗ yes, as spectral family of the corresponding self-adjoint operator. Hence in second sector, tests on concept A, are described in the first component of the tensor product Hilbert space ℂ8 ⊗ ℂ8, which forms second sector. In an analogous way, tests on concept B, are described in the second component of the tensor product, by the orthogonal projection operators yesM, yes ⊗ (yesM), as spectral family of the corresponding self-adjoint operator. Remark that we do not introduce in any way the concepts A′ and B′ for the second sector description, and also not conjunction of A and B with them, at least the aspect of these conjunctions that represent new emergent concepts. The concept A′ and B′ are indeed “emergent entities” because the negation on a concept to give rise to a new concept, namely the negation concept.

Also the experimental data collected on A′, B′ and combinations of them with A and B do not appear in second sector. All emergence is indeed modeled in first sector. This means that also the conjunction of A and B as a new emergent concept does not appear in second sector, it only appears in first sector modeled there by the superposition. All non-emergent equivalents of these are described by the tensor product of the two self-adjoint operators corresponding to the yes-no experiments with respect to membership performed on concepts A and consequently on concept B, exactly as in our real life experiment that gave rise to our data on A and B. This means that the orthogonal projectors of the spectral family of this tensor product self-adjoint operator describe all cases of non-emergence. This family consists of {MM, M ⊗ (yesM), (yesM) ⊗ M, (yesM) ⊗ (yesM)}. Let us express this on a general entangled state vector |C〉. We have

yes

And further we have

C|MM|C=i=58j=58cij2    (80)
yes

The values of 〈C|MM|C〉, 〈C|M ⊗ (yesM)|C〉, 〈C|(yesM) ⊗ M|C〉, and 〈C|(yesM) ⊗ (yesM)|C〉 will respectively represent the amounts that within our Fock space model second sector contributes to the values of μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′). We can prove that the second sector theoretical values, allowing the state to be a general entangled state in our ℂ8 ⊗ ℂ8 Hilbert space model, reach exactly the values to be found for the case the classicality conditions Equations (26–30) in Theorem 3′ are satisfied. More explicitly, the following theorem holds (see Appendix A4 for its proof).

Theorem 4. If the experimentally collected membership weights μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) can be represented in second sector of Fock space for a given choice of the entangled state vector |Cand the decision measurement projection operator M, then the membership weights satisfy Equations (26–30), hence they are classical data. Viceversa, if μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) satisfy Equations (26–30), hence they are classical data, then an entangled state vector |Cand a decision measurement projection operator M can always be found such that μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B), and μ(A′ and B′) can be represented in second sector of Fock space.

Theorem 4 implies that the tensor product Hilbert space model (second sector of Fock space) has exactly the same generality as the most general classical conditions for conjunction and negation. More specifically, given any data that satisfy the five classicality conditions of Theorem 3′, we can construct an entangled state such that in second sector “exactly” these classicality conditions are satisfied. Moreover, it clarifies that entangled states in our general Fock space modeling of data on conceptual conjunction and negation play a fundamental unexpected role in the combination of human concepts. The fact that classical logical rules are satisfied, in a probabilistic form, in second sector of Fock space provides an important confirmation to our two-sector quantum framework, as we will see in Section 5.

3.3. A Complete Modeling in Fock Space

In Section 3.1 we have considered the situation of first sector of Fock space, representing the starting concepts A and B by the state vectors |A〉 and |B〉, respectively, of a Hilbert space H. Then, we have introduced the state vectors |A′〉 and |B′〉, which represent the conceptual negations “not A” and “not B,” respectively. Since first sector of Fock space describes “emergence,” the state vectors |A′〉 and |B′〉 can be interpreted as representing the newly emergent concepts “not A” and “not B,” respectively, compatibly with the core of the approach we developed in our quantum modeling of combinations of concepts. We have also seen in Section 3.1 that also the newly emergent concept “A and B,” or one of the other conjunction combinations, “A and B′,” “A′ and B,” and “A′ and B′,” are directly represented in this first sector of Fock space by state vectors, more specifically by the superposition state vectors of the corresponding state vectors, namely 12(|A+|B), 12(|A+|B), 12(|A+|B) and 12(|A+|B), respectively.

Following Aerts (2009) and Sozzo (2014, 2015), we should also take into account the logical aspects of conceptual conjunctions and negations in second sector of Fock space, mathematically formed by the tensor product of the Hilbert space H of first sector. In previous papers we had represented the state of the concept A and B in second sector by the product vector |A〉 ⊗ |B〉 of this tensor product HH. However, this leads inevitably to the probability for the conjunction μ(A and B) to be equal to the product μ(A)μ(B), as we have seen in Section 3.2. In classical probability theory this means that the probabilities are probabilistically independent. Now, quite obviously, since the concepts A and B are related by their meaning, these probabilities are not probabilistically independent. Suppose that B is the negation A′, like in the borderline effect (Sozzo, 2014). Then, we obviously would have an anti-correlation between μ(A) and μ(B). But, even in this not simple case, any meaning connection between A and B would give rise to probabilities that are not independent. On the other hand, we have seen in Section 3.2 that we can model any type of classical probabilistic dependence by introducing the proper entangled state for the concept representation of A and of B in second sector. This means that we should not in principle use |A〉 ⊗ |B〉 to represent the concepts in second sector, but a properly chosen entangled state.

Let us denote, following our analysis in Section 3.2, such a general entangled state in ℂ8 by means of

|C=i,j=18cijeγij|i|j    (84)

where |i〉 and |j〉 are the canonical base vectors of ℂ8.

The state vector representing the concept “A and B” in its totality, hence its first sector part, describing emergent human thought, i.e., the formation of the new concept “A and B,” and its second sector part, describing quantum logical human thought, i.e., the conjunctive connective structure “A and B,” is then the following

ψ(A,B)=mABeiθ|C+nABeiρ2(|A+|B)    (85)

with mAB2+nAB2=1. It is indeed the superposition of two vectors, one vector given by 12(|A+|B) in first sector of Fock space, accounting for the emergent part of human thought with respect to the conjunction, and a second vector given by |C〉 in second sector of Fock space, accounting for the quantum logical part of human thought with respect to the conjunction. By using Equations (84) and (85), we then get the following general expression for the membership weight of the conjunction

μ(A and B)=ψ(A,B)|(MMM)|ψ(A,B)                   =mAB2(C|)MM|(|C)                      +nAB22(A|+B|)M(|A+|B)                   =mAB2i,j=58cij2+nAB22(A|M|A+B|M|B                       +A|M|B+B|M|A)                  =mAB2i,j=58cij2+nAB2(12(μ(A)+μ(B))+A|M|B)                  =mAB2i,j=58cij2+nAB2(12(μ(A)+μ(B))                     +(a5b5+a6b6+a7b7+a8b8)cos(ϕBϕA))    (86)

where we have used Equation (70) in the last line of Equation (86).

What is the procedure corresponding to emergent and quantum logical parts of human thought when we also take into account negations, i.e., when we consider the conjunctions “A and B′,” “A′ and B,” and “A′ and B′”? As for first sector of Fock space, we have already made it explicit in Section 3.1. Indeed, the new emergent concepts “A′” and “B′” are described by the state vectors |A′〉 and |B′〉, and the respective conjunctions, i.e., their emergent aspects as a new concept, each time by means of the corresponding superposition state vector. This is the way the emergence of negation and conjunction are jointly modeled in first sector of Fock space—new state vectors model the new emergent concepts due to negation, and the emergent conjunctions are modeled by the respective superpositions.

In second sector of Fock space, we however have a specific situation to solve. Namely, exactly as we did for the conjunction, we need to identify what is the quantum logical structure related with negation, independent of its provoking the emergence of a new concept, i.e., the negation of the original concept. In second sector of Fock space we indeed only express the quantum logical reasoning in human thought and not the emergent reasoning. For the conjunction “A and B” we did this by means of the entangled state |C〉. Let us reflect about the negation, for example, with respect to the concept B. To make things clear let us introduce the following two expressions. We are in the experimental situation where the membership of an exemplar x, or the non-membership of this exemplar, is to be decided about, by a person participating in the experiment. The concept B can be involved, and the concept B′ can be involved.

Expression 1. The considered exemplar x is a member of the concept B′.

Expression 2. The considered exemplar x is “not” a member of the concept B.

Our theoretic proposal is that:

(1) the first expression describes what happens in a human mind when emergent thought is dominant with respect to a concept B, its negation B′ and an exemplar x. Indeed, the focus is on “membership” of this exemplar x with respect to the new emergent concept “B′”;

(2) the second expression describes what happens in a human mind when quantum logical thought is dominant with respect to a concept B, its negation B′ and an exemplar x. Indeed, the focus is on “non-membership” of this exemplar x with respect to the old existing concept B.

Expressions (1) and (2) are two structurally speaking subtle deeply different possibilities of reasoning related to a concept and its negation.

Our third theoretic proposal is that:

(3) human thought, when confronted with this situation, follows a dynamics described by a quantum superposition of the two modes (1) and (2).

We will see in the following that the mathematical structure of Fock space enables modeling this in an impecable way.

Indeed, expression (1) will be modeled in first sector of our Fock space, and it is mathematically realised by making M work on |B′〉. Expression (2) will instead be modeled in second sector of Fock space, and it is mathematically realised by making yes ⊗ (yesM) work on |C〉. In the complete Fock space, direct sum of its first and second sectors, mathematically a superposition of the whole dynamics can be realised, by considering the superposition state which we already specified in Equation (85), and consider different structures of the projection operator on the whole of Fock space. More specifically, (MM) ⊕ M for “A and B,” (M ⊗ (yesM)) ⊕ M for “A and B′,” ((yesM) ⊗ M) ⊕ M for “A′ and B,” and ((yesM) ⊗ (yesM)) ⊕ M for “A′ and B′.” However, for each of the combinations the vector representing the combination in second sector of Fock space will be |C〉. So, no vector appears in second sector of Fock space, since the negation is expressed quantum logically here, hence by M becoming yesM. While in first sector of Fock space, the negation is expressed emergently, hence by |A〉 becoming |A′〉 and |B〉 becoming |B′〉, and M remaining M, since the focus in this first sector of Fock space, with emergent reasoning of human thought, is always on “membership,” while in second sector, with quantum logical reasoning, the focus of negation is on “non-membership,” described by yesM.

The above conceptual analysis makes it possible for us to write the complete Fock space formulas for the other combinations. More specifically, if we represent the concept “A and B′” by the unit vector

ψ(A,B)=mABeiθ|C+nABeiρ2(|A+|B)    (87)

with mAB2+nAB2=1, then, by using Equations (84) and (87), we get

yes

where we have used Equation (71) in the last line of Equation (88). Analogously, if we represent the concept “A′ and B” by the unit vector

ψ(A,B)=mABeiθ|C+nABeiρ2(|A+|B)    (89)

with mAB2+nAB2=1, then, by using Equations (84) and (89), we get

yes

where we have used Equation (72) in the last line of Equation (90). Finally, if we represent the concept “A′ and B′” by the unit vector

ψ(A,B)=mABeiθ|C+nABeiρ2(|A+|B)    (91)

with mAB2+nAB2=1, then, by using Equations (84) and (91), we get

yes

where we have used Equation (73) in the last line of Equation (92).

Equations (86), (88), (90), and (92) contain the probabilistic expressions for simultaneously representing experimental data on conjunctions and negations of two concepts in a quantum-theoretic framework. These equations express the membership weights of the conjunctions “A and B,” “A and B′,” “A′ and B,” and “A′ and B′” in terms of the memership weights of A, B, A′, and B′, for suitable values of the following modeling parameters:4

(i) the angles ϕB−ϕA, ϕB-ϕA, ϕB-ϕA and ϕB-ϕA,

(ii) the pairs of convex coefficients (mAB, nAB), (mAB,nAB), (mAB,nAB) and (mAB,nAB),

(iii) the normalized coefficients c112, …, c882.

As we can see our two-sector Fock space framework is able to cope with conceptual negation in a very natural way. In fact, the latter negation is modeled by using the general assumption that emergent aspects of a concept are represented in first sector of Fock space, while logical aspects of a concept are represented in second sector. This will be made explicit in Section 5. It is however important to stress that, for a given experiment eXY, with X = A, A′, Y = B, B′ described in Section 2, there is no guarantee that sets of these parameters can be found such that Equations (86–92) are simultaneously satisfied. For this reason, we provide in Appendix A5 the conditions that should be satisfied by the experimental data μ(A), μ(B), …, μ(A′ and B), μ(A′ and B) such that these sets exist.

The conclusion we draw from the analysis above is that finding solutions for a given set of experimental data in our quantum-theoretic modeling it is highly non-obvious, which makes the results in the next section even more significant.

4. Representation of Experimental data in Fock Space

Most of these data in Tables A1A4, are compatible with the intervals in Equations (A26), (A29), (A32), and (A35). Hence, almost all our data can be successfully modeled by using the quantum probabilistic equations in Equations (86), (88), (90), and (92). Let us consider some interesting cases, distinguishing them by: (i) situations with double overextension, (ii) situations with complete overextension, (iii) situations requiring both sectors of Fock space and/or entanglement, (iv) partially classical situations. Complete modeling is presented in the Supplementary Material attached to this article.

(i) Let us start with exemplars that are double overextended.

Olive, with respect to (Fruits, Vegetables) (double overextension with respect to Fruits And Vegetables). Olive scored μ(A) = 0.53 with respect to Fruits, μ(B) = 0.63 with respect to Vegetables, μ(A′) = 0.47 with respect to Not Fruits, μ(B′) = 0.44 with respect to Not Vegetables, μ(A and B) = 0.65 with respect to Fruits And Vegetables, μ(A and B′) = 0.34 with respect to Fruits And Not Vegetables, μ(A′ and B) = 0.51 with respect to Not Fruits And Vegetables, and μ(A′ and B′) = 0.36 with respect to Not Fruits And Not Vegetables. If one first looks for a representation of Olive in the Hilbert space ℂ8, then the concepts Fruits and Vegetables are represented by the unit vectors |A=eiϕA (−0.02, −0.47, 0.5, −0.02, −0.07, −0.31, −0.18, −0.63) and |B=eiϕB (0.04, 0.02, −0.6, 0.03, −0.26, 0.35, −0.39, −0.53), respectively, and their negations Not Fruits and Not Vegetables by the unit vectors |A=eiϕA (0.06, −0.47, −0.55, 0.03, −0.02, −0.64, −0.06, 0.25), and |B=eiϕB (−0.03, 0.75, −0.01, −0.01, −0.08, −0.6, −0.18, −0.19), respectively.

The interference angles ϕAB = ϕB−ϕA = 57.31°, ϕAB = ϕB-ϕA = 95.32°, ϕAB = ϕB-ϕA = 103.43° and ϕAB = ϕB-ϕA = 85.56° complete the Hilbert space representation in ℂ8. A complete modeling in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8) satisfying Equations (86), (88), (90), and (92) is given by an entangled state characterized by i,j=58cij2=0.442, i=58i=14cij2=0.582, i=14j=58cij2=0.662 and i,j=14cij2=0.182, and convex weights mAB = 0.42, nAB = 0.91, mAB=0.1, nAB=0, mAB=0.78, nAB=0.63, mAB=0.52, and nAB=0.86.

Prize Bull, with respect to (Pets, Farmyard Animals) (double overextension with respect to Pets And Not Farmyard Animals). Prize Bull scored μ(A) = 0.13 with respect to Pets, μ(B) = 0.76 with respect to Farmyard Animals, μ(A′) = 0.88 with respect to Not Pets, μ(B′) = 0.26 with respect to Not Farmyard Animals, μ(A and B) = 0.43 with respect to Pets And Farmyard Animals, μ(A and B′) = 0.28 with respect to Pets And Not Farmyard Animals, μ(A′ and B) = 0.83 with respect to Not Pets And Farmyard Animals, and μ(A′ and B′) = 0.34 with respect to Not Pets And Not Farmyard Animals. If one first looks for a representation of Prize Bull in the Hilbert space ℂ8, then the concepts Pets and Farmyard Animals, and their negations Not Pets and Not Farmyard Animals are respectively represented by the unit vectors |A=eiϕA (0.07, −0.39, −0.84,0.03, −0.06, −0.35, 0.04, −0.01) and |B=eiϕB (0.03, 0.21, −0.44, 0.01, 0.01, 0.81, −0.2, −0.25), and |A=eiϕA (0.01, 0.29, −0.19, 0, 0.11, 0.06, −0.2, 0.91) and |B=eiϕB (0.01, 0.84, −0.19, 0, −0.17, −0.41, −0.01, −0.26).

The interference angles ϕAB = ϕB−ϕA = 105.71°, ϕAB = ϕB-ϕA = 40.23°, ϕABE = ϕB-ϕA = 111.25° and ϕAB = ϕB-ϕA = 52.51° complete the Hilbert space representation in ℂ8. A complete modeling in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8) satisfying Equations (86), (88), (90), and (92) is given by an entangled state characterized by i,j=58cij2=0.242, i=58i=14cij2=0.272, i=14j=58cij2=0.842, and i,j=14cij2=0.412, and convex weights mAB = 0.46, nAB = 0.89, mAB=0.41, nAB=0.91, mAB=0.54, nAB=0.84, mAB=0.52, and nAB=0.85.

Door Bell, with respect to (Home Furnishing, Furniture) (double overextension with respect to Not Home Furnishing And Furniture). Door Bell scored μ(A) = 0.75 with respect to Home Furnishing, μ(B) = 0.33 with respect to Furniture, μ(A′) = 0.32 with respect to Not Home Furnishing, μ(B′) = 0.79 with respect to Not Furniture, μ(A and B) = 0.5 with respect to Home Furnnishing And Furniture, μ(A and B′) = 0.64 with respect to Home Furnishing And Not Furniture, μ(A′ and B) = 0.34 with respect to Not Home Furnishing And Furniture, and μ(A′ and B′) = 0.51 with respect to Not Home Furnishing And Not Furniture. If one first looks for a representation of Door Bell in the Hilbert space ℂ8, then the concepts Home Furnishing and Furniture, and their negations Not Home Furnishing and Not Furniture are respectively represented by the unit vectors |A=eiϕA (0,0.33, 0.37, −0.05, 0.04, −0.29, 0, 0.81) and |B=eiϕB (−0.14, 0.77, 0.17, −0.16, 0.24, −0.19, 0.07, −0.48), and |A=eiϕA (0.21, −0.43, 0.66, 0.13, 0.22, −0.39, 0.22, −0.27) and |B=eiϕB (−0.08, −0.03, −0.45, −0.02, −0.17, −0.52, 0.7, 0.04).

The interference angles ϕAB=ϕB-ϕA=102.81°, ϕAB=ϕB-ϕA=117.67°, ϕAB=ϕB-ϕA=67.37° and ϕAB=ϕB-ϕA=77.65° complete the Hilbert space representation in ℂ8. A complete modeling in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8) satisfying Equations (86), (88), (90), and (92) is given by an entangled state characterized by i,j=58cij2=0.352, i=58i=14cij2=0.792, i=14j=58cij2=0.462 and i,j=14cij2=0.22, and convex weights mAB = 0.48, nAB = 0.88, mAB=0.91, nAB=0.41, mAB=0.65, nAB=0.76, mAB=0.43, and nAB=0.9.

(ii) Let us now come to the exemplars that present complete overextension, that is, exemplars that are overextended in all experiments.

Goldfish, with respect to (Pets, Farmyard Animals) (big overextension in all experiments, but also double overextension with respect to Not Pets And Farmyard Animals). Goldfish scored μ(A) = 0.93 with respect to Pets, μ(B) = 0.17 with respect to Farmyard Animals, μ(A′) = 0.12 with respect to Not Pets, μ(B′) = 0.81 with respect to Not Farmyard Animals, μ(A and B) = 0.43 with respect to Pets And Farmyard Animals, μ(A and B′) = 0.91 with respect to Pets And Not Farmyard Animals, μ(A′ and B) = 0.18 with respect to Not Pets And Farmyard Animals, and μ(A′ and B′) = 0.43 with respect to Not Pets And Not Farmyard Animals. If one first looks for a representation of Goldfish in the Hilbert space ℂ8, then the concepts Pets and Farmyard Animals, and their negations Not Pets and Not Farmyard Animals are respectively represented by the unit vectors |A=eiϕA (−0.05, 0.16, −0.21, −0.01, −0.71, 0.22, 0.33, 0.51) and |B=eiϕB (−0.24, 0.26, −0.84, −0.07, 0.38, −0.11, −0.01, 0.12), and |A=eiϕA (0.18, 0.85, 0.35, 0.09, 0.2, −0.12, −0.03, 0.25) and |B=eiϕB (0.01, −0.41, 0.14, −0.01, 0.27, −0.32, −0.13, 0.79).

The interference angles ϕAB = ϕB−ϕA = 78.9°, ϕAB = ϕB-ϕA = 43.15°, ϕAB = ϕB-ϕA = 54.74° and ϕAB = ϕB-ϕA = 77.94° complete the Hilbert space representation in ℂ8. A complete modeling in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8) satisfying Equations (86), (88), (90), and (92) is given by an entangled state characterized by i,j=58cij2=0.352, i=58i=14cij2=0.92, i=14j=58cij2=0.222 and i,j=14cij2=0.172, and convex weights mAB = 0.45, nAB = 0.89, mAB=0.45, nAB=0.9, mAB=0.48, nAB=0.88, mAB=0.45, and nAB=0.89.

Parsley, with respect to (Spices, Herbs) (overextension in all experiments). Parsley scored μ(A) = 0.54 with respect to Spices, μ(B) = 0.9 with respect to Herbs, μ(A′) = 0.54 with respect to Not Spices, μ(B′) = 0.09 with respect to Not Herbs, μ(A and B) = 0.68 with respect to Spices And Herbs, μ(A and B′) = 0.26 with respect to Spices And Not Herbs, μ(A′ and B) = 0.73 with respect to Not Spices And Herbs, and μ(A′ and B′) = 0.18 with respect to Not Spices And Not Herbs. If one first looks for a representation of Parsley in the Hilbert space ℂ8, then the concepts Spices and Herbs, and their negations Not Spices and Not Herbs are respectively represented by the unit vectors |A=eiϕA (0, 0.25, −0.63, −0.02, −0.02, 0.5, −0.06, 0.54) and |B=eiϕB (0, 0.02, −0.32, −0.01, 0.09, −0.84, −0.23, 0.37), and |A=eiϕA (0, 0.17, 0.66, 0.02, −0.17, 0.01,0.14, 0.7) |B=eiϕB (0, −0.95, −0.06, −0.01, −0.04, 0.11, 0.02, 0.27).

The interference angles ϕAB = ϕB−ϕA = 97.66°, ϕAB = ϕB-ϕA = 84.49°, ϕAB = ϕB-ϕA = 68.25° and ϕAB = ϕB-ϕA = 113.49° complete the Hilbert space representation in ℂ8. A complete modeling in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8) satisfying Equations (86), (88), (90), and (92) is given by an entangled state characterized by i,j=58cij2 = 0.662, i=58i=14cij2 = 0.322, i=14j=58cij2 = 0.682 and i,j=14cij2 = 0, and convex weights mAB = 0.48, nAB = 0.88, mAB=0.55, nAB=0.84, mAB=0.46, nAB=0.89, mAB=0.5, and nAB=0.87.

(iii) Let us then illustrate some relevant exemplars that either cannot be modeled in a pure Hilbert space framework, or cannot be represented by product states in second sector of Fock space.

Raisin, with respect to (Fruits, Vegetables). Raisin scored μ(A) = 0.88 with respect to Fruits, μ(B) = 0.27 with respect to Vegetables, μ(A′) = 0.13 with respect to Not Fruits, μ(B′) = 0.76 with respect to Not Vegetables, μ(A and B) = 0.53 with respect to Fruits And Vegetables, μ(A and B′) = 0.75 with respect to Fruits And Not Vegetables, μ(A′ and B) = 0.25 with respect to Not Fruits And Vegetables, and μ(A′ and B′) = 0.34 with respect to Not Fruits And Not Vegetables. If one first looks for a representation of Raisin in the Hilbert space ℂ8, then the concepts Fruits and Vegetables, and their negations Not Fruits and Not Vegetables are respectively represented by the unit vectors |A=eiϕA (0.05, −0.01, 0.34, 0.01, −0.1, −0.51, 0.23, −0.75) and |B=eiϕB (−0.41, −0.15, −0.73, −0.1, −0.38, −0.17, −0.19, −0.25), and |A=eiϕA (0.56, −0.73, −0.09, 0.1,−0.08, −0.28, −0.15, 0.16) and |B=eiϕB (0.07, 0.46, −0.14, 0.04, 0.13, −0.76, −0.11, 0.4).

However, a complete representation satisfying Equations (86), (88), (90), and (92) can only be worked out in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8). This occurs for interference angles ϕAB=ϕB-ϕA=80.79°, ϕAB=ϕB-ϕA=160°, ϕAB=ϕB-ϕA=18.15° and ϕAB=ϕB-ϕA=92.88°, and for an entangled state characterized by i,j=58cij2=0.412, i=58i=14cij2=0.852, i=14j=58cij2 = 0.322 and i,j=14cij2=0.132, and convex weights mAB = 0.45, nAB = 0.89, mAB=0.65, nAB=0.76, mAB=0.26, nAB=0.97, mAB=0.48, and nAB=0.88.

Fox, with respect to (Pets, Farmyard Animals). Fox scored μ(A) = 0.13 with respect to Pets, μ(B) = 0.3 with respect to Farmyard Animals, μ(A′) = 0.86 with respect to Not Pets, μ(B′) = 0.68 with respect to Not Farmyard Animals, μ(A and B) = 0.18 with respect to Pets And Farmyard Animals, μ(A and B′) = 0.29 with respect to Pets And Not Farmyard Animals, μ(A′ and B) = 0.46 with respect to Not Pets And Farmyard Animals, and μ(A′ and B′) = 0.59 with respect to Not Pets And Not Farmyard Animals. If one first looks for a representation of Fox in the Hilbert space ℂ8, then the concepts Pets and Farmyard Animals, and their negations Not Pets and Not Farmyard Animals are respectively represented by the unit vectors |A=eiϕA (−0.07, −0.84, −0.39, −0.03, −0.02, −0.31, 0.02, 0.19) and |B=eiϕB (−0.01, 0.17, −0.82, 0.01, −0.01, 0.28, −0.01, −0.47), and |A=eiϕA (−0.05, 0.19, −0.31, −0.02,0.12, 0.39, −0.02, 0.83) and |B=eiϕB (−0.14, 0.47, −0.26, −0.08, −0.08, −0.8, 0.04, 0.17).

However, a complete representation satisfying Equations (86), (88), (90), and (92) can only be worked out in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8). This occurs for interference angles ϕAB=ϕB-ϕA=96.58°, ϕAB=ϕB-ϕA=95.05°, ϕAB=ϕB-ϕA=85.68° and ϕAB=ϕB-ϕA=-20°, and for an entangled state characterized by i,j=58cij2=0.052, i=58i=14cij2=0.362, i=14j=58cij2=0.552 and i,j=14cij2=0.762, and convex weights mAB = 0.51, nAB = 0.86, mAB=0.61, nAB=0.79, mAB=0.61, nAB=0.79, mAB=0.66, and nAB=0.75.

(iv) Let us finally describe the quantum-theoretic representation of an exemplar that does not present overextension in any conjunction, but still does not admit a representation in a classical Kolmogorovian probability framework.

Window Seat, with respect to (Home Furnishing, Furniture). Window Seat scored μ(A) = 0.5 with respect to Home Furnishing, μ(B) = 0.48 with respect to Furniture, μ(A′) = 0.47 with respect to Not Home Furnishing, μ(B′) = 0.55 with respect to Not Furniture, μ(A and B) = 0.45 with respect to Home Furnnishing And Furniture, μ(A and B′) = 0.49 with respect to Home Furnishing And Not Furniture, μ(A′ and B) = 0.39 with respect to Not Home Furnishing And Furniture, and μ(A′ and B′) = 0.41 with respect to Not Home Furnishing And Not Furniture. If one first looks for a representation of Window Seat in the Hilbert space ℂ8, then the concepts Home Furnishing and Furniture, and their negations Not Home Furnishing and Not Furniture are respectively represented by the unit vectors |A=eiϕA (−0.01, 0.69, 0.14, −0.01, −0.13, −0.66, −0.2, 0.11) and |B=eiϕB (−0.08, −0.39, −0.6,0, −0.03, −0.4, −0.17, 0.54), and |A=eiϕA (0.13, −0.19, 0.69, 0.01, 0.09,0.05, −0.05, 0.67) and |B=eiϕB (−0.09, 0.57, −0.34, −0.02, 0.17, 0.54, 0.11, 0.47).

The interference angles ϕAB = ϕB−ϕA = 76.57°, ϕAB = ϕB-ϕA = 103.86°, ϕAB = ϕB-ϕA = 84.42° and ϕAB = ϕB-ϕA = 85.94° complete the Hilbert space representation in ℂ8. A complete modeling in the Fock space ℂ8 ⊕ (ℂ8 ⊗ ℂ8) satisfying Equations (86), (88), (90), and (92) is given by an entangled state characterized by i,j=58cij2=0.312, i=58i=14cij2=0.642, i=14j=58cij2=0.622 and i,j=14cij2=0.342, and convex weights mAB = 0.51, nAB = 0.86, mAB=0.77, nAB=0.63, mAB=1, nAB=0, mAB=0.54, and nAB=0.84.

The theoretic analysis on the representatibility of the data in Tables A1A4 is thus concluded. We stress that the majority of these data can be faithfully modeled by using the mathematical formalism of quantum theory in Fock space. We finally observe that a big amount of the collected data can be modeled by using only the first sector of Fock space, while almost all the weights of n2-type in first sector prevail over the weights of m2-type in second sector. The reasons of this will be clear after the discussion in Section 5.

5. Discussion

Our experimental data on conjunctions and negations of natural concepts confirm that classical probability does not generally work when people combine concepts, as we have seen in the previous sections. And, more, we have proved here that the deviations from classicality cannot be reduced to overextension and underextension, but they also include a very strong and fundamental pattern of violation. On the other side, our quantum-theoretic framework in Fock space has received remarkable corroboration. Thus, we think it worth to summarize and stress the novelties that have emerged in this article with respect to our approach.

We have recently put forward an explanatory hypothesis with respect to the deviations from classical logical reasoning that have been observed in human cognition (Aerts et al., 2015a). According to our explanatory hypothesis, human reasoning is a specifically structured superposition of two processes, a “logical reasoning” and a “conceptual reasoning” (also called “emergent reasoning”). The former “logical reasoning” combines cognitive entities, such as concepts, combinations of concepts, or propositions, by applying the rules of logic, though generally in a probabilistic way. The latter “emergent reasoning” enables formation of combined cognitive entities as newly emerging entities, in the case of concepts, new concepts, in the case of propositions, new propositions, carrying new meaning, linked to the meaning of the constituent cognitive entities, but with a linkage not defined by the algebra of logic. The two mechanisms act simultaneously and in superposition in human thought during a reasoning process, the first one is guided by an algebra of “logic,” the second one follows a mechanism of “emergence.” In this perspective, human reasoning can be mathematically formalized in a two-sector Fock space. More specifically, first sector of Fock space models “conceptual emergence,” while second sector of Fock space models a conceptual combination from the combining concepts by requiring the rules of logic for the logical connective used for the combining to be satisfied in a probabilistic setting. The relative prevalence of emergence or logic in a specific cognitive process is measured by the “degree of participation” of second and first sectors, respectively. The abundance of evidence of deviations from classical logical reasoning in concrete human decisions (paradoxes, fallacies, effects, contradictions), together with our results, led us to draw the conclusion that emergence constitutes the dominant dynamics of human reasoning, while logic is only a secondary form of dynamics.

Now, if one reflects on how we represented conceptual negation in Section 3, one realizes at once that its modeling directly and naturally follows from the general hypothesis stated above. Indeed, suppose that a person is asked to estimate whether a given exemplar x is a member of the concepts A, B′, “A and B′ (a completely equivalent explanation can be given for the conjunctions “A′ and B” and “A′ and B′”). Then, our quantum mathematics can be interpreted by assuming that a “logical thought” acts, where the person considers two copies of x and estimates whether the first copy belongs to A and the second copy of x “does not” belong to B, thus applying logical rules, though in a probabilistic way. But also a “conceptual thought” acts, where the person estimates whether the exemplar x belongs to the newly emergent concept “A and B′.” The place whether these superposed processes can be suitably structured is the two-sector Fock space. First sector of Fock space hosts the latter process, second sector hosts the former, hence one expects that classical logical rules are valid in this sector, though they are generally violated whenever both sectors are considered. The weights mAB2 and nAB2 indicate whether the overall process is mainly guided by logic or emergence.

The second confirmation of our quantum-conceptual framework comes from the significantly stable deviations from classicality in Equations (26–30). We have seen in Section 2.4 that these deviations occur at a different, deeper, level than overextension and underextension. We think we have identified a general mechanism determining how concepts are formed in the human mind. And this would already be convincing even without mentioning a Fock space modeling. But, this very stable pattern can exactly be explained in our two-sector Fock space framework by assuming that emergence plays a primary role in the human reasoning process, but also aspects of logic are systematically present. Indeed, suppose that, for every exemplar x and every X = A, A′, Y = B, B′, nXY2=1 and mXY2=0, that is, the decision process only occurs in first sector of Fock space. This assumption corresponds, from our quantum modeling perspective (see Equations 86–92), to a situation where only emergence is present. We have then argued in Aerts et al. (2015b) that, for every X = A, A′, Y = B, B′, IX = IY = −0.5 and IABAB=-1, in this case. Then, an immediate comparison with the experimental values of IX, IY, and IABAB in Section 2.4 reveals that a component of second sector of Fock space is also present, which is generally smaller than the component of first sector but systematic across all exemplars. The consequence is immediate: both emergence and logic play a role in the decision process—emergence is dominant, but also logic is systematically present. We believe that this finding is really a fundamental one, and it deserves further investigation in the future.

The third strong confirmation of this two-layered structure of human thought and its representation in two-sector Fock space comes from the peculiarities of conceptual negation. Indeed, being pushed to cope with conceptual conjunction and negation simultaneously, we have found a new insight which we had not noticed before, namely, the emergent non-classical properties of the conjunction Fruits And Vegetables are naturally accounted for in first sector of Fock space, while the fact that Not Vegetables does not have a well defined prototype, but it is rather the negation of Vegetables, is accounted for in second sector of Fock space, where logic occurs. In both cases, the Fock space model has naturally suggested us the right directions to follow.

The fourth corroboration derives from the fact that our Fock space indicates how and why introducing entanglement. In our previous attempts to model conceptual combinations, we had not recognized that by representing the combined concept by a tensor product vector |A〉 ⊗ |B〉, we implicitly assumed that membership weights probabilities are factorised in second sector, that is, the membership weights μ(A) and μ(B) correspond to independent events in this sector. In Section 3.2 we have showed that, if one introduces entangled states to represent combined concepts in second sector, one is able to fully reproduce all classicality conditions Equations (26–30) in this sector. And, more, one can formalize the fact that, for certain exemplars, the probabilities associated with memberships of, say Fruits and Vegetables, are not independent. Therefore, Fock space has suggested how to capture this relevant aspect in depth.

The discussion above shows, in our opinion, that the merits of our two-sector Fock space framework go beyond faithful representation of one or more sets of experimental data. It captures some fundamental aspects of the mechanisms through which concepts are formed, combine and interact in human cognition.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fpsyg.2015.01447

Footnotes

1. ^One typically gains insight into how people combine concepts by gathering data on “typicalities” or “membership weights.” To obtain data on “typicalities,” participants are given a concept, and a list of instances or exemplars, and asked to pick which exemplar they consider most typical of the concept. A membership weight is instead obtained by asking people to estimate the membership of specific exemplars with respect to a concept. This estimation can, e.g., be quantified by using 7-point (Likert) scale and then converted into a relative frequency and then into a probability called the “membership weight.” We have worked on both typicality measurements, as in the analysis of the Guppy effect, and membership weights measurements, as in the analysis of Hampton's experiments and in the present paper.

2. ^Remark that, if we set IAA=1-μ(A)-μ(A) and IBB=1-μ(B)-μ(B), we have IAA=IABAB-IA-IA and IBB=IABAB-IB-IB, which means that the parameters IAA and IBB used in Sozzo (2015) can be derived from the parameters IABAB, IA, IB, IA, If the membership weights and IB.

3. ^We introduce in this model a superposition vector with equal weights on the two vectors. The general case of a weighted superposition can be considered in future investigation, and it is an interesting line of research in itself, as the interpretation of the weights is not trivial.

4. ^We remind that nXY2=1-mXY2, X = A, A′, Y = B, B′. In addition, only the sums i,j=58cij2, i=58j=14cij2, i=14j=58cij2, and i,j=58cij2 appear in Equations (86), (88), (90), and (92), respectively.

References

Aerts, D., and Sozzo, S. (2011). Quantum structure in cognition. Why and how concepts are entangled. Quantum Interact. Lect. Notes Comput. Sci. 7052, 116–127. doi: 10.1007/978-3-642-24971-6/12

CrossRef Full Text | Google Scholar

Aerts, D., and Aerts, S. (1995). Applications of quantum statistics in psychological studies of decision processes. Found. Sci. 1, 85–97. doi: 10.1007/BF00208726

CrossRef Full Text | Google Scholar

Aerts, D., and Gabora, L. (2005a). A theory of concepts and their combinations I: the structure of the sets of contexts and properties. Kybernetes 34, 167–191. doi: 10.1108/03684920510575799

CrossRef Full Text | Google Scholar

Aerts, D., and Gabora, L. (2005b). A theory of concepts and their combinations II: a Hilbert space representation. Kybernetes 34, 192–221. doi: 10.1108/03684920510575807

CrossRef Full Text | Google Scholar

Aerts, D., and Sozzo, S. (2014). Quantum entanglement in conceptual combinations. Int. J. Theor. Phys. 53, 3587–3603. doi: 10.1007/s10773-013-1946-z

CrossRef Full Text | Google Scholar

Aerts, D., Aerts, S., Broekaert, J., and Gabora, L. (2000). The violation of Bell inequalities in the macroworld. Found. Phys. 30, 1387–1414. doi: 10.1023/A:1026449716544

CrossRef Full Text | Google Scholar

Aerts, D., Sozzo, S., and Tapia, J. (2012). A quantum model for the ellsberg and machina paradoxes. Quantum Interact. Lect. Notes Comput. Sci. 7620, 48–59. doi: 10.1007/978-3-642-35659-9/5

CrossRef Full Text | Google Scholar

Aerts, D., Broekaert, J., Gabora, L., and Sozzo, S. (2013). Quantum structure and human thought. Behav. Brain Sci. 36, 274–276. doi: 10.1017/S0140525X12002841

PubMed Abstract | CrossRef Full Text | Google Scholar

Aerts, D., Gabora, L., and S. Sozzo, S. (2013). Concepts and their dynamics: a quantum–theoretic modeling of human thought. Top. Cogn. Sci. 5, 737–772. doi: 10.1111/tops.12042

PubMed Abstract | CrossRef Full Text | Google Scholar

Aerts, D., Sozzo, S., and Tapia, J. (2014). Identifying quantum structures in the Ellsberg paradox. Int. J. Theor. Phys. 53, 3666–3682. doi: 10.1007/s10773-014-2086-9

CrossRef Full Text | Google Scholar

Aerts, D., Sozzo, S., and Veloz, T. (2015a). Quantum structure in cognition and the foundations of human reasoning. Int. J. Theor. Phys. doi: 10.1007/s10773-015-2717-9. [Epub ahead of print].

CrossRef Full Text | Google Scholar

Aerts, D., Sozzo, S., and Veloz, T. (2015b). A new fundamental evidence of non-classical structure in the combination of natural concepts. Philos. Trans. R. Soc. A. arXiv: 1505.04981.

Google Scholar

Aerts, D., Sozzo, S., and Veloz, T. (2015c). Quantum nature of identity in human concepts: bose-einstein statistics for conceptual indistinguisibility. Int. J. Theor. Phys. doi: 10.1007/s10773-015-2620-4. [Epub ahead of print].

CrossRef Full Text

Aerts, D. (1986). A possible explanation for the probabilities of quantum mechanics. J. Math. Phys. 27, 202–210. doi: 10.1063/1.527362

CrossRef Full Text | Google Scholar

Aerts, D. (1999). Foundations of quantum physics: a general realistic and operational approach. Int. J. Theor. Phys. 38, 289–358. doi: 10.1023/A:1026605829007

CrossRef Full Text | Google Scholar

Aerts, D. (2009). Quantum structure in cognition. J. Math. Psychol. 53, 314–348. doi: 10.1016/j.jmp.2009.04.005

CrossRef Full Text | Google Scholar

Alxatib, S., and Pelletier, J. (2011). “On the psychology of truth gaps,” in Vagueness in Communication, eds R. Nouwen, R. van Rooij, U. Sauerland, and H.-C. Schmitz (Berlin; Heidelberg: Springer-Verlag), 13–36.

Google Scholar

Bonini, N., Osherson, D., Viale, R., and Williamson, T. (1999). On the psychology of vague predicates. Mind Lang. 14, 377–393. doi: 10.1111/1468-0017.00117

CrossRef Full Text | Google Scholar

Busemeyer, J. R., and Bruza, P. D. (2012). Quantum Models of Cognition and Decision. Cambridge: Cambridge University Press.

Google Scholar

Dirac, P. A. M. (1958). Quantum mechanics, 4th Edn. London: Oxford University Press.

Ellsberg, D. (1961). Risk, ambiguity, and the Savage axioms. Q. J. Econ. 75, 643–669. doi: 10.2307/1884324

CrossRef Full Text | Google Scholar

Fodor, J. (1994). Concepts: a potboiler. Cognition 50, 95–113. doi: 10.1016/0010-0277(94)90023-X

PubMed Abstract | CrossRef Full Text | Google Scholar

Hampton, J. A. (1988a). Overextension of conjunctive concepts: evidence for a unitary model for concept typicality and class inclusion. J. Exp. Psychol. Learn. Mem. Cogn. 14, 12–32. doi: 10.1037/0278-7393.14.1.12

CrossRef Full Text | Google Scholar

Hampton, J. A. (1988b). Disjunction of natural concepts. Mem. Cogn. 16, 579–591. doi: 10.3758/BF03197059

PubMed Abstract | CrossRef Full Text | Google Scholar

Hampton, J. A. (1997). Conceptual combination: conjunction and negation of natural concepts. Mem. Cogn. 25, 888–909. doi: 10.3758/BF03211333

PubMed Abstract | CrossRef Full Text | Google Scholar

Haven, E., and Khrennikov, A. Y. (2013). Quantum Social Science. Cambridge: Cambridge University Press.

Google Scholar

Kamp, H., and Partee, B. (1995). Prototype theory and compositionality. Cognition 57, 129–191. doi: 10.1016/0010-0277(94)00659-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Khrennikov, A. Y. (2010). Ubiquitous Quantum Structure. Berlin: Springer.

Google Scholar

Kolmogorov, A. N. (1933). Grundbegriffe der Wahrscheinlichkeitrechnung, Ergebnisse Der Mathematik; translated as Foundations of Probability. New York, NY: Chelsea Publishing Company, 1950.

Komatsu, L. K. (1992). Recent views on conceptual structure. Psychol. Bull. 112, 500–526. doi: 10.1037/0033-2909.112.3.500

CrossRef Full Text | Google Scholar

Machina, M. J. (2009). Risk, ambiguity, and the dark dependence axioms. Am. Econ. Rev. 99, 385–392. doi: 10.1257/aer.99.1.385

CrossRef Full Text | Google Scholar

Minsky, M. (1975). “A framework for representing knowledge,” in The Psychology of Computer Vision, ed P. H. Winston (New York, NY: McGraw-Hill), 211–277.

Google Scholar

Murphy, G. L., and Medin, D. L. (1985). The role of theories in conceptual coherence. Psychol. Rev. 92, 289–316. doi: 10.1037/0033-295X.92.3.289

PubMed Abstract | CrossRef Full Text | Google Scholar

Nosofsky, R. (1988). Exemplar-based accounts of relations between classification, recognition, and typicality. J. Exp. Psychol. Learn. Mem. Cogn. 14, 700–708. doi: 10.1037/0278-7393.14.4.700

CrossRef Full Text | Google Scholar

Nosofsky, R. (1992). “Exemplars, prototypes, and similarity rules,” in From Learning Theory to Connectionist Theory: Essays in Honor of William K. Estes, eds A. Healy, S. Kosslyn, and R. Shiffrin (Hillsdale, NJ: Erlbaum), 149–167.

Google Scholar

Osherson, D., and Smith, E. (1981). On the adequacy of prototype theory as a theory of concepts. Cognition 9, 35–58. doi: 10.1016/0010-0277(81)90013-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Osherson, D. N., and Smith, E. (1982). Gradedness and conceptual combination. Cognition 12, 299–318. doi: 10.1016/0010-0277(82)90037-3

PubMed Abstract | CrossRef Full Text | Google Scholar

Osherson, D. N., and Smith, E. (1997). On typicality and vagueness. Cognition 64, 189–206. doi: 10.1016/S0010-0277(97)00025-5

PubMed Abstract | CrossRef Full Text | Google Scholar

Pitowsky, I. (1989). Quantum Probability, Quantum Logic, Vol. 321. Lecture Notes in Physics. Berlin: Springer.

Google Scholar

Pothos, E. M., and Busemeyer, J. R. (2013). Can quantum probability provide a new direction for cognitive modeling? Behav. Brain Sci. 36, 255–274. doi: 10.1017/S0140525X12001525

PubMed Abstract | CrossRef Full Text | Google Scholar

Rips, L. J. (1995). The current status of research on concept combination. Mind Lang. 10, 72–104. doi: 10.1111/j.1468-0017.1995.tb00006.x

CrossRef Full Text | Google Scholar

Rosch, E. (1973). Natural categories. Cogn. Psychol. 4, 328–350. doi: 10.1016/0010-0285(73)90017-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Rosch, E. (1978). “Principles of categorization,” in Cognition and Categorization, eds E. Rosch and B. Lloyd (Hillsdale, NJ: Lawrence Erlbaum), 133–179.

Rosch, E. (1983). “Prototype classification and logical classification: the two systems,” in New Trends in Conceptual Representation: Challenges to Piaget's Theory?, ed E. K. Scholnick (Hillsdale, NJ: Lawrence Erlbaum), 133–159.

Rumelhart, D. E., and Norman, D. A. (1988). “Representation in memory,” in Stevens Handbook of Experimental Psychology, eds R. C. Atkinson, R. J. Hernsein, G. Lindzey, and R. L. Duncan (New York, NY: John Wiley & Sons), 511–587.

Sozzo, S. (2014). A quantum probability explanation in Fock space for borderline contradictions. J. Math. Psychol. 58, 1–12. doi: 10.1016/j.jmp.2013.11.001

CrossRef Full Text | Google Scholar

Sozzo, S. (2015). Conjunction and negation of natural concepts: a quantum-theoretic modeling. J. Math. Psychol. 66, 83–102. doi: 10.1016/j.jmp.2015.01.005

CrossRef Full Text | Google Scholar

Wang, Z., Solloway, T., Shiffrin, R. M., and Busemeyer, J. R. (2014). Context effects produced by question orders reveal quantum nature of human judgments. Proc. Natl. Acad. Sci. U.S.A. 111, 9431–9436. doi: 10.1073/pnas.1407756111

PubMed Abstract | CrossRef Full Text | Google Scholar

Zadeh, L. (1982). A note on prototype theory and fuzzy sets. Cognition 12, 291–297. doi: 10.1016/0010-0277(82)90036-1

PubMed Abstract | CrossRef Full Text | Google Scholar

Appendix

A1. Fundamentals of Modeling in a Classical Framework

We introduce in this section the elementary measure-theoretic notions that are needed to express the classicality of experimental data coming from the membership weights of two concepts A and B with respect to the conceptual negation “not B” and the conjunctions “A and B,” “A and not B,” “not A and B,” and “not A and not B.” As we have anticipated in Section 2, by “classicality of a collection of experimental date” we actually mean the possibility to represent them in a “classical,” or “Kolmogorovian,” probability model. We avoid in our presentation superfluous technicalities, but aim to be synthetic and rigorous at the same time.

Let us start by the definition of a σ-algebra over a set.

First definition. A σ-algebra over a set Ω is a non-empty collection σ(Ω) of subsets of Ω that is closed under complementation and countable unions of its members. It is a Boolean algebra, completed to include countably infinite operations.

Measure structures are the most general classical structures devised by mathematicians and physicists to structure weights. A Kolmogorovian probability measure is such a measure applied to statistical data. It is called “Kolmogorovian,” because Andrey Kolmogorov was the first to axiomatize probability theory in this way (Kolmogorov, 1933).

Second definition. A measure P is a function defined on a σ-algebra σ(Ω) over a set Ω and taking values in the extended interval [0, ∞] such that the following three conditions are satisfied:

(i) the empty set has measure zero;

(ii) if E1, E2, E3, …  is a countable sequence of pairwise disjoint sets in σ(Ω), the measure of the union of all the Ei is equal to the sum of the measures of each Ei (countable additivity, or σ-additivity);

(iii) the triple (Ω, σ(Ω), P) satisfying (i) and (ii) is then called a measure space, and the members of σ(Ω) are called measurable sets.

A Kolmogorovian probability measure is a measure with total measure one. A Kolmogorovian probability space (Ω, σ(Ω), P) is a measure space (Ω, σ(Ω), P) such that P is a Kolmogorovian probability. The three conditions expressed in a mathematical way are:

P()=0P(i=1Ei)=i=1P(Ei)P(Ω)=1    (A1)

Let us now come to the possibility to represent a set of experimental data on two concepts and their conjunction in a classical Kolmogorovian probability model.

Third definition. We say that the membership weights μ(A), μ(B) and μ(A and B) of the exemplar x with respect to the pair of concepts A and B and their conjunction “A and B,” respectively, can be represented in a classical Kolmogorovian probability model if there exists a Kolmogorovian probability space (Ω, σ(Ω), P) and events EA, EB ∈ σ(Ω) of the events algebra σ(Ω) such that

P(EA)=μ(A)P(EB)=μ(B) and P(EAEB)=μ(A and B)    (A2)

Let us finally come to the representability a set of experimental data on a concept and its negation in a classical Kolmogorovian probability model.

Fourth definition. We say that the membership weights μ(B) and μ(not B) of the exemplar x with respect to the concept B and its negation “not B,” respectively, can be represented in a classical Kolmogorovian probability model if there exists a Kolmogorovian probability space (Ω, σ(Ω), P) and an event EB ∈ σ(Ω) of the events algebra σ(Ω) such that

P(EB)=μ(B)P(Ω\EB)=μ(not B)    (A3)

A2. Quantum Mathematics for Conceptual Modeling

We illustrate in this section how the mathematical formalism of quantum theory can be applied to model situations outside the microscopic quantum world, more specifically, in the representation of concepts and their combinations. As in Appendix A1, we will limit technicalities to the essential.

When the quantum mechanical formalism is applied for modeling purposes, each considered entity—in our case a concept—is associated with a complex Hilbert space H, that is, a vector space over the field ℂ of complex numbers, equipped with an inner product 〈·|·〉 that maps two vectors 〈A| and |B〉 onto a complex number 〈A|B〉. We denote vectors by using the bra-ket notation introduced by Paul Adrien Dirac, one of the pioneers of quantum theory (Dirac, 1958). Vectors can be “kets,” denoted by |A〉, |B〉, or “bras,” denoted by 〈A|, 〈B|. The inner product between the ket vectors |A〉 and |B〉, or the bra-vectors 〈A| and 〈B|, is realized by juxtaposing the bra vector 〈A| and the ket vector |B〉, and 〈A|B〉 is also called a “bra-ket,” and it satisfies the following properties:

(i) 〈A|A 〉 ≥0;

(ii) 〈A|B〉 = 〈B|A〉*, where 〈B|A〉* is the complex conjugate of 〈A|B〉;

(iii) 〈A|(z|B〉 + t|C〉) = zA|B〉 + tA|C〉, for z, t ∈ ℂ, where the sum vector z|B〉 + t|C〉 is called a “superposition” of vectors |B〉 and |C〉 in the quantum jargon.

From (ii) and (iii) follows that inner product 〈·|·〉 is linear in the ket and anti-linear in the bra, i.e., (zA| + tB|)|C〉 = z*〈A|C〉 + t*〈B|C〉.

We recall that the “absolute value” of a complex number is defined as the square root of the product of this complex number times its complex conjugate, that is, |z|=z*z. Moreover, a complex number z can either be decomposed into its cartesian form z = x + iy, or into its polar form z = |z|e = |z|(cosθ + isinθ). As a consequence, we have |A|B|=A|BB|A. We define the “length” of a ket (bra) vector |A〉 (〈A|) as |||A||=||A|||=A|A. A vector of unitary length is called a “unit vector'. We say that the ket vectors |A〉 and |B〉 are “orthogonal” and write |A〉 ⊥ |B〉 if 〈A|B〉 = 0.

We have now introduced the necessary mathematics to state the first modeling rule of quantum theory, as follows.

First quantum modeling rule: A state A of an entity—in our case a concept—modeled by quantum theory is represented by a ket vector |A〉 with length 1, that is 〈A|A〉 = 1.

An orthogonal projection M is a linear operator on the Hilbert space, that is, a mapping M: HH, |A〉 ↦ M|A〉 which is Hermitian and idempotent. The latter means that, for every |A〉, |B〉 ∈ H and z, t ∈ ℂ, we have:

(i) M(z|A〉 + t|B〉) = zM|A〉 + tM|B〉 (linearity);

(ii) 〈A|M|B〉 = 〈B|M|A〉* (hermiticity);

(iii) M · M = M (idempotency).

The identity operator yes maps each vector onto itself and is a trivial orthogonal projection. We say that two orthogonal projections Mk and Ml are orthogonal operators if each vector contained in Mk(H) is orthogonal to each vector contained in Ml(H), and we write MkMl, in this case. The orthogonality of the projection operators Mk and Ml can also be expressed by MkMl = 0, where 0 is the null operator. A set of orthogonal projection operators {Mk |k = 1, …, n} is called a “spectral family” if all projectors are mutually orthogonal, that is, MkMl for kl, and their sum is the identity, that is, yes.

The above definitions give us the necessary mathematics to state the second modeling rule of quantum theory, as follows.

Second quantum modeling rule: A measurable quantity Q of an entity—in our case a concept— modeled by quantum theory, and having a set of possible real values {q1, …, qn} is represented by a spectral family {Mk |k = 1, …, n} in the following way. If the entity—in our case a concept—is in a state represented by the vector |A〉, then the probability of obtaining the value qk in a measurement of the measurable quantity Q is A|Mk|A=||Mk|A||2. This formula is called the “Born rule” in the quantum jargon. Moreover, if the value qk is actually obtained in the measurement, then the initial state is changed into a state represented by the vector

|Ak=Mk|A||Mk|A||    (A4)

This change of state is called “collapse” in the quantum jargon.

The tensor product HAHB of two Hilbert spaces HA and HB is the Hilbert space generated by the set {|Ai〉 ⊗ |Bj〉}, where |Ai〉 and |Bj〉 are vectors of HA and HB, respectively, which means that a general vector of this tensor product is of the form ij|Ai|Bj. This gives us the necessary mathematics to introduce the third modeling rule.

Third quantum modeling rule: A state C of a compound entity—in our case a combined concept—is represented by a unit vector |C〉 of the tensor product HAHB of the two Hilbert spaces HA and HB containing the vectors that represent the states of the component entities—concepts.

The above means that we have |C=ijcij|Ai|Bj, where |Ai〉 and |Bj〉 are unit vectors of HA and HB, respectively, and i,j|cij|2=1. We say that the state C represented by |C〉 is a product state if it is of the form |A〉 ⊗ |B〉 for some |A〉 ∈ HA and |B〉 ∈ HB. Otherwise, C is called an “entangled state'.

The Fock space is a specific type of Hilbert space, originally introduced in quantum field theory. For most states of a quantum field the number of identical quantum entities is not conserved but is a variable quantity. The Fock space copes with this situation in allowing its vectors to be superpositions of vectors pertaining to different sectors for fixed numbers of identical quantum entities. More explicitly, the k-th sector of a Fock space describes a fixed number of k identical quantum entities, and it is of the form H ⊗ … ⊗ H of the tensor product of k identical Hilbert spaces H. The Fock space F itself is the direct sum of all these sectors, hence

F=k=1jl=1kH    (A5)

For our modeling we have only used Fock space for the “two” and “one quantum entity” case, hence F = H ⊕ (HH). This is due to considering only combinations of two concepts. The sector H is called the “first sector,” while the sector HH is called the “second sector'. A unit vector |F〉 ∈ F is then written as |F〉 = ne|C〉 + me(|A〉 ⊗ |B〉), where |A〉, |B〉 and |C〉 are unit vectors of H, and such that n2 + m2 = 1. For combinations of j concepts, the general form of Fock space in (A5) should be used.

A3. Data Modeling Tables and Statistical Analysis

Tables A1A5AE.

A4. Proofs of Theorems 1–4

Proof of Theorem 1. If μ(A), μ(B), μ(A′), μ(B′) and μ(A and B), μ(A and B′), μ(A′ and B), μ(A′ and B′) are classical conjunction and negation data, then there exists a Kolmogorovian probability space (Ω, σ(Ω), P) and events EA, EB ∈ σ(Ω) such that P(EA) = μ(A), P(EB) = μ(B), P(Ω\EA)=μ(A), P(Ω\EB)=μ(B), P(EAEB) = μ(A and B), P(EA((Ω\EB))=μ(A and B), P((Ω\EA)EB)=μ(A and B) and P((Ω\EA)(Ω\EB))=μ(A and B). From the general properties of a Kolmogorovian probability space it follows that (1), (2), (3), (4), (5), (6), (7) and (8) are satisfied.

Now suppose that x is such that its membership weights μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B) and μ(A′ and B′) with respect to the concepts A, B, A′, B′, “A and B,” “A and B′,” “A′ and B” and “A′ and B′,” respectively, satisfy (1), (2), (3), (4), (5), (6), (7) and (8). We will prove that as a consequence μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B) and μ(A′ and B′) are classical conjunction and negation data, in the sense that “there exists a classical Kolmogorovian probability space, such that we can represent all of them as measures on event sets of this space'. We make our proof by explicitly constructing a Kolmogorovian probability space that models these data. Consider the set Ω = {1, 2, 3, 4} and σ(Ω) = P(Ω), the set of all subsets of Ω. We define

P({1})=μ(A and B)    (A6)
P({2})=μ(A and B)=μ(A)-μ(A and B)    (A7)
P({3})=μ(A and B)=μ(A)-μ(A and B)    (A8)
P({4})=μ(A and B)    (A9)

and further for an arbitrary subset S ⊆ {1, 2, 3, 4} we define

P(S)=aSP({a})    (A10)

Let us prove that P : σ(Ω) → [0, 1] is a probability measure. For this purpose, we need to prove that P(S) ∈ [0, 1] for an arbitrary subset S ⊆ Ω, and that the “sum formula” for a probability measure is satisfied. The sum formula for a probability measure is satisfied because of definition (A10). What remains to be proved is that P(S) ∈ [0, 1] for an arbitrary subset S ⊆ Ω, and that all different subsets that can be formed are contained in σ(Ω). P({1}), P({2}), P({3}) and P({4}) are contained in [0, 1] as a consequence of equations (1), (3), (5) and (6). Using (5) we have that P({1, 2}) = μ(A and B) + μ(A and B′) = μ(A and B) + μ(A) − μ(A and B) = μ(A). Using (6) we have that P({3, 4}) = μ(A′ and B′) + μ(A′ and B) = μ(A′ and B′) + μ(A′) − μ(A′ and B′) = μ(A′). Again using (6) we have that P({1, 3}) = μ(A and B) + μ(A′ and B) = μ(A and B) + μ(B) − μ(A and B) = μ(B), and using again (5) we have that P({2, 4}) = μ(A and B′) + μ(A′ and B′) = μ(B′) − μ(A′ and B′) + μ(A′ and B′) = μ(B′). Moreover, P({1, 2}), P({3, 4}), P({1, 3}) and P({2, 4}) are all contained in [0, 1] as a consequence of equations (1), (2), (3) and (4). We have already found the representatives of all elements and their conjunctions in σ(Ω). But we have not yet considered all subsets of Ω. Indeed, let us consider μ({1, 2, 3}) = μ(A and B) + μ(A and B′) + μ(A′ and B) = 1 − μ(A′ and B′). And from (7) it follows that this is contained in [0.1]. In an analogous way we prove that μ({1, 2, 4}) = 1 − μ(A′ and B), μ({1, 3, 4}) = 1 − μ(A and B′), and μ({2, 3, 4}) = 1 − μ(A and B). We almost have all subsets of Ω. Let us consider {1, 4} and {2, 3}. Since by construction we have μ({1}) ≤ μ({1, 4}) ≤ μ({1, 2, 4}) and μ({2}) ≤ μ({2, 3}) ≤ μ({2, 3, 4}), it follows that both μ({1, 4}) and μ({2, 3}) are contained in [0, 1]. The last subset to control is Ω itself. We have P(Ω) = P({1}) + P({2}) + P({3}) + P({4}) = 1, following the calculation we made above. We have verified all subsets S ⊆ Ω, and hence proved that P is a probability measure. All subsets for which we have gathered data are represented in this σ-algebra, which completes our proof.         □

Proof of Theorem 2. Let us consider Theorem 1. In its proof, we did not use (8)„ which means that inequalities (5), (6), (7) and (8) are not independent. By using, for example, (5), (6), and then (7) we get

1μ(A)μ(B)+μ(A and B)          =1μ(B)μ(B)+μ(A and B)            =1μ(B)μ(A and B)μ(A)+μ(A and B)               +μ(A and B)           =μ(A and B)μ(A and B)+μ(A and B)           =μ(A and B)

which proves indeed that (8) can be derived from (5), (6) and then (7), and can be left out as a condition.

Let us now prove a result which is useful for our purposes. Following (5) and (6) we have that μ(A and B′) + μ(A and B) + μ(A′ and B) = μ(A) + μ(B) − μ(A and B). Moreover, by using (7), we get μ(A and B′) + μ(A and B) + μ(A′ and B) + μ(A′ and B′) = μ(A) + μ(B) − μ(A and B) + 1 − μ(A) − μ(B) + μ(A and B) = 1.

The equality

μ(A and B)+μ(A and B)+μ(A and B)+μ(A and B)=1    (A11)

can be used, together with (5) and (6), as follows.

μ(A)+μ(A)=μ(A and B)+μ(A and B)+μ(A and B)                         +μ(A and B)=1μ(B)+μ(B)=μ(A and B)+μ(A and B)+μ(A and B)                         +μ(A and B)=1

This means that from (1), and hence 0 ≤ μ(A) ≤ 1, follows that 0 ≤ 1 − μ(A) ≤ 1, and hence 0 ≤ μ(A′) ≤ 1. And from (2), and hence 0 ≤ μ(B) ≤ 1, follows that 0 ≤ 1 − μ(B) ≤ 1, and hence 0 ≤ μ(B′) ≤ 1. Suppose now that (1) and (2) are satisfied. This means that 0 ≤ μ(A) − μ(A and B) = μ(B′) − μ(A′ and B′) and hence μ(A′ and B′) ≤ μ(B′), and 0 ≤ μ(B) − μ(A and B) = μ(A′) − μ(A′ and B′) and hence μ(A′ and B′) ≤ μ(A′). The only condition that lacks to have derived (3) and (4) from (1) and (2), is that 0 ≤ μ(A′ and B′). We can add this as a requirement to (7).

Hence, we have proved the Theorem 2.         □

Proof of Lemma 1. That (14), (15), (16) and (17) follow from (5) and (6) follows from a simple reshuffling of the terms. Suppose now that (14), (15), (16) and (17) are satisfied. The inverse reshuffling of the same terms proves that (5) and (6) are satisfied. This completes the proof of Lemma 1.         □

Proof of Theorem 3. Lemma 1 entails that we can substitute (5) and (6) by the four equations expressing the marginal law to be satisfied.

A further simplification is possible. Indeed, (5), (6) and (7) are equivalent with (14), (15), (16), (17) and (A11). We have proved above that (5), (6) and (7) imply (A11). Let us prove the inverse. Hence suppose that (14), (15), (16), (17) and (A11) are satisfied, and let us proof (7). We have

1μ(A)μ(B)+μ(A and B) =1μ(A and B)μ(A and B)μ(A and B)μ(A and B)    +μ(A and B) =1μ(A and B)μ(A and B)μ(A and B) =μ(A and B)

which proves that (7) holds.

We have thus proved Theorem 3, stating a new and more symmetric set of classicality conditions.         □

Proof of Theorem 4. Suppose that the theoretical values for a modeling only in second sector of Fock space are given. This means that |C〉 and M are given, and the values of μ(A), μ(B), μ(A′), μ(B′), μ(A and B), μ(A and B′), μ(A′ and B) and μ(A′ and B′) are given respectively by 〈C|Myes|C〉, 〈C|yesM|C〉, 〈C|(yesM) ⊗ yes|C〉, 〈C|yes ⊗ (yesM)|C〉,〈C|MM|C〉, 〈C|M ⊗ (yesM)|C〉, 〈C|(yesM) ⊗ M|C〉 and 〈C|(yesM) ⊗ (yesM)|C〉. If we use the results calculated in (76), (77), (78), (79), (80), (81), (82) and (83), we can easely prove all the classicality conditions (26)–(30) to be satisfied. Let us prove one of them explicitly. For example, μ(A′ and B) + μ(A′ and B′) = 〈C|(yesM) ⊗ M|C〉 + 〈C|(yesM) ⊗ (yesM)|C〉 = 〈C|(yesM) ⊗ M + (yesM)|C〉 = 〈C|(yesM) ⊗ yes|C〉 = μ(A′).

Let us prove the other implication. Hence suppose that we have available data satisfying the classicality conditions (26)–(30), let us prove that we can find a state |C〉 and an orthogonal projector M, such that second sector models these data. It is a straightforward verification that an entangled vector |C〉, such that cij=116μ(A and B) for 5 ≤ i ≤ 8 and 5 ≤ j ≤ 8, cij=116μ(A and B) for 5 ≤ i ≤ 8 and 1 ≤ j ≤ 4, cij=116μ(A and B) for 1 ≤ i ≤ 4 and 5 ≤ j ≤ 8 and cij=116μ(A and B) for 1 ≤ i ≤ 4 and 1 ≤ j ≤ 4, is a solution.         □

A5. Conditions for the Existence of Solutions in First and Second Sector of Fock Space

In this section we make explicit the conditions that should be satisfied by experimental data in order to be represented in Fock space. In our analysis, we distinguish between the first sector representation in ℂ8 and the complete two-sector representation in ℂ8 ⊕ (ℂ8 ⊗ ℂ8).

Let us start from the ℂ8 representation. We first analyze whether or not the solution of (52)–(65) is compatible with (70)–(73). To this end note that the right hand side of (70)–(73) correspond to the average of the probabilities of the former concepts, plus the so called “interference term,” which depends on (i) how the vectors representing the former concepts in the combination, when restricted to the subspace determined by M, project into each other, and (ii) on the phase angles of the vectors (Aerts, 2009). Note that the configuration of the phase angles ϕA,ϕB,ϕA,ϕB allow to model a variety of interference situations. In fact, when the difference between these phase angles is close to 0 or π, we have a maximal amount of interference while, when the difference between these phase angles is close to π2 or 3π2, we have a minimal amount of interference. We can then characterize a set of “compatibility intervals” for the solution of (52)–(65) and (70)–(73) which determines the modeling capacity of this Hilbert space model. Let,

i(A,B)1=12(μ(A)+μ(B))-|a5b5+a6b6    +a7b7+a8b8|    (A12)
i(A,B)2=12(μ(A)+μ(B))+|a5b5+a6b6    +a7b7+a8b8|    (A13)
i(A,B)1=12(μ(A)+μ(B))-|a5b5+a6b6    +a7b7+a8b8|    (A14)
i(A,B)2=12(μ(A)+μ(B))+|a5b5+a6b6    +a7b7+a8b8|    (A15)
i(A,B)1=12(μ(A)+μ(B))-|a5b5+a6b6    +a7b7+a8b8|    (A16)
i(A,B)2=12(μ(A)+μ(B))+|a5b5+a6b6    +a7b7+a8b8|    (A17)
i(A,B)1=12(μ(A)+μ(B))-|a5b5+a6b6    +a7b7+a8b8|    (A18)
i(A,B)2=12(μ(A)+μ(B))+|a5b5+a6b6    +a7b7+a8b8|    (A19)

and let us define the following “solution intervals”

IAB=[i(A,B)1,i(A,B)2]    (A20)
IAB=[i(A,B)1,i(A,B)2]    (A21)
IAB=[i(A,B)1,i(A,B)2]    (A22)
IAB=[i(A,B)1,i(A,B)2]    (A23)

A solution of (52)-(73) exists if and only if the membership weights μ(A and B), μ(A′ and B), μ(A and B′) and μ(A and B) are respectively contained in the intervals IAB, IAB, IAB and IAB.

Let us now come to the complete representation in ℂ8 ⊕ (ℂ8 ⊗ ℂ8), and let us consider the data collected in the experiments eXY, X = A, A′, Y = B, B′, of Section 2. These data are explicitly reported in Tables A1A4. Since the existence of solutions for (86)–(92) depends, for a given experiment eXY, on the expemplar x and the pair (A, B) of concepts that are considered, we explicitly report such dependence for all the relevant variables that are considered in this section. Hence, for each considered exemplar x, we collected the eight membership weights μx(A), μx(B), μx(A), μx(B), μx(A and B), μx(A and B), μx(A and B), and μx(A and B).

The analysis we made in the foregoing sections makes it possible for us to propose a general modeling procedure. For what concerns solutions that can be found on first sector alone, we determined the intervals of solutions as explained in (A20), (A21), (A22) and (A23). We can now easily determine the general intervals of solutions, including the extra solutions made possible by second sector. Therefore, we need to consider the following quantities i,j=58cij2, i=58j=14cij2,i=14j=58cij2 and i=58j=14cij2, respectively for the combinations “A and B,” “A and not B,” “not A and B” and “not A and not B'. To be able to express the intervals of Fock space solutions, we introduce the following quantities.

s(A,B,x)=min(i,j=58cij2,i(A,B)1)    (A24)
t(A,B,x)=max(i,j=58cij2,i(A,B)2)    (A25)

Then, the interval

Usol (AB,x)=[s(A,B,x),t(A,B,x)]    (A26)

is the solution interval for the general Fock space model. Hence, in case the experimental value μ(A and B) is contained in this interval, a solution exists. As a second step we can then see whether a solution in first sector alone exists, which consists of veryfying whether the experimental value μ(A and B) is contained in IAB. Suppose that the anwer is “yes,” then we can caculate the angle ϕB−ϕA that gives rise to this solution in first sector. This angle is then an indication of which angle to choose for the general Fock space solution. Usually different choices are possible. If there is no solution in first sector, we anyhow can choose an angle ϕB−ϕA, such that a choice of this angle ϕB−ϕA, and a choice of mAB and nAB gives a solution. The possible values of the angle and the coefficients mAB and nAB are calculated by solving (86).

We can analyze the other combinations in an equivalent way. Let us start with the combination “A and not B'. We have:

s(A,B,x)=min(i=58j=14cij2,i(A,B)1)    (A27)
t(A,B,x)=max(i=58j=14cij2,i(A,B)2)    (A28)

Then, the interval

Usol(AB,x)=[s(A,B,x),t(A,B,x)]    (A29)

is the solution interval for the general Fock space model. The equation to be used to calculate the angle ϕB-ϕA, and the coefficients mAB and nAB is (88).

For the combination “A′ and B,” we have:

s(A,B,x)=min(i=14j=58cij2,i(A,B)1)    (A30)
t(A,B,x)=max(i=14j=58cij2,i(A,B)2)    (A31)

Then, the interval

Usol(AB,x)=[s(A,B,x),t(A,B,x)]    (A32)

is the solution interval for the general Fock space model. The equation to be used to calculate the angle ϕB-ϕA, and the coefficients mAB and nAB is (90).

Finally, for the combination “not A and not B,” we have:

s(A,B,x)=min(i=58j=14cij2,i(A,B)1)    (A33)
t(A,B,x)=max(i=58j=14cij2,i(A,B)2)    (A34)

Then, the interval

Usol(AB,x)=[s(A,B,x),t(A,B,x)]    (A35)

is the solution interval for the general Fock space model. The formula to be used to calculate the angle ϕB-ϕA, and the coefficients mAB and nAB is Equation (92).

TABLE A1
www.frontiersin.org

Table A1. Representation of the membership weights in the case of the concepts Home Furnishing and Furniture.

TABLE A2
www.frontiersin.org

Table A2. Representation of the membership weights in the case of the concepts Spices and Herbs.

TABLE A3
www.frontiersin.org

Table A3. Representation of the membership weights in the case of the concepts Pets and Farmyard Animals.

TABLE A4
www.frontiersin.org

Table A4. Representation of the membership weights in the case of the concepts Fruits and Vegetables.

TABLE A5A
www.frontiersin.org

Table A5A. Calculation of the p-values corresponding to the deviation IA between μ(A) and μ(A and B) + μ(A and B′).

TABLE A5B
www.frontiersin.org

Table A5B. Calculation of the p-values corresponding to the deviation IB between μ(B) and μ(A and B) + μ(A′ and B).

TABLE A5C
www.frontiersin.org

Table A5C. Calculation of the p-values corresponding to the deviation IA′ between μ(A′) and μ(A′ and B) + μ(A′ and B′).

TABLE A5D
www.frontiersin.org

Table A5D. Calculation of the p-values corresponding to the deviation IB′ between μ(B′) and μ(A and B′) + μ(A′ and B′).

TABLE A5E
www.frontiersin.org

Table A5E. Calculation of the p-values corresponding to the deviation IABA′B′ between μ(A and B) + μ(A and B′) + μ(A′ and B) + μ(A′ and B′) and 1.

Keywords: cognition, concept theory, quantum structures, fock space, conceptual emergence, concept formation

Citation: Aerts D, Sozzo S and Veloz T (2015) Quantum structure of negation and conjunction in human thought. Front. Psychol. 6:1447. doi: 10.3389/fpsyg.2015.01447

Received: 26 June 2015; Accepted: 10 September 2015;
Published: 30 September 2015.

Edited by:

Gabriel Radvansky, University of Notre Dame, USA

Reviewed by:

Ken McRae, University of Western Ontario, Canada
Maria Luisa Dalla Chiara, University of Florence, Italy

Copyright © 2015 Aerts, Sozzo and Veloz. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Sandro Sozzo, School of Management, Institute for Quantum Social and Cognitive Science, University of Leicester, University Road, Leicester LE1 7RH, UK, ss831@le.ac.uk
