SYSTEMATIC REVIEW article
The State of Behavior Change Techniques in Virtual Reality Rehabilitation of Neurologic Populations
- 1Virtual Environment for Assessment and Rehabilitation (VEAR) Lab, Department of Kinesiology, University of North Carolina at Greensboro, Greensboro, NC, United States
- 2Physical Activity and Lifetime Wellness Lab, Department of Kinesiology, University of North Carolina at Greensboro, Greensboro, NC, United States
Background: Neurologic rehabilitation aims to restore function, address barriers to activity, and improve quality of life in those with injury to the nervous system. Virtual reality (VR) has emerged as a useful tool to enhance neurorehabilitation interventions and outcomes. However, the manner in which VR-based neurorehabilitation has been manipulated to optimize outcomes using theory-based frameworks has not been documented. Behavior Change Techniques (BCTs) are described as the smallest active ingredient in an intervention aimed to change behavior via theoretically-proposed pathways. The purpose of this review was to investigate the ways VR is being used in neurorehabilitation to improve upright mobility, and systematically code those VR interventions for active BCTs.
Methods: Keyword searches were performed using database searches of PubMed, SPORTDiscus, and psycINFO. The search yielded 32 studies for inclusion. Coding for BCTs was conducted using the Behavior Change Techniques Taxonomy v1 (BCTTv1).
Results: Behavioral Practice, Graded Tasks, Biofeedback, and Explicit Feedback were the most commonly used BCTs. All studies reported improvements in motor performance outcomes. However, none of the studies investigated the efficacy of each component of their VR intervention making it difficult to point to the most effective components of VR interventions overall.
Conclusions: This review suggests that investigation into the specific components of VR interventions, along with purposeful implementation and reporting of BCTs will help improve understanding of the efficacy of VR as a neurorehabilitation tool. Future research could benefit from incorporating BCTs into the design process of VR interventions to produce optimal rehabilitation potential.
Virtual reality (VR) is an artificial environment containing sensory information (typically in the visual and/or auditory domains) that allows a natural expression of behaviors to emerge (Steinicke et al., 2013). There has been a wide range of contexts to which VR has been applied, including, but not limited to therapeutic programs addressing PTSD, anxiety, phobias, schizophrenia, ADHD, autism, and pain management (Freeman, 2008; Parsons and Rizzo, 2008; Li et al., 2011; Wang and Reid, 2011; Gonçalves et al., 2012; Opriş et al., 2012; Kandalaft et al., 2013). However, its usage in the physical rehabilitation of neurologic populations is relatively new and has grown in recent years (Darekar et al., 2015; Teo et al., 2016; Howard, 2017; Aida et al., 2018; Porras et al., 2018). VR in rehabilitation can take many forms, and is constantly evolving as the field and technology progresses (Kiefer et al., 2013). VR interventions can occur on a continuum of least (or non-) immersive to fully immersive. Changes in the components of the VR design can improve the level of immersion of the experience by the user (Patel et al., 2006). These components include: visual field continuity, interactivity, level and type of feedback, narrative engagement, user freedom, and visual conformity. With large developments in technology, the use of VR has increasingly emerged as a useful tool to enhance physical rehabilitation interventions and outcomes (Ravi et al., 2017; Casuso-Holgado et al., 2018; Porras et al., 2018).
Physical rehabilitation aims to restore function and improve quality of life in those with disability or injury. More specifically, neurologic physical rehabilitation is a specialized area of practice assessing and treating people with injury to the nervous system. For this population, barriers to physical activity include fear of falling, poor outcome expectations, and lack of social support (Mulligan et al., 2012; Ellis et al., 2013). Rehabilitation can help address these barriers and improve function, independence, and quality of life. VR has been shown to be an especially promising tool in rehabilitation to optimize mobility, as it allows patients to actively participate and interact in a dynamic environment (Keshner and Fung, 2017; LoJacono et al., 2017; Rhea and Kuznetsov, 2017; Porras et al., 2018). Furthermore, therapists can individualize VR interventions to best suit their intended outcomes and assess resultant behaviors.
In a recent systematic review and meta-analysis, VR interventions were shown to be more effective at improving motor outcomes than more traditional real-world interventions (Howard, 2017). Rehabilitation interventions, including gait training, used in combination with VR can provide an enriching and optimally stimulating environment (Molina et al., 2014). Zimmerli et al. (2013) outlined five critical components to create an ideally stimulating and optimally engaging VR task. These components are adaptability, explicit feedback, task goals, interactivity, and the option of added competition. For example, an adaptable VR task would be able to scale the difficulty of the task in real-time to adjust to the user's individual needs. Explicit feedback could be given through visual or auditory cues which allow the user to know if they are performing the task correctly, and task goals can be set at the beginning of the VR task. Interactivity speaks to the synchronicity of the user's behavior in the real-world to the outcome in the virtual world. A VR task with high interactivity could have an avatar, or similar representation of the user, which performs actions in the VR in concert with the user's movements in the real-world. Adding the option of competition to a VR would allow the user to perform the task in the VR while competing against a virtual opponent.
Currently, it is not clear the degree to which researchers are incorporating these five components in the design of VR interventions for motor rehabilitation. Moreover, while many of the aforementioned studies have used motor learning principles to design their VR rehabilitation program, adopting only principles of change in the motor domain may limit the adoption and effectiveness of the VR program. A more holistic approach would be to re-conceptualize VR rehabilitation programs in terms of a theoretically-informed framework that describes behavior change using a multi-domain perspective. One such framework applicable in this context is a taxonomy of Behavior Change Techniques (BCTs), which describes the “active ingredients” across a variety of domains needed to change behavior. A taxonomy linking theoretical constructs to BCT components was first developed by Abraham and Miche (2008) and subsequently updated to the “BCT Taxonomy v1” (Abraham and Miche, 2008; Michie et al., 2008, 2013). Although this taxonomy is relatively new, it has already been adopted across a variety of fields in which a change in behavior is desired (Webb et al., 2010; Bird et al., 2013; Conroy et al., 2014; Lyons et al., 2014). However, we are unaware of any papers that have applied this taxonomy of BCTs to examine components of neurologic rehabilitation in VR-based interventions. Systematically identifying BCTs could help characterize the components of past VR research that has led to the most desirable outcomes, providing a roadmap for future researchers and clinicians who wish to use VR as a tool to enhance physical rehabilitation.
The purpose of this review is two-fold: (1) to investigate the ways VR has been used in neurologic rehabilitation to improve motor performance and (2) to systematically code and analyze the state of BCTs in VR neurologic rehabilitation interventions.
The current state of VR interventions to promote improvements in gait and upright mobility in those with neurologic deficits is constantly evolving. Specifically, how current VR interventions are incorporating BCTs to create a more holistic intervention to address mobility deficits is unclear.
This study was designed to be a systematic review of the current literature investigating the role of VR interventions to improve gait and upright mobility in participants with neurologic deficits across the lifespan. The articles selected for inclusion were coded using the Behavior Change Technique Taxonomy v1 (BCTTv1) by two independent coders. One coder was an expert in BCTs, and the other had expertise with VR interventions for motor rehabilitation. First, both coders independently categorized the initial thirty-percent of included articles, then met to come to a consensus on use of specific BCTs for final coding of all remaining articles. Disagreements between coders were resolved through discussion following independent coding of all articles.
Participants, Interventions, Comparators
Articles were chosen for review if the study specifically investigated the effects of a VR intervention on an upright mobility-related outcome. Once studies were selected, all VR interventions were coded using the BCTTv1. The BCCTv1 was created to code BCTs and develop a common language to analyze and replicate interventions in both research and practical settings (Michie et al., 2013). It is a structured taxonomy of 93 BCTs and offers a reliable method for identifying and analyzing the BCT in an intervention (Michie et al., 2013). Due to the objective of this study, only the VR portion of the intervention of each study was coded using this taxonomy.
Systematic Review Protocol
The systematic review protocol guidelines described by the Preferred Reporting Items for Systematic Reviews and Meta-analysis (PRISMA) were adopted and applied to this review (Moher et al., 2015). Keyword searches for two of the databases were initially performed from October 2017 through November 2017. An additional keyword search was conducted in a third database in October 2018. Articles were screened based on the specific inclusion and exclusion criteria outlined in the following data extraction section. Articles meeting the initial criteria were kept for further full-text assessment of eligibility. Through full-text assessment of each article, articles were excluded using extensive exclusion criteria to find articles for final qualitative synthesis.
Keyword searches were performed using database searches of PubMed, SPORTDiscus, and psycINFO. The search parameters used included all possible combinations of (1) “virtual reality” (2) “physical therapy,” “physiotherapy,” or “rehabilitation” and (3) “gait,” “ambulation,” “mobility,” or “motor performance.” The specific search algorithm is provided in Figure 1.
Once duplicates were removed, studies were excluded through the screening process if they were a systematic review or meta-analysis, a non-research text (editorial, commentary, etc.), did not have full-text available, or were a study protocol, pilot or case study. Additionally, studies were excluded if they did not use neurologic populations, an upright mobility task, or focused on the upper extremity. Following screening, all full-text articles were assessed for eligibility. Studies were selected for inclusion if they were investigating the role of VR in gait or upright mobility outcomes of neurologic populations. Studies were excluded if they did not use VR, were not directly assessing the relationship between VR and motor outcomes, used vestibular populations, or employed an adjunct therapy (i.e., transcranial magnetic stimulation).
Data Sources, Studies Sections, and Data Extraction
Once the study selection process was completed, each article was reviewed to locate the section which detailed the VR intervention being used in the study. Only the section of the article regarding the VR intervention was used for BCT coding purposes. Other data (sample size, study design, and VR technology used, etc.) was extracted to synthesize the overall state of VR interventions aimed to address mobility deficits in neurologic populations by full-text review of the articles.
Following study selection and identification of the VR intervention sections of each included article, both coders independently coded these sections using the BCTTv1. Given the five components recommended in VR design of motor rehabilitation tasks (adaptability, feedback, task goals, interactivity and competition) (Zimmerli et al., 2013), it was expected that codes would be used from the following main taxonomy areas: goals and planning, feedback and monitoring, comparison of behavior, repetition and substitution, and antecedents, however coding was not restricted to these categories. The BCTs that are nested under these main taxonomies best align with the suggested VR design components identified by Zimmerli et al. (2013). Coders identified each BCT and gave the most appropriate corresponding code given definitions and descriptions in the BCTTv1. Prior to coding, both coders met to discuss standards for applying the BCTTv1 to VR task. This discussion was necessary to identify a systematic way in which to apply the BCTTv1 to the unique and dynamic nature of a VR task. After coding the first thirty-percent of the articles, both coders met and discussed areas of disagreement. Specifically, coders defined the use of antecedents as it applies to the virtual environment (VE) as this was the major area of disagreement. Following discussion, the coders agreed that the VR task would be given the code of “restructuring the physical environment” (taxonomy code: 12.1) if the VE had dynamic components that were added through the course of the VR task. Both coders also met after coding the remaining articles, again, to discuss areas of disagreement and establish a consensus regarding the BCTs being used in each VR intervention. Following this final meeting, a Cohen's Kappa statistic was calculated to demonstrate the level of agreement between coders.
Study Selection and Characteristics
Figure 2 illustrates the article selection process. The initial searches of PubMed, SPORTDiscus, and psycINFO yielded 708 articles. Of these 708 articles, 82 were duplicates. After removal of duplicate articles, 626 articles were screened through titles and abstracts. Through the screening process, 155 articles were excluded because they were a systematic review, meta-analysis, case study, feasibility study, study protocol, non-full text or non-research text. Additionally, 344 articles were excluded because they did not use neurologic populations, focused on the upper extremity, or did not investigate an upright mobility task. Following the screening process, 127 full text articles were reviewed for eligibility. Of these 127 articles, 95 were excluded due to the following reasons: did not use a VR task, did not directly measure the role of VR on motor performance, or were vestibular populations. The 32 remaining articles were included for review (Lamontagne et al., 2007; Yang et al., 2008; Kim et al., 2009; Mirelman et al., 2009, 2010, 2011; Brien and Sveistrup, 2011; Brütsch et al., 2011; Schuler et al., 2011; Salem et al., 2012; Park et al., 2013; Singh et al., 2013; Villiger et al., 2013, 2017; McEwen et al., 2014; Cho et al., 2015, 2016; Killane et al., 2015; Lee, 2015; Liao et al., 2015; Song and Park, 2015; Wall et al., 2015; Yom et al., 2015; Bang et al., 2016; In et al., 2016; Biffi et al., 2017; Bonney et al., 2017; Calabrò et al., 2017; Gandolfi et al., 2017; Pedreira da Fonseca et al., 2017; Peruzzi et al., 2017; van Gelder et al., 2017).
As per the inclusion criteria for this review, all 32 studies had subjects with neurologic diagnoses (Table 1). Thirty of the articles were conducted in a single neurologic population including stroke (n = 15), Parkinson's disease (n = 4), spinal cord injury (n = 3), and cerebral palsy (n = 3), multiple sclerosis (n = 2), brain injury (n = 1), developmental delay (n = 1), and developmental coordination disorder (n = 1). The remaining two articles used mixed clinical populations; one had adults with stroke, spinal cord injury, or brain injury; the other used a pediatric population of cerebral palsy, transverse myelitis, multiple sclerosis or brain injury. Twenty-four articles used adult subjects. Eight articles used pediatric participants. Sample sizes ranged from 4 to 76 total participants. The majority of studies (n = 14) had sample sizes in the twenties. Regarding the study design, 21 studies were randomized control study designs. Six used a clinical group with repeated measures. Moreover, 17 studies conducted at least part of the study in a controlled research laboratory, 12 were in clinical settings, two were in a school system, and one was conducted at home via telerehabilitation.

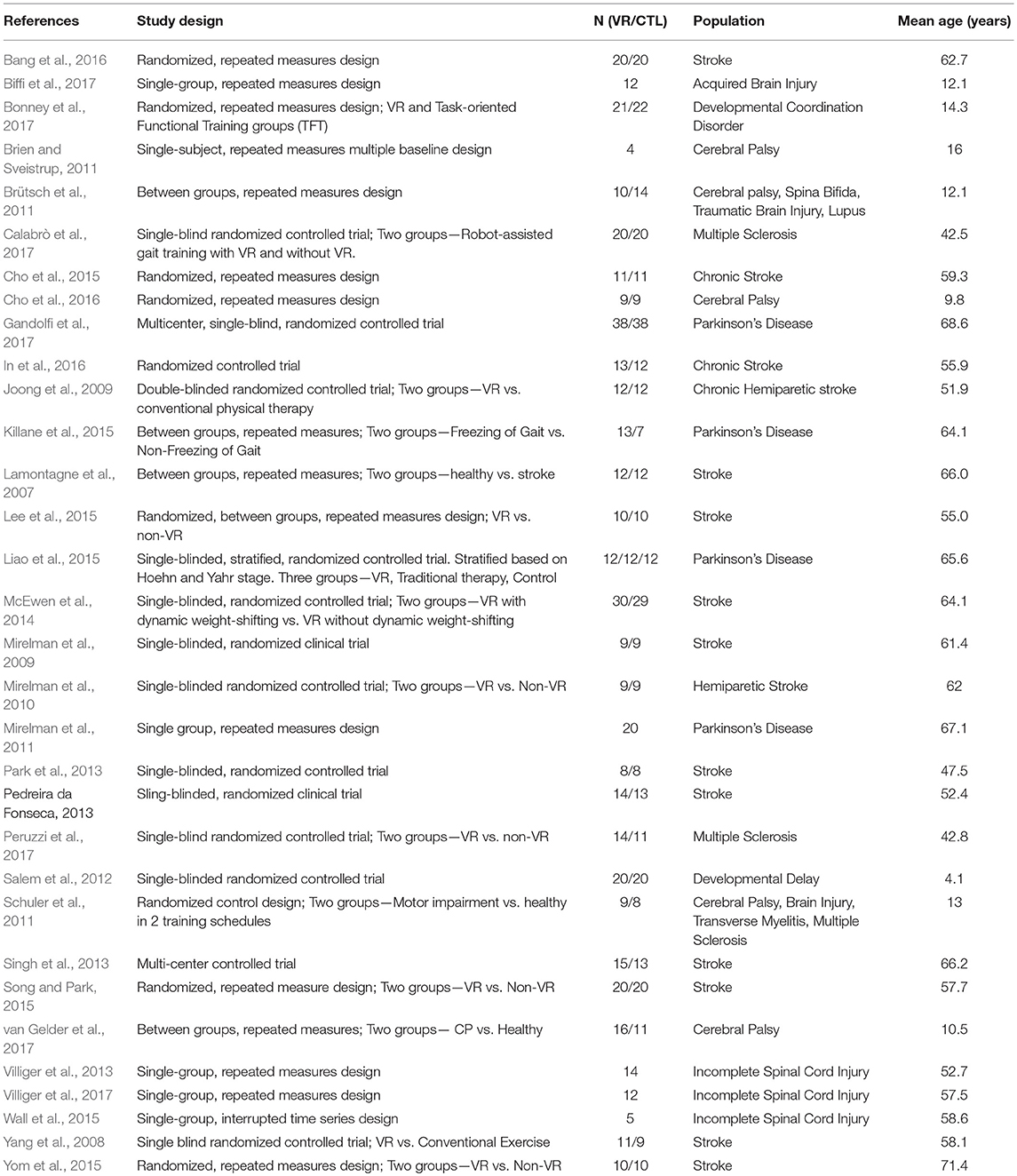

Table 1. Summary of included articles investigating virtual reality interventions to improve motor performance in neurologic populations.
Virtual Reality Interventions
Five of the 32 studies used an immersive form of VR. This was accomplished through either semi-cylindrical, multi-screen projection, or head mounted devices (HMDs). Twenty-seven of the 32 studies used a less-immersive VR intervention through use of 2D projection, IREX, RARS, Biorescue, YouRehab, WiiFit, or Xbox Kinect systems. A depiction of the VR systems and interventions of each study can be seen in Table 2.

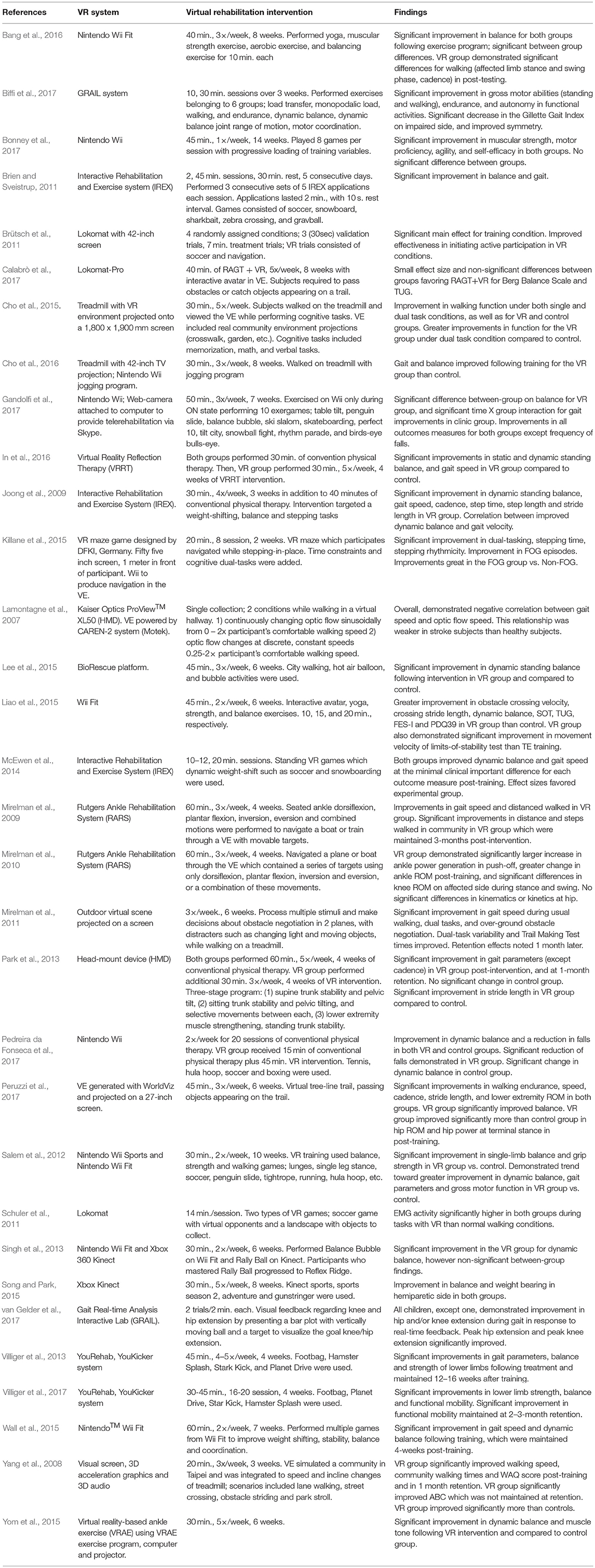

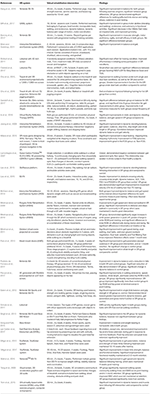

Table 2. Summary of virtual reality interventions and findings of the included articles investigating virtual reality interventions on motor performance in neurologic populations.
Eleven of the 32 studies used treadmill training in combination with their VR intervention. Three of these studies used robot-assisted gait training (RAGT), and eight used standard treadmill training (TT). One study used a balance platform which was integrated into their VR task. Two used the Rutgers ankle rehabilitation system (RARS). Three studies used the IREX VR system. Eight studies used commercial VR systems, Wii Fit (n = 7), or Kinect (n = 1), and one study used both the Nintendo Wii and Xbox Kinect.
All 32 studies reported improvements in the primary motor outcomes specific to each intervention with the use of VR. None of the studies compared the efficacy of immersive and non-immersive VR technologies. Additionally, none of the studies investigated the specific components of their intervention (i.e., adaptability, feedback, competition, etc.) to analyze the true effectiveness of each component.
Behavior Change Technique Coding
The number of studies that included at least one of the recommended BCT components are present in Figure 3. A breakdown of which components were included in each study is present in Table 3. There was substantial agreement (Cohen's Kappa = 0.714) for the initial thirty-percent of articles coded, improving to almost perfect agreement (Cohen's Kappa = 0.961) for the final seventy-percent of articles coded following the consensus meeting between the two coders. Eighteen studies (56.3%) used graded tasks (taxonomy code: 8.7) to adapt the VR intervention to optimally challenge the participants. For example, Villiger et al. (2013) graded task difficulty by adjusting the speed of the task or adding obstacles, which participants were instructed to avoid, in their VE. Fifteen studies (46.9%) provided explicit feedback to participants, six used feedback on performance of the behavior (taxonomy code: 2.2), and nine used feedback of outcomes on behavior (taxonomy code: 2.7). van Gelder et al. (2017) gave subjects feedback on performance of their target behavior through visual feedback provided via a bar plot and vertical ball which moved according to real-time joint angles in reference to a visual target. Liao et al. (2015) provided feedback on outcomes of behavior by providing subjects with their total score following conclusion of the VR task. The interactivity between the subjects' real-world movements and movements of the avatar in the VR is an example of biofeedback (taxonomy code: 2.6) which was used in nineteen (59.4%) of studies. One (3.1%) set explicit goals related to behavior outcome (taxonomy code:1.3) by explaining the goals of the VR training prior to beginning the protocol (Bonney et al., 2017). The option for adding competition to the VR task was not included in any study in this review. VR interventions which had a dynamic component to their VE were coded as “restructuring the physical environment” (taxonomy code: 12.1). Yang et al. (2008) accomplished this through by creating a VE with three-dimensional graphics and auditory outputs, which changed with the speed and incline of the treadmill used in the intervention. Five studies (15.6%) were coded as restructuring the physical environment.

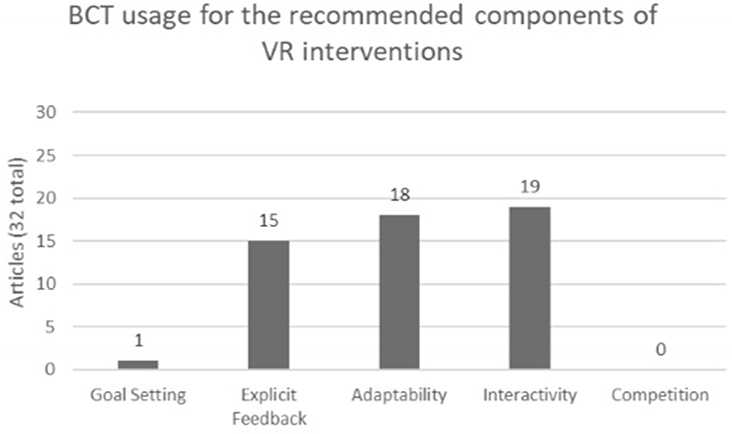

Figure 3. Summary of BCT usages in respect to the 5 recommended components of VR interventions across all 32 articles.

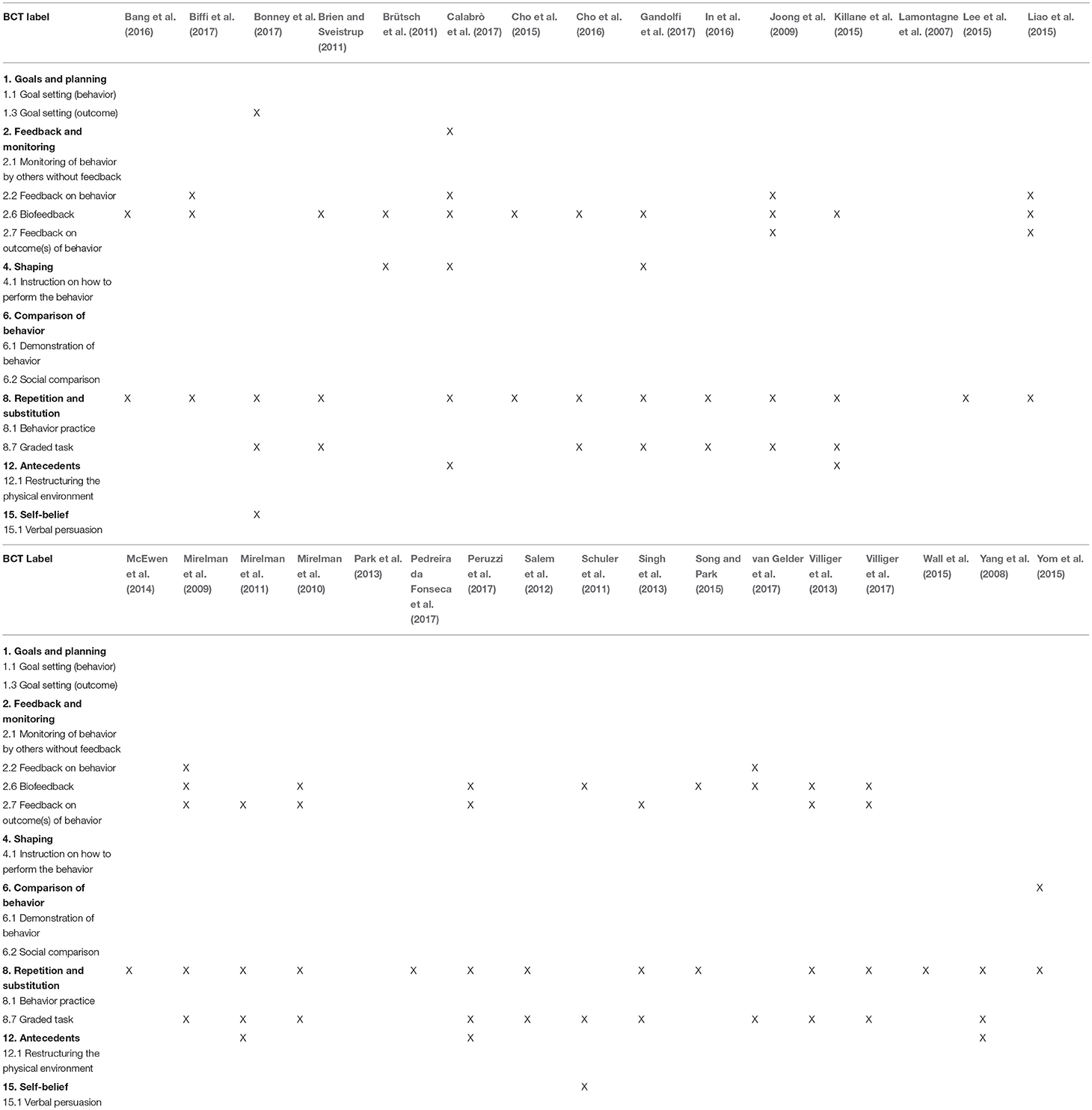

Table 3. Summary of behavior change techniques of included articles investigating virtual reality interventions to improve motor performance in neurologic populations.
Summary of Main Findings
The purpose of this study was to systematically review the existing VR literature aimed at improving motor performance in neurologic populations and analyze the underlying BCTs by coding each intervention using the BCTTv1. Studies were included if they directly investigated the role of VR in improving gross motor performance in neurologic populations. Only the VR component of the intervention was considered during the BCT coding. Thirty-two studies were included in total.
Overall, it is clear that VR interventions for motor rehabilitation of neurologic populations is in its infancy. There is limited diversity in patient populations, most studies use adult participants, and many of the studies were performed in controlled environments. Post-stroke populations were the most commonly studied, used in 46.9% of the studies included in this review. Also, most studies used a non-immersive form of VR intervention. Moreover, none of the articles investigated the efficacy of individual components of their VR intervention to better understand the significance of the motor performance outcomes. All studies reported improvements in motor outcomes, however it is difficult to point to the most effective component if systematic investigation into the specific parts of a VR intervention is not performed, especially when trying to analyze the most effective active ingredients, or BCTs, of that intervention.
Improvements in technology have also increased the usage of telerehabilitation to enhance home-based physical rehabilitation (Latifi, 2008). There has been emerging investigation of the role of VR in telerehabilitation of the upper extremity as well as balance (Popescu et al., 2000; Golomb et al., 2010; Llorens et al., 2015). However, only one study investigated the use of VR in telerehabilitation of upright mobility (Gandolfi et al., 2017). Further investigation into the feasibility, efficacy and safety of VR interventions included in telerehabilitation protocols is needed.
Goal setting, explicit feedback, adaptability, interactivity, and competition have been identified as components of a successful VR task (Zimmerli et al., 2013). Given these recommended components, it was expected that codes would be used from the following main taxonomy areas: goals and planning, feedback and monitoring, comparison of behavior, and repetition and substitution. Goal setting and planning includes BCTs related to setting explicit task goals. These components were not readily used, as they were only incorporated in 1 of 32 studies (3.1%) of the articles in this review. Feedback and monitoring include BCTs related to providing feedback, monitoring behavior, and biofeedback. This section of the taxonomy applies to both the explicit feedback and interactivity components recommended for VR tasks, and at least one BCT from this area of the taxonomy was used in most of the studies included in this review (21 out of 32 studies; 65.6%). Fifteen studies utilized explicit feedback (46.9%) with studies providing either feedback on performance or feedback on outcomes of behavior. Biofeedback is defined in the BCTTv1 as a method of providing feedback about the body using an external monitoring device. Through use of interactive VR technologies, users can readily receive feedback from the VR. Therefore, interactivity of a VR task can be coded as using biofeedback, which was incorporated in 19 of 32 studies (59.4%) included in this review. Finally, the repetition and substitution section of the taxonomy includes “graded task,” which is used to set an easily attainable task that can gradually be increased in difficulty to achieve the desired outcome. This also speaks to the adaptability of a VR task. Of the recommended components of VR, adaptability was the most commonly adopted component, being incorporated into 18 out of 32 studies (56.3%) included in this review. These results illustrate the state of BCTs in VR tasks for neurorehabilitation. BCTs related to interactivity, feedback and adaptability of an intervention are represented well, however BCTs for explicit task goals and competition are lacking in the interventions included in this review. As suggested by Zimmerli et al. (2013), to create well-rounded VR interventions aimed to improve motor performance it is imperative to include multiple components into the VR task design. Therefore, interventions that fail to include aspects of goal setting, for example, may lose an important active ingredient to maximize the effectiveness of the VR intervention on neurorehabilitation and motor outcomes.
BCTs are often not deliberately stated in descriptions of behavioral interventions (Michie et al., 2009), and this holds true in the VR literature for motor rehabilitation. Thus, some aspects of the VR interventions that could be implied, but did not explicitly state the target behavior, could not be coded. Moreover, none of the included articles investigated individual components of their VR intervention. For this reason, it is difficult to identify the BCTs which provide the optimal augmentation of the VR intervention. However, interventions using graded tasks (taxonomy code: 8.7) and biofeedback (taxonomy code: 2.6) attributed the improved motor performance from the intervention to these components of the VR task. Graded tasks were used in 18 studies (56.3%), and biofeedback in 19 studies (59.4%). Twelve articles (37.5%) had VR tasks that used adaptability and interactivity together. A graded task is defined in the BCTTv1 as an intervention created to be initially easy to perform with increasing difficulty until the target behavior is accomplished. This speaks to the adaptability of the intervention. Biofeedback provides feedback about the state of the body using external monitoring. This suggests a level of interactivity in the VR task. This review suggests that these components improve patient engagement and motivation in the motor task (Schuler et al., 2011; Zimmerli et al., 2013) and should be considered for inclusion in future research.
As previously stated, only one article investigated the efficacy of individual components of their VR task. Zimmerli et al. found that adaptability leads to improvements in motor outcomes by allowing the VR task to be adapted to meet the individual needs of the user, and this produces the ideal psychophysiological state in which a participant is optimally stimulated, both mentally and physically (Zimmerli et al., 2013). Interactivity helps improve task-engagement, as well as optimizing rehabilitation potential and motor outcomes. Conversely, components of feedback frequency and goal setting were found to not produce a significant improvement in the motor performance of subjects with neurologic disorders.
In terms of neurologic rehabilitation, the goal of including tasks is to change behavior to improve motor outcomes. Behavior change is complex, requiring a combination of multiple components to produce the desired outcome (Michie et al., 2013). In this way, it is important to identify the BCTs currently used successfully in VR literature, as well as the shortcomings. In this review, coders looked for BCTs related to the specific recommended components of a VR intervention, as well as identify BCTs present in the VR task which were outside of these recommendations. In terms of the recommended VR components and their associated BCTs, feedback, adaptability and interactivity are the most widely used in the thirty-two articles reviewed. However, the remaining two components, goal setting and competition, were not incorporated well into the VR tasks included in this review. Outside the 5 recommended components, the most used BCT overall was behavioral practice (taxonomy code: 8.1); 84.4% of the studies created their VR intervention to rehearse the performance of the desired behavior which is important with regard to motor rehabilitation. Changing the environment to facilitate the desired behavior change is deemed restructuring the physical environment (12.1), this BCT was used in 15.6% of the studies. These studies created a dynamic component within their VR which was not present at the beginning of the task, restructuring the VE to influence the wanted behavior change.
From this review, it was observed that some BCTs are being integrated into VR tasks to meets the needs of the user and create meaningful changes in motor performance. These include feedback (behavior and outcomes), graded tasks, biofeedback and behavioral practice, and have been shown to change physical activity behavior (Duff et al., 2017; Samdal et al., 2017). Conversely, from the BCT literature, it has been shown that goal setting and self-monitoring is effective for creating behavior change in general (Michie et al., 2009). Self-monitoring of behavior was not used in any of the articles in this review, and goal setting was only incorporated into 3.1% of the studies in this review.
This review provides important information regarding the use of BCTs in the design of VR interventions to improve motor outcomes in neurologic clinic populations. Specifically, this review investigated the components of each VR intervention, itself, rather than the complete intervention protocol. Some BCTs are being incorporated well while others are not. However, more comprehensive VR tasks designed with deliberate integration and testing of BCTs are needed. This will allow for better identification of the true active ingredients promoting change within a successful VR task, which BCTs are best for VR interventions in motor rehabilitation and improve replicability of clinically meaningful VR interventions. Addressing these gaps will allow for more tailored treatments to be developed in the physical rehabilitation domain, similar to those currently being implemented in the cognitive rehabilitation domain (Freeman, 2008; Parsons and Rizzo, 2008; Li et al., 2011; Wang and Reid, 2011; Gonçalves et al., 2012; Opriş et al., 2012; Kandalaft et al., 2013). This will help spring-forward this line of research to more rapidly catch up with its cognitive rehabilitation counterparts to more fully take advantage of VR therapy across multiple domains.
There are two limitations of note in this review. First, there is not an established way to apply the BCTTv1 to VR interventions. Other articles performing BCT coding using the BCTTv1 have established a clear framework for applying BCT codes to various technological interventions. However, these are mostly regarding mobile phone applications (Direito et al., 2014, 2016; Lyons et al., 2014; Middelweerd et al., 2014; Yang et al., 2015). Additionally, while some BCTs could be implied, if the text did not explicitly state or link the target behavior to the target population, it could not be coded.
The purpose of this study was to investigate the ways in which VR was being used in motor rehabilitation of neurologic populations, and systematically code these interventions using the BCTTv1 to analyze the active ingredients of each VR task. The literature suggests that VR is a useful modality to design and implement effective rehabilitation interventions. However, the state of BCTs in VR is mixed. The literature suggests that graded tasks (adaptability) and biofeedback (interactivity) are two of the most consistent elements of a VR intervention for motor rehabilitation. BCTs are not often deliberately reported in the literature, and therefore cannot be coded. Moreover, studies did not investigate the specific components of their VR tasks making it difficult to link BCTs to significant components of VR interventions.
Further research into the specific components of VR interventions along with purposeful implementation and reporting of BCTs will help improve understanding of the efficacy of VR as a motor rehabilitation tool. Incorporation of BCTS into VR interventions could create the ideal intervention to enhance motor outcomes. Future research could benefit from incorporating BCTs, and what is currently known about BCTs from the physical activity literature, into the design process of VR interventions to produce optimal rehabilitation potential. However, it is acknowledged that the BCT framework is rarely used in physical rehabilitation intervention, and questions remain about its applicability to help enhance current practice. Nevertheless, we believe the inclusion of BCTs a priori could help our field systematically understand the extent to which VR could add value to current clinical approaches.
All authors contributed to the concept and design of the systematic review. DF performed the literature search. DF and JM performed the coding of all included articles according to the BCTTv1. DF drafted the initial manuscript. All authors contributed to manuscript revision and approved the manuscript for submission.
This work was supported by partial funding from the University of North Carolina at Greensboro's Open Access Publishing Support Fund.
Conflict of Interest Statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
The authors would like to thank Chih-Hsiang (Jason) Yang, Ph.D., postdoctoral research associate at University of Southern California, for his assistance with the calculation of Cohen's Kappa.
Bang, Y., Son, K., and Kim, H. (2016). Effects of virtual reality training using nintendo wii and treadmill walking exercise on balance and walking for stroke patients. J. Phys. Ther. Sci. 28, 3112–3115. doi: 10.1589/jpts.28.3112
Biffi, E., Beretta, E., Cessareo, A., Maghini, C., Turconi, A., Reni, G., et al. (2017). An immersive virtual reality platform to enhance walking ability of children with acquired brain injuries. Methods Inform. Med. 56, 119–126. doi: 10.3414/ME16-02-0020
Bird, E., Baker, G., Mutrie, N., Ogilvie, D., Sahlqvist, S., and Powell, J. (2013). Behavior change techniques used to promote walking and cycling: a systematic review. Health Psychol. 32, 829–838. doi: 10.1037/a0032078
Bonney, E., Ferguson, G., and Smits-Engelsman, B. (2017). The efficacy of two activity-based interventions in adolescents with developmental coordination disorder. Res. Dev. Disabil. 71, 223–236. doi: 10.1016/j.ridd.2017.10.013
Brien, M., and Sveistrup, H. (2011). An intensive virtual reality program improves functional balance and mobility of adolescents with cerebral palsy. Pediatr. Phys. Ther. 23, 258–266. doi: 10.1097/PEP.0b013e318227ca0f
Brütsch, K., Koenig, A., Zimmerli, L., Mérillat-Koeneke, S., Riener, R., Jäncke, L., et al. (2011). Virtual reality for enhancement of robot-assisted gait training in children with central gait disorders. J. Rehabil. Med. 43, 493–499. doi: 10.2340/16501977-0802
Calabró, R., Russo, M., Naro, A., De Luca, R., Leo, A., Tomasello, P., et al. (2017). Robotic gait training in multiple sclerosis rehabilitation: can virtual reality make the difference? Findings from a Randomized Controlled Trial. Neurol. Sci. 377, 25–30. doi: 10.1016/j.jns.2017.03.047
Casuso-Holgado, M., Martín-Valero, R., Carazo, A., Medrano-Sánchez, E., Cortés-Vega, M., and Montero-Bancalero, F. (2018). Effectiveness of virtual reality training for balance and gait rehabilitation in people with multiple sclerosis: a systematic review and meta-analysis. Clin. Rehabil. 32, 1220–1234. doi: 10.1177/0269215518768084
Cho, C., Hwang, W., Hwang, S., and Chung, Y. (2016). Treadmill training with virtual reality improves gait, balance, and muscle strength in children with cerebral palsy. Tohoku J. Exp. Med. 238, 213–218. doi: 10.1620/tjem.238.213
Cho, K., Kim, M., Lee, H., and Lee, W. (2015). Virtual reality training with cognitive load improves walking function in chronic stroke patients. Tohoku J. Exp. Med. 236, 273–280. doi: 10.1620/tjem.236.273
Darekar, A., Lamontagne, A., and Fung, J. (2015). Dynamic clearance measure to evaluate locomotor and perceptuo-motor strategies used for obstacle circumvention in a virtual environment. Hum. Mov. Sci. 40, 359–371. doi: 10.1016/j.humov.2015.01.010
Direito, A., Carraça, E., Rawstorn, J., Whittaker, R., and Maddison, R. (2016). MHealth technologies to influence physical activity and sedentary behaviors: behavior change techniques, systematic review and meta-analysis of randomized controlled trials. Ann. Behav. Med. 51, 226–239. doi: 10.1007/s12160-016-9846-0
Direito, A., Dale, L., Shields, E., Dobson, R., Whittaker, R., and Maddison, R. (2014). Do physical activity and dietary smartphone applications incorporate evidence-based behaviour change techniques? BMC Public Health 14:646. doi: 10.1186/1471-2458-14-646
Duff, O., Walsh, D., Furlong, R., O'Connor, N., Moran, K., and Woods, C. (2017). Behavior change techniques in physical activity EHealth interventions for people with cardiovascular disease: systematic review. J. Med. Internet Res. 19:e281. doi: 10.2196/jmir.7782
Gandolfi, M., Geroin, C., Dimitrova, E., Boldrini, P., Waldner, A., Bonadiman, S., et al. (2017). Virtual reality telerehabilitation for postural instability in Parkinson's disease: a multicenter, single-blind, randomized, controlled trial. Biomed. Res. Int. 2017:7962826. doi: 10.1155/2017/7962826
Golomb, M., McDonald, B., Warden, S., Yonkman, J., Saykin, A., Shirley, B., et al. (2010). In-home virtual reality videogame telerehabilitation in adolescents with hemiplegic cerebral palsy. Arch. Phys. Med. Rehabil. 91, 1–8.e1. doi: 10.1016/j.apmr.2009.08.153
Gonçalves, R., Pedrozo, A., Coutinho, E., Figueira, I., and Ventura, P. (2012). Efficacy of virtual reality exposure therapy in the treatment of PTSD: a systematic review. PLoS ONE 7:e48469. doi: 10.1371/journal.pone.0048469
In, T., Lee, K., and Song, C. (2016). Virtual reality reflection therapy improves balance and gait in patients with chronic stroke: randomized controlled trials. Med. Sci. Monit. 22, 4046–4053. doi: 10.12659/MSM.898157
Joong, H., Jang, S., Kim, C., Jung, J., and You, J. (2009). Use, of virtual reality to enhance balance and ambulation in chronic stroke: a double-blind, randomized controlled study. Am. J. Phys. Med. Rehabil. 88, 693–701. doi: 10.1097/PHM.0b013e3181b33350
Kandalaft, M., Didehbani, N., Krawczyk, D., Allen, T., and Chapman, S. (2013). Virtual reality social cognition training for young adults with high-functioning autism. J. Autism Dev. Disord. 43, 34–44. doi: 10.1007/s10803-012-1544-6
Kiefer, A. W., Rhea, C. K., and Warren, W. H. (2013). “Virtual reality based assessment and rehabilitation of functional mobility,” in Human Walking in Virtual Environments: Perception, Technology, and Applications, eds F. Steinicke, Y. Visell, J. Campos, and A. Lécuyer (New York, NY: Springer), 333–350.
Killane, I., Fearon, C., Newman, L., McDonnell, C., Waechter, S., Sons, K., et al. (2015). Dual motor-cognitive virtual reality training impacts dual-task performance in freezing of gait. IEEE J. Biomed. Health Inform. 19, 1855–1861. doi: 10.1109/JBHI.2015.2479625
Kim, J., Jang, S., Kim, C., Jung, J., and You, J. (2009). Use of virtual reality to enhance balance and ambulation in chronic stroke: a double-blind, randomized controlled study. Am. J. Phys. Med. Rehabil. 88, 693–701. doi: 10.1097/PHM.0b013e3181b33350
Lee, I., Kim, Y., and Lee, D. (2015). Effect of a virtual reality exercise program accompanied by cognitive tasks on the balance and gait of stroke patients. J. Phys. Ther. Sci. 27, 2175–2177. doi: 10.1589/jpts.27.2175
Liao, Y., Yang, Y., Cheng, S., Wu, Y., Fuh, J., and Wang, R. (2015). Virtual reality-based training to improve obstacle-crossing performance and dynamic balance in patients with Parkinson's disease. Neurorehabil. Neural Repair 29, 658–667. doi: 10.1177/1545968314562111
Llorens, R., Noe, E., Colomer, C., and Alcaniz, M. (2015). Effectiveness, usability, and cost-benefit of a virtual reality-based telerehabilitation program for balance recovery after stroke: a randomized controlled trial. Arch. Phys. Med. Rehabil. 96, 418–425.e2. doi: 10.1016/j.apmr.2014.10.019
LoJacono, C., MacPherson, R., Kuznetsov, N., Raisbeck, L., Ross, S., and Rhea, C. (2017). Obstacle crossing in a virtual environment transfers to a real environment. J. Motor Learn. Dev. 6, 1–27. doi: 10.1123/jmld.2017-0019
Lyons, E., Lewis, Z., Mayrsohn, B., and Rowland, J. (2014). Behavior change techniques implemented in electronic lifestyle activity monitors: a systematic content analysis. J. Med. Internet Res. 16:e192. doi: 10.2196/jmir.3469
McEwen, D., Taillon-Hobson, A., Bilodeau, M., Sveistrup, H., and Finestone, H. (2014). Virtual reality exercise improves mobility after stroke: an inpatient randomized controlled trial. Stroke 45, 1853–1855. doi: 10.1161/STROKEAHA.114.005362
Michie, S., Abraham, C., Whittington, C., McAteer, J., and Gupta, S. (2009). Effective techniques in healthy eating and physical activity interventions: a meta-regression. Health Psychol. 28, 690–701. doi: 10.1037/a0016136
Michie, S., Johnston, M., Francis, J., Hardeman, W., and Eccles, M. (2008). From theory to intervention: mapping theoretically derived behavioural determinants to behaviour change techniques. Appl. Psychol. 57, 660–680. doi: 10.1111/j.1464-0597.2008.00341.x
Michie, S., Richardson, M., Johnston, M., Abraham, C., Francis, J., Hardeman, W., et al. (2013). The behavior change technique taxonomy (v1) of 93 hierarchically clustered techniques: building an international consensus for the reporting of behavior change interventions. Ann. Behav. Med. 46, 81–95. doi: 10.1007/s12160-013-9486-6
Middelweerd, A., Mollee, J., van der Wal, C., Brug, J., and Te Velde, S. (2014). Apps to promote physical activity among adults: a review and content analysis. Int. J. Behav. Nutr. Phys. Activity 11:97. doi: 10.1186/s12966-014-0097-9
Mirelman, A., Bonato, P., and Deutsch, J. (2009). Effects of training with a robot-virtual reality system compared with a robot alone on the gait of individuals after stroke. Stroke 40, 169–174. doi: 10.1161/STROKEAHA.108.516328
Mirelman, A., Maidan, I., Herman, T., Deutsch, J., Giladi, N., and Hausdorff, J. (2011). Virtual reality for gait training: can it induce motor learning to enhance complex walking and reduce fall risk in patients with Parkinson's disease. J. Gerontol. Ser. A Biol. Sci. Med. Sci. 66, 234–240. doi: 10.1093/gerona/glq201
Mirelman, A., Patritti, B., Bonato, P., and Deutsch, J. (2010). Effects of virtual reality training on gait biomechanics of individuals post-stroke. Gait Posture 31, 433–437. doi: 10.1016/j.gaitpost.2010.01.016
Moher, D., Shamseer, L., Clarke, M., Ghersi, D., Liberati, A., Petticrew, M., et al. (2015). Preferred reporting items for systematic review and meta-analysis protocols (PRISMA-P) 2015 statement. Syst. Rev. 4:1. doi: 10.1186/2046-4053-4-1
Molina, K., Ricci, N., de Moraes, S., and Perracini, M. (2014). Virtual reality using games for improving physical functioning in older adults: a systematic review. J. Neuroeng. Rehabil. 11:156. doi: 10.1186/1743-0003-11-156
Mulligan, H., Hale, L., Whitehead, L., and Baxter, G. (2012). Barriers to physical activity for people with long-term neurological conditions: a review study. Adapt. Phys. Activity Q. 29, 243–265. doi: 10.1123/apaq.29.3.243
Opriş, D., Pintea, S., García-Palacios, A., Botella, C., Szamosközi, S., and David, D. (2012). Virtual reality exposure therapy in anxiety disorders: a quantitative meta-analysis. Depress. Anxiety 29, 85–93. doi: 10.1002/da.20910
Park, Y. H., Lee, C., and Lee, B. (2013). Clinical usefulness of the virtual reality-based postural control training on the gait ability in patients with stroke. J. Exerc. Rehabil. 9, 489–494. doi: 10.12965/jer.130066
Parsons, T., and Rizzo, A. (2008). Affective outcomes of virtual reality exposure therapy for anxiety and specific phobias: a meta-analysis. J. Behav. Ther. Exp. Psychiatry 39, 250–261. doi: 10.1016/j.jbtep.2007.07.007
Patel, K., Bailenson, J., Hack-Jung, S., Diankov, R., and Bajcsy, R. (2006). “The effects of fully immersive virtual reality on the learning of physical tasks,” in Proceedings of the 9th Annual International Workshop on Presence (Cleveland, OH), 87–94.
Pedreira da Fonseca, E., Ribeiro da Silva, N., and Pinto, E. (2017). Therapeutic effect of virtual reality on post-stroke patients: randomized clinical trial. J. Stroke Cerebrovasc. Dis. 26, 94–100. doi: 10.1016/j.jstrokecerebrovasdis.2016.08.035
Peruzzi, A., Zarbo, I., Cereatti, A., Croce, U., and Mirelman, A. (2017). An innovative training program based on virtual reality and treadmill: effects on gait of persons with multiple sclerosis. Disabil. Rehabil. 39, 1557–1563. doi: 10.1080/09638288.2016.1224935
Popescu, V., Burdea, G., Bouzit, M., and Hentz, V. (2000). A virtual-reality-based telerehabilitation system with force feedback. IEEE Trans. Inform. Technol. Biomed. 4, 45–51. doi: 10.1109/4233.826858
Porras, D., Siemonsma, P., Inzelberg, R., Zeilig, G., and Plotnik, M. (2018). Advantages of virtual reality in the rehabilitation of balance and gait: systematic review. Neurology 90, 1017–1025. doi: 10.1212/WNL.0000000000005603
Ravi, D., Kumar, N., and Singhi, P. (2017). Effectiveness of virtual reality rehabilitation for children and adolescents with cerebral palsy: an updated evidence-based systematic review. Physiotherapy 103, 245–258. doi: 10.1016/j.physio.2016.08.004
Salem, Y., Gropack, S., Coffin, D., and Godwin, E. (2012). Effectiveness of a low-cost virtual reality system for children with developmental delay: a preliminary randomised single-blind controlled trial. Physiotherapy 98, 189–195. doi: 10.1016/j.physio.2012.06.003
Samdal, G., Eide, G., Barth, T., Williams, G., and Meland, E. (2017). Effective behaviour change techniques for physical activity and healthy eating in overweight and obese adults; systematic review and meta-regression analyses. Int. J. Behav. Nutr. Phys. Activity 14:42. doi: 10.1186/s12966-017-0494-y
Schuler, T., Brutsch, K., Müller, R., van Hedel, H., and Meyer-Heim, A. (2011). Virtual realities as motivational tools for robotic assisted gait training in children: a surface electromyography study. NeuroRehabilitation 28, 401–411. doi: 10.3233/NRE-2011-0670
Singh, D., Nordin, N., Aziz, N., Lim, B., and Soh, L. (2013). Effects of substituting a portion of standard physiotherapy time with virtual reality games among community-dwelling stroke survivors. BMC Neurol. 13:199. doi: 10.1186/1471-2377-13-199
Song, G., and Park, E. (2015). Effect of virtual reality games on stroke patients' balance, gait, depression, and interpersonal relationships. J. Phys. Ther. Sci. 27, 2057–2060. doi: 10.1589/jpts.27.2057
Teo, W., Muthalib, M., Yamin, S., Hendy, A., Bramstedt, K., Kotsopoulos, E., et al. (2016). Does a combination of virtual reality, neuromodulation and neuroimaging provide a comprehensive platform for neurorehabilitation? – a narrative review of the literature. Front. Hum. Neurosci. 10:284. doi: 10.3389/fnhum.2016.00284
van Gelder, L., Booth, A., van de Port, I., Buizer, A., Harlaar, J., and van der Krogt, M. (2017). Real-time feedback to improve gait in children with cerebral palsy. Gait Posture 52, 76–82. doi: 10.1016/j.gaitpost.2016.11.021
Villiger, M., Bohli, D., Kiper, D., Pyk, P., Spillmann, J., Meilick, B., et al. (2013). Virtual reality-augmented neurorehabilitation improves motor function and reduces neuropathic pain in patients with incomplete spinal cord injury. Neurorehabil. Neural Repair 27, 675–683. doi: 10.1177/1545968313490999
Villiger, M., Liviero, J., Awai, L., Stoop, R., Pyk, P., Clijsen, R., et al. (2017). Home-based virtual reality-augmented training improves lower limb muscle strength, balance, and functional mobility following chronic incomplete spinal cord injury. Front. Neurol. 8:635. doi: 10.3389/fneur.2017.00635
Wall, T., Feinn, R., Chui, K., and Cheng, M. (2015). The effects of the nintendo wii fit on gait, balance, and quality of life in individuals with incomplete spinal cord injury. J. Spinal Cord Med. 38, 777–783. doi: 10.1179/2045772314Y.0000000296
Wang, M., and Reid, D. (2011). Virtual reality in pediatric neurorehabilitation: attention deficit hyperactivity disorder, autism and cerebral palsy. Neuroepidemiology 36, 2–18. doi: 10.1159/000320847
Webb, T., Joseph, J., Yardley, L., and Michie, S. (2010). Using the internet to promote health behavior change: a systematic review and meta-analysis of the impact of theoretical basis, use of behavior change techniques, and mode of delivery on efficacy. J. Med. Internet Res. 12:e4. doi: 10.2196/jmir.1376
Yang, Y., Tsai, M., Chuang, T., Sung, W., and Wang, R. (2008). Virtual reality-based training improves community ambulation in individuals with stroke: a randomized controlled trial. Gait Posture 28, 201–206. doi: 10.1016/j.gaitpost.2007.11.007
Yom, C., Cho, H., and Lee, B. (2015). Effects of virtual reality-based ankle exercise on the dynamic balance, muscle tone, and gait of stroke patients. J. Phys. Ther. Sci. 27, 845–849. doi: 10.1589/jpts.27.845
Keywords: virtual reality, neurorehabilitation, gait, mobility, motor performance, behavior change techniques
Citation: Felsberg DT, Maher JP and Rhea CK (2019) The State of Behavior Change Techniques in Virtual Reality Rehabilitation of Neurologic Populations. Front. Psychol. 10:979. doi: 10.3389/fpsyg.2019.00979
Received: 30 January 2019; Accepted: 12 April 2019;
Published: 08 May 2019.
Edited by:Adelaida María AM Castro Sánchez, University of Almería, Spain
Copyright © 2019 Felsberg, Maher and Rhea. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Danielle T. Felsberg, firstname.lastname@example.org
