Abstract
Tall fescue (Lolium arundinaceum) is a valuable and broadly adapted forage grass that occupies approximately 14 million hectares across the United States. A native to Europe, tall fescue was likely introduced into the US around the late 1800's. Much of the success of tall fescue can be attributed to EpichloĆ« coenophiala (formerly Neotyphodium coenophialum) a seed borne symbiont that aids in host persistence. EpichloĆ« species are capable of producing a range of alkaloids (ergot alkaloids, indole-diterpenes, lolines, and peramine) that provide protection to the plant host from herbivory. Unfortunately, most tall fescue within the US, commonly referred to as āKentucky-31ā (KY31), harbors the endophyte E. coenophiala that causes toxicity to grazing livestock due to the production of ergot alkaloids. Molecular analyses of tall fescue endophytes have identified four independent associations, representing tall fescue with E. coenophiala, EpichloĆ« sp. FaTG-2, EpichloĆ« sp. FaTG-3, or EpichloĆ« sp. FaTG-4. Each of these EpichloĆ« species can be further distinguished based on genetic variation that equates to differences in the alkaloid gene loci. Tall fescue samples were evaluated using markers to simple sequence repeats (SSRs) and alkaloid biosynthesis genes to determine endophyte strain variation present within continental US. Samples represented seed and tillers from the Suiter farm (Menifee County, KY), which is considered the originating site of KY31, as well as plant samples collected from 14 states, breeder's seed and plant introduction lines (National Plant Germplasm System, NPGS). This study revealed two prominent E. coenophiala genotypes based on presence of alkaloid biosynthesis genes and SSR markers and provides insight into endophyte variation within continental US across historical and current tall fescue samples.
Introduction
History of KY31 tall fescue and discovery of endophyte
Tall fescue [Lolium arundinaceum (Schreb.) Darbysh. syn Festuca arundinaceae Shreb.] was introduced into the United States from Europe in the 1800's and is considered an important cool season perennial forage crop (Hoveland, ). Tall fescue is widely adapted to the eastern United States spanning 14 million hectares (35 million acres) with the fescue belt considered the major region of adaptation and use (Figure 1) (Ball et al., ). A timeline representing significant research events of tall fescue is shown in Figure 1 and outlined below.
Figure 1
One of the most well known tall fescue cultivars, āKentucky-31ā (KY31), was collected in 1931 by Dr. E. N. Fergus (University of Kentucky) on a farm owned by William Suiter (Menifee County, KY) (Fergus and Buckner,
Unfortunately, although KY31 was known as a persistent cultivar, reports of poor animal performance when grazing this forage began in the 1940s (Cunningham,
Tall fescue endophyte description
Initially, Bacon et al. (
E. coenophiala, like many Epichloƫ species, is capable of producing a variety of bioactive secondary metabolites. The four described classes of alkaloids produced by Epichloƫ species are ergot alkaloids, indole-diterpenes, lolines, and peramine (Siegel et al., 1990). Ergot alkaloids (e.g., ergovaline) and the indole-diterpene, lolitrem B, have been shown to have anti-mammalian activity causing fescue toxicosis (Bacon et al.,

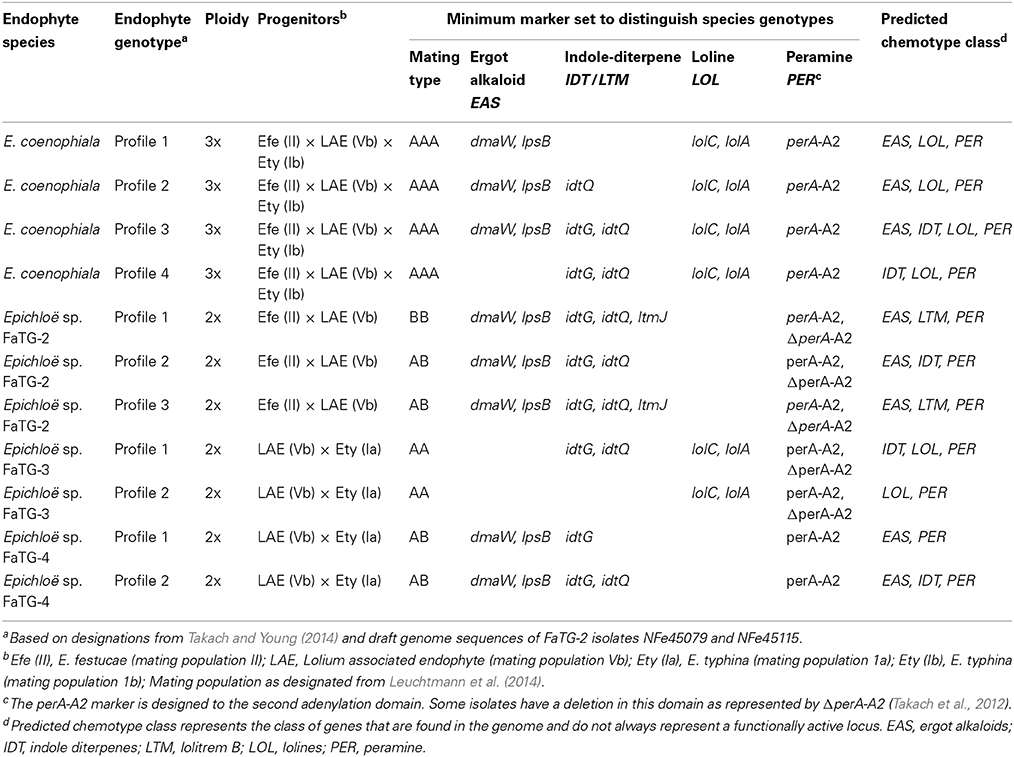

Table 1
| Endophyte species | Endophyte genotypea | Ploidy | Progenitorsb | Minimum marker set to distinguish species genotypes | Predicted chemotype classd | ||||
|---|---|---|---|---|---|---|---|---|---|
| Mating type | Ergot alkaloid EAS | Indole-diterpene IDT/LTM | Loline LOL | Peramine PERc | |||||
| E. coenophiala | Profile 1 | 3x | Efe (II) Ć LAE (Vb) Ć Ety (Ib) | AAA | dmaW, lpsB | lolC, lolA | perA-A2 | EAS, LOL, PER | |
| E. coenophiala | Profile 2 | 3x | Efe (II) Ć LAE (Vb) Ć Ety (Ib) | AAA | dmaW, lpsB | idtQ | lolC, lolA | perA-A2 | EAS, LOL, PER |
| E. coenophiala | Profile 3 | 3x | Efe (II) Ć LAE (Vb) Ć Ety (Ib) | AAA | dmaW, lpsB | idtG, idtQ | lolC, lolA | perA-A2 | EAS, IDT, LOL, PER |
| E. coenophiala | Profile 4 | 3x | Efe (II) Ć LAE (Vb) Ć Ety (Ib) | AAA | idtG, idtQ | lolC, lolA | perA-A2 | IDT, LOL, PER | |
| EpichloĆ« sp. FaTG-2 | Profile 1 | 2x | Efe (II) Ć LAE (Vb) | BB | dmaW, lpsB | idtG, idtQ, ltmJ | perA-A2, ĪperA-A2 | EAS, LTM, PER | |
| EpichloĆ« sp. FaTG-2 | Profile 2 | 2x | Efe (II) Ć LAE (Vb) | AB | dmaW, lpsB | idtG, idtQ | perA-A2, ĪperA-A2 | EAS, IDT, PER | |
| EpichloĆ« sp. FaTG-2 | Profile 3 | 2x | Efe (II) Ć LAE (Vb) | AB | dmaW, lpsB | idtG, idtQ, ltmJ | perA-A2, ĪperA-A2 | EAS, LTM, PER | |
| EpichloĆ« sp. FaTG-3 | Profile 1 | 2x | LAE (Vb) Ć Ety (Ia) | AA | idtG, idtQ | lolC, lolA | perA-A2, ĪperA-A2 | IDT, LOL, PER | |
| EpichloĆ« sp. FaTG-3 | Profile 2 | 2x | LAE (Vb) Ć Ety (Ia) | AA | lolC, lolA | perA-A2, ĪperA-A2 | LOL, PER | ||
| Epichloë sp. FaTG-4 | Profile 1 | 2x | LAE (Vb) à Ety (Ia) | AB | dmaW, lpsB | idtG | perA-A2 | EAS, PER | |
| Epichloë sp. FaTG-4 | Profile 2 | 2x | LAE (Vb) à Ety (Ia) | AB | dmaW, lpsB | idtG, idtQ | perA-A2 | EAS, IDT, PER | |
Epichloƫ species and genotype variation associated with endophytes of tall fescue.
Based on designations from Takach and Young (2014) and draft genome sequences of FaTG-2 isolates NFe45079 and NFe45115.
Efe (II), E. festucae (mating population II); LAE, Lolium associated endophyte (mating population Vb); Ety (Ia), E. typhina (mating population 1a); Ety (Ib), E. typhina (mating population 1b); Mating population as designated from Leuchtmann et al. (
The perA-A2 marker is designed to the second adenylation domain. Some isolates have a deletion in this domain as represented by ĪperA-A2 (Takach et al., 2012).
Predicted chemotype class represents the class of genes that are found in the genome and do not always represent a functionally active locus. EAS, ergot alkaloids; IDT, indole diterpenes; LTM, lolitrem B; LOL, lolines; PER, peramine.
Considerable research has been conducted to understand the biosynthesis of these bioactive compounds including identification and characterization of the gene products required for the biosynthesis of each alkaloid class (Panaccione et al.,
To date, tall fescue is known to form associations with four taxonomic groups, E. coenophiala, Epichloƫ sp. FaTG-2, Epichloƫ sp. FaTG-3, and Epichloƫ sp. FaTG-4 that vary based on ploidy (either 2x or 3x) and progenitors (Table 1). Initially tall fescue endophytes were distinguished by morphology and isozyme analysis to establish taxonomic groupings, and variation was also seen with the production of peramine, ergovaline, lolitrem B, and lolines (Christensen et al.,
Isozyme analyses of E. coenophiala isolates from within the US indicated that very little variation existed within this species (Leuchtmann and Clay,
Literature surrounding endophyte-infected tall fescue that causes fescue toxicosis often refers to E. coenophiala as the common toxic endophyte. The objective of this study was to compare the endophytes within tall fescue cultivars, varieties and ecotypes from the US using markers to SSRs and alkaloid biosynthesis genes to identify and characterize these endophytes. We have determined endophyte diversity across historical and current tall fescue samples to evaluate the endophyte diversity that may exist across the US.
Materials and methods
Biological materials
Tall fescue plant material was provided by researchers in Alabama, Arkansas, Georgia, Kentucky, Missouri, Mississippi, New York, Ohio, Oklahoma, Pennsylvania, South Carolina, Tennessee, Texas, and West Virginia (Table 2). Plants were maintained in a space plant nursery under rain-fed conditions or in the greenhouse at the Samuel Roberts Noble Foundation, Ardmore, Oklahoma. Each researcher was requested to provide at least 10 independent plants from fields known to cause fescue toxicosis or thought to contain the common toxic endophyte. Tall fescue seed stocks (PI lines) were sourced from the National Plant Germplasm System (NPGS). Georgia-5 (GA-5) seed was provided by JH Bouton and other seed stocks were sourced from the Samuel Roberts Noble Foundation tall fescue (NFTF) breeding program and designated NFTF.
Table 2
| State | County | Plant designationa | No. of plants maintained | No. plants that died | No. of endophyte-infected plants | Endophyte genotypes present |
|---|---|---|---|---|---|---|
| AL | Dallas | Black belt station | 21 | 0 | 21 | 2-1, 2-2 |
| AR | Nevada | Prescott | 6 | 0 | 6 | 1-1, 2-1 |
| AR | Hempstead | Deanne | 6 | 0 | 6 | 2-1 |
| FL, GA, MD, NY | GA-5 | 10 | 2 | 7 | 1-1, 1-2, 2-1, 2-3 | |
| GA | Walker | Walker county | 12 | 0 | 8 | 2-1 |
| GA | Wayne | Jesup | 9 | 2 | 6 | 2-1 |
| KY | Mennifee | Suiter farm | 10 | 1 | 9 | 1-1, 2-1, 2-4 |
| KY | Caldwell | Pennyrile | 10 | 1 | 4 | 2-1 |
| MO | Camden | Lake Farm | 12 | 0 | 9 | 2-1 |
| MO | Camden | Ford place | 8 | 0 | 8 | 2-1 |
| MO | Camden | Tiny's place | 4 | 0 | 3 | 2-1 |
| MO | St. Louis | Hencken | 6 | 0 | 6 | 2-1 |
| MS | Oktibbeha | Starksville | 9 | 0 | 9 | 2-1, 2-4 |
| NY | Allegany | Alfred | 5 | 0 | 5 | 2-1 |
| OH | Coshocton | NAEW graze | 6 | 0 | 6 | 1-1, 2-1 |
| OH | Coshocton | NAEW hay | 6 | 0 | 5 | 2-1 |
| OK | Carter | NFTF 1000 | 9 | 0 | 7 | 2-1 |
| OK | Woodward | NFTF 1100 | 9 | 1 | 7 | 2-1 |
| OK | Hughes | Calvin | 2 | 0 | 1 | 2-1 |
| PA | Huntingdon | Soder | 1 | 0 | 1 | 1-? |
| PA | Huntingdon | Soder (Petersburg) | 3 | 0 | 3 | 3-1 |
| PA | Centre | Everhart | 1 | 0 | 1 | 2-3 |
| PA | Centre | JRE state college | 5 | 1 | 4 | 2-1, 2-2 |
| SC | Anderson | NFTF 1491 | 10 | 0 | 5 | 2-1 |
| TN | Henderson | Lexington | 4 | 0 | 4 | 2-1 |
| TN | Henderson | Natchez trace | 7 | 0 | 6 | 1-1, 2-1 |
| TX | Fannin | Fannin | 4 | 0 | 4 | 2-1 |
| TX | Fannin | NFTF 1492 | 10 | 3 | 6 | 2-1, 2-2 |
| TX | Crosby, Lubbock, Lamb, Briscoe | NFTF 1230 | 9 | 0 | 8 | 1-1, 2-1 |
| TX | Kerr | NFTF 1480 | 9 | 1 | 8 | 2-1 |
| WV | Raleigh | Roscoe upper | 10 | 0 | 8 | 1-1, 2-1 |
| WV | Raleigh | Roscoe middle | 10 | 1 | 7 | 2-1 |
| WV | Raleigh | Roscoe lower | 10 | 3 | 6 | 2-1, 2-4 |
| WV | Raleigh | Reba | 10 | 3 | 5 | 2-1 |
Sources of tall fescue plants from US collection.
Plant designation refers to landmark or site location or plant breeding line information (NFTF).
DNA isolation and endophyte genotyping
Total DNA from individual seeds or tillers from stock plants were isolated using QIAGEN MagAttract 96 DNA Plant Core Kit (Qiagen Inc., Valencia, CA). Primers specific for tefA, tef1-exon1d (5ā²-GGGTAAGGACGAAAAGACTCA-3ā²) and tef1-exon5u-1 (5ā²-CGGCAGCGATAATCAGGATAG-3ā²) (Craven et al.,
PCR of the microsatellite B10 and B11 loci (Moon et al.,
Ergovaline analysis
Pseudostems were collected from greenhouse grown plants, lyophilized and ground into a fine powder and stored at ā20°C. Ergovaline concentrations were measured in duplicate using 10 ± 0.10 mg of tissue for each endophyte infected sample. Samples were extracted in 200 μL of methanol containing 0.005 mg/mL dihydroergotamine tartrate salt (Sigma-Aldrich, St. Louis, MO) for 3 h and then centrifuged at 1800 Ć g for 5 min. Each sample was analyzed for the presence of ergovaline using an ACQUITY ultra-performance liquid chromatography (UPLC) system (Waters Corporation, Milford, MA) as described previously (Takach et al., 2012). Seed extracts in which the ergovaline content was previously quantified (A. M. Craig, Endophyte Testing Laboratory, Oregon State University) were used as standards for quantification. Concentrations used to generate the standard curve included 0, 50, 97, 500, 1000, and 2000 ppb.
The linear standard curve was plotted as ergovaline:ergotamine peak area ratio vs. the actual amount of ergovaline. Standards and samples were analyzed in duplicate and their values averaged.
Results and discussion
Evaluation of historical tall fescue endophytes from the united states
The cultivar KY31 is well known for causing fescue toxicosis and has been distributed over much of the eastern United States (Figure 1). KY31 was established from an ecotype collection from the Suiter farm in Menifee County, KY (released as a cultivar in 1943) and source material (PI 531431) from this location was deposited into NPGS in 1991. Other cultivars, developed after KY31, have also contributed to the dissemination of endophyte-infected tall fescue (Pedersen and Sleper,
Table 3
| Seed stock | Yeara | Seeds tested | %E+ (number) | %Eā (number) | %E+ Ecoe profile 1b (number) | %E+ Ecoe profile 2b (number) |
|---|---|---|---|---|---|---|
| PI 561431 - KY31 | 1991 | 46 | 91% (42) | 9% (4) | 48% (22)c | 43% (20)d |
| KY31 commercial seede | 2011 | 48 | 79% (38) | 21% (10) | 17% (8)c | 63% (30)d |
| KY31 - SW Missouri | 2008 | 46 | 98% (45) | 2% (1) | 0% (0) | 98% (45)d |
| PI 596701 - Missouri 96 | 1979 | 24 | 0 | 100 (24) | 0% (0) | 0% (0) |
| PI 578714 - Kenmont | 1963 | 24 | 0 | 100 (24) | 0% (0) | 0% (0) |
| PI 574521 - Kenwell | 1965 | 22 | 0 | 100 (22) | 0% (0) | 0% (0) |
| PI 434051 - Kenhy | 1979 | 24 | 0 | 100 (24) | 0% (0) | 0% (0) |
| PI 601020 - Johnstonef | 1983 | 24 | 0 | 100 (24) | 0% (0) | 0% (0) |
| PI 578712 - Alta | 1962 | 48 | 0 | 100 (48) | 0% (0) | 0% (0) |
| Jesup E+ | 2003 | 10 | 100% (10) | 0% (0) | 0% (0) | 100% (10) |
| NFTF 1000 - PDF E+g | 1998 | 36 | 100% (36) | 0% (0) | 8% (3) | 92% (33) |
| NFTF 1011 - PDF E+g | 2007 | 12 | 100% (12) | 0% (0) | 33% (4) | 67% (8) |
| NFTF 1041 - PDF E+g | 2010 | 12 | 100% (12) | 0% (0) | 0% (0) | 100% (12) |
Characterization of endophytes from Kentucky 31 tall fescue seed in US based on microsatellite variation.
The year the seed was purchased, generated or when it entered NPGS.
As determined by markers consistent with E. coenophiala profile 1 and 2 from Table 1.
SSR B10 = 161, 170, 184; B11 = 147, 191.
SSR B10 = 152, 161, 178; B11 = 171, 195.
The KY31 commercial seed Tri-Star Seed Co., Inc. located in Spring Hill, KS was purchased from the Tractor Supply Company, Ardmore, Oklahoma, in July 2011.
Johnstone was released as an endophyte free cultivar (Buckner et al.,
NFTF 1011 and NFTF 1041 represent selections from the original NFTF 1000 (also known as PDF E+ Hopkins et al.,
Seed from each cultivar or line were analyzed for endophyte infection and genetic variation (Table 3). Unfortunately many of the seed samples sourced from NPGS were endophyte-free or had levels less than 5%. Since endophyte viability can be compromised during storage (Siegel et al., 1985; Rolston and Agee, 2007) there was no guarantee these seeds would represent the endophyte status of the original plant material. Only the three KY31 samples, Jesup E+ and NFTF breeding lines were positive for endophyte presence. In addition, two endophyte genotypes, E. coenophiala profile 1 and profile 2 that vary based on presence of IDT genes, could be distinguished in four of these seed samples. However, the percentage of each endophyte strain varied in each seed lot. Four of the tested seed lines, KY31 (from Missouri), Jesup E+ and NFTF 1041 may represent an E. coenophiala profile 2 monoculture, or contain a low incidence of E. coenophiala profile 1 as the number of seeds tested for some lines were low (Table 3).
Lines that were selected from NFTF 1000-PDF (NFTF 1011 selected from PDF for vigorous growth, high forage yield and digestibility, and NFTF 1041 selected from PDF for high digestibility by marker assisted selection) showed different ratios of each E. coenophiala profile (Table 3). This may show the influence an endophyte strain, which is maintained in the maternal line, can have on selectable traits such as persistence and vigor if the endophyte provides a host advantage. As such, it would be interesting to evaluate the host genetic shifts under selection, with and without endophytes, while also following selection of different endophyte strains.
Endophyte analysis from development of the cultivar Georgia-5
Analysis of endophyte variation within a population provides an opportunity to evaluate material incorporated through a tall fescue breeding pipeline and eventually released for commercial production (Figure 2). The GA-5 cultivar was developed as a synthetic endophyte-infected cultivar with superior forage yield and persistence in the Southern Coastal Plains that had potential to replace KY31 (Bouton et al.,
Figure 2

EpichloĆ« coenophiala profiles and infection frequencies of seed used in the development of the āGeorgia 5ā tall fescue cultivar. The five clones consisted of AM 1392, AM 2109, AM 2125, AM 2858, and AM 3084. The synthetic 3 generation represents the breeders seed increase from the five clones (Bouton et al.,
Endophyte diversity from US tall fescue collections
To further examine tall fescue endophyte diversity within the US, collections of tall fescue plants from 14 eastern states were evaluated for endophyte presence. In total, 246 tall fescue plants were screened using markers for SSRs B10 and B11, and the minimum set of alkaloid biosynthesis genes to distinguish the different E. coenophiala genetic profiles. Of the 246 plants initially screened, 204 (83%) were endophyte-infected. All of the endophyte-infected samples could be amplified with primer sets to mtAC, perA, and the LOL and EAS markers, and samples only varied with the presence of IDT markers. Three E. coenophiala genetic profiles were identified (E. coenophiala profiles 1, 2, and 3; Table 4).
Table 4
| Endophyte genotype | B10 allele sizes (bp) | B11 allele sizes (bp) | PERa | EASa | LOLa | IDTa | No. of plants | States | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| perA-A2 | dmaW | lpsB | lolC | lolA | idtG | ltmQ | |||||
| E. coenophiala profile 1-1 | 161, 170, 184 | 147, 191 | + | + | + | + | + | 11 | AR, KY, OH, TN, TX, WV | ||
| E. coenophiala profile 1-2 | 139, 170, 184 | 163, 191 | + | + | + | + | + | 2 | GA | ||
| E. coenophiala profile 2-1 | 152, 161, 178 | 171, 195 | + | + | + | + | + | + | 172 | AL, AR, GA, KY, MO, MS, NY, OH, OK, PA, SC, TN, TX, WV | |
| E. coenophiala profile 2-2 | 152, 161, 178 | 183, 195 | + | + | + | + | + | + | 3 | AL, TX | |
| E. coenophiala profile 2-3 | 161, 173, 178 | 171, 195 | + | + | + | + | + | + | 3 | GA (NY)b, PA | |
| E. coenophiala profile 2-4 | 161, 173, 178 | 171, 210 | + | + | + | + | + | + | 4 | KY, MS, WV | |
| E. coenophiala profile 3-1 | 161, 170, 178 | 155, 163 | + | + | + | + | + | + | + | 3 | PA |
Characterization of endophytes from tall fescue plants in US based on alkaloid profiles and microsatellite variation.
The + indicates that a PCR fragment was detected with primers designed to the gene.
Identified out of GA-5 and represents the clone from NY (see Figure 2).
Further analysis using the B10 and B11 SSR markers showed additional variation within the genetic profiles. There were two unique SSR profiles for genotype 1, four SSR profiles for genotype 2 and one SSR profile for genotype 3. E. coenophiala profile 1 is consistent with the same pattern of the KY31 endophyte E. coenophiala strain e19 (Schardl et al., 1991; Takach and Young, 2014), while E. coenophiala profile 2 is more highly represented in the samples.
The two most common SSR marker patterns were also identified in the KY31 seed (Table 3). Interestingly, of the nine plants that were collected from the original Suiter farm (Table 2), one plant showed a third unique SSR profile in common with endophytes found in West Virginia and Mississippi. Only one set of plants from Pennsylvania produced E. coenophiala genetic profile 3, but unfortunately knowledge about the tall fescue planted at this site was unavailable. This Pennsylvania endophyte-infected tall fescue is the only set of plants that were likely to produce indole-diterpenes.
Plants with unique E. coenophiala profiles were selected from the nursery and maintained in the greenhouse. Ergovaline was analyzed from pseudostems of 25 plants representing the seven unique E. coenophiala profiles. Each of the plant-endophyte associations produced ergovaline (Table 5), indicating that the endophyte in these lines would all be considered a common toxic endophyte. The ergovaline levels generated under greenhouse conditions were also extremely high, well above the threshold of 400ā750 ppb required for toxicity in livestock (Hovermale and Craig,
Table 5
| Endophyte genotypea | B10 allele sizes (bp) | B11 allele sizes (bp) | No. of plants tested | States represented | Range of [Ergovaline] (ppm) |
|---|---|---|---|---|---|
| E. coenophiala profile 1-1 | 161, 170, 184 | 147, 191 | 5 | GA, KY, TN, TX, WV | 2.2ā7.1 |
| E. coenophiala profile 1-2 | 139, 170, 184 | 163, 191 | 1 | GA | 4.1 |
| E. coenophiala profile 2-1 | 152, 161, 178 | 171, 195 | 11 | AL, GA, KY, MO, MS, PA, TN, TX, WV | 1.7ā7.8 |
| E. coenophiala profile 2-2 | 152, 161, 178 | 183, 195 | 2 | AL, TX | 1.2ā9.3 |
| E. coenophiala profile 2-3 | 161, 173, 178 | 171, 195 | 3 | GA (NY)b, PA | 2.4ā5.5 |
| E. coenophiala profile 2-4 | 161, 173, 178 | 171, 210 | 2 | KY, MS | 1.9ā8.4 |
| E. coenophiala profile 3-1 | 161, 170, 178 | 155, 163 | 1 | PA | 4.2 |
Ergovaline concentrations of tall fescue infected with different Epichloƫ coenophiala genotypes.
Based on designations from Takach and Young (2014).
Identified from the GA-5 line and represents the clone from NY (see Figure 2).
This study provides a snapshot of common toxic endophyte-infected tall fescue across the eastern US. The endophyte genotypes we identified were consistent with samples from Europe where tall fescue was originally sourced (Takach and Young, 2014). Endophyte genotype diversity was present at the origin of KY31 but it appears E. coenophiala genotype 2 is the dominant endophyte genotype across the US. This endophyte was also prevalent in other breeding populations such as Jesup E+ and NFTF 1000. Given the sample numbers we have selected from each location, it is still possible that other endophyte genotypes are present at low frequencies. Although KY31 is believed to be the predominant source of tall fescue in the US, other sources were developed and planted at various times and locations, and it is possible that during this process one endophyte genotype provided a selectable advantage. Indeed, if we look at NFTF 1011, a selection from the NFTF 1000 line (Table 3), we see a shift in endophyte genotype that may be due to specific selection pressures.
New cultivars with selected endophytes
To overcome fescue toxicosis, researchers initially removed the endophyte from toxic tall fescue. Unfortunately, studies that evaluated the endophyte role on tall fescue performance found endophyte-infected lines had better persistence and greater yield than endophyte-free lines (Pedersen et al.,
Initial success with selected endophytes was observed when the endophyte strain AR542 (known commercially as MaxQ and MaxP in the US and Australia, respectively) was inoculated into Jesup and GA-5 (Bouton et al.,
Conclusion
Endophytes have clearly affected the success of tall fescue within the US, from the prevalence of the common toxic endophyte through to advancing cultivars with selected endophytes. Many farmers have learned to manage the effects of fescue toxicosis through pasture management techniques, but now there are also options for eliminating toxicity by pasture replacement. The availability of elite tall fescue lines infected with selected endophytes allows farmers to provide nutritious, non-toxic feed for their livestock without fear of toxic repercussions. Climate change will likely increase the dependency of tall fescue monocultures to rely upon endophytes to provide drought tolerance and protection from insect pests. As more selected endophyte-infected cultivars enter the marketplace to replace tall fescue pastures containing common toxic endophytes, we will be able to examine the constancy of these symbiotic associations over time. Utilization of molecular markers will provide effective methods to identify endophyte strains within tall fescue cultivars, varieties and ecotypes, and help distinguish endophyte friend from foe.
Conflict of interest statement
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Statements
Acknowledgments
We would like to acknowledge Joe Bouton for providing seed and Simon Abel, Sherrita Bright, and Kenny Word for technical support. We thank Lark Trammell (Forage Analysis Core Facility), the Genomic Core Facility and the Greenhouse Core Facility at The Samuel Roberts Noble Foundation for technical support. The authors thank the following people who provided plants from the listed states: Don Ball (AL), Rob Kallenbach (MO), David Belesky (WV), Gerald Atkinson (KY), Gary Lacefield (KY), Norman Edwards (GA), James Hopkins (MO), Howard Skinner (PA and NY), David Barker (OH), James Rogers (OK and SC), Joseph Bouton (GA), Jimmy Ray Parish (MS), Steve Green (AR), Paul Beck (AR), and Jack Chapman (OK). The Samuel Roberts Noble Foundation provided financial support for this research.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
