CsPbBr3/CdS Core/Shell Structure Quantum Dots for Inverted Light-Emitting Diodes Application

\nXiaosheng TangXiaosheng TangJie YangJie YangShiqi Li
Shiqi Li*Weiwei ChenWeiwei ChenZhiping HuZhiping HuJing Qiu
Jing Qiu*
  • Key Laboratory of Optoelectronic Technology and Systems, College of Optoelectronic Engineering, Chongqing University, Ministry of Education, Chongqing, China

Novel CsPbBr3/CdS core/shell structure quantum dots (QDs) were successfully synthesized using a facile hot-injection method. The corresponding CsPbBr3/CdS QDs based light-emitting diodes (QLEDs) were further prepared, which demonstrated the maximum luminance of 354 cd/m2 and an external quantum efficiency (EQE) of 0.4% with the current efficiency (CE) of 0.3 cd/A. Moreover, the optoelectronic performance of the CsPbBr3/CdS QDs based QLEDs exhibited a comparable enhancement in contrast to the pure CsPbBr3 QDs based QLEDs. Hypothetically, the novel CsPbBr3/CdS structure QDs introduced one new route for advanced light emission applications of perovskite materials.

Introduction

During the past two decades, huge efforts have been devoted to various QDs as the light-emitting layer of QLEDs (Coe et al., 2002; Sun et al., 2007; Kwak et al., 2012; Seth and Samanta, 2016; Chen et al., 2017). Recently, perovskite QDs have attracted great attention due to their excellent optoelectronic performance, due to their tunable bandgap, high absorbance coefficient, and high photoluminescence quantum yield (PLQY) (Protesescu et al., 2015; Song et al., 2015; Tang et al., 2016; Heejae et al., 2017). However, the electroluminescence (EL) EQE of halide perovskite QLEDs is relatively lower to that of CdSe based QLEDs, which seriously limits further commercial application (Shirasaki et al., 2013; Dai et al., 2014; Wang et al., 2018). It is known that the photoluminescence (PL) performance of the QDs emitting layer plays a crucial role in QLED. Therefore, how to synthesize QDs with high quality is one critical step for preparing high performance QLEDs. It was recognized that the formation of core/shell structure between semiconductors is one effective approach to improve the performance of nanocrystals and QLEDs devices (Hines and Guyot-Sionnest, 1996; Li et al., 2011). Many research groups have reported that the non-radiative Auger recombination of CdSe QDs could be efficiently suppressed by being coated with larger bandgap materials such as CdS and ZnS, where better optical properties have been achieved (Chen et al., 2008; Bae et al., 2013; Efros and Nesbitt, 2016). However, few studies on the core/shell structure for perovskite materials have been reported. Therefore, it is still a challenge to investigate a perovskite-based core/shell structure and the corresponding QLEDs.

Herein, we synthesized novel colloidal perovskite core/shell QDs by covering CsPbBr3 QDs with a CdS shell. Moreover, the inverted QLEDs (ITO/ZnO:Mg/QDs/CBP(4,4′-Bis(N-carbazolyl)-1,1′-biphenyl)/MoO3/Al) based on CsPbBr3/CdS core/shell QDs and pure CsPbBr3 QDs were fabricated, respectively. The CsPbBr3/CdS QDs based QLED exhibited the maximum luminance of 354 cd/m2 with a CE of 0.3 cd/A and the best EQE of 0.4% was 5.4 times of the pure CsPbBr3 QDs based QLEDs.

Materials and Methods

Chemicals

Cs2CO3 (Aldrich, 99.9%), PbBr3 (ABCR, 98%), Cadmium (II) oxide (Sigma Aldrich, 99.5%), Oleic Acid (OA, Sigma Aldrich, 90%), 1-octadecene (ODE, Sigma Aldrich, tech. 90%), Sulfur (Sigma Aldrich, 99.98%), Oleylamine (OME, Sigma Aldrich, tech. 70%), Toluene (Sigma Aldrich, 99.8%), CBP (Xi'an Polymer Light Technology Co., Ltd.), Molybdenum Oxide (MoO3, from Aladdin-reagent), ZnO:Mg (Xingshuo Nano Technology Co., Ltd.).

Cd-oleate Solution Synthesis

For the synthesis of Cd-oleate solution a protocol by Li et al. (2011) was adopted. A 0.38 M Cd-oleate solution was made by dissolving 383 mg CdO in 3.9 ml oleic acid and 3.9 ml ODE at 280°C under N2 flow. After 1 h the CdO was dissolved and the clear solution was degassed for 30 min at 110°C.

CsPbBr3/CdS Core/Shell QDs Synthesis

For the synthesis of CsPbBr3 core QDs a protocol by Protesescu et al. (2015) was adopted. One hundred milligram Cs2CO3 was loaded into a 100 ml 3-neck flask along with 4 ml 1-octadecene, and 0.5 ml OA (oleic acid), then heated under N2 to 120°C until the powder was completely dissolved. Five milliliter ODE and 69 mg PbBr2 were loaded into a 100 ml 3-neck flask and heated under N2 to 120°C 1 h. 0.5 ml OME and 0.5 ml OA was injected at 120°C under N2. After the PbBr2 salt was completely dissolved, the temperature was raised to 150°C and the Cs-oleate solution (0.4 ml, 0.125 M in ODE, prepared as described above) was quickly injected and, 5 s later, the reaction finished. Four milliliter ODE, 1 ml Cd-oleate solution, and 0.4 ml 1 M sulfur in OME solution, was mixed when the reaction for CsPbBr3 QDs finished and added dropwise over 20 min to the CsPbBr3 solution at 150°C under N2 flow. After the addition was complete, the mixture was allowed to react for 20 min at 150°C and was subsequently cooled by an ice-water bath, washed with toluene several times, and dispersed in toluene.

Preparation of QLED

The cleaned ITO/glass was treated under UV–ozone for 30 min. The ZnO:Mg nanoparticles were spin-coated onto ITO/glass at 3,000 rpm for 40 s, and annealed at 100°C for 10 min. The perovskite QDs were deposited by spin-coating at 2,000 rpm for 60 s. CBP (40 nm), MoO3 (10 nm), and Al (100 nm) electrodes were deposited using a thermal evaporation system through a shadow mask under a high vacuum of ≈1 × 10−4 Pa. All device operations were performed in a nitrogen-filled glove box.

Optical Characterization

Photoluminescence spectra were measured by Agilent Cary Eclipse spectrograph FLS920P. XRD characterization was done by Shimadzu/6100 X-ray diffractometer, using a Cu Kα radiation source (wavelength at 1.5405 Å). TEM images were recorded on a Zeiss/Libra 200 FE. The PLQY measurements were carried out in solutions with an Edinburgh Instruments fluorescence spectrometer (FLS920), which included a xenon lamp with monochromator for steady-state PL excitation. A calibrated integrating sphere was used for PLQY measurements. The EL spectra and luminance (L)—current density (J)—voltages (V) characteristics were collected using a Keithley 2400 source and a PR-670 Spectra Scan spectrophotometer (Photo Research) at room temperature.

Results and Discussion

Based on the continuous injection method, a novel approach to overcome a non-radiative recombination of CsPbBr3 QDs was developed by growing a thin CdS shell on the surface of the CsPbBr3 core. Figure 1A shows the simulation of the CsPbBr3/CdS core/shell structure. The X-ray diffraction (XRD) patterns of the CsPbBr3/CdS core/shell QDs clearly show that two types of crystalline structures were formed (Figure 1B). Compared to the pure CsPbBr3 QDs (Figure S2), the extra peaks of the CsPbBr3/CdS XRD patterns are fairly consistent with the standard XRD patterns of a CdS-liked zinc blende structure. From the transmission electron microscope (TEM) images of CsPbBr3 (Figure S1b) and CsPbBr3/CdS QDs (Figure 1C), it can be seen that the point angle of the cubic shape become a circular arc. The high resolution TEM image of CsPbBr3 (the inset of Figure S1b) and CsPbBr3/CdS QDs (the inset of Figure 1C) clearly exhibit the crystal lattice (110) of the CsPbBr3 nanoparticles and further verify the CsPbBr3/CdS core/shell structure. In addition, the CsPbBr3/CdS QDs exhibited a typical cubic shape with a larger average size (22.1 nm) than that of the CsPbBr3 QDs (12.7 nm; Figure S1). To further demonstrate the successful formation of the CsPbBr3 core and CdS shell, the mapping analysis and energy dispersive X-ray (EDX) spectroscopy of CsPbBr3/CdS QDs was employed (Figures 1D,E) with the S and Cd elements uniformly distributed on the surface of the CsPbBr3 core. Moreover, the PL spectra of CsPbBr3/CdS QDs has a slightly blueshift (from 519 to 514 nm) compared with pure CsPbBr3 QD (Figure 1F), which was probably induced by the CdS shell. A similar phenomenon was found and ascribed for the cationic inter-diffusion at the interface between the CsPbBr3 core and CdS shell (Oladeji and Chow, 2005; Li et al., 2011; Kwak et al., 2015). On the other side, the CsPbBr3/CdS showed a high photoluminescence quantum yield (PLQY) of 88% (Figure S3) and the full width at half-maximum (FWHM) was as narrow as 19 nm, which is similar to pure CsPbBr3 QDs.

FIGURE 1
www.frontiersin.org

Figure 1. (A,B) Schematic diagram and XRD patterns of CsPbBr3/CdS QDs (orange). The stick patterns show the standard peak positions of CsPbBr3 (green) and CdS (blue). (C) TEM images of CsPbBr3/CdS QDs, the inset shows a high resolution TEM image of CsPbBr3/CdS QDs. (D,E) The mapping images and EDX line profiles of Cs, Pb, Br, Cd, and S for CsPbBr3/CdS QDs. Scale bars correspond to 30 nm in (D). (F) PL spectra of pure CsPbBr3 QDs (green curve) and CsPbBr3/CdS QDs (blue curve) in toluene, the excitation light is 350 nm.

As shown in Figure 2A, the inverted QLEDs structure was fabricated with a sandwich structure of ITO (In2O3-SnO2)/ZnO:Mg/QDs/CBP/MoO3/Al, which was constituted by the transparent electrode ITO as a cathode, Mg doped ZnO as an electron transport layer, perovskite QDs as the light-emitting layer, CBP as a hole transport layer, Al as an anode, and MoO3 as a hole injection layer. The flat-band energy levels of devices are shown in Figures 2B,C. After perovskite QDs were coated on the ZnO:Mg electron transport layer, the perovskite film was still soluble in organic solvents due to the presence of aliphatic ligands on the QDs. The structure above the light emitting layer was prepared by evaporation (Materials and Methods section).

FIGURE 2
www.frontiersin.org

Figure 2. (A) Inverted QLEDs structure schematic. Energy-level diagram of CsPbBr3 QDs (B) and CsPbBr3/CdS QDs (C) based QLEDs. The EL spectra of CsPbBr3 QDs (D) and CsPbBr3/CdS QDs (E) based QLED, the insets shows an operating device driven at 4 V.

As shown in Figures 2D,E, the peaks of the QLEDs EL spectra based on CsPbBr3 QDs and CsPbBr3/CdS QDs were consistent with the PL spectra, and the luminescence intensity increased with the voltage increase. The EL of pure CsPbBr3 QDs based LEDs (Figure 2D), peaking at 519 nm with a FWHM of ~20 nm, was observed. And there is no emission peak from the hole/electron transport layer. The CsPbBr3/CdS QDs based QLEDs also performed with a peak at 516 nm with a FWHM of ~20 nm. As depicted in Figure 2E, the emission from the hole/electron transport layer was hardly shown. The insets showed an operating device driven at 4 V, and the devices both exhibited a saturated and pure green color.

For the potential application in a light emission device, the characteristic of emitter layers is extremely important. For the inverted QLEDs with the CsPbBr3 QDs emitting layer, the pure CsPbBr3 QDs worked with poorer luminous characteristics, exhibiting a lower maximum luminance intensity of 65 cd/m2 and the maximum CE of 0.14 cd/A (Figures 3A,B). It is worth mentioning that a maximum luminance of 354 cd/m2 was obtained when the CsPbBr3/CdS QDs were used as the emitting layer, and the maximum CE was boosted to 0.3 cd/A (Figures 3C,D). The overall performance of two kinds of devices were also described with the average EQE. The EQE of QLEDs with the CsPbBr3 QDs emitting layer (0.4%) was 5.4 times larger than the pure CsPbBr3 QDs (0.07%). The results are tabulated in Table 1 for comparison. Based on the same device structure with a different emitting layer, the turn-on voltage of CsPbBr3/CdS based QLEDs was slightly lower than CsPbBr3 based QLEDs. Moreover, the maximum CE of the CsPbBr3/CdS based QLEDs was 2.1 times larger than the pure CsPbBr3 based QLEDs, which could be ascribed to the valence bands (conduction bands) of the CdS shell which are lower (or higher) than that of CsPbBr3 core, and a non-radiative Auger recombination of CsPbBr3 was effectively suppressed (Park et al., 2014; Nasilowski et al., 2015; Niu et al., 2017). Additionally, the probable reason could be attributed to the fact that the extra carriers cannot escape from the surface of the QDs as the protecting layer of CdS, which leads to a higher radiative recombination rate, higher luminance and EQE.

FIGURE 3
www.frontiersin.org

Figure 3. Luminance vs. driving voltage characteristics for pure CsPbBr3 QDs (A) and CsPbBr3/CdS QDs (B) based QLEDs. CE luminance curve for pure CsPbBr3 QDs (C) and CsPbBr3/CdS QDs (D) based QLEDs.

TABLE 1
www.frontiersin.org

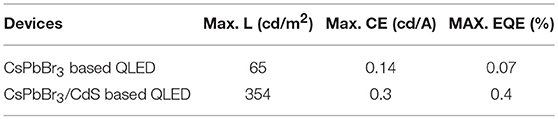

Table 1. Comparison of performance parameters between CsPbBr3 QDs and CsPbBr3 QDs based QLED.

Conclusion

In conclusion, we have developed novel all-inorganic core/shell perovskite QDs and applied it as an emitting layer in inverted QLEDs (ITO/ZnO:Mg/QDs/CBP/MoO3/Al). The results show that the fabricated CsPbBr3/CdS QDs based QLEDs exhibited enhanced performance compared with pure CsPbBr3 QDs based QLEDs. The EQE of CsPbBr3/CdS QDs was 5.4 times higher than that of pure CsPbBr3 QDs, which demonstrates that the introduction of a CdS shell can increase the optoelectronic performance. The core/shell structure perovskite QDs present a new route of perovskite materials for light emission applications.

Data Availability

All datasets generated for this study are included in the manuscript and/or the Supplementary Files.

Author Contributions

XT and JY contributed equally to this work. XT and JQ designed the experiment. JY and SL conducted the experiments and characterization. XT and JQ wrote and revised the paper. JY, WC, and ZH participated in the discussion. XT funded some of the subject experiments.

Funding

This work is supported by the Fundamental Research Funds for the Central Universities (Grant No. 2018CDYJSY0055, 106112017CDJQJ128837), the National Natural Science Foundation of China (Grant Nos. 61520106012, 61674023, 51775070, and 51602033), the Chongqing Research Program of Basic Research and Frontier Technology (Grant Nos. cstc2017jcyjB0127, cstc2017jcyjAX0197), and the Open Fund of the State Key Laboratory of High Field Laser Physics (Shanghai Institute of Optics and Fine Mechanics).

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2019.00499/full#supplementary-material
