Abstract
The presence of the phenol gossypol has severely limited the utilization of cottonseed meal and oil in the food and animal feed industries. Highly efficient means of biodegradation of gossypol and an understanding of the cytotoxicity of its degradation products remain outside current knowledge and are of universal interest. In this work, we showed for the first time that laccase can catalyze the intramolecular annulation of the aldehyde and hydroxyl groups of gossypol for the o-semiquinone radical and originate the released ·OH radical. It was further found that the oxidation of aldehyde groups significantly decreases reproductive toxicity and hepatotoxicity. These results indicate a novel detoxification pathway for gossypol and reveal the crucial role played by radical species in cyclization. This discovery could facilitate the development of safe, convenient, and low-cost industrial methods for the detoxification of cotton protein and oil resources.
Introduction
Cotton (Gossypium) is a highly important agricultural crop all over the world. It provides two main products: cotton fiber and cottonseed. The annual report of the USDA indicates that the global yield of cotton and cottonseed in 2015–2016 was ~24 and 42 million tons, respectively. The former is generally used as a raw material for the textile industry, and the latter supplies cottonseed oil and cakes for the food and animal feed industries. Annual global cottonseed production could provide enough protein to meet the annual dietary needs of half a billion people (Adams et al., 1960; Sunilkumar et al., 2006). However, gossypol is present at high concentrations in the pigment glands of cottonseed plants, and its ingestion subjects mammals to several sustained injuries, including reduction of the blood's oxygen-carrying capacity, genital abnormalities such as impotence and low sperm count, and lysine deficiency (Adams et al., 1960; Sunilkumar et al., 2006; Câmara et al., 2015). This cytotoxicity arises from aldehyde groups in the gossypol molecule, and the polyphenolic moiety is pharmacologically active (Dodou et al., 2005; Long et al., 2009; Yang et al., 2012). Therefore, to meet the demand for cottonseed products and therapeutic agents with aldehyde-free gossypol, a safe means of detoxifying gossypol-containing cotton is urgently required. Several methods of achieving this have been developed. The biodegradation of gossypol by the fungal channeling of metabolites appears promising, but it is still under development (Baugher and Campbell, 1969; Weng and Sun, 2006). Gossypol's structural similarity to naphthalene derivatives allows the catabolic pathway of polycyclic aromatic hydrocarbons (PAHs) to be mimicked to examine how its aromatic ring can cleave to CO2, initiated by monooxygenases (as occurs in fungi and insects) (Mao et al., 2007). While this method is available, the complexity of the metabolic pathways involved is a notable stumbling block. Gene engineering is another possibility, although it is quite costly, and interfering with gossypol production in this way may adversely affect cotton yield (Bottger et al., 1964; Jenkins et al., 1966; Li et al., 2002; Sunilkumar et al., 2006; Palle et al., 2013). Laccase (benzenediol: oxygen oxidoreductase, EC1.10.3.2) has long been associated with a range of reactions, including oxidative coupling, Michael additions, elimination reactions, quinone formation, and aromatic compound polymerization, which occurs by abstracting an electron from a substrate to produce a free radical and reducing oxygen to water (Witayakran and Arthur, 2009). Laccase and the so-called dirigent proteins are responsible for biaryl synthesis, including the coupling of hemigossypol (Davin et al., 1997; Wei et al., 2012; Effenberger et al., 2015). By contrast, laccase from Pleurotus florida may also guide gossypol degradation, but this mechanism requires further detailed investigation (Rajarathnam et al., 2001).
Bearing all of this in mind, we demonstrated that the reaction of intramolecular annulation between the aldehydic and hydroxyl groups of the gossypol molecule is catalyzed by laccase. By combining nuclear magnetic resonance (NMR) spectroscopy, electron spin resonance (ESR) spectroscopy, and molecular simulation, we demonstrated that laccase is capable of catalyzing the intramolecular annulation of the aldehyde and hydroxyl groups of gossypol on the o-semiquinone radical and to originate the released ·OH radical. Furthermore, an in vivo mouse model was used to validate the proposal that the enzymatic method could significantly decrease the toxicity of gossypol, producing much less hepatotoxicity and reproductive toxicity. This novel methodology not only introduced an alternative gossypol detoxification pathway but also shed light on inexpensive industrial methods for the detoxification of cotton protein and oil resources with a promising degree of safety.
Results and Discussion
The produced intermediates were characterized. It was shown that gossypol was effectively decomposed, and a series of intermediates appeared when laccase (Trametes versicolor) was added (Figure 1A). In the filtered solution, the rate of gossypol elimination was proportional to the enzyme activity and cultivation time. The retention time of compound 1 differed from that of the standard, although it had identical molecular weights (Supplementary Figure 1). Correspondingly, three new signals (I′ = 7,7′-OH, II′ = 15,15′-OH, and II″ = 15,15′-H) emerged, and 1,1′-hydroxyl (III), 7,7′-OH (I), and 15,15′-aldehyde group (II) disappeared in the 1H NMR spectrum of the reaction mixture without a substrate (Figure 1B, Supplementary Figures 2–5). We assigned the C15, 1 and C15′, 1′ centers of compound 1 to bind the aldehyde group with the hydroxyl and produce the furan ring, but the structures of the residual intermediates remained unknown (Supplementary Figures 6, 7).

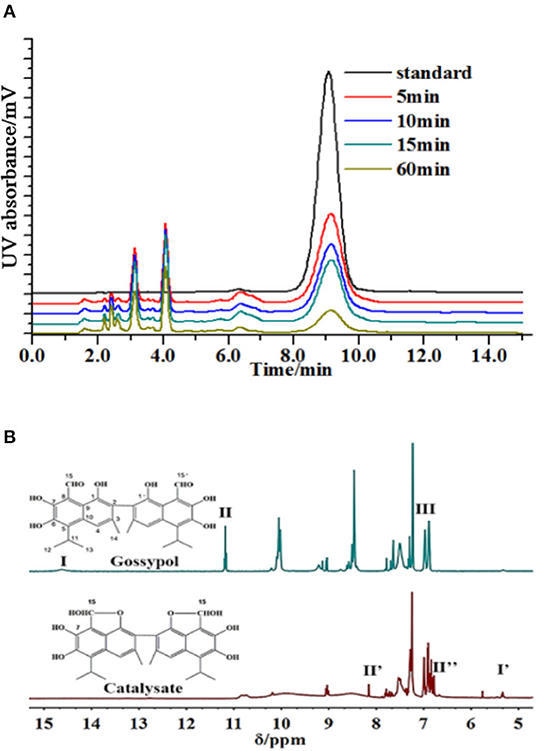

Figure 1
Various tautomerisms have previously been observed in NMR and X-ray analyses of gossypol conformation, but the radical trigger property of dimethyl sulfoxide (DMSO) in atmosphere obviates the discussion of the dilactol form tautomer (Adams et al., 1960; Ibragimov et al., 1992; Kenar, 2006). Oxy-radicals have been trapped upon exposure of DMSO to air, without radiation input (Supplementary Figure 8) (Doorslaer et al., 1999; Jerzykiewicz et al., 2011). Hence, the formation of I to IV, as shown in Figure 2, is not a physical process but a reaction. Free radicals play a vital role in the development process of substrate I to product IV, resulting in hydroxy-aldehyde condensation for the hydroxyl group at position 1 and for the aldehyde group at position 8. The lactol tautomer that was previously observed may be a product that is initiated by the radical (Ibragimov et al., 1992; Kenar, 2006). Polyphenols and benzofuran moieties are abundant in natural molecules that possess potent physiological activity (Montamat et al., 1982; Long et al., 2009). Moreover, understanding their construction pattern has been the aim of much research (Rafi et al., 1985; Vosburg et al., 2002; Tranchimand et al., 2006; Witayakran and Arthur, 2009; Effenberger et al., 2015).

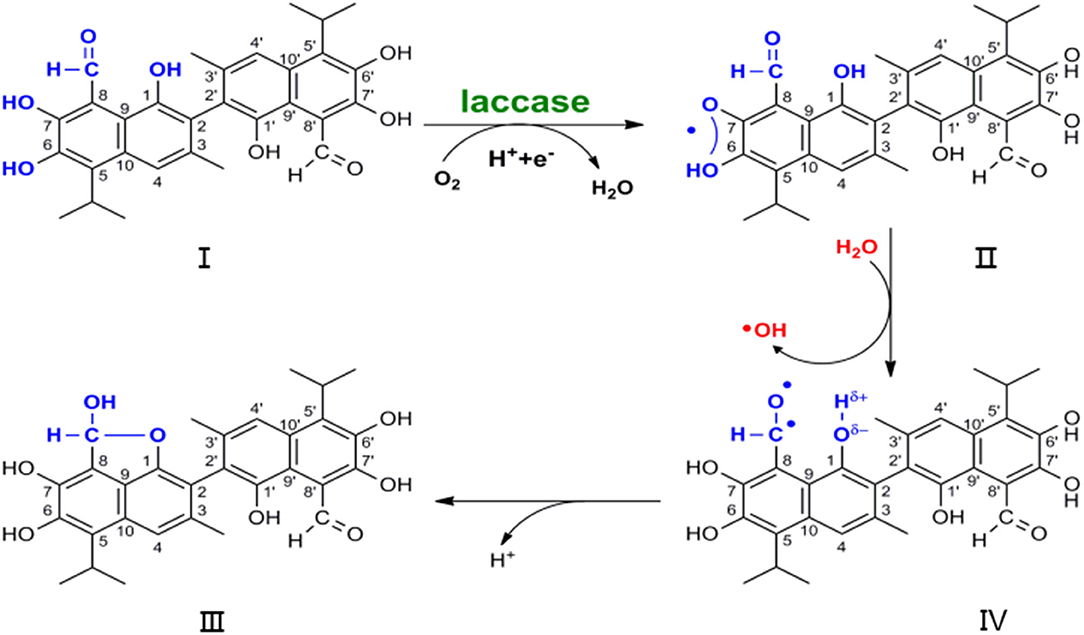

Figure 2
Next, we performed ESR analyses at 20K to identify intramolecular annulation. Time-course freeze-trapping experiments showed that the original product was an o-benzosemiquinone radical with a symmetrical feature at g-2.004 showing a peak-to-trough width of 7-G (Figure 3A). Previous research has shown that type 1 copper binds to o-hydroxyl (Quintanar et al., 2007). Within 5 min, the o-benzosemiquinone radical was consumed after aldehyde group activation, and the corresponding bonds were formed. A cumulative radical signal was observed on a longer time scale, compatible with a decrease of aldehyde groups in gossypol (Figure 1A).

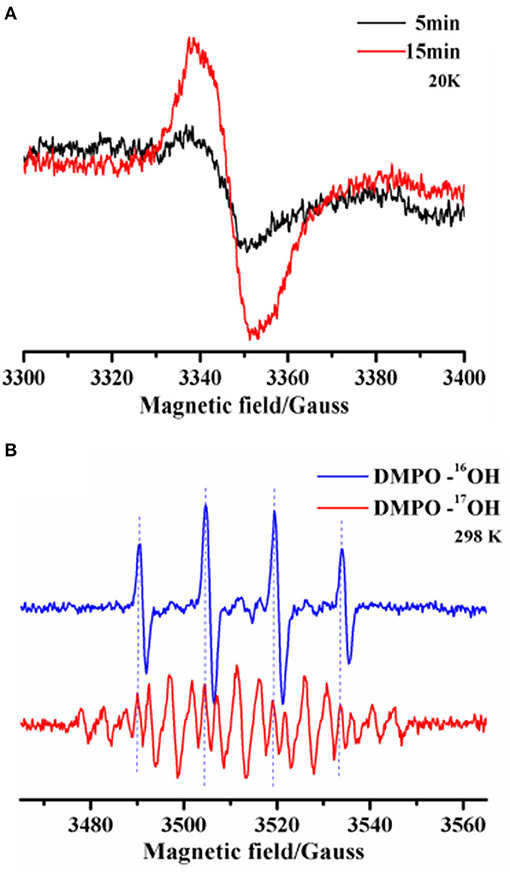

Figure 3
We also used a room-temperature spin-trapping protocol to trap the hydroxyl radical in situ. The isotropic HFCs of the α-nitrogen and β-proton, characterized by aN = aHβ = 14.8 G, led to a four-line (1:2:2:1) spectrum. This is a typical characteristic of the ·OH radical. 17O isotopic-labeled solvent water (O, ~80% atom % 17O) was used to indicate the origin of the ·OH radical. The four-line ESR signal of the DMPO (5,5-Dimethyl-1-Pyrroline-N-Oxide)-·16OH radical (16O, 99.757% natural abundance) was replaced by a weaker signal due to the further hyperfine splitting of 17O (I = 5/2) in the DMPO-·17OH radical (aN = aHβ = 14.8 G, and a17O = 4.6 G) (Figure 3B). Moreover, the removal of the DMPO-·16OH radical signal by the 17O isotope unambiguously precluded other oxygen radicals during the process. Although laccase reduces oxygen to water in the trinuclear copper center, water is another substrate of the oxidation, which is a consequence of the laccase-initiated radical process (Shinde et al., 2009; Chen et al., 2017). The fact that everlasting radicals led to a series of non-enzymatic chain reactions could be helpful for discovering the reason for the broad substrate selectivity of laccase. Thus, we demonstrated that laccase-initiated o-benzosemiquinone radicals facilitate the activation of the aldehyde group and stepwise aldol condensation, without the participation of an o-hydroxyl.
The safety of the residual reaction mixture should be confirmed before this method is made industrially available. To investigate whether gossypol transformation produces other toxic derivatives, we performed a toxicology test of the results on male mice. The groups of mice were as follows: I, mice treated with 10% CMC-Na; II, mice treated with gossypol (50 mg/kg body weight [BW]); III, mice treated with gossypol (50 mg/kg BW) catalyzed by laccase; IV, mice treated with gossypol (100 mg/kg BW); V, mice treated with gossypol (100 mg/kg BW) catalyzed by laccase; VI, mice treated with gossypol (200 mg/kg BW); VII, mice treated with gossypol (200 mg/kg BW) catalyzed by laccase. Gossypol, a derivative of aromatic aldehydes, is an antioxidant. Liver damage was translated from functional damage to organic damage as the gossypol dose increased, which induced an irregular change in SOD (Figure 4A). Gossypol inhibits the generation of lipid peroxides, but this effect was reversed by laccase (Figure 4B). The value of lipid peroxides was higher in group III than other groups. One reason for this could be that the LPO level was positively related to free radicals whose formation was related to gossypol concentration with a certain laccase. Active metabolites such as gossypol will break the dynamic balance of hepatocyte oxidation and anti-oxidation after entering the mouse body, the SOD and LPO content in the cell fluctuates, and SOD and LPO are key enzymes involved in liver detoxification. If the content of SOD and LPO in the organism is not stable, ROS will accumulate and cause oxidative damage to cells and tissues (Park et al., 2020). When these toxic substances are pre-oxidized in vitro, the metabolic activity of the product is reduced (Alharbi et al., 2019), so that the content of SOD, LPO, and ROS in liver tends to be stable. Laccase was found to partly heal the liver damage caused by gossypol (Figures 4C,D). Liver function was found to be in the normal range at the low (groups II and III) and moderate (groups IV and V) doses, but a difference was found at high (groups VI and VII) doses. The liver was seriously damaged in group VI mice, shown by the significantly increased activities of AST and ALT, but it was normal in group VII. The sperm number shown in Figures 4E,F indicates that gossypol has a negative effect on mice sperm that is more significant with larger doses and is more obvious in the epididymis than in the testicle. However, the sperm-killing effects of gossypol were restricted after it was catalyzed by laccase, and they were much clearer in the highest-dose group. It has been reported that gossypol causes severe hepatocyte damage in addition to abnormal localization of the hepatocytic nuclei (El-Sharaky et al., 2010). Histological analyses of the testicular and hepatic tissues have indicated that laccase marginally heals mice from organic damage (El-Sharaky et al., 2009). As shown in Figure 4G, after administration of gossypol at 50 mg/kg BW, liver cells were disordered, swollen, and without their basic outline visible. Damage to the central venous congestion was particularly strongly manifested, and a large number of inflammatory cells appeared. A reducing trend occurred in the groups where gossypol was administered with laccase. This indicates that laccase could reduce gossypol toxicity to the liver. Moreover, gossypol is well-known for its toxic effects to male reproductive organs. It can interfere with reproduction, damage sperm, disrupt the estrous cycle, and produce embryonic lethality (Câmara et al., 2015; Duarte Júnior et al., 2018; Luz et al., 2018). Our results found that mice exposed to gossypol at 100 mg/kg BW endured partially disrupted basal membranes, exfoliation of spermatogonia, and the appearance of intraepithelial vacuoles in the testis, but this damage was relieved in mice who were administered oxidative annulation products (Figure 4H). This indicates that the degradation products produced by laccase reduced reproductive toxicity in mice. This remission may explain the hypothesis that gossypol toxicity is conquered to some extent due to laccase conversion of aldehyde groups to cyclic acetals. Compared to control groups with similar doses of gossypol, the mice given the laccase intramolecular annulation products maintained higher rates of BW gain, showed higher testicular sperm counts, and exhibited improved responses to organic injury, particularly at high doses (Supplementary Figures 9–11), which reflects that laccase abated the toxicity of gossypol. This implies that it may be possible to use gossypol derivatives to combat cancer or viruses with reduced side effects (Montamat et al., 1982; Wang et al., 2008).

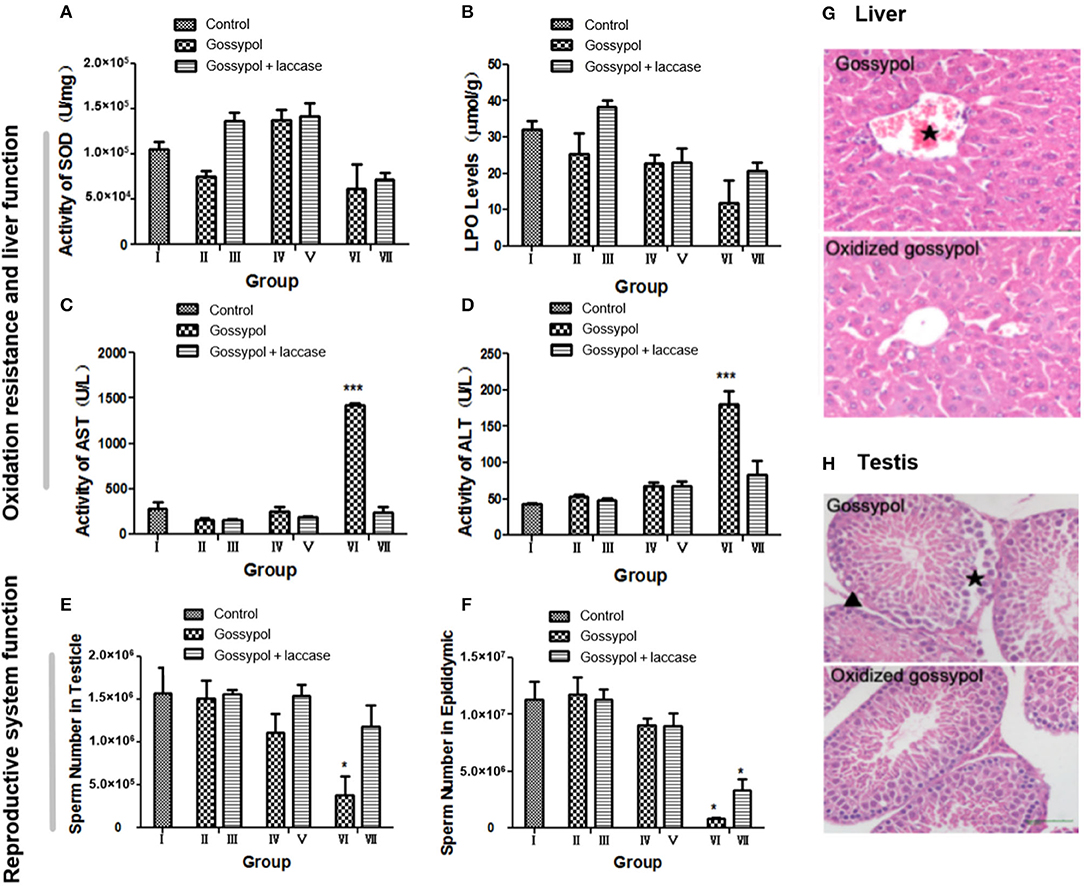

Figure 4
Conclusions
Biotoxins, including gossypol, pose a persistent challenge for the food and animal feed industries. Here, we show that laccase has the capacity for intramolecular cyclization via radicals and water to produce hydroxyl radicals. These results are a contribution to the exploration of regioselective catalysis. This methodology has potential as a safe detoxifier for gossypol in cottonseed protein and oil. Industrial-scale production of laccase can lead to the increased production of usable cotton protein and oil, and these may be used to sustain ever-increasing populations.
Statements
Data availability statement
The original contributions generated for this study are included in the article/Supplementary Materials, further inquiries can be directed to the corresponding author/s.
Ethics statement
The animal study was reviewed and approved by Anhui University Animal Care Committee.
Author contributions
All authors listed have made a substantial, direct and intellectual contribution to the work, and approved it for publication.
Funding
This work was supported by the National Natural Science Foundation of China (No. 21878236), the National Key R&D Program of China (2019YFC0840503), the Natural Science Foundation of Hunan Province (2015JJ3021), the Fundamental Research Funds for the Central Universities, State Key Laboratory for Conservation and Utilization of Subtropical Agro-bioresources (KSL-CUSAb-2012–03), and the National University of Defense Technology Project (JC14–03–03).
Acknowledgments
We thank Xu Guo-Yong and Yan Guo-Qing for their technical help with NMR analyses, Zhang Xiu-Zhen and Chen Cheng for help with LC-MS measurements, and Liu Xiang-Guo for help with tests in animal models.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Supplementary material
The Supplementary Material for this article can be found online at: https://www.frontiersin.org/articles/10.3389/fchem.2020.583176/full#supplementary-material
References
1
AdamsR.GeissmanT. A.EdwardsJ. D. (1960). Gossypol, a pigment of cottonseed. Chem. Rev. 60, 555–574. 10.1021/cr60208a002
2
AlharbiS. K.NghiemL. D.Van de MerweJ. P.LeuschF. D. L.AsifM. B.HaiF. I.et al. (2019). Degradation of diclofenac, trimethoprim, carbamazepine, and sulfamethoxazole by laccase from Trametes versicolor: transformation products and toxicity of treated effluent. Biocatal. Biotransform. 37, 399–408. 10.1080/10242422.2019.1580268
3
BaugherW. L.CampbellT. C. (1969). Gossypol detoxication by fungi. Science164, 1526–1527. 10.1126/science.164.3887.1526
4
BottgerG. T.SheehanE. T.LukefahrM. J. (1964). Relation of gossypol content of cotton plants to insect resistance. J. Econ. Entomol. 57, 283–285. 10.1093/jee/57.2.283
5
CâmaraA. C. L.GadelhaI. C. N.BorgesP. A. C.de PaivaS. A.MeloM. M.Soto-BlancoB. (2015). Toxicity of gossypol from cottonseed cake to sheep ovarian follicles. PLoS ONE10:e0143708. 10.1371/journal.pone.0143708
6
ChenM.ChenM.WangL.WangL.TanT.TanT.et al. (2017). Radical mechanism of laccase-catalyzed catechol ring-opening. Acta Phys. Chim. Sin.33, 620–626. 10.3866/PKU.WHXB201612011
7
DavinL. B.WangH. B.CrowellA. L.BedgarD. L.MartinD. M.SarkanenS.et al. (1997). Stereoselective bimolecular phenoxy radical coupling by an auxiliary (dirigent) protein without an active center. Science275, 362–366. 10.1126/science.275.5298.362
8
DodouK.AndersonR. J.SmallD. A. P.GroundwaterP. W. (2005). Investigations on gossypol: past and present developments. Expert Opin. Investig. Drugs14, 1419–1434. 10.1517/13543784.14.11.1419
9
DoorslaerS. V.DedonderA.BlocksM. D.CallensF. (1999). Oxidative stress in plants: EPR monitoring in DMPO-DMSO based extracts. J. Plant Physiol. 154, 132–136. 10.1016/S0176-1617(99)80329-0
10
Duarte JúniorM. F.Hatamoto-ZervoudakisL. K.ZervoudakisJ. T.Silva-MarquesR. P.MotheoT. F.NichiM.et al. (2018). Free gossypol supplementation frequency and reproductive toxicity in young bulls. Theriogenology110, 153–157. 10.1016/j.theriogenology.2018.01.003
11
EffenbergerI.ZhangB.LiL.WangQ.LiuY.KlaiberI. (2015). Dirigent proteins from cotton (Gossypium sp.) for the atropselective synthesis of gossypol. Angew. Chem.54, 14660–14663. 10.1002/anie.201584961
12
El-SharakyA. S.NewairyA. A.ElguindyN. M.ElwafaA. A. (2010). Spermatotoxicity, biochemical changes and histological alteration induced by gossypol in testicular and hepatic tissues of male rats. Food Chem. Toxicol. 48:3361. 10.1016/j.fct.2010.09.004
13
El-SharakyA. S.WahbyM. M.El-DeinM. M. B.FawzyR. A.El-ShahawyI. N. (2009). Mutual anti-oxidative effect of gossypol acetic acid and gossypol–iron complex on hepatic lipid peroxidation in male rats. Food Chem. Toxicol. 47:2741. 10.1016/j.fct.2009.08.001
14
IbragimovB. T.TalipovS. A.DadabaevB. N.AbduvakhabovA. A. (1992). X-ray structural investigation of gossypol and its derivatives XXII. Structure of the H-clathrate of gossypol with dimethyl sulfoxide. Chem. Nat. Compounds28, 288–292. 10.1007/BF00630165
15
JenkinsJ. N.MaxwellF. G.LafeverH. N. (1966). The comparative preference of insects for glanded and glandless cottons1. J. Econ. Entomol. 2, 352–356. 10.1093/jee/59.2.352
16
JerzykiewiczM.Cwielag-PiaseckaI.WitwickiM.JezierskiA. (2011). α-Tocopherol impact on oxy-radical induced free radical decomposition of DMSO: spin trapping EPR and theoretical studies. Chem. Phys.383, 27–34. 10.1016/j.chemphys.2011.03.028
17
KenarJ. A. (2006). Reaction chemistry of gossypol and its derivatives. Cheminformatics83, 269–302. 10.1007/s11746-006-1203-1
18
LiX.SchulerM. A.BerenbaumM. R. (2002). Jasmonate and salicylate induce expression of herbivore cytochrome P450 genes. Nature419, 712–715. 10.1038/nature01003
19
LongZ.JiangH.CaoX.ZhaoH.FanW.CuiY.et al. (2009). Chiral gossypol derivatives: evaluation of their anticancer activity and molecular modeling. Eur. J. Med. Chem. 44, 3961–3972. 10.1016/j.ejmech.2009.04.025
20
LuzV. B.GadelhaI. C. N.CordeiroL. A. V.MeloM. M.Soto-BlancoB. (2018). In vitro study of gossypol\"s ovarian toxicity to rodents and goats. Toxicon145, 56–60. 10.1016/j.toxicon.2018.02.051
21
MaoY. B.CaiW. J.WangJ. W.HongG. J.TaoX. Y.WangL. J.et al. (2007). Silencing a cotton bollworm P450 monooxygenase gene by plant-mediated RNAi impairs larval tolerance of gossypol. Nat. Biotechnol. 25, 1307–1313. 10.1038/nbt1352
22
MontamatE.BurgosC.Gerez de BurgosN. M.RovaiL. E.BlancoA.SeguraE. L. (1982). Inhibitory action of gossypol on enzymes and growth of Trypanosoma cruzi. Science218:288–289. 10.1126/science.6750791
23
PalleS. R.CampbellL. M.PandeyaD.PuckhaberL.TollackL. K.MarcelS.et al. (2013). RNAi-mediated ultra-low gossypol cottonseed trait: performance of transgenic lines under field conditions. Plant Biotechnol. J. 11, 296–304. 10.1111/pbi.12013
24
ParkC. G.SungB.RyuC. S.KimY. J. (2020). Mono-(2-ethylhexyl) phthalate induces oxidative stress and lipid accumulation in zebrafish liver cells. Comp. Biochem. Physiol. Part C Toxicol. Pharmacol. 230:108704. 10.1016/j.cbpc.2020.108704
25
QuintanarL.StojC.TaylorA. B.HartP. J.KosmanD. J.SolomonE. I. (2007). Shall we dance? How a multicopper oxidase chooses its electron transfer partner. Acc. Chem. Res. 38, 445–452. 10.1021/ar600051a
26
RafiZ.KazandjianA.KlibanovM. (1985). Regioselective oxidation of phenols catalyzed by polyphenol oxidase in chloroform. J. Am. Chem. Soc.107, 5448–5450. 10.1002/chin.198552146
27
RajarathnamS.ShashirekhaM. N.BanoZ. (2001). Biodegradation of gossypol by the white oyster mushroom, Pleurotus florida, during culturing on rice straw growth substrate, supplemented with cottonseed powder. World J. Microbiol. Biotechnol. 17, 221–227. 10.1023/A:1016603510901
28
ShindeS. S.HayM. P.PattersonA. V.DennyW. A.AndersonR. F. (2009). Spin trapping of radicals other than the •OH radical upon reduction of the anticancer agent tirapazamine by cytochrome P450 reductase. J. Am. Chem. Soc.131, 14220–14221. 10.1021/ja906860a
29
SunilkumarG.CampbellL. M.PuckhaberL.StipanovicR. D.RathoreK. S. (2006). Engineering cottonseed for use in human nutrition by tissue-specific reduction of toxic gossypol. Proc. Natl. Acad. Sci. U.S.A. 103, 18054–18059. 10.1073/pnas.0605389103
30
TranchimandS.TronT.GaudinC.IacazioG. (2006). Synthesis of bis-lactone lignans through laccase catalysis. J. Mol. Catal. B Enzymat. 42, 27–31. 10.1016/j.molcatb.2006.06.003
31
VosburgD. A.VanderwalC. D.SorensenE. J. (2002). A synthesis of (+)-FR182877, featuring tandem transannular diels?Alder reactions inspired by a postulated biogenesis. J. Am. Chem. Soc. 124, 4552–4553. 10.1021/ja025885o
32
WangX.BeckhamT. H.MorrisJ. C.ChenF.GangemiJ. D. (2008). Bioactivities of gossypol. 6-methoxygossypol, and 6,6′-dimethoxygossypol. J. Agric. Food Chem. 56, 4393–4398. 10.1021/jf073297u
33
WeiF.ShenJ.NanJ.WeiW.RenX. T. (2012). Naphthol radical couplings determine structural features and enantiomeric excess of dalesconols in Daldinia eschscholzii. Nat. Commun. 3:1039. 10.1038/ncomms2031
34
WengX. Y.SunJ. Y. (2006). Biodegradation of free gossypol by a new strain of Candida tropicalis under solid state fermentation: Effects of fermentation parameters. Proc. Biochem. 41, 1663–1668. 10.1016/j.procbio.2006.03.015
35
WitayakranS.ArthurR. J. (2009). Synthetic applications of laccase in green chemistry. Adv. Synth. Catal. 351, 1187–1209. 10.1002/adsc.200800775
36
YangJ.ZhangF.LiJ.ChenG.WuS.OuyangW.et al. (2012). Synthesis and antiviral activities of novel gossypol derivatives. Bioorg. Med. Chem. Lett. 22, 1415–1420. 10.1016/j.bmcl.2011.12.076
Summary
Keywords
gossypol, laccase, cottonseed protein, catalyzes intramolecular annulation, food industry
Citation
Wang L, Chen M, Luo X, Fan Y, Zheng Z, He Z, Yin R, Meng T, Xu S, Pan Y, Su J, Du J, Zhang L, Tian X, Tian Y, Chen D, Ge H, Zhang N and Li P (2020) Intramolecular Annulation of Gossypol by Laccase to Produce Safe Cottonseed Protein. Front. Chem. 8:583176. doi: 10.3389/fchem.2020.583176
Received
11 August 2020
Accepted
28 October 2020
Published
01 December 2020
Volume
8 - 2020
Edited by
Arthur Jonas Ragauskas, The University of Tennessee, Knoxville, United States
Reviewed by
Francisco Solano, University of Murcia, Spain; Zufeng Guo, Johns Hopkins University, United States
Updates
Copyright
© 2020 Wang, Chen, Luo, Fan, Zheng, He, Yin, Meng, Xu, Pan, Su, Du, Zhang, Tian, Tian, Chen, Ge, Zhang and Li.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Ruochun Yin rcyin@ahu.edu.cnPing Li liping01@tongji.edu.cn
This article was submitted to Chemical Biology, a section of the journal Frontiers in Chemistry
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
