Abstract
Tissue engineering is an interdisciplinary field that aims to develop biological substitutes for the replacement, repair, or enhancement of tissue function. The physical and chemical characteristics of biomaterials exert a profound influence on the biological responses and the following biofunction. Nanostructured coatings have been widely applied as an effective surface modification strategy to improve the bioactivity of biomaterials. Especially, polydopamine and polydopamine-derived nanoparticles are found with excessive adhesiveness, redox activity, photothermal conversion capacity, paramagnetism and conductivity other than excellent biocompatibility, and hydrophilicity. In this article, advances about polydopamine nanoparticles in tissue engineering applications are reviewed, including the repair of bone, cartilage, skin, heart, and nerve, to provide strategies for future biomaterial design.
Introduction
Tissue engineering (TE) is an interdisciplinary field that aims to develop biological substitutes for the replacement, repair or enhancement of tissue function. As one of the most important component in TE, biomaterials (or scaffolds) play the key role of stimulating and regulating targeted cells to regenerate new tissue. Generally, the physical and chemical characteristics of biomaterials exert profound influence on the biological responses and following biofunctions. Over the years, numerous strategies have been introduced to modify biomaterials for better tissue assembly and functionality. Thereinto, nanoparticles (NPs) have emerged as a powerful tool to increase the mechanical and biological properties of scaffolds. Moreover, recent researches reported extensive applications of NPs in drug/gene delivery, cell labeling/pattering, 3D tissue construction, and so on. Thus, NPs hold an importance position in biomedical field and show considerable potential in TE.
Since the debut in 2007 by Lee and Messersmith’s group (Qiu et al., 2018), polydopamine (PDA) deposition inspired by natural mussels has been developed as a facile and universal method for the surface modification of various materials. PDA can virtually deposit onto all types of materials and form functional coating surfaces. Moreover, the abundant functional moieties of PDA coatings allow for further modification to introduce bio-molecules or drugs. Thus, with the excellent adhesiveness, secondary reactivity, hydrophilicity and biocompatibility, PDA coatings are emerging and promising in TE applications.
Compared to the planar PDA coatings, the 3D PDA-NPs provide larger specific surface area to interact with more cells and bio-functional molecules. Particularly, PDA-NPs are found with unique properties such as photothermal conversion capacity and redox activities other than adhesiveness and hydrophilicity (Liu et al., 2014). As we previously reviewed, with PDA-NPs modification, excellent results have been achieved in photothermal therapy (PTT), chemical treatment, anti-inflammatory, antioxidant, and so on (Jin et al., 2020). Our previous work also proved the reactive oxygen species (ROS) scavenging facility and anti-inflammatory ability of PDA-NPs in treating temporomandibular joint osteoarthritis (TMJ-OA) (Wang et al., 2021). Moreover, various bio-functional NPs (e.g., Fe3O4, graphene oxide (GO), TiO2) have been reported successfully modified with PDA. Those PDA modified NPs showed excessive biocompatibility and biostability, with their original characteristics like electrical conductivity, paramagnetism, or fluorescence unaffected. Thus, PDA derived NPs have been widely investigated in biosensing, imaging, and tumor therapy (Jiang et al., 2019; Ye et al., 2020).
While significant progress has been achieved for multiple PDA-NPs applications in biomedical field, their applications in TE are still limited. This review aims at outlining the developments in the use of PDA-NPs for TE, including the fields of soft/hard tissue regeneration and biomedical implants (Figure 1). By doing so, we hope to widen the application of PDA-NPs in TE, and to enlighten our future thinking of the biomaterial designing strategies.
FIGURE 1
Schematic of PDA-NPs in TE application.
Synthesis of PDA-NPs
Process of PDA Polymerization
PDA was initially found polymerized spontaneously from dopamine-hydrochloride in the presence of alkaline buffer. Since then, the mechanism of PDA coating has been intensively studied. Until now, the mechanistic details remain elusive due to the complex involvement of numerous intermediate reactions. Nevertheless, it is now widely recognized that two steps are involved in the PDA deposition, including the oxypolymerization and the surface adhesion. The classical “eumelanin” model believes dopamine is initially oxidized to dopamine quinone (DQ). Then, the DQ undergoes cyclization and rearrangement to form intermediates such as leucodopaminechrome and dopaminechrome. Next, the key precursors, 5,6-dihydroxyindole (DHI) and indole-quinones are generated, which can further polymerize to form oligomers, finally resulting in PDA. Now, researchers propose that PDA is a complexity of covalent polymer with small molecules and oligomer components (Della Vecchia et al., 2013). Lately, with the continuous update of laboratory techniques, more models were proposed, suggesting both covalent polymerization and noncovalent self-assembly played great roles in PDA formation (Liu et al., 2014; Batul et al., 2017).
Oxygen has always been the most frequently used oxidizer to initiate the polymerization (Madhurakkat Perikamana et al., 2015). Recently, researchers reported that, other than atmospheric oxygen, metallic oxidants (copper, zinc or nickel ions) and nonmetallic oxidants (sodium periodate, ammonium persulfate, hydrogen peroxide, etc.) could both start the PDA coating (Kopec et al., 2020). Specifically, PDA can also be synthesized by electro-polymerization, exhibiting a higher deposition rate compared to the typical self-polymerization method (Wang et al., 2014). In general, the synthetic rate, coating thickness and structure, and efficiency of dopamine utilization during the PDA coating could be optimized by adjusting the process conditions or the oxidizing methods (Lee et al., 2019).
To date, the exact mechanism of the robust adhesion capability of PDA remains complicate. It’s widely accepted that multiple functional groups including catechol group, amino group, carboxylic acid group, indole units, and quinone functions contribute to the mussel-mimicking versatility of PDA. PDA coats on substrates mostly via covalent binding (Michael-type addition, Schiff base reactions) or noncovalent binding (hydrogen bonding, π−π stacking, metal chelating).
Fabrication of PDA-NPs
PDA-NPs are developed based on the PDA coating technology to extend its utilization potential by polymerizing PDA into nanoscale particles. Essentially, PDA-NPs share the same polymerization mechanism as that of PDA coatings, except that the synthesis of PDA-NPs requires the addition of polymer inhibitors to control the polymerization speed and the particles morphology. Water-alcohol mixed solution is the most commonly used polymer inhibitor in the reaction (Yan et al., 2013). Well-dispersed PDA nanospheres would be obtained in the mixed solvents with the volume fractions of ethanol from 25 to 40% (Jiang et al., 2014). Overall, the synthesis of PDA-NPs can be controlled by tailoring the experimental parameters, such as dopamine concentration, pH, polymerization time, temperature, and so on. Here the influence factors are listed below in Table 1.

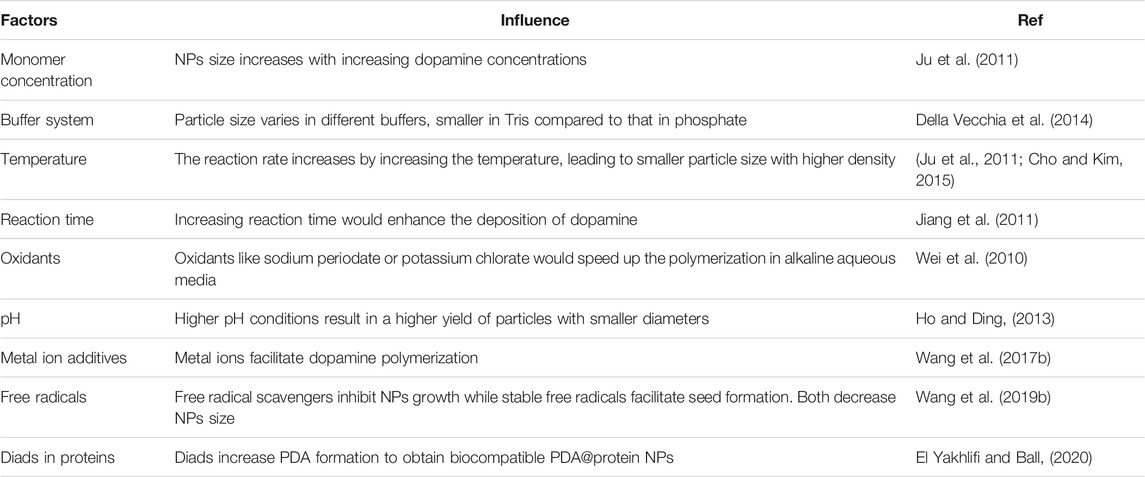

TABLE 1
| Factors | Influence | Ref |
|---|---|---|
| Monomer concentration | NPs size increases with increasing dopamine concentrations | Ju et al. (2011) |
| Buffer system | Particle size varies in different buffers, smaller in Tris compared to that in phosphate | Della Vecchia et al. (2014) |
| Temperature | The reaction rate increases by increasing the temperature, leading to smaller particle size with higher density | (Ju et al., 2011; Cho and Kim, 2015) |
| Reaction time | Increasing reaction time would enhance the deposition of dopamine | Jiang et al. (2011) |
| Oxidants | Oxidants like sodium periodate or potassium chlorate would speed up the polymerization in alkaline aqueous media | Wei et al. (2010) |
| pH | Higher pH conditions result in a higher yield of particles with smaller diameters | Ho and Ding, (2013) |
| Metal ion additives | Metal ions facilitate dopamine polymerization | Wang et al. (2017b) |
| Free radicals | Free radical scavengers inhibit NPs growth while stable free radicals facilitate seed formation. Both decrease NPs size | Wang et al. (2019b) |
| Diads in proteins | Diads increase PDA formation to obtain biocompatible PDA@protein NPs | El Yakhlifi and Ball, (2020) |
Factors influencing the synthesis of PDA-NPs.
To increase the consistency and homogeneity of PDA polymerization, several methods have been mentioned. Kim et al. claimed high O2 concentrations in the dopamine solution lead to highly homogeneous layer deposition on substrate surfaces with accelerated reaction rate (Kim et al., 2013). Ponzio et al. found periodate oxidant promoted fast and homogeneous deposition of PDA with thickness up to 100 nm (Ponzio et al., 2016). Fan et al. reported folic acid influenced PDA nanostructures via enhancing the π−π interactions of oligomers (Fan et al., 2015).
Owing to the abundant functional groups (catechol and phenethylamine), PDA exhibits high positive bioactivity. To date, PDA has been successfully coated/modified on various kinds of nanostructures, including the organic and inorganic NPs, nanotubes (NTs) and nanorods, such as liposomes (Awasthi et al., 2020), polymeric NPs (Zhu et al., 2016), magnetic NPs (Oroujeni et al., 2018), silica NPs (Liu et al., 2018), gold NPs (Sy et al., 2018), carbon NTs (Qu et al., 2017), and so on. Meanwhile, PDA nanospheres also serve as active and facile templates for synthesis of hollow or core/shell nanostructures (Yan et al., 2013; Tran et al., 2019). This part was previously reviewed by our team in detail (Jin et al., 2020). By template/solvent method, PDA nano/microcapsules were obtained, exhibiting outstanding unidirectional loading and release behavior (Yu et al., 2009). Thus, PDA-NPs provide a versatile platform for multifunctional biomedical applications. With active hydroxy and amino surface groups, PDA-NPs gain excessive biofunctions by immobilizing cells, DNA, proteins, drugs, and minerals.
Biomedical Applications of PDA-NPs in TE
TE requires a series of design and optimization of biomaterials for better repair, restore or regenerate the damaged tissue. As the preliminary step in TE, cell adhesion plays a crucial role in regulating cellular functions. Various researches have reported the PDA (or PDA-NPs) coatings on scaffolds/implants would promote cell spreading, proliferation and migration owing to their outstanding hydrophilicity and biocompatibility (Li et al., 2017; Jin et al., 2020). Recently, more studies focus on exploring other characteristics of PDA-NPs and PDA-derived NPs in TE, such as differentiation promoting, antibacterial and antioxidant specialty, as well as photothermal property. Here we exemplified those applications in Table 2 and reviewed in the following.

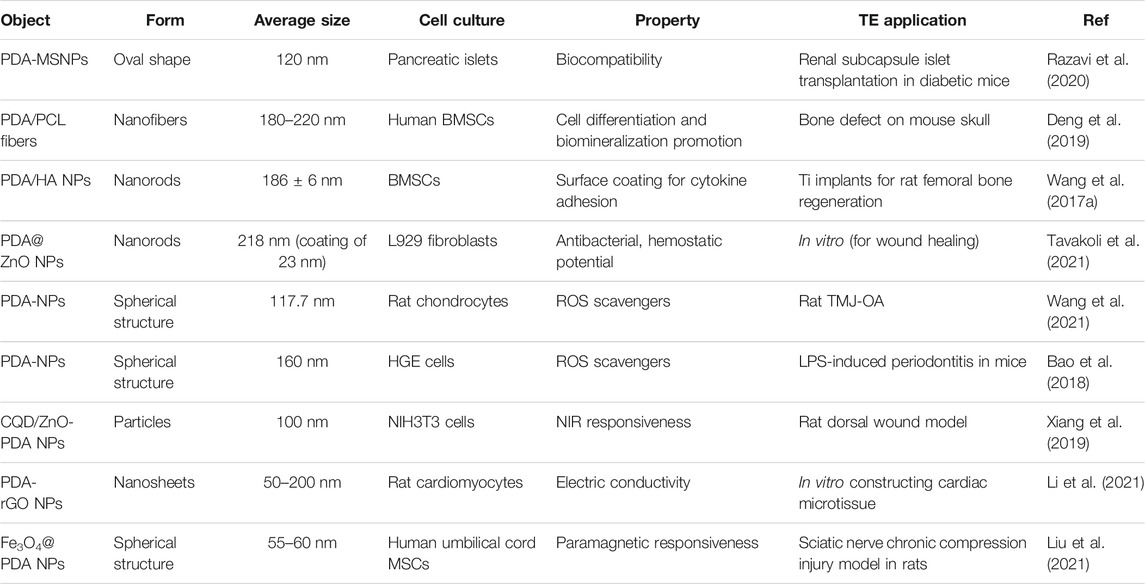

TABLE 2
| Object | Form | Average size | Cell culture | Property | TE application | Ref |
|---|---|---|---|---|---|---|
| PDA-MSNPs | Oval shape | 120 nm | Pancreatic islets | Biocompatibility | Renal subcapsule islet transplantation in diabetic mice | Razavi et al. (2020) |
| PDA/PCL fibers | Nanofibers | 180–220 nm | Human BMSCs | Cell differentiation and biomineralization promotion | Bone defect on mouse skull | Deng et al. (2019) |
| PDA/HA NPs | Nanorods | 186 ± 6 nm | BMSCs | Surface coating for cytokine adhesion | Ti implants for rat femoral bone regeneration | Wang et al. (2017a) |
| PDA@ZnO NPs | Nanorods | 218 nm (coating of 23 nm) | L929 fibroblasts | Antibacterial, hemostatic potential | In vitro (for wound healing) | Tavakoli et al. (2021) |
| PDA-NPs | Spherical structure | 117.7 nm | Rat chondrocytes | ROS scavengers | Rat TMJ-OA | Wang et al. (2021) |
| PDA-NPs | Spherical structure | 160 nm | HGE cells | ROS scavengers | LPS-induced periodontitis in mice | Bao et al. (2018) |
| CQD/ZnO-PDA NPs | Particles | 100 nm | NIH3T3 cells | NIR responsiveness | Rat dorsal wound model | Xiang et al. (2019) |
| PDA-rGO NPs | Nanosheets | 50–200 nm | Rat cardiomyocytes | Electric conductivity | In vitro constructing cardiac microtissue | Li et al. (2021) |
| Fe3O4@PDA NPs | Spherical structure | 55–60 nm | Human umbilical cord MSCs | Paramagnetic responsiveness | Sciatic nerve chronic compression injury model in rats | Liu et al. (2021) |
Examples for PDA-NPs application in TE.
Guiding Cell Behavior
Degradable scaffolds and membranes derived from various polymers show grate advantages in guided TE. Whereas, limited by the hydrophobic and bioinert nature, synthesized polymers exhibit poor cell attachment or tissue integration (Talon et al., 2019).
In the work of Deng et al. (Deng et al., 2019), PDA-NPs were optimized to coat on the electrospun membrane of polycaprolactone (PCL) fibers. It turned out that, not only the cell attachment and proliferation, but also the osteo-differentiation of human mesenchymal stem cells (hMSCs) were prominently improved. Additionally, PDA-NPs are endowed with superior affinity to various kinds of proteins. Wang et al. (Wang et al., 2016) proved bone morphogenetic protein-2 (BMP-2) was absorbed on PDA-NPs modified scaffolds and sustainably released in vitro up to 30d. Thus, PDA-NPs immobilization accelerated new bone formation in porous scaffold subcutaneously implanted in vivo. Moreover, a silica NP coated with PDA (PDA/SiNP) was developed for hemostasis (Liu et al., 2018). PDA/SiNP showed appropriate hydrophobicity, and promoted erythrocytes aggregation. It remarkably accelerated coagulation, proved to be an excellent hemostat in future hemorrhage treatment.
To conclude, by mimicking the nano-topographical and bio-chemical clues of extracellular matrix (ECM), biomaterials with specific properties are capable of guiding cell fate. PDA-NPs provide promising directions for future materials design.
Antimicrobial Activity
PDA-NPs are now emerging in the field of antibacterial application, particularly with the wound healing in TE. Fu et al. (Fu et al., 2021)found that treating PDA-NPs with ascorbic acid was a simple strategy to obtain reduced PDA-NPs (rPDA-NPs), which showed improved antioxidative and antibacterial activity. Thus, the oxidized dextran/chitosan composite hydrogel incorporated with rPDA-NPs promoted the healing of infected full-thickness wound in rat dorsal skin.
Simultaneously, researches about NPs modified by PDA as novel antimicrobial agents have also sprung up. To date, PDA has been reported successfully coated on various NPs, including Cu/Ag hybrid metal core (Yeroslavsky et al., 2016), TiO2 nanotubes (Xu et al., 2017), ZnO nanorods (Tavakoli et al., 2021), GO (Liang et al., 2019a), carbon nanotubes (CNT) (Liang et al., 2019b) and so on. Li et al. (Li et al., 2017) introduced enhanced antibacterial ability to Ti implant via designing hybrid ZnO/PDA/arginine-glycine-aspartic acid-cysteine (RGDC) nanorod arrays. ZnO/PDA/RGDC nanorods could effectively kill bacteria through physical puncture without damaging the osteoblasts (Figure 2).

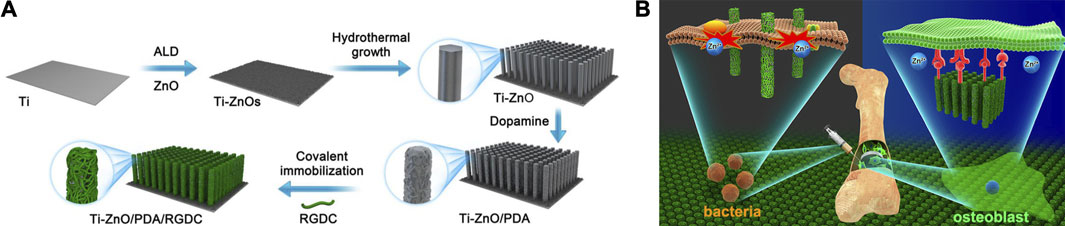

FIGURE 2
Ti implants modified with ZnO/PDA/RGDC nanorods balance the bacteria−osteoblast competition through selective physical puncture (Li et al., 2017).
PDA coating effectively increased the hydrophilicity and dispersity of NPs while reduced their cytotoxicity. Both in vitro and in vivo experiments demonstrated composite biomaterials engineered by PDA modified NPs exhibited gratifying antibacterial properties. Possible mechanisms can be attributed to reactive oxygen species (ROS) or adenosine triphosphate (ATP) depletion, biomolecule interaction and regulation, and membrane interaction (Slavin et al., 2017; Jiang et al., 2020). As a result, in the background of antibiotics resistance, PDA related NPs are promising alternatives for clinical control and treatment of infection, in addition to the antimicrobial biomaterials and dressings construction (Alves et al., 2019).
In addition, PDA NPs possess excellent capacity for loading drugs i.e., antibiotic. Batul et al. (Batul et al., 2020) investigated an in-situ polymerization method to load gentamicin into PDA NPs. The antibiotic loaded PDA-NPs are very promising for the long term drug release microbial infection treating.
Antioxidant and Anti-inflammatory Activity
The overproduction of ROS is related to cellular dysfunction and hindered tissue recovery. To protect neurons from the oxidative stress-induced damage, Battaglini et al. (Battaglini et al., 2020) proposed to use lipid coated PDA-NPs (L-PDNPs) as neuroprotective agents. L-PDNPs were proved effective in reducing ROS accumulation and resisting mitochondrial morphological alteration.
In our recent work (Wang et al., 2021), PDA-NPs were found act as ROS scavenger by both directly reacting with ROS and indirectly reducing ROS production via increasing the efficiency of mitochondrial oxidative phosphorylation (Figure 3). Meanwhile, PDA-NPs downregulated the repression of proinflammatory cytokines in chondrocytes and relived the inflammation of cartilage and subchondral bone in the rat TMJ-OA model. The charming antioxidative and anti-inflammatory dual ability of PDA-NPs holds great potential for future ROS-responsive biomaterial and biosystem design (Sui et al., 2020).
FIGURE 3
PDA-NPs showed antioxidative and anti-inflammatory dual ability in the rat TMJ-OA model (Wang et al., 2021).
Promoting Biomineralization and Osseointegration
Biomineralization generates lays of calcium phosphate (CaP) crystals on substrates, and induces osteogenesis during bone regeneration. PDA has been proved efficient in facilitating hydroxyapatite (HA) formation on scaffolds owing to the plentiful catecholamine groups of its structure (Ghorbani et al., 2019b). Wang et al. (Wang et al., 2017a) used PDA-NPs and HA nanorods to prepare hierarchical micro-/nano-structured coating on Ti implants. In vivo evaluation showed improved osseointegration around Ti bars implanted in the bone marrow cavity of rats.
Previously, our work (Wang et al., 2019) with PDA coating on different implants also proved enhance osteointegration and accelerated new bone formation via PDA coating. Moreover, we found that focal adhesion kinase (FAK) and p38 signaling pathways played important roles in the osteogenic differentiation of BMSCs stimulated by PDA coatings.
Ghorbani et al. (Ghorbani et al., 2019a) found that using microwave irradiation would accelerated HA mineralization on PDA spheres. Meanwhile, the mineralized PDA spheres promoted cell adhesion and spreading better than pure PDA.
Near-Infrared (NIR) Irradiation Responsiveness and Thermal Therapy
PDA-NPs possess excellent photothermal conversion property that could efficiently convert NIR light into heat. Both Han and Tao et al. (Han et al., 2016; Tao et al., 2021) used PDA-NPs to prepare NIR light stimuli-responsive hydrogels. Enhanced elasticity, biocompatibility, tissue-adhesiveness, and more importantly, bacteria-killing ability by photothermal effect were achieved in the composite hydrogels, showing promising future as wound dressings to accelerate skin tissue repair. Moreover, Liang et al. (Liang et al., 2019a) used hyaluronic acid (HA)-graft-dopamine and PDA decorated-reduced GO (rGO) to prepare adhesive and photothermal composite hydrogels. NIR irradiation enhanced the antibacterial performance of these hydrogels, achieving better healing outcomes compared to the commercial films in the mouse wound model (Figure 4).

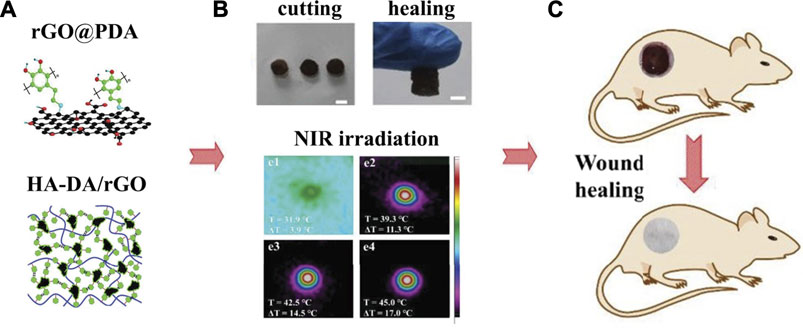

FIGURE 4
Adhesive injectable composite HA-DA/rGO hydrogels with photothermal antibacterial activity promoted skin regeneration in mouse wound healing (Liang et al., 2019a).
Interestingly, Huang et al. (Huang et al., 2017) found PDA-NPs worked as artificial microparasols to mimic melanosomes for protecting epidermal keratinocytes from UV damage. Thus, PDA-NPs showed potential in developing novel natural melanin replacement therapies in diseases (e.g., skin cancer, vitiligo, and albinism).
Recently, plenty researched have reported new designs of biomaterials for tumor thermal ablation therapy using the feasible PDA/PDA-NPs platform. Tan et al. (Tan et al., 2016) constructed a novel PDA-NP loading ionic liquids to work as microwave susceptible agent. The NPs showed excellent microwave heating efficiency and were quite potential for tumor microwave thermal therapy. More investigations are expected in the future biomaterial design considering the photothermal or microwave thermal conversion capacity of PDA-NPs.
Electric Conductivity for Enhanced Tissue Regeneration
PDA displays water-dependent semiconductor-like optoelectronic property. More recently, its conductivity is explained by a chemical disorder model, including a dynamic component of reversible intermolecular interactions perturbing π-electron systems (Liu et al., 2014; Pezzella et al., 2015). More importantly, PDA provides a versatile platform for suitable substrates to tuning their electronic properties.
The conductivity of polymers shows beneficial effects on the repair and regeneration of damaged tissues (Chen et al., 2021). Li et al. (Li et al., 2021) used PDA to prepare reduced GO (rGO), making graphene nano-sheets to be conductive and disperse more easily. Gelatin methacrylate (GelMA) hydrogels incorporated with PDA-rGO nanocomposites facilitated the fast maturation of cardiomyocytes, acting as an ideal candidate for cardiac TE application.
Paramagnetic Responsiveness to Promote Tissue Repair
Recent strategies in TE now gradually recognize the magnetic responsiveness of scaffolds in an external magnetic field. Co-deposit of Fe3O4 NPs and PDA on the surface of titanium scaffolds was found to enhance the osteogenic differentiation of MSCs and new bone formation in vivo with a static magnetic field (Huang et al., 2020).
Furthermore, magnetic NPs are employed in disease diagnose and treatment (Jia et al., 2020). Ouyang et al. (Ouyang et al., 2019) prepared a novel magnetic resonance contrast NPs with PDA coating which were cartilage-specific and magnetic resonance imaging (MRI) contrast. The composite NPs could protect chondrocytes from apoptosis and inflammation via TLR-2/NF-κB/Akt signaling, and are quite potential for future OA treatment.
Conclusion and Outlook
Inspired by mussel adhesion, PDA and PDA-NPs coatings exhibit excellent biocompatibility, hydrophilicity and adhesiveness. With abundant moieties, PDA-NPs can virtually functionalize any inert biomaterial surfaces to provide specific platforms for stem cells. By adjusting synthesis parameters or the oxidizing methods, the diameter and morphology of PDA-NPs can be optimized to achieve better physical and chemical properties.
During the last decade, researchers focused more on the characteristics of antimicrobial effect, antioxidant/anti-inflammation activity, conductivity, NIR and magnetic responsiveness of PDA-NPs and PDA derived NPs. A broad spectrum of TE applications using PDA related NPs has been reported in both soft and hard tissue defects model, including the bone, cartilage, skin, heart, nerve, dental tissue and so on.
As our knowledge about the features of NPs and PDA increases, new intelligent biomaterials with sequential biofunctions can be synthesized to meet specific needs during biomedical applications, for example, for the wound healing of diabetic patients or the elderly. In addition, the range of TE application could also be widened considering the fluorescent property of PDA-NPs, as well as their potentials in the construction of 3D engineered tissues via magnetic cell patterning/seeding.
However, future challenges still stand in front. As we know, PDA-NPs have been proved biocompatible with multiple human and mouse cells. Neither any dysfunction nor morphological change was found in kidney, spleen, lung, liver or heart 1 month after PDA-NPs injection into rats (Hauser et al., 2020). PDA-NPs are believed biodegradable by H2O2 and free radical generated by animal body. Still, more detailed investigation and complete evaluation are required to reach the thorough understanding of PDA-NPs degradation. So far, well-designed preclinical and clinical trials about PDA-NPs in TE haven’t been reported. The biosafety and long-term toxicity should be examined in human bodies. Another further breakthrough lies in the accurate interpretation of the PDA polymerization process. By figuring out the structural determinants of the dark brown coating, we would be able to adjust the color of PDA-NPs coatings for better wearing experience, especially in wound dressings. In this way, it is expected to propel the development of PDA-NPs derived hybrid materials forward from labs to practical and clinical use.
Statements
Author contributions
YaT and YuT wrote the manuscript. KL and MZ conceived the concept of this review.
Funding
This work was financially sponsored by the Natural Science Foundation of China (82072396, 81871490), Shanghai Sailing Program (21YF1423800), Joint Program of Pudong New Area Health and Family Planning Commission (PW2018D-10), Program of Shanghai Academic/Technology Research Leader (19XD1434500), Two-Hundred Talent (20191819), Open Project of State Key Laboratory of Oral Diseases (SKLOD2021OF01), and Research Discipline Fund (KQYJXK2020) from Ninth People's Hospital, Shanghai Jiao Tong University School of Medicine, and College of Stomatology, Shanghai Jiao Tong University.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Abbreviations
BMSC, bone marrow mesenchymal stem cell; CDQ, carbon quantum dots; HA, hydroxyapatite; HGE, human gingival epithelial; LPS, lipopolysaccharide; MSNP, mesoporous silica nanoparticle; NIR, near-infrared; PCL, polycaprolactone; rGO, reduced graphene oxide; ROS, reactive oxygen species; TE, tissue engineering; TMJ-OA, temporomandibular joint osteoarthritis.
References
1
Alves D. Vaz A. T. Grainha T. Rodrigues C. F. Pereira M. O. (2019). Design of an Antifungal Surface Embedding Liposomal Amphotericin B through a Mussel Adhesive-Inspired Coating Strategy. Front. Chem.7, 431. 10.3389/fchem.2019.00431
2
Awasthi A. K. Gupta S. Thakur J. Gupta S. Pal S. Bajaj A. et al (2020). Polydopamine-on-liposomes: Stable Nanoformulations, Uniform Coatings and superior Antifouling Performance. Nanoscale12, 5021–5030. 10.1039/c9nr07770g
3
Bao X. Zhao J. Sun J. Hu M. Yang X. (2018). Polydopamine Nanoparticles as Efficient Scavengers for Reactive Oxygen Species in Periodontal Disease. ACS Nano12, 8882–8892. 10.1021/acsnano.8b04022
4
Battaglini M. Marino A. Carmignani A. Tapeinos C. Cauda V. Ancona A. et al (2020). Polydopamine Nanoparticles as an Organic and Biodegradable Multitasking Tool for Neuroprotection and Remote Neuronal Stimulation. ACS Appl. Mater. Inter.12, 35782–35798. 10.1021/acsami.0c05497
5
Batul R. Bhave M. P. J. M. Yu A. (2020). Polydopamine Nanosphere with In-Situ Loaded Gentamicin and its Antimicrobial Activity. Molecules25, 2090. 10.3390/molecules25092090
6
Batul R. Tamanna T. Khaliq A. Yu A. (2017). Recent Progress in the Biomedical Applications of Polydopamine Nanostructures. Biomater. Sci.5, 1204–1229. 10.1039/c7bm00187h
7
Chen Q. Feng L. Cheng H. Wang Y. Wu H. Xu T. et al (2021). Mussel-inspired Ultra-stretchable, Universally Sticky, and Highly Conductive Nanocomposite Hydrogels. J. Mater. Chem. B9, 2221–2232. 10.1039/d1tb00019e
8
Cho S. Kim S.-H. (2015). Hydroxide Ion-Mediated Synthesis of Monodisperse Dopamine-Melanin Nanospheres. J. Colloid Interf. Sci.458, 87–93. 10.1016/j.jcis.2015.06.051
9
Della Vecchia N. F. Avolio R. Alfè M. Errico M. E. Napolitano A. D'ischia M. (2013). Building-Block Diversity in Polydopamine Underpins a Multifunctional Eumelanin-type Platform Tunable through a Quinone Control Point. Adv. Funct. Mater.23, 1331–1340. 10.1002/adfm.201202127
10
Della Vecchia N. F. Luchini A. Napolitano A. D’Errico G. Vitiello G. Szekely N. et al (2014). Tris Buffer Modulates Polydopamine Growth, Aggregation, and Paramagnetic Properties. Langmuir30, 9811–9818. 10.1021/la501560z
11
Deng Y. Yang W.-Z. Shi D. Wu M. Xiong X.-L. Chen Z.-G. et al (2019). Bioinspired and Osteopromotive Polydopamine Nanoparticle-Incorporated Fibrous Membranes for Robust Bone Regeneration. NPG Asia Mater.11. 10.1038/s41427-019-0139-5
12
El Yakhlifi S. Ball V. (2020). Polydopamine as a Stable and Functional Nanomaterial. Colloids Surf. B: Biointerfaces186, 110719. 10.1016/j.colsurfb.2019.110719
13
Fan H. Yu X. Liu Y. Shi Z. Liu H. Nie Z. et al (2015). Folic Acid-Polydopamine Nanofibers Show Enhanced Ordered-Stacking via π-π Interactions. Soft Matter. 11, 4621–4629. 10.1039/c5sm00732a
14
Fu Y. Zhang J. Wang Y. Li J. Bao J. Xu X. et al (2021). Reduced Polydopamine Nanoparticles Incorporated Oxidized Dextran/chitosan Hybrid Hydrogels with Enhanced Antioxidative and Antibacterial Properties for Accelerated Wound Healing. Carbohydr. Polym.257, 117598. 10.1016/j.carbpol.2020.117598
15
Ghorbani F. Zamanian A. Behnamghader A. Daliri-Joupari M. (2019a). Bone-like Hydroxyapatite Mineralization on the Bio-Inspired PDA Nanoparticles Using Microwave Irradiation. Surf. Inter.15, 38–42. 10.1016/j.surfin.2019.01.007
16
Ghorbani F. Zamanian A. Behnamghader A. Joupari M. D. (2019b). A Facile Method to Synthesize Mussel-Inspired Polydopamine Nanospheres as an Active Template for In Situ Formation of Biomimetic Hydroxyapatite. Mater. Sci. Eng. C94, 729–739. 10.1016/j.msec.2018.10.010
17
Han L. Zhang Y. Lu X. Wang K. Wang Z. Zhang H. (2016). Polydopamine Nanoparticles Modulating Stimuli-Responsive PNIPAM Hydrogels with Cell/Tissue Adhesiveness. ACS Appl. Mater. Inter.8, 29088–29100. 10.1021/acsami.6b11043
18
Hauser D. Septiadi D. Turner J. Petri-Fink A. Rothen-Rutishauser B. (2020). From Bioinspired Glue to Medicine: Polydopamine as a Biomedical Material. Materials (Basel)13, 1730. 10.3390/ma13071730
19
Ho C.-C. Ding S.-J. (2013). The pH-Controlled Nanoparticles Size of Polydopamine for Anti-cancer Drug Delivery. J. Mater. Sci. Mater. Med.24, 2381–2390. 10.1007/s10856-013-4994-2
20
Huang Y. Li Y. Hu Z. Yue X. Proetto M. T. Jones Y. et al (2017). Mimicking Melanosomes: Polydopamine Nanoparticles as Artificial Microparasols. ACS Cent. Sci.3, 564–569. 10.1021/acscentsci.6b00230
21
Huang Z. He Y. Chang X. Liu J. Yu L. Wu Y. et al (2020). A Magnetic Iron Oxide/Polydopamine Coating Can Improve Osteogenesis of 3D-Printed Porous Titanium Scaffolds with a Static Magnetic Field by Upregulating the TGFβ-Smads Pathway. Adv. Healthc. Mater.9, e2000318. 10.1002/adhm.202000318
22
Jia C. Wu H. Luo K. Hao W. Wang S. Huang M. (2020). Magnetic Silica Nanosystems with NIR-Responsive and Redox Reaction Capacity for Drug Delivery and Tumor Therapy. Front. Chem.8, 567652. 10.3389/fchem.2020.567652
23
Jiang J. Zhu L. Zhu L. Zhu B. Xu Y. (2011). Surface Characteristics of a Self-Polymerized Dopamine Coating Deposited on Hydrophobic Polymer Films. Langmuir27, 14180–14187. 10.1021/la202877k
24
Jiang S. Lin K. Cai M. (2020). ZnO Nanomaterials: Current Advancements in Antibacterial Mechanisms and Applications. Front. Chem.8, 580. 10.3389/fchem.2020.00580
25
Jiang X. Wang Y. Li M. (2014). Selecting Water-Alcohol Mixed Solvent for Synthesis of Polydopamine Nano-Spheres Using Solubility Parameter. Sci. Rep.4, 6070. 10.1038/srep06070
26
Jiang Y. Tang Y. Miao P. (2019). Polydopamine Nanosphere@silver Nanoclusters for Fluorescence Detection of Multiplex Tumor Markers. Nanoscale11, 8119–8123. 10.1039/c9nr01307e
27
Jin A. Wang Y. Lin K. Jiang L. (2020). Nanoparticles Modified by Polydopamine: Working as "drug" Carriers. Bioactive Mater.5, 522–541. 10.1016/j.bioactmat.2020.04.003
28
Ju K.-Y. Lee Y. Lee S. Park S. B. Lee J.-K. (2011). Bioinspired Polymerization of Dopamine to Generate Melanin-like Nanoparticles Having an Excellent Free-Radical-Scavenging Property. Biomacromolecules12, 625–632. 10.1021/bm101281b
29
Kim H. W. Mccloskey B. D. Choi T. H. Lee C. Kim M.-J. Freeman B. D. et al (2013). Oxygen Concentration Control of Dopamine-Induced High Uniformity Surface Coating Chemistry. ACS Appl. Mater. Inter.5, 233–238. 10.1021/am302439g
30
Kopec K. Wojasinski M. Ciach T. (2020). Superhydrophilic Polyurethane/Polydopamine Nanofibrous Materials Enhancing Cell Adhesion for Application in Tissue Engineering. Int. J. Mol. Sci.21 (8), 6798. 10.3390/ijms21186798
31
Lee H. A. Ma Y. Zhou F. Hong S. Lee H. (2019). Material-Independent Surface Chemistry beyond Polydopamine Coating. Acc. Chem. Res.52, 704–713. 10.1021/acs.accounts.8b00583
32
Li B.-C. Ren K.-F. Zhang H. Jia F. Wang J.-L. Chang H. et al (2017a). Nanostructured Multilayer Films Assembled from Poly(dopamine)-Coated Carbon Nanotubes for Controlling Cell Behavior. ChemNanoMat. 3, 319–327. 10.1002/cnma.201700024
33
Li J. Tan L. Liu X. Cui Z. Yang X. Yeung K. W. K. et al (2017b). Balancing Bacteria-Osteoblast Competition through Selective Physical Puncture and Biofunctionalization of ZnO/Polydopamine/Arginine-Glycine-Aspartic Acid-Cysteine Nanorods. ACS Nano11, 11250–11263. 10.1021/acsnano.7b05620
34
Li X.-P. Qu K.-Y. Zhou B. Zhang F. Wang Y.-Y. Abodunrin O. D. et al (2021). Electrical Stimulation of Neonatal Rat Cardiomyocytes Using Conductive Polydopamine-Reduced Graphene Oxide-Hybrid Hydrogels for Constructing Cardiac Microtissues. Colloids Surf. B: Biointerfaces205, 111844. 10.1016/j.colsurfb.2021.111844
35
Liang Y. Zhao X. Hu T. Chen B. Yin Z. Ma P. X. et al (2019a). Adhesive Hemostatic Conducting Injectable Composite Hydrogels with Sustained Drug Release and Photothermal Antibacterial Activity to Promote Full-Thickness Skin Regeneration during Wound Healing. Small15, e1900046. 10.1002/smll.201900046
36
Liang Y. Zhao X. Hu T. Han Y. Guo B. (2019b). Mussel-inspired, Antibacterial, Conductive, Antioxidant, Injectable Composite Hydrogel Wound Dressing to Promote the Regeneration of Infected Skin. J. Colloid Interf. Sci.556, 514–528. 10.1016/j.jcis.2019.08.083
37
Liu C. Yao W. Tian M. Wei J. Song Q. Qiao W. (2018). Mussel-inspired Degradable Antibacterial Polydopamine/silica Nanoparticle for Rapid Hemostasis. Biomaterials179, 83–95. 10.1016/j.biomaterials.2018.06.037
38
Liu M. Yu W. Zhang F. Liu T. Li K. Lin M. et al (2021). Fe3O4@Polydopamine-Labeled MSCs Targeting the Spinal Cord to Treat Neuropathic Pain under the Guidance of a Magnetic Field. J. Nanomedicine.16, 3275–3292. 10.2147/ijn.s296398
39
Liu Y. Ai K. Lu L. (2014). Polydopamine and its Derivative Materials: Synthesis and Promising Applications in Energy, Environmental, and Biomedical fields. Chem. Rev.114, 5057–5115. 10.1021/cr400407a
40
Madhurakkat Perikamana S. K. Lee J. Lee Y. B. Shin Y. M. Lee E. J. Mikos A. G. et al (2015). Materials from Mussel-Inspired Chemistry for Cell and Tissue Engineering Applications. Biomacromolecules16, 2541–2555. 10.1021/acs.biomac.5b00852
41
Oroujeni M. Kaboudin B. Xia W. Jönsson P. Ossipov D. A. (2018). Conjugation of Cyclodextrin to Magnetic Fe3O4 Nanoparticles via Polydopamine Coating for Drug Delivery. Prog. Org. Coat.114, 154–161. 10.1016/j.porgcoat.2017.10.007
42
Ouyang Z. Tan T. Liu C. Duan J. Wang W. Guo X. et al (2019). Targeted Delivery of Hesperetin to Cartilage Attenuates Osteoarthritis by Bimodal Imaging with Gd2(CO3)3@PDA Nanoparticles via TLR-2/nf-κB/Akt Signaling. Biomaterials205, 50–63. 10.1016/j.biomaterials.2019.03.018
43
Pezzella A. Barra M. Musto A. Navarra A. Alfè M. Manini P. et al (2015). Stem Cell-Compatible Eumelanin Biointerface Fabricated by Chemically Controlled Solid State Polymerization. Mater. Horiz.2, 212–220. 10.1039/c4mh00097h
44
Ponzio F. Barthès J. Bour J. Michel M. Bertani P. Hemmerlé J. et al (2016). Oxidant Control of Polydopamine Surface Chemistry in Acids: A Mechanism-Based Entry to Superhydrophilic-Superoleophobic Coatings. Chem. Mater.28, 4697–4705. 10.1021/acs.chemmater.6b01587
45
Qiu W.-Z. Yang H.-C. Xu Z.-K. (2018). Dopamine-assisted Co-deposition: An Emerging and Promising Strategy for Surface Modification. Adv. Colloid Interf. Sci.256, 111–125. 10.1016/j.cis.2018.04.011
46
Qu K. Zheng Y. Jiao Y. Zhang X. Dai S. Qiao S. Z. (2017). Polydopamine‐Inspired, Dual Heteroatom‐Doped Carbon Nanotubes for Highly Efficient Overall Water Splitting. Adv. Energ. Mater.7, 1602068. 10.1002/aenm.201602068
47
Razavi M. Primavera R. Kevadiya B. D. Wang J. Ullah M. Buchwald P. et al (2020). Controlled Nutrient Delivery to Pancreatic Islets Using Polydopamine-Coated Mesoporous Silica Nanoparticles. Nano Lett.20, 7220–7229. 10.1021/acs.nanolett.0c02576
48
Slavin Y. N. Asnis J. Häfeli U. O. Bach H. (2017). Metal Nanoparticles: Understanding the Mechanisms behind Antibacterial Activity. J. Nanobiotechnol15, 65. 10.1186/s12951-017-0308-z
49
Sui L. Wang J. Xiao Z. Yang Y. Yang Z. Ai K. (2020). ROS-scavenging Nanomaterials to Treat Periodontitis. Front. Chem.8, 595530. 10.3389/fchem.2020.595530
50
Sy K. H. S. Ho L. W. C. Lau W. C. Y. Ko H. Choi C. H. J. (2018). Morphological Diversity, Protein Adsorption, and Cellular Uptake of Polydopamine-Coated Gold Nanoparticles. Langmuir34, 14033–14045. 10.1021/acs.langmuir.8b02572
51
Talon I. Schneider A. Ball V. Hemmerle J. (2019). Polydopamine Functionalization: A Smart and Efficient Way to Improve Host Responses to E-PTFE Implants. Front. Chem.7, 482. 10.3389/fchem.2019.00482
52
Tan L. Tang W. Liu T. Ren X. Fu C. Liu B. et al (2016). Biocompatible Hollow Polydopamine Nanoparticles Loaded Ionic Liquid Enhanced Tumor Microwave Thermal Ablation In Vivo. ACS Appl. Mater. Inter.8, 11237–11245. 10.1021/acsami.5b12329
53
Tao B. Lin C. Yuan Z. He Y. Chen M. Li K. et al (2021). Near Infrared Light-Triggered On-Demand Cur Release from Gel-PDA@Cur Composite Hydrogel for Antibacterial Wound Healing. Chem. Eng. J.403, 126182. 10.1016/j.cej.2020.126182
54
Tavakoli S. Kharaziha M. Nemati S. (2021). Polydopamine Coated ZnO Rod-Shaped Nanoparticles with Noticeable Biocompatibility, Hemostatic and Antibacterial Activity. Nano-structures. Nano-objects25, 100639. 10.1016/j.nanoso.2020.100639
55
Tran H. Q. Bhave M. Xu G. Sun C. Yu A. (2019). Synthesis of Polydopamine Hollow Capsules via a Polydopamine Mediated Silica Water Dissolution Process and its Application for Enzyme Encapsulation. Front. Chem.7, 468. 10.3389/fchem.2019.00468
56
Wang H. Lin C. Zhang X. Lin K. Wang X. Shen S. G. (2019a). Mussel-Inspired Polydopamine Coating: A General Strategy to Enhance Osteogenic Differentiation and Osseointegration for Diverse Implants. ACS Appl. Mater. Inter.11, 7615–7625. 10.1021/acsami.8b21558
57
Wang J.-l. Li B.-c. Li Z.-j. Ren K.-f. Jin L.-j. Zhang S.-m. et al (2014). Electropolymerization of Dopamine for Surface Modification of Complex-Shaped Cardiovascular Stents. Biomaterials35, 7679–7689. 10.1016/j.biomaterials.2014.05.047
58
Wang X. Chen Z. Yang P. Hu J. Wang Z. Li Y. (2019b). Size Control Synthesis of Melanin-like Polydopamine Nanoparticles by Tuning Radicals. Polym. Chem.10, 4194–4200. 10.1039/c9py00517j
59
Wang X. Zhao H. Liu Z. Wang Y. Lin D. Chen L. et al (2021). Polydopamine Nanoparticles as Dual-Task Platform for Osteoarthritis Therapy: A Scavenger for Reactive Oxygen Species and Regulator for Cellular Powerhouses. Chem. Eng. J.417, 129284. 10.1016/j.cej.2021.129284
60
Wang Z. Li P. Jiang Y. Jia Z. Tang P. Lu X. et al (2017a). Mussel-inspired Nanostructured Coatings Assembled Using Polydopamine Nanoparticles and Hydroxyapatite Nanorods for Biomedical Applications. Biosurface and Biotribology3, 1–10. 10.1016/j.bsbt.2017.01.001
61
Wang Z. Wang K. Zhang Y. Jiang Y. Lu X. Fang L. et al (2016). Protein-Affinitive Polydopamine Nanoparticles as an Efficient Surface Modification Strategy for Versatile Porous Scaffolds Enhancing Tissue Regeneration. Part. Part. Syst. Charact.33, 89–100. 10.1002/ppsc.201500187
62
Wang Z. Xie Y. Li Y. Huang Y. Parent L. R. Ditri T. et al (2017b). Tunable, Metal-Loaded Polydopamine Nanoparticles Analyzed by Magnetometry. Chem. Mater.29, 8195–8201. 10.1021/acs.chemmater.7b02262
63
Wei Q. Zhang F. Li J. Li B. Zhao C. (2010). Oxidant-induced Dopamine Polymerization for Multifunctional Coatings. Polym. Chem.1, 1430. 10.1039/c0py00215a
64
Xiang Y. Mao C. Liu X. Cui Z. Jing D. Yang X. et al (2019). Rapid and Superior Bacteria Killing of Carbon Quantum Dots/ZnO Decorated Injectable Folic Acid-Conjugated PDA Hydrogel through Dual-Light Triggered ROS and Membrane Permeability. Small15, e1900322. 10.1002/smll.201900322
65
Xu J. Xu N. Zhou T. Xiao X. Gao B. Fu J. et al (2017). Polydopamine Coatings Embedded with Silver Nanoparticles on Nanostructured Titania for Long-Lasting Antibacterial Effect. Surf. Coat. Technol.320, 608–613. 10.1016/j.surfcoat.2016.10.065
66
Yan J. Yang L. Lin M. F. Ma J. Lu X. Lee P. S. (2013). Polydopamine Spheres as Active Templates for Convenient Synthesis of Various Nanostructures. Small9, 596–603. 10.1002/smll.201201064
67
Ye Y. Zheng L. Wu T. Ding X. Chen F. Yuan Y. et al (2020). Size-Dependent Modulation of Polydopamine Nanospheres on Smart Nanoprobes for Detection of Pathogenic Bacteria at Single-Cell Level and Imaging-Guided Photothermal Bactericidal Activity. ACS Appl. Mater. Inter.12, 35626–35637. 10.1021/acsami.0c07784
68
Yeroslavsky G. Lavi R. Alishaev A. Rahimipour S. (2016). Sonochemically-Produced Metal-Containing Polydopamine Nanoparticles and Their Antibacterial and Antibiofilm Activity. Langmuir32, 5201–5212. 10.1021/acs.langmuir.6b00576
69
Yu B. Wang D. A. Ye Q. Zhou F. Liu W. (2009). Robust Polydopamine Nano/microcapsules and Their Loading and Release Behavior. Chem. Commun., 6789–6791. 10.1039/b910679k
70
Zhu D. Tao W. Zhang H. Liu G. Wang T. Zhang L. et al (2016). Docetaxel (DTX)-loaded Polydopamine-Modified TPGS-PLA Nanoparticles as a Targeted Drug Delivery System for the Treatment of Liver Cancer. Acta Biomater.30, 144–154. 10.1016/j.actbio.2015.11.031
Summary
Keywords
polydopamine, nanoparticles, biofunction, tissue engineering, tissue regeneration
Citation
Tang Y, Tan Y, Lin K and Zhu M (2021) Research Progress on Polydopamine Nanoparticles for Tissue Engineering. Front. Chem. 9:727123. doi: 10.3389/fchem.2021.727123
Received
18 June 2021
Accepted
18 August 2021
Published
06 September 2021
Volume
9 - 2021
Edited by
Bo Lei, Xi’an Jiaotong University, China
Reviewed by
Bin Li, Soochow University, China
Farnaz Ghorbani, University of Erlangen Nuremberg, Germany
Updates
Copyright
© 2021 Tang, Tan, Lin and Zhu.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Min Zhu, zminnie@126.com; Kaili Lin, lklecnu@aliyun.com
†These authors have contributed equally to this work
This article was submitted to Nanoscience, a section of the journal Frontiers in Chemistry
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
