Abstract
Nanotechnology is a fast-expanding area with a wide range of applications in science, engineering, health, pharmacy, and other fields. Among many techniques that are employed toward the production of nanoparticles, synthesis using green technologies is the simplest and environment friendly. Nanoparticles produced from plant extracts have become a very popular subject of study in recent decades due to their diverse advantages such as low-cost synthesis, product stability, and ecofriendly protocols. These merits have prompted the development of nanoparticles from a variety of sources, including bacteria, fungi, algae, proteins, enzymes, etc., allowing for large-scale production with minimal contamination. However, nanoparticles obtained from plant extracts and phytochemicals exhibit greater reduction and stabilization and hence have proven the diversity of properties, like catalyst/photocatalyst, magnetic, antibacterial, cytotoxicity, circulating tumor deoxy ribo nucleic acid (CT-DNA) binding, gas sensing, etc. In the current scenario, nanoparticles can also play a critical role in cleaning wastewater and making it viable for a variety of operations. Nano-sized photocatalysts have a great scope toward the removal of large pollutants like organic dyes, heavy metals, and pesticides in an eco-friendly and sustainable manner from industrial effluents. Thus, in this review article, we discuss the synthesis of several metal nanoparticles using diverse plant extracts, as well as their characterization via techniques like UVāvis (ultravioletāvisible), XRD (X-ray diffraction), SEM (scanning electron microscopy), TEM (transmission electron microscopy), FTIR (Fourier transform infrared spectroscopy), etc., and catalytic activity on various hazardous systems.
Introduction
Clean water is important for human health and survival. Many countries are currently suffering from a shortage of drinking water. Water scarcity is not only the result of increased population densities, but also due to expansion of several manufacturing sectors such as textiles, automobiles, petrochemical, electronics, food, pharma, etc. (US Environmental Protection Agency, 1998b; World Health Organization, 2008; ). As a result, water reuse has become an important issue in todayās global resource management system. In many developing countries, the industry accounts for about 22% of the worldās total water usage, but more than 70% of untreated industrial waste is simply wastewater (). Dyes typically constitute a major pollutant in waste water. Textile and dye wastes are extremely dangerous to aquatic life and the surrounding environment (; Wang et al., 2014a). Such effluents are highly hazardous due to their toxicity, strong colour, high chemical oxygen demand (COD) content, and poor bio-degradability (). Usually, naphthol orange (NO), methylene blue (MB), methyl orange (MO), congo red (CR), acid orange (AO), malachite green (MG), eosin Y (EY), and rhodamine B (RhB) are utilized in a variety of industries, including textile, food, and pharmaceutical. To control the contamination of the ecosystem by such hazardous chemicals, researchers have been exploring cost-effective degradation via photocatalytic techniques, which have been widely used over the last two decades as a strategy, especially for dye decomposition in wastewater and effluents (; ; Zhang et al., 2011; Wang et al., 2012; Zhang et al., 2012).
Nanoparticles (NPs) are a class of materials with properties distinctively different from their bulk and molecular counterparts. NPs are considered to be the building blocks for nanotechnology, and are referred to particles with at least one dimension less than 100 nm. Nanomaterials and nanotechnologies have attracted tremendous attention in recent years, due to their effective applications, ranging from traditional chemical to medicinal and environmental technologies (Sevilla et al., 2013; Shume et al., 2020). NPs with dimensions ranging from 1Ā to 100Ā nm that exhibit excellent qualities in terms of huge ratio of surface and volume, surface morphology and size (; ), have been used by several industries and humankind for thousands of years (). NPs surfaces themselves may be distinctive (). However, there has been a recent resurgence because of the ability to synthesize on large scales and characterize with accuracies, so as to manipulate their surface properties via the particleās atomic, electronic, and magnetic structures, physical and chemical natures, and reactivity relative to the bulk material ().
A nanoparticle can be either a zero dimensional where the length, breadth and height is fixed at a single point as in nano dots; one dimensional where it can possess only one parameter like in graphene; two dimensional where it has length and breadth, as seen in carbon nanotubes; or three dimensional where it has all the parameters such as length, breadth and height as in gold NPs (). Hence, NPs are a class of materials with conspicuous properties distinctively different from their bulk and molecular counterparts. Their distinct functional qualities make them a viable candidate for a variety of applications for photocatalysis, catalysis, sensor technology, magnetic property, DNA binding, food, engineering, medical, disease diagnosis and treatment, anti-carcinogenic, antioxidant, anti-tubercular, and antimicrobial (; ; Sabouri et al., 2019; Sapawe et al., 2019; ; Pillai et al., 2020; ; ).
Organic compounds discovered as contaminants in industrial or domestic wastewater effluents must be eliminated or destroyed before being discharged into the environment (Prashanth et al., 2022a). The presence of such pollutants in ground and surface water necessitates treatment in order to reach acceptable drinking water quality. The rising public concern about these environmental contaminants has necessitated the development of novel treatment approaches, with photocatalysis gaining a lot of interest in the pollutant degradation sector. An ideal photocatalyst should be stable, inexpensive, non-toxic, and, of course, highly photoactive.
Interestingly, recent literature do not present the complete picture of photocatalytic activity of metal NPs synthesized with the aid of plant extracts, and hence, this review paper tries to address the gaps, by providing insights into the development of novel NPs towards treatment of dye-contaminated wastewater with low price and high efficiency, via photocatalysis.
Why Green Approach for NPs Synthesis?
NPs are synthesized by two methods: 1) top-down approach and 2) bottom-up approach. In top-down method, bulk materials are transformed to NPs through sputtering technique, grinding, and milling. In bottom-up method, NPs are synthesized through physical, chemical, and biological methods. Different physical and chemical methods include electrochemical changes, chemical reduction, spray pyrolysis, sonication, arc discharge, pulse wire discharge, pulsed laser ablation, radiation, electro-deposition, evaporationācondensation, vapor and gas phase, ball milling, lithography, photochemical reduction, solāgel, pyrolysis, and combustion, etc. Microwave, precipitation, hydrothermal, combustion, and sonochemical methods are commonly employed for the preparation and stabilization of metallic NPs (; ; , Krishna et al., 2016a; Prashanth et al., 2016b; Krishna et al., 2017a; Krishna et al., 2017b; Sathyananda et al., 2021a).
Since processes such as kinetics of the metal ion interaction with a reducing agent, the adsorption process of a stabilizing agent with metal NPs, and diverse experimental methodologies have a substantial influence on the shape of metallic NPs; the method of synthesis of NPs is very crucial (Vijayakumar et al., 2013; ).
There are several disadvantages of chemical methods like they are being toxic, harmful for society, high cost, etc. Chemical methods for the synthesis of metal NPs have been identified as toxic for the environment as well as the synthesis involves high temperature and pressure (). Further, biomedical applications of these NPs could be toxic (Thirumurugan et al., 2010; ; ).
Green synthesis is a subset of green chemistry, born after recognizing the need for sustainable processes in the chemical industry, with the goal of developing safer chemical products and processes that reduce or eliminate the generation and use of hazardous elements. Therefore, there are two goals for green synthesis of nanomaterials: 1) Creating nanomaterials to solve environmental problems, by preventing damage from known pollutants, or by incorporating nanomaterials into environmental technologies to clean up contaminated environments () and 2) minimize damage to human health and environment due to human activities (Sivaraj et al., 2015).
The biological approach of synthesis of NPs follows green chemistry because it is free of toxic substances, clean, and energy-efficient. Biological synthesis derives the creation of the basic principles of green chemistry such as prevention, less hazardous chemical syntheses, use of renewable feedstock, reductive derivatives, etc. As far as the biological approach is concerned, NPs are synthesized using fungi, bacteria, plant, animal sources, etc. The synthesis of NPs from plant extracts has more advantages than other biological sources due to the expensive maintenance of cultures and microbial isolation (). Plant extract is commonly used as a crucial component for the NPs synthesis due to its safety and feasibility. Proteins, carbohydrates, enzymes, phenolic acids, and alkaloids are found in plants and are used in the reduction and stabilization processes. Plants are biological substrates that are rich in numerous critical phytochemicals, and hence decrease the need for chemicals as reducing, capping, and stabilising agents during the production of metal NPs from their respective precursor solutions (Singh, 2022).
Furthermore, because leaves contain a lot of metabolites, green synthesis usually uses leaf extracts and this route is safe, bio-compatible, and environment friendly (Thirumurugan et al., 2010; ).

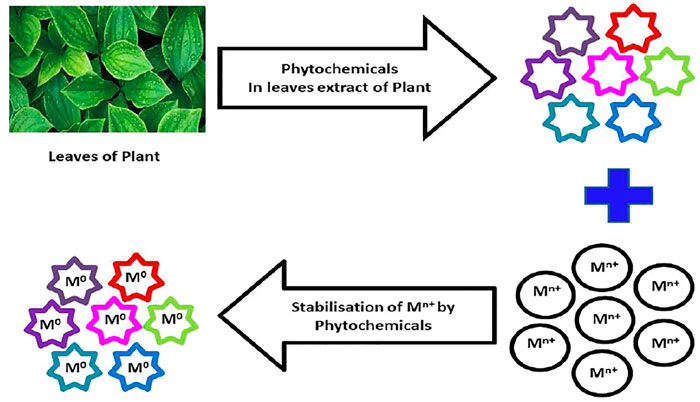

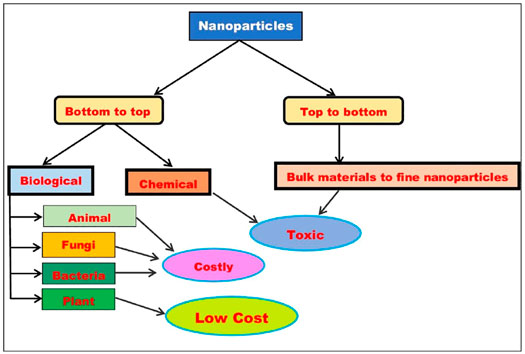

Synthesis process of NPs by various approaches is depicted in Figure 1. In this review article, we highlight the green synthesis process of various metal NPs and their characterization by different techniques such as XRD, FTIR, SEM, TEM, and UVāvis spectroscopy. Apart from this, we highlight their photocatalytic property against different organic pollutant dyes such as NO, MB, MO, CR, RhB, MG, EY, acid orange (AO), and the possible mechanism involved. We believe this review article will be helpful to the new researchers in this field to understand the phenomenon of metal NPs synthesis by green approaches and their photocatalytic activity.
FIGURE 1
Synthesis Process of NPs by Plant Extracts
Preparation of Plant Extract
In this process, leaves collection from plants is a crucial step. Herbal plants are identified by a subject expert before they are collected. Fresh leaves are cleaned with running water followed by double distilled water (DDW), chopped into very small pieces, and dried in shade or in the presence of sunshine. To prepare the extraction, usually a known weight of the powdered leaves (5, 10Ā g) is soaked in a known volume of DDW (100Ā mL) and incubated at 40ā50°C for 80ā100Ā min. Further, the leaf extract is stored at ambient temperature for cooling before being filtered using Whatman (No. 41) filter paper.
Phytochemical Tests
Plants are ubiquitous in nature, and many of them have yet to be fully studied for their great health benefits. Plants contain a wealth of essential phytochemicals with therapeutic and medical capabilities (Rizwana et al., 2022).
The medicinal properties of various medicinal plants are due to the phytochemicals contained in them. These phytochemicals are the primary source for treating devastating illnesses. Various phytochemicals have a wide range of activities that help strengthen the immune system and provide long-term disease resistance to protect the body from harmful pathogens ().
Phytochemical test is the more important aspect in the NPs synthesis from plant extracts. Phytochemical tests reveal the chemical presence in plant extracts. These tests should be performed by the standard protocol (; ; Tiwari et al., 2011; Prashanth and Krishnaiah, 2014a; Prashanth et al., 2015a; Prashanth and Krishnaiah, 2014b). Table 1 provides the different phytochemical tests that are performed for any plant extract. The + ve and -ve signs indicate the presence and absence of the phytochemical of the plant extract, respectively. To examine and investigate the constituents present, phytochemical tests require to be performed.

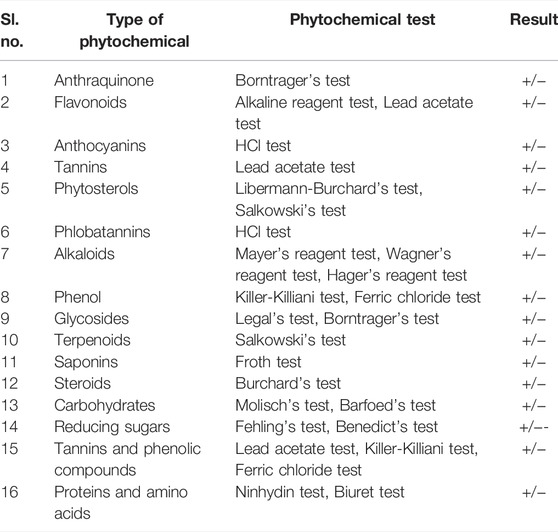

TABLE 1
| Sl. no. | Type of phytochemical | Phytochemical test | Result |
|---|---|---|---|
| 1 | Anthraquinone | Borntragerās test | +/ā |
| 2 | Flavonoids | Alkaline reagent test, Lead acetate test | +/ā |
| 3 | Anthocyanins | HCl test | +/ā |
| 4 | Tannins | Lead acetate test | +/ā |
| 5 | Phytosterols | Libermann-Burchardās test, Salkowskiās test | +/ā |
| 6 | Phlobatannins | HCl test | +/ā |
| 7 | Alkaloids | Mayerās reagent test, Wagnerās reagent test, Hager's reagent test | +/ā |
| 8 | Phenol | Killer-Killiani test, Ferric chloride test | +/ā |
| 9 | Glycosides | Legal's test, Borntrager's test | +/ā |
| 10 | Terpenoids | Salkowski's test | +/ā |
| 11 | Saponins | Froth test | +/ā |
| 12 | Steroids | Burchard's test | +/ā |
| 13 | Carbohydrates | Molisch's test, Barfoedās test | +/ā |
| 14 | Reducing sugars | Fehling's test, Benedictās test | +/ā- |
| 15 | Tannins and phenolic compounds | Lead acetate test, Killer-Killiani test, Ferric chloride test | +/ā |
| 16 | Proteins and amino acids | Ninhydin test, Biuret test | +/ā |
Phytochemical tests of plant extracts.
Synthesis of NPs
The nature and concentration of the plant extract, pH, temperature, metal salt concentration, and contact time are known to affect the rate of NPs production (; ).
Proper amount of metal salt is dissolved in DDW, and appropriate amount of plant extract is added to it. The mixture is stirred for the accurate time, may be at a normal temperature or at 40ā80°C. The synthesized NPs are initially observed by visual color change and detected by UVāvis spectroscopy. Finally, the formation of NPs is confirmed by other characterization techniques such as XRD, IR, SEM, and TEM. Plant extracts contain several phytochemicals like anthraquinone, flavonoids, anthocyanine, tannins, phytosterols, phlobatannins, alkaloids, phenols, glycosides, terpenoids, saponins, carbohydrates, and steroids. The phytochemicals from the leaves extract of the plants work as stabilizing and capping agents for synthesizing NPs and in the reduction of Mn+ to Mo, as shown in Figure 2. Therefore, capping, stabilizing, and reducing agents are not required for the synthesis of NPs from plant extracts. This is one of the most important advantages of green synthesis of NPs.
FIGURE 2
Few Reported NPs Synthesis From Plant Extracts
Sandip Kumar Chandraker et al. synthesized silver (Ag) NPs by using Justicia adhatoda (JA) leaf extract. They initially confirmed the formation of JA@Ag NPs by UVāvis spectroscopy and finally confirmed the same by XRD, IR, SEM, and TEM analyses. The nano-size of JA@Ag NPs was 19Ā nm, which was supported by SEM and TEM analyses. The spherical shape NPs had a semiconducting property with an optical band gap of 3.3Ā eV ().
Ghosh et al. synthesized copper (Cu) NPs by using the leaf extract of Jatropha curcas (JC). The JC-Cu NPs were characterized by XRD, UVāvis spectroscopy, FT-IR, SEM, and TEM (). The average crystallite size was 12 ± 1Ā nm. The JC-Cu NPs exhibited several applications like photocatalysis, semiconductor property, and CT-DNA binding (). Their band gap was found to be 3.6Ā eV at 337Ā nm, as shown in Figure 3A (blue: plant extract (JC); red: cuprous chloride; and black: JC-Cu NPs (). Jagpreet Singh et al. synthesized zinc oxide (ZnO) NPs, making use of aqueous leaves extract of Coriandum sativum. A sharp absorption peak observed at 364Ā nm confirmed the formation of zinc oxide (ZnO) NPs, as shown in Figure 3B. The optical band gap determined from absorption spectra was 3.4Ā eV, which is higher than that of bulk ZnO (3.32Ā eV). These NPs were employed for the photocatalytic degradation of yellow 186 dye under direct sunlight (Singh et al., 2019a).

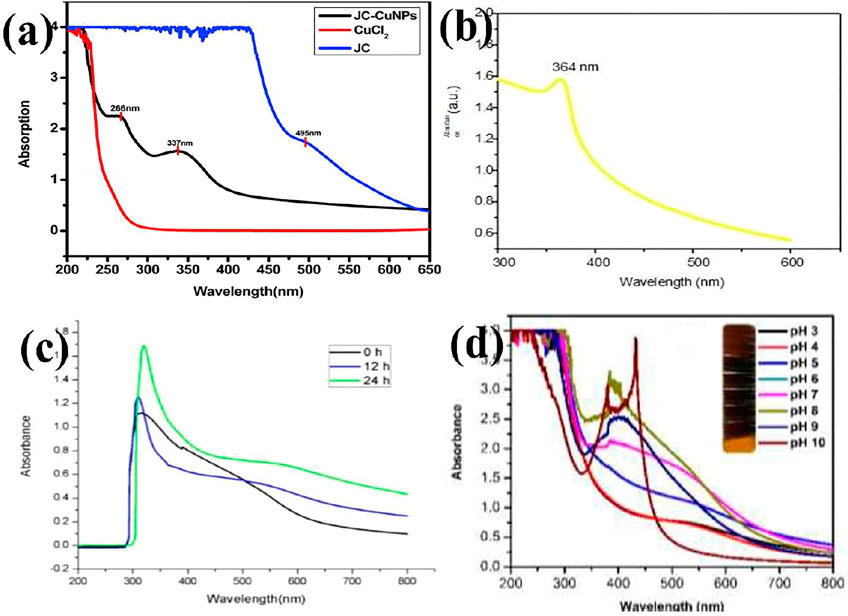

FIGURE 3
Selenium (Se) NPs were synthesized by Venkatesan Alagesan and Sujatha Venugopal with the aid of aqueous leaves extract of Withania somnifera (Alagesan and Venugopal, 2019) The UVāvis spectrum of Se NPs at different time intervals (0, 12, and 24Ā h) is given in Figure 3C. The synthesized Se NPs were tested for the antioxidant activity, antibacterial activity against pathogenic bacterial strains, Bacillus subtilis, Escherichia coli, Klebsiella pneumoniae, and Staphylococcus aureus, antiproliferative activity, and photocatalytic activity on MB under sunlight. The results suggested that these NPs effectively degraded MB under sunlight irradiation.
Silver oxide (Ag2O) NPs were synthesized using Artocarpus heterophyllus rind extract, and their antifungal activity was evaluated. Their UVāvis absorption spectra are presented in Figure 3D ().
Jyoti et al. synthesized Ag NPs through 10ā3Ā M of 95% silver nitrate (AgNO3) and 5% leaves extract of Zanthoxylum armatum at 40°C. They initially monitored the formation of NPs by visual color change from brownish to colorless, which was confirmed by UVāvis spectroscopy. Finally, the formation of NPs was asserted by XRD, TEM, SAED, and SEMāEDX (energy-dispersive X-ray spectroscopy). Sizes of the NPs were found to be from 10 to 50Ā nm. The NPs had a potential photocatalytic activity against organic pollutant dyes ().
ZnO NPs were synthesized by the solution combustion method with the aid of Abutilon indicum (AI), Melia azedarach (MA), and Indigofera tinctoria (IT) leaves extracts with their different concentrations. The average crystallite sizes of the samples were found to be 7, 11, and 12 nm (with different volumes of AI), 7, 9, and 18 nm (with different volumes of MA), and 8, 11, and 12 nm (with different volumes of IT). The samples were characterized by XRD, SEM, TEM, X-ray photoelectron spectroscopy, thermogravimetric analysis, and BrunauerāEmmettāTeller (BET). They were found to exhibit anticancer activity against DU-145 and Calu-6 cancer cell lines (Prashanth et al., 2018).
Lemon juice was employed as a reductant in synthesizing ZnO NPs (; Prashanth et al., 2019; Prashanth et al., 2020). The samples were characterized by XRD, SEM with EDS (energy-dispersive spectroscopy) and elemental mapping, TEM, and BET. The samples were tested against DU-145, Calu-6, PC-3, HCT116, A549, MDA-MB-231, and MCF-7 cell lines. The green synthesized ZnO NPs were found to possess antitubercular activity against Mycobacterium tuberculosis H37 Ra. They were also found to possess antibacterial activity against different organisms.
ZnO NPs were synthesized from the aqueous fruit extracts of Punica granatum and Tamarindus indica (Prashanth et al., 2015b). The samples were found to have crystallite sizes ranging from 4-20 nm. They were tested against bacterial strains and MCF-7 cell line.
Synthesis of cobalt (Co)-doped copper oxide (CuO) NPs was carried out using lemon juice as a reductant, and the samples were characterized by XRD and SEM with EDS and elemental mapping. They were tested against Mycobacterium tuberculosis, H37Rv, Mycobacterium abscessus, Mycobacterium fortuitum, Mycobacterium chelonae, and anticancer activity on MDA-MB-231 (Sathyananda et al., 2021b).
ZnO NPs were synthesized from Syzgium cumini (S. cumini). FTIR spectroscopy analysis ascertained the existence of flavonoids, phenolic acids, enzymes, and steroids in leaves extract of S. cumini which aided in reducing zinc salt into zinc ions and acted as capping agents during the synthesis of NPs. The NPs were tested for seed germination and used as a catalyst for the degradation of RhB (Rafique et al., 2022).
Prashanth et al. reported the synthesis of Ag/CuO nanocomposites by solution combustion method using lemon juice as a reductant (Prashanth et al., 2022b). The samples were subjected to investigation for their antimycobacterial activity on Mycobacterium tuberculosis H37Rv, Mycobacterium abscessus, Mycobacterium fortuitum, Mycobacterium chelonae, anticarcinogenic activity on breast cancer cell line MDA-MB-231, and scavenging activity by the 2, 2-diphenyl-1-picrylhydrazyl hydrate (DPPH) method (Prashanth et al., 2022b).

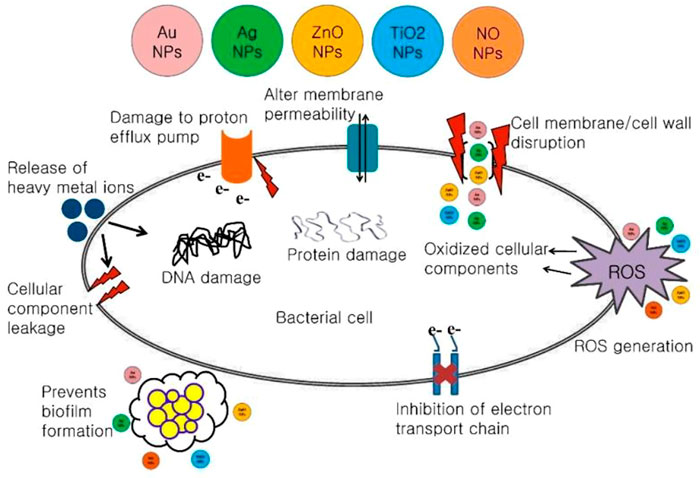

Several mechanisms have been proposed to explain the antimicrobial mechanism of different metal NPs: inhibition of cell wall/membrane synthesis, disruption of energy transduction, production of toxic reactive oxygen species (ROS), photocatalysis, enzyme inhibition, and reduced DNA production (Weir et al., 2008; Shaikh et al., 2019). The probable antimicrobial mechanism of different metal NPs as explained by Shaikh et al. is shown in Figure 4 (Shaikh et al., 2019).
FIGURE 4

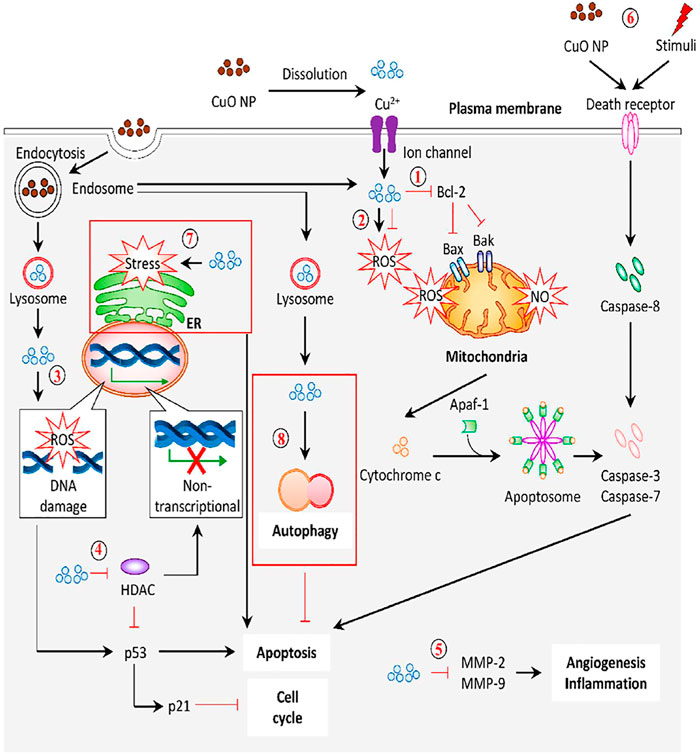

The anticancer potential of these NPs was attributed to the production of ROS in cellular compartments that eventually leads to the activation of autophagic, apoptotic, and necrotic death pathways (). The plausible anticancer mechanism of CuO NPs proposed by Letchumanan et al. is presented in Figure 5 ().
FIGURE 5
In summary, during the last decade, many efforts have been made in developing variety of metal NPs by green routes, making use of plant materials as reducing/stabilizing agents. Leaves, root, bark, stem, and fruits of various plants have been employed to develop different metal NPs, which possess multiple applications. The distinctive features of NPs synthesized using plant extracts enhance their applications in many fields. Efforts need to be intensified in manipulating the morphological characteristics of NPs by means of various parameters such as the nature of the plant materials, reaction time, reactant concentrations, pH, and temperature. Such parameters are very important to understand their crucial roles and effects during the synthesis of NPs.
Characterization
Any scientific research work depends on the characterization of the samples. The formation of NPs, their size, morphology, and surface area are determined from the instrumental characterization. NPs are characterized by different techniques like FTIR, UVāvis spectroscopy, SEM, TEM, energy-dispersive X-ray (EDX), and XRD. The UVāvis spectra confirms the formation of NPs by comparison peaks of metal salt and leaves extract. The XRD analysis is of elucidating the crystal parameter, structure, and size. The SEM analysis is for measuring the surface morphology of the NPs and size. The TEM determines the exact size of the synthesized NPs. The EDX defines the percentage of elements present in the NPs. UVāvis spectroscopy, FTIR spectroscopy, TEM, and SEM are among the few that are the commonly used techniques for NPs characterization ().
XRD Analysis

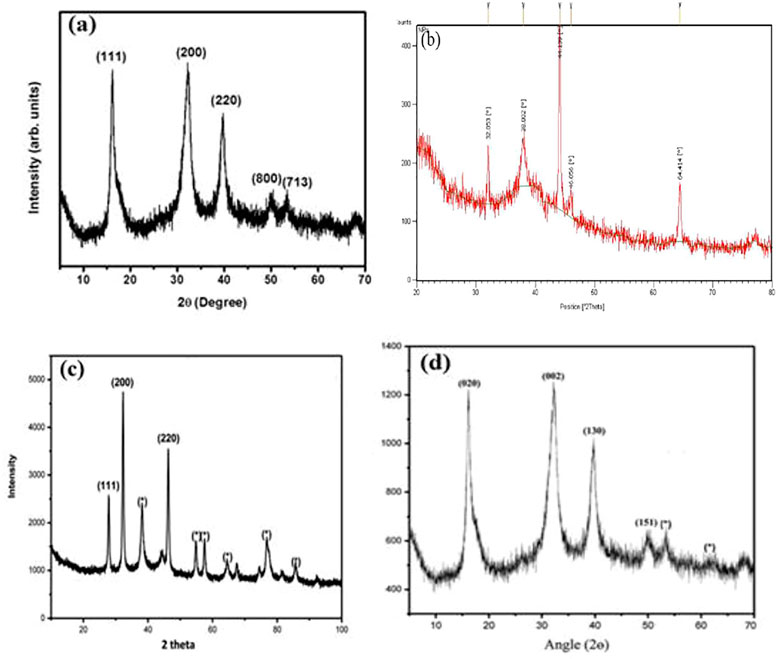

Ghosh et al. characterized the JC-Cu NPs by XRD as shown in Figure 6A (). They calculated the nano-size from XRD, and it was found to be 12 ± 1Ā nm. Figures 6BāD describe the XRD analysis of Ag NP synthesized using Cydonia oblong seed extract (CO-Ag NPs) (Zia et al., 2016), Ageratum conyzoides leaf extract (AC-Ag NPs) () and Ageratum houstonianum leaf extract (AH-Cu NPs) () respectively. The crystallite sizes of CO-Ag NPs and AC-Ag NPs were 38 and 35Ā nm, respectively.
FIGURE 6
FT-IR

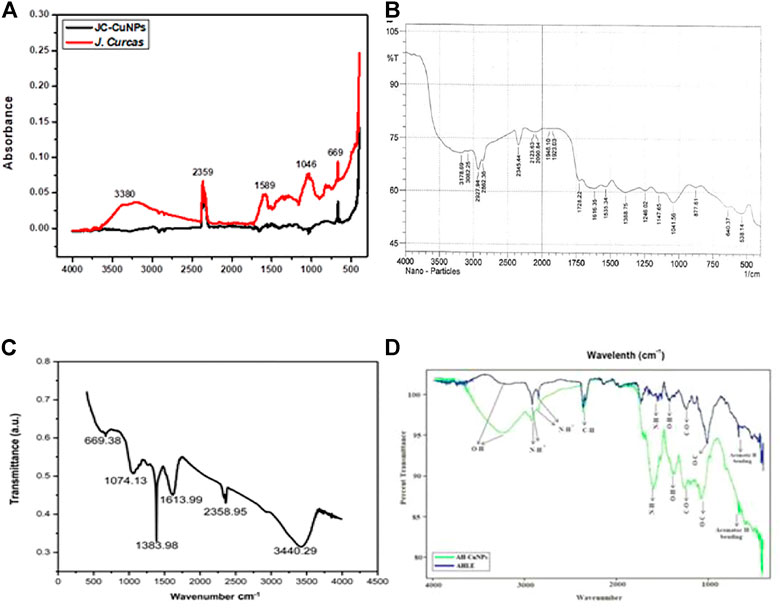

The absorption bands for JC-Cu NPs at 418, 669, 1046, 1589, 2359, and 3380Ā cmā1 were due to C-Cl, C-O, C=N, C-H, and O-H functional groups, as depicted in Figure 7A (). The functional groups in JC might be accountable for the bio-reduction of Cu+ to JC-Cu NPs (). The peak for the NH stretching was observed at 3178.60Ā cmā1. The peaks at 3082.25 and 2862.36Ā cmā1 were associated with the symmetric CH2 stretching (Zia et al., 2016). The peak at 2927.94Ā cmā1 was associated with the CH2 asymmetric stretching. The peak at 2123.63Ā cmā1 indicated the C:C stretching and that at 1948.10Ā cmā1 was associated with allenes (C:C:C). The peak for the carbonyl group was obtained at 1728.22Ā cmā1. The carbonyl groups proved the presence of flavanones or terpenoids that are adsorbed on the surface of the metal nano-sized particles by interaction through p-electrons in the carbonyl groups in the absence of a sufficient concentration of chelating agents [Figure 7B (Zia et al., 2016)].
FIGURE 7
The IR-spectrum at 1074.83, 1383.98, 1613.99, 2358.95, and 3440.29 cmā1 were identified as C-OH, alcohol/ethers/esters/carboxylic acids/amino acids, C=O, C-H, N-H stretching respectively, as shown in Figure 7C ().
The IR-spectra at 3236.34, 2918.71, 2359.93, 1595.13, 1377.76, 1260.17, 1074.64, and 667.81 cmā1 were identified as the OāH stretch, N+-H, C-H, N-H, O-H, C-O, O-C, and aromatic H respectively [Figure 7D ()].
SEM

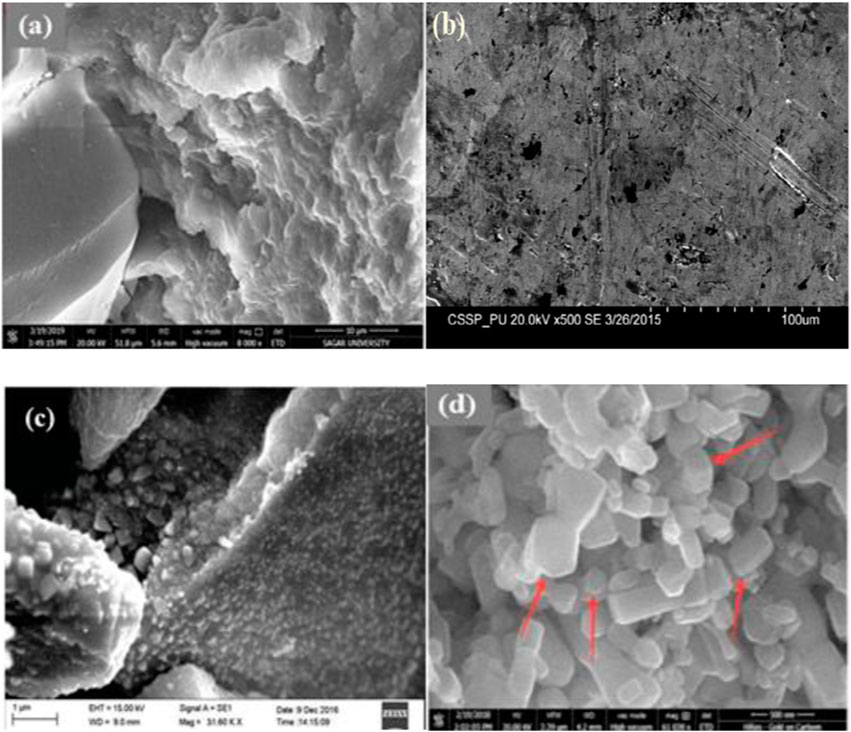

The morphology and shape of NPs are described by the SEM images. Few SEM images of NPs obtained from plant extracts are presented in Figures 8AāD. SEM images showed that Cydonia oblong (CO)-Ag NPs have been formed and Ag+ ions have been completely consumed, as presented in Figure 8B (). The shapes of AH-Cu NPs were hexagonal, rectangular, and cubic (Figure 8D) ().
FIGURE 8
Photocatalytic Activity
Optical Band Gap
The optical band gap of NPs is a critical factor in photocatalytic activity. The optical band gap may predict the photocatalytic activity of the NPs. When the band gap value is less than 5 eV, it favors the photocatalytic activity of the NPs. The optical band gap is calculated from the UVāvis spectrum of the NPs. It is calculated by using Taucās formula, as shown in Eq. 1 ():where α is the absorption coefficient, h is Plankās constant, Ļ is the frequency, A is a constant, Eg is the band gap, and n signifies the exponent value.

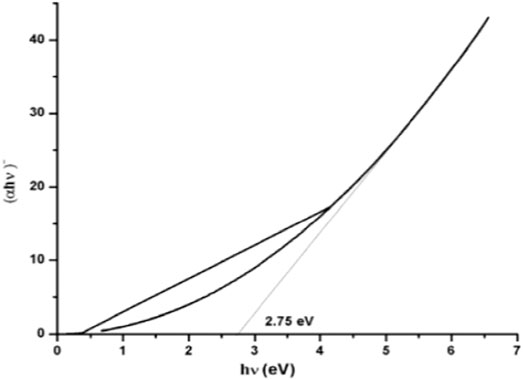

Ghosh et al. reported that the optical band of JC-CuNPs was 3.6 eV and it was very active in photocatalysis (). Chandraker et al. reported a band gap value of 3.33 eV for Ag NPs synthesized from plant extract (). From the plot (Figure 9), the band gap energy of Se NPs was found to be 2.75Ā eV (Alagesan and Venugopal, 2019).
FIGURE 9
Method of Photocatalytic Reaction by NPs
Photocatalytic tests are carried out by employing NPs, an aqueous solution of organic dye, and in the presence of sunlight. The reactions are carried out by the addition of NPs as a photocatalyst (0.05Ā g) into each batch of 30Ā mL aqueous solution of the organic dyes, and then the reaction mixtures are exposed to sunlight. The reaction mixtures are monitored by UVāvis spectroscopy at a constant time interval ().
Kinetics of the Reaction
Pseudo-first-order, pseudo-second-order, and LangmuirāHinshelwood kinetic expressions are widely used to describe the kinetics study of the photocatalytic oxidation of organic compounds. The reaction of kinetics can be evaluated by Eq. 2 ():where k is the rate constant of pseudo-first-order, [A0] is the initial concentration of organic dyes at time t = 0, and [A] is the concentration of organic dyes at time t. The rate constant of the reaction is determined by plotting ln [A]/[A0] vs. t and slope with rate constant (k).
Efficiency of Degradation of Dyes by NPs
According to Beerās law, the concentration of the organic dye is linearly proportional to the intensity of the dyeās absorption peak and the effectiveness of NPs for organic dye degradation, which may be computed as follows (Eq. 3) ():where At is the absorbance at t time and A0 is the initial absorbance at zero time.

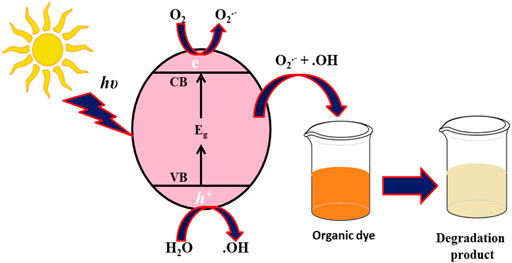

The Possible Mechanism
The first step involves the adsorption of the dye onto the surface of NPs and the generation of electron hole (eā/h+) in the presence of sunlight (Eq. 4). The electron (eā) in conductance band (CB) reacts with oxygen and superoxide anionic radical (O2ā) (Eq. 5). The hole (h+) in the valence band (VB) reacts with water molecules and forms a hydrogen ion (H+) and hydroxyl anion (OHā) (Eq. 6). At the same time, another hole (h+) reacts with water molecules and produces hydroxyl radicals (OH) (Eq. 7). Concurrently, dye is activated by the absorption of sunlight and produces dye* (Eq. 8) while instantaneously discharging electrons to form dye+ (Eq. 9). The dye+ reacts with highly unstable species, hydroxyl radicals (OH.) and superoxide anionic radical (O2ā), and produces the degradation products in the form of CO2 and H2O (Eqs 10, 11) (; ; ). The possible mechanism is shown in Figure 10:
FIGURE 10
Some Case Studies of Photocatalytic Activity of Green Synthesized NPs
Cu NPs were synthesized by the green method. The optical band gap (4.5 eV) favored the photocatalytic activity. CR was degraded by AH-CuNPs, and the rate of reaction was 3.1 Ć 10ā4 sā1 ().
CuO NPs were synthesized by using plant extract of Ruellia tuberosa and Abutilon indicum. CuO NPs exhibited photocatalytic activity against Crystal Violet (CV) and Acid Black 210 (; Vasantharaj et al., 2019a).
Biogenic synthesis of CuO NPs using Psidium guajava leaf extract as a reducing agent has been reported (Singh et al., 2019b). The CuO NPs exhibited excellent degradation efficiency for the industrial dyes, i.e., Nile blue (NB) (93% removal in 120Ā min) and reactive yellow 160 (RY160) (81% removal in 120Ā min) with apparent rate constants of 0.023 and 0.014 minā1, respectively. The CuO catalyst was found to be reusable for photocatalytic dye degradation even after five consecutive cycles.
Biocompatible CuO NPs were produced with the aid of Rubia cordifolia bark extract (Vinothkanna et al., 2022). The photocatalytic activity of the CuO NPs demonstrated the MB (81.84%) and CV (64.0%) dye degradation potentials, indicating the environmental bioremediation efficacy (Vinothkanna et al., 2022).
Phytocombustion method was used to produce CuO NPs, making use of Pouteria campechiana leaves extract (). The NPs degraded MB and MO with magnificent degradation more than 84% and its reusability over five cycles owing to its stability ().
CuO and Ag/CuO NPs were synthesized using Cyperus pangorei extract by co-precipitation method. The plant extract acted as a reducing and stabilizing agent. The photocatalytic activity of CuO and Ag/CuO NPs was analyzed against RhB under visible light irradiation. The presence of metallic silver on the surface of CuO increased the electronāhole pair life and improved the effective catalytic activity ().
Suresh ChandMali reported the photocatalytic degradation of MB by Cu NPs synthesized by the green approach using Celastruspaniculatus willd leaf extract. The experiment used a 10Ā mgĀ Lā1 concentration of MB mixed with 10Ā mg dosages of photocatalyst. Almost complete degradation of MB was seen for 120Ā min. In the presence of Cu NPs, the photodegradation was significantly enhanced at basic pH (pH = 9) ().
MnO2, CuO, and Ag NPs were synthesized by Kalopanax pictus leaf extract. In this study, manganese dioxide (MnO2) NPs had potential photocatalytic activity against CR than the other two NPs ().
SA-Ag NPs were synthesized by using AgNO3 and plant extract of Sonchus arvensis (SA). SA-Ag NPs had effective photocatalytic activity against MB due to a lower band gap (3.2eV) (; Chandraker et al., 2019).
BP-Ag NPs were formed by using AgNO3 and leaf extract of Bryophyllum pinnatum (BP). Spherical shaped BP-Ag NPs degraded MB and RhB in the presence of sunlight ().
Ag NPs were prepared by using a green route with extracts of onion, tomato acacia catechu, and their mixed extracts by Kishore Chand et al. (). These Ag NPs were tested for the degradation of MO, MR, and CR room temperature. In the presence of Ag NPs prepared with onion and acacia catechu, MO and MR dyes were completely degraded within a very short reactive time of 20Ā min, whereas in the case of CR dye, it was 15Ā min. Ag NPs synthesized with the mixture had increased effect on the degradation of all dyes as compared to Ag NPs synthesized alone in any one extract.
Green synthesis of Ag NPs using the leaf extract of Kalanchoe Daigremontiana was carried out, and the photocatalytic activity of the Ag NPs was evaluated through the degradation of MB, where the degradation time as low as 1Ā min was reported ().
Shaikh et al. have reported the biosynthesis of Ag NPs using Shorea robusta leaf extract (Shaikh et al., 2020). The photocatalytic degradation process by the bio-synthesized Ag NPs exhibited a significant degradation potential for RhB (maximum degradation efficiency up to 90.41%) (Shaikh et al., 2020).
Green synthesis of Ag NPs from procera plant latex has been reported (). The Ag NPs were applied as photocatalysts for the degradation of MO dye and also as anti-biofilm agents. The photocatalytic degradation efficiency was determined to be 0.0076.
Leaves of Cordia dichotoma were employed in the biosynthesis of Ag NPs (). The degradation process of MO was completed at 70āh and was recognized by the change of reaction mixture color to colorless.
Rama Sharma et al. reported the synthesis of Ag NPs using Terminalia bellirica fruit extract (Sharma, 2021). The photocatalytic degradation of MB by these biosynthesized Ag NPs was evaluated by UVāvis spectroscopy.
Biosynthesis of Ag NPs using Berberis vulgaris extract was reported (). The results showed the average crystallite size of 45ā60Ā nm and spherical morphology with only a few agglomerated particles. These NPs exhibited high photocatalytic degradation (97.82%) in short time on MO.
Panneerselvi et al. reported Mangifera indica resin-assisted synthesis of Ag NPs (). The biosynthesized Ag NPs effectively degraded MB.
Green synthesis of Ag NPs was achieved using the Catharanthus roseus flower extract as the reducing agent (). These NPs had excellent photocatalytic activity in the reduction of methyl orange.
Synthesis of Ag NPs using Sambucus ebulus phenolic extract has been reported (). The biogenic Ag NPs were used as a nanocatalyst, which showed a high catalytic activity for the degradation of MO under sunlight irradiation.
Phytosynthesis of silver/silver chloride particles (Ag/AgCl) NPs was carried out using Cissus quadrangularis stem extract under microwave irradiation (Priyadarshini et al., 2021). Ag/AgCl NPs demonstrated a high photocatalytic activity toward the degradation of environmental pollutant MB under visible light illumination.
Ag/AgCl nanocomposites were obtained from the Azadirachta indica plant fruit extract (). The sample exhibited an excellent dye decomposition efficiency of 92.5% on MB in 80Ā min, which was better than the performance of Ag NPs and AgCl NPs.
Cadmium sulfide (CdS)-NPs were synthesized by Dicliptera Roxburghiana plant extract. It degraded MB in the presence of sunlight, and the efficiency of degradation was 87.12% (Ullah et al., 2021).
Copperācobaltānickel (CuāCoāNi) NPs were synthesized by Origanum vulgare leaves extract. The NPs had a photocatalytic activity against MB, and the order of reaction was pseudo-first-order ().
Cobalt (Co) NPs were synthesized by Taraxacum officinale. Co NPs degraded the MO dye within 60Ā min in the presence of sunlight (Rasheed et al., 2019a).
α-ferric oxide (α-Fe2O3) NPs were synthesized by using ferric chloride and leaf extract of Carica papaya. Remazol yellow RR dye was degraded to 76.6% extent by α-Fe2O3 NPs in the presence of light (Bhuiyan et al., 2020).
Iron oxide NPs (IO NPs) were synthesized by Teucrium polium leaf extract. IO NPs had a photocatalytic activity against MO. The degradation efficiency was 73.6% within 6Ā hours ().
Ferric oxide (FO) NPs were synthesized by Peltophorum pterocarpum leaf extract. MB was degraded by FO NPs in the presence of sunlight ().
FO NPs were formed with the aid of the leaf extract of Ruellia tuberosa. CV was degraded to 80% by FO NPs in the presence of sunlight (Vasantharaj et al., 2019b).
Iron-polyphenol nanoparticles (Fe-P-NPs) were synthesized by three plant extracts Melaleuca nesophila, Rosemarinus officinalis, and Eucalyptus tereticornis. Fe-P-NPs degraded 80% (AB 194) (Wang et al., 2014b).
Iron oxide (Fe3O4) NPs developed by different plant extracts (leaves of Mentha pulegium, Artemisia herba-alba, fruit peels of Punica granatum) were proved to possess catalytic activity for the dye degradation of MB and CR stains under environmental conditions. The NPs were proved to be useful in the treatment of wastewater/dye degradation ().
Novel iron oxide NPs were produced, making use of Peltophorum pterocarpum plant extract (Shah et al., 2022). The as-prepared NPs effectively removed the RhB molecules with a high removal rate of 95.1% under UV irradiation.
Palladium (Pd) NPs were formed by the plant extract of Pimpinella tirupatiensis. Pd NPs had a photocatalytic activity against CR ().
ZnO NPs were synthesized by using the plant extract of Plectranthus amboinicus. ZnONPs showed photocatalytic activity against MR ().
Panous extract-mediated ZnO nanoflowers were synthesized and tested for the removal of MB, eosin Y (EY), and MG (). The nanoflowers degraded the 15Ā mgĀ Lā1Ā MB, EY, and MG to >99% within 80, 90, and 110Ā min of contact time, respectively. In addition, the ZnO photocatalyst removed the low concentrated 5Ā mgĀ Lā1 of MB, EY, and MG within 30, 35, and 40Ā min of contact time, respectively ().
Aloe vera gel was used in the solāgel synthesis of tin oxide and zinc oxide (SnO2-ZnO) nanocomposites. They were tested for their photocatalytic activity on MO (Sudhaparimala and Vaishnavi, 2016).
ZnO NPs synthesized using the leaf extract of Cyanometra ramiflora were tested for the photocatalytic degradation of pollutant dye, RhB. A remarkable degradation efficiency of 98% within 200Ā min was achieved under sunlight irradiation, and a degradation constant of 0.017Ā minā1 was obtained (Varadavenkatesan et al., 2019).
ZnO nanoflowers were obtained using Bridelia retusa leaf extract. Within a span of 165Ā min, under solar irradiation, ZnO NPs showed the photocatalytic degradation of RhB dye up to 94.74%. Exhibiting pseudo-first-order kinetics, the process had a degradation constant of 0.0109Ā minā1 (Vinayagam et al., 2021).
Karhik et al. reported the development of Cu-doped ZnO NPs from Synadium grantii plant extract (). The photocatalytic studies of the NPs were studied using MB, Indigo Carmine (IC), and RhB organic pollutants. 3% and 5% Cu-doped samples exhibited a superior photocatalytic activity for MB, IC, and RhB dyes.
Ag/ZnO nanocomposites were prepared using Urtica dioica leaf extract (Sohrabnezhad and Seifi, 2016). Their photocatalytic activity was assessed on MB.
Synthesis of nickel oxide (NiO), CuO, and ZnO was carried out by the solution combustion method, making use of Centella asiatica extract as a fuel/reductant (). ZnO exhibited a greater photocatalytic activity than NiO and CuO on acid red 88 (AR88).
Cauliflower-shaped ZnO NPs were developed using Alchemilla vulgaris (Rajendrachari et al., 2021). The band gap of ZnO NPs was studied by UVāvis spectroscopy via Taucās method, and it was determined to be 3.27Ā eV. The photocatalytic activity of ZnO NPs was executed against RhB under the illumination of an AM 1.5 solar simulator.
ZnO- and manganese (Mn)-doped ZnO NPs using the seed extract of Cassia angustifolia were synthesized (). The effective photocatalytic activity of ZnO NPs and Mn-doped ZnO achieved 84 and 95% decolorations of water pollutant MB dye, respectively, with H2O2 and UV radiation by the changing parameters like dye concentration, amount of catalyst, and pH.
Reduced graphene oxide-zinc oxide (RGO-ZnO) NPs were prepared using basilicum leaves extract (Raouf Malik et al., 2022). In photocatalytic activity, the ZnO NPs and RGO-ZnO NPs were tested as the catalyst and degraded the RhB dye 91.4% and 96.7% under UVāvis light. RGO-ZnO showed better results in photocatalytic activity against the pure ZnO NPs.
Binary metal oxide zinc oxide-cobalt oxide (ZnO-Co3O4) nanocomposites were prepared by the solāgel method using the organic compounds of Abies pindrow plant leaves (Shaheen et al., 2022). The ZnO-Co3O4 catalyst exhibited excellent catalytic potential to degrade MO with 73% and 99% degradation efficiencies under dark and light conditions, respectively, within 15Ā min.
Ag-doped ZnO nanowires were developed using the medicinal plant Pedalium murex (). The NPs exhibited a photocatalytic degradation of about 92.43% of MB dye in 150Ā min under UV irradiation.
Biosynthesis of ZnO NPs making use of Sonneratia alba has been reported (). The as-synthesized ZnO NPs showed excellent photocatalytic activity against Ethidium bromide (EtBr) and Brilliant green (BG) dye. Kinetic studies showed degradation efficiency toward EtBr (97.07%) and BG (95.01%).
SnO2-ZnO heterojunction nanocomposites were prepared using Urtica dioica leaf extract (). The photocatalytic activity of the sample was investigated for the degradation of RhB under UV irradiation. According to the results, the RhB degradation efficiency was obtained to be 91.9% within 55Ā min, which can be compared with 91.7% at 190Ā min and 85% at 140Ā min over SnO2 and ZnO, respectively.
Cu-doped NiO NPs were synthesized by the Okra plant extract. XRD results showed that the size of NPs under optimal conditions (at the temperature of 400°C and % 3 Cu-doped) was 10.66 nm with a face-centered cubic structure (). Photocatalytic activity of these NPs on MB, studied under UV light indicated 78% of degradation throughout 105 min.
The extract of the medicinal plant Tribulus terrestris was employed to synthesize NiO NPs (). The ecotoxicity of CR and components derived from the dye was investigated using the Ecological Structure Activity Relationship (ECOSAR) program ().
Ni/NiO NPs were prepared in an eco-friendly way using the seed extract of Lactuca Serriola (). These NPs exhibited very good photocatalytic activity on CV.
Gold-titanium dioxide (Au-TiO2)-NPs were synthesized by the green method using Avverhoa bilimbi and Pandanus amaryllifolius. MB was degraded 80% by Au-TiO2-NPs, and the reaction followed the second order (Yulizar et al., 2019).
Acorus calamus leaf extract was used to develop TiO2 NPs (). The dye degradation activity of the synthesized NPs suggested that TiO2 NPs were more involved in RhB degradation than conventional hydrogen peroxide, which needs the use of a catalyst. Under visible light irradiation, the increased photocatalytic action of the biosynthesized TiO2 NPs was responsible for the degradation efficiency of 96.59% of the RhB.
Cedrous deodara extract was used to synthesize Cu@TiO2 NPs (Ramzan et al., 2021). Under sunlight irradiation, Cu@TiO2 NPs showed 95% of MB; on the other hand, it showed 73% dye degradation under visible light irradiation. The difference of dye degradation was because of the active participation shown by eā and h+ separations, which resulted in slowing the recombination rate of electron hole pairs as well.
Lemon peel extract was employed to synthesize TiO2 NPs for the first time (Nabi et al., 2022). The Tauc plot prepared from the UVāvis spectrum showed a band gap of 3.08Ā eV. The particles were spherical anatase crystals with the size 80ā140Ā nm. The particles exhibited more than 70% photocatalytic activity on RhB.
Pulicaria undulata extract-mediated eco-friendly synthesis of TiO2 has been reported by Khaleel Al-hamoud et al (). They were tested for the degradation of MB and MO under UVāvis light irradiation. Due to the small size and high dispersion of NPs, almost complete degradation (ā¼95%) was achieved in a short period of time (between 1 and 2Ā h). No significant difference in the photocatalytic activity of the TiO2 NPs was observed even after repeated use (three times) of the photocatalyst.
Magnesium oxide (MgO) NPs were developed using Texas sage plant extract (). A characteristic metal and oxygen binding peak was observed at 296Ā nm in the FTIR spectrum confirmed the Mg-O formation. The 90% of degradation efficiency against MB was observed within 120Ā min of visible light irradiation ().
Cobalt-doped cerium oxide (Co-CeO2) NPs were prepared in a media containing Salvadoral persica extract. The photocatalytic activity of Co-CeO2 NPs was tested on the AO7 dye, and it was observed that the amount of Co. doped CeO2 can be effective on the photocatalyst performance. The best photocatalytic performance was observed and recorded in the case of 7% Co. doped CeO2 NPs ().
CeO2 NPs were prepared using banana peel. SEM results showed that the size of synthesized NPs was in the range of 4ā13Ā nm (). The experiment of photocatalytic activity showed that the synthesized NPs can remove 81.7% of AO7 in 180Ā min under visible light.
Green synthesis of ceria (CeO2) by Phoenix dactylifera (Ajwa dates), Coriandrum sativum (Coriander), Ocimum tenuiflorum (Black tulsi), Camellia sinensis (green tea), and Hibiscus flower has been reported (). The photocatalytic activity of various green synthesized nanoceria for the photodegradation of amido black dye was investigated, and the optimum degradation was obtained for Phoenix dactylifera synthesized nanoceria.
Kannan et al. have reported the synthesis of zinc sulfide (ZnS) NPs using extracts of Acalypha indica and Tridax procumbens (). The samples were found to have excellent photodegradation efficiency for MB dye. From this investigation, 1.0Ā mg of ZnS-40Ā mL NPs exhibited an excellent MB dye degradation efficiency (98%) under 180Ā min of the visible light irradiation.
Au NPs were developed by green synthesis using green tea leaf extract as a reducing and stabilizing agent (Singh et al., 2021). These Au NPs were studied to understand their catalytic role in the photocatalytic degradation of MB under daylight conditions.
Tungsten oxide (WO3) NPs were prepared hydrothermally by basil leaves extract (). WO3 NPs were examined for their photocatalytic activity on MB.
Tin tungstate (SnWO4)/ZnO nanocomposites were prepared using Muntingia calabura leaf extract (). Results of the photocatalytic experiment using MB as a model pollutant showed good results.
Copper iodide (CuI) NPs were synthesized using Hibiscus rosa-sinensis flower extract (). Batch adsorption studies of Reactive Red 256 (RR) and Reactive Black 5 (RBL) were probed in the presence of CuI, and the respective adsorption capacity of RR and RBL were found to be 135.22 and 176.42Ā mg/g.
Biosynthesis of zirconium oxide (ZrO2) NPs was carried out using Wrightia tinctoria leaf extract (). The photocatalytic degradation of organic dye Reactive Yellow (RY 160) under sunlight irradiation using biosynthesized ZrO2-NPs was performed. The biosynthesized ZrO2-NPs exhibited 94% degradation for RY 160 dye for 120Ā min.
Platinum (Pt) NPs were synthesized by using Salix Tetraspeama leaf extract (Ramachandiran et al., 2021). The effective parameters on the Pt catalytic reduction were fully optimized under MB with the higher degradation efficiency being observed at 90%.
NiO nanosticks were synthesized with the aid of graviola leaf extract (Rajan et al., 2017). These nanosticks showed excellent photocatalytic activity on Rose Bengal dye (Rajan et al., 2017).
Cobalt ferrite (CoFe2O4) NPs were prepared using the aqueous solution of torajabin (). The photocatalytic degradation activity of CoFe2O4 NPs was assessed on Acid Orange 7 (AO7) dye under simulated sunlight exposure where a high level of photodegradation was displayed by the NPs.
Ocimum tenuiflorum assisted green synthesis of CuO NPs has been reported (Sharma et al., 2021). Studies on photocatalytic activity indicated that CuO NPs could be employed as a photocatalyst in the degradation process MO. Up to 96.4 ± 0.83% degradation of MO was obtained in just 24 min.
The above examples very clearly indicate that various metals, metal oxide NPs, and composites could be obtained from green synthetic approaches that can be used for wastewater treatment. Distinctive methods are available to remove the organic dye contaminants from wastewater, including filtration, ion exchange, coagulation, aerobic/anaerobic decomposition, ozone treatment, and photocatalytic processes. Among these methods, nanoparticle photocatalysts show great potential as an alternative to physical, chemical, and biological methods. In addition, nanocatalysts are inexpensive, chemically stable, environmentally friendly, and rapidly oxidizable.
Photocatalytic Degradation of Pesticides and Oil by NPs Developed by Green Approaches
Heavy metals, fertilizers, and pesticides used in agriculture have lowered the availability of clear water for drinking and crop irrigation. Nanotechnology can play an essential role in ensuring the quality and purity of a long-term productivity system. Pesticide levels in water have risen as a result of their widespread use in contemporary agriculture. Pesticides have been shown in several studies to be hazardous to individuals and the environment. The type of pesticide and the performance of the treatment process influence which water treatment method is best for pesticide removal (Rasheed et al., 2019b).
One of the issues in water resource management is oil-contaminated water. To comply with the environmental authoritiesā discharge requirements, it is critical to remove oil droplets from water. Apart from removing dyes from contaminated water, green synthesized NPs can be employed to remove pesticides and oils and they were found to be very effective.
Synthesis of flower-shaped CuO and NiO was carried out, making use of Capparis decidua leaf extract. These NPs were employed for the photocatalytic degradation of Lambda-cyhalothrin (L-CHT) ().
Aegle marmelos leaf extract was used to develop NiO NPs by the green approach. They were evaluated for their in vitro cytotoxicity against A549 cancer cell line. They were also proved to be an efficient photocatalyst for the degradation of 4-chlorophenol ().
Josiane Peternela et al. reported the impregnation of CuO NPs on activated carbon, making use of Pomegranate leaf extract. Atrazine pesticide, diclofenac, caffeine, and nitrate were used as pollutants to test the adsorption capacity of the impregnated carbons (Peternela et al., 2017).
Pijushkanti Purkait et al. reported the synthesis of ZnO NPs using Trema orientalis leaf extract. They reported that the rate of photocatalytic degradation of zoxamide increased with the increasing concentration of ZnO from 10Ā mg/L to 50Ā mg/L (Purkait et al., 2020).
Synthesis of NiO NPs using Solanum trilobatum extract has been reported. They were examined for the photocatalytic degradation of 4-chlorophenol ().
Papaya peel extract-mediated green synthesis of CuO NPs has been reported (Phang et al., 2021). The sample was found to be crystalline with a band gap energy of 3.3Ā eV. The photocatalytic activity of the sample was assessed by the photodegradation of Palm oil mill effluent (POME). The results revealed that CuO NPs had a significant photocatalytic performance in degrading POME with reduced phytotoxicity and can thus be used as a promising photocatalyst in POME wastewater treatment (Phang et al., 2021).
Bimetallic metal oxides namely nickel-copper oxide (NiCuO), copper-chromium oxide (CuCr2O4), and nickel-chromium oxide NPs were developed by the green approach with the aid of Aegle marmelos leaf extract. These NPs were evaluated for the removal of various harmful phenols (phenol, 2, 4-dinitrophenol, and 3-aminophenol) from simulated water (Rani and Shanker, 2018).
Graphene oxideāAg nanoparticle composites were developed with the aid of Cucurbita maxima leaves extract. Photocatalytic degradation of Chlorpyrifos [O, O-diethy O-(3,5,6 trcholr-2-pyridyl) phosphorothioate)] was carried out with the produced graphene oxideāAg NPs. ().

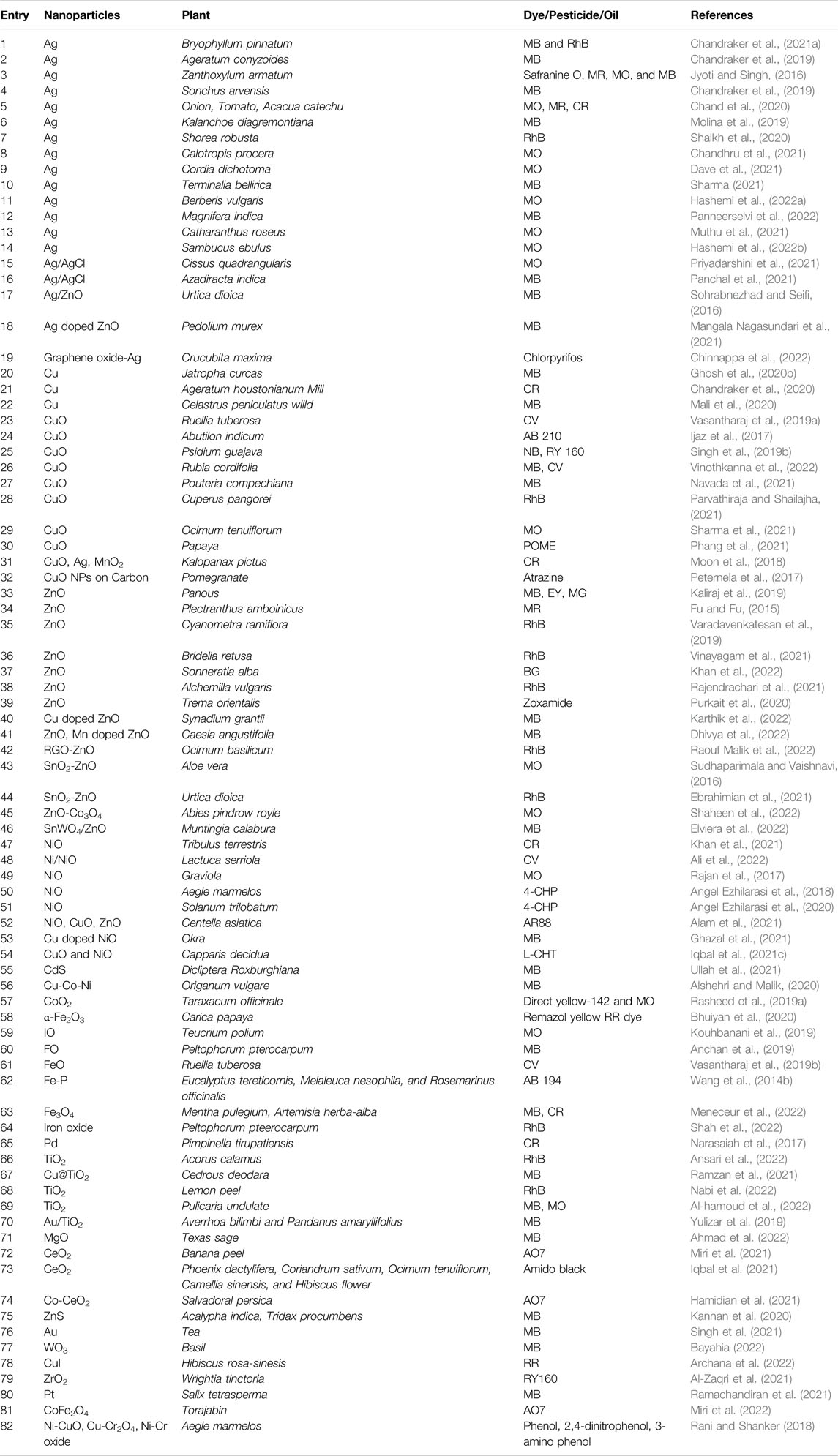

The photocatalytic activity of various green synthesized NPs against different dyes, pesticides, and oils is presented in Table 2.
TABLE 2
| Entry | Nanoparticles | Plant | Dye/Pesticide/Oil | References |
|---|---|---|---|---|
| 1 | Ag | Bryophyllum pinnatum | MB and RhB | |
| 2 | Ag | Ageratum conyzoides | MB | |
| 3 | Ag | Zanthoxylum armatum | Safranine O, MR, MO, and MB | |
| 4 | Ag | Sonchus arvensis | MB | |
| 5 | Ag | Onion, Tomato, Acacua catechu | MO, MR, CR | |
| 6 | Ag | Kalanchoe diagremontiana | MB | |
| 7 | Ag | Shorea robusta | RhB | Shaikh et al., (2020) |
| 8 | Ag | Calotropis procera | MO | |
| 9 | Ag | Cordia dichotoma | MO | |
| 10 | Ag | Terminalia bellirica | MB | Sharma (2021) |
| 11 | Ag | Berberis vulgaris | MO | |
| 12 | Ag | Magnifera indica | MB | |
| 13 | Ag | Catharanthus roseus | MO | |
| 14 | Ag | Sambucus ebulus | MO | |
| 15 | Ag/AgCl | Cissus quadrangularis | MO | Priyadarshini et al., (2021) |
| 16 | Ag/AgCl | Azadiracta indica | MB | |
| 17 | Ag/ZnO | Urtica dioica | MB | Sohrabnezhad and Seifi, (2016) |
| 18 | Ag doped ZnO | Pedolium murex | MB | |
| 19 | Graphene oxide-Ag | Crucubita maxima | Chlorpyrifos | |
| 20 | Cu | Jatropha curcas | MB | |
| 21 | Cu | Ageratum houstonianum Mill | CR | |
| 22 | Cu | Celastrus peniculatus willd | MB | |
| 23 | CuO | Ruellia tuberosa | CV | Vasantharaj et al., (2019a) |
| 24 | CuO | Abutilon indicum | AB 210 | |
| 25 | CuO | Psidium guajava | NB, RY 160 | Singh et al., (2019b) |
| 26 | CuO | Rubia cordifolia | MB, CV | Vinothkanna et al., (2022) |
| 27 | CuO | Pouteria compechiana | MB | |
| 28 | CuO | Cuperus pangorei | RhB | |
| 29 | CuO | Ocimum tenuiflorum | MO | Sharma et al., (2021) |
| 30 | CuO | Papaya | POME | Phang et al., (2021) |
| 31 | CuO, Ag, MnO2 | Kalopanax pictus | CR | |
| 32 | CuO NPs on Carbon | Pomegranate | Atrazine | Peternela et al., (2017) |
| 33 | ZnO | Panous | MB, EY, MG | |
| 34 | ZnO | Plectranthus amboinicus | MR | |
| 35 | ZnO | Cyanometra ramiflora | RhB | Varadavenkatesan et al., (2019) |
| 36 | ZnO | Bridelia retusa | RhB | Vinayagam et al., (2021) |
| 37 | ZnO | Sonneratia alba | BG | |
| 38 | ZnO | Alchemilla vulgaris | RhB | Rajendrachari et al., (2021) |
| 39 | ZnO | Trema orientalis | Zoxamide | Purkait et al., (2020) |
| 40 | Cu doped ZnO | Synadium grantii | MB | |
| 41 | ZnO, Mn doped ZnO | Caesia angustifolia | MB | |
| 42 | RGO-ZnO | Ocimum basilicum | RhB | Raouf Malik et al., (2022) |
| 43 | SnO2-ZnO | Aloe vera | MO | Sudhaparimala and Vaishnavi, (2016) |
| 44 | SnO2-ZnO | Urtica dioica | RhB | |
| 45 | ZnO-Co3O4 | Abies pindrow royle | MO | Shaheen et al., (2022) |
| 46 | SnWO4/ZnO | Muntingia calabura | MB | |
| 47 | NiO | Tribulus terrestris | CR | |
| 48 | Ni/NiO | Lactuca serriola | CV | |
| 49 | NiO | Graviola | MO | Rajan et al., (2017) |
| 50 | NiO | Aegle marmelos | 4-CHP | |
| 51 | NiO | Solanum trilobatum | 4-CHP | |
| 52 | NiO, CuO, ZnO | Centella asiatica | AR88 | |
| 53 | Cu doped NiO | Okra | MB | |
| 54 | CuO and NiO | Capparis decidua | L-CHT | |
| 55 | CdS | Dicliptera Roxburghiana | MB | Ullah et al., (2021) |
| 56 | Cu-Co-Ni | Origanum vulgare | MB | |
| 57 | CoO2 | Taraxacum officinale | Direct yellow-142 and MO | Rasheed et al., (2019a) |
| 58 | α-Fe2O3 | Carica papaya | Remazol yellow RR dye | Bhuiyan et al., (2020) |
| 59 | IO | Teucrium polium | MO | |
| 60 | FO | Peltophorum pterocarpum | MB | |
| 61 | FeO | Ruellia tuberosa | CV | Vasantharaj et al., (2019b) |
| 62 | Fe-P | Eucalyptus tereticornis, Melaleuca nesophila, and Rosemarinus officinalis | AB 194 | Wang et al., (2014b) |
| 63 | Fe3O4 | Mentha pulegium, Artemisia herba-alba | MB, CR | |
| 64 | Iron oxide | Peltophorum pteerocarpum | RhB | Shah et al., (2022) |
| 65 | Pd | Pimpinella tirupatiensis | CR | |
| 66 | TiO2 | Acorus calamus | RhB | |
| 67 | Cu@TiO2 | Cedrous deodara | MB | Ramzan et al., (2021) |
| 68 | TiO2 | Lemon peel | RhB | Nabi et al. (2022) |
| 69 | TiO2 | Pulicaria undulate | MB, MO | |
| 70 | Au/TiO2 | Averrhoa bilimbi and Pandanus amaryllifolius | MB | Yulizar et al. (2019) |
| 71 | MgO | Texas sage | MB | |
| 72 | CeO2 | Banana peel | AO7 | |
| 73 | CeO2 | Phoenix dactylifera, Coriandrum sativum, Ocimum tenuiflorum, Camellia sinensis, and Hibiscus flower | Amido black | |
| 74 | Co-CeO2 | Salvadoral persica | AO7 | |
| 75 | ZnS | Acalypha indica, Tridax procumbens | MB | |
| 76 | Au | Tea | MB | Singh et al. (2021) |
| 77 | WO3 | Basil | MB | |
| 78 | CuI | Hibiscus rosa-sinesis | RR | |
| 79 | ZrO2 | Wrightia tinctoria | RY160 | |
| 80 | Pt | Salix tetrasperma | MB | Ramachandiran et al. (2021) |
| 81 | CoFe2O4 | Torajabin | AO7 | |
| 82 | Ni-CuO, Cu-Cr2O4, Ni-Cr oxide | Aegle marmelos | Phenol, 2,4-dinitrophenol, 3-amino phenol | Rani and Shanker (2018) |
Photocatalytic activity by green synthesized NPs.
Conclusion and Future Plan
Green synthesis technology is a clean, non-toxic, and environmentally friendly technology for synthesizing metal NPs and is of great interest due to its commercial perspective and feasibility. In this review, we document the production of different metal NPs from various plant extracts and their characterization by UVāvis spectroscopy, XRD, FT-IR, SEM, and TEM. When the optical band value is less than 5 eV, it favors the photocatalytic activity. The NPs from plant extracts had a very effective degradation activity on pollutant organic dyes and purification process on the contaminated water. Recent advances in research in metallic NPs suggest that the integration of metallic NPs and semiconductors is a promising strategy in the development of efficient visible light-responsive materials. Research on the challenges that arise in this area will lead to rapid progress in this area. It is reasonable to assume that such efforts will enable obvious breakthroughs in the development of metallic NPs and make them an important strategy in visible light photocatalysts. To date, the photocatalytic efficiency of the green synthetic photocatalysts available is noteworthy. However, their stability, and ease of use are still inadequate. To achieve the photocatalytic sustainability of these photocatalysts, scavengers must be added continuously to improve the photocatalytic efficiency. The lack of industrial application of green synthetic photocatalysts is mainly due to the reasons such as low yields of NPs, workshop setups on a scientifically relevant scale, and low recycling capacity of green synthetic photocatalysts. Thus, protocols need to be modified further for making these methods cost-effective and comparable with traditional methods for the large-scale production of efficient NPs. Improvement of reliable and eco-friendly processes for the synthesis of metallic NPs is a significant step in the field of applied nanotechnology. We believe this review will help new researchers in this field to understand the development of metal NPs in a cleaner way and their applications.
Statements
Author contributions
PK conceived the concept of review. PK and HN wrote the article. All authors discussed, reviewed, and commented on the article.
Funding
The authors thank the Deanship of Scientific Research, King Khalid University, Saudi Arabia, for funding this work under Grant No. RGP. 2/90/43.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisherās note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
References
1
Abdullahi AriH.AdewoleA. O.UgyaA. Y.AsipitaO. H.MusaM. A.FengW. (2021). Biogenic Fabrication and Enhanced Photocatalytic Degradation of Tetracycline by Bio Structured ZnO Nanoparticles. Environ. Technol.2021, 1ā16. 10.1080/09593330.2021.2001049
2
AfsharianZ.Khosravi-DaranK. (2019). Application of nanoclays in food packagingBiointerface Res. Appl. Chem.10 (1), 4790ā4802. 10.33263/BRIAC101.790802
3
AhmadA.KhanM.KhanS.LuqueR.AlmutairiT. M.KaramiA. M. (2022). Bio-construction of MgO nanoparticles using Texas sage plant extract for catalytical degradation of methylene blue via photocatalysisInt. J. Environ. Sci. Technol.. 10.1007/s13762-022-04090-2
4
AhmadJ.MajidK. (2018). In-situ Synthesis of Visible-Light Responsive Ag2O/graphene Oxide Nanocomposites and Effect of Graphene Oxide Content on its Photocatalytic Activity. Adv. Compos Hybrid. Mater1 (2), 374ā388. 10.1007/s42114-018-0025-6
5
AhmedS. F.MofijurM.RafaN.ChowdhuryA. T.ChowdhuryS.NahrinM.et al (2022). Green Approaches in Synthesising Nanomaterials for Environmental Nanobioremediation: Technological Advancements, Applications, Benefits and Challenges. Environ. Res.204 (Part A), 111967. 10.1016/j.envres.2021.111967
6
Al-hamoudK.ShaikM. R.KhanM.AlkhathlanH. Z.AdilS. F.KuniyilM.et al (2022). Pulicaria Undulata Extract-Mediated Eco-Friendly Preparation of TiO2 Nanoparticles for Photocatalytic Degradation of Methylene Blue and Methyl Orange. ACS Omega7 (6), 4812ā4820. 10.1021/acsomega.1c05090
7
Al-ZaqriN.MuthuvelA.JothibasM.AliA.AlharthiF. A.MohanaV. (2021). Biosynthesis of Zirconium Oxide Nanoparticles Using Wrightia Tinctoria Leaf Extract: Characterization, Photocatalytic Degradation and Antibacterial Activities. Inorg. Chem. Commun.127. 10.1016/j.inoche.2021.108507
8
AlamM. W.AamirM.FarhanM.AlbuhulayqahM.AhmadM. M.RavikumarC. R.et al (2021). Green Synthesis of Ni-Cu-Zn Based Nanosized Metal Oxides for Photocatalytic and Sensor Applications. Crystals11, 1467. 10.3390/cryst11121467
9
AlagesanV.VenugopalS. (2019). Green Synthesis of Selenium Nanoparticle Using Leaves Extract of Withania somnifera and Its Biological Applications and Photocatalytic Activities. BioNanoSci.9, 105ā116. 10.1007/s12668-018-0566-8
10
AliT.Farooq WarsiM.ZulfiqarS.SamiA.UllahS.RasheedA.et al (2022). Green Nickel/nickel Oxide Nanoparticles for Prospective Antibacterial and Environmental Remediation Applications. Ceram. Int.48 (6). 10.1016/j.ceramint.2021.12.039
11
AlshehriA. A.MalikM. A. (2020). Facile One-Pot Biogenic Synthesis of Cu-Co-Ni Trimetallic Nanoparticles for Enhanced Photocatalytic Dye Degradation. Catalysts10 (10), 1138. 10.3390/catal10101138
12
AnchanS.PaiS.SrideviH.VaradavenkatesanT.VinayagamR.SelvarajR. (2019). Biogenic Synthesis of Ferric Oxide Nanoparticles Using the Leaf Extract of Peltophorum pterocarpum and Their Catalytic Dye Degradation Potential. Biocatal. Agric. Biotechnol.20, 101251. 10.1016/j.bcab.2019.101251
13
AndleebA.AndleebA.AsgharS.ZamanG.TariqM.MehmoodA.et al (2021). A Systematic Review of Biosynthesized Metallic Nanoparticles as a Promising Anti-cancer-strategy. Cancers13, 2818. 10.3390/cancers13112818
14
Angel EzhilarasiA.Judith VijayaJ.KaviyarasuK.John KennedyL.Jothi RamalingamR.Al-LohedanH. A. (2018). Green Synthesis of NiO Nanoparticles Using Aegle Marmelos Leaf Extract for the Evaluation of In-Vitro Cytotoxicity, Antibacterial and Photocatalytic Properties. J. Photochem. Photobiol. B Biol.180. 10.1016/j.jphotobiol.2018.01.023
15
Angel EzhilarasiA.Judith VijayaJ.KaviyarasuK.ZhangX.John KennedyL. (2020). Green Synthesis of Nickel Oxide Nanoparticles Using Solanum Trilobatum Extract for Cytotoxicity, Antibacterial and Photocatalytic Studies. Surfaces Interfaces20. 10.1016/j.surfin.2020.100553
16
AnsariA.SiddiquiV. U.RehmanW. U.AkramM. K.SiddiqiW. A.AlosaimiA. M.et al (2022). Green Synthesis of TiO2 Nanoparticles Using Acorus calamus Leaf Extract and Evaluating its Photocatalytic and In Vitro Antimicrobial Activity. Catalysts12, 181. 10.3390/catal12020181
17
Anu Mary EaliaS.SaravanakumarM. P. (2017). A Review on the Classification, Characterisation, Synthesis of Nanoparticles and Their Application. IOP Conf. Ser. Mat. Sci. Eng.263, 032019. 10.1088/1757-899X/263/3/032019
18
ArchanaK. M.RajagopalR.KavithaR.Gayathri KrishnaswamyV. (2022). Green Synthesized CuI as an Adsorbent and a Photocatalyst in the Removal of Aqueous Reactive Red 256 and Reactive Black 5 dyes. Surfaces Interfaces 29, 101724. 10.1016/j.surfin.2022.101724
19
BanfieldJ. F.ZhangH. (2001). Nanoparticles in the Environment. Rev. Mineralogy Geochem.44 (1), 1ā58. 10.2138/rmg.2001.44.01
20
BayahiaH. (2022). Green Synthesis of Activated Carbon Doped Tungsten Trioxide Photocatalysts Using Leaf of Basil (Ocimum Basilicum) for Photocatalytic Degradation of Methylene Blue under Sunlight. J. Saudi Chem. Soc.26 (2). 10.1016/j.jscs.2022.101432
21
BeraA.BelhajH. (2016). Application of Nanotechnology by Means of Nanoparticles and Nanodispersions in Oil Recovery - A Comprehensive Review. J. Nat. Gas Sci. Eng.34, 1284ā1309. 10.1016/j.jngse.2016.08.023
22
BhuiyanM. S. H.MiahM. Y.PaulS. C.AkaT. D.SahaO.RahamanM. M.et al (2020). Green Synthesis of Iron Oxide Nanoparticle Using Carica Papaya Leaf Extract: Application for Photocatalytic Degradation of Remazol Yellow RR Dye and Antibacterial Activity. Heliyon6 (8), e04603. 10.1016/j.heliyon.2020.e04603
23
BindingD.SteinbachF. (1970). Homogeneous Photocatalysis by Organic Dyes in the Liquid Phase. Nature227 (5260), 832ā833. 10.1038/227832a0
24
BiswasP.WuC.-Y. (2005). Nanoparticles and the Environment. J. Air & Waste Manag. Assoc.55 (6), 708ā746. 10.1080/10473289.2005.10464656
25
ChandK.CaoD.Eldin FouadD.Hussain ShahA.Qadeer DayoA.ZhuK.et al (2020). Green Synthesis, Characterization and Photocatalytic Application of Silver Nanoparticles Synthesized by Various Plant Extracts. Arabian J. Chem.13 (11), 8248ā8261. 10.1016/j.arabjc.2020.01.009
26
ChandhruM.LogeshR.Kutti RaniS.AhmedN.VasimalaiN. (2021). Green Synthesis of Silver Nanoparticles from Plant Latex and Their Antibacterial and Photocatalytic Studies. Environ. Technol.2021, 1ā11. 10.1080/09593330.2021.1914181
27
ChandrakerS. K.GhoshM. K.LalM.ShuklaR. (2021). A Review on Plant-Mediated Synthesis of Silver Nanoparticles, Their Characterization and Applications. Nano Ex.2 (2), 022008. 10.1088/2632-959x/ac0355
28
ChandrakerS. K.GhoshM. K.LalM.GhoraiT. K.ShuklaR. (2019). Colorimetric sensing of Fe3+ and Hg2+ and photocatalytic activity of green synthesized silver nanoparticles from the leaf extract of Sonchus arvensis LNew J. Chem.46. 10.1039/C9NJ01338E
29
ChandrakerS. K.LalM.DhruveP.SinghR. P.ShuklaR. (2021). Cytotoxic, Antimitotic, DNA Binding, Photocatalytic, H2O2 Sensing, and Antioxidant Properties of Biofabricated Silver Nanoparticles Using Leaf Extract of Bryophyllum Pinnatum (Lam.) Oken. Front. Mol. Biosci.7, 593040. 10.3389/fmolb.2020.593040
30
ChandrakerS. K.LalM.GhoshM. K.TiwariV.GhoraiT. K.ShuklaR. (2020). Green Synthesis of Copper Nanoparticles Using Leaf Extract of Ageratum houstonianum Mill. And Study of Their Photocatalytic and Antibacterial Activities. Nano Ex.1 (1), 010033. 10.1088/2632-959x/ab8e99
31
ChandrakerS. K.LalM.KumarA.ShuklaR. (2021). Justicia Adhatoda L. Mediated Green Synthesis of Silver Nanoparticles and Assessment of Their Antioxidant, Hydrogen Peroxide Sensing and Optical Properties. Mater. Technol.2021, 1ā11. 10.1080/10667857.2021.1949525
32
ChandrakerS. K.LalM.ShuklaR. (2019). DNA-binding, Antioxidant, H2O2 Sensing and Photocatalytic Properties of Biogenic Silver Nanoparticles Using Ageratum Conyzoides L. Leaf Extract. RSC Adv.9 (40), 23408ā23417. 10.1039/c9ra03590g
33
ChenW.CaiW.ZhangL.WangG.ZhangL. (2001). Sonochemical Processes and Formation of Gold Nanoparticles within Pores of Mesoporous Silica. J. Colloid Interface Sci.238 (2), 291ā295. 10.1006/jcis.2001.7525
34
ChinnappaK.Karuna AnanthaiP.SrinivasanP. P.Dharmaraj GlorybaiC. (2022). Green Synthesis of rGO-AgNP Composite Using Curcubita Maxima Extract for Enhanced Photocatalytic Degradation of the Organophosphate Pesticide Chlorpyrifos. Environ. Sci. Pollut. Res.10.1007/s11356-022-19917-1
35
ChoE. J.HolbackH.LiuK. C.AbouelmagdS. A.ParkJ.YeoY. (2013). Nanoparticle Characterization: State of the Art, Challenges, and Emerging Technologies. Mol. Pharm.10, 2093ā2110. 10.1021/mp300697h
36
ChristopherJ. G.SaswatiB.EzilraniP. (2015). Optimization of Parameters for Biosynthesis of Silver Nanoparticles Using Leaf Extract of Aegle Marmelos. Braz. Arch. Biol. Technol.58 (5), 702ā710. 10.1590/s1516-89132015050106
37
DaneshvarN.SalariD.NiaeiA.RasoulifardM. H.KhataeeA. R. (2005). Immobilization of TiO2 Nanopowder on Glass Beads for the Photocatalytic Decolorization of an Azo Dye C.I. Direct Red 23. J. Environ. Sci. Health, Part A40 (8), 1605ā1617. 10.1081/ese-200060664
38
DaveS.KhanA. M.PurohitS. D.SutharD. L. (2021). Application of Green Synthesized Metal Nanoparticles in the Photocatalytic Degradation of Dyes and its Mathematical Modelling Using the Caputo-Fabrizio Fractional Derivative without the Singular Kernel. J. Math.2021, 1ā8. 10.1155/2021/9948422
39
DhivyaA.YadavR.Stella PackiamC. (2022). An Eco-Approach Synthesis of Undoped and Mn Doped ZnO Nano-Photocatalyst for Prompt Decoloration of Methylene Blue Dye. Mater. Today Proc.48 (2), 494ā501. 10.1016/j.matpr.2021.02.751
40
EbrahimianJ.MohsenniaM.KhayatkashaniM. (2021). Green Synthesis and Characterization of Ud-SnO2-ZnO Using Urtica Dioica Leaf Extract: A Nanocomposite Photocatalyst for Degradation of Rhodamine B Dye. Res. Chem. Intermed.47, 4789ā4802. 10.1007/s11164-021-04546-z
41
EkenniaA. C.UduagwuD. N.NwajiN. N.OlowuO. J.NwanjiO. L.EjimoforM.et al (2022). Green Synthesis of Silver Nanoparticles Using Leaf Extract of Euphorbia Sanguine: an In Vitro Study of its Photocatalytic and Melanogenesis Inhibition Activity. Inorg. Nano-Metal Chem.52 (2), 195ā203. 10.1080/24701556.2021.1891100
42
ElvieraY. Y.ApriandanuD. O. B.Marcony SuryaR. (2022). Fabrication of Novel SnWO4/ZnO Using Muntingia calabura L. Leaf Extract with Enhanced Photocatalytic Methylene Blue Degradation under Visible Light Irradiation. Ceram. Int.48 (3). 10.1016/j.ceramint.2021.10.135
43
FagierM. A. (2021). Plant-Mediated Biosynthesis and Photocatalysis Activities of Zinc Oxide Nanoparticles: A Prospect towards Dyes Mineralization. J. Nanotechnol.2021, 6629180. 10.1155/2021/6629180
44
FuL.FuZ. (2015). Plectranthus Amboinicus Leaf Extract-Assisted Biosynthesis of ZnO Nanoparticles and Their Photocatalytic Activity. Ceram. Int.41 (2), 2492ā2496. 10.1016/j.ceramint.2014.10.069
45
GeethalakshmiR.SaradaD. V. (2012). Gold and Silver Nanoparticles from Trianthema Decandra: Synthesis, Characterization, and Antimicrobial Properties. Int. J. Nanomedicine7, 5375ā5384. 10.2147/ijn.s36516
46
GhazalS.KhandannasabN.HosseiniH. A.SabouriZ.RangraziA.DarroudiM. (2021). Green Synthesis of Copper-Doped Nickel Oxide Nanoparticles Using Okra Plant Extract for the Evaluation of Their Cytotoxicity and Photocatalytic Properties. Ceram. Int.47 (19). 10.1016/j.ceramint.2021.06.135
47
GhoraiT. K.BiswasN. (2013). Photodegradation of Rhodamine 6G in Aqueous Solution via SrCrO4 and TiO2 Nano-Sphere Mixed Oxides. J. Mater. Res. Technol.2 (1), 10ā17. 10.1016/j.jmrt.2013.03.002
48
GhoshM. K.JainK.KhanS.DasK.GhoraiT. K. (2020). New Dual-Functional and Reusable Bimetallic Y2ZnO4 Nanocatalyst for Organic Transformation under Microwave/Green Conditions. ACS Omega5 (10), 4973ā4981. 10.1021/acsomega.9b03875
49
GhoshM. K.SahuS.GuptaI.GhoraiT. K. (2020). Green Synthesis of Copper Nanoparticles from an Extract of Jatropha Curcas Leaves: Characterization, Optical Properties, CT-DNA Binding and Photocatalytic Activity. RSC Adv.10 (37), 22027ā22035. 10.1039/d0ra03186k
50
Gopala KrishnaP.Paduvarahalli AnanthaswamyP.TrivediP.ChaturvediV.Bhangi MuttaN.SannaiahA.et al (2017). Antitubercular Activity of ZnO Nanoparticles Prepared by Solution Combustion Synthesis Using Lemon Juice as Bio-Fuel. Mater. Sci. Eng. C75, 1026ā1033. 10.1016/j.msec.2017.02.093
51
HamidianK.AhmadN.MiriA.SaraniM. (2021). Photocatalytic Performance on Degradation of Acid Orange 7 Dye Using Biosynthesized Un-doped and Co Doped CeO2 Nanoparticles. Mater. Res. Bull.138, 111206. 10.1016/j.materresbull.2021.111206
52
HarboneJ. B. (1999). Phytochemical Methods. London: Chapman & Hall, 60ā66.
53
HashemiZ.MizwariZ. M.Mohammadi-AghdamS.Mortazavi-DerazkolaS.Ali EbrahimzadehM. (2022). Sustainable Green Synthesis of Silver Nanoparticles Using Sambucus Ebulus Phenolic Extract (AgNPs@SEE): Optimization and Assessment of Photocatalytic Degradation of Methyl Orange and Their In Vitro Antibacterial and Anticancer Activity. Arabian J. Chem.15 (1), 103525. 10.1016/j.arabjc.2021.103525
54
HashemiZ.Shirzadi-AhodashtiM.Mortazavi-DerazkolaS.EbrahimzadehM. A. (2022). Sustainable Biosynthesis of Metallic Silver Nanoparticles Using Barberry Phenolic Extract: Optimization and Evaluation of Photocatalytic, In Vitro Cytotoxicity, and Antibacterial Activities against Multidrug-Resistant Bacteria. Inorg. Chem. Commun.139, 109320. 10.1016/j.inoche.2022.109320
55
HerizchiR.AbbasiE.MilaniM.AkbarzadehA. (2016). Current Methods for Synthesis of Gold Nanoparticles. Artif. Cells, Nanomedicine, Biotechnol.44, 596ā602. 10.3109/21691401.2014.971807
56
HerreraG.MontoyaN.DomĆ©nech-CarbóA.AlarcónJ. (2013). Synthesis, Characterization and Electrochemical Properties of Iron-Zirconia Solid Solution Nanoparticles Prepared Using a Sol-Gel Technique. Phys. Chem. Chem. Phys.15 (44), 19312ā19321. 10.1039/c3cp53216j
57
IbhadonA.FitzpatrickP. (2013). Heterogeneous Photocatalysis: Recent Advances and Applications. Catalysts3 (1), 189ā218. 10.3390/catal3010189
58
IjazF.ShahidS.KhanS. A.AhmadW.ZamanS. (2017). Green Synthesis of Copper Oxide Nanoparticles Using Abutilon Indicum Leaf Extract: Antimicrobial, Antioxidant and Photocatalytic Dye Degradation Activitie. Trop. J. Pharm. Res.16 (4), 743ā753. 10.4314/tjpr.v16i4.2
59
IqbalA.AhmedA. S.AhmadN.AdilS.AhamadT.KhanM. Z. (2021). Biogenic synthesis of CeO2 nanoparticles and its potential application as an efficient photocatalyst for the degradation of toxic amido black dyeEnviron. Nanotechnol. Monit. Manag.16. 10.1016/j.enmm.2021.100505
60
IqbalA.HaqA. U.Cerron-CalleG. A.NaqviS. A. R.WesterhoffP.Garcia-SeguraS. (2021). Green Synthesis of Flower-Shaped Copper Oxide and Nickel Oxide Nanoparticles via Capparis Decidua Leaf Extract for Synergic Adsorption-Photocatalytic Degradation of Pesticides
61
IrshadM. A.NawazR.RehmanM. Z. U.AdreesM.RizwanM.AliS.et al (2021). Synthesis, Characterization and Advanced Sustainable Applications of Titanium Dioxide Nanoparticles: A Review. Ecotoxicol. Environ. Saf.212, 111978. 10.1016/j.ecoenv.2021.111978
62
JadounS.ArifR.JangidN. K.MeenaR. K. (2021). Green Synthesis of Nanoparticles Using Plant Extracts: a Review. Environ. Chem. Lett.19, 355ā374. 10.1007/s10311-020-01074-x
63
JamkhandeP. G.GhuleN. W.BamerA. H.KalaskarM. G. (2019). Metal Nanoparticles Synthesis: An Overview on Methods of Preparation, Advantages and Disadvantages, and Applications. J. Drug Deliv. Sci. Technol.53, 101174. 10.1016/j.jddst.2019.101174
64
JayappaM. D.RamaiahC. K.KumarM. A. P.SureshD.PrabhuA.DevasyaR. P.et al (2020). Green Synthesis of Zinc Oxide Nanoparticles from the Leaf, Stem and In Vitro Grown Callus of Mussaenda Frondosa L.: Characterization and Their Applications. Appl. Nanosci.10 (8), 3057ā3074. 10.1007/s13204-020-01382-2
65
JiangW.WangX.WuZ.YueX.YuanS.LuH.et al (2015). Silver Oxide as Superb and Stable Photocatalyst under Visible and Near-Infrared Light Irradiation and its Photocatalytic Mechanism. Ind. Eng. Chem. Res.54 (3), 832ā841. 10.1021/ie503241k
66
JingY.LiL.ZhangQ.LuP.LiuP.LüX. (2011). Photocatalytic ozonation of dimethyl phthalate with TiO2 prepared by a hydrothermal method. J. Hazard. Mater.189 (1-2), 40ā47. 10.1016/j.jhazmat.2011.01.132
67
JyotiK.SinghA. (2016). Green Synthesis of Nanostructured Silver Particles and Their Catalytic Application in Dye Degradation. J. Genet. Eng. Biotechnol.14 (2), 311ā317. 10.1016/j.jgeb.2016.09.005
68
KalirajL.AhnJ. C.RupaE. J.AbidS.LuJ.YangD. C. (2019). Synthesis of Panos Extract Mediated ZnO Nano-Flowers as Photocatalyst for Industrial Dye Degradation by UV Illumination. J. Photochem. Photobiol. B Biol.199, 111588. 10.1016/j.jphotobiol.2019.111588
69
KannanS.SubiramaniyamN. P.SathishkumarM. (2020). A Novel Green Synthesis Approach for Improved Photocatalytic Activity and Antibacterial Properties of Zinc Sulfide Nanoparticles Using Plant Extract of Acalypha indica and Tridax Procumbens. J. Mater Sci. Mater Electron31, 9846ā9859. 10.1007/s10854-020-03529-x
70
KarthikK. V.RaghuA. V.ReddyK. R.RavishankarR.SangeetaM.ShettiN. P.et al (2022). Green Synthesis of Cu-Doped ZnO Nanoparticles and its Application for the Photocatalytic Degradation of Hazardous Organic Pollutants. Chemosphere287 (Part 2), 132081. 10.1016/j.chemosphere.2021.132081
71
KhalidS.AdilS.BasharatN.AbubakarM.AnwarP. (2018). Phytochemical Screening and Analysis of Selected Medicinal Plants in Gujrat. J. Phytochem. Biochem.2, 108.
72
KhanM. S.DhavanP. P.RatnaD.ShimpiN. G. (2022). Ultrasonic-assisted Biosynthesis of ZnO Nanoparticles Using Sonneratia Alba Leaf Extract and Investigation of its Photocatalytic and Biological Activities. J. Clust. Sci.33, 1007ā1023. 10.1007/s10876-021-02036-1
73
KhanZ. U. H.KhanA.ShahN. S.DinI. U.Abdel SalamM.IqbalJ.et al (2021). Photocatalytic and Biomedical Investigation of Green Synthesized NiONPs: Toxicities and Degradation Pathways of Congo Red Dye. Surfaces Interfaces23. 10.1016/j.surfin.2021.100944
74
KokateC. K. (2000). Practical Pharmacognosy. Delhi: Vallabh Prakashan, 107ā111.
75
KouhbananiM. A. J.BeheshtkhooN.TaghizadehS.AmaniA. M.AlimardaniV. (2019). One-step Green Synthesis and Characterization of Iron Oxide Nanoparticles Using Aqueous Leaf Extract of Teucrium Polium and Their Catalytic Application in Dye Degradation. Adv. Nat. Sci. Nanosci. Nanotechnol.10 (1), 015007. 10.1088/2043-6254/aafe74
76
KrishnaP. G.AnanthaswamyP. P.YadavalliT.MuttaN. B.SannaiahA.ShivannaY. (2016a). ZnO Nanopellets have Selective Anticancer ActivityMater. Sci. Eng. C62, 919ā926. 10.1016/j.msec.2016.02.039
77
KrishnaP. G.AnanthaswamyP. P.GadewarM.BoraU.MuttaN. B. (2017a). In Vitro Antibacterial And Anticancer Studies Of ZnO Nanoparticles Prepared By Sugar Fueled Combustion Synthesis8, 24ā29. 10.5185/amlett.2017.6424
78
KrishnaP. G.AnanthaswamyP. P.MuttaN. B.MariyappaK. G.SinghR. (2017b). Comparison of Antimicrobial and Anticancer Activity of ZnO Nanoparticles Prepared Using Different Precursors by Hydrothermal SynthesisJ. Chem. Pharm. Sci.10, 192ā197.
79
LamS. M.SinJ. C.AbdullahA. Z.MohamedA. R. (2012). Degradation of Wastewaters Containing Organic Dyes Photocatalysed by Zinc Oxide: a Review. Desalination Water Treat.41 (1-3), 131ā169. 10.1080/19443994.2012.664698
80
LetchumananD.SokS. P. M.IbrahimS.NagoorN. H.ArshadN. M. (2021). Plant-Based Biosynthesis of Copper/Copper Oxide Nanoparticles: An Update on Their Applications in Biomedicine, Mechanisms, and Toxicity. Biomolecules11 (4), 564. 10.3390/biom11040564
81
LiX.XuH.ChenZ. S.ChenG. (2011). Biosynthesis of Nanoparticles by Microorganisms and Their Applications. J. Nanomater.2011, 270974. 10.1155/2011/270974
82
LinC. H.LinY. C.ChangC. L.ChenW. C.ChengS. Y.WangY. H.et al (2007). Photodecomposition of Methylene-Blue by Highly-Dispersed Nano TiO2/Ag Catalyst. React. Kinet. Catal. Lett.90 (2), 267ā273. 10.1007/s11144-007-4936-4
83
MaliS. C.DhakaA.GithalaC. K.TrivediR. (2020). Green Synthesis of Copper Nanoparticles Using Celastrus Paniculatus Willd. Leaf Extract and Their Photocatalytic and Antifungal Properties. Biotechnol. Rep.27, e00518. 10.1016/j.btre.2020.e00518
84
Mangala NagasundariS.MuthuK.KaviyarasuK.Al FarrajD. A.AlkufeidyR. M. (2021). Current Trends of Silver Doped Zinc Oxide Nanowires Photocatalytic Degradation for Energy and Environmental Application. Surfaces Interfaces23. 10.1016/j.surfin.2021.100931
85
ManikandanV.YiP. I.VelmuruganP.JayanthiP.HongS. C.JangS. H.et al (2017). Production, Optimization and Characterization of Silver Oxide Nanoparticles Using Artocarpus Heterophyllus Rind Extract and Their Antifungal Activity. Afr. J. Bio Technol.16 (36), 1819ā1825. 10.5897/AJB2017.15967
86
MeneceurS.HemmamiH.BouafiaA.LaouiniS. E.TedjaniM. L.BerraD.et al (2022). Photocatalytic Activity of Iron Oxide Nanoparticles Synthesized by Different Plant Extracts for the Degradation of Diazo Dyes Evans Blue and Congo Red. Biomass Conv. bioref.. 10.1007/s13399-022-02734-4
87
MiriA.BeikiH.NajafidoustA.KhatamiM.SaraniM. (2021). Cerium Oxide Nanoparticles: Green Synthesis Using Banana Peel, Cytotoxic Effect, UV Protection and Their Photocatalytic Activity. Bioprocess Biosyst. Eng.44, 1891ā1899. 10.1007/s00449-021-02569-9
88
MiriA.SaraniM.NajafidoustA.MehrabaniM.ZadehF. A.VarmaR. S. (2022). Photocatalytic Performance and Cytotoxic Activity of Green-Synthesized Cobalt Ferrite Nanoparticles. Mater. Res. Bull.149, 111706. 10.1016/j.materresbull.2021.111706
89
MolinaG. A.EsparzaR.López-MirandaJ. L.HernĆ”ndez-MartĆnezA. R.EspaƱa-SĆ”nchezB. L.Elizalde-PeƱaE. A.et al (2019). Green Synthesis of Ag Nanoflowers Using Kalanchoe Daigremontiana Extract for Enhanced Photocatalytic and Antibacterial Activities. Colloids Surfaces B Biointerfaces180, 141ā149. 10.1016/j.colsurfb.2019.04.044
90
MoonS. A.SalunkeB. K.SahaP.DeshmukhA. R.KimB. S. (2018). Comparison of Dye Degradation Potential of Biosynthesized Copper Oxide, Manganese Dioxide, and Silver Nanoparticles Using Kalopanax Pictus Plant Extract. Korean J. Chem. Eng.35 (3), 702ā708. 10.1007/s11814-017-0318-4
91
MuddapurU. M.AlshehriS.GhoneimM. M.MahnashiM. H.AlshahraniM. A.KhanA. A.et al (2022). Plant-Based Synthesis of Gold Nanoparticles and Theranostic Applications: A Review. Molecules27, 1391. 10.3390/molecules27041391
92
MuthuK.RiniS.NagasundariS. M.AkilandaeaswariB. (2021). Photocatalytic Reduction and Antioxidant Potential of Green Synthesized Silver Nanoparticles from Catharanthus Roseus Flower Extract. Inorg. Nano-Metal Chem.51 (4), 579ā589. 10.1080/24701556.2020.1799404
93
NabiG.Ul- AinQ.TahirM. B.RiazK. N.IqbalT.RafiqueM. (2022). Green synthesis of TiO2 nanoparticles using lemon peel extract: their optical and photocatalytic propertiesInt. J. Environ. Anal. Chem.102, 434ā442. 10.1080/03067319.2020.1722816
94
NarasaiahP.Kumar MandalB.SaradaN. C. (2017). Green Synthesis of Pd NPs from Pimpinella Tirupatiensis Plant Extract and Their Application in Photocatalytic Activity Dye Degradation. IOP Conf. Ser. Mat. Sci. Eng.263 (2), 022013. 10.1088/1757-899x/263/2/022013
95
NavadaK. M.NagarajaG. K.RanjithaR.DāSouzaJ. N.KouserS.ManasaD. J. (2021). Synthesis, Characterization of Phyto-Functionalized CuO Nano Photocatalysts for Mitigation of Textile Dyes in Waste Water Purification, Antioxidant, Anti-inflammatory and Anticancer Evaluation. Appl. Nanosci.11, 1313ā1338. 10.1007/s13204-021-01688-9
96
OngC. B.NgL. Y.MohammadA. W. (2018). A Review of ZnO Nanoparticles as Solar Photocatalysts: Synthesis, Mechanisms and Applications. Renew. Sustain. Energy Rev.81, 536ā551. 10.1016/j.rser.2017.08.020
97
PanchalP.MeenaP.NehraS. P. (2021). A Rapid Green Synthesis of Ag/AgCl-NC Photocatalyst for Environmental Applications. Environ. Sci. Pollut. Res.28, 3972ā3982. 10.1007/s11356-020-11834-5
98
PanneerselviV.ShankarK.MuthukrishnanP.PrabhuA. (2022). Mangifera Indica Resin Assisted Synthesis of Nano Silver: Assessing Their Photocatalytic Degradation of Methylene Blue, Anticorrosive and Antioxidant Activity. J. Clust. Sci.33, 123ā133. 10.1007/s10876-020-01965-7
99
ParvathirajaC.ShailajhaS. (2021). Bioproduction of CuO and Ag/CuO Heterogeneous Photocatalysis-Photocatalytic Dye Degradation and Biological Activities. Appl. Nanosci.11, 1411ā1425. 10.1007/s13204-021-01743-5
100
PeternelaJ.SilvaM. F.VieiraM. F.BergamascoR.VieiraA. M. S. (2017). Synthesis and Impregnation of Copper Oxide Nanoparticles on Activated Carbon through Green Synthesis for Water Pollutant Removal. Mater. Res.21. 10.1590/1980-5373-mr-2016-0460
101
PhangY.-K.AminuzzamanM.AkhtaruzzamanM.MuhammadG.OgawaS.WatanabeA.et al (2021). Green Synthesis and Characterization of CuO Nanoparticles Derived from Papaya Peel Extract for the Photocatalytic Degradation of Palm Oil Mill Effluent (POME). Sustainability13, 796. 10.3390/su13020796
102
PillaiA. M.SivasankarapillaiV. S.RahdarA.JosephJ.SadeghfarF.Anuf AR.et al (2020). Green Synthesis and Characterization of Zinc Oxide Nanoparticles with Antibacterial and Antifungal Activity. J. Mol. Struct.1211, 128107. 10.1016/j.molstruc.2020.128107
103
PrashanthG. K.PrashanthP. A.SinghP.NagabhushanaB. M.ShivakumaraC.KrishnaiahG. M.et al (2020). Effect of Doping (With Cobalt or Nickel) and UV Exposure on the Antibacterial, Anticancer, and ROS Generation Activities of Zinc Oxide Nanoparticles. J. Asian Ceram. Soc.8 (4), 1175ā1187. 10.1080/21870764.2020.1824328
104
PrashanthG. K.KrishnaiahG. M. (2014). Chemical Composition of the Leaves of Azadiracta indica Linn (Neem). Int. J. Adv. Eng. Technol. Manag. Appl. Sci.1 (5), 21ā31.
105
PrashanthG. K.KrishnaiahG. M.SathyanandaH. M. (2015). Qualitative Phytochemical Screening and GCMS Analysis of the Leaves of Indigofera tinctoria. Int. J. Innov. Res. Sci. Eng. Technol.4, 7544ā7547. 10.15680/IJIRSET.2015.0408080
106
PrashanthG. K.KrishnaiahG. M. (2014). Phytochemical Screening and GC-MS Analysis of the Leaves of Pongamia Pinnata Linn. Int. J. Innovative Res. Sci. Eng. Technol.3 (11), 17329ā17334. 10.15680/IJIRSET.2014.0311034
107
PrashanthG. K.PrashanthP. A.BoraU.GadewarM.NagabhushanaB. M.AnandaS.et al (2015). In Vitro antibacterial and Cytotoxicity Studies of ZnO Nanopowders Prepared by Combustion Assisted Facile Green Synthesis. Karbala Int. J. Mod. Sci.1, 67ā77. 10.1016/j.kijoms.2015.10.007
108
PrashanthG. K.PrashanthP. A.NagabhushanaB. M.AnandaS.NagendraH. G.SinghR. C. (2016b). In Vitro Antimicrobial, Antioxidant and Anticancer Studies of ZnO Nanoparticles Synthesized by Precipitation MethodAdv. Sci. Eng. Medicine8, 306ā313. 10.1166/asem.2016.1854
109
PrashanthG. K.DileepM. S.PrashanthP. A.GadewarM.NagabhushanaB. M.PrabhuS. R. B. (2022). Applications of Inorganic Polymers in Textile Wastewater Treatment. Polymer Technology in Dye-Containing Wastewater. Sustainable Textiles: Production, Processing, Manufacturing and Chemistry. Editors KhadirA.MuthuS. S. (Singapore: Springer), 227ā245. 10.1007/978-981-19-0886-6_10
110
PrashanthG. K.PrashanthP. A.NagabhushanaB. M.AnandaS.KrishnaiahG. M.NagendraH. G.et al (2018). Comparison of Anticancer Activity of Biocompatible ZnO Nanoparticles Prepared by Solution Combustion Synthesis Using Aqueous Leaf Extracts of Abutilon Indicum, Melia Azedarach and Indigofera Tinctoria as Biofuels. Artif. Cells, Nanomedicine, Biotechnol.46, 968ā979. 10.1080/21691401.2017.1351982
111
PrashanthG. K.PrashanthP. A.RamaniM.AnandaS.NagabhushanaB. M.KrishnaiahG. M.et al (2019). Comparison of antimicrobial, antioxidant and anticancer activities of ZnO nanoparticles prepared by lemon juice and citric acid fueled solution combustion synthesis. BioNanoScience9 (4), 799ā812. 10.1007/s12668-019-00670-8
112
PrashanthG. K.SathyanandaH. M.PrashanthP. A.GadewarM.MutthurajuM.Boselin PrabhuS. R.et al (2022). Controlled Synthesis of Ag/CuO Nanocomposites: Evaluation of their Antimycobacterial, Antioxidant, and Anticancer Activities. Appl. Phys. A128, 614. 10.1007/s00339-022-05748-x
113
PriyadarshiniS.SonsudinF.MainalA.YahyaR.GopinathV.VadiveluJ.et al (2021). Phytosynthesis of Biohybrid Nano-Silver Anchors Enhanced Size Dependent Photocatalytic, Antibacterial, Anticancer Properties and Cytocompatibility. Process Biochem.101, 59ā71. 10.1016/j.procbio.2020.11.008
114
PurkaitP.BhattacharyyaA.RoyS.MaitraS.DasG. C.ChaudhuriM. G. (2020). Green Synthesis of ZnO Nanoparticle Using Trema Orientalis (L) Leaf: an Efficient Photocatalyst for Degradation of Zoxamide Fungicide in Aqueous Organic Media under UV Light Irradiation. Int. J. Environ. Anal. Chem.10.1080/03067319.2020.1857750
115
RafiqueM.TahirR.GillaniS. S. A.TahirM. B.ShakilM.IqbalT.et al (2022). Plant-mediated Green Synthesis of Zinc Oxide Nanoparticles from Syzygium Cumini for Seed Germination and Wastewater Purification. Int. J. Environ. Anal. Chem.102 (1), 23ā38. 10.1080/03067319.2020.1715379
116
RajanP. I.VijayaJ. J.JesudossS. K.KaviyarasuK.KennedyL. J.JothiramalingamR.et al (2017). Green-fuel-mediated Synthesis of Self-Assembled NiO Nano-Sticks for Dual Applications-Photocatalytic Activity on Rose Bengal Dye and Antimicrobial Action on Bacterial Strains. Mat. Res. Express4, 085030. 10.1088/2053-1591/aa7e3c
117
RajendrachariS.TaslimiP.Cahit KaraoglanliA.OrhanU.AlpE.Kudur JayaprakashG. (2021). Photocatalytic Degradation of Rhodamine B (RhB) Dye in Waste Water and Enzymatic Inhibition Study Using Cauliflower Shaped ZnO Nanoparticles Synthesized by a Novel One-Pot Green Synthesis Method. Arabian J. Chem.14 (6). 10.1016/j.arabjc.2021.103180
118
RamachandiranD.ElangovanM.RajeshK. (2021). Structural, Optical, Biological and Photocatalytic Activities of Platinum Nanoparticles Using Salixtetrasperma Leaf Extract via Hydrothermal and Ultrasonic Methods. Optik244. 10.1016/j.ijleo.2021.167494
119
RamzanM.ObodoR. M.ShahzadM. I.MukhtarS.IlyasS. Z.MahmoodT. (2021). Green Synthesis of Cu@TiO2 via Cedrus Deodara Leaf Extract: A: Novel Composite with High Photocatalytic and Antibacterial Activity. Curr. Res. Green Sustain. Chem.4, 100137. 10.1016/j.crgsc.2021.100137
120
RaniM.ShankerU. (2018). Photocatalytic Degradation of Toxic Phenols from Water Using Bimetallic Metal Oxide Nanostructures. Colloids Surfaces A Physicochem. Eng. Aspects553. 10.1016/j.colsurfa.2018.05.071
121
Raouf MalikA.SharifS.ShaheenF.KhalidM.IqbalY.FaisalA.et al (2022). Green synthesis of RGO-ZnO mediated Ocimum basilicum leaves extract nanocomposite for antioxidant, antibacterial, antidiabetic and photocatalytic activity. J. Saudi Chem. Soc.26 (2). 10.1016/j.jscs.2022.101438
122
RasheedT.BilalM.NabeelF.AdeelM.IqbalH. M. N. (2019). Environmentally-related Contaminants of High Concern: Potential Sources and Analytical Modalities for Detection, Quantification, and Treatment. Environ. Int.122, 52ā66. 10.1016/j.envint.2018.11.038
123
RasheedT.NabeelF.BilalM.IqbalH. M. N. (2019). Biogenic Synthesis and Characterization of Cobalt Oxide Nanoparticles for Catalytic Reduction of Direct Yellow-142 and Methyl Orange Dyes. Biocatal. Agric. Biotechnol.19, 101154. 10.1016/j.bcab.2019.101154
124
RizwanaH.AlwhibiM. S.Al-JudaieR. A.AldehaishH. A.AlsaggabiN. S. (2022). Sunlight-Mediated Green Synthesis of Silver Nanoparticles Using the Berries of Ribes Rubrum (Red Currants): Characterisation and Evaluation of Their Antifungal and Antibacterial Activities. Molecules27 (7), 2186. 10.3390/molecules27072186
125
SabouriZ.AkbariA.HosseiniH. A.HashemzadehA.DarroudiM. (2019). Eco-Friendly Biosynthesis of Nickel Oxide Nanoparticles Mediated by Okra Plant Extract and Investigation of Their Photocatalytic, Magnetic, Cytotoxicity, and Antibacterial Properties. J. Clust. Sci.30 (6), 1425ā1434. 10.1007/s10876-019-01584-x
126
SapaweN.Ariff RustamM.Hafizan Hakimin MahadzirM.Kamal Ezzat Mohamad LaniM.RaidinA.Farhan HanafiM. (2019). A Novel Approach of In-Situ Electrobiosynthesis of Metal Oxide Nanoparticles Using Crude Plant Extract as Main Medium for Supporting Electrolyte. Mater. Today Proc.19, 1441ā1445. 10.1016/j.matpr.2019.11.166
127
SathyanandaH. M.PrashanthP. A.PrashanthG. K.NagabhushanaB. M.ShivakumaraC.Boselin PrabhuS. R.et al (2021). Evaluation of Antimycobacterial, Antioxidant, and Anticancer Activities of CuO Nanoparticles through Cobalt Doping. Appl. Nanosci.10.1007/s13204-021-02156-0
128
SathyanandaH. M.PrashanthP. A.PrashanthG. K.NagabhushanaB. M.KrishnaiahG. M.NagendraH. G. (2021a). Antimicrobial, Antioxidant, and Cytotoxicity Activities of CuO Nanopellets Synthesized by Surfactant-Free Hydrothermal MethodJ. Testing Evalaution49. 10.1520/JTE20200538
129
SevillaP.HernĆ”ndezM.CordaE.GarcĆa-RamosJ. V.DomingoC. (2013). Molecular characterization of drug nanocarriers based on Plasmon Enhanced Spectroscopies: Fluorescence (SEF) and Raman (SERS). MAGINE NANO 2013, European Event in Nanoscience and Nanotechnology, 23rd - 26th of April 2013 at Bilbao, Spain. http://hdl.handle.net/10261/104668.
130
ShahY.MaharanaM.SenS. (2022). Peltophorum pterocarpum Leaf Extract Mediated Green Synthesis of Novel Iron Oxide Particles for Application in Photocatalytic and Catalytic Removal of Organic Pollutants. Biomass Conv. bioref.333. 10.1007/s13399-021-02189-z
131
ShaheenI.AhmadK. S.ThomasA.AliD.IramS. (2022). Phytogenic Synthesis and Enhanced Photocatalytic Properties of ZnOCo3O4 P-N Junction: Biomimetic Water Remediators. Ionics28, 1999ā2006. 10.1007/s11581-021-04407-0
132
ShaikhS.NazamN.RizviS. M. D.AhmadK.BaigM. H.LeeE. J.et al (2019). Mechanistic Insights into the Antimicrobial Actions of Metallic Nanoparticles and Their Implications for Multidrug Resistance. Int. J. Mol. Sci.20, 2468. 10.3390/ijms20102468
133
ShaikhW. A.ChakrabortyS.IslamR. U. (2020). Photocatalytic Degradation of Rhodamine B under UV Irradiation Using Shorea Robusta Leaf Extract-Mediated Bio-Synthesized Silver Nanoparticles. Int. J. Environ. Sci. Technol.17, 2059ā2072. 10.1007/s13762-019-02473-6
134
SharmaR. (2021). Synthesis of Terminalia bellirica fruit extract mediated silver nanoparticles and application in photocatalytic degradation of wastewater from textile industriesMaterials Today: Proceedings44, 1995ā1998. 10.1016/j.matpr.2020.12.118
135
SharmaS.KumarK.ThakurN.ChauhanS.Singh ChauhanM. (2021). Eco-friendly Ocimum Tenuiflorum Green Route Synthesis of CuO Nanoparticles: Characterizations on Photocatalytic and Antibacterial Activities. Eco-friendly J. Environ. Chem. Eng.9 (4). 10.1016/j.jece.2021.105395
136
ShumeW. M.MurthyH. C.ZereffaE. A. (2020). A Review on Synthesis and Characterization of Ag2O Nanoparticles for Photocatalytic Applications. J. Chem.2020, 5039479. 10.1155/2020/5039479
137
SinghA. K. (2022). A Review on Plant Extract-Based Route for Synthesis of Cobalt Nanoparticles: Photocatalytic, Electrochemical Sensing and Antibacterial Applications. Curr. Res. Green Sustain. Chem.5, 100270. 10.1016/j.crgsc.2022.100270
138
SinghJ.KaurS.KaurG.BasuS.RawatM. (2019). Biogenic ZnO Nanoparticles: a Study of Blueshift of Optical Band Gap and Photocatalytic Degradation of Reactive Yellow 186 Dye under Direct Sunlight. Green Process Synth.8, 272ā280. 10.1515/gps-2018-0084
139
SinghJ.KumarV.KimK. H.RawatM. (2019). Biogenic Synthesis of Copper Oxide Nanoparticles Using Plant Extract and its Prodigious Potential for Photocatalytic Degradation of Dyes. Environ. Res.177, 108569. 10.1016/j.envres.2019.108569
140
SinghT.JayaprakashA.AlsuwaidiM.Anish MadhavanA. (2021). Green Synthesized Gold Nanoparticles with Enhanced Photocatalytic Activity. Mater. Today Proc.42 (2). 10.1016/j.matpr.2020.12.531
141
SivarajR.SalamH. A.RajivP.RajendranV. (2015). Green Nanotechnology: the Solution to Sustainable Development of Environment. Environ. Sustain.2015, 311ā324. 10.1007/978-81-322-2056-5_18
142
SohrabnezhadS.SeifiA. (2016). The Green Synthesis of Ag/ZnO in Montmorillonite with Enhanced Photocatalytic Activity. Appl. Surf. Sci.386, 33ā40. 10.1016/j.apsusc.2016.05.102
143
SudhaparimalaS.VaishnaviM. (2016). Biological Synthesis of Nano Composite SnO2- ZnO - Screening for Efficient Photocatalytic Degradation and Antimicrobial Activity. Mater. Today Proc.3 (6), 2373ā2380. 10.1016/j.matpr.2016.04.150
144
ThirumuruganA.JiflinG. J.RajagomathiG.TomyN. A.RamachandranS.JaiganeshR. (2010). Plants: Emerging as Green Source toward Biosynthesis of Metallic Nanoparticles and its Applications. Int. J. Biol. Technol.1, 75ā77. 10.15297/JBCE.V2I1.02
145
TiwariP.KumarB.KaurM.KaurG.KaurH. (2011). Phytochemical Screening and Extraction: A Review. Int. Pharm. Sci.1.
146
UllahA.RasheedS.AliI.UllahN. (2021). Plant Mediated Synthesis of CdS Nanoparticles, Their Characterization and Application for Photocatalytic Degradation of Toxic Organic Dye. Chem. Rev. Lett.4 (2), 98ā107. 10.22034/CRL.2021.262754.1097
147
US Environmental Protection Agency (1998b). Microbial and Disinfection By-Product Rules. Fed. Regist.63, 69389ā69476.
148
VaradavenkatesanT.PaiE.PugazhendhiS.RameshA.VinayagamR.SelvarajR. (2019). Photocatalytic Degradation of Rhodamine B by Zinc Oxide Nanoparticles Synthesized Using the Leaf Extract of Cyanometra Ramiflora. J. Photochem. Photobiol. B Biol.199, 111621. 10.1016/j.jphotobiol.2019.111621
149
VasantharajS.SathiyavimalS.SaravananM.SenthilkumarP.GnanasekaranK.ShanmugavelM.et al (2019). Synthesis of Ecofriendly Copper Oxide Nanoparticles for Fabrication over Textile Fabrics: Characterization of Antibacterial Activity and Dye Degradation Potential. J. Photochem. Photobiol. B Biol.191, 143ā149. 10.1016/j.jphotobiol.2018.12.026
150
VasantharajS.SathiyavimalS.SenthilkumarP.LewisOscarF.PugazhendhiA. (2019). Biosynthesis of Iron Oxide Nanoparticles Using Leaf Extract of Ruellia Tuberosa: Antimicrobial Properties and Their Applications in Photocatalytic Degradation. J. Photochem. Photobiol. B Biol.192, 74ā82. 10.1016/j.jphotobiol.2018.12.025
151
VijayakumarM.PriyaK.NancyF. T.NoorlidahA.AhmedA. B. A. (2013). Biosynthesis, Characterisation and Anti-bacterial Effect of Plant-Mediated Silver Nanoparticles Using Artemisia Nilagirica. Industrial Crops Prod.41, 235ā240. 10.1016/j.indcrop.2012.04.017
152
VinayagamR.PaiS.VaradavenkatesanT.PugazhendhiA.SelvarajR. (2021). Characterization and Photocatalytic Activity of ZnO Nanoflowers Synthesized Using Bridelia Retusa Leaf Extract. Appl. Nanosci.10.1007/s13204-021-01816-5
153
VinothkannaA.MathivananK.AnanthS.MaY.SekarS. (2022). Biosynthesis of Copper Oxide Nanoparticles Using Rubia Cordifolia Bark Extract: Characterization, Antibacterial, Antioxidant, Larvicidal and Photocatalytic Activities.Environ. Sci. Pollut. Res.10.1007/s11356-022-18996-4
154
WangD.-H.JiaL.WuX.-L.LuL.-Q.XuA.-W. (2012). One-step Hydrothermal Synthesis of N-Doped TiO2/C Nanocomposites with High Visible Light Photocatalytic Activity. Nanoscale4 (2), 576ā584. 10.1039/c1nr11353d
155
WangD.LiL.LuoQ.AnJ.LiX.YinR.et al (2014). Enhanced Visible-Light Photocatalytic Performances of Ag3PO4 Surface-Modified with Small Amounts of TiO2 and Ag. Appl. Surf. Sci.321, 439ā446. 10.1016/j.apsusc.2014.10.055
156
WangZ.FangC.MegharajM. (2014). Characterization of Iron-Polyphenol Nanoparticles Synthesized by Three Plant Extracts and Their Fenton Oxidation of Azo Dye. ACS Sustain. Chem. Eng.2 (4), 1022ā1025. 10.1021/sc500021n
157
WeirE.LawlorA.WhelanA.ReganF. (2008). The Use of Nanoparticles in Anti-microbial Materials and Their Characterization. Analyst133, 835ā845. 10.1039/b715532h
158
World Health Organization (2008). Guidelines for Drinking-Water Quality. Third Edition. Geneva: WHO. Incorporating the first and second ammenda , Volume 1, Recommendations.
159
YulizarY.SudirmanD. O. B.ApriandanuD. O. B.WibowoA. P. (2019). Plant Extract Mediated Synthesis of Au/TiO2 Nanocomposite and its Photocatalytic Activity under Sodium Light Irradiation. Compos. Commun.16, 50ā56. 10.1016/j.coco.2019.08.006
160
ZhangM.ShaoC.GuoZ.ZhangZ.MuJ.ZhangP.et al (2011). Highly Efficient Decomposition of Organic Dye by Aqueous-Solid Phase Transfer and In Situ Photocatalysis Using Hierarchical Copper Phthalocyanine Hollow Spheres. ACS Appl. Mat. Interfaces3 (7), 2573ā2578. 10.1021/am200412t
161
ZhangZ.YuY.WangP. (2012). Hierarchical Top-Porous/bottom-Tubular TiO2 Nanostructures Decorated with Pd Nanoparticles for Efficient Photoelectrocatalytic Decomposition of Synergistic Pollutants. ACS Appl. Mat. Interfaces4 (2), 990ā996. 10.1021/am201630s
162
ZiaF.GhafoorN.IqbalM.MehboobS. (2016). Green Synthesis and Characterization of Silver Nanoparticles Using Cydonia Oblong Seed Extract. Appl. Nanosci.6, 1023ā1029. 10.1007/s13204-016-0517-z
Summary
Keywords
nanoparticles, plant extract, characterization, photocatalyst, green synthesis, hazard remediation
Citation
Krishna PG, Chandra Mishra P, Naika MM, Gadewar M, Ananthaswamy PP, Rao S, Boselin Prabhu SR, Yatish KV, Nagendra HG, Moustafa M, Al-Shehri M, Jha SK, Lal B and Stephen Santhakumari SM (2022) Photocatalytic Activity Induced by Metal Nanoparticles Synthesized by Sustainable Approaches: A Comprehensive Review. Front. Chem. 10:917831. doi: 10.3389/fchem.2022.917831
Received
11 April 2022
Accepted
06 June 2022
Published
02 September 2022
Volume
10 - 2022
Edited by
Mithun Kumar Ghosh, Govt College Hatta, India
Reviewed by
Sandip Kumar Chandraker, Indira Gandhi National Tribal University, India
Raja Selvaraj, Manipal Institute of Technology, India
Updates
Copyright
Ā© 2022 Krishna, Chandra Mishra, Naika, Gadewar, Ananthaswamy, Rao, Boselin Prabhu, Yatish, Nagendra, Moustafa, Al-Shehri, Jha, Lal and Stephen Santhakumari.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: Prashanth Gopala Krishna, prashanth_chem@sirmvit.edu, prashaanthgk@gmail.com; Saurabh Kumar Jha, saurabh.jha@sharda.ac.in
ā ORCID: Prashanth Gopala Krishna, http://orcid.org/0000-0001-6691-4030; Saurabh Kumar Jha, https://orcid.org/0000-0002-7437-0755
This article was submitted to Photocatalysis and Photochemistry, a section of the journal Frontiers in Chemistry
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
