Inorganic Fe-O and Fe-S oxidoreductases: paradigms for prebiotic chemistry and the evolution of enzymatic activity in biology

Abstract

Oxidoreductases play crucial roles in electron transfer during biological redox reactions. These reactions are not exclusive to protein-based biocatalysts; nano-size (<100 nm), fine-grained inorganic colloids, such as iron oxides and sulfides, also participate. These nanocolloids exhibit intrinsic redox activity and possess direct electron transfer capacities comparable to their biological counterparts. The unique metal ion architecture of these nanocolloids, including electron configurations, coordination environment, electron conductivity, and the ability to promote spontaneous electron hopping, contributes to their transfer capabilities. Nano-size inorganic colloids are believed to be among the earliest ‘oxidoreductases’ to have ‘evolved’ on early Earth, playing critical roles in biological systems. Representing a distinct type of biocatalysts alongside metalloproteins, these nanoparticles offer an early alternative to protein-based oxidoreductase activity. While the roles of inorganic nano-sized catalysts in current Earth ecosystems are intuitively significant, they remain poorly understood and underestimated. Their contribution to chemical reactions and biogeochemical cycles likely helped shape and maintain the balance of our planet’s ecosystems. However, their potential applications in biomedical, agricultural, and environmental protection sectors have not been fully explored or exploited. This review examines the structure, properties, and mechanisms of such catalysts from a material’s evolutionary standpoint, aiming to raise awareness of their potential to provide innovative solutions to some of Earth’s sustainability challenges.

1 Introduction-inorganic abiotic nanocolloids as efficient catalysts of biologically relevant reactions

Oxidoreductases are a superfamily of enzymes (i.e., biocatalysts) found throughout the tree of life (Williams, 1981; Falkowski et al., 2008; Kim et al., 2013). These enzymes are molecular machines responsible for virtually all biologically induced electron transfer (ET) reactions. Examples include peroxidases (PODs), catalases (CATs), superoxide dismutases (SODs) and oxidases (OXDs). Various metabolic pathways, such as glycolysis, the Krebs cycle, photosynthesis in chloroplasts, drug metabolism and detoxification reactions in the liver require oxidoreductases. Reactive oxygen species (ROS) and hydrogen peroxide (H₂O₂) are frequently observed metabolites in reactions catalyzed by oxidoreductases (Apel and Hirt, 2004; Bayr, 2005; Valko et al., 2007; Sharma et al., 2012). PODs use H₂O₂ or organic hydroperoxides (R-OOH) as electron donors and H₂O₂ as electron acceptor during redox reactions (Rodríguez-López et al., 2001; Veitch, 2004; Leblanc et al., 2015; de Oliveira et al., 2021). OXDs catalyze the oxidation of various substrates (electron donors) by using molecular oxygen (O₂) as an electron acceptor. In these reactions, hydrogen atoms are used to form water or H₂O₂ by enzymes such as sulfite oxidase (SOE), glucose oxidase (GOX), or alcohol oxidase (AOX) (Messner and Imlay, 2002; Leskovac et al., 2005; Jancura et al., 2014; Kappler and Enemark, 2015). CATs accelerate the decomposition of H₂O₂ into water and O₂ (Deisseroth and Dounce, 1970; Alfonso-Prieto et al., 2009), while SODs disproportionately divide superoxide radicals (O₂^*−) into H₂O₂ and O₂ (Fridavich, 1995; Sheng et al., 2014).

The primary function of biological oxidoreductases is ET, though some oxidoreductases can transfer electrons directly or through mediators such as cytochrome c (Cyt c), to solid surfaces, including electrodes, enzymes, microorganisms and nanomaterials (Kracke et al., 2015; Milton and Minteer, 2017; Chen H. et al., 2020; Ratautas and Dagys, 2020). This process, known as direct ET (DET) (Kracke et al., 2015; Milton and Minteer, 2017; Chen H. et al., 2020; Ratautas and Dagys, 2020; Suprun, 2021) was first observed in 1977 (Eddowes and Hill, 1977; Peter and Theodore, 1977) for Cyt c on gold and tin-doped indium oxide electrodes, exhibiting virtually reversible electrochemistry as revealed by cyclic voltammetry. Horseradish peroxidase (HRP) (Yaropolov et al., 1979) and laccase (Lc) (Tarasevich et al., 1979) have been shown to adsorb on carbon electrodes and exhibit DET capacity. Currently, more than 100 enzymes are known to be capable of working under DET conditions, with the majority being oxidoreductases (Gorton et al., 1999; Ferapontova et al., 2003; Shleev et al., 2005; Liu et al., 2006; Léger and Bertrand, 2008; Liu et al., 2014; Bollella et al., 2018).

Oxidoreductase activity is not limited to protein-based catalysts; some inorganic colloids with oxidoreductase-like activity are able to catalyze biochemical reactions in vitro and in vivo (Wei and Wang, 2013; Wu J. et al., 2019; Huang et al., 2019; Liang and Yan, 2019; Singh, 2019; Zhang X. et al., 2021; Yang et al., 2021; Hong et al., 2022). It should be noted that inorganic colloids can perform other catalytic functions, including the hydrolysis of phosphate ester bonds (Huang and Zhang, 2007; Huang and Zhang, 2012; Huang, 2018; Huang, 2019). Some of the best studied inorganic systems are iron oxides such as inorganic peroxidase (e.g., magnetite (Mag, Fe₃O₄) colloids (1-1,000 nm)) that can include a highly reactive nanoparticle (NP) sub-fraction (<100 nm) (Gao et al., 2007; Chaudhari et al., 2012; Chen et al., 2012; Gao et al., 2017; Gao and Yan, 2019; Gao, 2022). Synthetic Mag NPs were the first inorganic nanomaterials reported to possess intrinsic POD-like properties (Gao et al., 2007) catalyzing the oxidation of organic substrates such as 3,3,5,5-tetramethylbenzidine (TMB), diazoaminobenzene (DAB) and o-phenylenediamine (OPD). Displaying Michaelis-Menten-type behavior, their reaction velocity is inversely related to the particle size (i.e., the larger the surface area of the NPs/colloids the greater their activity) (Gao et al., 2007). In terms of their catalytic efficiency (k_cat/K_m) some of these abiotic catalysts (H₂O₂: 560 mM^-1 s^-1; TMB: 3.1×10⁵ mM^-1 s^-1) are comparable to their biological counterparts (H₂O₂: 940 mM^-1 s^-1; TMB: 9.2×10³ mM^-1 s^-1) (Gao et al., 2007). Numerous iron oxide colloids have been shown to exhibit similar intrinsic POD activity, including maghemite (Mah, γ-Fe₂O₃) (Chen et al., 2012), hematite (Hem, α-Fe₂O₃) (Chaudhari et al., 2012), two-dimensional lepidocrocite nanomaterials formed from graphene-templates (Peng et al., 2011), and Prussian blue-modified iron oxide magnetic compounds (Wang and Huang, 2011). These inorganic catalysts also display substrate selectivity, temperature responsiveness and pH dependence similar to natural enzymes (Gao et al., 2007; André et al., 2011; Huang and Zhang, 2012; Wei and Wang, 2013; Wu et al., 2019; Huang, 2018, 2019, 2022a). This observation has the potential to revolutionize various industries and applications, offering more efficient and customized catalytic processes. The implications for fields such as medicine (Gao and Yan, 2019; Lopez-Cantu et al., 2022; Wei et al., 2023), environmental science (Meng et al., 2020; Wong et al., 2021), and agricultural production (Liu et al., 2021; Cui et al., 2022) are truly exciting.

Inorganic nanocatalysts, possessing enzyme-like activity are not limited to iron oxides and sulfides, i.e., many other metal NPs exhibit properties or functions similar to enzymes. For example, molybdenum disulfide (MoS₂) NPs possess both semiconductor properties (Radisavljevic et al., 2011) and electron hopping behavior (Qiu et al., 2013), allowing them to naturally act as POD, CAT, and SOD (Chen et al., 2018; Yu et al., 2021). Similarly, mixed-valence vanadium pentoxide V₂O₅ NPs exhibit semiconducting characteristics (Sanchez et al., 1983a) due to electron hopping dynamics within V⁴⁺ and V⁵⁺ ions (Sanchez et al., 1983b), and also exhibit intrinsic POD, GOX and glutathione peroxidase (GPx) activity (André et al., 2011; Natalio et al., 2012; Ghosh et al., 2018; Ding Y. et al., 2020; Chen, 2022). In MnO₂ NPs, direct electron hops within Mn - Mn chains (Devaraj and Munichandraiah, 2008; Farooq et al., 2019) result in POD, CAT, OXD, and SOD activities (Huang Y. et al., 2016; Tang et al., 2022), whereas Co₃O₄ NPs exhibit semiconducting attributes marked by Co³⁺-Co²⁺ hopping (Cheng et al., 1998; Pham et al., 2016; Ibrahim et al., 2018), enabling intrinsic POD and CAT activities (Mu et al., 2012; Mu et al., 2014; Li et al., 2018; Wang et al., 2018). Other NPs like α-FeSe, and Cu₂O/CuO, known for their superconductivity (Ito et al., 1991; Hsu et al., 2008; Sidorov et al., 2011; Lai et al., 2015), also demonstrate intrinsic POD activity (Dutta et al., 2012a; Dutta et al., 2012b; Dutta et al., 2013; Liu T. et al., 2020; Jiang et al., 2021; Zhu et al., 2021). NPs with lower bandgaps and electron hopping, such as titanium dioxide (TiO₂) (Setvin et al., 2014; Xu Z. F. et al., 2022), manganese selenide (MnSe) (Liu et al., 2023), and molybdenum selenide (MoSe₂) (Suri and Patel, 2017), also display intrinsic POD activity (Zhang et al., 2013; Qiao et al., 2014; Wu et al., 2017). An interesting case are nanocrystalline cerium oxide NPs (ceria, CeO₂), which, due to their high electron conductivity and hopping attributes (Tuller and Nowick, 1977; Kim and Maier, 2002), can directly convert Ce⁴⁺ to Ce³⁺ due to oxygen vacancies (Esch et al., 2005). This enables ceria NPs to function like oxidoreductases (POD, CAT, OXD, SOD) (Yang et al., 2016a; Montini et al., 2016; Chen et al., 2022; Ma et al., 2022; Xiao et al., 2022), but also like nucleases, phosphatases and photolyases (Zhu et al., 2008; Dhall et al., 2017; Tan et al., 2020a; Tan et al., 2020b)

This review aims to deepen our understanding of the processes that led to the emergence of life on Earth. By bridging the disciplines of inorganic chemistry and biology, we highlight the potential role of inorganic nano-materials in catalyzing complex enzyme-like pre-biotic chemical processes. We propose that these inorganic NPs could have served as the initial biocatalysts for the emergence of the first life forms and subsequent evolutionary processes. This hypothesis challenges established concepts in modern biology, chemistry, and science as a whole. In Section 2 and Section 3, we highlight how the metallic architecture of NPs and their electron hopping characteristics contribute to enzyme-like activity. The physical properties related to ET are foundational to the activity of NPs and may have been crucial in the emergence of life. In Section 4 we will discuss the relevance of such catalytically active NPs in a biological context.

2 Architectural changes of iron nanocolloids and their impact on catalytic activity

Iron oxide systems with CAT-like activity are excellent model systems to illustrate the connection between their architecture and activity. The CAT-like activity of ten synthetic oxide colloids, i.e., 2-line ferrihydrite (2L-Fht, Fe₅HO₈·4H₂O), 6-line ferrihydrite (6L-Fht, Fe₅HO₈·4H₂O), goethite (Goe, α-FeOOH), akageneite (Aka, β-FeOOH), lepidocrocite (Lep, γ-FeOOH), feroxyhyte (Foh, δ′-FeOOH), Hem (α-Fe₂O₃), Mah (γ-Fe₂O₃), Mag (Fe₃O₄) and schwertmannite (Sch, Fe₈O₈(OH)₆SO₄) (Figure 1A) were compared by monitoring the molecular oxygen they produce in an aqueous H₂O₂ solution over time (Figure 1B) (Zhang R. et al., 2021). The activity was found to depend on the number of hydroxyl groups on the surface of the iron oxide colloids (Figure 1C) (Zhang R. et al., 2021).

FIGURE 1

Iron oxide colloids that have hydroxyl groups in their core structures (2L-Fht, 6L-Fht, Foh) all have significant CAT-like activity, while those that do not (e.g., Hem, Mag and Mah) have no or little activity (Figure 1D) (Zhang R. et al., 2021). Some iron oxide colloids exhibit catalytic promiscuity by having not only CAT-like, but also OXD- and SOD-like activities, all associated with hydrogen peroxide and free oxygen radicals (Chen et al., 2012; Guo and Guo, 2019; Qin et al., 2019; Gu Y. et al., 2020; Chong et al., 2021; Zhao et al., 2021; Xu D. et al., 2022; Gao, 2022). Ferrihydrites, in particular, have high intrinsic CAT-like activity but low intrinsic POD-like activity due to the higher abundance of hydroxyl groups in their crystalline structure compared to other iron oxide colloids (Zhang R. et al., 2021).

Iron oxide nanocolloids¹ with intrinsic oxidoreductase activity are not limited to synthetic compounds. Inherent oxidoreductase activity has also been observed in Mag from magnetotactic bacteria (MTB) after removing the magnetosome protein membrane (Hu et al., 2010; Li et al., 2015). Biogenic iron oxide colloids from Burkholderia sp. YN01v (Fe₃O₄) (Pan et al., 2015; Pan et al., 2019), Comamonas testosterone (Fe_1.44O_0.32(OH)_3.86) (Ahmed et al., 2019) and Acinetobacter strains (Fe_0.96O_0.88(OH)_1.12) (Abagana et al., 2022) also exhibit intrinsic POD (Pan et al., 2015; Ahmed et al., 2019; Abagana et al., 2022), SOD (Pan et al., 2019) and CAT-like (Pan et al., 2019) activities. The mineral core of ferritin also exhibits POD activity that follows Michaelis-Menten-type kinetics for the oxidation of TMB, OPD and N, N-diethyl-1,4-phenylenediamine (DPD) (Arapova et al., 1999; Tang et al., 2011), as well as SOD activity (Zhang J. et al., 2021). A recent study also shows that the iron cores of various ferritins (Archaea: Pyrococcus furiosus, Pyrococcus yayanosii, and Sulfolobus solfataricus; Bacteria: Escherichia coli; Eukaryotes: Homo sapiens) exhibit oxidoreductase activity (POD, CAT, OXD, and SOD) after protein removal (Ma et al., 2024). This activity is attributed to their metal structure rather than the organic compounds in ferritins, particularly the amino acid sequences (Ma et al., 2024).

Iron sulfide nanocolloids have also been reported to have intrinsic oxidoreductase activity, similar to biological oxidoreductases that contain iron-sulfur (Fe-S) clusters, such as alkyl hydroperoxide reductase (Poole, 1996; Hall et al., 2011), disulfide bond oxidoreductase D, rubredoxin or Rieske dioxygenases (Katzen and Beckwith, 2000; Krupp et al., 2001). Furthermore, Fe-S suspensions were shown to catalyze the oxidation of POD substrates such as TMB in the presence of peroxide (Dai et al., 2009; Dutta et al., 2012b). The apparent K_m values of Fe₇S₈ nanowires for H₂O₂ and TMB are 0.895 mM and 0.548 mM, respectively, and the corresponding K_m values of HRP are 0.834 and 3.386 mM, demonstrating again that simple inorganic structures can have substrate affinities that are at least as strong as those of biological representatives (Yao et al., 2013). Greigite nanocolloids (Fe²⁺Fe³⁺₂S₄, structural equivalents of Mag) also possess POD-like activity with a high affinity for H₂O₂ (Ding et al., 2016; Liu W. et al., 2020). In addition, a nano-colloidal pyrite compound (“pyrite nanozyme”) has recently been shown to have a 3300-fold higher affinity for H₂O₂ than Mag, with a more than 4000-fold higher catalytic activity (Meng et al., 2021). It has also been shown that iron polysulfide particles possess POD, CAT and intrinsic glutathione oxidase (GSH-OXD)-like activity (Xu et al., 2018; Cao et al., 2023). These iron sulfide colloids can decompose H₂O₂ into free radicals and O₂, promoting the release of polysulfides. Similar to CAT-, OXD- or SOD-catalyzed reactions various reactive oxygen species (such as hydroxyl (^•OH), hydrogen peroxide (H₂O₂), superoxide (^•O₂*) and singlet oxygen (¹O₂) are formed in reactions catalyzed by these colloids (Kantar et al., 2019; Nie et al., 2019; Ding W. et al., 2020; Agnihotri et al., 2020; Wang et al., 2020; Huang et al., 2021; Ren et al., 2021; Song et al., 2022). Since most of these ROS trigger cytotoxic effects, metal sulfide nanocolloids may provide a novel therapeutic function (Yuan et al., 2020; Shan et al., 2022).

In addition to size, shape and surface area, recent data indicate that the metal architecture of nanocolloids, including iron oxides, plays a crucial role in enzyme-like activities associated with ET functions (Liu et al., 2011; Puvvada et al., 2012; Cheng et al., 2014; Mu et al., 2014; Peng et al., 2015; Ghosh et al., 2018; Xu Z. et al., 2021; Zhang R. et al., 2021; Jiang et al., 2021; Chen et al., 2022; Singh et al., 2022; Zhang et al., 2022). In general, the metal architecture of iron oxides is determined by their ferric-ferrous composition (e.g., Fe³⁺/Fe total) and the hydroxylation ratio (OH/Fe total), as illustrated in Figure 2A (Cornell and Schwertmann, 2003; Jolivet et al., 2006; Jolivet, 2019). As an example, Figure 2B shows the basic structural unit of 2L-Fht/6L-Fht and other iron oxide colloids in a Back-Figges δ-Keggin cluster (Fe₁₃), which contains 13 iron and 40 oxygen atoms (Michel et al., 2007; Michel et al., 2010). The central, tetrahedrally coordinated Fe is connected to 12 peripheral, octahedrally coordinated Fe atoms arranged in edge-sharing groups of three by oxo bridges. In this arrangement, iron oxide nanocolloids between 2 and 6 nm in size can be viewed as a three-dimensional packing of such clusters. Adjacent clusters are connected by a typical pair of edges, corners or faces, or by a combination-shared octahedra, forming oxo bridges in the bare cluster (Figure 2C) (Michel et al., 2007). The Fe-Fe distance depends on the architecture, with the corner-sharing arrangement having the longest (3.39–3.70 Å) and the face-sharing arrangement having the shortest distance (2.88 Å; Figure 2D) (Manceau and Combes, 1988; Cornell and Schwertmann, 2003).

FIGURE 2

The metal architecture of iron oxide colloids is susceptible to changes in the environment, including exposure to oxygen, reactive oxygen species, light, nitrate, ferrous or ferric irons, and phosphorus (Usman et al., 2018; Kappler et al., 2021). For instance, solar irradiation promotes a photo-oxidation process, even in the absence of oxygen (Braterman et al., 1983), triggering the transformation of Fht into Goe (Shu et al., 2019). Superoxide radicals were suggested to act as primary oxidants for Fe²⁺ under acidic conditions promoting the formation of iron oxide colloids (Shu et al., 2022). It has also been demonstrated that ferric oxyhydroxides such as Fht, Lep or Goe can be transformed into Mag when reacted with ferrous iron under alkaline conditions over time (Usman et al., 2012). Mag colloids are capable of converting into Mah, not only via oxidation by oxygen, various ions and/or ETs through the solid–solution interface (Jolivet and Tronc, 1988), but also through interaction with bacteria (Auffan et al., 2008). A similar transformation of the iron architecture has also been observed when Hem interacts with the iron-reducing bacterial strain Shewanella oneidensis MR-1 (Luo et al., 2017). Raman spectroscopy and analysis of magnetic properties reveal that this bacterial strain can transform the crystalline structure of Hem colloids from a hexagonal to a cubic system through microbial, extracellular ET. This transformation can also be monitored using electron paramagnetic resonance (EPR) spectroscopy, which shows that changes in the crystalline structure of Fe²⁺ lead to the biotransformation of Hem into Mag (Luo et al., 2017).

The changes in the internal atomic structure of nanocolloids play an important role in their reactivity. For example, near-spherical Mag NPs with an average diameter of 10.16 ± 0.12 nm, gradually lose POD-like activity during their transformation from Mag to Mah. This transformation interferes with the rate of the ET at the surface of these nanocolloids (Figure 3) (Dong et al., 2022). The specific POD-like activity (a_nano) of Mag, Mah and Hem NPs are 1.79, 0.45 and 0.03 Umg⁻¹, respectively (Figure 3A) (Dong et al., 2022). However, the values of a_nano of Mag significantly decrease over time (Figure 3B) (Dong et al., 2022). Changes in the metal architecture are not limited to the colloid surface as the interior Fe²⁺ of Mag NPs are also gradually oxidized during prolonged reaction times. As a result, the catalytic activity of recovered NPs also gradually decreases concomitantly with an increase in their oxidation state (Dong et al., 2022). It has been proposed that ET to the surface via Fe²⁺-O-Fe³⁺ chains may enable the regeneration of surface Fe²⁺, thereby sustaining POD-like catalytic activity. The efficiency of this step has been proposed as the rate-limiting factor in NP-catalyzed reactions (Dong et al., 2022). Keep in mind that inorganic NP structures are not rigid and unchanging entities. Instead, they dynamically respond to a myriad of external influences, including both abiotic and biotic factors, as well as catalytic processing. These factors significantly impact the behavior of biocatalysts and have implications for the importance of metal center stabilization in the evolution of proteins.

FIGURE 3

3 Electron transfer mechanisms in inorganic iron oxide and iron sulfide nanocolloids

In the previous section we focused on the connection between architecture and catalytic activity and how NPs can change their architecture and hence also their activity. Here, we concentrate on the electronic properties of catalytically active colloids, their dependence on structure and their implications for catalysis or chemical transformations.

In inorganic colloids, the band gap (i.e., the energy required to remove an electron from its valence shell) plays a significant role in ET processes and hence catalytic activity. The band gap is inherently related to the electron configuration, structural characteristics and charge ordering (i.e., the long-range order of different metal oxidation states within the crystal lattice of the colloids (Verwey, 1939)). A narrow band gap facilitates electron hopping, a phenomenon where electrons spontaneously move between localized states or sites within a material through a series of intermediate states. This efficient movement of electrons contributes to the material’s catalytic activity by promoting effective ET processes.

On the other hand, proteins, DNA and RNA also exhibit electron hopping due to their own unique structural and chemical properties (Giese, 2018). The study of the connection between ET and conductivity at the molecular level, particularly the interplay between solid-state physics and bioinorganic chemistry, is an area of active research (Bostick et al., 2018; Mostajabi Sarhangi and Matyushov, 2023). The occurrence of electron hopping has been suggested for various iron oxide colloids, such as Mag (Skomurski et al., 2010), Fht (Alexandrov and Rosso, 2014), Goe (Zarzycki et al., 2015), green rust (Wander et al., 2007) and Hem (Iordanova et al., 2005; Kerisit and Rosso, 2006). Experimental observations have confirmed electron hopping on the surfaces of Fht (Katz et al., 2012), Hem (Carneiro et al., 2017; Husek et al., 2017), and Mah (Ibrahim et al., 2018).

The electrical conductivity of Mag nanocolloids, for instance, is affected by alternating current (AC) frequency and temperature, as shown in Figure 4A (Radoń et al., 2018). Conductivity dispersion as a function of AC frequencies is closely related to both long-range (conduction mechanism associated with grain boundaries) and short-range mobility (conduction mechanism associated within grains; Figure 4B). The blue arrow represents the tunnelling of small polarons, the solid red arrow represents electron hopping, and the black arrow represents electrons moving between Fe²⁺ and Fe³⁺ ions in the crystal structure. At high temperatures and low frequencies, tunnelling of small polarons occurs, which is associated with the polarization of grain boundaries and manifests itself as long-range mobility (Figure 4B) (Radoń et al., 2018).

FIGURE 4

Alterations in the Fe-Fe distance in the octahedral chains of various iron oxide colloids can also affect the ability of electrons to hop or tunnel between ions, leading to changes in charge ordering that relates to electrical conductivity (Todo et al., 2001; Senn et al., 2012; Ovsyannikov et al., 2016; Hong et al., 2018; Ovsyannikov et al., 2018; Cassidy et al., 2019; Ovsyannikov et al., 2020) (Figure 4C). Similar effects on electronic properties under pressure (causing structural changes) have been reported for Mah, Hem and Foh NPs (Morris and Williams, 1997; Pasternak et al., 1999; Ohta et al., 2010; Ohta et al., 2012) (Figure 4D).

The electrical conductivity of iron oxide nanocolloids is also influenced by their concentration; specifically, in a Mag nanofluid with varying volume fractions, the electrical conductivity increases with increasing temperature and weight fraction (Jamilpanah et al., 2017). At 25°C, the electrical conductivity of the base fluid increased from 0.39 μS cm^-1 to 2,419 μS cm^-1 for a loading of 4 vol% iron oxide, which corresponds to an anomalous enhancement of over 6,000 fold.

The ferrimagnetic iron sulfide greigite (Fe₃S₄) has an inverse spinel structure, consisting of both Fe²⁺ and Fe³⁺ centers in a 1:2 ratio. The spin magnetic moments of the Fe cations in the tetrahedral sites are oriented in the opposite direction to those in the octahedral sites (anti-ferromagnetic coupling), resulting in a net magnetization (Devey et al., 2009; Pattrick et al., 2017). Both metal sites have high-spin quantum numbers, and the mineral is a half-metal with an S vacancy structure and a magnetic moment of <4.0 μB per formula unit (Li et al., 2014) (Figure 5A). Fe²⁺-Fe³⁺ electron hopping occurs at the octahedral sites. When comparing the properties of Fe₃S₄ and Fe₃O₄, the mean charges for octahedral Fe are 1.0 e⁻ and 1.7 e⁻, respectively, while for tetrahedral Fe, they are 1.1 e⁻ and 1.8 e⁻, respectively. The value of magnetization of saturation (Ms) in sulfides is slightly less than that of oxides (Roldan et al., 2013) and the resistivity of sulfides is also less than that of oxides (Figure 5B) (Li et al., 2014).

FIGURE 5

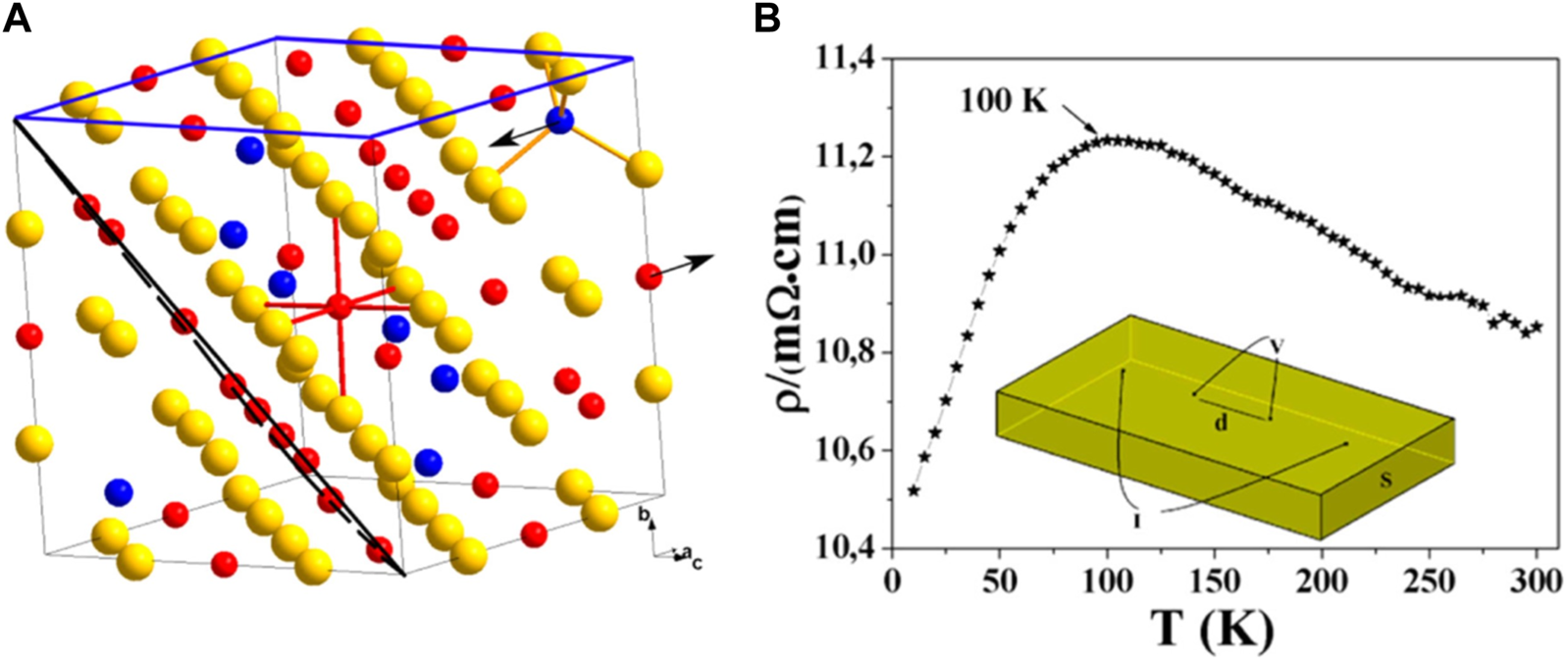

Another iron sulfide example is pyrrhotite (Fe_1-xS; with x varying between 0 and 0.13), which has a hexagonal crystal structure, where the metal ions are in an octahedral coordination environment and the anions in a trigonal prismatic arrangement. A crucial feature of this structure is the ability to omit metal atoms up to one in every eight (1/8), thereby creating iron vacancies. One such structure is pyrrhotite-4C (Fe₇S₈) (Sakkopoulos et al., 1984; Sagnotti, 2007). The Fe deficiency affects both the crystallographic and magnetic structures. The ordering of the Fe vacancies leads to an alternating arrangement of partially vacant and fully filled Fe layers, the hexagonal structure distorts to monoclinic and the magnetic ordering turns from antiferromagnetic to ferrimagnetic (Takele and Hearne, 1999; Roberts et al., 2018; Živković et al., 2021). Like in iron oxides, the structures of iron sulfide colloids also change with pressure (Takele and Hearne, 1999) or temperature (Roberts et al., 2018). The highly symmetrical structure of FeS results in an overall net zero magnetic moment across the unit cell. In contrast, the low symmetry structure of Fe₇S₈ exhibits ferrimagnetism due to the uncompensated magnetic moment in the iron-vacancy-rich layers. The vacancy-free sample (x = 0, troilite) has a metallic state in resistance and exhibiting superconductivity below 4.5 K (Lai et al., 2015). In contrast, for the samples with Fe vacancies (x ≥ 0.05), no superconductivity is observed, and the samples exhibit semiconducting behavior (Guo et al., 2017; Kuhn et al., 2017). Delocalized electrons in ultrathin Fe₇S₈ nanosheets facilitate ET as the d orbitals of Fe²⁺ and Fe³⁺ overlap. This electronic property is critical for its utilization as a catalyst, making ultrathin pyrrhotite nanosheets a very efficient Fe-based electrocatalysts for water oxidation (Chen et al., 2017).

In summary, the crystal structures of iron oxides and sulfides significantly influences their electrical properties, which are determined by the coordination of iron with oxygen or sulfur and the corresponding electronic configurations. The electron configuration and coordination of iron with oxygen or sulfur are crucial factors in determining the metal architecture of colloids, which contributes to their unique properties, including size and shape (Wu et al., 1997; Cornell and Schwertmann, 2003; Grau-Crespo et al., 2010; Yu et al., 2012; Erlebach et al., 2015; Noh et al., 2015; Huang X. et al., 2016; Li et al., 2017; Jian et al., 2019; Paidi et al., 2021). Iron oxides and sulfides exhibit semiconductor behavior with low band gaps, facilitating ET. The non-uniform coordination of Fe 3d electrons with oxygen or sulfur atoms yields a material that can induce intrinsic spontaneous electron hopping at non-uniform octahedral surface sites.

4 The relevance of inorganic oxidoreductase activity in biological systems

Iron oxide and sulfide nanocolloids are abundant on Earth and can be found in diverse habitats, including soils, water, rocks and living organisms (Cornell and Schwertmann, 2003; Jolivet et al., 2006; Rickard and Luther, 2007; Sagnotti, 2007; Navrotsky et al., 2008; Konishi et al., 2012; Guo and Barnard, 2013; Posth et al., 2014; Maher, 2016; Claudio et al., 2017; Yuan et al., 2020; Huang, 2022b). These encompass diverse environments such as high pH hydrothermal vents (Lough et al., 2019; Yücel et al., 2021), ice sheets (Hawkings et al., 2014), fly ash and street dust (Yang et al., 2016b; Gonet and Maher, 2019). Remarkably, they are also found in magnetosomes from Magnetotactic Bacteria (MTB) (Pósfai et al., 2013; Uebe and Schüler, 2016; Goswami et al., 2022), as well as in other biogenic iron minerals (Posth et al., 2014). These nanocolloids form through various mechanisms (Guo and Barnard, 2013), resulting in a range of sizes, shapes, and structures (Xie et al., 2018). Iron sulfide nanocolloids are prevalent in hydrothermal vent plumes (Findlay et al., 2019; Yücel et al., 2021) and can be found in many marine sediments (Rickard and Luther, 2007; Gu X. et al., 2020; Subramani et al., 2020). Geological evidence indicates that secondary pyrrhotite, pyrite, greigite, mackinawite and green rust (fougerite) may have existed as nanocolloids during the Hadean and early Archean era, a time period that predates and overlaps with the emergence of proteins and primitive life forms (Holland, 2007; Raiswell and Canfield, 2012; Bekker et al., 2013; Catling, 2013; Halevy et al., 2017; Goswami et al., 2022). Notably, simulations conducted in origin-of-life reactors produced pyrrhotite, pyrite and mackinawite (Herschy et al., 2014; White et al., 2015; White et al., 2020). Fe₂O₃ NPs obtained from PVC dichlorination residues and iron chips treated with subcritical water exhibit inherent peroxidase-like properties (Qi et al., 2023). It is anticipated that any iron oxide NPs with the same metal architecture continue to function as biocatalysts, a realization yet to be fully acknowledged.

During the Archean era, the primitive atmosphere was mainly composed of nitrogen, carbon monoxide, carbon dioxide and methane (Kasting et al., 1984; Lyons et al., 2014) but also potentially low levels of O₂ and H₂O₂ (Zuo and Deng, 1999; Borda et al., 2001; Lee et al., 2019; He et al., 2021; Jenkins et al., 2021; Stone et al., 2022). The oceans contained Fe²⁺ and transition metal oxide, sulfide and potentially selenide nanocolloids (Braterman et al., 1983; Holland, 2007; Nitschke and Russell, 2009; Bekker et al., 2013; Shu et al., 2019; Shu et al., 2022). In order to broadly address the roles of metal nano-to sub-micro-sized catalysts on life and the habitability of Earth, we need to consider the basic requirements for life, i.e., all cells need a source of energy and are composed of water, organic carbon molecules and essential elements (hydrogen, oxygen, nitrogen, phosphorus, and sulfur). The occurrence of complex organic carbon molecules and essential elements in the materials that formed the proto solar system cloud suggests that these materials, and possibly mineral catalysts were ubiquitous. Endogenous sources of organic carbon included the primordial, slightly reducing atmosphere (Miller, 1953; Johnson et al., 2008) and active hydrothermal systems producing organic carbon via Fischer Tropsch synthesis, e.g., the Rainbow ultramafic hydrothermal system on the Mid Atlantic Ridge (Russell et al., 2010). A significant number of organic molecules (and other volatiles, such as water) were also delivered from extraterrestrial sources, e.g., carbonaceous chondrites, containing up to 5% organic carbon (Sephton and Botta, 2008; Potiszil et al., 2023). Habitable conditions are defined by the sum of the physical and chemical conditions that support the presence of liquid water at the surface of a planetary body. Under standard (Earth) temperature and pressure, the occurrence of liquid water and catalytic activity could have occurred over a broad range of temperatures (−15°C–100°C) and salinity (freshwater to saturated brines), conditions that are considered to be extreme on Earth today. An origin of life under these extreme conditions is thought to be aligned with the Archaeal domain (Woese et al., 1990), which is dominated by prokaryotes that thrive in anaerobic (methanogen), thermophilic (high temperature) and halophilic (salt loving) extreme environmental conditions, common on early Earth. Anaerobic (reducing) mineral catalysts, e.g., iron sulfides, would have affected the geochemistry of this early Earth, producing substrates for early life from the late heavy bombardment ∼3.9 billion years ago (Gomes et al., 2005) and continuing through the origin of life era, about 3.5 billion years ago (Westall and Southam, 2006), until the Great Oxidation Event (GOE) beginning from ∼ 2.5 billion years ago. During this time, the Earth possessed an anaerobic, habitable environment with < 0.2% of the present atmospheric oxygenic levels (Catling and Claire, 2005) and that was significantly hotter (Knauth and Lowe, 2003; Cavalazzi et al., 2021) and more volcanically/hydrothermally active (Hofmann and Bolhar, 2007) than most contemporary systems. The low levels of reactive oxygen produced by photolysis (Kasting, 1993) relative to the abundance of reduced chemical species would have resulted in a correspondingly reducing chemistry for the hydrosphere and lithosphere, though some transient metal oxides, i.e., metal oxide colloids, may have been formed and been ‘active’ in this system. From the GOE forward, Earth has had variable, but more oxidizing conditions, increasing the diversity of catalytic nanomaterials, e.g., partially oxidizing (such as Mag) to fully oxidizing materials (such as 2L-Fht or 6L-Fht), as well as the ‘earlier’ reducing mineral catalysts.

Ever since the GOE, the presence of hydrogen peroxide and free radicals in the environment has been a challenge for living cells, in particularly anaerobic bacteria, which do not have efficient enzymatic detoxification strategies (Dröge, 2002; Halliwell, 2006; Ślesak et al., 2007; Sies, 2017; Taverne et al., 2018; Taverne et al., 2020). ROS, such as hydrogen peroxide, are byproducts of normal metabolic processes in cells and can cause oxidative damage to cellular components such as DNA, proteins and lipids. The Snowball Earth and GOE periods may have contributed to an increase in atmospheric hydrogen peroxide levels, potentially leading to detrimental effects such as mutations, cell death and other adverse impacts on organism survival and evolution (Liang et al., 2006). It has been speculated that essential enzymes like SOD, CAT and POD may have existed prior to the GOE (Castresana et al., 1994; Zelko et al., 2002; Slesak et al., 2012; Zámocký et al., 2012; Inupakutika et al., 2016; Ślesak et al., 2016; Case, 2017; Olson et al., 2017). Furthermore, their activities may have been complemented/augmented by iron oxide and sulfide nanocolloids, thus mitigating the detrimental effects of ROSs (Huang, 2018; Huang, 2022a). Such activities are found in all domains of life, including obligate anaerobes, suggesting that the need for such protection prevailed even in anaerobic environments (Runnegar, 1991; Castresana and Saraste, 1995; Lenton, 2003; Neubeck and Freund, 2020). These suggestions are consistent with the hypothesis that inorganic iron oxide or sulfide colloids with intrinsic oxidoreductase activity and/or which promote spontaneous electron hopping may have been crucial to establish and enhance biological reaction rates at the onset of biological evolution. Remarkably, iron oxide nanocolloids, such as Mag and ferrihydrite, can directly cross lipid bilayers and enter the cytoplasm and other cellular compartments of eukaryotic cells without damaging the plasma membrane (Zanella et al., 2017; Chilom et al., 2020).

As described above, some microorganisms are able to trigger architectural changes of iron colloids, especially the nanocolloids and consequently can also alter their catalytic activity (e.g., E. coli or S. oneidensis MR-1 (Luo et al., 2017)). Another example is Trichoderma guizhouense; incubation of Mag nanocolloids with this fungus leads to a significant increase in their POD-like activity (∼2.4-fold increase) (Chi et al., 2021). These observations demonstrate that nature is not only able to utilize inorganic colloids but to also optimize their oxidoreductase activity through modifications of their metal architecture. Further, recent research has demonstrated that the ET rate of inorganic iron oxide NPs can also be augmented by small molecules such as amino acids or nucleotides (Fan et al., 2017; Niu et al., 2018; Wu W. et al., 2019; Chen J. et al., 2020; Han et al., 2020; Niu et al., 2020; Vallabani et al., 2020; Xu W. et al., 2021; Geng et al., 2021; Han et al., 2021; Sun et al., 2021; Wang et al., 2023). It is widely accepted that primitive precursors of these molecules emerged early during Earth’s prebiotic evolution (Miller, 1953; OrÓ, 1961; Ferus et al., 2017; Frenkel-Pinter et al., 2022), contributing to the development of life, including the formation of proteins, DNA and RNA. For instance, the complexation of Mag NPs with the amino acid histidine (His) improves their K_m for H₂O₂ over ten-fold (from 459 mM to 38 mM) and increases their catalytic efficiency (k_cat/K_m) up to 20-fold (from 0.68×10⁶ s^-1M^-1 to 14.2×10⁶ s^-1M^-1) (Fan et al., 2017). For comparison, the corresponding values for the enzyme HRP are 10.4 mM and 0.29×10⁶ s^-1M^-1 (Fan et al., 2017). The addition of organic functional groups, such as amino acids or nucleotides, to inorganic oxidoreductases likely played a vital role in stabilizing the structure of the early catalysts during evolution (Huang, 2022a), while also promoting electron tunneling (via super-exchange) and hopping (Halpern and Orgel, 1960; Hopfield, 1974; Marcus and Sutin, 1985; Warren et al., 2012; Gray and Winkler, 2015; 2021). Notably, electrons can tunnel through peptides in microseconds over distances of 15–20 Å, a phenomenon assisted by aromatic side chains of amino acids such as tryptophan (Trp) and tyrosine (Tyr) (Gray and Winkler, 2021).

In the study of ET in proteins, attention is given to factors such as the amino acid composition, overall fold and hydrogen bonds (Dixon and Lipscomb, 1976; Dwyer, 2006; Warren et al., 2012; Berstis et al., 2015; Gray and Winkler, 2015; Sepunaru et al., 2015; Gray and Winkler, 2021). Similarly, evolutionary studies of metalloenzymes have mostly focused on their protein folds (Grishin, 2001; Raanan et al., 2020), and less so on their metal centers (Holm et al., 1996; Drennan and Peters, 2003). Recently, it was proposed that metalloenzymes, including ribozymes (Pyle, 1993), may be considered as functionalized nanomaterials, in which the metal architecture serves as an active center that has been stabilized over time by amino acids and nucleic acids (Huang, 2022a). This line of thought is supported by the fact that certain inorganic colloids exhibit enzyme-like properties and with similar metal architectures as the active sites of enzymes such as POD, OXD, CAT or SOD, but also purple acid phosphatase (Mitić et al., 2006; Huang and Zhang, 2007; 2012; Schenk et al., 2013; Huang, 2018; 2019), haloperoxidase (André et al., 2011; Natalio et al., 2012; Leblanc et al., 2015; Chen, 2022) and sulfite-oxidizing enzymes (Hille et al., 2014; Ragg et al., 2014; Kappler and Enemark, 2015). It is important to note that metalloenzymes have highly complex and fine-tuned structures that have evolved over time, incorporating both a metal center and specific amino acid side chains that contribute to their fold, tertiary/quaternary structures, as well as their ability to confer catalytic activity.

Another poignant example that illustrates the evolution of a metalloenzyme starting from an inorganic core is ferredoxin, an Fe-S-containing protein that was identified as an essential component of photosynthesis well before its amino acid sequence was known (Eck and Dayhoff, 1966). Indeed, Fe-S clusters were present in the last universal common ancestor (LUCA) of life on Earth, where they may have been used for various purposes, including ET and redox reactions (Weiss et al., 2016). This hypothesis is supported by research on hydrothermal vents that mimic conditions that may have been present at the onset of living organisms (Baross and Hoffman, 1985; Russell and Hall, 1997; Nitschke and Russell, 2009). The Fe-S clusters in proteins exhibit considerable similarity to various iron sulfides (Zhao et al., 2020; McGuinness et al., 2022). Relevant examples include eukaryotic ferredoxins and Rieske proteins that contain a Fe-S cluster with two Fe and two S atoms forming a 2Fe-2S diamond (Holden et al., 1994; Gurbiel et al., 1996), while higher potential iron-sulfur proteins and iron regulatory proteins (IRPs) use four Fe and four S atoms to form a cubic 4Fe-4S cluster (Breiter et al., 1991; Solomon et al., 2000; Dupuy et al., 2006; Imlay, 2006). Rubredoxin, on the other hand, possesses a single iron atom coordinated by four equidistant sulfur atoms, forming a 1Fe-4S tetrahedron (Adman et al., 1991; Liu et al., 2015). Furthermore, although rare, 3Fe-3S (Bruschi and Guerlesquin, 1988) and 6Fe-6S clusters (Stokkermans et al., 1992) are also observed, demonstrating the architectural diversity of iron sulfide minerals. How these different clusters evolved in protein environments remains obscure. However, it is worth noting that iron sulfides with a single iron atom coordinated by four equidistant sulfur atoms exhibit superconductivity (Lai et al., 2015; Guo et al., 2017; Kuhn et al., 2017) and high inorganic oxidoreductase activity (Dai et al., 2009; Dutta et al., 2012b; Yao et al., 2013; Ding et al., 2016; Xu et al., 2018), suggesting that they may have played important roles in the biochemistry of LUCA and thus the evolution of FeS-containing proteins.

The catalytic activity of cubane-type Fe₄S₄ clusters in metalloproteins like biotin synthase (Reyda et al., 2009), aconitase (Castro et al., 2019), and (E)-4-hydroxy-3-methylbut-2-enyl pyrophosphate reductase (IspH) (Span et al., 2012), as well as in synthetic M₄S₄ clusters for various reactions, illustrates their possible role in the emergence of life and the formation of organic compounds from inorganic precursors (Seino and Hidai, 2011). Recent studies show that Fe–S clusters with low-valent Fe¹⁺ centers can adopt a wide range of electronic configurations, crucial for their catalytic activity (Brown et al., 2022). CO binding to a synthetic [Fe₄S₄]⁰ cluster with N-heterocyclic carbene ligands triggers the generation of Fe¹⁺ centers through intracluster ET, demonstrating the Fe-S clusters’ ability to facilitate ET in redox reactions. CO binding to an [Fe₄S₄]⁺ cluster induces electron delocalization with a neighboring Fe site, resulting in a mixed-valent Fe^1.5+Fe^2.5+ pair, thus enabling the activation of C–O bonds without highly negative redox states (Brown et al., 2022). Metalloproteins with Fe₄S₄ clusters catalyze CO and CO₂ reduction to hydrocarbons (alkanes/alkenes) (Lee et al., 2010; Rebelein et al., 2015; Waser et al., 2023), significant in context of early Earth’s life origins.

Pyruvate is a central metabolite in Archaea, Bacteria and Eukarya kingdoms, where iron-sulfur enzymes connect pyruvate to carbon fixation pathways and thioester biochemistry (De Duve, 1991; Berg et al., 2010). The FeS/S/FeS₂ system catalyzes hydroxyl acids and keto acids interconversion (Wang et al., 2011). Recent studies show natural iron sulfide pyrrhotite acting as an oxidoreductase catalyst in pyruvic acid to lactic acid conversion (De Aldecoa et al., 2013) and CO₂ reduction (Mitchell et al., 2021). Although these studies lack detailed kinetic data for the NPs’ inorganic oxidoreductase activity, they align with Wächtershäuser’s mineral surface study focusing on the iron-sulfur world and its relevance to evolutionary biochemistry (Wächtershäuser, 1988, 1990, 1992).

Contemporary biological systems demonstrate the versatile applications of inorganic NPs across various fields. In biomedicine, iron oxide NPs have shown promise for therapeutic and diagnostic purposes. For example, ferrihydrite NPs exhibiting CAT-like activity, were found to enhance the effectiveness of radiotherapy (Zhang R. et al., 2021), while magnetoferritin NPs have been employed for targeting and visualizing tumor tissues (Fan et al., 2012). Additionally, dietary iron oxide NPs with CAT activity has been shown to mitigate neurodegeneration in a Drosophila-Alzheimer’s disease model (Zhang et al., 2016). These findings highlight the potential of iron oxide NPs in addressing aging-related metabolic disorders and neurodegenerative diseases associated with increased ROS production. In agriculture, inorganic NPs have been studied for their effects on plant growth and nutrient uptake. Recent research has indicated their role in enhancing nitrogen fixation, yield, and nutritional quality of soybeans (Cao et al., 2022). Furthermore, foliar application of iron oxide NPs has been observed to stimulate plant growth and act as a defense response against plant viruses (Cai et al., 2020). These findings underscore the potential of inorganic NPs in sustainable agriculture practices. Moreover, inorganic NPs have shown promise in environmental applications, particularly in remediation and pollution control. For instance, green-synthesized magnetite NPs have demonstrated antifungal potential in protecting plants against wilt infection (Ashraf et al., 2022). They have also been effective in mitigating the harmful effects of heavy metal contamination in plants, such as reducing cadmium accumulation in rice biomass (Rizwan et al., 2019; Sarraf et al., 2022; Lu et al., 2023). These applications highlight the diverse potential of inorganic NPs in addressing environmental challenges and contributing to sustainable environmental management.

In summary, the multifaceted applications of inorganic NPs span biomedicine, agriculture and environmental remediation. Leveraging the functional properties of NPs facilitate a growing number of innovative solutions for a wide range of challenges, from improving human health to enhancing agricultural productivity and addressing environmental pollution.

5 Conclusion

Inorganic ‘biocatalysts’ were crucial components of prebiotic chemical reactions related to the emergence of life (Bernal, 1951; Williams, 1981; Cairns-Smith, 1985; Williams, 2003), and remain central to many contemporary biological processes. The “metabolism-first” model for the emergence of life posits the development of metabolic networks prior to the emergence of genetic material (Oparin, 1938; Bernal, 1951). This model considers key inorganic processes, such as pyrite formation and serpentinization (Russell and Hall, 1997; Russell et al., 2010; Russell, 2023), which may have played a role in early biochemical reactions due to their surface properties and potential catalytic capabilities (Wächtershäuser, 1992).

Recent perspectives, supported by the discovery of nanocolloidal mineral biocatalyst activity, have shed light on the significance of metal architectures in catalysis, particularly in biological processes (Huang, 2022a). Laboratory studies have demonstrated that inorganic iron-oxide, -sulfide, and -selenide NPs exhibit unique oxidoreductase activity, arising from their metal architecture rather than solely their surface properties. ET and electron hopping within these NPs are influenced by the electronic structure of the metal ions and their coordination with oxygen, sulfur, or other elements, enhancing their oxidoreductase activity. The presence of these inorganic nanocolloids in early Earth environments suggests their involvement in crucial geological and chemical processes, including potential contributions to the first life and the evolution of biological systems.

The essential role of inorganic oxidoreductases in the emergence and evolution of life extends to their influence on the development and adaptation of living organisms over time. These catalysts have been fundamental in shaping the metabolic pathways that form the basis of cellular energy production and utilization using ET. By catalyzing key redox reactions, inorganic oxidoreductases have enabled organisms to efficiently harness and utilize energy from their environments. Furthermore, inorganic oxidoreductases have been involved in biogeochemical cycles that have shaped the availability and cycling of essential elements like carbon, oxygen, phosphorus, sulfur, iron, manganese, and chromium, as well as trace metals such as uranium, in the environment. These cycles play a crucial role in regulating the distribution and cycling of these elements between the atmosphere, lithosphere, hydrosphere, and biosphere.

The discovery of inorganic nano-sized catalysts substantiates the significance of metal architecture in biocatalysts from the onset of the evolution of life on our planet. Furthermore, enhancing our understanding of the contributions of inorganic nanocolloids to the evolution of life may also deepen our understanding of Earth’s ecosystems and their interconnectedness. These inorganic nanocolloids and their catalytic activity may have applications in various fields, including biomedicine, agriculture, and environmental science, owing to their stability and high catalytic efficiency.

Glossary

References

• 1

  Abagana A. Y. Zhao M. Alshahrani M. Y. Rehman K. U. Andleeb S. Wang J. et al (2022). Hydrogen iron oxide from an Acinetobacter strain exhibiting intrinsic peroxidase-like activity and its catalytic mechanism and applications. Biomass Convers. Biorefinery. 10.1007/s13399-022-02370-y

  • CrossRef
  • Google Scholar

• 2

  Adman E. T. Sieker L. C. Jensen L. H. (1991). Structure of rubredoxin from Desulfovibrio vulgaris at 1.5 A resolution. J. Mol. Biol.217, 337–352. 10.1016/0022-2836(91)90547-j

  • CrossRef
  • Google Scholar

• 3

  Agnihotri S. Mohan T. Jha D. Gautam H. K. Roy I. (2020). Dual modality FeS nanoparticles with reactive oxygen species-induced and photothermal toxicity toward pathogenic bacteria. ACS Omega5, 597–602. 10.1021/acsomega.9b03177

  • CrossRef
  • Google Scholar

• 4

  Ahmed A. Abagana A. Cui D. Zhao M. (2019). De novo iron oxide hydroxide, ferrihydrite produced by comamonas testosteroni exhibiting intrinsic peroxidase-like activity and their analytical applications. Biomed. Res. Int.2019, 1–14. 10.1155/2019/7127869

  • CrossRef
  • Google Scholar

• 5

  Alexandrov V. Rosso K. M. (2014). Electron transport in pure and substituted iron oxyhydroxides by small-polaron migration. J. Chem. Phys.140, 234701. 10.1063/1.4882065

  • CrossRef
  • Google Scholar

• 6

  Alfonso-Prieto M. Biarnés X. Vidossich P. Rovira C. (2009). The molecular mechanism of the catalase reaction. J. Am. Chem. Soc.131, 11751–11761. 10.1021/ja9018572

  • CrossRef
  • Google Scholar

• 7

  André R. Natálio F. Humanes M. Leppin J. Heinze K. Wever R. et al (2011). V₂O₅ nanowires with an intrinsic peroxidase-like activity. Adv. Funct. Mat.21, 501–509. 10.1002/adfm.201001302

  • CrossRef
  • Google Scholar

• 8

  Apel K. Hirt H. (2004). Reactive oxygen species: metabolism, oxidative stress, and signal transduction. Ann. Rev. Plant Biol.55, 373–399. 10.1146/annurev.arplant.55.031903.141701

  • CrossRef
  • Google Scholar

• 9

  Arapova G. S. Eryomin A. N. Metelitza D. I. (1999). Catalytic peroxidase-like activity of an iron-containing crystallite isolated from ferritin in aqueous solution and reversed micelles of aerosol OT in heptane. Russ. J. Bioorg. Chem.25, 369–376.

  • Google Scholar

• 10

  Ashraf H. Batool T. Anjum T. Illyas A. Li G. Naseem S. et al (2022). Antifungal potential of green synthesized magnetite nanoparticles black coffee–magnetite nanoparticles against wilt infection by ameliorating enzymatic activity and gene expression in Solanum lycopersicum L. Front. Microbiol.13, 754292. 10.3389/fmicb.2022.754292

  • CrossRef
  • Google Scholar

• 11

  Auffan M. Achouak W. Rose J. Roncato M. A. Chanéac C. Waite D. T. et al (2008). Relation between the redox state of iron-based nanoparticles and their cytotoxicity toward Escherichia coli. Environ. Sci. Technol.42, 6730–6735. 10.1021/es800086f

  • CrossRef
  • Google Scholar

• 12

  Baross J. A. Hoffman S. E. (1985). Submarine hydrothermal vents and associated gradient environments as sites for the origin and evolution of life. Orig. Life Evol. Biosph.15, 327–345. 10.1007/bf01808177

  • CrossRef
  • Google Scholar

• 13

  Bayr H. (2005). Reactive oxygen species. Crit. Care Med.33, S498–S501. 10.1097/01.ccm.0000186787.64500.12

  • CrossRef
  • Google Scholar

• 14

  Bekker A. Planavsky N. J. Krapež B. Rasmussen B. Hofmann A. Slack J. F. et al (2013). “Iron formations: their origins and implications for ancient seawater chemistry,” in Treatise on geochemistry. Second Edition (Elsevier Inc.), 561–628.

  • Google Scholar

• 15

  Berg I. A. Kockelkorn D. Ramos-Vera W. H. Say R. F. Zarzycki J. Hügler M. et al (2010). Autotrophic carbon fixation in archaea. Nat. Rev. Microbiol.8, 447–460. 10.1038/nrmicro2365

  • CrossRef
  • Google Scholar

• 16

  Bernal J. D. (1951). The physical basis of life, guthrie lecture. London: Routledge And Kegan Paul.

  • Google Scholar

• 17

  Berstis L. Beckham G. T. Crowley M. F. (2015). Electronic coupling through natural amino acids. J. Chem. Phys.143, 225102. 10.1063/1.4936588

  • CrossRef
  • Google Scholar

• 18

  Bollella P. Gorton L. Antiochia R. (2018). Direct electron transfer of dehydrogenases for development of 3rd generation biosensors and enzymatic fuel cells. Sensors18, 1319. 10.3390/s18051319

  • CrossRef
  • Google Scholar

• 19

  Borda M. J. Elsetinow A. R. Schoonen M. A. Strongin D. R. (2001). Pyrite-induced hydrogen peroxide formation as a driving force in the evolution of photosynthetic organisms on an early earth. Astrobiology1, 283–288. 10.1089/15311070152757474

  • CrossRef
  • Google Scholar

• 20

  Bostick C. D. Mukhopadhyay S. Pecht I. Sheves M. Cahen D. Lederman D. (2018). Protein bioelectronics: a review of what we do and do not know. Rep. Prog. Phys.81, 026601. 10.1088/1361-6633/aa85f2

  • CrossRef
  • Google Scholar

• 21

  Braterman P. S. Cairns-Smith A. G. Sloper R. W. (1983). Photo-oxidation of hydrated Fe2+-significance for banded iron formations. Nature303, 163–164. 10.1038/303163a0

  • CrossRef
  • Google Scholar

• 22

  Breiter D. R. Meyer T. E. Rayment I. Holden H. M. (1991). The molecular structure of the high potential iron-sulfur protein isolated from Ectothiorhodospira halophila determined at 2.5-A resolution. J. Biol. Chem.266, 18660–18667. 10.1016/s0021-9258(18)55114-0

  • CrossRef
  • Google Scholar

• 23

  Brown A. C. Thompson N. B. Suess D. L. M. (2022). Evidence for low-valent electronic configurations in iron–sulfur clusters. J. Am. Chem. Soc.144, 9066–9073. 10.1021/jacs.2c01872

  • CrossRef
  • Google Scholar

• 24

  Bruschi M. Guerlesquin F. (1988). Structure, function and evolution of bacterial ferredoxins. FEMS Microbiol. Lett.54, 155–175. 10.1111/j.1574-6968.1988.tb02741.x

  • CrossRef
  • Google Scholar

• 25

  Cai L. Cai L. Jia H. Liu C. Wang D. Sun X. (2020). Foliar exposure of Fe₃O₄ nanoparticles on Nicotiana benthamiana: evidence for nanoparticles uptake, plant growth promoter and defense response elicitor against plant virus. J. Hazard. Mat.393, 122415. 10.1016/j.jhazmat.2020.122415

  • CrossRef
  • Google Scholar

• 26

  Cairns-Smith A. G. (1985). Seven clues to the origin of life, A scientific detective story. Cambridge, UK: Cambridge University Press.

  • Google Scholar

• 27

  Cao H. Wang Q. Wang X. Chen L. Jiang J. Gao L. (2023). Metastable iron sulfides: a versatile antibacterial candidate with multiple mechanisms against bacterial resistance. Acc. Mater Res.4, 115–132. 10.1021/accountsmr.2c00177

  • CrossRef
  • Google Scholar

• 28

  Cao X. Yue L. Wang C. Luo X. Zhang C. Zhao X. et al (2022). Foliar application with iron oxide nanomaterials stimulate nitrogen fixation, yield, and nutritional quality of soybean. ACS Nano16, 1170–1181. 10.1021/acsnano.1c08977

  • CrossRef
  • Google Scholar

• 29

  Carneiro L. M. Cushing S. K. Liu C. Su Y. Yang P. Alivisatos A. P. et al (2017). Excitation-wavelength-dependent small polaron trapping of photoexcited carriers in α-Fe₂O₃. Nat. Mat.16, 819–825. 10.1038/nmat4936

  • CrossRef
  • Google Scholar

• 30

  Case A. J. (2017). On the origin of superoxide dismutase: an evolutionary perspective of superoxide-mediated redox signaling. Antioxidants6, 82. 10.3390/antiox6040082

  • CrossRef
  • Google Scholar

• 31

  Cassidy S. J. Orlandi F. Manuel P. Clarke S. J. (2019). Single phase charge ordered stoichiometric CaFe₃O₅ with commensurate and incommensurate trimeron ordering. Nat. Commun.10, 5475. 10.1038/s41467-019-13450-5

  • CrossRef
  • Google Scholar

• 32

  Castresana J. Lübben M. Saraste M. Higgins D. G. (1994). Evolution of cytochrome oxidase, an enzyme older than atmospheric oxygen. EMBO J.13, 2516–2525. 10.1002/j.1460-2075.1994.tb06541.x

  • CrossRef
  • Google Scholar

• 33

  Castresana J. Saraste M. (1995). Evolution of energetic metabolism: the respiration-early hypothesis. Trends biochem. Sci.20, 443–448. 10.1016/s0968-0004(00)89098-2

  • CrossRef
  • Google Scholar

• 34

  Castro L. Tórtora V. Mansilla S. Radi R. (2019). Aconitases: non-redox iron-sulfur proteins sensitive to reactive species. Acc. Chem. Res.52, 2609–2619. 10.1021/acs.accounts.9b00150

  • CrossRef
  • Google Scholar

• 35

  Catling D. C. (2013). “The Great oxidation event transition,” in Treatise on geochemistry. Second Edition (Elsevier Inc.), 177–195.

  • Google Scholar

• 36

  Catling D. C. Claire M. W. (2005). How Earth's atmosphere evolved to an oxic state: a status report. Earth Planet. Sci. Lett.237, 1–20. 10.1016/j.epsl.2005.06.013

  • CrossRef
  • Google Scholar

• 37

  Cavalazzi B. Lemelle L. Simionovici A. Cady S. L. Russell M. J. Bailo E. et al (2021). Cellular remains in a ∼3.42-billion-year-old subseafloor hydrothermal environment. Sci. Adv.7, eabf3963. 10.1126/sciadv.abf3963

  • CrossRef
  • Google Scholar

• 38

  Chaudhari K. N. Chaudhari N. K. Yu J. S. (2012). Peroxidase mimic activity of hematite iron oxides (α-Fe₂O₃) with different nanostructures. Catal. Sci. Technol.2, 119–124. 10.1039/c1cy00124h

  • CrossRef
  • Google Scholar

• 39

  Chen H. Simoska O. Lim K. Grattieri M. Yuan M. Dong F. et al (2020a). Fundamentals, applications, and future directions of bioelectrocatalysis. Chem. Rev.120, 12903–12993. 10.1021/acs.chemrev.0c00472

  • CrossRef
  • Google Scholar

• 40

  Chen J. Ma Q. Li M. Wu W. Huang L. Liu L. et al (2020b). Coenzyme-dependent nanozymes playing dual roles in oxidase and reductase mimics with enhanced electron transport. Nanoscale12, 23578–23585. 10.1039/d0nr06605b

  • CrossRef
  • Google Scholar

• 41

  Chen M. Zhou X. Xiong C. Yuan T. Wang W. Zhao Y. et al (2022). Facet engineering of nanoceria for enzyme-mimetic catalysis. ACS Appl. Mater Interfaces14, 21989–21995. 10.1021/acsami.2c04320

  • CrossRef
  • Google Scholar

• 42

  Chen S. Kang Z. Zhang X. Xie J. Wang H. Shao W. et al (2017). Highly active Fe sites in ultrathin pyrrhotite Fe₇S₈ nanosheets realizing efficient electrocatalytic oxygen evolution. ACS Cent. Sci.3, 1221–1227. 10.1021/acscentsci.7b00424

  • CrossRef
  • Google Scholar

• 43

  Chen T. Zou H. Wu X. Liu C. Situ B. Zheng L. et al (2018). Nanozymatic antioxidant system based on MoS₂ nanosheets. ACS Appl. Mater Interfaces10, 12453–12462. 10.1021/acsami.8b01245

  • CrossRef
  • Google Scholar

• 44

  Chen Z. (2022). Recent development of biomimetic halogenation inspired by vanadium dependent haloperoxidase. Coord. Chem. Rev.457, 214404. 10.1016/j.ccr.2021.214404

  • CrossRef
  • Google Scholar

• 45

  Chen Z. Yin J. J. Zhou Y. T. Zhang Y. Song L. Song M. et al (2012). Dual enzyme-like activities of iron oxide nanoparticles and their implication for diminishing cytotoxicity. ACS Nano6, 4001–4012. 10.1021/nn300291r

  • CrossRef
  • Google Scholar

• 46

  Cheng C.-S. Serizawa M. Sakata H. Hirayama T. (1998). Electrical conductivity of Co₃O₄ films prepared by chemical vapour deposition. Mat. Chem. Phys.53, 225–230. 10.1016/s0254-0584(98)00044-3

  • CrossRef
  • Google Scholar

• 47

  Cheng X.-L. Jiang J.-S. Jiang D.-M. Zhao Z.-J. (2014). Synthesis of rhombic dodecahedral Fe₃O₄ nanocrystals with exposed high-energy {110} facets and their peroxidase-like activity and lithium storage properties. J. Phys. Chem. C118, 12588–12598. 10.1021/jp412661e

  • CrossRef
  • Google Scholar

• 48

  Chi Z. L. Zhao X. Y. Chen Y. L. Hao J. L. Yu G. H. Goodman B. A. et al (2021). Intrinsic enzyme-like activity of magnetite particles is enhanced by cultivation with Trichoderma guizhouense. Environ. Microbiol.23, 893–907. 10.1111/1462-2920.15193

  • CrossRef
  • Google Scholar

• 49

  Chilom C. G. Zorilă B. Bacalum M. Bălăşoiu M. Yaroslavtsev R. Stolyar S. V. et al (2020). Ferrihydrite nanoparticles interaction with model lipid membranes. Chem. Phys. Lipids.226, 104851. 10.1016/j.chemphyslip.2019.104851

  • CrossRef
  • Google Scholar

• 50

  Chong Y. Liu Q. Ge C. (2021). Advances in oxidase-mimicking nanozymes: classification, activity regulation and biomedical applications. Nano Today37, 101076. 10.1016/j.nantod.2021.101076

  • CrossRef
  • Google Scholar

• 51

  Claudio C. Di Iorio E. Liu Q. Jiang Z. Barrón V. (2017). Iron oxide nanoparticles in soils: environmental and agronomic importance. J. Nanosci. Nanotechnol.17, 4449–4460. 10.1166/jnn.2017.14197

  • CrossRef
  • Google Scholar

• 52

  Cornell R. M. Schwertmann U. (2003). The iron oxides: structure, properties, reactions, occurrence and uses. Wiley‐VCH Verlag GmbH and Co. KGaA.

  • Google Scholar

• 53

  Cui Z. Li Y. Zhang H. Qin P. Hu X. Wang J. et al (2022). Lighting up agricultural sustainability in the new era through nanozymology: an overview of classifications and their agricultural applications. J. Agric. Food Chem.70, 13445–13463. 10.1021/acs.jafc.2c04882

  • CrossRef
  • Google Scholar

• 54

  Dai Z. Liu S. Bao J. Ju H. (2009). Nanostructured FeS as a mimic peroxidase for biocatalysis and biosensing. Chemistry15, 4321–4326. 10.1002/chem.200802158

  • CrossRef
  • Google Scholar

• 55

  De Aldecoa A. L. Roldán F. V. Menor-Salván C. (2013). Natural pyrrhotite as a catalyst in prebiotic chemical evolution. Life3, 502–517. 10.3390/life3030502

  • CrossRef
  • Google Scholar

• 56

  De Duve C. (1991). Blueprint for a cell: the nature and origin of life. Burlington, North Carolina: Neil Patterson Publishers.

  • Google Scholar

• 57

  Deisseroth A. Dounce A. L. (1970). Catalase: physical and chemical properties, mechanism of catalysis, and physiological role. Physiol. Rev.50, 319–375. 10.1152/physrev.1970.50.3.319

  • CrossRef
  • Google Scholar

• 58

  De Oliveira F. K. Santos L. O. Buffon J. G. (2021). Mechanism of action, sources, and application of peroxidases. Food Res. Int.143, 110266. 10.1016/j.foodres.2021.110266

  • CrossRef
  • Google Scholar

• 59

  Devaraj S. Munichandraiah N. (2008). Effect of crystallographic structure of MnO₂ on its electrochemical capacitance properties. J. Phys. Chem. C112, 4406–4417. 10.1021/jp7108785

  • CrossRef
  • Google Scholar

• 60

  Devey A. J. Grau-Crespo R. De Leeuw N. H. (2009). Electronic and magnetic structure of Fe₃S₄: GGA+U investigation. Phys. Rev. B79, 195126. 10.1103/physrevb.79.195126

  • CrossRef
  • Google Scholar

• 61

  Dhall A. Burns A. Dowding J. Das S. Seal S. Self W. (2017). Characterizing the phosphatase mimetic activity of cerium oxide nanoparticles and distinguishing its active site from that for catalase mimetic activity using anionic inhibitors. Environ. Sci. Nano4, 1742–1749. 10.1039/c7en00394c

  • CrossRef
  • Google Scholar

• 62

  Ding C. Yan Y. Xiang D. Zhang C. Xian Y. (2016). Magnetic Fe₃S₄ nanoparticles with peroxidase-like activity, and their use in a photometric enzymatic glucose assay. Microchim. Acta183, 625–631. 10.1007/s00604-015-1690-6

  • CrossRef
  • Google Scholar

• 63

  Ding W. Liu H. Zhao W. Wang J. Zhang L. Yao Y. et al (2020a). A hybrid of FeS₂ nanoparticles encapsulated by two-dimensional carbon sheets as excellent nanozymes for colorimetric glucose detection. ACS Appl. Bio Mat.3, 5905–5912. 10.1021/acsabm.0c00605

  • CrossRef
  • Google Scholar

• 64

  Ding Y. Ren G. Wang G. Lu M. Liu J. Li K. et al (2020b). V₂O₅ nanobelts mimick tandem enzymes to achieve nonenzymatic online monitoring of glucose in living rat brain. Anal. Chem.92, 4583–4591. 10.1021/acs.analchem.9b05872

  • CrossRef
  • Google Scholar

• 65

  Dixon D. A. Lipscomb W. N. (1976). Electronic structure and bonding of the amino acids containing first row atoms. J. Biol. Chem.251, 5992–6000. 10.1016/s0021-9258(17)33049-1

  • CrossRef
  • Google Scholar

• 66

  Dong H. Du W. Dong J. Che R. Kong F. Cheng W. et al (2022). Depletable peroxidase-like activity of Fe₃O₄ nanozymes accompanied with separate migration of electrons and iron ions. Nat. Commun.13, 5365. 10.1038/s41467-022-33098-y

  • CrossRef
  • Google Scholar

• 67

  Drennan C. L. Peters J. W. (2003). Surprising cofactors in metalloenzymes. Curr. Opin. Struct. Biol.13, 220–226. 10.1016/s0959-440x(03)00038-1

  • CrossRef
  • Google Scholar

• 68

  Dröge W. (2002). Free radicals in the physiological control of cell function. Physiol. Rev.82, 47–95. 10.1152/physrev.00018.2001

  • CrossRef
  • Google Scholar

• 69

  Dupuy J. Volbeda A. Carpentier P. Darnault C. Moulis J. M. Fontecilla-Camps J. C. (2006). Crystal structure of human iron regulatory protein 1 as cytosolic aconitase. Structure14, 129–139. 10.1016/j.str.2005.09.009

  • CrossRef
  • Google Scholar

• 70

  Dutta A. K. Das S. Samanta S. Samanta P. K. Adhikary B. Biswas P. (2013). CuS nanoparticles as a mimic peroxidase for colorimetric estimation of human blood glucose level. Talanta107, 361–367. 10.1016/j.talanta.2013.01.032

  • CrossRef
  • Google Scholar

• 71

  Dutta A. K. Maji S. K. Mondal A. Karmakar B. Biswas P. Adhikary B. (2012a). Iron selenide thin film: peroxidase-like behavior, glucose detection and amperometric sensing of hydrogen peroxide. Sens. Actuators B Chem.173, 724–731. 10.1016/j.snb.2012.07.070

  • CrossRef
  • Google Scholar

• 72

  Dutta A. K. Maji S. K. Srivastava D. N. Mondal A. Biswas P. Paul P. et al (2012b). Synthesis of FeS and FeSe nanoparticles from a single source precursor: a study of their photocatalytic activity, peroxidase-like behavior, and electrochemical sensing of H₂O₂. ACS Appl. Mater Interfaces4, 1919–1927. 10.1021/am300408r

  • CrossRef
  • Google Scholar

• 73

  Dwyer D. S. (2006). Nearest-neighbor effects and structural preferences in dipeptides are a function of the electronic properties of amino acid side-chains. Proteins63, 939–948. 10.1002/prot.20906

  • CrossRef
  • Google Scholar

• 74

  Eck R. V. Dayhoff M. O. (1966). Evolution of the structure of ferredoxin based on living relics of primitive amino Acid sequences. Science152, 363–366. 10.1126/science.152.3720.363

  • CrossRef
  • Google Scholar

• 75

  Eddowes M. J. Hill H. a.O. (1977). Novel method for the investigation of the electrochemistry of metalloproteins: cytochrome c. J. Chem. Soc. Chem. Commun., 771b–772b. 10.1039/c3977000771b

  • CrossRef
  • Google Scholar

• 76

  Erlebach A. Kurland H.-D. Grabow J. Müller F. A. Sierka M. (2015). Structure evolution of nanoparticulate Fe₂O₃. Nanoscale7, 2960–2969. 10.1039/c4nr06989g

  • CrossRef
  • Google Scholar

• 77

  Esch F. Fabris S. Zhou L. Montini T. Africh C. Fornasiero P. et al (2005). Electron localization determines defect formation on ceria substrates. Science309, 752–755. 10.1126/science.1111568

  • CrossRef
  • Google Scholar

• 78

  Falkowski P. G. Fenchel T. Delong E. F. (2008). The microbial engines that drive earth's biogeochemical cycles. Science320, 1034–1039. 10.1126/science.1153213

  • CrossRef
  • Google Scholar

• 79

  Fan K. Cao C. Pan Y. Lu D. Yang D. Feng J. et al (2012). Magnetoferritin nanoparticles for targeting and visualizing tumour tissues. Nat. Nanotechnol.7, 765–464. 10.1038/nnano.2012.204

  • CrossRef
  • Google Scholar

• 80

  Fan K. Wang H. Xi J. Liu Q. Meng X. Duan D. et al (2017). Optimization of Fe₃O₄ nanozyme activity via single amino acid modification mimicking an enzyme active site. Chem. Commun.53, 424–427. 10.1039/c6cc08542c

  • CrossRef
  • Google Scholar

• 81

  Farooq M. U. Muhammad Z. Khalid S. Fatima K. Zou B. (2019). Magnetic coupling in 3D-hierarchical MnO2 microsphere. J. Mat. Sci. Mat. Electron.30, 2802–2808. 10.1007/s10854-018-0556-1

  • CrossRef
  • Google Scholar

• 82

  Ferapontova E. E. Ruzgas T. Gorton L. (2003). Direct electron transfer of heme- and molybdopterin cofactor-containing chicken liver sulfite oxidase on alkanethiol-modified gold electrodes. Anal. Chem.75, 4841–4850. 10.1021/ac0341923

  • CrossRef
  • Google Scholar

• 83

  Ferus M. Pietrucci F. Saitta A. M. Knížek A. Kubelík P. Ivanek O. et al (2017). Formation of nucleobases in a Miller–Urey reducing atmosphere. Proc. Natl. Acad. Sci. U. S. A.114, 4306–4311. 10.1073/pnas.1700010114

  • CrossRef
  • Google Scholar

• 84

  Findlay A. J. Estes E. R. Gartman A. Yücel M. Kamyshny A. Luther G. W. (2019). Iron and sulfide nanoparticle formation and transport in nascent hydrothermal vent plumes. Nat. Commun.10, 1597. 10.1038/s41467-019-09580-5

  • CrossRef
  • Google Scholar

• 85

  Frenkel-Pinter M. Bouza M. Fernández F. M. Leman L. J. Williams L. D. Hud N. V. et al (2022). Thioesters provide a plausible prebiotic path to proto-peptides. Nat. Commun.13, 2569. 10.1038/s41467-022-30191-0

  • CrossRef
  • Google Scholar

• 86

  Fridavich I. (1995). Superoxide radical and superoxide dismutases. Annu. Rev. Biochem.64, 97–112. 10.1146/annurev.bi.64.070195.000525

  • CrossRef
  • Google Scholar

• 87

  Gao L. (2022). “Enzyme-like property (nanozyme) of iron oxide nanoparticles,” in Iron oxide nanoparticles. Editor HuangX. L. (London UK: intechopen).

  • Google Scholar

• 88

  Gao L. Fan K. Yan X. (2017). Iron oxide nanozyme: a multifunctional enzyme mimetic for biomedical applications. Theranostics7, 3207–3227. 10.7150/thno.19738

  • CrossRef
  • Google Scholar

• 89

  Gao L. Yan X. (2019). Nanozymes: biomedical applications of enzymatic Fe₃O₄ nanoparticles from in vitro to in vivo. Adv. Exp. Med. Biol.1174, 291–312. 10.1007/978-981-13-9791-2_9

  • CrossRef
  • Google Scholar

• 90

  Gao L. Zhuang J. Nie L. Zhang J. Zhang Y. Gu N. et al (2007). Intrinsic peroxidase-like activity of ferromagnetic nanoparticles. Nat. Nanotechnol.2, 577–583. 10.1038/nnano.2007.260

  • CrossRef
  • Google Scholar

• 91

  Geng R. Chang R. Zou Q. Shen G. Jiao T. Yan X. (2021). Biomimetic nanozymes based on coassembly of amino acid and hemin for catalytic oxidation and sensing of biomolecules. Small17, 2008114. 10.1002/smll.202008114

  • CrossRef
  • Google Scholar

• 92

  Ghosh S. Roy P. Karmodak N. Jemmis E. D. Mugesh G. (2018). Nanoisozymes: crystal-facet-dependent enzyme-mimetic activity of V₂O₅ nanomaterials. Angew. Chem. Int. Ed.57, 4510–4515. 10.1002/anie.201800681

  • CrossRef
  • Google Scholar

• 93

  Giese B. (2018). “Electron hopping in biomolecules,” in Encyclopedia of biophysics. Editors Roberts,G.WattsA. (Berlin, Heidelberg: Springer Berlin Heidelberg), 1–3.

  • Google Scholar

• 94

  Gomes R. Levison H. F. Tsiganis K. Morbidelli A. (2005). Origin of the cataclysmic Late Heavy Bombardment period of the terrestrial planets. Nature435, 466–469. 10.1038/nature03676

  • CrossRef
  • Google Scholar

• 95

  Gonet T. Maher B. A. (2019). Airborne, vehicle-derived Fe-bearing nanoparticles in the urban environment: a review. Environ. Sci. Technol.53, 9970–9991. 10.1021/acs.est.9b01505

  • CrossRef
  • Google Scholar

• 96

  Gorton L. Lindgren A. Larsson T. Munteanu F. D. Ruzgas T. Gazaryan I. (1999). Direct electron transfer between heme-containing enzymes and electrodes as basis for third generation biosensors. Anal. Chim. Acta400, 91–108. 10.1016/s0003-2670(99)00610-8

  • CrossRef
  • Google Scholar

• 97

  Goswami P. He K. Li J. Pan Y. Roberts A. P. Lin W. (2022). Magnetotactic bacteria and magnetofossils: ecology, evolution and environmental implications. NPJ Biofilms Microbiomes8, 43. 10.1038/s41522-022-00304-0

  • CrossRef
  • Google Scholar

• 98

  Grau-Crespo R. Al-Baitai A. Y. Saadoune I. De Leeuw N. H. (2010). Vacancy ordering and electronic structure of γ-Fe₂O₃ (maghemite): a theoretical investigation. J. Phys. Condens. Matter22, 255401. 10.1088/0953-8984/22/25/255401

  • CrossRef
  • Google Scholar

• 99

  Gray H. B. Winkler J. R. (2015). Hole hopping through tyrosine/tryptophan chains protects proteins from oxidative damage. Proc. Natl. Acad. Sci. U. S. A.112, 10920–10925. 10.1073/pnas.1512704112

  • CrossRef
  • Google Scholar

• 100

  Gray H. B. Winkler J. R. (2021). Functional and protective hole hopping in metalloenzymes. Chem. Sci.12, 13988–14003. 10.1039/d1sc04286f

  • CrossRef
  • Google Scholar

• 101

  Grishin N. V. (2001). Fold change in evolution of protein structures. J. Struct. Biol.134, 167–185. 10.1006/jsbi.2001.4335

  • CrossRef
  • Google Scholar

• 102

  Gu X. Heaney P. J. Reis F. D. a.A. Brantley S. L. (2020a). Deep abiotic weathering of pyrite. Science370, eabb8092. 10.1126/science.abb8092

  • CrossRef
  • Google Scholar

• 103

  Gu Y. Huang Y. Qiu Z. Xu Z. Li D. Chen L. et al (2020b). Vitamin B(2) functionalized iron oxide nanozymes for mouth ulcer healing. Sci. China Life Sci.63, 68–79. 10.1007/s11427-019-9590-6

  • CrossRef
  • Google Scholar

• 104

  Guo H. Barnard A. S. (2013). Naturally occurring iron oxide nanoparticles: morphology, surface chemistry and environmental stability. J. Mater Chem. A1, 27–42. 10.1039/c2ta00523a

  • CrossRef
  • Google Scholar

• 105

  Guo S. Guo L. (2019). Unraveling the multi-enzyme-like activities of iron oxide nanozyme via a first-principles microkinetic study. J. Phys. Chem. C123, 30318–30334. 10.1021/acs.jpcc.9b07802

  • CrossRef
  • Google Scholar

• 106

  Guo Z. Sun F. Han B. Lin K. Zhou L. Yuan W. (2017). Iron vacancy in tetragonal Fe1−xS crystals and its effect on the structure and superconductivity. Phys. Chem. Chem. Phys.19, 9000–9006. 10.1039/c7cp00068e

  • CrossRef
  • Google Scholar

• 107

  Gurbiel R. J. Doan P. E. Gassner G. T. Macke T. J. Case D. A. Ohnishi T. et al (1996). Active site structure of Rieske-type proteins: electron nuclear double resonance studies of isotopically labeled phthalate dioxygenase from Pseudomonas cepacia and Rieske protein from Rhodobacter capsulatus and molecular modeling studies of a Rieske center. Biochemistry35, 7834–7845. 10.1021/bi960380u

  • CrossRef
  • Google Scholar

• 108

  Halevy I. Alesker M. Schuster E. M. Popovitz-Biro R. Feldman Y. (2017). A key role for green rust in the Precambrian oceans and the genesis of iron formations. Nat. Geosci.10, 135–139. 10.1038/ngeo2878

  • CrossRef
  • Google Scholar

• 109

  Hall A. Nelson K. Poole L. B. Karplus P. A. (2011). Structure-based insights into the catalytic power and conformational dexterity of peroxiredoxins. Antioxid. Redox Signal.15, 795–815. 10.1089/ars.2010.3624

  • CrossRef
  • Google Scholar

• 110

  Halliwell B. (2006). Reactive species and antioxidants. Redox biology is a fundamental theme of aerobic life. Plant Physiol.141, 312–322. 10.1104/pp.106.077073

  • CrossRef
  • Google Scholar

• 111

  Halpern J. Orgel L. E. (1960). The theory of electron transfer between metal ions in bridged systems. Discuss. Faraday Soc.29, 32–41. 10.1039/df9602900032

  • CrossRef
  • Google Scholar

• 112

  Han J. Gong H. Ren X. Yan X. (2021). Supramolecular nanozymes based on peptide self-assembly for biomimetic catalysis. Nano Today41, 101295. 10.1016/j.nantod.2021.101295

  • CrossRef
  • Google Scholar

• 113

  Han J. Zou Q. Su W. Yan X. (2020). Minimal metallo-nanozymes constructed through amino acid coordinated self-assembly for hydrolase-like catalysis. Chem. Eng. J.394, 124987. 10.1016/j.cej.2020.124987

  • CrossRef
  • Google Scholar

• 114

  Hawkings J. R. Wadham J. L. Tranter M. Raiswell R. Benning L. G. Statham P. J. et al (2014). Ice sheets as a significant source of highly reactive nanoparticulate iron to the oceans. Nat. Commun.5, 3929. 10.1038/ncomms4929

  • CrossRef
  • Google Scholar

• 115

  He H. Wu X. Xian H. Zhu J. Yang Y. Lv Y. et al (2021). An abiotic source of Archean hydrogen peroxide and oxygen that pre-dates oxygenic photosynthesis. Nat. Commun.12, 6611. 10.1038/s41467-021-26916-2

  • CrossRef
  • Google Scholar

• 116

  Herschy B. Whicher A. Camprubi E. Watson C. Dartnell L. Ward J. et al (2014). An origin-of-life reactor to simulate alkaline hydrothermal vents. J. Mol. Evol.79, 213–227. 10.1007/s00239-014-9658-4

  • CrossRef
  • Google Scholar

• 117

  Hille R. Hall J. Basu P. (2014). The mononuclear molybdenum enzymes. Chem. Rev.114, 3963–4038. 10.1021/cr400443z

  • CrossRef
  • Google Scholar

• 118

  Hofmann A. Bolhar R. (2007). Carbonaceous cherts in the barberton greenstone belt and their significance for the study of early life in the archean record. Astrobiology7, 355–388. 10.1089/ast.2005.0288

  • CrossRef
  • Google Scholar

• 119

  Holden H. M. Jacobson B. L. Hurley J. K. Tollin G. Oh B. H. Skjeldal L. et al (1994). Structure-function studies of [2Fe-2S] ferredoxins. J. Bioenerg. Biomembr.26, 67–88. 10.1007/bf00763220

  • CrossRef
  • Google Scholar

• 120

  Holland H. D. (2007). “The geologic history of seawater,” in Treatise on geochemistry (Elsevier Inc.), 1–46.

  • Google Scholar

• 121

  Holm R. H. Kennepohl P. Solomon E. I. (1996). Structural and functional aspects of metal sites in biology. Chem. Rev.96, 2239–2314. 10.1021/cr9500390

  • CrossRef
  • Google Scholar

• 122

  Hong C. Meng X. He J. Fan K. Yan X. (2022). Nanozyme: a promising tool from clinical diagnosis and environmental monitoring to wastewater treatment. Particuology71, 90–107. 10.1016/j.partic.2022.02.001

  • CrossRef
  • Google Scholar

• 123

  Hong K. H. Arevalo-Lopez A. M. Cumby J. Ritter C. Attfield J. P. (2018). Long range electronic phase separation in CaFe₃O₅. Nat. Commun.9, 2975. 10.1038/s41467-018-05363-6

  • CrossRef
  • Google Scholar

• 124

  Hopfield J. J. (1974). Electron transfer between biological molecules by thermally activated tunneling. Proc. Natl. Acad. Sci. U. S. A.71, 3640–3644. 10.1073/pnas.71.9.3640

  • CrossRef
  • Google Scholar

• 125

  Hsu F.-C. Luo J.-Y. Yeh K.-W. Chen T.-K. Huang T.-W. Wu P. M. et al (2008). Superconductivity in the PbO-type structure α-FeSe. Proc. Natl. Acad. Sci. U. S. A.105, 14262–14264. 10.1073/pnas.0807325105

  • CrossRef
  • Google Scholar

• 126

  Hu L. Song T. Ma Q. Chen C. Pan W. Xie C. et al (2010). Bacterial magnetic nanoparticles as peroxidase mimetics and application in immunoassay. AIP Conf. Proc.1311, 369–374. 10.1063/1.3530039

  • CrossRef
  • Google Scholar

• 127

  Huang C. Liu Z. Chen M. Du L. Liu C. Wang S. et al (2021). Tumor-derived biomimetic nanozyme with immune evasion ability for synergistically enhanced low dose radiotherapy. J. Nanobiotechnology19, 457. 10.1186/s12951-021-01182-y

  • CrossRef
  • Google Scholar

• 128

  Huang X. Ramadugu S. K. Mason S. E. (2016a). Surface-specific DFT + U approach applied to α-Fe₂O₃(0001). J. Phys. Chem. C120, 4919–4930. 10.1021/acs.jpcc.5b12144

  • CrossRef
  • Google Scholar

• 129

  Huang X. L. (2018). Hydrolysis of phosphate esters catalyzed by inorganic iron oxide nanoparticles acting as biocatalysts. Astrobiology18, 294–310. 10.1089/ast.2016.1628

  • CrossRef
  • Google Scholar

• 130

  Huang X. L. (2019). “Iron oxide nanoparticles: an inorganic phosphatase,” in Nanocatalysts. Editors Sinha,I.ShuklaM. (London: Interchopen), 97–124.

  • Google Scholar

• 131

  Huang X.-L. (2022a). What are inorganic nanozymes? Artificial or inorganic enzymes. New J. Chem.46, 15273–15291. 10.1039/d2nj02088b

  • CrossRef
  • Google Scholar

• 132

  Huang X. L. (2022b). “Introduction chapter, incredible spicy iron oxide nanoparticles,” in Iron oxide nanoparticles. Editor HuangX.-L. (London: intechopen.com), 1–20.

  • Google Scholar

• 133

  Huang X. L. Zhang J. Z. (2007). “Sediment-water exchange of dissolved organic phosphorus in Florida bay,” in CIMAS seventh year annual report (NOAA cooperative agreement NA17RJ1226). Editors Joseph,P. O.ProsperoM. (Miami, FL, USA: University of Miami).

  • Google Scholar

• 134

  Huang X. L. Zhang J. Z. (2012). Hydrolysis of glucose-6-phosphate in aged, acid-forced hydrolysed nanomolar inorganic iron solutions - an inorganic biocatalyst?RSC Adv.2, 199–208. 10.1039/c1ra00353d

  • CrossRef
  • Google Scholar

• 135

  Huang Y. Liu Z. Liu C. Ju E. Zhang Y. Ren J. et al (2016b). Self-Assembly of multi-nanozymes to mimic an intracellular antioxidant defense system. Angew. Chem. Int. Ed.55, 6646–6650. 10.1002/anie.201600868

  • CrossRef
  • Google Scholar

• 136

  Huang Y. Ren J. Qu X. (2019). Nanozymes: classification, catalytic mechanisms, activity regulation, and applications. Chem. Rev.119, 4357–4412. 10.1021/acs.chemrev.8b00672

  • CrossRef
  • Google Scholar

• 137

  Husek J. Cirri A. Biswas S. Baker L. R. (2017). Surface electron dynamics in hematite (α-Fe2O3): correlation between ultrafast surface electron trapping and small polaron formation. Chem. Sci.8, 8170–8178. 10.1039/c7sc02826a

  • CrossRef
  • Google Scholar

• 138

  Ibrahim E. M. M. Abdel-Rahman L. H. Abu-Dief A. M. Elshafaie A. Hamdan S. K. Ahmed A. M. (2018). Electric, thermoelectric and magnetic characterization of γ-Fe₂O₃ and Co₃O₄ nanoparticles synthesized by facile thermal decomposition of metal-Schiff base complexes. Mat. Res. Bull.99, 103–108. 10.1016/j.materresbull.2017.11.002

  • CrossRef
  • Google Scholar

• 139

  Imlay J. A. (2006). Iron‐sulphur clusters and the problem with oxygen. Mol. Microbiol.59, 1073–1082. 10.1111/j.1365-2958.2006.05028.x

  • CrossRef
  • Google Scholar

• 140

  Inupakutika M. A. Sengupta S. Devireddy A. R. Azad R. K. Mittler R. (2016). The evolution of reactive oxygen species metabolism. J. Exp. Bot.67, 5933–5943. 10.1093/jxb/erw382

  • CrossRef
  • Google Scholar

• 141

  Iordanova N. Dupuis M. Rosso K. M. (2005). Charge transport in metal oxides: a theoretical study of hematite alpha-Fe₂O₃. J. Chem. Phys.122, 144305. 10.1063/1.1869492

  • CrossRef
  • Google Scholar

• 142

  Ito T. Takagi H. Ishibashi S. Ido T. Uchida S. (1991). Normal-state conductivity between CuO2 planes in copper oxide superconductors. Nature350, 596–598. 10.1038/350596a0

  • CrossRef
  • Google Scholar

• 143

  Jamilpanah P. Pahlavanzadeh H. Kheradmand A. (2017). Thermal conductivity, viscosity, and electrical conductivity of iron oxide with a cloud fractal structure. Heat. Mass Transf.53, 1343–1354. 10.1007/s00231-016-1891-5

  • CrossRef
  • Google Scholar

• 144

  Jancura D. Stanicova J. Palmer G. Fabian M. (2014). How hydrogen peroxide is metabolized by oxidized cytochrome c oxidase. Biochemistry53, 3564–3575. 10.1021/bi401078b

  • CrossRef
  • Google Scholar

• 145

  Jenkins J. M. Brune W. H. Miller D. O. (2021). Electrical discharges produce prodigious amounts of hydroxyl and hydroperoxyl radicals. J. Geophys. Res. Atmos.126, e2021JD034557. 10.1029/2021jd034557

  • CrossRef
  • Google Scholar

• 146

  Jian W. Wang S.-P. Zhang H.-X. Bai F.-Q. (2019). Disentangling the role of oxygen vacancies on the surface of Fe₃O₄ and γ-Fe₂O₃. Inorg. Chem. Front.6, 2660–2666. 10.1039/c9qi00351g

  • CrossRef
  • Google Scholar

• 147

  Jiang Y. Xia T. Shen L. Ma J. Ma H. Sun T. et al (2021). Facet-Dependent Cu2O electrocatalysis for wearable enzyme-free smart sensing. ACS Catal.11, 2949–2955. 10.1021/acscatal.0c04797

  • CrossRef
  • Google Scholar

• 148

  Johnson A. P. Cleaves H. J. Dworkin J. P. Glavin D. P. Lazcano A. Bada J. L. (2008). The miller volcanic spark discharge experiment. Science322, 404. 10.1126/science.1161527

  • CrossRef
  • Google Scholar

• 149

  Jolivet J. P. (2019). Metal oxide nanostructures chemistry: synthesis from aqueous solutions. New York: Oxford University Press.

  • Google Scholar

• 150

  Jolivet J.-P. Tronc E. (1988). Interfacial electron transfer in colloidal spinel iron oxide. Conversion of Fe₃O₄-γFe₂O₃ in aqueous medium. J. Colloid Interface Sci.125, 688–701. 10.1016/0021-9797(88)90036-7

  • CrossRef
  • Google Scholar

• 151

  Jolivet J. P. Tronc E. Chanéac C. (2006). Iron oxides: from molecular clusters to solid. A nice example of chemical versatility. CR Geosci.338, 488–497. 10.1002/chin.200652225

  • CrossRef
  • Google Scholar

• 152

  Kantar C. Oral O. Oz N. A. (2019). Ligand enhanced pharmaceutical wastewater treatment with Fenton process using pyrite as the catalyst: column experiments. Chemosphere237, 124440. 10.1016/j.chemosphere.2019.124440

  • CrossRef
  • Google Scholar

• 153

  Kappler A. Bryce C. Mansor M. Lueder U. Byrne J. M. Swanner E. D. (2021). An evolving view on biogeochemical cycling of iron. Nat. Rev. Microbiol.19, 360–374. 10.1038/s41579-020-00502-7

  • CrossRef
  • Google Scholar

• 154

  Kappler U. Enemark J. H. (2015). Sulfite-oxidizing enzymes. J. Biol. Inorg. Chem.20, 253–264. 10.1007/s00775-014-1197-3

  • CrossRef
  • Google Scholar

• 155

  Kasting J. F. (1993). Earth's early atmosphere. Science259, 920–926. 10.1126/science.11536547

  • CrossRef
  • Google Scholar

• 156

  Kasting J. F. Pollack J. B. Crisp D. (1984). Effects of high CO2 levels on surface temperature and atmospheric oxidation state of the early Earth. J. Atmos. Chem.1, 403–428. 10.1007/bf00053803

  • CrossRef
  • Google Scholar

• 157

  Katz J. E. Zhang X. Attenkofer K. Chapman K. W. Frandsen C. Zarzycki P. et al (2012). Electron small polarons and their mobility in iron (oxyhydr)oxide nanoparticles. Science337, 1200–1203. 10.1126/science.1223598

  • CrossRef
  • Google Scholar

• 158

  Katzen F. Beckwith J. (2000). Transmembrane electron transfer by the membrane protein DsbD occurs via a disulfide bond cascade. Cell103, 769–779. 10.1016/s0092-8674(00)00180-x

  • CrossRef
  • Google Scholar

• 159

  Kerisit S. Rosso K. M. (2006). Computer simulation of electron transfer at hematite surfaces. Geochim. Cosmochim. Acta70, 1888–1903. 10.1016/j.gca.2005.12.021

  • CrossRef
  • Google Scholar

• 160

  Kim J. D. Senn S. Harel A. Jelen B. I. Falkowski P. G. (2013). Discovering the electronic circuit diagram of life: structural relationships among transition metal binding sites in oxidoreductases. Philos. Trans. R. Soc. Lond., B, Biol. Sci.368, 20120257. 10.1098/rstb.2012.0257

  • CrossRef
  • Google Scholar

• 161

  Kim S. Maier J. (2002). On the conductivity mechanism of nanocrystalline ceria. J. Electrochem. Soc.149, J73. 10.1149/1.1507597

  • CrossRef
  • Google Scholar

• 162

  Knauth L. P. Lowe D. R. (2003). High Archean climatic temperature inferred from oxygen isotope geochemistry of cherts in the 3.5 Ga Swaziland Supergroup, South Africa. Geol. Soc. Am. Bull.115, 566–580. 10.1130/0016-7606(2003)115<0566:hactif>2.0.co;2

  • CrossRef
  • Google Scholar

• 163

  Konishi H. Xu H. Guo H. (2012). “Nanostructures of natural iron oxide nanoparticles,” in Nature's nanostructures. Editors BarnardA. S.GuoH. (New York: Jenny Stanford Publishing), 75–113.

  • Google Scholar

• 164

  Kracke F. Vassilev I. Krömer J. O. (2015). Microbial electron transport and energy conservation - the foundation for optimizing bioelectrochemical systems. Front. Microbiol.6, 575. 10.3389/fmicb.2015.00575

  • CrossRef
  • Google Scholar

• 165

  Krupp R. Chan C. Missiakas D. (2001). DsbD-catalyzed transport of electrons across the membrane of Escherichia coli. J. Biol. Chem.276, 3696–3701. 10.1074/jbc.m009500200

  • CrossRef
  • Google Scholar

• 166

  Kuhn S. J. Kidder M. K. Parker D. S. Dela Cruz C. Mcguire M. A. Chance W. M. et al (2017). Structure and property correlations in FeS. Phys. C Supercond.534, 29–36. 10.1016/j.physc.2016.12.006

  • CrossRef
  • Google Scholar

• 167

  Lai X. Zhang H. Wang Y. Wang X. Zhang X. Lin J. et al (2015). Observation of superconductivity in tetragonal FeS. J. Am. Chem. Soc.137, 10148–10151. 10.1021/jacs.5b06687

  • CrossRef
  • Google Scholar

• 168

  Leblanc C. Vilter H. Fournier J. B. Delage L. Potin P. Rebuffet E. et al (2015). Vanadium haloperoxidases: from the discovery 30 years ago to X-ray crystallographic and V K-edge absorption spectroscopic studies. Coord. Chem. Rev.301-302, 134–146. 10.1016/j.ccr.2015.02.013

  • CrossRef
  • Google Scholar

• 169

  Lee C. C. Hu Y. Ribbe M. W. (2010). Vanadium nitrogenase reduces CO. Science329, 642. 10.1126/science.1191455

  • CrossRef
  • Google Scholar

• 170

  Lee J. K. Walker K. L. Han H. S. Kang J. Prinz F. B. Waymouth R. M. et al (2019). Spontaneous generation of hydrogen peroxide from aqueous microdroplets. Proc. Natl. Acad. Sci. U. S. A.116, 19294–19298. 10.1073/pnas.1911883116

  • CrossRef
  • Google Scholar

• 171

  Léger C. Bertrand P. (2008). Direct electrochemistry of redox enzymes as a tool for mechanistic studies. Chem. Rev.108, 2379–2438. 10.1021/cr0680742

  • CrossRef
  • Google Scholar

• 172

  Lenton T. M. (2003). “The coupled evolution of life and atmospheric oxygen,” in Evolution on planet Earth: the impact of the physical environment (Elsevier Ltd), 35–53.

  • Google Scholar

• 173

  Leskovac V. Trivić S. Wohlfahrt G. Kandrač J. Peričin D. (2005). Glucose oxidase from Aspergillus Niger: the mechanism of action with molecular oxygen, quinones, and one-electron acceptors. Int. J. Biochem. Cell Biol.37, 731–750. 10.1016/j.biocel.2004.10.014

  • CrossRef
  • Google Scholar

• 174

  Li G. Zhang B. Yu F. Novakova A. A. Krivenkov M. S. Kiseleva T. Y. et al (2014). High-purity Fe₃S₄ greigite microcrystals for magnetic and electrochemical performance. Chem. Mat.26, 5821–5829. 10.1021/cm501493m

  • CrossRef
  • Google Scholar

• 175

  Li K. Chen C. Chen C. Wang Y. Wei Z. Pan W. et al (2015). Magnetosomes extracted from Magnetospirillum magneticum strain AMB-1 showed enhanced peroxidase-like activity under visible-light irradiation. Enzyme Microb. Technol.72, 72–78. 10.1016/j.enzmictec.2015.02.009

  • CrossRef
  • Google Scholar

• 176

  Li Q. Kartikowati C. W. Horie S. Ogi T. Iwaki T. Okuyama K. (2017). Correlation between particle size/domain structure and magnetic properties of highly crystalline Fe₃O₄ nanoparticles. Sci. Rep.7, 9894. 10.1038/s41598-017-09897-5

  • CrossRef
  • Google Scholar

• 177

  Li W. Wang J. Zhu J. Zheng Y.-Q. (2018). Co₃O₄ nanocrystals as an efficient catalase mimic for the colorimetric detection of glutathione. J. Mater Chem. B6, 6858–6864. 10.1039/c8tb01948g

  • CrossRef
  • Google Scholar

• 178

  Liang M. Yan X. (2019). Nanozymes: from new concepts, mechanisms, and standards to applications. Acc. Chem. Res.52, 2190–2200. 10.1021/acs.accounts.9b00140

  • CrossRef
  • Google Scholar

• 179

  Liang M. C. Hartman H. Kopp R. E. Kirschvink J. L. Yung Y. L. (2006). Production of hydrogen peroxide in the atmosphere of a Snowball Earth and the origin of oxygenic photosynthesis. Proc. Natl. Acad. Sci. U. S. A.103, 18896–18899. 10.1073/pnas.0608839103

  • CrossRef
  • Google Scholar

• 180

  Liu F. Geng J. Gumpper R. H. Barman A. Davis I. Ozarowski A. et al (2015). An iron reservoir to the catalytic metal: the rubredoxin iron in an extradiol dioxygenase. J. Biol. Chem.290, 15621–15634. 10.1074/jbc.m115.650259

  • CrossRef
  • Google Scholar

• 181

  Liu J. Chakraborty S. Hosseinzadeh P. Yu Y. Tian S. Petrik I. et al (2014). Metalloproteins containing cytochrome, iron–sulfur, or copper redox centers. Chem. Rev.114, 4366–4469. 10.1021/cr400479b

  • CrossRef
  • Google Scholar

• 182

  Liu K. Ma X. Xu S. Li Y. Zhao M. (2023). Tunable sliding ferroelectricity and magnetoelectric coupling in two-dimensional multiferroic MnSe materials. NPJ Comput. Mater9, 16. 10.1038/s41524-023-00972-2

  • CrossRef
  • Google Scholar

• 183

  Liu S. Lu F. Xing R. Zhu J. J. (2011). Structural effects of Fe₃O₄ nanocrystals on peroxidase-like activity. Chem. Eur. J.17, 620–625. 10.1002/chem.201001789

  • CrossRef
  • Google Scholar

• 184

  Liu T. Xiao B. Xiang F. Tan J. Chen Z. Zhang X. et al (2020a). Ultrasmall copper-based nanoparticles for reactive oxygen species scavenging and alleviation of inflammation related diseases. Nat. Commun.11, 2788. 10.1038/s41467-020-16544-7

  • CrossRef
  • Google Scholar

• 185

  Liu W. Tian J. Mao C. Wang Z. Liu J. Dahlgren R. A. et al (2020b). Sulfur vacancy promoted peroxidase-like activity of magnetic greigite (Fe₃S₄) for colorimetric detection of serum glucose. Anal. Chim. Acta1127, 246–255. 10.1016/j.aca.2020.06.056

  • CrossRef
  • Google Scholar

• 186

  Liu Y. Xiao Z. Chen F. Yue L. Zou H. Lyu J. et al (2021). Metallic oxide nanomaterials act as antioxidant nanozymes in higher plants: trends, meta-analysis, and prospect. Sci. Total Environ.780, 146578. 10.1016/j.scitotenv.2021.146578

  • CrossRef
  • Google Scholar

• 187

  Liu Y. Yuan R. Chai Y. Tang D. Dai J. Zhong X. (2006). Direct electrochemistry of horseradish peroxidase immobilized on gold colloid/cysteine/nafion-modified platinum disk electrode. Sens. Actuators B Chem.115, 109–115. 10.1016/j.snb.2005.08.048

  • CrossRef
  • Google Scholar

• 188

  Lopez-Cantu D. O. González-González R. B. Sharma A. Bilal M. Parra-Saldívar R. Iqbal H. M. N. (2022). Bioactive material-based nanozymes with multifunctional attributes for biomedicine: expanding antioxidant therapeutics for neuroprotection, cancer, and anti-inflammatory pathologies. Coord. Chem. Rev.469, 214685. 10.1016/j.ccr.2022.214685

  • CrossRef
  • Google Scholar

• 189

  Lough A. J. M. Connelly D. P. Homoky W. B. Hawkes J. A. Chavagnac V. Castillo A. et al (2019). Diffuse hydrothermal venting: a hidden source of iron to the oceans. Front. Mar. Sci.6. 10.3389/fmars.2019.00329

  • CrossRef
  • Google Scholar

• 190

  Lu T. Wang X. Cui X. Li J. Xu J. Xu P. et al (2023). Physiological and metabolomic analyses reveal that Fe₃O₄ nanoparticles ameliorate cadmium and arsenic toxicity in Panax notoginseng. Environ. Pollut.337, 122578. 10.1016/j.envpol.2023.122578

  • CrossRef
  • Google Scholar

• 191

  Luo H.-W. Zhang X. Chen J.-J. Yu H.-Q. Sheng G.-P. (2017). Probing the biotransformation of hematite nanoparticles and magnetite formation mediated by Shewanella oneidensis MR-1 at the molecular scale. Environ. Sci. Nano4, 2395–2404. 10.1039/c7en00767a

  • CrossRef
  • Google Scholar

• 192

  Lyons T. W. Reinhard C. T. Planavsky N. J. (2014). The rise of oxygen in Earth's early ocean and atmosphere. Nature506, 307–315. 10.1038/nature13068

  • CrossRef
  • Google Scholar

• 193

  Ma L. Zheng J.-J. Zhou N. Zhang R. Fang L. Yang Y. et al (2024). A natural biogenic nanozyme for scavenging superoxide radicals. Nat. Commun.15, 233. 10.1038/s41467-023-44463-w

  • CrossRef
  • Google Scholar

• 194

  Ma Y. Tian Z. Zhai W. Qu Y. (2022). Insights on catalytic mechanism of CeO₂ as multiple nanozymes. Nano Res.15, 10328–10342. 10.1007/s12274-022-4666-y

  • CrossRef
  • Google Scholar

• 195

  Maher B. A. (2016). Palaeoclimatic records of the loess/palaeosol sequences of the Chinese Loess Plateau. Quat. Sci. Rev.154, 23–84. 10.1016/j.quascirev.2016.08.004

  • CrossRef
  • Google Scholar

• 196

  Manceau A. Combes J. M. (1988). Structure of Mn and Fe oxides and oxyhydroxides: a topological approach by EXAFS. Phys. Chem. Min.15, 283–295. 10.1007/bf00307518

  • CrossRef
  • Google Scholar

• 197

  Marcus R. A. Sutin N. (1985). Electron transfers in chemistry and biology. BBA Rev. Bioenergetics811, 265–322. 10.1016/0304-4173(85)90014-x

  • CrossRef
  • Google Scholar

• 198

  Mcguinness K. N. Klau G. W. Morrison S. M. Moore E. K. Seipp J. Falkowski P. G. et al (2022). Evaluating mineral lattices as evolutionary proxies for metalloprotein evolution. Orig. Life Evol. Biosph.52, 263–275. 10.1007/s11084-022-09630-x

  • CrossRef
  • Google Scholar

• 199

  Meng X. Li D. Chen L. He H. Wang Q. Hong C. et al (2021). High-performance self-cascade pyrite nanozymes for apoptosis–ferroptosis synergistic tumor therapy. ACS Nano15, 5735–5751. 10.1021/acsnano.1c01248

  • CrossRef
  • Google Scholar

• 200

  Meng Y. Li W. Pan X. Gadd G. M. (2020). Applications of nanozymes in the environment. Environ. Sci. Nano7, 1305–1318. 10.1039/c9en01089k

  • CrossRef
  • Google Scholar

• 201

  Messner K. R. Imlay J. A. (2002). Mechanism of superoxide and hydrogen peroxide formation by fumarate reductase, succinate dehydrogenase, and aspartate oxidase. J. Biol. Chem.277, 42563–42571. 10.1074/jbc.m204958200

  • CrossRef
  • Google Scholar

• 202

  Michel F. M. Barrón V. Torrent J. Morales M. P. Serna C. J. Boily J. F. et al (2010). Ordered ferrimagnetic form of ferrihydrite reveals links among structure, composition, and magnetism. Proc. Natl. Acad. Sci. U. S. A.107, 2787–2792. 10.1073/pnas.0910170107

  • CrossRef
  • Google Scholar

• 203

  Michel F. M. Ehm L. Antao S. M. Lee P. L. Chupas P. J. Liu G. et al (2007). The structure of ferrihydrite, a nanocrystalline material. Science316, 1726–1729. 10.1126/science.1142525

  • CrossRef
  • Google Scholar

• 204

  Miller S. L. (1953). A production of amino acids under possible primitive earth conditions. Science117, 528–529. 10.1126/science.117.3046.528

  • CrossRef
  • Google Scholar

• 205

  Milton R. D. Minteer S. D. (2017). Direct enzymatic bioelectrocatalysis: differentiating between myth and reality. J. R. Soc. Interface14, 20170253. 10.1098/rsif.2017.0253

  • CrossRef
  • Google Scholar

• 206

  Mitchell C. E. Terranova U. Beale A. M. Jones W. Morgan D. J. Sankar M. et al (2021). A surface oxidised Fe–S catalyst for the liquid phase hydrogenation of CO₂. Catal. Sci. Technol.11, 779–784. 10.1039/d0cy01779e

  • CrossRef
  • Google Scholar

• 207

  Mitić N. Smith S. J. Neves A. Guddat L. W. Gahan L. R. Schenk G. (2006). The catalytic mechanisms of binuclear metallohydrolases. Chem. Rev.106, 3338–3363. 10.1021/cr050318f

  • CrossRef
  • Google Scholar

• 208

  Montini T. Melchionna M. Monai M. Fornasiero P. (2016). Fundamentals and catalytic applications of CeO₂-based materials. Chem. Rev.116, 5987–6041. 10.1021/acs.chemrev.5b00603

  • CrossRef
  • Google Scholar

• 209

  Morris E. R. Williams Q. (1997). Electrical resistivity of Fe₃O₄ to 48 GPa: compression-induced changes in electron hopping at mantle pressures. J. Geophys. Res. Solid Earth102, 18139–18148. 10.1029/97jb00024

  • CrossRef
  • Google Scholar

• 210

  Mostajabi Sarhangi S. Matyushov D. V. (2023). Electron tunneling in biology: when does it matter?ACS Omega8, 27355–27365. 10.1021/acsomega.3c02719

  • CrossRef
  • Google Scholar

• 211

  Mu J. Wang Y. Zhao M. Zhang L. (2012). Intrinsic peroxidase-like activity and catalase-like activity of Co₃O₄ nanoparticles. Chem. Commun.48, 2540–2542. 10.1039/c2cc17013b

  • CrossRef
  • Google Scholar

• 212

  Mu J. Zhang L. Zhao G. Wang Y. (2014). The crystal plane effect on the peroxidase-like catalytic properties of Co₃O₄ nanomaterials. Phys. Chem. Chem. Phys.16, 15709–15716. 10.1039/c4cp01326c

  • CrossRef
  • Google Scholar

• 213

  Natalio F. André R. Hartog A. F. Stoll B. Jochum K. P. Wever R. et al (2012). Vanadium pentoxide nanoparticles mimic vanadium haloperoxidases and thwart biofilm formation. Nat. Nanotechnol.7, 530–535. 10.1038/nnano.2012.91

  • CrossRef
  • Google Scholar

• 214

  Navrotsky A. Mazeina L. Majzlan J. (2008). Size-driven structural and thermodynamic complexity in iron oxides. Science319, 1635–1638. 10.1126/science.1148614

  • CrossRef
  • Google Scholar

• 215

  Neubeck A. Freund F. (2020). Sulfur chemistry may have paved the way for evolution of antioxidants. Astrobiology20, 670–675. 10.1089/ast.2019.2156

  • CrossRef
  • Google Scholar

• 216

  Nie X. Xia L. Wang H.-L. Chen G. Wu B. Zeng T.-Y. et al (2019). Photothermal therapy nanomaterials boosting transformation of Fe(III) into Fe(II) in tumor cells for highly improving chemodynamic therapy. ACS Appl. Mater Interfaces11, 31735–31742. 10.1021/acsami.9b11291

  • CrossRef
  • Google Scholar

• 217

  Nitschke W. Russell M. J. (2009). Hydrothermal focusing of chemical and chemiosmotic energy, supported by delivery of catalytic Fe, Ni, Mo/W, Co, S and Se, forced life to emerge. J. Mol. Evol.69, 481–496. 10.1007/s00239-009-9289-3

  • CrossRef
  • Google Scholar

• 218

  Niu X. Li X. Lyu Z. Pan J. Ding S. Ruan X. et al (2020). Metal–organic framework based nanozymes: promising materials for biochemical analysis. Chem. Commun.56, 11338–11353. 10.1039/d0cc04890a

  • CrossRef
  • Google Scholar

• 219

  Niu X. Xu X. Li X. Pan J. Qiu F. Zhao H. et al (2018). Surface charge engineering of nanosized CuS via acidic amino acid modification enables high peroxidase-mimicking activity at neutral pH for one-pot detection of glucose. Chem. Commun.54, 13443–13446. 10.1039/c8cc07800a

  • CrossRef
  • Google Scholar

• 220

  Noh J. Osman O. I. Aziz S. G. Winget P. Brédas J.-L. (2015). Magnetite Fe₃O₄ (111) surfaces: impact of defects on structure, stability, and electronic properties. Chem. Mat.27, 5856–5867. 10.1021/acs.chemmater.5b02885

  • CrossRef
  • Google Scholar

• 221

  Ohta K. Cohen R. E. Hirose K. Haule K. Shimizu K. Ohishi Y. (2012). Experimental and theoretical evidence for pressure-induced metallization in FeO with rocksalt-type structure. Phys. Rev. Lett.108, 026403. 10.1103/physrevlett.108.026403

  • CrossRef
  • Google Scholar

• 222

  Ohta K. Hirose K. Shimizu K. Ohishi Y. (2010). High-pressure experimental evidence for metal FeO with normal NiAs-type structure. Phys. Rev. B82, 174120. 10.1103/physrevb.82.174120

  • CrossRef
  • Google Scholar

• 223

  Olson K. R. Gao Y. Deleon E. R. Arif M. Arif F. Arora N. et al (2017). Catalase as a sulfide-sulfur oxido-reductase: an ancient (and modern?) regulator of reactive sulfur species (RSS). Redox Biol.12, 325–339. 10.1016/j.redox.2017.02.021

  • CrossRef
  • Google Scholar

• 224

  Oparin A. I. (1938). The origin of life. New York: MacMilian.

  • Google Scholar

• 225

  Oró J. (1961). Mechanism of synthesis of adenine from hydrogen cyanide under possible primitive earth conditions. Nature191, 1193–1194. 10.1038/1911193a0

  • CrossRef
  • Google Scholar

• 226

  Ovsyannikov S. V. Bykov M. Bykova E. Glazyrin K. Manna R. S. Tsirlin A. A. et al (2018). Pressure tuning of charge ordering in iron oxide. Nat. Commun.9, 4142. 10.1038/s41467-018-06457-x

  • CrossRef
  • Google Scholar

• 227

  Ovsyannikov S. V. Bykov M. Bykova E. Kozlenko D. P. Tsirlin A. A. Karkin A. E. et al (2016). Charge-ordering transition in iron oxide Fe₄O₅ involving competing dimer and trimer formation. Nat. Chem.8, 501–508. 10.1038/nchem.2478

  • CrossRef
  • Google Scholar

• 228

  Ovsyannikov S. V. Bykov M. Medvedev S. A. Naumov P. G. Jesche A. Tsirlin A. A. et al (2020). A room-temperature verwey-type transition in iron oxide, Fe₅O₆. Angew. Chem. Int. Ed.59, 5632–5636. 10.1002/anie.201914988

  • CrossRef
  • Google Scholar

• 229

  Paidi V. K. Shepit M. Freeland J. W. Brewe D. L. Roberts C. A. Van Lierop J. (2021). Intervening oxygen enabled magnetic moment modulation in spinel nanostructures. J. Phys. Chem. C125, 26688–26697. 10.1021/acs.jpcc.1c06494

  • CrossRef
  • Google Scholar

• 230

  Pan Y. Li N. Mu J. Zhou R. Xu Y. Cui D. et al (2015). Biogenic magnetic nanoparticles from Burkholderia sp. YN01 exhibiting intrinsic peroxidase-like activity and their applications. Appl. Microbiol. Biotechnol.99, 703–715. 10.1007/s00253-014-5938-6

  • CrossRef
  • Google Scholar

• 231

  Pan Y. Wang Y. Fan X. Wang W. Yang X. Cui D. et al (2019). Bacterial intracellular nanoparticles exhibiting antioxidant properties and the significance of their formation in ROS detoxification. Environ. Microbiol. Rep.11, 140–146. 10.1111/1758-2229.12733

  • CrossRef
  • Google Scholar

• 232

  Pasternak M. P. Rozenberg G. K. Machavariani G. Y. Naaman O. Taylor R. D. Jeanloz R. (1999). Breakdown of the mott-hubbard state in Fe₂O₃: a first-order insulator-metal transition with collapse of magnetism at 50 GPa. Phys. Rev. Lett.82, 4663–4666. 10.1103/physrevlett.82.4663

  • CrossRef
  • Google Scholar

• 233

  Pattrick R. a.D. Coker V. S. Akhtar M. Malik M. A. Lewis E. Haigh S. et al (2017). Magnetic spectroscopy of nanoparticulate greigite, Fe3S4. Mineral. Mag.81, 857–872. 10.1180/minmag.2016.080.114

  • CrossRef
  • Google Scholar

• 234

  Peng C. Jiang B. Liu Q. Guo Z. Xu Z. Huang Q. et al (2011). Graphene-templated formation of two-dimensional lepidocrocite nanostructures for high-efficiency catalytic degradation of phenols. Energy Environ. Sci.4, 2035–2040. 10.1039/c0ee00495b

  • CrossRef
  • Google Scholar

• 235

  Peng Y. Wang Z. Liu W. Zhang H. Zuo W. Tang H. et al (2015). Size- and shape-dependent peroxidase-like catalytic activity of MnFe₂O₄ Nanoparticles and their applications in highly efficient colorimetric detection of target cancer cells. Dalton Trans.44, 12871–12877. 10.1039/c5dt01585e

  • CrossRef
  • Google Scholar

• 236

  Peter Y. Theodore K. (1977). Reversible electrode reaction of cytochrome C. Chem. Lett.6, 1145–1148. 10.1246/cl.1977.1145

  • CrossRef
  • Google Scholar

• 237

  Pham H. H. Cheng M.-J. Frei H. Wang L.-W. (2016). Surface proton hopping and fast-kinetics pathway of water oxidation on Co₃O₄ (001) surface. ACS Catal.6, 5610–5617. 10.1021/acscatal.6b00713

  • CrossRef
  • Google Scholar

• 238

  Poole L. B. (1996). Flavin-dependent alkyl hydroperoxide reductase from Salmonella typhimurium. 2. Cystine disulfides involved in catalysis of peroxide reduction. Biochemistry35, 65–75. 10.1021/bi951888k

  • CrossRef
  • Google Scholar

• 239

  Pósfai M. Lefèvre C. Trubitsyn D. Bazylinski D. Frankel R. (2013). Phylogenetic significance of composition and crystal morphology of magnetosome minerals. Front. Microbiol.4, 344. 10.3389/fmicb.2013.00344

  • CrossRef
  • Google Scholar

• 240

  Posth N. R. Canfield D. E. Kappler A. (2014). Biogenic Fe(III) minerals: from formation to diagenesis and preservation in the rock record. Earth-Sci Rev.135, 103–121. 10.1016/j.earscirev.2014.03.012

  • CrossRef
  • Google Scholar

• 241

  Potiszil C. Ota T. Yamanaka M. Sakaguchi C. Kobayashi K. Tanaka R. et al (2023). Insights into the formation and evolution of extraterrestrial amino acids from the asteroid Ryugu. Nat. Commun.14, 1482. 10.1038/s41467-023-37107-6

  • CrossRef
  • Google Scholar

• 242

  Puvvada N. Panigrahi P. K. Mandal D. Pathak A. (2012). Shape dependent peroxidase mimetic activity towards oxidation of pyrogallol by H₂O₂. RSC Adv.2, 3270–3273. 10.1039/c2ra01081j

  • CrossRef
  • Google Scholar

• 243

  Pyle A. M. (1993). Ribozymes: a distinct class of metalloenzymes. Science261, 709–714. 10.1126/science.7688142

  • CrossRef
  • Google Scholar

• 244

  Qi Y. Sun Y. Song D. Wang Y. Xiu F. (2023). PVC dechlorination residues as new peroxidase-mimicking nanozyme and chemiluminescence sensing probe with high activity for glucose and ascorbic acid detection. Talanta253, 124039. 10.1016/j.talanta.2022.124039

  • CrossRef
  • Google Scholar

• 245

  Qiao F. Chen L. Li X. Li L. Ai S. (2014). Peroxidase-like activity of manganese selenide nanoparticles and its analytical application for visual detection of hydrogen peroxide and glucose. Sens. Actuators B Chem.193, 255–262. 10.1016/j.snb.2013.11.108

  • CrossRef
  • Google Scholar

• 246

  Qin T. Ma R. Yin Y. Miao X. Chen S. Fan K. et al (2019). Catalytic inactivation of influenza virus by iron oxide nanozyme. Theranostics9, 6920–6935. 10.7150/thno.35826

  • CrossRef
  • Google Scholar

• 247

  Qiu H. Xu T. Wang Z. Ren W. Nan H. Ni Z. et al (2013). Hopping transport through defect-induced localized states in molybdenum disulphide. Nat. Commun.4, 2642. 10.1038/ncomms3642

  • CrossRef
  • Google Scholar

• 248

  Raanan H. Poudel S. Pike D. H. Nanda V. Falkowski P. G. (2020). Small protein folds at the root of an ancient metabolic network. Proc. Natl. Acad. Sci. U. S. A.117, 7193–7199. 10.1073/pnas.1914982117

  • CrossRef
  • Google Scholar

• 249

  Radisavljevic B. Radenovic A. Brivio J. Giacometti V. Kis A. (2011). Single-layer MoS2 transistors. Nat. Nanotechnol.6, 147–150. 10.1038/nnano.2010.279

  • CrossRef
  • Google Scholar

• 250

  Radoń A. Łukowiec D. Kremzer M. Mikuła J. Włodarczyk P. (2018). Electrical conduction mechanism and dielectric properties of spherical shaped Fe3O4 nanoparticles synthesized by Co-precipitation method. Materials11, 735. 10.3390/ma11050735

  • CrossRef
  • Google Scholar

• 251

  Ragg R. Natalio F. Tahir M. N. Janssen H. Kashyap A. Strand D. et al (2014). Molybdenum trioxide nanoparticles with intrinsic sulfite oxidase activity. ACS Nano8, 5182–5189. 10.1021/nn501235j

  • CrossRef
  • Google Scholar

• 252

  Raiswell R. Canfield D. E. (2012). The iron biogeochemical cycle past and present. Geochem. Perspect.1, 1–220. 10.7185/geochempersp.1.1

  • CrossRef
  • Google Scholar

• 253

  Ratautas D. Dagys M. (2020). Nanocatalysts containing direct electron transfer-capable oxidoreductases: recent advances and applications. Catalysts10, 9. 10.3390/catal10010009

  • CrossRef
  • Google Scholar

• 254

  Rebelein J. G. Hu Y. Ribbe M. W. (2015). Widening the product profile of carbon dioxide reduction by vanadium nitrogenase. ChemBioChem16, 1993–1996. 10.1002/cbic.201500305

  • CrossRef
  • Google Scholar

• 255

  Ren H. Yong J. Yang Q. Yang Z. Liu Z. Xu Y. et al (2021). Self-assembled FeS-based cascade bioreactor with enhanced tumor penetration and synergistic treatments to trigger robust cancer immunotherapy. Acta Pharm. Sin. B11, 3244–3261. 10.1016/j.apsb.2021.05.005

  • CrossRef
  • Google Scholar

• 256

  Reyda M. R. Fugate C. J. Jarrett J. T. (2009). A complex between biotin synthase and the iron-sulfur cluster assembly chaperone HscA that enhances in vivo cluster assembly. Biochemistry48, 10782–10792. 10.1021/bi901393t

  • CrossRef
  • Google Scholar

• 257

  Rickard D. Luther G. W. (2007). Chemistry of iron sulfides. Chem. Rev.107, 514–562. 10.1021/cr0503658

  • CrossRef
  • Google Scholar

• 258

  Rizwan M. Noureen S. Ali S. Anwar S. Rehman M. Z. Qayyum M. F. et al (2019). Influence of biochar amendment and foliar application of iron oxide nanoparticles on growth, photosynthesis, and cadmium accumulation in rice biomass. J. Soils Sediments19, 3749–3759. 10.1007/s11368-019-02327-1

  • CrossRef
  • Google Scholar

• 259

  Roberts D. M. Landin A. R. Ritter T. G. Eaves J. D. Stoldt C. R. (2018). Nanocrystalline iron monosulfides near stoichiometry. Sci. Rep.8, 6591. 10.1038/s41598-018-24739-8

  • CrossRef
  • Google Scholar

• 260

  Rodríguez-López J. N. Lowe D. J. Hernández-Ruiz J. Hiner A. N. García-Cánovas F. Thorneley R. N. (2001). Mechanism of reaction of hydrogen peroxide with horseradish peroxidase: identification of intermediates in the catalytic cycle. J. Am. Chem. Soc.123, 11838–11847. 10.1021/ja011853+

  • CrossRef
  • Google Scholar

• 261

  Roldan A. Santos-Carballal D. De Leeuw N. H. (2013). A comparative DFT study of the mechanical and electronic properties of greigite Fe₃S₄ and magnetite Fe₃O₄. J. Chem. Phys.138, 204712. 10.1063/1.4807614

  • CrossRef
  • Google Scholar

• 262

  Runnegar B. (1991). Precambrian oxygen levels estimated from the biochemistry and physiology of early eukaryotes. Glob. Planet Change5, 97–111. 10.1016/0921-8181(91)90131-f

  • CrossRef
  • Google Scholar

• 263

  Russell M. J. (2023). A self-sustaining serpentinization mega-engine feeds the fougerite nanoengines implicated in the emergence of guided metabolism. Front. Microbiol.14, 1145915. 10.3389/fmicb.2023.1145915

  • CrossRef
  • Google Scholar

• 264

  Russell M. J. Hall A. J. (1997). The emergence of life from iron monosulphide bubbles at a submarine hydrothermal redox and pH front. J. Geol. Soc. Lond.154, 377–402. 10.1144/gsjgs.154.3.0377

  • CrossRef
  • Google Scholar

• 265

  Russell M. J. Hall A. J. Martin W. (2010). Serpentinization as a source of energy at the origin of life. Geobiology8, 355–371. 10.1111/j.1472-4669.2010.00249.x

  • CrossRef
  • Google Scholar

• 266

  Sagnotti L. (2007). “Iron sulfides,” in Encyclopedia of geomagnetism and paleomagnetism. Editors Gubbins,D.Herrero-BerveraE. (Dordrecht: Springer Netherlands), 454–459.

  • Google Scholar

• 267

  Sakkopoulos S. Vitoratos E. Argyreas T. (1984). Energy-band diagram for pyrrhotite. J. Phys. Chem. Solids45, 923–928. 10.1016/0022-3697(84)90135-5

  • CrossRef
  • Google Scholar

• 268

  Sanchez C. Babonneau F. Morineau R. Livage J. Bullot J. (1983a). Semiconducting properties of V₂O₅ gels. Philos. Mag. B47, 279–290. 10.1080/13642812.1983.9728310

  • CrossRef
  • Google Scholar

• 269

  Sanchez C. Morineau R. Livage J. (1983b). Electrical conductivity of amorphous V₂O₅. Phys. status solidi (a)76, 661–666. 10.1002/pssa.2210760232

  • CrossRef
  • Google Scholar

• 270

  Sarraf M. Vishwakarma K. Kumar V. Arif N. Das S. Johnson R. et al (2022). Metal/metalloid-based nanomaterials for plant abiotic stress tolerance: an overview of the mechanisms. Plants11, 316. 10.3390/plants11030316

  • CrossRef
  • Google Scholar

• 271

  Schenk G. Mitić N. Hanson G. R. Comba P. (2013). Purple acid phosphatase: a journey into the function and mechanism of a colorful enzyme. Coord. Chem. Rev.257, 473–482. 10.1016/j.ccr.2012.03.020

  • CrossRef
  • Google Scholar

• 272

  Seino H. Hidai M. (2011). Catalytic functions of cubane-type M₄S₄ clusters. Chem. Sci.2, 847–857. 10.1039/c0sc00545b

  • CrossRef
  • Google Scholar

• 273

  Senn M. S. Wright J. P. Attfield J. P. (2012). Charge order and three-site distortions in the Verwey structure of magnetite. Nature481, 173–176. 10.1038/nature10704

  • CrossRef
  • Google Scholar

• 274

  Sephton M. A. Botta O. (2008). Extraterrestrial organic matter and the detection of life. Space Sci. Rev.135, 25–35. 10.1007/s11214-007-9171-9

  • CrossRef
  • Google Scholar

• 275

  Sepunaru L. Refaely-Abramson S. Lovrinčić R. Gavrilov Y. Agrawal P. Levy Y. et al (2015). Electronic transport via homopeptides: the role of side chains and secondary structure. J. Am. Chem. Soc.137, 9617–9626. 10.1021/jacs.5b03933

  • CrossRef
  • Google Scholar

• 276

  Setvin M. Franchini C. Hao X. Schmid M. Janotti A. Kaltak M. et al (2014). Direct view at excess electrons in TiO₂ rutile and anatase. Phys. Rev. Lett.113, 086402. 10.1103/physrevlett.113.086402

  • CrossRef
  • Google Scholar

• 277

  Shan Y. Lu W. Xi J. Qian Y. (2022). Biomedical applications of iron sulfide-based nanozymes. Front. Chem.10, 1000709. 10.3389/fchem.2022.1000709

  • CrossRef
  • Google Scholar

• 278

  Sharma P. Jha A. B. Dubey R. S. Pessarakli M. (2012). Reactive oxygen species, oxidative damage, and antioxidative defense mechanism in plants under stressful conditions. J. Bot.2012, 1–26. 10.1155/2012/217037

  • CrossRef
  • Google Scholar

• 279

  Sheng Y. Abreu I. A. Cabelli D. E. Maroney M. J. Miller A. F. Teixeira M. et al (2014). Superoxide dismutases and superoxide reductases. Chem. Rev.114, 3854–3918. 10.1021/cr4005296

  • CrossRef
  • Google Scholar

• 280

  Shleev S. Tkac J. Christenson A. Ruzgas T. Yaropolov A. I. Whittaker J. W. et al (2005). Direct electron transfer between copper-containing proteins and electrodes. Biosens. Bioelectron.20, 2517–2554. 10.1016/j.bios.2004.10.003

  • CrossRef
  • Google Scholar

• 281

  Shu Z. Liu L. Tan W. Suib S. L. Qiu G. Yang X. et al (2019). Solar irradiation induced transformation of ferrihydrite in the presence of aqueous Fe²⁺. Environ. Sci. Technol.53, 8854–8861. 10.1021/acs.est.9b02750

  • CrossRef
  • Google Scholar

• 282

  Shu Z. Pan Z. Wang X. He H. Yan S. Zhu X. et al (2022). Sunlight-induced interfacial electron transfer of ferrihydrite under oxic conditions: mineral transformation and redox active species production. Environ. Sci. Technol.56, 14188–14197. 10.1021/acs.est.2c04594

  • CrossRef
  • Google Scholar

• 283

  Sidorov N. S. Palnichenko A. V. Khasanov S. S. (2011). Superconductivity in the metallic-oxidized copper interface. Phys. C Supercond.471, 247–249. 10.1016/j.physc.2011.02.006

  • CrossRef
  • Google Scholar

• 284

  Sies H. (2017). Hydrogen peroxide as a central redox signaling molecule in physiological oxidative stress: oxidative eustress. Redox Biol.11, 613–619. 10.1016/j.redox.2016.12.035

  • CrossRef
  • Google Scholar

• 285

  Singh K. Gujju R. Bandaru S. Misra S. Babu K. S. Puvvada N. (2022). Facet-Dependent bactericidal activity of Ag₃PO₄ nanostructures against gram-positive/negative bacteria. ACS Omega7, 16616–16628. 10.1021/acsomega.2c00864

  • CrossRef
  • Google Scholar

• 286

  Singh S. (2019). Nanomaterials exhibiting enzyme-like properties (nanozymes): current advances and future perspectives. Front. Chem.7, 46. 10.3389/fchem.2019.00046

  • CrossRef
  • Google Scholar

• 287

  Skomurski F. N. Kerisit S. Rosso K. M. (2010). Structure, charge distribution, and electron hopping dynamics in magnetite (Fe₃O₄) (100) surfaces from first principles. Geochim. Cosmochim. Acta74, 4234–4248. 10.1016/j.gca.2010.04.063

  • CrossRef
  • Google Scholar

• 288

  Ślesak I. Libik M. Karpinska B. Karpinski S. Miszalski Z. (2007). The role of hydrogen peroxide in regulation of plant metabolism and cellular signalling in response to environmental stresses. Acta Biochim. Pol.54, 39–50. 10.18388/abp.2007_3267

  • CrossRef
  • Google Scholar

• 289

  Slesak I. Slesak H. Kruk J. (2012). Oxygen and hydrogen peroxide in the early evolution of life on earth: in silico comparative analysis of biochemical pathways. Astrobiology12, 775–784. 10.1089/ast.2011.0704

  • CrossRef
  • Google Scholar

• 290

  Ślesak I. Ślesak H. Zimak-Piekarczyk P. Rozpądek P. (2016). Enzymatic antioxidant systems in early anaerobes: theoretical considerations. Astrobiology16, 348–358. 10.1089/ast.2015.1328

  • CrossRef
  • Google Scholar

• 291

  Solomon E. I. Randall D. W. Glaser T. (2000). Electronic structures of active sites in electron transfer metalloproteins: contributions to reactivity. Coord. Chem. Rev.200-202, 595–632. 10.1016/s0010-8545(00)00332-5

  • CrossRef
  • Google Scholar

• 292

  Song C. Liu H. Zhang L. Wang J. Zhao C. Xu Q. et al (2022). FeS nanoparticles embedded in 2D carbon nanosheets as novel nanozymes with peroxidase-like activity for colorimetric and fluorescence assay of H₂O₂ and antioxidant capacity. Sens. Actuators B Chem.353, 131131. 10.1016/j.snb.2021.131131

  • CrossRef
  • Google Scholar

• 293

  Span I. Wang K. Wang W. Zhang Y. Bacher A. Eisenreich W. et al (2012). Discovery of acetylene hydratase activity of the iron–sulphur protein IspH. Nat. Commun.3, 1042. 10.1038/ncomms2052

  • CrossRef
  • Google Scholar

• 294

  Stokkermans J. P. Pierik A. J. Wolbert R. B. Hagen W. R. Van Dongen W. M. Veeger C. (1992). The primary structure of a protein containing a putative [6Fe-6S] prismane cluster from Desulfovibrio vulgaris (Hildenborough). Eur. J. Biochem.208, 435–442. 10.1111/j.1432-1033.1992.tb17205.x

  • CrossRef
  • Google Scholar

• 295

  Stone J. Edgar J. O. Gould J. A. Telling J. (2022). Tectonically-driven oxidant production in the hot biosphere. Nat. Commun.13, 4529. 10.1038/s41467-022-32129-y

  • CrossRef
  • Google Scholar

• 296

  Subramani T. Lilova K. Abramchuk M. Leinenweber K. D. Navrotsky A. (2020). Greigite (Fe₃S₄) is thermodynamically stable: implications for its terrestrial and planetary occurrence. Proc. Natl. Acad. Sci. U. S. A.117, 28645–28648. 10.1073/pnas.2017312117

  • CrossRef
  • Google Scholar

• 297

  Sun D. Liu T. Dong Y. Liu Q. Wu X. Wang G.-L. (2021). Coupling p-hydroxybenzoate hydroaxylase with the photoresponsive nanozyme for universal dehydrogenase-based bioassays. Sens. Actuators B Chem.327, 128859. 10.1016/j.snb.2020.128859

  • CrossRef
  • Google Scholar

• 298

  Suprun E. V. (2021). Direct electrochemistry of proteins and nucleic acids: the focus on 3D structure. Electrochem Commun.125, 106983. 10.1016/j.elecom.2021.106983

  • CrossRef
  • Google Scholar

• 299

  Suri D. Patel R. S. (2017). Electron and thermal transport via variable range hopping in MoSe₂ single crystals. Appl. Phys. Lett.110, 233108. 10.1063/1.4984953

  • CrossRef
  • Google Scholar

• 300

  Takele S. Hearne G. R. (1999). Electrical transport, magnetism, and spin-state configurations of high-pressure phases of FeS. Phys. Rev. B60, 4401–4403. 10.1103/physrevb.60.4401

  • CrossRef
  • Google Scholar

• 301

  Tamura H. Tanaka A. Mita K.-Y. Furuichi R. (1999). Surface hydroxyl site densities on metal oxides as a measure for the ion-exchange capacity. J. Colloid Interface Sci.209, 225–231. 10.1006/jcis.1998.5877

  • CrossRef
  • Google Scholar

• 302

  Tan Z. Chen Y.-C. Zhang J. Chou J.-P. Hu A. Peng Y.-K. (2020a). Nanoisozymes: the origin behind pristine CeO₂ as enzyme mimetics. Chem. Eur. J.26, 10598–10606. 10.1002/chem.202001597

  • CrossRef
  • Google Scholar

• 303

  Tan Z. Wu T.-S. Soo Y.-L. Peng Y.-K. (2020b). Unravelling the true active site for CeO₂-catalyzed dephosphorylation. Appl. Catal. B264, 118508. 10.1016/j.apcatb.2019.118508

  • CrossRef
  • Google Scholar

• 304

  Tang M. Zhang Z. Sun T. Li B. Wu Z. (2022). Manganese-based nanozymes: preparation, catalytic mechanisms, and biomedical applications. Adv. Healthc. Mat.11, 2201733. 10.1002/adhm.202201733

  • CrossRef
  • Google Scholar

• 305

  Tang Z. Wu H. Zhang Y. Li Z. Lin Y. (2011). Enzyme-mimic activity of ferric nano-core residing in ferritin and its biosensing applications. Anal. Chem.83, 8611–8616. 10.1021/ac202049q

  • CrossRef
  • Google Scholar

• 306

  Tarasevich M. R. Yaropolov A. I. Bogdanovskaya V. A. Varfolomeev S. D. (1979). Electrocatalysis of a cathodic oxygen reductionby laccase. J. Electroanal. Chem.104, 393–403. 10.1016/s0022-0728(79)81047-5

  • CrossRef
  • Google Scholar

• 307

  Taverne Y. J. Caron A. Diamond C. Fournier G. Lyons T. W. (2020). “Chapter 5 - oxidative stress and the early coevolution of life and biospheric oxygen,” in Oxidative stress. Editor SiesH. (Academic Press), 67–85.

  • Google Scholar

• 308

  Taverne Y. J. Merkus D. Bogers A. J. Halliwell B. Duncker D. J. Lyons T. W. (2018). Reactive oxygen species: radical factors in the evolution of animal life: a molecular timescale from earth's earliest history to the rise of complex life. Bioessays40, 1700158. 10.1002/bies.201700158

  • CrossRef
  • Google Scholar

• 309

  Todo S. Takeshita N. Kanehara T. Mori T. Môri N. (2001). Metallization of magnetite (Fe₃O₄) under high pressure. J. Appl. Phys.89, 7347–7349. 10.1063/1.1359460

  • CrossRef
  • Google Scholar

• 310

  Tuller H. L. Nowick A. S. (1977). Small polaron electron transport in reduced CeO₂ single crystals. J. Phys. Chem. Solids38, 859–867. 10.1016/0022-3697(77)90124-x

  • CrossRef
  • Google Scholar

• 311

  Uebe R. Schüler D. (2016). Magnetosome biogenesis in magnetotactic bacteria. Nat. Rev. Microbiol.14, 621–637. 10.1038/nrmicro.2016.99

  • CrossRef
  • Google Scholar

• 312

  Usman M. Abdelmoula M. Hanna K. Grégoire B. Faure P. Ruby C. (2012). FeII induced mineralogical transformations of ferric oxyhydroxides into magnetite of variable stoichiometry and morphology. J. Solid State Chem.194, 328–335. 10.1016/j.jssc.2012.05.022

  • CrossRef
  • Google Scholar

• 313

  Usman M. Byrne J. M. Chaudhary A. Orsetti S. Hanna K. Ruby C. et al (2018). Magnetite and green rust: synthesis, properties, and environmental applications of mixed-valent iron minerals. Chem. Rev.118, 3251–3304. 10.1021/acs.chemrev.7b00224

  • CrossRef
  • Google Scholar

• 314

  Valko M. Leibfritz D. Moncol J. Cronin M. T. D. Mazur M. Telser J. (2007). Free radicals and antioxidants in normal physiological functions and human disease. Int. J. Biochem. Cell Biol.39, 44–84. 10.1016/j.biocel.2006.07.001

  • CrossRef
  • Google Scholar

• 315

  Vallabani N. V. S. Vinu A. Singh S. Karakoti A. (2020). Tuning the ATP-triggered pro-oxidant activity of iron oxide-based nanozyme towards an efficient antibacterial strategy. J. Colloid Interface Sci.567, 154–164. 10.1016/j.jcis.2020.01.099

  • CrossRef
  • Google Scholar

• 316

  Veitch N. C. (2004). Horseradish peroxidase: a modern view of a classic enzyme. Phytochemistry65, 249–259. 10.1016/j.phytochem.2003.10.022

  • CrossRef
  • Google Scholar

• 317

  Verwey E. J. W. (1939). Electronic conduction of magnetite (Fe₃O₄) and its transition point at low temperatures. Nature144, 327–328. 10.1038/144327b0

  • CrossRef
  • Google Scholar

• 318

  Wächtershäuser G. (1988). Before enzymes and templates: theory of surface metabolism. Microbiol. Rev.52, 452–484. 10.1128/mr.52.4.452-484.1988

  • CrossRef
  • Google Scholar

• 319

  Wächtershäuser G. (1990). Evolution of the first metabolic cycles. Proc. Natl. Acad. Sci. U. S. A.87, 200–204. 10.1073/pnas.87.1.200

  • CrossRef
  • Google Scholar

• 320

  Wächtershäuser G. (1992). Groundworks for an evolutionary biochemistry: the iron-sulphur world. Prog. Biophys. Mol. Biol.58, 85–201. 10.1016/0079-6107(92)90022-x

  • CrossRef
  • Google Scholar

• 321

  Wander M. C. F. Rosso K. M. Schoonen M. a.A. (2007). Structure and charge hopping dynamics in green rust. J. Phys. Chem. C111, 11414–11423. 10.1021/jp072762n

  • CrossRef
  • Google Scholar

• 322

  Wang H. Huang Y. (2011). Prussian-blue-modified iron oxide magnetic nanoparticles as effective peroxidase-like catalysts to degrade methylene blue with H₂O₂. J. Hazard. Mat.191, 163–169. 10.1016/j.jhazmat.2011.04.057

  • CrossRef
  • Google Scholar

• 323

  Wang Q. Chen J. Zhang H. Wu W. Zhang Z. Dong S. (2018). Porous Co₃O₄ nanoplates with pH-switchable peroxidase- and catalase-like activity. Nanoscale10, 19140–19146. 10.1039/c8nr06162a

  • CrossRef
  • Google Scholar

• 324

  Wang S. Wang X. Du B. Jin Y. Ai W. Zhang G. et al (2023). Hydrogen peroxide-assisted and histidine-stabilized copper-containing nanozyme for efficient degradation of various organic dyes. Spectrochim. Acta A Mol. Biomol. Spectrosc.287, 122084. 10.1016/j.saa.2022.122084

  • CrossRef
  • Google Scholar

• 325

  Wang W. Yang B. Qu Y. Liu X. Su W. (2011). FeS/S/FeS₂ redox system and its oxidoreductase-like chemistry in the iron-sulfur world. Astrobiology11, 471–476. 10.1089/ast.2011.0624

  • CrossRef
  • Google Scholar

• 326

  Wang Y. Shen X. Ma S. Guo Q. Zhang W. Cheng L. et al (2020). Oral biofilm elimination by combining iron-based nanozymes and hydrogen peroxide-producing bacteria. Biomater. Sci.8, 2447–2458. 10.1039/c9bm01889a

  • CrossRef
  • Google Scholar

• 327

  Warren J. J. Ener M. E. Vlček A. Jr. Winkler J. R. Gray H. B. (2012). Electron hopping through proteins. Coord. Chem. Rev.256, 2478–2487. 10.1016/j.ccr.2012.03.032

  • CrossRef
  • Google Scholar

• 328

  Waser V. Mukherjee M. Tachibana R. Igareta N. V. Ward T. R. (2023). An artificial [Fe4S4]-containing metalloenzyme for the reduction of CO₂ to hydrocarbons. J. Am. Chem. Soc.145, 14823–14830. 10.1021/jacs.3c03546

  • CrossRef
  • Google Scholar

• 329

  Wei H. Li G. Li J. (2023). Biomedical nanozymes, from diagnostics to therapeutics. Singapore: Springer Singapore.

  • Google Scholar

• 330

  Wei H. Wang E. (2013). Nanomaterials with enzyme-like characteristics (nanozymes): Next-generation artificial enzymes. Chem. Soc. Rev.42, 6060–6093. 10.1039/c3cs35486e

  • CrossRef
  • Google Scholar

• 331

  Weiss M. C. Sousa F. L. Mrnjavac N. Neukirchen S. Roettger M. Nelson-Sathi S. et al (2016). The physiology and habitat of the last universal common ancestor. Nat. Microbiol.1, 16116. 10.1038/nmicrobiol.2016.116

  • CrossRef
  • Google Scholar

• 332

  Westall F. Southam G. (2006). “The early record of life,” in Archean geodynamics and environments. Editors BennK.MareschalJ.-C.CondieK. C. (American Geophysical Union Geophysical Monograph), 283–304.

  • Google Scholar

• 333

  White L. M. Bhartia R. Stucky G. D. Kanik I. Russell M. J. (2015). Mackinawite and greigite in ancient alkaline hydrothermal chimneys: identifying potential key catalysts for emergent life. Earth Planet. Sci. Lett.430, 105–114. 10.1016/j.epsl.2015.08.013

  • CrossRef
  • Google Scholar

• 334

  White L. M. Shibuya T. Vance S. D. Christensen L. E. Bhartia R. Kidd R. et al (2020). Simulating serpentinization as it could apply to the emergence of life using the JPL hydrothermal reactor. Astrobiology20, 307–326. 10.1089/ast.2018.1949

  • CrossRef
  • Google Scholar

• 335

  Williams R. J. P. (1981). Natural selection of the chemical elements. Proc. R. Soc. B213, 361–397. 10.1098/rspb.1981.0071

  • CrossRef
  • Google Scholar

• 336

  Williams R. J. P. (2003). Metallo-enzyme catalysis. Chem. Commun.3, 1109–1113. 10.1039/b211281g

  • CrossRef
  • Google Scholar

• 337

  Woese C. R. Kandler O. Wheelis M. L. (1990). Towards a natural system of organisms: proposal for the domains Archaea, Bacteria, and Eucarya. Proc. Natl. Acad. Sci. U. S. A.87, 4576–4579. 10.1073/pnas.87.12.4576

  • CrossRef
  • Google Scholar

• 338

  Wong E. L. S. Vuong K. Q. Chow E. (2021). Nanozymes for environmental pollutant monitoring and remediation. Sensors21, 408. 10.3390/s21020408

  • CrossRef
  • Google Scholar

• 339

  Wu J. Wang X. Wang Q. Lou Z. Li S. Zhu Y. et al (2019a). Nanomaterials with enzyme-like characteristics (nanozymes): Next-generation artificial enzymes (II). Chem. Soc. Rev.48, 1004–1076. 10.1039/c8cs00457a

  • CrossRef
  • Google Scholar

• 340

  Wu W. Wang Q. Chen J. Huang L. Zhang H. Rong K. et al (2019b). Biomimetic design for enhancing the peroxidase mimicking activity of hemin. Nanoscale11, 12603–12609. 10.1039/c9nr03506k

  • CrossRef
  • Google Scholar

• 341

  Wu X. Chen T. Wang J. Yang G. (2017). Few-layered MoSe₂ nanosheets as an efficient peroxidase nanozyme for highly sensitive colorimetric detection of H₂O₂ and xanthine. J. Mater Chem. B6, 105–111. 10.1039/c7tb02434g

  • CrossRef
  • Google Scholar

• 342

  Wu Z. Y. Gota S. Jollet F. Pollak M. Gautier-Soyer M. Natoli C. R. (1997). Characterization of iron oxides by x-ray absorption at the oxygen K edgeusing a full multiple-scattering approach. Phys. Rev. B55, 2570–2577. 10.1103/physrevb.55.2570

  • CrossRef
  • Google Scholar

• 343

  Xiao G. Li H. Zhao Y. Wei H. Li J. Su H. (2022). Nanoceria-based artificial nanozymes: review of materials and applications. ACS Appl. Nano Mater5, 14147–14170. 10.1021/acsanm.2c03009

  • CrossRef
  • Google Scholar

• 344

  Xie W. Guo Z. Gao F. Gao Q. Wang D. Liaw B. S. et al (2018). Shape-size- and structure-controlled synthesis and biocompatibility of iron oxide nanoparticles for magnetic theranostics. Theranostics8, 3284–3307. 10.7150/thno.25220

  • CrossRef
  • Google Scholar

• 345

  Xu D. Wu L. Yao H. Zhao L. (2022a). Catalase-like nanozymes: classification, catalytic mechanisms, and their applications. Small18, 2203400. 10.1002/smll.202203400

  • CrossRef
  • Google Scholar

• 346

  Xu W. He W. Du Z. Zhu L. Huang K. Lu Y. et al (2021a). Functional nucleic acid nanomaterials: development, properties, and applications. Angew. Chem. Int. Ed.60, 6890–6918. 10.1002/anie.201909927

  • CrossRef
  • Google Scholar

• 347

  Xu Z. Qiu Z. Liu Q. Huang Y. Li D. Shen X. et al (2018). Converting organosulfur compounds to inorganic polysulfides against resistant bacterial infections. Nat. Commun.9, 3713. 10.1038/s41467-018-06164-7

  • CrossRef
  • Google Scholar

• 348

  Xu Z. Qu A. Wang W. Lu M. Shi B. Chen C. et al (2021b). Facet-Dependent biodegradable Mn₃O₄ nanoparticles for ameliorating Parkinson's disease. Adv. Healthc. Mat.10, 2101316. 10.1002/adhm.202101316

  • CrossRef
  • Google Scholar

• 349

  Xu Z. F. Tong C. J. Si R. T. Teobaldi G. Liu L. M. (2022b). Nonadiabatic dynamics of polaron hopping and coupling with water on reduced TiO₂. J. Phys. Chem. Lett.13, 857–863. 10.1021/acs.jpclett.1c04231

  • CrossRef
  • Google Scholar

• 350

  Yang W. Yang X. Zhu L. Chu H. Li X. Xu W. (2021). Nanozymes: activity origin, catalytic mechanism, and biological application. Coord. Chem. Rev.448, 214170. 10.1016/j.ccr.2021.214170

  • CrossRef
  • Google Scholar

• 351

  Yang Y. Mao Z. Huang W. Liu L. Li J. Li J. et al (2016a). Redox enzyme-mimicking activities of CeO₂ nanostructures: intrinsic influence of exposed facets. Sci. Rep.6, 35344. 10.1038/srep35344

  • CrossRef
  • Google Scholar

• 352

  Yang Y. Vance M. Tou F. Tiwari A. Liu M. Hochella M. F. (2016b). Nanoparticles in road dust from impervious urban surfaces: distribution, identification, and environmental implications. Environ. Sci. Nano3, 534–544. 10.1039/c6en00056h

  • CrossRef
  • Google Scholar

• 353

  Yao W. T. Zhu H. Z. Li W. G. Yao H. B. Wu Y. C. Yu S. H. (2013). Intrinsic peroxidase catalytic activity of Fe₇S₈ nanowires templated from [Fe₁₆S₂₀]/diethylenetriamine hybrid nanowires. ChemPlusChem78, 723–727. 10.1002/cplu.201300075

  • CrossRef
  • Google Scholar

• 354

  Yaropolov A. I. Malovik V. Varfolomeyev S. D. Berezin I. V. (1979). Electroreduction of hydrogen peroxide on an electrode with immobilized peroxidase. Dokl. Akad. Nauk. SSSR249, 1399.

  • Google Scholar

• 355

  Yu X. Huo C. F. Li Y. W. Wang J. Jiao H. (2012). Fe₃O₄ surface electronic structures and stability from GGA+U. Surf. Sci.606, 872–879. 10.1016/j.susc.2012.02.003

  • CrossRef
  • Google Scholar

• 356

  Yu Y. Lu L. Yang Q. Zupanic A. Xu Q. Jiang L. (2021). Using MoS₂ nanomaterials to generate or remove reactive oxygen species: a review. ACS Appl. Nano Mater4, 7523–7537. 10.1021/acsanm.1c00751

  • CrossRef
  • Google Scholar

• 357

  Yuan Y. Wang L. Gao L. (2020). Nano-sized iron sulfide: structure, synthesis, properties, and biomedical applications. Front. Chem.8, 818. 10.3389/fchem.2020.00818

  • CrossRef
  • Google Scholar

• 358

  Yücel M. Sevgen S. Le Bris N. (2021). Soluble, colloidal, and particulate iron across the hydrothermal vent mixing zones in broken spur and Rainbow, mid-atlantic ridge. Front. Microbiol.12, 631885. 10.3389/fmicb.2021.631885

  • CrossRef
  • Google Scholar

• 359

  Zámocký M. Gasselhuber B. Furtmüller P. G. Obinger C. (2012). Molecular evolution of hydrogen peroxide degrading enzymes. Arch. Biochem. Biophys.525, 131–144. 10.1016/j.abb.2012.01.017

  • CrossRef
  • Google Scholar

• 360

  Zanella D. Bossi E. Gornati R. Bastos C. Faria N. Bernardini G. (2017). Iron oxide nanoparticles can cross plasma membranes. Sci. Rep.7, 11413. 10.1038/s41598-017-11535-z

  • CrossRef
  • Google Scholar

• 361

  Zarzycki P. Smith D. M. Rosso K. M. (2015). Proton dynamics on goethite nanoparticles and coupling to electron transport. J. Chem. Theory Comput.11, 1715–1724. 10.1021/ct500891a

  • CrossRef
  • Google Scholar

• 362

  Zelko I. N. Mariani T. J. Folz R. J. (2002). Superoxide dismutase multigene family: a comparison of the CuZn-SOD (SOD1), Mn-SOD (SOD2), and EC-SOD (SOD3) gene structures, evolution, and expression. Free Radic. Biol. Med.33, 337–349. 10.1016/s0891-5849(02)00905-x

  • CrossRef
  • Google Scholar

• 363

  Zhang J. Li S. Xie N. Nie G. Tang A. Zhang X. E. et al (2021a). A natural nanozyme in life is found: the iron core within ferritin shows superoxide dismutase catalytic activity. Sci. China Life Sci.64, 1375–1378. 10.1007/s11427-020-1865-2

  • CrossRef
  • Google Scholar

• 364

  Zhang L. Han L. Hu P. Wang L. Dong S. (2013). TiO₂ nanotube arrays: intrinsic peroxidase mimetics. Chem. Commun.49, 10480–10482. 10.1039/c3cc46163g

  • CrossRef
  • Google Scholar

• 365

  Zhang R. Chen L. Liang Q. Xi J. Zhao H. Jin Y. et al (2021b). Unveiling the active sites on ferrihydrite with apparent catalase-like activity for potentiating radiotherapy. Nano Today41, 101317. 10.1016/j.nantod.2021.101317

  • CrossRef
  • Google Scholar

• 366

  Zhang R. Zhao H. Fan K. (2022). “Structure-activity mechanism of iron oxide nanozymes,” in Nanozymes: design, synthesis, and applications (American Chemical Society), 1–35.

  • Google Scholar

• 367

  Zhang X. Li G. Chen G. Wu D. Wu Y. James T. D. (2021c). Enzyme mimics for engineered biomimetic cascade nanoreactors: mechanism, applications, and prospects. Adv. Funct. Mat.31, 2106139. 10.1002/adfm.202106139

  • CrossRef
  • Google Scholar

• 368

  Zhang Y. Wang Z. Li X. Wang L. Yin M. Wang L. et al (2016). Dietary iron oxide nanoparticles delay aging and ameliorate neurodegeneration in Drosophila. Adv. Mater28, 1387–1393. 10.1002/adma.201503893

  • CrossRef
  • Google Scholar

• 369

  Zhao D. Bartlett S. Yung Y. L. (2020). Quantifying mineral-ligand structural similarities: bridging the geological world of minerals with the biological world of enzymes. Life10, 338–339. 10.3390/life10120338

  • CrossRef
  • Google Scholar

• 370

  Zhao H. Zhang R. Yan X. Fan K. (2021). Superoxide dismutase nanozymes: an emerging star for anti-oxidation. J. Mater Chem. B9, 6939–6957. 10.1039/d1tb00720c

  • CrossRef
  • Google Scholar

• 371

  Zhu H. Han J. Xiao J. Q. Jin Y. (2008). Uptake, translocation, and accumulation of manufactured iron oxide nanoparticles by pumpkin plants. Environ. Monit. Assess.10, 713–717. 10.1039/b805998e

  • CrossRef
  • Google Scholar

• 372

  Zhu Y. Zhang Z. Song X. Bu Y. (2021). A facile strategy for synthesis of porous Cu₂O nanospheres and application as nanozymes in colorimetric biosensing. J. Mater Chem. B9, 3533–3543. 10.1039/d0tb03005h

  • CrossRef
  • Google Scholar

• 373

  Živković A. King H. E. Wolthers M. De Leeuw N. H. (2021). Magnetic structure and exchange interactions in pyrrhotite end member minerals: hexagonal FeS and monoclinic Fe₇S₈. J. Phys. Condens. Matter33, 465801. 10.1088/1361-648x/ac1cb2

  • CrossRef
  • Google Scholar

• 374

  Zuo Y. Deng Y. (1999). Evidence for the production of hydrogen peroxide in rainwater by lightning during thunderstorms. Geochim. Cosmochim. Acta63, 3451–3455. 10.1016/s0016-7037(99)00274-4

  • CrossRef
  • Google Scholar
