Introduction
Dislocations are linear crystal defects that store their elastic energy at comparatively large distances (several nanometers) from their sub-nanometer core, and therefore can modify the properties of the host material at different length scales. Similarly to ferroic domain walls two decades ago (Catalan et al., 2012), dislocations in transition metal oxides constitute a class of topological defect which is rapidly catching interest owing to their distinct chemical and physical properties. For instance, non-superconducting dislocation cores have been shown to act as efficient pinning centers for the magnetic flux lines in type-II superconductors (Sandiumenge et al., 2000), conducting dislocations have been reported in insulating Ti doped Al2O3 and in TiO2 (Nakamura et al., 2003; Sun R. et al., 2015), ferromagnetic dislocations have been observed in antiferromagnetic NiO (Sugiyama et al., 2013), or dislocations in SrTiO3 exhibit redox-based resistive switching behavior (Szot et al., 2006; Metlenko et al., 2014; Marrocchelli et al., 2015b). In the latter case, moreover, flexoelectric polarization induced by the strong strain gradients has been recently reported (Gao et al., 2018). Such a rich behavior stems, on the one hand, from a high susceptibility of electronic degrees of freedom to strain, and, particularly at dislocation cores, from a strong coupling between strain and defect chemistry. The ease of formation of oxygen vacancies at the strained core, in turn, results in electrostatic interactions having a strong influence in their structure and properties. Notably, in insulating materials, such accumulation of oxygen vacancies has been shown to promote the formation of vacancy depleted space charge zones that, in turn, modify the properties of the host crystal on length scales ranging from several tens to hundreds of nanometers (Metlenko et al., 2014; Marrocchelli et al., 2015b; Waldow and De Souza, 2016; Adepalli et al., 2017).
Besides such ionic effects, dislocations entail long-range strains that can alter the material's properties within several nanometers around the subnanometric core. Epitaxial thin films provide an ideal playground to investigate such elastic effects through the generation of misfit dislocations (MDs). Repulsive interactions between individual MDs provide a driving force for the formation of self-organized misfit relief patterns at length scales of 10–20 nm, and can be manipulated through an appropriate choice of the substrate and the thickness of the film. Despite this concept has been used to produce strain guided patterned surfaces in semiconductor (Häusler et al., 1996; Shiryaev et al., 1997) and metal (Brune et al., 1998; Lee and Clemens, 2005) systems, to date, its extension to oxide epitaxy has received little interest.
The perspective presented in this work is constructed around recent results on misfit dislocations in the La0.7Sr0.3MnO3/LaAlO3 (LSMO/LAO) system (Sandiumenge et al., 2016; Santiso et al., 2016; Bagués et al., 2018), providing insightful elements to understand their behavior in a single system at different lengths scales, ranging from the subnanometer core to their impact on the properties of the film surface.
Structure and Defect Chemistry of Misfit Dislocations Cores
MDs are located at the interface bridging two different compounds and therefore their structure and chemical composition is expected to combine both of them. Here, we restrict ourselves to the simplifying situation where both the film and the substrate have the same crystal structure, namely that of ABO3 perovskites, but with different cuboctahedral (A) and octahedral (B) site compositions. Although the atomic structure of MDs in perovskite systems has been intensively investigated (Ernst et al., 1999), it is not until recently that the detailed core configuration and its associated defect chemistry have been accessed by combining different spectroscopic and imaging techniques using aberration corrected transmission electron microscopy (Chang et al., 2014; Bagués et al., 2018). In fact, MDs do not decorate a sharp boundary between the two compounds: Interfaces are typically affected by cation inter-diffusion within a few unit cells as a response to misfit strain or polar discontinuity effects (Nakagawa et al., 2006; Krishnan et al., 2014), as well as MDs, tend to shift their position toward the softer material (Wu and Weatherly, 2003). This diffusive scenario is, in turn, altered by the dislocation strain field. Particularly, steric effects associated with the formation of oxygen vacancies may play a critical role in the structure and chemistry of dislocations in oxides: Their preferential accumulation at the under-coordinated core can, for instance, cause the dissociation of the Burgers vector (Metlenko et al., 2014); they can, as well, transfer electrons to the d orbitals of neighboring transition metal cations inducing chemical expansion (Aschauer et al., 2013), create electrostatic interactions governing dopant distributions around the core (Sun L. et al., 2015), or generate a net charge around the core (Metlenko et al., 2014; Sun L. et al., 2015; Bagués et al., 2018).
All those effects are captured by the [100] dislocation formed at the interface between LSMO thin films and LAO substrates (Bagués et al., 2018). Figure 1A shows a cross section high resolution high-angle annular dark-field image of the interface viewed along the [100] edge of the (pseudo)cubic structure. MDs, indicated by red arrows, are clearly seen as dark contrasts. The bottom panel is a (010)-Fourier filtered image pointing out the positions of the MDs. As seen on the filtered image, the extra half-plane resides in the substrate to accommodate the −2.3% biaxial compressive mismatch. Elemental concentration profiles determined by energy dispersive x-ray analysis (EDX) showed cation intermixing between LSMO and LAO over 4 and 2 nm for A and B cations, respectively, suggesting that the polar discontinuity existing between LSMO and LAO is screened by chemical intermixing (Bagués et al., 2018).

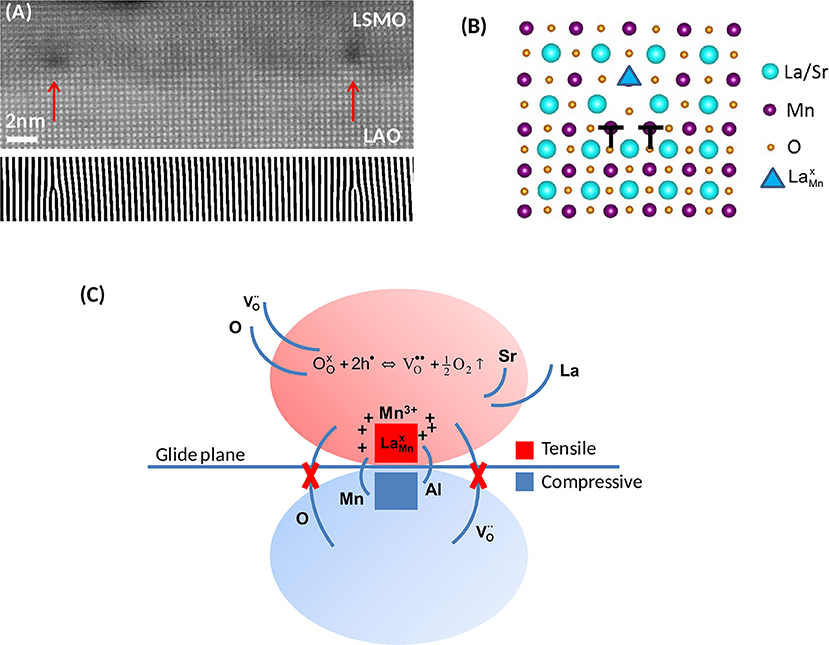

Figure 1. (A) High resolution cross-sectional HAADF image, viewed along the [100] direction, of a 6 nm thick LSMO/LAO film. Vertical arrows indicate the position of misfit dislocations, seen as dark contrasts. Bottom Panel: Fourier filtered image using the (010) frequency to reveal the extra half-planes. (B) Atomic model of the dislocation core. (C) Schematic illustration of the basic mechanisms governing the defect chemistry in the vicinity of the MD core. Tensile and compressive regions are indicated by red and blue colors, respectively. The redox reaction indicated in the tensile region is displaced to the right, favoring the formation of electron donor oxygen vacancies, . Modified from Bagués et al. (2018).
The atomic structure of the MD, shown in Figure 1B, is similar to that experimentally observed for the [100] edge dislocation found in SrTiO3 bicrystals (Zhang et al., 2002; Du et al., 2015) and other perovskite thin films like SrZrO3 and BiFeO3 (Ernst et al., 1999; Lubk et al., 2013), thus suggesting a model configuration for perovskite on perovskite systems. The core is dissociated in two partials, b = 1/2[010] + 1/2[010], corresponding to the two B-site half extra planes, as indicated in the schematics. Atomistic simulations show that this dissociation is driven by the accumulation of oxygen vacancies (Metlenko et al., 2014; Waldow and De Souza, 2016). Therefore, the observation of a dissociated configuration strongly suggests an oxygen deficient core. It can be observed in Figure 1B that the extended core contains an A-site/B-site antiphase boundary on the glide plane. The B-sites next to the antiphase contact, on the film side, exhibit partial occupancy by larger La3+ cations, forming antisite defects, as indicated by a triangle (Kröger-Vink notation is used in this text, taking Mn3+ as reference state, Kröger and Vink, 1956). According to the Shannon's ionic radii of La3+ and Mn3+ in octahedral coordination, 1.032 and 0.645 Å, respectively (Shannon, 1976), such antisite defects yield a huge localized positive dilatational strain of 60%, with an associated shear strain field rapidly decaying as 1/r3 with distance, r, from the defect (Mott and Nabarro, 1940). Therefore, antisite defects, by themselves, are in principle not expected to fully accommodate the tensile strain above the dislocation glide plane.
From a pure elastic perspective, atomic scale chemical mapping by EDX yields a rather counterintuitive picture of the distribution of ions around the MD core. According to Bagués et al. (2018), there is a clear La enrichment relative to Sr which, comparing the ionic radii of La3+ and Sr2+ in cuboctahedral coordination, 1.36 and 1.44 Å (Shannon, 1976), would work against the accommodation of the tensile strain above the glide plane. Again counterintuitively, the compressive zone exhibits a preferential substitution of smaller Al3+ (ionic radius, 0.535 Å) by larger Mn3+ (0.645 Å) cations (Shannon, 1976). Significantly, however, this anomalous behavior is accompanied by a preferential accumulation of oxygen vacancies at the tensile zone. These results contrast with atomistic simulations of the behavior of diluted dopants and oxygen vacancies at edge dislocations in CeO2, showing clear “size accommodating” and charge compensating tendencies, respectively (Sun L. et al., 2015). In the present case, however, the concentration of divalent Sr cations, 33% of A-sites, is much higher than the doping level employed in the simulations and the chemical behavior of the system very likely cannot be properly described by individual point defect interactions.
According to Marrocchelli et al. (2015a), oxygen vacancies in the perovskite structure can be considered similar in size, or even slightly smaller, to oxide ions. Therefore, their accumulation in the tensile zone, by itself, is expected to have a negligible effect on the accommodation of MD strain. Nevertheless, atomic scale electron energy loss spectroscopy results by Bagués et al. (2018) clearly reveal a spatial correlation between the concentration of oxygen vacancies and the reduction of Mn ions. The point defect reaction describing the reduction process can be expressed as (Poulsen, 2000),
where are doubly charged oxygen vacancies, and Mn3+ is used as the reference state for the host B-site. According to Equation (1), each leaves two free carriers, that are transferred to the Mn d band (Yamada and Miller, 1973). Therefore, each oxygen vacancy can reduce two neighboring Mn4+ cations. Now, comparing the ionic radius of the “average B-site cation” of the LSMO structure, 0.610 Å, with that of Mn3+, 0.645 Å, one finds that the formation of oxygen vacancies is associated with a chemical expansion of ~6% that efficiently contributes to minimize the elastic energy above the glide plane of the MD. In agreement with those considerations, atomistic simulations show a reduction of the oxygen vacancy formation energy in other manganese perovskites under tensile strain (Aschauer et al., 2013).
As schematically illustrated in Figure 1C, in accordance with the discussion above, the driving force governing the overall chemical behavior of the MD can be identified as the decrease in the oxygen vacancy formation energy induced by the tensile strain above the glide plane. This coupling displaces the oxygen vacancy equilibrium reaction indicated in Figure 1C toward the right, thus favoring the reduction of neighboring Mn ions following Equation (1). The unbalance between the rate of Sr diffusion out of the core region and the concentration of results in a net positive charge in the tensile region, as indicated in the schematics (Bagués et al., 2018). Despite the counterintuitive decrease of the Sr/La ratio is not clearly understood, the concurrent formation of antisite defects localized on the axial plane, between the two partials, and the chemical expansion implicit in Equation (1), should minimize the elastic energy in the tensile zone. It is worthy to note that since the glide plane separates tensile and compressively strained regions, as a consequence of the selective formation of oxygen vacancies in the tensile zone, at the position of the MD the glide plane becomes a sharp boundary between oxygen deficient and fully oxygenated material.
Long Range Impact of Misfit Dislocations: Surface Patterning
The view of MDs as distinct infinite filamentary phases –infinite relative to the size of the crystal; recall that a dislocation cannot end within a periodic structure (see for instance Hull and Bacon, 2001)- immediately raises the question of whether they could be ideally self-organized into functional nanodevices. When the interface plane coincides with the dislocation glide plane, as the distance between MDs decreases repulsive forces drive their arrangement into ordered interfacial networks (Springholz and Wiesauer, 2002). This is, in fact, a common situation in perovskite epitaxial systems, as exemplified in the preceding section. In the LSMO/LAO case considered above, however, dislocation glide on the interface plane requires the synchronized movement of the two ½[100] partials of the dissociated core. Nevertheless, this circumstance does not appear to hinder much the mobility of the MDs under proper kinetic growth conditions (Sandiumenge, 2017); the standard deviation of the MD spacing distribution (which reflects the degree of order), decreases from 10 nm down to 3 nm when the mean dislocation spacing decreases from 25 to 16 nm (Santiso et al., 2016). These variations take place in a range of film thicknesses comprised between 3.5 and 14 nm, illustrating the possibility to efficiently tune, though not independently, the degree of order and the density of the MD network.
The impact of MDs in oxide heteroepitaxy has been extensively studied in ferroelectric systems, were their strain field has been shown to depress the spontaneous polarization eventually leading to the formation of dead layers (Misirlioglu et al., 2005). Beyond their impact at interfaces, MD networks, also produce surface strain-relief patterns that have been extensively investigated in semiconductor and metal films to generate low-dimensional nanostructures (Häusler et al., 1996; Shiryaev et al., 1997; Brune et al., 1998; Springholz and Wiesauer, 2002; Lee and Clemens, 2005; Zeljkovic et al., 2015). However, despite their interest, MDs have been mostly considered detrimental by the oxide film community. This may be partly due to the fact that strain and MDs are more difficult to control in oxide systems than in semiconductor and metal films (Sandiumenge, 2017). However, the feasibility of extending this concept to perovskite oxide epitaxy has been recently demonstrated in the PbZr0.2Ti0.8O3/SrRuO3/STO and LSMO/LAO systems (Pandya et al., 2016; Sandiumenge et al., 2016). These studies observe a growth mode transition from two-dimensional layer-by-layer growth to three-dimensional island growth upon the introduction of MDs. The coupling between the surface strain resulting from the introduction of MDs and the morphology of the free surface of the film, is mediated by the surface chemical potential, according to Srolovitz (1989),
where μ0 is the chemical potential of the stress free surface, γs is the surface energy density, Ω is the volume of a growth unit, κ(x) is the surface curvature, and w(x) is the local surface strain energy density. For a flat surface κ ~ 0 and the variation of the chemical potential relative to the position of a MD is given by Δμd(x) = μ(x)–μd (μd is the chemical potential of a growth unit located above a buried MD). The result is a modulation of the binding energy of growth units with the same periodicity as the MDs. Figure 2A shows Δμd(x) for 3.5 (red) and 6 nm (blue) thick films. For the 3.5 nm one, the fluctuation features two minima centered on the MD, corresponding to the maximum misfit relaxation (Sandiumenge et al., 2016). At these points the chemical potential is reduced by 17 meV. This abrupt depression should promote the preferential nucleation of growth units at each side of the dislocation. The lower panel in Figure 2A is a high resolution electron micrograph of a 3.5 nm thick film showing an MD indicated by a white circle. There can be clearly seen two mounds grown at each side of the dislocation, at positions corresponding to the two minima in Δμd(x). These mounds give rise to ridges aligned with the MDs, as seen in the atomic force microscopy image corresponding to a 3.5 nm thick film shown in Figure 2B. The height of the ridges becomes kinetically limited as their surface curvature increases due to the competition between the surface energy, γκ(x), and strain energy, w(x), terms in Equation 2 (Yang et al., 2004). As shown by Sandiumenge et al. (2016), see Figure 2A, the amplitude of the Δμd(x) fluctuation is rapidly smoothed out as the film thickens and the distance between MDs is reduced. This results in the disappearance of the nanostructure, as observed in the atomic force microscopy image of the 6 nm thick film shown in Figure 2B. Unfortunately, the degree of order of the MD network and the amplitude of the fluctuation in chemical potential follow opposite dependencies on the film thickness: The former is enhanced with increasing thickness (MD density), whereas the later rapidly vanishes as the film surface moves apart from the strain source and the strain field of individual MDs overlap. The balance between both effects is determined by the Burgers vector, the misfit strain and the elastic constants, although the growth kinetics can profoundly alter the equilibrium dislocation configurations. Therefore, a compromise must be found in each specific case.

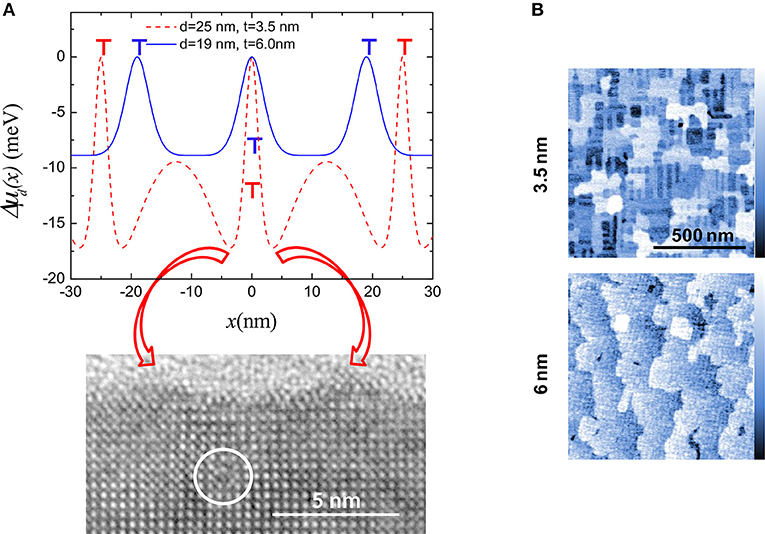

Figure 2. (A) Strain induced modulation of the surface chemical potential relative to the position of the MDs, Δμd(x), for different values of the MD spacing, d, and film thickness, t, as indicated. The location of dislocations for each film thickness is indicated by T symbols. Bottom panel: Cross-section high resolution transmission electron micrograph image corresponding to a 3.5 nm thick film, exhibiting a MD (inside the white circle). Two mounds are seen on the film surface, at each side of the MD. Red arrows highlight the correspondence between the minima in Δμd(x) and the positions of the mounds. (B) Atomic force microscopy images showing the topography of 3.5 nm (upper panel) and 6 nm (Bottom) thick films. The surface of the 3.5 nm thick film features a nanostructure consisting of ridges aligned with the [100] and [010] directions, and the 6 nm thick film shows flat terraces. The color scale bar corresponds to a full range of 1.5 nm. Modified from Sandiumenge et al. (2016).
Besides such topographic effects, the modulation of the lattice distortion induced by the MD network also causes an increase of the film resistivity along the locus of the MDs (Sandiumenge et al., 2016). This effect persists at larger thicknesses than the topographic instability. This behavior can be well-described by the lateral modulation of the c/a axial ratio, controlling the balance between selective Mn d orbital occupation, in-plane Mn 3d- O 2p orbital overlapping, and antiferromagnetic interactions (Fang et al., 2000).
Concluding Remarks and Future Prospects
The oxide thin film community has devoted, so far, a lot of interest to the investigation of fascinating and conceptually new film-substrate interfacial structures driven by octahedral tilting mechanisms in perovskite systems (Huijben et al., 2017). Whatever their electronic or structural origin, such mechanisms may bypass energetically costly dislocation mechanisms (Sandiumenge et al., 2013; Gazquez et al., 2017). As exemplified by the LSMO system, where the sign of the misfit allows switching between two opposite relaxation mechanisms (Sandiumenge, 2017), MDs in oxides could become a question of choice. Nevertheless, taking full advantage of MDs in oxide films is challenged by the complex relaxation behavior of epitaxial octahedral framework structures. As highlighted in this work, MDs in oxides are much more than an accidental relaxation mechanism: They carry a distinct phase confined at their cores, with strong potential as active functional element, as well as they are associated with long range strains driving their self-organization and the creation of surface nanostructures.
