- 1Department of Chemistry, Faculty of Applied and Computer Sciences, Vaal University of Technology, Vanderbijlpark, South Africa
- 2Microscopy and Microanalysis Unit, University of the Witwatersrand, Johannesburg, South Africa
- 3National Innovation Centre, Advanced Material Division, Johannesburg, South Africa
The use of carbon nanostructures doped with heteroatoms as electrocatalysts for oxygen reduction reaction (ORR) has attracted intense research in recent years because they are highly conductive, have good durability, and are highly electro-active. One of the strategies to modify the characteristics of carbon nanomaterials (CNMs) to render them suitable for certain applications is to dope them with boron (B) and nitrogen (N). The effect of doping CNMs with boron has been a subject of little study, and hence, it is not well understood, as compared to nitrogen doping studies. In this study, nitrogen was unintentionally doped into carbon nanotubes (CNTs) by chlorination and decomposition of triphenylborane in a catalytic vapor deposition (CVD) reactor. N-doping resulted from the use of nitrogen as a carrier gas. Microscopic and spectroscopic techniques revealed that N bonding of carbon nanostructures together with the presence of defects played pivotal roles in determining the extent of ORR performance of produced CNMs. The introduction of N in the carbon matrix during B molecule decomposition resulted in the reduction in the amount of B doped into the matrix, due to competitive incorporation of N which inhibited B introduction. The presence of pyridinic N species was responsible for a 2e− ORR performance.
Introduction
Energy storage is one of the major bottlenecks that hinder the development of green and clean sustainable energy sources needed to fulfill the global energy demands. The development of suitable energy carriers to convey, store, and use green energy is vital (Singh et al., 2019) since the current energy sources contribute immensely to global warming. Commercialization of electrochemical energy devices such as batteries, fuel cells, solar cells, and supercapacitors that utilize sources that are less harmful to the environment is on an increase. In any type of energy storage device, oxygen reduction reaction (ORR) catalysts are needed in the cathode chambers (Singh et al., 2019). The development of a highly efficient, durable, low cost, and environmentally friendly ORR catalyst is a hindrance for the commercialization of various energy technologies (Higgins et al., 2016; Qiu et al., 2016; Singh et al., 2017; Pegis et al., 2018). Platinum and platinum-based electrocatalysts promote the reaction very efficiently, and the ORR has relatively low overpotentials (Gasteiger et al., 2005; Shao et al., 2016). However, the use of Pt-based materials is not sustainable due to their high cost, them being easily susceptible to CO poisoning, and dissolution, and they are scarce. Metal-free carbon nanomaterials have gained a lot of attraction for the use as electrocatalysts because they are of low cost and exhibit high performance for oxygen reduction (Dai et al., 2015; Zhang and Dai, 2015). Carbon nanomaterials are usually doped with heteroatoms (i.e., nitrogen, boron, phosphorus, and sulfur) to improve their electrocatalytic activity (Li et al., 2015; Deng et al., 2017). The creation of topological defects on carbon nanomaterials was also shown to enhance the ORR activity (Yan et al., 2018).
Boron (B) has been found to be one of the most effective dopants into carbon materials that can induce hole carriers (Matsumoto et al., 2019). Few studies have emerged on the use of boron-doped carbon nanomaterials as electrocatalysts for ORR (Yang et al., 2011; Cheng et al., 2014) due to their insufficient ORR activities as compared to nitrogen-doped carbon nanomaterials. As a result, most studies involving electrocatalytic activities for the ORR use boron co-doped with other heteroatoms in carbon nanomaterials (Fei et al., 2014; Jiang et al., 2015; Yazdi et al., 2015; Byambasuren et al., 2016; Han et al., 2016; Kim et al., 2016; Camisasca et al., 2018; Kou et al., 2018; Zhou et al., 2018; Wang et al., 2019; Liu et al., 2021a; Ha et al., 2021; Wang et al., 2021). Boron-doped multi-walled carbon nanotubes (MWCNTs) which were prepared by thermal annealing in boric acid were found to catalyze the ORR in alkaline media by a 2 + 2 electron pathway (Cheng et al., 2014). Boron-doped carbon nanotubes (BCNTs) that exhibited excellent electrocatalytic activity for the ORR, stability, and immunity toward methanol crossover and CO poisoning have been developed (Yang et al., 2011). Based on theoretical calculations, it was found that boron doping enhanced O2 chemisorption on B-doped CNTs (Yang et al., 2011). Binary-atom (B and N) co-doped carbon nano-onions (BN-CNOs) prepared by the standard thermal annealing method exhibited excellent catalytic activity toward oxygen reduction and showed comparable catalytic performance, higher long-term stability, and excellent immunity toward methanol crossover compared to the standard Pt/C catalysts (Camisasca et al., 2018). N and B co-doped graphene nanosheets that exhibited excellent ORR performance in alkaline solutions which were comparable to the commercial Pt/C electrocatalyst due to the synergistic effects between N and B were prepared (Zhou et al., 2018). Additional doping of N-doped carbons with boron and phosphorus resulted in enhanced ORR activity after B addition in comparison to less activity after P-doping (Byambasuren et al., 2016). B-doping also increased the total N amount and a portion of the pyridinic N species (Byambasuren et al., 2016). Boron-doped chlorinated carbon nanotubes (BClCNTs) prepared via chemical tailoring of 2D boron carbide with chlorine exhibited high ORR activity (Kou et al., 2018). It was suggested by theoretical calculations that the synergistic effect between the electron acceptor boron and electron donor chlorine in carbon nanotubes is the key to excellent ORR activity (Kou et al., 2018). Highly nano-porous carbon materials were doped with heteroatoms (boron, nitrogen, and/or oxygen) via the chlorination process of a carbonitride–boride mixture, and the materials showed superior catalytic performance in the 2e− and 4e− pathway ORR (Ha et al., 2021). Boron-doped graphene quantum dots/N-doped carbon nanotubes (BGQD/NCNTs) prepared by a facile approach, whereby BGQDs were effectively inserted into the NCNT matrix in the absence of B–N bonding, enhanced the excellent electrocatalytic activity for the ORR (Wang et al., 2021).
Enhancement of the ORR activity can also originate from various induced defects. Previously, Maboya et al. (2019) reported the creation of defects on the outer walls of the CNTs after chlorination, which resulted in the secondary growth of carbon nanofibers on the outer walls of the main CNTs. The presence of defects on the walls of the CNTs also facilitated the growth of iron sulfide nanoparticles on their surface, after the addition of thiophene as the sulfur source from liquefaction of iron particles that were embedded inside the chlorinated CNTs via the vapor–liquid–solid mechanism (Mmako et al., 2021). The ORR activity of this material was also greatly enhanced (Mmako et al., 2021). The combination of heteroatom doping and defect introduction can synergistically lower the reaction free energy and overpotential, producing those nanocarbons with outperformed ORR activity (Zhang et al., 2021).
In the present study, co-engineering of heteroatom doping and defect induction is investigated via chlorination and boron doping of the carbon nanotubes, with an aim to improve the electrocatalytic activity of the B-CNTs for the ORR. It was suggested through theoretical calculations from the literature that the synergistic effect between the electron acceptor boron and the electron donor chlorine present in carbon nanotubes is the key to excellent ORR activity. The use of triphenylborane dissolved in liquid media as a boron precursor in the synthesis of boron-doped carbon nanomaterials is well documented; however, the direct decomposition of solid triphenylborane to produce B-CNTs has not yet been reported. The incorporation or doping of nitrogen into the carbon matrix utilizing carrier gas N2 as a source of nitrogen is also noted as key to the study.
Experimental section
Materials
Fe(NO3)3.9H2O (98%), Co(NO3)2.6H2O (98%), CaCO3 (99%), Al2O3, and triphenylborane were all purchased from Sigma Aldrich. 1,2-Dichlorobenzene (98%, reagent grade) and HNO3 (98%, ACS) were supplied by Glass World. The three electrodes, namely, (1) a glassy carbon working electrode (A = 0.07 cm2), (2) platinum wire which acted as a counter electrode, and (3) Ag/AgCl (3 M NaCl), were purchased from Bioanalytical Systems Incorporated (BASi) of the United States of America.
Preparation of the catalyst
The FeCo/CaCO3 catalyst was prepared following a procedure previously reported by Mhlanga et al. (2009). Weighed masses of iron and cobalt nitrates salts were each dissolved separately in 15 ml of distilled water to make 0.3 mol/L solutions of Fe and Co, respectively. The metal solutions were combined in a burette, followed by their addition dropwise with constant stirring to a glass beaker containing 10 g of CaCO3 support. Stirring of the mixture was continued for a further 30 min at room temperature. The mixture was then dried in an oven at 120°C overnight. The solid material obtained was then cooled to room temperature, transferred to a mortar, and ground with a pestle, followed by screening through a 150-µm molecular sieve. The obtained catalyst powder was calcined at 400°C for 16 h in a static air oven. The obtained FeCo/CaCO3 catalyst was completely characterized as reported in an earlier article by Mhlanga et al. (2009).
Fabrication of boron-doped chlorinated carbon nanotubes
Synthesis of boron-doped carbon nanotubes via chlorination was performed following the method adapted from the work by Tavakol and Mohammadi (2018) with minor modifications. About 0.2 g of FeCo/CaCO3 catalyst was weighed into a quartz boat and loaded into the middle of the quartz tube that was inserted into the furnace. This was followed by placing another quartz boat that contained 0.05 g of triphenylborane about 10 cm into the quartz tube. The temperature of the furnace was set to 720°C at the rate of 10°C/min under an inert N2 flow of ∼ 50 ml/min, and the temperature was fixed at 720°C for 45 min. After 45 min, the temperature was further ramped to 800°C, and acetylene gas was bubbled through dichlorobenzene at a flow rate of 30 ml/min for another 45 min. After 45 min, the heating, bubbling, and acetylene flow were stopped, and the B-CNTs were cooled under N2 gas and finally collected with the yield of about 0.6530 g. The collected samples were refluxed in 3M KOH solution to remove any of the unreacted boron species and catalyst material, and this was followed by washing extensively with distilled water before being dried in an oven at 80°C. The schematic diagram outlining the CVD setup for the fabrication of B-CNTs is presented in Figure 1.

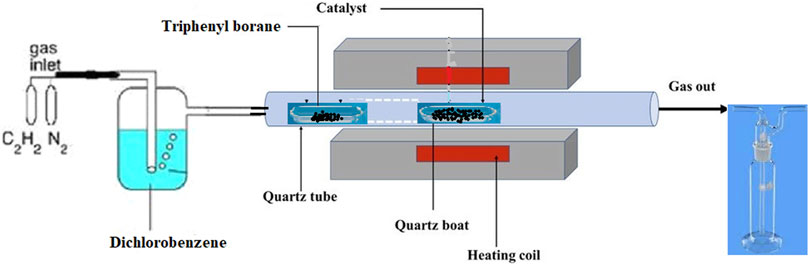

FIGURE 1. Catalytic vapor deposition setup for fabrication of boron-doped chlorinated carbon nanotubes using double boats, via pyrolysis of dichlorobenzene and decomposition of triphenylborane as chlorine and boron sources.
Electrochemical measurement
The electrocatalytic capability of B-CNTs in the ORR was determined using a Metrohm Autolab B.V, Potentiostat (Kanaalweg 29 G, Netherlands). The following electrodes were used in the study: (1) a glassy carbon working electrode (A = 0.07 cm2), (2) platinum wire which acted as a counter electrode, and (3) Ag/AgCl (3 M NaCl) which was used as a reference electrode. The glassy carbon electrode (GCE) was first polished with Al2O3 powder (0.03 and 0.5 μm) on a polishing cloth. This was followed by sonicating the GC electrode in 35% HNO3, ethanol, and water for 10 min each. The procedure was repeated until a shiny surface was obtained on the GC electrode. A B-CNT suspension was prepared by dispersing 1 mg of material in 1 ml of dimethyl formamide with an aid of ultrasonic agitation. Then, 0.1 ml of the B-CNT suspension was dropped casted onto the surface of the polished GCE followed by the evaporation of the solvent in an oven at 40°C. Cyclic voltammetry experiments were carried out in a 20-ml electrochemical cell containing 0.1 M KOH solution as the electrolyte at room temperature, and the scan rate of 50 mV s−1 was used. Electrochemical experiments were carried out without O2 saturation, as the aim was to investigate the effect of dissolved O2 present in a stagnant KOH solution. The scan range was from 1.0 to −1.0 V (versus Ag/AgCl). For inert condition studies, oxygen was removed from the solution by bubbling N2 gas for 30 min into the electrolyte solution. The electronic conductivity and sensing capability of the electrode were examined using the redox probe [Fe(CN)6]3−/4−.
Characterization techniques
The structure and size distribution of the produced carbon product were analyzed by transmission electron microscopy (TEM) using a T12 FEI TECNAI G2 SPIRIT operating at 120 kV. High-resolution TEM images were analyzed using FEI F20 TEM and 200 kV field emission gun (FEG) high-resolution TEM. TEM samples were prepared by sonicating them in ethanol, followed by deposition onto a holey carbon-coated TEM Cu grid. Scanning electron microscopy (SEM) was also used to affirm the morphology of the carbon product using a FEI Quanta 200. The powdered samples were added onto a tape that was previously attached to a stub. The surface of the samples was coated with carbon and gold/palladium to prevent them from charging. The crystallinity of the CNMs was characterized by Raman spectroscopy using a Jobin-Yvon T6400 micro-Raman spectrometer. Excitation was provided by the 532-nm green laser with a spectral resolution of 3–5 cm−1. The high-resolution and survey scan X-ray photoelectron spectroscopy (XPS) analysis were done using a PHI 5000 Versaprobe–Scanning ESCA Microprobe operating with a 100-μm 25 W 15 kV Al monochromatic X-ray beam, supplied by the University of the Free State. The samples were sputtered with a 2 kV 2 μA 1 × 1 mm raster–Ar ion gun at a sputter rate of about 18 nm min−1 for 60 s. Electrochemical studies were performed using a Metrohm Autolab B.V, Potentiostat (Kanaalweg 29 G, Netherlands), operated by Nova 2.1 software.
Results and discussion
TEM and SEM techniques were used to explore the morphology of the synthesized carbon nanotubes. Boron-doped chlorinated carbon nanotubes (N-CNTs) were grown utilizing two-quarts boat in a CVD reactor which contained the catalyst, FeCo/CaCO3 and triphenylborane (as boron source) separately. Chlorination was achieved by bubbling nitrogen and acetylene gases over dichlorobenzene.
A two-step cyclic mechanism can be used to describe the nucleation of CNTs when CaCO3 is employed as the catalyst support as proposed previously (Afolabi et al., 2011). The mechanism begins with a dynamic equilibrium reaction of CaCO3 at the reaction temperature to yield CaO and CO2. This is preceded by the reaction of acetylene with CO2 to produce CNTs and regenerate CO and/or hydrogen. The reactions take place at a triple-joint junction (Fe-Co/CaCO3/C2H2) around the catalyst–support interface to enhance the conversion of acetylene to nanotubes which grow during the reaction time, with the pyrolysis temperature employed (Magrez et al., 2007).
The growth of the nanotubes is enhanced at the temperature used (700 or 800°C) by the existence of this triple joint of Fe-Co/CaCO3/C2H2, while the CO2 regeneration is possible by the water gas shift reaction or by CO disproportionation (Afolabi et al., 2011).
CO2 is assumed to act as an etching agent used to prevent catalyst poisoning. Also, CO2 limits acetylene polymerization, which occurs by a homogeneous radical chain reaction to produce more stable oligomer along with heavy oils (Magrez et al., 2007). The mechanism for the role of chlorine is not yet understood.
TEM images of boron-doped chlorinated carbon nanotubes (B-CNTs) revealed carbon nanostructures of various shapes and sizes. Morphologies observed from B-CNTs ranged from hollow-shaped CNTs (Figure 2A arrow 1), bamboo-compartmented CNTs (Figure 2A arrow 2), and bamboo-compartmented carbon nanofibers, some containing metal particles embedded inside them (Figure 2A arrow 3), including covalent multi-junctions such as “elbow” junctions and Y-junctions (Figure 2A arrow 4). The stable “elbow” bends which were found to be continuous and somewhat periodic along the tube length (Figure 2B), and cone-shaped structures with thin walls on the internal surfaces which is a qualitative indicator that boron doping was also achieved (Figures 2A,C) were found to be the dominating morphologies. The Y-junction structure and “elbow” junctions could have appeared as a result of disruption of a hexagonal structure of the graphene layer with the introduction of pentagons and heptagons (Lijima et al., 1992). It was demonstrated through theoretical studies that the substitution of a carbon atom with boron perturbates the hexagonal network of carbon nanotubes, leading to the formation of local defects which are formed due to the formation of pentagons and heptagons in a graphene sheet of carbon nanotubes (Jalili et al., 2012). In the Y-junction structure, the electrons can flow through carbon nanotube branches, leading to an increase in the active surface area and sensitivity, compared to the linear structure. Hashim et al. (2012) reported that doping of CNTs with boron favors the formation of “elbow” joints (which are responsible for the waviness and kinkiness) and other multi-junctions like Y-junctions. Hashim et al. (2012) and Tsierkezos et al. (2018) observed from their SEM images the presence of massive (tubby) long carbon nanotubes (rods) that possessed sidewall defects from which additional tiny and thin nanotubes (branches) could be grown, when triethyl borate, ethanol, and ferrocene were used as boron, carbon, and catalyst sources, respectively (Tsierkezos et al., 2018).
FIGURE 2. TEM images of boron-doped carbon nanotubes produced via chlorination using dichlorobenzene and triphenylborane as chlorine and boron sources, respectively.
TEM images of purified chlorinated CNTs in the absence of a boron source are presented in Figure 3A for comparison. They revealed entangled hollow CNTs, some with secondary growth of carbon nanofiber on their surface, as reported previously (Maboya et al., 2016). The absence of kinks, elbows, bamboo-compartments, and Y-junctions in the materials generated in the absence of boron (Figure 3A) confirms that indeed boron was incorporated in the materials presented in Figure 2.
FIGURE 3. (A) TEM image of purified-CNTs generated from dichlorobenzene as the chlorine source, under the following reaction conditions: T = 700°C, N2 flow = 240 ml/min, C2H2 flow = 90 ml/min, and time = 60 min. (B) HRTEM and (C) SEM images of boron-doped carbon nanotubes produced via chlorination using dichlorobenzene and triphenylborane as chlorine and boron sources, respectively.
High-resolution TEM (HRTEM) images of B-CNTs showed that they are multi-walled and that some contained metal particles embedded inside (Figure 3B). The number of walls on the B-CNTs was estimated to be about 35 (Figure 3B). SEM images of the B-CNTs present the homogeneous distribution of CNTs, which are clean and free of amorphous carbon (Figure 3C). The kinks or elbows can be observed from the SEM images, which confirms that they are the dominating structure (Figure 3C).
Raman spectroscopy was used to investigate the changes in the graphitic nature of the materials after incorporation of boron during the synthesis of chlorinated CNTs. Two major Raman peaks were observed in both materials, the G-band at around 1,500 and 1,600 cm−1 and the D-band at around 1,300 and 1,400 cm−1 (Figures 4A,B). The first- and second-order Raman scattering regions were deconvoluted using the Lorentz function to evaluate the variation in the carbon structure. The D (1,327 cm−1), D2 (1,415 cm−1), and D4 (1,257 cm−1) bands corresponding to the disordered graphitic lattice vibration mode, amorphous carbon content, and the heteroatom-doped graphene layer, respectively, were observed (Figure 4B) (Sadezky et al., 2005; Manoj, 2016; Lee et al., 2017) The G-band (∼1,582 cm−1) was assigned to the crystalline structure of carbon in graphene (Ferrari and Robertson, 2000). The degree of disorder induced by the addition of boron was evaluated by measuring the intensity ratio of the D and G bands (ID/IG); if the ratio is greater than one, the materials are considered highly disordered. The ID value was taken as the sum of all the disordered D peaks observed in the spectra. The ID/IG value increased from 1.52 to 7.1 for chlorinated materials produced in the absence and presence of boron, respectively. The ID/IG value of 3.1 was obtained when only one deconvoluted peak labeled D peak was used. The obtained result indicates that the introduction of boron by the direct-bonding method promoted the development of highly defective and heteroatom-doped graphenic layers (Ha et al., 2021). The large increase in the ID/IG ratio was alarming, and we suspected that there must be another material or atom that could also be contributing to such a large increase in disorder.

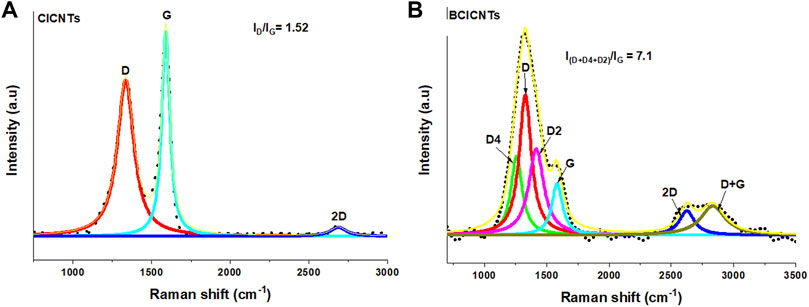

FIGURE 4. Raman spectra analysis of chlorinated (A) and boron-doped chlorinated (B) carbon nanotubes using dichlorobenzene and triphenylborane as chlorine and boron sources, respectively.
The second-order spectra were markedly broadened for materials prepared in the presence of boron (Figure 4B). The 2D band appeared as a singlet at 2,626 cm−1 as a consequence of the presence of some orientation and stacking defects, resulting in a broadened “Dirac-like” single 2D band (Ferrari and Basko, 2013). The number of layers in the multi-walled carbon nanotubes leads to a more prominent and a proportionately increased 2D band (Hodkiewicz, 2010). The data correlate with about 35 layers observed from the HRTEM image (Figure 3B) of chlorinated B-CNTs. We also noticed the presence of a new band at 2,819 cm−1 whose intensity increased with the amount of disorder after boron addition. It was assigned to the combination of the D + G band, which corresponds to a defect-induced double resonance “inter-valley” scattering process or to the combination D + Dʹ (Saito et al., 2011), which is allowed through a defect-induced triple resonance process involving both “inter-valley” and “intra-valley” scattering processes (Ferrari and Basko, 2013).
To study the influence of boron doping on the crystalline structure of chlorinated CNTs in the absence and presence of boron, X-ray diffraction (XRD) spectroscopy was used. The XRD pattern of the chlorinated CNTs showed two typical graphite diffraction peaks, at 2θ = 30 and 53° corresponding to the (002) and (100) graphite faces (Figure 5A). A weak shoulder peak was also observed at 2θ = 50° corresponding to the Fe3C diffraction pattern, which also shifted to higher theta degrees. The presence of Fe3C was discussed in the previous studies as arising from the residual metal catalyst that remained after purification on the surface and some embedded inside the chlorinated CNTs (Maboya et al., 2016). The XRD pattern of the chlorinated B-CNTs showed additional diffraction peaks together with the graphitic peaks at 30 and 50°, which revealed that boron was successfully incorporated into the CNTs (Figure 5A). The peaks corresponding to boron carbide (B8C) were observed at 19.2, 28, 32, 36, 45, 48, and 51 with lattice planes (800), (901), (841), (461), (090), (1,080), and (1831), respectively (JCPDS card no: 00-026-0232) (Swapna et al., 2020).

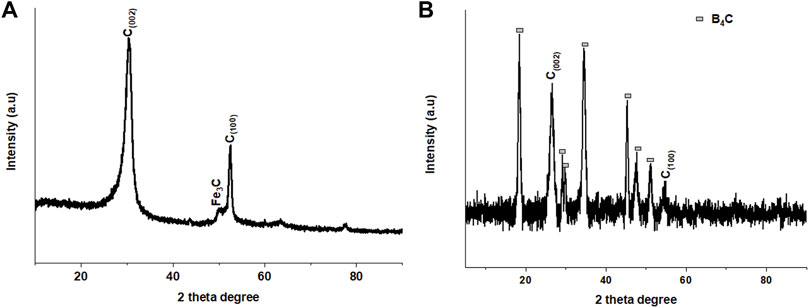

FIGURE 5. X-ray diffraction patterns of chlorinated CNTs (A) and CNMs generated from dichlorobenzene and triphenylborane as chlorine and boron sources, respectively (B).
The surface compositions of the chlorinated boron-doped carbon nanotubes were evaluated using X-ray photoelectron spectroscopy (XPS). From the XPS wide survey scan, the respective C1s, O1s, B1s, Cl2p, and N1s peaks were observed (Figure 6A). A rather small peak was observed for B1s, and a reasonably large peak was observed due to N1s indicating rather unsuccessful doping of boron onto CNTs via chlorination. The observation of an N1s peak at 2% concentration is unintended since we did not intentionally add any nitrogen. In this study, nitrogen was used as a carrier gas during synthesis of B-CNTs via chlorination. Previous studies have shown that the nitrogen content in the N-doped CNTs can be increased by using halogen-containing catalysts as the substrate (Ombaka et al., 2016). In another study, nitrogen and oxygen content were found to increase after boron addition during the synthesis of boron–nitrogen–oxygen co-doped carbons via chlorination (Ha et al., 2021). Structural analysis and surface chemical analysis demonstrated that the introduction of boron during the chlorination of Ti(C,N precursor) enhanced the heteroatom doping in the carbon structure (Ha et al., 2021). The introduction of nitrogen into the carbon network was also achieved during co-doping with boron but was not achieved in the absence of boron (Camisasca et al., 2018). It was found that boron plays a crucial role in initiating the co-doping process, stabilizing nitrogen in the hexagonal carbon lattice due to the great affinity between B and N (Camisasca et al., 2018). The ability of boron molecules to make N2 reactive was also highlighted in a scientific letter where there is ability of boron-containing molecules to directly couple two molecules of N2 into N4 chain, without first having to split dinitrogen into ammonia, thus bypassing the Haber–Bosch process (Holger, 2019). We also believe that the presence of an Fe-Co/CaCO3 catalyst that was used as a substrate for the preparation of the CNTs also enhanced the nitrogen conversion. It was mentioned in another study that natural and anthropogenic reactions of N2 are generally transition metal-mediated (Legare et al., 2019). The high-resolution N1s spectrum of B-CNTs displayed two deconvoluted peaks at 399 and 400.7 eV assigned to pyridinic and pyrrolic types of N atoms in the graphitic structure, respectively (Figure 6B). It is worth noting that the pyridinic and pyrrolic N species correspond to nitrogen in the hexagonal and pentagonal rings (Ratso et al., 2014). The pyridinic N species in the N1s XPS spectra has a high peak intensity; therefore, it constitutes as the most prominent portion in the carbon lattice, and it is previously reported to display the highest ORR activity among various N species (Guo et al., 2016). The absence of a B–N bonding peak at 398.2 eV, which usually prohibits the ORR activity, is expected to result in excellent ORR performance. The incorporation of nitrogen in the carbon matrix observed from the XPS spectra explains the highest number of defects ratio obtained from Raman spectroscopy. It shows that we have three elements, namely, chlorine, boron, and nitrogen, that contributed to an increase in the amount of disorder in the carbon nanomaterials after boron addition. Also, the greatest number of bamboo-compartmented CNTs observed from the TEM images could possibly arise due to nitrogen inclusion rather than boron inclusion, as previously discussed. The control experiment was also done using argon as a carrier gas instead of nitrogen, and the survey scan XPS spectra (Figure 6E) show the absence of an N1s peak, which further confirms that the presence of boron facilitated nitrogen incorporation in the CNTs when synthesizing the materials in a nitrogen gas environment. The Cl2s XPS peak appearing at 270.3 eV also appears enhanced for materials synthesized in an Ar environment and has a shoulder peak at 273.9 eV. The Cl2s peak could be assigned to the presence of ClOx which is unlikely on the 2 × 1 surface (Zhou et al., 2006). The presence of an O1s signal confirms this assignment. It should be noted that no previous assignment for a shoulder peak at 273.9 eV is available in the literature (Zhou et al., 2006). The peak appearing at 48 eV could possibly be due to Ca3p from the catalyst material or O2s (Pan et al., 2017).
FIGURE 6. Deconvoluted high-resolution XPS spectra of C1s (A), N1s (B), and B1s (C) of CNMs generated from dichlorobenzene and triphenylborane as chlorine and boron sources, respectively.
Three peaks were deconvoluted from the C1s spectra and were assigned to sp-C (Singh et al., 2017), sp3-C, and C–N bonds, at 284.8 eV, 285.5 eV, and 286.2 eVV, respectively (Figure 6C). The appearance of the C–N bond confirms that nitrogen was also doped into the carbon matrix, and the lack of C–B bond correlates with a very small peak of B1s that was observed from the wide scan XPS, suggesting that very little amount of boron was doped or incorporated into the carbon matrix. The concentration of boron obtained from XPS was also very low, which was less than 1%. In another study, it was found that when carbon materials are only doped with boron, B incorporation of 0.17% was achieved, but the amount was lowered when B was co-doped with N (Cheng et al., 2021). They speculated that the competitive incorporation of nitrogen into the carbon matrix may have inhibited boron introduction (Cheng et al., 2021).
The B1s deconvoluted XPS spectrum of B-CNTs showed a very weak peak at higher binding energies (around 190 eV) as is the case in pure boron (188 eV), suggesting that boron atoms were included in the carbon matrix (Panchakarla et al., 2007). Only one deconvoluted peak appeared at around 190.2 eV, which attributed to boron atoms at trigonal sites included by substitution in the graphitic structure (B–C bonding) (Figure 6D). Boron atoms substituted at the trigonal sites in the carbon lattice, acting as the electron acceptor (having three valence electrons), have been reported to be the most ORR active boron group in doped carbon materials (Wang et al., 2012).
A weak Cl2p peak which could not be deconvoluted indicates that either negligible amount of Cl was incorporated during boron doping or Cl only created defects onto the walls of the CNTs and enhanced nitrogen doping, but was not functionalized on the CNTs outer walls (Figure 6A).
XPS analysis confirmed the successful synthesis of doped N-CNTs with some boron incorporated via chlorination, thus allowing us to proceed with the examination of the electrocatalytic activity of the doped CNTs. The B-CNTs will now be referred to as N-CNTs due to enhanced N-doping observed and very little boron incorporation.
Cyclic voltammetry (CV) was used to evaluate the electrocatalytic activity of the ClCNTs, and N-CNTs utilizing dissolved oxygen in alkaline media were performed at a scan rate of 50 mV s−1. The electrocatalytic activity of ClCNTs is shown for comparison; it was first analyzed in our previous work; Mmako et al. (2021) showed that N-doped CNTs exhibited a reduction peak at around -0.48 V, which is a characteristic feature of the ORR activity for the boron-doped CNTs (Kim et al., 2015), as confirmed by the disappearance of the reduction peak when nitrogen was purged into the solution (Figure 7A). Comparison of the ORR activity of N-doped CNTs with those of the bare GCE, bare GCE modified with ClCNTs, and bare GCE modified with Pt/C revealed that the greatest activity was obtained from the N-doped CNTs shown by a large current density of about 10 times that of GCE/ClCNTs (Figure 7B). A very low reduction peak current density was also observed for the GCE modified with commercial Pt/C (Figure 7B). It appears that the combination of N-doping and defect enhancement via chlorination of CNTs was effective in increasing the electrocatalytic activity toward oxygen reduction as a result of the synergistic effects of chlorine and boron, and the high amount of active sites (i.e., pyridinic N and substitutional B) in the carbon structure.

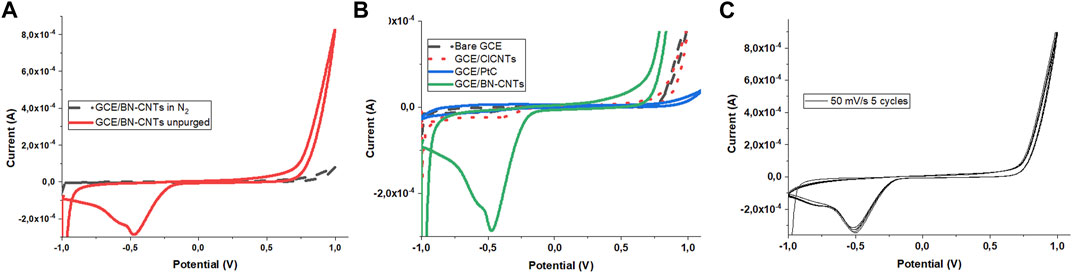

FIGURE 7. Cyclic voltammograms at a scan rate of 50 mV/s of (A) GCE/BN-CNTs showing the effect of N2 on the ORR peak; (B) bare GCE, GCE/ClCNTs, GCE/PtC, and GCE/BN-CNTs; and (C) five repeated cycles over GCE/BN-CNTs, all produced in 0.1 M KOH.
The stability of the GC electrode modified with N-CNTs on their surface was evaluated over five cyclic voltammetry cycles. As shown in Figure 7C, stable voltammograms were obtained with peak potential remaining the same with a slight increase in peak currents corresponding to increasing scan cycles. However, a more justifiable explanation will be that the rapid depletion of oxygen concentrations over time restrained the ability to conduct the stability studies over longer cycles since dissolved oxygen not the purged oxygen was used. Hamzah et al. (2020) also evaluated the stability of the HAD monolayer film toward the ORR utilizing dissolved oxygen. In total, 10 cycles of CV were scanned, and CV showed that after three cycles, the current stabilizes as the oxygen concentration profile has been set up at the electrode interface (Hamzah et al., 2020).
The effect of the scan rate between 10 and 60 mVs−1 was also evaluated using cyclic voltammetry (Figure 8A). A reduction in peak potential was observed with the increasing scan rate due to slow electron-transfer rate constant, meaning that more extreme potentials are needed to induce electron transfer. The scan rate studies can reveal whether the electrocatalytic activity toward the ORR shown by N-CNTs monolayer is controlled by diffusion, adsorption, or even both processes. To evaluate the process that controls the reaction, a cathodic peak current (ipc) was plotted against the square root of the scan rate (v)1/2 (Figure 7D). A nonlinear relationship between the cathodic peak current and both the v1/2 and v was observed (Figures 8B,C). Deviations from linearity in these plots suggest that the electron transfer may be occurring via surface-adsorbed species. During experiments when oxygen was developing on the electrode surface at high positive potentials, we observed bubbles forming on the working electrode surface. These findings suggest that the ORR at the N-CNT-modified GC electrode is a kinetic-controlled reaction that involved the adsorption of O2 molecules on the electrode surface. In addition, the number of electrons (n) involved in the electrocatalytic reaction can be calculated using the following Laviro (1979) equation for an irreversible CV behavior,
where

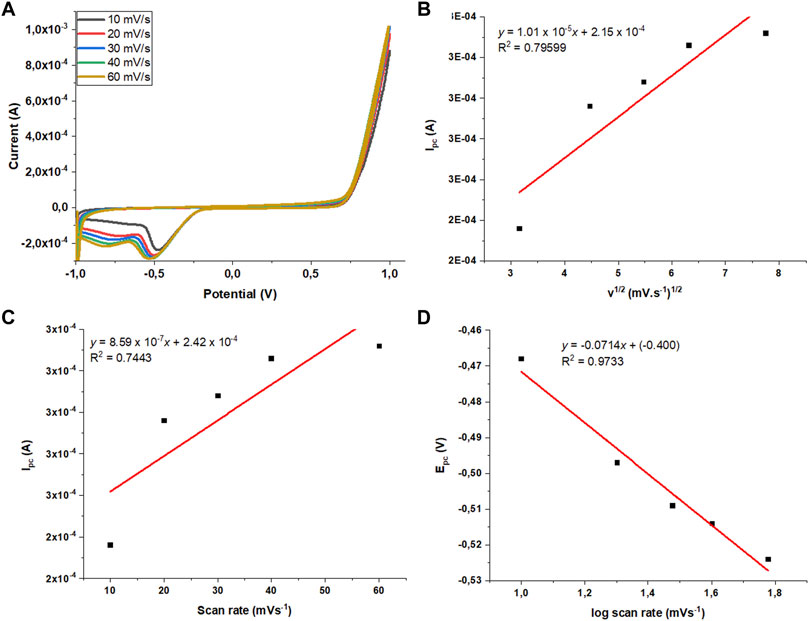

FIGURE 8. (A) Cyclic voltammetry curves obtained at different scan rates for the oxygen reduction peak at BN-CNT-modified GCE in an unpurged 0.1 M KOH solution (scan rate ranged from 10 to 60 mVs−1). (B,C) Plot of the cathodic peak current versus the square root of scan rate (v1/2) and scan rate (v). (D) Plot of the cathodic peak potential (Epc) versus log of scan rate (log v).
For the irreversible electrode process, the relationship between the reduction peak potential and the scan rate (Figure 8D) can be used to calculate the number of electrons transferred in the rate-determining step by the following equation (Laviron, 1979):
where R is the universal gas constant (8.314 J mol−1K−1), T is the temperature (298 K), α is the transfer coefficient, n is the number of electrons transferred in the rate-determining step, and F is the Faraday constant (96,480 C mol−1). The slope of the curve in this study was 0.0714, and αn was calculated to be 0.83. Generally, α is assumed to be 0.5 in a totally irreversible electrode process. Therefore, the value of n obtained was 1.65 (≈2).
This value of n is very close to 2, which means that the dissolved oxygen molecules are directly reduced to hydrogen peroxide. For most irreversible electron-transfer redox reactions, plotting the peak potential versus log v will give a slope of about 60 mV. The slope of 71 mV which is greater than the expected 60 mV could be due to a follow-up chemical step, and this chemical step was evidenced from the CV curves where a second reduction peak at high negative potentials of about −0.7 V was observed.
Ferrocyanide has recently been used as an additive to enhance the electro-activity and as a stabilizer due to its ability to capture radicals in proton exchange membranes (PEM) of fuel cells. Subsequently, ferricyanide addition was shown to enhance the electrochemical performance and durability of the PEMs (Liu et al., 2021b). Fluctuating concentrations of ferricyanide could have a detrimental impact on the proton scavenging ability of the membrane; hence, its measurement becomes important (Liu et al., 2021b). The sensitivity of the GCE/N-CNT-modified electrode was evaluated by adding the ferrocyanide redox probe to the electrolyte solution. In comparison, the same amount of ferrocyanide was added to a solution where a bare GCE was used as a working electrode. Figure 9A shows the cyclic voltammograms of bare GCE and GCE modified with N-CNTs immersed in 0.1 M KOH electrolyte solution before and after the addition of 0.17 mM potassium ferrocyanide. When using the bare GCE, there was a suppression in the Fe(CN)63−/Fe(CN)64− redox couple compared to the modified GCE. When an N-CNT-modified GC electrode was used, a great enhancement in the redox couple of the potassium ferrocyanide oxidation and reduction peaks was observed (Figure 9A). The redox couple of Fe(CN)63−/Fe(CN)64− appeared quite reversible at the GCE/N-CNT-modified electrode. The peak currents obtained deviated a bit from reversibility with Ipa/Ipc = 1.2 and a peak separation of 90 mV as its Epa = +310.2 mV and Epc = +217.4 mV vs. Ag/AgCl. Such deviations may be caused by a variety of factors, including adsorption, charging current, oxygen content on the electrode surface, and alkali metal content in solution (Zoski, 2006). If the amount of alkali metal as the supporting electrolyte present is not in large excess, then the rate of electron transfer could be slow enough to become quasi-reversible. Peak current enhancement accompanied by a peak potential shift suggests that the electrocatalytic activity of the modified electrode is available when compared to another electrode (Perenlei et al., 2011).

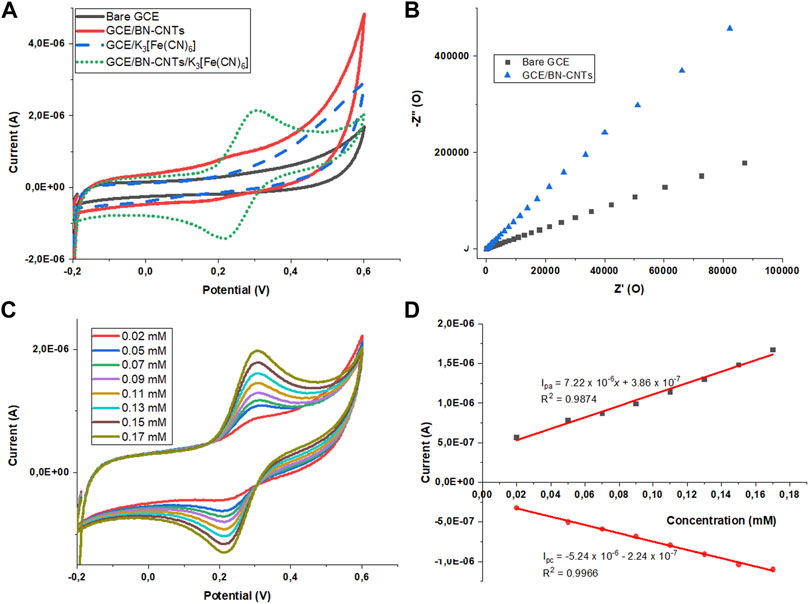

FIGURE 9. Cyclic voltammetric responses obtained before and after the addition of 0.17 mM potassium ferrocyanide in 0.1 M KOH at the (A) bare GCE and GCE/BN-CNTs. (B) Nyquist plot of 0.17 mM [Fe(CN)6]3-/4- at bare GCE and GCE/BN-CNTs. (C) GCE/BN-CNTs varying the concentration of K3 [Fe(CN)6], and (D) plot of analyte concentration versus current for both anodic and cathodic peaks, with a scan rate of 50 mV/s.
EIS experiments were performed to examine the electronic properties of the electrodes and to investigate the charge-transfer resistance of GCE and GCE modified with N-CNTs. EIS was applied using the redox probe Fe(CN)63−/4−. Figure 9B shows the Nyquist plot of bare GCE and GCE modified with N-CNTs in 0.17 mM Fe(CN)63−/4− solution. It can be shown that at high frequencies, the GC electrode shows a semi-circle corresponding to processes limited by the electron transfer. However, the Nyquist plot of GCE modified with N-CNTs exhibited nearly a linear curve at a high-frequency region and a significantly decreased semi-circular segment, suggesting that N-CNTs have high electric conductivity and improve the electron-transfer rate. These results show that the proposed GCE modifier has a lower load-transfer resistance and a higher electron-transfer rate on the sensing interface than the bare electrode. This may be attributed to the existence of defects on the walls of the CNTs created by nitrogen doping and chlorine addition, which promotes the electron-transfer rate between the electrolytic solution and the electrode surface. Figure 9C illustrates the effect of varying the concentration of potassium ferrocyanide on the Fe(CN)63−/Fe(CN)64− redox current at the N-CNT modified GCE in 0.1 M KOH at a scan rate of 50 mV s−1. Both anodic and cathodic peak currents increased linearly with increasing concentration of the analyte ranging from 0.02 to 0.17 mM. Calibration plots bearing linear relationships of y = 7.22 × 10−6x + 3.86 × 10−7 for oxidation and y = −5.24 × 10−6x–2.24 × 10−7 for reduction peak currents showed an excellent correlation coefficient of 0.99 (Figure 9D). The detection limit was found to be 0.156 μM when using a scan rate of 50 mV/s based on the expression 3.3δ/slope (oxidation process, where δ is the standard deviation of the y intercept).
Conclusion
A low-cost approach to produce boron-incorporated nitrogen-doped CNTs through decomposition of triphenylborane using a horizontal CVD setup over a FeCo/CaCO3 catalyst as a substrate via chlorination and exploiting the carrier gas N2 as a source of nitrogen is reported. The results as demonstrated by XPS showed that both N and B were effectively inserted into the CNT matrix via chlorination which was initiated by the presence of boron precursor and bubbling of nitrogen gas into the system. With the help of TEM, XPS, and Raman spectroscopy, it was found that defects created by both boron and chlorine, unintentional incorporation of nitrogen as the dopant into the carbon structures, and chlorination played pivotal roles in determining the extent of ORR performance. During the chlorination process, in the presence of N2 gas and boron molecules, nitrogen can be converted to reactive N4 species which can instantaneously diffuse into the carbon structure through the catalyst interface, which results in the formation of a heteroatom-rich carbon structure. Boron atoms serve as the atomic welders as well as the dopants that induce the development of a heteroatom-rich and defective carbon layer by establishing covalent connections with carbon and heteroatoms (nitrogen), accompanying the morphology and surface chemistry variation of the FeCo/CaCO3-derived carbons. The electrocatalytic activity of the carbon nanostructures was increased through defect creation and doping with boron via chlorination due to the incorporation of nitrogen into the carbon matrix. Boron-incorporated N-CNTs exhibited excellent ORR performance via the 2e− pathway, which was due to possible synergistic effects between the electron acceptor boron and electron donor chlorine atoms, and their effectiveness in promoting and enhancing nitrogen doping. The pyridinic N species obtained was responsible for 2e− ORR performance.
