Abstract
This simulation study proposes a chemical mechanism to define a surrogate to the tumor control during micro- and mini-beam radiation therapy (MBRT). The main focus is proton-MBRT (pMBRT) and the methods developed are applied also to photon-MBRT (MRT). In both cases, the classical interpretation of physical dose cannot be used to explain the observed biological effect and a change of paradigm may be required. MBRT was reported to provide tumor control with reduced side effects when compared to standard dose delivery. The underlying mechanisms leading to a differential response of the normal tissue and the tumor are still unknown. In this work, we propose a chemical mechanism to describe the efficacy of MBRT. The model was developed starting from the observation that pMBRT led to long term survival without significant side effects of rats implanted with a high-grade glioma. We distribution of a generic radiation-induced molecule or radical could be a surrogate to describe the biological effect. The specific mechanisms leading to cell damage were outside the scope of this work. The molecules and radicals were selected according to a set of properties: (i) they should be stable to allow diffusion achieving coverage of the dose-valleys, (ii) they should reach a steady state in production versus removal, (iii) they should be a product of water radiolysis, and (iv) they should have oxidizing capacity. A convolution model was developed to assess the property (i) keeping the analysis as general as possible. The tumor coverage was defined widening the interpretation of the ICRU-62 recommendations. The properties (ii) and (iii) were investigated with the TRAX-CHEM software. The property (iv) was used to exclude not relevant chemical species. The results show that hydrogen peroxide fulfills all the requirements. Moreover, the modeling of its temporal and spatial distributions demonstrate that a uniform coverage of the target by this reactive oxygen specie (ROS) can be achieved during the beam-on time. The model was compared and proven to be compatible with three independent photon micro-beam and proton mini-beam animal experiments. We conclude that hydrogen peroxide is a good candidate to describe the mini-beam and micro-beam efficacy. Further experiments are proposed to experimentally benchmark the model and to correlate the hydrogen peroxide concentration to the tumor control probability.
1. Introduction
Technological developments play an important role in the improvement of cancer therapy. Radiation-therapy is, in particular, a rapidly evolving field and it is used as a form of treatment for as many as half of the cancer patients []. The refinement of the treatment techniques improved patient care and led to an increase in the survival rate. Long term survivors are the ones who potentially benefit the most from the developments aiming to reduce the side effects of radiation-therapy. The most commonly chosen approach to affect the lesions without inducing side effects is improving the conformality of the dose delivery. A prominent example is the increasing usage of advanced photon delivery techniques such as volumetric modulated arc therapy []. Further reduction to the dose delivered to normal tissue may be obtained with beams of charged particles. While electron beams can be employed for superficial tumors, high energy proton, and ion beams allow to escalate the dose to deep located target volumes while reducing the burden to the normal tissue due to their physical and biological characteristics []. Further improvements will be investigated at the new generation facilities []. In general, the approaches adopted in clinical practice aim to achieve tumor control by delivering a uniform dose to the target volume. In pre-clinical studies several other options have been investigated, which not always base their rationale on uniform dose distributions and conformality. A prominent case is the micro- and mini-beam radiation therapy (MBRT), where a spatial pattern of high-dose beamlets alternates with low-dose valleys. This has been investigated in animal experiments with photon beams (MRT) at synchrotron facilities [] and recently at dedicated light sources []. Also recently, proton beams were deployed as well (pMBRT) []. The investigation of MBRT requires a change of paradigm. The reduction of the side effects to the organs at risk are not achieved by reducing their integral dose, but thanks to a differential response of normal and tumor tissue to the radiation delivered with a well-defined spatial fractionation. Two recent studies investigated the tumor response to MRT for mice implanted with squamous carcinoma [] and to pMBRT for rats implanted with high-grade glioma []. In the former, the tumor growth delay was compared between a tumor-bearing control group, mice treated with broad-beam and with micro-beams. Two different dose levels were investigated. In the latter, a long term follow-up was performed to monitor the side effects and tumor response for normal and tumor-bearing animals. The rats were either part of the control group or were treated with mini-beams at one dose level. The animal experiments reported that pMBRT preserved the tumor control. The interpretation of such result is the aim of the current study. Moreover, a previous MRT study performed at a synchrotron facility was also taken into account []. In this case, Regnard et al. found that the probability to ablate the implanted intracerebral 9L gliosarcoma increased by a factor more than 7 when decreasing the spacing of micro-beams from 200 to 100 μm. Differences in normal tissue toxicity were also observed, but will not be further investigated in the current study, which will focus on the MBRT efficacy in tumor tissue. All the previous studies included histological analysis.
MBRT has been investigated at two different spatial scales. In both cases, the setup utilizes arrays of parallel thin radiation planes separated by short distances. In first approximation, along the transverse profile, the radiation can be modeled by a series of equidistant rectangular peaks separated by valleys without direct delivery of the beam. We aimed to keep the study as simple as possible in order to avoid biases in the results due to the choice of free parameters. The profiles can be characterized by their center-to-center distance c-t-c, i.e., the spacing between the areas with direct radiation, and the full width half maximum of the radiation peaks FWHM. In the case of mini-beams, the c-t-c can be as wide as few millimeters and the FWHM up to the millimeter scale []. To achieve such beam profiles, dedicated mechanical collimators are typically designed []. The presence of a collimator leads on one hand to a reduction of the dose rate with respect to a broad beam irradiation and on the other hand to scattering of the primary radiation. The former is taken into account in the current study by analyzing the total irradiation time, which if long enough may allow the propagation of radiolysis products in the valleys. The latter leads to the presence of a non-zero dose in the valleys, which is then characterized by the peak to valley dose ratio PVDR. High values are achievable with novel techniques such as magnetic focusing for ion beams []. The physical dose delivered in the valleys is therefore small compared to the average dose delivered in the tumor, which leads to a significant part of the tumor volume to be under-dosed. Nonetheless, several animal experiments report delayed tumor growth [], improved survival fraction [], and tumor control with cases of tumor eradication []. Such effects cannot be explained by the low physical dose delivered to the valleys. Alternative interpretations including cell-signaling cascades have been proposed for the normal tissue sparing []. Recently, the correlation between tissue damage and the level of reactive oxygen species (ROS) has been proposed []. The related radiolysis products can be nowadays accurately modeled by dedicated simulation codes, such as TRAX-CHEM []. This work aims to fill the gap in the interpretation of the tumor control observed in MBRT, combining the previously mentioned results to investigate a chemical mechanism for mini-beam and micro-beam efficacy.
This study consists in three subsequent phases. First, we investigate the spatial distributions of the physical dose and the radiolysis products during MBRT. Then, we analyze and model the spatial and temporal evolution of the molecules and radicals produced by the radiation beam. Finally, the model is used to interpret previous MBRT animal experiments.
2. Materials and Methods
The spatial distribution of ROS was investigated to develop a model interpreting the MBRT efficacy. The current work was based on simulations and it provides a more in-depth analysis of previously published MBRT animal studies. No animal experiments were conducted within the current study. The model was developed starting from the observation that pMBRT led to long term survival without significant side effects of rats implanted with a high-grade glioma []. It was then applied to MRT used to irradiate mice with squamous carcinoma [] and rats with intracerebral 9L gliosarcoma []. We selected the three previously cited studies since they provided all the parameters required to compare the simulations to the experimental data. Namely, the complete dosimetric description of the irradiation, the total irradiation time, and the observation of a biological effect. We investigated whether the distribution of a radiation-induced molecule or a radical could be a surrogate to describe the biological effect. The specific mechanisms leading to cell damage were outside the scope of this work. Four properties were defined, to restrict the investigation solely to relevant radiation-induced molecules or radicals. The conditions were:
it should be stable to allow diffusion during beam-on, achieving coverage of the dose-valleys
it should reach a steady state in production versus removal within few microseconds of beam-on
it should be a product of water radiolysis
it should have oxidizing capacity to allow damage of proteins, lipids and DNA.
The choice of the conditions was motivated by the following properties. (i) The relevant distance of diffusion is the one that the molecules and radicals can reach during beam-on. In absence of radiation, the reactive chemical species are rapidly removed by antioxidants []. (ii) The steady state is required since the time scale of the biological effects is much longer compared to the one of the physics phenomena that trigger the process. Fast processes that do not reach the steady state, while contributing indirectly to the steady state of other processes, are not expected to be directly correlated to a biological effect. The radiation-induced molecules or radicals that reach the steady state are chosen as a potential surrogate for the biological effect. (iii) The surrogate for the biological effect of MBRT should be directly or indirectly generated by ionizing radiation. Therefore, other processes leading to water dissociation were excluded. (iv) The reactivity of the molecule or radical is required in order to induce a chemical or biological effect.
The study was divided in three subsequent phases. First, the property (i) was assessed keeping the analysis as general as possible. We investigated the diffusion of molecules and radicals from their production in the peaks to the valleys. No constraints were imposed at this stage. The details are presented in section 2.1. The second phase investigated the properties (ii) and (iii) with the software TRAX-CHEM []. The simulations were based on the properties of the proton mini-beams reported by []. The spatial distributions of twelve different molecules and radicals were tracked over several orders of magnitude of their time evolution. The details are provided in section 2.2. Finally, in the third phase, we compared the characteristic diffusion times of the molecules and radicals with the irradiation times adopted in the previous mini-beam [] and micro-beam [] animal studies. The methodology of the comparison is presented in section 2.3.
2.1. Generalization of the Dose Coverage Concept
2.1.1. From Physical Dose to gRM Concentration
This study investigates the secondary water products produced by radiation, known as radiolysis. We define gRM as the generic Radical or Molecule produced during radiolysis, and that diffuses through the cells after being produced. The international recommendation of ICRU established that the dose values in the PTV should be confined within 95 to 107% of the prescribed dose []. This classical concept of physical dose coverage of the target volume is not respected in MBRT, due to the presence of low-dose valleys (Figure 1). We hypothesize that a coverage within 95 and 107% is not provided directly by the physical dose, but by a secondary product of the interaction between ionizing radiation and water target. As a matter of fact, the values assumed by the physical dose will not enter directly our model, which will focus on the distribution of the secondary products. The gRM is created at the interaction point between the ionizing radiation and the target and it can be any of the radicals and molecules listed in Table 1. Its concentration at the moment of creation is assumed to be directly proportional to the physical dose. Starting from a point-like physical dose distribution and assuming the condition (i) to be respected, at a given time point, the gRM will have a given spatial distribution. Keeping the analysis as general as possible, we model such distribution with a Gaussian function. In a one dimensional representation, the gRM distribution is parameterized by its amplitude Ak, standard deviation σk and mean μk. While μk = 0 for the symmetry properties of the problem, the other parameters evolve in time according to the specific properties of each radical or molecule: Ak: = Ak(t) and σk: = σk(t). Given a physical dose distribution D(x), the relative concentration of gRM can be calculated with a convolution:
where k is a normalization factor. In other words, the distribution D(x) is converted into ρgRM(x) through a kernel of width σk. Likewise, the prescribed physical dose can be converted into a mean concentration of gRM. It is promptly seen that for a classical uniform D(x) respecting the ICRU recommendation, also ρgRM(x) is within the 95 to 107% limits. On the other hand, for MBRT, such condition is not respected by D(x) but it may be respected by ρgRM(x) depending on the value assumed by σk.

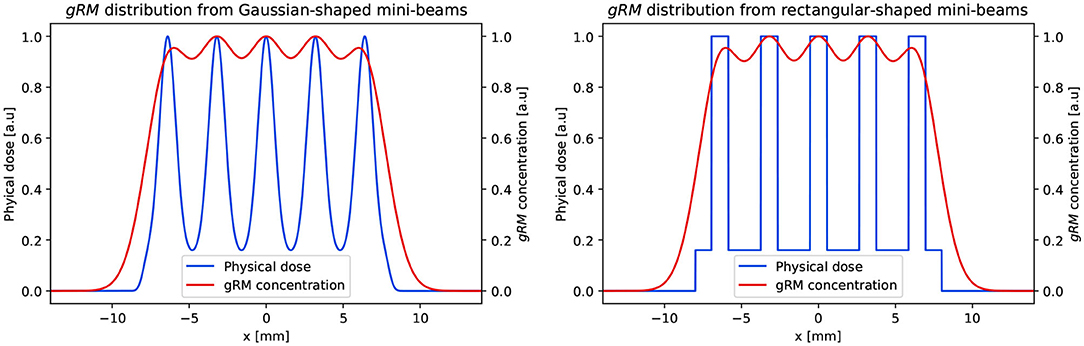

Figure 1
Table 1
| •OH | •H | H2O | |
|---|---|---|---|
| e− | H2 | H2O2 | OH− |
| O2 |
Breakdown of the molecules, radicals, and ions followed in the TRAX-CHEM simulations.
2.1.2. Calculation of σk in Previous pMBRT Studies
Prezado et al. reported that the pMBRT used in their experiments were characterized by a width of 1.1mm at 1cm depth, PVDR of approximately 6.25 and c-t-c = 3.2mm []. We calculated the value of σk required for ρgRM(x) to be within the 95 to 107% limits for this experiment. The physical dose distribution was reproduced with a series of identical Gaussian functions. A more direct approach adopting rectangular functions was also investigated (Figure 1). The Equation (1) was applied to the physical dose distribution and the uniformity of gRM was recorded at varying σk. The smallest σk producing a ρgRM(x) distribution respecting the ICRU recommendation was recorded as . We compared the values obtained with Gaussian-shaped and rectangular-shaped mini-beams. An exemplary conversion of D(x) into ρgRM(x) for the two cases is presented in Figure 1. The same approach was then applied to MRT experiments. The value of was calculated for the micro-beam experiment reported by []. Here, the dosimetric parameters were: width = 50 μm and c-t-c = 350 μm. The PVDR was not explicitly reported, but the authors say that it was much higher than 48. We adopted PVDR = 50 in our simulations. It should be noted that higher values would have negligible influence on the results of the gRM distribution, as its value at high PVDR is dominated by the peak dose. Finally, we calculated for the two irradiation conditions reported by []. In the first case, a c-t-c = 200 μm was used and the PVDR was 42.3 at 5 mm. In the second one, a c-t-c = 100 μm was used and the PVDR was 14.2 at 5 mm. All the experiments were performed with beams of width = 25 μm generated with a dedicated collimator at the European Synchrotron Radiation Facility (ESRF) []. We will reference the experiments with the same nomenclature used by Regnard et al., i.e., series 200*1 for the first and series 100RL for the second
2.2. Simulation of the Radiolysis Products
2.2.1. The TRAX-CHEM Software
The evolution of proton tracks in water through the physical, pre-chemical, and chemical stage was simulated using the TRAX [] code and its recent extension TRAX-CHEM []. Implementation of track chemistry in water [], the addition of dissolved oxygen [], and the respective reaction channels have been previously described in detail. In brief, physical particle interactions are simulated with an event-by-event Monte Carlo approach. Ionization and electronic excitation events lead to molecular dissociations whose coordinates and ionization or excitation state are passed over to the prechemical stage together with thermalized secondary electrons. There, molecular dissociation and thermalization of the fragments are simulated and conclude after ~1ps. These radiolytic species are then tracked as they diffuse and react with each other according to well-known rate constants, and the products of reactions amongst themselves or with water or dissolved molecular oxygen are continuously included into the pool of active chemical species, whereas the consumed reactants are removed. The type of radical and coordinates of all active species are recorded at specified intermediate time points. The spatial dissolution of the track structure into a microscopically homogeneous distribution is normally reached at ~1μs together with chemical equilibrium. Photon beams were not simulated in the current study. We defined the temporal evolution of the distribution of the molecules based on proton simulations only. This is justified by the fact that the primary radical yields as well as the diffusion process of the molecular species in water are insensitive to radiation quality at low linear energy transfer.
2.2.2. Temporal Evolution of Ak and σk
For radiolysis simulation with TRAX-CHEM, conditions were set as follows. The source was an infinitesimally thin proton beam of kinetic energy Ek = 92MeV, i.e., equivalent to the mean energy at 1cm depth in water of the beams used in the experiments reported by []. It was placed immediately in front of the target volume where interactions can take place. The target was a water cylinder of 3 μm height and 10 μm radius with an oxygenation value of 6%, resembling physiological conditions at body temperature. Secondary particles (electrons) were followed explicitly through all interaction events until 7 eV, i.e., below the threshold for electronic excitations. At that point, the residual kinetic energy was converted into one final displacement in a random direction according to []. We tracked over time the distribution of twelve radiolysis products in order to identify a potential gRM fulfilling the requirement (ii). Table 1 summarizes the molecules and radicals tracked. The simulations were sampled at multiple time points from 10−12 to 10−5s. An example of the production and diffusion of OH•, H2O2, and other species is reported in Figure 2. We first analyzed the temporal evolution of Ak(t) for all the molecules and radicals and then σk(t) for the ones respecting the condition (ii).
Figure 2
The total number of molecules or radicals for each of the species listed in Table 1 was recorded at multiple time points. In this analysis, the number of events was integrated over the whole target. The species were separated in two categories, depending on their behavior at the latest simulation time point. In the first category, we included the species that did not reach a steady state and were still increasing or decreasing in their total amount. In the second category, we included only the species that reached the steady state, i.e., ∂Ak/∂t≃0. The first were excluded from further analysis as the condition (ii) was not respected.
We analyzed the radial positions of the species in the second category. This was done taking into account the absolute distance from the beam axis and collecting the data in histograms. The chosen landmark of the distribution was P68, i.e., the 68th percentile. Its value evolved with time. We defined σk(t): = P68(t) and their values were collected at the previously defined time points of the simulation. The temporal evolution of σk(t) was fitted with a power law for t>t1, where t1 was the first time point of the simulation where Ak(t) reached a steady-state. The functional form was chosen in accordance to the data presented in section 3.2. The parameterization was . We fixed the parameter t0 = 1s, which defines the unit for the time.
2.3. Tumor Coverage by gRM in Previous MBRT Animal Experiments
Keeping the analysis as general as possible, we assume that a given gRM fulfills the conditions (i)–(iv) and that it can be identified by the methods presented in sections 2.1, 2.2. For such gRM, it can be defined a characteristic time at which also the generalized definition of tumor coverage by ICRU is fulfilled. This can be promptly calculated by inverting the parameterization, i.e.,
This characteristic time can be correlated with the beam-on in the animal experiments, being the latter the only significant time scale for the radiochemical processes. We postulate that (2) corresponds to the minimum beam-on time required for a MBRT irradiation to achieve tumor coverage by gRM. This assumption is justified by the phenomena happening at longer and shorter time scales. For beam-on times longer than , the steady state of gRM has already been reached and therefore the postulate applies. For beam-on times shorter than , the steady state of gRM may not always be reached through simple diffusion at a later time point. Metabolic processes remove molecules and radicals from the target and therefore modify the gRM distribution. Therefore, we directly compared the time scale of with the beam-on time. Given texp, the beam-on time in a MBRT experiment, the gRM can be a potential surrogate to describe the biological effect if the condition is met. Therefore, we analyzed previous MBRT animal experiments where tumor control was reported and we compared their texp with our calculation of and .
The pMBRT experiment by Prezado et al. was conducted with collimated proton beams []. They reported that the irradiation was performed with a dose rate of Ḋ = 2Gy·min−1 at 1cm depth. This depth was also the reference point used to report the mini-beam width. The peak dose was D = 70Gy, which converts into an irradiation time of . This value was used for our analysis.
The MRT experiment by Dombrowsky et al. was conducted with photon beams at the Munich compact light source (MuCLS) []. The authors reported explicitly the irradiation time, which varied depending on the experimental setup. The integral dose rate for MRT was up to 0.6Gy·min−1. Fluctuations of the instantaneous values of Ḋ lead to total irradiation times of (5.6±0.8)min for the delivery of D = 3Gy. For the purpose of our model, the shortest irradiation time showing a biological effect is the relevant one. Therefore, we calculated the minimum texp that could be achieved with Ḋ = 0.6Gy·min−1, i.e., texp = 300s. This value was used for our analysis.
The MRT experiment by Regnard et al. was conducted with synchrotron radiation at the beamline dedicated to biomedical research of the ESRF []. Compared to the previously described experiments, MRT at synchrtoron facilities can achieve significantly higher dose rates and therefore shorter irradiation times. The authors reported that the effective beam-on time was adjusted as a function of the ring current. The duration of the irradiation was approximately 1 s, value which we used for our analysis.
It should be noted that the depth at which the MBRT are investigated is a free parameter. The depths were fixed in the previous experimental studies in relation to the tumor location. The model presented in the current study takes in account the dose distribution in the tumor, independently from its depth in the animal. Therefore, the model is applicable at any arbitrary depth, as long as the dose distribution is available.
3. Results
3.1. Calculation of σk in Previous MBRT Studies

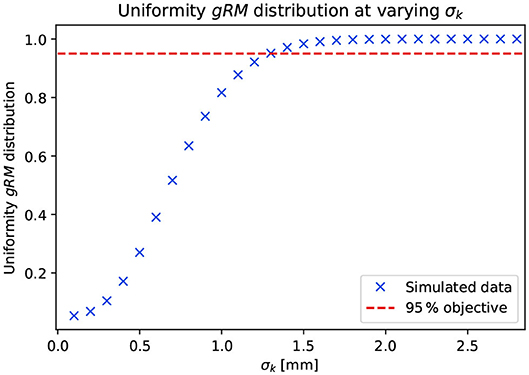

The requirement of 95 to 107% coverage was respected as soon as gRM reached a lateral distribution with uniformity >0.95. Figure 3 shows the evolution of the gRM uniformity with respect to the value assumed by σk. A steep increase is observed for approximately 0.5mm < σk <1.5mm. Outside this range, the shape of the gRM distribution is dominated by the c-t-c value (σk <0.5mm) or by the convolution kernel (σk>1.5mm). The lies within the previously mentioned range. Therefore, its value depends simultaneously on the distribution of the physical dose and on the diffusion properties of gRM. Deviations smaller than 3% were observed when comparing calculated from Gaussian-shaped mini-beams and rectangular-shaped mini-beams. The latter was used in the rest of the study. The values obtained for were
The calculation of the values (3) did not assume any a priori information regarding the generation and diffusion properties of the chemical species. We observe that the values required by are approximately half the c-t-c distance.
Figure 3
3.2. Temporal Evolution of Ak and σk

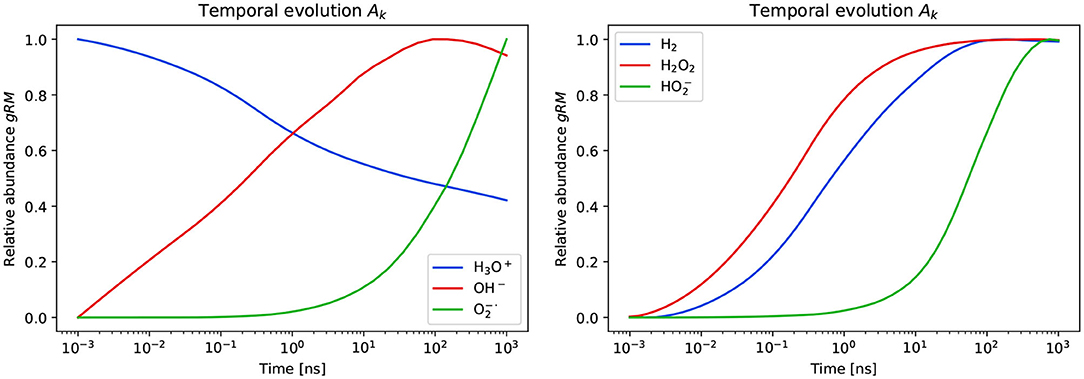

The dependency of Ak on the time point of the TRAX-CHEM simulation is presented in Figure 4. The two categories of chemical species are reported in two separate plots. Only a sub-set of the species in the first category is shown for conciseness. The ones excluded from the plots are not relevant for the following steps of the current study. The steady state was reached by the following:
while the remaining species listed in Table 1 did not respect ∂Ak/∂t≃0. All three in (4) respected the condition (iii). Among them, only H2O2 respected the condition (iv), which is a reactive oxygen species (ROS) and can be expected to be associated with cellular damage []. Therefore, the further analysis is restricted to hydrogen peroxide. For this ROS, the condition ∂Ak/∂t≃0 is respected. In particular, for t>50ns we observed deviations of Ak(t) smaller than 0.25% from its mean value. Therefore, we set t1 = 50ns.
Figure 4

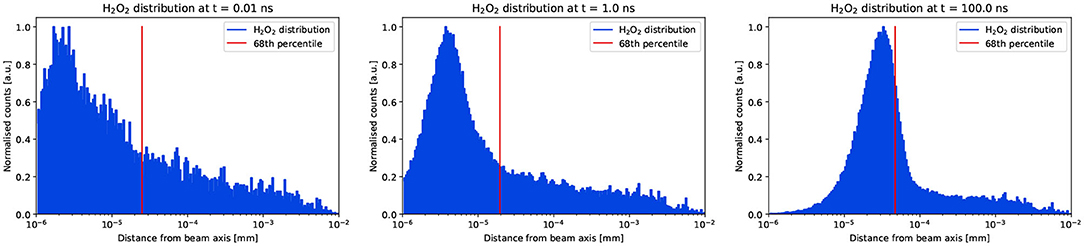

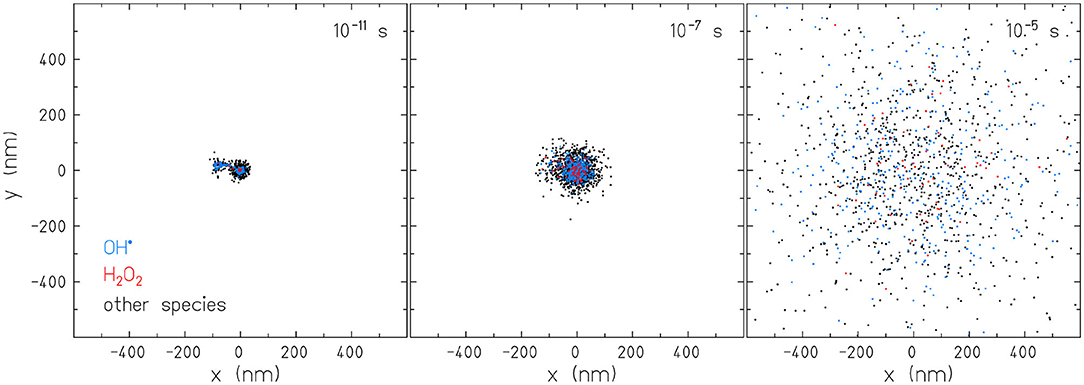

The time-dependent histograms representing the spatial distribution of the hydrogen peroxide radicals are shown in Figure 5. The values of P68 are calculated and reported in the plot. At positions close to the beam axis, the number of H2O2 decreases with increasing time due to the diffusion. A minimum is observed in Figure 5 for t = 100ns due to the logarithmic representation of the distance from the beam axis and the ordinate scale. This takes into account the total number of molecules at a given radial distance from the beam axis and does not normalize by the volume over which such molecules are distributed. The same data, plotted with a normalization by the volume is provided in the Supplementary Material of the article. The values P68 were then used to parameterize σk(t).
Figure 5

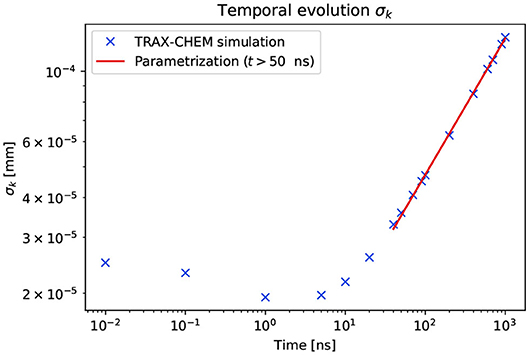

The evolution of σk(t) and the power law fit for t>t1 are shown in Figure 6. This was parameterized with the variables in SI units. The fit parameters were:
The parameterization (5) was used to extrapolate σk(t) for times greater than the last simulation time point.
Figure 6
3.3. Tumor Coverage by H2O2 in Previous MBRT Animal Experiments
The minimum widths of the Gaussian kernels to ensure coverage of the target by H2O2 were reported in Equation (3). Inserting the values (5) into (2), we obtained the following minimum irradiation times that would ensure the required diffusion of hydrogen peroxide in the previous MBRT animal experiments:
while the experimental irradiation times were
In three out of the four experiments analyzed, it was valid that . In such cases, according to the model presented, the H2O2 provided a coverage between 95 and 107% of its mean concentration. As a matter of fact these experiments were associated with high probabilities of tumor ablation or growth delay. For the series 200* in Regnard et al., the uniform coverage of H2O2 was not reached during beam-on, since . This should be attributed to the high dose rate achievable at a synchrotron and an increased c-t-c spacing. The group 200* registered 2 ablated tumors in 32 irradiated rats. The series 100RL produced 5 tumor ablations out of 11 rats.

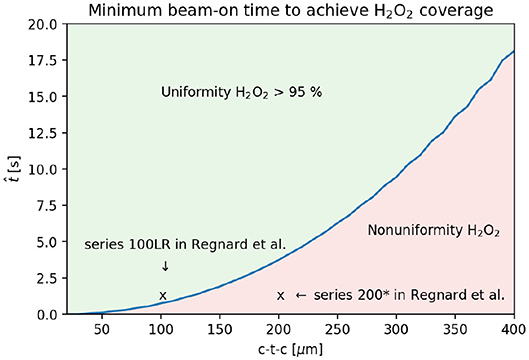

We further investigated the differences between the series 200* and 100RL. The worst case scenario to achieve H2O2 coverage was taken into account, i.e., the maximum PVDR = 71 reported at the skin entrance by []. We calculated for varying c-t-c what would be the minimum predicted by our model. The result and the comparison with the experimental data is presented in Figure 7. The series 100LR belongs to the region with uniform H2O2 distribution, while the series 200* is attributed to the one where such uniformity is not achieved.
Figure 7
4. Discussion
This simulation study identified the distribution of hydrogen peroxide as the candidate to interpret the mini-beam and micro-beam efficacy. This molecule is a product of water radiolysis, it is stable and it rapidly reaches the steady state in production versus removal. Moreover, the H2O2 has a strong oxidizing capacity leading to damage of proteins, lipids, and DNA. Such known properties are now combined with the observation that the distribution of hydrogen peroxide had become uniform in previous MBRT animal experiments where tumor control was achieved. The plausibility of our hypothesis that a radical or molecule can be used as surrogate to describe the biological effect induced by MBRT is therefore confirmed and hydrogen peroxide was identified as the chemical candidate. This is further supported by the different tumor ablation probability reported by Regnard et al. between the group 200* and 100LR. In the former, the uniform H2O2 coverage was not reached during beam-on and the fraction of animals with tumor ablation was seven-fold smaller compared to the 100LR series, in which H2O2 diffused uniformly over the target.
The presented model aimed to identify a candidate for the biological efficacy of MBRT in tumors. The investigation of the differential effect between the former and normal tissue was outside the scope of the current study. Nonetheless, the identification of the hydrogen peroxide as the surrogate to mini-beam and micro-beam efficacy can be used as a starting point for such analysis. We discuss two phenomena, one physical and one biological, which act in favor of a differential effect between tumor and normal tissue. The first, related to the physics of MBRT, applies especially to pMBRT. We hypothesized that the tumor control is obtained because a homogeneous distribution of hydrogen peroxide covers the target volume. Such coverage is obtained due to a well-tuned combination of proton mini-beam size and center-to-center spacing, which combined with H2O2 diffusion during beam-on, covers uniformly the tumor. On the other hand, for pMBRT, the PVDR is high at the normal tissue in the entry channel and it degrades with depth until reaching the target []. Therefore, while an homogeneous H2O2 distribution is reached at the tumor, this is not always the case for the normal tissue. In such case, dose volume effects may apply also to the hydrogen peroxide distribution and therefore lead to a higher tolerance of pMBRT in the normal tissue. This applies especially to pMBRT experiments tuning the beam energy to deliver the Bragg peak at the tumor location. The second, related to ROS biology, applies also to MRT. Cancer cell have significantly higher intracellular ROS levels relative to normal healthy cells []. For this reason we believe that normal cells have a higher tolerance to ROS relative to cancer cells, making them more resistant to oxidative stress induced by MBRT through H2O2. Despite these two phenomena, the differential effect in normal and tumor tissue is a key aspect of MBRT and will require further investigation. The following discussion will focus on the biological efficacy of MBRT in tumors.
This work was a simulation study aiming to provide further interpretation of previous animal experiments. Few simplification and assumptions were made. We did not aim to reproduce the physical dose distribution irradiated to the animals in the previous studies with the highest accuracy achievable. This was out of the scope of the current work and it is instead the objective of studies dedicated to the beam design [] or treatment plans evaluation []. On the other hand, these simplifications should not affect the results. The chosen approach consisted in defining the physical dose distribution based on the parameters c-t-c, FWHM, and PVDR reported by the authors. The simplest model based on rectangular-shaped D(x) was compared to a more realistic D(x) made of multiple Gaussian peaks (Figure 1). The deviation in the estimation of with the two models was limited to the percent level. Therefore, it can be assumed that a further refinement of the D(x) from the multiple Gaussian peaks to a more complex simulation reproducing with high fidelity the previous MBRT experiments would not contribute significantly to the accuracy of the results presented in this work. Therefore, the use of rectangular-shaped D(x) distributions is justified. The little susceptibility of to small deviations of D(x) could be interpreted in the light of the data presented in Figure 3. The ICRU objective of 95% uniformity is reached at the upper end of the steep part of the curve, i.e., toward the part where the curve tends asymptotically to 100% uniformity. Among the parameters in (1), this part of the curve is mostly dependent on σk. Therefore, the spatial and temporal diffusion properties of the hydrogen peroxide provide a greater contribution compared to small deviations in the distribution of the physical dose. The ICRU objective of 95% was assumed without error in this study. However, this recommendation is the result of a long history of clinical experience in many different conditions and therefore should not be assumed as valid a priori for every application. Since the 95% of the dose is a minimum objective, it means that lower values may still provide the desired biological endpoint. For what concerns our study, lower uniformity values are correlated to shorter irradiation times required to achieve the desired gRM distribution. Therefore, even in presence of a lower objective such as 90%, the values presented in (6) would still support the applicability of our model when compared to (7). The maximum dose objective of 107% does not enter directly in our model. Finally it should be reminded that MBRT introduces a change of paradigm. Therefore there is no evidence yet that the parameters defined in the ICRU are strictly required to observe tumor control. This study investigated whether a generalization of such recommendation, which would still be valid and applicable in the conventional therapy, could be adopted in MBRT experiments. The current chemical-stage analysis comes as a complement to previous studies analyzing the biological effects of spatially fractionated dose distributions. While not all the biological phenomena, such as the higher tolerance of normal tissue, could be described through our proposed model; we showed how the spatial distribution of H2O2 is a potential highly relevant parameter and should be further investigated. The correct interpretation of such microscopic mechanisms of action is required in order for spatially fractionated radiation to advance toward a potential future clinical implementation [].
One further assumption in the study was the extrapolation of the parameterization σk(t) to larger time scales compared to the ones simulated with TRAX-CHEM. In particular, the simulations ran until 10−5s while the interpretation of the previous animal experiments required times up to the order of 102s for micro-beams and 103s for mini-beams. This extrapolation is supported by three facts. First, the distribution of H2O2 is parameterized solely by Ak(t) and σk(t) in the current study. The TRAX-CHEM simulations were run until it was verified that ∂Ak/∂t≃0 was respected and σk(t) was the only varying quantity. Deviations of Ak(t) smaller than 0.25% were observed from t1 until the latest simulation point, i.e., over 3 orders of magnitude in time. Further simulations beyond this time point would require additional computational burden without a significant increase of the results accuracy. Second, the physical properties of hydrogen peroxide are close to the ones of water []. For example, its dipole moment is only 22% larger than the one of H2O, it is uncharged and protonated at physiological pH. Therefore, the diffusion in the extracellular space of hydrogen peroxide is not expected to be dumped and it can reach extended spatial distances. Moreover, hydrogen peroxide is commonly treated as a molecule that freely crosses membranes, with only some exceptions []. Such property, combined with the condition (iv), supports the choice of H2O2 as a surrogate for radiation damage to the cells. Third, this extrapolation was based on the property (i), which is the long term stability of the hydrogen peroxide. This was simulated by TRAX-CHEM in water. Shorter times can be expected in a cellular environment, where the hydrogen peroxide is removed by specific enzymes []. Nonetheless, the stability of H2O2 concentration over several minutes up to the hour is observed also in cell cultures [28]. The stability of the concentration investigated in the current work is limited to the beam-on time. Therefore, the extrapolation of the data presented in Figure 6 to larger time points is justified. Future work may include investigations with more realistic phantoms for the simulations and a comparison to biological data. Moreover, the absolute concentration of H2O2 should also be the subject of investigation of future more advanced simulations taking into account the surrounding biological environment. A comparison of the ROS levels in the experiments and the simulation simulation predictions can then be performed. In the current study we adopted a simple geometry in order to investigate the basic phenomena related to out hypothesis. Finally, the comparison between different simulation codes such as TOPAS-nBio [29], [30], and PARTRAC [31] may also be of interest in future stages of the project.
The work presented supports the potential explanation of the MBRT anti-tumor efficacy though the distribution of H2O2. The current study does not demonstrate the correlation between the hydrogen peroxide concentration and the tumor control. Further experimental studies will be necessary to assess such correlation. If this is confirmed, the concentration of this ROS can be used as a marker for the MBRT effect. Ideally, the level of hydrogen peroxide will have to be measured by dedicated experiments. The predictions obtained with the simulations should be confirmed with a direct measurement of the absolute H2O2 concentration in real-time during beam-on with dedicated reagents, e.g., AmplexTM Red [32]. This would allow not only to experimentally benchmark the kernel used for the conversion from physical dose to ROS concentration, but also to assess the absolute value of ρgRM(x) in the experimental setup. The level of H2O2 after the diffusion process should then be correlated to the tumor control parameters in animal experiments. Damaging reactions caused by ROS are known to induce cell death by oxidative stress. Previous studies show that even at concentrations below the required threshold, single ROS activated protein can lead to cell death [33]. Moreover, H2O2 is involved in developmental control by triggering apoptosis and cell proliferation [34]. Finally, an additional model describing the differential response of normal tissue and tumor would be required to interpret the absence of brain damage observed in the proton mini-beam experiments []. The investigation of additional models, the specific mechanisms involved and the correlation between the hydrogen peroxide concentration and the tumor control are left for future studies. According to the results presented in this work, we limit the discussion in presenting H2O2 as the candidate to interpret the mini-beam and micro-beam efficacy.
5. Conclusion
A simulation study to investigate a potential surrogate to describe the efficacy of mini-beam and micro-beam radiation therapy was presented. The hydrogen peroxide fulfilled the required conditions; namely, it is a product of water radiolysis, it is stable, it reaches rapidly the steady state in production versus removal and it has oxidizing capacity to allow damage of proteins, lipids, or DNA. It was demonstrated that the H2O2 produced in the dose-peaks diffuses to the dose-valleys during beam-on leading to a homogeneous ROS distribution over the target. This distribution respected the reinterpretation of the ICRU recommendation for target coverage, while this was not respected by the physical dose. The model was tested on three previous independent photon micro-beam and proton mini-beam animal experiments. When the predicted minimum irradiation time matched the experimental data, the biological effect was maximum. A reduced tumor ablation probability was observed in one experiment in which the H2O2 did not cover uniformly the target. We can conclude that the hydrogen peroxide is a good candidate to describe the mini-beam and micro-beam efficacy.
