Abstract
The past years have witnessed increasingly widespread terrorism, violently destroying world peace and regional prosperity. Therefore, uncovering terrorist plots has become the most crucial step for eliminating terrorist attacks. However, with the terrorist scheme being disguised under the huge amount of data flow on the internet, identifying terrorist organizations still remains challenging. Since many terrorist organizations are prone to launch terrorist attacks together, here, we model their relationships as a Terrorist Organization Alliance (TOA) network and propose a novel method to identify the key terrorist organizations in the TOA network. The TOA network utilizes existing key nodes in order to extract useful information, and, with the help of the entropy weight method, the new solution to the TOA network is effective and precise. The experiments are performed on the dataset from the Global Terrorism Database, and the results are statistically validated through t-tests and convergence analysis. Compared with the traditional methods, our method is proven to be superior in terms of measure the harm of terrorist attack organizations and find the key terrorist organizations.
1 Introduction
In recent years, terrorist attacks have happened frequently around the world. With the rapid and widespread data flow on the internet and media contents, terrorist attacks are becoming increasingly serious. Terrorism has a significant and lasting impact on the social security, political process, and social ecology of all countries [, ]. The task of counter-terrorism and terrorism prevention is urgent and arduous; however, the cost is extremely expensive.
Globally, with terrorist organizations such as Al-Qaeda (and the extremist group Islamic State in 2017) suffering heavy blows, terrorist organizations have begun to change their operational strategies. Their activity areas have begun to show a diffuse expansion from the center to periphery, illustrating a new trend of organizational terrorism to individual terrorism, cyber terrorism, and so on. Compared with the government, terrorist organizations are generally relatively weak, and they often cooperate with each other in order to enhance their strength. This is becoming a new trend in the current development of terrorism, manifesting in international cooperation.
In the research of terrorist activity, the traditional studies mostly focus on the forecast of the terrorist attack event based on the terrorist activity characteristic. Xue A. et al (2011) proposed a prediction algorithm PBCS based on context subspace, and it aims to predict terrorist behavior []. Nurudeen. M et al. (2018) proposed a hybrid neural fuzzy model in order to predict criminal behavior in a wide range of areas through simulating crime indication events extracted from wide-area surveillance networks []. Li Z. et al.(2018) proposed a comprehensive framework that combines social network analysis, wavelet transform, and the pattern recognition approach to investigate the dynamics and eventually predict the attack behavior of terrorist group []. According to the new characteristics of terrorist organization cooperation, scholars introduce network analysis methods to the investigation of terrorist organizations and terrorist attacks. Carly et al (2002) analyzed the terrorist network and suggested that the corresponding terrorist attack prevention strategy should be formulated according to the time of the terrorist attack []. Li G. et al.(2019) analyzed the construction process of the terrorist attack alliance network and adopted a new dynamic interactive clustering algorithm to analyze the subgroups of tourist organizations [, ]. Hakim et al.(2020) studied the role social contexts played in the link between interpersonal networks and social identity dynamics of a mujahid, found that constraints for the participation in different interpersonal networks. The constraints influenced the process of identity negotiation as a mujahid versus alternative identities of a family member and belonging to a neighborhood [].
There exist various methods to evaluate the importance of nodes in networks, and many are essentially derived from graph theory [–] and graph-based data mining [, ]. The research on the importance of nodes in complex networks originates from the field of sociological network analysis [–]. Freeman and other scholars have done a lot of research on sociological networks in the early stage. Since then, the fields of system science research, information search, and document retrieval have raised similar problems independently and explored the important sections in networks. The importance of nodes in networks has become a basic problem in various research fields of complex networks.
In this paper, we proposed a new way to analyze the key terrorist organizations. In section 2, a definition of the TOA network is provided, and a figure is given to explain the construction process of this network. In section 3, some traditional methods are given to find the key terrorist organizations, and an entropy method to find critical organizations is also given base on these traditional methods. In section 4, we calculate the importance of nodes by using the traditional method and our method, respectively; In section 5, we use the t-test and convergence analysis to test the results, which found that the accuracy of our method is better than that of traditional methods.
2. Model
Up to now, various countries have been attacked by terrorist organizations, as shown in Figure 1, The frequencies of attacks occurring in South Asia, the Middle East, North Africa, and Sub-Saharan Africa amount to 81%, which means that these places are frequently affected by terrorist attacks. In the future, some countries might also be attacked, and it is thus of great significance to analyze the regular pattern of the terrorist attack is very meaningful. In this section, we first propose a Critical Nodes Finding Model for Terrorist Organization Alliance Networks and present a solution.
FIGURE 1
2.1 Problem Definition
We know that there exist certain social relationships between terrorist groups, including but not limited to sectarian, blood relatives, ethnic relations, etc. At the same time, within the same regions and similar terrorist organizations of related skill fields, resources, and tasks, there is often cooperation. In terms of terrorist attacks, there will be the phenomenon of coalition, and these coalitions will often make some terrorist attacks escalate.

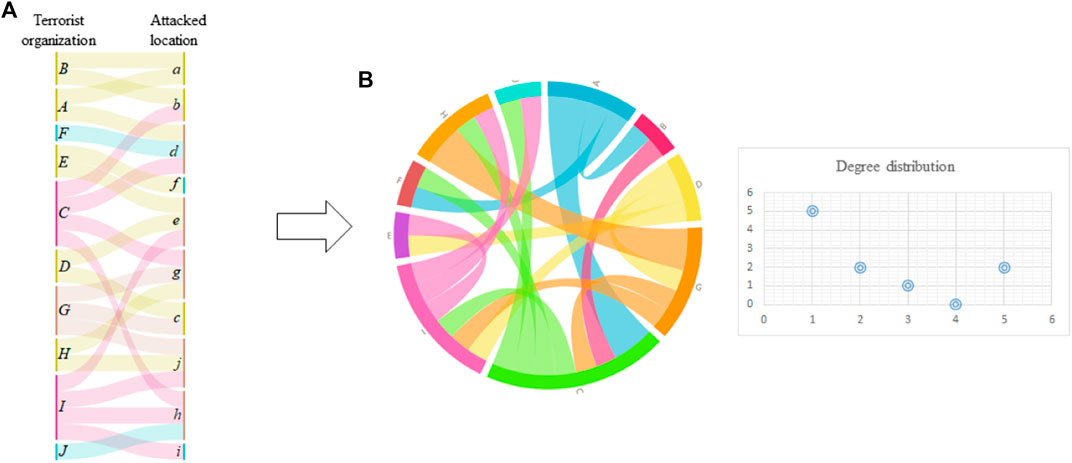

Figure 2 illustrates the construction process of the terrorist groups network. When a terrorist attack event occurs, some groups usually claim that this attack was launched by them. Based on this fact, we suppose there is a relationship between these groups, and these groups will be linked. Thus, a complex network G = (V, E) of terrorist organizations is built. The point set V(G) is the terrorist groups, and the link in E indicates that they make the same attacks at the same time.
FIGURE 2
3 Preliminaries
3.1 Centrality Measures of the Terrorist Organizations Graph
This is a terrorist organizations graph G = (V, E) with n = |V| nodes and m = |E| edges. Various methods are proposed to measure the importance of nodes, such as Degree centrality (DC), closeness centrality (CC), and betweenness centrality (BC) []. The TOA network as shown in the Figure 3.
FIGURE 3
3.1.1 Degree Centrality
The degree centrality (short for DC) of terrorist organization alliance network’s node i, being denoted as CD(i), is defined aswhere i is the focal node, j represents certain node, N is the total number of nodes, and xij represents the connection between node i and node j. The value of xij is defined as 1 if node i is connected to node j, and 0 otherwise.
3.1.2 Betweenness Centrality
The betweenness centrality (short for BC) of terrorist organization alliance network’s node i, being denoted as CB(i), is defined as where gjk denotes the number of the shortest paths between nodes j and k, and gjk(i) means the number of the shortest paths between nodes j and k that go through node i.
3.1.3 Closeness Centrality
The closeness centrality of terrorist organization alliance network’s node i, being denoted as CC(i), is defined aswhere dij denotes the distance between node i and node j.
3.1.4 Eigenvector Centrality
Let A be an n × n similarity matrix. The eigenvector centrality xi of terrorist organization alliance network’s node i is the ith entry in the normalized eigenvector, which belongs to the largest eigenvalue of A. In the matrix A, λ is the largest eigenvalue and n is the number of vertices. with proportionality factor so that xi is proportional to the sum of similarity scores of all nodes connected to it.
3.1.5 PageRank
The PageRank is a eigenvector centrality which is used to rank the websites, PageRank is one of these key nodes fingding ways for the key nodes. Mathematically, the PR value of terrorist organization alliance network’s node vi at t step iswhere n is the total number of nodes in the network, and is the out-degree of node vj. The above iteration will stop if the PR values of all nodes reach the steady state.
3.2 Information Entropy
In information theory, entropy is defined as measuring the level of uncertainty. The order of the data determines the degree of entropy, i.e., according to the definition of information entropy, we know that the information entropy of this group of data will be greater when a group of data contains more information. Therefore, the larger the entropy of the data, the greater its weight.
Whether people can get high-quality decision-making information is determined by the quality of data. Therefore, it is particularly important to find high-quality data in multiple data. Entropy is utilized to measure the data’s order, which can reflect the importance of data. Thus, based on the information theory, we can find the important factors, which are the high-weight data. In the multi-index decision-making problem, the greater the variability of the index is, the smaller the information entropy is, thus we can more information from this index. Therefore, the weight of this index is bigger than other indexes [–].
Definition 1. Among the problems of evaluating n objects and M evaluation indicators, the entropy of the i−th evaluation indicator iswhere, assume that,fij = 0,fij ln fij = 0.
Because 0 ≤ fij ≤ 1, we can get and 0 ≤ Hi ≤ 1.
Definition 2 In the problem of (m, n) evaluation, the entropy weight of the first evaluation index is defined as
From the above definition and the properties of the entropy function, the following properties of the entropy weight can be obtained:
Remark 1.
1) When the values of each evaluated object on index i are identical, the maximum value of entropy is 1 and the weight of entropy 0. This also means that the indicator does not provide any useful information to decision makers, and the indicator can be considered to be canceled.
2) When the values of each evaluated object on index i are quite different, the entropy value is small, and the entropy weight is large, it shows that the index provides useful information for decision makers. At the same time, it is pointed out that in this problem, there are obvious differences among the objects in this index, which should be investigated emphatically.
3) The bigger the index’s entropy is, the smaller its entropy weight is. The less important the index is, the more satisfied it is.
4) Entropy weight, as a weight, has special significance. It is not the actual importance coefficient of an index in decision-making or evaluation, but the relative intensity coefficient of each index in the sense of competition when the value of various evaluation indexes is determined after the set of evaluated objects is given.
5) Considering from the information point of view, it represents the extent to which the index provides useful information in this problem.
6) The Size of the Entropy Weight is Directly Related to the Targets Being Evaluated
Algorithm 1
(1) Case 1 the Large Value of the indicator, the Better indicator
Case 2 the less value of the indicator, the better indicator
(2) For i ← 1: n for j ← 1: m
(3) For i ← 1: n
(4) For i ← 1: n
4 Application
In this section, we used a network of Terrorist Organization Alliance Network to demonstrate that the proposed method does a lot better than other centrality approaches when the influential nodes in the network are not entirely determined by a high degree or good robustness. The Terrorist Organization Alliance Network is a network of Terrorist Organizations between 567 organizations with similarities. The Statistical characteristics of the TOA Network are shown in Table 1.

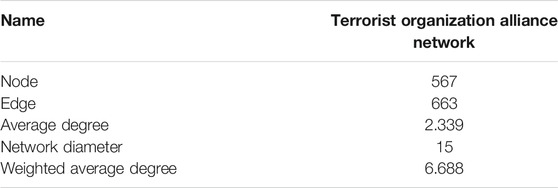

TABLE 1
| Name | Terrorist organization alliance network |
|---|---|
| Node | 567 |
| Edge | 663 |
| Average degree | 2.339 |
| Network diameter | 15 |
| Weighted average degree | 6.688 |
The statistical features of terrorist organization alliance network.
According to Table 1, we find that the number of nodes in the TOA network is 567, which means that in this network, there are 567 terrorist organizations with a joint attack on the same area. The average degree of this network is 2.399, which means that the number of other organizations joined by each organization is two. The weight average degree of this network is 6.68.
Figure 3 depicts the network topology of the TOA network. As a simple corollary of community funding [] of our analysis, we found there is a community structure in this network. Thus there is evidence that terrorist organization make attacks with other terrorist organizations. Mining the terrorist organizations for details is very useful. Various community detection algorithms can be applied [].

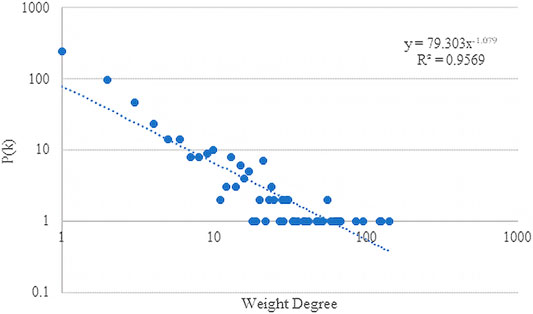

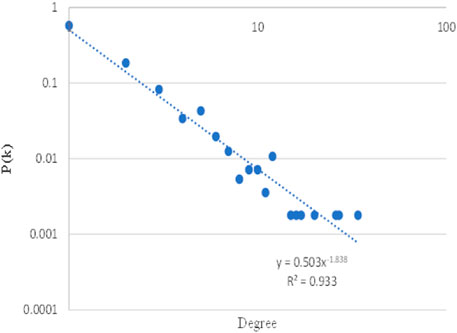

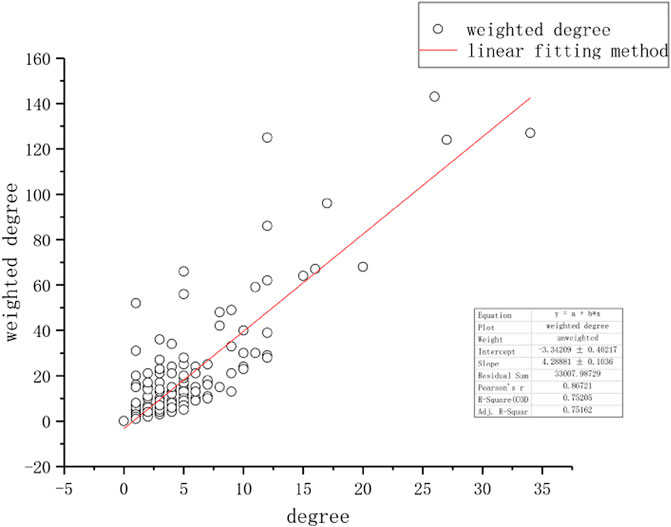

As shown in the Figures 4, 5, 6, the double-logarithmic relationship between cumulative node degree function P(k) and degree k, node weight degree function P(k), and weight degree k is described. First of all, we used the power law fitting for the degree distribution and weight distribution and found that all R2 are greater than 0.9, which means that the TOA network is a scale-free network. Thus the TOA network is a social network. And in the TOA network, we find that there are a large number of nodes with degree 1. According to analysis of the source data, most of the organizations carry out the attack once or the event is only between the two organizations creating terrorist attacks. However, such organizations are not rare. It is very likely that these organizations are temporarily organized to launch an attack and then disband or change their names.
FIGURE 4
FIGURE 5
FIGURE 6

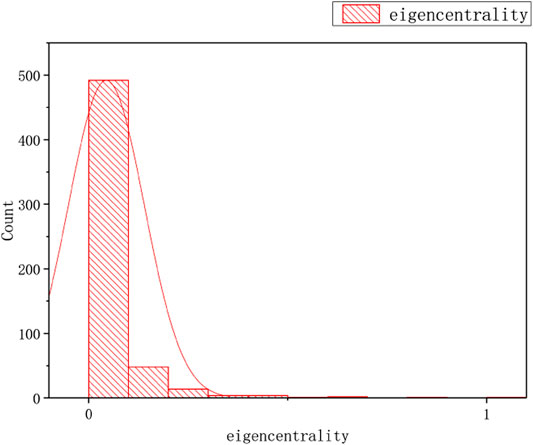

As shown in the Figures 7–8, we find that the distribution of the eigencentrality of the TOA network is a power law.
FIGURE 7
FIGURE 8

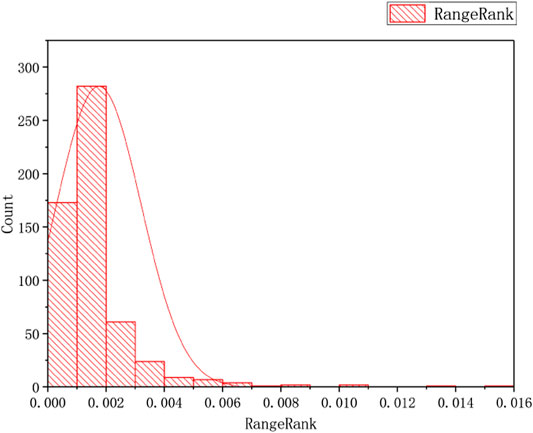

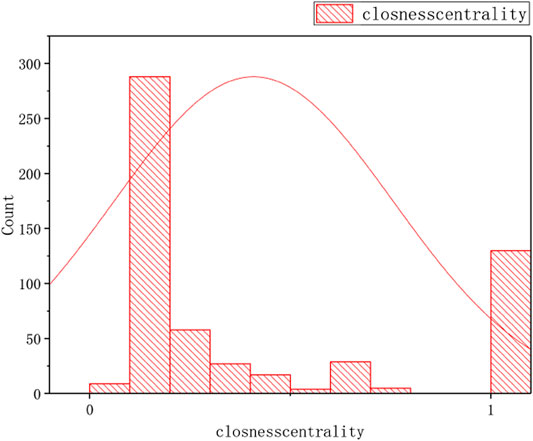

The Figure 9 to Figure 10 display the distribution of CC, BC, EC, and RR, respectively. The distribution of the BC, EC, and RangeRank are the same; however, the distribution of CC is different from the three, which is very interesting.
FIGURE 9
FIGURE 10
The top-20 ranked groups by betweenness centrality (BC), degree centrality (DC), eigenvector centrality (EC), and PageRank (PR) in TOA network as shown in the Table 2.

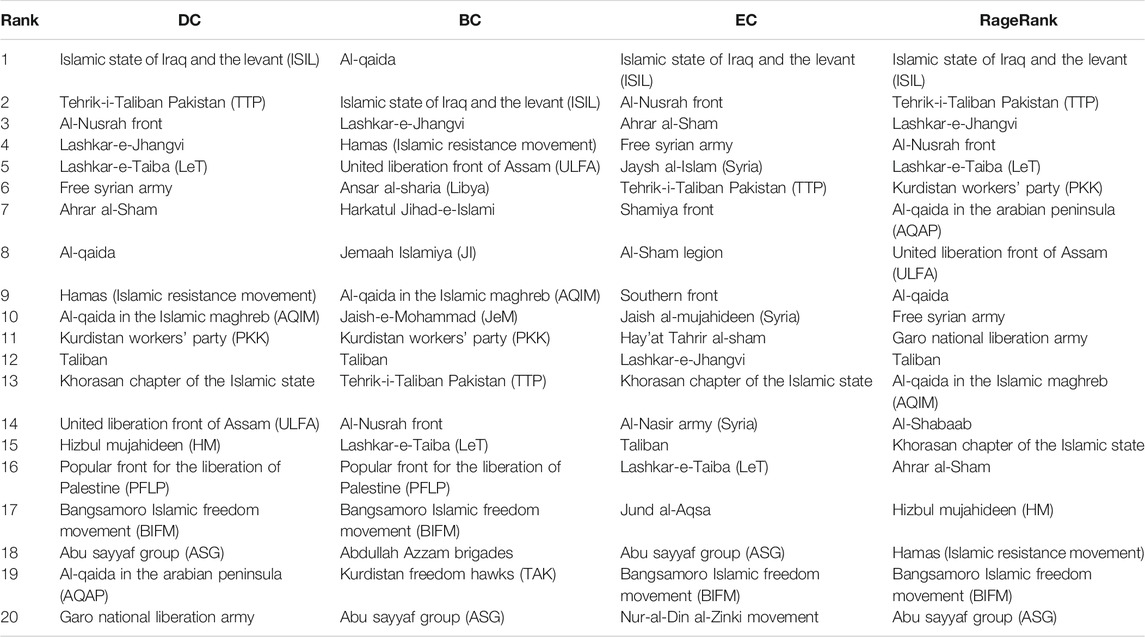

TABLE 2
| Rank | DC | BC | EC | RageRank |
|---|---|---|---|---|
| 1 | Islamic state of Iraq and the levant (ISIL) | Al-qaida | Islamic state of Iraq and the levant (ISIL) | Islamic state of Iraq and the levant (ISIL) |
| 2 | Tehrik-i-Taliban Pakistan (TTP) | Islamic state of Iraq and the levant (ISIL) | Al-Nusrah front | Tehrik-i-Taliban Pakistan (TTP) |
| 3 | Al-Nusrah front | Lashkar-e-Jhangvi | Ahrar al-Sham | Lashkar-e-Jhangvi |
| 4 | Lashkar-e-Jhangvi | Hamas (Islamic resistance movement) | Free syrian army | Al-Nusrah front |
| 5 | Lashkar-e-Taiba (LeT) | United liberation front of Assam (ULFA) | Jaysh al-Islam (Syria) | Lashkar-e-Taiba (LeT) |
| 6 | Free syrian army | Ansar al-sharia (Libya) | Tehrik-i-Taliban Pakistan (TTP) | Kurdistan workers’ party (PKK) |
| 7 | Ahrar al-Sham | Harkatul Jihad-e-Islami | Shamiya front | Al-qaida in the arabian peninsula (AQAP) |
| 8 | Al-qaida | Jemaah Islamiya (JI) | Al-Sham legion | United liberation front of Assam (ULFA) |
| 9 | Hamas (Islamic resistance movement) | Al-qaida in the Islamic maghreb (AQIM) | Southern front | Al-qaida |
| 10 | Al-qaida in the Islamic maghreb (AQIM) | Jaish-e-Mohammad (JeM) | Jaish al-mujahideen (Syria) | Free syrian army |
| 11 | Kurdistan workers’ party (PKK) | Kurdistan workers’ party (PKK) | Hay’at Tahrir al-sham | Garo national liberation army |
| 12 | Taliban | Taliban | Lashkar-e-Jhangvi | Taliban |
| 13 | Khorasan chapter of the Islamic state | Tehrik-i-Taliban Pakistan (TTP) | Khorasan chapter of the Islamic state | Al-qaida in the Islamic maghreb (AQIM) |
| 14 | United liberation front of Assam (ULFA) | Al-Nusrah front | Al-Nasir army (Syria) | Al-Shabaab |
| 15 | Hizbul mujahideen (HM) | Lashkar-e-Taiba (LeT) | Taliban | Khorasan chapter of the Islamic state |
| 16 | Popular front for the liberation of Palestine (PFLP) | Popular front for the liberation of Palestine (PFLP) | Lashkar-e-Taiba (LeT) | Ahrar al-Sham |
| 17 | Bangsamoro Islamic freedom movement (BIFM) | Bangsamoro Islamic freedom movement (BIFM) | Jund al-Aqsa | Hizbul mujahideen (HM) |
| 18 | Abu sayyaf group (ASG) | Abdullah Azzam brigades | Abu sayyaf group (ASG) | Hamas (Islamic resistance movement) |
| 19 | Al-qaida in the arabian peninsula (AQAP) | Kurdistan freedom hawks (TAK) | Bangsamoro Islamic freedom movement (BIFM) | Bangsamoro Islamic freedom movement (BIFM) |
| 20 | Garo national liberation army | Abu sayyaf group (ASG) | Nur-al-Din al-Zinki movement | Abu sayyaf group (ASG) |
The top-20 ranked Terrorist Organizations base on degree centrality (DC), betweenness centrality (BC), eigenvector centrality (EC), and PageRank (PR) in TOA network.
Table 2 compares four identity nodes finding ways in the TOA network and gives the top 20 critical terrorist organizations in different ways. The terrorist organization ISIL always occupies the top one in the DC, EC, and RR ways, and in the BC, the ISLT is the second critical organization. Due to the closeness of the 130 Terrorist Organizations (centrality of 1), it is not possible to display these Terrorist Organizations. Comparison of the proposed method ranks ISIL, TTP, AI-Musrah Front, Lashkar-e-Jhangvi, LeT, BIFM, and ASG all as being in the top 20; others are not all in the top 20, as some are in three methods like the Taliban only note in the RangRank and PKK only in the DC and BC, some are in two methods like the Free Syrian Army in the DC and RangRank, some are in one method like the Garo National Liberation Army only in the DC.
In this part, we compare the traditional methods with the results obtain in the DC, BC, CC, EC, and RR. At the same time, from Table 2 and Table 3, we can find the results of these traditional ways are different; thus, a global way to measure the key nodes is very necessary.
TABLE 3
| Closnesscentrality | Harmonicclosnesscentrality | Betweenesscentrality | Eigencentrality | Pageranks | Degreecentrality | Score | Rank | |
|---|---|---|---|---|---|---|---|---|
| Islamic state of Iraq and the levant (ISIL) | 0.018,499,169 | 0.02,617,742 | 0.426,525,361 | 0.399,236,595 | 0.289,086,571 | 0.367,830,974 | 0.356,905,192 | 1 |
| Al-qaida | 0.020,097,098 | 0.023,554,514 | 0.514,773,789 | 0.078,136,989 | 0.120,363,525 | 0.129,822,697 | 0.293,586,168 | 2 |
| Lashkar-e-Jhangvi | 0.018,754,365 | 0.023,681,403 | 0.300,544,024 | 0.13,940,783 | 0.196,538,999 | 0.216,371,161 | 0.21,420,798 | 3 |
| Hamas (Islamic resistance movement) | 0.019,549,456 | 0.022,610,798 | 0.286,553,015 | 0.080,022,983 | 0.100,945,885 | 0.129,822,697 | 0.180,368,367 | 4 |
| Al-Nusrah front | 0.017,091,169 | 0.02,288,531 | 0.106,081,816 | 0.337,380,474 | 0.191,149,312 | 0.28,128,251 | 0.17,081,277 | 5 |
| Tehrik-i-Taliban Pakistan (TTP) | 0.016,344,832 | 0.02,275,058 | 0.123,231,172 | 0.192,874,792 | 0.25,290,922 | 0.292,101,068 | 0.149,096,878 | 6 |
| United liberation front of Assam (ULFA) | 0.015,128,797 | 0.018,866,622 | 0.226,040,032 | 0.034,797,462 | 0.123,704,393 | 0.119,004,139 | 0.139,322,917 | 7 |
| Ansar al-sharia (Libya) | 0.016,693,467 | 0.020,895,569 | 0.210,544,543 | 0.067,099,295 | 0.068,940,004 | 0.075,729,906 | 0.132,724,445 | 8 |
| Harkatul Jihad-e-Islami | 0.016,834,956 | 0.020,520,254 | 0.209,595,612 | 0.056,055,613 | 0.068,792,341 | 0.075,729,906 | 0.129,633,555 | 9 |
| Taliban | 0.017,555,938 | 0.021,712,772 | 0.124,631,219 | 0.114,142,541 | 0.109,953,308 | 0.129,822,697 | 0.108,712,025 | 10 |
| Al-qaida in the Islamic maghreb (AQIM) | 0.014,944,893 | 0.018,399,174 | 0.152,349,996 | 0.041,950,184 | 0.109,067,332 | 0.129,822,697 | 0.104,964,168 | 11 |
| Lashkar-e-Taiba (LeT) | 0.016,020,379 | 0.021,086,619 | 0.094,572,412 | 0.113,598,381 | 0.164,053,214 | 0.183,915,487 | 0.101,417,827 | 12 |
| Kurdistan workers’ party (PKK) | 0.018,302,509 | 0.021,748,358 | 0.125,795,344 | 0.066,760,743 | 0.155,636,443 | 0.129,822,697 | 0.100,306,514 | 13 |
| Jaish-e-Mohammad (JeM) | 0.017,810,194 | 0.020,816,329 | 0.137,317,124 | 0.061,754,316 | 0.074,606,559 | 0.086,548,464 | 0.09,670,911 | 14 |
| Free syrian army | 0.015,344,473 | 0.020,503,818 | 0.022,845,596 | 0.255,806,856 | 0.114,586,224 | 0.173,096,929 | 0.096,085,992 | 15 |
| Jemaah Islamiya (JI) | 0.018,646,057 | 0.020,398,491 | 0.15,284,233 | 0.043,668,898 | 0.047,621,208 | 0.05,409,279 | 0.095,710,347 | 16 |
| Ahrar al-Sham | 0.015,344,473 | 0.020,427,669 | 0.015,337,685 | 0.256,398,524 | 0.104,729,741 | 0.162,278,371 | 0.090,997,043 | 17 |
| Bangsamoro Islamic freedom movement (BIFM) | 0.018,367,541 | 0.021,592,216 | 0.089,187,671 | 0.103,211,842 | 0.092,178,415 | 0.108,185,581 | 0.085,742,084 | 18 |
| Popular front for the liberation of Palestine (PFLP) | 0.018,781,677 | 0.022,174,791 | 0.090,760,294 | 0.093,768,699 | 0.084,629,162 | 0.108,185,581 | 0.084,000,809 | 19 |
| Khorasan chapter of the Islamic state | 0.015,931,401 | 0.020,317,442 | 0.068,340,787 | 0.123,114,186 | 0.10,618,791 | 0.129,822,697 | 0.08,267,129 | 20 |
The top-20 ranked Terrorist Organizations.
5 Significant Analysis
In this section, we used the two-tail test to find the significant among these ways. The t-text is shown below.Where and are the mean of the two samples, respectively; and are the variance of the two samples, respectively.
As shown in Tables 3, 4 and Table 6, H = 0 indicates that the zero hypothesis is not rejected under 5% confidence; H = 1 indicates that the zero hypothesis is rejected, that is, that there is discrimination.

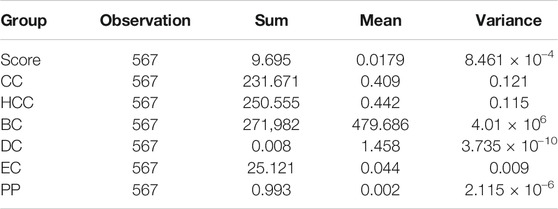

TABLE 4
| Group | Observation | Sum | Mean | Variance |
|---|---|---|---|---|
| Score | 567 | 9.695 | 0.0179 | 8.461 × 10–4 |
| CC | 567 | 231.671 | 0.409 | 0.121 |
| HCC | 567 | 250.555 | 0.442 | 0.115 |
| BC | 567 | 271,982 | 479.686 | 4.01 × 106 |
| DC | 567 | 0.008 | 1.458 | 3.735 × 10–10 |
| EC | 567 | 25.121 | 0.044 | 0.009 |
| PP | 567 | 0.993 | 0.002 | 2.115 × 10–6 |
Statistical description of the results of traditional methods and our ways.

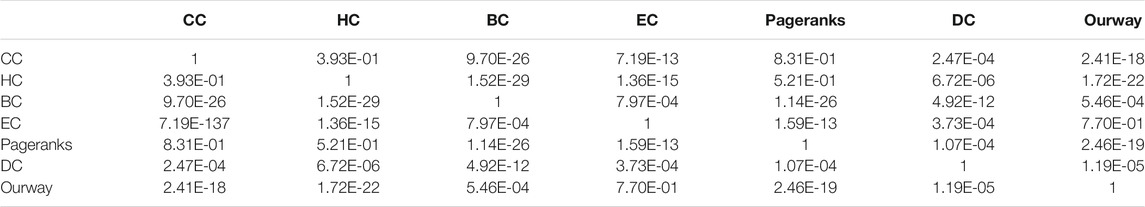

TABLE 5
| CC | HC | BC | EC | Pageranks | DC | Ourway | |
|---|---|---|---|---|---|---|---|
| CC | 1 | 3.93E-01 | 9.70E-26 | 7.19E-13 | 8.31E-01 | 2.47E-04 | 2.41E-18 |
| HC | 3.93E-01 | 1 | 1.52E-29 | 1.36E-15 | 5.21E-01 | 6.72E-06 | 1.72E-22 |
| BC | 9.70E-26 | 1.52E-29 | 1 | 7.97E-04 | 1.14E-26 | 4.92E-12 | 5.46E-04 |
| EC | 7.19E-137 | 1.36E-15 | 7.97E-04 | 1 | 1.59E-13 | 3.73E-04 | 7.70E-01 |
| Pageranks | 8.31E-01 | 5.21E-01 | 1.14E-26 | 1.59E-13 | 1 | 1.07E-04 | 2.46E-19 |
| DC | 2.47E-04 | 6.72E-06 | 4.92E-12 | 3.73E-04 | 1.07E-04 | 1 | 1.19E-05 |
| Ourway | 2.41E-18 | 1.72E-22 | 5.46E-04 | 7.70E-01 | 2.46E-19 | 1.19E-05 | 1 |
The p-value of these ways.

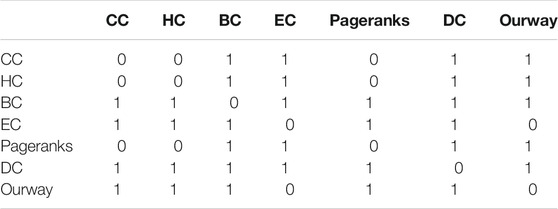

TABLE 6
| CC | HC | BC | EC | Pageranks | DC | Ourway | |
|---|---|---|---|---|---|---|---|
| CC | 0 | 0 | 1 | 1 | 0 | 1 | 1 |
| HC | 0 | 0 | 1 | 1 | 0 | 1 | 1 |
| BC | 1 | 1 | 0 | 1 | 1 | 1 | 1 |
| EC | 1 | 1 | 1 | 0 | 1 | 1 | 0 |
| Pageranks | 0 | 0 | 1 | 1 | 0 | 1 | 1 |
| DC | 1 | 1 | 1 | 1 | 1 | 0 | 1 |
| Ourway | 1 | 1 | 1 | 0 | 1 | 1 | 0 |
T-test results of these ways.
6 Conclusion
At present, the research on terrorist attacks is mainly based on multi-agents, such as Refs. reference [, ]. These two articles analyze terrorist organizations through multi-agent simulation and study their change rules. In this paper, the complex network method is used to find the key terrorist organizations. The entropy method is used to measure the harm of terrorist attack organizations and find the key terrorist organizations. Compared with other models, it is relatively novel.
In this paper, we sort the terrorist organizations by using the calculation model of the key nodes in the complex network and find the key terrorist organizations. Through the previous calculation, we find that the terrorist attacks made by terrorist organizations are very harmful, and their concentration will obviously concentrate some weapon resources together, and attack at different locations at the same time, These researches seriously endanger the security of today’s society. The purpose of this paper is to better prepare for the fight against terrorist organizations and the maintenance of world peace. And we observe some characteristics of the TOA network. Based on the traditional methods, a new method is given to find the key nodes as soon as critical organizations. We find that there are significant differences among these traditional methods; comparing these ways, we found that there is no significant difference among CC, HC, and Pageranks, and there is no significant difference between EC and our way. There are significant differences between other indicators. Therefore, through t-tests and Figure 11, we found that there are differences between the integrated score and each centrality, which also shows that the information obtained by traditional methods is local information and cannot fully reflect the importance of nodes. Therefore, the weighted method can better integrate all the information, and we can get the more accurate and important nodes.

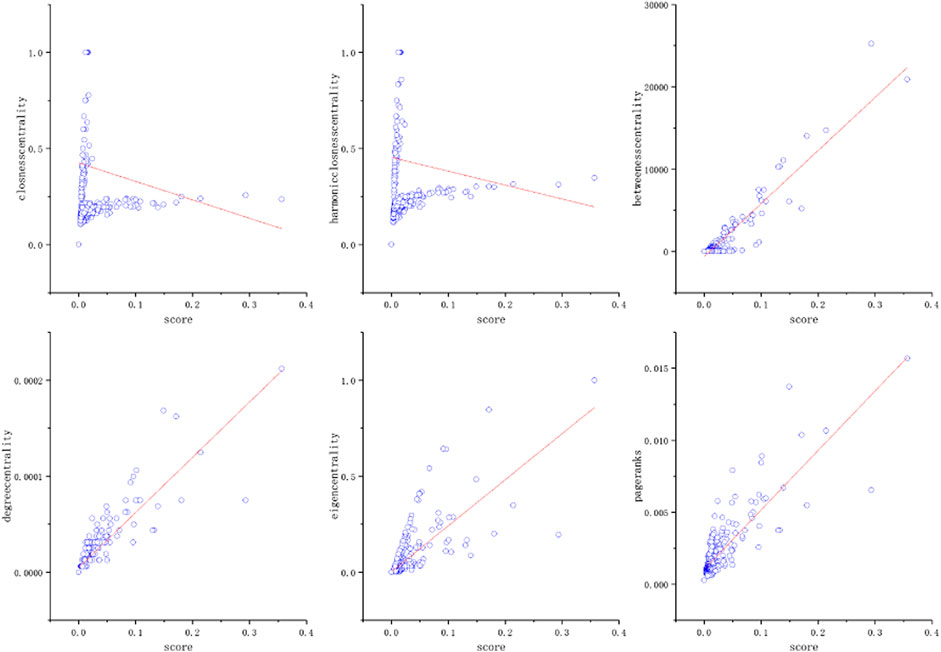

FIGURE 11
