Abstract
Introduction: The recent discovery of coherent elastic neutrino-nucleus scattering (CEvNS) has created new opportunities to detect and study neutrinos. The interaction cross section in CEvNS scales quadratically with the number of neutrons, making heavy-nuclei targets such as active lead-based detectors ideal. Lead perovskites have emerged in the last decade as revolutionary materials for radiation detection due to their heavy and flexible element composition and their unique optoelectronic properties that result in an excellent energy resolution at an economic cost.
Methodology: In this study, we discuss, for the first time, the physics potential and feasibility of building neutrino detectors using semiconductor lead perovskite crystals as a target.
Results and Discussion: We indicate that existing data with x-rays suggest the suitability of existing lead perovskite sensors to study CEvNS using neutrinos from π decay at rest (π- DAR) sources. Although dedicated research and development will be necessary, we have found significant benefits and no inherent obstacles for the development of lead perovskites as CEvNS detectors.
1 Introduction
Neutrinos are the only known fermions carrying exclusively weak charges and, therefore, are clean probes of the weak interaction and unique messengers of dense matter environments, unaffected by strong and electromagnetic interactions. These appeals, however, result in notably suppressed interaction cross sections, hampering the study of neutrino physics and rendering most applications impractical.
In 1974, the existence of coherent elastic neutrino-nucleus scattering (CEνNS) was pointed out as a consequence of the standard model []. In CEνNS, a neutrino transfers momentum to a whole nucleus via the exchange of a virtual Z boson, forcing it to recoil. The interaction cross section for this process iswhere GF is the Fermi constant, N (Z) is the number of neutrons (protons), θW is the Weinberg angle, and mN and ER are the nucleon mass and its recoil energy, respectively. The nuclear form factor f(q) characterizes the loss of coherence as a function of the transferred momentum q = , and it is close to unity for small q, associated with typical neutrino energies Eν ≲ 50 MeV. Notably, given that 4 sin2θW ∼ 1, []. This remarkable interaction cross section enhancement, however, offers a very challenging detection signal as the nucleon recoil needs to be identified. The maximum recoil energy scales as so that detectors need to be able to measure recoil energies of, at most, several tens of keV. Thanks to recent advancements in detector technology, experimentally studying CEvNS has become possible recently, as demonstrated by the COHERENT collaboration using a CsI target [] and an Ar target [].
2 Motivations
The discovery of CEνNS and its enhanced cross section shows potential to mitigate the elusiveness of neutrinos and therefore revolutionize their study at energies on the order of a few tens of MeV, which include geoneutrinos [], reactor neutrinos [], accelerator neutrinos from meson decays at rest [-], solar neutrinos [], and supernova neutrino bursts []. Characterizing the cross section of CEνNS is also essential for dark matter searches as CEνNS constitutes an irreducible background, the so-called neutrino floor []. Being mediated by flavor-insensitive neutral currents, the detection of CEνNS provides extended sensitivity to sterile neutrinos [-] and other new physics signatures [-], and allows the study of the neutrino magnetic moment [, ], its effective charge radius [], and the nuclear neutron form factor [, ]. Applications, such as deploying neutrino detectors to increase nuclear security [, ], might also be possible. Moreover, CEνNS is relevant to theoretical astrophysics as a key actor during stellar collapse [-].
3 CEνNS experiments
Because of the aforementioned findings, an increasing number of CEνNS detector technologies have been proposed [-], and several experiments are ongoing or have been proposed: COHERENT [], using CsI, NaI, high-purity Ge (HPGe), and liquid-Ar targets; CONUS [], NCC-1701 [, ], and νGEN [] using cryogenic HPGe; MINER [], using cryogenic HPGe/Si; NUCLEUS [], using cryogenic CaWO4 and Al2O3; CONNIE [], using Si charge-coupled devices (CCDs); TEXONO [], using p-type point-contact Ge; RES-NOVA, using cryogenic PbWO4 [, ]; RICOCHET [], using cryogenic HPGe bolometers; and RED100 [], using liquid-Xe.
To get the most from CEνNS, an ideal detector should be inexpensive to produce and operate, have excellent energy resolutions to identify nuclear recoils with an energy of a few keV, and be made of heavy nuclear targets to exploit the quadratic scaling of the cross section. In this study, we point out, for the first time, the excellent prospects of lead perovskites to build up future CEνNS detectors and discuss their experimental feasibility in light of existing measurements.
4 Lead perovskites
Lead halide perovskites (LHPs) are novel semiconductors with exceptional optoelectronic properties, a versatile chemical composition, and low-cost synthesis. They typically consist of crystals with structure APbX3, as shown in Figure 1, where A is CH3NH3+ (MA+), (FA+) or Cs+; B is Pb2+; and X is Cl−, Br−, and I− [].

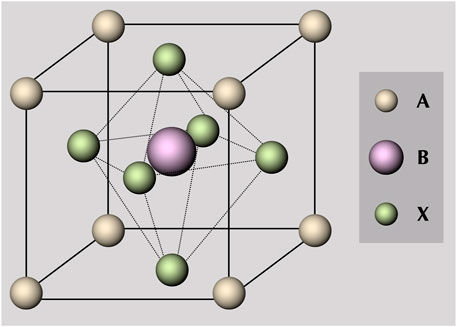

FIGURE 1
The study of halide perovskites as photosensors was sparked about a decade ago in the context of solar cell development [] and quickly emerged as an active field of research due to record energy conversion efficiencies [57-64]. Along the process, much has been learned about the basic properties of this material, which combines a low exciton binding energy on the order of few meV [65] with exceptionally long electron–hole diffusion lengths exceeding 1 μm [66], a tunable band gap in the range of 1.2–2.4 eV [67-68], and a high bulk resistivity of 107−10Ω⋅cm at room temperature [69]. The aforementioned combination is unique as it pairs efficient charge carrier production and mobility at a low voltage bias with a high bulk resistivity and orders of magnitude higher than those of Si and Ge, suppressing dark current and noise. Moreover, LHPs naturally allow for the manufacture of crystals with very high atomic numbers, such as CsPbI3, and the design of application-specific perovskite sensors by means of stoichiometry engineering [70, 71]. Furthermore, the synthesis of LHPs is easy and flexible through techniques such as solution processing and melt growth, and single crystals with sizes > 1cm3 can be routinely built [72]. The production cost is also low, with an estimated price of <0.3$/cm3 [], namely, at a density of 4 g/cm3 and an inexpensive cost of 75 $/kg. Finally, LHPs can be operated inexpensively at room temperature.
5 Perovskites as radiation detectors
Lead perovskites' striking performance as solar cells and their high atomic numbers1 quickly attracted the interest of the medical imaging community toward this material as x/γ-ray detectors [73-81]. In 2015, MAPbI3 was proven to detect γ-rays from 137Cs [82], and the first x-ray images were obtained [83]. Since then, a steady improvement in x/γ-ray performance metrics and achievements has been reported over time [72, 74, 83, 84], including the best x-ray sensitivities yet achieved in any material [85, 86]. Other radiation types have also been studied with perovskites, specifically neutrons [87] and α [88, 89] and β [90] particles. For a recent review, see [91]. Moreover, perovskite nanoparticles show enormous potential as wavelength shifters, for a review see [92], making them interesting doping materials (≈1 g/L) to build nanocrystal-doped liquid scintillators, with applications in neutrino detection [93]. In this study, nevertheless, we focus on solid lead perovskite crystals as a target, i.e., a detector where 100% of the active volume is made of lead perovskite, enhancing the cross section of CEνNS enhanced due to the presence of lead. As crystals, despite the many achievements that are previously listed, all reported precision measurements involving low-energy O (10–100) keV particles have been based on the detection of recoiling electrons induced by x-ray interactions. Possibly because of this finding, no mentions exist in the literature about the possibility of measuring CEνNS using perovskites. In CEνNS, a nuclear recoil, instead of an electron recoil, needs to be measured. For Ge, it has been measured that nuclear recoils generate about a third of the ionization signal of their electronic counterparts [94]. For lead perovskites, this fraction, the so-called quenching Q, is still unknown. Quenching acts by reducing the signal, therefore, reported sensor metrics in x/γ-ray measurements that are expected to degrade when used to study CEνNS. If Qperovskite ≈ QGe, then the energy resolution Eres for nuclear and electron recoils can be related by
Existing measurements are presented in Figure 2. These data were reported in 2021 using CsPbBr3 lead perovskite crystals at room temperature [95]. A stable operation was achieved with them for over 18 months. A fit to the data smoothly reproduces the trend. Using the fit, we calculate that the energy resolution would get worse than 100% for photon energies below 4.3 keV. Taking this value as a reference to define an approximate detection threshold, Eq. 2 suggests that, if lead perovskite quenching is similar to that of Ge, existing lead perovskite sensors could have a detection threshold similar to 15 keV for nuclear recoils. Certainly, a definitive answer requires an experimental determination of Qperovskite, a measurement that we encourage for the first time in this study. It must be emphasized that existing lead perovskite sensors are still far from their ultimate energy resolution [95], and therefore, future sensors should lead to even lower detection thresholds. Room for improvement ranges from an increase in the detected signal, e.g., reducing crystal defects [96] and improving the electrode contacts [97, 98], to a decrease in noise, e.g., passivating the sensor surfaces [99], using dopant compensation [100, 101], or operating at cryogenic temperatures. In this way, even if future measurements show that Qperovskite > QGe, current data and sensor improvement trends suggest that reaching O (10) keV nuclear recoil detection thresholds will likely be possible in the near future.

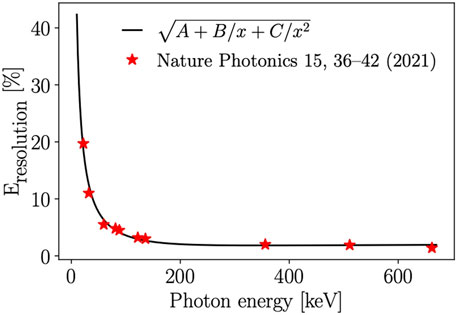

FIGURE 2
6 Prospects as CEνNS detectors
Producing low-activity lead perovskites should be readily possible, e.g., CsPbI3 consists of Cs and I, both used in the first historical detection of CEνNS [], and archaeological Pb has recently been demonstrated to be adequate for CEνNS detection [102]. Moreover, CsPbI3 and other lead perovskites are made up of strikingly heavy elements, significantly advantaging the CEνNS interaction cross section of mainstream alternative materials and, in particular, that of Ge. However, the maximum recoil energy decreases linearly with mN, and therefore, the ability of the detector to identify the recoiling nucleus needs to be considered. To account for it, we define the effective cross section, σeff, as a figure of merit, defined aswhich can be calculated from Eq. 1 if the detector efficiency, ϵ, is specified. Using it, in Figure 3 CsPbI3 and Ge targets2 are directly compared for some neutrino energies, assuming a detector with perfect (null) efficiency above (below) a certain energy recoil threshold, .

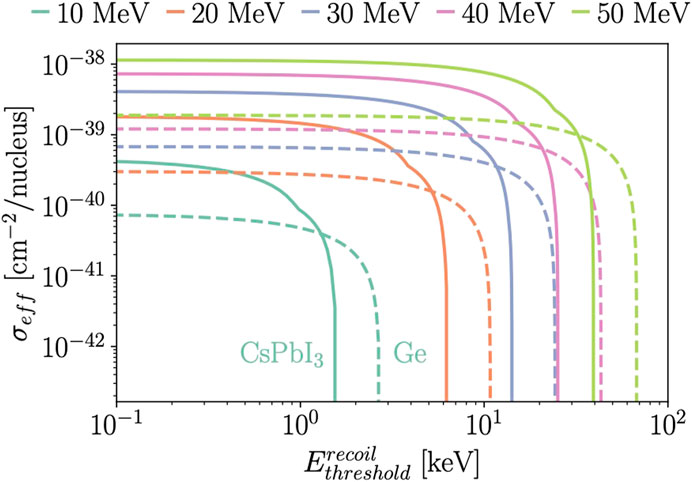

FIGURE 3
If, as suggested in the previous section, 15 keV in existing lead perovskite sensors, studying 30–50 MeV neutrinos could be readily possible. Interestingly, this neutrino energy range overlaps with the energy spectrum of neutrinos produced in pion decay at rest (π-DAR) neutrino sources [103, 104]. π-DAR neutrinos have been used in the only two CEνNS measurements so far, using 14.6 kg of CsI [] and 24 kg of argon []. Building and operating similar masses of lead perovskite poses no apparent impediment, with the driving cost being the number of electronic channels. If sensor masses similar to 1 g are deployed, a reasonable and potentially scalable O (104) number of electronic channels would be needed to set up the experiment. CEνNS experiments at π-DAR sources are primarily counting experiments that observe the event rate variation induced by switching on and off the neutrino beam, allowing to characterize the background levels and cancel out effects related to the detector efficiency. Neutrino energy is not reconstructed. Instead, the measurement observable is directly the reconstructed signal distribution above the detection threshold (see, for instance, []). Signal interactions are contained in individual sensors, and therefore, no spatial resolution is needed. If the detector is deployed as a dense array of lead perovskite sensors, identifying nearby sensor coincidences could be used to assist auxiliary veto modules to reject the background.
The comparison between CsPbI3 and Ge in Figure 3 reflects that for a given fixed neutrino energy, lead perovskites require a smaller to observe CEνNS. However, if the detection threshold is achieved and mildly lowered, it results in a large enhancement of the interaction cross section. This trade-off is characterized by the ratio presented in Figure 4. For 15 keV, as previously suggested, Ge and CsPbI3 would lead to similar event rates for π-DAR neutrinos. However, although the fabrication and operation of Ge sensors are nearly optimal, perovskite R&D shows potential to lower its in the next few years, resulting in an up to six-fold event rate increase compared to Ge. Moreover, such a detection improvement would also open the door to investigating the use of lead perovskites to measure neutrinos from other sources, e.g., supernova and reactor neutrinos. Lastly, perovskites are orders of magnitude cheaper to manufacture and potentially operate3 than existing alternatives, including HPGe.

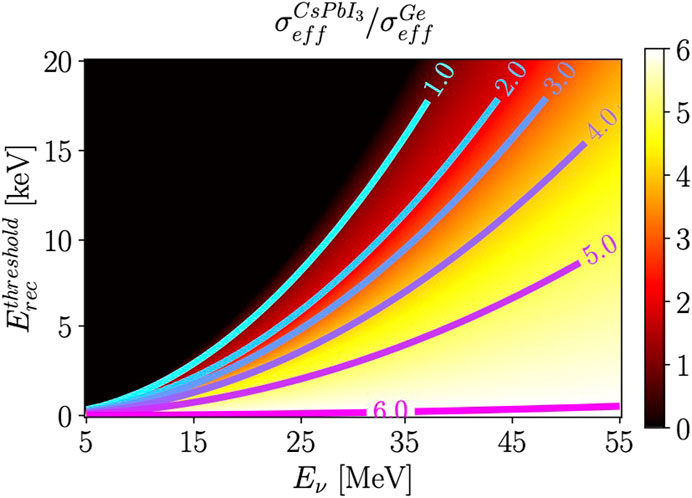

FIGURE 4
7 Discussion and outlook
In just one decade, lead perovskites have been established as novel materials with transformative potential as radiation detectors due to their unique optoelectronic properties.
In this study, we highlight their potential as neutrino detector targets and discussed, for the first time, their suitability for the study of CEνNS. In particular, we note that existing x-ray data indicate that current lead perovskites sensors might already be suitable to study π-DAR neutrinos and discuss their implications. In general, with the available data, no impediments are apparent that prevent further development of the concept of lead perovskites for neutrino detection. Nonetheless, we highlight the necessity of determining the quenching fraction for recoiling the nucleus in lead perovskites to evaluate its exact effect. In any case, to bring perovskites to their ultimate detection potential and enable their full range of applications, active R&D is required. In particular, efforts to optimize lead perovskite sensors for the detection of single low-energy particles would be significantly beneficial for the development of this technology within the field of experimental neutrino physics.
Lastly, we note that CEνNS and some dark-matter models share the same signal mechanism, i.e., the detection of nuclear recoils. Therefore, any progress in this direction might benefit both the neutrino and dark-matter research communities.
Statements
Data availability statement
The original contributions presented in the study are included in the article/Supplementary Material; further inquiries can be directed to the corresponding authors.
Author contributions
CJ-V and FS contributed to the conception and design of the study. CJ-V performed the cross section calculations. CJ-V wrote the first draft of the manuscript. CJ-V and FS wrote sections of the manuscript. All authors contributed to the article and approved the submitted version.
Funding
This project was partially inspired by the ZPro project funded by the Barcelona Institute of Technology (BIST). Open access funding was provided by the University of Geneva.
Acknowledgments
The authors acknowledge fruitful discussions with E. Palomares and valuable feedback from J. I. Collar and L. Pattavina.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors, and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
Footnotes
1.^Photon attenuation increases ∝ Z, where Z is the atomic number.
2.^For CsPbI3, the weighted average (Cs + Pb+3I)/5 is used in the result of Eq. 3.
3.^Perovskites might be able to operate without the need for cryogenic systems, as supported by existing x-ray data.
References
1.
FreedmanDZ. Coherent effects of a weak neutral current. Phys Rev D (1974) 9:1389–92. 10.1103/physrevd.9.1389
2.
ScholbergK. Coherent elastic neutrino-nucleus scattering. J Phys Conf Ser (2020) 1468:012126. 10.1088/1742-6596/1468/1/012126
3.
AkimovDAlbertJBAnPAweCBarbeauPSBeckerBet alObservation of coherent elastic neutrino-nucleus scattering. Science (2017) 357:1123. (COHERENT) arXiv:1708.01294 [nucl-ex].
4.
AkimovDAlbertJBAnPAweCBarbeauPSBeckeBet alFirst measurement of coherent elastic neutrino-nucleus scattering on argon. Phys Rev Lett (2021) 126:012002. (COHERENT) arXiv:2003.10630 [nucl-ex]. 10.1103/PhysRevLett.126.012002
5.
SramekOMcDonoughWFKiteESLekicVDyeSZhongS. Geophysical and geochemical constraints on geoneutrino fluxes from Earth's mantle. Earth Planet Sci Lett (2013) 361:356–66. arXiv:1207.0853 [physics.geo-ph]. 10.1016/j.epsl.2012.11.001
6.
QianXPengJC. Physics with reactor neutrinos. Rept Prog Phys (2019) 82:036201. arXiv:1801.05386 [hep-ex]. 10.1088/1361-6633/aae881
7.
AjimuraSCheounMKChoiJHFurutaHHaradaMHasegawaSet alTechnical design report (TDR): searching for a sterile neutrino at J-PARC MLF (E56, JSNS2) (2017). arXiv:1705.08629 [physics.ins-det].
8.
GarobyRVergaraADanaredHAlonsoIBargalloECheymolBet alThe European spallation source design. Phys Scripta (2018) 93:014001. 10.1088/1402-4896/aa9bff
9.
WangFLiangTYinWYuQHeLTaoJet alPhysical design of target station and neutron instruments for China Spallation Neutron Source. Sci China Phys Mech Astron (2013) 56:2410–24. 10.1007/s11433-013-5345-5
10.
AlonsoJAvignoneFTBarlettaWABarlowRBaumgartnerHT. Expression of interest for a novel search for CP violation in the neutrino sector: DAEdALUS (2010). arXiv:1006.0260 [physics.ins-det].
11.
BahcallJNPinsonneaultMHBasuS. Solar models: Current epoch and time dependences, neutrinos, and helioseismological properties. Astrophys J (2001) 555:990–1012. arXiv:astro-ph/0010346. 10.1086/321493
12.
BurrowsAVartanyanD. Core-collapse supernova explosion theory. Nature (2021) 589:29–39. arXiv:2009.14157 [astro-ph.SR]. 10.1038/s41586-020-03059-w
13.
BillardJStrigariLFigueroa-FelicianoE. Implication of neutrino backgrounds on the reach of next generation dark matter direct detection experiments. Phys Rev D (2014) 89:023524. arXiv:1307.5458 [hep-ph]. 10.1103/physrevd.89.023524
14.
AndersonAJConradJMFigueroa-FelicianoEIgnarraCKaragiorgiGScholbergKet alMeasuring active-to-sterile neutrino oscillations with neutral current coherent neutrino-nucleus scattering. Phys Rev D (2012) 86:013004. arXiv:1201.3805 [hep-ph]. 10.1103/physrevd.86.013004
15.
DuttaBGaoYMahapatraRMirabolfathiNStrigariLEWalkerJWet alSensitivity to oscillation with a sterile fourth generation neutrino from ultralow threshold neutrino-nucleus coherent scattering. Phys Rev D (2016) 94:093002. arXiv:1511.02834 [hep-ph]. 10.1103/physrevd.94.093002
16.
KosmasTSPapouliasDKTortolaMValleJWF. Probing light sterile neutrino signatures at reactor and Spallation Neutron Source neutrino experiments. Phys Rev D (2017) 96:063013. arXiv:1703.00054 [hep-ph]. 10.1103/physrevd.96.063013
17.
KraussLM. Low-energy neutrino detection and precision tests of the standard model. Phys Lett B (1991) 269:407–11. 10.1016/0370-2693(91)90192-s
18.
BarrancoJMirandaOGRashbaTI. Sensitivity of low energy neutrino experiments to physics beyond the standard model. Phys Rev D (2007) 76:073008. arXiv:hep-ph/0702175. 10.1103/physrevd.76.073008
19.
deNivervillePPospelovMRitzA. Light new physics in coherent neutrino-nucleus scattering experiments. Phys Rev D (2015) 92:095005. arXiv:1505.07805 [hep-ph]. 10.1103/physrevd.92.095005
20.
DuttaBMahapatraRStrigariLEWalkerJW. Sensitivity toZ-prime and nonstandard neutrino interactions from ultralow threshold neutrino-nucleus coherent scattering. Phys Rev D (2016) 93:013015. arXiv:1508.07981 [hep-ph]. 10.1103/physrevd.93.013015
21.
DoddACPapageorgiuERanfoneS. The effect of a neutrino magnetic moment on nuclear excitation processes. Phys Lett B (1991) 266:434–8. 10.1016/0370-2693(91)91064-3
22.
KosmasTSMirandaOGPapouliasDKTortolaMValleJWF. Probing neutrino magnetic moments at the Spallation Neutron Source facility. Phys Rev D (2015) 92:013011. arXiv:1505.03202 [hep-ph]. 10.1103/physrevd.92.013011
23.
PapavassiliouJBernabeuJPasseraM. Neutrino-nuclear coherent scattering and the effective neutrino charge radius. PoS (2006) 192. HEP2005 arXiv:hep-ph/0512029. 10.48550/arXiv.hep-ph/0512029
24.
PattonKEngelJMcLaughlinGCSchunckN. Neutrino-nucleus coherent scattering as a probe of neutron density distributions. Phys Rev C (2012) 86:024612. arXiv:1207.0693 [nucl-th]. 10.1103/physrevc.86.024612
25.
AmanikPSMcLaughlinGC. Nuclear neutron form factor from neutrino–nucleus coherent elastic scattering. J Phys G (2009) 36:015105. 10.1088/0954-3899/36/1/015105
26.
StewartCAbou-JaoudeAEricksonA. Employing antineutrino detectors to safeguard future nuclear reactors from diversions. Nat Commun (2019) 10:3527. 10.1038/s41467-019-11434-z
27.
BernsteinABowdenNGoldblumBLHuberPJovanovicIMattinglyJ. Colloquium: Neutrino detectors as tools for nuclear security. Rev Mod Phys (2020) 92:011003. arXiv:1908.07113 [physics.soc-ph]. 10.1103/revmodphys.92.011003
28.
WilsonJR. Coherent neutrino scattering and stellar collapse. Phys Rev Lett (1974) 32:849–52. 10.1103/physrevlett.32.849
29.
SchrammDNArnettWD. Neutral currents and supernovas. Phys Rev Lett (1975) 34:113–6. 10.1103/physrevlett.34.113
30.
FreedmanDZSchrammDNTubbsDL. The weak neutral current and its effects in stellar collapse. Ann Rev Nucl Part Sci (1977) 27:167–207. 10.1146/annurev.ns.27.120177.001123
31.
DrukierAStodolskyL. Principles and applications of a neutral-current detector for neutrino physics and astronomy. Phys Rev D (1984) 30:2295–309. 10.1103/physrevd.30.2295
32.
CabreraBKraussLMWilczekF. Bolometric detection of neutrinos. Phys Rev Lett (1985) 55:25–8. 10.1103/physrevlett.55.25
33.
FormaggioJAFigueroa-FelicianoEAndersonAJ. Sterile neutrinos, coherent scattering, and oscillometry measurements with low-temperature bolometers. Phys Rev D (2012) 85:013009. arXiv:1107.3512 [hep-ph]. 10.1103/physrevd.85.013009
34.
BraggioCBressiGCarugnoGFeltrinEGaleazziG. Massive silicon or germanium detectors at cryogenic temperature. Nucl Instrum Meth A (2006) 568:412–5. 10.1016/j.nima.2006.06.008
35.
BarbeauPSCollarJITenchO. Large-mass ultralow noise germanium detectors: performance and applications in neutrino and astroparticle physics. JCAP (2007) 09:009. arXiv:nucl-ex/0701012. 10.1088/1475-7516/2007/09/009
36.
Fernandez MoroniGEstradaJPaoliniEECanceloGTiffenbergJMolinaJ. Charge coupled devices for detection of coherent neutrino-nucleus scattering. Phys Rev D (2015) 91:072001. arXiv:1405.5761 [physics.ins-det]. 10.1103/physrevd.91.072001
37.
HorowitzCJCoakleyKJMcKinseyDN. Supernova observation via neutrino-nucleus elastic scattering in the CLEAN detector. Phys Rev D (2003) 68:023005. arXiv:astro-ph/0302071. 10.1103/physrevd.68.023005
38.
BondarABuzulutskovAGrebenukAPavlyuchenkoDSnopkovRTikhonovYet alA two-phase argon avalanche detector operated in a single electron counting mode. Nucl Instrum Meth A (2007) 574:493–9. arXiv:physics/0611068. 10.1016/j.nima.2007.01.090
39.
JoshiTHSangiorgioSBernsteinAFoxeMHagmannCJovanovicIet alFirst measurement of the ionization yield of nuclear recoils in liquid argon, Phys Rev Lett (2014) 112:171303. arXiv:1402.2037 [physics.ins-det]. 10.1103/PhysRevLett.112.171303.
40.
AkimovDYAlexandrovISAleshinVIBelovVABolozdynyaAIBurenkovAAet alProspects for observation of neutrino-nuclear neutral current coherent scattering with two-phase Xenon emission detector. JINST (2013) 8:P10023. arXiv:1212.1938 [physics.ins-det]. 10.1088/1748-0221/8/10/P10023
41.
BriceSJCooperRLDeJonghFEmplAGarrisonLMHimeAet alA new method for measuring coherent elastic neutrino nucleus scattering at an off-Axis high-energy neutrino beam target. Phys Rev D (2014) 89:072004. arXiv:1311.5958 [physics.ins-det]. 10.1103/PhysRevD.89.072004
42.
CollarJIFieldsNEHaiMHossbachTWOrrellJLOvermanCTet alCoherent neutrino-nucleus scattering detection with a CsI[Na] scintillator at the SNS spallation source. Nucl Instrum Meth A (2015) 773:56–65. arXiv:1407.7524 [physics.ins-det]. 10.1016/j.nima.2014.11.037
43.
AkimovDAnPAweCBarbeauPSBartonPBeckerBet al“The COHERENT experiment at the spallation neutron source (2015). (COHERENT) arXiv:1509.08702 [physics.ins-det].
44.
Aguilar-ArevaloABertouXBonifaziCButnerMCanceloGCastaneda VazquezAet alThe CONNIE experiment. J Phys Conf Ser (2016) 761:012057. arXiv:1608.01565 [physics.ins-det]. 10.1088/1742-6596/761/1/012057
45.
ColaresiJCollarJIHossbachTWKavnerARLLewisCMRobinsonAEet alFirst results from a search for coherent elastic neutrino-nucleus scattering at a reactor site. Phys Rev D (2021) 104:072003. arXiv:2108.02880 [hep-ex]. 10.1103/physrevd.104.072003
46.
ColaresiJCollarJIHossbachTWLewisCMYocumKM. Measurement of coherent elastic neutrino-nucleus scattering from reactor antineutrinos. Phys Rev Lett (2022) 129:211802. arXiv:2202.09672 [hep-ex]. 10.1103/physrevlett.129.211802
47.
BelovVBrudaninVEgorovVFilosofovDFominaMGurovYet alThe νGeN experiment at the kalinin nuclear power plant. JINST (2015) 10:P12011. 10.1088/1748-0221/10/12/p12011
48.
AgnoletGBakerWBarkerDBeckRCarrollTJCesarJet alBackground studies for the MINER coherent neutrino scattering reactor experiment. Nucl Instrum Meth A (2017) 853:53. (MINER) arXiv:1609.02066 [physics.ins-det]. 10.48550/arXiv.1609.02066
49.
StraussRRotheJAngloherGBentoAGütleinAHauffDet alThe ν-cleus experiment: a gram-scale fiducial-volume cryogenic detector for the first detection of coherent neutrino-nucleus scattering. Eur Phys J C (2017) 77:506. arXiv:1704.04320 [physics.ins-det]. 10.1140/epjc/s10052-017-5068-2
50.
SinghLWongHT. Low energy neutrino physics with sub-keV Ge-detectors at kuo-sheng neutrino laboratory. J Phys Conf Ser (2017) 888:012124. TEXONO. 10.1088/1742-6596/888/1/012124
51.
PattavinaLFerreiro IachelliniNTamborraI. Neutrino observatory based on archaeological lead. Phys Rev D (2020) 102:063001. arXiv:2004.06936 [astro-ph.HE]. 10.1103/physrevd.102.063001
52.
Ferreiro IachelliniNPattavinaLAbdelhameedAHBentoACanonicaLDanevichFet alOperation of an archaeological lead PbWO$$_4$$ crystal to search for neutrinos from astrophysical sources with a transition edge sensor. J Low Temp Phys (2022) 209:872–8. arXiv:2111.07638 [physics.ins-det]. 10.1007/s10909-022-02823-8
53.
AugierCBeaulieuGBelovVBergeLBillardJBresGet alRicochet progress and status. J. Low Temp. Phys. (2023) 212:127–137. 10.1007/s10909-023-02971-5
54.
AkimovDYBelovVBolozdynyaADolgolenkoAEfremenkoYEtenkoAet alFirst ground-level laboratory test of the two-phase xenon emission detector RED-100. JINST (2020) 15:P02020. arXiv:1910.06190 [physics.ins-det]. 10.1088/1748-0221/15/02/p02020
55.
WeiHHuangJ. Halide lead perovskites for ionizing radiation detection. Nat Commun (2019) 10:1.
56.
KojimaATeshimaKShiraiYMiyasakaT. Organometal halide perovskites as visible-light sensitizers for photovoltaic cells. J Am Chem Soc (2009) 131:6050–1. 10.1021/ja809598r
57.
GreenMAHo-BaillieASnaithHJ. The emergence of perovskite solar cells. Nat Photon (2014) 8:506–14. 10.1038/nphoton.2014.134
58.
JungHSParkNG. Perovskite solar cells: from materials to devices. small (2015) 11:10–25. 10.1002/smll.201402767
59.
ParkNG. Perovskite solar cells: An emerging photovoltaic technology. Mater Today (2015) 18:65–72. 10.1016/j.mattod.2014.07.007
60.
Correa-BaenaJ-PSalibaMBuonassisiTGrätzelMAbateATressWet alPromises and challenges of perovskite solar cells. Science (2017) 358:739–44. 10.1126/science.aam6323
61.
HuangJYuanYShaoYYanY. Understanding the physical properties of hybrid perovskites for photovoltaic applications. Nat Rev Mater (2017) 2:1.
62.
YangDYangRWangKWuCZhuXFengJet alHigh efficiency planar-type perovskite solar cells with negligible hysteresis using EDTA-complexed SnO2. Nat Commun (2018) 9:1. 10.1038/s41467-018-05760-x
63.
KimJYLeeJ-WJungHSShinHParkNG. High-efficiency perovskite solar cells. Chem Rev (2020) 120:7867–918. 10.1021/acs.chemrev.0c00107
64.
YooJJSeoGChuaMRParkTGLuYRotermundFet alEfficient perovskite solar cells via improved carrier management. Nature (2021) 590:587–93. 10.1038/s41586-021-03285-w
65.
MiyataAMitiogluAPlochockaPPortugallOWangJT-WStranksSDet alDirect measurement of the exciton binding energy and effective masses for charge carriers in organic–inorganic tri-halide perovskites. Nat Phys (2015) 11:582–7. 10.1038/nphys3357
66.
StranksSDEperonGEGranciniGMenelaouCAlcocerMJLeijtensTet alElectron-hole diffusion lengths exceeding 1 micrometer in an organometal trihalide perovskite absorber. Science (2013) 342:341–4. 10.1126/science.1243982
67.
JuDDangYZhuZLiuHChuehC-CLiXet alTunable band gap and long carrier recombination lifetime of stable mixed CH3NH3PbxSn1–xBr3 single crystals. Chem Mater (2018) 30:1556–65. 10.1021/acs.chemmater.7b04565
68.
UngerEKegelmannLSuchanKSörellDKorteLAlbrechtS. Roadmap and roadblocks for the band gap tunability of metal halide perovskites. J Mater Chem A (2017) 5:11401–9. 10.1039/c7ta00404d
69.
PisoniAJacimovicJBarisicOSSpinaMGaálRForróLet alUltra-low thermal conductivity in organic–inorganic hybrid perovskite CH3NH3PbI3. J Phys Chem Lett (2014) 5:2488–92. 10.1021/jz5012109
70.
EmaraJSchnierTPourdavoudNRiedlTMeerholzKOlthofS. Impact of film stoichiometry on the ionization energy and electronic structure of CH3NH3PbI3Perovskites. Adv Mater (2016) 28:553–9. 10.1002/adma.201503406
71.
XiaoYJiaSBuNLiNLiuYLiuMet alGrain and stoichiometry engineering for ultra-sensitive perovskite X-ray detectors. J Mater Chem A (2021) 9:25603–10. 10.1039/d1ta07585c
72.
HeYMateiLJungHJMcCallKMChenMStoumposCCet alHigh spectral resolution of gamma-rays at room temperature by perovskite CsPbBr3 single crystals. Nat Commun (2018) 9:1. 10.1038/s41467-018-04073-3
73.
ShresthaSFischerRMattGJFeldnerPMichelTOsvetAet alHigh-performance direct conversion X-ray detectors based on sintered hybrid lead triiodide perovskite wafers. Nat Photon (2017) 11:436–40. 10.1038/nphoton.2017.94
74.
WeiWZhangYXuQWeiHFangYWangQet alMonolithic integration of hybrid perovskite single crystals with heterogenous substrate for highly sensitive X-ray imaging. Nat Photon (2017) 11:315–21. 10.1038/nphoton.2017.43
75.
KimYCKimKHSonD-YJeongD-NSeoJ-YChoiYSet alPrintable organometallic perovskite enables large-area, low-dose X-ray imaging. Nature (2017) 550:87–91. 10.1038/nature24032
76.
García de ArquerFPArminAMeredithPSargentEH. Solution-processed semiconductors for next-generation photodetectors. Nat Rev Mater (2017) 2:1. 10.1038/natrevmats.2016.100
77.
GillHSElshahatBKokilALiLMosurkalRZygmanskiPet alFlexible perovskite based X-ray detectors for dose monitoring in medical imaging applications. Phys Med (2018) 5:20–3. 10.1016/j.phmed.2018.04.001
78.
ZhuangRWangXMaWWuYChenXTangLet alHighly sensitive X-ray detector made of layered perovskite-like (NH4)3Bi2I9 single crystal with anisotropic response. Nat Photon (2019) 13:602–8. 10.1038/s41566-019-0466-7
79.
ZhouFLiZLanWWangQDingLJinZ. Halide perovskite, a potential scintillator for X‐ray detection. Small Methods (2020) 4:2000506. 10.1002/smtd.202000506
80.
LiXMengCHuangBYangDXuXZengH. All‐perovskite integrated X‐ray detector with ultrahigh sensitivity. Adv Opt Mater (2020) 8:2000273. 10.1002/adom.202000273
81.
SuYMaWYangYM. Perovskite semiconductors for direct X-ray detection and imaging. J Semiconductors (2020) 41:051204. 10.1088/1674-4926/41/5/051204
82.
DongQFangYShaoYMulliganPQiuJCaoLet alElectron-hole diffusion lengths > 175 μm in solution-grown CH 3 NH 3 PbI 3 single crystals. Science (2015) 347:967–70. 10.1126/science.aaa5760
83.
YakuninSSytnykMKriegnerDShresthaSRichterMMattGJet alDetection of X-ray photons by solution-processed lead halide perovskites. Nat Photon (2015) 9:444–9. 10.1038/nphoton.2015.82
84.
WeiHFangYMulliganPChuirazziWFangH-HWangCet alSensitive X-ray detectors made of methylammonium lead tribromide perovskite single crystals. Nat Photon (2016) 10:333–9. 10.1038/nphoton.2016.41
85.
JiangJXiongMFanKBaoCXinDPanZet alSynergistic strain engineering of perovskite single crystals for highly stable and sensitive X-ray detectors with low-bias imaging and monitoring. Nat Photon (2022) 16:575–81. 10.1038/s41566-022-01024-9
86.
HeYHadarIDe SienaMCKlepovVVPanLChungDYet alSensitivity and detection limit of spectroscopic-grade perovskite CsPbBr3 crystal for hard X-ray detection. Adv Funct Mater (2022) 32:2112925. 10.1002/adfm.202112925
87.
AndričevićPNáfrádiGKollárMNáfrádiBLilleySKinaneCet alHybrid halide perovskite neutron detectors. Scientific Rep (2021) 11:1.
88.
HeYLiuZMcCallKMLinWChungDYWesselsBWet alPerovskite CsPbBr3 single crystal detector for alpha-particle spectroscopy. Nucl Instr Methods Phys Res Section A: Acc Spectrometers, Detectors Associated Equipment (2019) 922:217–21. 10.1016/j.nima.2019.01.008
89.
XieAHettiarachchiCMaddalenaFWitkowskiMEMakowskiMDrozdowskiWet alLithium-doped two-dimensional perovskite scintillator for wide-range radiation detection. Commun Mater (2020) 1:37. 10.1038/s43246-020-0038-x
90.
YuDWangPCaoFGuYLiuJHanZet alTwo-dimensional halide perovskite as β-ray scintillator for nuclear radiation monitoring. Nat Commun (2020) 11:3395. 10.1038/s41467-020-17114-7
91.
LiuFWuRZengYWeiJLiHMannaLet alHalide perovskites and perovskite related materials for particle radiation detection. Nanoscale (2022) 14:6743–60. 10.1039/d2nr01292h
92.
DeyAYeJDeADebroyeEHaSKBladtEet alState of the art and prospects for halide perovskite nanocrystals. ACS nano (2021) 15:10775–981. 10.1021/acsnano.0c08903
93.
GrahamEGoodingDGruszkoJGrantCNaranjoBWinslowL. Light yield of Perovskite nanocrystal-doped liquid scintillator. JINST (2019) 14:P11024. 10.1088/1748-0221/14/11/p11024
94.
MartineauOBenoitABergéLBroniatowskiAChabertLChambonBet alCalibration of the EDELWEISS cryogenic heat-and-ionization germanium detectors for dark matter search. Nucl Instrum Meth A (2004) 530:426. arXiv:astro-ph/0310657.
95.
HeYPetrykMLiuZChicaDGHadarILeakCet alCsPbBr3 perovskite detectors with 1.4% energy resolution for high-energy γ-rays. Nat Photon (2021) 15:36–42. 10.1038/s41566-020-00727-1
96.
PanZWuLJiangJShenLYaoK. Searching for high-quality halide perovskite single crystals toward X-ray detection. J Phys Chem Lett (2022) 13:2851–61. 10.1021/acs.jpclett.2c00450
97.
ArandaCBisquertJGuerreroA. Impedance spectroscopy of perovskite/contact interface: Beneficial chemical reactivity effect. J Chem Phys (2019) 151:124201. 10.1063/1.5111925
98.
LinC-HHuLGuanXKimJHuangC-YHuangJ-Ket alElectrode engineering in halide perovskite electronics: Plenty of room at the interfaces. Adv Mater (2022) 34:2108616. 10.1002/adma.202108616
99.
SongYLiLBiWHaoMKangYWangAet alAtomistic surface passivation of CH 3 NH 3 PbI 3 perovskite single crystals for highly sensitive coplanar-structure X-ray detectors. Research (2020) 2020:5958243. 10.34133/2020/5958243
100.
WeiHDeSantisDWeiWDengYGuoDSavenijeTJet alDopant compensation in alloyed CH3NH3PbBr3−xClx perovskite single crystals for gamma-ray spectroscopy. Nat Mater (2017) 16:826–33. 10.1038/nmat4927
101.
WuJWangLFengAYangSLiNJiangXet alSelf‐powered FA 0.55 MA 0.45 PbI 3 single‐crystal perovskite X‐ray detectors with high sensitivity. Adv Funct Mater (2022) 32:2109149. 10.1002/adfm.202109149
102.
BeemanJWBenatoGBucciCCanonicaLCarnitiPCeliEet alCharacterization of a kg-scale archaeological lead-based cryogenic detectors for the RES-NOVA experiment. Appl Radiat Isot (2023) 194:110704. arXiv:2206.05116 [physics.ins-det]. 10.48550/arXiv.2206.05116
103.
AkimovDAnPAweCBarbeauPSBeckeBBelovVet alSimulating the neutrino flux from the spallation neutron source for the COHERENT experiment. Phys Rev D (2022) 106:032003. COHERENT arXiv:2109.11049 [hep-ex].
104.
BarbeauPSEfremenkoYScholbergK. COHERENT at the spallation neutron source (2021). arXiv:2111.07033 [hep-ex].
Summary
Keywords
neutrino, nuclear coherent scattering, perovskites, novel detectors, low-energy interactions
Citation
Jesús-Valls C and Sánchez F (2023) Lead perovskites as CEνNS detectors. Front. Phys. 11:1191954. doi: 10.3389/fphy.2023.1191954
Received
22 March 2023
Accepted
18 July 2023
Published
17 August 2023
Volume
11 - 2023
Edited by
Digesh Raut, Washington College, United States
Reviewed by
Ge Yang, North Carolina State University, United States
Atanu Pathak, Purdue University Northwest, United States
Peter R. Hobson, Queen Mary University of London, United Kingdom
Updates
Copyright
© 2023 Jesús-Valls and Sánchez.
This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) and the copyright owner(s) are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.
*Correspondence: César Jesús-Valls, cesar.jesus-valls@ipmu.jp; Federico Sánchez, federico.sancheznieto@unige.ch
Disclaimer
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article or claim that may be made by its manufacturer is not guaranteed or endorsed by the publisher.
