Abstract
The state preparation is a crucial procedure in atom interferometry; however, there is a shortage of detailed experimental studies on determining the optimal method for achieving this. This paper investigates and compares two methods for state preparation: the combined use of microwave and Raman light (M-R) and the combined use of optical pumping, microwave, and Raman light (O-M-W). The experimental results demonstrate that the M-R method improves the efficiency of Raman transitions for atom interference, which is helpful in enhancing the contrast of the interference fringes. The O-M-R method increases the quantity of prepared atoms, thereby enhancing the signal-to-noise ratio of the detected signals. This work helps provide a useful experimental basis and reference for researchers to design a suitable state preparation scheme.
1 Introduction
Atomic interferometers based on stimulated Raman transitions have become a powerful instrument with a wide range of applications over the past 30 years [1–3]. Due to high sensitivity, they are widely used in high-precision measurements of angular velocity [4, 5], gravity [6–9], gravitational gradient [10–12], fine-structure constant [13, 14], gravitational constant [15, 16], gravitational waves [17–19], and the test of equivalence principle [20, 21].
The measurement sensitivity of atomic interferometers significantly depends on the contrast of interference fringes, which is mainly influenced by the results of state preparation. There are two main reasons for this. First, the interference process is affected by the magnetic field, which shifts the atomic energy levels due to the Zeeman effect. The distribution of atoms in different magneton energy levels leads to a deterioration of the stripe contrast and a decrease in the measurement sensitivity. To minimize the effect of the magnetic field, the atoms should be prepared in a magnetically insensitive state. Second, even though the atomic groups have been cooled down with the temperature of several μK, it still has a certain velocity distribution width. This results in a different transition probability for each atom with various velocities when interacting with Raman light. This also leads to a lower fringe contrast [3]. In order to increase the contrast, it is better to select atoms with a narrower velocity distribution before the atomic interference procedure. Thus, the state preparation determines the number of effective atoms that would be involved in interference, which is one of the key procedures of atomic interferometers and also a crucial factor in the measurement sensitivity.
In previous studies, various methods of state preparation have been used. To make atoms magnetically insensitive, it is necessary to select the atoms in the state or to pump atoms from other states into the state. The selection of the state can be achieved by microwaves or Raman light. State preparation by microwave can prevent the impact of spontaneous emission during transitions [7, 22] and that by Raman light can select atoms from magnon energy levels and velocities simultaneously [6, 23–25]. Furthermore, the Raman light used for atomic interference could also be used for state preparation, eliminating the need for additional components. Microwave for state selection would not sufficiently narrow the velocity distribution of the atomic groups, while using Raman light only would select some ineffective atoms by spontaneous emission. By combining microwave and Raman light during state preparation, the advantages of both can be realized [3, 26, 27]. In addition, the optical pumping light can be used to pump atoms through spontaneous emissions by employing appropriate polarization [28–32]. This pumping regime not only significantly increases the atomic number but also introduces additional heating effects. It can also be combined with microwave and Raman light for more favorable results of state preparation. Each state preparation method has its own advantages and disadvantages. However, there have been few contrasting experiments and discussions on how to determine the most appropriate method for different situations.
In this paper, we present detailed experiments and discussions on two state preparation methods. One method is a combination of microwave and Raman light, which is referred to as the M-R method. The other is a combination of optical pumping, microwave, and Raman, which is referred to as the O-M-R method. In Section 2, we analyzed the principles of state selection by microwave, Raman light, and optical pumping. In Section 3, we described the experimental setup and steps for M-R and O-M-R methods. Then, we compared the efficiency of the two methods for preparing atoms in the desired state, as well as the numbers and temperatures of atomic groups. In particular, to compare the effects of the two methods on the atom interferometry, with state-prepared atomic groups, we also tested the efficiency of the stimulated Raman transitions and the noise of atomic detection. In Section 4, we analyzed the scope of application and the selection basis of the two state preparation methods.
2 Methods
Our analysis is based on an 87Rb atomic interferometer, and the principles and ideas could be applied to other types of atomic interferometers. Typically, state preparation involves two steps: selection and blow-away. The selection refers to picking a portion of atoms to the target state, while the blow-away refers to removing undesired atoms from the atomic group.
For the state preparation by microwave or Raman light, the selection of the state can be achieved because the transition resonance frequencies corresponding to different magneton energy levels are different. A bias magnetic field is usually applied to determine the direction of the quantization axis. This allows the distinction of atoms with different magneton energy levels based on the transition resonance frequencies corresponding to the Zeeman effect. Microwave or Raman light that satisfies the resonance transition conditions is used to make the atoms in the state transit to the state. Since the resonance conditions are not fulfilled, the other atoms in the state will remain in the state.
In addition, stimulated Raman transitions can also select a narrower velocity distribution of atoms. Assume that the velocity distribution of atoms is Gaussian type and the Gaussian width is . If the atom is initially in the state, then after a Raman pulse lasting , the probability of it being in the state iswhere is the initial velocity of the atomic groups, is the effective Rabi frequency, is the recoil speed, and is the effective wavevector. As a result, the velocity distribution of the atomic groups along the direction of Raman light will be narrower.
However, the state preparation methods using microwave or Raman light require the removal of atoms in the states, resulting in a significant loss of atoms. Therefore, to increase the number of atomic groups, we can also pump the atoms in the states to the state through the optical pumping method. The or polarized pumping laser is tuned from the resonance on the D2 line of 87Rb. The repumping laser is tuned to the resonance and also or polarized. The transition is forbidden by the angular momentum selection rules. The atoms in the state are pumped to the excited states and spontaneously decay to the two ground states. A fraction of the atoms will decay to and accumulate in this dark state. After several loops of pumping and repumping, most of the atoms are selected in the target state . Optical pumping is able to transfer almost all the atoms from other sublevels to the target state. Therefore, the number of effective atoms can be highly increased.
The blow-away step follows immediately after the selection. A laser beam in resonance with the transition is used to accelerate the atoms that remain in the state, separating them from the atoms in the state.
3 Experiment
3.1 Experimental setup

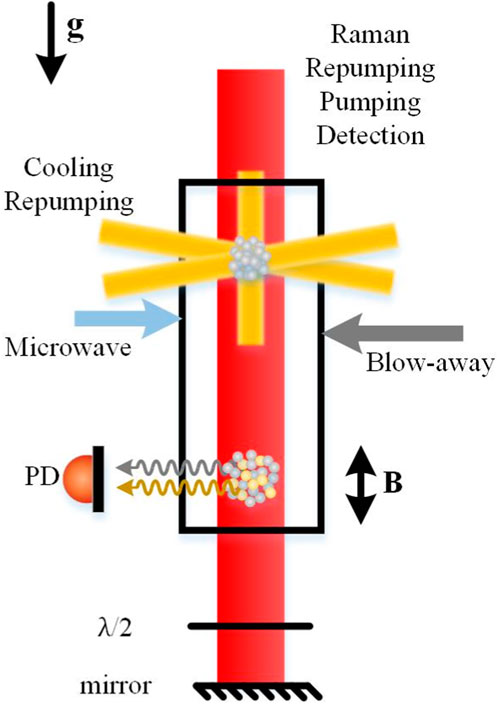

The experiments in this work are based on the 87Rb atomic interferometer, and its schematic diagram is shown in Figure 1. The three pairs of cooling light are counter-propagating, circularly polarized, and perpendicular to each other. The Raman light, repumping light, pumping light, and detection light are time-multiplexed in the vertical direction with linear polarization, and the blow-away light is horizontally orientated traveling wave. Both the microwave antenna and the beam expander of the blow-away light are mounted on the bottom of the magnetic-optical trap (MOT) chamber. The microwave signal is generated by a low-noise, highly integrated microwave source, and the pulse width of the microwave signal can be controlled by a transistor–transistor logic (TTL) signal. The power of the microwave signal is set to 27 dBm, and the frequency is set to ∼6.834 GHz. The microwave source is connected to a microwave antenna, and the orientation of the microwave antenna is adjusted so that the direction of the microwave magnetic vector is aligned with the direction of the quantization axis. The pumping light is linearly polarized and can be considered a synthesis of two circularly polarized lights, which can be achieved without introducing additional experimental setups. Before the state preparation, the atoms are cooled by the MOT and polarization gradient cooling (PGC) with the atomic number of ∼108 and the atomic temperature of approximately 2 μK.
FIGURE 1
3.2 Experimental steps

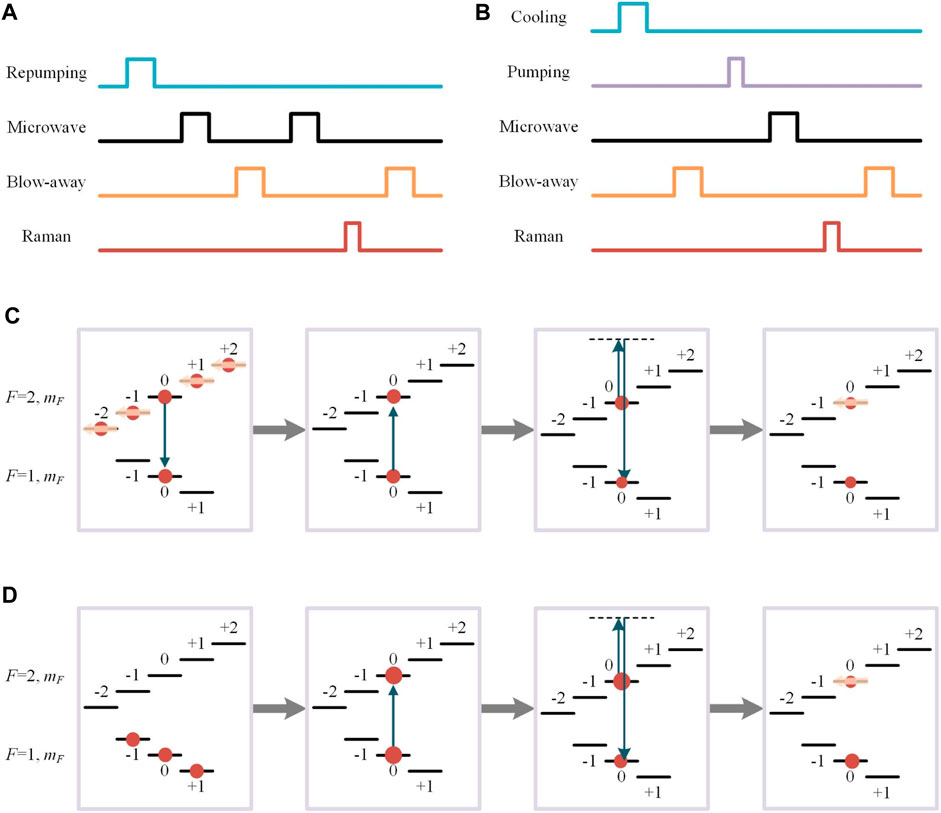

We designed two state preparation methods for comparison. The timing diagram of the M-R method is shown in Figure 2A,and the process of state preparation is shown in Figure 2C. An extra 2-ms-long repumping light after PGC is remained to ensure atoms in the state. After pulsing on a vertical magnetic bias field of ∼300 mG to define a quantization axis, a ∼400-μs-long microwave π pulse (emitted from a horn antenna) transfers all the atoms in the state to the state. The remaining atoms are then blown away by a 1-ms-long pulse of light in resonance with the closed optical transition. Another microwave π pulse transfers atoms back into the state with a pretty high efficiency of typically 98%. The remaining atoms are so few that can be ignored. Then, a 20-μs-long, velocity-selective Raman π pulse, followed by a final blow-away pulse for clean-up, transfers atoms in a narrow slice of the velocity distribution back into the state. In principle, this elaborate sequence could be replaced by a single velocity-selective Raman π pulse, but since the microwave pulse has no Doppler-shift broadening, this state preparation can be performed without selecting atoms in other magneton energy levels.
FIGURE 2
The timing diagram of the O-M-R method is shown in Figure 2B, and the process of state preparation is shown in Figure 2D. An extra 2-ms-long cooling light after PGC is remained to ensure atoms in the state. The other atoms are then blown away by a 1-μs s-long pulse of light in resonance with the closed optical transition. Then, an 80-μs-long pumping light transfers all the atoms in the state to the state, and a ∼300-μs-long microwave π pulse transfers all the atoms in the state to the state. Same as the previous timing, a 20-μs-long, velocity-selective Raman π pulse, followed by a final blow-away pulse for clean-up, transfers atoms in a narrow slice of the velocity distribution back into the state.
The subsequent steps are the same in both state preparation timing sequences with different effects. Since the blow-away light in our experiment only acts on atoms in the state, we use the same configuration of microwaves and Raman light to prepare the atoms in the state and blow-away the atoms in the state.
3.3 Experimental results

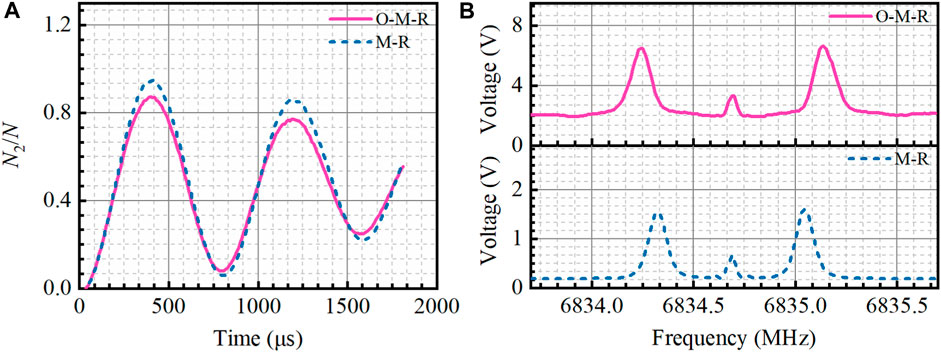

To compare the effects of the two state preparation methods, we analyze the experimental results after the action of microwave and Raman light, respectively. Figure 3A shows the Rabi oscillations driving by microwave after the first microwave π pulse in the M-R method (the dotted blue line) or the pumping light in the O-M-R method (the solid red line). The width of the microwave π pulse is approximately 400 μs. After the first microwave π pulse, the efficiency of the second microwave π pulse is about 96%, but after the pumping light, the efficiency of the microwave π pulse is about 87%. On one hand, this suggests that the efficiency of the microwave selected states is high. On the other hand, the transition efficiency driving by microwave after optical pumping is lower than that after microwave, suggesting that there may be residual atoms in other magneton energy levels after optical pumping. It is possible that the efficiency is related to the linear polarization degree of the pumping light. On one hand, we can improve the linear polarization of the pumping light by installing a linear polarizer, and on the other hand, we can improve the stability of polarization by improving the stability of temperature and humidity.
FIGURE 3
The Raman spectra after two microwave π pulses in the M-R method (the dashed blue line) or the pumping light and microwave π pulse in the O-M-R method (the solid red line) are shown in Figure 3B. The duration of the microwave π pulse is much longer than that of the pumping light, resulting in different turn-on times of the Raman pulse. So, the peaks of two curves in the figure corresponding to different frequencies are due to the various Doppler detuning processes. The amplitude of the Raman spectrum corresponds to the number of atomic groups, which is 1.6 V and 6.6 V, respectively. The difference of amplitude demonstrates that the number of atoms obtained through the utilization of optical pumping is over four times greater than that of microwave. Since the atoms in the state have five magneton energy levels, the number of atomic groups after the interaction by microwave and blow-away light is about one-fifth of the number before the interaction, which can correspond to the atomic number gain of the optical pumping. Furthermore, the width of the resonance peaks in the Raman spectrum can be used to calculate the temperature of the atomic group before the Raman pulse, where the calculation results are 3.0 μK in the M-R method and 4.9 μK in the O-M-R method. Given the average scattered photon number was about , the optical pumping effect would lead to additional heating of the atomic group which can be calculated as ( is the recoil temperature of 87Rb) [31, 32], which are consistent with the experimental results. Consequently, the use of optical pumping will bring a large increase in the number of atoms but also a significant increase in the temperature of atoms.

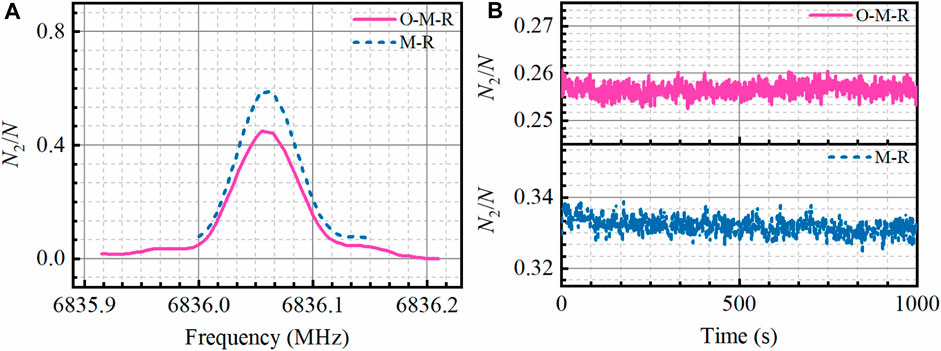

After the state preparation, the effects on Raman transitions of two methods were compared by applying a Raman π pulse, the length of which is 15 μs. The testing results are shown in Figure 4A. The maximum transition efficiency displayed in the Raman spectra was 59% with the M-R method and 44% with the O-M-R method. The lower transition efficiency with the O-M-R method may be caused by spontaneous radiation, excited background vapor, and other unknown factors.
FIGURE 4
In addition, after the state preparation, a Raman π/2 pulse was added to compare the detection noise of two methods, as shown in Figure 4B. The standard deviations of the atom population ratio for the long-term tests were 0.0024 with the M-R method and 0.0014 with the O-M-R method. When measuring gravity, the noise of the atomic transition probability can be converted to the noise of the gravity measurement with the expression shown below:where A is the amplitude of the interference fringe, keff is the effective wavevector, and T is the free evolution time. In particular, when the gravity measurement is performed in our atom interferometry with the free evolution time of 70 ms and the repetition frequency of 1 Hz, the amplitudes of interferometric fringes for those two methods are 0.2 and 0.15, respectively. Therefore, the gravity measurement noises (sensitivity) induced by detection are calculated to be 15.2 μGal/shot and 11.8 μGal/shot when the state preparation uses the M-R method and the O-M-R method, respectively. Thus, although the O-M-R method increases the number of atoms and reduces the detection noise, it also reduces the Raman transition efficiency, leading to a lower contrast of interference fringes.
Based on the results of all the above experiments, we considered suggestions of determining a suitable state preparation method for atom interferometry. If the number of atoms is sufficiently much and a better contrast of interference fringe is desired, the M-R method or its variants can be used as a preferred state preparation solution, and when a larger number of atoms is desired to reduce the detection noise, then the O-M-R method or its variants can be chosen.
4 Conclusion
In this paper, we have performed detailed experiments and analysis of two state preparation methods for atom interferometry. One is the M-R method, which is a combination of microwave and Raman light. The other is the O-M-R method, which is a combination of optical pumping, microwave, and Raman. The transition efficiency driven by the microwave π pulse in the M-R method is 96%, whereas the transition efficiency driven by the optical pumping light in the O-M-R method is approximately 87% with a temperature increase of 1.9 μK. The experimental results show that the M-R method enhances the efficiency of Raman transitions, which contributes to a higher contrast of interference fringes. The O-M-R method results in a significant increase in the number of atoms, which improves the signal-to-noise ratio of the detected signals. Therefore, the experimenter can select a more suitable method for state selection based on different experimental requirements to optimize the measurement. To achieve a better contrast of interference fringe when the number of atoms is sufficiently high, the M-R method can be chosen. Conversely, if the goal is to reduce detection noise and increase the number of atoms, the O-M-R method is preferred. The results and discussions presented above, which are based on the 87Rb systems, can also provide guidance for other alkali species.
