PERSPECTIVE article

Front. Psychol., 10 June 2015
Sec. Educational Psychology
This article is part of the Research Topic Phonological and visual processing, reading and writing skills in students with dyslexia and ADHD. View all 28 articles

Auditory evoked potential: a proposal for further evaluation in children with learning disabilities

  • Department of Speech Pathology, Paulista State University, Marília, Brazil

The information presented in this paper demonstrates the author’s experience in previews cross-sectional studies conducted in Brazil, in comparison with the current literature. Over the last 10 years, auditory evoked potential (AEP) has been used in children with learning disabilities. This method is critical to analyze the quality of the processing in time and indicates the specific neural demands and circuits of the sensorial and cognitive process in this clinical population. Some studies with children with dyslexia and learning disabilities were shown here to illustrate the use of AEP in this population.

Introduction

In Brazil, approximately 60% of the children in fourth grades of elementary school do not have the necessary basic competences to learn to read and write, and approximately 20% of the children remain illiterate during this period (INEP, 2003). The causes of poor school performance are often diverse and may be overlapped in children with school difficulties. Problems related to poor education, culture, physical or mental health, genetic or environmental reasons are generally associated with difficulties in the acquisition of scholar skills.

This scenario justifies the interest of health and education professional efforts to understand reading and writing disorders. In the current context, support programs have been developed in order to foster of these children’s ability to read and write. A broad approach by a multidisciplinary team of professionals may reach tangible results to compensate these disorders and changes in the Brazilian educational panorama.

Scientific research has focused on the understanding of the processes involved in general learning (Bledowski et al., 2009; Möhler, 2009; Nippold and Sun, 2009; Op de Beeck and Baker, 2009; Polk et al., 2009; Yadon et al., 2009) and pathological brain processes involved in learning disorders. The major investments in the area are related to dyslexia highlighting electrophysiological studies (Chermak and Musiek, 1994; Arehole et al., 1995; Purdy et al., 2002; Horowitz-Kraus and Breznitz, 2008; Sebastian and Yasin, 2008; Andreadis et al., 2009; Hämäläinen et al., 2013).

Thus, auditory evoked potential (AEP) has shown to be useful diagnostic tools for the functional assessment of the auditory system (Alain et al., 2013). The essential clinical application is in understanding auditory attention cognitive skills, auditory discrimination and memory. The study of AEP amplitude and latency allows the measurement of neuroelectric activity at each point of the auditory pathway in the nervous system (Pratt, 2007).

Auditory middle latency responses (AMLR), for instance, have shown to be an appropriate method to assess superior neural structures of hearing and language. Researchers have shown that these potentials relate to the nuclei and the auditory pathways situated in the thalamo-cortical region and the primary auditory cortex (Hall, 2006). The recording of these potentials reflect the cortical activities involved in the primary (recognition, discrimination, and figure-ground) and non-primary (selective attention, auditory sequence, and audio-visual integration) listening skills (Pratt, 2007; McPherson et al., 2008).

Another AEP measurement, Long Latency Evoked Potentials or Cognitive Potentials-P300, is related to sensory and cognitive functions. It represents conscious recognition, attention and auditory discrimination of the acoustic characteristics of the stimuli (tones and speech). P300 is recorded consciously when a deviant and random stimulus is detected among a series of standard stimuli by the subject in evaluation—oddball paradigm (Hall, 2006; McPherson et al., 2008).

The learning of spoken and written language implies the incorporation of acoustic elements and the representation of their phonetic-phonological characteristics of a language. These potentials improve a precise observation of auditory and speech processing (Pratt, 2007). In general, they are easy-to-apply tests, and poorly explored by health and education professionals. Thus, this paper highlights the application of AEP in school children with reading and writing disorders.

Perspective Study of AEP

The information presented in this paper demonstrates the author’s experience in previews cross-sectional studies conducted in Brazil, in comparison with the current literature. Over the last 10 years, AEP has been used in children with learning disabilities. This method is critical to analyze the quality of the processing in time and indicates the specific neural demands and circuits of the sensorial and cognitive process in this clinical population. Some studies with children with dyslexia and learning disabilities were shown here to illustrate the use of AEP in this population.

Auditory Middle Latency Evoked Responses

Auditory middle latency responses are promising auditory tests that allow the identification of functional deficits of the central auditory pathways, and the cerebral hemispheres in school children with reading and writing learning disorders. The recording of these potentials ensure visualization of the electrical activity of the primary auditory cortex and the auditory thalamus-cortical pathways, from the observation of a sequence of waves, negative (N) and positive (P). Na, Pa, Nb, Pb occur in 10–80 ms intervals after stimuli (McPherson et al., 2008).

Auditory middle latency responses can also be used to investigate clinical conditions related to auditory processing disorder, contributing to neurodiagnosis and improving the understanding of Central Auditory Nervous System. Their main clinical advantages are accuracy and objectivity. They are not dependent on patient response and can be very useful in the evaluation of children (Pratt, 2007).

The Pa wave is the most robust component in AMLR. The Pa latency shows the processing time of the auditory information to the thalamo-cortical pathways and auditory cortex (Hall, 2006). The Na–Pa amplitude is also important information as AMLR shows the specific electrical activity accumulated in the auditory cortex.

The most significant differences observed between groups of children with and without reading and writing disorders relate to the components of Na and Nb, and Pa wave (Figure 1), but specifically to the delayed latency measures in contralateral pathway to the left (Frizzo et al., 2012). Children with learning disorders showed delayed latencies for Na wave in the left hemisphere (Arehole et al., 1995; Purdy et al., 2002). Furthermore, differences in morphology of the waves Pa, Nb and Pb were observed in children with school complaints (Frizzo, 2004; Table 1).

FIGURE 1
www.frontiersin.org

Figure 1. Auditory middle latency responses (AMLR) traces—normal processing × non-normal auditory processing.

TABLE 1
www.frontiersin.org

Table 1. Ipsi and contralateral via comparisons between groups: control × learning disabilities (n = 30)**.

The essential hypothesis is that the dysfunction of the left contralateral auditory pathway can produce difficulties in sound decoding in children with learning disabilities. Consequently, this dysfunction also can lead to losses in the association of linguistic components with visual components. Or even, it can induce flaws in associations of auditory information with the linguistic information at primary and non-primary cortical areas.

The error in processing speed may explain, for instance, the inability to read and write. It would be consistent with the functional inefficiency of the left hemisphere and its integration of auditory and non-auditory information. The AMLR assessment evidenced these findings and supported this hypothesis. Currently, the use of AMLR in the literature is a new approach in Audiology area and represents new perspectives because the responses show information about neuroelectrical transmission along the auditory central pathways in vivo.

Long Latency Auditory Evoked Potentials or Cognitive Potentials-P300

Long Latency Auditory Potential or Cognitive Potentials are bioelectric responses of the thalamus and cortex activity. These responses correspond to a series of peaks with negative (N) and positive (P) polarities generated along the auditory pathway, by one or more events. It is possible to analyze these components as for their latency and amplitude (Hall, 2006). The registration of these potentials shows a sequence of peaks with negative-positive-negative-positive polarity (N1-P2-N2-P3) in 80 and 350 ms intervals after stimuli (McPherson, 1996; Kraus and Mcgee, 2002).

The observation of the component complex of exogenous or sensory waves P1-N1-P2 is related to the perception of temporal and acoustic stimulus in the central auditory system, right from the onset of auditory cortical processing (Martin et al., 2007). The P300 wave is the greatest positive where increases in latency or decrease in amplitude is evidence of clinical and subclinical problems. If the P300 wave is small and delayed, there is evidence of a deficit in the cognitive processing (Hall, 2006).

P300, cognitive or endogenous potential is associated to mental function of perception and represents the physiological phenomena related to auditory attention, discrimination, integration and memory (Kraus and Mcgee, 2002). The assessed patient receives a task for conscious recognition of changes in auditory sensory stimuli. Then, the distinction between a stimulus presented standardly or a deviant stimulus presented randomly generates the P3 component or P300 (McPherson, 1996).

Electrophysiological studies have shown physiological deficits in children with learning disorders (Purdy et al., 2002; Regaçone et al., 2014) and dyslexia (Table 2; Lippanen and Lyytinen, 1997; Bonte and Blomert, 2004; Oliveira et al., 2013). Such deficits result in brain cognitive dysfunction related to selective attention, working memory or language processing. In general, we observed delayed values of the components in dyslexic children’s group compared with children without dyslexia.

TABLE 2
www.frontiersin.org

Table 2. Statistical Analysis of Cognitive Potentials-P300 and comparison between groups: control × dyslexics**.

The latency was delayed especially regarding N1 and P2 (Lippanen and Lyytinen, 1997), N2 (Mazzotta and Gallai, 1992) and P3 or P300 components (Holcomb et al., 1986; Kujala and Naatanen, 2001; Maciejewska et al., 2012). Delayed latencies of N1 and P2 components may be associated with failures related to the auditory processing onset, but specifically to deficits in auditory cortical information synchronization associated to auditory attention factors (Lippanen and Lyytinen, 1997). The delayed N2 and reduced amplitude in students with dyslexia reflects difficulties in passive and automatic auditory sensory processing responsible for auditory perception, attention and discrimination of sounds (Ortiz et al., 1990; Näätänen, 1992; Ceponiene et al., 2002). The decrease in the amplitude of the P3 wave can be related to reduced amount of electrical activity involved in processing of secondary areas—complex auditory process related to auditory-linguistic processing (Ortiz et al., 1990). Other hypotheses that justify the changes observed in Cognitive Potentials-P300 in children with dyslexia have been raised, such as losses in phonological processing associated with impairments in specific cognitive areas for temporal coding and difficulties in processing the temporal fine structure of sounds (Sauer et al., 2006; Yeung and Werker, 2009; Reid et al., 2010).

There are numerous studies with children with learning disabilities using LLAEP regarding the AMLR dyslexia. Most differences have been identified in latency components of the waves, but especially in the amplitude of late cognitive components (Ortiz et al., 1990; Lippanen and Lyytinen, 1997; Sauer et al., 2006; Hämäläinen et al., 2015; Figure 2). The reports infer disabilities in auditory attention, discrimination, storage and temporal processing and/or auditory information and their association with linguistic information, which can be a contributing factor to reading difficulties in dyslexic children.

FIGURE 2
www.frontiersin.org

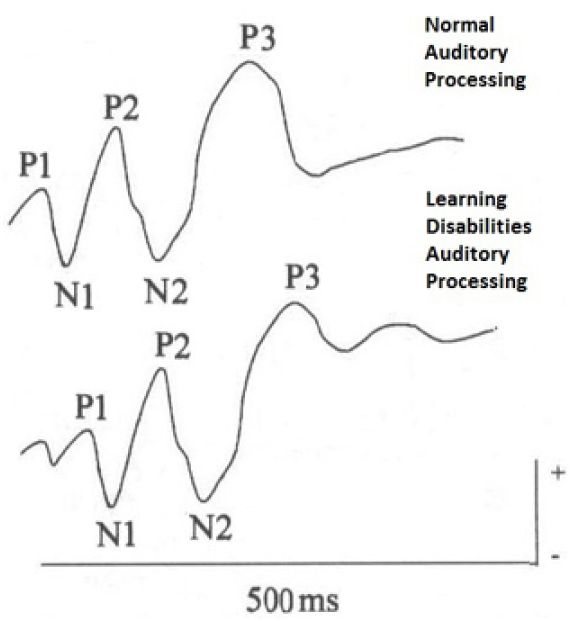

Figure 2. Cognitive Potentials-P300 traces—normal processing × non-normal auditory processing.

Final Considerations

The use of AEP measures does not aim the etiologic diagnosis of dyslexia or learning disabilities. However, it provides significant additional measure on the functioning of the auditory system and the temporal processing of linguistic information. Thus, they are an important assessment for the auditory development follow-up and the readiness for the reading and writing.

The electrophysiological findings of this study may suggest anatomical and/or functional flaws in students with learning disabilities. The evaluation of auditory disorders through AEP assessment complements the diagnosis of school children with learning disorders. This test may provide the opportunity for a thorough treatment planning, for an auditory-linguistic training and improvement of auditory skills, necessary for the acquisition of reading and writing.

The detection and early intervention in children with learning disabilities is essential to mitigate the negative impact on academic and social life in this population. However, more investment in research in this area is needed to search for more accurate information on the functioning of the auditory pathway in this population, and carry out further investigation of the auditory processing and linguistic stimuli in school children with learning disabilities.

Conflict of Interest Statement

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

Alain, C., Roye, A., and Arnott, S. R. (2013). “Middle-and long-latency auditory evoked potentials: what are they telling us on central auditory disorders,” in Handbook of Clinical Neurophysiology: Disorders of Peripheral and Central Auditory Processing, Vol. 10, ed. G. G. Celesia (Amsterdam: Elsevier), 177–199.

Google Scholar

Andreadis, I. I., Giannakakis, G. A., Papageorgiou, C., and Nikita, K. S. (2009). Detecting complexity abnormalities in dyslexia measuring approximate entropy of electroencephalographic signals. IEEE Eng. Med. Biol. Soc. 1, 6292–6295. doi: 10.1109/iembs.2009.5332798

PubMed Abstract | CrossRef Full Text | Google Scholar

Arehole, S., Augustine, L. E., and Simhadri, R. (1995). Middle latency response in children with learning disabilities: preliminary findings. J. Commun. Disord. 28, 21–38. doi: 10.1016/0021-9924(94)00004-J

PubMed Abstract | CrossRef Full Text | Google Scholar

Bledowski, C., Rahm, B., and Rowe, J. B. (2009). What “works” in working memory? Separate systems for selection and updating of critical information. J. Neurosci. 28, 13735–13741. doi: 10.1523/JNEUROSCI.2547-09.2009

PubMed Abstract | CrossRef Full Text | Google Scholar

Bonte, M. L., and Blomert, L. (2004). Developmental dyslexia: ERP correlates of anomalous phonological processing during spoken word recognition. Cogn. Brain Res. 21, 360–376. doi: 10.1016/j.cogbrainres.2004.06.010

PubMed Abstract | CrossRef Full Text | Google Scholar

Ceponiene, R., Rinne, T., and Naatanen, R. (2002). Maturation of cortical sound processing as indexed by event-related potentials. Clin. Neurophysiol. 113, 870–882. doi: 10.1016/S1388-2457(02)00078-0

PubMed Abstract | CrossRef Full Text | Google Scholar

Chermak, G. D., and Musiek, F. E. (1994). Central Auditory Processing Disorders. San Diego, CA: Singular Publishing Group, p. 374.

Google Scholar

Frizzo, A. C. F. (2004). Auditory Middle Latency, Study for Different Levels of Sound Intensity with Tone-Burst Stimulation in Children 10–13 Years of Age. Dissertation, Ribeirão Preto Medical School, University of São Paulo, Ribeirão Preto.

Google Scholar

Frizzo, A. C. F., Issac, M. L., Pontes-Fernandes, A. C., Menezes, P. L., and Funayama, C. A. R. (2012). Respostas auditivas de média latência em crianças com dificuldades de aprendizagem. Int. Arch. Otorhinolaryngol. 16, 335–340. doi: 10.7162/S1809-97772012000300006

PubMed Abstract | CrossRef Full Text | Google Scholar

Hall, J. W. (2006). New Handbook of Auditory Evoked Responses. Boston, MA: Allyn and Bacon.

Google Scholar

Hämäläinen, J. A., Guttorm, T. K., Richardson, U., Alku, P., Lyytinen, H., and Leppänen, P. H. (2013). Auditory event-related potentials measured in kindergarten predict later reading problems at school age. Dev. Neuropsychol. 38, 550–566. doi: 10.1080/87565641.2012.718817

PubMed Abstract | CrossRef Full Text | Google Scholar

Hämäläinen, J. A., Lohvansuu, K., Ervast, L., and Leppänen, P. H. (2015). Event-related potentials to tones show differences between children with multiple risk factors for dyslexia and control children before the onset of formal reading instruction. Int. J. Psychophysiol. 95, 101–112. doi: 10.1016/j.ijpsycho.2014.04.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Holcomb, P. J., Ackerman, P. T., and Dykman, R. A. (1986). Auditory event-related potentials in attention and reading disabled boys. Int. J. Psychophysiol. 3, 263–273. doi: 10.1016/0167-8760(86)90035-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Horowitz-Kraus, T., and Breznitz, Z. (2008). An error-detection mechanism in reading among dyslexic and regular readers—an ERP study. Clin. Neurophysiol. 119, 2238–2246. doi: 10.1016/j.clinph.2008.06.009

PubMed Abstract | CrossRef Full Text | Google Scholar

INEP. (2003). Instituto Nacional de Estudos e Pesquisas Educacionais. Available at: www.inep.gov.br (accessed June 20, 2014).

Google Scholar

Kraus, N., and Mcgee, T. (2002). “Potenciais Auditivos Evocados de Longa Latência,” in Tratado de Audiologia Clínica, 4aed, ed. J. Katz (São Paulo: Manole), 403–420.

Google Scholar

Kujala, T., and Naatanen, R. (2001). The mismatch negativity in evaluating central auditory dysfunction in dyslexia. Neurosci. Bio. Rev. 25, 535–543.

PubMed Abstract | Google Scholar

Lippanen, P. H., and Lyytinen, H. (1997). Auditory event-related potentials in the study of developmental language-related disorders. Audiol. Neurootol. 2, 308–340. doi: 10.1159/000259254

PubMed Abstract | CrossRef Full Text | Google Scholar

Maciejewska, B., Wiskirska-Woźnica, B., Świdziński, P., and Michalak, M. (2012). Assessing auditory processing disorders in children with developmental dyslexia using auditory cognitive event-related potentials. Folia Phoniatr. Logop. 65, 129–135. doi: 10.1159/000354167

PubMed Abstract | CrossRef Full Text | Google Scholar

Martin, D. A., Tremblay, K. L., and Stapells, D. R. (2007). “Principles and applications of cortical auditory Evoked Potentials,” in Auditory Evoked Potentials: Basic Principles and Clinical Application, eds R. F. Burkard, M. Don, and J. J. Eggermont (Baltimore, MD: Lippincott Williams & Wilkins), 482–507.

Google Scholar

Mazzotta, G., and Gallai, V. (1992). Study of the P300 event-related potential through brain mapping in phonological dyslexics. Acta Neurol. 14, 173–186.

PubMed Abstract | Google Scholar

McPherson, D. L. (1996). Late Potentials of the Auditory System. San Diego: Singular Publishing Group.

Google Scholar

McPherson, D. L., Ballachanda, B. B., and Kaf, W. (2008). “Middle and Longa Latency evoked potentials,” in Audiology: Diagnosis, eds R. J. Roeser, M. Valente, and H. H. Dunn (New York, NY: Thieme), 443–477.

Google Scholar

Möhler, H. (2009). Role of GABAA receptors in cognition. Biochem. Soc. Trans. 37, 1328–1333. doi: 10.1042/BST0371328

PubMed Abstract | CrossRef Full Text | Google Scholar

Näätänen, R. (1992). Attention and Brain Function. Hillsdale, NJ: Erlbaum.

Google Scholar

Nippold, M. A., and Sun, L. (2009). Knowledge of morphologically complex words: a developmental study of older children and young adolescents. Lang. Speech Hear. Serv. Sch. 39, 365–373. doi: 10.1044/0161-1461(2008/034)

PubMed Abstract | CrossRef Full Text | Google Scholar

Oliveira, J. C., Murphy, C. F. B., and Schochat, E. (2013). Auditory processing in children with dyslexia: electrophysiological and behavior evaluation. Codas 25, 39–44. doi: 10.1590/S2317-17822013000100008

PubMed Abstract | CrossRef Full Text | Google Scholar

Op de Beeck, H. P., and Baker, C. I. (2009). The neural basis of visual object learning. Trends Cogn. Sci. 14, 22. doi: 10.1016/j.tics.2009.11.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Ortiz, A. T., Navarro, M., and Vila, A. E. (1990). P300 component of the auditory event related potentials and dyslexia. Funct. Neurol. 5, 333–338.

PubMed Abstract | Google Scholar

Polk, T. A., Lacey, H. P., Nelson, J. K., Demiralp, M., Newman, L. I., and Krauss, D. A., et al. (2009). The development of abstract letter representations for reading: evidence for the role of context. Cogn. Neuropsychol. 26, 70–90. doi: 10.1080/02643290802618757

PubMed Abstract | CrossRef Full Text | Google Scholar

Pratt, H. (2007). “Middle-Latency Response,” in Auditory Evoked Potentials: Basic Principles and Clinical Application Burkard, eds R. F. Burkard, M. Don, and J. J. Eggermont (Baltimore, MD: Lippincott Williams & Wilkins), 463–481.

Google Scholar

Purdy, S. C., Kelly, A. S., and Davies, M. G. (2002). Auditory brainstem response, middle latency response, and late cortical evoked potentials in children with learning disabilities. J. Am. Acad. Audiol. 13, 367–382.

PubMed Abstract | Google Scholar

Regaçone, S. F., Gução, A. C. B., Giacheti, C. M., Romero, A. C. L., and Frizzo, A. C. F. (2014). Longa latência potenciais evocados auditivos nos alunos com distúrbios específico de aprendizagem. Audiol. Commun. Res. 19, 13–18. doi: 10.1590/S2317-64312014000100004

CrossRef Full Text | Google Scholar

Reid, M., Johnson, B., McArthur, G., Castles, A., and Hautus, M. (2010). “Auditory processing in the dyslexic brain. ASCS09,” in Proceedings of the 9th Conference of the Australasian Society for Cognitive Science (Sydney: Macquarie Centre for Cognitive Science), 293–297.

Google Scholar

Sauer, L., Pereira, L. D., Ciasca, S. M., Pestun, M., and Guerreiro, M. M. (2006). Auditory process and Spect in children with dyslexia. Arq. Neuropsiquiatr. 64, 108–111.

Google Scholar

Sebastian, C., and Yasin, I. (2008). Speech versus tone processing in compensated dyslexia: discrimination and lateralization with a dichotic mismatch negativity (MMN) paradigm. Int. J. Psychophysiol. 70, 115–126. doi: 10.1016/j.ijpsycho.2008.08.004

PubMed Abstract | CrossRef Full Text | Google Scholar

Yadon, C. A., Buggy, J. M., Kisley, M. A., and Davalos, D. B. (2009). P50 sensory gating is related to performance on select tasks of cognitive inhibition. Cogn. Affect. Behav. Neurosci. 9, 448–458. doi: 10.3758/CABN.9.4.448

PubMed Abstract | CrossRef Full Text | Google Scholar

Yeung, H. H., and Werker, J. F. (2009). Learning words’ sounds before learning how words sound: 9-month-olds use distinct objects as cues to categorize speech information. Cognition 113, 234–243. doi: 10.1016/j.cognition.2009.08.010

PubMed Abstract | CrossRef Full Text | Google Scholar
