Grain Size and Heterophase Effects on Mechanical Properties of Mg-Cu Nanoglasses
- 1State Key Laboratory for Strength and Vibration of Mechanical Structures, School of Aerospace Engineering, Xi’an Jiaotong University, Xi’an, China
- 2Center for Alloy Innovation and Design, State Key Laboratory for Mechanical Behavior of Materials, Xi’an Jiaotong University, Xi’an, China
Tailoring heterogeneities in amorphous alloys is a promising strategy for promoting the strength-ductility synergy. Here, molecular dynamics simulations are performed to investigate the effects of grains size and heterogeneous chemical composition on the mechanical properties of Mg-Cu nanoglasses (NGs). The reduced grain size in single-phase NGs improves the plasticity but at the expense of strength. In addition, the mechanical properties of dual-phase NGs composed of two chemical compositions depend critically upon the fraction of softer phase. In particular, the plasticity is improved for the low fraction of the softer phase, but is deteriorated for the high fraction of the softer phase, which is in striking contrast to the observations of the plasticity improvement reported in the traditional nanostructured metals/alloys. This is because that heterogeneities at the glass-glass interfaces intentionally introduce more stress concentration sites which are easier to accelerate the shear band formation. For an appropriate fraction of heterogeneous composition, a balance among strength and plasticity can be realized, which is useful for the design of novel NGs with high strength and superior ductility.
Metallic glass (MG) is a unique type of glassy alloy obtained by melting multi-component metallic alloys and then cooling it at a high rate (Klement et al., 1960). MGs possess some outstanding properties such as high strength and high elastic limit compared to their crystalline counterparts due to the intrinsic amorphous structures (Cyrot-Lackmann, 1980; Boudreaux and Frost, 1981; Greer, 1995; Zhang et al., 2004). Although MGs are considered to be one of the structural materials with great potential of engineering applications (Ashby and Greer, 2006; Shan et al., 2008; Cheng et al., 2009a; Chen et al., 2011; Liu et al., 2011), they suffer from certain challenging issues, especially the lack of macroscopic tensile plasticity at room temperature due to the fact that the plastic deformation of MGs under tensile loading is concentrated in a narrow shear band (SB) region (Zhang et al., 2003; Greer et al., 2013).
Nanoglass (NG) is a new type of structural material which was first proposed by Herbert Gleiter (Gleiter, 2008). It is composed of nanometer-sized glassy grain and a large number of glass-glass interfaces (GGIs) with high free volume and low density relative to the glassy grains, which hence has the potential to tune the macroscopical plastic behavior (Şopu et al., 2011; Fang et al., 2012). Previous work in the past decade has shown that the plasticity of NGs is effectively improved compared with MGs, due to the introduced GGIs which can induce multiple SBs formation (Adibi et al., 2013; Wang et al., 2015; Wang et al., 2016; Brink and Albe, 2018). However, improved plasticity in NGs is at the expense of strength, which is a common dilemma in nanostructured materials (Şopu et al., 2011; Adibi et al., 2013; Wang et al., 2015; Ivanisenko et al., 2018).
One of the common methods to promote the strength-ductility synergy is to tailor heterogeneities such as the introduction of secondary phases in form of nanoprecipitates (Hofmann et al., 2008; Greer et al., 2013). For example, by adding a small amount of Nb to Zr-Cu-Ni-Al MG matrix, the formation of dual-phase MGs results in the improved plasticity without sacrificing strength (Chen and Todd, 2015). Inspired by this observation, a great deal of research has been dedicated to the preparation of heterogeneous nanostructured MGs (Pan et al., 2009; Kuan et al., 2010; Kim et al., 2013; Sha et al., 2015; Yao and Jin, 2015; Sha et al., 2017; Liu et al., 2018; Sun et al., 2018; Wu et al., 2020). In addition, Jian et al. have demonstrated that it is an effective way to balance strength and plasticity by controlling the heterogeneous structure, through the investigation of the mechanical behaviors of crystalline/amorphous nanocomposites (Jian et al., 2016; Jian et al., 2018a, 2018b). Therefore, it is of both great scientific and technological significance to provide an atomic-scale understanding of the deformation and failure mechanism of NGs with heterogeneous chemical compositions.
To this end, we perform molecular dynamics (MD) simulations on the NGs composed of heterogeneous chemical compositions, with focus on the effects of grain size and heterogeneous composition. Here, we choose Mg33Cu67 and Mg85Cu15 NGs due to their large differences in shear modulus. Our results reveal that, as the grain size decreases from 15 to 5 nm, the plasticity of single-phase Mg33Cu67 and Mg85Cu15 NGs are improved, accompanied by a decrease in strength, while a transition from catastrophic fracture to super-plasticity occurs. On the other hand, by introducing softer Mg85Cu15 NGs into the Mg33Cu67 NGs, the strength of dual-phase NGs decreases, while the plasticity improves at first and then deteriorates with the increase of the fraction of softer Mg85Cu15 NGs. Our results show that the mechanical properties of dual-phase NGs can be tuned by controlling the content ratio of soft to hard phase, providing an effective design approach for NGs architectures.
MD simulations are performed using the Large-scale Atomic/Molecular Massively Parallel Simulator (LAMMPS) (Plimpton, 1995). The atomic interactions are described by using an embedded atom model (EAM) potential fitted to Mg-Cu alloys (Ding et al., 2012). The system pressure and temperature are controlled by a Parrinello-Rahman barostat (Parrinello and Rahman, 1982) and a Nose-Hoover thermostat (Nosé, 1984), respectively. An integration time step of 2 fs is used in all simulations. Mg33Cu67 and Mg85Cu15 NG samples containing ∼2.0 million atoms are prepared in a slab with dimensions of 6.1 (x) × 48.8 (y) × 97.6 (z) nm3. In constructing the NG samples, a small MG cube with a side length of 6.1 nm is first equilibrated at 2000 K for 2 ns with periodic boundary conditions (PBCs) along all three dimensions, and then cooled to 50 K at a quenching rate of 1010 K/s under the condition of zero external pressure (Ding et al., 2012; Sha et al., 2014). The large MG samples are constructed by replications of the small cubes, then annealed at a temperature near the glass transition temperature (
The NG samples are generated by using the Poisson-Voronoi tessellation method implemented in the Atomsk code (Hirel, 2015) and the MG structure as a source of material for the glassy grains. By setting the number of grains to change the grain size (d) in the sample, columnar glassy grains with average d of 5, 10, and 15 nm are prepared to study the grain size effect. For dual-phase NGs, the d is fixed at 10 nm, and some Mg33Cu67 grains are randomly replaced by Mg85Cu15 grains, as shown in Figure 1. There is a total of 50 grains. And the dual-phase NGs with replaced 15, 25, and 35 grains are used to investigate the effect of heterogeneous composition, and are hereafter referred to as NGI, NGII, and NGIII, respectively. In the work of Adjaoud and Albe (2018), spherical grains were equilibrated in the liquid state (above
FIGURE 1. (A) Atomic configuration of single-phase NG sample with d = 10 nm. Grains are shown in different colors to highlight the architectures. (B–D) Atomic configurations of dual-phase NGs composed of Mg33Cu67 grains and Mg85Cu15 grains, i.e., NGI, NGII, and NGIII, respectively.
For uniaxial tensile tests, the MD simulations are carried out in isothermal-isobaric (NPT) ensembles at 50 K and zero pressure. A constant tensile strain rate of 1 × 108 s−1 along the z-direction is applied (Cao et al., 2009). PBCs are applied in all three dimensions directions to eliminate the surface effects (Şopu et al., 2011; Albe et al., 2013). The stress is calculated from the normal tensor component of the virial stress along the loading direction (Cao and Wei, 2007). The generation and evolution of local inelastic deformations are analyzed by calculating the atomic local von Mises shear strain
Results and Discussion
We first investigate the effect of grain size d of the single-phase Mg33Cu67 and Mg85Cu15 NGs. Figures 2A,B depict the tensile engineering stress-strain curves for Mg33Cu67 and Mg85Cu15 NGs with different d values in comparison with the MG specimen. For MGs, the peak stress for Mg33Cu67 MG is 3.3 GPa, which is higher than 1.4 GPa for Mg85Cu15 MG. In addition, a colossal drop in the stress is observed, corresponding to a rapid localization of the plastic strain into the SB region. For NGs, the peak stresses are lower than those of the MGs and decrease with grain size. For a fixed grain size, the peak stress of Mg33Cu67 NG is higher compared to the Mg85Cu15 NG. In other words, Mg85Cu15 NG is softer than Mg33Cu67 NG.

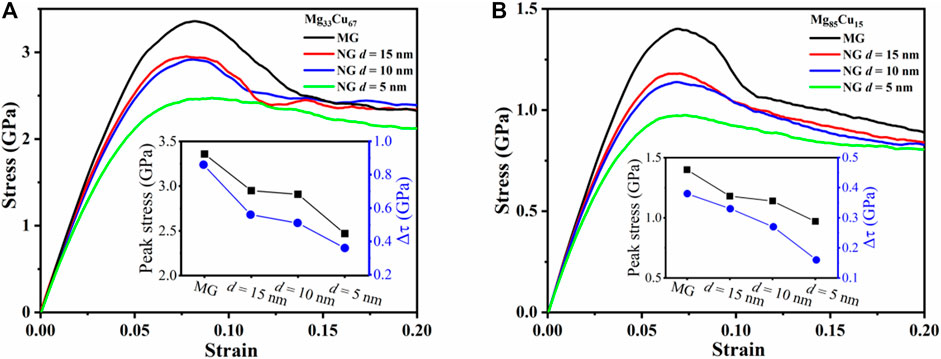

FIGURE 2. Engineering tensile stress-strain curves for (A) Mg33Cu67 and (B) Mg85Cu15 NGs with d = 15, 10, and 5 nm. MG counterparts are also plotted for comparison. The inset shows the peak stress and
The stress drop is defined as
To understand the mechanism underlying the above-mentioned failure transition, we probe the atomic deformation processes by examining the local atomic shear strain
FIGURE 3. Sequence of snapshots capturing the atomic deformation processes for (A–C) Mg33Cu67 NGs with d = 15, 10, and 5 nm, respectively, and (D–F) Mg85Cu15 NGs with d = 15, 10, and 5 nm, respectively. The colors indicate the atomic shear strain.
To further quantify the fraction of the atoms involved in the plastic deformation during the tensile loading, the fraction of atoms with relatively high

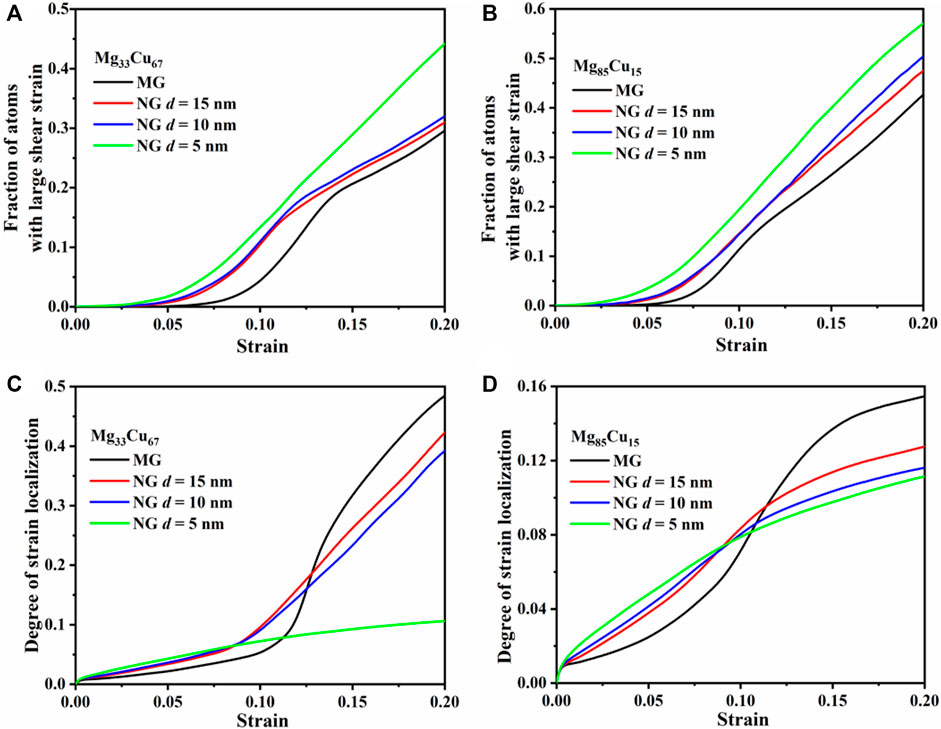

FIGURE 4. (A,B) The fraction of atoms with large
Figure 5A depicts the tensile engineering stress-strain curves for NGI, NGII, NGIII, together with single-phase NGs for comparison. Two features, i.e., the peak stress and the stress drop

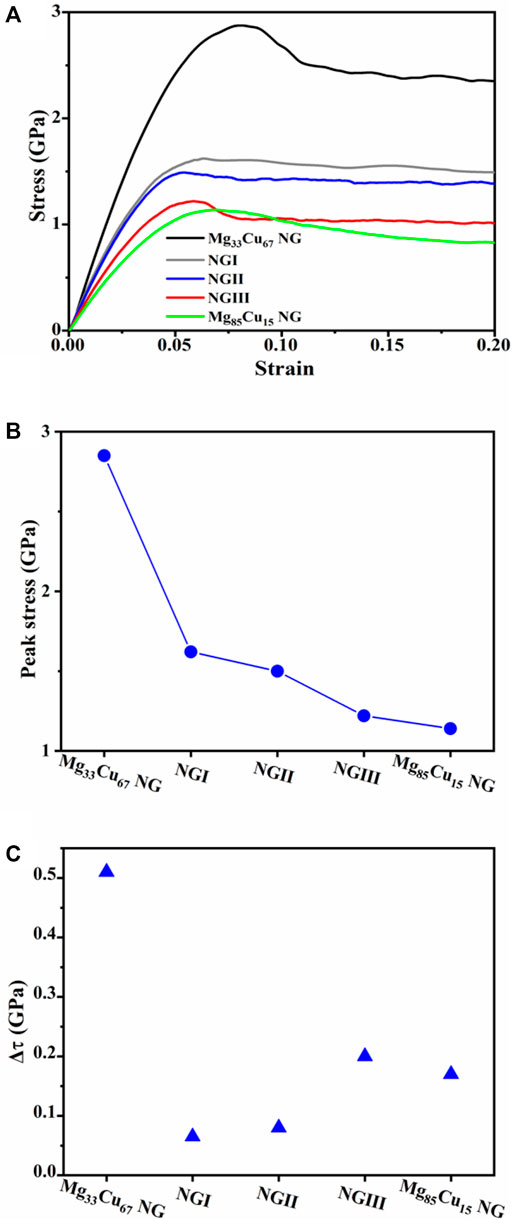

FIGURE 5. (A) Engineering tensile stress-strain curves, (B) peak stress, and (C)
To unravel the conflict, a sequence of snapshots capturing the atomic deformation processes for NGI, NGII, and NGIII is shown in Figures 6A–C, respectively. For NGI, the plastic deformation takes place at the softer regions, including the GGIs and the Mg85Cu15 nanograins. Upon further tensile loading, the STZs are constrained in the softer Mg85Cu15 grains, and the development of a mature SB is possibly blocked by the harder Mg33Cu67 grains. In contrast to NGI, the network of STZs grows into a mature SB for NGII when the fraction ratio of soft to hard phase exceed 1.0 (i.e., NGIII), a mature predominant SB develops. This is because that more free volume at the softer Mg85Cu15/Mg85Cu15 interfaces introduces more stress concentration sites, and void nucleation at these GGIs can develop into cracks and propagate along interfaces, as shown in Figure 6C. Our simulation results thus highlight that the more addition of the softer second phase in MGs deteriorates the overall plasticity.

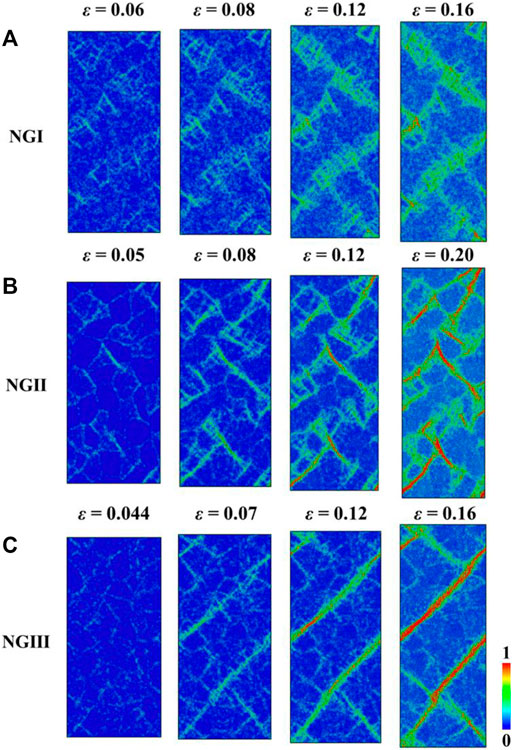

FIGURE 6. (A–C) Sequence of snapshots capturing the atomic deformation processes for NGI, NGII, and NGIII, respectively. The colors indicate the atomic shear strain.
To better understand the failure transition mechanism in dual-phase NGs with different grain ratios, five identical grains are selected and we compare the evolution of the local structure during deformation, as shown in Figure 7. It is found that the vast majority of STZs initially decorate the GGIs among grains with different compositions, referred to as soft-hard GGIs hereafter. For NGI with few soft phases, the STZs are difficult to propagate, because the soft Mg85Cu15 grains are completely surrounded by the hard Mg33Cu67 grains. In comparison with NGI, the incorporation of more soft phases in NGII increases the opportunity of the STZs to penetrate or propagate. For NGIII with overwhelming soft phases, it is intriguing to observe the rapid propagation of the STZs initiated at the soft-hard GGIs, and the other STZs do not participate in the development of the mature SB.

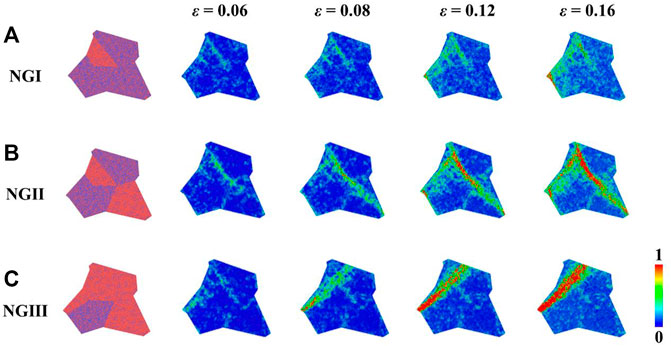

FIGURE 7. (A–C) Deformation snapshots of the selected grains capturing the atomic deformation processes for NGI, NGII, and NGIII, respectively. The colors indicate the atomic shear strain.
Figure 8A shows the fraction of atoms with
FIGURE 8. (A) The fraction of atoms with large
In summary, atomistic simulations are performed on the single-phase NGs and dual-phase NGs, aiming at the effects of grain size and heterogeneous composition on the mechanical properties. Compared to MGs, single-phase NGs show decreased strength but improved plasticity. The failure mode switches from localized shear banding to homogeneous plastic deformation with decreasing grain size. The existence of GGIs is the main reason for the strength reduction and the plasticity enhancement. For dual-phase NGs, by adding the appropriate content of the softer second phase, the plasticity is improved. Another key finding is that for dual-phase NGs with the content ratio of soft to hard phase larger than 1.0, the plasticity is deteriorated, which is quite different from the improvement in plasticity reported in the traditional nanostructured metals/alloys. The physical origin of this conflict is attributed to the increased free volume or voids at the softer GGIs accelerate the SB formation. The present work provides an in-depth understanding of the mechanical properties and deformation mechanism of dual-phase NGs with heterogeneous chemical compositions.
Data Availability Statement
The raw data supporting the conclusions of this article will be made available by the authors, without undue reservation.
YC ran the simulations, performed the analysis, and wrote the first draft of the manuscript; JD and ZDS supervised the work and reviewed and edited the manuscript.
The authors would like to acknowledge financial support from the National Natural Science Foundation of China (NSFC) through Grant Nos. 11790293 and 11972278. Z-DS is also grateful for the support from the Science and Technology Developing Project of Shaanxi (No. 2019JC-03). JD acknowledges support from National Natural Science Foundation of China (12004294), National Youth Talents Program and the HPC platform of Xian Jiaotong University.
Conflict of Interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
