Impact Factor 2.089

The world's most-cited Multidisciplinary Psychology journal

Case Report ARTICLE

Front. Psychol., 02 November 2016 | https://doi.org/10.3389/fpsyg.2016.01573

The Use of Virtual Reality to Facilitate Mindfulness Skills Training in Dialectical Behavioral Therapy for Borderline Personality Disorder: A Case Study

Maria V. Nararro-Haro1, Hunter G. Hoffman2,3*, Azucena Garcia-Palacios4,5, Mariana Sampaio2, Wadee Alhalabi3,6, Karyn Hall7 and Marsha Linehan8
  • 1Hospital General de Catalunya, Barcelona, Spain
  • 2Virtual Reality Research Center at the Human Photonics Lab, Mechanical Engineering, University of Washington Seattle, Seattle, WA, USA
  • 3Virtual Reality Research Center, Computer Science Department, Effat University, Jeddah, Saudi Arabia
  • 4Psychology, Universitat Jaume I, Castellon, Spain
  • 5Ciber Bisiopatologia Obesidad y Nutricion, Madrid, Spain
  • 6Faculty of Computing and Information Technology, King Abdulaziz University, Jeddah, Saudi Arabia
  • 7The DBT Center of Houston, Houston, TX, USA
  • 8Behavioral Research & Therapy Clinics, University of Washington, Seattle, WA, USA

Borderline personality disorder (BPD) is a severe mental disorder characterized by a dysfunctional pattern of affective instability, impulsivity, and disturbed interpersonal relationships. Dialectical Behavior Therapy (DBT®) is the most effective treatment for Borderline Personality Disorder, but demand for DBT® far exceeds existing clinical resources. Most patients with BPD never receive DBT®. Incorporating computer technology into the DBT® could help increase dissemination. Immersive Virtual Reality technology (VR) is becoming widely available to mainstream consumers. This case study explored the feasibility/clinical potential of using immersive virtual reality technology to enhance DBT® mindfulness skills training of a 32 year old female diagnosed with BPD. Prior to using VR, the patient experienced difficulty practicing DBT® mindfulness due to her emotional reactivity, and difficulty concentrating. To help the patient focus her attention, and to facilitate DBT® mindfulness skills learning, the patient looked into virtual reality goggles, and had the illusion of slowly “floating down” a 3D computer-generated river while listening to DBT® mindfulness training audios. Urges to commit suicide, urges to self harm, urges to quit therapy, urges to use substances, and negative emotions were all reduced after each VR mindfulness session and VR mindfulness was well accepted/liked by the patient. Although case studies are scientifically inconclusive by nature, results from this feasibility study were encouraging. Future controlled studies are needed to quantify whether VR-enhanced mindfulness training has long term benefits e.g., increasing patient acceptance and/or improving therapeutic outcome. Computerizing some of the DBT® skills treatment modules would reduce cost and increase dissemination.

Introduction

Borderline personality disorder (BPD) is a severe mental disorder characterized by a dysfunctional pattern of affective instability, impulsivity, and disturbed interpersonal relationships (American Psychiatric Association, 2013). People with BPD are at increased risk of self-harm, suicidal behaviors, completed suicides, and often have co-occurring disorders, such as depression, anxiety disorders, substance abuse, and eating disorders (Lieb et al., 2004). BPD has been conceptualized as a disorder of the emotion regulation system (Linehan, 1993; Crowell et al., 2009). Even when they try to modulate their own emotions, people with BPD have high negative emotions as their baseline emotional state, they are unusually sensitive, respond intensely, and are slow to calm down (Linehan, 2015).

Dialectical Behavioral Therapy

DBT® teaches patients skills to help them control intense emotions, to reduce self-destructive behaviors, and improve relationships. Dialectical Behavioral Therapy (DBT®) is the most effective treatment for individuals with BPD (Stoffers et al., 2012). DBT® includes four intervention modes: individual psychotherapy, phone coaching, a therapist consultation team, and skills training.

Dialectical Behavioral Therapy Skills Training

DBT® skills training covers four main categories: mindfulness, emotion regulation, interpersonal effectiveness, and distress tolerance (Linehan, 1993, 2015). Patients are encouraged to use mindfulness in daily activities. DBT®, including DBT® skills training, aims to reduce patients' difficulties in regulating emotions: impulse control, interpersonal relationships, and self image (Linehan, 2015). As described by Linehan (2015), DBT® Mindfulness skills training is an especially important core component of DBT® that is taught first and helps set the stage for learning other DBT skills. DBT Mindfulness Skills training aims to help individuals change maladaptive patterns of behaviors, emotions, thinking, and relationships with other people that cause problems in their day to day lives. Suicide is one way patients have tried to deal with these severe problems. DBT® skills are aimed to reduce these dysfunctional patterns and help steer patients toward “a life worth living.” The current study focuses on two mindfulness skills, “Observing” skills, and “Wise Mind” skills. “Observing skills” involve learning to pay attention, on purpose, to the present moment: learning to control/focus their attention. In “observing sounds,” patients practice noticing sounds, and practice bringing their attention back to the sounds when their attention wanders. In “observing visuals,” the patient is invited to attend to what they see, without letting their attention get fixed on any one object. The Observing skills exercises include “coming back to your senses,” “focusing the mind” and “opening the mind.” The second mindfulness skill trained in the current study, wise mind, is the “synthesis or integration of opposites: emotion mind and reasonable mind” (Linehan, 2015, p. 169). Mindfulness skills are the vehicles for balancing “emotion mind” and “reasonable mind” to achieve “wise mind” (Linehan, 2015). In previous research, DBT® skills training has been shown to contribute to DBT®'s efficacy for BPD, e.g., significantly higher rate of completion of therapy for patients who received standard DBT® with skills training compared to DBT® without skills training (Linehan et al., 2015). DBT® Mindfulness skills training has also been associated with health benefits such as increased attention and reduced impulsivity (Soler et al., 2012).

Despite its benefits, learning to practice mindfulness is not easy for individuals with BPD. Most patients with BPD have had numerous adverse experiences such as childhood sexual and physical abuse, abandoned relationships, and broken families. BPD patients typically avoid and suppress internal experiences, emotions, and thoughts. Suppression and avoidance contribute to BPD. Mindfulness promotes a patient's awareness of experiences in the present moment without judging and with acceptance. Mindfulness helps patients learn to relate to their unpleasant memories and experiences without judging them. Patients with BPD often have attention deficits that make it harder for them to focus their attention (Soler et al., 2012; McClure et al., 2016). DBT® Mindfulness skills modules help train patients how to better control their attention by giving patients' practice directing their attention to specific content, starting with simple external observations, and gradually progressing to becoming more aware and more in control of their own inner thoughts and emotions. A technology that could help patients focus their attention during mindfulness skills training, that could also potentially increase cooperation on completing DBT® mindfulness skills home works, would be valuable.

Although DBT® is becoming increasingly available, demand for DBT® greatly exceeds existing clinical resources. BPD is a severe disorder, and DBT® treatment is effective at altering the patient's pathological thoughts and behaviors, but the treatment is very intensive. Most patients with BPD never receive DBT®. Although one-on-one therapy is crucial, research is needed on how to provide therapists with effective therapy delivery technologies that can reduce therapist burnout, reduce costs (Castelnuovo et al., 2016) and increase the number of patients who can benefit from DBT®.

Incorporating emerging computer technologies such as immersive virtual reality into the DBT® could help increase dissemination, reduce suffering, and reduce suicides via increased access to DBT®. Immersive virtual reality is designed to give participants the illusion of going inside the 3D computer generated virtual world as if it is a place they are visiting (e.g., giving participants the illusion of descending down a 3D computer generated river in a virtual canoe).

Immersive Virtual Reality (VR)

Immersive VR is proving useful as a new tool clinical psychology therapists can use to enhance the effectiveness of cognitive-behavior therapy to treat many psychological disorders. Cognitive Behavioral Therapy using VR exposure therapy has been shown to be efficacious in the treatment of anxiety disorders (Opris et al., 2012), like spider phobia (Garcia-Palacios et al., 2002; Hoffman et al., 2003), fear of flying (Rothbaum et al., 1996; Krijn et al., 2004), social phobia (Kampmann et al., 2016), small animal phobia (Botella et al., 2016), and claustrophobia (Botella et al., 1999). Cognitive Behavioral Therapy involving VR exposure is effective for treating more severe psychological disorders such as Post-Traumatic Stress Disorder (Rothbaum et al., 2001; Difede and Hoffman, 2002; Freedman et al., 2010; Rizzo et al., 2010; Difede et al., 2014). VR has also been used to treat eating disorders (Manzoni et al., 2016; Wiederhold et al., 2016) and may help treat delusions (Freeman et al., 2016), self-criticism (Falconer et al., 2014); and patients with chronic pain (Botella et al., 2013; Garcia-Palacios et al., 2015). To our knowledge; no studies have tested VR as an intervention to facilitate mindfulness skills training for DBT®, nor are there any studies using VR to treat BPD, an unusually severe mental disorder.

Virtual Reality is so attention grabbing that it is being used to distract burn patients from their pain during burn wound care, as a non-pharmacologic analgesic (Hoffman, 2004, 2011) and can distract claustrophobics during mock fMRI brain scans (Garcia-Palacios et al., 2007a). Immersive VR blocks the patients' view of the real world, and may help patients focus their attention on the mindfulness skills exercise in VR. VR could also potentially contribute to treatment efficacy via generalization of learned skills to real life practice (Swan et al., in press) and may increase patient acceptance of therapy (Garcia-Palacios et al., 2007b; Botella et al., 2015).

The main objective of the present study is to explore the feasibility and the clinical potential of using VR to facilitate DBT® mindfulness skills learning in a BPD patient. The hypotheses of the current study are: (1) The participant will accept VR for learning the mindfulness skills of DBT®; (2) DBT® mindfulness skills training in virtual reality will decrease BPD-related urges, (e.g., will decrease urges to commit suicide), and will decrease negative emotions (e.g., anger) after each VR mindfulness session; (3) VR+DBT® mindfulness skills training will increase observing, awareness, non-judgmental skills, and positive emotions after each VR mindfulness session.

Materials and Methods

This study was approved by the University of Washington IRB, and the participant signed a consent form. The participant was not compensated for their participation in this study.

Participant

The participant was a 32-year-old woman diagnosed with BPD and Substance Use Disorder receiving standard DBT®. At the time of the screening, the participant was unemployed; her social support was low and she reported being very dependent on her boyfriend, who also had a Substance Use Disorder diagnosis. The participant reported a 4-year history of poly-substance dependence and multiple hospitalizations due to drug overdose. She had a suicide attempt and two severe non-suicidal self-injuries during the previous 6 months. Patients treated at the Behavior Research and Therapy Clinics (BRTC) often have very severe symptoms, so symptom severity was not the reason the patient was selected for the present case study. The patient was selected because she had trouble practicing mindfulness. Before entering the current Virtual Reality (VR) study, the participant showed difficulties practicing mindfulness via standard DBT® mindfulness training delivered both in individual and group therapy. She showed emotional reactivity, low ability to concentrate, and had trouble doing her mindfulness homework exercises. Thus, the DBT® team thought this patient would be a good candidate to receive the VR+DBT® mindfulness skills training.

Therapists

The participant was treated by the first author of this paper. The therapist has a Ph.D. in clinical psychology and was working as a postdoctoral fellow at the Behavioral Research and Therapy Clinics, Department of Clinical Psychology, University of Washington, USA http://blogs.uw.edu/brtc/at the time this study was conducted. She treated the participant as part of the BRTC clinical DBT® team during the treatment and attended a weekly DBT® consultation team meeting supervised by Dr. Linehan. The treating therapist was supervised during the treatment of the participant by a senior DBT® trained therapist.

Design

This was a within-subject design case study with key measures administered before and after each VR mindfulness training session.

Study Procedures

After 1 month of standard DBT® (with no VR), VR+DBT® mindfulness skills learning (Observing skills and Wise Mind skills) was integrated into four individual therapy one-on-one sessions. The standard DBT® program consists of four modes of treatment (individual therapy, group skills training, phone coaching and consultation team meetings) that are delivered once a week. During the first month of standard DBT®, the patients receive a pre-treatment phase in which they are committed to the therapy and the goals of the treatment are set up. Thus, this client started VR at the approximate time she finished the pre-treatment phase.

The measures were administered before and after each VR intervention. During the VR+DBT® skills learning interventions, the participant looked into a pair of wide field of view VR goggles (80 degrees field of view diagonal, per eye), and had the illusion of floating down a 3-D computer-generated river (created and owned by bigenvironments.com, see also vrpain.com) while listening to one of three DBT® mindfulness training audio tracks. (All audio tracks and verbal DBT® treatments used in this study are copyrighted by Marsha Linehan). See below a brief description of each audio track as well as the VR system.

Track 1: Observing Sound (Linehan, 2002; 8.5 min total).

While the patient is in VR, the audio explains briefly for about 3.5 min that most people either confuse mindfulness with relaxation or expect to feel better after mindfulness practice. She asserts that the goal of mindfulness is not necessarily to feel better, but to just notice. The 5-min practice consists of noticing sounds, and repeatedly bringing attention back to sounds every time the mind wanders off.

Track 2: Observing visuals: (Linehan, 2015; 10 min total).

This is a new audio created for the current study to synchronize with images the patient sees in the VR goggles while they are listening to the audio. At the beginning, the audio spends about 1 min explaining the instructions of the exercise. The remaining 9 min are a combination of guided and silent practice. In the guided section, the person is invited to attend to what he/she sees in the virtual world (e.g., the trees, the sky, the intensity of colors). The goal is for the client to just observe, to notice, not to let their attention get fixed upon anything, just watch the things along the way, learning to bring attention back, if it becomes distracted.

Track 3: Wise Mind; (Linehan, 2002; 8 min long).

The patient listens to this audio while in VR floating down the river. This recording starts with a 1-min brief explanation of the concept of wise mind and the instructions about the practice. This particular exercise is called “Stone flake on the lake” (Linehan, 2015). The exercise consists of a 7-min practice where the person is instructed to imagine that he/she is a stone, who is floating down an imaginary lake toward the bottom of the lake, which represents the inner wise mind.

Virtual Reality System

Toward the goal of creating an immersive VR system (Slater and Wilbur, 1997), the current study used a High Tech VR system designed to (1) shut out physical reality, using VR goggles and headphones that excluded sights and sounds from the real world, (2) providing converging evidence to multiple senses (sights and sounds), (3) providing a surrounding panoramic view rather than a limited narrow field of view (4) vivid high resolution, (5) permitting the participant to interact with the virtual world using a computer mouse to look around in the virtual world.

The participant sat in a chair and looked into a pair of Kaiser Electro-Optics VR goggles with 80 degrees diagonal field of view per eye and 1280 × 1024 resolution per eye. The VR world (see Figure 1) was designed to give the patient the illusion of going inside the 3D computer generated world, where they floated slowly down a computer generated river in VR, with trees, boulders, and mountains (VR World/visuals created and copyrighted by BigEnvironments.com using Unity3D software, see also vrpain.com). The patient listened to Observing and Wise Mind audios while in virtual reality, and one audio (“observing visuals”) was customized to synchronize with what the patient was seeing in VR. The patient received “observing visuals” for session 1, “wise mind” for session 2, “observing sound” for session 3, and received “observing visuals” again for session 4.

FIGURE 1
www.frontiersin.org

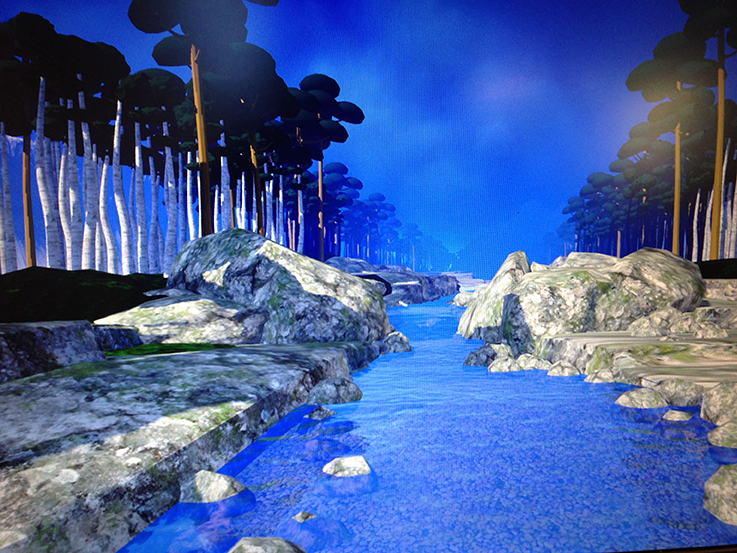

Figure 1. A screenshot of the Virtual reality world the patient watched through Oculus Rift DK2 VR goggles while listening to Dr. Linehan's DBT® Mindfulness Skills™ audios (http://behavioraltech.org). Image by www.bigenvironments.com, copyright Hunter Hoffman, www.vrpain.com.

Assessments

To measure BPD-related urges and primary emotions, a form was adapted by the authors using the DBT® diary card (Linehan, 1993), a measure that tracks mood, urges and dysfunctional behaviors. Before and after each VR mindfulness session, the patient briefly rated on a scale from zero to five their current urges to self-injure, their urges to commit suicide, and their urges to use substances, and she rated the intensity (range = 0–100) of several primary emotions (sadness, fear, anger, guilt, shame, disgust, and joy). To measure the patient's acceptance of using VR technology to learn mindfulness skills, the patient gave comments about how she was doing and about her experience and opinions about VR before and after VR DBT Mindfulness Skills training. The KIMS-Short (Höfling et al., 2011) is a 20 item self-report questionnaire designed to measure mindfulness skills. This questionnaire includes the four subscales of the original version: Observing, Describing, Act with Awareness, and Accept without Judgment, and adds one more subscale by separating the original Observing dimension in two: “Observing in” and “Observing out.” In the present study, the KIMS-Short was used as an exploratory measure to measure current state of mindfulness during the VR session.

Results

Prior to being enrolled in the current study and trying VR, the participant showed difficulties practicing mindfulness (i.e., emotional reactivity, low ability to concentrate). According to the patients written comments (e.g., Supplementary Materials, Table A), and her comments during sessions, VR mindfulness DBT® skills training was well accepted by the patient. She was willing to try the technique, and had a good experience. She said it helped her focus, helped her practice mindfulness and helped her generalize the practice to her natural context outside of therapy, e.g., she started to practice mindfulness at a lake near her house.

Results of patient's BPD-related urges are shown in Table 1. As shown in Table 1 below, Urges to commit suicide, urges to self-harm, urges to quit therapy, and urges to use substances, were reduced after VR+DBT® mindfulness when they were present before the VR mindfulness session, for each of the four VR DBT® Mindfulness sessions (one VR session per week for 4 weeks).

TABLE 1
www.frontiersin.org

Table 1. Urges (0–5) before and after each VR DBT® Mindfulness session.

The patients primary emotions before and after each VR session, measured using an adaptation of the DBT® diary card, (Linehan, 1993) are shown in Figures 25. As predicted, the three different VR mindfulness exercises were effective for reducing negative emotion (fear, anger, guilt, shame, and disgust) after VR mindfulness training.

FIGURE 2
www.frontiersin.org

Figure 2. The patient's primary emotions “right now” (0 − 100), before and after VR+DBT® Mindfulness session 1 (Observing visuals).

FIGURE 3
www.frontiersin.org

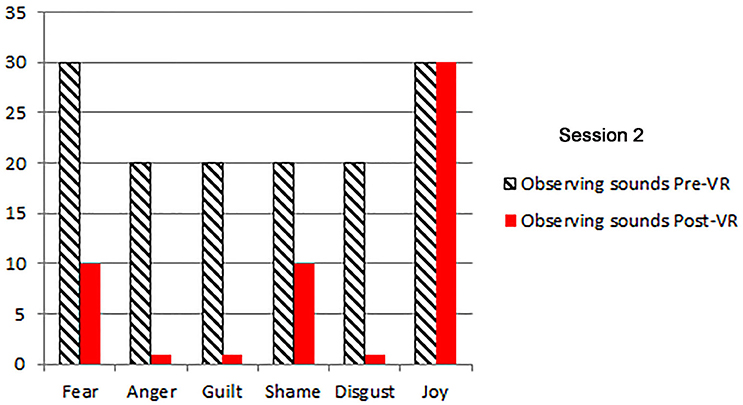

Figure 3. The patient's primary emotions “right now” (0 − 100), before and after VR+DBT® Mindfulness session 2 (Observing sounds).

FIGURE 4
www.frontiersin.org

Figure 4. The patient's primary emotions “right now” (0 − 100), before and after VR+DBT® Mindfulness session 3 (Wise mind).

FIGURE 5
www.frontiersin.org

Figure 5. The patient's primary emotions “right now” (0 − 100), before and after VR+DBT® Mindfulness session 4 (Observing visuals).

As shown in Supplementary Materials, Table B, mindfulness skills, and total mindfulness scores were measured using an exploratory adaptation of the KIMS-Short version (by asking patients to rate their current state of mindfulness). Results were in the predicted direction (increasing the mindfulness scores) for Wise Mind and Observing sounds VR sessions, but were slightly in the opposite of the predicted direction (a slight decrease) after the Observing Visuals exercise.

Discussion

The current case study shows encouraging preliminary evidence that the first patient with BPD to try VR enhanced mindfulness training, accepted the use of VR as part of their treatment and showed improved emotional state after the VR sessions. She was willing to try DBT® virtual reality mindfulness, and had a good experience. She said it helped her focus, helped her practice mindfulness, and helped her generalize the practice of mindfulness to her natural context outside of therapy, e.g., she started to practice mindfulness at home.

Even when they try to modulate their own emotions, people with BPD have high negative emotions as their baseline emotional state, they are unusually sensitive, respond intensely, and are slow to calm down (Linehan, 2015). The VR+DBT® mindfulness practice helped the participant reduce current negative emotions very common in BPD patients: sadness, fear, anger, guilt, shame and disgust. The VR + DBT® mindfulness skills training also reduced the patient's urges to commit suicide, urges to self-harm, urges to quit therapy, and urges to use substances were also decreased after each VR + DBT® Mindfulness Skills training session.

As for mindfulness skills measured with the exploratory KIMS-Short scale, observing sounds and wise mind VR exercises produced an improvement in the total scores of mindfulness from pre-VR session to post-VR session, but scores were slightly in the opposite of the predicted direction (a slight decrease) after the observing visuals exercise.

Traditional DBT® skills training (with no VR) has been shown to contribute to DBT®'s efficacy for BPD (Linehan et al., 2015). We predict that, with further development, using this and other VR systems (Hoffman et al., 2003, 2006, 2014; Wender et al., 2009; Wendrich et al., 2016), immersive virtual reality and augmented reality can enhance DBT® skills training, and could further increase the effectiveness of DBT® for BPD. DBT®-VR systems that patients can take home and use in their own homes, potentially via networked multi-participant VR (Wendrich et al., 2016), could be valuable for increasing compliance with homework assignments.

Borderline personality disorder is a very severe mental disorder, challenging to treat. “Although DBT® is clearly efficacious and increasingly available in practice settings, demand for DBT® far exceeds existing resources” (Linehan et al., 2015, p 476). Most people with BPD never receive DBT®. Increasing dissemination of DBT® is a high priority. Virtual Reality may be an especially good match for enhancing DBT® mindfulness skills learning because VR helps give patients the illusion of “being there” in the computer generated world (being in a place), and “being in the present moment” (being in a time) is the essence of mindfulness. VR is in the process of becoming commercially available and widely used by mainstream consumers (e.g., Hoffman et al., 2014). VR has the potential to make DBT® skills training more widely available to the public. Computerizing some of the DBT® treatment modules could reduce treatment costs and increase dissemination.

Although this study is promising, it was a case study, and lack of follow up measures is an important limitation. Although case studies are by nature scientifically inconclusive (Campbell and Stanley, 1963), it is an important initial step in the exploration of using VR computer technology to potentiate DBT® skills training. Another possible limitation may be the factor that the patient was receiving a broader program, the standard DBT®, and the results may be influenced by other treatment variables different than the VR mindfulness that she was learning (e.g., skills learned in group or other factors such as therapeutic alliance), however, the within-subjects design should help isolate the current findings to the influence of the VR DBT® mindfulness sessions.

In conclusion, these results show for the first time the feasibility of using immersive virtual reality to facilitate mindfulness practice in a case of BPD.

These results encourage further development, and larger, carefully controlled efficacy studies to determine whether VR mindfulness training has long term benefits (e.g., improved clinical outcome), and to determine whether VR can enhance mindfulness skills training for BPD patients, who often have difficulty focusing their attention during attention training exercises.

Author Contributions

All authors listed, have made substantial, direct, and intellectual contribution to the work, and approved it for publication.

Funding

This research was supported by Effat University, Jeddah Saudi Arabia Research and Consultancy Institute.

Conflict of Interest Statement

ML, ABPP is the treatment developer of Dialectical Behavior Therapy (DBT). She receives licensing fees for Behavioral Tech's use of her training materials.

The other authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fpsyg.2016.01573

References

American Psychiatric Association (2013). Diagnostic and Statistical Manual of Mental Disorders: DSM-5. Washington, DC: American Psychiatric Association.

Botella, C., Garcia-Palacios, A., Vizcaíno, Y., Herrero, R., Baños, R. M., and Belmonte, M. A. (2013). Virtual reality in the treatment of fibromyalgia: a pilot study. Cyberpsychol. Behav. Soc. Netw. 16, 215–223. doi: 10.1089/cyber.2012.1572

PubMed Abstract | CrossRef Full Text | Google Scholar

Botella, C., Pérez-Ara, M. Á., Bretón-López, J., Quero, S., García-Palacios, A., and Baños, R. M. (2016). In vivo versus augmented reality exposure in the treatment of small animal phobia: a randomized controlled trial. PLoS ONE 11:e0148237. doi: 10.1371/journal.pone.0148237

PubMed Abstract | CrossRef Full Text | Google Scholar

Botella, C., Serrano, B., Baños, R. M., and Garcia-Palacios, A. (2015). Virtual reality exposure-based therapy for the treatment of post-traumatic stress disorder: a review of its efficacy, the adequacy of the treatment protocol, and its acceptability. Neuropsychiatr. Dis. Treat. 3, 2533–2545. doi: 10.2147/NDT.S89542

CrossRef Full Text | Google Scholar

Botella, C., Villa, H., Baños, R., Perpiñá, C., and García-Palacios, A. (1999). The treatment of claustrophobia with virtual reality: changes in other phobic behaviors not specifically treated. Cyberpsychol. Behav. 2, 135–141. doi: 10.1089/cpb.1999.2.135

PubMed Abstract | CrossRef Full Text | Google Scholar

Campbell, D. T., and Stanley, J. C. (1963). Experimental and Quasi-Experimental Designs for Research. Boston, MA: Houghton Mifflin Company.

Google Scholar

Castelnuovo, G., Pietrabissa, G., Cattivelli, R., Manzoni, G. M., and Molinari, E. (2016). Not only clinical efficacy in psychological treatments: clinical psychology must promote cost-benefit, cost-effectiveness, and cost-utility analysis. Front. Psychol. 7:563. doi: 10.3389/fpsyg.2016.00563

PubMed Abstract | CrossRef Full Text | Google Scholar

Crowell, S. E., Beauchaine, T. P., and Linehan, M. M. (2009). A biosocial developmental model of borderline personality: elaborating and extending Linehan's theory. Psycholog. Bull. 135, 495–510. doi: 10.1037/a0015616

PubMed Abstract | CrossRef Full Text | Google Scholar

Difede, J., Cukor, J., Wyka, K., Olden, M., Hoffman, H., Lee, F. S., et al. (2014). D-cycloserine augmentation of exposure therapy for post-traumatic stress disorder: a pilot randomized clinical trial. Neuropsychopharmacology 39, 1052–1058. doi: 10.1038/npp.2013.317

PubMed Abstract | CrossRef Full Text | Google Scholar

Difede, J., and Hoffman, H. G. (2002). Virtual reality exposure therapy for world trade center post-traumatic stress disorder: a case report. Cyberpsychol. Behav. 5, 529–535. doi: 10.1089/109493102321018169

PubMed Abstract | CrossRef Full Text | Google Scholar

Falconer, C. J., Slater, M., Rovira, A., King, J. A., Gilbert, P., Antley, A., et al. (2014). Embodying compassion: a virtual reality paradigm for overcoming excessive self-criticism. PLoS ONE 9:e111933. doi: 10.1371/journal.pone.0111933

PubMed Abstract | CrossRef Full Text | Google Scholar

Freedman, S. A., Hoffman, H. G., Garcia-Palacios, A., Tamar Weiss, P. L., Avitzour, S., and Josman, N. (2010). Prolonged exposure and virtual reality-enhanced imaginal exposure for PTSD following a terrorist bulldozer attack: a case study. Cyberpsychol. Behav. Soc. Netw. 13, 95–101. doi: 10.1089/cyber.2009.0271

PubMed Abstract | CrossRef Full Text | Google Scholar

Freeman, D., Bradley, J., Antley, A., Bourke, E., DeWeever, N., Evans, N., et al. (2016). Virtual reality in the treatment of persecutory delusions: randomised controlled experimental study testing how to reduce delusional conviction. Br. J. Psychiatry 209, 62–67. doi: 10.1192/bjp.bp.115.176438

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia-Palacios, A., Botella, C., Hoffman, H., and Fabregat, S. (2007b). Comparing acceptance and refusal rates of virtual reality exposure vs. in vivo exposure by patients with specific phobias. Cyberpsychol. Behav. 10, 722–724. doi: 10.1089/cpb.2007.9962

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia-Palacios, A., Herrero, R., Vizcaíno, Y., Belmonte, M. A., Castilla, D., Molinari, G., et al. (2015). Integrating Virtual Reality with activity management for the treatment of fibromyalgia. Acceptability and preliminary efficacy. Clin. J. Pain. 31, 564–572. doi: 10.1097/AJP.0000000000000196

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia-Palacios, A., Hoffman, H., Carlin, A., Furness, T. A. III, and Botella, C. (2002). Virtual reality in the treatment of spider phobia: a controlled study. Behav. Res. Ther. 40, 983–993. doi: 10.1016/S0005-7967(01)00068-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Garcia-Palacios, A., Hoffman, H. G., Richards, T. R., Seibel, E. J., and Sharar, S. R. (2007a). Use of virtual reality distraction to reduce claustrophobia symptoms during a mock magnetic resonance imaging brain scan: a case report. Cyberpsychol. Behav. 10, 485–428. doi: 10.1089/cpb.2006.9926

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoffman, H. G. (2004). Virtual-reality therapy. Sci. Am. 291, 58–65. doi: 10.1038/scientificamerican0804-58

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoffman, H. G., Chambers, G. T., Meyer, W. J., Arceneaux, L. L., Russell, W. J., Seibel, E. J., et al. (2011). Virtual reality as an adjunctive non-pharmacologic analgesic for acute burn pain during medical procedures. Ann. Behav. Med. 41, 183–191. doi: 10.1007/s12160-010-9248-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoffman, H. G., Garcia-Palacios, A., Carlin, C., Furness, T. A. III, and Botella-Arbona, C. (2003). Interfaces that heal: coupling real and virtual objects to cure spider phobia. Int. J. Hum. Comput. Interact. 16, 283–300. doi: 10.1207/S15327590IJHC1602_08

CrossRef Full Text | Google Scholar

Hoffman, H. G., Meyer, W. J., Ramirez, M., Roberts, L., Seibel, E. J., Atzori, B., et al. (2014). Feasibility of articulated arm mounted Oculus Rift Virtual Reality goggles for adjunctive pain control during occupational therapy in pediatric burn patients. Cyberpsychol. Behav. Soc. Netw. 17, 397–401. doi: 10.1089/cyber.2014.0058

PubMed Abstract | CrossRef Full Text | Google Scholar

Hoffman, H. G., Seibel, E. J., Richards, T. L., Furness, T. A., Patterson, D. R., and Sharar, S. R. (2006). Virtual reality helmet display quality influences the magnitude of virtual reality analgesia. J. Pain 7, 843–850. doi: 10.1016/j.jpain.2006.04.006

PubMed Abstract | CrossRef Full Text | Google Scholar

Höfling, V., Ströhle, G., Michalak, J., and Heidenreich, T. (2011). A short version of the kentucky inventory of mindfulness skills. J. Clin. Psychol. 67, 639–645. doi: 10.1002/jclp.20778

PubMed Abstract | CrossRef Full Text | Google Scholar

Kampmann, I. L., Emmelkamp, P. M., Hartanto, D., Brinkman, W. P., Zijlstra, B. J., and Morina, N. (2016). Exposure to virtual social interactions in the treatment of social anxiety disorder: a randomized controlled trial. Behav. Res. Ther. 77, 147–156. doi: 10.1016/j.brat.2015.12.016

PubMed Abstract | CrossRef Full Text | Google Scholar

Krijn, M., Emmelkamp, P. M., Biemond, R., de Wilde de Ligny, C., Schuemie, M. J., and van der Mast, C. A. (2004). Treatment of acrophobia in virtual reality: the role of immersion and presence. Behav. Res. Ther. 42, 229–239. doi: 10.1016/S0005-7967(03)00139-6

PubMed Abstract | CrossRef Full Text | Google Scholar

Lieb, K., Zanarini, M. C., Schmahl, C., Linehan, M. M., and Bohus, M. (2004). Borderline personality disorder. Lancet 364, 453–461. doi: 10.1056/NEJMcp1007358

PubMed Abstract | CrossRef Full Text | Google Scholar

Linehan, M. M. (1993). Cognitive-Behavioral Treatment of Borderline Personality Disorder. New York, NY: Guilford Press.

Google Scholar

Linehan, M. M. (2015). DBT® Skills Training Manual, 2nd Edn. New York, NY: Guilford Press.

Linehan, M. M., Korslund, K. E., Harned, M. S., Gallop, R. J., Lungu, A., Neacsiu, A. D., et al. (2015). Dialectical behavior therapy for high suicide risk in individuals with borderline personality disorder: a randomized clinical trial and component analysis. JAMA Psychiatry 72, 475–482. doi: 10.1001/jamapsychiatry.2014.3039

PubMed Abstract | CrossRef Full Text

Linehan, R. (2002). “From suffering to freedom through acceptance” in Disc Track 4, Observing Sounds, and Disc 2 Track 5, “Wise Mind.” Avilable online at: http://behavioraltech.org/products/details.cfm?pc=CD01

Manzoni, G. M., Cesa, G. L., Bacchetta, M., Castelnuovo, G., Conti, S., Gaggioli, A., et al. (2016). Virtual reality-enhanced cognitive-behavioral therapy for morbid obesity: a randomized controlled study with 1 year follow-up. Cyberpsychol. Behav. Soc. Netw. 19, 134–140. doi: 10.1089/cyber.2015.0208

PubMed Abstract | CrossRef Full Text | Google Scholar

McClure, G., Hawes, D. J., and Dadds, M. R. (2016). Borderline personality disorder and neuropsychological measures of executive function: a systematic review. Personal. Ment. Health. 10, 43–57. doi: 10.1002/pmh.1320

PubMed Abstract | CrossRef Full Text | Google Scholar

Opris, D., Pintea, S., García-Palacios, A., Botella, C., Szamosközi, S., and David, D. (2012). Virtual reality exposure therapy in anxiety disorders: a quantitative meta-analysis. Depress. Anxiety 29, 85–93. doi: 10.1002/da.20910

PubMed Abstract | CrossRef Full Text | Google Scholar

Rizzo, A. S., Difede, J., Rothbaum, B. O., Reger, G., Spitalnick, J., Cukor, J., et al. (2010). Development and early evaluation of the Virtual Iraq/Afghanistan exposure therapy system for combat-related PTSD. Ann. N.Y. Acad. Sci. 1208, 114–125. doi: 10.1111/j.1749-6632.2010.05755.x

PubMed Abstract | CrossRef Full Text | Google Scholar

Rothbaum, B. O., Hodges, L. F., Ready, D., Graap, K., and Alarcon, R. D. (2001). Virtual reality exposure therapy for Vietnam veterans with posttraumatic stress disorder. J. Clin. Psychiatry. 62, 617–622. doi: 10.4088/JCP.v62n0808

PubMed Abstract | CrossRef Full Text | Google Scholar

Rothbaum, B. O., Hodges, L., Watson, B. A., Kessler, C. D., and Opdyke, D. (1996). Virtual reality exposure therapy in the treatment of fear of flying: a case report. Behav. Res. Ther. 34, 477–481.

PubMed Abstract | Google Scholar

Slater, M., and Wilbur, S. (1997). A framework for immersive virtual environments (FIVE): speculations on the role of presence in virtual environments. Presence Teleoper Virtual Environ. 6, 603–616.

Google Scholar

Soler, J., Valdepérez, A., Feliu-Soler, A., Pascual, J. C., Portella, M. J., Martín-Blanco, A., et al. (2012). Effects of the dialectical behavioral therapy-mindfulness module on attention in patients with borderline personality disorder. Behav. Res. Ther. 50, 150–157. doi: 10.1016/j.brat.2011.12.002

PubMed Abstract | CrossRef Full Text | Google Scholar

Stoffers, J. M., Völlm, B. A., Rücker, G., Timmer, A., Huband, N., and Lieb, K. (2012). Psychological therapies for people with borderline personality disorder. Cochrane Database Syst. Rev. 8:CD005652. doi: 10.1002/14651858.CD005652.pub2

PubMed Abstract | CrossRef Full Text | Google Scholar

Swan, A. J., Carper, M. M., and Kendall, P. C. (in press). In pursuit of generalization: an updated review. Behav. Ther. doi: 10.1016/j.beth.2015.11.006. Available online at: http://ac.els-cdn.com/S0005789415001264/1-s2.0-S0005789415001264-main.pdf?_tid=de452cb6-8b49-11e6-8fb0-00000aab0f26&acdnat=1475706186_20b2e459376a02398def4c309fa4747d

CrossRef Full Text

Wender, R., Hoffman, H. G., Hunner, H. H., Seibel, E. J., Patterson, D. R., and Sharar, S. R. (2009). Interactivity influences the magnitude of virtual reality analgesia. J. Cyber. Ther. Rehabil. 2, 27–33.

PubMed Abstract | Google Scholar

Wendrich, R., Chambers, K. H., Al-Halabi, W., Seibel, E. J., Grevenstuk, O., Ullman, D., et al. (2016). “Hybrid design tools in a social virtual reality using networked oculus rift: a feasibility study in remote real-time interaction,” in Proceedings of the International Design Engineering Technical Conference & Computers and Information in Engineering Conference (Charlotte, NC).

Google Scholar

Wiederhold, B. K., Riva, G., and Gutiérrez-Maldonado, J. (2016). Virtual reality in the assessment and treatment of weight-related disorders. Cyberpsychol. Behav. Soc. Netw. 19, 67–73. doi: 10.1089/cyber.2016.0012

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: virtual reality, borderline personality, mindfulness, dialectical behavioral therapy, emotion regulation

Citation: Nararro-Haro MV, Hoffman HG, Garcia-Palacios A, Sampaio M, Alhalabi W, Hall K and Linehan M (2016) The Use of Virtual Reality to Facilitate Mindfulness Skills Training in Dialectical Behavioral Therapy for Borderline Personality Disorder: A Case Study. Front. Psychol. 7:1573. doi: 10.3389/fpsyg.2016.01573

Received: 28 June 2016; Accepted: 27 September 2016;
Published: 02 November 2016.

Edited by:

Gian Mauro Manzoni, Università degli Studi eCampus, Italy

Reviewed by:

Deborah Phillips, Harvard University, USA
Raffaella Calati, IRCCS Centro S. Giovanni di Dio-Fatebenefratelli, Italy

Copyright © 2016 Nararro-Haro, Hoffman, Garcia-Palacios, Sampaio, Alhalabi, Hall and Linehan. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Hunter G. Hoffman, hoontair@gmail.com
