Methods ARTICLE

Front. Psychol., 12 July 2017 | https://doi.org/10.3389/fpsyg.2017.01142

The Indecision Model of Psychophysical Performance in Dual-Presentation Tasks: Parameter Estimation and Comparative Analysis of Response Formats

  • Departamento de Metodología, Facultad de Psicología, Universidad Complutense, Madrid, Spain

Psychophysical data from dual-presentation tasks are often collected with the two-alternative forced-choice (2AFC) response format, asking observers to guess when uncertain. For an analytical description of performance, psychometric functions are then fitted to data aggregated across the two orders/positions in which stimuli were presented. Yet, order effects make aggregated data uninterpretable, and the bias with which observers guess when uncertain precludes separating sensory from decisional components of performance. A ternary response format in which observers are also allowed to report indecision should fix these problems, but a comparative analysis with the 2AFC format has never been conducted. In addition, fitting ternary data separated by presentation order poses serious challenges. To address these issues, we extended the indecision model of psychophysical performance to accommodate the ternary, 2AFC, and same–different response formats in detection and discrimination tasks. Relevant issues for parameter estimation are also discussed along with simulation results that document the superiority of the ternary format. These advantages are demonstrated by fitting the indecision model to published detection and discrimination data collected with the ternary, 2AFC, or same–different formats, which had been analyzed differently in the sources. These examples also show that 2AFC data are unsuitable for testing certain types of hypotheses. MATLAB and R routines written for our purposes are available as Supplementary Material, which should help spread the use of the ternary format for dependable collection and interpretation of psychophysical data.

Psychophysical data are widely collected with dual-presentation (2P) tasks whose trials display two stimuli of selected magnitudes. These tasks are often administered with the two-alternative forced-choice (2AFC) response format in which observers report the stimulus perceived to have some characteristic. Thus, in 2P detection tasks, one stimulus (the standard) has null magnitude on all trials whereas the other (the test) has a non-null magnitude that varies across trials and observers report which presentation displayed the non-null stimulus. In 2P discrimination tasks, the standard has a fixed non-null magnitude whereas the test varies in magnitude across trials and observers report which presentation displayed a stimulus of, say, higher magnitude. Presentations can occur in consecutive temporal intervals or in adjacent spatial positions, rendering temporal or spatial 2P tasks. Because the temporal or spatial aspect is formally inconsequential (though perceptually relevant; see García-Pérez et al., 2005), presentations will here be denoted “first” and “second” to indicate either temporal order or positional order (location).

Across trials, standard and test are displayed about equally often in each presentation order except under the reminder paradigm (Macmillan and Creelman, 2005, p. 180–182) in which the standard is presented first on all trials, but this paradigm will not be considered here. Responses are aggregated across presentation orders and binned by test magnitude (henceforth, level) to compute the proportion of trials in which observers were correct in detection tasks or in which they reported the test to be subjectively higher in discrimination tasks (i.e., they chose the first presentation when the test was first or the second presentation when it was second). A plot of these proportions as a function of test level delineates a curve to which a psychometric function is fitted for an analytical description of performance.

Two aspects of this widespread practice are questionable. One of them is the aggregation of responses across presentation orders, which is justifiable only if performance is invariant with presentation order. Overwhelming evidence to the contrary has been reported in a number of sensory modalities and stimulus dimensions (see, e.g., Jamieson and Petrusic, 1975; Allan, 1977; Jamieson, 1977; Masin and Agostini, 1991a,b; Hellström, 2003; Hellström and Rammsayer, 2004, 2015; Alcalá-Quintana and García-Pérez, 2011; García-Pérez and Alcalá-Quintana, 2011a; Dyjas et al., 2012; Dyjas and Ulrich, 2014; van den Berg et al., 2017). This evidence led Ulrich and Vorberg (2009; see also García-Pérez and Alcalá-Quintana, 2011b) to stress that separate psychometric functions should be fitted for each presentation order under suitable constraints and to develop software that accomplishes this goal, although only for discrimination tasks (Bausenhart et al., 2012).

The second questionable aspect is the assumption that observers can always make an informed decision about which stimulus has the target characteristic. The assumption seems grounded on the feasibility of a decision based on the perceived difference relative to a fixed cut point (typically placed at 0), as posited by the signal-detection-theoretic difference model for 2AFC responding (see Figure 7.2 in Macmillan and Creelman, 2005). However, such decision model is in contradiction with the difference model for same–different responding, a response format for 2P tasks in which observers report instead whether or not the two stimuli are subjectively equal. The decision model here posits that observers cannot tell which stimulus has a higher magnitude (and, hence, respond “same”) if the perceived difference is within some vicinity of 0 (see Figure 9.5 in Macmillan and Creelman, 2005). In other words, the decision rule presumed to underlie performance under 2AFC responding (referred to as the comparative task; Schneider, 2006; Dyjas and Ulrich, 2014) implies that observers will never report equality under same–different responding (referred to as the equality task), whereas the decision rule presumed to underlie performance in the equality task implies that observers must guess in a comparative task when both stimuli are subjectively equal. This contradiction may be explained away with the ad-hoc argument that observers are capable of perceiving subjective equality only under same–different responding. However, researchers acknowledge that observers may also perceive equality under 2AFC responding and explicitly instruct them to guess in such cases (e.g., Allan, 1977; Tolhurst and Barfield, 1978; Jenkins, 1985; Schneider, 2006; Norman et al., 2011; Brown et al., 2015). It would certainly make more sense to ask observers to report their indecision instead. Indeed, guessing alters psychometric functions according to the bias with which observers respond “first” or “second” when uncertain (see, e.g., Figure 1 in Pastore and Farrington, 1996) and introduces a contamination that precludes separating the sensory and decisional components of performance.

Removing this contamination requires administering the 2P task with a ternary response format in which observers are still given the classical response options (i.e., choose one stimulus or the other) but they are also allowed to report that both stimuli were subjectively equal. The ternary format was widely used by Fechner (1860/1966) and by most of the early psychophysicists (see the first few chapters in Link, 1992), but it fell in disuse when signal detection theory was introduced. A recent attempt to reinstate the ternary format (Rammsayer and Ulrich, 2001) did not meet immediate recognition perhaps because analyzing ternary data is not straightforward, less so when order effects have to be taken into account. In addition, it has never been established that the ternary format pays off: A comparison with binary response formats has never been conducted.

This paper has two goals. Firstly, to document the advantages of the ternary format relative to the 2AFC or same–different formats, in terms of the accuracy with which model parameters and performance measures can be estimated. Secondly, to discuss aspects of the fitting of psychometric functions to ternary detection and discrimination data, showing along the way that 2AFC data are unsuitable to test certain types of hypotheses. The indecision model (García-Pérez and Alcalá-Quintana, 2010a) is amended and extended for these purposes so that it also accommodates the 2AFC and same–different formats. A description of the amended model is first given, followed by a description of its application to binary response formats. Simulation results are then presented that document the higher accuracy of parameter estimates from ternary data. Aspects of parameter estimation and hypothesis testing are finally illustrated via analysis of published detection and discrimination data collected with the ternary, 2AFC, or same–different formats, which had been analyzed differently in the sources. Routines (in MATLAB and R) to fit the indecision model were written for our purposes and are available as Supplementary Material, which should help to spread the use of the ternary format. In empirical practice, use of the ternary response format only requires that observers be given a third response key to express indecision whenever needed, with no change in any other aspect of the psychophysical paradigm. Data analysis is subsequently adapted to the characteristics of ternary data but the routines just mentioned carry out that task.

The Ternary Indecision Model of Psychophysical Judgments

The original form of the indecision model has been presented elsewhere (García-Pérez and Alcalá-Quintana, 2010a,b, 2011a, 2013; García-Pérez, 2014a; Sridharan et al., 2014; see also García-Pérez and Peli, 2014, 2015; Pritchett and Murray, 2015; Self et al., 2015). The following description expands the model in some respects and highlights important features that are relevant to parameter estimation.

The indecision model is analogous to the signal-detection model for a rating task with three response categories. Thus, the decision variable D = S2S1 is the difference between the sensory effect S2 of the stimulus presented second and the sensory effect S1 of the stimulus presented first, and the decision space is partitioned into three regions each associated with one of the judgments (Figure 1A). Sensory effects are assumed to be normally distributed with unit variance and a mean determined by stimulus level, but normality can be replaced with distributional forms that are more appropriate in some cases (see, e.g., García-Pérez and Peli, 2014). The sensory effect S of a stimulus with level x is thus a random variable with density

f(s;x)=12π exp [(s  μ(x))22],    (1)

where μ is the psychophysical function relating mean sensory effect to stimulus level.

FIGURE 1
www.frontiersin.org

Figure 1. Components of the indecision model. (A) Decision space with boundaries at δ1 and δ2, not necessarily placed symmetrically about the null value of the decision variable D defined as the difference between the sensory effect S2 of the stimulus presented second and the sensory effect S1 of the stimulus presented first. The observer chooses the first presentation if D < δ1, chooses the second presentation if D > δ2, and is undecided if δ1 < D < δ2. (B) Psychophysical function μ in Equation (2) (solid curve) and its oblique asymptote (dotted line). (C) Illustration of the unidentifiability of parameter α in discrimination tasks at suprathreshold stimulus levels within the linear range of μ. Consider the five test levels indicated along the horizontal axis, with the standard stimulus at the central level. Whether mapped onto the subjective axis via the black curve or via the red curve (which differ only as to parameter α), the relative distance between the sensory effects of all pairs of stimuli are identical and only their locations along the vertical axis (which is immaterial) varies with α.

The form of μ has been under scrutiny for decades and it is still unclear whether a unique form exists (Kornbrot, 2016). Nevertheless, some aspects of the mathematical form of μ are immaterial in 2P tasks, where the values μ(x1) and μ(x2) at the stimulus levels x1 and x2 displayed first and second are not crucial and only their difference matters. We use the form

μ(x)=log(1+2e(x-α)/β),    (2)

an increasing function (Figure 1B) with a lower asymptote at y = 0 and an oblique asymptote at y = log(2) + (x − α)/β. Thus, mean sensory effects are null at low (imperceptible) levels, subsequently grow slowly and non-linearly, and finally grow linearly with a slope of 1/β in the suprathreshold range. This choice accommodates stimulus dimensions in any range and scale, but two considerations should be made.

In discrimination tasks, the standard may differ from the test along dimensions other than that of comparison (e.g., the dimension of comparison is line length but standard and test lines differ in orientation). When the extra dimension affects perceived magnitude, separate functions μs and μt hold for standard and test, and both must be considered. When test and standard differ only along the dimension of comparison or when the extra dimension in which they differ does not have perceptual effects, μs = μt. This is also the case in detection tasks. The model is described here with μs ≠ μt because μs = μt results in straightforward simplifications. It should be stressed that, in some discrimination studies, whether or not μs = μt is a hypothesis that the data should allow testing.

The second consideration relates to the identifiability of the parameters of μ. In detection tasks, where the null standard at xs sets an anchor at μs(xs) = 0 along the subjective axis, test levels probe the initial non-linear range of μt. Hence, parameters αt and βt are identifiable. In a suprathreshold discrimination task, where only the linear range of μt is involved, the anchor μs(xs) ≠ 0 set by the standard is unknown and, given that μt(x) − μs(xs) = (x − αt − βt(xs − αs)/βs)/βt within the linear range, parameter αt is not identifiable. Figure 1C illustrates the unidentifiability of αt when μs = μt, which simplifies the preceding expression to μt(x) − μs(xs) = (xxs)/βt and makes even more explicit that αt is not identifiable. This unidentifiability is an inherent feature of difference models and it has been shown to arise for many forms of μ (e.g., García-Pérez and Alcalá-Quintana, 2013; García-Pérez, 2014a), but it is inconsequential when the non-identifiable parameters are replaced with identifiable combinations or when one or more of them are fixed to arbitrary but reasonable anchor values.

The decision variable D is normally distributed with variance 2 and mean μs(xs) − μt(x) if the test is presented first or μt(x) − μs(xs) if the test is presented second. Given a decision space with boundaries at δ1 and δ2 (Figure 1A), the probabilities pF,m, pU,m, and pS,m of a “first” (F), “undecided” (U), or “second” (S) judgment when the test at level x is presented in interval m ∈ {1, 2} are

pF,1(x)=Φ(δ1-μs(xs)+μt(x)2)    (3a)
pU,1(x)=Φ(δ2-μs(xs)+μt(x)2)                       - Φ(δ1-μs(xs)+μt(x)2)    (3b)
pS,1(x)=1-Φ(δ2-μs(xs)+μt(x)2)    (3c)
pF,2(x)=Φ(δ1-μt(x)+μs(xs)2)    (3d)
pU,2(x)=Φ(δ2-μt(x)+μs(xs)2)                       - Φ(δ1-μt(x)+μs(xs)2)    (3e)
pS,2(x)=1-Φ(δ2-μt(x)+μs(xs)2),    (3f)

where Φ is the unit-normal cumulative distribution. Figure 2 illustrates the model for a discrimination task in three scenarios: μs = μt with δ1 = −δ2 (Figure 2A), μs ≠ μt with δ1 = −δ2 (Figure 2B), and μs ≠ μt with δ1 ≠ −δ2 (Figure 2C). If δ1 and δ2 are not placed symmetrically about D = 0 (i.e., δ1 ≠ −δ2), decisional bias occurs and the psychometric functions for each presentation order are displaced in opposite directions relative to the common location that they would have without such bias (compare the bottom panels in Figures 2B,C). With or without decisional bias, μs ≠ μt shifts the vertical axis of symmetry away from x = xs (compare the bottom panels in Figures 2A,B).

FIGURE 2
www.frontiersin.org

Figure 2. Illustration of the model under three scenarios (columns) in a visual contrast discrimination task: (A) μt = μs and δ1 = −δ2; (B) μt ≠ μs and δ1 = −δ2; (A) μt ≠ μs and δ1 ≠ −δ2. First row: Assumed psychophysical functions for standard and test stimuli, given by Equation (2) with αs = αt = −1.05 and βs = βt = 0.08 in (A) or αs = −1.05, αt = −1.25, βs = 0.08, and βt = 0.14 in (B) and (C). The standard level (xs = −0.7) and its mapping onto subjective space via either psychophysical function are indicated by the vertical–horizontal thin line segments. Second row: Decision space and distribution of the decision variable D when a test stimulus at x = xs is presented first. The shaded areas give the probability of each possible judgment, determined by decision boundaries at δ1 = −1.5 and δ2 = 1.5 in (A) and (B) or at δ1 = −2 and δ2 = 1 in (C). Third row: Analogous to the second row, but the distribution of D is shown when the test is presented second. Fourth row: Psychometric functions for each possible response under each presentation order, with color codes as in the second and third rows. The dashed vertical line indicates the standard level; the solid vertical line, which occludes the dashed vertical line in (A), indicates the PSE.

The point of subjective equality (PSE) is the test level at which the (average) perceived magnitudes of test and standard are equal. Under 2AFC responding, the PSE is extracted as the abscissa at which the psychometric function for “test higher” responses evaluates to 0.5, but this method is inappropriate under the ternary format. By definition, the PSE is the level xPSE at which μt(xPSE) = μs(xs) and, thus, xPSE=μt-1(μs(xs)). The PSE is then extracted from the estimated psychophysical functions and, naturally, xPSE = xs when μt = μs.

The difference limen (DL) can also be determined from discrimination data collected with the ternary format. Under 2AFC responding, the DL is extracted as the distance between the PSE and the level xDL at which the psychometric function for “test higher” responses evaluates to, say, 0.75, but this approach is again inappropriate under the ternary format. By definition, xDL is the level at which the probability is 0.75 that the sensory effect St of the test exceeds the sensory effect Ss of the standard, that is, the solution of Prob(St − Ss > 0) =.75. With normally-distributed sensory effects, xDL=μt-1(μs(xs)+z0.752), where z0.75 is the 75th quantile of the unit-normal distribution.

Similar considerations hold for detection tasks in which PSEs and DLs are undefined. Instead, the detection threshold is defined under 2AFC responding as the level at which the psychometric function for correct responses evaluates to, say, 0.84. This method is inappropriate under the ternary format. The detection threshold is the level θ at which the probability is 0.84 that the sensory effect of the test exceeds that of the null standard, that is, the solution of Prob(St − Ss > 0) =.84. With normally-distributed sensory effects, θ=μt-1(z0.842). For a thorough discussion of detection and discrimination thresholds and their relation to the psychophysical function, see García-Pérez and Alcalá-Quintana (2007).

Equation 3 supply the probability of judgments as a function of test level for each presentation order and they were regarded as the observable psychometric functions in the original model. But this is not necessarily true and an amendment is needed because judgments are not always reliably reported due to key-press errors or for other reasons. This amendment is analogous to the addition of lapse-rate parameters to conventional psychometric functions. Let ϵF,m, ϵU,m, and ϵS,m be the probabilities that an observer misreports F, U, and S judgments, respectively, when the test is presented in interval m ∈ {1, 2}. Misreporting a given judgment can take two forms. Let κX−Y,m be the bias toward misreporting an X judgment as a Y response when the test is presented in interval m so that κX−Z,m = 1 − κX−Y,m is the bias toward misreporting an X judgment as a Z response. Then, only three bias parameters are free for each presentation order, say, κF−U,m, κU−F,m, and κS−F,m. Figure 3A illustrates the mapping of judgments onto responses when misreports occur. The observable psychometric functions for F, U, and S responses under each presentation order are then

ΨF,m(x)=(1-εF,m)pF,m(x)+εU,mκU-F,mpU,m(x)                           + εS,mκS-F,mpS,m(x)    (4a)
ΨU,m(x)=εF,mκF-U,mpF,m(x)+(1-εU,m)pU,m(x)                           +εS,mκS-U,mpS,m(x)    (4b)
ΨS,m(x)=εF,mκF-S,mpF,m(x)+εU,mκU-S,mpU,m(x)                           +(1-εS,m)pS,m(x),    (4c)

where the p's come from Equations (3). Note that Equations (4) revert to Equations (3) when all ε's are zero (i.e., when judgments are never misreported, as was assumed in the original model).

FIGURE 3
www.frontiersin.org

Figure 3. (A) Tree diagram describing the mapping of judgments (which occur with probabilities given by the p's at the far left, given the applicable test and standard levels) onto responses (rightmost column) when response errors may occur. The subscript denoting the interval in which the test is presented has been dropped, but judgment probabilities (p's) as well as error (ε's) and bias (κ's) parameters may vary across presentation orders. Recall that only one of the two κ's at each branching point is a free parameter, as they add up to unity. (B) Labels for error models according to whether or not they include each of the error parameters. Inclusion of an error parameter implies that its value as well as that of its associated κ must be estimated from the data for the corresponding presentation order; exclusion implies that the error parameter is assumed to be zero and, hence, that the applicable branches are removed from the tree diagram, which removes along the way the associated κ's.

Errors rarely occur in all forms under both presentation orders. Figure 3B shows that there are eight error models per presentation order according to how many and which of the ε's are included and, hence, 64 combinations across presentation orders. Model (0, 0) is the original model and involves the least number of free parameters: only two or three from the psychophysical functions (see below) plus δ1 and δ2; at the other end, model (1, 1) assumes that errors occur in all possible forms and adds six error/bias parameters per presentation order. In the analysis of empirical data, fitting model (1, 1) routinely may result in null estimates of some of the ε's, indicating that those ε's and their associated κ's should not have been included. Unnecessary parameters do not affect the quality of the fit but they have consequences for goodness-of-fit assessments. Consideration of all error models allows choosing a model without unnecessary error parameters.

The number of parameters coming from the psychophysical functions deserves commentary. When μt = μs, only one set of α and β is involved (top panel in Figure 2A), potentially resulting in two free parameters. With detection data both parameters are identifiable, but α is not identifiable with suprathreshold discrimination data, as discussed above. When μt ≠ μs instead, two sets of α and β seem necessary but the use of a single standard level precludes estimating the parameters of μs because only μs(xs) manifests by setting an anchor. In this case, the free parameters are μs(xs), αt, and βt, although αt will not be identifiable with suprathreshold discrimination data.

Accommodating the Classical 2AFC and Same–Different Response Formats

The indecision model assumes that judgments precede responses and are unaffected by how the response format asks observers to report them. Under the ternary format, judgments lead to responses as discussed in the preceding section. Under the 2AFC format, observers give F or S responses at random upon U judgments; analogously, under the same–different format, observers respond “same” upon U judgments and “different” upon F or S judgments. This allows expressing responses under these binary formats in terms of the indecision model.

Under 2AFC responding, observers behave with εU,m = 1 but not necessarily with κU−F,m = 0.5. Also, F (S) judgments can only be misreported as S (F) responses, making κF−S,m = κS−F,m = 1. This renders the simplified diagram in Figure 4A and turns Equations (4) into

ΨF,m(x)=(1-εF,m)pF,m(x)+κU-F,mpU,m(x)+εS,mpS,m(x)    (5a)
ΨU,m(x)=0    (5b)
ΨS,m(x)=εF,mpF,m(x)+κU-S,mpU,m(x)+(1-εS,m)pS,m(x),    (5c)

with a reduction in the number of free parameters (i.e., only two ε's and a single κ per presentation order). Thus, accommodating 2AFC responding is straightforward without changing the notation.

FIGURE 4
www.frontiersin.org

Figure 4. Characterization of binary response formats in terms of the ternary model. Compared to the tree diagram for the ternary format in Figure 3A, in the 2AFC format (A) observers behave with εU,m = 1, κF−S,m = 1, and κS−F,m = 1; in the same–different format (B) observers behave with εF,m = 1, κU−S,m = 1, and κS−U,m = 1. These simplifications reduce the number of free parameters in the corresponding model.

A change of notation seems necessary to accommodate the same–different format, though only to refer to “same” and “different” responses instead. Mapping F, U, and S judgments onto “same” or “different” responses on consideration that errors can occur turns Equations (4) into

Ψsame,m(x)=εF,mpF,m(x)+(1-εU,m)pU,m(x)+εS,mpS,m(x)    (6a)
Ψdiff,m(x)=(1-εF,m)pF,m(x)+εU,mpU,m(x)                               + (1-εS,m)pS,m(x).    (6b)

To avoid notational changes, same–different responding can be expressed as shown in Figure 4B. Specifically, F judgments are regarded as “misreported” always (i.e., εF,m = 1), either as S responses (to render the aggregated “different” response category) or as “same” responses due to errors; U judgments are reported as “same” responses with probability 1 − εU,m or, due to errors, misreported as “different” responses with probability εU,m; finally, S judgments are reported as “different” responses with probability 1 − εS,m or misreported as “same” responses with probability εS,m. The number of free parameters is also reduced here and Equations (4) become

ΨF,m(x)=0    (7a)
ΨU,m(x)=κF-U,mpF,m(x)+(1-εU,m)pU,m(x)+εS,mpS,m(x)    (7b)
ΨS,m(x)=κF-S,mpF,m(x)+εU,mpU,m(x)+(1-εS,m)pS,m(x).    (7c)

Except for notation, Equations (7) are identical to Equations (6): κF−U in Equation (7b) plays the role of εF in Equation (6a) and κF−S = 1 − κF−U in Equation (7c) plays the role of 1 − εF in Equation (6b).

Yet, a price is paid when forcing observers to misreport U judgments as F or S responses (under 2AFC responding) or to collapse F and S judgments into “different” responses (under same–different responding). Parameter estimates are likely to be less accurate because data that would have been informative separately are now mixed together. This is particularly true under 2AFC responding, where data reflect an inextricable mixture of guesses and authentic F or S responses. An unfortunate byproduct of this mix-up is that decisional and bias parameters are confounded: Observed data can be nearly identically accounted for on the assumptions that observers were never undecided (i.e., δ1 = δ2, which renders the difference model with bias; see Figure 3 in García-Pérez and Alcalá-Quintana, 2011a) or that they were undecided to some extent (i.e., δ1 ≠ δ2) and gave F responses with a bias captured by parameters κU−F,m. Note that δ1 = δ2 makes pU = 0 in the diagram of Figure 4A (see Equations 3b,e), eliminating κU−F,m along the way. The classical decision rule for 2AFC responding (i.e., U judgments do not occur) can thus be accommodated by the indecision model via enforcing the assumption that δ1 = δ2, which eliminates three free parameters (δ2, κU−F,1, and κU−F,2). None of this applies under same–different responding because the mere presence of “same” responses implies δ1 ≠ δ2.

It must be noted that 2AFC or same–different data should be adequately fitted by the ternary model without the modifications just discussed. The absence of U responses (in 2AFC data) or the absence of F responses (in our characterization of same–different data) should return 0's or 1's for the applicable error and bias parameters in the diagrams of Figure 4. We will show that this is the case with the examples given later in this paper, but the fact that those parameters valued at 0 or 1 are fixed and not free must be considered on assessing goodness of fit.

Comparison of Parameter Estimates from Ternary vs. Binary Data

Model presentation in the preceding sections suggests that ternary data should provide more accurate estimates of sensory and decisional parameters than binary data. The surmise gains support from the results of an analogous comparison for single-presentation tasks (where a single stimulus is presented in each trial for observers to report a judgment; see García-Pérez and Alcalá-Quintana, 2012). Evidence on the superiority of the ternary format in 2P tasks is lacking and this section reports simulation results that demonstrate it.

It is important to stress first the scope of these simulations. If data are scarce, collected at uninformative test levels, or corrupted by inappropriate experimental control, parameter estimates will be inaccurate, biased, or non-sensical. Issues such as optimal strategies to maximize the informative value of the data (e.g., adaptive data collection) or optimal sample sizes (i.e., number of test levels and number of trials per level) are not addressed in these simulations, as they do not bear on a comparison of response formats (for some results regarding those issues, see, e.g., Dai, 1995; Lam et al., 1996, 1999; García-Pérez and Alcalá-Quintana, 2005; Chaudhuri and Merfeld, 2013; García-Pérez, 2014b; Karmali et al., 2016). The goal of these simulations is instead to assess parameter recovery when sufficient data are collected at informative test levels. The simulations assess the ability to estimate relevant parameters when αt is not identifiable and, more generally, the relative precision of parameters estimated from ternary data vs. 2AFC or same–different data.

To make results comparable across conditions, the same true parameters (which varied across 2,000 replicates) were used in seven scenarios resulting from a combination of tasks (detection or discrimination) and response formats (ternary, 2AFC, or same–different): ternary detection, 2AFC detection, ternary discrimination with μs = μt, 2AFC discrimination with μs = μt, ternary discrimination with μs ≠ μt, 2AFC discrimination with μs ≠ μt, and same–different discrimination with μs = μt. The context of reference is visual contrast perception but the results do not depend on context. True parameters were drawn from uniform distributions on [−3, −2] for αt, on [0.05, 0.10] for βt, on [−4, −2] for δ1, and on [2, 4] for δ2. In scenarios involving discrimination with μs ≠ μt, the anchor μs(xs) was drawn from a uniform distribution on [μt(xs) − 1, μt(xs) + 1]. Simulations were run under error model (1, 1) with error and bias parameters drawn from uniform distributions on [0, 0.02] and [0, 1], respectively, and also under error model (0, 0) with all error parameters set to 0. In scenarios involving binary formats, the applicable error and bias parameters were set to the fixed values that hold in each case (Figure 4).

In all scenarios, responses were simulated to 40 trials at each of the same 11 test levels for each presentation order. For detection, the central test level was the true αt in the current replicate rounded to the nearest multiple of 0.1 whereas, for discrimination, the central test level was the standard level xs = −1 (a suprathreshold level given the ranges of αt and βt); in either case, the remaining levels moved out in steps of 0.1 units in each direction. Note that the constant spacing of test levels is not adjusted to the steepness of μt (i.e., the true value of βt) in each replicate.

Maximum-likelihood parameter estimates were obtained for each replicate with the method described in the next section, using multiple starting points to minimize the chances of missing the global optimum (further details are given in the Supplementary Material). Detection thresholds or PSEs (as applicable) were subsequently obtained from parameter estimates using the expressions given earlier and compared with the values identically obtained from true parameters.

Figure 5 shows the results in the form of scatter plots of parameter estimates against true values in each scenario (rows) for data without response errors. Consider Figure 5A first, for ternary detection data. The tight packing of symbols along the identity line reveals that all parameters were reasonably well-estimated, also resulting in accurate estimates of the detection threshold (center panel in the row). In comparison, 2AFC data collected under identical conditions (Figure 5B) rendered less accurate estimates, attesting to the inferiority of a response format in which informative F and S responses are mixed up with uninformative guesses. Note that δ1 and δ2 are also very poorly estimated in this case, owing to the confound with the bias for misreporting U judgments: Multiple sets of estimates of δ1, δ2, κU−F,1, and κU−F,2 (with δ1 = δ2 or δ1 ≠ δ2) produce curves that fit the data equally well. A detailed illustration of this characteristic is given below.

FIGURE 5
www.frontiersin.org

Figure 5. Scatter plots of estimates against true parameters in each scenario (rows) for each relevant model parameter (columns; see labels at the top), including performance measures (detection threshold, PSE, and DL; center columns). The dashed diagonal is the identity line; grayed panels denote conditions involving the ternary format. To avoid clutter, symbols are plotted for a random subset of 200 replicates. (A) Ternary detection. (B) 2AFC detection. (C) Ternary discrimination with μs = μt. (D) 2AFC discrimination with μs = μt. (E) Ternary discrimination with μs ≠ μt. (F) 2AFC discrimination with μs ≠ μt. (G) Same–different discrimination with μs = μt.

A comparison of the outcomes for ternary vs. 2AFC data in suprathreshold discrimination with μs = μt (Figures 5C,D) or with μs ≠ μt (Figures 5E,F) offers the same picture: All else equal, estimates from 2AFC data are less accurate than estimates from ternary data. Note that in the four cases under discussion, estimates of αt are very poor compared to those obtained from detection tasks (Figures 5A,B). This evidences the unidentifiability of αt, which does not play any role in suprathreshold discrimination and, hence, cannot be estimated. Interestingly, the unidentifiability of αt does not affect estimation accuracy for the remaining parameters, which varies only with the response format used to collect data. Also, a comparison of the panel for βt in Figure 5A (ternary detection) with those in Figures 5C,D (ternary discrimination) reveals that βt is more accurately estimated with discrimination tasks. This is understandable because detection tasks probe the non-linear range of μt, which is less informative of βt than the linear range probed in suprathreshold discrimination tasks.

Finally, results for same–different data (Figure 5G) fall between those for ternary (Figure 5C) and 2AFC (Figure 5D) data in analogous conditions. This is because aggregating F and S responses into the “different” category is less detrimental than corrupting F and S responses by distributing U judgments at random between them. Poor estimation of αt here is also due to the fact that it does not play any role in suprathreshold discrimination. Finally, note that βt is estimated here with about the same precision provided by ternary data, and the same holds for estimates of δ1 and δ2 because the same–different format does not confound decisional and bias parameters.

Results for data simulated under error model (1, 1) displayed the same trends, although the presence of response errors deteriorated estimation accuracy proportionately in all scenarios. These results are presented in the Supplementary Material.

In sum, model parameters can be estimated more accurately from ternary data than from 2AFC or same–different data. Because the numbers of stimulus levels and trials per level were identical with all formats, empirical cost and burden do not vary with response format and, hence, these results identify the ternary format as the most efficient strategy to collect psychophysical data.

Fitting the Ternary Indecision Model

Harvesting the benefits of the ternary response format requires custom software to estimate model parameters. The Supplementary Material includes MATLAB (http://www.mathworks.com) and R (http://cran.r-project.org) routines that accomplish this goal, usage documentation, and scripts to run the examples in the next section. It should be noted that this software fits the indecision model (extended to incorporate the error model of choice) with the constraints that hold for detection or discrimination data, with the constraints that hold according to the response format, and under the user-selected assumption about (in)equality of μt and μs. The software also fits 2AFC data under the alternative assumptions that δ1 = δ2 or δ1 ≠ δ2. This flexibility permits direct tests of certain hypotheses, although the next section will demonstrate that 2AFC data are unsuitable for these purposes. For an overview of these features, we will briefly describe the MATLAB script in Exhibit 1 and its outcomes, which also serves to introduce the examples to come in the next section.

EXHIBIT 1
www.frontiersin.org

Exhibit 1. MATLAB script to fit the indecision model.

Data come from one of the observers in one of the conditions in García-Pérez and Peli (2015), which involved suprathreshold discrimination with standard and test stimuli for which μt ≠ μs. The data (first assignment in the script) are arranged in an array with as many columns as levels had the test stimulus and with seven rows containing the set of test levels that were used (first row) and the counts of F, U, and S responses at each level when the test was presented first (rows 2–4) and second (rows 5–7). The next line defines the standard level, implicitly indicating that the data come from a discrimination task.

The next line bounds the search space for parameters αt, βt, and δ1 and also for the width δ2 – δ1. Bounds for the ε's and κ's are well-defined as 0 and 1 without user intervention. Bounds are required by the optimization algorithm and issues involving their choice are addressed in the usage documentation. Maximum-likelihood estimates are sought with the MATLAB built-in function fmincon or the R built-in function optim (for further details, see footnote 2 in Alcalá-Quintana and García-Pérez, 2013). These functions also require starting values for each parameter and they are not guaranteed to return the global optimum; then, the script defines several starting values for some parameters, which are factorially combined to obtain a solution for each multidimensional starting point thus defined so as to return the optimal solution across the board. Starting values are defined in the next two lines in the script: a single value for αt, two for βt, three for δ1, and one for the width δ2 – δ1, for the ε's, and for the κ's. The next line sets additional arguments so that the routine returns the best-fitting error model according to the log-likelihood of the data, fits the data under the assumption that psychophysical functions differ for standard and test, displays progress information during its operation, and plots results upon completion; the last assignment states that data were collected with the ternary response format, which anticipates that the same routine fits data collected with the 2AFC or the same–different formats. (For a thorough description of each of these arguments and their functionality, see the usage documentation in the Supplementary Material.) The function is called with these arguments in the last line. The output returned in o is a structure (in MATLAB) or a list (in R) including parameter estimates and complete information about the results. This script produces the plots in Figures 6, 7 and the structure in Figure 8.

FIGURE 6
www.frontiersin.org

Figure 6. Graphical output. Color codes for data points and functions are indicated at the top. The horizontal axis spans the range of test levels. If data come from a discrimination task, as in this case, a vertical dashed line indicates the level of the standard stimulus and a solid vertical line indicates the location of the PSE.

FIGURE 7
www.frontiersin.org

Figure 7. Additional graphical output. The left panel plots the estimated psychophysical function μt for the test, with parameters given in the panel. The horizontal axis spans the range of test levels. If data come from a discrimination task, as in this case, a blue dot at coordinates (xs, μs(xs)) indicates the estimated subjective level of the standard. The blue dot will generally not lie on μt if the latter was assumed to differ from μs. The central panel depicts the estimated boundaries in decision space, plotting also for reference the distribution of the decision variable at the test level x such that μt(x) = μs(xs) (i.e., a Gaussian with mean 0 and variance 2). The right panel depicts the (latent) psychometric functions that would have been observed in the absence of response errors, that is, the probabilities of judgments according to Equations (3).

FIGURE 8
www.frontiersin.org

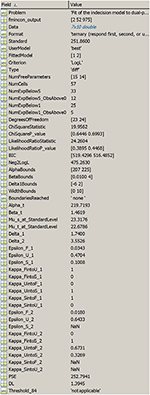

Figure 8. Output structure from the MATLAB function. The output list from the R function is analogous.

The output (Figure 8) includes a label for the problem (field 1) and diagnostic information from fmincon (output flag, number of iterations, and number of function evaluations, in a row vector; field 2),1 the data, the response format, and the standard level (fields 3–5), the user-selected error model and the model for which parameters are returned (fields 6 and 7), the criterion selected to search for the best-fitting model, if applicable (field 8), the type of fit regarding psychophysical functions for test and standard (field 9), the number of free parameters in the fitted model (field 10), the total number of cells for goodness-of-fit tests, the number of cells in which expected frequencies were smaller than 5 and the number of those cells in which observed frequencies were non-null (fields 11–13), the number of cells in which expected frequencies were smaller than 1 and the number of those cells in which observed frequencies were non-null (fields 14 and 15), the degrees of freedom, values, and p-values of Pearson's chi-square (X2) and the likelihood-ratio (G2) goodness-of-fit statistics (fields 16–20), the Bayesian information criterion (BIC) of the fitted model (field 21), the −2LogL of the data under the fitted model (field 22), the user-defined content of AlphaBounds, BetaBounds, Delta1Bounds, and WidthBounds (fields 23–26), a statement indicating which boundaries were reached, if any (field 27), estimates for αt and βt (fields 28 and 29), the estimated anchor μs(xs) and the ordinate of μt at x = xs (fields 30 and 31), estimates of δ1 and δ2 (fields 32 and 33), estimates of the ε and κ parameters when the test was presented first (fields 34–42) and second (fields 43–51), and performance measures (PSE, DL, and detection threshold) as applicable (fields 52–54). Comments regarding these fields are given in the usage documentation, including specificities that apply to 2AFC or same–different data.

Annotated Examples using Published Data

The following examples illustrate and discuss the fitting of the indecision model to data from detection tasks, from discrimination tasks in which the same or different psychophysical functions hold for standard and test, with diverse ranges and scales for test levels, and for data collected with the ternary, 2AFC, or same–different formats. These examples illustrate and discuss the various theoretical options described above to fit ternary, 2AFC, and same–different data, also proving the impossibility to test certain types of hypotheses with 2AFC data. Parameter estimates were obtained with the routine described in the preceding section. All examples use published data that had been analyzed differently in the original sources and each example starts describing relevant aspects of data collection and analysis in each study.

As seen in the accompanying scripts, BetaBounds, Delta1Bounds, WidthBounds, BetaStart, Delta1Start, WidthStart, EpsStart, and KappaStart were set as in Exhibit 1 and they will not be mentioned again (except for WidthBounds and WidthStart in example 4bis to fit 2AFC data enforcing δ1 = δ2). Criteria used to set these arguments are discussed in the usage documentation. AlphaBounds was set differently in each example using a simple criterion that will be discussed here. AlphaStart was always set to a scalar at the midpoint of AlphaBounds. Standard, Format, and Type were set as needed in each example, as they embody theoretical and empirical options to fit the model. Finally, because model selection is not an issue here, Model = 1 was used. All the examples show output of the MATLAB routine; comments regarding the output produced by the R version are given in the usage documentation.

Example 1. Visual Detection of Contrast; Ternary Responses

Data for this example come from a study on contrast detection of Gabor patches (García-Pérez et al., 2011). In different conditions, the target was or was not flanked by suprathreshold patches. Ternary data were collected with a temporal 2P task but U responses were immediately treated as suggested by Fechner (1860/1966), namely, counting them as half correct and half incorrect to render binary data. In some analyses, logistic psychometric functions were fitted to data aggregated across presentation orders (see Figure 4A in García-Pérez et al., 2011). This example fits instead the indecision model to the original ternary data from observers M1, M2, and M3 in the non-flanked condition. Test levels (log contrast) varied across observers due to the adaptive collection of data, but they ranged from −2.45 to −1.55 across the board. The overall number of trials ranged from 884 to 915 across observers and were distributed unevenly across test levels and presentation orders due to the adaptive collection of data.

The script set Standard = −Inf to indicate detection data (see the usage documentation). As for AlphaBounds, the general rule for detection data was used, which consists of setting the lower bound at 3x1 − 2xN and the upper bound at xN, using for each observer the lowest (x1) and highest (xN) test level in the first row of Data.

Graphical results are shown in Figure 9 in a compact form different from that which the function produced (Figures 6, 7 above). The detection threshold θ is shown in the bottom panels and marked by a vertical line in the upper panels. The upper panels thus show where θ lies relative to the rising portions of the psychometric functions for correct responses (blue and cyan curves) and the lower panels show that αt is always slightly below θ. Indeed, θ=μt-1(z0.842)=μt-1(1.406) whereas αt=μt-1(log(3))=μt-1(1.099) (see Figure 1B). Then, a mere look at detection data informs of suitable bounds for αt. Recall also that αt is identifiable in detection tasks, which probe the non-linear range of μt (as is evident in the bottom panels of Figure 9).

FIGURE 9
www.frontiersin.org

Figure 9. Rearranged graphical output for example 1, involving detection data collected from three observers (columns) with a ternary response format. Goodness-of-fit statistics did not reject the fitted model for any observer.

Note that incorrect responses (red and pink data points and curves in Figure 9) are rarely given under the ternary format, the natural consequence of allowing observers to report indecision instead of forcing them to guess (which makes them haphazardly and uninformatively correct or incorrect). Understandably, U responses (black and gray data points and curves) prevail at low test levels and they progressively give way to correct responses (blue and cyan data points and curves) as test level increases. Also, psychometric functions for test-first presentations (dark data points and curves) and test-second presentations (pale data points and curves) are displaced from one another in one direction for the first observer (left column), displaced in the opposite direction for the second observer (center column), and superimposed for the third observer (right column). These are the signatures of decisional bias (or lack thereof) illustrated in Figure 2 above.

Example 2. Visual Discrimination of Contrast; Ternary Responses

Suprathreshold discrimination data for this example come from the same study, observers, and condition, but for the highest standard used with each observer (namely, −0.65, −0.75, and −0.60; see Table 1 in García-Pérez et al., 2011). Data had been originally analyzed as described in the preceding example. Test levels varied across observers for the same reason, but they ranged from −1.275 to −0.15 across the board. The overall number of trials ranged between 324 and 341 across observers, for reasons described in the preceding example.

The script set Standard to the appropriate level for each observer. Because standard and test were identical except for contrast, the script set Type = ‘same’ (see the usage documentation). The true αt is well below the lowest test level used in a suprathreshold discrimination task, but this parameter is unidentifiable (Figure 1C). Although AlphaBounds could be set as in example 1, a more appropriate rule for suprathreshold discrimination data sets the lower bound still at 3x1 − 2xN but the upper bound at 2x1xN instead (i.e., as far below x1 as xN is above x1). Note that AlphaBounds in Exhibit 1 was set with this rule. Use of this rule ensures that μt is linear over the range of test levels, thus preventing the optimization algorithm from getting trapped around a potential local optimum at an inadequately large αt.

Results are shown in Figure 10 in compact form. The blue circle depicting the standard in the bottom panels lies on μt and the PSE is not reported because Type = ‘same’ implies xPSE = xs. Recall that αt is unidentifiable and does not contribute to the fit. Then, arbitrary estimates of αt (bottom panels in Figure 10) do not match the dependable estimates obtained from detection data for the same observers (Figure 9). There are also discrepancies with the estimates of βt from detection data for the same observers (Figure 9), surely reflecting the differences that the simulation results in Figure 5 revealed for estimates of βt from detection tasks (which are not very informative about βt) and from informative discrimination tasks.

FIGURE 10
www.frontiersin.org

Figure 10. Rearranged graphical output for example 2, involving discrimination data collected from three observers (columns) with a ternary response format. Standard and test stimuli were identical except along the dimension of comparison and, hence, a common psychophysical function holds. Goodness-of-fit statistics did not reject the fitted model for any observer.

Decisional bias is also seen to vary across observers in these results, both in direction and in magnitude. In addition, the different height and breadth of the patterns of U responses (black and gray data points and curves) reflects the extent to which observers were undecided at test levels in the vicinity of the standard, an extent captured by the distance between estimated δ1 and δ2. (These distances cannot be appreciated in the simplified plots of Figure 10 but they are displayed in the original form of the plots created by the software, as seen in Figure 7; in general, the larger the distance between δ1 and δ2, the taller and broader the psychometric function for U responses.)

Example 3. Visual Discrimination of Line Length; Ternary Responses

Data for this example come from a study on the perceived length of vertical and horizontal lines (García-Pérez and Alcalá-Quintana, 2011b). Data from two observers in the spatial discrimination task were presented in Table 2 of that paper, separated by the location in which the vertical (test) line was presented. Overall, 100 trials were administered with each presentation order at each test level. The original analyses kept presentation order separate but U responses were also treated with Fechner's method to render binary data before fitting logistic psychometric functions that satisfy theoretical constraints on slopes and locations (see Figure 4 in García-Pérez and Alcalá-Quintana, 2011b). A re-analysis (see Figure 5 in García-Pérez and Alcalá-Quintana, 2013) fitted the indecision model to the original ternary data using what we call error model (0, 0) here.

The script that fits error model (1, 1) instead set Standard = 104 (i.e., the length of the standard horizontal line, in pixels) and Type = ‘diff’ because the psychophysical function relating perceived length to physical length varies with line orientation (Armstrong and Marks, 1997). The detection threshold for length lies at the spatial resolution limit of the visual system and, thus, in the current units (pixels) the true αt is surely below unity, although its value is impossible to estimate from suprathreshold discrimination data. The script set AlphaBounds = [−5 5], although the general rule for discrimination data discussed in example 2 could also have been used. Results are shown in Figure 11. Because αt is unidentifiable, the fact that its estimate hits the upper bound in the right column of Figure 11 should not be regarded as a problem that calls for a rerun with broader bounds.

FIGURE 11
www.frontiersin.org

Figure 11. Rearranged graphical output for example 3, involving discrimination data collected from two observers (columns) with a ternary response format. Besides the dimension of comparison (i.e., length), standard and test stimuli differed in orientation and, hence, data were fitted under the assumption that different psychophysical functions hold for test and standard. Goodness-of-fit statistics did not reject the fitted model for any observer.

Interpretation of the results in terms of decisional bias and extent of indecision is as in the preceding example. On another front, it is clear beforehand that these data must be accounted for with μt ≠ μs, as this is an established fact for perceived line length. Yet, it may not be immediately obvious in other cases whether μt ≠ μs holds. A comparison of the results returned by otherwise identical scripts that set Type = ‘diff’ and Type = ‘same’ should be informative on this issue. Re-running the script for this example with the latter option understandably results in an awful fit, whether judged by eye or via goodness-of-fit statistics. It should be stressed that the ternary format must be used for testing the alternative hypotheses that μt = μs or μt ≠ μs when the perceptual relevance of the extra dimension on which test and standard differ in a discrimination task is unclear. The reason is that U responses establish that δ1 ≠ δ2 (whose values must be estimated still), thus eliminating the confound present in 2AFC discrimination data. We will come back to this issue in the discussion of example 6 below.

Example 4. Visual Detection of Contrast; 2AFC Responses (U Not Allowed)

Data for this example come from a study on contrast detection with the 2AFC format in a temporal 2P task (García-Pérez, 2000). The target was a Gabor patch and 350 trials were administered at each test level. Presentation order was randomized and, hence, the numbers of trials with each presentation order were not identical at each test level. The original analysis fitted a Weibull psychometric function to data aggregated across presentation orders (see Figure 8 in García-Pérez, 2000). To fit the indecision model here, the script set Standard = −Inf (to indicate detection data) and Format = ‘2AFC’ (see the usage documentation). AlphaBounds was set for each observer with the general rule discussed in example 1 for detection data.

Results are shown in Figure 12. Only data and psychometric functions for correct responses (i.e., F responses when the test was first and S responses when it was second) are plotted, as U data and functions are trivially zero under 2AFC responding whereas data and functions for incorrect responses are redundant.

FIGURE 12
www.frontiersin.org

Figure 12. Rearranged graphical output for example 4, involving detection data collected from three observers (columns) with the classical binary response format in which observers are asked to guess when uncertain. Goodness-of-fit statistics rejected the fitted model for the first observer, despite the close correspondence between the path of the data and the fitted curves.

We mentioned above that the intact indecision model should fit 2AFC data identically. Readers can confirm this by re-running the script after setting Format = ‘ternary’. The resultant plots differ by showing data and psychometric functions for all three response categories, but fitted curves for F (or S) responses when the test was first (or second) are identical to those in Figure 12. Yet, since 2AFC data confound decisional and bias parameters, parameter estimates from 2AFC and ternary fits differed slightly. Differences were large only for the second observer due to uninformative data from test-second presentations (cyan curve and data points in the center column of Figure 12), which describe an essentially flat pattern compatible with multiple parametric solutions. Recall also that the reported counts of free parameters and degrees of freedom and the reported p-values are incorrect when the ternary model is fitted to binary data such as these.

When data are collected with the 2AFC response format, information is lacking as to whether observers were ever undecided. Results in Figure 12 account for the data on the assumption that they were, via suitable estimates of δ1, δ2, κU−F,1 and κU−F,2. Accounting for 2AFC data in this way often results in different estimates of δ1 and δ2. Due to the confound of decisional and bias parameters, 2AFC data might also be accounted for on the assumption that δ1 = δ2 instead (i.e., observers were never undecided), which eliminates three parameters (δ2, κU−F,1, and κU−F,2 are not free parameters in this case, as discussed earlier). This assumption is enforced by setting WidthBounds = [0 0] and, naturally, WidthStart = 0 (see the usage documentation). The corresponding script is included as example 4bis and produces the output shown in Figure 13.

FIGURE 13
www.frontiersin.org

Figure 13. Rearranged graphical output for example 4bis, which fits the data in Figure 12 under the assumption that δ1 = δ2. As in Figure 12, goodness-of-fit statistics rejected the fitted model for the first observer despite the close agreement between data and fitted curves.

Compared to Figure 12, curves follow the path of the data from each observer nearly identically but with different estimates of αt and βt (besides δ1 and δ2) and, hence, yielding different estimates of θ. Output field 27 (BoundariesReached; see Figure 8) reported that the upper bound for width was hit for all observers, indicating that the optimization algorithm expected to find a better fit if δ2 > δ1 were allowed. Ignoring this indication, one could use the BIC to identify whether the fit with δ1 = δ2 or that with δ1 ≠ δ2 accounts better for the data from each observer, but this approach has inescapable problems and is inconclusive (see García-Pérez, 2017). Use of the ternary format in place of the 2AFC format is surely the way around this ambiguity, as U responses directly inform about indecision and its prevalence as a function of test level (as shown in example 1).

Example 5. Visual Discrimination of Contrast; 2AFC Responses (U Not Allowed)

Data for this example come from a study about order effects in contrast discrimination (Alcalá-Quintana and García-Pérez, 2011). Test and standard stimuli differed only in contrast, with xs = −1 for all observers (a level that was above the detection threshold). One of the conditions used the 2AFC format. A total of 240 trials were deployed per presentation order using adaptive methods, which unevenly distributed trials across test levels and called for different test levels with each presentation order. Across observers, test levels ranged between −1.35 and −0.65. The original analyses fitted logistic functions separately to data from each presentation order and to data aggregated across presentation orders (see Figure 6 in Alcalá-Quintana and García-Pérez, 2011). To fit the indecision model to these data, the script set Standard = −1 (i.e., the contrast of the standard stimulus), Format = ‘2AFC’, and Type = ‘same’. AlphaBounds was set with the general rule for suprathreshold discrimination data described in example 2.

Results are shown in Figure 14, and recall that αt (whose estimate hit the lower bound for the fourth observer) is unidentifiable in these conditions. A re-run setting Format = ‘ternary’ rendered identical plots (plus data points and curves pertaining to the other response categories) and nearly identical parameter estimates. This reveals again that the ternary model fits 2AFC data equally well, although the returned counts of free parameters and degrees of freedom and the p-values are incorrect for truly binary data.

FIGURE 14
www.frontiersin.org

Figure 14. Rearranged graphical output for example 5, involving detection data collected from four observers (columns) with the classical binary response format in which observers are asked to guess when uncertain. Standard and test stimuli were identical except along the dimension of comparison and, hence, a common psychophysical function holds. Goodness-of-fit statistics did not reject the fitted model for any observer.

As in the preceding example, enforcing the assumption that δ1 = δ2 (results not shown; script available as example 5bis in the Supplementary Material) produced nearly identical curves with different estimates of βt (recall that the estimated αt is arbitrary here), further attesting to the inescapable confound of decisional and bias parameters in 2AFC data and to the suitability of the ternary format to resolve this empirical issue. Also in this alternative fit, goodness-of-fit statistics did not reject the fitted model for any observer but output field 27 reported that the upper bound for width was hit, indicating that the data would be better fitted if δ2 > δ1 were allowed.

It is obvious that μt = μs when test and standard differ only along the dimension of comparison, as in this case: Test and standard are only experimental designations, but their sensory processing must be identical and reflect the characteristics of the (single) underlying psychophysical function. Then, whether or not μt = μs is not an experimental hypothesis in these conditions. Estimating parameters under the assumption that μt ≠ μs instead (by setting Type = ‘diff’) only allows some extra flexibility that nevertheless does not produce meaningfully different estimates. Readers can confirm this by re-running the scripts for examples 5 and 5bis after setting Type = ‘diff’.

Example 6. Visual Discrimination of Line Length; 2AFC Responses (U Not Allowed)

Data for this example come also from the study that provided data for example 3. Data from the same observers in an identical discrimination task that used instead the 2AFC format were presented in Table 1 of that paper. Overall, 100 trials were administered at each test level with each presentation order. The analysis fitted logistic functions to data from each presentation order satisfying theoretical constraints on their slopes and locations (see Figure 3 in García-Pérez and Alcalá-Quintana, 2011b). To fit the indecision model to these data, the script set Format = ‘2AFC’, Standard = 104, Type = ‘diff’ and, as in example 3, AlphaBounds = [5 5].

The results are shown in Figure 15 in compact form, and recall that αt is unidentifiable from these data. A re-run setting Format = ‘ternary’ reveals again that the unconstrained ternary model fits the data equally well, although miscounting the number of free parameters and with slightly different parameter estimates.

FIGURE 15
www.frontiersin.org

Figure 15. Rearranged graphical output for example 6, involving discrimination data collected from two observers (columns) with the classical binary response format in which observers are asked to guess when uncertain. Standard and test stimuli differed in orientation and, hence, data were fitted under the assumption that different psychophysical functions hold for test and standard. Goodness-of-fit statistics did not reject the fitted model for any observer.

The data can also be nearly identically accounted for on the assumption that δ1 = δ2 (results not shown; script available as example 6bis in the Supplementary Material) but with different estimates of βt and the anchor μs(xs). This renders different estimates of the PSE also. Estimating parameters under this assumption did not reject the model for any observer but, again, output field 27 reported that the upper bound for width was hit so that the data would be better fitted if δ2 > δ1 were allowed.

One would expect that an attempt to fit these data with μt = μs will fail, given that length discrimination with lines of different orientation is well-known to involve μt ≠ μs (Armstrong and Marks, 1997). But this is not the case: Confound of decisional and bias parameters permits accounting for 2AFC discrimination data nearly identically with μt = μs and with μt ≠ μs. Readers can confirm this by re-running the script for example 6 after setting Type = ‘same’. In contrast, re-running the script for example 6bis (which additionally enforces the assumption that δ1 = δ2) after setting Type = ‘same’ does fail to fit the data. Facing analogous results in a study aimed at determining whether or not μt = μs (i.e., in cases in which it is unclear whether or not the extra dimension on which test and standard differ has some perceptual effect), an experimenter will be unable to answer the question: μt = μs is tenable if one assumes δ1 ≠ δ2 but it is untenable if one assumes δ1 = δ2. As discussed in example 3 above, ternary data solve this indeterminacy: U responses inform of δ1 and δ2, allowing an unambiguous test of μt = μs against μt ≠ μs.

Example 7. Auditory Discrimination of Frequency Modulation Rate; Same–Different Responses

Data for this example come from a study that used the same–different format to assess auditory discrimination of frequency modulation rate (Umbach and Wickelmaier, 2014). Modulation rates ranged from 5.9 to 9.1 Hz in steps of 0.4 Hz, and data from three observers were collected for all pairs of modulations in both presentation orders. The study investigated the principle of regular minimality (Dzhafarov, 2002) and data had been analyzed as needed for that purpose (see Umbach and Wickelmaier, 2015). We selected for this example the subset of data involving the modulation rate at the center of the range (i.e., 7.5 Hz), which is the standard level in this analysis. The number of trials administered at each test level differed by design and ranged from 60 (at the test level furthest from the standard) to 150 (when test and standard had the same level) per presentation order.

The script set Format = ‘equality’ (see the usage documentation), Standard = 7.5 (i.e., the modulation rate of the standard tone), and, because test and standard only differed as to modulation rate, Type = ‘same’. The data were clearly collected at suprathreshold levels but it is not clear where the detection threshold for modulation rate may lie; hence, AlphaBounds was set with the general rules for suprathreshold discrimination (i.e., as in examples 2 and 5), yielding here the range between −0.5 and 2.7.

Results are shown in Figure 16, and note that only data and psychometric functions for “same” responses are plotted. Again, αt is unidentifiable with these data. A re-run with Format = ‘ternary’ reveals that the unconstrained ternary model fits these data identically and with virtually identical parameter estimates (because decisional and bias parameters are not confounded here), but miscounting the number of free parameters.

FIGURE 16
www.frontiersin.org

Figure 16. Rearranged graphical output for example 7, involving discrimination data collected from three observers (columns) with the same–different response format in which observers report whether the two stimuli are subjectively equal or different. Standard and test stimuli were identical except along the dimension of comparison and, hence, a common psychophysical function holds. Goodness-of-fit statistics did not reject the fitted model for any observer.

Obviously, same–different data cannot be accounted for with δ1 = δ2, as this implies that “same” responses are never given (except, perhaps, as misreports). Then, same–different data also eliminate the ambiguity of 2AFC data in studies aimed at testing whether μt = μs. In the current example, test and standard that do not differ except along the dimension of comparison imply μt = μs and, thus, re-running the script after setting Type = ‘diff’ is only expected to produce minimally different parameter estimates due to the extra flexibility but with the estimated PSE virtually at the standard level (i.e., xPSExs). This turns out to be true for the first and second observers and, depending on the MATLAB version that was used, also for the third. The latter outcome is understandable given the poor informative value of the data, collected at test levels that turned out to sample inadequately the psychometric functions for this observer. MATLAB versions rendering the unexpected xPSExs fitted the data for this observer with −2logL = 2248.39 whereas those rendering the expected xPSExs resulted in −2logL = 2248.36 instead, a (negligibly) smaller value indeed. Nearly identical −2logL indicates different solutions that fit the data equally well, a common outcome for poorly-informative data. Arguably, ternary data would have been useful in a case like this: Separate F and S responses (aggregated instead into “different” responses here) might have provided the extra information needed to constrain the fit with μt ≠ μs so that the optimal solution under this assumption involves parameter estimates analogous to those obtained in the fit under the assumption that μt = μs.

Conclusion

This paper has demonstrated that psychophysical data collected with a ternary response format in 2P tasks provide more accurate estimates of model parameters and performance measures than data collected instead with the binary 2AFC format or with the also binary same–different format. The ternary response format is also more natural than the 2AFC format with instructions to guess when uncertain, an admonition that only corrupts the data by mixing up authentic judgments and guesses. This mix-up is the main reason that 2AFC parameter estimates are less accurate, but it is also the reason that 2AFC data are uninformative when it comes to testing certain types of experimental hypotheses (as discussed in example 6). All things considered, use of the 2AFC format in psychophysical research is unadvisable.

Replacing the 2AFC response format with a ternary format for data collection is simple, but fitting psychometric functions to ternary data further separated by presentation order poses some challenges. This must also be done somewhat differently according to whether the data come from detection or discrimination tasks and, in the latter case, also according to whether the psychophysical functions for test and standard are assumed to be equal or different. The MATLAB and R routines (available as Supplementary Material) that were developed for our purposes in this paper fit psychometric functions from the indecision model implementing all of these options in a user-friendly way and, thus, they should help spread the use of the ternary format for dependable collection and interpretation of psychophysical data. An accompanying document also in the Supplementary Material provides complete usage information and discusses caveats and limitations.

Author Contributions

Both authors contributed equally to this work except that the MATLAB code was written by MAGP whereas the R code was written by RAQ.

Conflict of Interest Statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

The reviewer EP and handling Editor declared their shared affiliation, and the handling Editor states that the process nevertheless met the standards of a fair and objective review.

Acknowledgments

This research was supported by grant PSI2015-67162-P from Ministerio de Economía y Competitividad (Spain). We thank Nora Umbach and Florian Wickelmaier for permission to use their data in our example 7.

Supplementary Material

The Supplementary Material for this article can be found online at: https://www.frontiersin.org/article/10.3389/fpsyg.2017.01142/full#supplementary-material

Footnotes

1. ^The meaning of the output flag in field 2 varies across versions of MATLAB due to the different algorithms implied. Users are referred to the help documentation for fmincon in their installation. This is also the only field that differs in the MATLAB and R versions of the routine. The R version gives instead output diagnostic information from optim, namely, the convergence code and the number of function evaluations, also arranged in vector form.

References

Alcalá-Quintana, R., and García-Pérez, M. A. (2011). A model for the time-order error in contrast discrimination. Q. J. Exp. Psychol. 64, 1221–1248. doi: 10.1080/17470218.2010.540018

PubMed Abstract | CrossRef Full Text | Google Scholar

Alcalá-Quintana, R., and García-Pérez, M. A. (2013). Fitting model-based psychometric functions to simultaneity and temporal-order judgment data: MATLAB and R routines. Behav. Res. Methods 45, 972–998. doi: 10.3758/s13428-013-0325-2

PubMed Abstract | CrossRef Full Text | Google Scholar

Allan, L. G. (1977). The time-order error in judgments of duration. Can. J. Psychol. 31, 24–31. doi: 10.1037/h0081647

CrossRef Full Text | Google Scholar

Armstrong, L., and Marks, L. E. (1997). Differential effects of stimulus context on perceived length: implications for the horizontal–vertical illusion. Percept. Psychophys. 59, 1200–1213. doi: 10.3758/BF03214208

PubMed Abstract | CrossRef Full Text | Google Scholar

Bausenhart, K. M., Dyjas, O., Vorberg, D., and Ulrich, R. (2012). Estimating discrimination performance in two-alternative forced choice tasks: routines for MATLAB and R. Behav. Res. Methods 44, 1157–1174. doi: 10.3758/s13428-012-0207-z

PubMed Abstract | CrossRef Full Text | Google Scholar

Brown, A. D., Beemer, B. T., Greene, N. T., Argo, T., Meegan, G. D., and Tollin, D. J. (2015). Effects of active and passive hearing protection devices on sound source localization, speech recognition, and tone detection. PLoS ONE 10:e0136568. doi: 10.1371/journal.pone.0136568

PubMed Abstract | CrossRef Full Text | Google Scholar

Chaudhuri, S. E., and Merfeld, D. M. (2013). Signal detection theory and vestibular perception: III. Estimating unbiased fit parameters for psychometric functions. Exp. Brain Res. 225, 133–146. doi: 10.1007/s00221-012-3354-7

PubMed Abstract | CrossRef Full Text | Google Scholar

Dai, H. (1995). On measuring psychometric functions: a comparison of the constant-stimulus and adaptive up-down methods. J. Acoust. Soc. Am. 98, 3135–3139. doi: 10.1121/1.413802

PubMed Abstract | CrossRef Full Text | Google Scholar

Dyjas, O., and Ulrich, R. (2014). Effects of stimulus order on discrimination processes in comparative and equality judgements: data and models. Q. J. Exp. Psychol. 67, 1121–1150. doi: 10.1080/17470218.2013.847968

PubMed Abstract | CrossRef Full Text | Google Scholar

Dyjas, O., Bausenhart, K. M., and Ulrich, R. (2012). Trial-by-trial updating of an internal reference in discrimination tasks: evidence from effects of stimulus order and trial sequence. Attent. Percept. Psychophys. 74, 1819–1841. doi: 10.3758/s13414-012-0362-4

PubMed Abstract | CrossRef Full Text | Google Scholar

Dzhafarov, E. N. (2002). Multidimensional Fechnerian scaling: pairwise comparisons, regular minimality, and nonconstant self-similarity. J. Math. Psychol. 46, 583–608. doi: 10.1006/jmps.2002.1415

CrossRef Full Text | Google Scholar

Fechner, G. T. (1860/1966). Elements of Psychophysics. New York, NY: Holt.

Google Scholar

García-Pérez, M. A. (2000). Optimal setups for forced-choice staircases with fixed step sizes. Spat. Vis. 13, 431–448. doi: 10.1163/156856800741306

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A. (2014a). Does time ever fly or slow down? The difficult interpretation of psychophysical data on time perception. Front. Hum. Neurosci. 8:415. doi: 10.3389/fnhum.2914.00415

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A. (2014b). Adaptive psychophysical methods for nonmonotonic psychometric functions. Attent. Percept. Psychophys. 76, 621–641. doi: 10.3758/s13414-013-0574-2

PubMed Abstract | CrossRef Full Text

García-Pérez, M. A. (2017). Thou shalt not bear false witness against null hypothesis significance testing. Educ. Psychol. Meas. doi: 10.1177/0013164416668232. [Epub ahead of print].

CrossRef Full Text | Google Scholar

García-Pérez, M. A., Alcalá-Quintana, R., Woods, R. L., and Peli, E. (2011). Psychometric functions for detection and discrimination with and without flankers. Attent. Percept. Psychophys. 73, 829–853. doi: 10.3758/s13414-010-0080-8

PubMed Abstract | CrossRef Full Text

García-Pérez, M. A., and Alcalá-Quintana, R. (2005). Sampling plans for fitting the psychometric function. Spanish J. Psychol. 8, 256–289. doi: 10.1017/S113874160000514X

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A., and Alcalá-Quintana, R. (2007). The transducer model for contrast detection and discrimination: formal relations, implications, and an empirical test. Spat. Vis. 20, 5–43. doi: 10.1163/156856807779369724

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A., and Alcalá-Quintana, R. (2010a). The difference model with guessing explains interval bias in two-alternative forced-choice detection procedures. J. Sens. Stud. 25, 876–898. doi: 10.1111/j.1745-459X.2010.00310.x

CrossRef Full Text | Google Scholar

García-Pérez, M. A., and Alcalá-Quintana, R. (2010b). Reminder and 2AFC tasks provide similar estimates of the difference limen: a reanalysis of data from Lapid, Ulrich, and Rammsayer (2008) and a discussion of Ulrich and Vorberg (2009). Attent. Percept. Psychophys. 72, 1155–1178. doi: 10.3758/APP.72.4.1155

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A., and Alcalá-Quintana, R. (2011a). Interval bias in 2AFC detection tasks: sorting out the artifacts. Attent. Percept. Psychophys. 73, 2332–2352. doi: 10.3758/s13414-011-0167-x

PubMed Abstract | CrossRef Full Text

García-Pérez, M. A., and Alcalá-Quintana, R. (2011b). Improving the estimation of psychometric functions in 2AFC discrimination tasks. Front. Psychol. 2:96. doi: 10.3389/fpsyg.2011.00096

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A., and Alcalá-Quintana, R. (2012). On the discrepant results in synchrony judgment and temporal-order judgment tasks: a quantitative model. Psychon. Bull. Rev. 19, 820–846. doi: 10.3758/s13423-012-0278-y

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A., and Alcalá-Quintana, R. (2013). Shifts of the psychometric function: distinguishing bias from perceptual effects. Q. J. Exp. Psychol. 66, 319–337. doi: 10.1080/17470218.2012.708761

PubMed Abstract | CrossRef Full Text | Google Scholar

García-Pérez, M. A., and Peli, E. (2014). The bisection point across variants of the task. Attent. Percept. Psychophys. 76, 1671–1697. doi: 10.3758/s13414-014-0672-9

PubMed Abstract | CrossRef Full Text

García-Pérez, M. A., and Peli, E. (2015). Aniseikonia tests: The role of viewing mode, response bias, and size–color illusions. Transl. Vis. Sci. Technol. 4, 1–22. doi: 10.1167/tvst.4.3.9

PubMed Abstract | CrossRef Full Text

García-Pérez, M. A., Giorgi, R. G., Woods, R. L., and Peli, E. (2005). Thresholds vary between spatial and temporal forced-choice paradigms: the case of lateral interactions in peripheral vision. Spat. Vis. 18, 99–127. doi: 10.1163/1568568052801591

PubMed Abstract | CrossRef Full Text | Google Scholar

Hellström, Å. (2003). Comparison is not just subtraction: effects of time- and space-order on subjective stimulus difference. Percept. Psychophys. 65, 1161–1177. doi: 10.3758/BF03194842

PubMed Abstract | CrossRef Full Text | Google Scholar

Hellström, Å., and Rammsayer, T. H. (2004). Effects of time-order, interstimulus interval, and feedback in duration discrimination of noise bursts in the 50- and 1000-ms ranges. Acta Psychol. 116, 1–20. doi: 10.1016/j.actpsy.2003.11.003

PubMed Abstract | CrossRef Full Text | Google Scholar

Hellström, Å., and Rammsayer, T. H. (2015). Time-order errors and standard-position effects in duration discrimination: an experimental study and an analysis by the sensation-weighting model. Attent. Percept. Psychophys. 77, 2409–2423. doi: 10.3758/s13414-015-0946-x

PubMed Abstract | CrossRef Full Text

Jamieson, D. G. (1977). Two presentation order effects. Can. J. Psychol. 31, 184–194. doi: 10.1037/h0081661

PubMed Abstract | CrossRef Full Text | Google Scholar

Jamieson, D. G., and Petrusic, W. M. (1975). Presentation order effects in duration discrimination. Percept. Psychophys. 17, 197–202. doi: 10.3758/BF03203886

CrossRef Full Text | Google Scholar

Jenkins, B. (1985). Orientational anisotropy in the human visual system. Percept. Psychophys. 37, 125–134. doi: 10.3758/BF03202846

PubMed Abstract | CrossRef Full Text | Google Scholar

Karmali, F., Chaudhuri, S. E., Yi, Y., and Merfeld, D. M. (2016). Determining thresholds using adaptive procedures and psychometric fits: evaluating efficiency using theory, simulations, and human experiments. Exp. Brain Res. 234, 773–789. doi: 10.1007/s00221-015-4501-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Kornbrot, D. E. (2016). Human psychophysical functions, an update: methods for identifying their form; estimating their parameters; and evaluating the effects of important predictors. Psychometrika 81, 201–216. doi: 10.1007/s11336-014-9418-9

PubMed Abstract | CrossRef Full Text | Google Scholar

Lam, C. F., Dubno, J. R., and Mills, J. H. (1999). Determination of optimal data placement for psychometric function estimation: a computer simulation. J. Acoust. Soc. Am. 106, 1969–1976. doi: 10.1121/1.427944

PubMed Abstract | CrossRef Full Text | Google Scholar

Lam, C. F., Mills, J. H., and Dubno, J. R. (1996). Placement of observations for the efficient estimation of a psychometric function. J. Acoust. Soc. Am. 99, 3689–3693. doi: 10.1121/1.414966

CrossRef Full Text | Google Scholar

Link, S. W. (1992). The Wave Theory of Difference and Similarity. Hillsdale, NJ: Erlbaum.

Google Scholar

Macmillan, N. A., and Creelman, C. D. (2005). Detection Theory: A User's Guide, 2nd Edn. Mahwah, NJ: Erlbaum.

Google Scholar

Masin, S. C., and Agostini, A. (1991a). Handedness and space errors. Bull. Psychon. Soc. 29, 301–303. doi: 10.3758/BF03333925

CrossRef Full Text | Google Scholar

Masin, S. C., and Agostini, A. (1991b). Attentional scanning and space errors. Percept. Psychophys. 50, 285–289. doi: 10.3758/BF03206751

PubMed Abstract | CrossRef Full Text | Google Scholar

Norman, L. J., Heywood, C. A., and Kentridge, R. W. (2011). Contrasting the processes of texture segmentation and discrimination with static and phase-reversing stimuli. Vision Res. 51, 2039–2047. doi: 10.1016/j.visres.2011.07.021

PubMed Abstract | CrossRef Full Text | Google Scholar

Pastore, R. E., and Farrington, S. M. (1996). Measuring the difference limen for identification of order of onset for complex auditory stimuli. Percept. Psychophys. 58, 510–526. doi: 10.3758/BF03213087

PubMed Abstract | CrossRef Full Text | Google Scholar

Pritchett, L. M., and Murray, R. F. (2015). Classification images reveal decision variables and strategies in forced choice tasks. Proc. Natl. Acad. Sci. U.S.A. 112, 7321–7326. doi: 10.1073/pnas.1422169112

PubMed Abstract | CrossRef Full Text | Google Scholar

Rammsayer, T., and Ulrich, R. (2001). Counting models of temporal discrimination. Psychon. Bull. Rev. 8, 270–277. doi: 10.3758/BF03196161

PubMed Abstract | CrossRef Full Text | Google Scholar

Schneider, K. A. (2006). Does attention alter appearance? Percept. Psychophys. 68, 800–814. doi: 10.3758/BF03193703

PubMed Abstract | CrossRef Full Text | Google Scholar

Self, M. W., Mookhoek, A., Tjalma, N., and Roelfsema, P. R. (2015). Contextual effects on perceived contrast: figure–ground assignment and orientation contrast. J. Vision 15, 1–21. doi: 10.1167/15.2.2

PubMed Abstract | CrossRef Full Text | Google Scholar

Sridharan, D., Steinmetz, N. A., Moore, T., and Knudsen, E. I. (2014). Distinguishing bias from sensitivity effects in multialternative detection tasks. J. Vision 14, 1–32. doi: 10.1167/14.9.16

PubMed Abstract | CrossRef Full Text | Google Scholar

Tolhurst, D. J., and Barfield, L. P. (1978). Interactions between spatial frequency channels. Vision Res. 18, 951–958. doi: 10.1016/0042-6989(78)90023-8

PubMed Abstract | CrossRef Full Text | Google Scholar

Ulrich, R., and Vorberg, D. (2009). Estimating the difference limen in 2AFC tasks: pitfalls and improved estimators. Attent. Percept. Psychophys. 71, 1219–1227. doi: 10.3758/APP.71.6.1219

PubMed Abstract | CrossRef Full Text | Google Scholar

Umbach, N., and Wickelmaier, F. (2014). “Violations of regular minimality in discrimination judgments of frequency-modulated tones,” in Poster Presented at the 45th European Mathematical Psychology Group Meeting (Tuebingen).

Umbach, N., and Wickelmaier, F. (2015). qdm: Fitting a Quadrilateral Dissimilarity Model to Same–Different Judgments. R Package Version 0.1-0. Available online at: https://CRAN.R-project.org/package=qdm

van den Berg, R., Lindskog, M., Poom, L., and Winman, A. (2017). Recent is more: a negative time-order effect in nonsymbolic numerical judgment. J. Exp. Psychol. Hum. Percept. Perform. 43, 1084–1097. doi: 10.1037/xhp0000387

PubMed Abstract | CrossRef Full Text | Google Scholar

Keywords: indecision model, response format, psychometric function, psychophysical function, parameter estimation, goodness of fit

Citation: García-Pérez MA and Alcalá-Quintana R (2017) The Indecision Model of Psychophysical Performance in Dual-Presentation Tasks: Parameter Estimation and Comparative Analysis of Response Formats. Front. Psychol. 8:1142. doi: 10.3389/fpsyg.2017.01142

Received: 26 January 2017; Accepted: 22 June 2017;
Published: 12 July 2017.

Edited by:

Pietro Cipresso, Istituto Auxologico Italiano (IRCCS), Italy

Reviewed by:

Juergen Heller, University of Tübingen, Germany
Elisa Pedroli, Istituto Auxologico Italiano (IRCCS), Italy

Copyright © 2017 García-Pérez and Alcalá-Quintana. This is an open-access article distributed under the terms of the Creative Commons Attribution License (CC BY). The use, distribution or reproduction in other forums is permitted, provided the original author(s) or licensor are credited and that the original publication in this journal is cited, in accordance with accepted academic practice. No use, distribution or reproduction is permitted which does not comply with these terms.

*Correspondence: Miguel A. García-Pérez, miguel@psi.ucm.es
