Abstract
Food industry must guarantee food safety and seek sustainable solutions for increasing shelf life and decreasing food waste. Bio-based smart packaging is a potential option, where sustainability and real-time monitoring of food quality are combined assuring health safety and providing economic and environmental benefits. In this context, bio-based refers not only to packaging materials that are from renewable sources and biodegradable, but also to the sensor elements. The scope of this review is to explore the state-of-the-art of bio-based polymers used as food contact materials and to highlight the potential of natural compounds for sensing chemical and physical changes of the environment to monitor the food quality. Finally, different sustainability aspects of the bio-based materials are discussed.
Introduction
Busy lifestyles and growing urban populations mean an increasing demand for food that is fresh, healthy, convenient, and fast. One of the key drivers of this growth is the world’s rising population which by the year 2050 will reach 9.7 billion people with increase of 26% (The United Nations, 2019). With the global population rising, wastage of food including 47% of all fruit and vegetables and 12% of meat and animal products, is one of the greatest challenges to achieve food security (). Although food is our basic necessity, its production, processing, transportation and storage are rather complex from many aspects and need to fulfill a number of criteria to ensure the health and environmental safety and economic feasibility.
Foods pose potential danger of diseases due to bacterial (Salmonella, Campylobacter, Listeria, and Cholera), viral (Norovirus, Hepatitis A), parasite (tapeworms, trematodes, Ascaris, Cryptosporidium, Entamoeba histolytica, and Giardia), fungal (Aspergillus, Candida, and Fusarium) and even prion infections as consequence of inappropriate handling and processing of the products causing foodborne diseases that affect ∼10% of global population with a death toll of 420,000 deaths each year. Chemical contaminants, which may even accumulate in various food chains, represent further risks. These include phytochemical residues, mycotoxins, marine toxins from algae, cyanogenic glycosides from plants, and different metabolites from products aging and decaying (ethanol, putrescine, cadaverine, histamine, ethylene etc.) but also environmental and industrial pollutants, e.g., dioxins, polychlorinated biphenyls and heavy metals (Pb, Cd, and Hg) (World Health Organization, 2019). Another issue in the context of food safety is deliberate fraud to counterfeit the origin, content or quality (i.e., expiration dates) of products (). Just diluting a high-quality wine with cheaper one mainly hurts the wallet and pride but more severe cases may endanger health permanently or cost lives (). Furthermore, the flip side of food safety is food waste as 1/3 of all produced food is lost or goes into waste () meaning safe and edible food products are thrown away although the “best if used before” dates are only recommendations without information of the true status of the food. This is ethically and practically controversial as still today 820 billion people suffer from undernutrition and agricultural production would need to increase with 50% to feed the growing population by 2050 ().
As a partial solution to complex problems of food safety and decreasing unnecessary food waste is the selection and development of proper food packaging. The function of the food packages has been the same throughout history: to maintain hygiene, protect the food during transportations and storing, and ultimately to increase shelf life. However, modern technology and materials science have introduced new “smart” functions to food packages, which include advanced packaging materials with improved properties, and sensors that can monitor food quality (Yam et al., 2005; ). Over the years, several approaches toward smart packaging have been demonstrated including time-temperature indicators, modified atmosphere packaging sensors for CO2 and O2 monitoring, total volatile base nitrogen sensors to detect food decay, fruit ripeness indicators, pathogen sensors, and solutions for food tracking and authentication (RFID tags) (; ; ; ; ; ; Yousefi et al., 2019).
As of today, plastics (rigid and flexible) have the largest shares of the market in food packaging (37% market), followed by paper and board (34%), glass (11%), and metal (9%) (). If we consider the properties of the given food packaging materials, the high market share of paper and board can be explained by the renewable source and recyclability, it is printable, wet and dry food can be stored in paper and board after laminating/covering process and in general paper and board are very suitable for mass production lowering the costs (). Containers made of glass, on the other hand, are among the oldest materials man has used as it can be shaped to practically any form, has high chemical resistance, is impermeable to gasses, absorbs UV and even parts of visible spectrum (amber glass, green and glass partially), is hygienic and reusable, and the consumers associate it to high-quality products (). Metal is also an important food packaging material as it is durable withstanding packaging conditions in vacuum or under pressure and high temperature stabilization process for long shelf-life foods. Metal is reusable, UV-resistant and the food contact surface may be coated with different coatings in case the interaction between the product and the plain container would downgrade the shelf-life/quality of the product to an unacceptable level due to, e.g., metal surface corrosion or undesired food coloring as a consequence of combination of metal ions with the food components (). Typically metal containers or cans are made of steel (tin-coated or tin-free) or aluminum (; ; ).
The most frequently used plastics in food packages in Europe are PP (19.3%), LDPE and LLDPE (17.5%), and PET (7.4%); and in fact, 39.9% of all produced plastics (61.8 million tons in Europe in 2018) goes to packaging in general (). The success of plastic as packaging material can be explained by low cost, ease of modification from flexible films to rigid containers, strength, stability, light-weight, impermeability with gasses and many solvents, and enabled sterilization without affecting the food quality (). Despite of numerous benefits, plastics are also problematic: annual global production of plastics is around 350 million tons of which only 1% is bio-based () and the rest is fossil-derived with large carbon footprint [6% of all produced oil goes to plastics, having a carbon footprint equivalent to the aviation sector (World Economic Forum et al., 2016)]. In addition, plastic pollution is alarming, as polymers do not degrade but break down to smaller pieces ending up in the air, soil and water as microplastics, found even in deep-sea amphipods ().
As a response to challenges associated with food safety, storage and transportation, there is a huge market need for more sustainable bio-based plastics and sensors that could alleviate the environmental, public health and economic burden caused by traditional materials. The scope of this short review is to collect the contemporary literature on bio-based smart food packages covering not only bio-based food packaging materials but also bio-based sensors for monitoring various physical, chemical and biological conditions of foodstuff.
Bio-Based Plastic Packaging Materials
Production data for bio-based and biodegradable plastics are available to a limited extent only, although production capacity data are more readily accessible. Currently the production capacities of bio-based and biodegradable plastics are low (Figure 1), however, the market of some bio-based and/or biodegradable plastics are expected to grow significantly during the coming years (Bio-PET, PBS, and PLA) others are expected to consolidate (CA and Bio-PA) (van den Oever et al., 2017). Overall, it is expected that the global bioplastics production capacity is set to increase from around 2.11 million tons in 2019 to approximately 2.43 million tons in 2024 (Figure 2).
FIGURE 1
FIGURE 2
A number of different routes have been developed during the past decade to produce bio-based materials [i.e., either made of bio-based source or it is biodegradable or contains both of these features ()] with a large variety of properties and applications areas (Table 1). Among these, only a few families are made of renewable biomass and are biodegradable [e.g., cellulose and starch thermoplastics, PHAs, PLA, polyester amides ()], viz. bio-based polyethylene, PP, polyamide and polyethylene terephthalate are non-biodegradable, and PCLs and PVAs are from non-renewable resources (; ; van Crevel, 2016). The main production routes are as follows:
- 1.
Direct extraction of biopolymers such as starch and cellulose with subsequent thermopressing/molding to make thermoplastic starch polymers (TSPs) or using additional functionalization, e.g., acetylation, carboxymethylation and phosphorylation to produce CA, carboxymethyl cellulose and cellulose diphenyl-phosphate, respectively, which are then polymerized further () or used as additives in polymers (Weinmann and Cotton, 1958).
- 2.
Hydrolysis to sugars followed by bacterial synthesis of polyesters, e.g., PHAs including PHB.
- 3.
Conversion into sugars that are fermented to lactic acid followed by its direct polycondensation or by ring-opening condensation of lactide to PLA ().
- 4.
Chemical conversion into monomers followed by polymerization, e.g., amino acids obtained by hydrolysis and separation are polymerized with esters of lactonized unsaturated fatty acids in PEA synthesis.

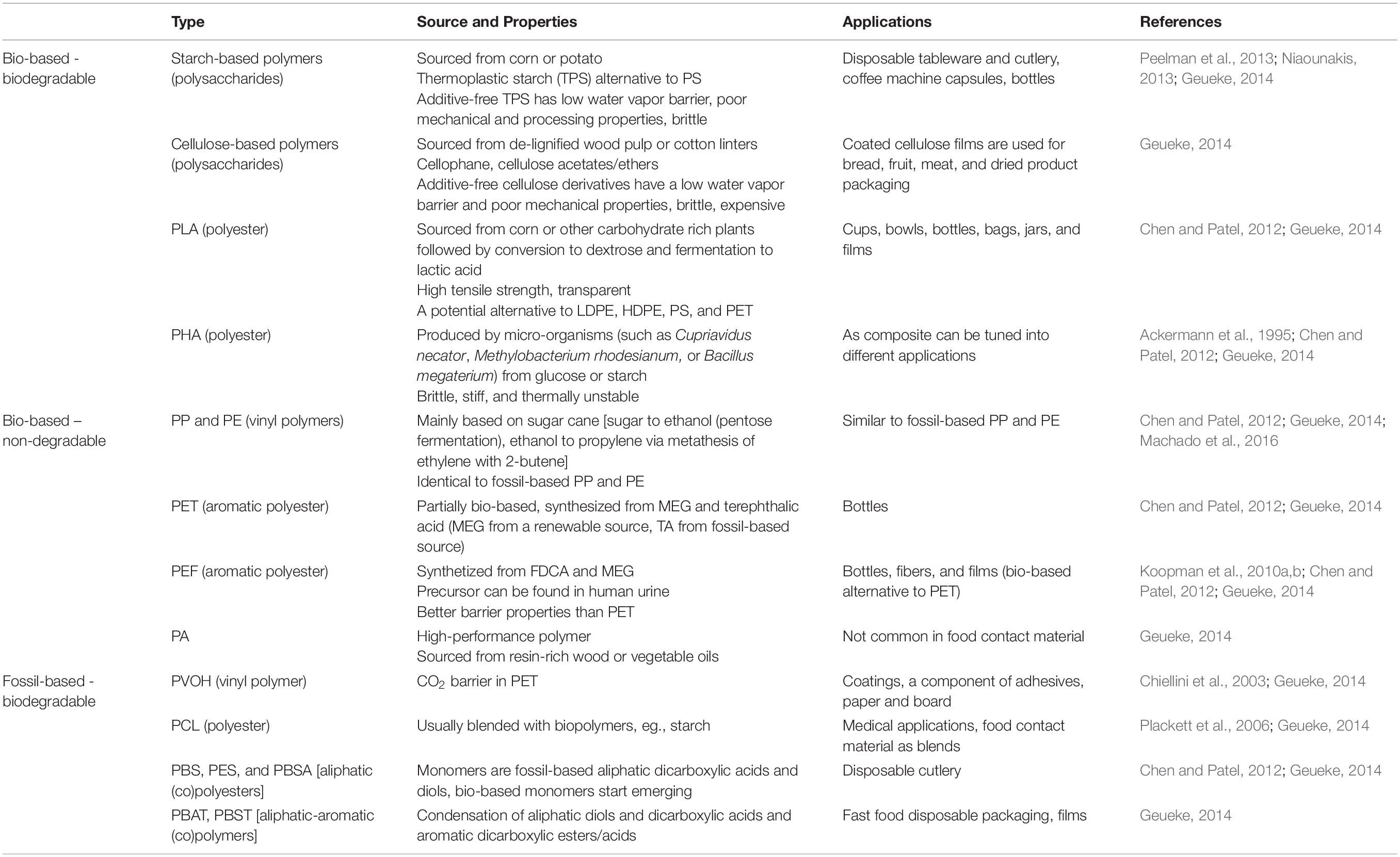

TABLE 1
| Type | Source and Properties | Applications | References | |
| Bio-based - biodegradable | Starch-based polymers (polysaccharides) | Sourced from corn or potato Thermoplastic starch (TPS) alternative to PS Additive-free TPS has low water vapor barrier, poor mechanical and processing properties, brittle | Disposable tableware and cutlery, coffee machine capsules, bottles | ; ; |
| Cellulose-based polymers (polysaccharides) | Sourced from de-lignified wood pulp or cotton linters Cellophane, cellulose acetates/ethers Additive-free cellulose derivatives have a low water vapor barrier and poor mechanical properties, brittle, expensive | Coated cellulose films are used for bread, fruit, meat, and dried product packaging | ||
| PLA (polyester) | Sourced from corn or other carbohydrate rich plants followed by conversion to dextrose and fermentation to lactic acid High tensile strength, transparent A potential alternative to LDPE, HDPE, PS, and PET | Cups, bowls, bottles, bags, jars, and films | ; | |
| PHA (polyester) | Produced by micro-organisms (such as Cupriavidus necator, Methylobacterium rhodesianum, or Bacillus megaterium) from glucose or starch Brittle, stiff, and thermally unstable | As composite can be tuned into different applications | ; ; | |
| Bio-based – non-degradable | PP and PE (vinyl polymers) | Mainly based on sugar cane [sugar to ethanol (pentose fermentation), ethanol to propylene via metathesis of ethylene with 2-butene] Identical to fossil-based PP and PE | Similar to fossil-based PP and PE | ; ; |
| PET (aromatic polyester) | Partially bio-based, synthesized from MEG and terephthalic acid (MEG from a renewable source, TA from fossil-based source) | Bottles | ; | |
| PEF (aromatic polyester) | Synthetized from FDCA and MEG Precursor can be found in human urine Better barrier properties than PET | Bottles, fibers, and films (bio-based alternative to PET) | , ; ; | |
| PA | High-performance polymer Sourced from resin-rich wood or vegetable oils | Not common in food contact material | ||
| Fossil-based - biodegradable | PVOH (vinyl polymer) | CO2 barrier in PET | Coatings, a component of adhesives, paper and board | ; |
| PCL (polyester) | Usually blended with biopolymers, eg., starch | Medical applications, food contact material as blends | ; | |
| PBS, PES, and PBSA [aliphatic (co)polyesters] | Monomers are fossil-based aliphatic dicarboxylic acids and diols, bio-based monomers start emerging | Disposable cutlery | ; | |
| PBAT, PBST [aliphatic-aromatic (co)polymers] | Condensation of aliphatic diols and dicarboxylic acids and aromatic dicarboxylic esters/acids | Fast food disposable packaging, films |
Bio-based plastics in food packaging.
Based on the technical report published by Wageningen Food & Biobased Research in 2017 (van den Oever et al., 2017), it has been shown that the bio-based and biodegradable plastics are currently more expensive than fossil-based plastics on weight basis (Tables 2, 3). However, specific material properties can allow costs reductions in the use or end-of-life phase. Further, the price of fossil-based plastics is dependent on oil prices and fluctuating with it, while in general the price of bio-based plastics depends on biomass prices that are more stable. When the production scale, conversion into final products and logistics become more favorable, it is expected that the prices of bio-based plastics will come down.
TABLE 2
| Plastic | Price level (euro/kg) | Density (kg/m3) |
| CA | 5 | 1,200–1,300 |
| Bio-PA | +10–20% | 1,040–1,190 |
| Bio-PE | +20–40% | 910–970 |
| Bio-PET | No information | 1,370–1,390 |
| Bio-PP | +80–100% | 900–920 |
| PP (certified bio) | +40–50% | 900–920 |
| PBAT | 3.5 | 1,250 |
| Bio-PBS | 4 | 1,260 |
| PHA | 5 | 1,200–1,250 |
| PLA | 2 | 1,250 |
| PTT | 4 | 1,320 |
| Starch blends | 2–4 | 1,250–1,350 |
Price level for bio-based and/or biodegradable plastics.

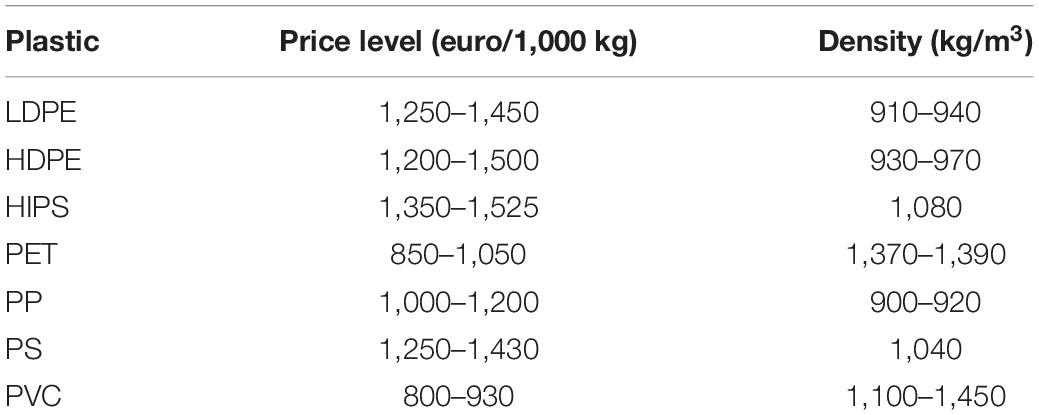

TABLE 3
| Plastic | Price level (euro/1,000 kg) | Density (kg/m3) |
| LDPE | 1,250–1,450 | 910–940 |
| HDPE | 1,200–1,500 | 930–970 |
| HIPS | 1,350–1,525 | 1,080 |
| PET | 850–1,050 | 1,370–1,390 |
| PP | 1,000–1,200 | 900–920 |
| PS | 1,250–1,430 | 1,040 |
| PVC | 800–930 | 1,100–1,450 |
Price level for fossil-based plastics.
In addition, since most bio-based plastics have a higher density, this directly contributes to their higher price. But there are exceptions when prices are compared on a product level. By selecting specific material properties and redesigning can allow material savings. For example, a traditional HIPS-based cup of 0.89 mm wall thickness could be down-gauged using impact modified PLA to 0.66 mm thickness ().
Bio-Based Smart Food Packages
Many new concepts in food packaging, like the smart functionalities, have been introduced during the last years in response to the increasing demand of ready-to-eat and higher quality foods (Vanderroost et al., 2014).
Smart functionalities of food packages refer to active coatings and physical/chemical sensors combined with the packaging materials. The purpose of smart antimicrobial coatings is to mitigate the proliferation of various microbes thus prolonging the shelf-life of products, whereas sensors play role in monitoring physical and chemical conditions that influence or reflect the quality of the food products. These add-ons have inevitable positive health, environmental and socio-economic effects, which may be amplified even further by accomplishing the smart functions using renewable natural materials and robust technologies ().
Antimicrobial Films
As mentioned, active food packaging involves the use of polymeric films that act as a support for various active compounds such as natural extracts that can be incorporated during the manufacturing process of the packaging itself (; ). Antimicrobial incorporation may result in a material with antibacterial activity which can suppress the growth of bacteria on the material surface (according to the international norm ISO 22196:2011 – Measurement of antibacterial activity on plastics and other non-porous surfaces). In the food sector, a greater interest is toward materials enriched with antimicrobials so that the direct use of food additives in products is limited.
Antimicrobial materials act in two different ways. Antimicrobials can be incorporated into the film or coated either on the surface of the film or on the surface of the food (in the form of edible film). In both cases, the substance may migrate partially or completely through gradual diffusion into the food or headspace (which is typical for essential oils, for example) where it exerts its protective action, or it may not migrate, acting only when the food is in contact with the surface of the film and the target microorganism comes into direct contact with the film (Vermeiren et al., 2002; ) (Figure 3).
FIGURE 3
In both the cases, this kind of packaging is called active packaging [Regulation (EC) No 450/2009 — active and intelligent materials and articles intended to come into contact with food].
Antimicrobial agents used for the preservation of foods are either chemically synthesized or extracted from biomass of plants, animals and microorganisms. Conventional chemical preservatives, including ethanol and other alcohols, organic acids, and their salts (benzoates, propionates, and sorbates) are the predominant food preservatives thanks to their low price and facility to use. However, research has been focusing on replacing them with natural antimicrobial agents such as enzymes, bacteriocins, chitin and its derivative chitosan extracted from crustacean shells, natural extracts, and essential oils (; ; ; van den Broek et al., 2015; ). Indeed, natural extracts (e.g., plant extracts or essential oils from different spices, plants, and fruits) have been recognized as potential antioxidant and antimicrobial agents. Some of the most successful examples of the incorporation of natural substances into films have involved grapefruit seed and green tea extracts, which have shown to be active as antioxidants and against different pathogens (e.g., Escherichia coli and Listeria spp.) (Wang and Rhim, 2016; Wrona et al., 2017). Cinnamaldehyde, derived from cinnamon, was also studied for its bioactivity against E. coli and Salmonella spp. (). Moreover, cinnamon oil in the PVA matrix showed repellent effect toward Plodia interpunctella larvae () and in PP film inhibited the formation of molds (). However, clove and cinnamon in cassava starch films failed to show clear antimicrobial effect even though they reduced the water vapor transmission (). Another example was provided by who tested edible films made of whey protein isolate loaded with rosemary, oregano and garlic essential oils against E. coli, Staphylococcus aureus, Salmonella enteritidis, Listeria monocytogenes, and Lactobacillus plantarum. Oregano proved to be the most effective against bacteria, while rosemary showed no effect.
The most popular technique to include natural extracts into the final film formulation is the extrusion (). This technique involves the incorporation of the bioactive compounds before extrusion so that the high temperatures of extrusion (the exact values depend on the melting temperature of the processed polymer) allow their effective and homogeneous distribution in the film. However, this technique can often result in thermal degradation of the bioactive compounds and decrease in their activity. For instance, used high-temperature profile 160–190°C to extrude an antimicrobial LLDPE-based film resulting in high loss of grapefruit seed extract functionality up to complete loss of antimicrobial activity. For this reason, heat-sensitive bioactive agents (i.e., natural extracts) are preferably produced by non-heating method (e.g., electrospinning and surface coating). Among these methods, surface coating is a simple process based on low temperatures. However, this technique may suffer from poor adhesion to plastics and, if applied to make an active packaging, needs to be designed to be in direct contact with the food. Examples of antimicrobial-coated films include chitosan/essential oil-coated PP film (Torlak and Nizamlioğlu, 2011), cinnamaldehyde, garlic oil and rosemary oil-coated PP/LDPE film (), oregano essential oil and citral-coated PP/EVOH film (), chitosan-coated plastic film (Ye et al., 2008a, b), and thyme and oregano-coated LDPE. Interestingly, as reported by Valderrama Solano and de Rojas Gante (2012), antimicrobial films produced by elevated temperature processes showed better microbial inhibition compared to the ones obtained by the coating method. In particular, they found that antimicrobial films produced by extrusion method are more effective against E. coli, Salmonella typhimurium, and L. monocytogenes compared to ionizing-coated antimicrobial films with the identical amount of agent incorporated antimicrobial. The results suggest that the extrusion method allows a better incorporation of the active compounds on the polymer. Given the number of pros and cons highlighted by the literature for both the techniques, more studies comparing the efficacy of two methodologies will be needed in order to address future researches in this field. Indeed, there isn’t any large scale industrial production of active bio-based films yet. For this reason, an estimation of the cost of active films can be based on an average cost of commercial natural extract (about 100 €/kg even though it can greatly vary with extract type) and of PLA film (2 €/kg, see Table 2). Following the steps of the extrusion process, tested by , with the inclusion of natural extracts encapsulated with β-cyclodextrins (370 €/kg), an estimation of the final price of active films was done resulting in about 6.4 €/kg. It is useful to point out that this evaluation was made considering an addition of encapsulated extract equal to 2% wt as maximum () and that this estimation already includes the costs necessary to encapsulate the extract by spray-drying technique.
Bio-Based Sensors
Bio-based sensors have at least one component from bio-based source which may either be the substrate (i.e., the plastics listed in the previous section) or the sensing element. Most of the sensors related to bio-based materials in food packaging are based on colorimetric detection of analytes.
Many fruits, berries, vegetables and flowers with colors covering practically the entire visible spectrum are dyed by natural compounds such as anthocyanins and curcumin known as natural pH indicators (Yoshida et al., 2009; Silva-Pereira et al., 2015; ; ; ; ; Zhai et al., 2018; ). Upon protonation/deprotonation of these molecules, their delocalized electronic structure rearranges and the change of the total number of resonant electrons as well as their confinement result in a change of their color (Figure 4). For instance, demonstrated a pH sensor made of agar and potato starch with anthocyanin extracts from purple sweet potato that showed color variations at pH 2.0–10.0. Zhai et al. (2018) used a gelatin-gellan gum matrix with red radish anthocyanin having a slightly broader pH range from 2.0 to 12.0. In Table 4 more examples of bio-based sensors developed for food quality monitoring in recent years are listed.
FIGURE 4

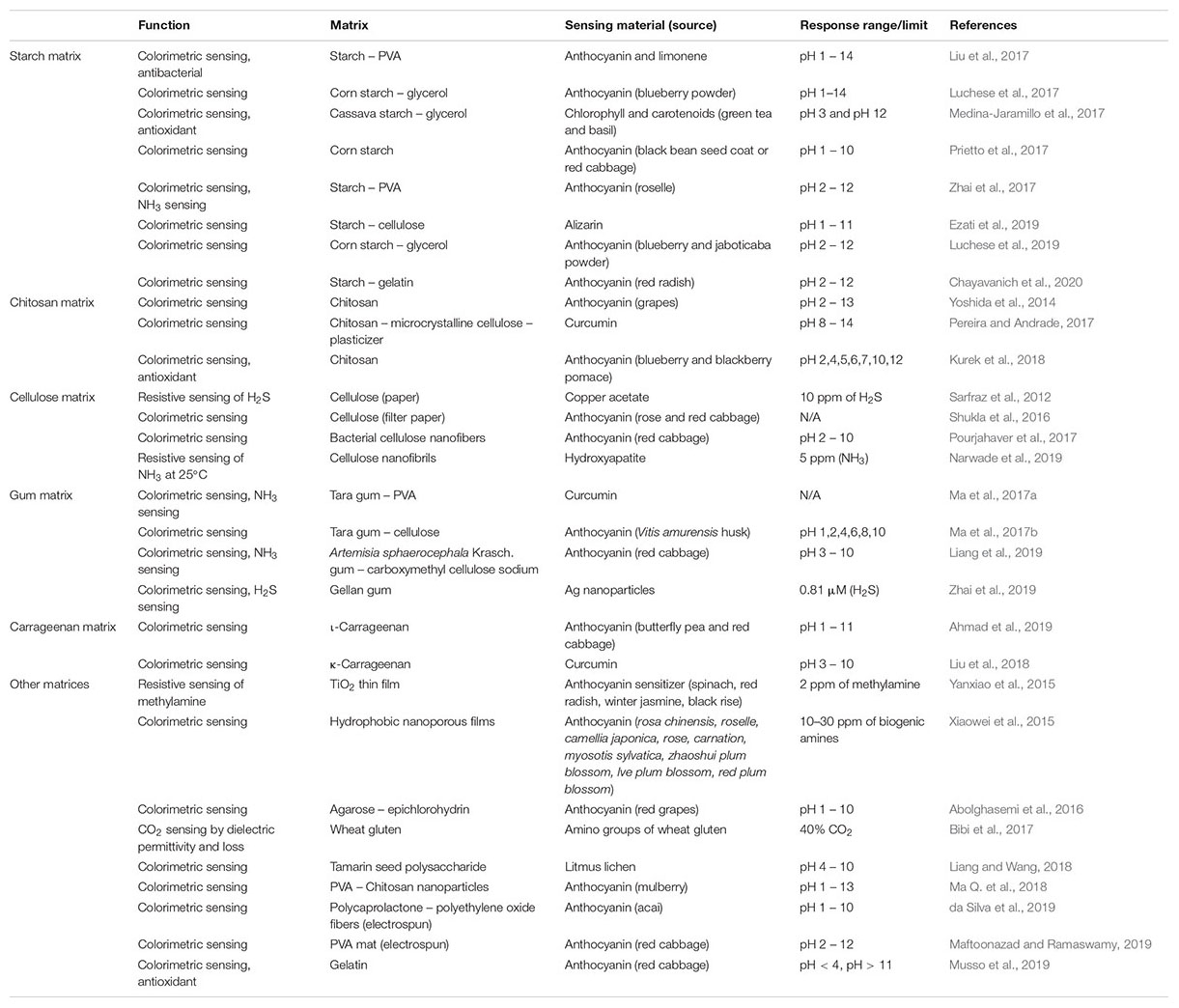

TABLE 4
| Function | Matrix | Sensing material (source) | Response range/limit | References | |
| Starch matrix | Colorimetric sensing, antibacterial | Starch – PVA | Anthocyanin and limonene | pH 1 – 14 | |
| Colorimetric sensing | Corn starch – glycerol | Anthocyanin (blueberry powder) | pH 1–14 | ||
| Colorimetric sensing, antioxidant | Cassava starch – glycerol | Chlorophyll and carotenoids (green tea and basil) | pH 3 and pH 12 | ||
| Colorimetric sensing | Corn starch | Anthocyanin (black bean seed coat or red cabbage) | pH 1 – 10 | ||
| Colorimetric sensing, NH3 sensing | Starch – PVA | Anthocyanin (roselle) | pH 2 – 12 | Zhai et al., 2017 | |
| Colorimetric sensing | Starch – cellulose | Alizarin | pH 1 – 11 | ||
| Colorimetric sensing | Corn starch – glycerol | Anthocyanin (blueberry and jaboticaba powder) | pH 2 – 12 | ||
| Colorimetric sensing | Starch – gelatin | Anthocyanin (red radish) | pH 2 – 12 | ||
| Chitosan matrix | Colorimetric sensing | Chitosan | Anthocyanin (grapes) | pH 2 – 13 | Yoshida et al., 2014 |
| Colorimetric sensing | Chitosan – microcrystalline cellulose – plasticizer | Curcumin | pH 8 – 14 | ||
| Colorimetric sensing, antioxidant | Chitosan | Anthocyanin (blueberry and blackberry pomace) | pH 2,4,5,6,7,10,12 | ||
| Cellulose matrix | Resistive sensing of H2S | Cellulose (paper) | Copper acetate | 10 ppm of H2S | |
| Colorimetric sensing | Cellulose (filter paper) | Anthocyanin (rose and red cabbage) | N/A | ||
| Colorimetric sensing | Bacterial cellulose nanofibers | Anthocyanin (red cabbage) | pH 2 – 10 | ||
| Resistive sensing of NH3 at 25°C | Cellulose nanofibrils | Hydroxyapatite | 5 ppm (NH3) | ||
| Gum matrix | Colorimetric sensing, NH3 sensing | Tara gum – PVA | Curcumin | N/A | |
| Colorimetric sensing | Tara gum – cellulose | Anthocyanin (Vitis amurensis husk) | pH 1,2,4,6,8,10 | ||
| Colorimetric sensing, NH3 sensing | Artemisia sphaerocephala Krasch. gum – carboxymethyl cellulose sodium | Anthocyanin (red cabbage) | pH 3 – 10 | ||
| Colorimetric sensing, H2S sensing | Gellan gum | Ag nanoparticles | 0.81 μM (H2S) | Zhai et al., 2019 | |
| Carrageenan matrix | Colorimetric sensing | ι-Carrageenan | Anthocyanin (butterfly pea and red cabbage) | pH 1 – 11 | |
| Colorimetric sensing | κ-Carrageenan | Curcumin | pH 3 – 10 | ||
| Other matrices | Resistive sensing of methylamine | TiO2 thin film | Anthocyanin sensitizer (spinach, red radish, winter jasmine, black rise) | 2 ppm of methylamine | Yanxiao et al., 2015 |
| Colorimetric sensing | Hydrophobic nanoporous films | Anthocyanin (rosa chinensis, roselle, camellia japonica, rose, carnation, myosotis sylvatica, zhaoshui plum blossom, lve plum blossom, red plum blossom) | 10–30 ppm of biogenic amines | Xiaowei et al., 2015 | |
| Colorimetric sensing | Agarose – epichlorohydrin | Anthocyanin (red grapes) | pH 1 – 10 | ||
| CO2 sensing by dielectric permittivity and loss | Wheat gluten | Amino groups of wheat gluten | 40% CO2 | ||
| Colorimetric sensing | Tamarin seed polysaccharide | Litmus lichen | pH 4 – 10 | ||
| Colorimetric sensing | PVA – Chitosan nanoparticles | Anthocyanin (mulberry) | pH 1 – 13 | ||
| Colorimetric sensing | Polycaprolactone – polyethylene oxide fibers (electrospun) | Anthocyanin (acai) | pH 1 – 10 | ||
| Colorimetric sensing | PVA mat (electrospun) | Anthocyanin (red cabbage) | pH 2 – 12 | ||
| Colorimetric sensing, antioxidant | Gelatin | Anthocyanin (red cabbage) | pH < 4, pH > 11 |
Bio-based sensors developed for food monitoring.
Although colorimetric pH-sensitive sensors are typically not convenient for selective analysis, it is often sufficient to evaluate the food quality based on the change of the pH, as deteriorating proteins produce alkaline volatile nitrogen compounds (cadaverine, putrescine, histamine, and ammonia) (; ). Exploiting this indirect sensing mechanism, curcumin based indicator films, e.g., in gelatin () and bacterial cellulose membranes (), blueberry and red grape skin pomace in chitosan and carboxymethyl cellulose matrix (), chitosan-corn starch film with red cabbage extract (Silva-Pereira et al., 2015), alginate beads with red cabbage extract () as well as red cabbage extract in pectin films () have been shown as feasible indicators of meat, shrimp and fish spoilage by detecting amines and cyclic N-containing compounds. In a similar way, acidic CO2 evolves during the metabolism of pathogens in the food thus lowering pH, which may be detected, e.g., by anthocyanin/polylysine in cellulose matrix in a reversible manner as demonstrated by .
Other natural dyes such as chlorophyll and β-carotene might be also relevant for sensing since both structures are highly sensitive to oxidative species. showed that replacing the coordinated Mg2+ with Zn2+ in chlorophyll A, the fluorescence of the complex is faded when increasing the concentration of dissolved oxygen in the medium. The mechanism of luminescence suppression is suggested to be caused by an energy transfer to oxygen molecules that collide with the excited molecule. In the case of carotene, one may exploit several mechanisms for sensing. β-carotene is prone to oxidation and subsequent decomposition to shorter cleavage products leading to a gradual disappearance of the orange color ().
Synthetic dyes based on various azo-compounds and polydiacetylenes also hold promise for chemical sensing in food packages. Azo-anthraquinone based dyes immobilized on paper (cellulose) as pH sensors working either in acidic or alkaline conditions, depending on the selected pigment, were shown by Zhang et al. (2019). Selective amine sensing colorimetric indicators utilizing trifluoroacetyl azobenzene dyes developed by ; ), ; have been exploited in colorimetric and electrochemical detection of ammonia, ethylamine, cadaverine and putrescine (). The carbonyl carbon of the trifluoroacetyl group is highly electron-deficient thus readily reacts with electron donors such as amines or alcohols. In the presence of amines (primary, secondary, or tertiary) it forms a hemiaminal group, i.e., the number of delocalized electrons in the diazobenzene backbone is decreased (so as the confinement length of electrons) resulting in a blue shift of optical absorption. Sensors printed on paper could detect vapors of the analytes having a concentration of 1.0–0.1 vol.%. Furthermore, highly sensitive ammonia sensors that operate even at very low temperatures (down to −20°C) were demonstrated by using polydiacetylenes that were polymerized in self-assembled vesicles stabilized with cellulose nanocrystals in the chitosan matrix. The sensing mechanism is based on a conformal change of the polydiacetylene backbone (from planar to non-planar) upon external stimuli such as pH, mechanical stress or temperature. Films of the sensors could detect 100 ppm ammonia () (Figure 5).
FIGURE 5
Colorimetric sensors/indicators may be also accomplished by using enzymatic processes, in which the color change is typically a function of temperature and time. Capitalizing on these, Yan et al. (2008) developed a temperature indicator that combines the coloration of iodine-starch clathrates and the influence of temperature on the hydrolysis of starch in the presence of amylase enzyme. From the kinetic reaction rates of hydrolysis (and the corresponding coloration of the clathrates), one may assess the time-temperature history of cooled products. Another example of time-temperature indicator based on enzymatic oxidation of ABTS [2,20-azino bis-(3-ethyl benzthiazoline-6-sulphonic acid] substrate resulting in green color was demonstrated by . By applying a fuse-type melting medium between peroxide and the mixture of the enzyme and substrate, the reaction starts only when the medium is warm enough to melt the separator thus enabling the mixing of the reactants. A similar melting fuse type of color indicator was proposed by , in which erythrosine B food dye printed on PLA was applied in a microfluidic device in conjunction with a frozen solvent. As soon as the temperature exceeds the melting point, the transparent solvent flows and dissolves the dye producing red staining of the device.
Other potentially viable food packaging sensors include electrical or RFID/NFC based (; ) and electrochemical devices (). developed further their solvent melting point based colorimetric temperature sensor by using an electrically conductive film of carbon nanotubes being a part of an RFID tag. When the temperature reached the melting point of the solvent, it flowed through a capillary toward the nanotube film, soaked it and increased its resistance detected by the RFID reader. Very recently, an interesting and simple resistive chemical sensor for water-soluble gasses was proposed by on cellulose substrates. As water is always present on the surface of the hygroscopic cellulose, when it is exposed to water-soluble gas analytes, the surface conductivity increases depending on the chemistry and concentration of the interacting moiety, which can be monitored by electrical measurements using carbon electrodes printed on the surface. The devices were highly sensitive to ammonia (down to 200 ppb) among the gasses tested (TMA, H2S, CO2, and CO) and were feasible for monitoring the headspace of meat and fish food packages. The sensors could be integrated into RFID tags and read by an NFC enabled smartphone (Figure 6).
FIGURE 6
The price of the bio-based food packaging sensors is directly connected to the price of foodstuff as many of them originate from natural sources and are edible. For example, the price of curcumin is around1 380 €/kg (February 2020) or for the wild blueberries the purchase price is typically between 2.5 and 4 €/kg (in Finland) but may rise up to 6–8 €/kg if the availability is limited due to dry summer, for example like in Finland in 2019. However, as pointed out earlier, edible food should not be used as raw material, but rather side streams should be valorized. Luckily the anthocyanin content is reasonable high in pomaces and seeds, so in principle agro-food waste can be used as source for sensor material lowering the price. If we compare the prices of food to prices of typical gas sensor materials, such as titanium dioxide with bulk price around 2–3 €/kg (2016–2017, Industrial Minerals), the anthocyanin source are competitive, especially because colorimetric sensors do not require complex electronics for the output and the waste management can be expected to be cheaper.
Conclusion
Bio-based smart food packaging will be one answer to the global challenges related to the desperate quest for carbon neutrality, food saving and safety, as well as for renewable materials and technologies. In this review, we have collected the contemporary literature on three key components of bio-based smart materials including (i) the packaging materials themselves responsible for providing a safe envelope for the products, (ii) advanced coatings and additives to help preserving foodstuff as well as (iii) renewable sensor materials with enabling technologies that can detect the quality of foods and are potentially feasible for industrial scale-up. Although the corresponding fields of scientific research on bio-based and renewable materials with robust production technologies are becoming more and more relevant today, it is clear that careful life cycle, economic and even user perception analyses have to be made to assess the real environmental and socioeconomic impact of each potentially viable solution.
Statements
Author contributions
NH and KK contributed to the conception and design of the review. NH wrote the first draft of the manuscript. PP contributed with the literature search, illustrations, and writing of the manuscript. AB, CF, RN, and GS wrote sections of the manuscript. All authors contributed to manuscript revision, read and approved the submitted version.
Funding
The authors kindly acknowledge financial support from the EU Horizon 2020 – BBI JU under agreement no. 792261 NewPack, and EU Interreg Nord – Lapin liitto under agreement no. 20201468 Flexible transparent conductive films as electrodes.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Abbreviations
- Bio-PA
bio-polyamide
- Bio-PBS
bio-polybutylene succinate
- Bio-PE
bio-polyethylene
- Bio-PET
polyethylene terephthalate containing bio-based materials
- Bio-PP
bio-polypropylene
- CA
cellulose acetate
- FDCA
2,5-furandicarboxylic acid
- HDPE
high-density polyethylene
- HIPS
high impact polystyrene
- LDPE
low-density polyethylene
- LLDPE
linear low-density polyethylene
- MEG
mono-ethylene glycol
- NFC
near-field communication
- PA
polyamide
- PBAT
poly(butylene adipate-co-terephthalate)
- PBS
polybutylene succinate
- PBSA
polybutylene succinate adipate
- PBST
poly(butylene succinate-co-terephthalate)
- PCL
polycaprolactone
- PE
polyethylene
- PEA
polyesteramide
- PEF
polyethylene furanoate
- PES
polyethersulfone
- PET
polyethylene terephthalate
- PHA
polyhydroxyalkanoate
- PHB
polyhydroxybutyrate
- PHBV
poly(hydroxybutyrate-co-valerate)
- PLA
polylactic acid
- PP
polypropylene
- PS
polystyrene
- PTT
polytrimethylene terephthalate
- PVA
polyvinyl alcohol
- PVC
polyvinyl chloride
- PVdC
polyvinylidene chloride
- PVOH
polyvinyl alcohol
- RFID
radio frequency identification
- TA
terephthalic acid
- TPS
thermoplastic starch
- UV
ultra violet.
