Abstract
In this research, three-dimensional (3D) hierarchical networks of magnetic carbon nanotubes/graphene oxide (CNTs/GO) nanocomposites (NCs) were synthesized by a one-step hydrothermal method with the idea of constructing more interface contacts, a double loss mechanism and synergy effect. The obtained results showed that the content of NCs gradually transitioned from CoCO3 to CoxFe3–xO4. Further, CoCO3-CoxFe3–xO4/CNTs/GO quaternary NCs and CoxFe3–xO4/CNTs/GO ternary NCs could be selectively synthesized when the Co:Fe molar ratio decreased from 1:1 to 1:3. The as-prepared samples displayed excellent microwave absorption properties (MAPs) in terms of the minimum reflection loss (RLmin) and the corresponding absorption bandwidth (FBcor) with reflection loss values lower than −10 dB. The RLmin and large FBcor values for the as-prepared samples were −54.69 dB and 2.36 GHz, −63.99 dB and 2.48 GHz, −63.36 dB and 2.68 GHz, respectively. The designed 3D hierarchical networked structure of magnetic GO/CNTs NCs displayed outstanding comprehensive MAPs, which could deliver a practical and effective strategy to develop high-performance microwave absorbers (MAs), considering their low cost, lightweight, and high stability.
Introduction
In the past decades, microwave absorbers (MAs) have drawn significant attention owing to the expanded electromagnetic (EM) radiation and interference problems (; Zhang et al., 2014; ). It is well acknowledged that MAs with characteristics such as strong absorption ability, large absorption bandwidth, lightweight, low cost, and remarkable chemical stability are highly desirable because of their promising military and civil application prospects (Zhang et al., 2015; ). According to the EM energy conversion principle, the incident EM wave can be attenuated by dielectric and magnetic losses (Wei et al., 2017). Therefore, nanocomposites (NCs) consisting of dielectric loss materials and magnetic nanoparticles (NPs) are considered an effective way to achieve high-performance MAs (, ; ). For example, CoNi@Air@TiO2 (), Co0.6Fe2.4O4@MoS2 (), Ni@SnO2 (Zhao et al., 2016), Co7Fe3@SiO2 () have been demonstrated to display outstanding microwave absorption properties (MAPs). Generally, owing to their excellent synergistic effect, the development of high-performance MAs mainly focused on core@shell structure magnetic NCs, in which dielectric substances are utilized as a shell and magnetic NPs as a core. Among them, different dielectric substances such as ZnO, TiO2, and BaTiO3 were often used as a shell (; ; Xu et al., 2018). However, the biggest drawback of these NCs is the high density, which hugely restricts their practical application.
In recent years, owing to the lightweight, unique tube structure and excellent dielectric loss, carbon nanotubes (CNTs) were used as substrate to construct the CNTs-based for designing the ideal MAs (; Wang et al., 2018). Examples include Fe/CNTs (), ZnFe2O4/CNTs (), and Fe/Co/Ni/CNTs (Wen et al., 2011), which were demonstrated to display very outstanding MAPs. Generally, the previously designed core@shell structure CNTs-based NCs were mainly composed of CNTs as a shell and different categories of magnetic NPs as a core (; Weissker et al., 2010). However, the magnetic properties and magnetic loss abilities for these kinds of CNTs-based NCs are hugely limited and cannot be well modulated due to the magnetic NPs acting as the core, and the low encapsulation of magnetic NPs (; ). Therefore, constructing the reverse core@shell structure magnetic CNTs-based NCs, in which magnetic NPs serve as the shell and CNTs as the core, is an effective way to overcome these problems (Wang et al., 2012; ).
Furthermore, the recent results indicated that the outstanding properties of graphene (G) and the designed G-based could provide many more interfaces, which were conducive to improve MAPs (; Wang et al., 2019). Considering these aspects, in this article, we designed and synthesized magnetic CNTs/graphene oxide (GO) NCs by a one-step hydrothermal method. By changing the Co:Fe molar ratio, different compositions of magnetic NPs/CNTs/GO NCs could be selectively produced. The obtained results showed that the as-prepared magnetic CNTs/GO NCs displayed very excellent MAPs.
Experimental
Synthesis of Magnetic CNTs/GO NCs

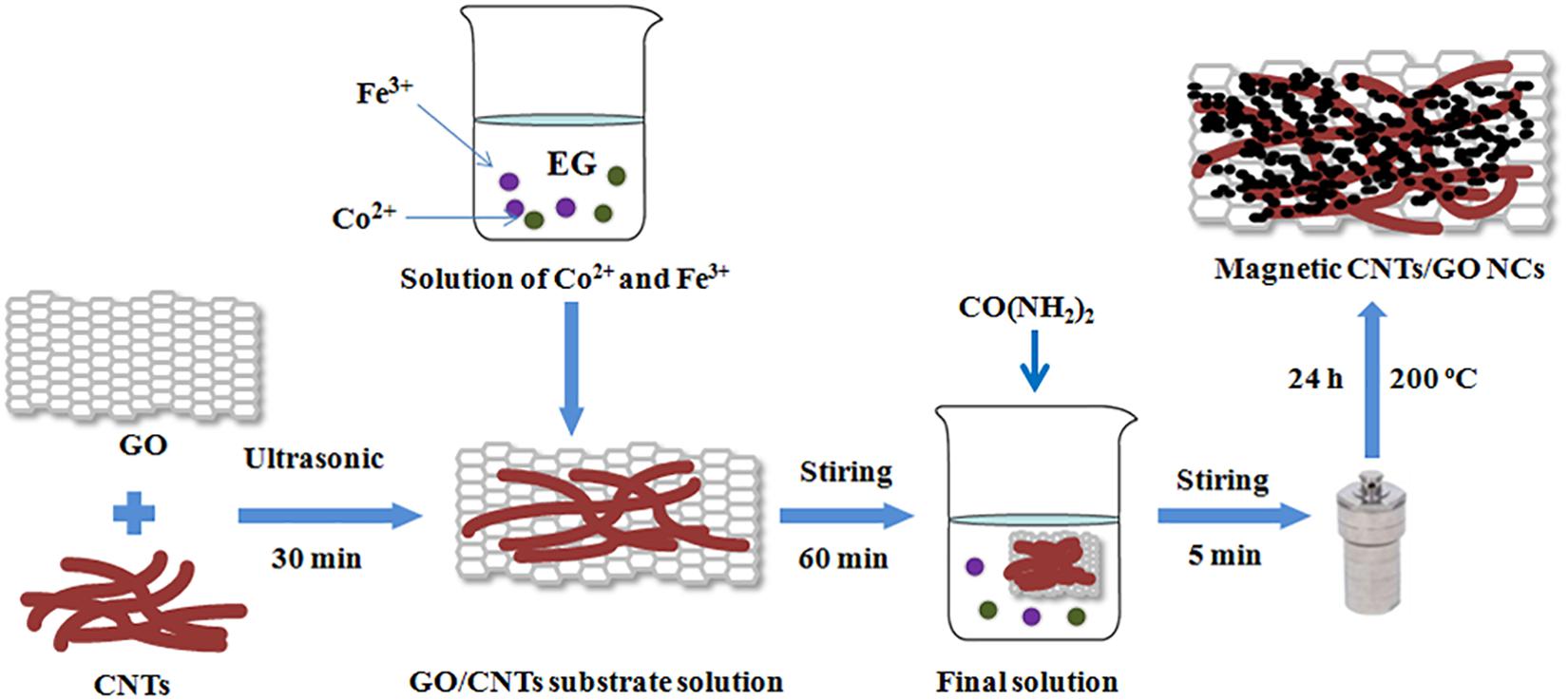

Similarly to the previously reported experimental method shown in Figure 1 (Wu et al., 2020), 80 mg of GO was prepared by a modified Hummers method (). The prepared GO was added in 40 mL deionized water and ultrasonicated for 30 min at room temperature (RT). Next, 40 mg of hydroxylated CNTs were ultrasonically dispersed into the GO solution for another 30 min to obtain the GO/CNTs substrate solution. Then, the solution of Co2+ and Fe3+ was obtained by ultrasonic dissolving C4H6CoO4∙4H2O (1 mmol) and FeCl3∙6H2O (1 mmol) into a 30 mL ethylene glycol solution. Subsequently, the resulting Co2+ and Fe3+ solution was dissolved into GO/CNTs substrate solution by stirred for ca. 60 min. Finally, urea (0.9 g) were thoroughly dispersed into the mixed solution for another 5 min. The final solution was transferred into a 100 mL Teflon-lined stainless steel autoclave and heated at 200°C for 24 h and left to cool to RT. The synthesized magnetic CNTs/GO NCs were washed several times and magnetically centrifuged. The obtained sample was left to dry. The experimental conditions were kept the same, with the exception of 2 and 3 mmol of FeCl3∙6H2O, which were used as the Fe source in the synthesis of magnetic NPs/CNTs/GO NCs to control compositions of the sample. The samples were denoted as S1, S2, and S3 for easy description, respectively.
FIGURE 1
Characterization and Measurement
The phases and microstructures of the as-prepared magnetic CNTs/GO NCs were characterized by an X-ray powder diffractometer (XRD) (model Smart Lab, Rigaku), Raman spectroscopy (Jobin-Yvon Labram HR800), Thermal gravity analysis (TGA) (Netzsch Sta 449F3), transmission electron microscope (TEM) (model Tecnai-G20), and X-ray photoelectron spectroscopy (XPS) (model Escalab 250Xi, Thermo Fisher Scientific). 30 wt% of the obtained samples were mixed with wax and pressed into toroidal shaped samples (Rout: 7.0 mm, Rin: 3.0 mm), respectively, to investigate the EM properties and MAPs. The as-prepared composites were measured by a vector network analyzer (Agilent E8363B) in the frequency region of 2–18 GHz.
Results and Discussion

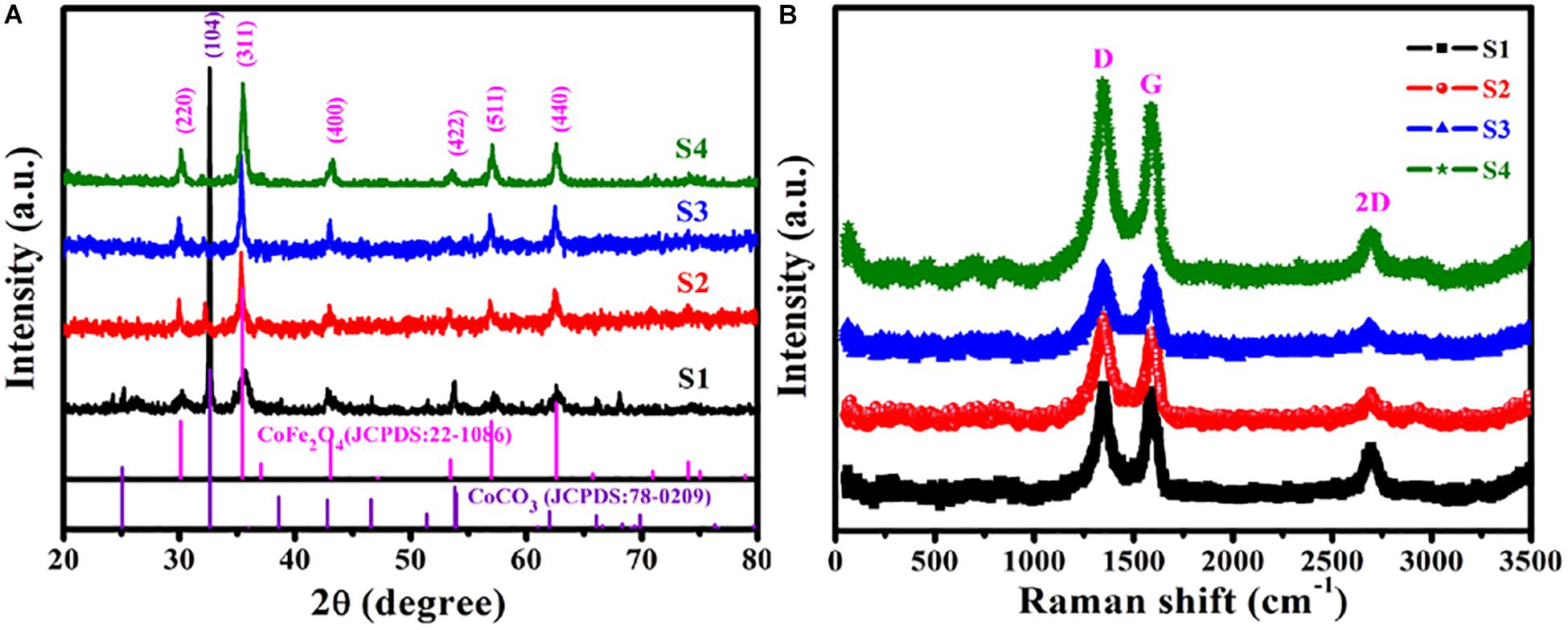

Figure 2 presents the XRD patterns and Raman spectra of the as-prepared magnetic CNTs/GO NCs. Figure 2A shows that all the as-prepared samples display similar XRD patterns, pointing to the same category of sample. The characteristic peaks at 30.08°, 35.44°, 43.06°, 53.44°, 56.97° and 62.59° corresponding to (220), (311), (400), (422), (511), and (440) crystal planes are consistent with the standard XRD patterns of spinel CoFe2O4 (JCPDS: 22-1086). In comparison, one peak at 32.6° can be observed clearly over S1 and S2, assigned to (104) crystal planes of CoCO3 (JCPDS: 78-0209). However, this peak cannot be seen over sample S3. The comparison results reveal that the obtained samples evolve from CoCO3 to CoxFe3–xO4 when the amount of Fe source increases from 1 mmol to 3 mmol. In confirmation of the results, the experimental conditions were kept the same, with the exception of 5 mmol FeCl3∙6H2O, which was used as the Fe source to produce the sample, S4 for easy description. As shown in Figure 2A, the XRD pattern indicates that the phase of CoCO3 cannot be observed over the as-prepared S4, which is consistent with our previous reported result (Wu et al., 2020). Moreover, consistent with the GO/CNT-Fe3O4 NCs reported elsewhere (Wang et al., 2014), the characteristic diffraction peaks for GO and CNTs cannot be seen, which should be attributed to the uniform dispersion of CoxFe3–xO4 NPs on the surface of CNTs/GO. The existence of carbon materials can be confirmed by Raman spectra. As shown in Figure 2B, the obtained magnetic CNTs/GO NCs show three evident peaks located at 1347 cm–1, 1586 cm–1, and 2694 cm–1, respectively. These peaks can correspond to the D band, G band and 2D band of carbon material, respectively. It is well-known that the D band originates from the sp3 defect/disorder in the graphitic structure, the G band is indicative of a high crystallinity graphitic layer, and the 2D band is excited by a double-resonant Raman process (; ). Based on the obtained results, we can confirm the existence of GO and CNTs in the obtained NCs.
FIGURE 2

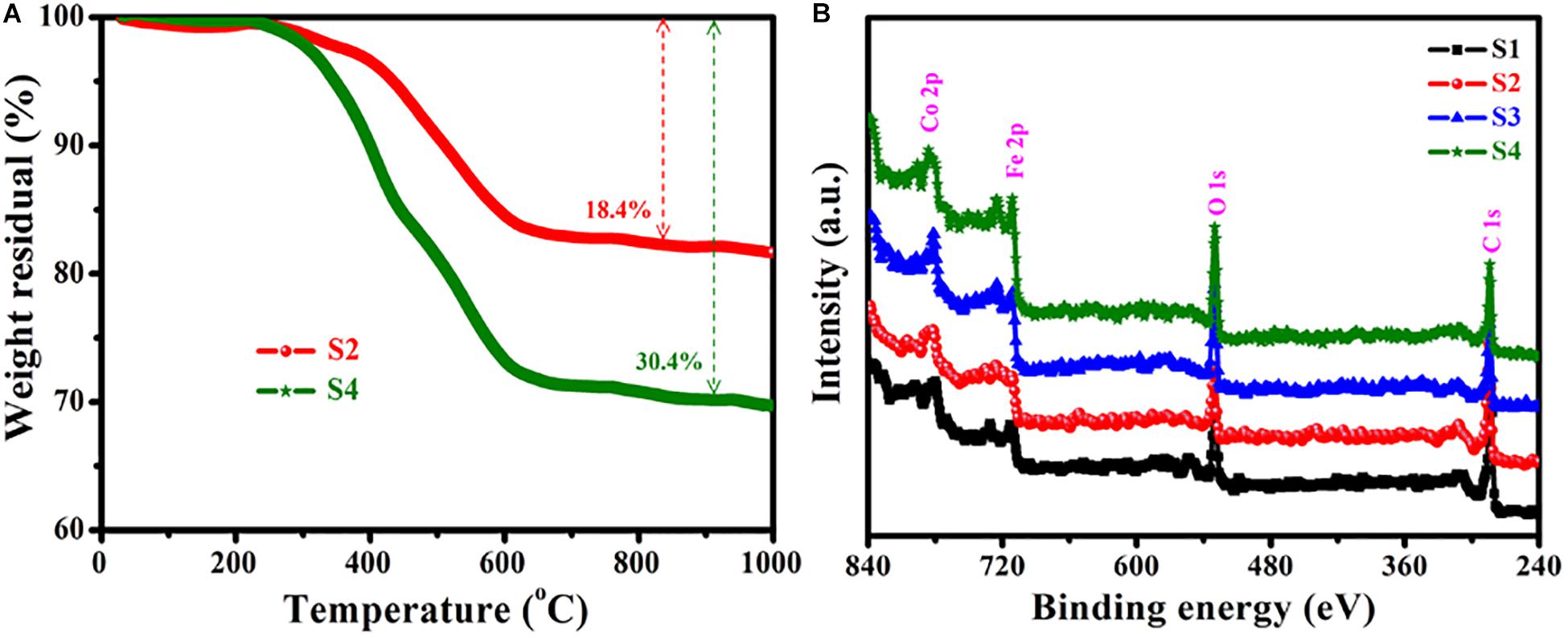

Figure 3 shows the typical TGA curves and XPS spectra of as-prepared samples. As shown in Figure 3A, it can be seen that the obtained S2 and S4 samples present the evident weight loss under air atmosphere in the temperature range of 240–620°C. Based on the XRD results, the mass loss can mainly be ascribed to the thermal decomposition of GO and CNTs, and the residual substances should be assigned to CoxFe3–xO4 NPs. The TGA results indicate that the CoxFe3–xO4 content in the obtained S2 and S4 samples is 18.4% and 30.4%, respectively. To confirm the composition of the obtained samples, Figure 3B provides their XPS spectra. It can be deduced that all the obtained NCs have four peaks located at 284, 530, 712, and 781 eV, respectively. Further, these peaks can be assigned to C 1s, O 1s, Fe 2p, and Co 2p.
FIGURE 3

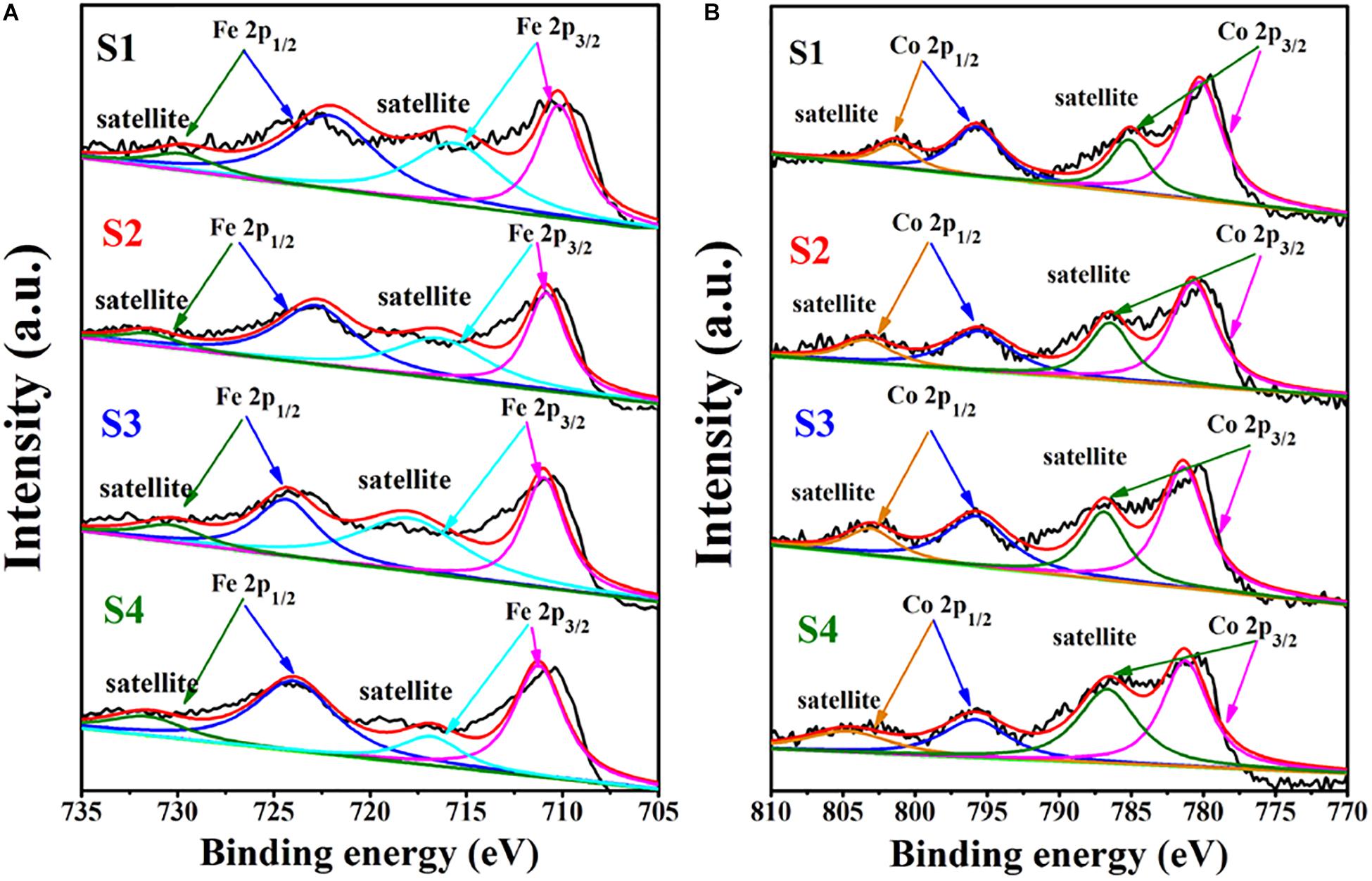

To obtain the chemical valence states of Fe and Co, Figure 4A provides the high-resolution XPS spectra of Fe 2p. Four peaks, which are at ca. 711.2, 719.3, 724.6, and 731.4 eV, respectively, can be observed. Among these peaks, 711.2 and 724.6 eV can be assigned to the Fe 2p3/2 and Fe 2p1/2, while the other peaks correspond to the satellite peaks of Fe 2p3/2 and Fe 2p1/2. Similarly to the previous result (Yamashita and Hayes, 2008), the obtained result suggests the presence of Fe3+ in the obtained samples. As indicated in Figure 4B, the Co 2p high-resolution spectra also display four evident peaks. The peaks located at 780.9 and 796.6 eV originate from Co 2p3/2 and Co 2p1/2, and the peaks at 786.8 and 803.3 eV are the satellite peaks of Co 2p3/2 and Co 2p1/2, which indicate the existence of Co2+ ions (). In general, the obtained XPS results are consistent with their XRD patterns.
FIGURE 4

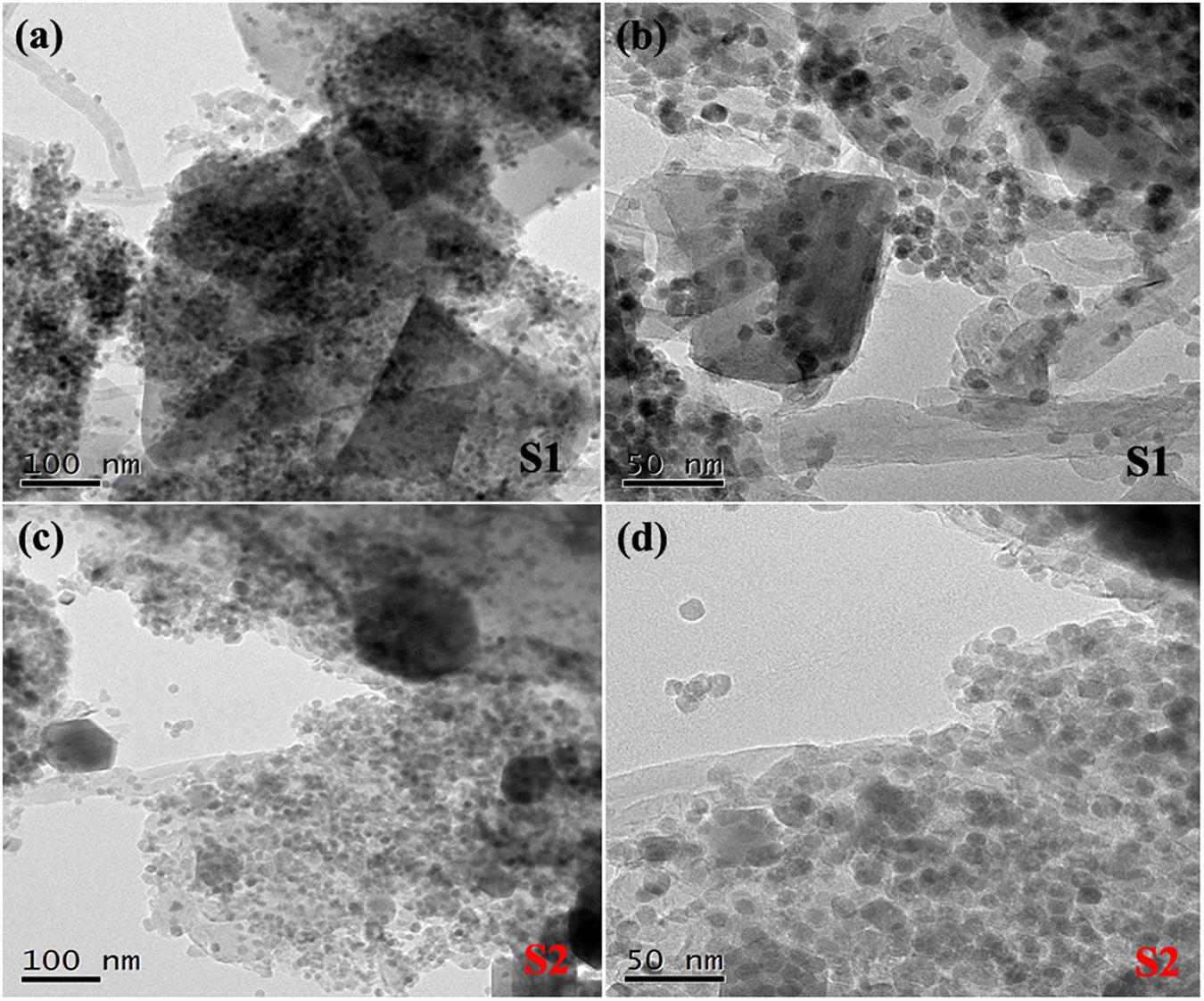

Figure 5 provides the morphologies of the as-prepared S1 and S2. As shown in Figure 5a,b it can be observed that larger quantities of CoxFe3–xO4 and CoCO3 NPs attached on the surface of GO and CNTs, similarly to the reported GO/CNT-Fe3O4 NCs (Wang et al., 2014). A closer TEM observation indicates that the NPs, CNTs, and GO nanosheets are well connected with each other to form a good three dimensional (3D) hierarchical networks structure. In the same manner as S1, as displayed in Figures 5c,d, the obtained S2 consists of large numbers of NPs, CNTs and paper-like GO, which presents a typical structure of 3D hierarchical networks. Combined with the XRD and XPS results, the conclusion suggests that the as-prepared S1 and S2 are 3D hierarchical networks structure of CoCO3-CoxFe3–xO4/CNTs/GO quaternary NCs. Equally, the TEM investigation of S3 and S4 (as presented in Figure 6) shows that they are composed of CoxFe3–xO4 NPs with a relatively uniform size, CNTs and GO nanosheets, which bind together to establish the structure of 3D hierarchical networks. Unlike S1 and S2, the XRD, XPS and TEM results demonstrate that the as-prepared S3 and S4 are 3D hierarchical networks structure of CoxFe3–xO4/CNTs/GO ternary NCs. Generally, with the Co:Fe increasing from 1:1 to 1:5, it is discovered that the prepared samples gradually undergo the transition from CoCO3-CoxFe3–xO4/CNTs/GO quaternary NCs to CoxFe3–xO4/CNTs/GO ternary NCs, which is in agreement with our reported results (Wu et al., 2020). Compared to the binary NCs such as CoxFe3–xO4/CNTs and CoxFe3–xO4/GO, it is well recognized that the formed CoCO3-CoxFe3–xO4/CNTs/GO quaternary NCs and CoxFe3–xO4/CNTs/GO ternary NCs can provide many more interface contacts. Further, the generated 3D hierarchical networks structure of our designed magnetic CNTs/GO NCs can provide a double loss mechanism and synergy effect among them, which is conducive to the attenuation of the EM wave. Generally, based on the previously reported papers and our obtained results (; Shi et al., 2018), one can find that CoCO3 will easily form under the condition of the existence of urea and a small quantity of Fe source. With the increasing amounts of Fe source, much more Co2+ will couple with Fe3+ to generate the CoxFe3–xO4. Therefore, the obtained S2 should display a much higher content of CNTs/GO compared to S1. Moreover, with the formation of CoxFe3–xO4 with large quantities, the obtained S3 has a larger CoxFe3–xO4 content compared to S2.
FIGURE 5

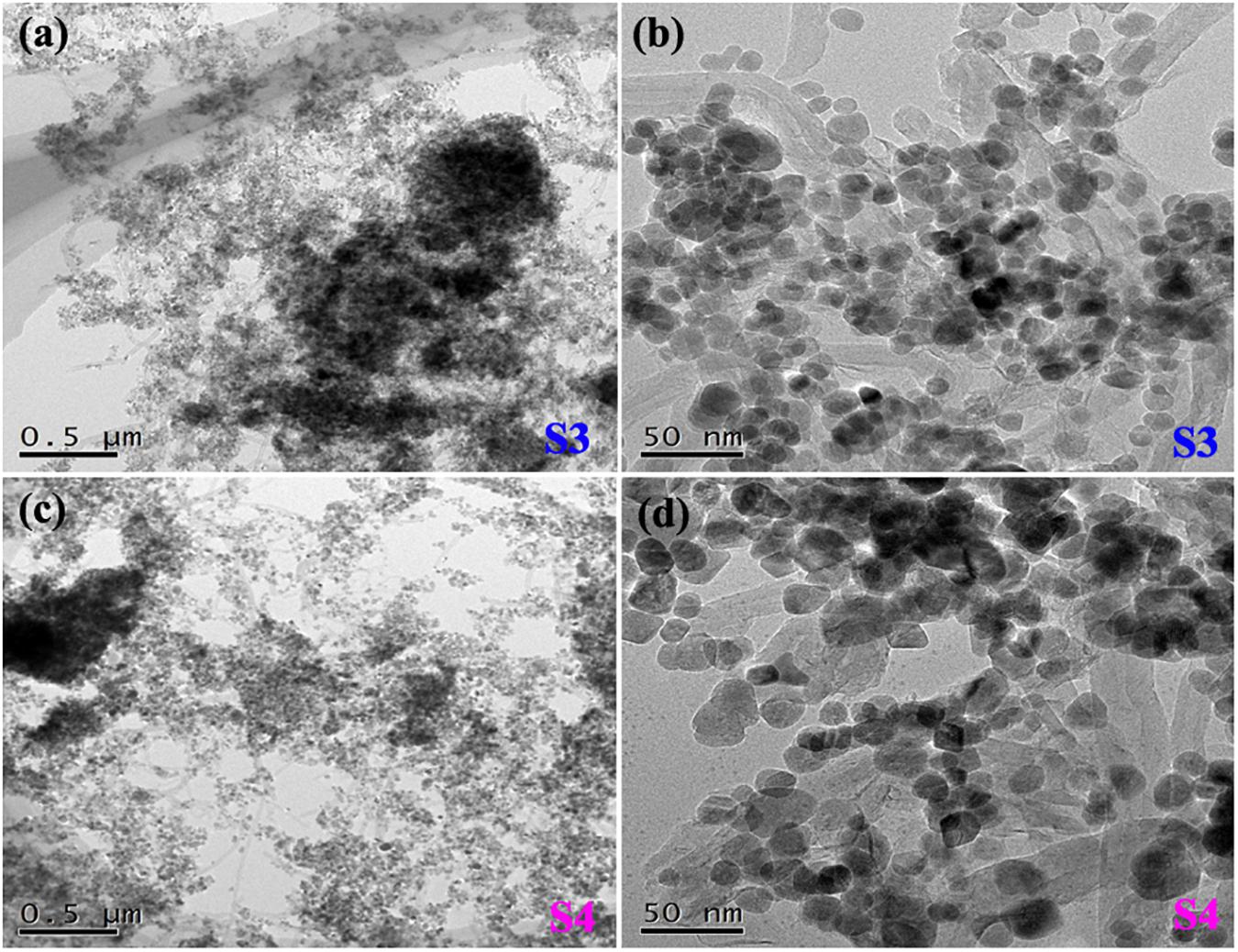

FIGURE 6

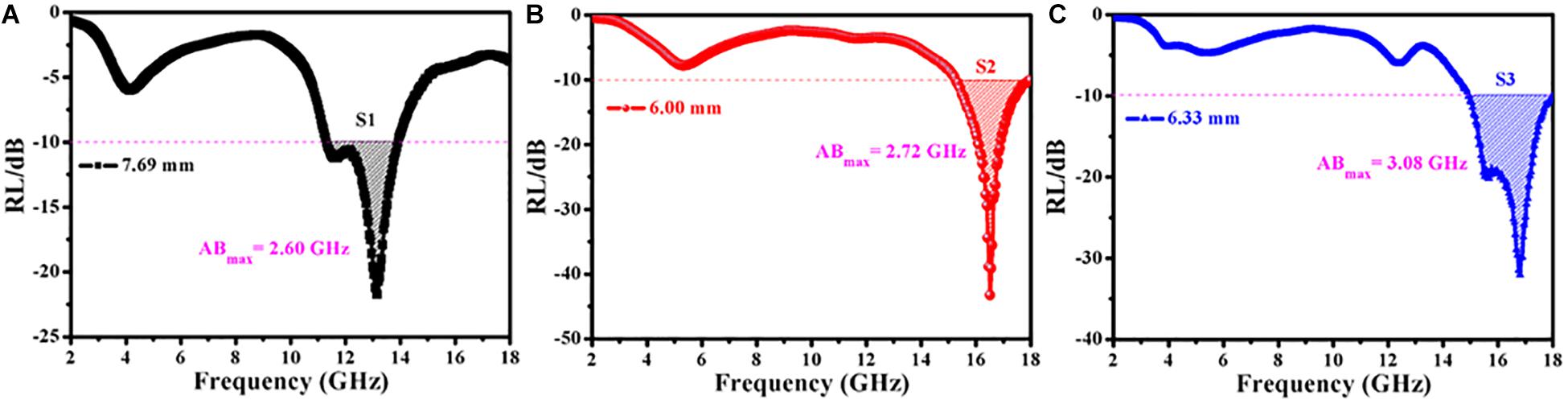

It is well known that the value of minimum reflection loss (RLmin) and its corresponding frequency bandwidth (FBcor), with the reflection loss (RL) values lower than −10 dB (90% EM wave absorption) are the important characteristic for measuring high performance MAs (Ye et al., 2018). Further, it is very desirable that MAs can simultaneously have a low RLmin and large FBcor values. To investigate their MAPs, the values of RL were calculated based on the measured EM parameters and transmission line theory (Yusoff et al., 2002):
Where f is the frequency of the EM wave, d is the thickness of absorber, c is the velocity of light, Z0 is the impedance of air, and Zin is the input impedance of absorber. Figure 7 provides the RL curves of S1, S2, and S3. As shown in Figures 7A,B, the RLmin and large FBcor values for S1 are −54.69 dB at 11.08 GHz with the matching thickness (dm) value of 8.57 mm and 2.36 GHz. The as-prepared S2 presents the RLmin value of −63.99 dB at 14.96 GHz with the dm value of 6.60 mm (Figure 7C), and the FBcor value of 2.48 GHz (Figure 7D), respectively. Equally, as shown in Figures 7E,F, one can find that the RLmin value for S3 is ca. −63.36 dB at 13.12 GHz with the dm value of 7.95 mm, and its FBcor value is 2.68 GHz. Moreover, the corresponding maximum absorption bandwidths (ABmax) with RL < −10 dB for S1, S2, and S3 (as provided in Figure 8) are 2.60 GHz with the dm value of 7.69 mm, 2.72 GHz with the dm value of 6.00 mm, and 3.08 GHz with the dm value of 6.33 mm, respectively. In general, the designed magnetic CNTs/GO NCs display very outstanding MAPs. The as-prepared S3 exhibits the superior comprehensive MAPs compared to S1 and S2. As summarized in Figure 9, the proposed magnetic CNTs/GO NCs present excellent comprehensive MAPs compared to the representative related NCs reported previously (; Yang et al., 2016; Zhang et al., 2016; Zhang K.C. et al., 2017; Zhang S. et al., 2017; ; Shu et al., 2018a, b; ; ; Xu et al., 2019).
FIGURE 7
FIGURE 8

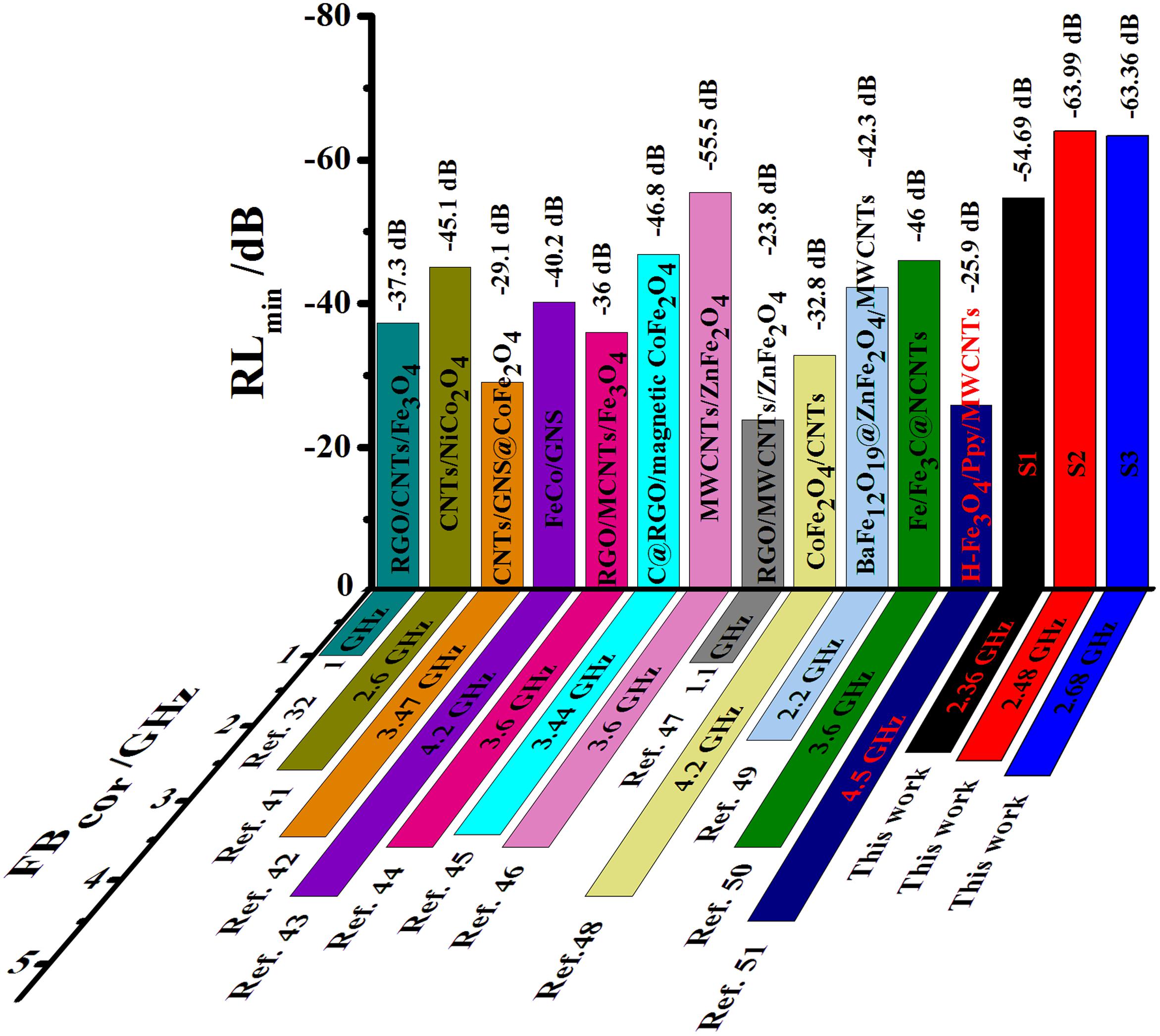

FIGURE 9

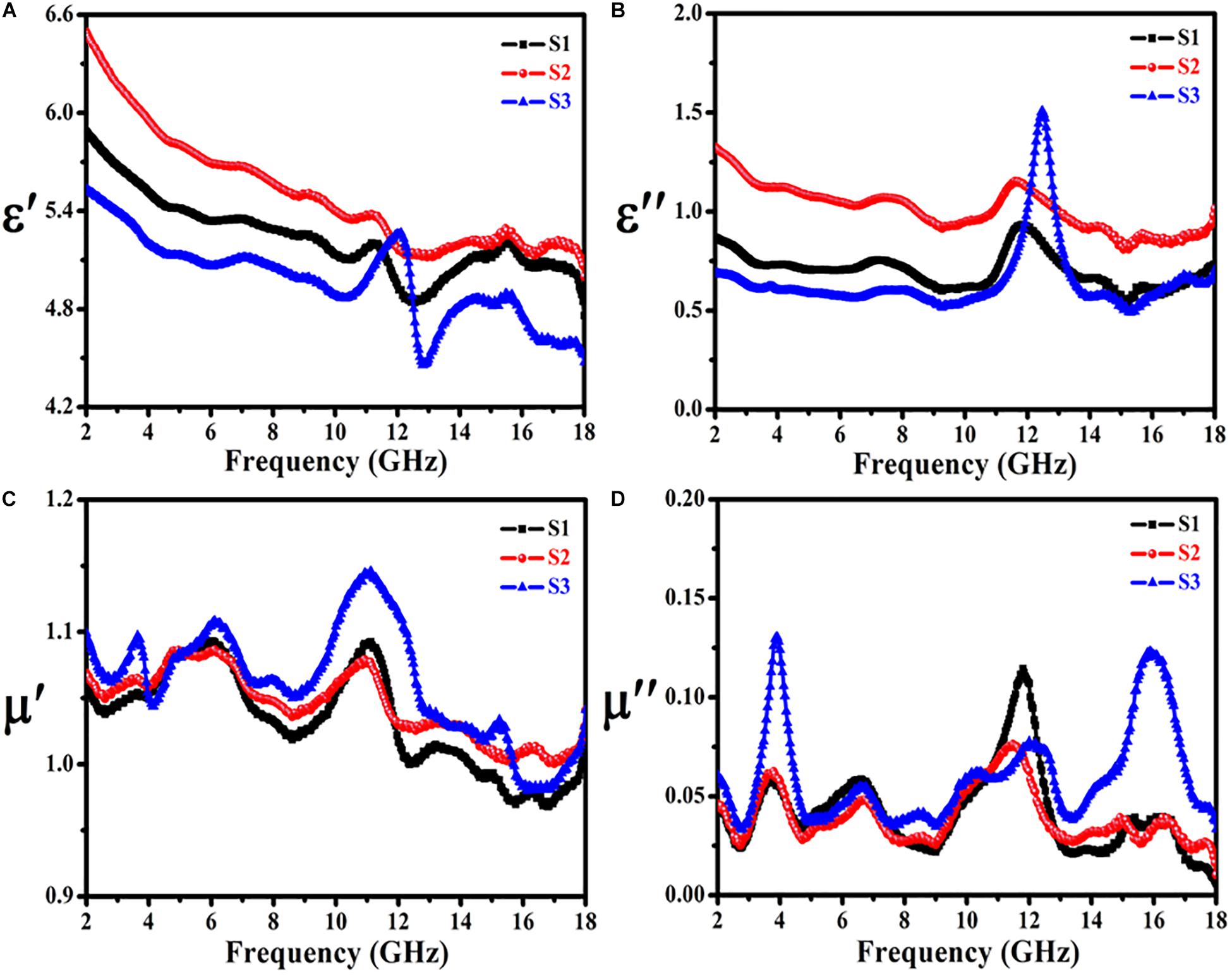

To effectively understand their MAPs, Figure 10 gives their complex permittivity (ε = ε′−jε″) and complex permeability (μ = μ′−jμ″). As shown in Figures 10A,B, besides the shift of peak at ca. 13 GHz, the as-prepared samples present the similar ε′ and ε″ variation tendency in the frequency region owing to the same categories of samples. The complex permittivity exhibits several resonant peaks in the whole frequency range, indicating the multiple relaxation processes (). Furthermore, the ε′ and ε″ values of samples present the decreased tendency with the frequency increasing from 2 to 18 GHz, which can be explained by the Debye theory (Wang et al., 2015). Overall, the obtained S2 has larger values of ε′ and ε″ compared to S1 and S3, which can be ascribed to the highest content of CNTs/GO in the as-prepared S2. According to the previous result (), the ε′ and ε″ values could be effectively enhanced by increasing the content of CNTs. The obtained S3 presents the lowest values of ε′ and ε″, which should be ascribed to the gradual formation of CoxFe3–xO4 with large quantities in NCs resulting in the decreasing content of CNTs/GO. Figures 10C,D present the μ′ and μ″ values of the obtained samples. Generally, it can be observed that the obtained samples exhibit the gradually growing μ′ and μ″ values with increased addition of Fe sources, which can be related to the enhanced content of CoxFe3–xO4 NPs in the NCs. Figure 11 provides the dielectric loss (tanδE = ε″/ε′) and magnetic capabilities (tanδm = μ″/μ′). Overall, the as-prepared magnetic CNTs/GO NCs display much higher tanδEvalues than those of tanδm, which indicates that the attenuation of wave EM mainly originates from dielectric loss (; ). Moreover, the obtained S2 displays larger values of tanδE compared to S1 and S3. Further, the large tanδm values of S3 are higher than those of S1 and S2. The difference in dielectric loss and magnetic loss abilities should be related to the different CNTs/GO and magnetic CoxFe3–xO4 NPs contents.
FIGURE 10
FIGURE 11

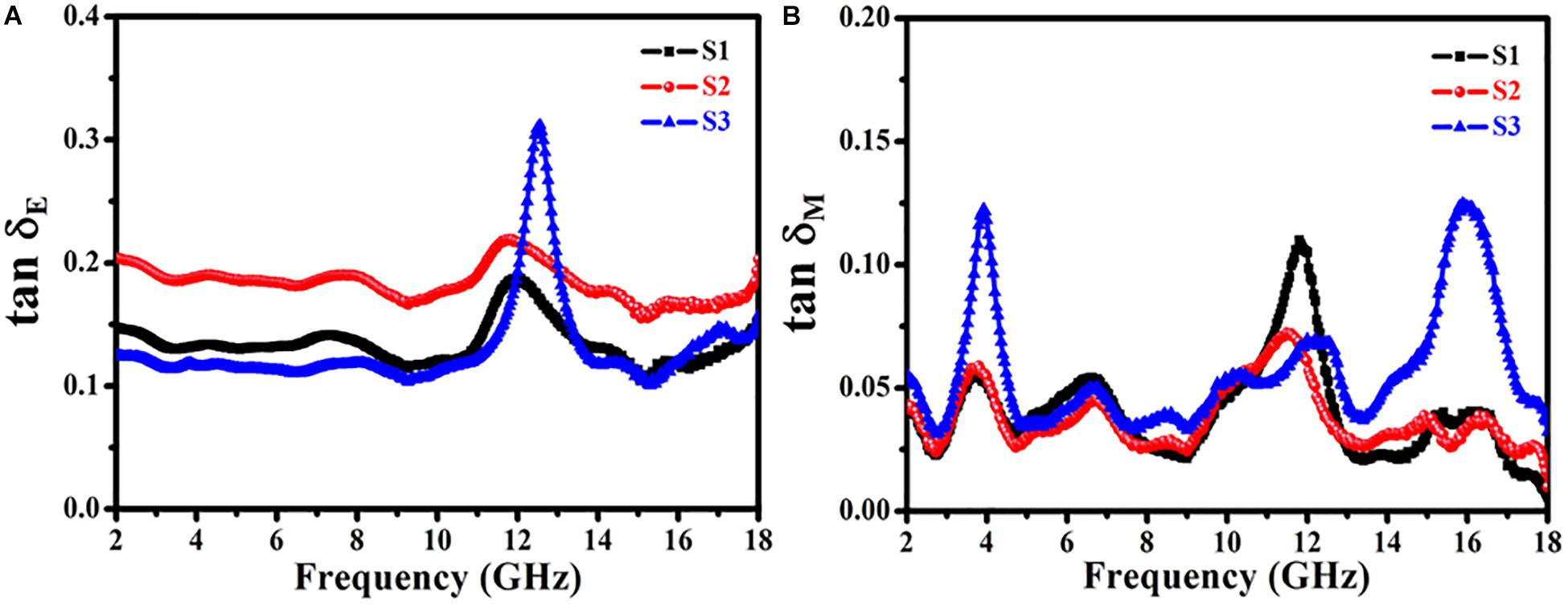

Based on the obtained EM parameters, RL curves and the previously reported mechanisms for the interpretation of the good MAPs (, ), the excellent MAPs of the as-prepared magnetic CNTs/GO NCs can be explained by the geometrical effect. For this model, the values of dm and peak frequency (fm) should satisfy the 1/4 wavelength equation ():

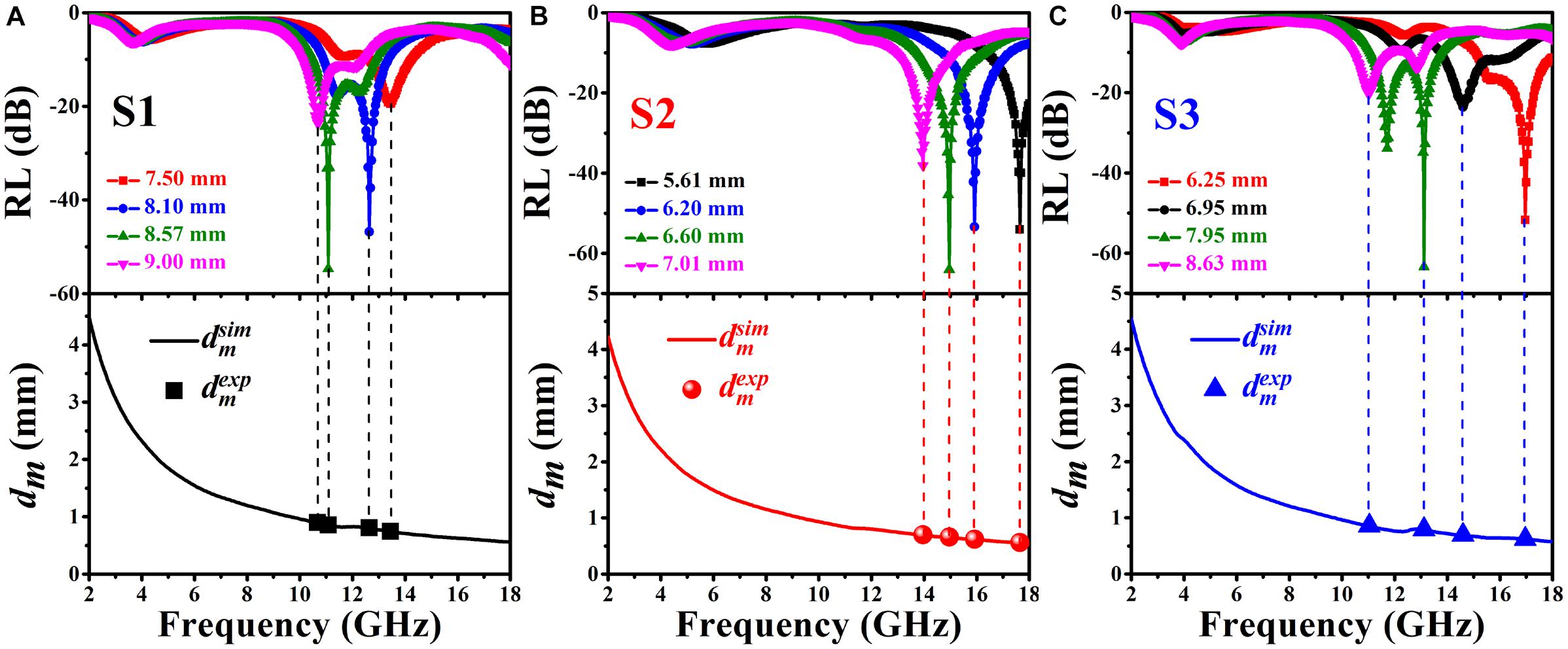

Figure 12 provides their comparison results between the experimental value of (obtaining directly from their RL curves) and their theoretical curves of [plotting by the formula (3)]. One can find that the scattered dots of land on the theoretical curves of . Consistent with the CoNi@PRM-NC, ZnFe2O4@C, and CNTs@MoS2 reported elsewhere (; Yan et al., 2019; Wang et al., 2020), the agreement between the experimental and theoretical values suggests the cancelation effect of reflected EM waves and a strong EM wave attenuation.
FIGURE 12

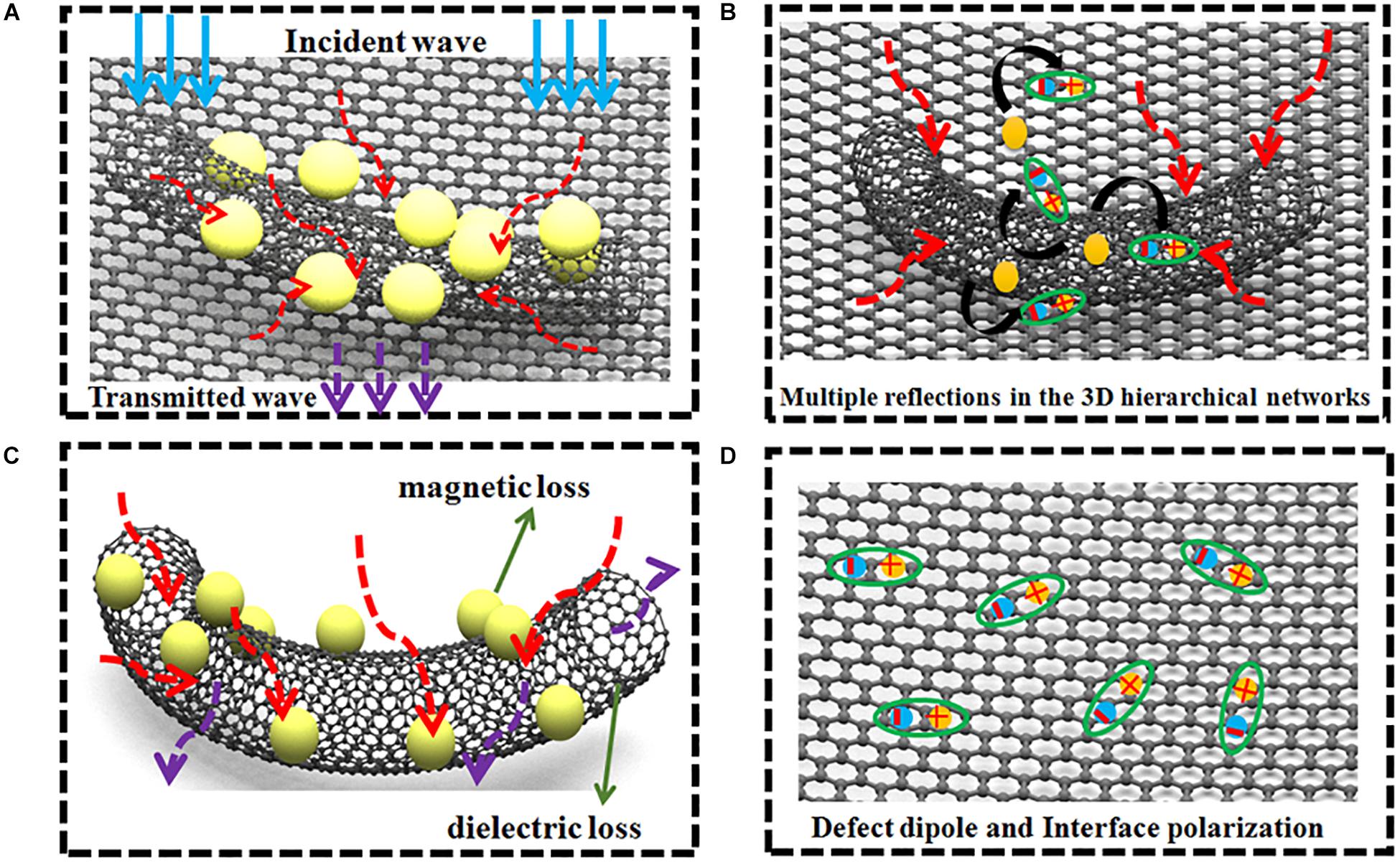

Based on the previous models and our obtained results (Wang et al., 2014; Shu et al., 2018a), as depicted in Figure 13, as for our designed magnetic CNTs/GO NCs, the possible paths for the EM wave attenuation are mainly attributed to the following facts: (i) the 3D hierarchical networks structure results in the multiple reflections and/or scattering of the EM wave (Figure 13A), which plays a significant role in the EM wave attenuation; (ii) many more interface contacts among magnetic NPs, CNTs, and GO nanosheets (Figure 13B) induce the formation of interface polarization with large quantities, which can effectively dissipate the energy of the incident EM wave; (iii) the designed NCs consisted of dielectric substances and magnetic NPs (Figure 13C), which can simultaneously provide the dielectric and magnetic loss mechanism. The excellent synergistic effect between them further improves the attenuation of the EM wave; (iv) the high conductivity of GO/CNT and a large number of defects and functional groups existing on CNTs (Figure 13B) and GO (Figure 13D) can generate massive electrons, defect dipoles and interface polarizations, which are also conducive of the dissipation of the EM wave.
FIGURE 13
Conclusion
In summary, we proposed a one-step hydrothermal method to selectively synthesize different compositions of magnetic CNTs/GO NCs such as CoCO3-CoxFe3–xO4/CNTs/GO quaternary NCs and CoxFe3–xO4/CNTs/GO ternary NCs. The TEM investigation indicated that the designed NC consisted of CoCO3-CoxFe3–xO4 NPs, CNTs, and GO nanosheets, which were well bound together to form the good 3D hierarchical networks structure. Owing to the construction of many more interface contacts among magnetic NPs, CNTs, and GO nanosheets, an excellent synergistic effect between dielectric and magnetic loss substances, the as-prepared magnetic CNTs/GO NCs presented very extraordinary MAPs. The RLmin and FBcor values for the as-prepared samples were ca. −54.69 dB and 2.36 GHz, −63.99 dB and 2.48 GHz, −63.36 dB and 2.68 GHz, respectively. Moreover, owing to their low cost, lightweight and high stability, the proposed 3D hierarchical networks structures of magnetic GO/CNTs NCs exhibit very outstanding comprehensive MAPs, which may be used as promising candidates for high performance MAs and are very much worth further study.
