Abstract
A 2-Methylimidazole derivative [ethyl glycidyl ether (EGE)–2-MI] was synthesized through the reaction of EGE with the conjugated molecule 2-MI. The structure was confirmed by Fourier transform infrared spectroscopy, 1H-nuclear magnetic resonance spectroscopy, and differential scanning calorimeter. The synthesized EGE–2-MI was applied in epoxy resin E-51 as a latent curing agent. Kinetics of the curing reaction were studied by a differential scanning calorimeter method, optimum curing process parameters were determined, storage life of the resin system at room temperature was evaluated, and mechanical properties of the moderate-temperature-cured products were also tested and analyzed. The results revealed that the epoxy resin system using EGE–2-MI as the curing agent can be efficiently cured at 110–120°C, with an activation energy of 86.34 kJ/mol. The storage period of the EGE–2-MI/cyanate resin system can reach 14 days under ambient temperature. In addition, the cured mixture with EGE–2-MI/cyanate resin has a tensile strength of 40 MPa and an Al–Al adhesion shear strength of 20.11 MPa.
Introduction
Moderate-temperature-cured epoxy resin systems can be cross-linked at the temperature range of 100–120°C. Due to the moderate curing temperature and relatively high adhesive strength, this type of adhesive system has extensive usage in many fields, such as aerospace, automobile, medical devices, and mechanical devices (; ).
Among all kinds of curing agents that can be used in epoxy resin systems, a conjugated molecule, imidazole and its derivatives have some distinguishing properties (; ). They have extremely high reactivity in chain polymerization with epoxy resin, superior heat resistance, low tensile elongation, and outstanding adaptability for molecular design, which opens up the possibility of altering the nucleophilic and base-catalyzed processes during polymerization (; ; Zhao et al., 2019). The only but significant drawback of imidazole that may limit its application is the difficulty to control the high reactivity in the chain polymerization. A liquid mixture of imidazole and epoxy resin would convert to insoluble crosslinked solid rapidly even at storage under ambient condition (). Recently, Zhang’s group introduced some conjugated materials into epoxy coating, such as diketopyrrolopyrrole, benzodifuronone, and benzodipyrrolidone, which resulted in a functional coating system, for instance, the anti-UV or color-changing function (; Zeng et al., 2019; Zhang et al., 2020).
The conjugated molecule 2-methylimidazole (2-MI) is one of the most common imidazole-based curing agents. It has a curing temperature (80–120°C) that is suitable for most manufacturing processes. However, due to the excessively high reactivity, the storage life of 2-MI epoxy systems is short, and it only takes 3 days for the mixture to cross-link spontaneously under ambient temperature (). However, in the practical industry such as aerospace and automobile manufacturing, the operation periods are around 10 days, which makes it difficult for 2-MI systems to be utilized. Therefore, suitable modification is crucial for these conjugated molecule curing agents, and considerable research have been conducted on improving the storage stability of conjugated molecule imidazole curing agents (; ; ; ; ). synthesized a novel liquid-type thermal latent curing agent using a Michael addition reaction of fumarate with imidazole in 14–53% yield. The product has a thermally labile bulky long-chain alkyl succinate group at the N atom on the imidazole ring, which gives the curing agent a decomposition temperature of 280°C and a storage life of 10 days. This method could increase the activation energy of the system, and, therefore, prolong the storage time. Despite the decent storage life, however, most of the modified imidazole system is still limited by the high curing temperature.
Herein, a novel glycidyl ether–modified conjugated imidazole derivative ethyl glycidyl ether (EGE)–2-MI was synthesized by decorating the N atom in imidazole 1-position. The performance in the epoxy curing system was studied and analyzed, aiming to obtain a moderate-temperature latent epoxy curing system with relatively long storage time and large adhesive strength, which can overcome the underlying obstacles facing imidazole-based epoxy systems.
Experimental
Materials
2-MI was purchased from Beijing Chemical Co. Ltd., Beijing, China. EGE was purchased from Shenzhen Jiadida New Material Co. Ltd., Guangdong, China. Epoxy resin was mixed with liquid bisphenol-A diglycidyl ether (E-51) purchased from Yueyang Baling Huaxing Petrochemical Co. Ltd., Hunan, China. Cyanate resin (CE) was purchased from Sinopharm Chemical Reagent Co. Ltd., Beijing, China.
EGE (32.8 g, 0.2 mol) and 2-MI (17.24 g, 0.21 mol) were dissolved in ethyl acetate (150 ml), and then the solution was stirred at 85°C for 2 h. The reaction mixture was washed with water several times, and the organic solvent was removed by rotary evaporation. Then, 42.03 g of the solid product was obtained. Based on our previous works (), 2-MI and 2-MI derivative were used as curing agents in epoxy resin systems, and cyanate ester resin (CE) was used as a stabilizer. The curing systems were prepared by E-51 with a certain amount of the curing agent, as shown in Supplementary Table S1.
Results and Discussion
Structure of the Ethyl Glycidyl Ether–2-Methylimidazole

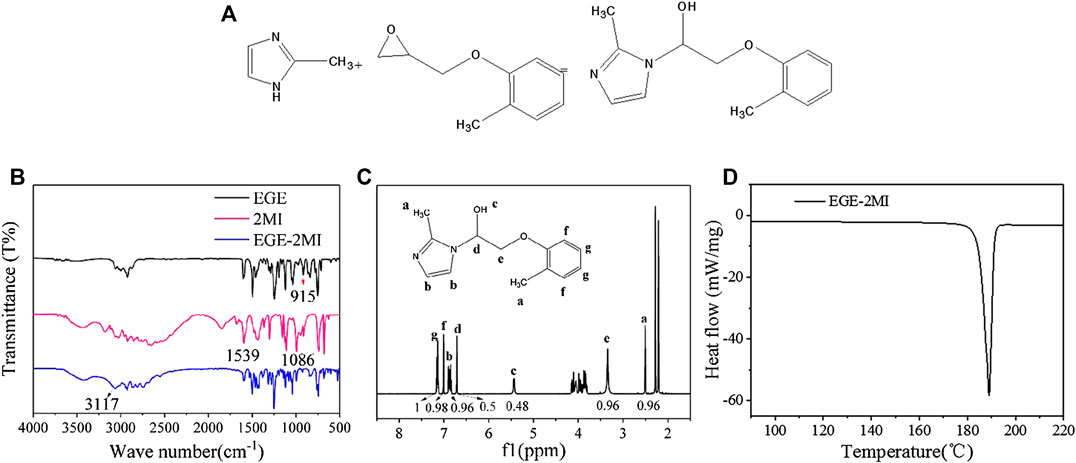

Modification of the conjugated molecule 2-MI by EGE was conducted following a well-established method, as illustrated in Figure 1A. Several molecular characterizations were operated to confirm the modification result of the conjugated molecule. Fourier transform infrared spectroscopy spectra of EGE, 2-MI, and EGE–2-MI are shown in Figure 1B. The absorption peak at 915 cm−1 in the spectrum of EGE can be attributed to the epoxy group. The peaks at 1,068 and 1,539 cm−1 in the spectrum of 2-MI represent the N–H bond, which are not found in the spectrum of EGE–2-MI, suggesting N–H bonds from 2-MI have reacted with EGE. The peak at 3,117 cm−1 (i.e., vibration of −OH) on EGE–2-MI indicates EGE epoxide has a ring opening that reacted with the imidazole group through nucleophilic addition reaction. 1H-nuclear magnetic resonance spectra shown in Figure 1C further confirm the structure of EGE–2-MI; after integral calculation analysis of each peak area, the S(7.1–7.2):S(7.01):S(6.82–6.92):S(6.71):S(5.44):S(3.26–3.38):S(2.51) ratio is about 2:2:2:1:1:1:2:2, matching the theoretical prediction. Furthermore, the narrow endothermic peak along with a single melting point at 187°C on the differential scanning calorimeter (DSC) curve (Figure 1D) demonstrating the product is pure. These observations can confirm that EGE–2-MI has been successfully synthesized.
FIGURE 1
Curing Condition of the Ethyl Glycidyl Ether–2-Methylimidazole Epoxy Resin System

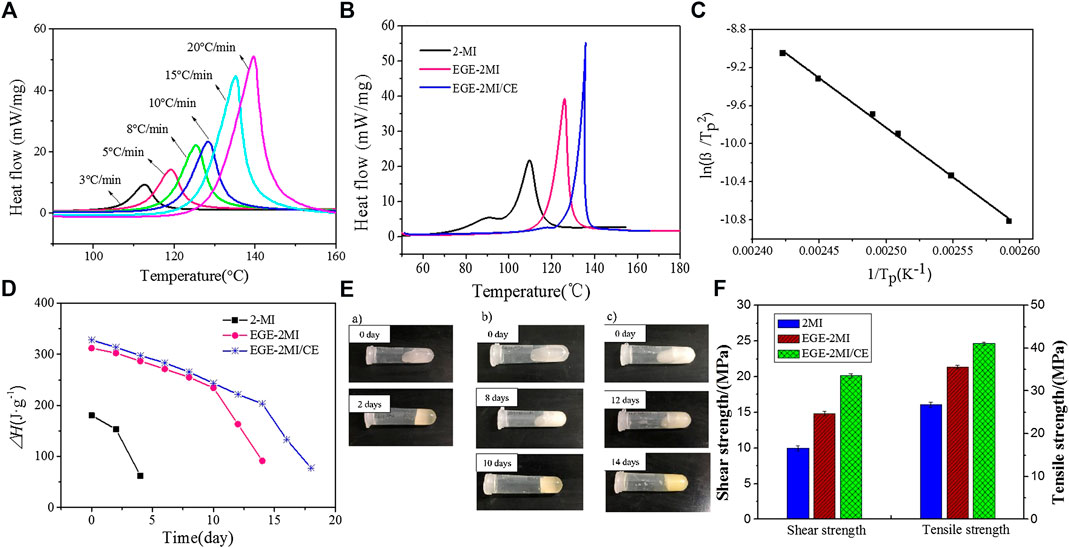

With the successful modification confirmed, the performance of the novel curing agent needs to be determined. Non-isothermal DSC was conducted to investigate the curing behavior of the EGE–2-MI epoxy resin system (); the curves for the epoxy resin system examined at different heating rates ranging from 3 to 20°C/min are shown in Figure 2A. With the increase in the heating rate (β), the inflection point of the curve moves toward the high-temperature region, and the exothermic peak becomes sharper with increasing area, indicating more heat was released from the curing reaction. From the increasing trend of the initial curing temperature (Ti), curing peak temperature (Tp), and final curing temperature (Tf) with increasing heating rates, it is obvious that in the same curing system, β has a significant influence on the characteristic temperatures. To determine the accurate characteristic temperatures of the system under isothermal curing condition, the influence of β must be eliminated. In order to achieve that, different characteristic temperatures under different heating rates are recorded and linear-fitted, three near-straight fitting lines are obtained, and the standard characteristic temperatures (Ti, Tp, and Tf) at β = 0°C/min are then determined by extrapolation. By plotting Ti against the scanning rate, an equation can be obtained from the fitted line, Ti = 1.114β + 98.38. Treating the fitting equation with the extrapolation method, the value of Ti at a scanning rate of 0°C/min can be estimated, which can reflect the curing effect of epoxy resin under isothermal condition. Similarly, the equations of Tp and Tf are Tp = 1.5159β + 110.6669 and Tf = 1.9842β + 122.5490. Therefore, it can be deduced that the optimum curing temperature of the E-51/EGE–2-MI system is between 98 and 110°C, which can further be cured at 122°C. Using DSC to analyze the curing behavior of the epoxy resin system under the same heating rate at 10°C/min (Figure 2B), the suitable curing temperature for 2-MI, EGE–2-MI, and EGE–2-MI/CE epoxy systems is 100, 110, and 120°C, respectively.
FIGURE 2
Curing Kinetics Analysis
The study on curing kinetics is helpful to understand the curing process and to optimize curing conditions in order to produce high-quality epoxy systems (). The peak temperature, Tp, shifts to a higher temperature region with increasing heating rate, β. Hence, the Kissinger method can be used to calculate the activation energy and the pre-exponential factor of the curing reaction of epoxy resin examined in this study (; ; ). The equation for the Kissinger method can be expressed asCrane:where β is the heating rate (°C/min), Ea is the activation energy, Tp is the peak temperature, A is the frequency factor, R is a gas constant of 8.314 J/(mol K), and n is the reaction order. Based on Eqs 1 and 2, through a linear fit between and (; ), the value of activation energy Ea can be obtained from the slope of the fitted line. The Ea of the EGE–2-MI resin can be calculated as 86.34 kJ/mol, while the apparent activation energy of unmodified 2-MI was 50.34 kJ/mol by preliminary experiment (). Activation energy is a measure of the energy required for a curing reaction: the higher the value, the more the energy needed. The increase in activation energy of the modified epoxy resin system reduces the reactivity of epoxy resin in chain polymerization with epoxy resin. The value of pre-exponential factor A can be calculated by reading the value of lnA from the y-intercept of the fitted line, which is 16.13 s−1 in this case. Based on Eq. 3, the reaction order n can be calculated as 0.927. The curing kinetic equation is expressed as follows:where n is less than 1, which indicated the curing reaction is then a complex reaction ().
Storage Stability
More importantly, the storage life of this modified conjugated molecule curing agent needs to be evaluated to overcome the underlying obstacles of imidazole materials. The storage stabilities of different curing systems were further assessed by measuring the changes in enthalpy values under room temperature. E-51 with 2-MI (system A), EGE–2-MI (system B), and EGE–2-MI with CE (system C) were stored at room temperature (23 ± 5°C); enthalpy values of each system were measured and recorded through DSC every 2 days; and the heating rate was 10°C/min. Figure 2C shows the variation of enthalpy value of three systems with increasing storage time. As presented in the plot, the enthalpy value of the 2-MI system drops sharply after storage for 2 days, and the crosslinking degree can be calculated through the variation of the total exothermic heat as 15%; the enthalpy value of the EGE–2-MI system is relatively stable within 10 days and begins to decrease after 12 days, and the crosslinking degree after 10 days is 25%; and the crosslinking degree of the EGE–2-MI/CE system was 25% after 14 days, and CE can form a triazine crosslinking network structure at elevated temperature and could decrease the activity of curing agents, which would further extend the storage time.
In addition to the test of enthalpy value of the systems, a more visualized way was used to observe the fluidity of different systems after different storage periods. The same amount of systems A, B, and C was put into three centrifuge tubes, which were placed on the table for a certain storage period, 2, 8, or 12 days. The tubes were then placed on the table to measure and record the length of the fluid flow. The recording pictures of the three systems are shown in Figure 2E. As demonstrated in the pictures, results of fluidity tests are consistent with those of DSC tests, and fluidity of epoxy resin systems decreases with increasing storage time. The storage period of the 2-MI system is 2 days, which can be apparently improved to 10 days in the EGE–2-MI system, and further prolonged to 14 days with the addition of CE stabilizer, which reaches the standard requirement of large-scale industry manufacturing.
Mechanical Properties
Finally, tensile tests were conducted to characterize the mechanical properties of epoxy resin systems. The details of the preparation of testing specimens are described in the Supplementary Material. Mixed with required quantities of the curing agent 2-MI, EGE–2-MI, and EGE–2-MI/CE, the average value and standard deviation of the Al/Al adhesion shear strength of the epoxy systems are shown in Figure 2F. Comparing the shear strength value of the three systems, we found that the system using the 2-MI system as a curing agent has a shear strength value of 10 MPa, while the system using the EGE–2-MI system has a relatively higher shear strength of 14.85 MPa. We believe this can be explained by the low viscosity of the EGE–2-MI system, leading to higher wettability on the aluminum substrate and less defects in the bonding joints. A further increase to 20.13 MPa in shear strength is observed in the system with the addition of CE stabilizer. This is because CE has an extremely high adhesion effect to metal, by bonding with hydroxyl groups on the metal surface and forming complex compounds with metal ions ().
Meanwhile, the tensile strength of the five samples was tested, and the averages were calculated, as shown in Figure 2F. Compared to a tensile strength at 26.78 MPa for the system directly using 2-MI as the curing agent, the average tensile strength of the EGE–2-MI system without or with adding stabilizer CE is 35.62 and 41.05 MPa, respectively. It is worth mentioning that the performance of the modified curing system is even superior to that of the unmodified epoxy system. Cyanate esters were cured via addition polymerization to produce a heterocyclic ring referred to as a polycyanurate network. This polycyanurate network is responsible for the excellent tensile properties of resulting epoxy resin systems. Since increases are observed both in shear strength and tensile strength, the conclusion that the cured EGE–2-MI/CE system has better mechanical properties can be drawn.
Conclusion
In conclusion, we have successfully fabricated a modified conjugated molecule EGE–2-MI. The E-51 epoxy resin can be efficiently cured by EGE–2-MI at a moderate temperature (around 110°C), and the corresponding curing activation energy is 86.34 kJ/mol. The modification of 2-MI enhanced the storage ability of the E-51 epoxy system, and the storage period of 14 days can be achieved by adding CE as a stabilizer, which reaches the standard requirement of industry manufacturing. The curing products also show promising mechanical adhesive properties, with a tensile strength of 41 MPa and an Al–Al shear strength of 20 MPa. We believe this novel moderate-temperature curing system with decent storage life and mechanical properties can overcome the rooted disadvantage of imidazole curing agents and open up their potential application in large-scale industry manufacturing.
