- 1School of Traffic and Transportation Engineering, Changsha University of Science and Technology, Changsha, China
- 2National Engineering Laboratory for Highway Maintenance Technology, Changsha University of Science and Technology, Changsha, China
The strength characteristics of asphalt mixture is crucial for the design and construction of asphalt roads. A strength model considering the effect of temperature is presented in this paper based on unified strength theory (UST). Firstly, direct tensile tests, uniaxial compression tests and anti-shear property tests of asphalt mixture were carried out respectively at different temperatures. Key mechanical parameters were obtained, including tensile strength (σt), compressive strength (σc) and shear strength (τ0) at different temperatures. Besides, the temperature sensitivity of σt, σc and τ0 was systematically analyzed. The results showed that the UST parameters of tensile-compression strength ratio α and failure criterion parameter b have a linear relationship with temperature t. A theoretical model to describe strength characteristics with the temperature of asphalt mixture was developed finally. The developed model was validated via applicability analysis. and it will provide theoretical support for the study of strength characteristics of asphalt mixture and engineering practice.
Introduction
The asphalt pavement is the most widely used high grade pavement in road construction at present. The strength characteristics of asphalt mixture have long been the core issue of asphalt pavement research (Provis, 2015; Wang et al., 2020; Pugno et al., 2021). However, the mechanical properties of the asphalt mixture are complex. It is mechanical viscous, elastic, plastic and temperature-sensitive, which has brought great challenges to establish an accurate strength model. The classical strength model of Tresca and Mole-Colume have been widely adopted in the construction of asphalt pavement nowadays due to their simple form and clear physical meaning (Xu, 1994; Xue, 1997; Yu, 2002; Niu et al., 2014). However, they ignored the effect of intermediate principal stress σ2 on the asphalt mixture strength, leading to insufficient estimation of the true strength of asphalt pavement and the inconsistency between the design of asphalt mixture pavement structure and the practical application (Guan et al., 2014; Yang et al., 2015).
To establish an accurate theoretical model to describe the effect of intermediate principal stress on asphalt mixture strength. Some scholars explored and achieved important results under the unified strength model framework (Suo et al., 2011; Yu et al., 2011; Xia et al., 2019). Suo et al. (2015) conducted orthogonal tests and confirmed the influence of the second principal stress, loading rate and temperature on the strength of asphalt mixture. Yang et al. (2015) introduced a failure criterion of asphalt pavement considering the influence of tension-compression strength ratio of asphalt mixture and intermediate principal stress. The criterion confirmed that the tension-compression strength ratio had a significant influence on pavement stress and its distribution, and the pavement stress level would be significantly increased after considering intermediate principal stress. Xia et al. (2019) established a unified strength model of asphalt mixture under different loading modes by using the relationship between strength ratio and loading rate indirect tensile test, unconfined compression test and indirect tensile test. This model solves the uncertainty of strength performance of asphalt mixture under different loading models.
The applicability of the UST under specific temperature conditions of asphalt mixture has been verified (Suo et al., 2015). However, asphalt is a typical temperature-sensitive material, and few strength models can consider both intermediate principal stress and temperature. Therefore, the temperature is still the key problem that restricts the development of asphalt mixture strength theory.
This paper is based on the UST. The direct tensile test, uniaxial compression test and anti-shear property test of asphalt mixture are conducted under five temperature conditions. The tensile strength σt, compressive strength σc and shear strength τ0 were used as the indexes. The influence of the stress component on the strength of asphalt mixture at different temperatures was analyzed. The variation of σt, σc, and τ0 at different temperatures were obtained. A unified strength model of asphalt mixture which can consider the influence of intermediate principal stress and temperature effect was established.
Materials and Specimen Preparation
Materials
In this research, the SBS (I-D) modified asphalt was used. The conventional test of the SBS (I-D) was performed following the JTG E20-2011, (2011), and the results were shown in Table 1. Table 1 indicates that all performance indexes meet the Technical Specification for Highway Asphalt Pavement (JTG F40-2004, 2004).

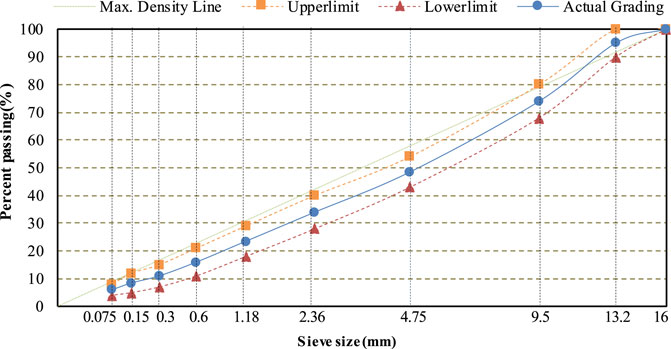

The aggregate is basalt produced in Nanjing, China. The mineral powder is ground from basalt. The AC-13C dense graded asphalt mixture is adopted, and the aggregate grading is determined according to the JTG F40-2004 (2004). The aggregate density of each file is shown in Table 2, and the gradation curve is provided in Figure 1.

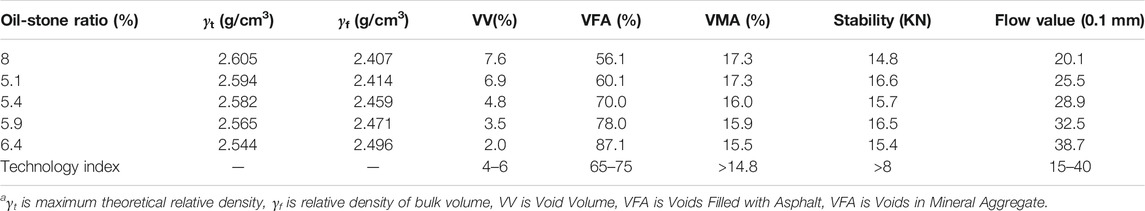

The optimum asphalt content (OAC) is determined by the Marshall test method combined with practical experience of asphalt pavement, and the optimum OAC is 5.3%. The Marshall test results are shown in Table 3.
Test Methods
Material Test System-810 (MTS-810) was adopted as the loading equipment. The system has the advantages of simple structure and convenient operation, which can be used for ordinary tests and fatigue tests of various materials such as stretching, compression and bending under different temperature environments. The size of the specimen is a cylinder with a diameter of 100 mm and a height of 100 mm, which is formed by the static pressure method. To comprehensively analyze the strength characteristics of the asphalt mixture, the specimen was insulated by the testing machine environmental insulation box. The temperature precision is ±0.5°C. Then three sets of parallel tests of direct tensile, uniaxial compression and anti-shear property test at different temperatures were studied. Finally, the arithmetic mean value was taken as the experimental value.
Direct Tensile Strength Test
To analyze the influence of temperature on the tensile resistance of asphalt mixture, direct tensile tests were conducted on three groups of prefabricated specimens at 5, 15, 20, 40 and 60°C, respectively. The size of the specimen is a cylinder with a diameter of 100 mm and a height of 100 mm. The stretching rate was 1 mm/min. To avoid the eccentric tension of the specimen during the test, the concentric circles with fine lines were prepared during the drawing plate forming to ensure that the specimen could be accurately centered during the adhesive process. On the other hand, ball valves are used at both ends of the drawing board to connect the loading shaft of the MTS testing machine (Huang et al., 2019). According to the measured average maximum load, the tensile strength can be calculated as follows:
where σt is the tensile strength of the specimen, with the unite in MPa. P is the maximum load of specimen failure, with the unite in N. d is the diameter of the specimen, with the unite in mm.
Uniaxial Compression Test
To obtain the compressive strength characteristics of asphalt mixture at different temperatures. Three sets of prefabricated specimens were held at temperatures of 5, 15, 20, 40 and 60°C respectively. Uniaxial compression tests with a loading rate of 2 mm/min were carried out. The size of the specimen is a cylinder with a diameter of 100 mm and a height of 100 mm. The compressive strength could be obtained according to the average maximum load measured:
where σc is the tensile strength of the specimen, with the unite in MPa. P is the maximum load of specimen failure, with the unite in N. d is the diameter of the specimen, with the unite in mm.
Anti-Shear Property Test

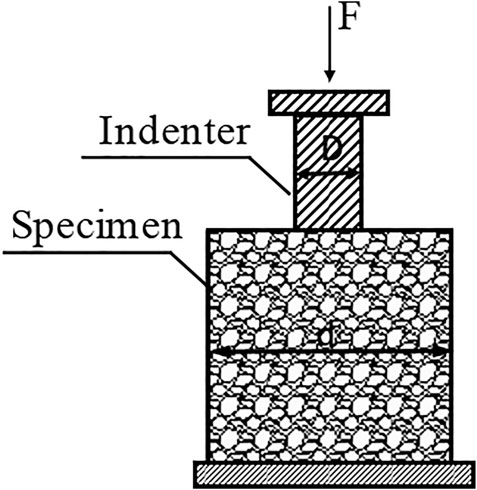

Triaxial shear test, coaxial shear test and uniaxial penetration test are commonly used to test the shear performance of asphalt mixture (Bi and Sun, 2005; Feng et al., 2008; Zhang and Li, 2012; Xie and Wang, 2019). The uniaxial penetration test is to apply pressure on the specimen with the penetration head, and measure the stress and strain of the pressure head, then calculate the shear strength of the specimen through Eq. 3. The product of the maximum penetration pressure obtained from the test and the strength parameter is the maximum shear stress τmax of the asphalt mixture specimen (Kou et al., 2020):
where C is the strength parameter when the penetration intensity is 1 MPa and Poisson's ratio is 0.35. P is the penetration pressure.
The uniaxial penetration test is easy to operate, the equipment is simple, and the stress mode of the specimen is consistent with the pavement. It can effectively evaluate the anti-shear property of asphalt mixture (Kou et al., 2020). Therefore, a uniaxial penetration test is adopted to test the anti-shear property of asphalt mixture in this study at different temperatures. Specifically, uniaxial penetration tests were carried out at temperatures of 5, 15, 20, 40 and 60°C, respectively. The size of the specimen is a cylinder with a diameter of 100 mm and a height of 100 mm. The steel indenter diameter was 28.5 mm and the loading rate was 1 mm/s. The diagrammatic sketch of the uniaxial penetration test is shown in Figure 2.
Static Strength Characteristics of Asphalt Mixture at Different Temperatures
Direct Tensile Strength Test Results
The ultimate tensile failure test results of asphalt mixture at different temperatures are shown in Figure 3.
As can be seen from the Figure 3, the tensile performance of AC-13(SBS) asphalt mixture decreases monotonically with the increase of testing temperature at temperatures of 5, 15, 20, 40, and 60°C. The inflection point of the relationship between the tensile strength and temperature appears at about 40°C. The strength changes significantly in the range of 5–40°C, and the value of the tensile strength changes 2.866 MPa, which belongs to the temperature-sensitive area. In the range of 40–60°C, the value of the tensile strength changes only 0.119 MPa, which belongs to the temperature-insensitive area. It is worth noting that, although the asphalt mixture has tensile high strength when the temperature is relatively low, the strength index is more sensitive to temperature. Therefore, the reasonable tensile strength index needs to consider the influence of temperature.
Uniaxial Compression Test Results
The ultimate compressive test results of asphalt mixture at different temperatures are presented in Figure 4.

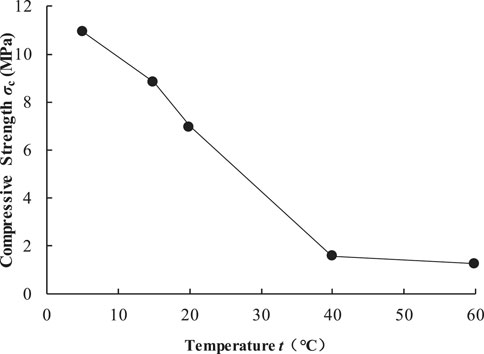

It can be seen from the Figure 4 that at temperatures of 5, 15, 20, 40, and 60°C, the compressive performance of AC-13(SBS) asphalt mixture decreases monotonically with the increase of testing temperature. Especially in the range of 20–40°C, the compressive strength changes significantly with the temperature, and the amplitude decreased is 9.347 MPa. When the temperature rises from 40 to 60°C, the compression strength of the asphalt mixture decreases, with a value change of only 0.119 MPa. The inflection point of compressive strength is still 40°C. In addition, the asphalt mixture has high strength when the temperature is relatively low, but the temperature sensitivity of the strength index is large. Therefore, the reasonable compressive strength index needs to consider the effect of temperature.
Anti-Shear Property Test Results
Combined with the unconfined compressive strength test results of the asphalt mixture mentioned above. The uniaxial penetration test results of specimens are shown in Figure 5.

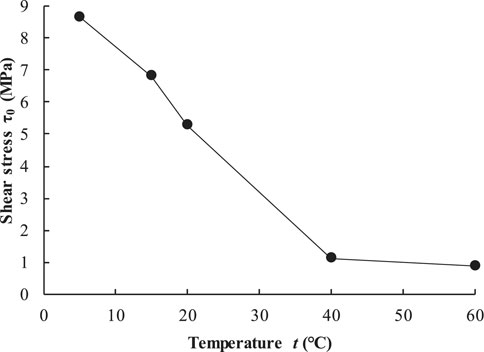

According to the Figure 5, the shear performance decreases monotonically with the increase of temperature. The inflection point occurs when the temperature drops to 40°C. In the range of 5–40°C, the change of shear strength is particularly significant, and the shear strength decreases linearly with temperature. For each increase in temperature, the strength decreases by about 0.22 MPa. When the temperature exceeds 40°C, the overall shear strength of the asphalt mixture is low, and the strength decreases with the further increase of temperature.
Because of the temperature sensitivity of asphalt, the tensile, compressive and shear properties of asphalt mixture show obvious temperature dependence. For AC-13(SBS) asphalt mixture used in this test, the change of strength with temperature has obvious stages. The inflection point of the strength change with temperature is 40°C. In the range of 5–40°C, the strength decreases rapidly with temperature, and the relationship between them is linear. In the range of 40–60°C, the overall strength of the mixture continues to decrease with temperature, but the rate of decrease is small.
Furthermore, the temperature sensitivity of the tensile strength, compressive strength and shear strength of asphalt mixture are different. Concretely speaking, the sensitivity of compressive strength is the largest, followed by the sensitivity of shear strength, and the sensitivity of tensile strength is the least. This is because, with the increase of temperature, the rheological properties of asphalt materials increase and the tensile properties decrease. At the same time, with the increase of temperature, the bonding between asphalt and aggregate increases. Based on the above test results, the quantitative relationship between temperature and strength of asphalt mixture is further analyzed.
Unified Strength Model of Asphalt Mixture Considering Temperature
UST can consider the influence of three principal stresses σ1, σ2, and σ3 on the material strength, and can explain the interval of the effect of intermediate principal stresses. It has been widely applied to describe the strength characteristics of a material. The suitability of UST for asphalt mixtures has been verified. However, it has mostly been carried out at specific temperatures (Suo et al., 2015; Yang et al., 2015; Xia et al., 2019). Considering the objectivity of temperature sensitivity of asphalt material, this section attempts to establish a unified strength model of asphalt mixture considering the temperature effect. Firstly, the basic theory of unified strength is introduced, and then the strength model is established based on the strength parameters obtained under different temperatures and loading conditions.
Unified Strength Theory
UST is a set of yield criterion and failure criterion, which was first proposed and developed by Yu (1992), Yu (1994), Yu (2018). The three principal stresses are expressed as follows (Yu et al., 2011):
where α is the coefficient of tensile-compression characteristics of the material, reflecting the tensile-compression strength ratio of the material; b is the failure criterion parameter, which reflects the influence of the intermediate principal shear stress and the normal stress on the corresponding plane on the material failure.
The expressions of failure criterion parameter b and tension-compression characteristic coefficient α are respectively (Suo et al., 2015):
where σt is the uniaxial tensile strength, MPa. τ0 is the shear strength of the material, MPa. σc is the uniaxial compressive strength, MPa.
UST has been widely used in cement concrete, rock and soil materials (Kolupaev et al., 2013; Guan et al., 2018; Yu, 2018; Deng et al., 2020). Lijun et al. (Suo et al., 2015) confirmed that the second principal stress, test temperature and loading rate have effects on the strength of asphalt mixture, but the exact influence law does not get. Chengdong et al. (Xia et al., 2019) analyzed the relationship between strength ratio and loading rate, and established a unified strength model of asphalt mixture under different loading modes.
Uniform Strength Criteria for Asphalt Mixtures Considering Temperature
The measured test parameters σt, σc, and τ0 are substituted into Eqs 4, 5. The UST parameters α and b of asphalt mixture at different temperatures can be obtained. The results and fitting curves are shown in Figure 6.

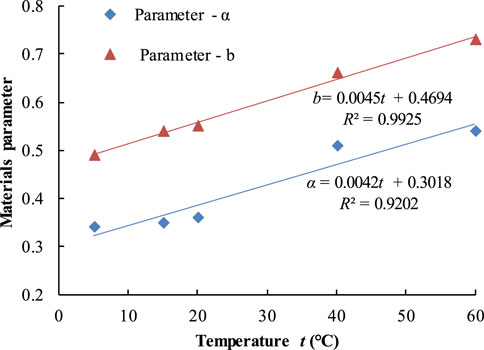

It can be seen from Figure 6 that with the increase of temperature, the tension-compression ratio α and the failure criterion parameter b increase. It shows that compared with tensile properties, the increase of temperature makes the compressive properties of the mixture decrease more greatly, and the difference between tensile strength and shear strength of the mixture decreases. The tension-pressure ratio α and the failure criterion parameter b showed an obvious positive linear correlation with temperature, which could be expressed by Eqs 6, 7.
where t is the temperature of asphalt mixture.
By substituting Eqs 8, 9 into Eqs 2, 3, the asphalt mixture UST considering temperature effect can be obtained. The expression is as follows:

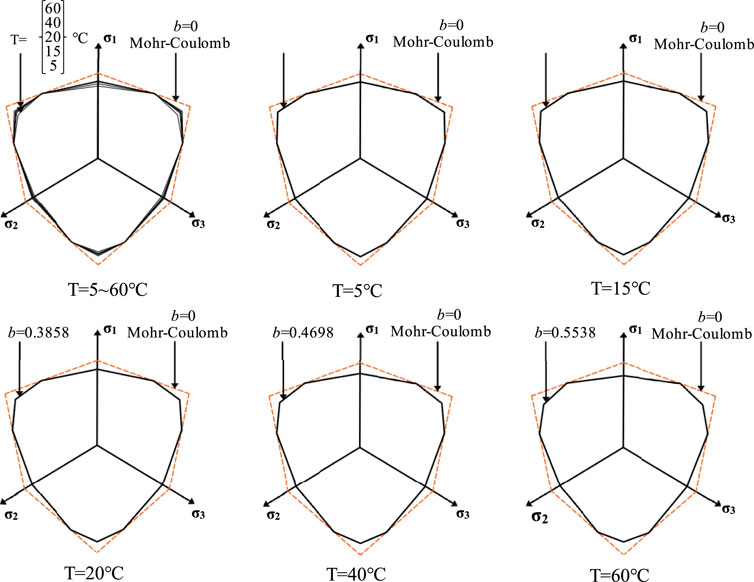

According to Eqs 8, 9, the limit traces of the deviatoric plane of UST at different temperatures is shown in Figure 7. The UST yield surface of asphalt mixture considering temperature and intermediate principal stress effect is shown in Figure 8.

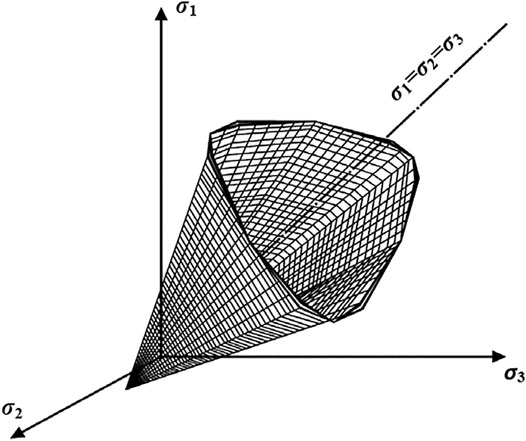

FIGURE 8. Yield surface of asphalt mixture considering temperature and intermediate principal stress.
Figures 7, 8 display that the deviant plane limit trace decreases with the increase of temperature. The strength of the material decreases gradually under the condition of complex stress. The tension-pressure ratio α and failure criterion parameter b change with temperature, so that the strength of the asphalt mixture shows different forms:
When the parameter b = 1, the model is simplified to the double shear stress strength theory. Its physical meaning is as follows: when the two large principal shear stresses and the corresponding normal stress function on the unit body reach a certain limit value, the material will be destroyed. The mathematical expression is:
when b = 0, the model is simplified into Mohr-Coulomb strength theory, and its mathematical expression is as follows:
when b∈(0, 1), the strength theory of partial plane limit trace dodecagon.
A unified strength model of asphalt mixture considering temperature effect is established in this paper. This model can not only reflect the effect of intermediate principal stress σ2 on material yield, but also its two expressions can reflect the change of stress state characteristics when the intermediate principal stress σ2 increases from σ2 = σ3 to σ2 = σ1. That is, the transition from the generalized tensile stress state
Conclusion
In this paper, UST was introduced into the asphalt mixture. Through the direct tensile test, uniaxial compression test and anti-shear test of asphalt mixture, the strength characteristics of asphalt mixture under various temperatures were analyzed. The asphalt mixture UST considering the effect of temperature is presented. The specific conclusions are as follows:
1. With the increase of temperature, the tensile, compressive and shear properties of the asphalt mixture decrease monotonically. The inflection point is around 40°C. In the range of 5–40°C, the temperature sensitivity of the asphalt mixture is larger and decreases linearly. When the temperature exceeds 40°C, the temperature sensitivity of the strength decreases, but the overall strength is also small.
2. The temperature sensitivity of tensile, compressive and shear properties of asphalt mixture is different. Among them, the compressive strength sensitivity is the largest, followed by the shear strength sensitivity, and the tensile strength sensitivity is the smallest.
3. The asphalt mixture UST considering the temperature effect is established. The model can consider the influence of three principal stresses and temperature on the strength of the asphalt mixture. As the value of model parameter b changes, it can degenerate into the classical strength theory.
4. The strength model of asphalt mixture considering temperature established in this paper extends the traditional UST. This is conducive to the further improvement of the strength theory of asphalt pavement. However, it has not been verified in actual engineering, and further research can be carried out in this direction.
