Effective role of mineral oil and biological nanomaterial on thermal energy influenced by magnetic dipole and nanoparticle shape

Abstract

This study of synovial fluid was conducted by considering two different nanofluid models over a two-dimensional stretched surface using nanoparticles of different shapes. We obtained remarkable results regarding the impact of nanoparticles on thermal performance. Through this study, we assessed heat and mass transfer and the involvement of magnetic dipole of chemically reactive species in two-dimensional steady incompressible flow. Heat generation was incorporated in the energy equation and a first-order chemical reaction was involved in the mass transport phenomenon. The concept of boundary layer was adopted to derive the physical problem in Cartesian coordinates, with results in the form of coupled partial differential equations (PDEs). The derived PDEs were highly non-linear, and exact solutions were not possible. Therefore, the PDEs were converted into non-linear ordinary differential equations (ODEs) using appropriate similarity transformation and then solved numerically via the finite element method. The impact of numerous emerging parameters on the solutions are displayed graphically, and the physical significance is discussed. An increment in , and decelerated the solute field, while the concentration gradient increased with enhancement in Maximum acceleration in velocity for model-I was produced compared to acceleration in the velocity field for model-II.

1 Introduction

In laboratories worldwide, researchers are investigating a wide range of possible applications for nanofluids. These applications include mineral oils, water, solar energy, and microelectronics. It is possible that using chemotherapy in conjunction with nanoparticles will result in the death of cancer cells. The operation of the thermal extrusion mechanism is not due to the presence of low-energy reservoirs but rather to the process by which nanoparticles are produced. Thermo-physical properties of nano-liquids, such as thermal infusibility and thermal conductivity, are among the most advanced in the industry, which could benefit various industries. It is possible to use nanomaterials in multiple applications, such as cooling of engines, processing of pharmaceuticals, operation of fuel cells, and function of residential cooling systems. Large-capacity cooling systems are now feasible thanks to the energy-saving characteristics of nano-liquids. A nano liquid-based smart material has the potential to regulate the flow of heat and act as a heat valve. In addition to these applications, there are potential uses of nano-liquids in geothermal energy production and fuel production for nuclear reactors. Both the minimum quantity cooling lubrication (MQCL) and the MQCG nanofluid technologies benefit the environment due to their reduced reliance on oil and grease. They not only cool and lubricate but also eliminate the need for cutting fluids. Choi and Eastman (1995) developed the concept of nanofluids. Nanofluids are characterized by nanoparticles suspended in liquids. The behavior of a nano-liquid can be significantly altered depending on the temperature and viscosity of the fluid’s boundary layer. Khan et al. (2021a) discussed the role of gold nanoparticles in Sisko fluid under the impacts of thermal radiation and Lorentz force using slip conditions toward a curved surface. Khan et al. (2021b) derived mono and hybrid nanomaterials in motion at the stagnation point utilizing characteristics of the microstructure of moveable frames via non-isothermal condition. Khan et al. (2022a) studied various impacts of stagnation point characteristics in thermal and mass diffusion fields under the role of magnetic fields containing graphene oxide and water nanoparticles on the surface. Khan et al. (2022b) have driven multiple features of AA7075 and AA7072 nanoparticles within heat transfer on a cylinder utilizing slip conditions. Akbar et al. (2022) described the heat transfer mechanism of unsteady peristaltic liquid, including variable thermal properties, via the exact solution approach. Akram et al. (2022a) modeled the flow of peristaltic propulsion in the motion of TiO₂/10W40 nanoparticles using mechanisms of electro-osmotics in a curved microchannel. Maraj et al. (2017) estimated the consequences of Lorentz force and thermal deposition in a vertical channel filled with carbon nanotubule (CNT) nanoparticles. Akram et al. (2022b) modeled a flow problem based on peristaltic transport that involved adding a mixture of nanoparticles considering Lorentz force in aqueous media. Shafee et al. (2021) developed a non-equilibrium theory that sheds light on how the shape factor, Lorentz force, and radiation term influence heat transfer and behavior in nanomaterials. Akbar et al. (2019) analyzed features of ethylene glycol in thermal transfer when inserting suspensions of different shaped nanoparticles in a vertical channel. Habib and Akbar (2021) investigated the use of dispersed nanoparticles to combat Staphylococcus aureus in clinical isolates.

When electrokinetic Jeffrey fluid and peristalsis are combined, a phenomenon known as the Soret–Dufour cross-diffusion effect occurs. When scientists are trying to figure out how streamlines move, they frequently consider the “trapping theory” as one of the possible explanations. Peristalsis is defined as a wave-like movement of fluids through a channel, which happens naturally in the body. The production of heat is caused by the passage of a chemically reactive liquid through a porous medium with the assistance of a semi-infinite vertical permeable plate, which also contributes to the movement of the liquid. Hall currents and a liquid called Jeffrey liquid have been studied by Babu et al. (2020). Ali et al. (2020) researched how heat and thermal energy moved through the stretching cylinder in Jeffrey fluids. During an experiment conducted by Aleem and Alex, there was a consistent flow of Jeffrey fluid between two hot plates. The existence of a strong magnetic field piqued their interest in this subject matter. According to Saif et al. (2020), the mechanisms that control the flow of magnetic hydrodynamic (MHD) fluid and heat transfer are governed by the curvature of the stretching surface. Research conducted by Gireesha et al. (2020) looked at the three-dimensional flow of radiating Jeffrey liquids on a stretched surface. According to Manjunatha et al. (2020), the effects of heat and solutes on peristaltic flow of Jeffrey fluid are not uniformly distributed throughout the system. This plan defies logic in every way. Sinha et al. (2020) investigated the effects of thermal radiation and Hall current on a nanofluid. Use of a thermal tube that vibrated and emitted moving ultrasound waves was required for that method. The effect of a specific variable electrical field on the flow of Jeffrey fluid is illustrated in Haroun (2020). As part of their experiment, they observed the non-steady and hydromagnetic flow using a flat plate and a magnetic field to observe the flow of the electrical conductor but incompressible fluid. In a porous Darcy-type medium, a third-grade nano-liquid that is optically dense and electrically conductive transfers heat to a porous surface via a Lie symmetry mechanism. This surface is located in the middle of the medium. This nano-liquid has a high density when measured in light and electricity. Maraj et al. (2022) discussed the results of rotational flow in a channel filled with hybrid nanoparticles under the impact of Lorentz forces using slip conditions. Akram et al. (2021) estimated theoretical results of thermal transfer with a mixture of hybrid nanoparticles and base fluid (water) in microchannels via electroosmotic pumping.

Bioconvection makes the growth process easier for bacteria and algae suspended in water. Microorganisms make the process of bioconvection possible. Microbes capable of bioconvection rise to the surface because they are 5–10 percent denser than water. They are referred to as “bioconvective” because of this characteristic. The action of these microorganisms causes the primary fluid to become thicker as a side effect. Examples of bioconvection can be observed in a wide variety of organic applications and microsystems, pharmaceuticals, biopolymers, environmentally friendly applications, developments in the utilization of cost-effective energy sources, microbial advanced oil recovery, biosensors and biotechnology, and continuous numerical display. One industry that uses bioconvection is the continuous numerical display (CND) industry. In their analysis, they examined MHD flow of nanofluids in the vicinity of a stretching surface, taking both velocity slip and viscous dissipation into account; in their research on the ferromagnetic materials of general Newtonian fluids, Khan et al. used bioconvection species that were chemically and paraboloid reactive. For example, Shehzad et al. (2020) have demonstrated that fluid can flow through spinning discs, analogous to the way water flows through tubes. Khan et al. (2020) proposed the hypothesis that gyrotactic microorganisms move around in nano-liquids that have thixotropic viscosity. According to Veera Krishna (2020), a magnetic field is generated when a steady convective magnetohydrodynamic flow of a viscous nanofluid is combined with a permeable porous surface that expands exponentially. As a consequence of the interaction of these two variables, the magnetic field will exhibit some movement. The Carreau–Yasuda nanofluid flow was the result of combining the findings of Hassan et al. (Waqas et al., 2020) on second-order velocity slip and moving microorganisms. Akram et al. (2022c) analyzed electroosmotic flow based on peristalsis flow of silver–water nanomaterials by implementing two approaches. Research conducted by Hosseinzadeh et al. (2020) focused on second-grade convective nanofluid flows. A square cavity that was open on all sides was used to investigate how an oxytactic microbe moved throughout the space. The Boussinesq–Darcy approximation was utilized for both the flow of heat and bioconvection. Activation energy and gyrotactic microorganisms are being used to study nanofluid rheology throughout porous media. A horizontal porous expansion sheet can influence the flow of a fluid infested with gyrotactic microorganisms in a manner comparable to that of a magnetohydrodynamic model for students using the third-grade model (Madhukesh et al., 2022).

Rostami et al. (2022) studied the hydro-thermal analysis. Moreover, the studies reported by, Hosseinzadeh et al. (2021a); Hosseinzadeh et al. (2021b); Sohail et al. (2022a); Sohail et al. (2022b); Hou et al. (2022) are prepared to notice the comportment of numerous involved parameters on momentum and thermal transport. There are no studies in the existing literature that involve synovial fluid and consider the two different nanofluid models over a two-dimensional stretched surface through use of different shaped nanoparticles. In the current study, the modeled problem is solved numerically, and the results are displayed through tables and graphs.

2 Model characteristics and mathematical analysis

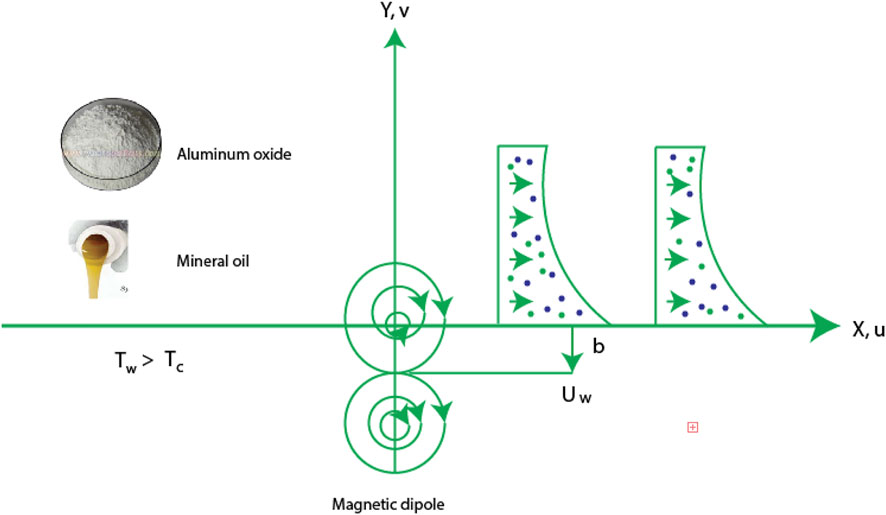

FIGURE 1

Two models of viscosity (Salmi et al., 2022) are defined asHere, Eqs 1, 2 are known as model-I and model II, respectively. Governing equations (Salmi et al., 2022; Wang et al., 2022) are derived utilizing conservation laws. PDEs in view of SF implicating magnetic dipole are

Two models regarding momentum equations are obtained using Eqs (1) and (2). Momentum equation for model-I is

The momentum equation for model-II isThe mass diffusion equation (Madhukesh et al., 2022) is defined as

Developing boundary conditions (Wang et al., 2022) are

The magnetic field via magnetic dipole (Wang et al., 2022) is

Components of magnetic dipole (Wang et al., 2022) are

The magnitude of magnetic dipole (Wang et al., 2022) is

Similarity variables (Gul et al., 2020; Wang et al., 2022) are defined as

Dimensionless representations of ODEs (Gul et al., 2020; Salmi et al., 2022; Wang et al., 2022) are

Correlations based on nanoparticles were captured as indicated as follows. The nanoparticle properties are listed in Table 1 and Table 2 contains information about nanoparticle shapes (Naseem et al., 2021).

TABLE 2

Shape of nanoparticles	M
Platelet
Cylinder
Brick
Sphere

Shapes of nanoparticles associated with size (Naseem et al., 2021).

Boundary conditions (BCs) are

Parameters are defined as

Surface forces for model-I and model-II (Salmi et al., 2022) were delivered as

Temperature and concentration gradients for biological fluid (Salmi et al., 2022) are

3 Finite element analysis

The finite element method (FEM) was utilized to simulate numerical solution of ODE-associated BCs. Steps for explanation of the FEM are listed as follows.

Step-I: In step-I, the desired domain of the problem was discretized into a number of elements. Weak form was achieved using the concept of weighted residual. Shape functions based on linear-type polynomial were derived as follows.

The variables are defined as

The shape function is

Step-II: Stiffness elements were calculated over each element based on the breakdown of the problem domain. Moreover, a global stiffness matrix was achieved. The Picard approach was implemented to differentiate linear systems from non-linear systems.The residual view is defined as

Step-III: In this step, the system of linear equations is

Step-IV: Maple 18 was used to develop code regarding the FEM. The computational domain was taken as and grid size study is shown in Table 3. Validation of a present problem already published (Muhammad and Nadeem, 2017) is shown in Table 4.

4 Explanations regarding graphical outcomes

This study describes the development of a 2D model associated with mass diffusion and thermal energy in two viscosity models. Shape effects based on cylinder, platelet, brick, and sphere were assessed in mineral oil. Chemical reaction and heat generation/absorption were also investigated. It is important to note that magnetic dipoles were taken out in this research project. Such considerations were used to generate a complex model, and the complex model was solved by implementing a finite element approach. Detailed outcomes based on graphical outcomes associated flow, mass diffusion, and thermal energy are discussed below.

4.1 Comparative impacts of viscosity models via flow distribution

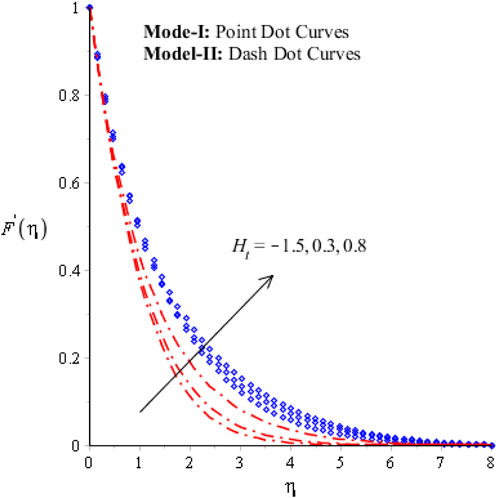

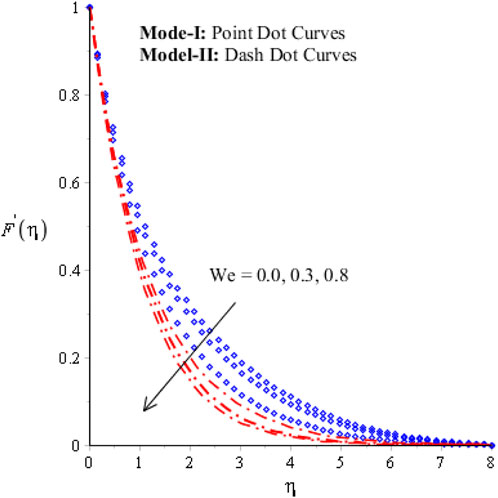

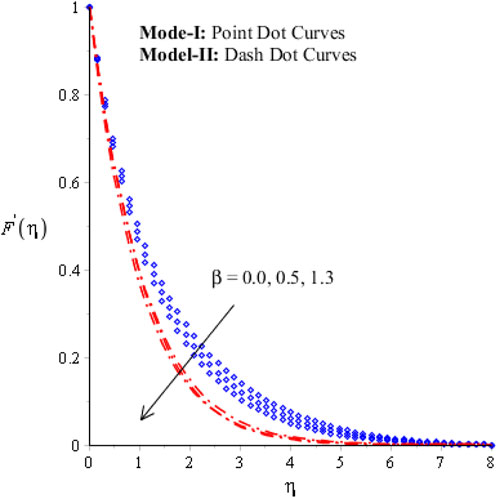

The impacts of magnetic dipole number, heat source parameter, Weissenberg number, and Reynolds number on flow distribution were observed using model-I and model-II. These graphical outcomes are shown in Figures 2–4. Figure 2 demonstrates the distribution of on flow distribution via two viscosity models. Flow is gradually slowed down versus variation in This decreasing impact is produced because of the concept of Weissenberg number. This concept involves the ratio between viscous and elastic forces. Here, is a dimensionless number that is modeled using the concept of synovial fluid in the current model. In physics, division of elastic forces by viscous forces is called the Weissenberg number. An inverse proportional relation between and a viscous force has been studied. Therefore, flow is reduced. Thickness associated with momentum layers is based on distribution in Viscous force is enhanced among momentum layers. Consequently, change in viscosity of motion can be determined by change in Flow for is greater than flow for . Furthermore, thickness via momentum layers for model-I is greater than thickness via momentum layers for model-II. Figure 3 is plotted to measure the impact of on flow distribution based on two viscosity models (model-II and model-I). It has been suggested that fluid particles absorb more heat energy when a heat source is applied. Two types of impacts are addressed when is applied. One is heat generation via positive values and the other is heat absorption via negative values. This kind of impact occurs due to an external heat source. The flow produced using model-I is higher than the flow produced using model-II. Mathematically, is proportional to the difference in temperature. Hence, heat variation is based on distribution in Velocity field is also based on distribution of heat energy. Motion of particles on the surface is enhanced when variation in heat is increased. Momentum thickness for is greater than momentum thickness for Thickness of thermal layers is an inclined function versus heat source number. Moreover, flow for the case of model-I is greater than that for model-II. Different effects of magnetic dipole on flow behavior are associated with various shapes (Figure 4). From Figure 4, it is estimated that flow of nanoparticles declines with higher magnetic dipole number. is a dimensionless number. The occurrence of is due to a magnetic dipole at the wall (of the surface). A retardation force is visualized using the concept of magnetic dipole. Due to magnetic dipole, frictional force is also generated among layers (momentum) and flow slows due to frictional force. Furthermore, thickness (for momentum layers) is decreased when the strength of magnetic dipole is magnified. Velocity field for is greater than velocity field for

FIGURE 2

FIGURE 3

FIGURE 4

4.2 Comparative effects of viscosity models via thermal distribution

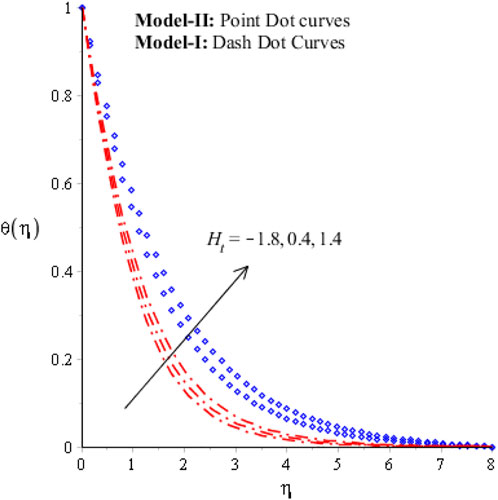

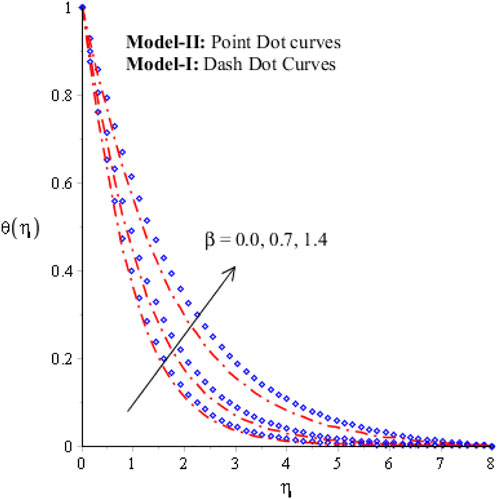

Figures 5–7 are plotted to estimate the effects of heat source number, Prandtl number, and magnetic dipole number on temperature profile. These figures indicate measurement of thermal distribution via model-I and model-II, which account for the impacts of nanoparticle shape. Figure 5 illustrates visualization of on thermal field. Heat energy related to fluidic particles was improved using a heat source (external). Layers based on thermal boundary were enhanced against distribution in Hence, thermal energy can be adjusted using higher values of Mathematically, appeared in the energy equation. From the energy equation, has a proportional relation to temperature variation. Temperature is increased when is distributed because of the direct proportional relation of ; Figure 5 shows two types of heat characterization. The mechanism of heat generation is based on , and the mechanism of heat absorption is based on . The thermal thickness (for thermal layers) for is less than the thermal thickness for . In addition, thermal performance is boosted significantly in the case of model-I compared to the thermal energy in model-II. Figure 6 demonstrates the role of magnetic dipole () in thermal variation, showing that a magnetic dipole enhances heat energy in nanoparticles. Thermal layers have a tendency to absorb more heat energy when a magnetic dipole is implemented. Mathematically, direct proportional relation between a magnetic dipole and temperature field has been visualized using the dimensionless energy equation. Consequently, an increase in results in enhancement in the thermal field. Dimensionless parameter () brings enhancement in thickness of thermal layers. Furthermore, width of thermal layers for is greater than width for Hence, temperature of nanoparticles increased with an increase in magnetic dipole. Figure 7 predicts the impact of on energy transfer. The thermal profile was inclined against implication of . The formulation of was modeled using tensor of synovial fluid in momentum equations. From a physics point of view, division between elastic force and viscous force is the Weissenberg number. By increasing the impact of the viscosity of particles is magnified when is magnified. The width and thickness associated with thermal layers are magnified utilizing large values of Moreover, thickness of thermal layers for is less than thickness of thermal layers for

FIGURE 5

FIGURE 6

FIGURE 7

4.3 Comparative impacts of viscosity models via concentration distribution

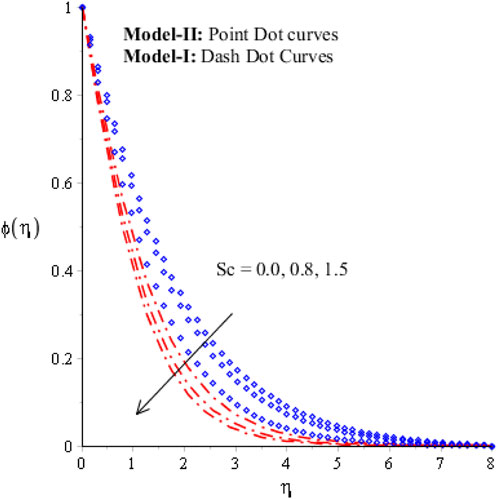

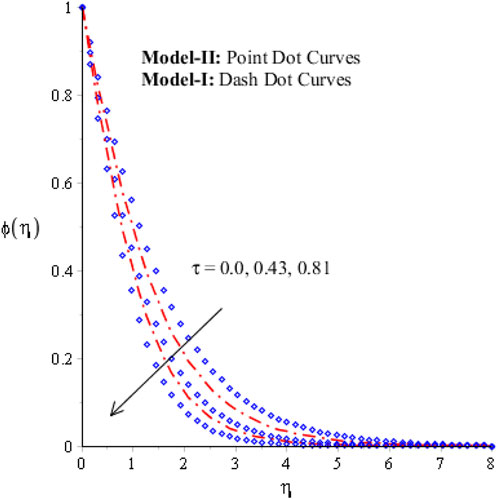

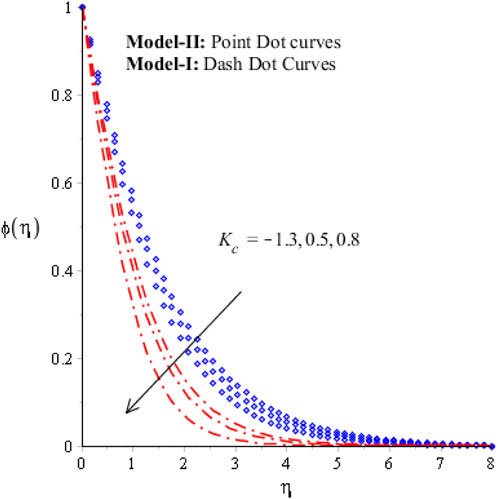

Figures 8–10 show estimation of various important impacts of parameters on thermal energy that occurred in two viscosity models that account for impacts of nanoparticle shape. We demonstrate impacts of , chemical reaction, and thermo-phoretic particle number on mass diffusion. The influence of on concentration profile via two viscosity models is shown in Figure 8. Physically, diffusion into chemical species slowly declined when was increased. The effects of are modeled in the concentration equation. A division between viscous diffusion (rate) and mass diffusion (rate) is termed the Schmidt number. From this, has an inverse proportional relation to mass species. Due to the inverse relation between and mass diffusion, diffusion in mass species slows down. Furthermore, thickness via mass diffusion layers for is higher than thickness via mass diffusion layers for Mass diffusion in model-I is faster than mass diffusion in model-II. Figure 9 demonstrates the influence of chemical reaction number on concentration profile via two models of viscosity. In Figure 10, two types of chemical reactions are shown based on destructive chemical species and constructive chemical species in mass diffusion. In Figure 9, is a dimensionless number that is utilized to assess chemical reaction toward a solute field. is termed a destructive chemical (reaction), whereas the generative chemical (reaction) is dependent on , and indicates that no chemical reaction has occurred. An enhancement in solute field occurs for the generative mechanism, but a decraese is observed on the solute field for destructive reaction (mechanism). Diffusion into chemical species slows down when chemical reaction into particles occurs. Furthermore, the amount of mass diffusion in model-II is less than the amount of mass diffusion in model-I. The thickness of concentration layers reduced with greater influence of chemical reaction number. Figure 10 demonstrates the effects of (thermophoretic parameter) on solute field via two viscosity models. Figure 10 indicates that the solute field decreases with enhancement in Physically, this reduction happens because concentration decreases due to increased movement of particles.

FIGURE 8

FIGURE 9

FIGURE 10

4.4 Visualizations of mass diffusion rate, skin friction coefficient, and heat energy rate against different parameters

Impacts of , and on mass diffusion rate, Nusselt number, and shear stress are shown in Table 5. Shear stress was reduced with greater influence of heat source number, but rates of mass diffusion and heat energy were enhanced with greater influence of . Maximum amount of shear stress increases relative to distribution in magnetic dipole, and temperature and concentration gradients are reduced relative to the impact of magnetic dipole. Schmidt number increases mass diffusion rate. These outcomes are recorded in Table 5.

5 Conclusion
