Abstract
Dusty fluids are utilized to minimize heat in systems like gas-freezing systems and nuclear-powered reactors, among other places. The present study aims to investigate the effect of Newtonian heating on dusty fluid flow. Between two parallel plates, the two-phase MHD fluctuating flow of the dusty fluid is considered. The dust particles inside the fluid are thought to be spherical and uniformly distributed. The generation and absorption of heat were also taken into consideration. The motion of the fluid is due to the motion of the right plate with free stream velocity . Partial differential equations are utilized to represent the flow regime. The Poincare-Light Hill Technique is used to find exact solutions. The impact of parameters on the temperature and velocity profiles are shown graphically. Skin friction and rate of heat transfer, two essential fluid parameters for engineers, are also evaluated in tabular form. The velocity of the fluid is shown to decrease with increasing magnetic field. The Newtonian heating phenomena has an effect on the plate’s heating.
1 Introduction
Fluid is a material that constantly deforms (flows) when shear (tangential) stress is applied. Water, honey, oil, and air are a few examples of fluids. In the universe, there are numerous fluids. Non-Newtonian fluids and Newtonian fluids are two types of fluids based on their rheologies. Engineering procedures, industry (thermal power plants, nuclear power plants, refrigerators, air conditioners, and so on), and medical science all use these fluids. Many physical phenomena are not properly described by Newtonian viscous fluids. Non-Newtonian fluids are essential in a wide range of engineering operations, industrial processes, and biological applications. There are several types of non-Newtonian fluids. Non-Newtonian fluids include differential type fluids, rate type fluids, and viscoelastic fluids. Casson fluid and other differential viscoelastic fluids are frequently employed in everyday life. According to the Casson Fluid Definition a fluid that shear-thins to zero viscosity has a yield stress below which no flow occurs and zero viscosity at an infinite rate of shear (Rundora, 2021). The study of viscoelastic Casson fluids cannot be adequately handled by a single governing equation due to their complicated rheology (). Some of the Casson fluid’s applications include coal in water, synthetic petroleum products, China clay, paints, biological products fluid, jelly, and fibrinogen (). The Casson first presented the Casson fluid model in “1959” (). was the first to investigate Casson fluids in tubes. According to , thermal radiation over the stretched surface has an impact on the unstable Casson viscoelastic fluid flow. In a curved sheet that is stretching exponentially with MHD, scrutinized the influence of radiation of heat on a viscoelastic Casson fluid. By , a dual solution analysis for MHD Casson fluid and Newtonian heating travelling through a decreasing sheet was presented. Reddy et al. investigated the effect of radiant heat on the MHD viscous dissipation of a Casson fluid flow across an oscillation parallel plate in their work described in Reddy et al. (2018). examine the influence of variable viscosity on the asymmetric flow of a non-Newtonian fluid driven via an expanding/constricting conduit with porous walls. The flow of a non-Newtonian (Casson) fluid between parallel discs travelling in opposite directions on a plane is being investigated (Abbas et al., 2020). proposed the Casson fluid, which is driven between parallel plates and acts as a heat source or sink as well as a thermophoretic particle deposition. Ramesh et al. (2022) investigated the relationship between the transportation of aluminium alloy particles over parallel plates and chemical reaction and activation energy. gained scientific insight into heat and mass transfer in a Riga plate with thermophoresis and brownian atomic diffusion in a Casson hybrid flow of nanofluid. scrutinized the effect of Stefan blowing on Casson nanofluid flow and heat transmission through a moving thin needle. Furthermore, several scholars investigate the relationships between Casson fluid flow, heat transmission, and Mewton’s equation of cooling (; ).
According to Newton’s rule of cooling (or heating), the heat loss rate of a body is directly proportional to the temperature differential between the system and its surroundings (). In forced air or pushed fluid cooling (or heating), when fluid properties do not considerably fluctuate with temperature, Newton’s Law of heating (or cooling) is obeyed. However, buoyancy-driven convection, where flow velocity grows with temperature difference, only roughly follows this law. Finally, Newton’s law of cooling (or heating) only holds for very small temperature differences when heat is transmitted by thermal radiation. When modeling MHD two-phase fluctuation flows between parallel plates, ramped wall temperatures or constant surface heat flux assumptions and constant surface temperature are commonly used (; ; ; ; ). Further from that, the assumptions above fail in a variety of real-world situations where heat transport is inversely proportional to surface temperature and the Newtonian heating condition (NHC) is required. It was who was the first to explore four forms of temperature distributions on walls, one of which being NHC. Newtonian heating conditions are used in heat exchangers, the oil industry, solar radiation, and conjugated heat transfer around fins. The impacts of NHC, magnetic field, chemical reaction and heat generation on viscoelastic Casson fluid free convection flow among the vertical plates are reported by . investigated the impact of Newtonian heating on viscoelastic Casson fluid flow between oscillating vertical plates. investigated the viscoelastic Casson fluid flow (CFF) with heat transfer and Newtonian heating between porous materials. investigated the viscoelastic CFF over a cylinder with NHC and heat absorption effects. investigated the effects of NHC and magnetic field on the CFF of a two-dimensional travelling through a stretched sheet. investigated how heat transport and thermal expansion affect the CFF of a vertical surface with NHC.
Magnetohydrodynamics is the analysis of the magnet properties and performance of electrically conducting fluids. Liquid metals, salt water, plasmas, and electrolytes are examples of magnetofluids. MHD flow with free convection has a wide range of applications in fluid engineering issues such as flow metres, blood flow, gas cooling system heat transfer improvement, MHD generators, and accelerators (). In the existence of a chemical reaction, reported heat transfer and free convective flow across an upright plate with MHD. Dusty fluid in an annulus with hydrodynamic velocity behavior was studied by . A magnetic field was found to impact Couette flow. It was found that viscosity, heat transfer, and thermal conductivity had a significant effect on the movement of dusty fluids with MHD. Using thermal radiation and MHD, examined and analysed the influence of melting heat transfer on Casson fluid flow in a porous media over a moving surface. Sayed-Ahmed et al. (2011) explore the effect of a time-dependent pressure gradient and heat transfer in unsteady Casson fluid flow with MHD. Newtonian heating (or cooling) and thermal radiation, according to (), can influence MHD flow with an induced magnetic field. investigated the effects of heat transfer, magnetic field, and viscous dissipation on MHD dusty flow using a stretched sheet. Upadhya et al. investigated the radiative MHD flow of suspended Casson fluid within a conical gap (Upadhya et al., 2022). Raju et al. (2021) demonstrated MHD radiated flow in a thermal convective condition using Casson fluid. investigate Casson fluid MHD flow with Hall current and homogeneous-heterogeneous interactions. , explore the thermal and magnetic impacts of a bi-viscosity fluid contained in a triangular chamber using finite element analysis. The heat and flow across a revolving disc that is being affected by a constant horizontal magnetic field are investigated by Turkyilmazoglu (2022). Furthermore, several scholars investigate the MHD flow, dusty fluid with analytical solution (; Wahid et al., 2020).
Dusty fluid flow occurs when a fluid (liquid or gas) has a solid particle distribution (). For example, in fluidization problems, dusty air motion the motion and the process of chemical reactions by which raindrops are formed by the coalescence of particles. Dusty fluid flow (multiphase flow) is used in powder technology, nuclear reactor cooling, paint spray, solid fuel rock nozzle performance, dust collecting, and guidance systems (). Archimedes of Syracuse invented multi stage flow when he proposed the Principle of Buoyant force, which evolved into the well-known Archimedes principle, which is used in multiphase flow modelling (). The most common type of multiphase flow is two-phase flow (). While remaining interested in two-phase flows, several scientists worked on the dusty flow model for a variety of flow configurations and physical situations. Despite the system of quadratic solutions’ challenges, nothing effort has been made to improve a perfect approach. Saffman (1962) was the first to do study on dusty fluid flow laminar. The importance of partial slip caused by lateral velocity and viscous dissipation is investigated using numerical solutions to the partial differential equations are reported by Koriko et al. (2021). The Casson dusty nanofluid: The role of the magnetic field, the non-Fourier heat flow model are discussed by Rehman et al. (2022).
In the above-mentioned literature, the researchers examined non-Newtonian, incompressible, electrically conducting dusty fluids that have been moving with free convection and MHD. Following the Light-Hill technique, no study has been published to our knowledge that combines the fluids energy equation with the dust particles energy equation for a viscoelastic Casson dusty fluid using the fluids energy equation and the dust particles energy equation. Using a distinct equation of heat for the dust particles, this study investigates the impact of NHC on the two-phase MHD fluctuation flow of Casson fluid and dust particles between two vertical plates with suspended electrically conducting particles. The scientific findings of the current study also show that Casson dusty fluid is a very complicated phenomena with a wide range of engineering and product-making uses, such as the usage of Casson dusty fluids in nuclear reactors and gas cooling systems to reduce system temperature. Consequently, the goal of the current work is to ascertain how Newtonian heating affects Casson dusty fluid flow. Additionally, using a graphical representation, this study investigates the impact of various physical characteristics on the Casson dusty fluid flow.
2 Mathematical formulation
Take electrically conducting, the incompressible, unidirectional, unsteady, two-phase fluctuating flow of MHD Casson fluid with dust particles between two vertical plates. A transverse magnetic field is applied to the flow. The motion of the fluid is due to the motion of the right plate with free stream velocity , while the left plate is static as shown in Figure 1. The left plate is taken heated with the Newtonian heating condition, while is the temperature of the right plate, and is the particle temperature. Heat generation is only considered in the fluid and not for the particle energy equation. Furthermore, the influence of the particle concentration parameter and the particle energy equation are taken into account. The mass concentration equation for both the fluid and particle is not considered.

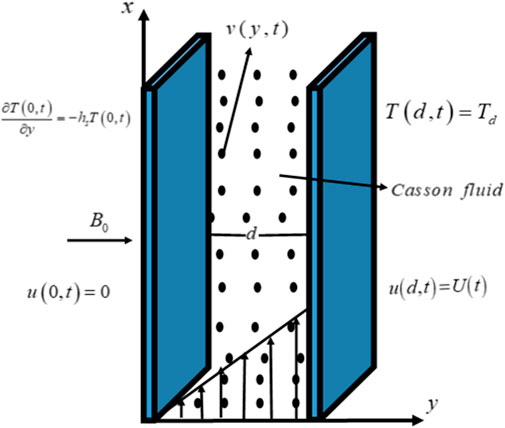

FIGURE 1
The velocity and temperature fields are shown below ():
The Casson fluid’s constitutive equations are ().
By using Maxwell law, generalized ohm’s law and Boussinesqs approximation, the body and surface forces in Eq. 4 becomes ().
The rheological equation for unsteady Casson fluid flow is established and derived by Casson (1959) and is denoted by Rehman et al. (2022).
Equation 4 may be stated in component form using Eqs 5–9 and Eq. 1 as ().
The physical conditions are as follows ().Where, .
Assume you obtained the result to Eq. 11 through PLHT ().from Eq. 15, the solution is obtained.
Equation 10 in view of Eq. 16 becomes.
The following dimensionless variables are used in the process of non-depersonalization;
Using Eq. 18, Eqs 12, 13, 17 become;
The dimensionless criteria are as follows (the (*) sign has been removed for clarity):
The dimensionless quantities are;
Assume you derived the solution to Eq. 21 using the PLHT ().
Results in:
3 Solution of the energy equation
To solve Eq. 25, the following periodic solution is assumed ():
Now by using Eq. 26 in Eq. 25, and then using the corresponding conditions from Eq. 22, the following solutions is achieved:
4 Solution of the velocity profile
To solve Eq. 28, the following periodic solution is assumed () and ().
Now obtain the following values by putting Eq. 29 into Eq. 28;Where,
In last putting the values into Eq. 29, becomes:
It is worth noting that the obtained general solution that is Eq. 32 satisfies all the imposed physical boundary conditions.
5 Limiting case; Flow of Newtonian viscous fluid
New use of the Casson parameter , we get the dimensionless form by putting it into Eq. 19.
To solve Eq. 34, the following periodic solution is (; )
New obtain the following values by putting Eqs 35, 36 into Eq. 34;In last putting the values into Eq. 35, become;
The results obtained in Eq. 38 are the same as those obtained by . As a result, this validates the validity of the current research.
6 Skin friction and nusselt number
Casson fluid shear stress can be defined as (),
By using a dimensionless variable from Eq. 10 and ignore the (*) sign;
The heat transfer rate is (Saffman, 1962)
7 Physical interpretations and graphical results
The Casson dusty fluid velocity distribution, particle velocity, skin friction, and heat transfer rate are covered in this section, along with the influence of different dimensionless variables on these parameters. The velocity distribution of the Casson fluid, the velocity distribution of the dust particles, and the temperature profile are all affected by different physical characteristics, as shown in Figures 2–11. Tables 1, 2 discuss the , and , respectively.

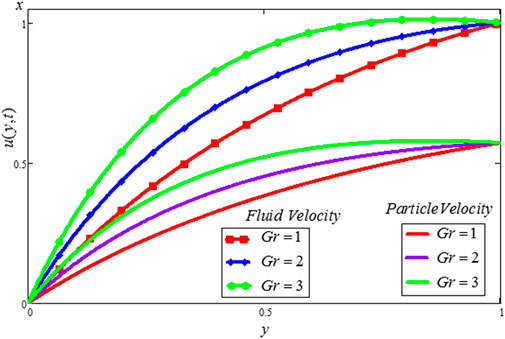

FIGURE 2

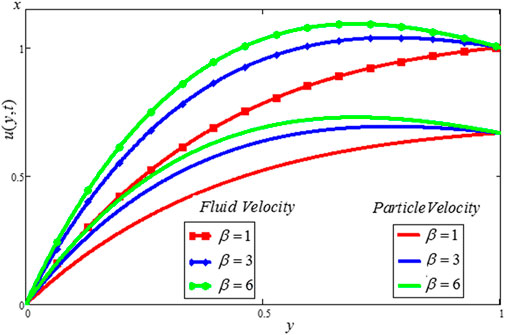

FIGURE 3

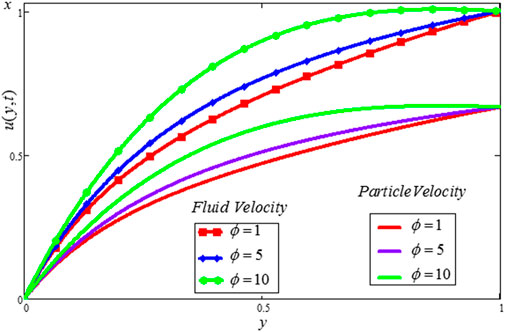

FIGURE 4

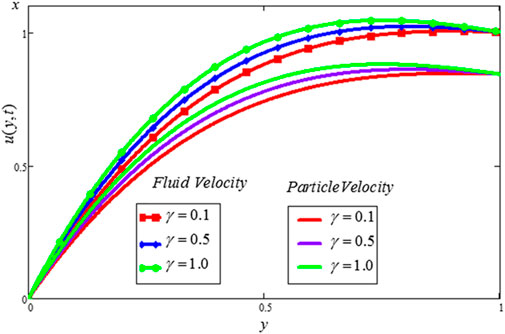

FIGURE 5

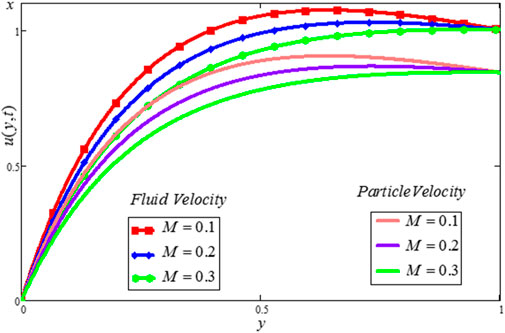

FIGURE 6
FIGURE 7
FIGURE 8

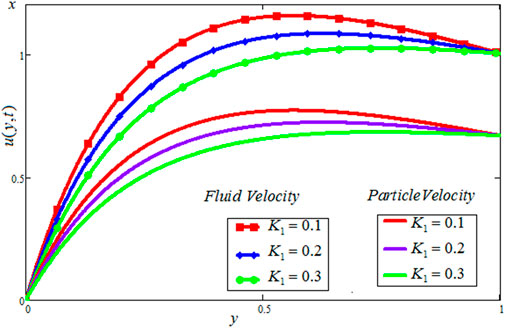

FIGURE 9

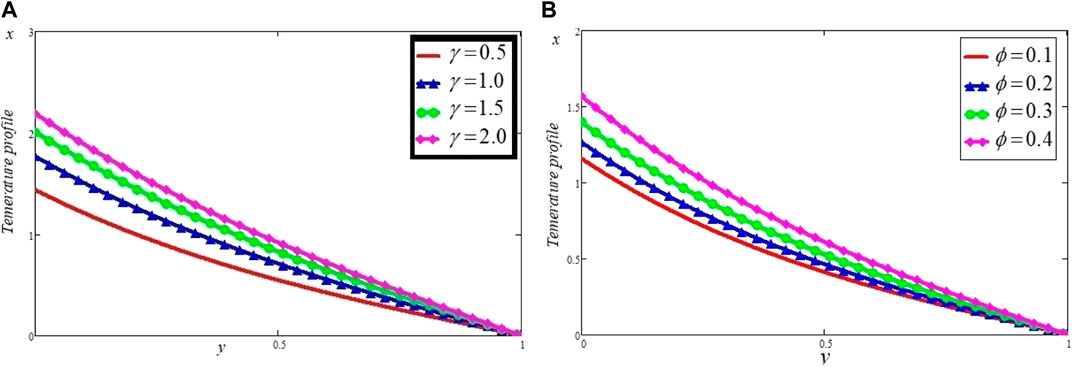

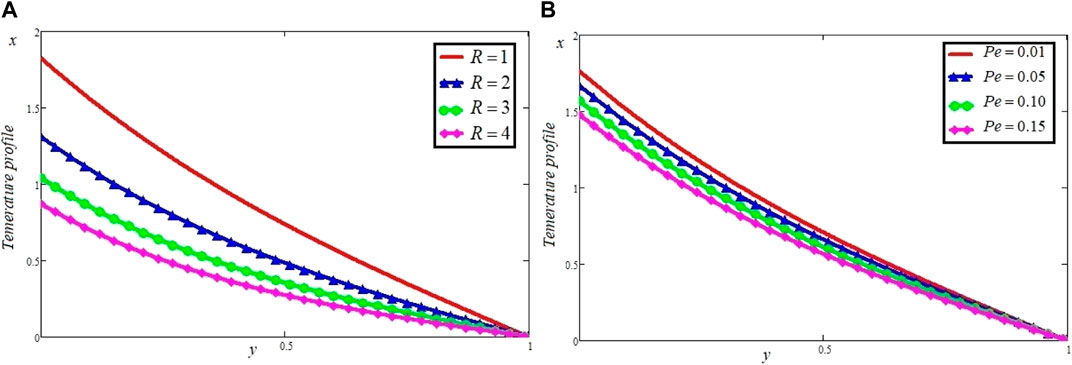

FIGURE 10

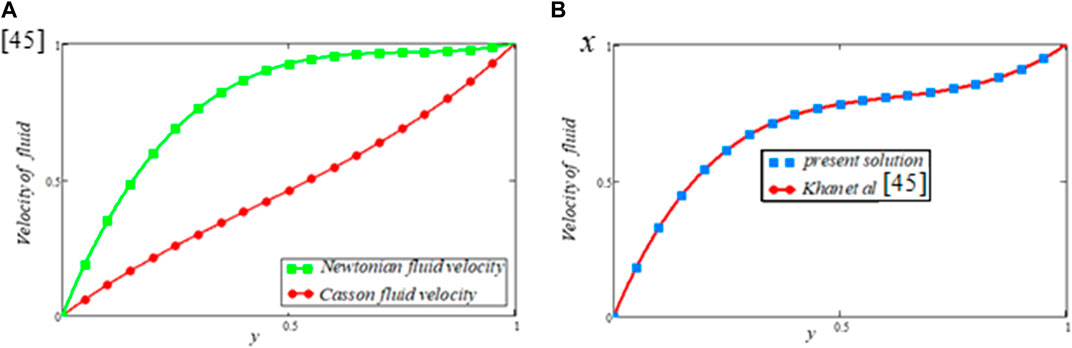

FIGURE 11

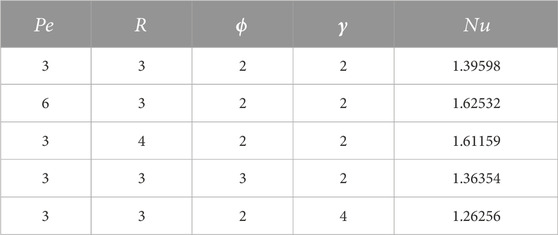

TABLE 1
| 3 | 3 | 2 | 2 | 1.39598 |
| 6 | 3 | 2 | 2 | 1.62532 |
| 3 | 4 | 2 | 2 | 1.61159 |
| 3 | 3 | 3 | 2 | 1.36354 |
| 3 | 3 | 2 | 4 | 1.26256 |
Influence of different parameters on .

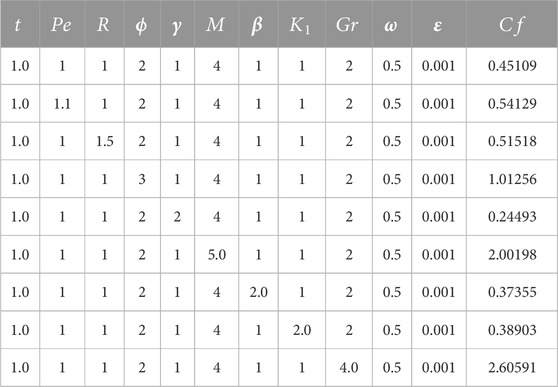

TABLE 2
| 1.0 | 1 | 1 | 2 | 1 | 4 | 1 | 1 | 2 | 0.5 | 0.001 | 0.45109 |
| 1.0 | 1.1 | 1 | 2 | 1 | 4 | 1 | 1 | 2 | 0.5 | 0.001 | 0.54129 |
| 1.0 | 1 | 1.5 | 2 | 1 | 4 | 1 | 1 | 2 | 0.5 | 0.001 | 0.51518 |
| 1.0 | 1 | 1 | 3 | 1 | 4 | 1 | 1 | 2 | 0.5 | 0.001 | 1.01256 |
| 1.0 | 1 | 1 | 2 | 2 | 4 | 1 | 1 | 2 | 0.5 | 0.001 | 0.24493 |
| 1.0 | 1 | 1 | 2 | 1 | 5.0 | 1 | 1 | 2 | 0.5 | 0.001 | 2.00198 |
| 1.0 | 1 | 1 | 2 | 1 | 4 | 2.0 | 1 | 2 | 0.5 | 0.001 | 0.37355 |
| 1.0 | 1 | 1 | 2 | 1 | 4 | 1 | 2.0 | 2 | 0.5 | 0.001 | 0.38903 |
| 1.0 | 1 | 1 | 2 | 1 | 4 | 1 | 1 | 4.0 | 0.5 | 0.001 | 2.60591 |
Effect of different parameters on skin friction.
Graphical representations of the behavior of both the velocities are shown in Figure 2. The buoyancy-to-viscous force ratio is denoted by . Increasing , rises buoyancy forces and reduces viscous forces which causes both velocities enhanced. The has an important impact on both the velocity profiles shown in Figure 3. The greater the , the thinner the boundary layer becomes, which slows decrease both the velocities profiles. Figure 4 demonstrations the outcome of on both the velocities profiles. It is clear from these graphs that both the velocities profiles increase. This is true because the thermal forces strengthen as heat generation increases, which cause an increment in both the velocities. The increasing values of temperature time relaxation parameter, enhance both the velocities profiles. More physically, this comportment is that has inverse relation with dynamic viscosity. As the values of rise, the dynamic viscosity reduces, causing both velocities to increase, as seen in Figure 5. Figure 6 depicts the influence of the magnetic parameter on the velocity’s profiles for both the velocities profiles. This is due to the fact that Lorentz forces become stronger as increases which act as resistive forces, and therefore retard the flow. Figure 7 displays the influence of on the both velocities profiles. The increasing the particle concentration parameter causes extra collisions in the dusty phase, which increase the internal resistive forces, and thus increase both the velocities profiles. The effect of on both velocities is shown from Figure 8. The figure makes it obvious that both velocities decrease as the values of rise. This performance is truthful, as by Stocks drag formula (), it is clear that increasing viscous forces increase which resist the flow and consequently decrease the both velocities. The increasing values of temperature time relaxation parameter, enhance temperature profile. The physics is that, the temperature time relaxation parameter is inverse relation to viscous force, when increases the temperature time relaxation parameter, and reduces viscous forces which causes both velocities enhanced. Figure 9A shows that when the values of increase, the dynamic viscosity drops and the temperature profile rises as a result. The increasing values of, enhance . The physics behind this behavior is that has direct relation with heat generation. When the values of heat generation parameter increase the heat generation increases that consequently increase as shown in Figure 9B. The impact of on is sketched in Figure 10A. By rising the values of , the is decreased. The physics behind this behavior is that the particle concentration parameter has inverse relation conductivity of thermal. The fluid’s conductivity of thermal decreases as the values rise, which lowers the temperature distribution. The effect of on is sketched in Figure 10B. By rising the values of the is decreased. The physics behind this behavior is that has the inverse relation thermal conductivity. When the values of increase the thermal conductivity of the fluid decrease therefore, decrease ; Figure 11A compres Newtonian fluid velocity to viscoelastic Casson fluid velocity. It can be noticed that the viscoelastic Casson fluid has an extremely low velocity than the Newtonian fluid. The greater the Casson parameter , the thinner the boundary layer becomes, which slow retard Casson fluid velocity. The value of then has been used for Newtonian fluid. Just for comparison, the Newtonian fluid velocity is much larger than the Casson fluid velocity in this case. Finally; Figure 11B depicted the correlation between the current solutions and (Wahid et al., 2020). Our current solution is reduced to (Wahid et al., 2020) solution by taking into account.
Table 1; Table 2 plot the effect of various parameters on and . Table 1 shows the variation with rising values of and . The and illustrates a direct relation with the that is by increasing and an enhances in , while the and depicts an inverse relation with the that is by increasing and a decrease in . It can be seen that raising ,, , and enhances the numerical value of , whereas increasing , and decreases the numerical value of because these parameters decrease viscous forces, which reduces the .
8 Conclusion
The unsteady MHD flow of an incompressible Casson fluid with dust particles between two parallel plates is analytically investigated when the effects of Newtonian heating are taken into consideration. Using the Lighthill perturbation technique, the perturb solutions for both velocities (fluid and dust) are obtained. Similarly, solutions to the Casson dusty fluid and particle energy equations are obtained separately. To define the impact of
and
on the Casson fluid motion, some numerical and graphical results are reported in the
Figures 2–
11for various values of physical parameters. The main outcomes are:
• The effect of and on the , and studied in detail.
• The dusty fluid and particle velocities are declining function for , because of the Lorentz force, the magnetic parameter retards fluid motion.
• The Casson parameter increases then both velocities are enhanced, which also increases the .
• Both the velocities (fluid and dust particle velocities) and temperature profile are enhanced when the temperature relaxation time parameter is increased.
• The temperature relaxation time parameter should be increased to manage the rate of heat transfer in fluid.
• The Newtonian heating phenomenon affects the heating on the plate.
Statements
Data availability statement
The raw data supporting the conclusion of this article will be made available by the authors, without undue reservation.
Author contributions
FA conceptualization, formulation, supervision, GA Analysis, and writing draft, AK: Calculations and results, IK software, writing the draft, supervision, ETE: supervision, conceptualization, funding. MA data analysis, revision.
Conflict of interest
The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.
Publisher’s note
All claims expressed in this article are solely those of the authors and do not necessarily represent those of their affiliated organizations, or those of the publisher, the editors and the reviewers. Any product that may be evaluated in this article, or claim that may be made by its manufacturer, is not guaranteed or endorsed by the publisher.
