Comparative investigation of fractional bioconvection and magnetohydrodynamic flow induced by hybrid nanofluids through a channel

Abstract

The functional effects of medications, such as those that slow down and calm the body, have been investigated for the polarized diffusion coefficient based on the subsequent increase through magnetism. This study examines generalized Mittag–Lefer kernel-based fractional derivatives in MHD Brinkman-type fluids under bioconvection that contain hybrid titanium dioxide (TiO₂) and silver (Ag) nanoparticles with water (H₂O) and sodium alginate (NaC₆H₇O₆) as the base fluids. Atangana–Baleanu (AB) and Caputo–Fabrizio (CF) fractional derivatives, which are two contemporary definitions of fractional-order derivatives with a memory effect, were used to explore the modified fractional model utilizing the Laplace transformation and certain numerical algorithms. The impacts of restrictions on various nanoparticles were investigated and graphically displayed. We observed that the volumetric fraction improvement controls the fluid velocity by slowing it down. The water-based hybrid nanofluid has a greater influence on the temperature and momentum fields than the sodium alginate-based hybrid nanofluid due to the physical characteristics of the explored nanoparticles and base fluids. Additionally, the memory effect causes a higher substantial value for the AB-fractional derivative of the velocity profile than the CF-fractional derivative.

1 Introduction

Channel flow has been applied in various industrial fields including chemical reactors in pharmacological manufacturing and thermal exchangers in energy plants. Although various natural phenomena and Newtonian actions in equal stages may be named two-phase movements, there are many related applications where the constant fluid segment displays non-Newtonian movement characteristics. In the last two decades, the impact of numerous heat transfer behaviors in the industry and engineering sectors has benefited from and been improved by nanofluid science. The development of a hybrid nanofluid is another recent advancement in nanotechnology. This new product combines at least two substances with various physical and chemical features such as heat flow and thermal conductivity. In essence, the development of a hybrid nanofluid has completely transformed this new product. Numerous researchers have become interested in nanofluids due to their thermal solid conductivity performance. Examples abound in the biomedical, biochemical, and food distribution industries (Bräuer et al., 2021). Zheng et al. (2021) explored how a vortex maker formed affected fluids and the thermal conversion of HNFs in a channel. D’Ippolito et al. (2021) evaluated the systematic scale conflict of channel movement caused by vegetation. Using the CF derivative, Haq et al. (2020) developed MHD’s fractional viscid fluid impact in a channel across a permeable surface.

The exceptional perception of nanoscience to increase the amount of heat sources has motivated researchers due to the constantly growing requirement for heat storage. For example, thermal transmission properties are claimed in fields ranging from biomedical to manufacturing industries. Improvements in thermal efficiency provide an advantage for plasma research, electronic equipment like computer chips, nuclear reactors, electricity generation, space cooling, and many others. The macroscopic fluid convection motion phenomenon, which is known as “bioconvection,” is caused by the thickness angle formed by the mass of directional swimming microorganisms. Bioconvection was a fundamental principle introduced by Plat in 1961. Bioconvection is used, among other things, in the manufacturing of biological polymers in biotechnology and biosensors and in the testing and lab equipment sectors (Platt, 1961; Asjad et al., 2021). Sisko’s three-dimensional radiative bioconvective stream was used by Ge-JiLe et al. (2021) to analyze nanofluids containing moving microorganisms. Ramzan et al. (2021) showed the occurrence of bioconvection in a three-dimensional meandering hyperbolic partially ionized magnetized nanofluid stream with Cattaneo–Christov heat flux and activation vitality. An examination of magneto-bioconvective enhancement and thermal conductivity in a nanofluid stream containing gyrotactic microorganisms was conducted by Alhussain et al. (2021). Farooq et al. (2021) adjusted Cattaneo–Christov equations and exponential space-based heat sources to account for a thermally radioactive Carreau nanofluid bioconvection flow. Yusuf et al. (2021) investigated the role of gyrotactic bacteria and entropy generation in the movement of Williamson nanofluids across an inclined plate. A Brinkman-type fluid (BTF) fractional model utilizing hybrid nanoparticles was examined by Saqib et al. (2020). Danish Ikram et al. considered the heat transfer of an exponentially moving vertical plate over a viscous fluid containing clay nanoparticles. Using a hybrid fractional operator, Asjad et al. (2020) looked into the thermophysical characteristics of clay nanofluids. Using a constant and proportional Caputo fractional operator, Ikram et al. (2021) established a fractional model of a Brinkman-type fluid transporting hybrid nanoparticles in a confined microchannel.

A specific or isolated nanomaterial might exhibit extraordinary thermophysical or rheologic properties in addition to the excellent and typical requirements for a certain use. HNF is controlled to maintain different properties despite the multiple applications. An advanced NF, which is called a hybrid nanofluid, combines “two or more distributed NPs in the base liquid.” The purpose of examining HNFs is to improve various thermal processes, such as heat transfer, highly well-organized heat conductivity, and solidity, by balancing the benefits and drawbacks of remarkable suspensions. Examples of these processes include the refrigeration of generators, cooling systems for machines, electric refrigeration, refrigeration of converters, and atomic structure refrigeration. HNFs’ capacities to improve thermal conductivity offers an opportunity to account for them in real-valued energy models. An HNF was tested over a porous surface in motion along with alumina NPs in Waini et al. (2019), and studies of the volume fraction for copper NPs were confirmed. To simulate the HNF, two NPs were included in the composite along with water. To study the mobility of HNF (Al₂O₃-CuO/H₂O), Ashwinkumar et al. (2021) used radiation passing through a vertical plate and cone. Their research focused on contrasting two different forms and the characteristics of HNF flow. Samrat et al. (2022) considered heat transmission when analyzing the movement of NF and HNF due to the stretched surface. Characteristic groundwork investigations completed on HNFs have also been conducted (Raza et al., 2019; Anuar et al., 2020; Sulochana et al., 2020; TÜRKYILMAZOĞLU, 2021; Ibraheem et al., 2022; Raza et al., 2022; Turkyilmazoglu, 2022; Zhang et al., 2022; Turkyilmazoglu and Altanji, 2023).

The field of fractional calculus is rapidly expanding due to the wide variety of processes that it can be applied to every day. Numerous definitions of fractional derivatives have been published in the literature due to the curiosity of academics. A fractional-order derivative based on an exponential function was created by Caputo–Fabrizio (CF) to address the challenges with earlier research on the singularity problem of the kernel. However, the fractional model of Caputo and Fabrizio lacks a specific kernel. This idea of fractional order has received significant attention in recent studies in the area of fractional calculus. Understanding the viscoelastic and rheologic properties of HNFs in detail are difficult due to the self-similar properties and memory-taking capacities of fractional operators. They provide a reasonable explanation for the behavior and heat efficiency of nanofluids. These operators have frequently been used to mimic and examine the specifics of various natural formations over the past few years. Fractional derivatives are widely applicable in signal processing, epidemiology, population modeling, economics, dynamic structures, fluid dynamics, electrochemistry, and many other fields. The three most fundamental standard fractional operators in fractional calculus depend on the convolution of regular derivatives and distinctive kernels. The two leading derivatives in this hierarchy are Riemann-Liouville and Caputo’s derivatives, where the first operator complicates a power-law kernel (Podlubny, 1999). Due to its widespread use, the definition of CF has been used by numerous researchers for a variety of scientific inquiries. The kernel’s non-locality, which is a difficulty in the definition of CF, was addressed by Atangana and Nieto (2015) in a new formulation. The most current explanation of fractional derivatives without these problems was given by Atangana (2016). AB derivatives are rarely used in research, and this word is brand-new. Arif et al. (2019) used this most recent concept of AB-fractional derivatives to compare these two ideas, and the current issue is also applied to CF-fractional derivatives. In addition, this study solves the well-known pair stress fluid model with an external pressure gradient in a closed-form channel. Even though they employed the Caputo and CF-fractional model, Akhtar (2016) estimated the closed-form solutions (CSF) in channels. To avoid these obstacles, Atangana and Baleanu produced a novel operator whose mathematical expansion encompasses the convolution of the regular derivative and a general kernel, which is included in the Mittag–Leffler function (Atangana and Baleanu, 2016). Currently, in perceiving the worth of fractional-order operators, an extensive range of investigators has explored real-life phenomena in fractional situations rather than in regular contexts. Asjad et al. (2022) investigated the fractional bioconvection nanofluid solution moving through a channel. Investigations on heat transfer and fluid problems were conducted using local and non-local kernel approaches by Ali et al. (2022a) and Ali et al. (2022b). Tarasov explained how a novel rebellion, “memory revolution,” occurred in present mathematical economics just because of fractional derivatives and corresponding integrals. The investigation of neurology has also been impacted by the initiation of fractional calculus (Tarasov, 2019; Riaz et al., 2022).

In the absence of fractional bioconvection, those previously mentioned were carried out by or lacking fractional approaches. However, the fundamental purpose is to combine these two fascinating topics: bioconvection and fractional operators. In the previous literature, we did not find any investigation on the focus of fractional bioconvection of an applied magnetic field on a naturally occurring Brinkman-type flow of a hybrid nanofluid over two parallel plates with CF- and AB-fractional derivative approaches. Consequently, we applied the Laplace transform method to solve the thermal transmission and fluid flow problems of bioconvection. In addition, graphical analysis was applied to present a graphical description of the diverse flow parameters.

2 Description of the problem

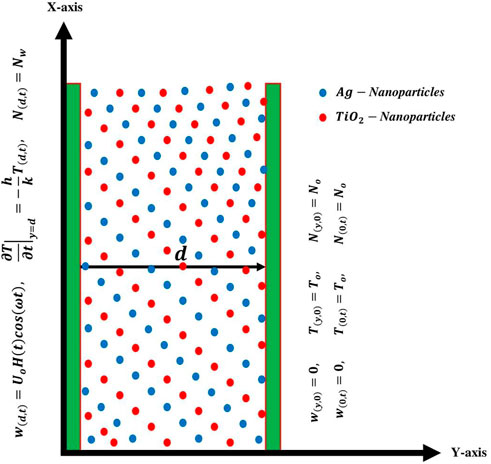

FIGURE 1

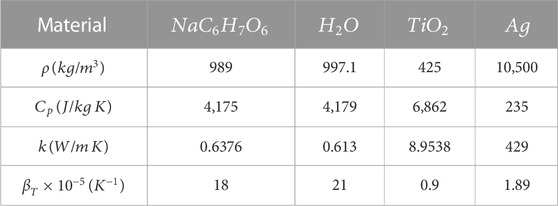

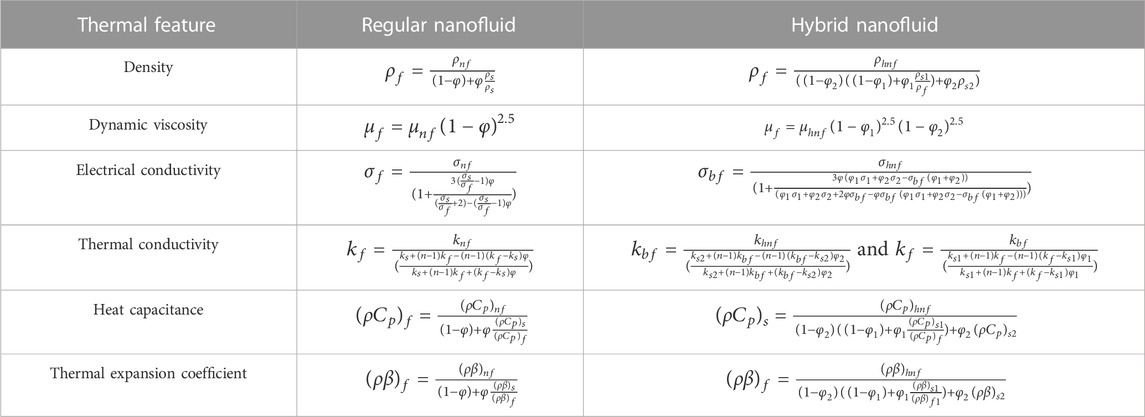

By utilizing Boussinesq’s (Mayeli and Sheard, 2021) and Roseland approximations (Chu et al., 2020), the governed partial differential equations can be formulated as follows (Asjad et al., 2022):where and represent the dynamic density viscosity, electrical conductivity, volumetrically thermal expansion, heat capacitance of the nanofluid, thermal conductivity, and thermal diffusion coefficient, respectively. Its corresponding boundary conditions are as follows:

The initial conditions of the entire system are considered in Eq. 4 at , where in Eq. 5, the boundary conditions are taken at in which the whole system is in a rest position for , where in the last boundary condition (6) at , the rate of shear stress and the Newtonian heating effect are considered with the constant bioconvection parameter. Now that the following dimensionless variables have been included, the linked governed equations may not be analyzed with the dimension of influence of all influencing parameters as follows:and utilizing the aforementioned none-dimensional constraints in the governed equations and conditions (1)–(6), one can obtain the following results by adjusting the abovementioned dimensionless variables while ignoring the ″*″ symbols:with consistent dimensionless circumstanceswhere stand for the applied magnetic field constraint, heat Grashof number, Brinkman fluid parameter, porosity, mass Grashof number, and the dimensionless bioconvection Rayleigh number, respectively. The hybrid nanofluid model, base material, and solid nanoparticles’ thermal characteristics are listed in Tables 1 and 2.

3 Basic preliminaries

In the fractional modeling of the set, as mentioned previously for the governing equations, the ABC (Atangana and Baleanu, 2016) and CF (Caputo and Fabrizio, 2015) formulations are employed, and these temporal derivatives are specified as follows:with its LT

The mathematical form of the CF-fractional derivative is (Caputo and Fabrizio, 2015)and the LT of the CF-fractional derivative is

4 Solution with the AB-fractional derivative

4.1 Solution of the temperature profile

The solution of the non-dimensional equation of the temperature field can be represented as follows in the sense of the AB-time fractional derivative:with

The result of the temperature field can be found by applying the Laplace transformation to the abovementioned equation and utilizing the relevant conditions as follows:

The Laplace inverse of the solution, as described previously, will be numerically evaluated using Stehfest and Tzou’s methods in Tables 3–5.

4.2 Solution of the bioconvection profile

In terms of the AB-time fractional derivative, the solution of a non-dimensional equation of the bioconvection profile may be attained by employing the Laplace transformation on the governed equations in terms of the AB-time fractional derivative, and we getwith the corresponding conditions

By using the aforementioned conditions and Eq. 16, the solution of the bioconvection profile can be derived as

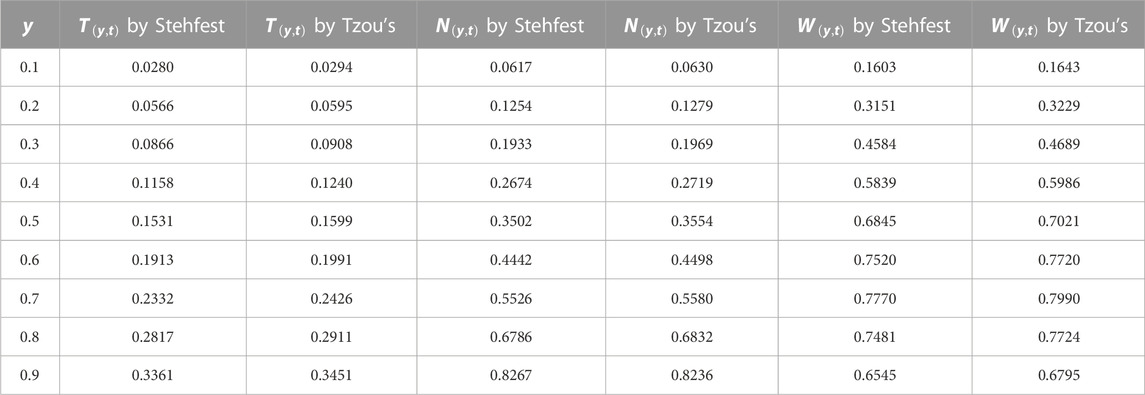

The Laplace inverse of the aforementioned Eq. 17 will be analyzed numerically in Tables 3–5 with numerical algorithms.

4.3 Solution of the velocity profile

For the solution of the velocity profile by employing the LT on the non-dimensional governed equation of the velocity field in Eq. 7,with

and With the help of the aforementioned conditions, the solution of the momentum profile is as follows:

5 Solution with the CF-fractional derivative

5.1 Solution of the temperature field

The following representation shows the evaluation of the non-dimensional temperature field solution using the CF-time fractional derivativewith

The solution of the temperature field will be obtained by applying Laplace to the preceding equation and employing the appropriate conditions as follows:

Using Stehfest and Tzou’s techniques in Tables 3–5, the Laplace inverse of the aforementioned solution will be numerically examined.

5.2 Solution of the bioconvection field

By using the Laplace transformation on the guided equations in terms of the CF-time fractional derivative, we gain the solution of a non-dimensional equation of the bioconvection profile as follows:with the following conditions

By using the aforementioned conditions, the solution of the bioconvection profile in terms of the CF-fractional derivative can be derived as follows:

The Laplace inverse of Eq. 21 will be numerically analyzed using the techniques in Tables 3–5.

5.3 Solution of the velocity profile

The solution of the velocity profile is obtained by employing the LT on the non-dimensional governed equation of the velocity field (Eq. 7):with

and

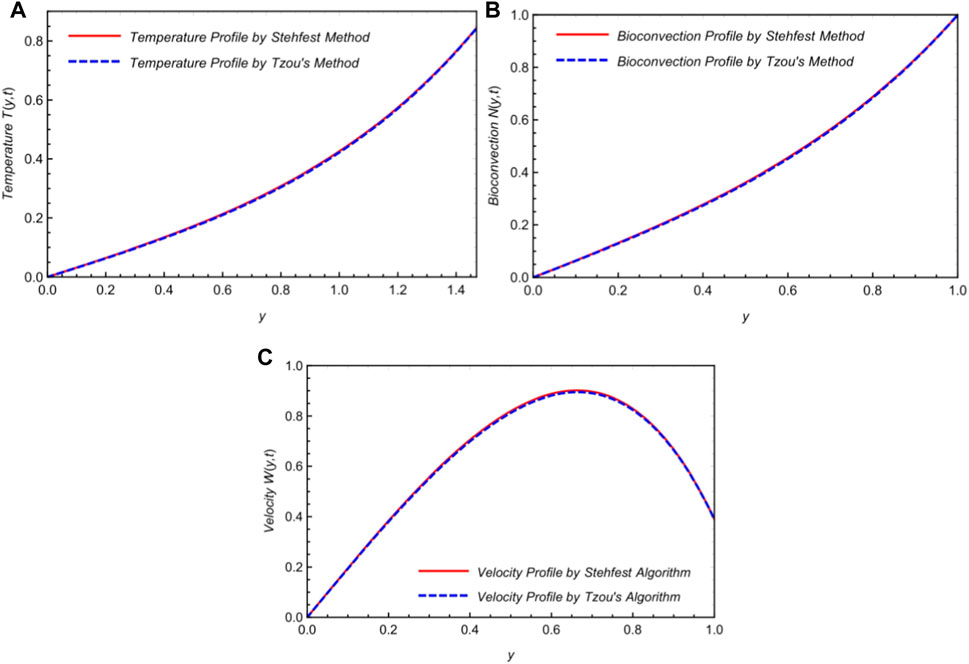

Analyzing the results of the momentum, concentration, and temperature profiles is difficult. We also employed numerical approaches for the Laplace inverse, specifically Stehfest and Tzou’s numerical schemes, as numerous authors have previously performed. The mathematical formulations of these algorithms (Raza et al., 2021a; Raza et al., 2021b; Guo et al., 2021) can be characterized asand

6 Discussion of the results

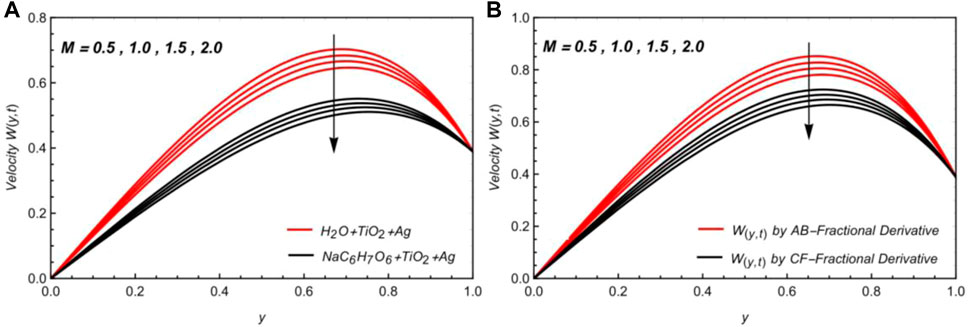

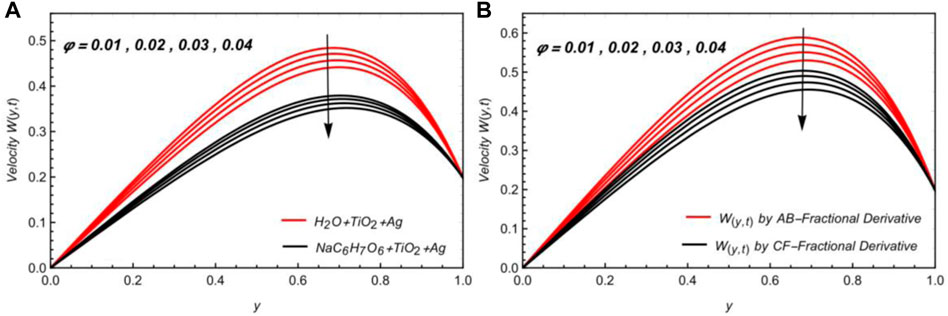

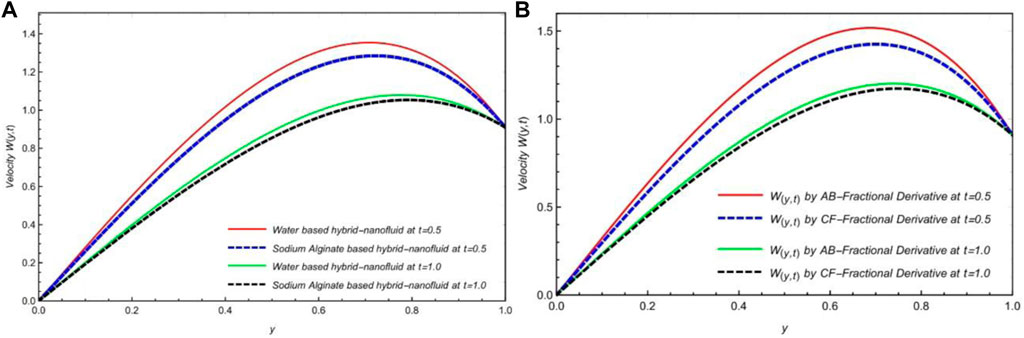

Bioconvection is investigated by employing the combined effects of porosity and the applied magnetic field on a naturally occurring Brinkman-type flow of a viscous and incompressible HNF (Ag-TiO₂-H₂O and Ag-TiO₂-C₆H₉NaO₇) over two parallel plates. The thermal transmission and fluid flow model is fractionalized with two fractional techniques (AB- and CF-fractional derivatives). The Laplace transformation approach is utilized to solve the governing equations. The impact of different constraints has been analyzed graphically with their ranges as follows: . Finally, graphical representations are applied to clarify the physical impacts of flow parameters in Figures 2–14.

FIGURE 2

FIGURE 3

FIGURE 4

FIGURE 5

FIGURE 6

FIGURE 7

FIGURE 8

FIGURE 9

FIGURE 10

FIGURE 11

FIGURE 12

FIGURE 13

FIGURE 14

Asjad et al. (2022).

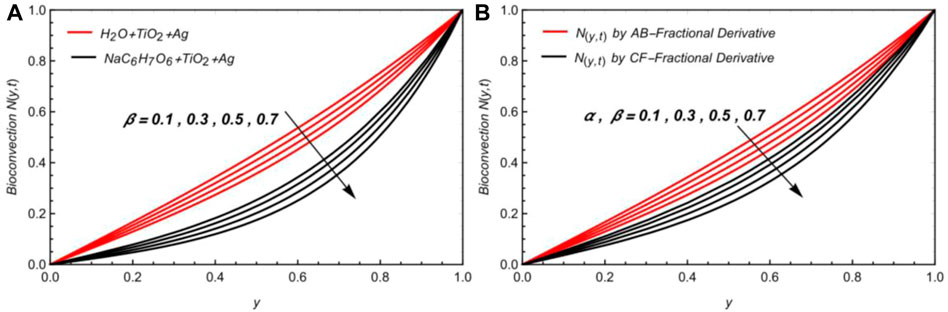

Figure 2A illustrates the influence of the fractional parameter β on bioconvection. The growing value of β causes a decline in bioconvection. This results in a decrease in bioconvection as the boundary layer enlarges. Figure 2B shows the effects of and both AB and CF-fractional operators on bioconvection, and we noted that bioconvection is also reduced by increasing the fractional parameters and . Moreover, the effect of the AB derivative approach is higher than the CF derivative approach, which is due to the different kernels (Mittage–Leffler and exponential-based kernels) of both fractional operators. In fluid mechanics, we usually see that a fractional method is better for controlling the boundary layer viscosity of fluid characteristics. In addition, we found that compared to a silver–titanium dioxide sodium alginate HNF, the bioconvection profile for HNF based on water and silver titanium dioxide has a comparatively larger impact.

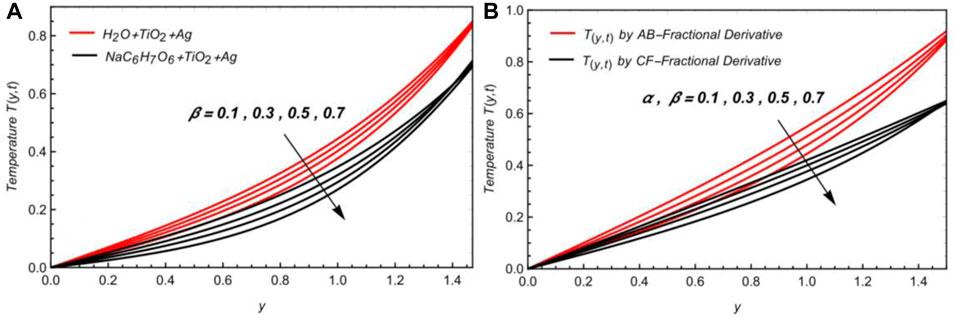

Figure 3A shows that the temperature field declined by increasing β. As the boundary layer becomes extensive, the temperature reduces, which is expected. Figure 3B shows the effects of and both AB and CF-fractional operators on the temperature field and notes that the thermal profile is also reduced by increasing fractional parameters and . Furthermore, the AB derivative approach has a more substantial impact than the CF approach, which is also a result of the different kernels used by the relevant fractional operators (Mittage–Leffler and exponential-based kernels). Additionally, we discovered that the heat profile for silver–titanium dioxide sodium alginate HNF has a substantially less significant impact than the temperature profile for water–silver–titanium dioxide-based HNF.

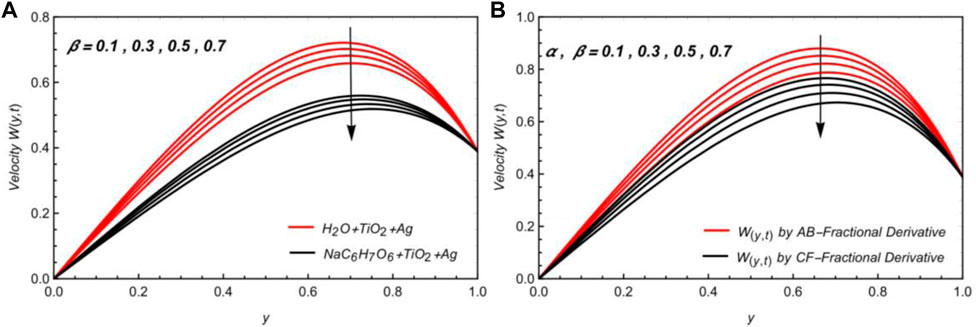

Figure 4A shows that the velocity profile is reduced by increasing β, which is due to the effect of the Mittage–Leffler kernel. Figure 4B shows the effects of and both AB and CF-fractional operators on the velocity profile, and the velocity profile is also reduced by increasing the fractional parameters and . This is because as the boundary layer widens, bioconvection and thermal and momentum fields decrease. Typically, a fractional method is preferable in fluid dynamics for adjusting the boundary layer thickness of the fluid characteristics. Furthermore, the effect of the AB approach is higher than the CF approach, which is also due to the different kernels of involved fractional operators. Additionally, we detected that the velocity profile for water–silver–titanium dioxide-based HNF has a relatively more substantial effect than silver–titanium dioxide sodium alginate HNF. The consequence of HNF is represented in Figures 5A, B. The velocity is reduced for a more considerable value of . Actually, for greater the velocity is lessened due to the dominance of viscous effects. It was found that the temperature might rise with larger values and velocity-indicated drops. In the velocity field, the nanofluid density is significant. When the base fluid and nanoparticles are combined, the resulting hybrid nanofluids become thicker, which reduces the velocity and increases the temperature.

Figures 6A, B represent the velocity diagrams to understand the influence of . The velocity displays a lessening trend for larger values of . When the holes in a porous media are incredibly sufficient, the porous medium’s resistance can be disregarded. Consequently, the velocity increases as the porous surface develops resistance to the liquid. The impact of is shown in Figures 7A, B, and it was revealed that growing (more bouncy influence) boots the fluid speed. Since the buoyancy forces increase as Gr rises, the fluid velocity also rises. The velocity is also increased with as observed in 8a and b. A higher Gm improves the concentration gradient, which raises the buoyant forces, and therefore, the fluid flow rises. Figures 9A, B indicate that the velocity is decreased as we increase the values of . Physically, it responds to the drag force, which affects the velocity that faces the fluid speed. This is true for large values of M because M strengthens the Lorentz forces, which tend to slow down the velocity. The Lorentz forces are closest to the channel walls and weakest in the center. As a result, the velocity is zero at the channel’s edges and maximal in the middle, and therefore, the velocity declines. Figures 10A, B show that the momentum profile is inversely proportional to the inclination angle θ.

The Brinkman parameter impacts the momentum, and the field is presented in Figures 11A, B. The velocity decreases as the value of is enlarged. This occurs by growing the estimations of , and the drag forces are stronger so that the velocity decreases. Figures 12A, B indicate the comparison of the momentum profiles for diverse HNFs (Ag-TiO₂-H₂O and Ag-TiO₂-C₆H₉NaO₇) at different times. We see that Ag-TiO₂-H₂O-based HNF has a significant effect on the velocity profile compared to Ag-TiO₂-C₆H₉NaO₇-based HNF. By adding different NPs in the base fluid, the consequent HNF develops significantly thicker and reduces the velocity. Moreover, it is prominent that the bioconvection, temperature, and momentum profiles for water-based HNF have a relatively progressive value compared to the sodium alginate-based HNF. Furthermore, the effect of the AB approach is higher than the CF approach on the bioconvection, temperature, and velocity fields, which is also due to the different kernels of both fractional operators. To find the numerical inverse Laplace for the temperature, bioconvection, and velocity fields, Figures 13A–C represent a comparison of Tzou and Stehfest approaches and an overall decent agreement was initiated. Furthermore, to check the reliability of our results, Asjad et al. (2022) examined the consequences for the temperature and bioconvection profiles, as compared in Figures 14A, B. The diagrams indicate that the consequences we accomplished overlap with those obtained by Asjad et al. (2022). Table 3 shows the numerical assessment of the bioconvection, temperature, and momentum fields using various computational techniques. Table 4 provides a numerical analysis of the attained solutions with AB- and CF-fractional derivatives. The numerical possessions of the Nusselt number and skin friction coefficient are shown in Table 5. Table 6 shows the numerical analysis of obtained results with ordinary and published work (Asjad et al., 2022).

7 Conclusion

The subsequent recommendations are based on methods, expansions, geometries, and analyses and are intended to indicate a future extension of the issue that this study examines. For example, a horizontal plate of constant length and linear velocity may be used to assess the current issue. A Keller Box scheme analysis of the same issue is also possible.
