Abstract
Terahertz (THz) radiation, which has applications in the imaging of objects, non-destructive testing, satellite communication, medical diagnostics, and biosensing, has generated a great deal of attention due to its remarkable properties. This paper proposes a novel broadband filter for THz applications. The main idea is to overcome the insertion loss and bandwidth issues by modeling a frequency-domain finite difference method and guided-mode resonance (GMR). The optimal design scheme of the wideband pass filter based on the circular resonant ring is discussed by comparing the transmission parameters under various parameters. This scheme overcomes the restriction of the narrow passband bandwidth of the prior THz filters and achieves approximately 3 dB bandwidth of 0.54 THz. The proposed THz filter paper also has the advantages of a straightforward structure, low processing costs, and ease of conformal with other structures, and it can be used for stealth fighters, new communication technology, and precise instruments. In addition, when compared to existing models, the suggested filter offers higher 3 dB BW operation, increased transmittance, low insertion loss, and stable performance at various oblique angles.
1 Introduction
Electromagnetic waves with frequencies ranging from 0.1 to 10 THz are referred to as terahertz waves, which are electromagnetic waves with wavelengths between millimeter waves and infrared light, also known as submillimeter waves (Zhu et al., 2020; Saraereh, 2021; Luo et al., 2022). Because the frequency of the submillimeter wave band is more than 103 times higher than that of the millimeter wave band (the band used for 5G communication), the resources are abundant and the system capacity is large, so 6G technology selects the frequency in this band to achieve faster communication (Alibakhshike et al., 2021; Alibakhshikenari et al., 2022a; Sun et al., 2023). It can be seen that terahertz technology will provide crucial technical support for the development of a new generation of communication technology (Alibakhshikenari et al., 2021a; Althuwayb et al., 2021).
Electromagnetic metamaterials, also known as new artificial electromagnetic media, metamaterials, etc. (Alibakhshikenari et al., 2019a; Alibakhshikenari et al., 2020a; Alibakhshikneari et al., 2020; Alibakhshikenari et al., 2020b; Alibakhshikenari et al., 2020c; Alibakhshikenari et al., 2021b), are characterized by arranging artificial unit structures (artificial atoms) with sub-wavelength scales in a periodic or non-periodic manner, and then obtaining materials beyond the limits of natural materials. Electromagnetic properties, such as negative refractive index, zero refractive index, ultra-high refractive index, high-frequency magnetic response, etc. (Baqir and Choudhury, 2017; Alibakhshikenari et al., 2019b; Alibakhshikenari et al., 2019c; Alibakhshikenari et al., 2019d; Alibakhshikenari et al., 2022b). The research on the basic theory, functional devices and engineering applications of electromagnetic metamaterials has aroused extensive research interests in the fields of physics, information and materials (Baqir, 2019; Baqir, 2020; Pan et al., 2022a; Baqir and Choudhury, 2022; Liu et al., 2023). Based on the designable electromagnetic parameters and distribution of metamaterials, researchers have developed various new devices such as metamaterial cloaks, lenses, and antennas (Li et al., 2021a; Wang et al., 2022a; Yang et al., 2022; Zhao and Wang, 2022; Wang et al., 2023a). According to the field localization and field enhancement characteristics of metamaterials (this effect is especially significant in surface plasmon metamaterials) and subwavelength scale characteristics (Li et al., 2020a; Wang et al., 2022b; Cao, 2022; Liu et al., 2022; Xie et al., 2023), a novel metamaterial sensing and imaging device has been developed, which can effectively improve the sensor’s performance. Sensitivity and imaging resolution (Cheng et al., 2016a; Huang et al., 2020; Li et al., 2021b; Xu et al., 2021; Feng et al., 2022). With the proposal and realization of digital coding and programmable metamaterials, the characterization and design of metamaterials are carried out in binary digital mode (that is, digital 0 and 1), which promotes the integration of metamaterials and information technology, making the new system superhuman. Material imaging system and communication system become possible (Li et al., 2021c; Zhao et al., 2022; Jiang et al., 2023; Liu and Xu, 2023; Xu and Liu, 2023).
The terahertz frequency region is between microwave and far-infrared in the electromagnetic spectrum, and is usually defined as electromagnetic radiation of 0.1–10 THz (Cao et al., 2021; Li et al., 2021d; Pan et al., 2022b; Chung et al., 2022; Ding et al., 2023). With the rapid development of terahertz sources and detectors and the continuous development of terahertz functional devices, terahertz science and technology have achieved vigorous development in recent years. Terahertz technology has good application prospects in material characterization, security inspection, biomedical imaging and communication (Yao et al., 2023; Zhang et al., 2022a; Liu, 2023; Zang et al., 2021; Li et al., 2020b). Among them, in terms of imaging, compared with microwave and millimeter wave frequencies, terahertz imagers will have higher spatial resolution, and compared with optical imaging, terahertz radiation has better penetration, so it can obtain more depth information (Liu et al., 2013; Wang et al., 2022c; Wang et al., 2022d; Liao et al., 2022; Wang et al., 2023b). At the same time, because this is a kind of non-ionizing radiation, it has better biological safety, so the application of terahertz imaging has been widely concerned (Jiang and Li, 2022; Xu et al., 2023; Zhang et al., 2023; Zhou et al., 2023). Terahertz metamaterials and metasurfaces have broad application prospects in terahertz imaging systems due to their sub-wavelength unit scale and flexible manipulation of electromagnetic wave amplitude, phase and polarization characteristics (Cheng et al., 2016b; Hosseininejad et al., 2018; Wang et al., 2019; Li et al., 2021e; Shen et al., 2022; Xi et al., 2022; Li et al., 2023; Miaofen et al., 2023).
In fact, researchers conducted in-depth research on THz waves, and developed many THz devices, such as THz absorbers (Zhao et al., 2019a; Ulla et al., 2019; Fajr et al., 2020; Lee and Jeong, 2020), THz antennas (Geim and Novoselov, 2007; Diaz and Carrier, 2012), THz reflector (Carrier et al., 2013; Danciu et al., 2019; Zhang et al., 2021; Leitenstorfer et al., 2023), etc., and various THz systems, such as THz security detector (Strinati et al., 2019; Zhang et al., 2019; Akhtar et al., 2020), ultra-wideband THZ transmitter (Yi et al., 2019; Chen et al., 2020a; Zou and Chen, 2020), terahertz imaging system (Ullah et al., 2019; Jiao et al., 2020; Huang et al., 2023), etc., they can be applied is widely used in security inspection, communication (Jiang et al., 2017; Lu et al., 2020; Manjappa and Singh, 2020; Rizza and Molle, 2022; Wu and Lin, 2023), biomedicine (Zhang et al., 2022b) and many other fields. Filter, as one of the most widely used key devices in THz communication technology (Chen et al., 2020b), has attracted the close attention of many researchers. The authors in (Wang et al., 2018) used a waveguide bandpass filter made of a two-dimensional square metal photonic crystal plate structure to achieve filtering effects in the sub-terahertz band, and adjusted the parameters and lattice constants of the multilayer waveguide in the structure, making its 3 dB bandwidth reach about 0.0052 THz. However, the structure is too complicated, and there are many influencing parameters, so it is not easy to process and prepare. The authors in (Sun et al., 2020) designed a polarization-insensitive broadband terahertz bandpass filter using metamaterials with complementary resonant structures.
The filter can achieve the same filtering effect on terahertz waves under different incident polarization states, the maximum 3 dB bandwidth in the working frequency band can reach 0.405 THz, and the structure of the filter is simple and easy to prepare. However, its transmission coefficient in the working frequency band is low, resulting in high electromagnetic wave loss. Reference (Kumar et al., 2019) also developed a THz filter using a coupled complementary metamaterial structure, with a 3 dB bandwidth of 0.39 THz. The authors in (Fahad et al., 2019) used the Koch curve fractal structure filter model for simulation analysis, and obtained a THz filter with a center frequency of 0.715 THz and a 3 dB bandwidth of 0.021 THz, but the filter fractal structure of the Koch curve is too complex, and the 3 dB bandwidth is narrow (Zhao et al., 2019b; Jiang et al., 2020).
Although the research work on THz broadband filters has been widely reported so far, according to the above literature analysis, it can be found that the current THz broadband filters still have complex structures, narrow bandwidth, low transmittance, high loss,
etc.In view of this, this paper proposes a novel filter design with significant features. The main contributions are as follows.
• Design a new bimetallic ring electromagnetic metamaterial terahertz broadband bandpass filter based on guided-mode resonance (GMR);
• Optimize the electromagnetic response of the filter structure parameters to THz waves through simulation, so that it has both broadband and high transmittance characteristics;
• The structure of the filter is simple and easy to process, which provides a novel design scheme for THz filtering technology.
2 Filter design
The resonant unit of the THz filter designed in this paper is composed of a two-layer structure, as shown in
Figure 1. The substrate material is a flexible polyimide film, and its dielectric constant
and magnetic permeability μ are 3.5 and 1, respectively. The substrate shape is a cuboid with period length
and thickness
. The upper surface of the substrate is inlaid with two rings of different sizes, wherein: the inner diameter of the small ring is
r, the width of the ring is
, and the thickness of the ring is
. The inner diameter of the large ring is
, the width of the ring is
, and the thickness is
. The material of the ring material is copper whose conductivity of the is set to be 5.96
10
7S/m, which is close to the measured value for copper with the surface height.

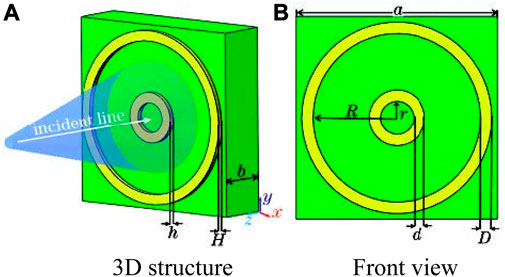

(a) 3D structure b) Front view
FIGURE 1
The design structure of the single-layer THz filter involved in this paper is a theoretical model of artificially synthesized metamaterials. The mechanism of this model structure to achieve filtering characteristics in a certain frequency band of the THz frequency is the surface of the model that constitutes the frequency selective surface (FSS), and it has a frequency-selective effect on the incident electromagnetic wave. In this paper, the frequency domain finite difference (FDFD) software is used to carry out simulation experiments. The THz wave is vertically incident on the filter surface and the metamaterial structure has different electromagnetic response characteristics at different frequency points. The transmission coefficient decreases rapidly at the resonant frequency point, and will maintain a large value at other non-resonant frequency points, resulting in a very obvious trough in the transmission coefficient near the resonant frequency point. At the resonant frequency point, terahertz waves can hardly pass through, but at the non-resonant frequency point, a large number of THz waves can be perfectly transmitted. The above is the principle that the metamaterial structure can form a bandpass filter. Generally speaking, once the parameters of a terahertz filter made of metamaterials are determined, the filter can only work within a certain fixed frequency. By simulating the parameters of the filter and combining them with each other, the wideband pass filter with the best performance can be obtained.
3 Performance evaluation
3.1 Influence of inner ring radius
Firstly, the effect of the radius of the inner ring of the filter structure on its filtering performance is studied. The radius of the inner ring is chosen to be 10, 20, 30, 40, 50 μm, respectively. The remaining structural parameters are set as follows: period length = 180 μm, substrate height = 50 μm, outer ring radius = 80 μm, outer ring width = 5 μm, outer ring thickness = 4 μm, inner ring width = 5 μm, inner ring thickness = 4 μm. On the lateral sides of the unit, periodic boundary conditions are specified in order to produce an infinite metasurface. The open boundary is defined in the meantime to get rid of the reflection from the front and back faces. A periodic structure in the unbounded x-y plane is illuminated by an unlimited plane wave in the simulation, which is based on Floquet’s principle. If the dimension of the device does not match the spot size of the incident wave, as it does in our simulations, scattering must be taken into account for a filter with a finite number of periodic units.
In the frequency range of 0∼1.2 THz, the performance of the filter is simulated and calculated when the radius of the inner ring of the resonant ring of the structure is changed, and the simulation results (S21 parameters) of the filter are obtained, as shown in Figure 2. Figure 2A reflects the transmission coefficient, and Figure 2B reflects the insertion loss. It can be seen that within the frequency range of 0–1.2 THz, the working center frequency of the filter moves to the low frequency direction with the increase of the inner ring radius . When the inner ring radius is in the range of 10–30 μm, the 3 dB bandwidth is larger, and the THz wave filter also has a higher transmission coefficient in its working frequency band. When the inner ring radius = 20 μm, the 3 dB bandwidth reaches the maximum value, and the filter can obtain a larger working bandwidth. After comparing the simulation results, this paper selects the inner ring radius as 20 μm.
FIGURE 2

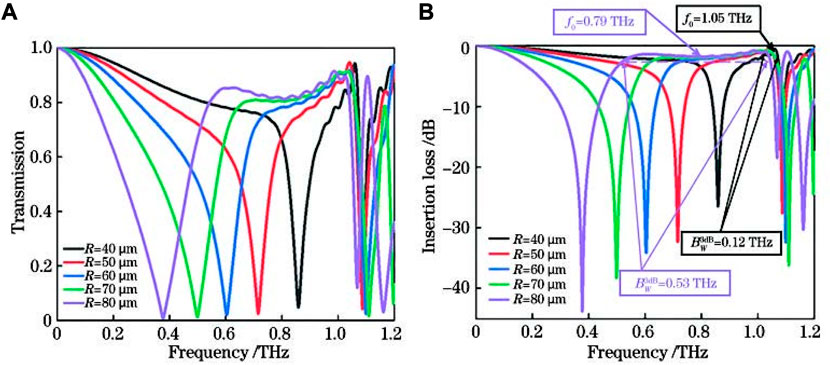

3.2 Effect of outer ring radius
Through the simulation of the above structural parameters, it is found that adjusting the parameters of the ring-shaped resonant structure on the surface of the filter can effectively change its filtering performance. Therefore, when the radius of the inner ring is set to 20 μm and other structural parameters remain unchanged, the value of the radius of the outer ring (40, 50, 60, 70, 80 μm, respectively) is changed for simulation. The simulation result is shown in Figure 3.
FIGURE 3
It can be seen from Figure 3 that as the outer ring radius gradually increases, the filter center frequency moves from the high frequency direction to the low frequency direction, and its 3 dB bandwidth (B3dBW) increases greatly, from 0.12 THz to 0.53 THz. This shows that, while keeping other structural parameters unchanged, increasing the outer ring radius can significantly improve the passband performance of the terahertz filter. However, the size of the outer ring radius needs to match the structural parameters of the overall filter, and continuously increasing the outer ring radius will lead to the destruction of the overall performance of the filter. After comparative analysis, this paper chooses = 80 μm as the optimal structural parameter.

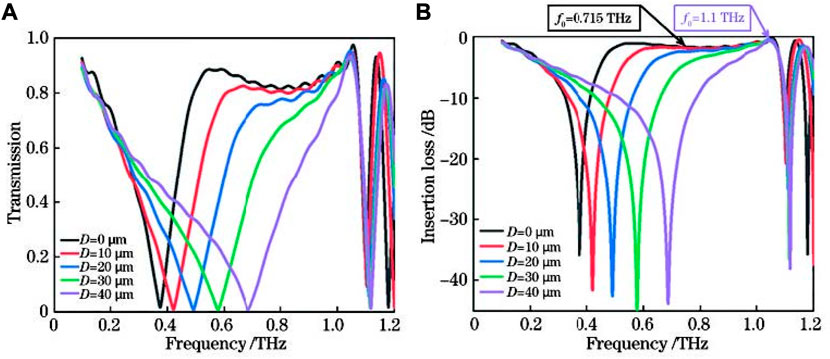

3.3 Effect of outer ring width
In order to analyze the role of the surface ring resonant structure in the overall structure of the terahertz filter in detail, this paper further discusses the influence of the width of the outermost ring structure on the overall performance of the filter. Under the condition that the radius of the outer ring is = 80 μm and other structural parameters remain unchanged, the width of the outer ring is selected to be 0, 10, 20, 30, and 40 μm for simulation, and the results shown in Figure 4 are obtained. The results show the transmission parameters of the metamaterial unit for different outer ring width . It can be seen that the center frequency of the terahertz filter shifts from 0.715 THz to 1.1 THz with the increase of the outer ring width , the center frequency increases gradually, and the 3 dB bandwidth increases with the increase of the outer ring width decrease. When is 0 μm, the transmission coefficient of the terahertz filter is the largest, and the 3 dB bandwidth also reaches the maximum. When is 0 μm, the best filtering effect under ideal conditions can be achieved, but considering the technological conditions of post-processing, this paper takes as a small value as much as possible, here is 5 μm.
FIGURE 4

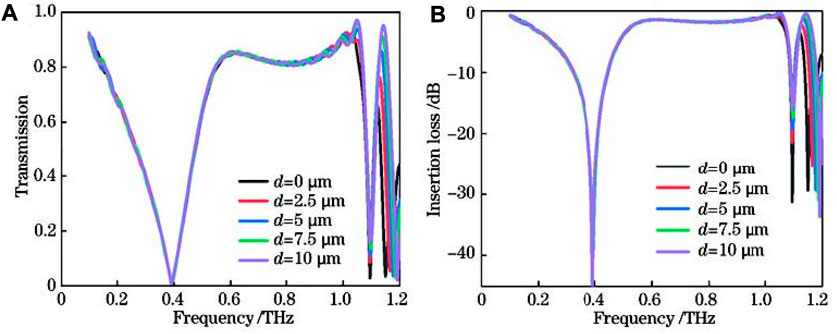

3.4 Effect of inner ring width
The small ring also plays an important role in the overall filtering effect of the filter for the resonant structure, so this paper simulates and optimizes the width of the inner ring. Set the rest of the structural parameters unchanged, the width d of the inner ring is 0, 2.5, 5, 7.5, and 10 μm, respectively, and the corresponding transmission coefficient of the terahertz filter is shown in Figure 5.
FIGURE 5
It can be seen from Figure 5 that as the inner ring width increases from 0 μm to 10 μm, the transmission effect of terahertz waves is almost the same. It can be seen that the change of the inner ring width in the range of 0–10 μm has little effect on the performance of the whole filter. In order to reduce the processing difficulty of the THz filter, the same structural parameters as the outer ring width can be selected, that is, 5 μm.
3.5 Effect of period length

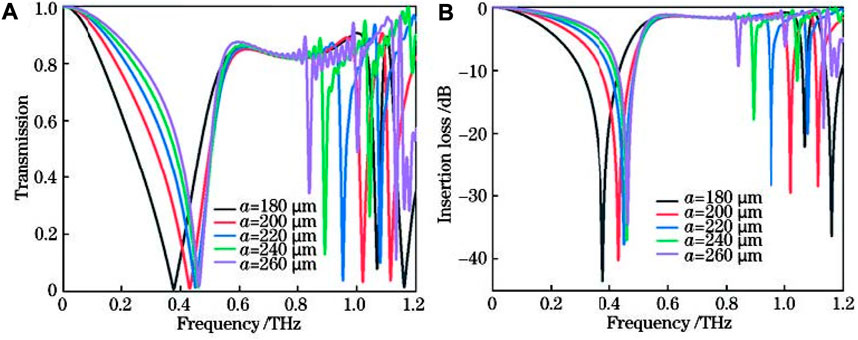

This subsection will analyze the effect of the period length of the structural unit of the THz filter on the overall performance of the filter. In the case of keeping the above ring resonance structure and other structural parameters unchanged, change the period length of the THz filter structural unit (choose a to be 180, 200, 220, 240, 260 μm respectively), and the obtained results are shown in Figure 6.
FIGURE 6
It can be seen from Figure 6 that the increase of the period length of the structural unit has no obvious effect on the low-order resonance of the filter at low frequencies, but it will change its high-order resonance at high frequencies, and the high-order resonance frequency increases with the period length increase in λ moves from 1.18 THz to 0.82 THz, resulting in a decrease in the 3 dB bandwidth width. To ensure that the filter has a high 3 dB bandwidth, this paper selects the period length of the structural unit as 180 μm, so that it has better filtering performance.

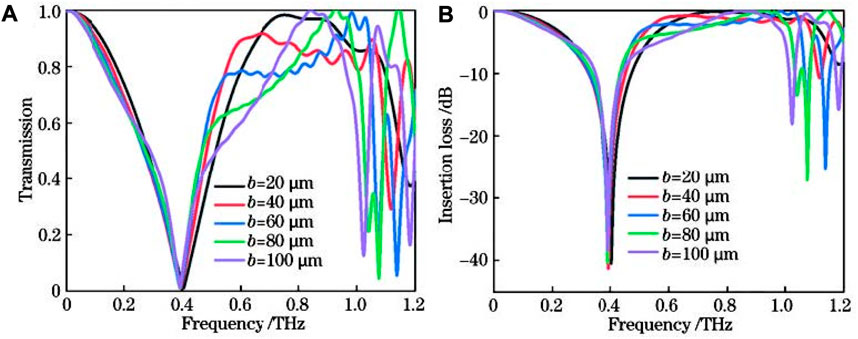

3.6 Influence of substrate thickness
The substrate of the THz filter is polyimide flexible material, and its thickness will directly affect whether the device can easily conform to other structures when it is used later. Therefore, under the condition that the above structural parameters remain unchanged, this paper conducts simulations while changing the substrate thickness (i.e., is 20, 40, 60, 80, 100 μm, respectively). Figure 7 shows the transmission parameters of metamaterial elements with varying substrate thickness b. It can be seen from Figure 7 that when the substrate thickness is 20–40 μm, the filter has better filtering performance. As the substrate thickness continues to increase, the ripple fluctuation in the filter band becomes more obvious, and the 3 dB bandwidth width also increases. For continuously increasing the filter substrate thickness does not improve its filtering performance. Therefore, the thickness of the substrate selected in this paper is 40 μm, which can obtain a more flexible overall structure while ensuring that the filter has better filtering performance and stable mechanical structure. It can be perfectly attached to satellites, spacecraft, wireless surface of complex structures such as human and machine, thus broadening its practical application value. The insertion loss also has better performance when 40 μm and its performance gets degraded for higher thickness values. Therefore, we conclude that to get optimal filtering performance from this structure, the thickness should be 40 μm.
FIGURE 7
3.7 Analysis of the overall structure parameters
In summary, the specific parameters of the terahertz filter are obtained, as shown in Table 1. The frequency domain finite difference simulation software is used for simulation, and the transmission coefficient and insertion loss of the terahertz filter are obtained, as shown in Figure 8.

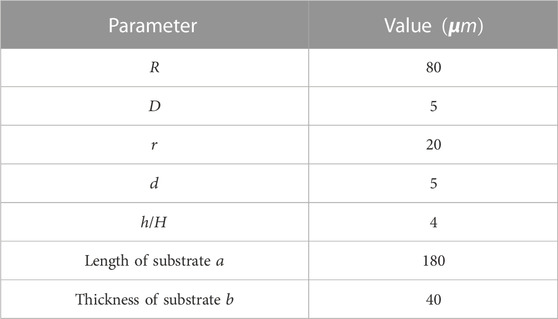

TABLE 1
| Parameter | Value |
|---|---|
| 80 | |
| 5 | |
| 20 | |
| 5 | |
| 4 | |
| Length of substrate | 180 |
| Thickness of substrate | 40 |
Specific parameters of the THz filter.

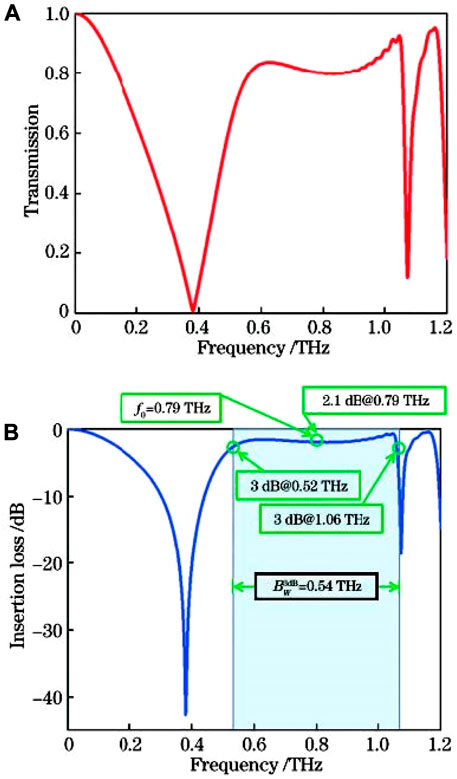

FIGURE 8
It can be seen from Figure 8 that the center frequency of the filter is 0.79 THz, the passband is 0.52∼1.06 THz, the 3 dB bandwidth is 0.54 THz, and the relative bandwidth reaches 68.3%. The insertion loss is less than 2.1 dB. Figure 9, Figure 10 are the simulated electric field distribution diagrams of the THz filter at the center frequency of 0.79 THz and the surface current distribution diagrams at 0.37, 0.79, and 1.06 THz, respectively. By analyzing the electric field distribution diagram of the filter near the center frequency, it can be found that when the THz wave reaches port 2 (negative direction of x-axis) from port 1 (positive direction of x-axis), the electric field distribution on the front and rear sides of the filter is roughly the same. Compared with the front side, the electric field intensity at the rear side of the filter has no obvious attenuation, which indicates that the filter has good passband characteristics at this time, and the THz wave realizes low-loss transmission in the passband.

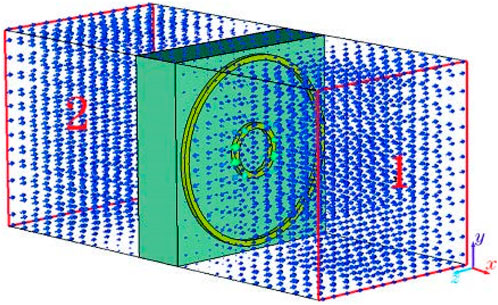

FIGURE 9
FIGURE 10

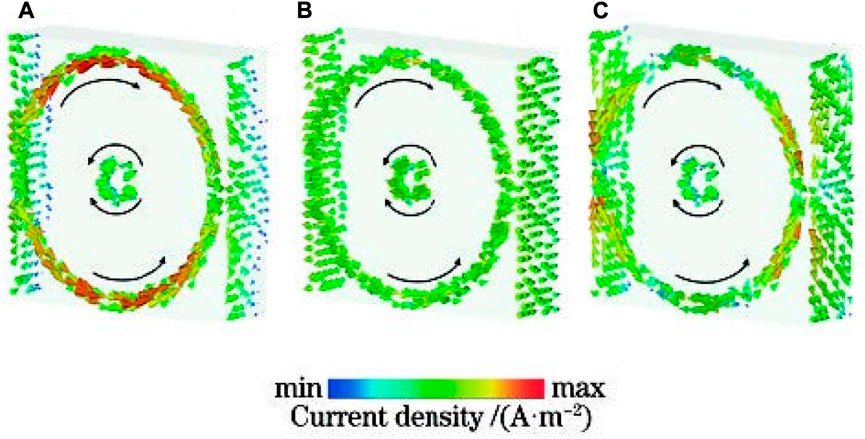

In order to better understand the working mechanism of the terahertz filter, this paper selects the low-order resonance frequency ( = 0.37 THz), the center frequency ( = 0.79 THz) and the high-order resonance frequency of the THz filter respectively (see Figure 9). The surface current distribution at the frequency ( = 1.06 THz) was analyzed. By observing the surface current distribution at = 0.37 THz, it can be found that: at the outer ring, the current starts from the left side of the central axis of the outer ring and divides into upper and lower parts, and flows through the upper half ring and the lower half ring at the same time to the outer ring. The right side of the central axis of the ring, and when the current passes near the vertices of the upper and lower half rings, the current intensity continues to increase. At the inner ring, the current starts from the right side of the central axis of the inner ring, flows through the upper and lower parts of the inner ring at the same time, and reaches the left side of the central axis of the inner ring, and its current distribution law is just opposite to that of the outer ring. It is precisely because the inner ring and the outer ring have opposite current flow directions, two sets of strong LC (inductance-capacitance) resonances are generated above and below the central axis of the filter surface, resulting in a low frequency of the filter at 0.37 THz order resonance. Similarly, at = 1.06 THz, the surface of the filter has the same current distribution as that at the low-order resonance ( = 0.37 THz), but its current intensity is significantly weaker than that at the low-order resonance, less attenuation of the transmission spectrum leading to higher order resonances. Continuing to analyze the surface current distribution of the filter at the center frequency ( = 0.79 THz), it can be found that although the overall distribution of the surface current is not significantly different from the low-order resonance and the current distribution at the high-order resonance at this time, the current intensity is obviously weaker than the current intensity at the first two frequencies, so that the filter has a lower resonance intensity in the working frequency band and can obtain higher passband characteristics.
Further analysis shows that the double-ring resonance structure can generate a low-order resonance and a high-order resonance in the range of 0–1.2 THz, the two resonance frequencies are far apart, and a transmission spectrum with a high degree of attenuation can be obtained at the resonance frequency. Therefore, the filter can obtain a wider operating bandwidth and better out-of-band rejection. At the same time, in the working frequency band of the filter, the resonance response of the structure is small, which ensures that the filter has a high transmission spectrum in the passband.

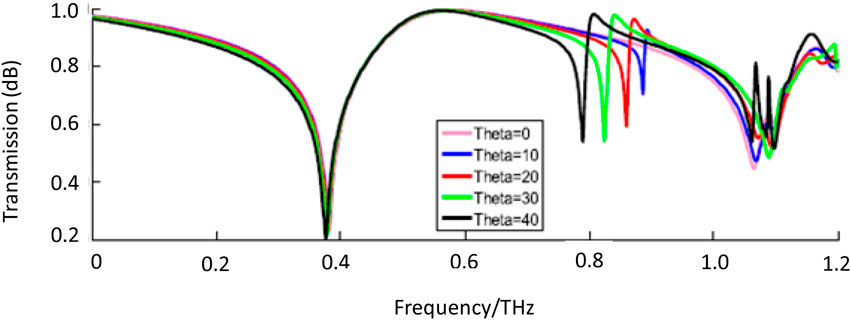

Figure 11 compared the transmission characteristics of the proposed filter structure under different incident angles. As can be seen from Figure 11, the transmission performance has stable performance for different incident angles which indicates its effectiveness.
FIGURE 11

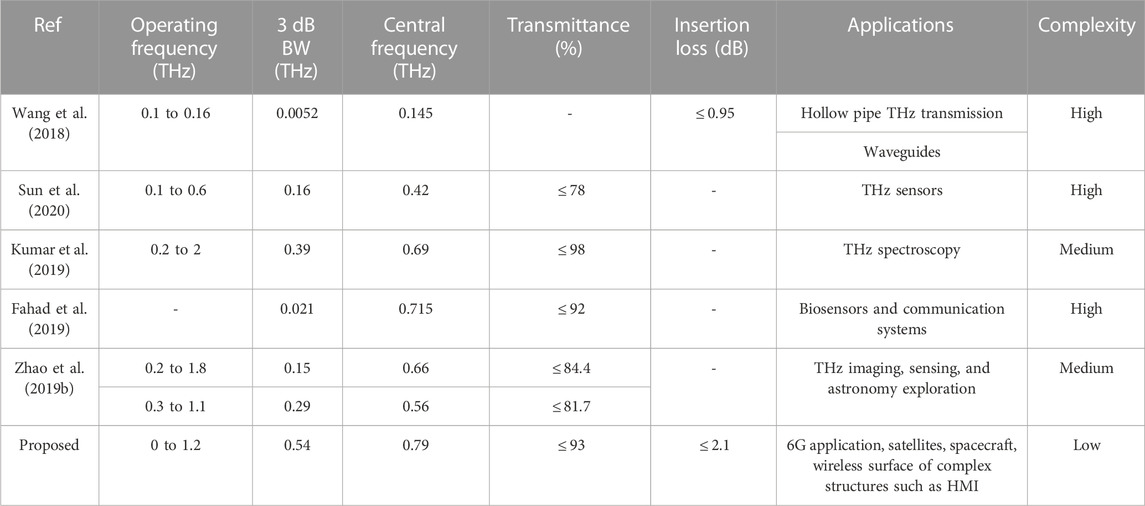

Table 2 shows the comparison between the results of terahertz filters in recent years and the results of this paper.
TABLE 2
| Ref | Operating frequency (THz) | 3 dB BW (THz) | Central frequency (THz) | Transmittance (%) | Insertion loss (dB) | Applications | Complexity |
|---|---|---|---|---|---|---|---|
| Wang et al. (2018) | 0.1 to 0.16 | 0.0052 | 0.145 | - | Hollow pipe THz transmission | High | |
| Waveguides | |||||||
| Sun et al. (2020) | 0.1 to 0.6 | 0.16 | 0.42 | - | THz sensors | High | |
| Kumar et al. (2019) | 0.2 to 2 | 0.39 | 0.69 | - | THz spectroscopy | Medium | |
| Fahad et al. (2019) | - | 0.021 | 0.715 | - | Biosensors and communication systems | High | |
| Zhao et al. (2019b) | 0.2 to 1.8 | 0.15 | 0.66 | - | THz imaging, sensing, and astronomy exploration | Medium | |
| 0.3 to 1.1 | 0.29 | 0.56 | |||||
| Proposed | 0 to 1.2 | 0.54 | 0.79 | 6G application, satellites, spacecraft, wireless surface of complex structures such as HMI | Low |
Performance comparison of proposed and existing designs.
4 Conclusion
In this paper, a metamaterial THz filter with a double ring structure is designed, and then the parameters of the filter are simulated and tested using electromagnetic simulation software. The transmission parameters are analyzed, and the parameters of the resonant ring and the substrate effect of each parameter on the performance of the terahertz filter are evaluated. By comparing the transmission parameters under various parameters, the optimal design scheme of the wideband pass filter based on the circular resonant ring is discussed, which breaks through the limitation of the narrow passband bandwidth of the previous THz filters, and obtains about 3 dB bandwidth of 0.54 THz. In addition, the proposed THz filter paper has the characteristics of simple structure, low processing cost, easy conformal with other structures, and can be applied to stealth fighters, new communication equipment and precision instruments. Furthermore, the proposed filter has the advantages of higher 3 dB BW operation, improved transmittance, low insertion loss and stable performance under different oblique angles as compared with existing models. In the follow-up research, we will consider other parameters to evaluate the performance of the filter.
